The Cisco Software Defined WAN (SD-WAN) is a cloud-hosted and cloud-delivered overlay WAN architecture that facilitates digital and cloud transformation for enterprises. It significantly drops WAN costs, reduces the time to deploy services, build application resiliency and provides a robust security architecture for hybrid networks.
Cisco SD-WAN solves many critical enterprise problems, including:
● Establishing transport-independent WAN for lower cost and higher diversity
● Meeting Service-Level Agreements (SLAs) for business-critical and real-time applications
● Providing end-to-end segmentation for protecting critical enterprise compute resources
● Extending seamlessly into the private/public cloud
● Providing direct Internet access from the branches with Zone-Based Firewall
● Providing secured control and data plane connectivity
Cisco SD-WAN provides data plane and control plane separation by having controllers in the cloud (public or private).
This document covers the enterprise solution profile built with the features described below.
Security
The Cisco SD-WAN solution offers secure control and management communications between the routers and the control components. Data plane communication between the WAN Edge routers is encrypted and secured based on IPSec encapsulation.
Hybrid transport
There are two data centers in this profile with each data center having two SD-WAN routers. All of the data-center SD-WAN routers are connected to Internet and Multiprotocol Label Switching (MPLS) transports.

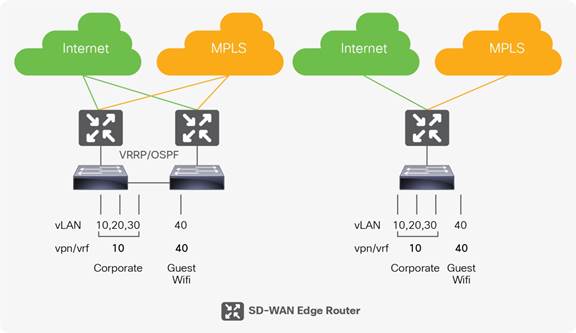

The branches have a range of connectivity models. Some are hybrid and connected to the Internet and MPLS; some are connected to only one transport, either to the Internet or to MPLS.
The same profile was configured and tested with dual Internet transports.
Segmentation and Zone-Based Firewall (ZBFW)
There can be multiple segments in the branches, and, with Cisco SD-WAN, a user is able to keep the segments separate within the branch and on the overlay. In this profile, two VPN segments have been defined. One segment is used for Guest Wi-Fi (VPN 40) and requires Direct Internet Access (DIA) only. A guest segment is not allowed to talk to any other segment within the branch or on the overlay. The store segment (VPN 10) has three VLANs, for VoIP, for Point-Of-Sale (POS) systems, and for employees.
Zone-Based Firewall is deployed for the traffic from Guest Wi-Fi VPN to DIA.
Policy- based hub-and-spoke topology
Centralized policies are deployed to establish a hub-and-spoke topology between the data centers and the branches.
One set of branches prefers the default route from Data Center 1 (DC1), and another set of branches prefers the default from Data Center 2 (DC2).
Quality of Service
Quality of Service (QoS) is configured on all devices. The WAN bandwidth is appropriately distributed between different types of applications. Voice is given dedicated bandwidth on WAN interfaces and placed in a Low Latency Queue. Other traffic classes share the remaining bandwidth among them based on weight assignment.
SLA based application-aware routing policies
Centralized application-aware routing policies are configured for hybrid sites. Voice SLAs are defined and MPLS is defined as the preferred path for Voice traffic. Internet is defined as the preferred path for Best-Effort traffic.
Dynamic Host Configuration Protocol (DHCP) servers for the branches
The WAN edge routers in the branches are configured as DHCP) servers for some of the segments for allocating IP addresses to the clients.
High Availability
In the data center, Border Gateway Protocol (BGP) is deployed for dynamic routing.
One set of branches utilizes Virtual Router Redundancy Protocol (VRRP) on the SD-WAN edge routers connected to the Layer2 (L2) switch within the branch. Another set of branches run Open Shortest Path First (OSPF) Protocol between the SD-WAN edge router and the Layer 3 (L3) switch within the branch.
Table 1. Profile feature summary
| Deployment area |
Features |
| Security |
TLS/DTLS certificate-based control plane, IPsec-based data plane, Segmentation, Zone-Based Firewall |
| Services |
QoS, DIA, NAT, ACL, DHCP Server |
| Routing |
BGP, OSPF, VRRP |
| Centralized Policies |
SLA-based path selection, policy-based hub-and-spoke topology |
| Centralized Management |
Configuration, Monitoring and Policy management through vManage |
Based on research, customer feedback, and configuration samples, the SD-WAN profile is designed with a generic deployment topology that you can easily modify to fit any specific deployment scenario. This profile caters to enterprise network deployments with a large number of remote/branch offices and few data centers.
Hardware and feature specifications
This section describes the 3-D feature matrix, where the hardware platforms are listed along with their Place In Network (PIN) and the relevant vertical deployment.
Table 2 defines the Hardware, PIN, and SD-WAN features deployed.
Table 2. 3-D feature summary with hardware and PIN
| PIN |
Platforms |
Critical features |
| SD-WAN routers in the data centers |
Viptela vEdge 2000 Viptela vEdge 5000 Cisco® ASR 1001-HX ASR 1002-HX |
Dynamic routing (BGP) Quality of Service (QoS) Hybrid WAN ACL |
| SD-WAN routers in the branches |
vEdge100 vEdge1000 ISR 4331 |
Segmentation Zone-Based Firewall VRRP/OSPF DHCP Server Quality of Service (QoS) Hybrid WAN NAT/DIA TLOC-Extension ACL |
| Controller deployment |
EXi6.0 vBond vSmart vManage |
Centralized
●
Management
●
Control
●
Provisioning
●
Monitoring
●
Policy
|
| Internet transport |
ISR/ASR Routers |
IP routing for Internet transport |
| MPLS transport |
ISR/ASR Routers |
IP routing for MPLS transport |
| L2/L3 access switches |
CAT3K |
Provides L2/L3 connectivity in branches |
Table 3 defines the set of relevant servers, test equipment, and endpoints that are used to complete the end-to-end deployment.
This list of hardware, along with the relevant software versions and the role of these devices, complements the actual physical topology shown in Figure 1.
Table 3. Hardware profile of servers and endpoints
| Virtual machine and hardware |
Software version |
Description |
| Spirent |
Spirent Test Center |
Generates L4/L7 traffic |
To validate a new release, the network topology is upgraded with the new software image with an existing configuration composed of the use cases and the relevant traffic profile. New use cases acquired from the field or from customer deployments are added to the existing configuration.
With respect to the longevity of this profile, the setup, CPU, and memory use/leaks are monitored during the validation phase. Furthermore, to test the robustness of the software release and platform being tested, negative events are triggered during the use-case execution process.
Table 4 describes the use cases executed as part of this profile test. The use cases are divided into buckets of technology areas to view complete coverage of the deployment scenarios.
The technology buckets comprise System Upgrade, Security, Network Service, Monitoring & Troubleshooting, simplified management, system health monitoring along with system, and network resiliency.
Table 4. List of use case scenarios
| No |
Focus area |
Use cases |
| Centralized management using vManage |
||
| 1 |
System health monitoring |
●
Monitor site health
●
Monitor device health
●
Monitor Bidirectional Forwarding Detection (BFD) session state from the devices
●
Monitor control session state
●
Monitor BFD / transport performance statistics
●
View alarms and events
|
| 2 |
Configuration templates |
●
Utilize the configuration template from vManage to update the device configuration
●
Configure/update ACLs and route policies
●
Define/update ZBFW policies
|
| 3 |
Centralized policy management |
●
Utilize vManage GUI interface to provision and update centralized policies
|
| 4 |
Software upgrade |
●
Upgrade the controllers and SD-WAN routers through vManage
|
| 5 |
Admin-tech |
●
Collect admin-tech from the controllers and SD-WAN edges
|
| 6 |
Troubleshooting |
●
SSH into devices from vManage portal
●
Issue real-time commands from device dashboard
|
| Security |
||
| 7 |
Zone-Based Firewall |
●
Define and apply ZBFW to traffic that is allowed to use DIA from Guest Wi-Fi VPN/VRF
|
| 8 |
Segmentation |
●
Configure VLAN segments in the branch
●
Guest Wi-Fi VPN segmented from corporate VPN
●
VPN membership policy for the centralized vSmart policies
|
| Network services |
||
| 9 |
Quality of Service (QoS) |
●
Provide classification of traffic for QoS using Access Control List (ACL) and map it to forwarding classes
●
BW allocation forwarding class mapping to queues
●
Voice traffic is mapped to Low Latency Queuing (LLQ)
●
Shaping on the WAN interfaces
|
| 10 |
Centralized control policies |
●
Hub-and-spoke topology between data centers and remote branches
●
Different branch groups prefer one data center over another for a default route
|
| 11 |
Centralized SLA-based routing policy |
●
Define SLA threshold for voice
●
Prefer MPLS for voice
●
Prefer Internet for best-effort data
|
| 12 |
VPN membership policy |
●
Utilize VPN membership policy to restrict Guest Wi-Fi routing from overlay
|
| Routing |
||
| 13 |
BGP |
●
In the data center, run BGP between the SD-WAN edge routers and the data-center aggregation routers
●
Redistribute routes between BGP and Overlay Management Protocol (OMP)
|
| 14 |
OSPF |
●
Run OSPF in the branches access switch/router
●
Redistribute OSPF into OMP
|
| 15 |
VRRP |
●
Run VRRP on the vLANs in the branches
|
| Application visibility |
||
| 16 |
cFLOWD/netflow |
●
Enable cFLOWD/netflow export to collector
|
| 17 |
DPI/NBAR |
●
Enable application visibility
|
| System resiliency |
||
| 18 |
System resiliency |
Verify system-level resiliency during the following events:
●
Power failure
●
WAN/LAN interface flaps
●
Network impairments as per SLA requirements
|
| Negative testing |
||
| 19 |
|
Verify that the system holds well and recovers to working condition after the following negative events are triggered:
●
Configuration changes: add/remove configuration snippets, replace configuration
●
Clear counters, clear routes
●
Routing protocol interface flap
|
Appendix A: System configuration
The system configuration is the same across all controllers and WAN Edge routers, including Cisco XE SDWAN (cEdge) and Viptela SDWAN (vEdge).
system
host-name vEdge3
system-ip 11.2.1.3
site-id 1200
admin-tech-on-failure
no route-consistency-check
sp-organization-name "Cisco Sy1 - 19968"
organization-name "Cisco Sy1 - 19968"
vbond vbondesc.com
Appendix B: Hybrid transports VPN 0 configuration
vpn 0
name "Transport VPN"
dns 8.8.4.4 secondary
dns 8.8.8.8 primary
host vbondesc.com ip 21.1.1.11 21.1.2.11
interface ge0/0
ip address 20.1.3.101/24
nat
!
tunnel-interface
encapsulation ipsec
color gold
no allow-service bgp
allow-service dhcp
allow-service dns
allow-service icmp
no allow-service sshd
no allow-service netconf
no allow-service ntp
no allow-service ospf
no allow-service stun
allow-service https
!
no shutdown
shaping-rate 10000
qos-map WANQoS
!
interface ge0/1
ip address 20.2.3.101/24
tunnel-interface
encapsulation ipsec
color mpls restrict
no allow-service bgp
allow-service dhcp
allow-service dns
allow-service icmp
no allow-service sshd
no allow-service netconf
no allow-service ntp
no allow-service ospf
no allow-service stun
allow-service https
!
no shutdown
shaping-rate 10000
qos-map WANQoS
!
interface ge0/7
mtu 1504
no shutdown
!
!
ip route 0.0.0.0/0 20.1.3.1
ip route 0.0.0.0/0 20.2.3.1
!
ip host vbondesc.com 21.1.1.11 21.1.2.11
ip name-server 8.8.4.4 8.8.8.8
ip route 0.0.0.0 0.0.0.0 20.1.15.1 1
ip route 0.0.0.0 0.0.0.0 20.2.15.1 1
interface GigabitEthernet0/0/0
no shutdown
arp timeout 1200
mtu 1500
negotiation auto
service-policy output shape_GigabitEthernet0/0/0
ip mtu 1500
ip nat outside
ip address 20.1.15.101 255.255.255.0
exit
interface GigabitEthernet0/0/1
no shutdown
arp timeout 1200
mtu 1500
negotiation auto
service-policy output shape_GigabitEthernet0/0/1
ip mtu 1500
ip address 20.2.15.101 255.255.255.0
exit
interface Tunnel0
no shutdown
ip unnumbered GigabitEthernet0/0/0
no ip redirects
ipv6 unnumbered GigabitEthernet0/0/0
no ipv6 redirects
tunnel source GigabitEthernet0/0/0
tunnel mode sdwan
exit
interface Tunnel1
no shutdown
ip unnumbered GigabitEthernet0/0/1
no ip redirects
ipv6 unnumbered GigabitEthernet0/0/1
no ipv6 redirects
tunnel source GigabitEthernet0/0/1
tunnel mode sdwan
exit
!
sdwan
interface GigabitEthernet0/0/0
tunnel-interface
color gold restrict
no last-resort-circuit
vmanage-connection-preference 5
no allow-service all
no allow-service bgp
allow-service dhcp
allow-service dns
allow-service icmp
no allow-service sshd
no allow-service netconf
no allow-service ntp
no allow-service ospf
no allow-service stun
allow-service https
encapsulation ipsec weight 1
exit
exit
interface GigabitEthernet0/0/1
tunnel-interface
color mpls restrict
no last-resort-circuit
vmanage-connection-preference 5
no allow-service all
no allow-service bgp
allow-service dhcp
allow-service dns
allow-service icmp
no allow-service sshd
no allow-service netconf
no allow-service ntp
no allow-service ospf
no allow-service stun
allow-service https
encapsulation ipsec weight 1
exit
exit
Appendix C: Data center LAN-side configuration
vpn 10
router
bgp 65220
address-family ipv4-unicast
maximum-paths paths 2
redistribute omp
!
neighbor 10.201.1.2
no shutdown
remote-as 65221
!
neighbor 10.201.2.2
no shutdown
remote-as 65221
!
!
!
interface 10ge2/2
ip address 10.201.1.1/24
no shutdown
access-list LAN-Classification in
!
interface 10ge2/3
ip address 10.201.2.1/24
no shutdown
access-list LAN-Classification in
!
!
vrf definition 10
rd 1:10
address-family ipv4
exit-address-family
!
address-family ipv6
exit-address-family
!
!
interface GigabitEthernet1/0/0
no shutdown
vrf forwarding 10
ip address 10.201.3.1 255.255.255.0
!
interface GigabitEthernet1/0/1
no shutdown
vrf forwarding 10
ip address 10.201.4.1 255.255.255.0
!
router bgp 65220
timers bgp 60 180
bgp log-neighbor-changes
distance bgp 20 200 20
address-family ipv4 unicast vrf 10
maximum-paths 2
neighbor 10.201.3.2 remote-as 65221
neighbor 10.201.3.2 activate
neighbor 10.201.3.2 ebgp-multihop 1
neighbor 10.201.4.2 remote-as 65221
neighbor 10.201.4.2 activate
neighbor 10.201.4.2 ebgp-multihop 1
redistribute omp
exit-address-family
!
!
Appendix D: DHCP and VRRP branch configuration
vpn 10
interface ge0/7.10
ip address 10.10.1.1/24
no shutdown
access-list LAN-Classification in
vrrp 10
track-omp
ipv4 10.10.1.3
!
dhcp-server
address-pool 10.10.1.0/25
exclude 10.10.1.1-10.10.1.100
offer-time 600
lease-time 86400
admin-state up
options
default-gateway 10.10.1.3
dns-servers 8.8.8.8 8.8.4.4
!
!
!
ip dhcp excluded-address vrf 10 10.40.1.0 10.40.1.100
ip dhcp pool vrf-10-GigabitEthernet1/0/0.10
vrf 10
default-router 10.40.1.3
dns-server 8.8.4.4 8.8.8.8
network 10.40.1.0 255.255.255.0
lease 1 0 0
exit
interface GigabitEthernet1/0/0.10
no shutdown
encapsulation dot1Q 10
vrf forwarding 10
ip mtu 1500
ip address 10.40.1.1 255.255.255.0
vrrp 10 address-family ipv4
vrrpv2
priority 40
address 10.40.1.3
track omp shutdown
exit
exit
Appendix E: Quality-of-Service (QoS) configuration
vpn 0
interface ge0/0
shaping-rate 10000
qos-map WANQoS
!
interface ge0/1
shaping-rate 10000
qos-map WANQoS
!
vpn 10
interface ge0/7.10
access-list LAN-Classification in
policy
class-map
class Queue0 queue 0
class Voice_EF queue 0
class Queue1 queue 1
class Queue2 queue 2
class NetProtocol_CS3 queue 3
class Queue3 queue 3
class NetMgmt_CS2 queue 4
class Queue4 queue 4
class CriticalData_AF21 queue 5
class Queue5 queue 5
class Queue6 queue 6
class Scavanger_AF11 queue 6
class BestEffort_CS1 queue 7
class Queue7 queue 7
!
access-list LAN-Classification
sequence 1
match
destination-port 1719-1721
!
action accept
class Voice_EF
set
dscp 46
!
!
!
sequence 11
match
destination-port 2326-2485
!
action accept
class Voice_EF
set
dscp 46
!
!
!
sequence 21
match
protocol 8 88 89
!
action accept
class NetProtocol_CS3
set
dscp 24
!
!
!
sequence 31
match
destination-port 22
!
action accept
class NetProtocol_CS3
set
dscp 24
!
!
!
sequence 41
match
destination-ip 10.200.200.0/24
!
action accept
class NetMgmt_CS2
set
dscp 16
!
!
!
sequence 51
match
destination-ip 10.200.201.0/24
destination-port 161 162 514
!
action accept
class CriticalData_AF21
set
dscp 20
!
!
!
sequence 61
match
destination-port 20 21
!
action accept
class BestEffort_CS1
set
dscp 8
!
!
!
sequence 71
match
destination-ip 10.200.202.0/24
!
action accept
class Scavanger_AF11
set
dscp 10
!
!
!
sequence 81
action accept
class BestEffort_CS1
set
dscp 10
!
!
!
default-action accept
!
qos-scheduler WANQoS_0
class Queue0
bandwidth-percent 11
buffer-percent 11
scheduling llq
!
qos-scheduler WANQoS_1
class Queue1
bandwidth-percent 10
buffer-percent 10
drops red-drop
!
qos-scheduler WANQoS_2
class Queue2
bandwidth-percent 10
buffer-percent 10
drops red-drop
!
qos-scheduler WANQoS_3
class Queue3
bandwidth-percent 5
buffer-percent 5
drops red-drop
!
qos-scheduler WANQoS_4
class Queue4
bandwidth-percent 2
buffer-percent 2
drops red-drop
!
qos-scheduler WANQoS_5
class Queue5
bandwidth-percent 48
buffer-percent 48
drops red-drop
!
qos-scheduler WANQoS_6
class Queue6
bandwidth-percent 5
buffer-percent 5
drops red-drop
!
qos-scheduler WANQoS_7
class Queue7
bandwidth-percent 9
buffer-percent 9
drops red-drop
!
qos-map WANQoS
qos-scheduler WANQoS_0
qos-scheduler WANQoS_1
qos-scheduler WANQoS_2
qos-scheduler WANQoS_3
qos-scheduler WANQoS_4
qos-scheduler WANQoS_5
qos-scheduler WANQoS_6
qos-scheduler WANQoS_7
!
!
sdwan
interface GigabitEthernet1/0/0.10
access-list LAN-Classification in
exit
class-map match-any BestEffort_CS1
match qos-group 7
!
class-map match-any CriticalData_AF21
match qos-group 5
!
class-map match-any NetMgmt_CS2
match qos-group 4
!
class-map match-any NetProtocol_CS3
match qos-group 3
!
class-map match-any Queue0
match qos-group 0
!
class-map match-any Queue1
match qos-group 1
!
class-map match-any Queue2
match qos-group 2
!
class-map match-any Queue3
match qos-group 3
!
class-map match-any Queue4
match qos-group 4
!
class-map match-any Queue5
match qos-group 5
!
class-map match-any Queue6
match qos-group 6
!
class-map match-any Queue7
match qos-group 7
!
class-map match-any Scavanger_AF11
match qos-group 6
!
class-map match-any Voice_EF
match qos-group 0
!
policy-map WANQoS
class Queue0
priority percent 11
!
class Queue1
random-detect
bandwidth percent 10
!
class class-default
random-detect
bandwidth percent 10
!
class Queue3
random-detect
bandwidth percent 5
!
class Queue4
random-detect
bandwidth percent 2
!
class Queue5
random-detect
bandwidth percent 48
!
class Queue6
random-detect
bandwidth percent 5
!
class Queue7
random-detect
bandwidth percent 9
!
!
policy-map shape_GigabitEthernet0/0/0
class class-default
service-policy WANQoS
shape average 10000000
!
!
policy-map shape_GigabitEthernet0/0/1
class class-default
shape average 100000000
!
!
interface GigabitEthernet0/0/0
no shutdown
arp timeout 1200
ip address 20.1.16.101 255.255.255.0
ip mtu 1500
ip nat outside
mtu 1500
negotiation auto
service-policy output shape_GigabitEthernet0/0/0
exit
interface GigabitEthernet0/0/1
no shutdown
arp timeout 1200
ip address 20.2.16.101 255.255.255.0
ip mtu 1500
mtu 1500
negotiation auto
service-policy output shape_GigabitEthernet0/0/1
exit
policy
class-map
class BestEffort_CS1 queue 7
class CriticalData_AF21 queue 5
class NetMgmt_CS2 queue 4
class NetProtocol_CS3 queue 3
class Queue0 queue 0
class Queue1 queue 1
class Queue2 queue 2
class Queue3 queue 3
class Queue4 queue 4
class Queue5 queue 5
class Queue6 queue 6
class Queue7 queue 7
class Scavanger_AF11 queue 6
class Voice_EF queue 0
!
access-list LAN-Classification
sequence 1
match
destination-port 1719-1721
!
action accept
class Voice_EF
set
dscp 46
!
!
!
sequence 11
match
destination-port 2326-2485
!
action accept
class Voice_EF
set
dscp 46
!
!
!
sequence 21
match
protocol 8 88 89
!
action accept
class NetProtocol_CS3
set
dscp 24
!
!
!
sequence 31
match
destination-port 22
!
action accept
class NetProtocol_CS3
set
dscp 24
!
!
!
sequence 41
match
destination-ip 10.200.200.0/24
!
action accept
class NetMgmt_CS2
set
dscp 16
!
!
!
sequence 51
match
destination-ip 10.200.201.0/24
destination-port 161 162 514
!
action accept
class CriticalData_AF21
set
dscp 20
!
!
!
sequence 61
match
destination-port 20 21
!
action accept
class BestEffort_CS1
set
dscp 8
!
!
!
sequence 71
match
destination-ip 10.200.202.0/24
!
action accept
class Scavanger_AF11
set
dscp 10
!
!
!
sequence 81
action accept
class BestEffort_CS1
set
dscp 10
!
!
!
default-action accept
!
Appendix F: Guest Wi-Fi with DIA and ZBFW
vpn 40
name "Guest Wifi"
interface ge0/7.40
ip address 10.10.4.1/24
no shutdown
access-list WIFI-Classification in
policer LimitWIFI out
vrrp 40
track-omp
ipv4 10.10.4.3
!
dhcp-server
address-pool 10.10.4.0/25
exclude 10.10.4.1-10.10.4.100
offer-time 600
lease-time 86400
admin-state up
options
default-gateway 10.10.4.3
dns-servers 8.8.8.8 8.8.4.4
!
!
!
ip route 0.0.0.0/0 vpn 0
!
policy
policer LimitWIFI
rate 2000000
burst 30000
exceed drop
!
zone GuestWifi
vpn 40
!
zone InternetZone
vpn 0
!
zone-pair ZP_GuestWifi_Internet_-630006705
source-zone GuestWifi
destination-zone InternetZone
zone-policy GuestWifiZBFW
!
zone-based-policy GuestWifiZBFW
sequence 1
match
protocol 6
destination-port 443 80 8080 8443
!
action inspect
!
!
sequence 11
match
protocol 6 17
destination-port 53
!
action inspect
!
!
default-action drop
!
zone-to-nozone-internet allow
!
interface GigabitEthernet0/0/0
no shutdown
arp timeout 1200
ip address 20.1.16.101 255.255.255.0
ip mtu 1500
ip nat outside
mtu 1500
negotiation auto
service-policy output shape_GigabitEthernet0/0/0
exit
sdwan
interface GigabitEthernet1/0/0.10
access-list LAN-Classification in
exit
vrf definition 40
rd 1:40
address-family ipv4
exit-address-family
!
address-family ipv6
exit-address-family
!
!
ip dhcp excluded-address vrf 40 10.40.1.0 10.40.1.100
ip dhcp pool vrf-40-GigabitEthernet1/0/0.40
vrf 40
lease 1 0 0
default-router 10.40.1.3
dns-server 8.8.4.4 8.8.8.8
network 10.40.1.0 255.255.255.0
exit
ip dhcp use hardware-address client-id
ip access-list extended GuestWifiZBFW-seq-1-acl_
11 permit object-group GuestWifiZBFW-seq-1-service-og_ any any
!
ip access-list extended GuestWifiZBFW-seq-11-acl_
11 permit object-group GuestWifiZBFW-seq-11-service-og_ any any
!
ip nat inside source list nat-dia-vpn-hop-access-list interface GigabitEthernet0/0/0 overload
ip nat translation tcp-timeout 60
ip nat translation udp-timeout 1
ip nat route vrf 40 0.0.0.0 0.0.0.0 global
!
policy-map type inspect GuestWifiZBFW
class GuestWifiZBFW-seq-1-cm_
inspect
!
class GuestWifiZBFW-seq-11-cm_
inspect
!
class class-default
drop
!
!
interface GigabitEthernet1/0/0.40
no shutdown
encapsulation dot1Q 10
vrf forwarding 40
ip address 10.40.1.1 255.255.255.0
vrrp 10 address-family ipv4
vrrpv2
address 10.40.1.3
priority 40
track omp shutdown
exit
exit
!
object-group service GuestWifiZBFW-seq-1-service-og_
tcp-udp 53
!
object-group service GuestWifiZBFW-seq-11-service-og_
tcp 80
tcp 443
tcp 8080
tcp 8443
!
parameter-map type inspect-global
alert on
log dropped-packets
multi-tenancy
vpn zone security
!
zone security GuestWifi
vpn 40
!
zone security InternetZone
vpn 0
!
zone-pair security ZP_GuestWifi_Internet_-630006705 source GuestWifi destination InternetZone
service-policy type inspect GuestWifiZBFW
!
policy
policer LimitWIFI
rate 2000000
burst 30000
exceed drop
!
access-list WIFI-Classification
sequence 1
action accept
policer LimitWIFI
class Scavanger_AF11
set
dscp 10
!
!
!
default-action accept
!
!
!
!
Appendix G: Centralized policies
Control policy applied toward branches in Group1
policy
control-policy Group1BranchControl-Out
sequence 1
match route
site-list DC1
prefix-list DefaultPrefix
!
action accept
set
preference 100
!
!
!
sequence 11
match route
site-list DC1
!
action accept
!
!
sequence 21
match route
site-list DC2
prefix-list DefaultPrefix
!
action accept
set
preference 50
!
!
!
sequence 31
match route
site-list DC2
!
action accept
!
!
sequence 41
match tloc
site-list DC1
!
action accept
!
!
sequence 51
match tloc
site-list DC2
!
action accept
!
!
default-action reject
!
vpn-membership vpnMembership_303141673
sequence 10
match
vpn-list storeVPN
!
action accept
!
!
default-action reject
!
lists
prefix-list DefaultPrefix
ip-prefix 0.0.0.0/0
!
site-list BranchGroup1
site-id 1000-1999
!
site-list BranchGroup2
site-id 2000-2999
!
site-list DC1
site-id 100
!
site-list DC2
site-id 200
!
vpn-list storeVPN
vpn 10
!
!
!
apply-policy
site-list BranchGroup1
control-policy Group1BranchControl-Out out
vpn-membership vpnMembership_303141673
!
!
Application-aware routing policy for the branch
policy
sla-class BestEffort
latency 250
loss 10
jitter 30
!
sla-class CriticalData
latency 200
loss 3
jitter 20
!
sla-class Voice
latency 150
loss 1
jitter 5
!
app-route-policy _storeVPN_CVP-APP-Route1
vpn-list storeVPN
sequence 1
match
dscp 46
!
action
sla-class Voice preferred-color mpls
!
!
sequence 11
match
dscp 20
!
action
sla-class CriticalData preferred-color mpls
!
!
sequence 21
match
dscp 0-10
!
action
sla-class BestEffort preferred-color gold
!
!
!
lists
prefix-list DefaultPrefix
ip-prefix 0.0.0.0/0
!
site-list BranchGroup1
site-id 1000-1999
!
site-list BranchGroup2
site-id 2000-2999
!
site-list DC1
site-id 100
!
site-list DC2
site-id 200
!
vpn-list storeVPN
vpn 10
!
!
!
apply-policy
site-list BranchGroup1
control-policy Group1BranchControl-Out out
!
!
Feedback
