Cisco GS7000 Nodes

GS7000 Nodes

Cisco GS7000 1 GHz High-Output 4-Way Segmentable Node

Cisco GS7000 1 GHz 4-Way Segmentable Node

Cisco GS7000 1.2 GHz Segmentable Node

Cisco GS7000 1.2 GHz Segmentable Node with Remote PHY

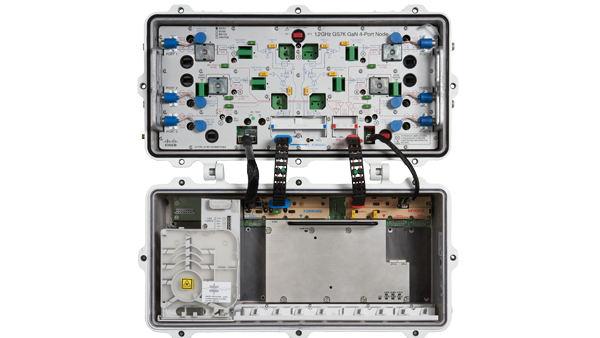

Cisco GS7000 1.2 GHz 4-Port Fiber Deep Node

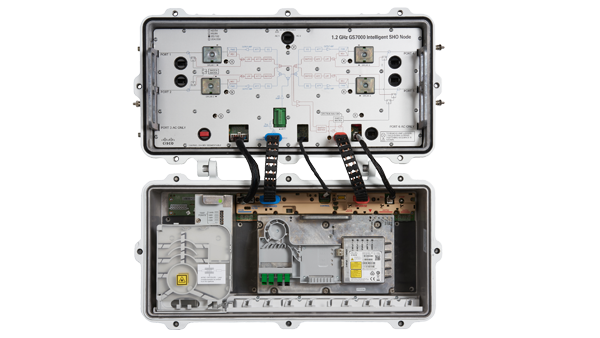

Cisco GS7000 1.2 GHz Fiber Deep Intelligent Node (iNode)

Cisco GS7000 Full Duplex DOCSIS Ready Intelligent Node (FDX)

Expand all

Features

Ports6 All RF + AC6 All RF + AC6 All RF + AC6 All RF + AC6; 4 RF + AC and 2 AC Only6; 4 RF + AC and 2 AC Only
Maxium Output LevelUp to 60 dBmV at 1 GHzUp to 49.5 dBmV @ 1 GHzUp to 56 dBmV @ 1.2 GHzUp to 56 dBmV @ 1.2 GHzUp to 64 dBmV @ 1.2 GHzUp to 64 dBmV @ 1.2 GHz
Maximum Downstream Frequency1 GHz1 GHz1.2 GHz1.2 GHz1.2 GHz1.2 GHz
Segmentability4x4 4x44x42X21x21x2
Size (H x W x D)21.3 x 11.6 x 11.1 in.
(541 x 295 x 282 mm)
21.3 x 11.6 x 11.1 in.
(541 x 295 x 282 mm)
21.3 x 11.6 x 11.1 in.
(541 x 295 x 282 mm)
21.3 x 11.6 x 11.1 in.
(541 x 295 x 282 mm)
21.3 x 11.6 x 11.1 in.
(541 x 295 x 282 mm)
21.3 x 11.6 x 11.1 in.
(541 x 295 x 282 mm)
Weight50.0 lbs
(22.7 kg)
with 4 RX, 4 TX, 2 power supplies
50.0 lbs
(22.7 kg)
with 4 RX, 4 TX, 2 power supplies
50.0 lbs
(22.7 kg)
with 4 receivers, 4 transmitters, 2 power supplies
49.8 lbs
(22.6 kg)
with 1 Remote PHY module, 1 power supply
50.0 lbs
(22.7 kg)
with 1 receiver, 1 transmitter, 2 power supplies:
49.8 lbs
(22.6 kg)
with 1 Remote PHY module, 1 power supply
Operating Temperature-40 °F - 140 °F
(-40 °C - 60 °C)
-40 °F - 140 °F
(-40 °C - 60 °C)
-40 °F - 140 °F
(-40 °C - 60 °C)
-40 °F - 140 °F
(-40 °C - 60 °C)
-40 °F - 140 °F
(-40 °C - 60 °C)
-40 °F - 140 °F
(-40 °C - 60 °C)
-40 °F - 140 °F
(-40 °C - 60 °C)
Power (typical)
Remote PHY CompatibleWith OIB ChangeWith OIB ChangeWith OIB ChangeYesYesYesYes

Transmitters

Transmitter ConfigurationsUp to 4 analog modules
or
1:1 EDR module

Up to 2 2:1 EDR modules
Up to 4 analog modules
or
1:1 EDR module

Up to 2 2:1 EDR modules
Up to 4 analog modules
or
1:1 EDR module

Up to 2 2:1 EDR modules
Up to 2 analog modules
or
1:1 EDR module without Remote PHY

1 2:1 EDR module without Remote PHY
Up to 2 analog modules
or
1:1 EDR module without Remote PHY

1 2:1 EDR module without Remote PHY
(Remote PHY only)

Splits

42/5442/5442/5442/5442/5442/54
85/10285/10285/10285/10285/10285/102
204/258204/258204/258

Remote PHY

Cisco Remote PHY Model 120 1x2 RPDCisco Remote PHY Model 120 1x2 RPDCisco Remote PHY Model 120 1x2 RPDCisco Remote PHY Model 120 1x2 RPDCisco Remote PHY Model 120 1x2 RPDCisco Remote PHY Model 120 1x2 RPD
Cisco Remote PHY Model 220 2x2 RPDCisco Remote PHY Model 220 2x2 RPD
Cisco Remote PHY Model FDX RPD

More Information

3D ModelNot AvailableNot AvailableNot AvailableNot AvailableNot AvailableNot AvailableNot Available
DatasheetCisco GS7000 High-Output 4-Way Segmentable Node with 42/54 Split DatasheetCisco GS7000 4-Way Segmentable Node 1 GHz with 42/54 MHz Split Data SheetCisco GS7000 1218-MHz 4-Way Segmentable Node Data Sheet Cisco GS7000 1218-MHz 4-Port Fiber Deep Node Data SheetCisco GS7000 1218MHz Fiber Deep Intelligent Node Data Sheet
Cisco GS7000 High-Output (GaN) 4-Way Segmentable Node with 85/102 MHz Split DatasheetCisco GS7000 4-Way Segmentable Node 1 GHz with 65/86 MHz Split Data Sheet
Cisco GS7000 4-Way Segmentable Node 1 GHz with 85/102 MHz Split Data Sheet
