Cisco Catalyst 9300 Series Ordering Guide
Available Languages
Bias-Free Language
The documentation set for this product strives to use bias-free language. For the purposes of this documentation set, bias-free is defined as language that does not imply discrimination based on age, disability, gender, racial identity, ethnic identity, sexual orientation, socioeconomic status, and intersectionality. Exceptions may be present in the documentation due to language that is hardcoded in the user interfaces of the product software, language used based on RFP documentation, or language that is used by a referenced third-party product. Learn more about how Cisco is using Inclusive Language.
Cisco Certified Remanufactured Equipment for Networking
Upgrade at deeply discounted prices to help ensure secure network transformation.
Before placing an order, please review the following:
● The Cisco Catalyst 9300 Series offer structure has three main components: the switch hardware, a Network stack perpetual license, and choice between a Cisco DNA, Cisco Catalyst or Meraki Software subscription license.
● The software subscription licenses, and Network Stack perpetual licenses are smart product IDs (SKUs). The Cisco Catalyst and Cisco DNA subscription license, which comes with a perpetual license, is required with a hardware purchase. For Catalyst 9300 models ordered with a Meraki SKU, the term license is ordered separately but is required to be recognized in Meraki Dashboard.
● A Smart Account is mandated during purchase (for more information, please see the Smart Accounts section).
● Available service options:
◦ Solution support
◦ Enhanced Limited Lifetime Warranty (E-LLW)
◦ Smart Net Total Care support
◦ Success Tracks
◦ Included base product-level support
● Network Stack: NW
● Cisco Digital Network Architecture: DNA
● Cisco Catalyst Software subscription: DNX
● Essentials: -E
● Advantage: -A
● Smart Account: SA
● Smart License: SL
This document is aimed at providing a detailed overview of the ordering process for Cisco Catalyst 9300 Series switches on Cisco Commerce Workspace.
Hardware and software order overview
Cisco Catalyst 9300 Series switches can be ordered through Cisco Commerce Workspace as a Cisco Catalyst, or Cisco DNA Essentials or Advantage or a Meraki Enterprise or Advanced subscription. Cisco Catalyst and Cisco DNA options include switch hardware coupled with Cisco IOS and the Network Stack software.
How to order a Cisco Catalyst 9300 Series switch
Both Network Stack licenses and Cisco DNA or Catalyst software subscription licenses are mandatory at the time of purchase and come in two licensing tier options: Advantage and Essentials. The Network Stack licenses, Network Advantage or Network Essentials is included with the hardware, while a Cisco DNA or Catalyst software subscription term license needs to be selected at the time of order.
To order in the Cisco Commerce Workspace, follow these steps:
1. Select the appropriate Network Stack license type -A, -E or -M
2. Choose the preferred consumption model
3. Choose the Cisco Catalyst, Cisco DNA or Meraki Software subscription term license (3, 5 or 7 years for Catalyst and Cisco DNA; 1, 3, 5, 7, 10 years for Meraki).
4. Add other components (for example: secondary power supply, power cables, etc).
Step-by-Step Ordering in Cisco Commerce Workspace
Enter the hardware SKU in Cisco Commerce Workspace.
The Network Stack license is perpetual and included with the hardware by default (it will not be visible in the selection menu) per the respective hardware SKU suffix (example: C9300-48P-E/C9300-48P-A).
The Cisco ThousandEyes Network and Application Synthetics license is included by default upon the selection of a Cisco Catalyst or Cisco DNA Advantage option with a 3, 5 or a 7 year subscription. Please see this guide for more information about the free Cisco ThousandEyes entitlements that come with your Cisco Catalyst 9300 or 9400 Series Cisco DNA Advantage subscription.
Expand to “View Full Summary” view to view the Cisco ThousandEyes Network and Application Synthetics license (TE-EMBEDDED-T). The TE-EMBEDDED-T is bundled with the Cisco Catalyst or Cisco DNA Advantage subscription and follow the same term as the Cisco Catalyst or Cisco DNA subscriptions.
The Cisco Spaces Extend license is included by default upon the selection of a Cisco Catalyst or Cisco DNA Advantage option with a 3 year, 5 year or a 7 year subscription. Each Catalyst 9300 Cisco Catalyst or Cisco DNA Advantage subscription entitles the customer to run the equivalent of one Spaces gateway and access to IoT device marketplace, Cisco Spaces cloud with included software and support.
Expand to “View Full Summary” view to view the Cisco Spaces Extend license (D-DNAS-EXT-S-T). The D- DNAS-EXT-S-T is bundled with the Cisco Catalyst and Cisco DNA Advantage subscription and follow the same term as the Cisco Catalyst and Cisco DNA subscriptions.
A Cisco DNA Advantage option is available for selection and is the default. Customers are encouraged to purchase the Cisco Catalyst or Cisco DNA Advantage option to enable advanced Cisco DNA features as a bundled solution.
Follow steps below to change from 5 year default term to a 3 or 7 year term for Cisco DNA Advantage Software subscription license.
Check Summary to validate all terms are aligned to intended term.
North America cable is defaulted, but another cable can be selected based on country or geography. A power cable must be selected to complete the configuration:
The primary power supply is added by default, based on the hardware model:
A secondary power supply is selected by default. Please select the C9300-SPS-NONE or C9300L-SPS-NONE option if a secondary power supply is not required.
For modular uplink models, C9300X SKUs come with C9300X-NM-2C network module as default and C9300 SKUs come with C9300-NM-8X network module as default, but another selection can be made. C9300X-NM- NONE or C9300-NM-NONE can be selected if a network module is not desired. This step is not required when ordering fixed uplink models (C9300L SKUs) since they have fixed uplinks that are already part of the SKU.
A 3m (C9300X SKUs) or 50cm (C9300 SKUs) StackWise cable is selected by default for both -E and -A hardware models. 50CM, 1M and 3M stacking cable options are available. If a StackWise cable is not required, C9300X-STACK-NONE or C9300-STACK-NONE should be selected:
For fixed uplink models (C9300L SKUs), a C9300L-STACK-KIT is selected by default which includes a 50CM stacking cable by default. 50CM, 1M and 3M stacking cable options are available.
A 30cm (C9300/C9300L) or 150CM (C9300X) Cisco StackPower cable is selected by default for both -E and - A hardware models. Customers have the option to choose 30CM or 150CM StackPower cable type or select C9300-SPWR-NONE if StackPower is not desired.
Console cables are also available as shown below:
Default accessories shipped with the switch
Cisco Catalyst 9300 Series switches ships with the following components and accessories by default*:
● Switch
● Default power supply (based on selected switch)
● Secondary power supply (same as default primary)
● 2 Power cables (specific power cable needs to be selected)
● Stacking Kit (for C9300L SKUs only with 50cm stacking cable)
● Stack cable (50cm, 1M) unless not selected (for C9300/C9300X SKUs only)
● StackPower cable (30cm/ 150CM) unless not selected (for C9300/C9300X SKUs only)
● Mounting brackets
Cisco Catalyst Software subscription for Switching
The Cisco Catalyst Software subscription for Switching includes base software and now hardware support for the Essentials and Advantage tiers. This support delivers a four-hour TAC response objective for severity 1 and 2 service requests. In addition, if you opt for the Advantage tier, you also receive ISE licenses (quantity dependent on switch model). Catalyst 9300 Series receive 10 endpoint sessions per Catalyst Advantage license.
The Cisco DNA Software subscription for Switching includes base support for software only, delivering a one-hour TAC response objective for severity 1 and 2 service requests. RMAs are also accessed through the Catalyst warranty program. In addition, the Cisco DNA software subscription does not include ISE licenses.
Note that for both the Cisco Catalyst and Cisco DNA Software subscriptions for Switching:
● Cisco DNA features and tier levels (Essentials, Advantage) remain the same.
● Hardware replacements are accessed separately through the Catalyst warranty program[1].
Cisco Catalyst software subscription Overview
Catalyst software subscription feature matrix
For the latest features, please view the Switching feature matrix.
All Cisco Catalyst 9300 Series switches are available with three software options as shown in Table 1
Table 1. License Levels and Options
| License Level |
Network Stack offer (Perpetual and embedded) |
Cisco software subscription offer (Term based) |
| -E |
Network Essentials |
Essentials (3, 5, or 7 years) |
| -A |
Network Advantage |
Advantage (3, 5, or 7 years) |
| -M |
na |
Enterprise or Advanced (1, 3, 5, 7 or 10 years) |
Customers will have the option to upgrade the Network Stack, Cisco Catalyst and Cisco DNA license levels (for example, -E to -A license upgrade) through a license upgrade, which will be available post launch. Customers will purchase the upgrade license and then reach out to CPS to initiate the upgrade process. The customer will be able to select term licenses using the C9300-LIC= or C9300L-LIC= SKU to upgrade a-la-carte Cisco Catalyst and Cisco DNA licenses. The Cisco Catalyst 9300 Series software license upgrade SKUs are listed in the “Ordering information” section.
Note that a license cannot be upgraded at the time of purchase.
As with all Catalyst 9000 family switches, Smart Accounts are mandatory when ordering a Catalyst 9300 Series switch. A Smart Account is a central data repository that provides visibility and access control to all the Cisco software licenses and entitlements across an organization. Smart Accounts allow customers to store, manage, and move assets across locations and devices and begin to use them immediately. Smart Accounts are required for enabling Cisco Smart Software Licensing.
After a Smart Account has been set up, customers have the flexibility to create subaccounts (virtual accounts) to help manage licenses for departments, areas, or locations within their organization. Licenses can be pooled within virtual accounts as needed. Smart Accounts support role-based user access controls, which allow the delegation of authority to account administrators at the Smart Account level or at the virtual account level. In addition, customers can assign partner visibility and management rights to their virtual or enterprise-level accounts.
Introduction to Smart Licensing
Cisco Smart Licensing is a flexible licensing model that provides you with an easier, faster, and more consistent way to purchase and manage software across the Cisco portfolio and across your organization. And it’s secure – you control what users can access. With Smart Licensing you get:
● Easy Activation: Smart Licensing establishes a pool of software licenses that can be used across the entire organization—no more PAKs (Product Activation Keys).
● Unified Management: My Cisco Entitlements (MCE) provides a complete view into all of your Cisco products and services in an easy-to-use portal, so you always know what you have and what you are using.
● License Flexibility: Your software is not node-locked to your hardware, so you can easily use and transfer licenses as needed.
To use Smart Licensing, you must first set up a Smart Account on Cisco Software Central (software.cisco.com).
For a more detailed overview on Cisco Licensing, go to cisco.com/go/licensingguide.
Cisco Smart Software Manager enables the management of software licenses. The interface allows you to activate your product, manage entitlements, and renew and upgrade software. An active Smart Account is required to complete the Smart License registration process. To learn more about end-to-end Smart Account and Smart License management, visit https://www.cisco.com/c/en/us/buy/smart-accounts/software- manager.html.
Smart Account and Smart License availability
Important information about smart account and smart license availability.
● Cisco Catalyst 9300 Series switch SKUs are smart SKUs. License entitlements will be deposited in the Cisco Smart Software Manager and the Smart Accounts.
● In addition to viewing entitlements, customers will also be able to track consumption.
Smart Accounts are mandatory at the time of the order of a Cisco Catalyst 9300 Series switch. If a customer does not have a Smart Account set up prior to the purchase, a new Smart Account must be created at the time of purchase.
Deploying Smart Licenses for Cisco Catalyst 9300 Series switches
Cisco Catalyst 9300 Series switches come in different licensing packages in comparison to existing Cisco Catalyst platforms. After Smart Licensing technology (available later) is enabled on the switch, the ordering process will include a requirement to establish a Smart Account where software licenses will be deposited. Smart Licenses are transferable between the same types of devices (for example, from one Cisco Catalyst 9300 Series switches to another). (See Figure 1.)
Deploying Smart Licenses
In the deployment model shown in Figure 2, the Smart Account Cisco back end and Cisco Catalyst 9300 Series switches do not have a communication channel to report usage and consumption. They operate as separate entities. The switches must be configured in RTU mode with correct license level to enable the purchased feature set.
● Possible deployment modes:
◦ RTU: The licensing mode on Cisco Catalyst 9300 Series switches remains RTU in Cisco IOS XE 16.5.1a. However, the licensing structure in RTU has been modified to match the same packaging model that will be used with Smart License mode in the future. Unified licensing modes between RTU and Smart License mode will help to simplify the migration and reduce the time for implementing Smart License with usage report
● Consumption reporting: License usage and consumption reporting is performed on Cisco Smart Software Manager only when the device has capability to report Smart License usage. Cisco IOS XE 16.5.1a release does not include the license reporting infrastructure to Cisco Smart Software Manager on the switches
For further information about the Cisco Catalyst 9000 RTU licensing, model, see the Configuration Guide.
Software-Defined Access (SD-Access)
Software-Defined Access (SD-Access) enables Policy-based Automation from edge to Cloud with foundational capabilities leveraging controller-based architecture including:
● Design with Validated Design Templates,
● Simplified device deployment,
● Unified management of Wired and Wireless,
● Network Virtualization with Segmentation,
● Group Based Policies and Contextual based analytics.
SD-Access can be enabled with Cisco Catalyst or Cisco DNA Advantage. Note that customers will need to additionally purchase ISE, which is available in the Cisco DNA Expansion Pack.
The Solution Support service option is strongly recommended; it provides coverage for a Cisco Catalyst and Cisco DNA Essentials and Advantage software licenses. Additional product-level hardware support options are available: Smart Net Total Care support, partner service support, and enhanced limited lifetime hardware warranty. It is strongly recommended that the term of the hardware support contract match the software subscription license term to avoid any service support gaps for the duration of the term.
With a Catalyst Software subscription, base product-level hardware and software support is included.
How does the base product-level support for software and hardware included in the Catalyst Switch software subscription differ from Cisco Smart Net Total Care and Software Support Services?
The base product-level support for software and hardware support included in the Catalyst Switch software subscription delivers the same features and benefits you experience today with Smart Net Total Care and Software Support Basic except as follows:
● The Cisco TAC response objective for severity 1 and 2 service requests is:
◦ Four hours, compared to one hour for Smart Net Total Care and Software Support Basic), and
◦ Next Business Day (NBD) where commercially available for severity 3 and 4 service requests, compared to one hour for Smart Net Total Care during business hours and next business day outside of business hours, and next business day for Software Support Basic during and outside of business hours).
● Hardware replacements are accessed through the Catalyst warranty program1, compared to a choice of eight RMA service-level options offered through Smart Net Total Care and Software Support Basic.
What are my support service options if I need faster response objectives for critical issues, more hardware RMA options, and/or higher levels of support than what’s included in the Catalyst Switch software subscription?
Because your enterprise network is the cornerstone of your IT and business, we recommend Cisco Success Tracks and CX Cloud, which is the one-stop, unified digital interface to Success Tracks.
Success Tracks is designed to accelerate adoption and maximize value for the security, automation, and assurance capabilities in your Cisco enterprise network. It also fulfills your need for faster response objectives (30 minutes for severity 1 and 2 service requests) and all of Cisco’s RMA options (eight, as fast as two hours).
Can you tell me more about Success Tracks and CX Cloud?
Success Tracks is a set of comprehensive services accessed through the unified digital platform, CX Cloud. It offers streamlined, personalized access to Cisco experts and customized content that can help you simplify solution adoption, resolve complex issues faster than single product-focused support, and optimize your IT environment through:
● Expert Resources: Expert guidance, best practices, and proven methodologies for a successful path to adoption.
● Trusted Support: Prescriptive support to detect, prevent, and efficiently solve complex hardware, software, and multi-product, multi-vendor issues through a Cisco primary point of contact who streamlines the support experience across your Cisco enterprise network.
● Insights and Analytics: Telemetry and intelligence with analytics that provide proactive and predictive insights and guided recommendations to help you solve problems faster and optimize operations.
● Contextual Learning: Digital learning resources, tailored instructor-led training, certification prep and virtual practice labs, designed to expand a workforce’s skillset and capacity to achieve business outcomes faster and more efficiently.
CX Cloud
To see how Success Tracks can drive faster adoption and ROI for your Catalyst-based enterprise network, connect with your Cisco representative and request a CX Cloud demo.
Table 2. Comparison of Cisco support models for Catalyst Software subscriptions
| Description |
Existing included support |
Smart Net Total Care |
New included support |
Success Tracks Level 1 |
|
| Expert resources |
Communities |
Cisco Community |
Cisco Community |
Cisco Community |
Cisco and Success Tracks Community |
| Success tips |
|
|
|
|
|
| Ask the experts (1:many interactive webinars) |
|
|
|
|
|
| Support |
24/7 access to the Cisco TAC for software, hardware, Cisco IOS support |
Cisco Catalyst software only |
Cisco Catalyst hardware only |
|
|
| Software, PAK Cisco IOS updates |
Software |
Cisco IOS |
|
|
|
| Hardware RMA |
Warranty-level |
8 options |
Warranty-level |
8 options |
|
| Service request response objectives for Severity 1 and 2 cases |
1 hour |
1 hour |
4 hours |
30 minutes |
|
| TAC engineer focused on software OR hardware/Cisco IOS |
|
|
|
|
|
| TAC engineer focused across software and hardware/Cisco IOS and multivendor products |
|
|
|
|
|
| No triage required to open a case |
|
|
|
|
|
| Case prioritization over SNTC, SWSS, included support service requests |
|
|
|
|
|
| Insights and analytics |
Adoption view |
|
|
|
|
| Assets and license view |
|
Via SNTC portal |
|
|
|
| Case management |
|
Via SNTC portal |
|
|
|
| Security advisories, field notices, priority bugs |
|
|
|
|
|
| Rapid problem resolution |
|
|
|
|
|
| Contextual learning |
E-learning (on demand courses) |
|
|
|
|
Cisco Enhanced Limited Lifetime Hardware Warranty
The Cisco Catalyst 9300 Series Switches come with an Enhanced Limited Lifetime hardware Warranty (E-LLW) that includes Next-Business-Day (NBD) delivery of replacement hardware where available and 90 days of 8 x 5 Cisco Technical Assistance Center (TAC) support.
How to order Cisco Catalyst 9300 Series switches with Meraki license
The Meraki Software option combines the simplicity of the Meraki dashboard with power of Catalyst 9000 switching hardware. To satisfy high-bandwidth applications and the deployment of high-speed 802.11ax/Wi-Fi 6/6E access points, the Meraki Software option provides multigigabit ports, 480G stacking, and modular 10/40G uplinks. Catalyst 9300 models with the Meraki Software option deliver resiliency with fast stack convergence and StackPower. They provide Adaptive Policy using an over-the-wire tag which segments traffic into security groups to deliver scalable security. The Catalyst 9300 models integrated under the Meraki dashboard provide a simple, powerful solution to the most demanding wired access applications.
Catalyst 9300 model switches come with Adaptive Policy to provide simple and scalable security policies to segment traffic using Security Groups in Meraki Dashboard. Security Groups are created in the dashboard using natural language such as “IoT device” and “Guest.” The security policy intent (e.g. Permit or Deny) is then simply provisioned between Security Groups which results in the segmentation of each group’s traffic. By making security policy management intuitive and scalable.
Currently, to order a Catalyst 9300 model with onboard Meraki OS, simply select the supported model with an “-M” license designation. For example, to select a 24-port, data only model with SKU C9300-24T, choose the C9300-24T-M. All options must be selected separately including Enterprise or Advanced term license, power cables, secondary power supply, uplink modules, SSD and accessories.
The following are Catalyst 9300 models that fully support cloud management and can be ordered with a Meraki software option:
Data-only: C9300X-48TX, C9300-48T, C9300-24T, C9300L-48T-4X, C9300L-24T-4X
30W PoE+: C9300-48P, C9300-24P, C9300L-48P-4X, C9300L-48PF-4X, C9300L-24P-4X
60W UPOE: C9300-48U, C9300-48UXM, C9300-48UN, C9300-24U, C9300-24UX, C9300L-48UXG-4X, C9300L-24UXG-4X
90W UPOE+: C9300X-48HX, C9300X-24HX, C9300X-48HXN
Fiber: C9300X-24Y, C9300X-12Y, C9300-48S, C9300-24S
How to order Cisco Catalyst 9300 Series switches with services
Solution Support is the defaulted service. Customers can attach desired services by following the steps outlined below:
1. Customer will click “Edit Options”
2. Customer will then configure the product. Cisco DNA Software subscription option will be chosen. Then click “Done”.
Customer will select “Edit Service/Subscription” to view and edit service options.

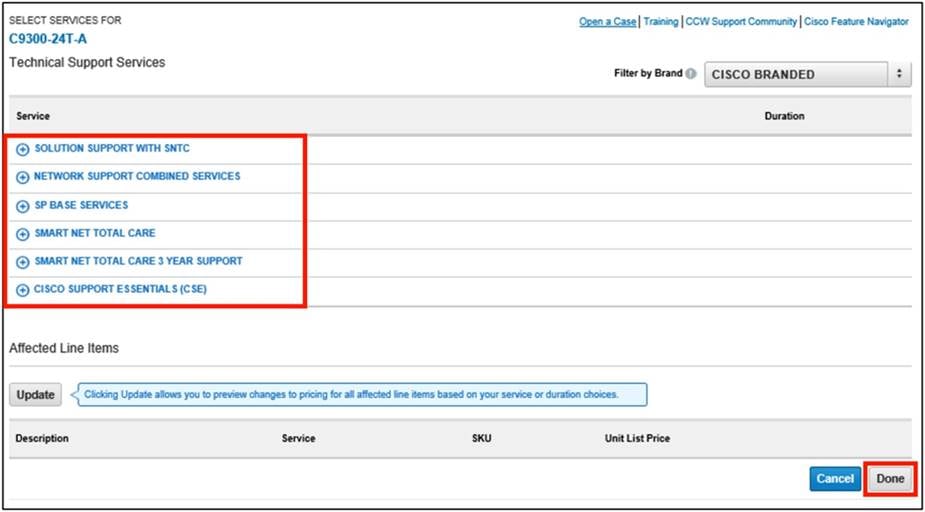

3. Customer will select “Change Services” to change services if needed.
4. The customer can then choose from a variety of different service options. Click “Apply” the “Done” when finished.
Customers with existing Catalyst 9300 switches can claim the credits to Cisco ThousandEyes by following the steps mentioned in this document.
Link to CSSM Activation guide hosted on cisco.com
How to order Cisco Spaces Indoor IoT Services with your Catalyst 9300 switches
Customers ordering new Catalyst 9300 switches with Cisco Catalyst or Cisco DNA Advantage licensing:
The Cisco Spaces Onboarding team does proactive outreach to customers that order Cisco Catalyst or Cisco DNA Advantage on eligible Catalyst 9300 switches. Customers may also contact the Cisco Spaces team to request account activation by following the format below:
Customers with existing Catalyst 9300 switches with Cisco Catalyst or Cisco DNA Advantage licensing:
Customers should contact the Spaces team to request account activation. Customers contacting Cisco to activate a Cisco Spaces account should provide the following information to the Cisco Spaces Support and Onboarding team:
● Send email to spaces@cisco.com
● Title the Subject Heading as “Activate Cisco Spaces for Catalyst Switching”
● Provide Company/Account name
● Smart account domain:
● Smart account domain:
◦ Contact name for Account Provisioning
◦ Contact email for Account Provisioning
◦ Contact phone for Account Provisioning
◦ Quantity for activation: # of switches (based on quantity of Cisco Catalyst or Cisco DNA Advantage licenses ordered)
◦ Provide Web Order/ Sales #
◦ New/Existing Cisco Spaces account
Tables 3 through 9 provide ordering information for switches, network modules, stacking cables, Cisco Catalyst, Cisco DNA and Cisco Meraki licenses respectively.
Table 3. Switch ordering information
| Product ID |
Product Description |
| C9300X-48HX-E |
Catalyst 9300 48-port 10G/mGig copper, modular uplink, UPOE+, Network Essentials |
| C9300X-48HX-A |
Catalyst 9300 48-port 10G/mGig copper, modular uplink, UPOE+, Network Advantage |
| C9300X-48HX-M |
Catalyst 9300 48-port 10G/mGig copper with modular uplink, Meraki Advance or Enterprise |
| C9300X-48TX-E |
Catalyst 9300 48-port 10G/mGig copper, modular uplink, data only, Network Essentials |
| C9300X-48TX-A |
Catalyst 9300 48-port 10G/mGig copper, modular uplink, data only, Network Advantage |
| C9300X-48TX-M |
Catalyst 9300 48-port 10G/mGig copper with modular uplink, data only, Meraki Advance or Enterprise |
| C9300X-48HXN-E |
Catalyst 9300 36-port 5G/mGig, 12-port 10G copper, modular uplink, UPOE+, Network Essentials |
| C9300X-48HXN-A |
Catalyst 9300 36-port 5G/mGig, 12-port 10G copper, modular uplink, UPOE+, Network Advantage |
| C9300X-48HXN-M |
Catalyst 9300 36-port 5G/mGig, 12-port 10G copper with modular uplink, UPOE+, Meraki Advance or Enterprise |
| C9300X-24HX-E |
Catalyst 9300 24-port 10G/mGig copper, modular uplink, UPOE+, Network Essentials |
| C9300X-24HX-A |
Catalyst 9300 24-port 10G/mGig copper, modular uplink, UPOE+, Network Advantage |
| C9300X-24HX-M |
Catalyst 9300 24-port 10G/mGig copper with modular uplink, UPOE+, Meraki Advance or Enterprise |
| C9300X-12Y-E |
Catalyst 9300 12-port 25G/10G/1G SFP28, modular uplinks, Network Essentials |
| C9300X-12Y-A |
Catalyst 9300 12-port 25G/10G/1G SFP28, modular uplinks, Network Advantage |
| C9300X-12Y-M |
Catalyst 9300 12-port 25G/10G/1G SFP28 with modular uplinks, Meraki Advance or Enterprise |
| C9300X-24Y-E |
Catalyst 9300 24-port 25G/10G/1G SFP28, modular uplinks, Network Essentials |
| C9300X-24Y-A |
Catalyst 9300 24-port 25G/10G/1G SFP28, modular uplinks, Network Advantage |
| C9300X-24Y-M |
Catalyst 9300 24-port 25G/10G/1G SFP28 with modular uplinks, Meraki Advance or Enterprise |
| C9300-24T-E |
Cisco Catalyst 9300 24-port 1G copper, data only, modular uplinks, Network Essentials |
| C9300-24T-A |
Cisco Catalyst 9300 24-port 1G copper, data only, modular uplinks, Network Advantage |
| C9300-24T-M |
Cisco Catalyst 9300 24-port 1G copper, data only, modular uplinks, Meraki Enterprise or Advanced |
| C9300-24P-E |
Cisco Catalyst 9300 24-port 1G copper, PoE+, modular uplinks, Network Essentials |
| C9300-24P-A |
Cisco Catalyst 9300 24-port 1G copper, PoE+, modular uplinks, Network Advantage |
| C9300-24P-M |
Cisco Catalyst 9300 24-port 1G copper, PoE+, modular uplinks, Meraki Enterprise or Advanced |
| C9300-24U-E |
Cisco Catalyst 9300 24-port 1G copper, UPOE, modular uplinks, Network Essentials |
| C9300-24U-A |
Cisco Catalyst 9300 24-port 1G copper, UPOE, modular uplinks, Network Advantage |
| C9300-24U-M |
Cisco Catalyst 9300 24-port 1G copper, UPOE, modular uplinks, Meraki Enterprise or Advanced |
| C9300-24UX-E |
Cisco Catalyst 9300 24-port 10G mGig copper, UPOE, modular uplinks, Network Essentials |
| C9300-24UX-A |
Cisco Catalyst 9300 24-port 10G mGig copper, UPOE, modular uplinks, Network Advantage |
| C9300-24UX-M |
Cisco Catalyst 9300 24-port 10G mGig copper, UPOE, modular uplinks, Meraki Enterprise or Advanced |
| C9300-48T-E |
Cisco Catalyst 9300 48-port 1G copper, data only, modular uplinks, Network Essentials |
| C9300-48T-A |
Cisco Catalyst 9300 48-port 1G copper, data only, modular uplinks, Network Advantage |
| C9300-48T-M |
Cisco Catalyst 9300 48-port 1G copper, data only, modular uplinks, Meraki Enterprise or Advanced |
| C9300-48P-E |
Cisco Catalyst 9300 48-port 1G copper, PoE+, modular uplinks, Network Essentials |
| C9300-48P-A |
Cisco Catalyst 9300 48-port 1G copper, PoE+, modular uplinks, Network Advantage |
| C9300-48P-M |
Cisco Catalyst 9300 48-port 1G copper, PoE+, modular uplinks, Meraki Enterprise or Advanced |
| C9300-48U-E |
Cisco Catalyst 9300 48-port 1G copper, UPOE, modular uplinks, Network Essentials |
| C9300-48U-A |
Cisco Catalyst 9300 48-port 1G copper, UPOE, modular uplinks, Network Advantage |
| C9300-48U-M |
Cisco Catalyst 9300 48-port 1G copper, UPOE, modular uplinks, Meraki Enterprise or Advanced |
| C9300-48UXM-E |
Cisco Catalyst 9300 36-port 2.5G/12-port 10G mGig copper, UPOE, modular uplinks, Network Essentials |
| C9300-48UXM-A |
Cisco Catalyst 9300 36-port 2.5G/12-port 10G mGig copper, UPOE, modular uplinks, Network Advantage |
| C9300-48UXM-M |
Cisco Catalyst 9300 36-port 2.5G/12-port 10G mGig copper, UPOE, modular uplinks, Meraki Enterprise or Advanced |
| C9300-48UN-E |
Cisco Catalyst 9300 48-port 5G mGig copper, UPOE, modular uplinks, Network Essentials |
| C9300-48UN-A |
Cisco Catalyst 9300 48-port 5G mGig copper, UPOE, modular uplinks, Network Advantage |
| C9300-48UN-M |
Cisco Catalyst 9300 48-port 5G mGig copper, UPOE, modular uplinks, Meraki Enterprise or Advanced |
| C9300-24S-E |
Cisco Catalyst 9300 24-port 1G SFP, modular uplinks, Network Essentials |
| C9300-24S-A |
Cisco Catalyst 9300 24-port 1G SFP, modular uplinks, Network Advantage |
| C9300-24S-M |
Cisco Catalyst 9300 24-port 1G SFP, modular uplinks, Meraki Advance or Enterprise |
| C9300-48S-E |
Cisco Catalyst 9300 48-port 1G SFP, modular uplinks, Network Essentials |
| C9300-48S-A |
Cisco Catalyst 9300 48-port 1G SFP, modular uplinks, Network Advantage |
| C9300-48S-M |
Catalyst 9300 48-port 1G SFP with modular uplinks, Meraki Advance or Enterprise |
| C9300L-24T-4G-E |
Catalyst 9300 24-port 1G copper, data only, 4X1G SFP fixed uplinks, Network Essentials |
| C9300L-24T-4G-A |
Catalyst 9300 24-port 1G copper, data only, 4X1G SFP fixed uplinks, Network Advantage |
| C9300L-24P-4G-E |
Catalyst 9300 24-port 1G copper, PoE+, 4X1G SFP fixed uplinks, Network Essentials |
| C9300L-24P-4G-A |
Catalyst 9300 24-port 1G copper, PoE+, 4X1G SFP fixed uplinks, Network Advantage |
| C9300L-48T-4G-E |
Catalyst 9300 48-port 1G copper, data only, 4X1G SFP fixed uplinks, Network Essentials |
| C9300L-48T-4G-A |
Catalyst 9300 48-port 1G copper, data only, 4X1G SFP fixed uplinks, Network Advantage |
| C9300L-48P-4G-E |
Catalyst 9300 48-port 1G copper, PoE+, 4X1G SFP fixed uplinks, Network Essentials |
| C9300L-48P-4G-A |
Catalyst 9300 48-port 1G copper, PoE+, 4X1G SFP fixed uplinks, Network Advantage |
| C9300L-24T-4X-E |
Catalyst 9300 24-port 1G copper, data only, 4X10G SFP+ fixed uplinks, Network Essentials |
| C9300L-24T-4X-A |
Catalyst 9300 24-port 1G copper, data only, 4X10G SFP+ fixed uplinks, Network Advantage |
| C9300L-24T-4X-M |
Catalyst 9300 24-port 1G copper with fixed 4x10G/1G SFP+ uplinks, data only, Meraki Advanced or Enterprise |
| C9300L-24P-4X-E |
Catalyst 9300 24-port 1G copper, PoE+, 4X10G SFP+ fixed uplinks, Network Essentials |
| C9300L-24P-4X-A |
Catalyst 9300 24-port 1G copper, PoE+, 4X10G SFP+ fixed uplinks, Network Advantage |
| C9300L-24P-4X-M |
Catalyst 9300 24-port 1G copper with fixed 4x10G/1G SFP+ uplinks, PoE+, Meraki Advanced or Enterprise |
| C9300L-48T-4X-E |
Catalyst 9300 48-port 1G copper, data only, 4X10G SFP+ fixed uplinks, Network Essentials |
| C9300L-48T-4X-A |
Catalyst 9300 48-port 1G copper, data only, 4X10G SFP+ fixed uplinks, Network Advantage |
| C9300L-48T-4X-M |
Catalyst 9300 48-port 1G copper with fixed 4x10G/1G SFP+ uplinks, data only, Meraki Advanced or Enterprise |
| C9300L-48P-4X-E |
Catalyst 9300 48-port 1G copper, PoE+, 4X10G SFP+ fixed uplinks, Network Essentials |
| C9300L-48P-4X-A |
Catalyst 9300 48-port 1G copper, PoE+, 4X10G SFP+ fixed uplinks, Network Advantage |
| C9300L-48P-4X-M |
Catalyst 9300 48-port 1G copper with fixed 4x10G/1G SFP+ uplinks, PoE+, Meraki Advanced or Enterprise |
| C9300L-48PF-4X-E |
Catalyst 9300 48-port 1G copper with fixed 4x10G/1G SFP+ uplinks, full PoE+ Network Essentials |
| C9300L-48PF-4X-A |
Catalyst 9300 48-port 1G copper with fixed 4x10G/1G SFP+ uplinks, full PoE+ Network Advantage |
| C9300L-48PF-4X-M |
Catalyst 9300 48-port 1G copper with fixed 4x10G/1G SFP+ uplinks, full PoE+, Meraki Advanced or Enterprise |
| C9300L-24UXG-4X-E |
Catalyst 9300 24-port 8XmGig (100M/1G/2.5G/5G/10G) + 16x 10M/100M/1G copper with fixed 4x10G/1G SFP+ uplinks, UPOE, Network Essentials |
| C9300L-24UXG-4X-A |
Catalyst 9300 24-port 8XmGig (100M/1G/2.5G/5G/10G) + 16x 10M/100M/1G copper with fixed 4x10G/1G SFP+ uplinks, UPOE, Network Advantage |
| C9300L-24UXG-4X-M |
Catalyst 9300 24-port 8XmGig (100M/1G/2.5G/5G/10G) + 16x 10M/100M/1G copper with fixed 4x10G/1G SFP+ uplinks, UPOE, Meraki Advanced or Enterprise |
| C9300L-48UXG-4X-E |
Catalyst 9300 48-port fixed uplinks UPOE, 12x mGig (100M/1G/2.5G/5G/10G) + 36x 10M/100M/1G copper, 4x 10G uplinks, Network Essentials |
| C9300L-48UXG-4X-A |
Catalyst 9300 48-port 12x mGig (100M/1G/2.5G/5G/10G) + 36x 10M/100M/1G copper with fixed 4x 10G/1G SFP+ uplinks, UPOE, Network Advantage |
| C9300L-48UXG-4X-M |
Catalyst 9300 48-port 12x mGig (100M/1G/2.5G/5G/10G) + 36x 10M/100M/1G copper with fixed 4x 10G/1G SFP+ uplinks, UPOE, Meraki Advanced or Enterprise |
| C9300LM-48UX-4Y-E |
Catalyst 9300 mini 48-port 1G copper, UPOE, 8-port 10G Multigigabit, 40-port 1G, 4x 10G SFP+ fixed uplinks, Network Essentials |
| C9300LM-48UX-4Y-A |
Catalyst 9300 mini 48-port 1G copper, UPOE, 8-port 10G Multigigabit, 40-port 1G, 4x 25G SFP28 fixed uplinks, Network Advantage |
| C9300LM-48U-4Y-E |
Catalyst 9300 mini 48-port 1G copper, UPOE, 4x 10G SFP+ fixed uplinks, Network Essentials |
| C9300LM-48U-4Y-A |
Catalyst 9300 mini 48-port 1G copper, UPOE, 4x 25G SFP28 fixed uplinks, Network Advantage |
| C9300LM-48T-4Y-E |
Catalyst 9300 mini 48-port 1G copper, data, 4x 10G SFP+ fixed uplinks, Network Essentials |
| C9300LM-48T-4Y-A |
Catalyst 9300 mini 48-port 1G copper, data, 4x 25G SFP28 fixed uplinks, Network Advantage |
| C9300LM-24U-4Y-E |
Catalyst 9300 mini 24-port 1G copper, UPOE, 4x 10G SFP+ fixed uplinks, Network Essentials |
| C9300LM-24U-4Y-A |
Catalyst 9300 mini 24-port 1G copper, UPOE, 4x 25G SFP28 fixed uplinks, Network Advantage |
Table 4. Network Module Ordering information
| Product ID |
Product Description |
| C9300X-NM-8M |
Catalyst 9300 8 x 10G mGig copper network module |
| C9300X-NM-8M= |
Catalyst 9300 8 x 10G mGig copper network module, spare |
| C9300X-NM-8Y |
Catalyst 9300 8 x 25G/10G/1G multi-rate SFP28 network module |
| C9300X-NM-8Y= |
Catalyst 9300 8 x 25G/10G/1G multi-rate SFP28 network module, spare |
| C9300X-NM-2C |
Catalyst 9300 2 x 100G/40G dual rate QSFP28 network module |
| C9300X-NM-2C= |
Catalyst 9300 2 x 100G/40G dual rate QSFP28 network module, spare |
| C9300X-NM-4C |
Catalyst 9300 4 x 100G/40G dual rate QSFP28 network module |
| C9300X-NM-4C= |
Catalyst 9300 4 x 100G/40G dual rate QSFP28 network module, spare |
| C9300-NM-4G |
Cisco Catalyst 9300 4 x 1GE SFP network module |
| C9300-NM-4G= |
Cisco Catalyst 9300 4 x 1GE SFP network module, spare |
| C9300-NM-8X |
Cisco Catalyst 9300 8 x 10GE SFP+ network module |
| C9300-NM-8X= |
Cisco Catalyst 9300 8 x 10GE SFP+ network module, spare |
| C9300-NM-2Q |
Cisco Catalyst 9300 2 x 40GE QSFP+ network module |
| C9300-NM-2Q= |
Cisco Catalyst 9300 2 x 40GE QSFP+ network module, spare |
| NM-BLANK-T1= |
Cisco Catalyst Type 1 Network Module Blank, spare |
Table 5. Stacking Cable Ordering information
| Product ID |
Product Description |
| Catalyst 9300 Series switches: modular uplink models (C9300 SKUs) |
|
| STACK-T1-50CM |
50CM type 1 stacking cable |
| STACK-T1-50CM= |
50CM type 1 stacking cable, spare |
| STACK-T1-1M |
1M type 1 stacking cable |
| STACK-T1-1M= |
1M type 1 stacking cable, spare |
| STACK-T1-3M |
3M type 1 stacking cable |
| STACK-T1-3M= |
3M type 1 stacking cable, spare |
| Catalyst 9300 Series switches: fixed uplink models (C9300L SKUs) |
|
| C9300L-STACK-KIT |
Stacking Kit – includes 2 Stack Adaptors and 1 Stack Cable (50cm by default) |
| STACK-T3-50CM |
50CM type 1 stacking cable |
| STACK-T3-50CM= |
50CM type 1 stacking cable, spare |
| STACK-T3-1M |
1M type 1 stacking cable |
| STACK-T3-1M= |
1M type 1 stacking cable, spare |
| STACK-T3-3M |
3M type 1 stacking cable |
| STACK-T3-3M= |
3M type 1 stacking cable, spare |
Table 6. Cisco Catalyst 9300 Series Software license ordering information24-Port Cisco DNA Software License Ordering Information
| License Type |
SKU |
Description |
| Catalyst 9300 Switches: Copper models with modular uplink (C9300X and C9300 SKUs) |
||
| Essentials |
C9300-DNA-E-24 |
C9300 Cisco DNA Essentials, 24-port term licenses |
| C9300-DNA-E-24-3Y |
C9300 Cisco DNA Essentials, 24-port, 3-year term license |
|
| C9300-DNA-E-24-5Y |
C9300 Cisco DNA Essentials, 24-port, 5-year term license |
|
| C9300-DNA-E-24-7Y |
C9300 Cisco DNA Essentials, 24-port, 7-year term license |
|
| Advantage |
C9300-DNA-A-24 |
C9300 Cisco DNA Advantage, 24-port term licenses |
| C9300-DNA-A-24-3Y |
C9300 Cisco DNA Advantage, 24-port, 3-year term license |
|
| C9300-DNA-A-24-5Y |
C9300 Cisco DNA Advantage, 24-port, 5-year term license |
|
| C9300-DNA-A-24-7Y |
C9300 Cisco DNA Advantage, 24-port, 7-year term license |
|
| Catalyst 9300 Switches: 1G Fiber models with modular uplink (C9300 SKUs) |
||
| Essentials |
C9300-DNA-E-24S |
C9300 Cisco DNA Essentials, 24-port term licenses |
| C9300-DNA-E-24S-3Y |
C9300 Cisco DNA Essentials, 24-port, 3-year term license |
|
| C9300-DNA-E-24S-5Y |
C9300 Cisco DNA Essentials, 24-port, 5-year term license |
|
| C9300-DNA-E-24S-7Y |
C9300 Cisco DNA Essentials, 24-port, 7-year term license |
|
| Advantage |
C9300-DNA-A-24S |
C9300 Cisco DNA Advantage, 24-port term licenses |
| C9300-DNA-A-24S-3Y |
C9300 Cisco DNA Advantage, 24-port, 3-year term license |
|
| C9300-DNA-A-24S-5Y |
C9300 Cisco DNA Advantage, 24-port, 5-year term license |
|
| C9300-DNA-A-24S-7Y |
C9300 Cisco DNA Advantage, 24-port, 7-year term license |
|
| Catalyst 9300 Switches: 25G Fiber models with modular uplink (C9300X SKUs) |
||
| Essentials |
C9300-DNA-L-E |
C9300X Cisco DNA Essentials, 24-port term licenses |
| C9300-DNA-L-E-3Y |
C9300X Cisco DNA Essentials, 24-port, 3-year term license |
|
| C9300-DNA-L-E-5Y |
C9300X Cisco DNA Essentials, 24-port, 5-year term license |
|
| C9300-DNA-L-E-7Y |
C9300X Cisco DNA Essentials, 24-port, 7-year term license |
|
| Advantage |
C9300-DNA-L-A |
C9300X Cisco DNA Advantage, 24-port term licenses |
| C9300-DNA-L-A-3Y |
C9300X Cisco DNA Advantage, 24-port, 3-year term license |
|
| C9300-DNA-L-A-5Y |
C9300X Cisco DNA Advantage, 24-port, 5-year term license |
|
| C9300-DNA-L-A-7Y |
C9300X Cisco DNA Advantage, 24-port, 7-year term license |
|
| Catalyst 9300L Switches: Fixed uplink models (C9300L) |
||
| Essentials |
C9300L-DNA-E-24 |
C9300L Cisco DNA Essentials, 24-port term licenses |
| C9300L-DNA-E-24-3Y |
C9300L Cisco DNA Essentials, 24-port, 3-year term license |
|
| C9300L-DNA-E-24-5Y |
C9300L Cisco DNA Essentials, 24-port, 5-year term license |
|
| C9300L-DNA-E-24-7Y |
C9300L Cisco DNA Essentials, 24-port, 7-year term license |
|
| Advantage |
C9300L-DNA-A-24 |
C9300L Cisco DNA Advantage, 24-port term licenses |
| C9300L-DNA-A-24-3Y |
C9300L Cisco DNA Advantage, 24-port, 3-year term license |
|
| C9300L-DNA-A-24-5Y |
C9300L Cisco DNA Advantage, 24-port, 5-year term license |
|
| C9300L-DNA-A-24-7Y |
C9300L Cisco DNA Advantage, 24-port, 7-year term license |
|
| Catalyst 9300LM Switches: mini fixed uplink models (C9300LM) |
||
| Essentials |
C9300LM-DNA-E-24 |
C9300LM Cisco DNA Essentials, 24-port term licenses |
| C9300LM-DNA-E-24-3Y |
C9300LM Cisco DNA Essentials, 24-port, 3-year term license |
|
| C9300LM-DNA-E-24-5Y |
C9300LM Cisco DNA Essentials, 24-port, 5-year term license |
|
| C9300LM-DNA-E-24-7Y |
C9300LM Cisco DNA Essentials, 24-port, 7-year term license |
|
| Advantage |
C9300LM-DNA-A-24 |
C9300LM Cisco DNA Advantage, 24-port term licenses |
| C9300LM-DNA-A-24-3Y |
C9300LM Cisco DNA Advantage, 24-port, 3-year term license |
|
| C9300LM-DNA-A-24-5Y |
C9300LM Cisco DNA Advantage, 24-port, 5-year term license |
|
| C9300LM-DNA-A-24-7Y |
C9300LM Cisco DNA Advantage, 24-port, 7-year term license |
|
Table 7. 48-Port Cisco DNA Software License Ordering Information
| License Type |
SKU |
Description |
| Catalyst 9300 Switches: Copper models with modular uplink (C9300 SKUs) |
||
| Essentials |
C9300-DNA-E-48 |
C9300 Cisco DNA Essentials, 48-port term licenses |
| C9300-DNA-E-48-3Y |
C9300 Cisco DNA Essentials, 48-port, 3-year term license |
|
| C9300-DNA-E-48-5Y |
C9300 Cisco DNA Essentials, 48-port, 5-year term license |
|
| C9300-DNA-E-48-7Y |
C9300 Cisco DNA Essentials, 48-port, 7-year term license |
|
| Advantage |
C9300-DNA-A-48 |
C9300 Cisco DNA Advantage, 48-port term licenses |
| C9300-DNA-A-48-3Y |
C9300 Cisco DNA Advantage, 48-port, 3-year term license |
|
| C9300-DNA-A-48-5Y |
C9300 Cisco DNA Advantage, 48-port, 5-year term license |
|
| C9300-DNA-A-48-7Y |
C9300 Cisco DNA Advantage, 48-port, 7-year term license |
|
| Catalyst 9300 Switches: 1G Fiber models with modular uplink (C9300 SKUs) |
||
| Essentials |
C9300-DNA-E-48S |
C9300 Cisco DNA Essentials, 48-port term licenses |
| C9300-DNA-E-48S-3Y |
C9300 Cisco DNA Essentials, 48-port, 3-year term license |
|
| C9300-DNA-E-48S-5Y |
C9300 Cisco DNA Essentials, 48-port, 5-year term license |
|
| C9300-DNA-E-48S-7Y |
C9300 Cisco DNA Essentials, 48-port, 7-year term license |
|
| Advantage |
C9300-DNA-A-48S |
C9300 Cisco DNA Advantage, 48-port term licenses |
| C9300-DNA-A-48S-3Y |
C9300 Cisco DNA Advantage, 48-port, 3-year term license |
|
| C9300-DNA-A-48S-5Y |
C9300 Cisco DNA Advantage, 48-port, 5-year term license |
|
| C9300-DNA-A-48S-7Y |
C9300 Cisco DNA Advantage, 48-port, 7-year term license |
|
| Catalyst 9300 Switches: fixed uplink models (C9300L SKUs) |
||
| Essentials |
C9300L-DNA-E-48 |
C9300L Cisco DNA Essentials, 48-port term licenses |
| C9300L-DNA-E-48-3Y |
C9300L Cisco DNA Essentials, 48-port, 3-year term license |
|
| C9300L-DNA-E-48-5Y |
C9300L Cisco DNA Essentials, 48-port, 5-year term license |
|
| C9300L-DNA-E-48-7Y |
C9300L Cisco DNA Essentials, 48-port, 7-year term license |
|
| Advantage |
C9300L-DNA-A-48 |
C9300L Cisco DNA Advantage, 48-port term licenses |
| C9300L-DNA-A-48-3Y |
C9300L Cisco DNA Advantage, 48-port, 3-year term license |
|
| C9300L-DNA-A-48-5Y |
C9300L Cisco DNA Advantage, 48-port, 5-year term license |
|
| C9300L-DNA-A-48-7Y |
C9300L Cisco DNA Advantage, 48-port, 7-year term license |
|
Table 8. Cisco Catalyst Software License Ordering Information
| SKU |
Description |
| C9300-DNX-A-12Y-3Y |
C9300X Cisco Catalyst Advantage, 12-port 25G Fiber, 3-year term license |
| C9300-DNX-A-12Y-5Y |
C9300X Cisco Catalyst Advantage, 12-port 25G Fiber, 5-year term license |
| C9300-DNX-A-12Y-7Y |
C9300X Cisco Catalyst Advantage, 12-port 25G Fiber, 7-year term license |
| C9300-DNX-E-12Y-3Y |
C9300X Cisco Catalyst Essentials, 12-port 25G Fiber, 3-year term license |
| C9300-DNX-E-12Y-5Y |
C9300X Cisco Catalyst Essentials, 12-port 25G Fiber, 5-year term license |
| C9300-DNX-E-12Y-7Y |
C9300X Cisco Catalyst Essentials, 12-port 25G Fiber, 7-year term license |
| C9300-DNX-A-24Y-3Y |
C9300 Cisco Catalyst Advantage, 24-port 1G Copper, 3-year term license |
| C9300-DNX-A-24Y-5Y |
C9300 Cisco Catalyst Advantage, 24-port 1G Copper, 5-year term license |
| C9300-DNX-A-24Y-7Y |
C9300 Cisco Catalyst Advantage, 24-port 1G Copper, 7-year term license |
| C9300-DNX-E-24-3Y |
C9300 Cisco Catalyst Essentials, 24-port 1G Copper, 3-year term license |
| C9300-DNX-E-24-5Y |
C9300 Cisco Catalyst Essentials, 24-port 1G Copper, 5-year term license |
| C9300-DNX-E-24-7Y |
C9300 Cisco Catalyst Essentials, 24-port 1G Copper, 7-year term license |
| C9300-DNX-A-24S-3Y |
C9300 Cisco Catalyst Advantage, 24-port 1G Fiber, 3-year term license |
| C9300-DNX-A-24S-5Y |
C9300 Cisco Catalyst Advantage, 24-port 1G Fiber, 5-year term license |
| C9300-DNX-A-24S-7Y |
C9300 Cisco Catalyst Advantage, 24-port 1G Fiber, 7-year term license |
| C9300-DNX-E-24S-3Y |
C9300 Cisco Catalyst Essentials, 24-port 1G Fiber, 3-year term license |
| C9300-DNX-E-24S-5Y |
C9300 Cisco Catalyst Essentials, 24-port 1G Fiber, 5-year term license |
| C9300-DNX-E-24S-7Y |
C9300 Cisco Catalyst Essentials, 24-port 1G Fiber, 7-year term license |
| C9300-DNX-A-24Y-3Y |
C9300X Cisco Catalyst Advantage, 24-port 25G Fiber, 3-year term license |
| C9300-DNX-A-24Y-5Y |
C9300X Cisco Catalyst Advantage, 24-port 25G Fiber, 5-year term license |
| C9300-DNX-A-24Y-7Y |
C9300X Cisco Catalyst Advantage, 24-port 25G Fiber, 7-year term license |
| C9300-DNX-E-24Y-3Y |
C9300X Cisco Catalyst Essentials, 24-port 25G Fiber, 3-year term license |
| C9300-DNX-E-24Y-5Y |
C9300X Cisco Catalyst Essentials, 24-port 25G Fiber, 5-year term license |
| C9300-DNX-E-24Y-7Y |
C9300X Cisco Catalyst Essentials, 24-port 25G Fiber, 7-year term license |
| C9300-DNX-A-48-3Y |
C9300 Cisco Catalyst Advantage, 48-port 1G Copper, 3-year term license |
| C9300-DNX-A-48-5Y |
C9300 Cisco Catalyst Advantage, 48-port 1G Copper, 5-year term license |
| C9300-DNX-A-48-7Y |
C9300 Cisco Catalyst Advantage, 48-port 1G Copper, 7-year term license |
| C9300-DNX-E-48-3Y |
C9300 Cisco Catalyst Essentials, 48-port 1G Copper, 3-year term license |
| C9300-DNX-E-48-5Y |
C9300 Cisco Catalyst Essentials, 48-port 1G Copper, 5-year term license |
| C9300-DNX-E-48-7Y |
C9300 Cisco Catalyst Essentials, 48-port 1G Copper, 7-year term license |
| C9300-DNX-A-48S-3Y |
C9300 Cisco Catalyst Advantage, 48-port 1G Fiber, 3-year term license |
| C9300-DNX-A-48S-5Y |
C9300 Cisco Catalyst Advantage, 48-port 1G Fiber, 5-year term license |
| C9300-DNX-A-48S-7Y |
C9300 Cisco Catalyst Advantage, 48-port 1G Fiber, 7-year term license |
| C9300-DNX-E-48S-3Y |
C9300 Cisco Catalyst Essentials, 48-port 1G Fiber, 3-year term license |
| C9300-DNX-E-48S-5Y |
C9300 Cisco Catalyst Essentials, 48-port 1G Fiber, 5-year term license |
| C9300-DNX-E-48S-7Y |
C9300 Cisco Catalyst Essentials, 48-port 1G Fiber, 7-year term license |
| C9300L-DNX-A-24-3Y |
C9300L/LM Cisco Catalyst Advantage, 24-port 1G Copper, 3-year term license |
| C9300L-DNX-A-24-5Y |
C9300L/LM Cisco Catalyst Advantage, 24-port 1G Copper, 5-year term license |
| C9300L-DNX-A-24-7Y |
C9300L/LM Cisco Catalyst Advantage, 24-port 1G Copper, 7-year term license |
| C9300L-DNX-E-24-3Y |
C9300L/LM Cisco Catalyst Essentials, 24-port 1G Copper, 3-year term license |
| C9300L-DNX-E-24-5Y |
C9300L/LM Cisco Catalyst Essentials, 24-port 1G Copper, 5-year term license |
| C9300L-DNX-E-24-7Y |
C9300L/LM Cisco Catalyst Essentials, 24-port 1G Copper, 7-year term license |
| C9300L-DNX-A-48-3Y |
C9300L/LM Cisco Catalyst Advantage, 48-port 1G Copper, 3-year term license |
| C9300L-DNX-A-48-5Y |
C9300L/LM Cisco Catalyst Advantage, 48-port 1G Copper, 5-year term license |
| C9300L-DNX-A-48-7Y |
C9300L/LM Cisco Catalyst Advantage, 48-port 1G Copper, 7-year term license |
| C9300L-DNX-E-48-3Y |
C9300L/LM Cisco Catalyst Essentials, 48-port 1G Copper, 3-year term license |
| C9300L-DNX-E-48-5Y |
C9300L/LM Cisco Catalyst Essentials, 48-port 1G Copper, 5-year term license |
| C9300L-DNX-E-48-7Y |
C9300L/LM Cisco Catalyst Essentials, 48-port 1G Copper, 7-year term license |
Table 9. Cisco Meraki Software License Ordering Information
| License Type |
SKU |
Description |
| Enterprise |
LIC-C9300-24E-1Y |
C9300 Cisco Meraki Enterprise Software license, 24-port, 1 Year Term license |
| LIC-C9300-24E-3Y |
C9300 Cisco Meraki Enterprise Software license, 24-port, 3 Year Term license |
|
| LIC-C9300-24E-5Y |
C9300 Cisco Meraki Enterprise Software license, 24-port, 5 Year Term license |
|
| LIC-C9300-24E-7Y |
C9300 Cisco Meraki Enterprise Software license, 24-port, 7 Year Term license |
|
| LIC-C9300-24E-10Y |
C9300 Cisco Meraki Enterprise Software license, 24-port, 10 Year Term license |
|
| LIC-C9300-48E-1Y |
C9300 Cisco Meraki Enterprise Software license, 48-port, 1 Year Term license |
|
| LIC-C9300-48E-3Y |
C9300 Cisco Meraki Enterprise Software license, 48-port, 3 Year Term license |
|
| LIC-C9300-48E-5Y |
C9300 Cisco Meraki Enterprise Software license, 48-port, 5 Year Term license |
|
| LIC-C9300-48E-7Y |
C9300 Cisco Meraki Enterprise Software license, 48-port, 7 Year Term license |
|
| LIC-C9300-48E-10Y |
C9300 Cisco Meraki Enterprise Software license, 48-port, 10 Year Term license |
|
| Advanced |
LIC-C9300-24A-1Y |
C9300 Cisco Meraki Advanced Software license, 24-port, 1 Year Term license |
| LIC-C9300-24A-3Y |
C9300 Cisco Meraki Advanced Software license, 24-port, 3 Year Term license |
|
| LIC-C9300-24A-5Y |
C9300 Cisco Meraki Advanced Software license, 24-port, 5 Year Term license |
|
| LIC-C9300-24A-7Y |
C9300 Cisco Meraki Advanced Software license, 24-port, 7 Year Term license |
|
| LIC-C9300-24A-10Y |
C9300 Cisco Meraki Advanced Software license, 24-port, 10 Year Term license |
|
| LIC-C9300-48A-1Y |
C9300 Cisco Meraki Advanced Software license, 48-port, 1 Year Term license |
|
| LIC-C9300-48A-3Y |
C9300 Cisco Meraki Advanced Software license, 48-port, 3 Year Term license |
|
| LIC-C9300-48A-5Y |
C9300 Cisco Meraki Advanced Software license, 48-port, 5 Year Term license |
|
| LIC-C9300-48A-7Y |
C9300 Cisco Meraki Advanced Software license, 48-port, 7 Year Term license |
|
| LIC-C9300-48A-10Y |
C9300 Cisco Meraki Advanced Software license, 48-port, 10 Year Term license |
Tables 10 and 11 provide Cisco DNA Software license upgrade ordering information.
Table 10. Cisco Catalyst 9300 24-Port Cisco DNA Software License Upgrade
| License Type |
SKU |
Description |
| License PID |
C9300-LIC= |
Electronic Software License for Cisco Catalyst 9300 Series switches (C9300 SKUs) |
| License level upgrade-Essentials to Advantage (on both NW stack and Cisco DNA) |
C9300-24-E-A-3 |
24-port NW and Cisco DNA Essentials to NW and Cisco DNA Advantage upgrade license (3Y) |
| C9300-24-E-A-5 |
24-port NW and Cisco DNA Essentials to NW and Cisco DNA Advantage upgrade license (5Y) |
|
| C9300-24-E-A-7 |
24-port NW and Cisco DNA Essentials to NW and Cisco DNA Advantage upgrade license (7Y) |
|
| C9300L-LIC= |
Electronic SW License for Cisco Catalyst 9300 Series switches |
|
| License level upgrade-Essentials to Advantage (on both NW stack and Cisco DNA) |
C9300L-24-E-A-3 |
24-port NW and Cisco DNA Essentials to NW and Cisco DNA Advantage upgrade license (3Y) |
| C9300L-24-E-A-5 |
24-port NW and Cisco DNA Essentials to NW and Cisco DNA Advantage upgrade license (5Y) |
|
| C9300L-24-E-A-7 |
24-port NW and Cisco DNA Essentials to NW and Cisco DNA Advantage upgrade license (7Y) |
Table 11. Cisco Catalyst 9300 48 Port Cisco DNA Software license upgrade
| License Type |
SKU |
Description |
| License PID |
C9300-LIC= |
Electronic SW License for Cisco Catalyst 9300 Series modular uplink models (C9300 SKUs) |
| License level upgrade-Essentials to Advantage (on both NW stack and Cisco DNA) |
C9300-48-E-A-3 |
48-port NW and Cisco DNA Essentials to NW and Cisco DNA Advantage upgrade License (3Y) |
| C9300-48-E-A-5 |
48-port NW and Cisco DNA Essentials to NW and Cisco DNA Advantage upgrade License (5Y) |
|
| C9300-48-E-A-7 |
48-port NW and Cisco DNA Essentials to NW and Cisco DNA Advantage upgrade License (7Y) |
|
| License PID |
C9300L-LIC= |
Electronic SW License for Cisco Catalyst 9300 Series fixed uplink models (C9300L and C9300LM SKUs) |
| License level upgrade-Essentials to Advantage (on both NW stack and Cisco DNA) |
C9300L-48-E-A-3 |
48-port NW and Cisco DNA Essentials to NW and Cisco DNA Advantage upgrade License (3Y) |
| C9300L-48-E-A-5 |
48-port NW and Cisco DNA Essentials to NW and Cisco DNA Advantage upgrade License (5Y) |
|
| C9300L-48-E-A-7 |
48-port NW and Cisco DNA Essentials to NW and Cisco DNA Advantage upgrade License (7Y) |
Distribution ordering addendum
This section details the steps necessary to order Cisco Catalyst 9300 Switches through distribution partners.

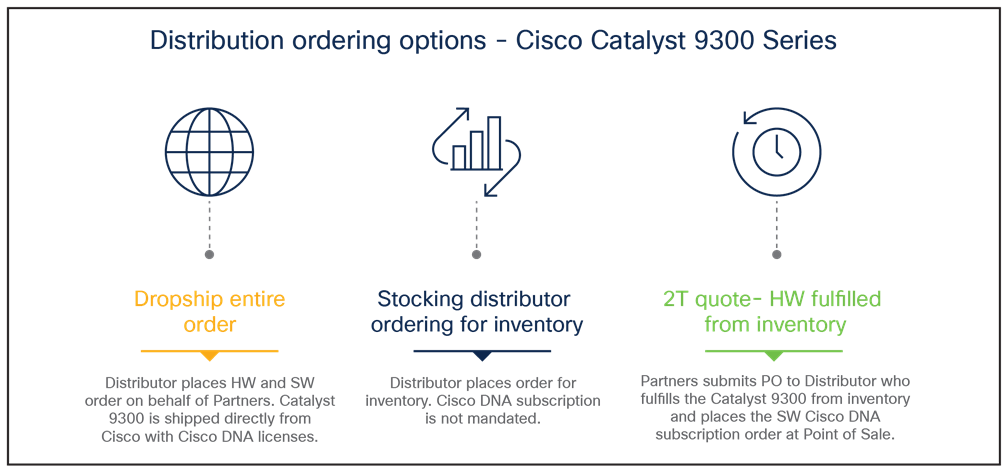

Distribution ordering options for Cisco Catalyst 9300 Series switches
Cisco Catalyst 9300 Series switches for stocking
By selecting “Stocking” as “Intended Use”, the system will show only hardware and does not include the Cisco DNA subscription (the subscription must be ordered at point of sale).
Distributor ordering Cisco Catalyst 9300 Series switches for stocking
Figure 4 shows the scenario where the distributor will dropship the entire order from Cisco to the end customer. The intended-use drop-down menu is set to Resale, which allows the default options for hardware support and software to become available. Hardware support can be changed to premium Solution Support or Smart Net Total Care, or it can be removed completely.
Distributor drop shipping the entire order
Figure 5 shows the distributor drop-shipping the entire order from Cisco to the end customer using Cisco DNA Essentials or Advantage software subscriptions.
Distributors drop-shipping entire Cisco Catalyst 9300 Series switch Cisco DNA Essentials or Advantage software subscription order
Figure 6 shows the partner quote request to the distributor. The distributor can choose to fulfill the entire order by drop-shipping or fulfill the hardware from stock and create a dropship order for Cisco DNA software.
Distributor fulfilling partner quote
Figure 7 shows the SKUs that the distributor has to use when ordering software as a dropship in Cisco DNA Essentials or Advantage subscription option scenarios.
SKU details for distributor ordering software as dropship
Smart Accounts: All you need to know
● Operations exchange: Partner and distributor software training: A comprehensive list of external software training resources and detailed training modules for ordering and license management
● Smart Account leading practices for customers: A leading practices guide that can help customers decide how to structure their Smart Accounts, including if they need multiple Smart Accounts
● Smart Account decision tree: A short branching survey that helps partners and customers understand what type of Smart Accounts to create
● Cisco Smart Accounts on Cisco.com: The primary Cisco.com site for Smart Accounts
[1] Hardware replacements via the Catalyst warranty program provides a best effort next business day response for the United States, Canada, Countries of the European Union, Australia, and New Zealand. Elsewhere, Cisco will ship the advance replacement on the next business day, but actual delivery times might vary depending on customer location. Taxes and duties might apply and must be paid by the recipient of the replacement part.
