Delivering secure and predictable performance for next-generation campus networks

Product Overview

The Cisco Catalyst® 6800 Family Switches offer a 8-port 40-Gigabit Ethernet module to serve a variety of high-bandwidth needs for the next-generation enterprise. Working in conjunction with the Catalyst® Supervisor Engine 2T/2TXL (VS‑S2T‑10G & VS-S2T-10GXL) or Catalyst Supervisor Engine 6T/6TXL (C6800-SUP6T & C6800-SUP6T-XL), they can serve different needs on campus deployments. The line card includes two variants: the Catalyst 6800 8-port 40-Gigabit Ethernet Fiber Module non-XL and the Catalyst 6800 8-port 40-Gigabit Ethernet Fiber Module XL.

The modules support hardware-based multicast replication, Quality of Service (QoS), Access Control Lists (ACLs), jumbo frames, and low latency to enable secure and predictable performance for bandwidth-intensive applications. Both share a common ASIC architecture and support the same set of features in hardware. The eight-port 40-Gigabit Ethernet Modules can also operate in performance mode. They include hardware features such as Virtual Switching System (VSS), Location ID Separation Protocol (LISP), Security Group Tagging (SGT) and Access Control (SGACL), MACsec (802.1ae), traffic shaping, and Hierarchical Quality of Service (HQoS), Software-Defined Access (SDA) among others. The line cards also have front‑facing passive UHF RFID technology, providing the latest Auto-ID capabilities for asset management. They support Quad Small Form-Factor Pluggable (QSFP) transceivers. The modules are designed to meet the increasing demand for aggregation of 40-Gigabit Ethernet streams in campus deployments, as well as for 40-Gigabit Ethernet transport in the core.

6800 Series 8-Port 40 Gigabit Ethernet Module

The 6800 Series 8-Port 40 Gigabit Ethernet Module is suitable for deployment in all aggregation and core networks.

     Two models: C6800-8P40G, an 8-port 40 Gigabit Ethernet module with DFC4-E (Figure 1), and C6800 8P40G-XL, an 8-port 40 Gigabit Ethernet module with DFC4-EXL

     Backplane connection: 160-Gbps backplane bandwidth in Catalyst 6807-XL chassis

     Chassis/slot support: Can occupy slots 1–2 and 5–7 in a Cisco Catalyst 6807-XL

     Supervisor engine: Compatible with Supervisor Engine 2T, Supervisor Engine 2TXL, Supervisor Engine 6T, and Supervisor Engine 6TXL

     Distributed forwarding and performance: Comes equipped with dual (2) DFC4-E or DFC4-EXL daughter cards

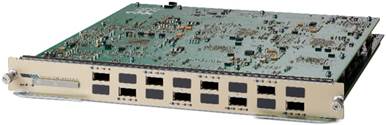

Figure 1.

6800 Series 8-Port 40 Gigabit Ethernet Module

Table 1 summarizes the primary features of the Cisco Catalyst 6800 Series 40 Gigabit Ethernet Modules.

Table 1.             40 Gigabit Ethernet Module Primary Features

Feature

8-Port 40 Gigabit Ethernet Module (non-XL)

8-Port 40 Gigabit Ethernet Module (XL)

Switch fabric connection

160 Gbps in 6807-XL chassis

160 Gbps in 6807-XL chassis

Oversubscription

In C6807-XL:

In C6807-XL:

8 ports: Oversubscription mode 2:1

8 ports: Oversubscription mode 2:1

Throughput (per module)

IPv4: up to 120 Mpps

IPv4: up to 120 Mpps

IPv6: up to 60 Mpps

IPv6: up to 60 Mpps

Maximum 40G port density per chassis (not including supervisor uplinks)

40 ports (6807-XL chassis)

40 ports (6807-XL chassis)

Maximum port density per VSS (not including supervisor uplinks)

80 ports (6807-XL chassis)

80 ports (6807-XL chassis)

Can be used to form VSS virtual switch link

Yes (on all ports)

Yes (on all ports)

Performance mode

Yes

Yes

Per port-group

Per port-group

Forwarding engine features

  Equipped with DFC4-E for distributed forwarding, supporting:
   256K IPV4 and MPLS forwarding entries, 128K IPV6 entries
   64K IPV4/IPV6 Multicast routes
   64K ACL entries (shared between QoS and security)
   1M NetFlow entries (with 2 forwarding engines)
  Both models support a MAC address table of 128K
  In addition to the increased NetFlow entries, supports Flexible NetFlow, Sampled NetFlow, and Egress NetFlow
  Increased MPLS and VPLS performance of up to:
  120 Mpps for MPLS forwarding and up to 60 Mpps for VPLS forwarding
  Support for 16K bridge domains, allowing the standard 4K VLANs to be reused across these bridge domains
  IPv4 Internet Group Management Protocol Version 3 (IGMPv3) snooping in hardware
  IPv6 Multicast Listener Discovery version 2 (MLDv2) snooping in hardware
  Protocol Independent Multicast (PIM) source registers in hardware
  IPV4 and IPv6 in IPv6 tunneling, IPV4 and IPv6 in MPLS tunneling (6PE/6VPE)
  IPv6 in IPv4 tunneling (Intra-Site Automatic Tunnel Addressing Protocol [ISATAP], 6to4, GRE)
  QoS support for uniform, short pipe, and pipe mode tunnel; hierarchical QoS
  Fast Link Notification (FLN) for hardware port state detection within 50 ms
  MACsec (802.1ae) link-layer hardware AES 128-bit encryption
  LISP hardware encapsulation
  Virtual Switch Header (VSH) and Virtual Network Tag (VNtag) hardware encapsulation for VSS
  Equipped with DFC4-EXL for distributed forwarding, supporting
   1M IPV4 and MPLS forwarding entries, 512K IPV6 entries
   64K IPV4/IPV6 Multicast routes
   256K ACL entries (shared between QoS and security)
   2M NetFlow entries (with 2 forwarding engines)
  Both models support a MAC address table of 128K
  In addition to the increased NetFlow entries, supports Flexible NetFlow, Sampled NetFlow, and Egress NetFlow
  Increased MPLS and VPLS performance of up to:
  120 Mpps for MPLS forwarding and up to 60 Mpps for VPLS forwarding
  Support for 16K bridge domains, allowing the standard 4K VLANs to be reused across these bridge domains
  IPv4 Internet Group Management Protocol Version 3 (IGMPv3) snooping in hardware
  IPv6 Multicast Listener Discovery version 2 (MLDv2) snooping in hardware
  Protocol Independent Multicast (PIM) source registers in hardware
  IPV4 and IPv6 in IPv6 tunneling, IPV4 and IPv6 in MPLS tunneling (6PE/6VPE)
  IPv6 in IPv4 tunneling (Intra-Site Automatic Tunnel Addressing Protocol [ISATAP], 6to4, GRE)
  QoS support for uniform, short pipe, and pipe mode tunnel; hierarchical QoS
  Fast Link Notification (FLN) for hardware port state detection within 50 ms
  MACsec (802.1ae) link-layer hardware AES 128-bit encryption
  LISP hardware encapsulation
  Virtual Switch Header (VSH) and Virtual Network Tag (VNtag) hardware encapsulation for VSS

Queues

Receive:

  1p7q4t (default)
  2p6q4t (configurable)

Transmit:

  1p7q4t (default)
  2p6q4t (configurable)

Receive:

  1p7q4t (default)
  2p6q4t (configurable)

Transmit:

  1p7q4t (default)
  2p6q4t (configurable)

Queuing mechanisms

  Class of Service (CoS)-based queue mapping
  Differentiated Services Code Point (DSCP)-based queue mapping
  Class of Service (CoS)-based queue mapping
  Differentiated Services Code Point (DSCP)-based queue mapping

Scheduler

Ingress queuing:

  Deficit Weighted Round Robin (DWRR)

Egress queuing:

  DWRR
   WRED
  Shaped Round Robin (SRR)
   WRED
  Class-Based Weighted Fair Queuing (CBWFQ)
   2-Level Traffic Shaping (HQoS)
   Low-Latency Queuing (LLQ)

Ingress queuing:

  Deficit Weighted Round Robin (DWRR)

Egress queuing:

  DWRR
   WRED
  Shaped Round Robin (SRR)
   WRED
  Class-Based Weighted Fair Queuing (CBWFQ)
   2-Level Traffic Shaping (HQoS)
   Low-Latency Queuing (LLQ)

Port buffers

Oversubscription mode:

  1 GB per port (egress)
  4.8 MB per port (ingress)

Performance mode:

  2 GB per port (egress)
  10 MB per port (ingress)

Oversubscription mode:

  1 GB per port (egress)
  4.8 MB per port (ingress)

Performance mode:

  2 GB per port (egress)
  10 MB per port (ingress)

Hardware multicast replication

  Ingress and egress replication mode
  Approximately 20 Gbps per replication engine
  8 replication engines per module
  Ingress and egress replication mode
  Approximately 20 Gbps per replication engine
  8 replication engines per module

Jumbo frame support

Up to 9216 bytes

Up to 9216 bytes

Line Card Mode of Operation

Cisco Catalyst 6800 8-Port 40-Gigabit Ethernet Fiber Module can operate in Oversubscription Mode (2:1) or in performance mode to provide line-rate operation.

Ports are numbered from Left to right as shown in Figure 2, Odd Number ports on TOP and Even Number Ports on Bottom.


Figure 2.

6800 Family 8-Port 40-Gigabit Ethernet Fiber Module Port Groups and Performance Mode

     Oversubscribed mode (Default)

     Both the 40G Ports in a Port Group are active

     Provides 2:1 Oversubscription

     Default Mode of operation

     Ingress & Egress buffers allocated per port-group is shared across both ports.

     Performance Mode

     One of the port (3,4,7 & 8) in Port-Group are shutdown

     Ports 1, 2, 5 & 6 operates in Line Rate

     Ingress & egress buffers are double for active port

Feature

8-Port 40 Gigabit Ethernet Module (non-XL)

8-Port 40 Gigabit Ethernet Module (XL)

40 Gigabit Ethernet ports

8 ports 40GE

Numbered left to right:

  Top row has odd numbered ports: FortyGigabitEthernet 1,3,5,7
  Bottom row has even numbered ports: FortyGigabitEthernet 2,4,6,8

8 ports 40GE

Numbered left to right:

  Top row has odd numbered ports: FortyGigabitEthernet 1,3,5,7
  Bottom row has even numbered ports: FortyGigabitEthernet 2,4,6,8

Port groups

4 port groups

2 Port-sets per port group

Port-group 1:

  1, 3

Port-group 2:

  2, 4

Port-group 3:

  5, 7

Port-group 4:

  6, 8

4 port groups

2 Port-sets per port group

Port-group 1:

  1, 3

Port-group 2:

  2, 4

Port-group 3:

  5, 7

Port-group 4:

  6, 8

Product Specifications

Table 2 lists product specifications of the 6800 Series 40 Gigabit Ethernet modules.

Table 2.             Product Specifications

Product

Specifications

Supervisor engines supported

Cisco Catalyst 6500 Series Supervisor Engine 2T and 2TXL

Cisco Catalyst 6800 Series Supervisor Engine 6T and 6TXL

Chassis supported

  Cisco Catalyst 6807-XL chassis
  Not supported in 6500 non-E Series chassis, 6500-E Series chassis, and 7600 Series chassis

Slot requirements

  Can occupy slots 1–2 and 5–7 in a Cisco Catalyst 6807-XL chassis

Onboard memory

2 GB default

Minimum Cisco IOS® Software release

15.5(1)SY

Standard protocols

IEEE 802.1d, IEEE 802.1p, IEEE 802.1q, IEEE 802.1s, IEEE 802.1w, IEEE 802.3x, IEEE 802.3ad, IEEE 802.3ba

Physical specifications

  Occupies one slot in 6807-XL chassis
  Dimensions (H x W x D): 1.73 x 15.4 x 16.4 inches (4.39 x 39.11 x 41.65 cm)
  Weight:
   12.52 lb (5.68kg) for C6800-8P40G
   12.79 lb (5.80kg) for C6800-8P40G-XL

Environmental conditions

Operating temperature:

  Agency-certified for operation: 32° to 104°F (0° to 40°C)
  Design and tested for operation: 32° to 130°F (0° to 55°C)
  Storage temperature: -40° to 167°F (-40° to 75°C)
  Relative humidity: 10 to 90 percent, noncondensing

Operating altitude:

  Agency-certified for operation: -500 to 6500 ft (-150 to 2000 m)
  Designed and tested for operation: -500 to 10K ft (-150 to 3000 m)

Regulatory compliance

6800 Series 40 Gigabit Ethernet module, when installed in a system, complies with the following EMC and safety standards:

EMC Standards:

  FCC Part 15 (CFR 47) Class A
  ICES-003 Class A
  VCCI Class A
  EN55022 Class A
  EN55024
  CISPR24
  CISPR 22 Class A
  AS/NZS CISPR 22 Class A
  ETS 300 386
  KN 22 Class A
  EN 50082-1
  EN61000-3-2
  EN61000-3-3
  EN61000-6-1
  CNS13438 Class A
  KN6100 -4 Series

Safety Standards:

  UL 60950-1
  CAN/CSA C22.2 No. 60950
  EN 60950-1
  IEC 60950-1
  AS/NZS 60950-1
  IEC 60825 Class 1
  EN 60825 Class 1
  21CFR 1040

ETSI

  ETS 300 019-2-1, Class 1.1 Storage
  ETS 300 019-2-2, Class 2.1 and 2.2 Transportation
  ETS 300 019-2-3, Class 3.1E Stationary Use

Network management

  ETHERLIKE-MIB (RFC 1643)
  IF-MIB (RFC 1573)
  Bridge MIB (RFC 1493)
  CISCO-STACK-MIB
  CISCO-VTP-MIB
  CISCO-CDP-MIB
  RMON MIB (RFC 1757)
  CISCO-PAGP-MIB
  CISCO-STP-EXTENSIONS-MIB
  CISCO-VLAN-BRIDGE-MIB
  CISCO-VLAN-MEMBERSHIP-MIB
  ENTITY-MIB (RFC 2037)
  HC-RMON
  RFC1213-MIB (MIB-II)
  SMON-MIB

Power requirements

  C6800-8P40G: 587.60 watts
  C6800-8P40G-XL: 587.60 watts
  Go to https://www.cisco.com/go/powercalculator for easy power consumption calculation

Indicators

  Status: green (operational), red (faulty), and orange (module booting)
  Link: green (port enabled and connected), orange (port disabled), and off (port enabled and not connected)
  Blue beacon: Used to identify a specific module in a fully populated system within a multisystem environment

System Requirements

Pluggable Optics for 40 Gigabit Ethernet Modules

Please refer to “Cisco 40-Gigabit Ethernet Transceiver Modules Compatibility Matrix” for the most up-to-date information: https://www.cisco.com/c/en/us/td/docs/interfaces_modules/transceiver_modules/compatibility/matrix/40GE_Tx_Matrix.html.

Ordering Information

Table 3 provides part numbers for specific models to assist you with ordering.

Table 3.          Part Numbers for Ordering

Part Numbers

Description

6800 Series 40 Gigabit Ethernet Modules

C6800-8P40G

Catalyst 6800 8-port 40GE with dual integrated dual DFC4-E

C6800-8P40G-XL

Catalyst 6800 8-port 40GE with dual integrated dual DFC4-EXL

C6800-8P40G=

Catalyst 6800 8-port 40GE with dual integrated dual DFC4-E spare

C6800-8P40G-XL=

Catalyst 6800 8-port 40GE with dual integrated dual DFC4-EXL spare

Warranty Information

The Cisco Catalyst 6800 Series comes with a Cisco 1-year hardware warranty. Adding a contract for a technical service offering such as Cisco Smart Net Total Care Service to your device coverage provides access to the Cisco Technical Assistance Center (TAC) and can provide a variety of hardware replacement options to meet critical business needs, updates for licensed OS software, and registered access to the extensive Cisco.com knowledge base and support tools.

For more information about Cisco warranties, go to https://www.cisco.com/go/warranty.

For information about Cisco Technical Services, go to https://www.cisco.com/go/ts.

Table 4 shows the Cisco technical services available for the Cisco Catalyst 6800 Series

Table 4.          Cisco Technical Services for Cisco Catalyst 6800 Series

Technical Services

Cisco Smart Net Total Care Service

  Around-the-clock, global access to the Cisco TAC
  Unrestricted access to the extensive Cisco.com resources, communities, and tools
  Next-business-day, 8x5x4, 24x7x4, and 24x7x2 advance hardware replacement 1 and onsite parts replacement and installation available
  Ongoing operating system software updates within the licensed feature set 2
  Proactive diagnostics and real-time alerts on Smart Call Home enabled devices

Cisco Focused Technical Support Services

3 levels of premium, high-touch services are available:

  Cisco High-Touch Operations Management Service
  Cisco High-Touch Technical Support Service
  Cisco High-Touch Engineering Service

Valid Cisco Smart Net Total Care or SP Base contracts on all network equipment are required.

1 Advance hardware replacement is available in various service-level combinations. For example, 8x5xNBD indicates that shipment will be initiated during the standard 8-hour business day, 5 days a week (the generally accepted business days within the relevant region), with Next Business Day (NBD) delivery. Where NBD is not available, same day ship is provided. Restrictions apply; please review the appropriate service descriptions for details.
2 Cisco operating system updates include the following: maintenance releases, minor updates, and major updates within the licensed feature set.

Cisco and Partner Services

We and our partners can help you create an innovative, secure, intelligent edge in enterprise networks. These are services tailored to your company: Through a discovery process that begins with understanding your business objectives, we help you integrate the Cisco Catalyst 6800 Series 40 Gigabit Ethernet line cards into your architecture and incorporate network services onto that platform. Sharing knowledge and leading practices, we support your success every step of the way as you deploy, absorb, manage, and scale new technology. Choose from a flexible suite of support services designed to meet your business needs and help you maintain high-quality network performance while controlling operational costs. For additional information about Cisco Services, visit https://www.cisco.com/go/services.

Cisco Capital

Flexible Payment Solutions to Help You Achieve Your Objectives

Cisco Capital makes it easier to get the right technology to achieve your objectives, enable business transformation and help you stay competitive. We can help you reduce the total cost of ownership, conserve capital, and accelerate growth. In more than 100 countries, our flexible payment solutions can help you acquire hardware, software, services and complementary third-party equipment in easy, predictable payments. Learn more.

Learn more
