Connect users, devices, and applications across every site
Easily deploy and operate secure, high-performance networks across offices, branches, campuses, and distributed locations. A broad portfolio of cloud-managed access and aggregation switches provides enterprise class performance and flexibility with simple, centralized management.
The Cisco Meraki® dashboard helps your IT teams:
● Deploy switches and provision ports quickly across one or hundreds of sites
● Apply consistent security, quality-of-service, and access policies
● Monitor switch health, capacity, events, and network usage from one interface
● Identify and resolve issues without traveling to each location
● Automate repetitive tasks and scale operations as your business grows
An intuitive interface simplifies everyday management, removes repetitive, time-consuming processes, while advanced capabilities such as Cloud CLI give experienced administrators the control they need. Centralized visibility and policy management helps your team identify capacity constraints, reconfigure ports, review event logs, and maintain consistent policies across the network. See which switches are near capacity across hundreds of sites. Quickly provision and reconfigure switch ports with security, Quality of Service (QoS), and more.
The result is faster deployment, simpler operations, and more time for IT teams to focus on business priorities.
Cisco® cloud-managed switches include all of the traditional Ethernet features found on the highest-end products, including:
● Wide range of models for campus, branch, and rugged environments, from basic Layer 2 to high-performance Layer 3
● Up to 10 Gigabit Ethernet (GbE) access ports and 100 GbE uplinks for scalable deployments
● True zero-touch configuration that scales with organizational needs
● Integrated troubleshooting, logging, and alerting to lower operational costs
● Energy-efficient, low-noise design with fanless options
● Cloud management for reduced cost, lower overhead, and faster issue resolution
● Advanced security with IEEE 802.1X, MAC-based RADIUS authentication, and multiple administrator roles
● QoS to prioritize critical traffic like voice and video
● Link Aggregation Control Protocol (LACP) and Rapid Spanning Tree Protocol (RSTP) for high availability and network stability
● Voice VLAN, Dynamic Host Configuration Protocol (DHCP) snooping, and Internet Group Management Protocol (IGMP) snooping to optimize and secure network traffic
● Cisco StackPower, advanced physical stacking, Multigigabit, and UPOE+ options on select models
Introducing the Catalyst 9200L-M
Native cloud management with the Catalyst 9200L-M

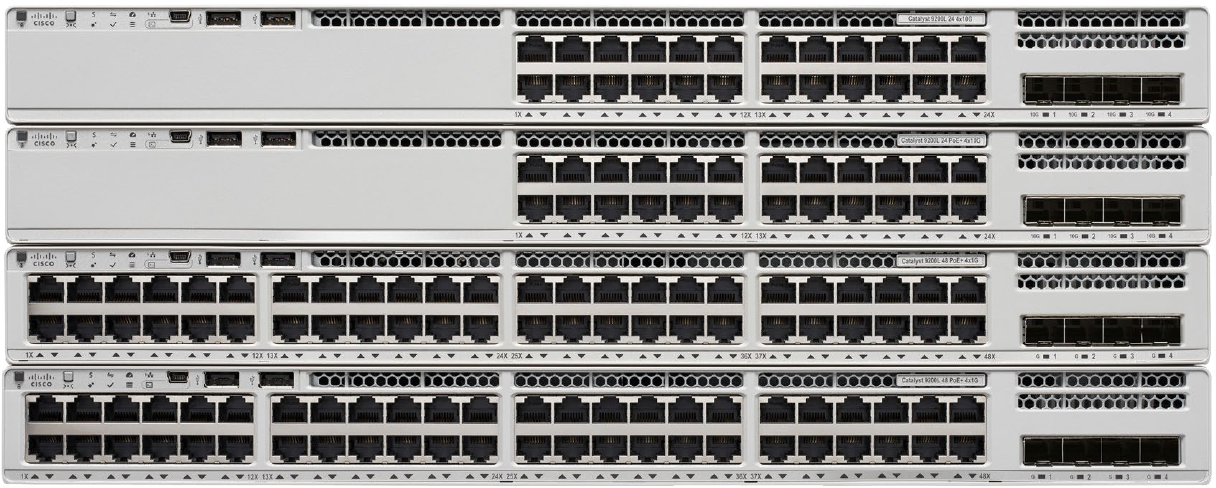

The Cisco Catalyst™ 9200L-M is a fixed, stackable access switch designed to simplify deployment and management and serve as an ideal choice for customers transitioning from Cisco MS switches or for advanced branch environments where ease of use, reliability, flexibility, and cloud scale are critical.
|
● 24/48 port options, 4x 10 GbE, 4x 10 GbE and 2x 25 GbE
uplinks, 30W PoE+, and up to 10 GbE RJ-45 ports
● Cloud management powered by Cisco IOS
® XE with
support for advanced features and secure Cloud CLI terminal for automated show commands to aid in granular troubleshooting
● 24/48 port options, 4x 10 GbE, 4x 10 GbE and 2x 25 GbE
uplinks, 30W PoE+, and up to 10 GbE RJ-45 ports
● Optional redundant power supply units provide up to
1440W power budget to add greater resilience to network operations and power smart building, converged access, and physical security use cases |
Data only, Gigabit models C9200L-24T-4X-M C9200L-48T-4X-M C9200L-24T-4G-M C9200L-48T-4G-M PoE, Gigabit models C9200L-24P-4X-M C9200L-24P-4G-M C9200L-48PL-4X-M C9200L-48P-4X-M C9200L-48P-4G-M C9200L-48PL-4G-M PoE, Multigigabit models C9200L-24PXG-4X-M C9200L-24PXG-2Y-M C9200L-48PXG-4X-M C9200L-48PXG-2Y-M |
Cost-effective access switches
|
|
MS130 compact
|
MS130
|
MS130R
|
MS150
|
| Usage |
Compact |
Branch and campus |
Ruggedized (hot, cold, or tight environments) |
Branch and campus Multigigabit Secure Wi-Fi 7 deployments |
| Interface |
8/12x 1 GbE RJ-45 6/8x 1 GbE + 2/4x 2.5 GbE RJ-45 (in select models) |
24/48x 1 GbE RJ-45 18/40x 1 GbE + 6/8x 2.5 GbE RJ-45 (in select models) |
8x 1 GbE RJ-45 |
24/48x 1 GbE RJ-45 16/32x 1 GbE + 8/16x 5 GbE RJ-45 (in select models) |
| Uplinks |
2x 1 GbE SFP 2x 10 GbE SFP+ (in select models) Fixed |
4x 1 GbE SFP 4x 10 GbE SFP+ (in select models) Fixed |
2x 1 GbE SFP |
4x 1 GbE SFP 4x 10 GbE SFP+ (in select models) Fixed |
| PoE capabilities |
120W 240W (MS130-12X only) |
370W 740W (MS130-48P/X only) |
Up to 240 W |
370W (P, LP models) 740W (FP models) |
| Power configuration |
Internal (MS130-8P-I only) External |
Internal |
External |
Internal |
| Stacking capabilities |
None |
None |
None |
2x 80 GbE physical |
| Routing capabilities |
DHCP relay |
DHCP relay |
DHCP relay |
DHCP relay Static routing |
| Advanced capabilities |
Adaptive Policy Segmentation1 |
|||
| Models |
MS130-8-HW MS130-8P-HW MS130-8P-I-HW MS130-8X-HW (Multigigabit, 10 GbE SFP + option)1 MS130-12X-HW (Multigigabit, 10 GbE SFP + option)1 |
MS130-24-HW MS130-24P-HW MS130-24X-HW (Multigigabit, 10 GbE SFP + option)1 MS130-48-HW MS130-48P-HW MS130-48X-HW (Multigigabit, 10 GbE SFP + option)1 |
MS130R-8P-HW |
MS150-24T-4G MS150-24P-4G MS150-48T-4G MS150-48LP-4G MS150-48FP-4G MS150-24T-4X MS150-24P-4X MS150-48T-4X MS150-48LP-4X MS150-48FP-4X MS150-24MP-4X (UPOE + Multigigabit + 10 GbE SFP+) MS150-48MP-4X (UPOE + Multigigabit + 10 GbE SFP+) |
|
|
MS 210
|
MS225
|
| Usage |
Branch and campus |
Branch and campus |
| Interface |
24/48x 1 GbE RJ-45 |
24/48x 1 GbE RJ-45 |
| Uplinks |
4x 1 GbE SFP Fixed |
4x 10 GbE SFP+ Fixed |
| PoE capabilities |
370W (P, LP models) 740W (FP models) |
370W (P, LP models) 740W (FP models) |
| Power configuration |
Internal Optional redundant power supply |
Internal Optional redundant power supply |
| Stacking capabilities |
Compatible with MS225 80 GbE physical |
Compatible with MS210 80 GbE physical |
| Routing capabilities |
Static only DHCP relay |
Static only DHCP relay |
| Models |
MS210-24-HW MS210-24P-HW MS210-48-HW MS210-48LP-HW MS210-48FP-HW |
MS225-24-HW MS225-24P-HW MS225-48-HW MS225-48LP-HW MS225-48FP-HW |
Advanced stackable access switches
|
|
Catalyst 9200L-M
|
Catalyst 9200L-M
|
Catalyst 9200L-M
|
| Usage |
Entry-level enterprise environments |
||
| Interface |
24/48x 1 GbE RJ-45 |
24/48x 1 GbE RJ-45 |
24 port: 8x 10 GbE + 16x 1 GbE 48 port: 12/8x 10 GbE + 36/40x 1 GbE |
| Uplinks |
4x 10 GbE uplinks (-4X SKUs) 4x 1 GbE uplinks (-4G SKUs) |
4x 10 GbE uplinks (-4X SKUs) 4x 1 GbE uplinks (-4G SKUs) |
4x 10 GbE uplinks (-4X SKUs) 2x 25 GbE uplinks (-2Y SKUs) |
| PoE capabilities |
Data only |
30W PoE+ (-24/48P SKUs) Partial PoE (-24/48PL SKUs) |
4x 10 GbE uplinks (-4X SKUs) 2x 25 GbE uplinks (-2Y SKUs) |
| Power configuration |
Removable power supply, optional redundant power supply |
||
| Stacking capabilities |
80 GbE physical + StackWise®-8super0 |
||
| Routing capabilities |
Static + dynamic, DHCP server + relay |
||
| Advanced capabilities |
Network access control with Access Manager RADIUS Device Sensor Application Visibility and Control (AVC) NetFlow Traffic Analytics Network-Based Application Recognition 2 (NBAR2) application visibility (1500+ applications) |
||
| Models |
C9200L-24T-4X-M C9200L-48T-4X-M C9200L-24T-4G-M C9200L-48T-4G-M |
C9200L-24P-4X-M C9200L-24P-4G-M C9200L-48PL-4X-M C9200L-48P-4X-M C9200L-48P-4G-M C9200L-48PL-4G-M |
C9200L-24PXG-4X-M C9200L-24PXG-2Y-M C9200L-48PXG-4X-M C9200L-48PXG-2Y-M |
High-performance, stackable access switches
|
|
Catalyst 9300-M (Gigabit)
|
Catalyst 9300L-M (Gigabit)
|
Catalyst 9300-M (Multigigabit)
|
|
| Usage |
High-performance branch and campus, secure Wi-Fi 7 deployments |
Secure Wi-Fi 7 deployments |
||
| Interface |
24/48x 1 GbE RJ-45 |
24/48x 1 GbE RJ-45 |
C9300-24UX-M: 24x 10 GbE Multigigabit C9300-48UXM-M: 36x 2.5 GbE Multigigabit and 12x 10 GbE Multigigabit C9300-48UN-M: 48x 5 GbE Multigigabit |
|
| Uplinks |
4x 1/10 GbE SFP/SFP+ 8x 1/10 GbE SFP/SFP+ 2x 40 GbE QSFP 2x 1/10/25 GbE SFP/SFP+ |
4x 1/10 GbE SFP/SFP+ |
4x 1/10 GbE SFP/SFP+ 8x 1/10 GbE SFP/SFP+ 2x 40 GbE QSFP 2x 1/10/25 GbE SFP28 |
|
| PoE capabilities1 |
Data-only option 30W PoE+ option 60W UPOE option |
Data-only option 30W PoE+ option |
60W UPOE option |
|
| Power configuration |
Removable power supply Modular 80 Plus Platinum power supply |
|||
| Stacking capabilities |
480 GbE physical + StackPower |
320 GbE physical |
480 GbE physical + StackPower |
|
| Routing capabilities |
Static + dynamic DHCP server + relay |
|||
| Advanced capabilities |
RADIUS Device Sensor AVC NetFlow Traffic Analytics NBAR2 application visibility (1500+ applications) Encrypted Traffic Analytics (ETA) |
|||
| Models |
C9300-24T-M C9300-24P-M C9300-24U-M C9300-48T-M C9300-48P-M C9300-48U-M |
C9300L-24T-4X-M C9300L-48T-4X-M C9300L-24P-4X-M C9300L-48P-4X-M C9300L-48PF-4X-M |
C9300-24UX-M C9300-48UXM-M C9300-48UN-M |
|
|
|
M S 450
|
| Usage |
40 GbE fiber aggregation |
| Interface |
12x 40 GbE QSFP+ |
| Uplinks |
2x 100 GbE QSFP28 |
| Power configuration |
Modular Redundant power supply optional (sold separately) |
| Stacking capabilities |
2 dedicated stack ports for up to 400 GbE |
| Routing capabilities |
Static + dynamic DHCP server + relay Warm spare (Virtual Router Redundancy Protocol [VRRP]) |
| Models |
MS450-12-HW |
Lifetime warranty with next-day advance replacement
Cloud-managed Cisco switches include a limited lifetime hardware warranty that provides next-day advance hardware replacement. The simplified software and support licensing model also combines software upgrades, centralized systems management, and phone support under a single, easy-to- understand model.
Cloud-managed Cisco switches include all of the traditional Ethernet features found in modern enterprise access switches, including:
Intelligent campus and branch switching
With built-in monitoring, troubleshooting, and logging capabilities, cloud-managed Cisco switches provide a refreshing new approach to managing network infrastructure, regardless of deployment size.
Centralized management reduces the need for device-by-device scripts and commands, enabling administrators to quickly and securely apply configuration changes to one switch, multiple switches, or an entire deployment.

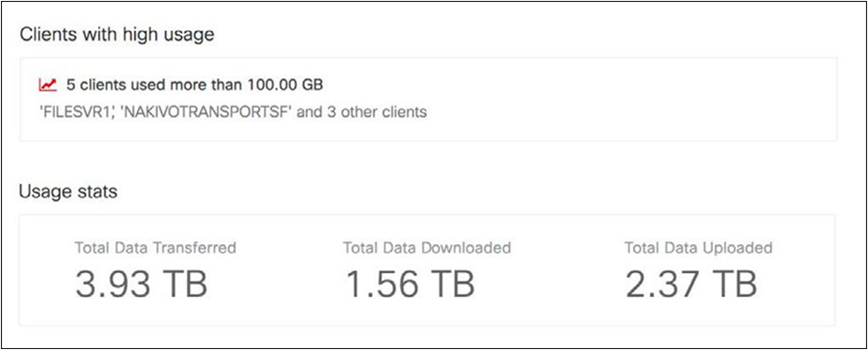

Intelligent anomaly detection flags potential network events
Wired security without compromise
Whether deployed in an office environment, hospital, or retail store, cloud-managed Cisco switches make enforcing security policies a breeze. Set up multiple policies and enable them at the port level or apply them across the entire network in a few clicks.
Cloud-managed Cisco switches also provide comprehensive security reporting, making it easy to proactively discover rogue DHCP servers and other malicious activity on the network.

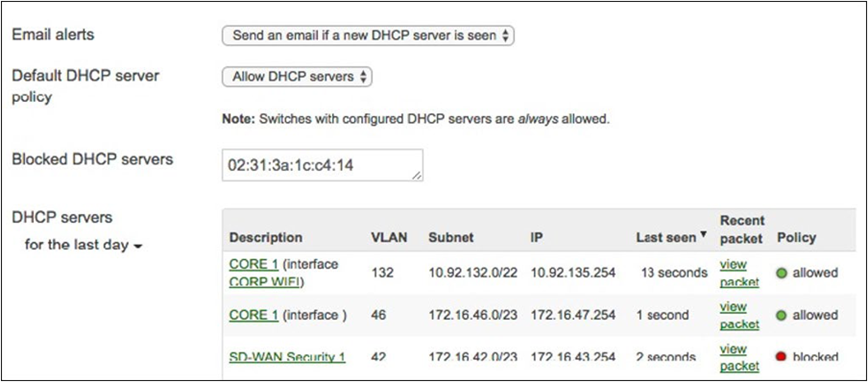

Rogue DHCP server detection across the entire network
Troubleshooting the way it should be
Drastically reduce time to issue resolution with a variety of powerful troubleshooting tools, such as remote cable testing and packet captures, that help isolate and troubleshoot network issues. With dynamic network topology, you can automatically see how the entire network is interconnected and ensure that your team receives alerts upon power loss, downtime, or configuration changes.

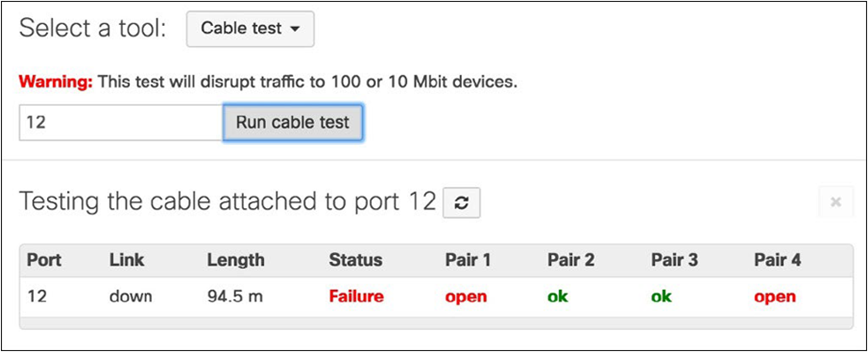

Remote cable test in the Meraki dashboard
StackPower and improved physical stacking
StackPower pools power from each individual power supply unit (PSU) in a switch stack to form a larger, shared pool of power that provides additional redundancy and also helps reduce costs by managing the available Power over Ethernet (PoE) more efficiently. Improved physical stacking helps with faster stack convergence in case of a failover, which is critical in large enterprise deployments.
Industry-leading cloud management
Cisco’s cloud management architecture delivers true zero-touch switch provisioning. Configure switches before they arrive on-site or use templates to standardize an entire fleet of switches, regardless of size.
With virtual stacking, administrators can manage up to thousands of ports from a single dashboard, enabling rapid and streamlined configuration that could otherwise take weeks to complete.

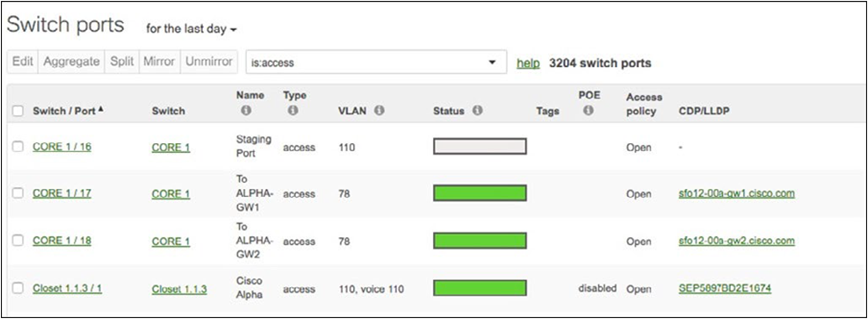

Switch virtual stack for managing all switch ports at once
Built-in application layer visibility
Cloud-managed Cisco switches are the only ones that include integrated Layer 7 fingerprinting. Identify hundreds of applications, from business apps to BitTorrent and YouTube.
User fingerprinting with Google-like search allows administrators to easily identify and control individual users, PCs, iMacs, iPads, Androids, and other devices. This very extensive visibility allows optimization of network resources and maintenance of optimal network performance.

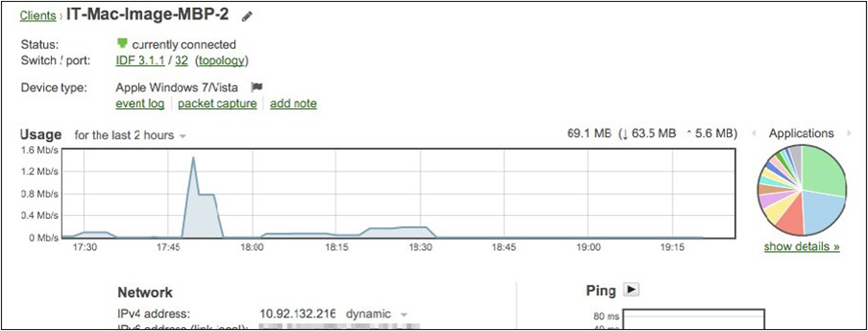

Granular network client visibility up to the application layer
| MS130 series1 |
Power supply (1); getting started insert |
| MS130R2 |
Mounting brackets (DIN rail mounting bracket, 19-inch rack-mount bracket, wall-mount bracket); getting started insert |
| MS150 series |
Getting started insert |
| MS210 series |
Getting started insert |
| MS225 series |
Getting started insert |
| MS450 series |
Power supply (1); system fans (3); getting started insert |
| Catalyst 9300-M series |
Power supply (1); system fans (3); rack-mount brackets; getting started insert |
| Catalyst 9200L-M series |
Power supply (1); system fans (3); rack-mount brackets; getting started insert |
Every MS subscription is available for any term length, starting from 1 year and up to 10 years. For more information on subscription licensing, please visit the Subscription Licensing Overview.
| Subscription license SKUs |
Hardware model |
| MS100 Small Essentials: LIC-MS-100-S-E Advantage: LIC-MS-100-S-A |
MS130 8 ports MS130R 8 ports |
| MS100 Medium Essentials: LIC-MS-100-M-E Advantage: LIC-MS-100-M-A |
MS130 24 ports |
| MS100 Large Essentials: LIC-MS-100-L-E Advantage: LIC-MS-100-L-A |
MS130 48 ports |
| MS200 Medium Essentials: LIC-MS-200-M-E Advantage: LIC-MS-200-M-A |
MS210 24 ports MS225 24 ports |
| MS200 Large Essentials: LIC-MS-200-L-E Advantage: LIC-MS-200-L-A |
MS210 48 ports MS225 48 ports |
| MS300 Medium Essentials: LIC-MS-300-M-E Advantage: LIC-MS-300-M-A |
Catalyst 9300-M 24 ports Catalyst 9300L-M 24 ports |
| MS300 Large Essentials: LIC-MS-300-L-E Advantage: LIC-MS-300-L-A |
Catalyst 9300-M 48 ports Catalyst 9300L-M 48 ports |
| MS400 Medium Essentials: LIC-MS-400-M-E Advantage: LIC-MS-400-M-A |
- |
| MS400 Large Essentials: LIC-MS-400-L-E Advantage: LIC-MS-400-L-A |
MS450 12 ports |
MS co-term licenses are available in 1-, 3-, 5-, 7-, and 10-year terms.
| Product |
Model |
License |
Description |
| MS130 |
MS130-8 |
LIC-MS130-CMPT-xY |
MS130 compact switch (8/12/R) Enterprise license and support |
| MS130-8P |
LIC-MS130-CMPTA-xY1 |
MS130 compact switch (8/12/R) Enterprise license and support |
|
| MS130-8P-I |
|
|
|
| MS130-8X |
|
|
|
| MS130-12X |
|
|
|
| MS130-24 |
LIC-MS130-24-xY |
MS130 24 ports Enterprise license and support |
|
| MS130-24P |
LIC-MS130-24A-xY 1 |
MS130 24 ports Enterprise license and support |
|
| MS130-48 |
LIC-MS130-48-xY |
MS130 48 ports Enterprise license and support |
|
| MS130-48P |
LIC-MS130-48A-xY 1 |
MS130 48 ports Advanced license and support |
|
| MS130-48X |
|
|
|
| MS150 |
MS150-24T-4G |
LIC-MS150-24-xY |
MS150 24 ports Enterprise license and support |
| MS150-24P-4G |
LIC-MS150-24A-xY |
MS150 24 ports Enterprise license and support |
|
| MS150-24T-4X |
|
|
|
| MS150-24P-4G |
|
|
|
| MS150-24T-4X |
|
|
|
| MS150-24P-4X |
|
|
|
| MS150-24MP-4X |
|
|
|
| MS150-48T-4G |
LIC-MS150-48-xY |
MS150 48 ports Enterprise license and support |
|
| MS150-48LP-4G |
LIC-MS150-48A-xY |
MS150 48 ports Advanced license and support |
|
| MS150-48FP-4G |
|
|
|
| MS150-48T-4X |
|
|
|
| MS150-48LP-4X |
|
|
|
| MS150-48FP-4X |
|
|
|
| MS150-48MP-4X |
|
|
|
| MS210 |
MS210-24-HW |
LIC-MS210-24-xY |
MS210-24 Enterprise license and support |
| MS210-24P-HW |
LIC-MS210-24P-xY |
MS210-24P Enterprise license and support |
|
| MS210-48-HW |
LIC-MS210-48-xY |
MS210-48 Enterprise license and support |
|
| MS210-48LP-HW |
LIC-MS210-48LP-xY |
MS210-48LP Enterprise license and support |
|
| MS210-48FP-HW |
LIC-MS210-48FP-xY |
MS210-48FP Enterprise license and support |
|
| MS225 |
MS225-24-HW |
LIC-MS225-24-xY |
MS225-24 Enterprise license and support |
| MS225-24P-HW |
LIC-MS225-24P-xY |
MS225-24P Enterprise license and support |
|
| MS225-48-HW |
LIC-MS225-48-xY |
MS225-48 Enterprise license and support |
|
| MS225-48LP-HW |
LIC-MS225-48LP-xY |
MS225-48LP Enterprise license and support |
|
| MS225-48FP-HW |
LIC-MS225-48FP-xY |
MS225-48FP Enterprise license and support |
|
| MS450 |
MS450-12-HW |
LIC-MS450-12-xY |
MS450-12 Enterprise license and support |
Every license is available in 1-, 3-, 5-, 7-, and 10-year terms.
| Product |
Model |
License |
Description |
| Catalyst 9200L-M 24 ports |
C9200L-24T-4X-M |
LIC-C9200L-24E-xY |
Catalyst 9300L-M 24 ports Enterprise license and support |
| C9200L-24T-4G-M |
LIC-C200L-24A-xY |
Catalyst 9200L-M 24 ports Advanced license and support |
|
| C9200L-24P-4X-M |
|
|
|
| C9200L-24P-4G-M |
|
|
|
| C9200L-24PXG-4X-M |
|
|
|
| C9200L-24PXG-2Y-M |
|
|
|
| Catalyst 9200L-M 48 ports |
C9200L-48T-4X-M |
LIC-C9200L-48E-xY |
Catalyst 9200L-M 48 ports Enterprise license and support |
| C9200L-48T-4G-M |
LIC-C9200L-48A-xY |
Catalyst 9200L-M 48 ports Enterprise license and support |
|
| C9200L-48PL-4X-M |
|
|
|
| C9200L-48P-4X-M |
|
|
|
| C9200L-48P-4G-M |
|
|
|
| C9200L-48PL-4G-M |
|
|
|
| C9200L-48PXG-4X-M |
|
|
|
| C9200L-48PXG-2Y-M |
|
|
|
| Catalyst 9300-M 24 ports |
C9300-24T-M |
LIC-C9300-24E-xY |
Catalyst 9300-M 12, 24 ports Enterprise license and support |
| C9300-24P-M |
LIC-C9300-24A-xY |
Catalyst 9300-M 12, 24 ports Advanced license and support |
|
| C9300-24U-M |
|
|
|
| C9300-24UX-M |
|
|
|
| Catalyst 9300L-M 24 ports |
C9300L-24T-4X-M |
|
|
| C9300L-24P-4X-M |
|
|
|
| C9300L-24UXG-4X-M |
|
|
|
| Catalyst 9300X-M 12 and 24 ports |
C9300X-24HX-M |
|
|
| C9300-24S-M |
|
|
|
| C9300X-12Y-M |
|
|
|
| C9300X-24Y-M |
|
|
|
| Catalyst 9300-M 48 ports |
C9300-48T-M |
LIC-C9300-48E-xY |
Catalyst 9300-M 48 ports Enterprise license and support |
| C9300-48P-M |
LIC-C9300-48A-xY |
Catalyst 9300-M 48 ports Advanced license and support |
|
| C9300-48U-M |
|
|
|
| C9300-48U-M |
|
|
|
| C9300-48UXM-M |
|
|
|
| Catalyst 9300X-M 48 ports |
C9300L-48T-4X-M |
|
|
| C9300L-48P-4X-M |
|
|
|
| C9300L-48PF-4X-M |
|
|
|
| Catalyst 9300X-M 48 ports |
C9300X-48UXG 4X-M |
|
|
| C9300X-48TX-M |
|
|
|
| C9300X-48HX-M |
|
|
|
| C9300X-48HXN-M |
|
|
|
| C9300-48S-M |
|
|
| Description |
Accessory |
Supported models |
| Power cable |
Region-specific power cords are not included in the box. Order the appropriate power cord separately: MA-PWR-CORD-US MA-PWR-CORD-EU MA-PWR-CORD-UK MA-PWR-CORD-CN MA-PWR-CORD-IN MA-PWR-CORD-BR MA-PWR-CORD-TW MA-PWR-CORD-AU MA-PWR-CORD-AR |
All models |
| 150W power adapter |
MA-PWR-150WAC-ADP |
MS130-8X and MS130-8P |
| 300W power adapter |
MA-PWR-300WAC-ADP |
MS130-12X |
| 30W power adapter |
MA-PWR-30WAC |
MS130-8 |
| 300W power adapter for MS130R1 |
MA-PWR-300W-INDADP |
MS130R |
| 250W power supply |
MA-PWR-250WAC |
MS425 |
| 40 GbE stacking cable (0.5 m, 1 m, and 3 m) |
MA-CBL-40G-50CM MA-CBL-40G-1M MA-CBL-40G-3M |
MS210, MS225, and MS425 |
| 350W power supply |
PWR-C1-350WAC-P-M |
Catalyst 9300X-M and Catalyst 9300L-M |
| 715W power supply |
PWR-C1-715WAC-P-M |
|
| 1,100W power supply |
PWR-C1-1100WAC-P-M |
|
| 1,900W AC platinum power supply |
PWR-C1-1900WAC-P-M |
PWR-C1-1900WAC-P-M |
| C9300L 1M Type 3A Stacking Cable used with KIT2 |
STACK-T3A-1M-M |
|
| C9300L 3M Type 3A Stacking Cable used with KIT2 |
STACK-T3A-3M-M |
|
| C9300L 50CM Type 3A Stacking Cable used with KIT2 |
STACK-T3A-50CM-M |
Catalyst 9300L-M models |
| C9300L-M Stack Kit |
C9300L-STAK-KIT2-M |
|
| 2x 1/10/25 GbE SFP/SFP+ uplink module |
C9300-NM-2Y-M |
Catalyst 9300-M models |
| 8x 1/10/25 GbE SFP28 uplink module |
C9300X-NM-8Y-M |
Catalyst 9300X-M models |
| 2x 40G/100 GbE QSFP28 uplink module |
C9300X-NM-2C-M |
|
| Catalyst 9300-M StackPower cable, 30 cm |
CAB-SPWR-30CM-M |
Catalyst 9300-M series |
| Catalyst 9300-M StackPower cable, 150 cm |
CAB-SPWR-150CM-M |
Catalyst 9300-M series |
| Catalyst 9300-M stacking cable, 0.5 m |
STACK-T1-50CM-M |
Catalyst 9300-M and 9300X-M models |
| Catalyst 9300-M stackingcable, 1 m |
STACK-T1-1M-M |
|
| Catalyst 9300-M stacking cable, 3 m |
STACK-T1-3M-M |
|
| System fan |
FAN-T2-M |
All Catalyst 9300-M, 9300L M, and 9300X-M models |
| Catalyst 9300-M rack mount kit |
4PT-KIT-T2-M |
Catalyst 9300-M series |
| 2x 40 GbE uplink module |
C9300-NM-2Q-M |
Catalyst 9300-M series |
| 8x 10/1 GbE uplink module |
C9300-NM-8X-M |
Catalyst 9300-M series |
Meraki MS130R series datasheet
Meraki MS150 series datasheet
Catalyst 9300-M series datasheet
Catalyst 9200L-M series datasheet
