Cisco Secure Console Servers Data Sheet
Available Languages
Bias-Free Language
The documentation set for this product strives to use bias-free language. For the purposes of this documentation set, bias-free is defined as language that does not imply discrimination based on age, disability, gender, racial identity, ethnic identity, sexual orientation, socioeconomic status, and intersectionality. Exceptions may be present in the documentation due to language that is hardcoded in the user interfaces of the product software, language used based on RFP documentation, or language that is used by a referenced third-party product. Learn more about how Cisco is using Inclusive Language.
C8220TG-48A-O
The Cisco® Secure Console Servers provide secure, high-density, out-of-band serial console access to routers, switches, firewalls, servers, storage arrays, and power distribution units in data centers and colocation facilities. When the production network is down, the console server is the last line of defense — the always-available management plane that keeps operations teams connected to critical infrastructure.
● Out-of-band management and recovery of remote network devices during primary network outages
● Centralized serial console access for lights-out data centers and edge sites
● SONiC-based OS — open, hyperscaler-adopted OS; vendor flexibility
● Hardware Trusted Platform Module (TPM) for Secure Boot — hardware root of trust; blocks unsigned firmware
● 10 Gigabit Ethernet (GE) uplinks — aligns with modern data center standards for upstream connectivity
● Dual power supplies — redundant feeds; no single point of failure
The C8220TG-48A-O is a 1-Rack-Unit (1RU) fixed-form-factor secure console server. It provides 48x RJ-45 asynchronous serial ports for out-of-band console management, along with 1/10 GE uplinks for the management switch connectivity and runs on SONiC as an open, disaggregated OS.

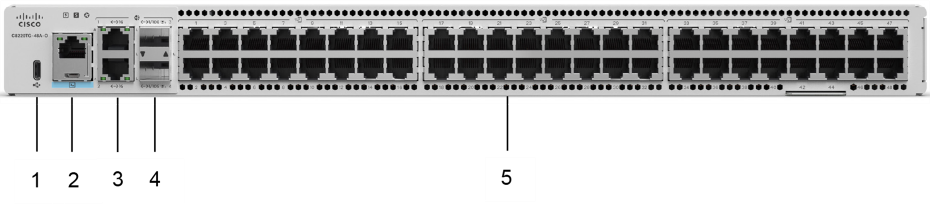

Front view of a Cisco C8220TG-48A-O Secure Console Server
Table 1. Descriptions of front panel components
| Label |
Description |
| 1 |
USB 3.0 Type C |
| 2 |
Console RJ-45 / Micro-USB port |
| 3 |
2x 1 GE copper ports |
| 4 |
2x 1/10 GE SFP+ ports |
| 5 |
48 RJ-45 asynchronous ports |

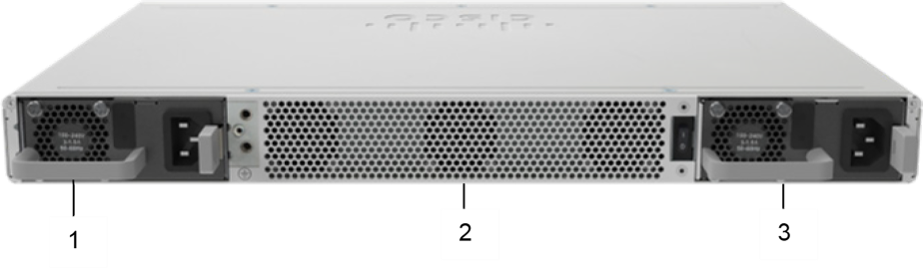

Rear panel of a Cisco C8220TG-48A-O Secure Console Server
Table 2. Descriptions of rear panel components
| Label |
Description |
| 1 |
Power supply 1 |
| 2 |
2 fans |
| 3 |
Power supply 2 |
Table 3. Technical specifications
|
|
C8220TG-48A-O |
| Interfaces and slots |
|
| Uplink ports |
2x 1 GE (copper) 2x 1/10 GE (SFP+) |
| Asynchronous ports |
48 RJ-45 |
| Memory and storage |
|
| DRAM |
16 GB |
| Storage |
32 GB |
| Power supply |
250W AC |
Table 4. Physical specifications
|
|
C8220TG-48A-O |
| Dimensions (H x W x D) |
1.73 x 17.50 x 12 in. (4.39 x 44.45 x 30.48 cm) |
| Rack Units (RU) |
1 RU |
| Chassis weight with 2 AC power supplies and fan tray |
12.4 lb (5.62 kg) |
| Operating temperature |
32° to 104°F (0° to 40°C) |
| Storage temperature |
-40° to 150°F (-40° to 66°C) |
| Relative humidity (ambient, noncondensing) |
Operating: 10% to 85% Storage: 5% to 95% |
| Altitude |
-500 to 10,000 feet (-152 to 3048 meters) |
SONiC provides a programmable and flexible platform for building high-performance, cloud-scale networking solutions. The integration of SONiC with the Cisco Secure Console Servers unlocks several key benefits:
● Open and programmable: SONiC is an open-source network operating system that provides a programmable and flexible platform for building network solutions.
● Cloud-native architecture: The Secure Console Servers with SONiC leverage a cloud-native architecture, enabling rapid feature development and updates.
● Operational efficiency: SONiC's automated provisioning, monitoring, and troubleshooting capabilities help improve operational efficiency.
When placing your order in Cisco Commerce (CCW), ensure that the following components are selected:
Table 5. Ordering configuration components
| Component |
Product ID (PID) |
Notes |
| Base platform |
C8220TG-48A-O |
Includes 48x RJ-45 ports and 1/10 GE uplinks |
| Primary power supply |
PWR-CC1-250WAC |
Included with base unit |
| Secondary power supply |
PWR-CC1-250WAC/2 |
Optional (for redundancy) |
| Rack mount kit |
C8220TG-ACCKIT-19 |
19-inch mounting hardware |
| Software |
SO-TG-TRK |
SONiC OS |
| Software License (SONiC) |
TG-OS-E-O |
SONiC Software License |
1. Search: Log in to Cisco Commerce (CCW) and search for the base platform PID: C8220TG-48A-O.
2. Power configuration: The primary power supply is included. Add PWR-CH1-250WAC/2 if you require a redundant power feed.
3. Accessories: Select the C8220TG-ACCKIT-19 rack mount kit.
4. Software: Select the required software subscription: SO-TG-TRK.
5. Validation: Review the configuration summary in CCW to ensure that all required components are present and validate the order before submission.
Cisco Secure Console Servers come with a standard Cisco Limited 2-Year Return to Factory Hardware Warranty.
