Cisco IP DECT 6800 Series



Cisco IP DECT 6800 Series

The Cisco® IP DECT 6800 Series is a simple, mobile voice system for use in a wide range of work locations on Cisco Webex Calling, Webex Calling Carrier, Cisco Broadworks and approved Unified-Communications-as-a-Service (UCaas) platforms.

Product overview

Cisco IP DECT Phone 6800 Series Product Overview

The Cisco IP DECT 6823 and Cisco IP DECT 6825 Handsets are designed for use with the Cisco IP DECT DBS-110 Single-Cell Base Station, Cisco IP DECT DBS-210 Multi-Cell Base Station and Cisco IP DECT Phone RPT-110 Repeater. Together, these products enable the convenience of a mobile DECT solution for Voice-over-IP (VoIP) service. The Cisco IP DECT 6800 Series supports many phone numbers and handsets in a system that can grow from a small store front to cover the largest locations by adding more base stations and repeaters to the network.

Installing the system is straightforward in most locations: please consult the deployment guide, which offers best practises for a successful deployment. Each handset comes with a site survey tool that provides a graphical green, yellow or red indicator of signal strength throughout the workplace. Base stations and repeaters may be wall or surface mounted with an optional mounting kit or set up to stand on a table or shelf with an footstand included in each gift box. Each handset supports one or two lines and systems may be installed to enable a few, dozens or hundreds of handsets.

The 6823 and 6825 handsets have a sleek, comfortable design that clips to a belt or fits easily into a user’s pocket as they move about the workplace. The high resolution, graphical color display provides an intuitive user experience: calls may be answered quickly and features such as transfer, conference and hold may be activated with confidence. Each handset supports wide band audio, long talk time in an attractively priced, high performance system. There is also a ruggedized version of the 6825 that is IP65 rated and designed to work well in dusty or moist environments.

The 6825 offers these advantages that are not provided by the 6823:

      A high resolution display

      Backlit keypad keys

      Bluetooth LE 4.1 for headsets

      An emergency button for inter-network notifications

Note:     Not all call control systems support single cell and multi-cell. At the time of writing, Cisco BroadCloud and Webex Calling support single cell deployments only. Check with your call control provider about whether they support the different deployment models offered in this data sheet.

An affordable way to purchase hardware

Cisco Webex Hardware as a Service provides a new way to purchase hardware with a simple, scalable and flexible way to pay. Stay up to date with the latest models of IP Phones and Webex Devices to enhance collaboration and create workspaces for the future. And get ready for all the power of Cisco's unified cloud platform! Learn more about Webex Hardware as a Service and the devices available.

Click here to access the Webex Hardware as a Service data sheet.

Cisco IP DECT DBS-110 Single-Cell Base Station, DBS-210 Multi-Cell Base Station and RPT-110 Repeater

The Cisco IP DECT DBS-110 Single-Cell Base Station allows up to 20 SIP registrations per unit and up to 2 base stations and 12 repeaters per system. At its maximum size a Single Cellsystem supports 20 concurrent narrowband or 8 concurrent wideband calls.

The Cisco IP DECT DBS-210 Multi-Cell Base Station may be installed as a single cell solution that can grow up to a large system with 250 integrated base stations that supports up to 1000 SIP registrations and 2000 calls.

The Cisco IP DECT RPT-110 Repeater extends the connectivity range of handsets registered to the Base Stations. Each Base Station and Repeater has a signal radius of 50 meters (164 feet). The Deployment Guide provides more detail on how combinations of Base Stations and Repeaters may be installed to satisfy different signaling coverage scenarios.

The 110 Single-Cell Base Station, 210 Multi-Cell Base Station and 110 Repeater are supported in the follow frequency ranges:

      1880 – 1900 MHz (Australia and New Zealand – reduced power 22 dBM)

      1880 – 1900 MHz (E.U. and APAC)

      1920 – 1930 MHz (U.S. and Canada)

Each handset is programmed to the one of the frequency ranges above when registering to a Base Station for the first time.

Cisco IP DECT 6823 and 6825 Handset Features and Benefits

Table 1.        Features and Benefits for Cisco IP DECT 6823 and 6825 Handsets

Feature

Benefits

Hardware features

Ergonomic design

An easy-to-use interface that provides a traditional Digital Enhanced Cordless Telecommunication (DECT) telephony-like user experience

Graphical display

6823: 1.7 in. (4.3 cm) 128 x 160 pixels, 64K TFT display

6825: 2.0 in. (5.0 cm) 240 x 320 pixels, 64K TFT display

Both handsets: 3-color MWI LED



Handset (HAC)

  All 6825 Handsets are Hearing-Aid-Compatible (HAC) and meet Federal Communications Commission (FCC) loudness requirements for the Americans with Disabilities Act (ADA)
  You can meet Section 508 loudness requirements by using industry-standard inline handset amplifiers such as Walker Equipment W-10 or CE-100 amplifiers
  HAC compliant – FCC part 68 and Australia S040

Headset

6825 only: Bluetooth LE 4.1

6823 and 6825: 3.5 mm wired headset, iPhone compliant

The 6800 series provides exceptional noise isolation when used with a Cisco Headset

For more information about Cisco’s headset offer: https://www.cisco.com/c/en/us/products/collaboration-endpoints/headsets/index.html

Volume control

A volume-control toggle provides easy decibel-level adjustments of the handset, monitor speaker, and ringer

Full-duplex speakerphone

A full-duplex speakerphone gives you flexibility in placing and receiving calls. For added security, the Audible Dual-Tone Multi-Frequency (DTMF) tones are masked when the speakerphone mode is used

Handset charging cradle

The charging cradle holds the phone in a single position. The charging cradle comes with a USB Type-A connector to directly connect the power adapter of your choice (see ordering information in Table 6 in this document). The charging adapter is 5V, 2A

Wall-mountable

The handset is wall-mountable, with a separate orderable SKU

Keys

28 total keys

0-9, # and * keys

3 soft keys

Five-way navigation and select

Answer and end call keys

1 alarm key on top of the device

Volume up and down keys

Mute key

Speakerphone key

Menu key

Power

Battery type: rechargeable Lithium Ion

Cradle charging time: 6 hours

Talk time: 17 hours (NB), 12 hours (WB)

Idle time: 200 hours

Adaptor plugs: E.U., U.S., Australia, U.K. (other countries available; see ordering information in Table 6)

Full lines supported

6823 and 6825: 2 lines (SIP registrations)

CODECs

6823 and 6825 Handset:

  G722 codec for HD audio
  G726 codec for narrow band audio
  HD audio speakerphone

Language support

  Croatian
  Czech
  Danish
  Dutch
  English (American)
  English (United Kingdom)
  French (France)
  German
  Italian
  Norwegian
  Polish
  Portuguese (Portugal)
  Serbian (Republic of Serbia)
  Serbian (Republic of Montenegro)
  Spanish (Spain)
  Slovak
  Swedish
  Slovenian
  Turkish

Multiple ring tones

The phones support user-adjustable ring tones

Security

CAT-iq 2.1 security support

Physical dimensions (H x W x D)

4.6 in. x 1.8 in. x 0.78 in. (117 mm x 46 mm x 20 mm)

Weight

6823 and 6825: 3 oz. (86 g)

Display

6823: 1.7 in. (4.3 cm) 128 x 160 pixels, 64K TFT display

6825: 2.0 in. (5.0 cm), 240 x 320 pixels, 64K TFT display

Phone casing composition

Polycarbonate Acrylonitrile Butadiene Styrene (ABS) textured plastic

Power requirements

5V/2A, Type USB-A for power and additional power adapter for charging the handset. Interoperable optional AC-to-DC country-specific power supplies (such as the CP-6825-PWR-NA= for North America)

Operational temperature

32° to 113° F (0° to 45° C)

Nonoperational temperature shock

14° to 140° F (-10° to 60° C)

Humidity

  Operating 10% to 90%, noncondensing
  Non-operating 10% to 95%, noncondensing

Ruggedized Version

The 6825 Ruggedized Handset is rated for IP65 Deployments.

·   IP65 rating means “dust tight” and protected against water projected from a nozzle .

DECT certification and compliance for 6823 and 6825

Regulatory compliance:

    CE Markings per directives 2014/30/EU and 2014/35/EU

Safety:

    IEC60950-1:2005 (2nd Edition); AM1:2009 (CE, U.S. and Canada)

    EN60950-1:2006/ A1:2010 + A11:2009 +A1 2010 +A12: 2011 +A2: 2013 (Australia and New Zealand)

    CB Certificate

    UL 62368-1 (U.S., Canada)

    UL 60950-1 (U.S., Canada)

    EU EMC EN301489-1 V2.2.0, EN 301489-6 V2.2.0, EN 301 489-3 v2.1.1 and EN 301 489-17 v3.2.0 (CE)

    EU SAR EN/IEC 61109-1/-2 including EN50360: A1 2010, EN 50385: 2002 (CE)

    EU RF EN301406 V2.2.2, EN 300 328 v2.1.1; EN 301 893 v2.1.1 and EN 300 440 v2.1.1 (CE)

    AU EMC (CISPR 32)

    AU Safety AS/NZS 60950-1:2011

    AU SAR EN/IEC 62209-1 (same as EU)

    US FCC Part 15D

    US FCC ID certificate

    US SAR OET 65 IEEE 1528

    CA ICES-003 Issue 5:2012

    CA RSS-213 Issue 2:2015

    CA IC certificate

    CA RSS-102 (SAR)

    CA IC REL registration

EMC – Emissions

    47CFR Part 15 (CFR 47) Class B

    AS/NZS CISPR32:2015 Class B

    CISPR 32: 2015_COR1:2016 Class B

    EN55032: 2015+AC:2016

    ICES003 Class B

    EN61000-3-2:2014 and IEC 61000-3-2:2014

    EN61000-3-3:2013 and IEC61000-3-3:2013

    VCCI Class B

EMC – Immunity

    EN55024

    CISPR24

Telecom

    FCC Part 68 HAC

    CS-03-HAC

    AS/ACIF S004

    AS/ACIF S040

    NZ PTC 220

Bluetooth

    EU EMC EN 301489-17 V3.2.0

    EN301489-1 V2.2.0 for BT

    AU RF AS/NZS 4268:2012

    US FCC Part 15.247 for BT

    CA RSS-247

Industry standards: IEEE 802.3 Ethernet, IEEE 802.3af

Industry standards: Cat IQ 2.1 compliant

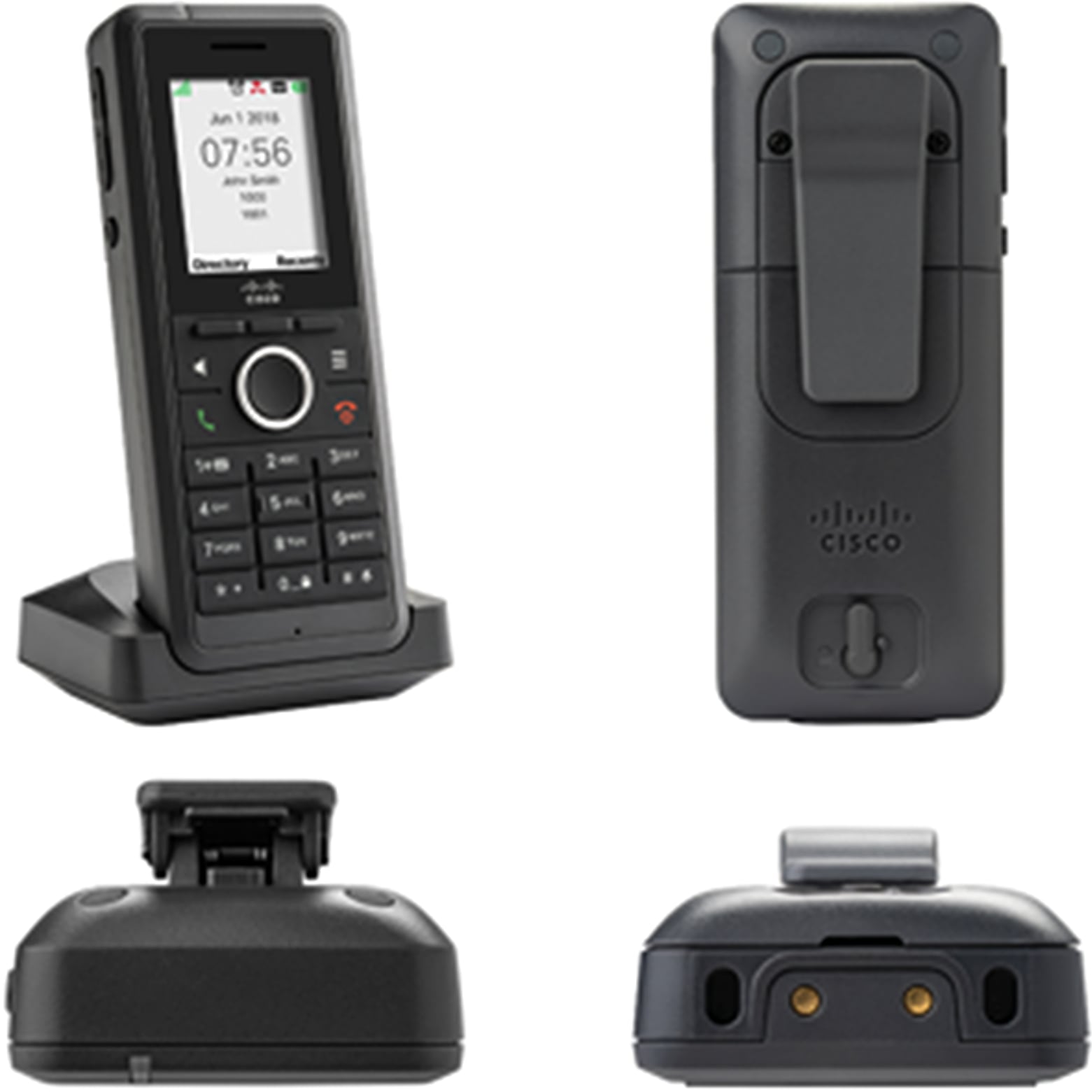

Cisco IP DECT 6823 Handset

Figure 1.

Cisco IP DECT 6823 Handset

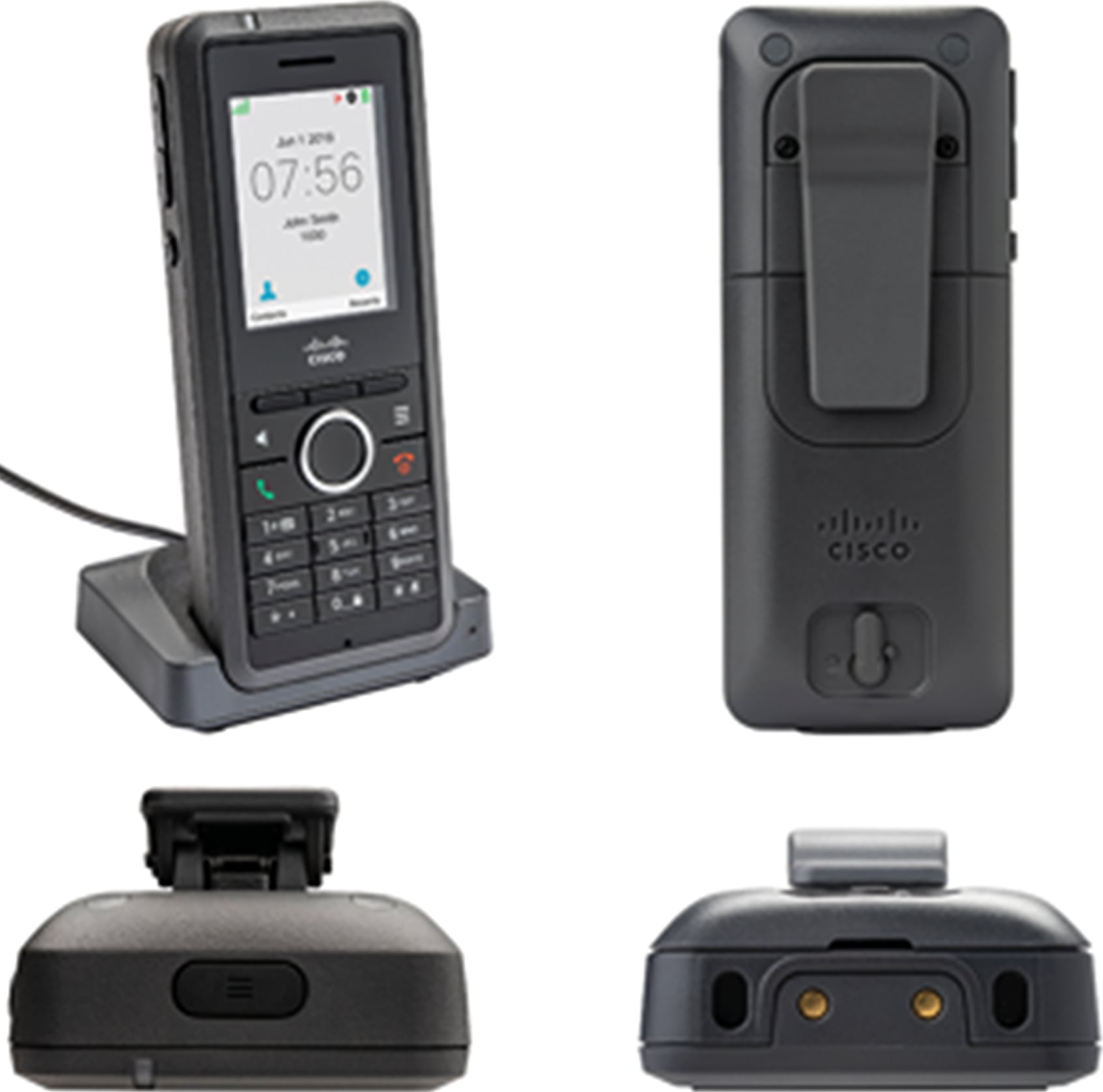

Cisco IP DECT 6825 Handset

Figure 2.

Cisco IP DECT 6825 Handset

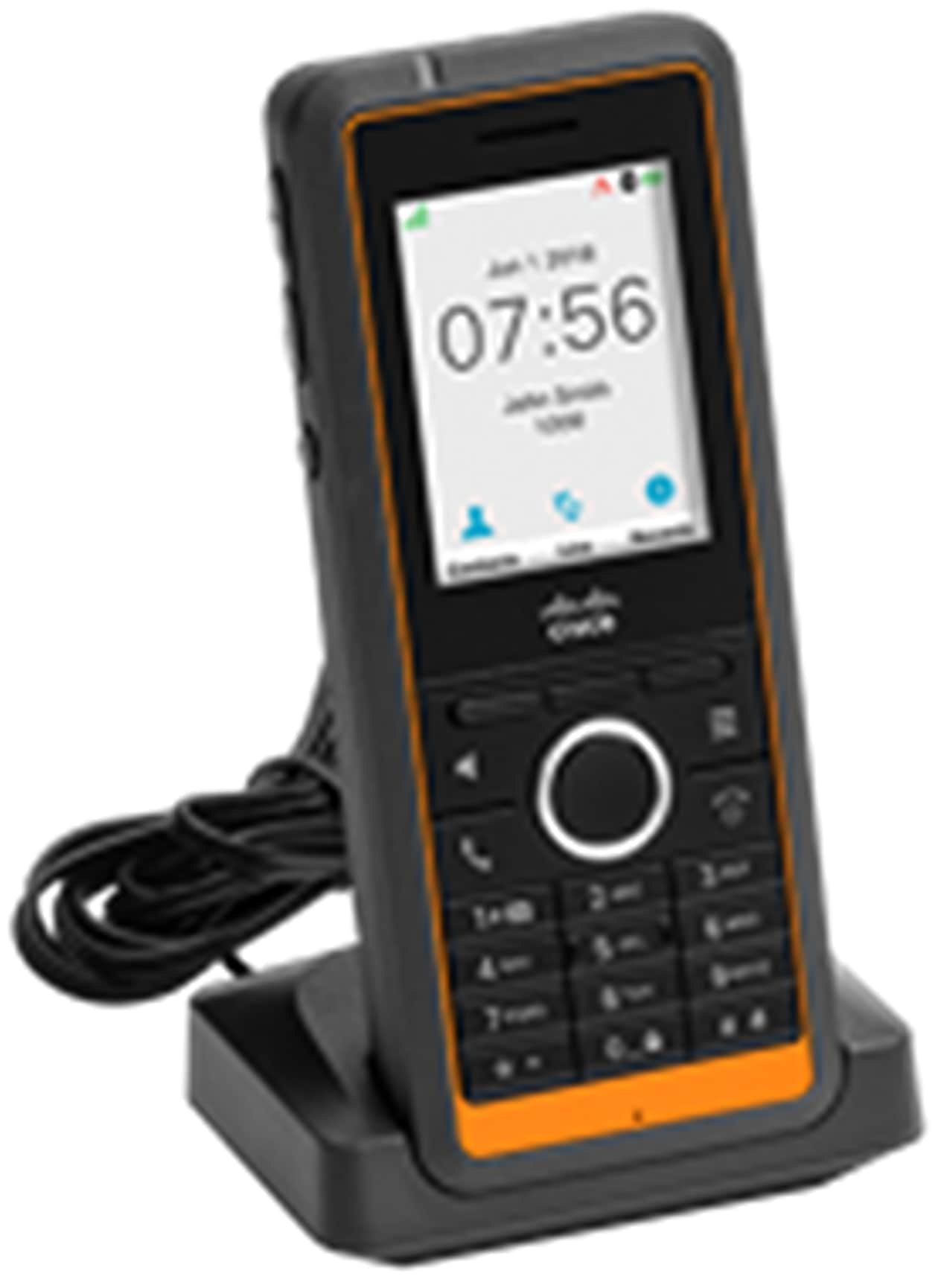

Cisco IP DECT 6825 Ruggedized Handset

Figure 3.

Cisco IP DECT 6825 Ruggedized Handset

Cisco IP DECT DBS-110 Single-Cell Base Station, DBS-210 Multi-Cell Base Station and RPT-110 Repeater Features and Benefits

The specifications described in Table 2 apply to all three devices except where noted.

Table 2.        Table 2 lists the features and benefits of the Cisco IP DECT DBS-110 Single-Cell Base Station, Cisco IP DECT DBS-210 Multi-Cell Base Station and Cisco IP DECT Phone RPT-110 Repeater.

Feature

Detail

Unit Capacity:

Single-Cell Mode

DECT 110 Single-Cell Base Station:

  Up to 20 SIP Registrations
  Up to 10 Concurrent Calls

DECT 210 Multi-Cell Base Station:

  Up to 30 SIP Registrations
  Up 10 Concurrent Calls

Multi-Cell Mode:

DECT 110 Single-Cell Base Station:

  Not supported in Multi-Cell Mode

DECT 210 Multi-Cell Base Station with 250 Base Stations Deployed:

  Up to 1000 SIP Registrations
  Up to 2032 Concurrent Calls

Base Stations and Repeaters



Single-Cell Mode:

DECT 110 Single-Cell Base Station:

  1 Base Station
  Up to 6 Repeaters

DECT 210 Multi-Cell Base Station:

  1 Base Station
  Up to 3 Repeaters

Multi-Cell Mode

DECT 110 Single-Cell Base Station:

  Not Supported in Multi-Cell Mode

DECT 210 Multi-Cell Base Station:

  Up to 250 Base Stations
  Up to 750 Repeaters

Audio

  Codecs: G.711 (A-law and mu-law), G.722.2, G.726, G.729 (a and ab)

Dimensions

  4.75 in. x 4.75 in. x 1.2 in. (121 mm x 121 mm x 31 mm)

Weight

  6 oz (167g)
  With stand - 8.2 oz (231g)

Network

  MAC address (IEEE 802.3)
  SIP protocol support (RFC 3261 and companion RFCs)
  IPv4 (RFC 791)
  DNS: A record (RFC 1706), SRV record (RFC 2782)
  Dynamic Host Configuration Protocol (DHCP) (RFC 2131)
  Simple Network Time Protocol (SNTP) (RFC 2030)
  Network Address Translation (NAT) traversal, serial tunnel (STUN)
  User Datagram Protocol (UDP) / Transmission Control Protocol (TCP)
  Link Layer Discovery Protocol (LLDP)

Ethernet

  Internal Single Port - 10/100 BASE-T IEEE 802.3
  Power over Ethernet (PoE) - minimum IEEE 802.3: Power class 2 (3.84 – 6.49W)

Security

  Certificates
  Transport Layer Security (TLS)
  Media encryption via Secure Real-Time Transport Protocol (SRTP)
  Encrypted configuration files
  Digest authentication
  Password-protect handset
  HTTPs secure provisioning
  Secure call

Call control and audio features

  Make a call over any line
  Receive a call over any line
  Auto-answer
  Barge call (shared line)
  Redial
  Do not disturb
  Anonymous call
  Anonymous call rejection
  Caller ID
  Hold / resume
  Three-way conference
  Attended transfer
  Blind transfer
  Call swap (to/from)
  Call transfer
  Call forwarding
  Call waiting
  Call park
  Call hold / resume
  Call return
  Shared line / multi-line
  Key lock
  Emergency call
  Narrowband / wideband codecs
  DTMF dialing
  Distinctive ringing
  Ringtone selection
  Ringer volume control
  Receiver volume control
  Phonebook search, import, export
  Call history (up to 50 entries)
  Local phonebook
  Remote phonebook / Lightweight Directory Access Protocol (LDAP)
  Cisco BroadWorks ® Directory
  Speed dial
  Voicemail
  Message waiting indicator
  Full duplex speakerphone
  SRTP
  HTTPS
  Support for provisioning / upgrade

Directory

  250 entries
  Local phonebook
  XML / LDAP remote directory
  Cisco BroadSoft ® directory
  Call history (missed, placed, and received), up to 50 entries

Management

  Configuration: Browser, phone, auto-provision
  Auto-provision via TFTP, HTTP, or HTTPs for mass deployment
  Packet capture

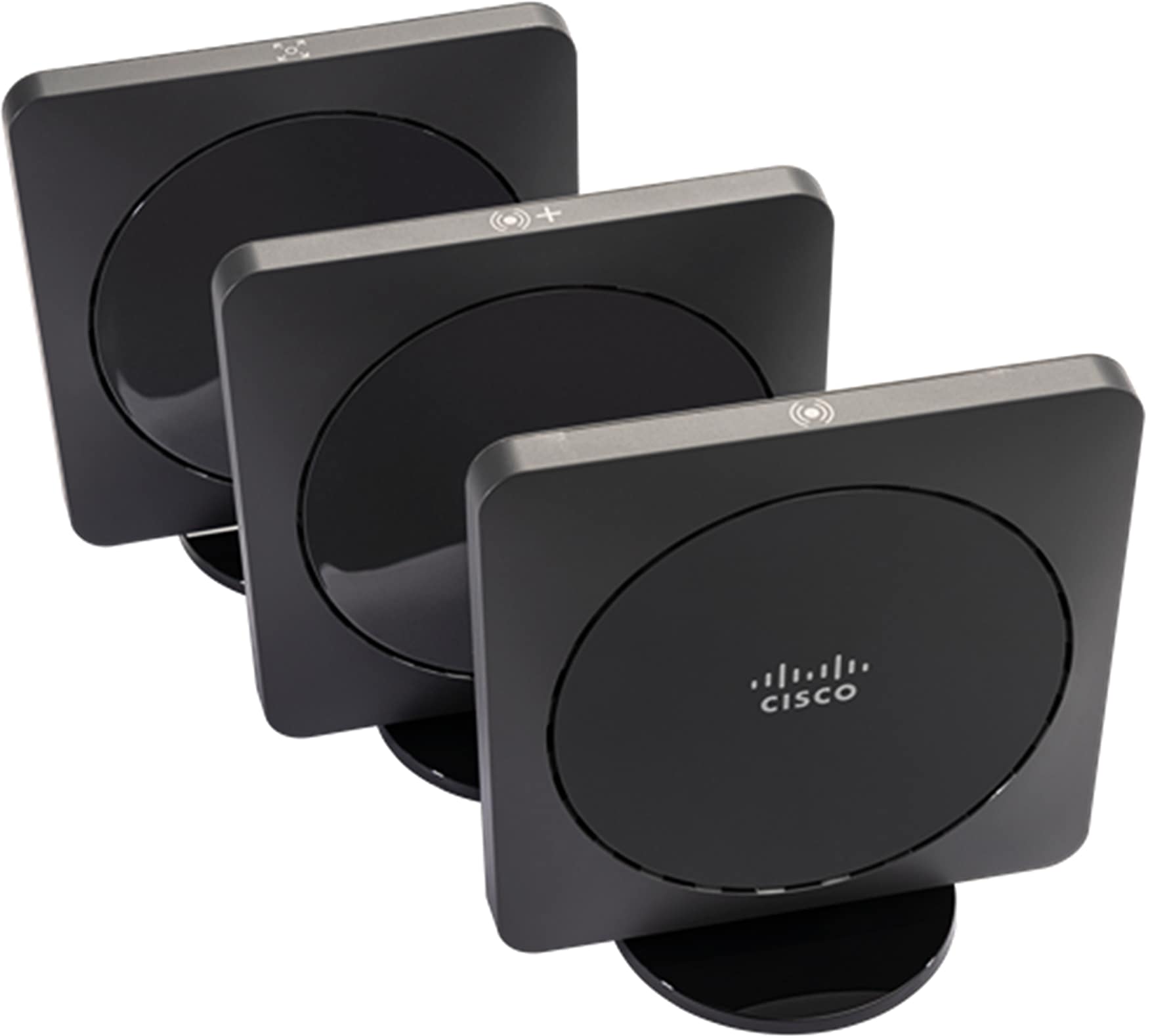

Cisco IP DECT Phone RPT-110 Repeater

Figure 4.

From top to bottom, Cisco IP DECT Phone RPT-110 Repeater, Cisco IP DECT DBS-210 Multi-Cell Base Station and Cisco IP DECT DBS-110 Single-Cell Base Station

Cisco IP DECT Phone RPW-110 Repeater

Figure 5.

From top to bottom, Cisco IP DECT Phone RPW-110 Repeater, Cisco IP DECT DBW-110 Single-Cell Base and Cisco IP DECT DBW-210 Multi-Cell Base Station in white plastics

Note:     the white plastics are offered on a build to order basis with longer lead times than the gray plastics. White plastics will be available in November 2020.

Platform support

Table 3 lists the multiplatform software supported by the Cisco IP DECT DBS-210 Multi-Cell Base Station, Cisco IP DECT Phone DBS-110 Single-Cell Base Station and Cisco IP DECT Phone RPT-110 Repeater.

Table 3.        Features and Benefits for Multiplatform Phone Firmware supported by the Cisco IP DECT DBS-110 Single-Cell Base Station, Cisco IP DECT DBS-210 Multi-Cell Base Station and Cisco IP DECT Phone RPT-110 Repeater.

Platforms supported

6823

6825

DBS-110

DBS-210

RPT

Cisco Webex Calling*

No

FW v470 only

No

FW v470 only

No

Webex Calling Carrier*

No

FW v470 only

No

FW v470 only

No

Cisco BroadWorks

Yes

Yes

Yes

Yes

Yes

Asterisk

Yes

Yes

Yes

Yes

Yes

Metaswitch

Yes

Yes

Yes

Yes

Yes

* Cisco Webex Calling and Webex Calling Carrier intend to support the 6823, DBS-110 and RTP in CY 2021 along with Firmware version 480. All other listed call control systems support all hardware and Firmware versions 470 and 480.

Licensing

The Cisco IP DECT Phone 6800 Series is covered by the Cisco End User License Agreement.

Ordering information

Table 4 provides ordering information for the phones and their accessories.

Table 4.        Ordering Information

Part number

Product description

CP-6823-3PC-BUN-NA

Cisco IP DECT Phone Bundle, Cisco IP DECT 6823 Handset and Single-Cell Basestation, North America Power Adapter

CP-6823-3PC-BUN-UK

Cisco IP DECT Phone Bundle, Cisco IP DECT 6823 Handset and Single-Cell Basestation, United Kingdom Power Adapter

CP-6823-3PC-BUN-CE

Cisco IP DECT Phone Bundle, Cisco IP DECT 6823 Handset and Single-Cell Basestation, Continental Europe Power Adapter

CP-6823-3PC-BUN-AU

Cisco IP DECT Phone Bundle, Cisco IP DECT 6823 Handset and Single-Cell Basestation, Australia Power Adapter

CP-6823-3PC-K9=

Cisco IP DECT 6823, Standard Handset, Battery, Cradle, Multiplatform Phone Firmware, No Power Adapter

CP-6823-3PC-NA-K9=

Cisco IP DECT 6823, Standard Handset, Battery, Cradle, Multiplatform Phone Firmware, North America Power Adapter

CP-6823-3PC-CE-K9=

Cisco IP DECT 6823, Standard Handset, Battery, Cradle, Multiplatform Phone Firmware, Continental Europe Power Adapter

CP-6823-3PC-AU-K9=

Cisco IP DECT 6823, Standard Handset, Battery, Cradle, Multiplatform Phone Firmware, Australia Power Adapter

CP-6823-3PC-UK-K9=

Cisco IP DECT 6823, Standard Handset, Battery, Cradle, Multiplatform Phone Firmware, United Kingdom Power Adapter

CP-6825-3PC-BUN-NA

Cisco IP DECT Phone Bundle, Cisco IP DECT 6825 Handset and Multi-Cell Basestation, North America Power Adapter

CP-6825-3PC-BUN-UK

Cisco IP DECT Phone Bundle, Cisco IP DECT 6825 Handset and Multi-Cell Basestation, United Kingdom Power Adapter

CP-6825-3PC-BUN-CE

Cisco IP DECT Phone Bundle, Cisco IP DECT 6825 Handset and Multi-Cell Basestation, Continental Europe Power Adapter

CP-6825-3PC-BUN-AU

Cisco IP DECT Phone Bundle, Cisco IP DECT 6825 Handset and Multi-Cell Basestation, Australia Power Adapter

CP-6825-3PC-K9=

Cisco IP DECT 6825, Standard Handset, Battery, Cradle, Multiplatform Phone Firmware, No Power Adapter

CP-6825-3PC-NA-K9=

Cisco IP DECT 6825, Standard Handset, Battery, Cradle, Multiplatform Phone Firmware, North America Power Adapter

CP-6825-3PC-CE-K9=

Cisco IP DECT 6825, Standard Handset, Battery, Cradle, Multiplatform Phone Firmware, Continental Europe Power Adapter

CP-6825-3PC-AU-K9=

Cisco IP DECT 6825, Standard Handset, Battery, Cradle, Multiplatform Phone Firmware, Australia Power Adapter

CP-6825-3PC-UK-K9=

Cisco IP DECT 6825, Standard Handset, Battery, Cradle, Multiplatform Phone Firmware, United Kingdom Power Adapter

CP-6825-RGD-K9=

Cisco IP DECT 6825, Standard Handset, Battery, Cradle, Multiplatform Phone Firmware, No Power Adapter, Ruggedized

CP-6825-RGD-NA-K9=

Cisco IP DECT 6825, Standard Handset, Battery, Cradle, Multiplatform Phone Firmware, North America Power Adapter, Ruggedized

CP-6825-RGD-CE-K9=

Cisco IP DECT 6825, Standard Handset, Battery, Cradle, Multiplatform Phone Firmware, Continental Europe Power Adapter, Ruggedized

CP-6825-RGD-AU-K9=

Cisco IP DECT 6825, Standard Handset, Battery, Cradle, Multiplatform Phone Firmware, Australia Power Adapter, Ruggedized

CP-6825-RGD-UK-K9=

Cisco IP DECT 6825, Standard Handset, Battery, Cradle, Multiplatform Phone Firmware, United Kingdom Power Adapter, Ruggedized

CP-6825-BAT=

Cisco IP DECT 6825, Li-Ion Battery

CP-6825-HC=

Cisco IP DECT 6825, Handset Cradle

CP-6823-PWR-NA=

Cisco IP DECT 6823, Power adapter for North America

CP-6823-PWR-CE=

Cisco IP DECT 6823, Power adapter for Europe Union

CP-6823-PWR-AU=

Cisco IP DECT 6823, Power adapter for Australia and New Zealand

CP-6823-PWR-UK=

Cisco IP DECT 6823, Power adapter for United Kingdom

CP-682X-PWR-NA=

Cisco IP DECT 6825, Power adapter for North America

CP-682X-PWR-CE=

Cisco IP DECT 6825, Power adapter for Europe Union

CP-682X-PWR-AU=

Cisco IP DECT 6825, Power adapter for Australia and New Zealand

CP-682X-PWR-UK=

Cisco IP DECT 6825, Power adapter for United Kingdom

CP-682x-WMK=

Wall mount kit for Cisco IP Phone 6800 Series Base Stations and Repeater

DBS-110-3PC-NA-K9=

Cisco IP DECT Base Station 110 Series, MPP, U.S. and Canada, 1920 - 1930 MHz, North America Power Adapter

DBS-110-3PC-CE-K9=

Cisco IP DECT Base Station 110 Series, MPP, European Union and APAC, 1880 - 1900 MHz, Continental Europe Power Adapter

DBS-110-3PC-AU-K9=

Cisco IP DECT Base Station 110 Series, MPP, Australia and New Zealand, 1880 - 1900 MHz - Reduced power 22dBm, Australia Power Adapter

DBS-110-3PC-UK-K9=

Cisco IP DECT Base Station 110 Series, MPP, United Kingdom, 1880 - 1900 MHz, United Kingdom Power Adapter

DBS-210-3PC-NA-K9=

Cisco IP DECT Base Station 210 Series, MPP, U.S. and Canada, 1920 - 1930 MHz, North America Power Adapter

DBS-210-3PC-CE-K9=

Cisco IP DECT Base Station 210 Series, MPP, European Union and APAC, 1880 - 1900 MHz, Continental Europe Power Adapter

DBS-210-3PC-AU-K9=

Cisco IP DECT Base Station 210 Series, MPP, Australia and New Zealand, 1880 - 1900 MHz - Reduced power 22dBm, Australia Power Adapter

DBS-210-3PC-UK-K9=

Cisco IP DECT Base Station 210 Series, MPP, United Kingdom, 1880 - 1900 MHz, United Kingdom Power Adapter

RPT-110-3PC-NA-K9=

Cisco IP DECT Repeater 110 Series, MPP, U.S. and Canada, 1920 - 1930 MHz, North America Power Adapter

RPT-110-3PC-CE-K9=

Cisco IP DECT Repeater 110 Series, MPP, European Union and APAC, 1880 - 1900 MHz, Continental Europe Power Adapter

RPT-110-3PC-AU-K9=

Cisco IP DECT Repeater 110 Series, MPP, Australia and New Zealand, 1880 - 1900 MHz - Reduced power 22dBm, Australia Power Adapter

RPT-110-3PC-UK-K9=

Cisco IP DECT Repeater 110 Series, MPP, United Kingdom, 1880 - 1900 MHz, United Kingdom Power Adapter

DBW-110-3PC-NA-K9=

Cisco IP DECT Base Station 110 Series, MPP, U.S. and Canada, 1920 - 1930 MHz, North America Power Adapter, White Plastics (Available November 2020)

DBW-110-3PC-CE-K9=

Cisco IP DECT Base Station 110 Series, MPP, European Union and APAC, 1880 - 1900 MHz, Continental Europe Power Adapter, White Plastics (Available November 2020)

DBW-110-3PC-AU-K9=

Cisco IP DECT Base Station 110 Series, MPP, Australia and New Zealand, 1880 - 1900 MHz - Reduced power 22dBm, Australia Power Adapter, White Plastics (Available November 2020)

DBW-110-3PC-UK-K9=

Cisco IP DECT Base Station 110 Series, MPP, United Kingdom, 1880 - 1900 MHz, United Kingdom Power Adapter, White Plastics (Available November 2020)

DBW-210-3PC-NA-K9=

Cisco IP DECT Base Station 210 Series, MPP, U.S. and Canada, 1920 - 1930 MHz, North America Power Adapter, White Plastics (Available November 2020)

DBW-210-3PC-CE-K9=

Cisco IP DECT Base Station 210 Series, MPP, European Union and APAC, 1880 - 1900 MHz, Continental Europe Power Adapter, White Plastics (Available November 2020)

DBW-210-3PC-AU-K9=

Cisco IP DECT Base Station 210 Series, MPP, Australia and New Zealand, 1880 - 1900 MHz - Reduced power 22dBm, Australia Power Adapter, White Plastics (Available November 2020)

DBW-210-3PC-UK-K9=

Cisco IP DECT Base Station 210 Series, MPP, United Kingdom, 1880 - 1900 MHz, United Kingdom Power Adapter, White Plastics (Available November 2020)

RPW-110-3PC-NA-K9=

Cisco IP DECT Repeater 110 Series, MPP, U.S. and Canada, 1920 - 1930 MHz, North America Power Adapter, White Plastics (Available November 2020)

RPW-110-3PC-CE-K9=

Cisco IP DECT Repeater 110 Series, MPP, European Union and APAC, 1880 - 1900 MHz, Continental Europe Power Adapter, White Plastics (Available November 2020)

RPW-110-3PC-AU-K9=

Cisco IP DECT Repeater 110 Series, MPP, Australia and New Zealand, 1880 - 1900 MHz - Reduced power 22dBm, Australia Power Adapter, White Plastics (Available November 2020)

RPW-110-3PC-UK-K9=

Cisco IP DECT Repeater 110 Series, MPP, United Kingdom, 1880 - 1900 MHz, United Kingdom Power Adapter, White Plastics (Available November 2020)

Ordering DECT Bundles

This is the most common method available for ordering these DECT phones.

The 6823-BUN bundle ships with:

      1 IP DECT 6823 Handset with cradle and regional power adapter.

      1 IP DECT DBS-110 Single-Cell Base Station with Regional DECT frequency and power adapter

The 6825-BUN bundle ships with:

      1 IP DECT 6825 Handset with cradle and regional power adapter.

      1 IP DECT DBS-210 Multi-Cell Base Station with Regional DECT frequency and power adapter

Note:     The MAC address and Serial Number on the bundle’s label are for the Base Station only. This is to provide an easy method to provision the base station with the call control system. The Base Station connects directly to the call control, the handsets and repeaters connect to the Base Station only.

When a Bundle is ordered, it auto-expands: there are no selectable options. The Base Station SKU does not appear in the list of options as it is directly tied to the Bundle SKU. This is to make sure the Base Station’s serial number and MAC address appear on the package label to enable easy provisioning.

If you select Edit Options, the following screen appears

If you select Edit Options, the following screen appears.

Note:     This example shows the 6825 bundle: the 6823 bundle appears the same way.

These options are fixed, they can’t be edited, and the Base Station is included in the bundle

These options are fixed, they can’t be edited, and the Base Station is included in the bundle even though its SKU doesn’t appear in the list of options.

Warranty

The Cisco IP DECT Phone 6800 Series is covered by a one-year limited hardware warranty.

Cisco environmental sustainability

Information about Cisco’s environmental sustainability policies and initiatives for our products, solutions, operations, and extended operations or supply chain is provided in the “Environment Sustainability” section of Cisco’s Corporate Social Responsibility (CSR) Report.

Reference links to information about key environmental sustainability topics (mentioned in the “Environment Sustainability” section of the CSR Report) are provided in the following table:

Sustainability topic

Reference

Information on product material content laws and regulations

Materials

Information on electronic waste laws and regulations, including products, batteries, and packaging

WEEE compliance

Cisco makes the packaging data available for informational purposes only. It may not reflect the most current legal developments, and Cisco does not represent, warrant, or guarantee that it is complete, accurate, or up to date. This information is subject to change without notice.

Cisco Capital

Flexible payment solutions to help you achieve your objectives

Cisco Capital makes it easier to get the right technology to achieve your objectives, enable business transformation and help you stay competitive. We can help you reduce the total cost of ownership, conserve capital, and accelerate growth. In more than 100 countries, our flexible payment solutions can help you acquire hardware, software, services and complementary third-party equipment in easy, predictable payments. Learn more.

More information

For additional details on Cisco Multi-Platform Endpoints, go to [https://www.cisco.com/c/en/us/products/collaboration-endpoints/ip-phone-6800-series/index.html]

Learn more
