The purpose of this document is to provide the installer the necessary information for installing the Cisco Catalyst IW6300 Heavy Duty Series Access Points. The documentation is on-line, and subject to change. Make sure that you are downloading or viewing on-line the latest version before beginning an installation.

This document also contains Product Compliance and Safety information as well as Declaration of Conformity. This document also covers hazardous location specific considerations and instructions.

Unpack the box and verify that all items listed on the invoice were shipped with the Cisco Catalyst IW6300 Heavy Duty Series Access Points.

The typical access point package contains the following items:

• Access point

  • IW-6300H-AC-x-K9 (AC power model)

  • IW-6300H-DC-x–K9 (DC power model)

  • IW-6300H-DCW-x-K9 (DC wide range power model)

• Mounting kit (sold separately but shipped in the same box)

• Ground lug and screws with lock washers

• Weatherization tape and anti-seize compound

• This document (Part Number 78-101483-01)

Note

Mounting kits (IOT-ACCPMK and IOT-ACCPMKHZM) are optional PIDs, sold separately from the AP but shipped in the same box. IOT-ACCPMK-LB is an optional PID bracket that redirects the antennas to face downward. IOT-ACCPMK-LB must be used along with either IOT-ACCPMK or IOT-ACCPMKHZM to attach to the AP.

The optional tools and hardware that can be obtained from Cisco are:

• Optional power injector (AIR-PWRINJ-60RGDx=)
• Antennas, 2.4/5-GHz (refer to the data sheet for supported antennas)
• Optional banding strap tool (BAND IT) (AIR-BAND-INST-TL=)

• 1/2” or 13-mm socket wrench, used to open the Access Cover and to attach the mounting bracket
• #2 Phillips or Flat screw driver to clamp wire terminal and ground terminal
• 3/8” Allen wrench with 13-18" long wrench handle to remove 1/2” NPT port plugs
• ATEX/IECEx certified Armored cable for routing in conduit
• Customer supplied ATEX/IECEx certified 1/2” NPT conduit (rigid or flex), or ATEX/IECEx certified cable gland or barrier gland for each connection suitable to maintain IP66/67
• ATEX/IECEx certified AC or DC power cable, based on the AP model ordered
• Loctite 565 Thread Sealant for 1/2” NPT Ports
• 6-AWG (13.3 mm2) copper ground wire
• Ethernet RJ-45 connector and installation tool
• Optional ground rod, as required by local regulations
• Optional ladder, power lift, rope, or other tools as required
• ESD-preventive cord and wrist strap.
• Wire-stripping tools for stripping 14- and 18-gauge wires
• Crimping tool

To access resources or to display the latest Cisco Catalyst IW6300 Heavy Duty Series Access Point documentation on-line, go to this URL:

https://www.cisco.com/c/en/us/support/wireless/industrial-wireless-6300h-access-point/model.html

This portal has all of the information you need to get to know your device, install and configure it, as well as access software. You will see the following categories as well as other important information:

• All support information for Cisco Catalyst IW6300 Heavy Duty Series Access Points: Provides the most requested resources and a list of all of the models in the series.

• Release and General Information: Links to the Software Download site, Compatibility Information, Licensing Information, and Product Release notes.

• Install and Upgrade: This is your starting point for Installing the device. Look under the Install and Upgrade Guide section for this model.

• Configure: These links provide configuration information. Look first under the Configuration Guide section for this model.

Other important and helpful links to Cisco information are here:

• Cisco.com: www.cisco.com

• Warranty and EULA Information: https://www.cisco.com/c/en/us/products/warranty-listing.html

• Cisco Marketplace: www.cisco.com/pcgi-bin/marketplace/welcome.pl

• Cisco Product Documentation: www.cisco.com/go/techdocs

• Cisco Support: www.cisco.com/cisco/web/support/index.html

Warning

IMPORTANT SAFETY INSTRUCTIONS Means danger. You are in a situation that could cause bodily injury. Before you work on any equipment, be aware of the hazards involved with electrical circuitry and be familiar with standard practices for preventing accidents. Use the statement number provided at the end of each warning to locate its translation in the translated safety warnings that accompanied this device. Statement 1071

Warning

This equipment must be externally grounded using a customer-supplied ground wire before power is applied. Contact the appropriate electrical inspection authority or an electrician if you are uncertain that suitable grounding is available. Statement 366

Warning

Do not work on the system or connect or disconnect cables during periods of lightning activity. Statement 1001

Warning

Read the installation instructions before you connect the system to its power source. Statement 1004

Warning

This unit is intended for installation in restricted access areas. A restricted access area can be accessed only through the use of a special tool, lock and key, or other means of security. Statement 1017

Warning

A readily accessible two-poled disconnect device must be incorporated in the fixed wiring. Statement 1022 (for DC input applications only)

Warning

Only trained and qualified personnel should be allowed to install, replace, or service this equipment. Statement 1030

Warning

Ultimate disposal of this product should be handled according to all national laws and regulations. Statement 9001

Warning

For connections outside the building where the equipment is installed, the following ports must be connected through an approved network termination unit with integral circuit protection.10/100/1000 Ethernet. Statement 1044

Warning

When installing or replacing the unit, the ground connection must always be made first and disconnected last. Statement 1046.

Warning

To prevent the system from overheating, do not operate it in an area that exceeds the maximum recommended ambient temperature of: 75°C (167°F) Statement 1047

Warning

Do not locate the antenna near overhead power lines or other electric light or power circuits, or where it can come into contact with such circuits. When installing the antenna, take extreme care not to come into contact with such circuits, because they may cause serious injury or death. For proper installation and grounding of the antenna, please refer to national and local codes (for example, U.S.:NFPA 70, National Electrical Code, Article 810, Canada: Canadian Electrical Code, Section 54). Statement 1052

Warning

In switch installations in a hazardous location, the DC power source could be located away from the vicinity of the switch. Before performing any of the following procedures, locate the DC circuit to ensure that the power is removed and cannot be turned on accidentally, or verify that the area is nonhazardous before proceeding. Statement 1059

Warning

Do not disconnect connections to this equipment unless power has been removed or you have verified that the area is nonhazardous. Secure any external connections that mate to this equipment by using screws, sliding latches, threaded connectors, or other means provided with this product.Substitution of components may impair suitability for Class I, Division 2. Statement 1062

Warning

When used in a Class I, Zone 2 and Zone 22, Division 2 hazardous location, this equipment must be mounted with a proper wiring method that complies with the governing electrical codes. Statement 1069

Warning

Do not connect or disconnect cables to the ports while power is applied to the switch or any device on the network because an electrical arc can occur. This could cause an explosion in hazardous location installations. Be sure that power is removed from the switch and cannot be accidentally be turned on, or verify that the area is nonhazardous before proceeding. Statement 1070

Warning

Installation of the equipment must comply with local and national electrical codes. Statement 1074

Warning

Do not insert and remove SFP modules while power is on; an electrical arc can occur. This could cause an explosion in hazardous location installations. Be sure that power is removed or the area is nonhazardous before proceeding. Statement 1087

Warning

If you connect or disconnect the console cable with power applied to the unit or any device on the network, an electrical arc can occur. This could cause an explosion in hazardous location installations. Be sure that power is removed or the area is nonhazardous before proceeding.

Warning

To verify unit operation, perform POST on the device in a nonhazardous location before installation. Statement 108

Caution

This equipment is suitable for use in Class I, Division 2, Groups A, B, C, D or non-hazardous locations.

Note	This equipment is rated as following:DC maximum operating range: 44 to 57VDC, 1.2ADC wide range maximum operating range: 10.8 to 36VDC, 5.9AAC maximum operating range: 85-264V~, marked 100-240V~, 50-60Hz, 1.3A

Note	This equipment is rated -40°C (-40°F) ≤ Tamb ≤ 75°C (167°F).

Note	Transient protection shall be provided that is set at a level not exceeding 140% of the peak rated voltage value at the supply terminals to the equipment.

Note	Provision shall be made to provide that the circuits are limited to overvoltage category II as defined in IEC 60664-1.

For safety and to achieve a good installation, please read and follow these safety precautions:

• Cisco Catalyst IW6300 Heavy Duty Series Access Points are only intended to be installed vertically with antennas facing up. Any other mounting orientation will compromise the IP66/67 and type 4X ingress ratings required for safety and hazardous locations compliance.

• Select your installation site with safety and performance in mind. Remember: electric power lines and phone lines look alike. For safety, assume that any overhead line can kill.

• Call your electric power company. Tell them your plans, and ask them to look at your proposed installation.

• Plan your installation carefully and completely before you begin. Successful raising of a mast or tower is largely a matter of coordination. Each person should be assigned to a specific task and should know what to do and when to do it. One person should be in charge of the operation to issue instructions and watch for signs of trouble.

• When installing the access point and antennas, remember:

  • Do not use a metal ladder.

  • Do not work on a wet or windy day.

  • Do dress properly—shoes with rubber soles and heels, rubber gloves, long sleeved shirt or jacket.

• Use a rope to lift the access point. If the assembly starts to drop, get away from it and let it fall.

• If any part of the antenna system should come in contact with a power line, do not touch it or try to remove it yourself. Call your local power company. They will remove it safely.

If an accident should occur, call for qualified emergency help immediately.

This section describes special considerations for preparing the IW6300H access points for installation in Class I, Division 2/Zone 2 hazardous locations.

Note	This document does not provide specific procedures for installing conduit. You must ensure that your installation techniques and procedures comply with Class I, Division 2/Zone 2 hazardous location installation regulations for your geographic location.

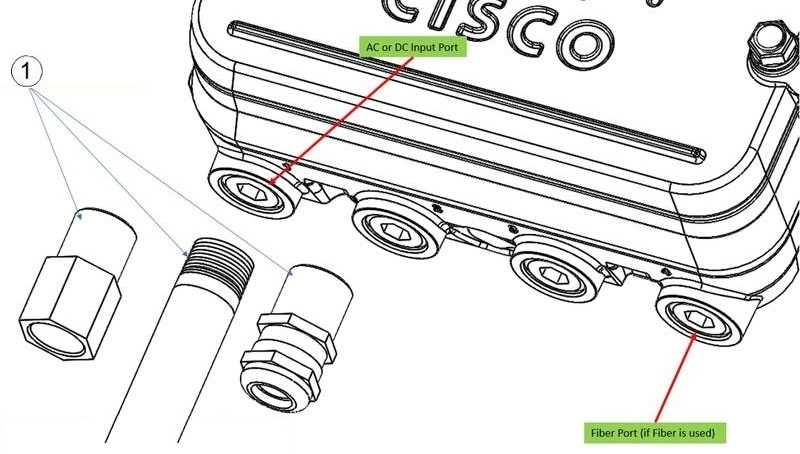

Loctite 565 Thread Sealant needs to be applied to the threads prior to the installation, as shown in the following figure. You should supply certified 1/2” NPT conduit, gland, or adapter for each port used for appropriate installation. (For example, Sealcon provides glands and adapters that are certified. See https://www.sealconex.com/?ex=9wkuir-fln65y-13897wy-drrs7y.)

The data sheet lists the antennas that can be used by Cisco Catalyst IW6300 Heavy Duty Series Access Points. All antennas where assessed together with the equipment against the requirements of the R&TTE directive.

Depending on the country a different regulatory limit might be applicable. It is therefore the responsibility of the end user to select a power level that, together with the antenna, results in an eirp (radiated power) level that is below the applicable limit.

Note	Antenna caps must be installed when an antenna is not in use (maximum torque range: 6.2-9.7 in-lbs).

Antennas installed within a hazardous locations environment must be passive only, rated IP66/67 and compliant to IEC 60079-0.

The following antennas were hazardous locations and IP66/67 certified with the IW6300H series:

In order to keep IW6300H and the above antennas compliant to hazardous locations requirements, the following conditions shall be met:

• Provision to protect antennas from unintentional damage shall be provided to the Cisco Catalyst IW6300 Heavy Duty Series Access Points.
• The maximum antenna inductance (10uH) and capacitance (0.01uF).
• Maximum cable length of 150ft shall be used for the antennas.
• If using a non-Cisco provided cable, the cable jacket must have a UL certified UV rating.

In order to prevent an electro static discharge within a hazardous location, only touch with an insulating object or use means to continuously drain off electrostatic charges in the installation.

The access point requires minimal periodic or preventive maintenance as it has no moving parts, filters, lubricants, or mechanical contact components. However, when installed in a hazardous location, periodic inspections should be conducted in order to ensure that the access point is operating satisfactory. This section provides information about performing maintenance on an access point installed in a hazardous location.

When removing an access point from service, make sure you remove power from the access point before opening the cover and disconnecting the power input wiring. When removing the AC wiring, remember that the ground connection should be the last to be disconnected.

The IW6300H access points comply with the following compliance specifications:

For EMC and safety information, see the Regulatory Compliance and Safety Information.

Modifying the equipment without Cisco’s authorization may result in the equipment no longer complying with FCC requirements for Class A digital devices. In that event, your right to use the equipment may be limited by FCC regulations, and you may be required to correct any interference to radio or television communications at your own expense.

This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. Operation is subject to the following two conditions:

1. This device may not cause harmful interference, and
2. This device must accept any interference received, including interference that may cause undesired operation.

This equipment has been tested and found to comply with the limits of a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a residential environment. This equipment generates, uses, and radiates radio frequency energy, and if not installed and used in accordance with the instructions, may cause harmful interference. However, there is no guarantee that interference will not occur. If this equipment does cause interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to correct the interference by one of the following measures:

• Reorient or relocate the receiving antenna.
• Increase separation between the equipment and receiver.
• Connect the equipment to an outlet on a circuit different from which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician.

Caution

The Part 15 radio device operates on a non-interference basis with other devices operating at this frequency when using the integrated antennas. Any changes or modification to the product not expressly approved by Cisco could void the user's authority to operate this device.

Cisco^® Catalyst IW6300 Heavy Duty Series Access Point Model

IW-6300H

Cisco^® Catalyst IW6300 Heavy Duty Series Access Point PIDs:

• IW-6300H-AC-E-K9

• IW-6300H-DC-E–K9

• IW-6300H-DCW-E-K9

This section contains information on compliance with guidelines related to RF exposure.

Statement 340—Class A Warning for CISPR22

Warning

Dies ist ein Produkt der Klasse A. Bei der Verwendung dieses Produkts im Haus- oder Wohnungsbereich kann es zu Funkstörungen kommen. In diesem Fall muss der Benutzer u. U. angemessene Maßnahmen ergreifen.
