Adjustable Mount for 2.4-GHz WLAN Yagi Antenna (AIR-ACC2662)

---

This mount is designed to be used with the AIR-ANT1949 andAIR-ANT2410Y-R 2.4-GHz yagi antennas. The mount is designed to adjust the antenna's position both vertically and horizontally. The mount can be attached to a variety of surfaces.

The following information is provided in this document.

•Specifications

•Unpacking the Adjustable Mount

•Attaching the Antenna to the Mounting Plate

•Installing the Mount

•Obtaining Documentation and Submitting a Service Request

Specifications

Range of Adjustment	Vertical: 130° in 10° increments Horizontal: 170° in 10° increments
Length	3.62 in (9.19 cm)
Width	2.56 in (6.50 cm)
Height	4.87 in (12.37 cm)
Weight	16 oz (455 g)
Material	Mount: nylon Mounting plate: aluminum Hardware: stainless steel
Environment	Indoor or outdoor

Unpacking the Adjustable Mount

Each adjustable mount is shipped with the following items:

Qty	Description
1	Mounting kit
1	Mounting plate
1	1 x 14 nut
4	1/4 x 20 hex head bolt
4	1/4 x 20 hex nut
4	Split lock washer
8	Flat washer

Attaching the Antenna to the Mounting Plate

Follow these steps to attach the antenna to the mounting plate:

---

Step 1 Assemble the mount as shown in Figure 1.

Step 2 Hand tighten all hardware.

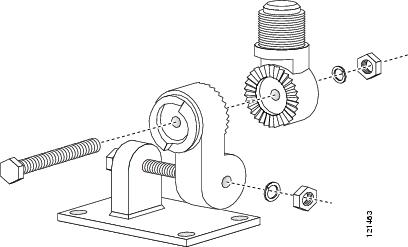

Figure 1 Assembly Details

Step 3 Attach the mounting plate to your antenna using the 1/4-20 x 1-inch bolts, flat washers, split washers, and nuts as shown in Figure 2

Figure 2 Mounting the An tenna to the Mounting Plate

---

Installing the Mount

When you determine the location at which to install the mount, consider the range of adjustment required to establish a link with another antenna. Follow these steps to install the mount:

---

Step 1 Use the 1/4-20 x 1 15/16 inch fasteners to install the base of the mount to the surface on which you have chosen to mount it. Make sure the base is securely fastened to its mounting surface. See Figure 3.

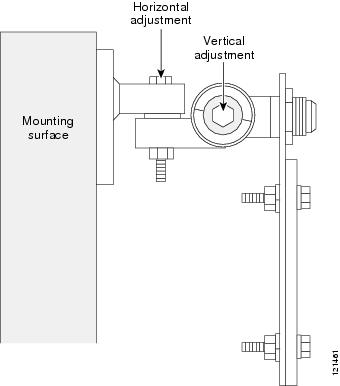

Figure 3 Overall Mounting View

---

Note You must provide adequate fasteners if those provided are incompatible with your installation.

---

Step 2 Use the 1-14 nut to install the antenna with mounting plate to the adjustable mount.

Step 3 Adjust the antenna vertically and tighten the vertical adjustment.

Step 4 Adjust the antenna horizontally and tighten the horizontal adjustment.

---
