Ports

This appendix contains the following sections:

Cisco UCS Director TCP and UDP Port Usage

This section provides a list of the TCP and UDP ports that Cisco UCS Director uses for connections and communications with external applications or devices.

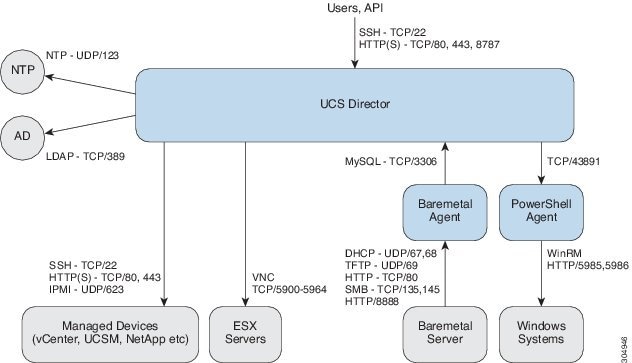

The following figure shows the network ports used for communication between the Cisco UCS Director appliance and managed devices, ESX servers, Baremetal Agent, PowerShell Agent, NTP, and Active Directory.

Figure 1. Cisco UCS Director TCP and UDP Port Usage



Port List

Default Port Protocol Description

22

TCP

SSH

80

TCP/UDP

HTTP

8888

TCP

HTTP for Cisco UCS Director Baremetal Agent

443

UDP

HTTPS

27000/7279/8082 (Mgmt)

TCP

Citrix licensing

2598/1494/2112/2513

TCP

Virtual Desktop Agent for Desktops

67/68

UDP

DHCP

389/636

3268/3269

TCP/UDP

TCP

Active Directory

53

TCP/UDP

DNS

123

TCP/UDP

NTP

3306

TCP/UDP

MySQL

8787/5999

TCP

Cisco UCS Director + VNC Connectivity

3389

TCP/UDP

Cisco UCS Director + RDP Connectivity

80/443/8080

TCP/UDP

Cisco UCS Director + NetApp Connectivity

80/443

UDP

Cisco UCS Director + Cisco UCS Manager Connectivity

80/443

UDP

Cisco UCS Director + vCenter Connectivity

3389

TCP/UDP

RDP

135/445

TCP

SMB/RPC

88

TCP/UDP

Kerberos

137

TCP/UDP

NetBIOS Name (nbname)

138

TCP/UDP

NetBIOS datagram (nbdatagram)

139

TCP

NetBIOS session (nbsession)

80/443

UDP

Desktop Delivery Controller <--> vCenter

8080 through ICA

TCP

Desktop Delivery Controller <--> Virtual Desktops

1494/2598/2512/2513

TCP

Users (Citrix Recvr) <--> Virtual Desktops

389/636 (LDAP Ports)

TCP/UDP

Desktop Delivery Controller <--> Active Directory

389/636, 3268/3269, 53

TCP/UDP

Virtual Desktops <--> Active Directory + DNS

5985/5986

TCP

PowerShell Agent <-> Xendesktop through WinRM

43891

TCP/UDP

Cisco UCS Director <--> PowerShell Agent

80/8081

TCP

XenApp
