Cisco UCS C225 M8 Server Installation and Service Guide

Status LEDs and Buttons

This section contains information for interpreting front, rear, and internal LED states.

Front-Panel LEDs

Table 1. Front Panel LEDs, Definition of States
	LED Name	States
1	Power button/LED ()	Off—There is no AC power to the server. Amber—The server is in standby power mode. Power is supplied only to the Cisco IMC and some motherboard functions. Green—The server is in main power mode. Power is supplied to all server components.
2	Unit identification (	Off—The unit identification function is not in use. Blue, blinking—The unit identification function is activated.
3	System health ()	Green—The server is running in normal operating condition. Green, blinking—The server is performing system initialization and memory check. Amber, steady—The server is in a degraded operational state (minor fault). For example: Power supply redundancy is lost. CPUs are mismatched. At least one CPU is faulty. At least one DIMM is faulty. At least one drive in a RAID configuration failed. Amber, 2 blinks—There is a major fault with the system board. Amber, 3 blinks—There is a major fault with the memory DIMMs. Amber, 4 blinks—There is a major fault with the CPUs.
4	Power supply status ()	Green—All power supplies are operating normally. Amber, steady—One or more power supplies are in a degraded operational state. Amber, blinking—One or more power supplies are in a critical fault state.
5	Fan status ()	Green—All fan modules are operating properly. Amber, blinking—One or more fan modules breached the non-recoverable threshold.
6	Network link activity ()	Off—The Ethernet LOM port link is idle. Green—One or more Ethernet LOM ports are link-active, but there is no activity. Green, blinking—One or more Ethernet LOM ports are link-active, with activity.
7	Temperature status ()	Green—The server is operating at normal temperature. Amber, steady—One or more temperature sensors breached the critical threshold. Amber, blinking—One or more temperature sensors breached the non-recoverable threshold.

Rear-Panel LEDs

Table 2. Rear Panel LEDs, Definition of States
	LED Name	States
1	Rear unit identification	Off—The unit identification function is not in use. Blue, blinking—The unit identification function is activated.
2	1-Gb Ethernet dedicated management link speed	Off—Link speed is 10 Mbps. Amber—Link speed is 100 Mbps. Green—Link speed is 1 Gbps.
3	1-Gb Ethernet dedicated management link status	Off—No link is present. Green—Link is active. Green, blinking—Traffic is present on the active link.
4	Power supply status (one LED each power supply unit)	AC power supplies: Off—No AC input (12 V main power off, 12 V standby power off). Green, blinking—12 V main power off; 12 V standby power on. Green, solid—12 V main power on; 12 V standby power on. Amber, blinking—Warning threshold detected but 12 V main power on. Amber, solid—Critical error detected; 12 V main power off (for example, over-current, over-voltage, or over-temperature failure). DC power supplies: Off—No DC input (12 V main power off, 12 V standby power off). Green, blinking—12 V main power off; 12 V standby power on. Green, solid—12 V main power on; 12 V standby power on. Amber, blinking—Warning threshold detected but 12 V main power on. Amber, solid—Critical error detected; 12 V main power off (for example, over-current, over-voltage, or over-temperature failure).

Internal Diagnostic LEDs

The server has internal fault LEDs for CPUs, DIMMs, and fan modules.

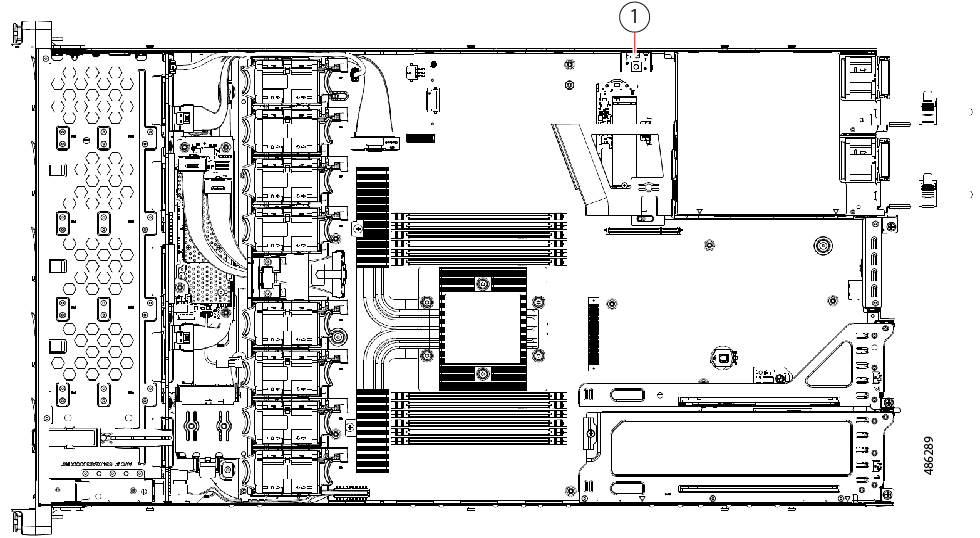

Figure 3. Internal Diagnostic LED Locations


1	Fan module fault LEDs (one behind each fan connector on the motherboard) Amber—Fan has a fault or is not fully seated. Green—Fan is OK.	2	DIMM fault LEDs (one behind each DIMM socket on the motherboard) These LEDs operate only when the server is in standby power mode. Amber—DIMM has a fault. Off—DIMM is OK.
3	CPU fault LEDs (beside rear USB2 connector). These LEDs operate only when the server is in standby power mode. Amber—CPU has a fault. Off—CPU is OK.	-

Preparing For Component Installation

This section includes information and tasks that help prepare the server for component installation.

Required Equipment For Service Procedures

The following tools and equipment are used to perform the procedures in this chapter:

T-30 Torx driver (supplied with replacement CPUs for heatsink removal)
#1 flat-head screwdriver (supplied with replacement CPUs for heatsink removal)
#1 Phillips-head screwdriver (for M.2 SSD and intrusion switch replacement)
Electrostatic discharge (ESD) strap or other grounding equipment such as a grounded mat

Shutting Down and Removing Power From the Server

The server can run in either of two power modes:

Main power mode—Power is supplied to all server components and any operating system on your drives can run.
Standby power mode—Power is supplied only to the service processor and certain components. It is safe for the operating system and data to remove power cords from the server in this mode.

Caution

After a server is shut down to standby power, electric current is still present in the server. To completely remove power as directed in some service procedures, you must disconnect all power cords from all power supplies in the server.

You can shut down the server by using the front-panel power button or the software management interfaces.

Shutting Down Using the Power Button

Procedure

Step 1

Check the color of the Power button/LED:

Amber—The server is already in standby mode and you can safely remove power.
Green—The server is in main power mode and must be shut down before you can safely remove power.

Step 2

Invoke either a graceful shutdown or a hard shutdown:

Caution

To avoid data loss or damage to your operating system, you should always invoke a graceful shutdown of the operating system.

Graceful shutdown—Press and release the Power button. The operating system performs a graceful shutdown and the server goes to standby mode, which is indicated by an amber Power button/LED.
Emergency shutdown—Press and hold the Power button for 4 seconds to force the main power off and immediately enter standby mode.

Step 3

If a service procedure instructs you to completely remove power from the server, disconnect all power cords from the power supplies in the server.

Shutting Down Using The Cisco IMC CLI

You must log in with user or admin privileges to perform this task.

Procedure

Step 1

At the server prompt, enter:

Example:

server# scope chassis

Step 2

At the chassis prompt, enter:

Example:

server/chassis# power shutdown

The operating system performs a graceful shutdown and the server goes to standby mode, which is indicated by an amber Power button/LED.

Step 3

If a service procedure instructs you to completely remove power from the server, disconnect all power cords from the power supplies in the server.

Shutting Down Using The Cisco IMC GUI

You must log in with user or admin privileges to perform this task.

Procedure

Step 1	In the Navigation pane, click the Server tab.
Step 2	On the Server tab, click Summary.
Step 3	In the Actions area, click Power Off Server.
Step 4	Click OK. The operating system performs a graceful shutdown and the server goes to standby mode, which is indicated by an amber Power button/LED.
Step 5	If a service procedure instructs you to completely remove power from the server, disconnect all power cords from the power supplies in the server.

Removing the Server Top Cover

Procedure

Step 1

Remove the top cover:

If the cover latch is locked, slide the lock sideways to unlock it.

When the latch is unlocked, the handle pops up so that you can grasp it.
Lift on the end of the latch so that it pivots vertically to 90 degrees.
Simultaneously, slide the cover back and lift the top cover straight up from the server and set it aside.

Step 2

Replace the top cover:

With the latch in the fully open position, place the cover on top of the server a few inches behind the lip of the front cover panel.
Slide the cover forward until the latch makes contact.
Press the latch down to the closed position. The cover is pushed forward to the closed position as you push down the latch.
Lock the latch by sliding the lock button to sideways to the left.

Locking the latch ensures that the server latch handle does not protrude when you install the blade.


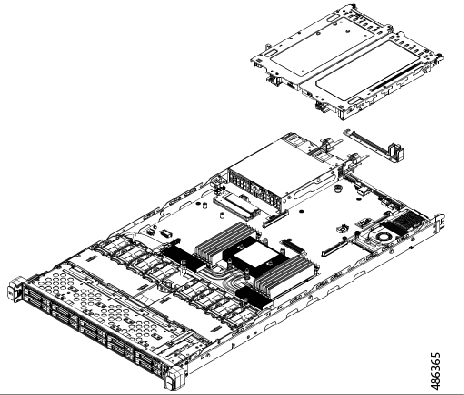

1	Cover lock	2	Cover latch handle

Hot Swap vs Hot Plug

Some components can be removed and replaced without shutting down and removing power from the server. This type of replacement has two varieties: hot-swap and hot-plug.

Hot-swap replacement—You do not have to shut down the component in the software or operating system. This applies to the following components:
- SAS/SATA hard drives
- SAS/SATA solid state drives
- Cooling fan modules
- Power supplies (when redundant as 1+1)
Hot-plug replacement—You must take the component offline before removing it for the following component:
- NVMe PCIe solid state drives

Removing and Replacing Components

Warning

Blank faceplates and cover panels serve three important functions: they prevent exposure to hazardous voltages and currents inside the chassis; they contain electromagnetic interference (EMI) that might disrupt other equipment; and they direct the flow of cooling air through the chassis. Do not operate the system unless all cards, faceplates, front covers, and rear covers are in place.

Statement 1029

Caution

When handling server components, handle them only by carrier edges and use an electrostatic discharge (ESD) wrist-strap or other grounding device to avoid damage.

Tip

You can press the unit identification button on the front panel or rear panel to turn on a flashing, blue unit identification LED on both the front and rear panels of the server. This button allows you to locate the specific server that you are servicing when you go to the opposite side of the rack. You can also activate these LEDs remotely by using the Cisco IMC interface.

This section describes how to install and replace server components.

Component Location

This topic shows the locations of the field-replaceable components and service-related items. The view in the following figure shows the server with the top cover removed.


1	Front-loading drive bays 1–10 support SAS/SATA/NVMe drives.	2	Cisco 24G Tri-mode RAID controller
3	Cooling fan modules, eight. Each fan is hot-swappable	4	SuperCap module mounting bracket The SuperCap module (not shown) that mounts into this location provides RAID write-cache backup.
5	DIMM sockets on motherboard, 12 total.	6	Motherboard CPU socket
7	M.2 module connector Supports a boot-optimized RAID controller with connectors for up to two SATA M.2 SSDs	8	Power Supply Units (PSUs), two
9	PCIe riser slot 2	10	PCIe riser slot 1
11	Modular LOM (mLOM) card bay on chassis floor (x16 PCIe lane)

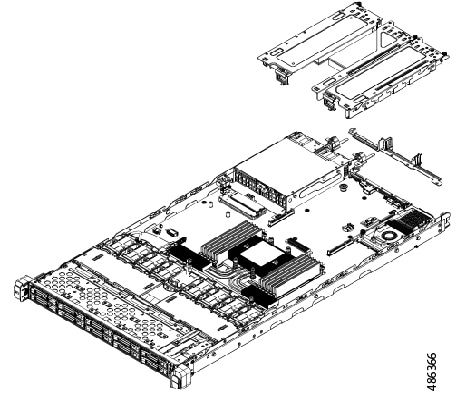

Figure 6. Cisco UCS C225 M8 Server Three Riser Configuration Serviceable Component Locations


1	Front-loading drive bays 1–10 support SAS/SATA/NVMe drives.	2	Cisco M8 24G SAS RAID card or Cisco M8 24G SAS HBA Controller
3	Cooling fan modules, eight. Each fan is hot-swappable	4	SuperCap module mounting bracket The SuperCap module (not shown) that mounts into this location provides RAID write-cache backup.
5	DIMM sockets on motherboard, 12 total.	6	Motherboard CPU socket
7	M.2 module connector Supports a boot-optimized RAID controller with connectors for up to two SATA M.2 SSDs	8	Power Supply Units (PSUs), two
9	PCIe riser slot 3	10	PCIe riser slot 2
11	PCIe riser slot 1	12	Modular LOM (mLOM) card bay on chassis floor (x16 PCIe lane)

Replacing SAS/SATA Hard Drives or Solid State Drives

Note

You do not have to shut down the server or drive to replace SAS/SATA hard drives or SSDs because they are hot-swappable. To replace an NVMe PCIe SSD drive, which must be shut down before removal, see Replacing a Front-Loading NVMe SSD.

SAS/SATA Drive Population Guidelines

The server is orderable in two different versions, each with a different front panel/drive-backplane configuration.

Cisco UCS C225 M8 SAS/SATA (UCSC-C225-M8S)—Small form-factor (SFF) drives, with 10-drive backplane. Supports up to 10 2.5-inch SAS/SATA drives.

Drive bay numbering is shown in the following figures.

Observe these drive population guidelines for optimum performance:

When populating drives, add drives to the lowest-numbered bays first.
Keep an empty drive blanking tray in any unused bays to ensure proper airflow.
You can mix SAS/SATA hard drives and SAS/SATA SSDs in the same server. However, you cannot configure a logical volume (virtual drive) that contains a mix of hard drives and SSDs. That is, when you create a logical volume, it must contain all SAS/SATA hard drives or all SAS/SATA SSDs.

4K Sector Format SAS/SATA Drives Considerations

You must boot 4K sector format drives in UEFI mode, not legacy mode. UEFI mode is the system default. Only if the mode has been changed and must be changed back to UEFI mode, see the following procedure.
Do not configure 4K sector format and 512-byte sector format drives as part of the same RAID volume.
For operating system support on 4K sector drives, see the interoperability matrix tool for your server: Hardware and Software Interoperability Matrix Tools

Procedure

Replacing a SAS/SATA Drive

Procedure

Step 1

Remove the drive that you are replacing or remove a blank drive tray from the bay:

Press the release button on the face of the drive tray.
Grasp and open the ejector lever and then pull the drive tray out of the slot.
If you are replacing an existing drive, remove the four drive-tray screws that secure the drive to the tray and then lift the drive out of the tray.

Step 2

Install a new drive:

Place a new drive in the empty drive tray and install the four drive-tray screws.
With the ejector lever on the drive tray open, insert the drive tray into the empty drive bay.
Push the tray into the slot until it touches the backplane, and then close the ejector lever to lock the drive in place.

Figure 8. Replacing a Drive in a Drive Tray


1	Ejector lever	3	Drive tray screws (two on each side)
2	Release button	4	Drive removed from drive tray

Basic Troubleshooting: Reseating a SAS/SATA Drive

Sometimes it is possible for a false positive UBAD error to occur on SAS/SATA HDDs installed in the server.

Only drives that are managed by the UCS MegaRAID controller are affected.
Drives can be affected regardless where they are installed in the server (front-loaded, rear-loaded, and so on).
Both SFF and LFF form factor drives can be affected.
Drives installed in all Cisco UCS C-Series servers with M3 processors and later can be affected.
Drives can be affected regardless of whether they are configured for hotplug or not.
The UBAD error is not always terminal, so the drive is not always defective or in need of repair or replacement. However, it is also possible that the error is terminal, and the drive will need replacement.

Before submitting the drive to the RMA process, it is a best practice to reseat the drive. If the false UBAD error exists, reseating the drive can clear it. If successful, reseating the drive reduces inconvenience, cost, and service interruption, and optimizes your server uptime.

Note

Reseat the drive only if a UBAD error occurs. Other errors are transient, and you should not attempt diagnostics and troubleshooting without the assistance of Cisco personnel. Contact Cisco TAC for assistance with other drive errors.

To reseat the drive, see Reseating a SAS/SATA Drive.

Reseating a SAS/SATA Drive

Sometimes, SAS/SATA drives can throw a false UBAD error, and reseating the drive can clear the error.

Use the following procedure to reseat the drive.

Caution

This procedure might require powering down the server. Powering down the server will cause a service interruption.

Before you begin

Before attempting this procedure, be aware of the following:

Before reseating the drive, it is a best practice to back up any data on it.
When reseating the drive, make sure to reuse the same drive bay.
- Do not move the drive to a different slot.
- Do not move the drive to a different server.
- If you do not reuse the same slot, the Cisco management software (for example, Cisco IMM) might require a rescan/rediscovery of the server.
When reseating the drive, allow 20 seconds between removal and reinsertion.

Procedure

Step 1	Attempt a hot reseat of the affected drive(s). Choose the appropriate option: For a front-loading drive, see Replacing a SAS/SATA Drive
Step 2	During boot up, watch the drive's LEDs to verify correct operation. See Status LEDs and Buttons.
Step 3	If the error persists, cold reseat the drive, which requires a server power down. Choose the appropriate option: Use your server management software to gracefully power down the server. See the appropriate Cisco management software documentation. If server power down through software is not available, you can power down the server by pressing the power button. See Status LEDs and Buttons. Reseat the drive as documented in Step 1. When the drive is correctly reseated, restart the server, and check the drive LEDs for correct operation as documented in Step 2.
Step 4	If hot and cold reseating the drive (if necessary) does not clear the UBAD error, choose the appropriate option: Contact Cisco Systems for assistance with troubleshooting. Begin an RMA of the errored drive.

Replacing a Front-Loading NVMe SSD

This section is for replacing 2.5-inch form-factor NVMe solid-state drives (SSDs) in front-panel drive bays.

Front-Loading NVMe SSD Population Guidelines

The server supports the following front drive bay configurations with 2.5 inch NVMe SSDs:

Cisco UCS C225 M8 SAS/SATA (UCSC-C225-M8S)—Optional, front-loading drive bays 1 to 4 support 2.5-inch NVMe SSDs (with optional front NVMe cables).
Cisco UCS C225 M8 NVMe (UCSC-C225-M8N)—10-drive backplane. Supports up to 10 2.5-inch NVMe-only SSDs.

Front-Loading NVME SSD Requirements and Restrictions

Observe these requirements:

Hot-plug support must be enabled in the system BIOS. If you ordered the system with NVMe drives, hot-plug support is enabled at the factory.
The NVMe-optimized, SFF 10-drive version, supports NVMe drives only.

Observe these restrictions:

NVMe SFF 2.5-inch SSDs support booting only in UEFI mode. Legacy boot is not supported. For instructions on setting up UEFI boot, see4K Sector Format SAS/SATA Drives Considerations .
You cannot control NVMe PCIe SSDs with a SAS RAID controller because NVMe SSDs interface with the server via the PCIe bus.
UEFI boot is supported in all supported operating systems. Hot-insertion and hot-removal are supported in all supported operating systems except VMWare ESXi.

Enabling Hot-Plug Support in the System BIOS

Hot-plug (OS-informed hot-insertion and hot-removal) is disabled in the system BIOS by default.

If the system was ordered with NVMe PCIe SSDs, the setting was enabled at the factory. No action is required.
If you are adding NVMe PCIe SSDs after-factory, you must enable hot-plug support in the BIOS. See the following procedures.

Enabling Hot-Plug Support Using the BIOS Setup Utility

Procedure

Step 1	Enter the BIOS setup utility by pressing the F2 key when prompted during bootup.
Step 2	Navigate to Advanced > PCI Subsystem Settings > NVMe SSD Hot-Plug Support.
Step 3	Set the value to Enabled.
Step 4	Save your changes and exit the utility.

Replacing a Front-Loading NVMe SSD

This topic describes how to replace 2.5-inch form-factor NVMe SSDs in the front-panel drive bays.

Note

OS-surprise removal is not supported. OS-informed hot-insertion and hot-removal are supported on all supported operating systems except VMware ESXi.

Note

OS-informed hot-insertion and hot-removal must be enabled in the system BIOS. See Enabling Hot-Plug Support in the System BIOS.

Procedure

Step 1

Remove an existing front-loading NVMe SSD:

Shut down the NVMe SSD to initiate an OS-informed removal. Use your operating system interface to shut down the drive, and then observe the drive-tray LED:
- Green—The drive is in use and functioning properly. Do not remove.
- Green, blinking—the driver is unloading following a shutdown command. Do not remove.
- Off—The drive is not in use and can be safely removed.
Press the release button on the face of the drive tray.
Grasp and open the ejector lever and then pull the drive tray out of the slot.
Remove the four drive tray screws that secure the SSD to the tray and then lift the SSD out of the tray.

Step 2

Install a new front-loading NVMe SSD:

Place a new SSD in the empty drive tray and install the four drive-tray screws.
With the ejector lever on the drive tray open, insert the drive tray into the empty drive bay.
Push the tray into the slot until it touches the backplane, and then close the ejector lever to lock the drive in place.

Step 3

Observe the drive-tray LED and wait until it returns to solid green before accessing the drive:

Off—The drive is not in use.
Green, blinking—the driver is initializing following hot-plug insertion.
Green—The drive is in use and functioning properly.

Figure 10. Replacing a Drive in a Drive Tray


1	Ejector lever	3	Drive tray screws (two on each side)
2	Release button	4	Drive removed from drive tray

Replacing Fan Modules

Tip

Each fan module has a fault LED next to the fan connector on the motherboard. This LED lights green when the fan is correctly seated and is operating OK. The LED lights amber when the fan has a fault or is not correctly seated.

Caution

You do not have to shut down or remove power from the server to replace fan modules because they are hot- swappable. However, to maintain proper cooling, do not operate the server for more than one minute with any fan module removed.

Procedure

Step 1

Remove an existing fan module:

Slide the server out the front of the rack far enough so that you can remove the top cover. You might have to detach cables from the rear panel to provide clearance.

Caution

If you cannot safely view and access the component, remove the server from the rack.

Remove the top cover from the server as described in Removing the Server Top Cover.

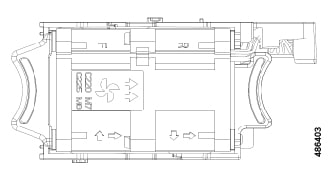

Grasp the fan module at its front and rear finger-grips. Lift straight up to disengage its connector from the motherboard.

Step 2

Install a new fan module:

Set the new fan module in place. The arrow printed on the top of the fan module should point toward the rear of the server.
Press down gently on the fan module to fully engage it with the connector on the motherboard.
Replace the top cover to the server.
Replace the server in the rack, replace cables, and then fully power on the server by pressing the Power button.

Replacing CPUs and Heatsinks

This section contains CPU configuration rules and the procedure for replacing CPUs and heatsinks:

CPU Configuration Rules

This server has one CPU socket on the motherboard. CPU supports 12 DIMM slots. See DIMM Population Rules and Memory Performance Guidelines.

The UCS C225 M8 server is a single CPU server. It operates with only one CPU installed.
The maximum number of DIMMs is 12.

Tools Required For CPU Replacement

You need the following tools and equipment for this procedure:

T-20 Torx driver (for heatsink and CPU socket screws)
Heatsink cleaning kit—Supplied with replacement CPU. Orderable separately as Cisco PID UCSX-HSCK=.

One cleaning kit can clean up to four CPUs.
Thermal interface material (TIM)—Syringe supplied with replacement CPU. Use only if you are reusing your existing heatsink (new heatsinks have a pre-applied pad of TIM). Orderable separately as Cisco PID UCS-CPU-TIM=.

One TIM kit covers one CPU.

Replacing a CPU and Heatsink

Caution

CPU and socket are fragile and must be handled with extreme care to avoid damaging pins. The CPU must be installed with heatsinks and thermal interface material to ensure cooling. Failure to install a CPU correctly might result in damage to the server.

Procedure

Step 1

Remove the existing CPU/heatsink assembly from the server:

Shut down and remove power from the server as described in Shutting Down and Removing Power From the Server.

Slide the server out the front of the rack far enough so that you can remove the top cover. You might have to detach cables from the rear panel to provide clearance.

Caution

If you cannot safely view and access the component, remove the server from the rack.

Remove the top cover from the server as described in Removing the Server Top Cover.

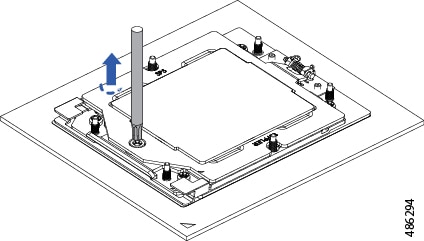

Use the T-20 Torx driver that is supplied with the replacement CPU to loosen the eight captive screws that secure the assembly to the motherboard standoffs.

Note

Alternate loosening the heatsink screws evenly so that the heatsink remains level as it is raised.

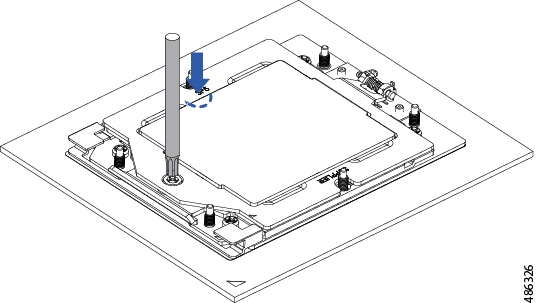

Loosen the screw that secures the CPU socket frame.
Carefully open the CPU socket frame to access the CPU.
Open the rail frame that holds the CPU in place.

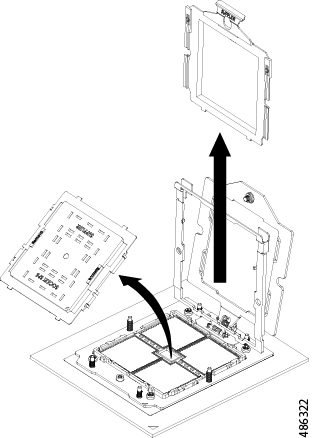

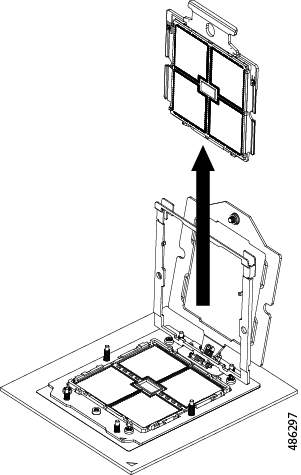

Take out the CPU with carrier frame.
(Optional) If you are not installing a new CPU immediately, place the dust cover and PNP cap over the empty CPU socket for protection.

Step 2

Install the new CPU:

Caution

The CPU contacts and socket pins are extremely fragile. In this step, use extreme care to avoid touching or damaging the CPU contacts or the CPU socket pins.

Open the CPU socket frame to prepare for the new CPU.
Open the rail frame to insert the new CPU.
(Optional) Remove the dust cover and PNP cap from the socket (if present).

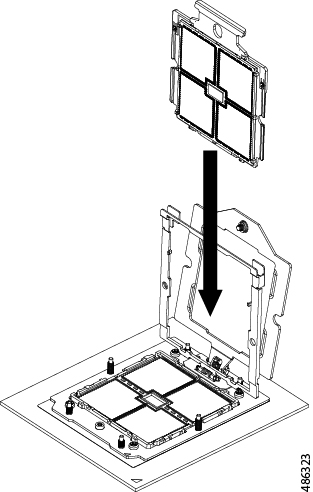

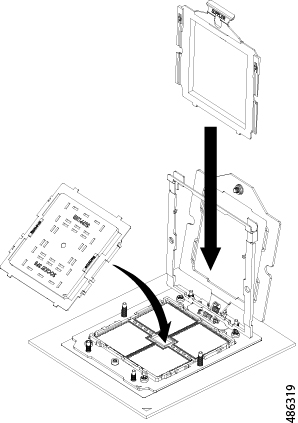

Grasping the CPU only by the handling tab on its carrier frame, carefully slide it down into the open rail frame.

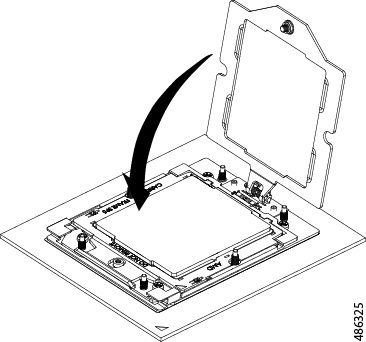

Gently close the rail frame down to the flat, closed position.

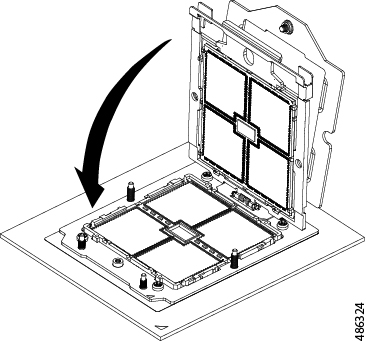

Gently close the socket frame down to the flat, closed position.
Tighten the three screw on the socket frame.

Step 3

Apply new TIM to the heatsink:

Note

The heatsink must have new TIM on the heatsink-to-CPU surface to ensure proper cooling and performance.

If you are installing a new heatsink, it is shipped with a pre-applied pad of TIM. Go to step 5.
If you are reusing a heatsink, you must remove the old TIM from the heatsink and then apply new TIM to the CPU surface from the supplied syringe. Continue with step a below.

Apply the cleaning solution that is included with the heatsink cleaning kit (UCSX-HSCK=) to the old TIM on the heatsink and let it soak for a least 15 seconds.
Wipe all of the TIM off the heatsink using the soft cloth that is included with the heatsink cleaning kit. Be careful to avoid scratching the heatsink surface.

Using the syringe of TIM provided with the new CPU (UCS-CPU-TIM=), apply 4 cubic centimeters of thermal interface material to the top of the CPU. Use the pattern shown below to ensure even coverage.

Figure 11. Thermal Interface Material Application Pattern

Caution

Use only the correct heatsink for your CPUs to ensure proper cooling.

Step 4

Install the heatsink to the CPU:

Align the heatsink over the CPU socket. Align the triangle-mark on the heatsink with the triangle-mark on the socket frame.
Reattach the heatsink and tighten the screws to secure it.

Step 5

Reconnect any cables that you removed.

Step 6

Power on the server.

Additional CPU-Related Parts to Order with RMA Replacement CPUs

When a return material authorization (RMA) of the CPU is done on a Cisco UCS C-Series server, additional parts might not be included with the CPU spare. The TAC engineer might need to add the additional parts to the RMA to help ensure a successful replacement.

Note

The following items apply to CPU replacement scenarios.

Scenario 1—You are reusing the existing heatsinks or moving CPUs and heatsinks to a new node:

Heatsink cleaning kit (UCSX-HSCK=)

One cleaning kit can clean up to four CPUs.
Thermal interface material (TIM) kit (UCS-CPU-TIM=)

One TIM kit covers one CPU.

Scenario 2—You are replacing the existing heatsinks:

Heatsink: UCSC-HSHP-225M8=

New heatsinks have a pre-applied pad of TIM.
Heatsink cleaning kit (UCSX-HSCK=)

One cleaning kit can clean up to four CPUs.

A CPU heatsink cleaning kit is good for up to four CPU and heatsink cleanings. The cleaning kit contains two bottles of solution, one to clean the CPU and heatsink of old TIM and the other to prepare the surface of the heatsink.

New heatsink spares come with a pre-applied pad of TIM. It is important to clean any old TIM off of the CPU surface prior to installing the heatsinks. Therefore, even when you are ordering new heatsinks, you must order the heatsink cleaning kit.

Replacing RAID Cards

The RAID card is located in the front of the server. This process requires you to disconnect the RAID cables from the card and motherboard before remoivng the RAID card.

Removing Cisco Trimode M1 24G RAID Controller W/4GB FBWC (16 Drives)

Use this procedure to replace a RAID card that has been removed or needs to be replaced.

Procedure

Step 1

Shut down and remove power from the server.

Step 2

Slide the server out the front of the rack far enough to remove the top cover.

Step 3

Remove the existing RAID card from the server.

Note

You must remove the old card from the card carrier bracket during replacement.

Disconnect RAID card controller cables from the existing card.

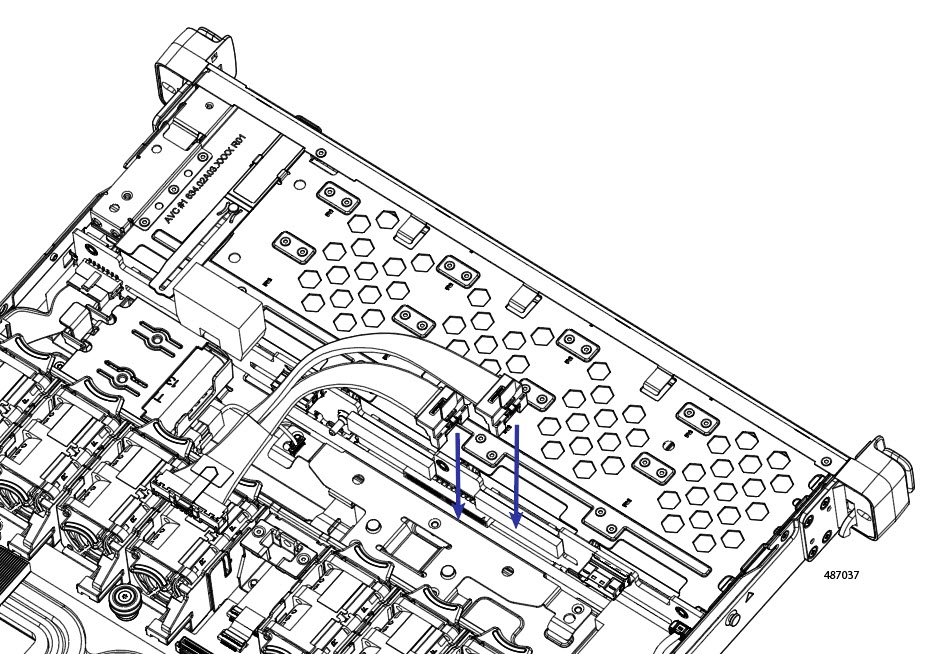

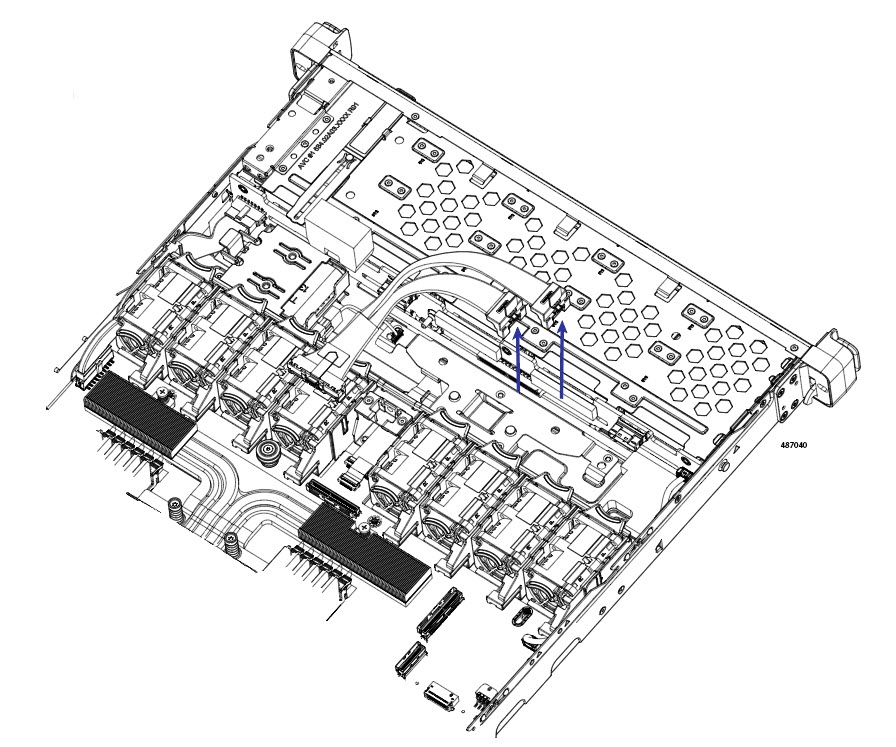

Figure 12. Disconnecting RAID card controller cables

Step 4

Lift the card's ejector lever to unseat it from the motherboard socket.

Step 5

Lift straight up on the card's carrier frame to disengage the card from the motherboard socket.

Use a #1 Phillips-head screwdriver to remove the screws that secure the RAID Card to the carrier and lift the card from the bracket.

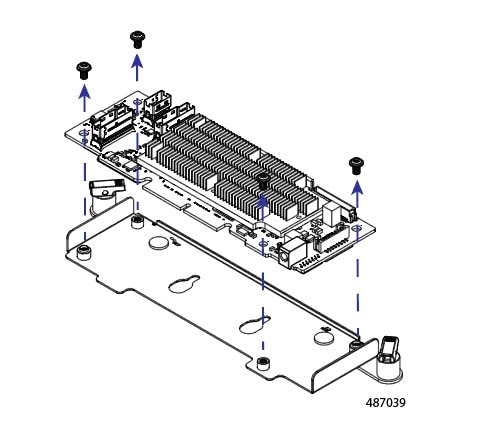

Figure 13. Removing RAID card from carrier bracket

What to do next

Installing Cisco Trimode M1 24G RAID Controller W/4GB FBWC (16 Drives)

To install a RAID card, attach the new card to the mounting fixture and then attach the RAID card mounting fixture to the server motherboard.

Procedure

Step 1

Shut down and remove power from the server.

Step 2

Slide the server out the front of the rack far enough to remove the top cover.

Step 3

Install the replacement RAID Card.

Note

During installation, attach the new card to the mounting bracket before installing the RAID card to the server motherboard.

Install the new RAID to its carrier bracket. Use a #1 Phillips-head screwdriver to attach the screws that secure the RAID Card to the carrier.

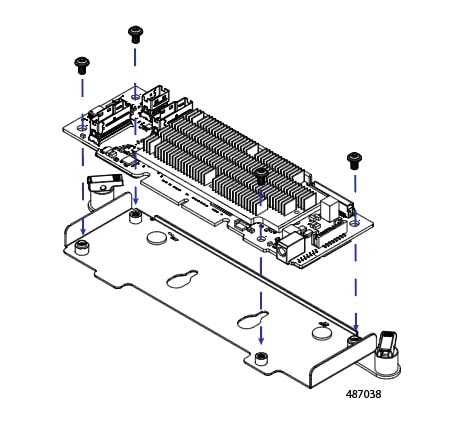

Figure 14. Removing RAID card from carrier bracket
Insert the RAID card carrier straight down on the motherboard socket.
Secure the RAID card to the motherboard using the ejector levers.
Connect the RAID card controller cables to the new RAID card.

Figure 15. Connecting RAID card controller cables

Step 4

Replace the top cover of the server.

What to do next

Replacing Memory DIMMs

Caution

DIMMs and their sockets are fragile and must be handled with care to avoid damage during installation.

Caution

Cisco does not support third-party DIMMs. Using non-Cisco DIMMs in the server might result in system problems or damage to the motherboard.

Note

To ensure the best server performance, it is important that you are familiar with memory performance guidelines and population rules before you install or replace DIMMs.

DIMM Population Rules and Memory Performance Guidelines

This topic describes the rules and guidelines for maximum memory performance.

DIMM Population Rules

Observe the following guidelines when installing or replacing DIMMs on a server powered by 4th Gen. AMD and 5th Gen AMD EPYC™ CPUs:

All memory DIMMs must be RDIMM (16GB, 32GB, 48GB, 64GB, and 96GB) or RDIMM 3DS (128GB) module types.
All memory DIMMs must be Cisco DDR5-5600 memory PIDs, although the memory will operate at the maximum speed of the 4th Gen. AMD EPYC™ CPUs memory controller, up to 4800 MT/s. Cisco DDR5-6400 memory PIDs, although the memory will operate at the speed of the 5th Gen. AMD EPYC™ CPUs memory controller, up to 6000 MT/s.
Balanced memory configurations maximize memory bandwidth by optimizing memory interleaving. To obtain a balanced memory configuration:
- Populate each socket with 1, 2, 4, 6, 8, 10, or 12 memory channels.
- Use the same memory configuration in all populated memory channels. No DIMM density mixing across channel is allowed.
- No DIMM mixing within a channel is possible as server supports only 1DPC.
Maximum memory capacity of 3 TB using 256 GB DIMMs.
Memory mirroring reduces the amount of memory available by 50 percent because only one of the two populated channels provides data. When memory mirroring is enabled, you must install DIMMs in even numbers of channels.

Memory Population Order

The following tables show the memory population order for each memory option.

Table 3. DIMMs Population Order
#DIMMs per CPU	DIMM Population - 16GB, 32GB, 48GB, 64GB, 128GB, 256GB
1	A1
2	A1, G1
4	A1, C1, G1, I1
6	A1, B1, C1, G1, H1, I1
8	A1, B1, C1, E1, G1, H1, I1, K1
10	A1, B1, C1, D1, E1, G1, H1, I1, J1, K1
12	A1, B1, C1, D1, E1, F1, G1, H1, I1, J1, K1, L1

Memory Mirroring

The CPUs in the server support memory mirroring only when an even number of channels are populated with DIMMs. If one or three channels are populated with DIMMs, memory mirroring is automatically disabled.

Memory mirroring reduces the amount of memory available by 50 percent because only one of the two populated channels provides data. The second, duplicate channel provides redundancy.

Replacing DIMMs

Identifying a Faulty DIMM

Each DIMM socket has a corresponding DIMM fault LED, directly in front of the DIMM socket. See Internal Diagnostic LEDs for the locations of these LEDs. When the server is in standby power mode, these LEDs light amber to indicate a faulty DIMM.

Procedure

Step 1

Remove an existing DIMM:

Shut down and remove power from the server as described in Shutting Down and Removing Power From the Server.

Slide the server out the front of the rack far enough so that you can remove the top cover. You might have to detach cables from the rear panel to provide clearance.

Caution

If you cannot safely view and access the component, remove the server from the rack.

Remove the top cover from the server as described in Removing the Server Top Cover.

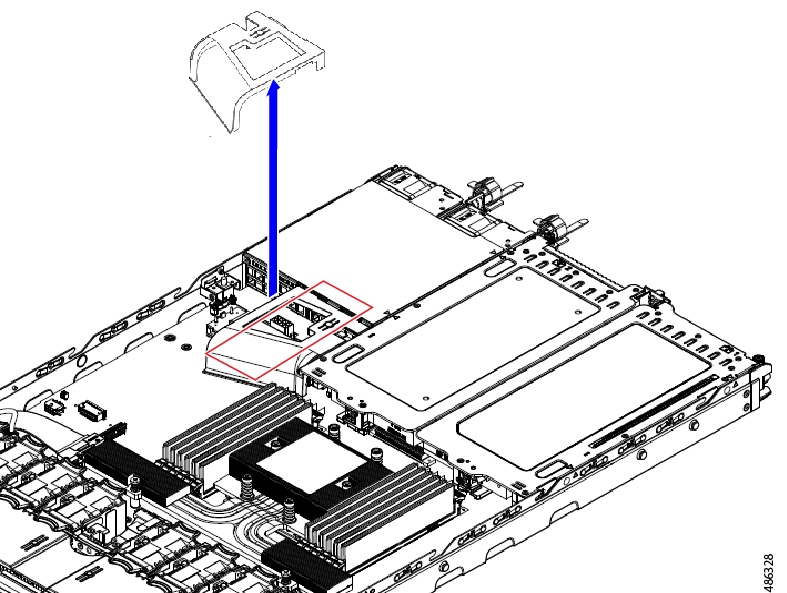

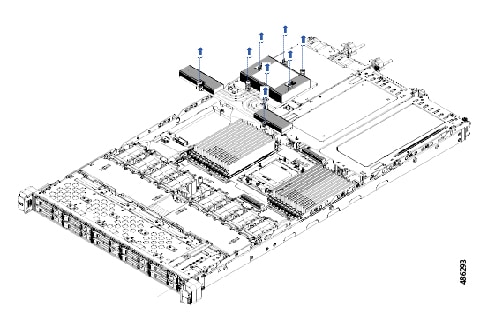

Remove the air baffle that covers the front ends of the DIMM slots to provide clearance.
Locate the DIMM that you are removing, and then open the ejector levers at each end of its DIMM slot.

Step 2

Install a new DIMM:

Note

Before installing DIMMs, see the memory population rules for this server: DIMM Population Rules and Memory Performance Guidelines.

Align the new DIMM with the empty slot on the motherboard. Use the alignment feature in the DIMM slot to correctly orient the DIMM.
Push down evenly on the top corners of the DIMM until it is fully seated and the ejector levers on both ends lock into place.
Replace the top cover to the server.
Replace the server in the rack, replace cables, and then fully power on the server by pressing the Power button.

Replacing the RTC Battery

Warning

There is danger of explosion if the battery is replaced incorrectly. Replace the battery only with the same or equivalent type recommended by the manufacturer. Dispose of used batteries according to the manufacturer’s instructions.

[Statement 1015]

Warning

Recyclers: Do not shred the battery! Make sure you dispose of the battery according to appropriate regulations for your country or locale.

The real-time clock (RTC) battery retains system settings when the server is disconnected from power. The battery type is CR2032. Cisco supports the industry-standard CR2032 battery, which can be ordered from Cisco (PID N20-MBLIBATT) or purchased from most electronic stores.

Procedure

Step 1

Remove the RTC battery:

Shut down and remove power from the server as described in Shutting Down and Removing Power From the Server.

Slide the server out the front of the rack far enough so that you can remove the top cover. You might have to detach cables from the rear panel to provide clearance.

Caution

If you cannot safely view and access the component, remove the server from the rack.

Remove the top cover from the server as described in Removing the Server Top Cover.
Locate the RTC battery. The vertical socket is directly in front of PCIe riser 2.
Remove the battery from the socket on the motherboard. Gently pry the securing clip on one side open to provide clearance, then lift straight up on the battery.

Step 2

Install a new RTC battery:

Insert the battery into its holder and press down until it clicks in place under the clip.

Note

The flat, positive side of the battery marked “3V+” should face left as you face the server front.

Replace the top cover to the server.
Replace the server in the rack, replace cables, and then fully power on the server by pressing the Power button.

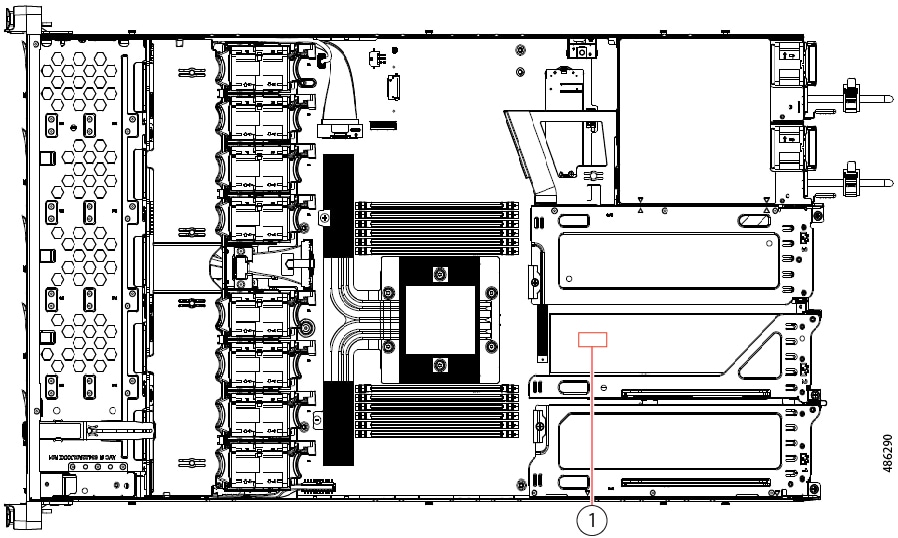

Figure 16. RTC Battery Location on Motherboard


1	RTC battery in vertical socket	-

Replacing Power Supplies

The server can have one or two Titanium 80PLUS rated power supplies. When two power supplies are installed they are redundant as 1+1 by default.

See also Power Specifications for more information about the power supplies.
See also Rear-Panel LEDs for information about the power supply LEDs.

This section includes procedures for replacing AC and DC power supply units.

Replacing AC Power Supplies
Replacing DC Power Supplies
Installing DC Power Supplies (First Time Installation)
Grounding for DC Power Supplies

Replacing AC Power Supplies

Note

If you have ordered a server with power supply redundancy (two power supplies), you do not have to power off the server to replace a power supply because they are redundant as 1+1.

Note

Do not mix power supply types or wattages in the server. Both power supplies must be identical.

Procedure

Step 1

Remove the power supply that you are replacing or a blank panel from an empty bay:

Perform one of the following actions:
- If your server has only one power supply, shut down and remove power from the server as described in Shutting Down and Removing Power From the Server.
- If your server has two power supplies, you do not have to shut down the server.
Remove the power cord from the power supply that you are replacing.
Grasp the power supply handle while pinching the release lever toward the handle.
Pull the power supply out of the bay.

Step 2

Install a new power supply:

Grasp the power supply handle and insert the new power supply into the empty bay.
Push the power supply into the bay until the release lever locks.
Connect the power cord to the new power supply.
Only if you shut down the server, press the Power button to boot the server to main power mode.


1	Power Supply location.

Replacing DC Power Supplies

Note

This procedure is for replacing DC power supplies in a server that already has DC power supplies installed. If you are installing DC power supplies to the server for the first time, see Installing DC Power Supplies (First Time Installation).

Warning

A readily accessible two-poled disconnect device must be incorporated in the fixed wiring.

Statement 1022

Warning

This product requires short-circuit (overcurrent) protection, to be provided as part of the building installation. Install only in accordance with national and local wiring regulations.

Statement 1045

Warning

Installation of the equipment must comply with local and national electrical codes.

Statement 1074

Note

If you are replacing DC power supplies in a server with power supply redundancy (two power supplies), you do not have to power off the server to replace a power supply because they are redundant as 1+1.

Note

Do not mix power supply types or wattages in the server. Both power supplies must be identical.

Procedure

Step 1

Remove the DC power supply that you are replacing or a blank panel from an empty bay:

Perform one of the following actions:
- If you are replacing a power supply in a server that has only one DC power supply, shut down and remove power from the server as described in Shutting Down and Removing Power From the Server.
- If you are replacing a power supply in a server that has two DC power supplies, you do not have to shut down the server.
Remove the power cord from the power supply that you are replacing. Lift the connector securing clip slightly and then pull the connector from the socket on the power supply.
Grasp the power supply handle while pinching the release lever toward the handle.
Pull the power supply out of the bay.

Step 2

Install a new DC power supply:

Grasp the power supply handle and insert the new power supply into the empty bay.
Push the power supply into the bay until the release lever locks.
Connect the power cord to the new power supply. Press the connector into the socket until the securing clip clicks into place.
Only if you shut down the server, press the Power button to boot the server to main power mode.


1	Keyed cable connector (CAB-48DC-40A-8AWG)	3	PSU status LED
2	Keyed DC input socket	-

Installing DC Power Supplies (First Time Installation)

Note

This procedure is for installing DC power supplies to the server for the first time. If you are replacing DC power supplies in a server that already has DC power supplies installed, see Replacing DC Power Supplies.

Warning

A readily accessible two-poled disconnect device must be incorporated in the fixed wiring.

Statement 1022

Warning

This product requires short-circuit (overcurrent) protection, to be provided as part of the building installation. Install only in accordance with national and local wiring regulations.

Statement 1045

Warning

Installation of the equipment must comply with local and national electrical codes.

Statement 1074

Note

Do not mix power supply types or wattages in the server. Both power supplies must be identical.

Caution

As instructed in the first step of this wiring procedure, turn off the DC power source from your facility’s circuit breaker to avoid electric shock hazard.

Procedure

Step 1

Turn off the DC power source from your facility’s circuit breaker to avoid electric shock hazard.

Note

The required DC input cable is Cisco part CAB-48DC-40A-8AWG. This 3-meter cable has a 3-pin connector on one end that is keyed to the DC input socket on the power supply. The other end of the cable has no connector so that you can wire it to your facility’s DC power.

Step 2

Wire the non-terminated end of the cable to your facility’s DC power input source.

Step 3

Connect the terminated end of the cable to the socket on the power supply. The connector is keyed so that the wires align for correct polarity and ground.

Step 4

Return DC power from your facility’s circuit breaker.

Step 5

Press the Power button to boot the server to main power mode.


1	Keyed cable connector (CAB-48DC-40A-8AWG)	3	PSU status LED
2	Keyed DC input socket	-

Step 6

See Grounding for DC Power Supplies for information about additional chassis grounding.

Grounding for DC Power Supplies

AC power supplies have internal grounding and so no additional grounding is required when the supported AC power cords are used.

When using a DC power supply, additional grounding of the server chassis to the earth ground of the rack is available. Two screw holes for use with your dual-hole grounding lug and grounding wire are supplied on the chassis rear panel.

Note

The grounding points on the chassis are sized for 10-32 screws. You must provide your own screws, grounding lug, and grounding wire. The grounding lug must be dual-hole lug that fits 10-32 screws. The grounding cable that you provide must be 10 AWG (5 mm), minimum 60° C wire, or as permitted by the local code.

Replacing a PCIe Riser

This server has toolless PCIe risers for horizontal installation of PCIe cards. Each riser is available in multiple versions. See PCIe Slot Specifications for detailed descriptions of the slots and features in each riser version.

Procedure

Step 1

Shut down and remove power from the server as described in Shutting Down and Removing Power From the Server.

Step 2

Slide the server out the front of the rack far enough so that you can remove the top cover. You might have to detach cables from the rear panel to provide clearance.

Caution

If you cannot safely view and access the component, remove the server from the rack.

Step 3

Remove the top cover from the server as described in Removing the Server Top Cover.

Step 4

Remove the PCIe riser that you are replacing:

Grasp the flip-up handle on the riser and the blue forward edge, and then lift up evenly to disengage its circuit board from the socket on the motherboard. Set the riser on an antistatic surface.
If the riser has a card installed, remove the card from the riser. See Replacing a PCIe Card.

Step 5

Install a new PCIe riser:

Note

The PCIe risers are not interchangeable. If you plug a PCIe riser into the wrong socket, the server will not boot. Riser 1 must plug into the motherboard socket labeled “RISER1.” Riser 2 must plug into the motherboard socket labeled “RISER2.”

If you removed a card from the old PCIe riser, install the card to the new riser. See Replacing a PCIe Card.
Position the PCIe riser over its socket on the motherboard and over its alignment slots in the chassis.
Carefully push down on both ends of the PCIe riser to fully engage its circuit board connector with the socket on the motherboard.

Step 6

Replace the top cover to the server.

Step 7

Replace the server in the rack, replace cables, and then fully power on the server by pressing the Power button.

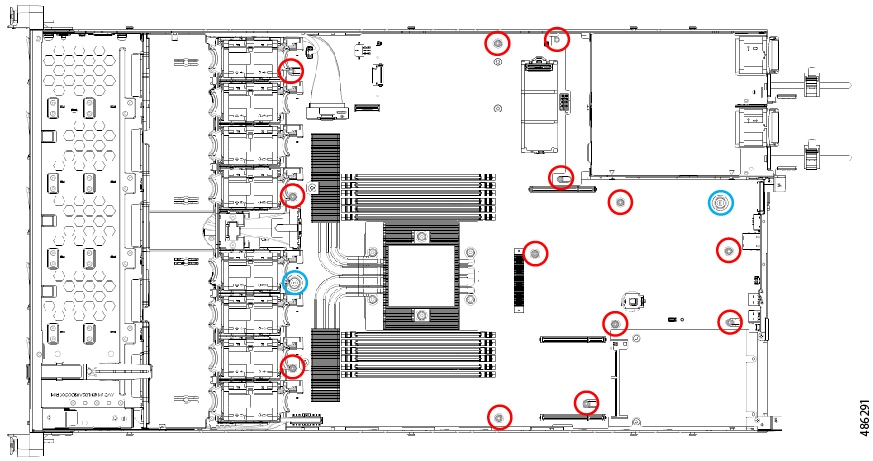

Figure 19. PCIe Riser Alignment - Two Riser Configuration

Figure 20. PCIe Riser Alignment - Three Riser Configuration

Replacing NVMe Cable

Procedure

Step 1

Prepare the server for component installation:

Shut down and remove power from the server as described in Shutting Down and Removing Power From the Server.

Slide the server out the front of the rack far enough so that you can remove the top cover. You might have to detach cables from the rear panel to provide clearance.

Caution

If you cannot safely view and access the component, remove the server from the rack.

Remove the top cover from the server as described in Removing the Server Top Cover.
Remove the air baffle to provide clearance.

Step 2

Replacing the cable:

Required Cables:
- MCIO cable (Y Cable X16 to X4 + X4 + X8)
- MCIO cable (Y Cable X16 to X8 + X8
- MCIO cable (X8 to X8)


1 (Blue)	NVMe-1 on motherboard (MB) to CN24, CN25 and CN26 on backplane (BP) side	MCIO cable (Y Cable X16 to X4 + X4 + X8)
2 (Green)	NVMe-2 on MB to CN21 and CN21 and CN22 on BP side	MCIO cable (Y Cable X16 to X8 + X8
3 (Orange)	NVMe-3 on motherboard (MB) to CN23 on BP side (not shown in the figure)	MCIO cable (X8 to X8)
4 (Yellow)	Front KVM cable
5 (Red)	HDD BP PWR cable

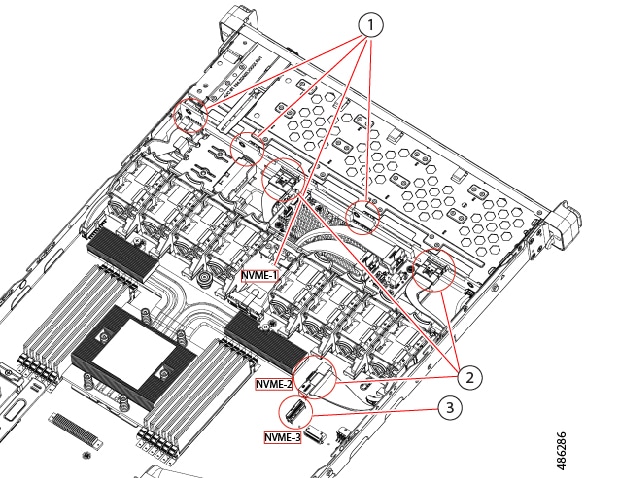

Figure 21. NVMe-1, 2 and 3 on Motherboard and Connectors on Backplane

Step 3

Route the cables as described in the following image.

Figure 22. NVMe-1, 2 and 3 on Motherboard and Connectors on Backplane

Replacing a PCIe Card

Note

Cisco supports all PCIe cards qualified and sold by Cisco. PCIe cards not qualified or sold by Cisco are the responsibility of the customer. Although Cisco will always stand behind and support the C-Series rack-mount servers, customers using standard, off-the-shelf, third-party cards must go to the third-party card vendor for support if any issue with that particular card occurs.

PCIe Slot Specifications

The following tables describe the specifications for the slots in three riser combination.

Table 4. PCIe Riser 1
Slot Number	Electrical Lane Width	Connector Length	Maximum Card Length	Card Height (Rear Panel Opening)	NCSI Support
1A	Gen4 x16	x24 connector	¾ length	Half-height	Yes
1B	Gen5 x16	x24 connector	¾ length	Half-height	Yes

Table 5. PCIe Riser 2
Slot Number	Electrical Lane Width	Connector Length	Maximum Card Length	Card Height (Rear Panel Opening)	NCSI Support
2A	Gen4 x16	x24 connector	¾ length	Half-height	No
2B	Gen5 x16	x24 connector	¾ length	Half-height	No

Table 6. PCIe Riser 3
Slot Number	Electrical Lane Width	Connector Length	Maximum Card Length	Card Height (Rear Panel Opening)	NCSI Support
3A	Gen4 x16	x24 connector	¾ length	Half-height	Yes

The following tables describe the specifications for the slots in two riser combination.

Table 7. PCIe Riser 1
Slot Number	Electrical Lane Width	Connector Length	Maximum Card Length	Card Height (Rear Panel Opening)	NCSI Support
1C	Gen5 x16	x24 connector	¾ length	Full-height	Yes

Table 8. PCIe Riser 3
Slot Number	Electrical Lane Width	Connector Length	Maximum Card Length	Card Height (Rear Panel Opening)	NCSI Support
3C	Gen5 x16	x24 connector	¾ length	Full-height	Yes

Replacing a PCIe Card

Procedure

Step 1

Remove an existing PCIe card (or a blank filler panel) from the PCIe riser:

Shut down and remove power from the server as described in Shutting Down and Removing Power From the Server.

Slide the server out the front of the rack far enough so that you can remove the top cover. You might have to detach cables from the rear panel to provide clearance.

Caution

If you cannot safely view and access the component, remove the server from the rack.

Remove the top cover from the server as described in Removing the Server Top Cover.
Remove any cables from the ports of the PCIe card that you are replacing.
Use two hands to grasp the external riser handle and the blue area at the front of the riser.
Lift straight up to disengage the riser's connectors from the two sockets on the motherboard. Set the riser upside-down on an antistatic surface.
Open the hinged plastic retainer that secures the rear-panel tab of the card.
Pull evenly on both ends of the PCIe card to remove it from the socket on the PCIe riser.

If the riser has no card, remove the blanking panel from the rear opening of the riser.

Step 2

Install a new PCIe card:

With the hinged tab retainer open, align the new PCIe card with the empty socket on the PCIe riser.

PCIe riser 1/slot 1 has a long-card guide at the front end of the riser. Use the slot in the long-card guide to help support a full-length card.
Push down evenly on both ends of the card until it is fully seated in the socket.
Ensure that the card’s rear panel tab sits flat against the riser rear-panel opening and then close the hinged tab retainer over the card’s rear-panel tab.

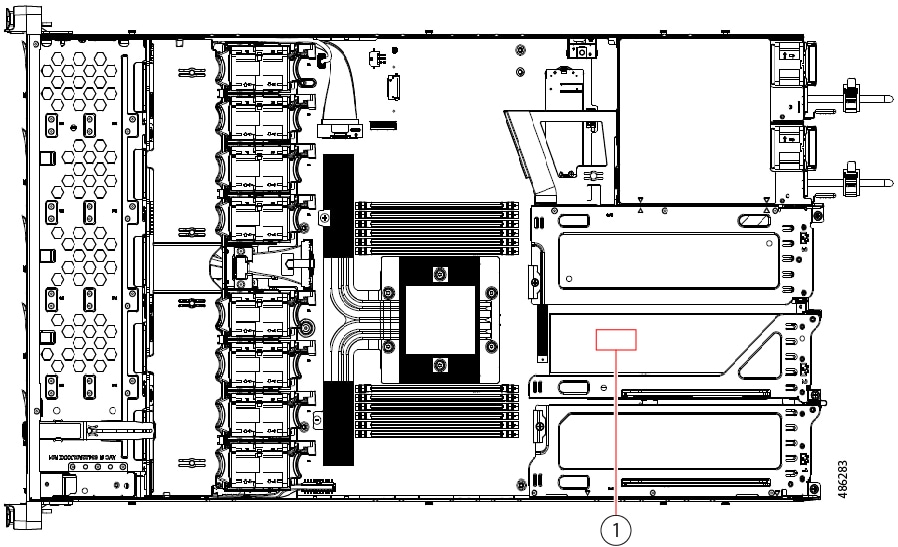

Figure 23. PCIe Riser Card Securing Mechanisms
Position the PCIe riser over its mating socket on the motherboard and over the two chassis alignment channels.
Carefully push down on both ends of the PCIe riser to fully engage its connector with the socket on the motherboard.
Replace the top cover to the server.
Replace the server in the rack, replace cables, and then fully power on the server by pressing the Power button.

Cisco VIC mLOM and OCP Card Replacement Considerations

In Cisco UCS servers, Cisco IMC network connection may be lost in the following situations, while replacing Cisco VIC mLOM and OCP cards:

If OCP card is replaced by Cisco VIC card in MLOM Slot and the NIC mode is set to Shared OCP or Shared OCP Extended.
If Cisco VIC Card in MLOM Slot is replaced by OCP Card and NIC mode is set to Cisco-card MLOM.

Follow these recommendations while replacing Cisco VIC mLOM or OCP cards in Cisco UCS servers to avoid loss of connectivity:

Before replacing the card, configure any of the NIC modes that has network connected, other than Cisco card MLOM, Shared OCP, or Shared OCP Extended. After replacing the card, configure the appropriate NIC mode.

To set the NIC mode, refer Server NIC Configuration section in Configuration Guides for your Cisco IMC release.
Or, after replacing the card, configure the appropriate NIC mode using Cisco IMC Configuration Utility/F8.

Refer Connecting to the Server Locally For Setup section in Install and Upgrade Guides for your server.
Or, after replacing the card, perform factory default settings using Cisco IMC Configuration Utility/F8 then perform the following steps:
1. Once the server is rebooted, boot the system to Cisco IMC Configuration Utility/F8 then change the default password.
2. Configure the appropriate NIC mode settings.

Table 9. Factory Default Settings
VIC in mLOM slot	Intel OCP 3.0 NIC in mLOM Slot	VIC in Riser Slot	Dedicated Management Port	NIC Mode for CIMC Access
Yes	No	No	Yes	Cisco Card mode with the card in mLOM Slot
No	Yes	No	Yes	Shared OCP Extended
No	Yes	Yes	Yes	Shared OCP Extended
No	No	Yes	Yes	Cisco Card with VIC SLOT based on precedence: Riser 1 - Slot 1 Riser 3 - Slot 3
No	No	No	Yes	Dedicated

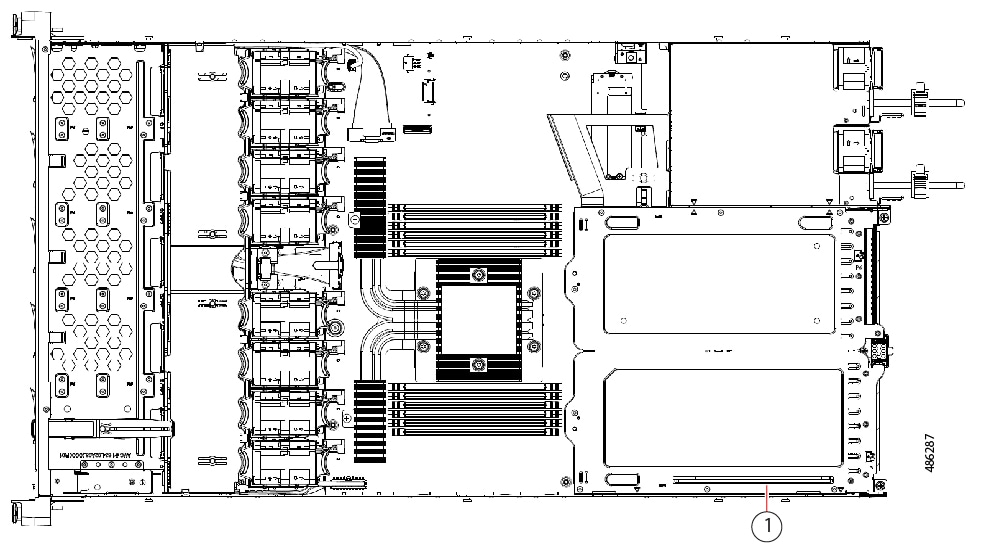

Replacing an mLOM Card

The server supports a modular LOM (mLOM) card to provide additional rear-panel connectivity. The mLOM socket is on the motherboard, under PCIe Riser 1.

The mLOM socket provides a Gen-3 and Gen-4 x16 PCIe lane. The socket remains powered when the server is in 12 V standby power mode and it supports the network communications services interface (NCSI) protocol.

Procedure

Step 1

Remove any existing mLOM card (or a blanking panel):

Shut down and remove power from the server as described in Shutting Down and Removing Power From the Server.

Slide the server out the front of the rack far enough so that you can remove the top cover. You might have to detach cables from the rear panel to provide clearance.

Caution

If you cannot safely view and access the component, remove the server from the rack.

Remove the top cover from the server as described in Removing the Server Top Cover.
Remove the mRAID riser to provide access to the mLOM socket below the riser.

To remove the mRAID riser, use both hands to grasp the external blue handle on the rear and the blue finger-grip on the front. Lift straight up.

You do not have to disconnect cables from any RAID card or interposer card that is installed in the riser. Carefully move the riser aside only far enough to provide clearance.
Loosen the single captive thumbscrew that secures the mLOM card to the threaded standoff on the chassis floor.
Slide the mLOM card horizontally to free it from the socket, then lift it out of the server.

Step 2

Install a new mLOM card:

Set the mLOM card on the chassis floor so that its connector is aligned with the motherboard socket.
Push the card horizontally to fully engage the card's edge connector with the socket.
Tighten the captive thumbscrew to secure the card to the standoff on the chassis floor.
Return the mRAID riser to its socket.

Carefully align the riser's edge connector with the motherboard socket at the same time you align the two channels on the riser with the two pegs on the inner chassis wall. Press down evenly on both ends of the riser to fully engage its connector with the motherboard socket.
Replace the top cover to the server.
Replace the server in the rack, replace cables, and then fully power on the server by pressing the Power button.


1	Position of horizontal mLOM card socket under PCIe riser 1

Replacing a SAS Storage Controller Card (RAID or HBA)

For hardware-based storage control, the server can use a Cisco modular SAS RAID controller or SAS HBA that plugs into a dedicated, vertical socket on the motherboard.

Storage Controller Card Firmware Compatibility

Firmware on the storage controller (RAID or HBA) must be verified for compatibility with the current Cisco IMC and BIOS versions that are installed on the server. If not compatible, upgrade or downgrade the storage controller firmware using the Host Upgrade Utility (HUU) for your firmware release to bring it to a compatible level.

Note

For servers running in standalone mode only: After you replace controller hardware (UCSC-RAID-HP, UCSC-RAID-M1L16, UCSC-HBA-M1L16), you must run the Cisco UCS Host Upgrade Utility (HUU) to update the controller firmware, even if the firmware Current Version is the same as the Update Version. This is necessary to program the controller's suboem-id to the correct value for the server SKU. If you do not do this, drive enumeration might not display correctly in the software. This issue does not affect servers controlled in UCSM mode.

See the HUU guide for your Cisco IMC release for instructions on downloading and using the utility to bring server components to compatible levels: HUU Guides.

Replacing a SAS Storage Controller Card (RAID or HBA)

Procedure

Step 1

Prepare the server for component installation:

Shut down and remove power from the server as described in Shutting Down and Removing Power From the Server.

Slide the server out the front of the rack far enough so that you can remove the top cover. You might have to detach cables from the rear panel to provide clearance.

Caution

If you cannot safely view and access the component, remove the server from the rack.

Remove the top cover from the server as described in Removing the Server Top Cover.

Step 2

Remove any existing storage controller card from the server:

Note

The chassis includes a plastic mounting bracket that the card must be attached to before installation. During replacement, you must remove the old card from the bracket and then install the new card to the bracket before installing this assembly to the server.

Disconnect SAS/SATA cables and any Supercap cable from the existing card.
Lift up on the card's blue ejector lever to unseat it from the motherboard socket.
Lift straight up on the card's carrier frame to disengage the card from the motherboard socket and to disengage the frame from two pegs on the chassis wall.
Remove the existing card from its plastic carrier bracket. Carefully push the retainer tabs aside and then lift the card from the bracket.

Step 3

Install a new storage controller card:

Install the new card to the plastic carrier bracket. Make sure that the retainer tabs close over the edges of the card.
Position the assembly over the chassis and align the card edge with the motherboard socket. At the same time, align the two slots on the back of the carrier bracket with the pegs on the chassis inner wall.
Push on both corners of the card to seat its connector in the riser socket. At the same time, ensure that the slots on the carrier frame engage with the pegs on the inner chassis wall.
Fully close the blue ejector lever on the card to lock the card into the socket.
Connect SAS/SATA cables and any Supercap cable to the new card.

If this is a first-time installation, see Storage Controller Cable Connectors and Backplanes for cabling instructions.

Step 4

Replace the top cover to the server.

Step 5

Replace the server in the rack, replace cables, and then fully power on the server by pressing the Power button.

Step 6

If your server is running in standalone mode, use the Cisco UCS Host Upgrade Utility to update the controller firmware and program the correct suboem-id for the controller.

Note

For servers running in standalone mode only: After you replace controller hardware (UCSC-RAID-HP, UCSC-RAID-M1L16, UCSC-HBA-M1L16), you must run the Cisco UCS Host Upgrade Utility (HUU) to update the controller firmware, even if the firmware Current Version is the same as the Update Version. This is necessary to program the controller's suboem-id to the correct value for the server SKU. If you do not do this, drive enumeration might not display correctly in the software. This issue does not affect servers controlled in UCSM mode.

See the HUU guide for your Cisco IMC release for instructions on downloading and using the utility to bring server components to compatible levels: HUU Guides.

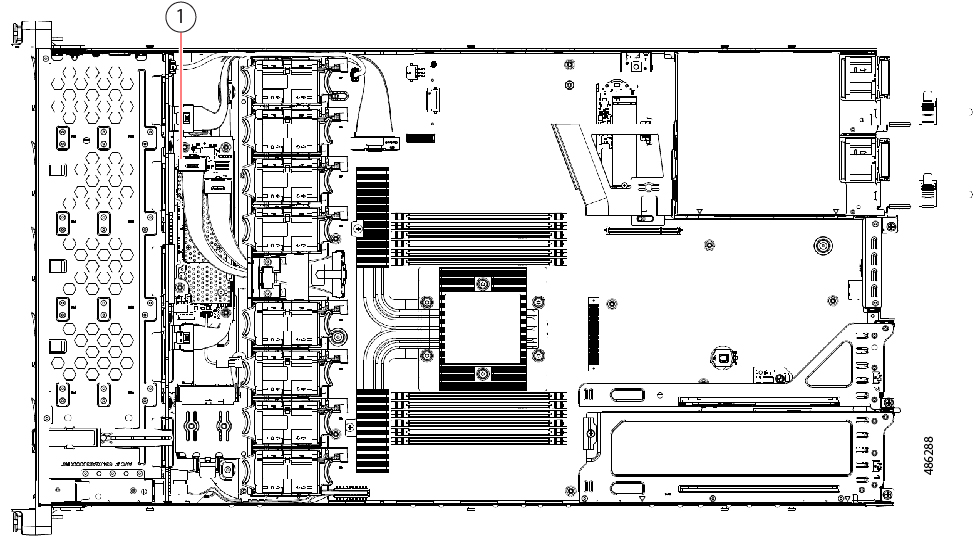

Figure 25. Storage Controller Card Location


1	Storage controller card location

Replacing the Supercap (RAID Backup)

This server supports installation of one Supercap unit. The unit mounts to a bracket that is in the middle of the row of cooling fan modules.

The Supercap provides approximately three years of backup for the disk write-back cache DRAM in the case of a sudden power loss by offloading the cache to the NAND flash.

Procedure

Step 1

Prepare the server for component installation:

Shut down and remove power from the server as described in Shutting Down and Removing Power From the Server.

Slide the server out the front of the rack far enough so that you can remove the top cover. You might have to detach cables from the rear panel to provide clearance.

Caution

If you cannot safely view and access the component, remove the server from the rack.

Remove the top cover from the server as described in Removing the Server Top Cover.

Step 2

Remove an existing Supercap:

Disconnect the Supercap cable from the existing Supercap.
Push aside the securing tab to open the hinged latch that secures the Supercap to its bracket on the removable air baffle.
Lift the Supercap free of the bracket and set it aside.

Step 3

Install a new Supercap:

Set the new Supercap into the mounting bracket.
Close the hinged plastic clip over the Supercap. Push down until the securing tab clicks.
Connect the Supercap cable from the RAID controller card to the connector on the new Supercap cable.

Step 4

Replace the top cover to the server.

Step 5

Replace the server in the rack, replace cables, and then fully power on the server by pressing the Power button.

Replacing a Boot-Optimized M.2 RAID Controller Module

The Cisco Boot-Optimized M.2 RAID Controller module connects to the mini-storage module socket on the motherboard. It includes slots for two SATA M.2 drives that can control the SATA M.2 drives in a RAID 1 array and JBOD mode.

Replacing a Cisco Boot-Optimized M.2 RAID Controller

This topic describes how to remove and replace a Cisco Boot-Optimized M.2 RAID Controller. The controller board has one M.2 socket on its top (Slot 1) and one M.2 socket on its underside (Slot 2).

Procedure

Step 1

Shut down and remove power from the server as described in Shutting Down and Removing Power From the Server.

Step 2

Slide the server out the front of the rack far enough so that you can remove the top cover. You might have to detach cables from the rear panel to provide clearance.

Caution

If you cannot safely view and access the component, remove the server from the rack.

Step 3

Remove the top cover from the server as described in Removing the Server Top Cover.

Step 4

Grasp and remove the air baffle located in front of the PSUs.

Step 5

Remove a controller from its motherboard socket:

Locate the controller in its socket just behind CPU 2.
At each end of the controller board, push outward on the clip that secures the carrier.
Lift both ends of the controller to disengage it from the socket on the motherboard.
Set the carrier on an anti-static surface.


1	Location of socket on motherboard	3	Securing clips
2	Alignment pegs	-

Step 6

If you are transferring SATA M.2 drives from the old controller to the replacement controller, do that before installing the replacement controller:

Note

Any previously configured volume and data on the drives are preserved when the M.2 drives are transferred to the new controller. The system will boot the existing OS that is installed on the drives.

Use a #1 Phillips-head screwdriver to remove the single screw that secures the M.2 drive to the carrier.
Lift the M.2 drive from its socket on the carrier.
Position the replacement M.2 drive over the socket on the controller board.
Angle the M.2 drive downward and insert the connector-end into the socket on the carrier. The M.2 drive's label must face up.
Press the M.2 drive flat against the carrier.
Install the single screw that secures the end of the M.2 SSD to the carrier.
Turn the controller over and install the second M.2 drive.

Figure 26. Cisco Boot-Optimized M.2 RAID Controller, Showing M.2 Drive Installation

Step 7

Install the controller to its socket on the motherboard:

Position the controller over socket, with the controller's connector facing down and at the same end as the motherboard socket. Two alignment pegs must match with two holes on the controller.
Gently push down the socket end of the controller so that the two pegs go through the two holes on the controller.
Push down on the controller so that the securing clips click over it at both ends.

Step 8

Replace the top cover to the server.

Step 9

Replace the server in the rack, replace cables, and then fully power on the server by pressing the Power button.

Replacing a Chassis Intrusion Switch

The chassis intrusion switch in an optional security feature that logs an event in the system event log (SEL) whenever the cover is removed from the chassis.

Procedure

Step 1

Prepare the server for component installation:

Shut down and remove power from the server as described in Shutting Down and Removing Power From the Server.

Slide the server out the front of the rack far enough so that you can remove the top cover. You might have to detach cables from the rear panel to provide clearance.

Caution

If you cannot safely view and access the component, remove the server from the rack.

Remove the top cover from the server as described in Removing the Server Top Cover.

Step 2

Remove an existing intrusion switch:

Disconnect the intrusion switch cable from the socket on the motherboard.
Use a #1 Phillips-head screwdriver to loosen and remove the single screw that holds the switch mechanism to the chassis wall.
Slide the switch mechanism straight up to disengage it from the clips on the chassis.

Step 3

Install a new intrusion switch:

Slide the switch mechanism down into the clips on the chassis wall so that the screwhole lines up.
Use a #1 Phillips-head screwdriver to install the single screw that secures the switch mechanism to the chassis wall.
Connect the switch cable to the socket on the motherboard.

Step 4

Replace the cover to the server.

Step 5

Replace the server in the rack, replace cables, and then fully power on the server by pressing the Power button.


1	Intrusion switch location

Installing a Trusted Platform Module (TPM)

The trusted platform module (TPM) is a small circuit board that plugs into a motherboard socket and is then permanently secured with a one-way screw.

TPM Considerations

This server supports TPM version 2.0.
Field replacement of a TPM is not supported; you can install a TPM after-factory only if the server does not already have a TPM installed.
If the TPM 2.0 becomes unresponsive, reboot the server.

Installing and Enabling a TPM

Note

Field replacement of a TPM is not supported; you can install a TPM after-factory only if the server does not already have a TPM installed.

This topic contains the following procedures, which must be followed in this order when installing and enabling a TPM:

Installing the TPM Hardware
Enabling the TPM in the BIOS

Installing TPM Hardware

Note

For security purposes, the TPM is installed with a one-way screw. It cannot be removed with a standard screwdriver.

Procedure

Step 1

Prepare the server for component installation:

Shut down and remove power from the server as described in Shutting Down and Removing Power From the Server.

Slide the server out the front of the rack far enough so that you can remove the top cover. You might have to detach cables from the rear panel to provide clearance.

Caution

If you cannot safely view and access the component, remove the server from the rack.

Remove the top cover from the server as described in Removing the Server Top Cover.

Step 2

Check if there is a card installed in PCIe riser 2:

If no card is installed in PCIe riser 2, you can access the TPM socket. Go to the next step.
If a card is installed in PCIe riser 2, remove the PCIe riser assembly from the chassis to provide clearance before continuing with the next step. See Replacing a PCIe Card for instructions on removing the PCIe riser.

Step 3

Install a TPM:

Locate the TPM socket on the motherboard, as shown below.
Align the connector that is on the bottom of the TPM circuit board with the motherboard TPM socket. Align the screw hole on the TPM board with the screw hole that is adjacent to the TPM socket.
Push down evenly on the TPM to seat it in the motherboard socket.
Install the single one-way screw that secures the TPM to the motherboard.
If you removed the PCIe riser assembly to provide clearance, return it to the server now.

Step 4

Replace the cover to the server.

Step 5

Replace the server in the rack, replace cables, and then fully power on the server by pressing the Power button.

Figure 28. TPM Socket Location on Motherboard


1	TPM socket location on motherboard below any card in PCIe riser 2

Step 6

Continue with Enabling the TPM in the BIOS.

Enabling the TPM in the BIOS

After hardware installation, you must enable TPM support in the BIOS.

Note

You must set a BIOS Administrator password before performing this procedure. To set this password, press the F2 key when prompted during system boot to enter the BIOS Setup utility. Then navigate to Security > Set Administrator Password and enter the new password twice as prompted.

Procedure

Step 1

Enable TPM Support:

Watch during bootup for the F2 prompt, and then press F2 to enter BIOS setup.
Log in to the BIOS Setup Utility with your BIOS Administrator password.
On the BIOS Setup Utility window, choose the Advanced tab.
Choose Trusted Computing to open the TPM Security Device Configuration window.
Change TPM SUPPORT to Enabled.
Press F10 to save your settings and reboot the server.

Step 2

Verify that TPM support is now enabled:

Watch during bootup for the F2 prompt, and then press F2 to enter BIOS setup.
Log into the BIOS Setup utility with your BIOS Administrator password.
Choose the Advanced tab.
Choose Trusted Computing to open the TPM Security Device Configuration window.
Verify that TPM SUPPORT and TPM State are Enabled.

Removing the PCB Assembly (PCBA)

The PCBA is secured to the server's sheet metal. You must disconnect the PCBA from the tray before recycling the PCBA. The PCBA is secured by different types of fasteners.

Before you begin

Note

For Recyclers Only! This procedure is not a standard field-service option. This procedure is for recyclers who will be reclaiming the electronics for proper disposal to comply with local eco design and e-waste regulations.

To remove the printed circuit board assembly (PCBA), the following requirements must be met:

The server must be disconnected from facility power.
The server must be removed from the equipment rack.
The server's top cover must be removed. See Removing the Server Top Cover.

Following tools are required:

Pliers
T10 Torx screwdriver

Procedure

Step 1

Locate the PCBA's mounting screws.

The following figure shows the location of the mounting screws and fasteners.

Figure 29. Screw Locations for Removing the UCS C225 M8 PCBA


shown in red	Torque: 10.0 kgf-cm (8.68 in-lbs)
shown in blue	Torque: 5.0 kgf-cm (4.34 in-lbs)

Step 2

Using a T10 Torx driver, remove all of the indicated screws.

Step 3

Remove the PCBA from the sheetmetal and dispose of each in compliance with your local ewaste and recycling regulations.

Service DIP Switch, Headers and Jumpers

This server includes one DIP switch (SW4) and header (CN5) that you can user for certain service and debug functions.

This section contains the following topics:

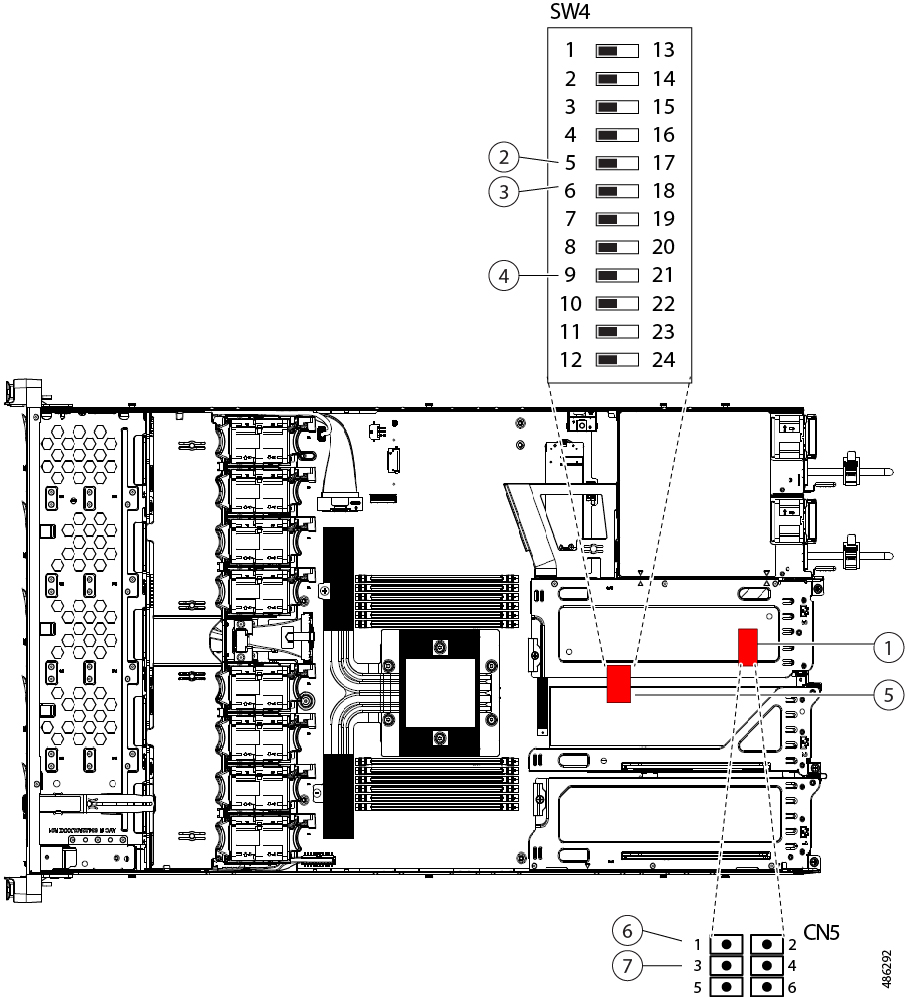

Figure 30. Location of DIP Switch and Service Header Blocks SW4 and CN5


1	Location of header block CN5	5	Location of SW4 DIP switches
2	BIOS Recovery Switch (SW4 Switch 5 - 17) Off (Switch 5): Normal; ON (Switch 17): Recovery Mode	6	Boot Alternate Cisco IMC Header: CN5 pins 1 - 2
3	Clear BIOS Password Switch (SW4 Switch 6 - 18) Off (Switch 6): Normal; ON (Switch 18): Clear	7	System Secure Firmware Erase Header: CN5 pins 3 - 4
4	Clear CMOS Switch (SW4 Switch 9 - 21) Off (Switch 9): Normal; ON (Switch 21): Clear

Using the BIOS Recovery Header (SW4, Pins 5 - 17)

Depending on which stage the BIOS becomes corrupted, you might see different behavior.

If the BIOS BootBlock is corrupted, you might see the system get stuck on the following message:
```
Initializing and configuring memory/hardware
```

If it is a non-BootBlock corruption, a message similar to the following is displayed:

****BIOS FLASH IMAGE CORRUPTED****
Flash a valid BIOS capsule file using Cisco IMC WebGUI or CLI interface.
IF Cisco IMC INTERFACE IS NOT AVAILABLE, FOLLOW THE STEPS MENTIONED BELOW.
1. Connect the USB stick with bios.cap file in root folder.
2. Reset the host.
IF THESE STEPS DO NOT RECOVER THE BIOS
1. Power off the system.
2. Mount recovery jumper.
3. Connect the USB stick with bios.cap file in root folder.
4. Power on the system.
Wait for a few seconds if already plugged in the USB stick.
REFER TO SYSTEM MANUAL FOR ANY ISSUES.

Note

As indicated by the message shown above, there are two procedures for recovering the BIOS. Try procedure 1 first. If that procedure does not recover the BIOS, use procedure 2.

Procedure 1: Reboot With bios.cap Recovery File

Procedure

Step 1

Download the BIOS update package and extract it to a temporary location.

Step 2

Copy the contents of the extracted recovery folder to the root directory of a USB drive. The recovery folder contains the bios.cap file that is required in this procedure.

Note

The bios.cap file must be in the root directory of the USB drive. Do not rename this file. The USB drive must be formatted with either the FAT16 or FAT32 file system.

Step 3

Insert the USB drive into a USB port on the server.

Step 4

Reboot the server.

Step 5

Return the server to main power mode by pressing the Power button on the front panel.

The server boots with the updated BIOS boot block. When the BIOS detects a valid bios.cap file on the USB drive, it displays this message:

Found a valid recovery file...Transferring to Cisco IMC
System would flash the BIOS image now...
System would restart with recovered image after a few seconds...

Step 6

Wait for server to complete the BIOS update, and then remove the USB drive from the server.

Note

During the BIOS update, Cisco IMC shuts down the server and the screen goes blank for about 10 minutes. Do not unplug the power cords during this update. Cisco IMC powers on the server after the update is complete.

Procedure 2: Use BIOS Recovery DIP Switch and bios.cap Recovery File

Procedure

Step 1

Download the BIOS update package and extract it to a temporary location.

Step 2

Copy the contents of the extracted recovery folder to the root directory of a USB drive. The recovery folder contains the bios.cap file that is required in this procedure.

Note

The bios.cap file must be in the root directory of the USB drive. Do not rename this file. The USB drive must be formatted with either the FAT16 or FAT32 file system.

Step 3

Shut down and remove power from the server as described in Shutting Down and Removing Power From the Server. Disconnect power cords from all power supplies.

Step 4

Slide the server out the front of the rack far enough so that you can remove the top cover. You might have to detach cables from the rear panel to provide clearance.

Caution

If you cannot safely view and access the component, remove the server from the rack.

Step 5

Remove the top cover from the server as described in Removing the Server Top Cover.

Step 6

Locate the SW4 is DIP Switch shown in Service DIP Switch, Headers and Jumpers. Default position is at Switch 5 (Off: normal). To set to BIOS recovery mode, switch to pin 17 position (ON: recovery mode).

Step 7

Reconnect AC power cords to the server. The server powers up to standby power mode.

Step 8

Insert the USB thumb drive that you prepared in Step 2 into a USB port on the server.

Step 9

Return the server to main power mode by pressing the Power button on the front panel.

The server boots with the updated BIOS boot block. When the BIOS detects a valid bios.cap file on the USB drive, it displays this message:

Found a valid recovery file...Transferring to Cisco IMC
System would flash the BIOS image now...
System would restart with recovered image after a few seconds...

Step 10

Wait for server to complete the BIOS update, and then remove the USB drive from the server.

Note

During the BIOS update, Cisco IMC shuts down the server and the screen goes blank for about 10 minutes. Do not unplug the power cords during this update. Cisco IMC powers on the server after the update is complete.

Step 11

After the server has fully booted, power off the server.

Step 12

Switch SW4 back to pin 5 position (Off: normal).

Step 13

Replace the top cover, replace the server in the rack, replace power cords and any other cables, and then power on the server by pressing the Power button.

Using the Clear BIOS Password Switch (SW4, Pins 6 - 18)

You can use SW4 DIP switch to clear the administrator password.

Procedure

Step 1

Shut down and remove power from the server as described in Shutting Down and Removing Power From the Server. Disconnect power cords from all power supplies.

Step 2

Slide the server out the front of the rack far enough so that you can remove the top cover. You might have to detach cables from the rear panel to provide clearance.

Caution

If you cannot safely view and access the component, remove the server from the rack.

Step 3

Remove the top cover from the server as described in Removing the Server Top Cover.

Step 4

Locate the SW4 DIP Switch and pins 6-18, as shown in Service DIP Switch, Headers and Jumpers.

Default position is at pin 6 (Off: normal).

Step 5

To clear BIOS password, switch to pin 18 position (On: clear).

Step 6

Reinstall the top cover and reconnect AC power cords to the server. The server powers up to standby power mode, indicated when the Power LED on the front panel is amber.

Step 7

Return the server to main power mode by pressing the Power button on the front panel. The server is in main power mode when the Power LED is green.

Note

You must allow the entire server to reboot to main power mode to complete the reset. The state of the jumper cannot be determined without the host CPU running.

Step 8

Press the Power button to shut down the server to standby power mode, and then remove AC power cords from the server to remove all power.

Step 9

Remove the top cover from the server.

Step 10

Switch SW4 back to pin 6 position (Off: normal).

Note

If SW4 is not switched back to pin 6 position, the password is cleared every time you power cycle the server.

Step 11

Replace the top cover, replace the server in the rack, replace power cords and any other cables, and then power on the server by pressing the Power button.

Using the Clear CMOS DIP Switch (SW4, Pins 9 - 21)

You can use this procedure to clear the server’s CMOS settings in the case of a system hang. For example, if the server hangs because of incorrect settings and does not boot, use this jumper to invalidate the settings and reboot with defaults.

Caution

Clearing the CMOS removes any customized settings and might result in data loss. Make a note of any necessary customized settings in the BIOS before you use this clear CMOS procedure.

Procedure

Step 1

Shut down and remove power from the server as described in Shutting Down and Removing Power From the Server. Disconnect power cords from all power supplies.

Step 2

Slide the server out the front of the rack far enough so that you can remove the top cover. You might have to detach cables from the rear panel to provide clearance.

Caution

If you cannot safely view and access the component, remove the server from the rack.

Step 3

Remove the top cover from the server as described in Removing the Server Top Cover.

Step 4

Locate SW4 DIP Switch and pins 9-21, as shown in Service DIP Switch, Headers and Jumpers.

Default position is at pin 9 (Off: normal).

Step 5

To clear the CMOS, switch to pin 21 position (On: clear).

Step 6

Reinstall the top cover and reconnect AC power cords to the server. The server powers up to standby power mode, indicated when the Power LED on the front panel is amber.

Step 7

Return the server to main power mode by pressing the Power button on the front panel. The server is in main power mode when the Power LED is green.

Note

You must allow the entire server to reboot to main power mode to complete the reset. The state of the jumper cannot be determined without the host CPU running.

Step 8

Press the Power button to shut down the server to standby power mode, and then remove AC power cords from the server to remove all power.

Step 9

Remove the top cover from the server.

Step 10

Switch SW4 back to pin 9 position (Off: normal).

Note

If SW4 is not switched back to pin 9 position, the CMOS settings are reset to the defaults every time you power cycle the server.

Step 11

Replace the top cover, replace the server in the rack, replace power cords and any other cables, and then power on the server by pressing the Power button.

Using the Boot Alternate Cisco IMC Image Header (CN5, Pins 1 - 2)

You can use this Cisco IMC debug header to force the system to boot from an alternate Cisco IMC image.

Procedure

Step 1

Shut down and remove power from the server as described in Shutting Down and Removing Power From the Server. Disconnect power cords from all power supplies.

Step 2

Slide the server out the front of the rack far enough so that you can remove the top cover. You might have to detach cables from the rear panel to provide clearance.

Caution

If you cannot safely view and access the component, remove the server from the rack.

Step 3

Remove the top cover from the server as described in Removing the Server Top Cover.

Step 4

Locate header block CN5, pins 1-2, as shown in Service DIP Switch, Headers and Jumpers.

Step 5

Install a two-pin jumper across CN5 pins 1 and 2.

Step 6

Reinstall the top cover and reconnect AC power cords to the server. The server powers up to standby power mode, indicated when the Power LED on the front panel is amber.

Step 7

Return the server to main power mode by pressing the Power button on the front panel. The server is in main power mode when the Power LED is green.

Note

When you next log in to Cisco IMC, you see a message similar to the following:

'Boot from alternate image' debug functionality is enabled.
CIMC will boot from alternate image on next reboot or input power cycle.

Step 8

Press the Power button to shut down the server to standby power mode, and then remove AC power cords from the server to remove all power.

Step 9

Remove the top cover from the server.

Step 10

Remove the jumper that you installed.

Note

If you do not remove the jumper, the server will boot from an alternate Cisco IMC image every time that you power cycle the server or reboot Cisco IMC.

Step 11

Replace the top cover, replace the server in the rack, replace power cords and any other cables, and then power on the server by pressing the Power button.

Using the Reset Cisco IMC Password to Default Header (CN5, Pins 3 - 4)

You can use this Cisco IMC debug header to force the Cisco IMC password back to the default.

Procedure

Step 1

Shut down and remove power from the server as described in Shutting Down and Removing Power From the Server. Disconnect power cords from all power supplies.

Step 2

Slide the server out the front of the rack far enough so that you can remove the top cover. You might have to detach cables from the rear panel to provide clearance.

Caution

If you cannot safely view and access the component, remove the server from the rack.

Step 3

Remove the top cover from the server as described in Removing the Server Top Cover.

Step 4

Locate header block CN5, pins 3-4, as shown in Service DIP Switch, Headers and Jumpers.

Step 5

Install a two-pin jumper across CN5 pins 3 and 4.

Step 6

Reinstall the top cover and reconnect AC power cords to the server. The server powers up to standby power mode, indicated when the Power LED on the front panel is amber.

Step 7

Return the server to main power mode by pressing the Power button on the front panel. The server is in main power mode when the Power LED is green.

Note

When you next log in to Cisco IMC, you see a message similar to the following:

'Reset to default CIMC password' debug functionality is enabled.
On input power cycle, CIMC password will be reset to defaults.

Step 8

Press the Power button to shut down the server to standby power mode, and then remove AC power cords from the server to remove all power.

Step 9

Remove the top cover from the server.

Step 10

Remove the jumper that you installed.

Note

If you do not remove the jumper, the server will reset the Cisco IMC password to the default every time that you power cycle the server. The jumper has no effect if you reboot Cisco IMC.

Step 11

Replace the top cover, replace the server in the rack, replace power cords and any other cables, and then power on the server by pressing the Power button.

Bias-Free Language

Results

Chapter: Maintaining the Server

Maintaining the Server

Status LEDs and Buttons

Front-Panel LEDs

Rear-Panel LEDs

Internal Diagnostic LEDs

Preparing For Component Installation

Required Equipment For Service Procedures

Shutting Down and Removing Power From the Server

Shutting Down Using the Power Button

Procedure

Shutting Down Using The Cisco IMC CLI

Procedure

Example:

Example:

Shutting Down Using The Cisco IMC GUI

Procedure

Removing the Server Top Cover

Procedure

Hot Swap vs Hot Plug

Removing and Replacing Components

Component Location

Replacing SAS/SATA Hard Drives or Solid State Drives

SAS/SATA Drive Population Guidelines

4K Sector Format SAS/SATA Drives Considerations

Procedure

Replacing a SAS/SATA Drive

Procedure

Basic Troubleshooting: Reseating a SAS/SATA Drive

Reseating a SAS/SATA Drive

Before you begin

Procedure

Replacing a Front-Loading NVMe SSD

Front-Loading NVMe SSD Population Guidelines

Front-Loading NVME SSD Requirements and Restrictions

Enabling Hot-Plug Support in the System BIOS

Enabling Hot-Plug Support Using the BIOS Setup Utility

Procedure

Replacing a Front-Loading NVMe SSD

Procedure

Replacing Fan Modules

Procedure

Replacing CPUs and Heatsinks

CPU Configuration Rules

Tools Required For CPU Replacement

Replacing a CPU and Heatsink

Procedure

Additional CPU-Related Parts to Order with RMA Replacement CPUs

Replacing RAID Cards

Removing Cisco Trimode M1 24G RAID Controller W/4GB FBWC (16 Drives)

Procedure

What to do next

Installing Cisco Trimode M1 24G RAID Controller W/4GB FBWC (16 Drives)

Procedure

What to do next

Replacing Memory DIMMs

DIMM Population Rules and Memory Performance Guidelines

DIMM Population Rules

Memory Population Order

Memory Mirroring

Replacing DIMMs

Procedure

Replacing the RTC Battery

Procedure

Replacing Power Supplies

Replacing AC Power Supplies

Procedure

Replacing DC Power Supplies

Procedure

Installing DC Power Supplies (First Time Installation)

Procedure

Grounding for DC Power Supplies

Replacing a PCIe Riser

Procedure

Replacing NVMe Cable

Procedure

Replacing a PCIe Card
