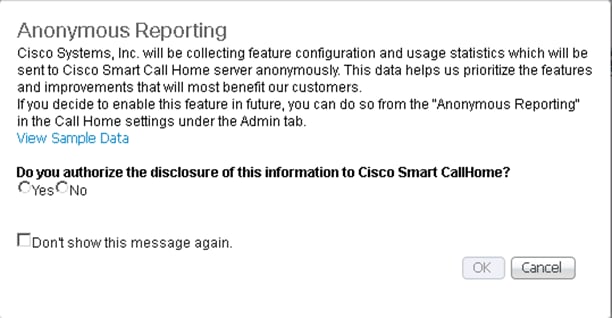

Anonymous Reporting. 32

Configure Cisco UCS Call Home. 33

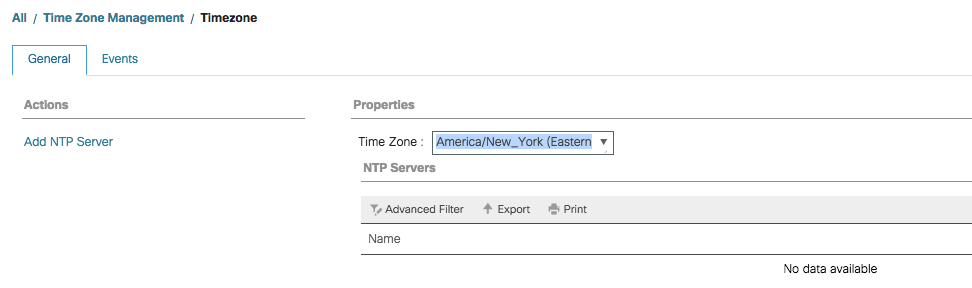

Synchronize Cisco UCS to NTP. 33

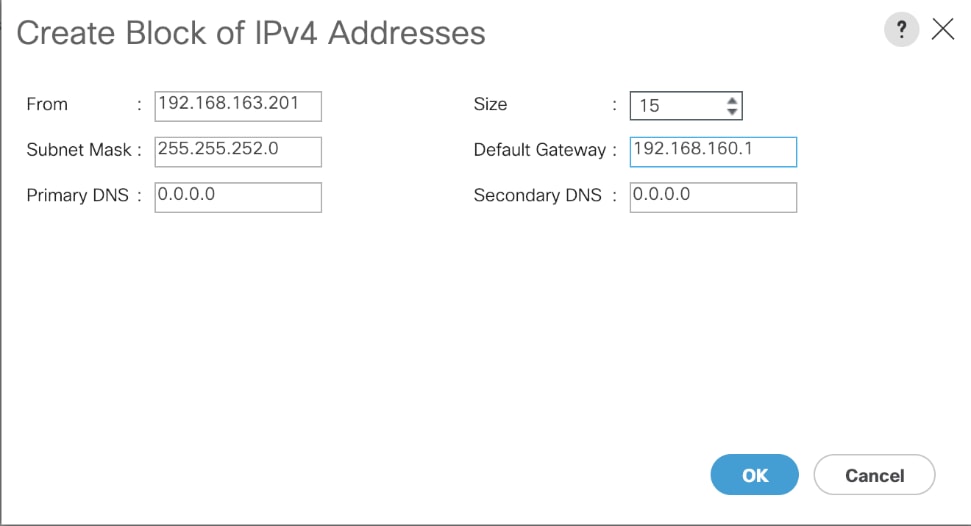

Add Block IP Addresses for KVM Access. 34

Server Discovery Policy. 35

Enable Server Ports. 36

Optional: Edit Policy to Automatically Discover Server Ports. 37

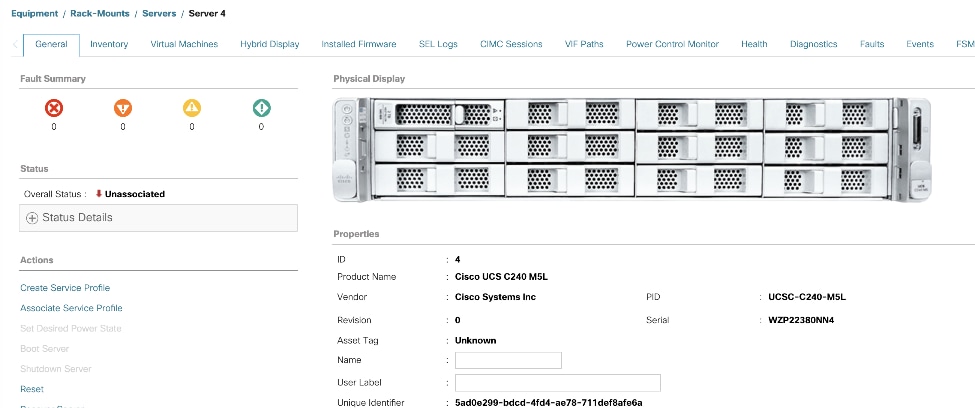

Server Discovery. 38

Optional: Enable Fibre Channel Ports. 39

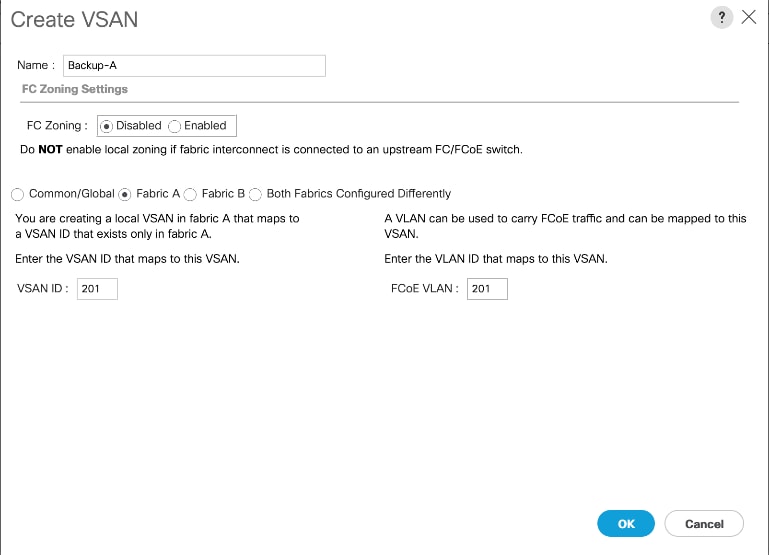

Optional: Create VSAN for the Fibre Channel Interfaces. 40

Optional: Create Port Channels for the Fibre Channel Interfaces. 44

Enable Ethernet Uplink Ports. 47

Create Port Channels for Ethernet Uplinks. 48

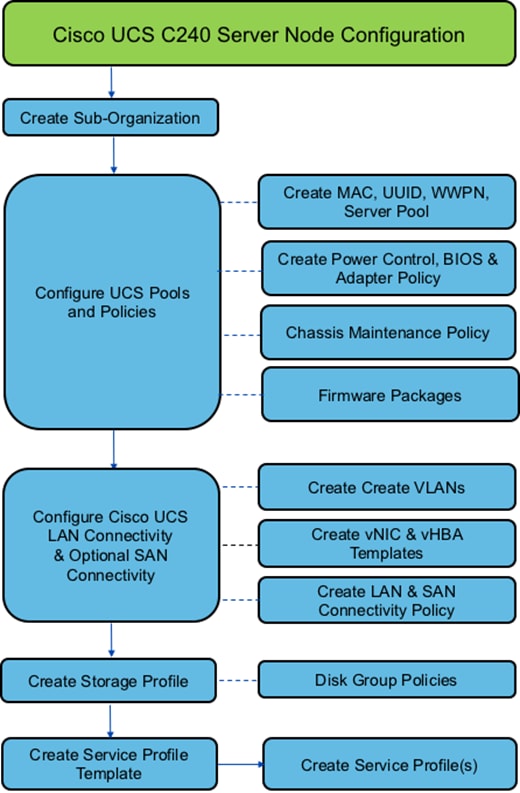

Cisco UCS C240 M5 Server Node Configuration. 50

Create Sub-Organization. 51

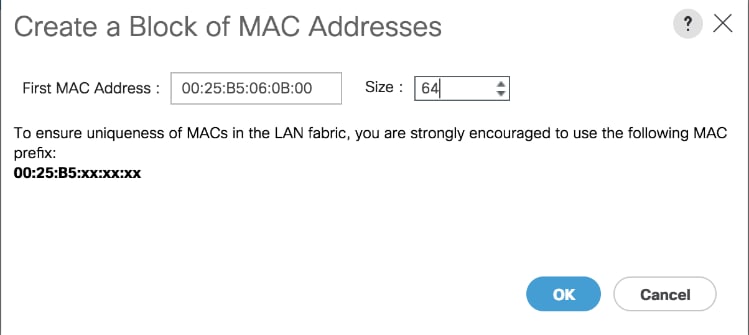

Create MAC Address Pools. 51

Create UUID Suffix Pool 54

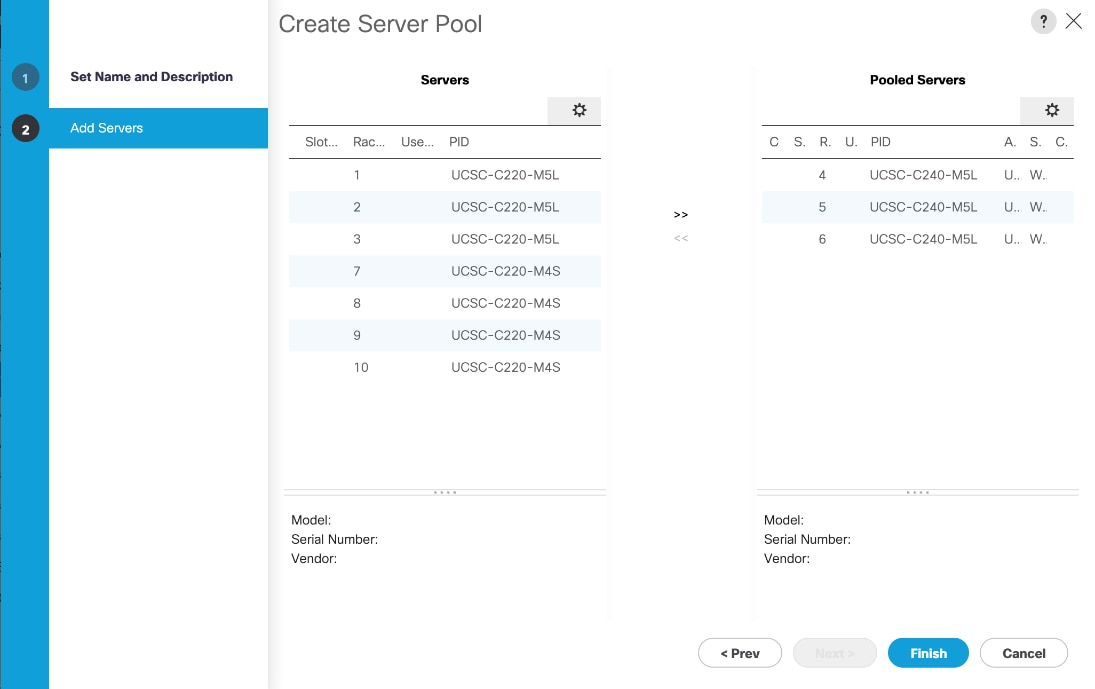

Create Server Pool 55

Optional: Create a WWNN Address Pool for FC-based Storage Access. 57

Optional: Create a WWPN Address Pools for FC-based Storage Access. 58

Create VLANs. 61

Create Host Firmware Package. 63

Create Network Control Policy for Cisco Discovery Protocol 64

Create Power Control Policy. 65

Create Server BIOS Policy. 66

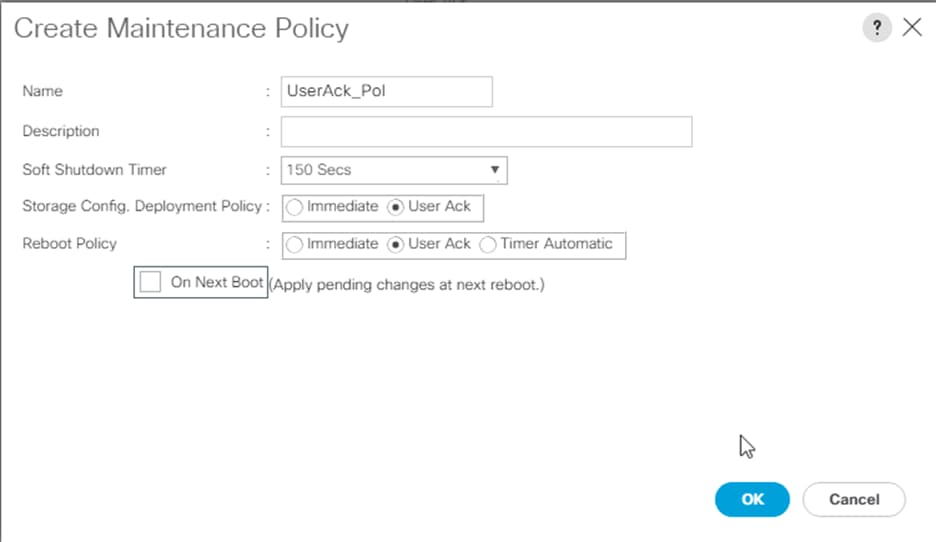

Create Maintenance Policy. 68

Create Adapter Policy. 69

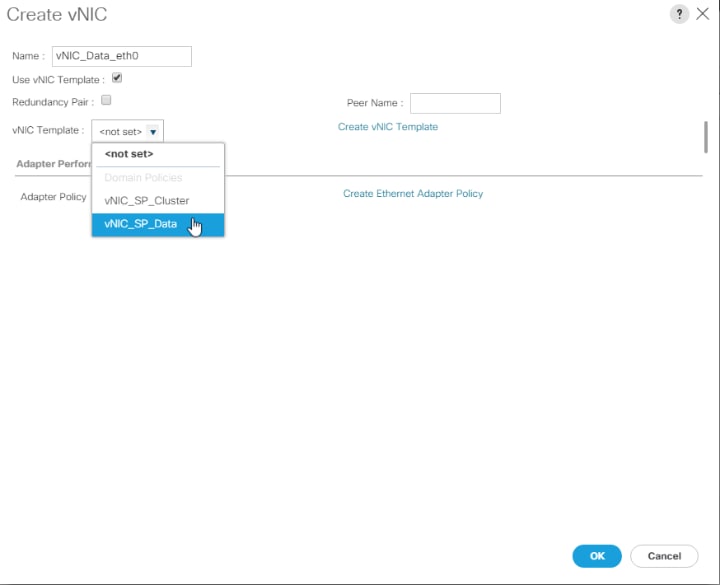

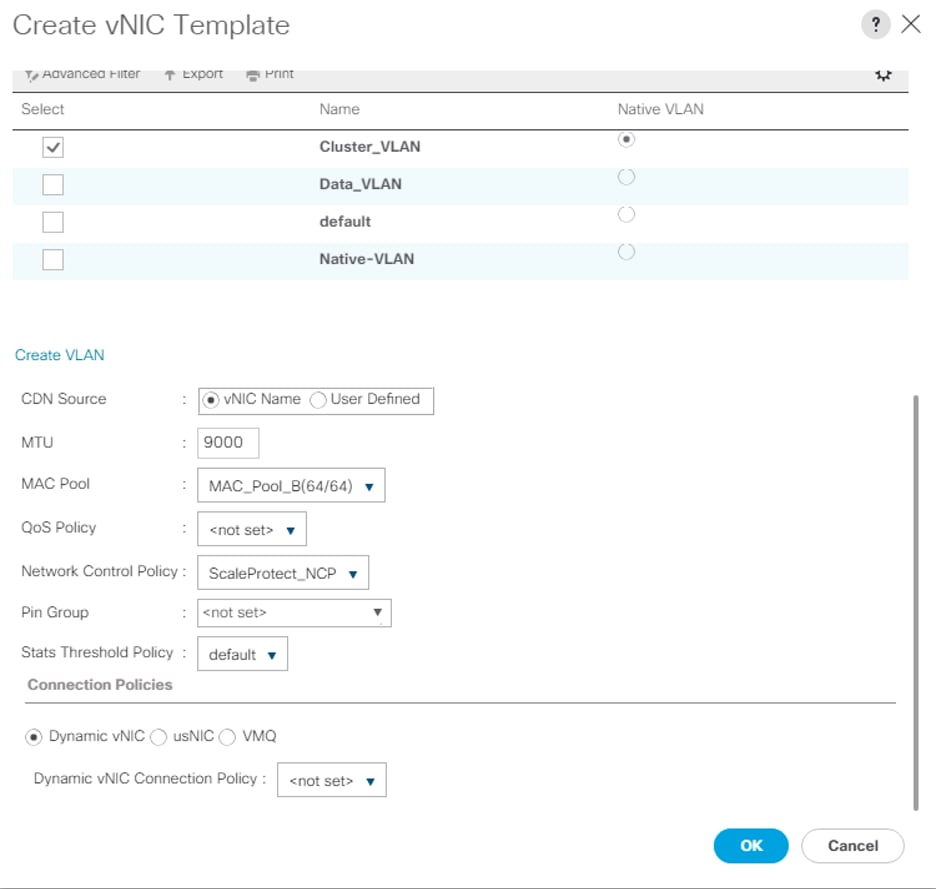

Create vNIC Templates. 70

Create LAN Connectivity Policy. 75

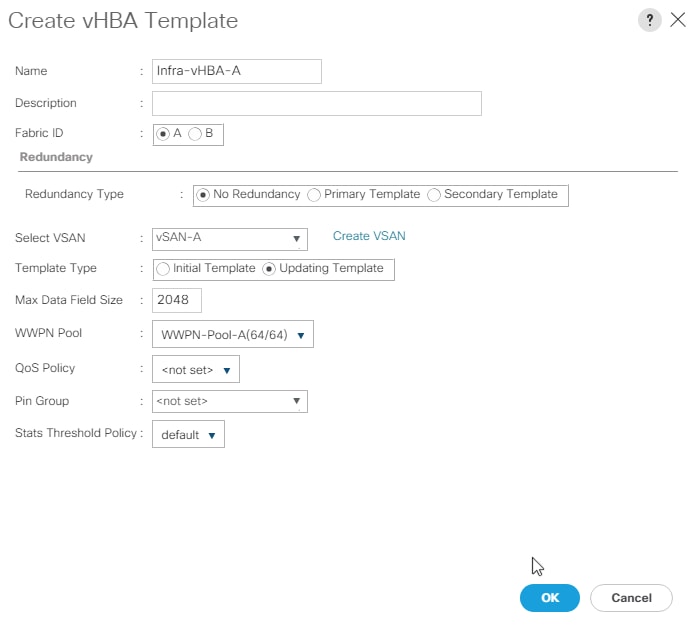

Optional: Create vHBA Templates for FC Connectivity. 79

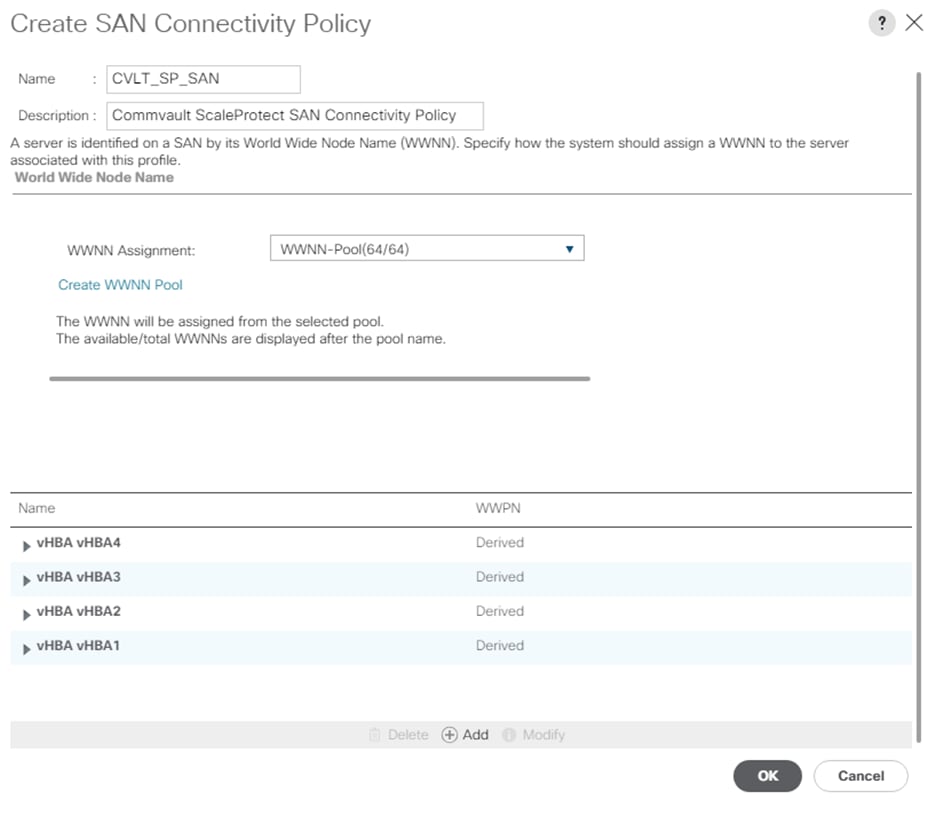

Optional: Create FC SAN Connectivity Policies. 83

Cisco UCS C240 M5 Server Storage Setup. 89

The following procedures describe how to configure the Cisco UCS C240 M5 Server’s disk storage. 89

LUN Cleanup. 89

ScaleProtect with Cisco UCS Server Storage Profile. 90

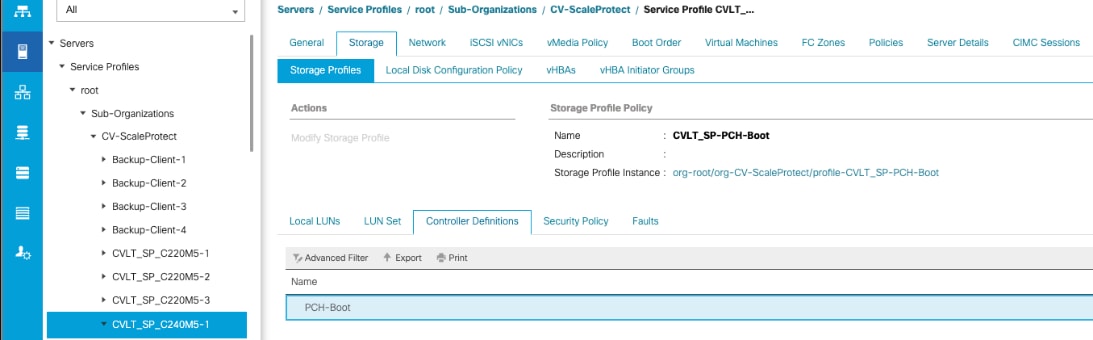

Create Storage Profile. 91

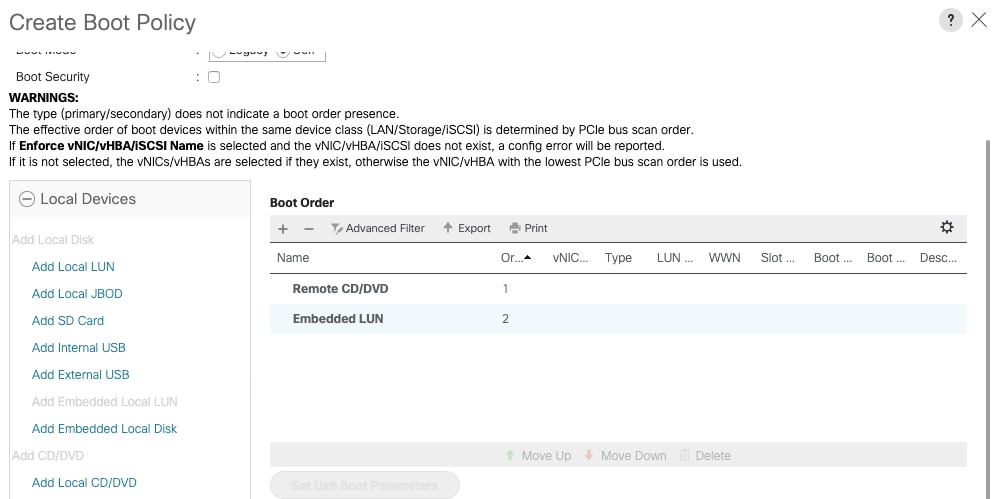

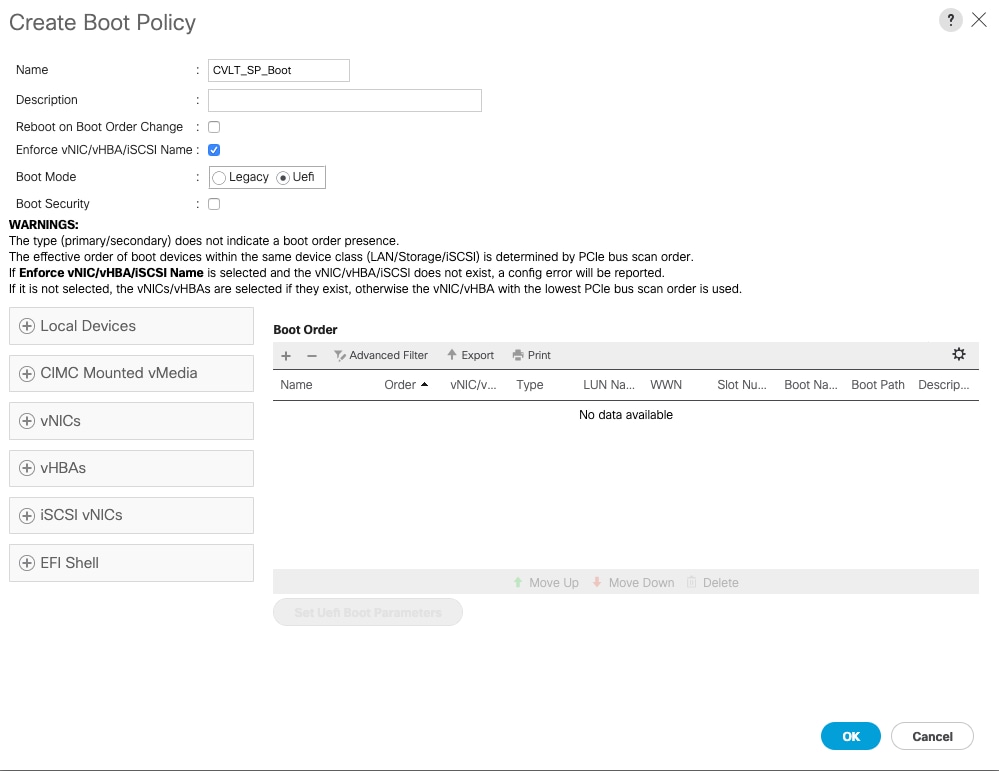

Create Boot Policy. 93

Cisco UCS C240 Service Profile Template. 95

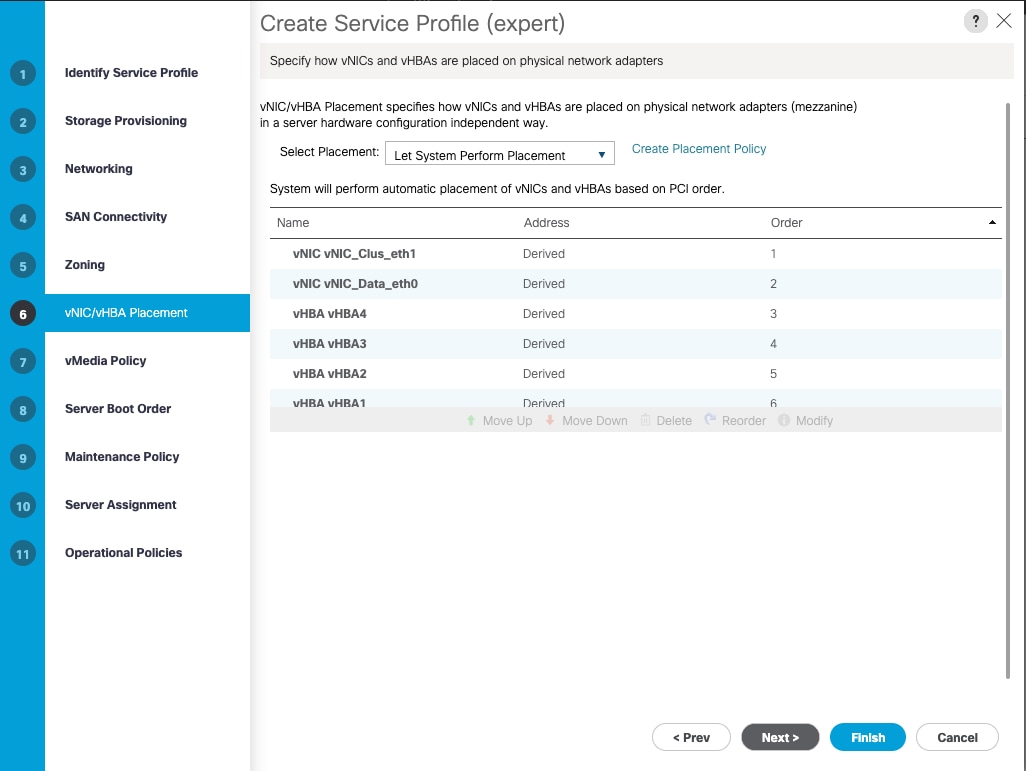

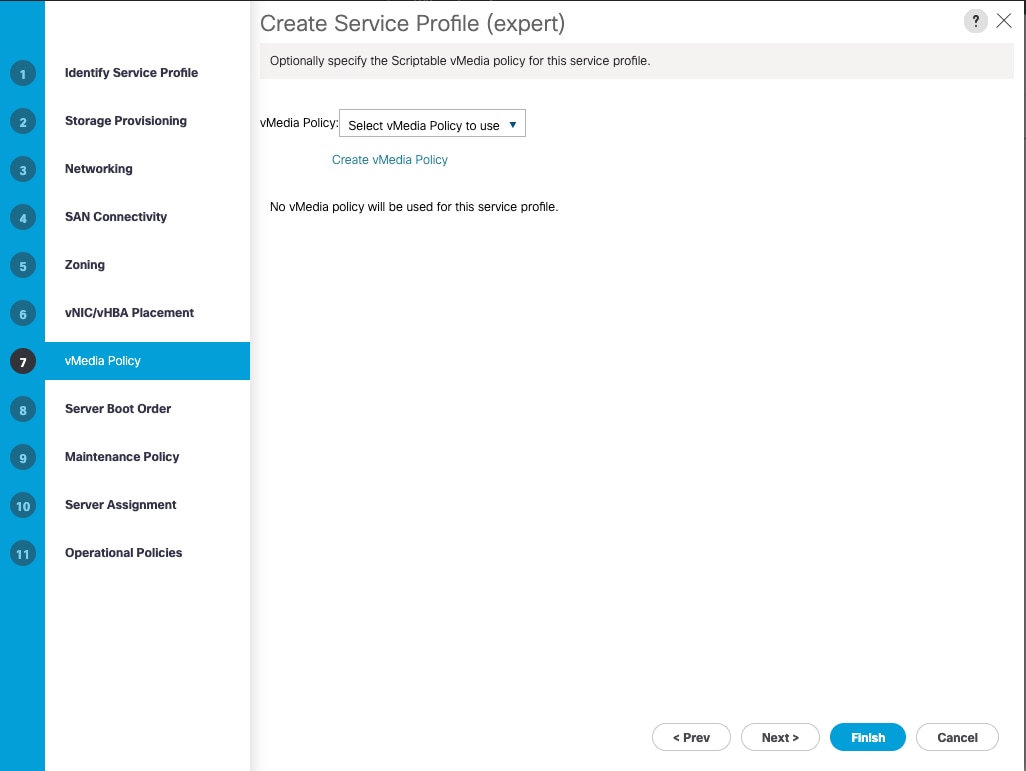

Create Service Profile Template. 96

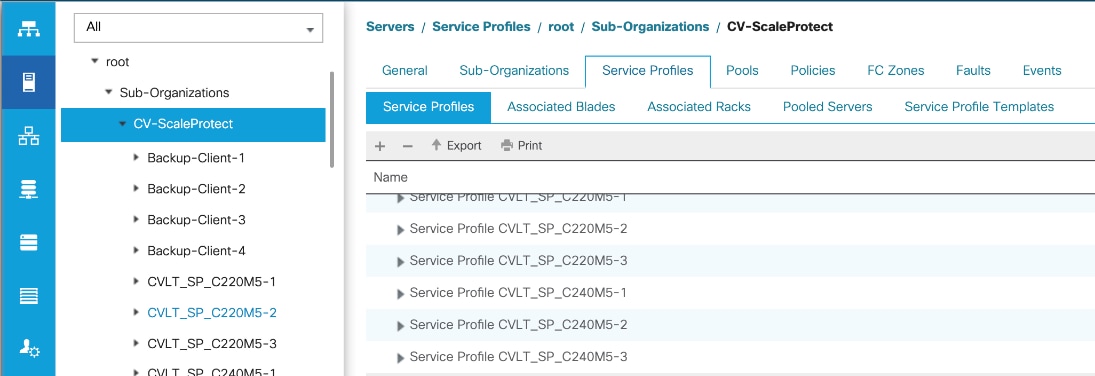

Create Service Profiles. 108

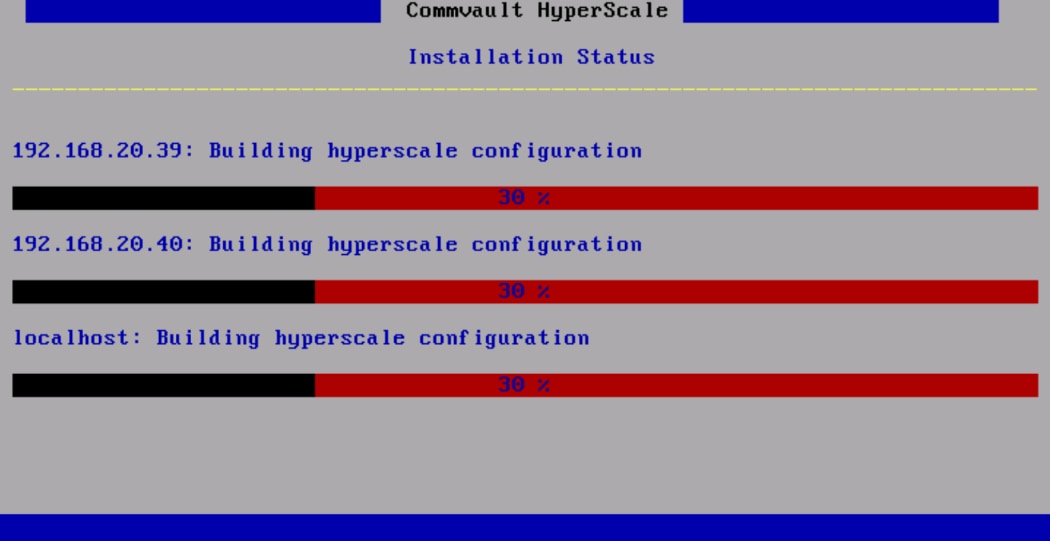

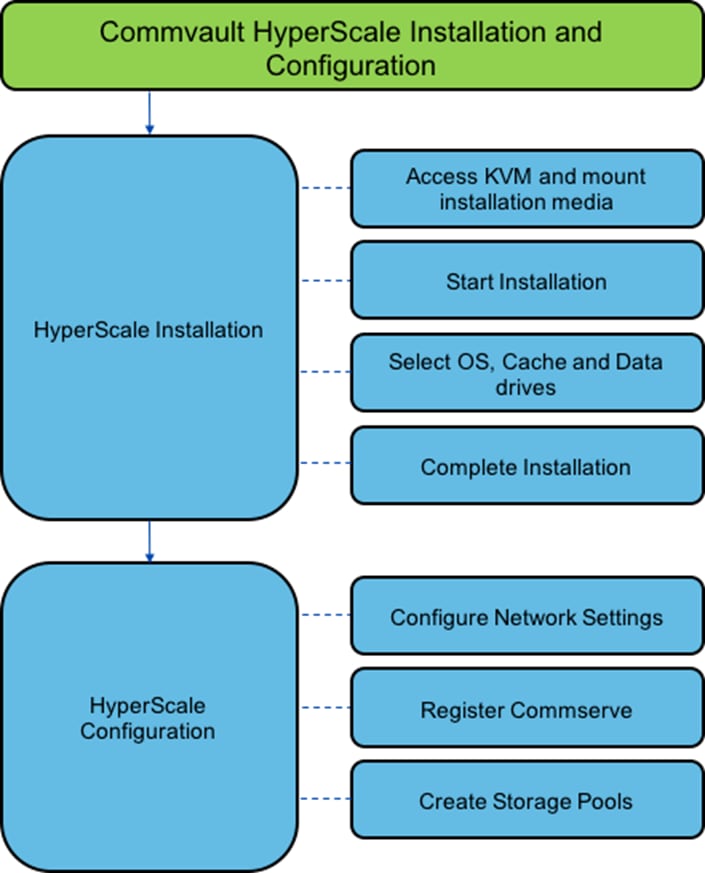

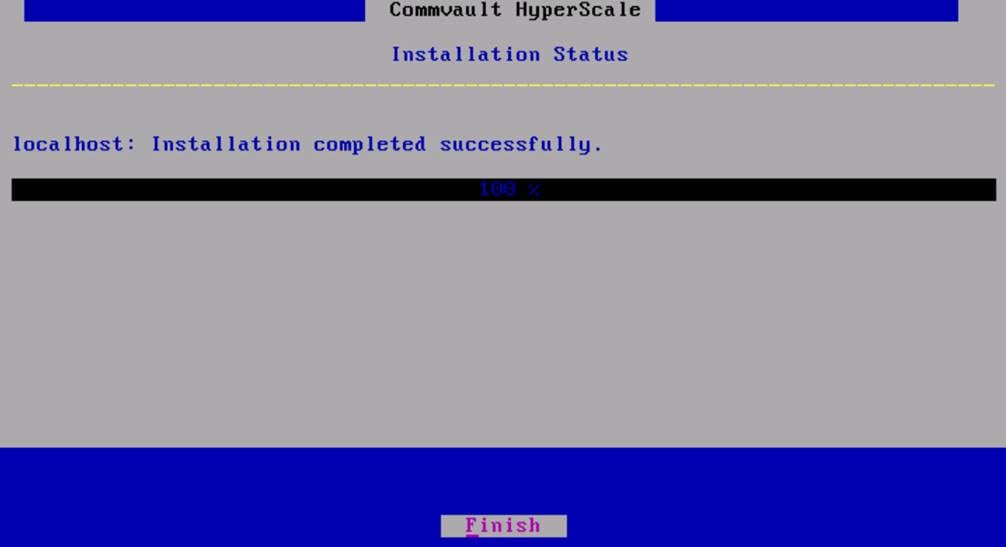

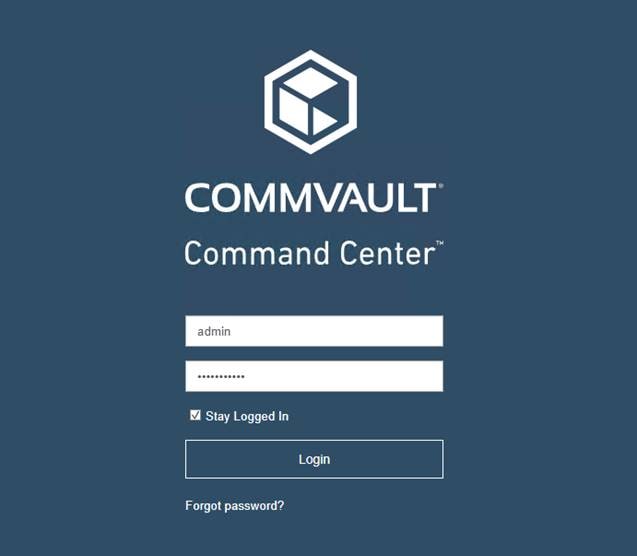

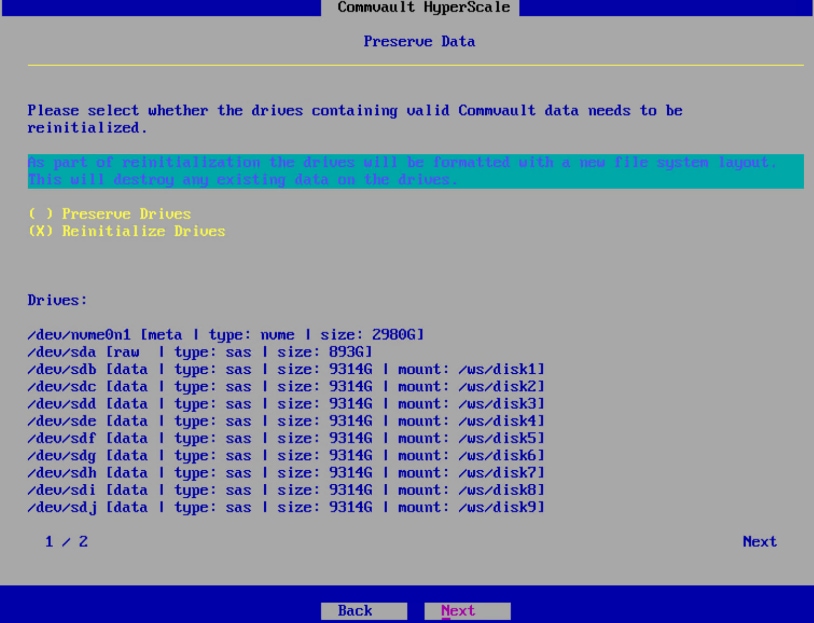

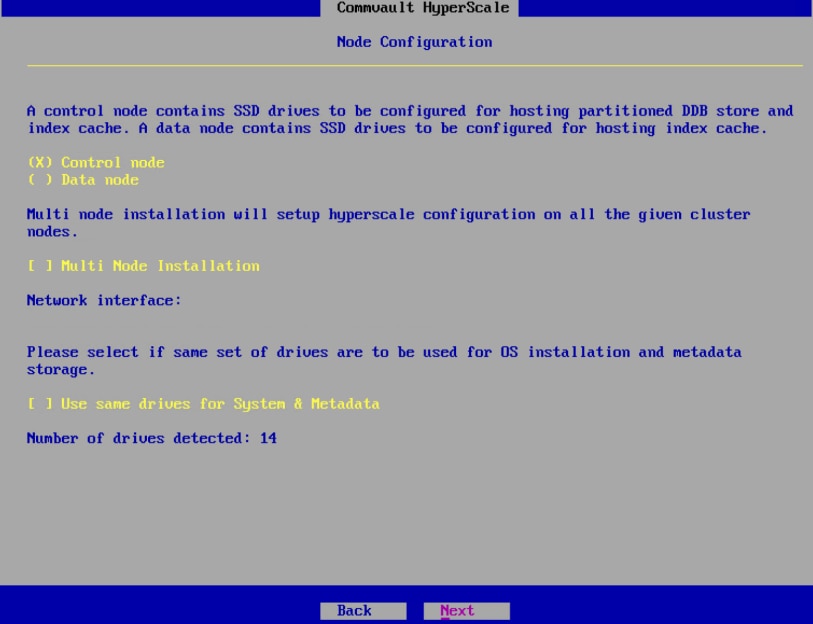

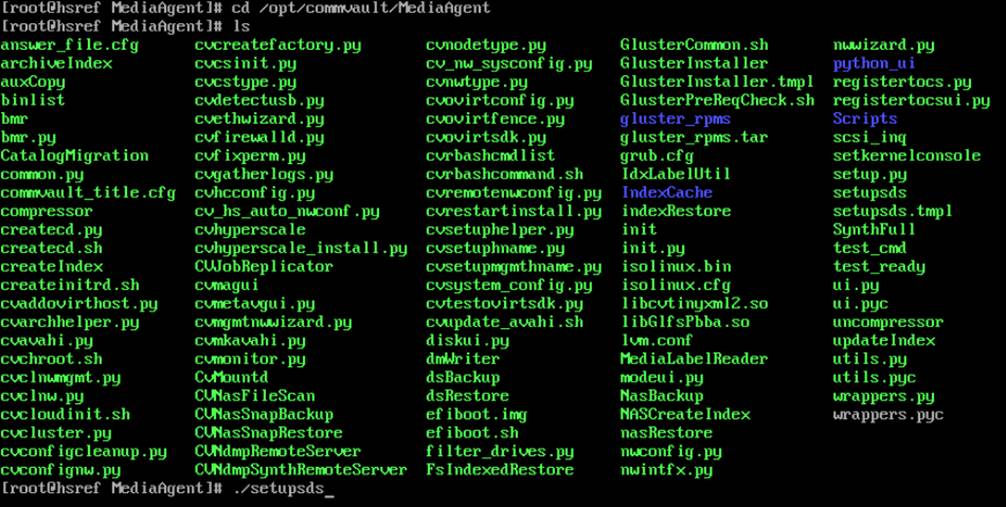

Commvault HyperScale Installation and Configuration. 112

Post Install Checklist 130

References. 131

Products and Solutions. 131

About the Authors. 132

Acknowledgements. 132





Cisco Validated Designs (CVDs) deliver systems and solutions that are designed, tested, and documented to facilitate and improve customer deployments. These designs incorporate a wide range of technologies and products into a portfolio of solutions that have been developed to address the business needs of the customers and to guide them from design to deployment. Cisco and Commvault have partnered to deliver a series of data protection solutions that provide customers with a new level of management simplicity and scale for managing secondary data on premises.

Secondary storage and their associated workloads account for the vast majority of storage today. Enterprises face increasing demands to store and protect data while addressing the need to find new value in these secondary storage locations as a means to drive key business and IT transformation initiatives. ScaleProtect™ with Cisco Unified Computing System (Cisco UCS) supports these initiatives by providing a unified modern data protection and management platform that delivers cloud-scalable services on-premises. The solution drives down costs across the enterprise by eliminating costly point solutions that do not scale and lack visibility into secondary data.

This CVD provides implementation details for the ScaleProtect with Cisco UCS solution, specifically focusing on the Cisco UCS C240 M5 Rack Server. ScaleProtect with Cisco UCS is deployed as a single cohesive system, which is made up of Commvault® Software and Cisco UCS infrastructure. Cisco UCS infrastructure provides the compute, storage, and networking, while Commvault Software provides the data protection and software designed scale-out platform.

Introduction

ScaleProtect with Cisco UCS solution is a pre-designed, integrated, and validated architecture for modern data protection that combines Cisco UCS servers, Cisco Nexus switches, Commvault Complete™ Backup & Recovery, and Commvault HyperScale™ Software into a single software-defined scale-out flexible architecture. ScaleProtect with Cisco UCS is designed for high availability and resiliency, with no single point of failure, while maintaining cost-effectiveness and flexibility in design to support secondary storage workloads (for example; backup and recovery, disaster recovery, dev/test copies, and so on.).

ScaleProtect design discussed in this document has been validated for resiliency and fault tolerance during system upgrades, component failures, and partial as well as complete loss of power scenarios.

Audience

The audience for this document includes, but is not limited to, sales engineers, field consultants, professional services, IT managers, partner engineers, IT architects, and customers who want to take advantage of an infrastructure that is built to deliver IT efficiency and enable IT innovation. The reader of this document is expected to have the necessary training and background to install and configure Cisco UCS, Cisco Nexus, and Cisco UCS Manager as well as a high-level understanding of Commvault Software and its components. External references are provided where applicable and it is recommended that the reader be familiar with these documents.

Purpose of this Document

This document provides step-by-step configuration and implementation guidelines for setting up ScaleProtect with Cisco UCS C240 M5 Solution.

The design that will be implemented is discussed in detail in the ScaleProtect with Cisco UCS Design Guide found here:

https://www.cisco.com/c/en/us/td/docs/unified_compting/ucs/UCS_CVDs/ucs_commvault_scaleprotect_designguide.html

Solution Summary

Cisco UCS revolutionized the server market through its programmable fabric and automated management that simplify application and service deployment. Commvault HyperScale™ Software provides the software-defined scale-out architecture that is fully integrated and includes true hybrid cloud capabilities. Commvault Complete Backup & Recovery provides a full suite of functionality for protecting, recovering, indexing, securing, automating, reporting, and natively accessing data. Cisco UCS, along with Commvault Software delivers an integrated software defined scale-out solution called ScaleProtect with Cisco UCS.

It is the only solution available with enterprise-class data management services that takes full advantage of industry-standard scale-out infrastructure together with Cisco UCS Servers.

Architectural Overview

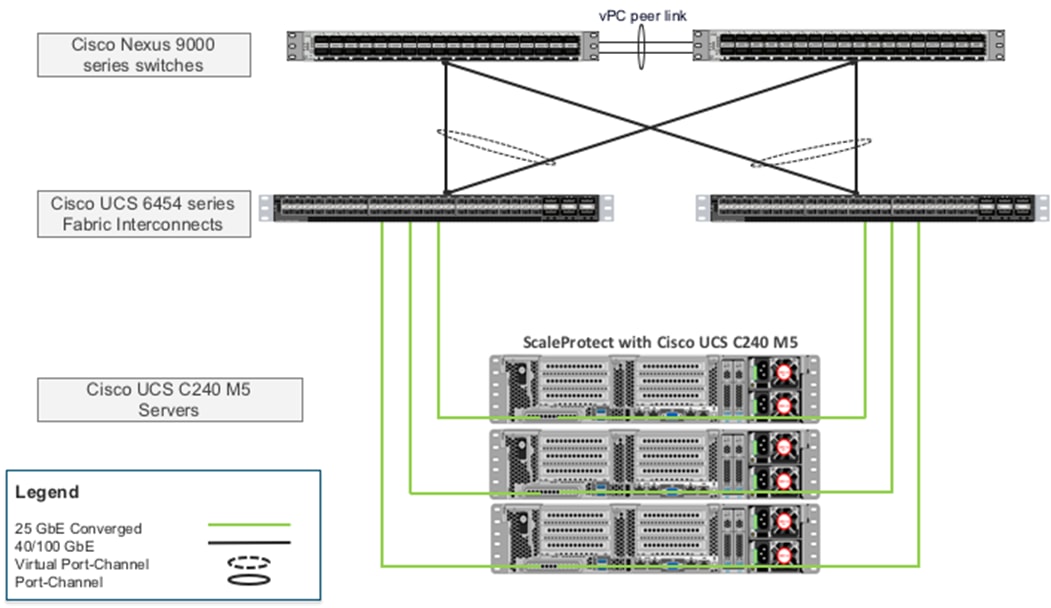

A typical ScaleProtect with Cisco UCS deployment starts with a 3-node block. The solution has been validated with three Cisco UCS C240 M5 Server Nodes with built-in storage that consists of 12 front-facing internal Large Form Factor (LFF) HDDs for the software defined data storage tier, rear-loaded NVMe PCIe SSD for the accelerated cache tier, and internal M.2 SATA SSD’s for the operating system and associated binaries. Connectivity for the solution is provided via a pair of Cisco UCS 6454 Fabric Interconnects connected to a pair of Cisco Nexus 9336C-FX2 upstream network switches.

ScaleProtect with Cisco UCS can start with more than 3 nodes, the additional nodes are simply added to the Cisco UCS 6454 Series Fabric Interconnects for linear scalability.

The validated configuration uses the following components for deployment:

·       Cisco Unified Computing System (Cisco UCS)

-      Cisco UCS Manager

-      Cisco UCS 6454 Series Fabric Interconnects

-      Cisco UCS C240 M5 LFF Server

-      Cisco VIC 1457

-      Cisco Nexus 9336C-FX2 Series Switches

-      Commvault Complete™ Backup and Recovery v11

-      Commvault HyperScale Software release 11 SP16

This document guides customers through the low-level steps for deploying the ScaleProtect solution base architecture. These procedures describe everything from physical cabling to network, compute, and storage device configurations.

Software Revisions

Table 1 lists the hardware and software versions used for the solution validation.

Table 1    Hardware and Software Revisions

Configuration Guidelines

This document provides details for configuring a fully redundant, highly available ScaleProtect configuration. Therefore, appropriate references are provided to indicate the component being configured at each step, such as 01 and 02 or A and B. For example, the Cisco UCS fabric interconnects are identified as FI-A or FI-B. Finally, to indicate that you should include information pertinent to your environment in a given step, <text> appears as part of the command structure. See the following example during a configuration step for Cisco Nexus switches:

Nexus-9000-A (config)# ntp server <NTP Server IP Address> use-vrf management

This document is intended to enable customers and partners to fully configure the customer environment and during this process, various steps may require the use of customer-specific naming conventions, IP addresses, and VLAN schemes, as well as appropriate MAC addresses etc.

Table 2 and Table 3  lists various VLANs, VSANs and subnets used to setup ScaleProtect infrastructure to provide connectivity between core elements of the design.

Table 2    ScaleProtect VLAN Configuration

Table 3    Optional: ScaleProtect VSAN Configuration

Physical Infrastructure

The information in this section is provided as a reference for cabling the equipment in ScaleProtect environment.

This document assumes that the out-of-band management ports are plugged into an existing management infrastructure at the deployment site. These interfaces will be used in various configuration steps.

Cisco UCS Connectivity to Nexus Switches

For physical connectivity details of Cisco UCS to the Cisco Nexus switches, refer to Figure 3.

Each Cisco UCS C240 M5 rack server in the design is redundantly connected to the managing fabric interconnects with at least one port connected to each FI to support converged traffic. Internally the Cisco UCS C240 M5 servers are equipped with a Cisco VIC 1457 network interface card (NIC) with quad 10/25 Gigabit Ethernet (GbE) ports. The Cisco VIC is installed in a modular LAN on motherboard (MLOM) slot. The standard practice for redundant connectivity is to connect port 1 of each server’s VIC card to a numbered port on FI A, and port 3 of each server’s VIC card to the same numbered port on FI B. The use of ports 1 and 3 are because ports 1 and 2 form an internal port-channel, as does ports 3 and 4. This allows an optional 4 cable connection method providing an effective 50GbE bandwidth to each fabric interconnect.

Table 4    Cisco UCS C240 Server Connectivity to Cisco UCS Fabric Interconnects



Table 5    Cisco UCS FI Connectivity to Nexus Switches

Optional: Cisco UCS connectivity to SAN Fabrics

For physical connectivity details of Cisco UCS to a Cisco MDS based redundant SAN fabric (MDS 9132T has been shown as an example), refer to Figure 4. Cisco UCS to SAN connectivity is optional and is not required for default ScaleProtect implementation. SAN connectivity details are included in the document as a reference which can be leveraged to connect ScaleProtect infrastructure to existing SAN fabrics in customers environment.

Table 6    Optional: Cisco UCS Connectivity to Cisco MDS Switches



Table 7  and Table 8   lists the hardware configuration and sizing options of Cisco UCS C240 M5 nodes for ScaleProtect Solution.

Table 7    Cisco UCS C240 M5 Server Node Configuration

Table 8    ScaleProtect with Cisco UCS C240 M5 Solution Sizing

1.     HDD capacity values are calculated using Base10 (e.g. 1TB = 1,000,000,000,000 bytes)

2.     Usable capacity values are calculated using Base2 (e.g. 1TiB = 1,099,511,627,776 bytes), post erasure coding

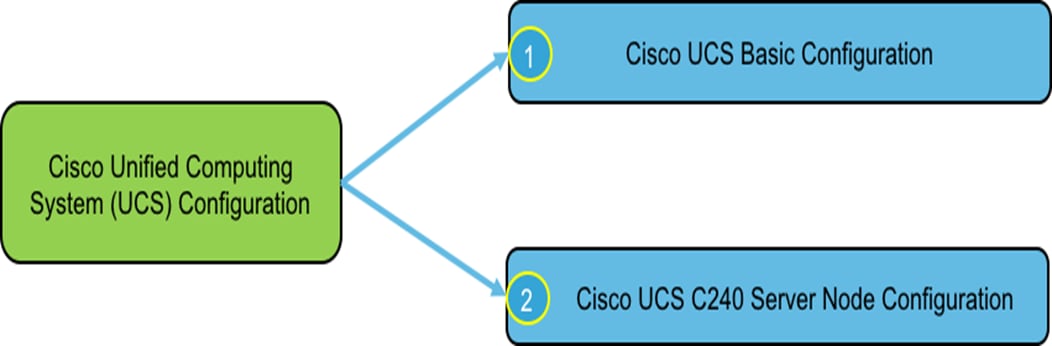

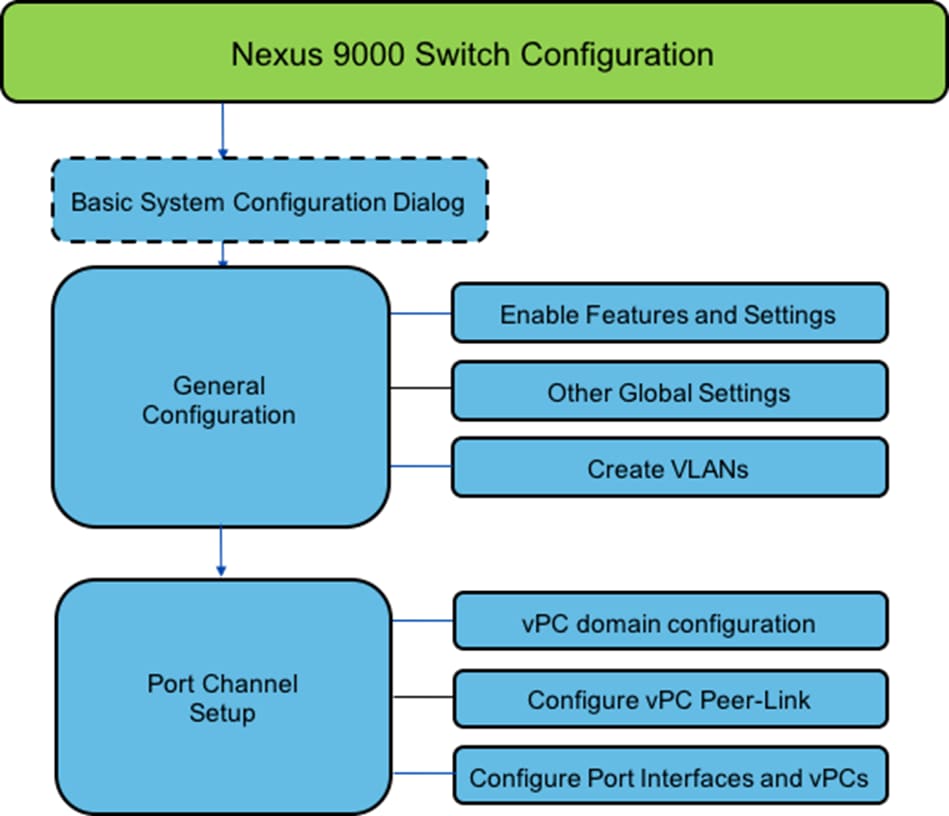

Figure 5 illustrates the ScaleProtect implementation workflow which will be explained in the following sections of the document.

This section provides detailed steps to configure the Cisco Nexus 9000 switches used in this ScaleProtect environment. Some changes may be appropriate for a customer’s environment, but care should be taken when stepping outside of these instructions as it may lead to an improper configuration.

For detailed configuration details, refer to the Cisco Nexus 9000 Series NX-OS Interfaces Configuration Guide.

Cisco Nexus 9000 Initial Configuration Setup

This section describes how to configure the Cisco Nexus switches to use in a ScaleProtect environment.  This procedure assumes that you are using Cisco Nexus 9000 switches running 7.0(3)I7(6) code.

Cisco Nexus 9000 A

To set up the initial configuration for the Cisco Nexus A switch, follow these steps:

1.     Configure the switch.

2.     Review the configuration summary before enabling the configuration.

Cisco Nexus 9000 B

To set up the initial configuration for the Cisco Nexus B switch, follow these steps:

1.     Configure the switch.

3.     Review the configuration summary before enabling the configuration.

Enable Appropriate Cisco Nexus 9000 Features and Settings

Cisco Nexus 9000 A and Cisco Nexus 9000 B

To enable the IP switching feature and set default spanning tree behaviors, follow these steps:

1.     On each Nexus 9000, enter the configuration mode:

2.     Use the following commands to enable the necessary features:

3.     Configure the spanning tree and save the running configuration to start-up:

Create VLANs for ScaleProtect IP Traffic

Cisco Nexus 9000 A and Cisco Nexus 9000 B

To create the necessary virtual local area networks (VLANs), complete the following step on both switches:

1.     From the configuration mode, run the following commands:

Configure Virtual Port Channel Domain

Cisco Nexus 9000 A

To configure vPC domain for switch A, follow these steps:

1.     From the global configuration mode, create a new vPC domain:

2.     Make the Nexus 9000A the primary vPC peer by defining a low priority value:

3.     Use the management interfaces on the supervisors of the Nexus 9000s to establish a keepalive link:

4.     Enable the following features for this vPC domain:

Cisco Nexus 9000 B

To configure the vPC domain for switch B, follow these steps:

1.     From the global configuration mode, create a new vPC domain:

2.     Make the Nexus 9000A the primary vPC peer by defining a low priority value:

3.     Use the management interfaces on the supervisors of the Nexus 9000s to establish a keepalive link:

4.     Enable the following features for this vPC domain:

Configure Network Interfaces for the vPC Peer Links

To configure the network interfaces for the vPC Peer links, follow these steps:

Cisco Nexus 9000 A

1.     Define a port description for the interfaces connecting to vPC Peer <Nexus Switch B>>.

2.     Apply a port channel to both vPC Peer links and bring up the interfaces.

3.     Define a description for the port-channel connecting to <Nexus Switch B>.

4.     Make the port-channel a switchport, and configure a trunk to allow Data, Cluster and the native VLAN.

5.     Make this port-channel the VPC peer link and bring it up.

Cisco Nexus 9000 B

1.     Define a port description for the interfaces connecting to VPC Peer <Nexus Switch A>.

2.     Apply a port channel to both VPC Peer links and bring up the interfaces.

3.     Define a description for the port-channel connecting to <Nexus Switch A>.

4.     Make the port-channel a switchport, and configure a trunk to allow Data, Cluster and the native VLAN.

5.     Make this port-channel the VPC peer link and bring it up.

Configure Network Interfaces to Cisco UCS Fabric Interconnect

Cisco Nexus 9000 A

1.     Define a description for the port-channel connecting to <<UCS Cluster Name>>-A.

2.     Make the port-channel a switchport and configure a trunk to allow ScaleProtect Data, ScaleProtect Cluster and the native VLANs.

3.     Make the port channel and associated interfaces spanning tree edge ports.

4.     Set the MTU to be 9216 to support jumbo frames.

5.     Make this a VPC port-channel and bring it up.

6.     Define a port description for the interface connecting to <UCS Cluster Name>-A.

7.     Apply it to a port channel and bring up the interface.

8.     Define a description for the port-channel connecting to <UCS Cluster Name>-B.

9.     Make the port-channel a switchport and configure a trunk to ScaleProtect Data, ScaleProtect Cluster and the native VLANs.



10.  Make the port channel and associated interfaces spanning tree edge ports.

11.  Set the MTU to be 9216 to support jumbo frames.

12.  Make this a VPC port-channel and bring it up.

13.  Define a port description for the interface connecting to <UCS Cluster Name>-B.

14.  Apply it to a port channel and bring up the interface.

Cisco Nexus 9000 B

1.     Define a description for the port-channel connecting to <UCS Cluster Name>-B.

2.     Make the port-channel a switchport and configure a trunk to allow ScaleProtect Data, ScaleProtect Cluster and the native VLANs.

3.     Make the port channel and associated interfaces spanning tree edge ports.

4.     Set the MTU to 9216 to support jumbo frames.

5.     Make this a VPC port-channel and bring it up.

6.     Define a port description for the interface connecting to <UCS Cluster Name>-B.

7.     Apply it to a port channel and bring up the interface.

8.     Define a description for the port-channel connecting to <UCS Cluster Name>-A.

9.     Make the port-channel a switchport and configure a trunk to allow ScaleProtect Data, ScaleProtect Cluster and the native VLANs.

10.  Make the port channel and associated interfaces spanning tree edge ports.

11.  Set the MTU to be 9216 to support jumbo frames.

12.  Make this a VPC port-channel and bring it up.

13.  Define a port description for the interface connecting to <UCS Cluster Name>-A.

14.  Apply it to a port channel and bring up the interface.

Uplink into Existing Network Infrastructure

Depending on the available network infrastructure, several methods and features can be used to uplink the ScaleProtect environment. If an existing Cisco Nexus environment is present, it is recommended to use vPCs to uplink the Cisco Nexus 9336C-FX2 switches included in the present environment into the infrastructure. The previously described procedures can be used to create an uplink vPC to the existing environment. Make sure to run copy run start to save the configuration on each switch after the configuration is completed.

Cisco Nexus 9000 A and B using Port Channel Example

To enable data protection and management network access across the IP switching environment leveraging port channel to a single switch run the following commands in config mode:

1.     Define a description for the port-channel connecting to uplink switch.

2.     Configure the port as an access VLAN carrying the management/data protection VLAN traffic.

3.     Make the port channel and associated interfaces normal spanning tree ports.

4.     Make this a VPC port-channel and bring it up.

5.     Define a port description for the interface connecting to the existing network infrastructure.

6.     Apply it to a port channel and bring up the interface.

7.     Save the running configuration to start-up in both Nexus 9000s and run commands to look at port and port channel information.

This section describes the steps to configure the Cisco Unified Computing System (Cisco UCS) to use in a ScaleProtect environment.

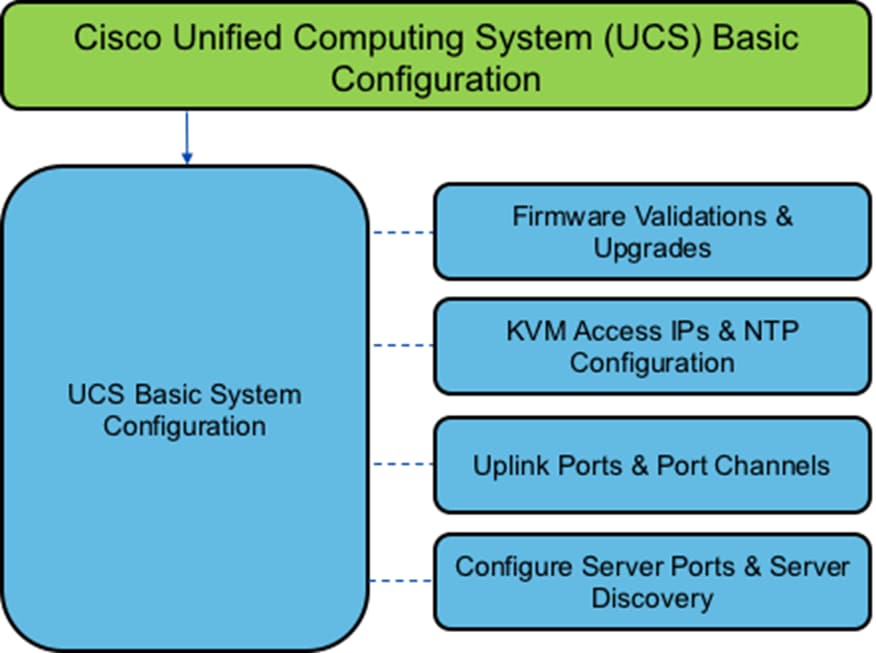

Cisco UCS Base Configuration

To complete Cisco UCS base configuration, follow the steps in this section.

Perform Initial Setup of Cisco UCS 6454 Fabric Interconnects

This section provides the configuration steps for the Cisco UCS 6454 Fabric Interconnects (FI) in a ScaleProtect design that includes Cisco UCS C240 M5 LFF Rack Servers.

Cisco UCS 6454 Fabric Interconnect A

To configure Fabric Interconnect A, follow these steps:

1.     Make sure the Fabric Interconnect cabling is properly connected, including the L1 and L2 cluster links, and power the Fabric Interconnects on by inserting the power cords.

2.     Connect to the console port on the first Fabric Interconnect, which will be designated as the A fabric device. Use the supplied Cisco console cable (CAB-CONSOLE-RJ45=), and connect it to a built-in DB9 serial port, or use a USB to DB9 serial port adapter.

3.     Start your terminal emulator software.

4.     Create a connection to the COM port of the computer’s DB9 port, or the USB to serial adapter. Set the terminal emulation to VT100, and the settings to 9600 baud, 8 data bits, no parity, 1 stop bit.

5.     Open the connection just created. You may have to press ENTER to see the first prompt.

6.     Configure the first Fabric Interconnect, using the following example as a guideline.

7.     Connect to the console port on the first Cisco UCS 6454 fabric interconnect.

8.     Wait for the login prompt to make sure that the configuration has been saved.

Cisco UCS 6454 Fabric Interconnect B



To configure Fabric Interconnect B, follow these steps:

1.     Connect to the console port on the first Fabric Interconnect, which will be designated as the B fabric device. Use the supplied Cisco console cable (CAB-CONSOLE-RJ45=), and connect it to a built-in DB9 serial port, or use a USB to DB9 serial port adapter.

2.     Start your terminal emulator software.

3.     Create a connection to the COM port of the computer’s DB9 port, or the USB to serial adapter. Set the terminal emulation to VT100, and the settings to 9600 baud, 8 data bits, no parity, 1 stop bit.

4.     Open the connection just created. You may have to press ENTER to see the first prompt.

5.     Configure the second Fabric Interconnect, using the following example as a guideline.

6.     Connect to the console port on the second Cisco UCS 6454 fabric interconnect.

7.     Wait for the login prompt to make sure that the configuration has been saved.

Cisco UCS Setup

Log into Cisco UCS Manager

To log into the Cisco Unified Computing System (UCS) environment, follow these steps:

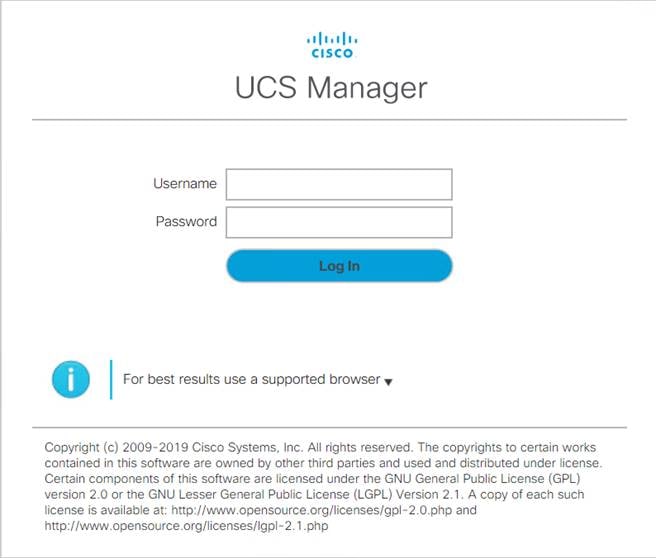

1.     Open a web browser and navigate to the Cisco UCS fabric interconnect cluster address.

2.     Click the Launch UCS Manager link to download the Cisco UCS Manager software.

3.     If prompted to accept security certificates, accept as necessary.

4.     When prompted, enter admin as the user name and enter the administrative password.

5.     Click Login to log in to Cisco UCS Manager.

Upgrade Cisco UCS Manager Software to Version 4.0(4b)

This document assumes you are using Cisco UCS 4.0(4b). To upgrade the Cisco UCS Manager software and the Cisco UCS Fabric Interconnect software to version 4.0(4b), refer to the Cisco UCS Manager Install and Upgrade Guides.

Anonymous Reporting

To enable anonymous reporting, follow this step:

1.     In the Anonymous Reporting window, select whether to send anonymous data to Cisco for improving future products:

Configure Cisco UCS Call Home

To configure Call Home, follow these steps:

1.     In Cisco UCS Manager, click the Admin icon on the left.

2.     Select All > Communication Management > Call Home.

3.     Change the State to On.

4.     Fill in all the fields according to your Management preferences and click Save Changes and OK to complete configuring Call Home.

Synchronize Cisco UCS to NTP

To synchronize the Cisco UCS environment to the NTP server, follow these steps:

1.     In Cisco UCS Manager, click the Admin tab in the navigation pane.

2.     Select All > Timezone Management > Timezone.

3.     In the Properties pane, select the appropriate time zone in the Timezone menu.

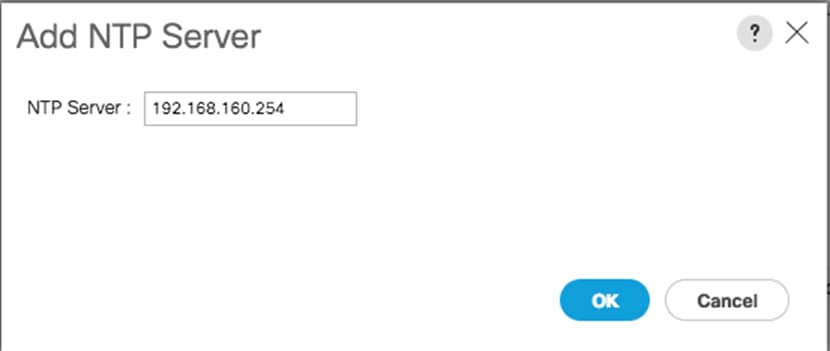

4.     Click Add NTP Server.

5.     Enter <NTP Server IP Address> and click OK.

6.     Click Save Changes and then click OK.

Add Block IP Addresses for KVM Access

To create a block of IP addresses for in band server Keyboard, Video, Mouse (KVM) access in the Cisco UCS environment, follow these steps:

1.     In Cisco UCS Manager, click the LAN tab in the navigation pane.

2.     Select Pools > root > IP Pools.

3.     Right-click IP Pool ext-mgmt and select Create Block of IPv4 Addresses.

4.     Enter the starting IP address of the block, the number of IP addresses required, and the subnet and gateway information.



5.     Click OK to create.

6.     Click OK in the confirmation message.

Server Discovery Policy

The Server discovery policy determines how the system reacts when you add a new Cisco UCS server to a Cisco UCS system. Cisco UCS Manager uses the settings in the chassis discovery policy to determine whether to group links from the VIC’s to the fabric interconnects in fabric port channels.

To modify the chassis discovery policy, follow these steps:

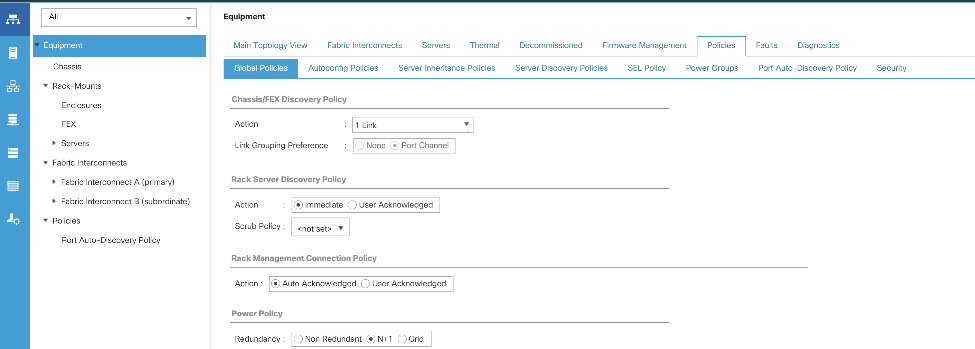

1.     In Cisco UCS Manager, click the Equipment tab in the navigation pane and select Equipment in the list on the left

2.     In the right pane, click the Policies tab.

3.     Under Global Policies, set the Chassis/FEX Discovery Policy to match the number of uplink ports that are cabled between the chassis or fabric extenders (FEXes) and the fabric interconnects.

4.     Click Save Changes if values changed from default values.

5.     Click OK.

Enable Server Ports

The Ethernet ports of a Cisco UCS Fabric Interconnect connected to the rack-mount servers, or to the blade chassis or to Cisco UCS S3260 Storage Server must be defined as server ports. When a server port is activated, the connected server or chassis will begin the discovery process shortly afterwards. Rack-mount servers, blade chassis, and Cisco UCS S3260 chassis are automatically numbered in the order which they are first discovered. For this reason, it is important to configure the server ports sequentially in the order you wish the physical servers and/or chassis to appear within Cisco UCS Manager. For example, if you installed your servers in a cabinet or rack with server #1 on the bottom, counting up as you go higher in the cabinet or rack, then you need to enable the server ports to the bottom-most server first, and enable them one-by-one as you move upward. You must wait until the server appears in the Equipment tab of Cisco UCS Manager before configuring the ports for the next server. The same numbering procedure applies to blade server chassis.

To define the specified ports to be used as server ports, follow these steps:

1.     In Cisco UCS Manager, click the Equipment tab in the navigation pane

2.     Select Fabric Interconnects > Fabric Interconnect A > Fixed Module > Ethernet Ports.

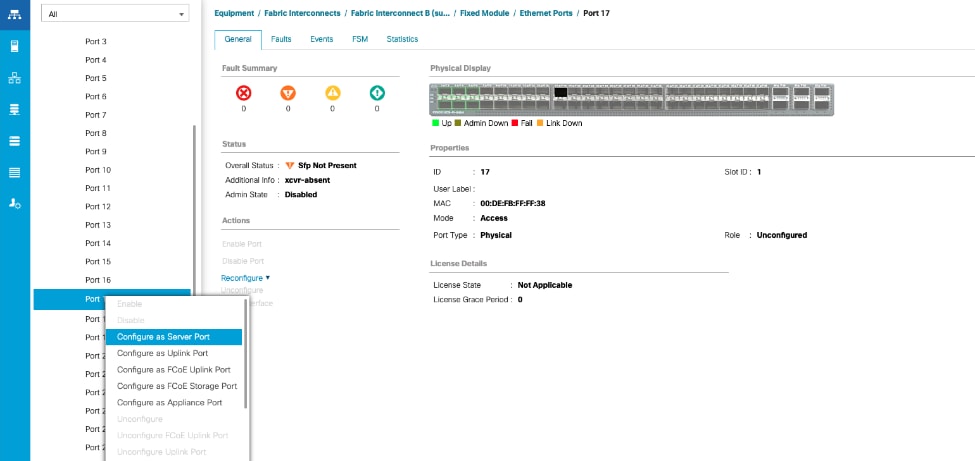

3.     Select the first port that is to be a server port, right-click it, and click Configure as Server Port.

4.     Click Yes to confirm the configuration and click OK.

5.     Select Fabric Interconnects > Fabric Interconnect B > Fixed Module > Ethernet Ports.

6.     Select the matching port as chosen for Fabric Interconnect A which would be configured as Server Port.

7.     Click Yes to confirm the configuration and click OK.

8.     Repeat steps 1-7 for enabling other ports connected to the other C240 M5 Server Nodes.

9.     Wait for a brief period, until the rack-mount server appears in the Equipment tab underneath Equipment > Rack Mounts > Servers.

Optional: Edit Policy to Automatically Discover Server Ports

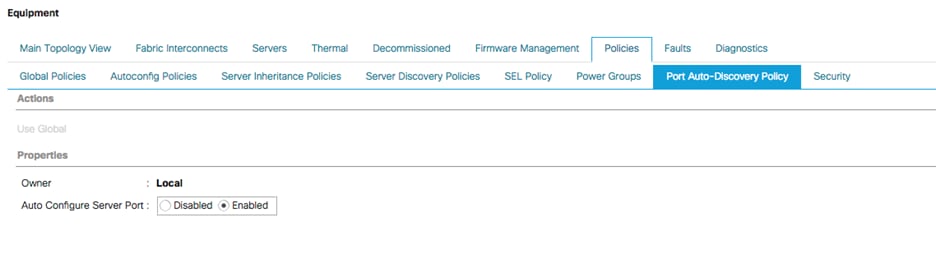

If the Cisco UCS Port Auto-Discovery Policy is enabled, server ports will be discovered automatically. To enable the Port Auto-Discovery Policy, follow these steps:

1.     In Cisco UCS Manager, click the Equipment icon on the left and select Equipment in the second list

2.     In the right pane, click the Policies tab.

3.     Under Policies, select the Port Auto-Discovery Policy tab.

4.     Under Properties, set Auto Configure Server Port to Enabled.

5.     Click Save Changes.

6.     Click OK.

Server Discovery

As previously described, when the server ports of the Fabric Interconnects are configured and active, the servers connected to those ports will begin a discovery process. During discovery the servers’ internal hardware inventories are collected, along with their current firmware revisions. Before continuing with the Cisco UCS C240 rack server installation processes, wait for all of the servers to finish their discovery process and show as unassociated servers that are powered off, with no errors.

To view the servers’ discovery status, follow these steps:

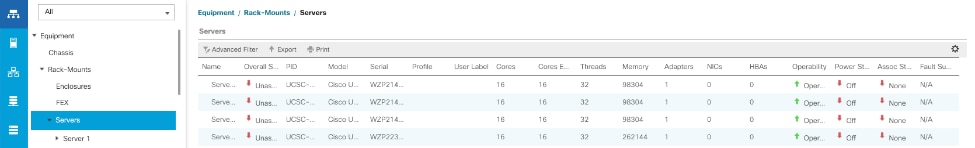

1.     In Cisco UCS Manager, click the Equipment tab in the navigation pane.

2.     Click Rack-Mounts and click the Servers tab.

3.     Select the respective server and view the Server status in the Overall Status column.

4.     When the server is discovered, the C240 M5 server is displayed as shown below:

5.     Click the Equipment > Rack–Mounts > Servers Tab and view the servers’ status in the Overall Status column. Below are the Cisco UCS C240 M5 Servers for ScaleProtect Cluster:

Optional: Enable Fibre Channel Ports

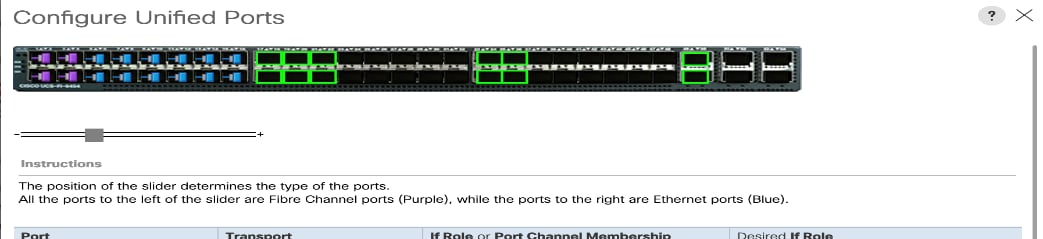

Fibre Channel port configurations differ between the 6454, 6332-16UP and the 6248UP Fabric Interconnects.  All Fabric Interconnects have a slider mechanism within the Cisco UCS Manager GUI interface, but the fibre channel port selection options for the 6454 are from the first 8 ports starting from the first port and configured in increments of 4 ports from the left. For the 6332-16UP the port selection options are from the first 16 ports starting from the first port, and configured in increments of the first 6, 12, or all 16 of the unified ports.  With the 6248UP, the port selection options will start from the right of the 32 fixed ports, or the right of the 16 ports of the expansion module, going down in contiguous increments of 2. The remainder of this section shows configuration of the 6454. Modify as necessary for the 6332-16UP or 6248UP.

To enable FC uplink ports, follow these steps.

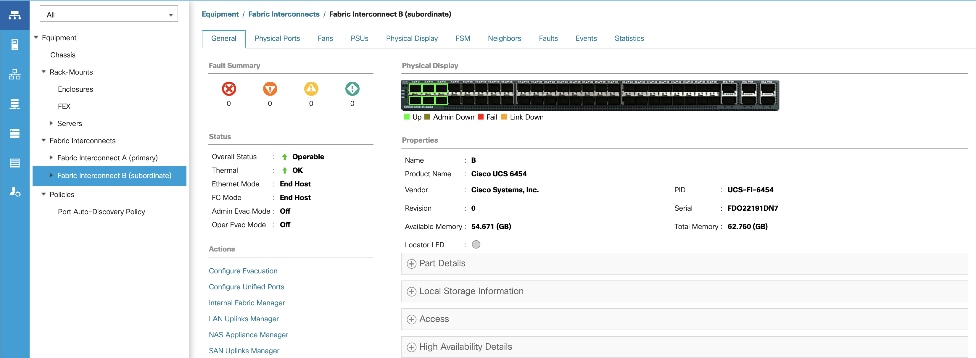

1.     In the Equipment tab, select the Fabric Interconnect B (subordinate FI in this example), and in the Actions pane, select Configure Unified Ports, and click Yes on the splash screen.



2.     Slide the lever to change the ports 1-4 to Fiber Channel. Click Finish followed by Yes to the reboot message. Click OK.

3.     When the subordinate has completed reboot, repeat the procedure to configure FC ports on primary Fabric Interconnect. As before, the Fabric Interconnect will reboot after the configuration is complete.

Optional: Create VSAN for the Fibre Channel Interfaces

To configure the necessary virtual storage area networks (VSANs) for FC uplinks for the Cisco UCS environment, follow these steps:

1.     In Cisco UCS Manager, click the SAN tab in the navigation pane.

2.     Expand the SAN > SAN Cloud and select Fabric A.

3.     Right-click VSANs and choose Create VSAN.

4.     Enter Backup-A as the name of the VSAN for fabric A.

6.     Keep the Disabled option selected for FC Zoning.

5.     Click the Fabric A radio button.

6.     Enter 201 as the VSAN ID for Fabric A.

7.     Enter 201 as the FCoE VLAN ID for fabric A. Click OK twice.

8.     In the SAN tab, expand SAN > SAN Cloud > Fabric-B.

9.     Right-click VSANs and choose Create VSAN.

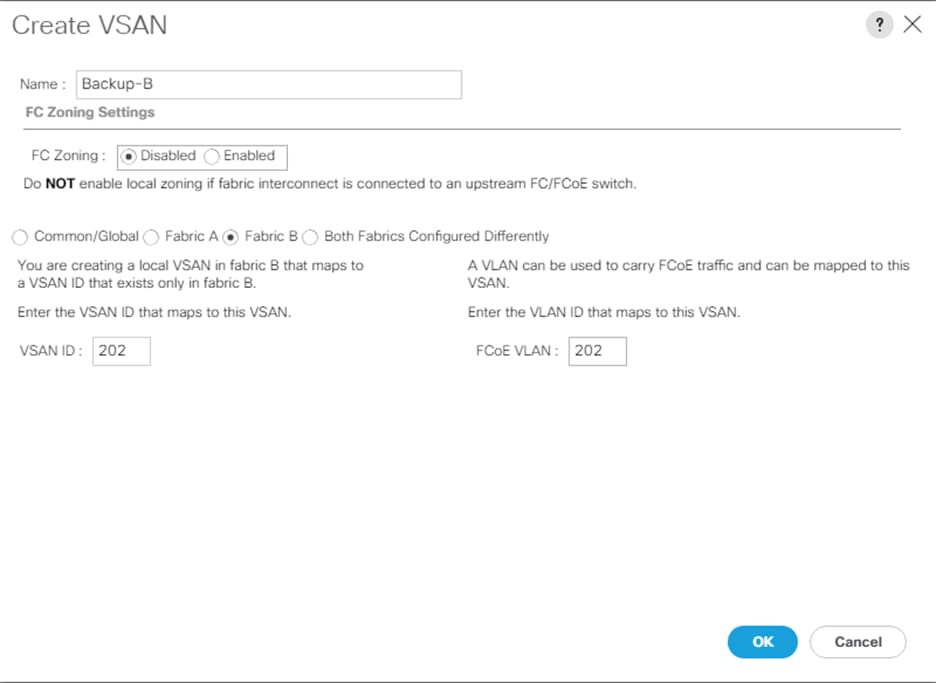

10.  Enter Backup-B as the name of the VSAN for fabric B.

11.  Keep the Disabled option selected for FC Zoning.

12.  Click the Fabric B radio button.

13.  Enter 202 as the VSAN ID for Fabric B. Enter 202 as the FCoE VLAN ID for Fabric B. Click OK twice.



14.  In Cisco UCS Manager, click the SAN tab in the navigation pane.

15.  Expand the SAN > SAN Cloud and select Fabric A.

16.  Right-click VSANs and choose Create VSAN.

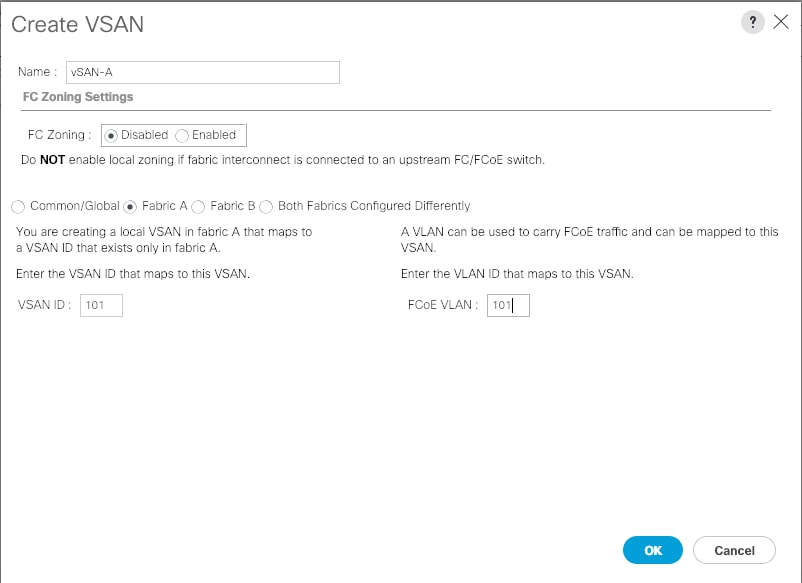

17.  Enter vsan-A as the name of the VSAN for fabric A.

7.     Keep the Disabled option selected for FC Zoning.

18.  Click the Fabric A radio button.

19.  Enter 101 as the VSAN ID for Fabric A.

20.  Enter 101 as the FCoE VLAN ID for fabric A. Click OK twice.

21.  In the SAN tab, expand SAN > SAN Cloud > Fabric-B.

22.  Right-click VSANs and choose Create VSAN.

23.  Enter vsan-B as the name of the VSAN for fabric B.

24.  Keep the Disabled option selected for FC Zoning.

25.  Click the Fabric B radio button.

26.  Enter 102 as the VSAN ID for Fabric B. Enter 102 as the FCoE VLAN ID for Fabric B. Click OK twice.



Optional: Create Port Channels for the Fibre Channel Interfaces

To configure the necessary FC port channels for the Cisco UCS environment, follow these steps:

Fabric-A

1.     In the navigation pane, under SAN > SAN Cloud, expand the Fabric A tree.

2.     Click Enable FC Uplink Trunking.

3.     Click Yes on the warning message.

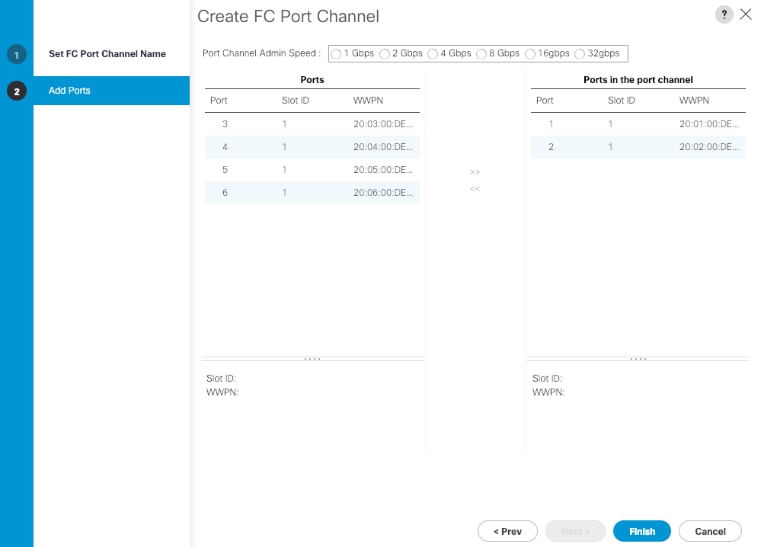

4.     Click Create FC Port Channel on the same screen.

5.     Enter 6 for the port channel ID and Po6 for the port channel name.

6.     Click Next then choose ports 1 and 2 and click >> to add the ports to the port channel.

7.     Select Port Channel Admin Speed as 32gbps.

8.     Click Finish.

9.     Click OK.

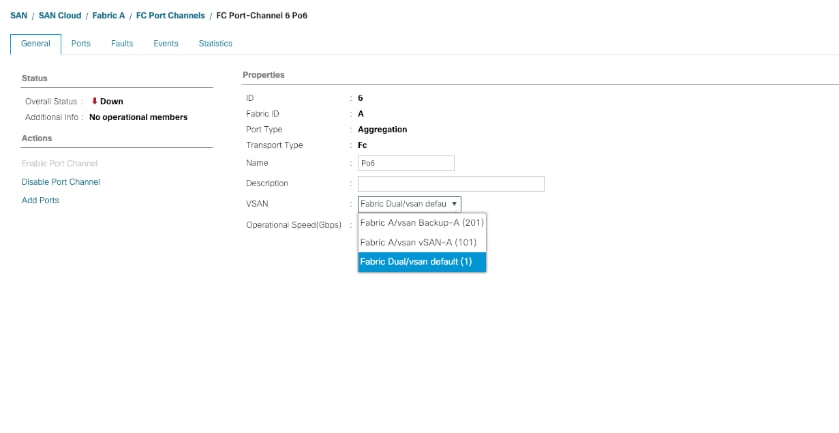

10.  Select FC Port-Channel 6 from the menu in the left pane and from the VSAN drop-down field, keep VSAN 1 selected in the right pane.

11.  Click Save Changes and then click OK.

Fabric-B

1.     Click the SAN tab. In the navigation pane, under SAN > SAN Cloud, expand the Fabric B.

2.     Right-click FC Port Channels and choose Create Port Channel.

3.     Enter 7 for the port channel ID and Po7 for the port channel name. Click Next.

4.     Choose ports 1 and 2 and click >> to add the ports to the port channel.

5.     Click Finish, and then click OK.

6.     Select FC Port-Channel 7 from the menu in the left pane and from the VSAN drop-down list, keep VSAN 1 selected in the right pane.

7.     Click Save Changes and then click OK.

Disable Unused FC Uplink Ports (FCP)

When Unified Ports were configured earlier in this procedure, on the Cisco UCS 6454 FI and the Cisco UCS 6332-16UP FI, FC ports are configured in groups. Because of this group configuration, some FC ports are unused and need to be disabled to prevent alerts.

To disable the unused FC ports 3 and 4 on the Cisco UCS 6454 FIs, follow these steps:

1.     In Cisco UCS Manager, click Equipment.

2.     In the Navigation Pane, expand Equipment > Fabric Interconnects > Fabric Interconnect A > Fixed Module > FC Ports.

3.     Select FC Port 3 and FC Port 4. Right-click and select Disable.

4.     Click Yes and OK to complete disabling the unused FC ports.

5.     In the Navigation Pane, expand Equipment > Fabric Interconnects > Fabric Interconnect B > Fixed Module > FC Ports.

6.     Select FC Port 3 and FC Port 4. Right-click and select Disable.

7.     Click Yes and OK to complete disabling the unused FC ports.

Enable Ethernet Uplink Ports

The Ethernet ports of a Cisco UCS 6554 Fabric Interconnect are all capable of performing several functions, such as network uplinks or server ports, and more. By default, all ports are unconfigured, and their function must be defined by the administrator.

To define the specified ports to be used as network uplinks to the upstream network, follow these steps:

1.     In Cisco UCS Manager, click the Equipment tab in the navigation pane.

2.     Select Fabric Interconnects > Fabric Interconnect A > Fixed Module > Ethernet Ports.

3.     Select the ports that are to be uplink ports (49 & 50), right click them, and click Configure as Uplink Port.

4.     Click Yes to confirm the configuration and click OK.

5.     Select Fabric Interconnects > Fabric Interconnect B > Fixed Module > Ethernet Ports.

6.     Select the ports that are to be uplink ports (49 & 50), right-click them, and click Configure as Uplink Port.

7.     Click Yes to confirm the configuration and click OK.

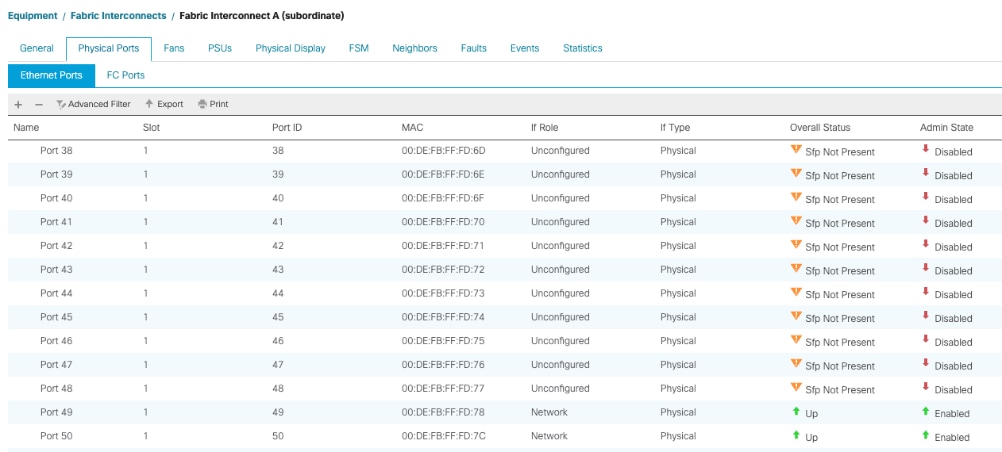

8.     Verify all the necessary ports are now configured as uplink ports.

Create Port Channels for Ethernet Uplinks

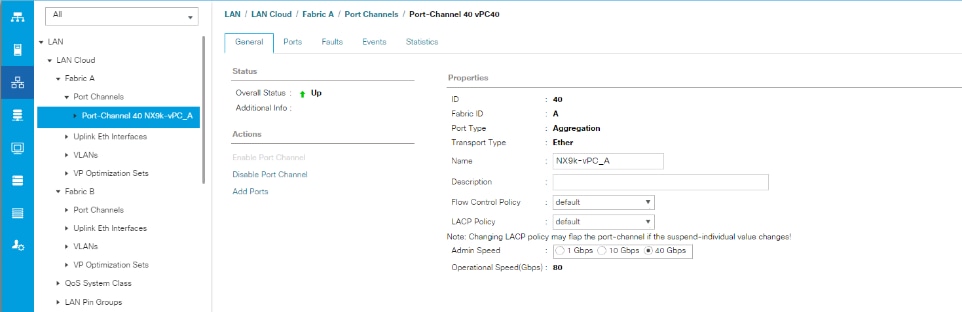

If the Cisco UCS uplinks from one Fabric Interconnect are to be combined into a port channel or vPC, you must separately configure the port channels using the previously configured uplink ports.

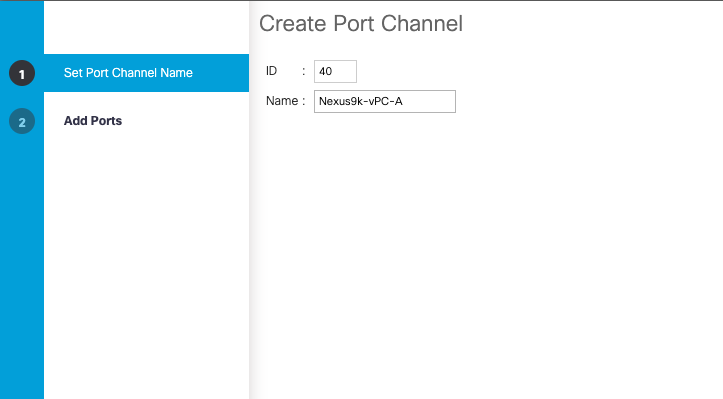

To configure the necessary port channels in the Cisco UCS environment, follow these steps:

1.     In Cisco UCS Manager, click the LAN tab in the navigation pane.



2.     Under LAN > LAN Cloud, click to expand the Fabric A tree.


3.     Right-click Port Channels underneath Fabric A and select Create Port Channel.


4.     Enter the port channel ID number as the unique ID of the port channel.

5.     Enter the name of the port channel.


6.     Click Next.

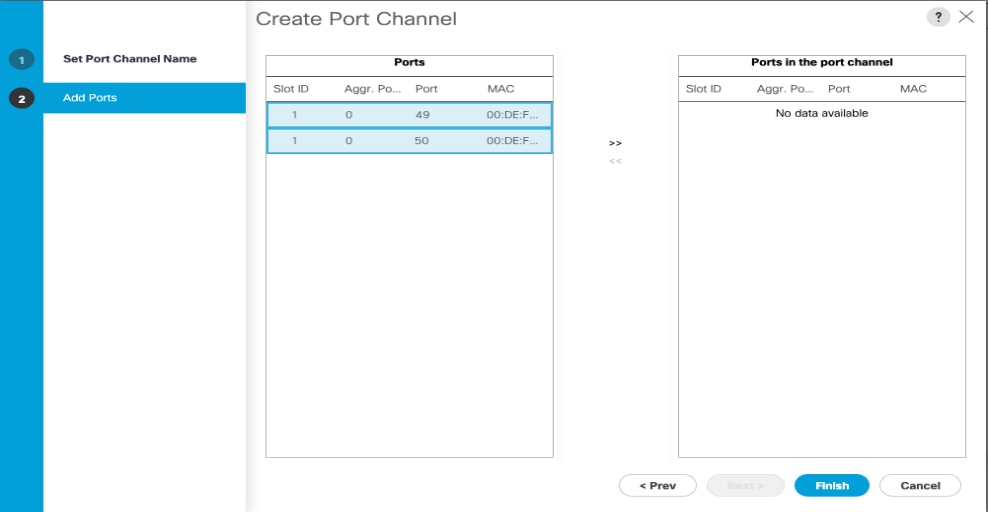

7.     Click each port from Fabric Interconnect A that will participate in the port channel and click the >> button to add them to the port channel.

8.     Click Finish.

9.     Click OK.

10.  Under LAN > LAN Cloud, click to expand the Fabric B tree.


11.  Right-click Port Channels underneath Fabric B and select Create Port Channel.


12.  Enter the port channel ID number as the unique ID of the port channel.


13.  Enter the name of the port channel.


14.  Click Next.

15.  Click each port from Fabric Interconnect B that will participate in the port channel and click the >> button to add them to the port channel.

16.  Click Finish.

17.  Click OK.


18.  Verify the necessary port channels have been created. It can take a few minutes for the newly formed port channels to converge and come online.

Cisco UCS C240 M5 Server Node Configuration

The steps provided in this section details for Cisco UCS C240 M5 Server setup. The procedure includes creation of ScaleProtect environment specific UCS pools and policies, followed by the Cisco UCS C240 M5 Server Node setup which will involve Service Profile creation and association using Storage Profile.

Create Sub-Organization

In this setup, one sub-organization under the root has been created. Sub-organizations help to restrict user access to logical pools and objects in order to facilitate secure provisioning and to provide easier user interaction. For ScaleProtect backup infrastructure, create a sub-organization as “CV-ScaleProtect”.

To create a sub-organization, follow these steps:

1.     In the Navigation pane, click the Servers tab.

2.     In the Servers tab, expand Service Profiles > root. You can also access the Sub-Organizations node under the Policies or Pools nodes.

3.     Right-click Sub-Organizations and choose Create Organization.

4.     Enter CV-ScaleProtect as the name or any other obvious name, enter a description, and click OK.

Create MAC Address Pools

To configure the necessary MAC address pools for the Cisco UCS environment, follow these steps:

1.     In Cisco UCS Manager, click the LAN tab in the navigation pane.

2.     Select Pools > root > Sub-organizations > CV-ScaleProtect.

3.     Right-click MAC Pools under the root organization.

4.     Select Create MAC Pool to create the MAC address pool.

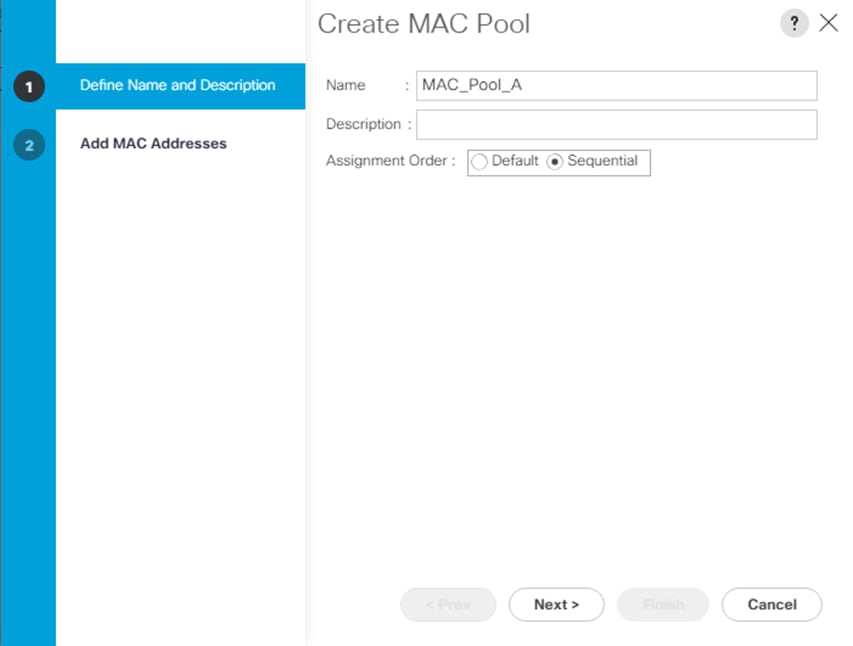

5.     Enter MAC_Pool_A as the name of the MAC pool.

6.     Optional: Enter a description for the MAC pool.

7.     Select Sequential as the option for Assignment Order.

8.     Click Next.

9.     Click Add.

10.  Specify a starting MAC address.

11.  Specify a size for the MAC address pool that is sufficient to support the future ScaleProtect cluster expansion and any available blade or server resources.

12.  Click OK.

13.  Click Finish.

14.   In the confirmation message, click OK.

15.  Right-click MAC Pools under the root organization.

16.  Select Create MAC Pool to create the MAC address pool.

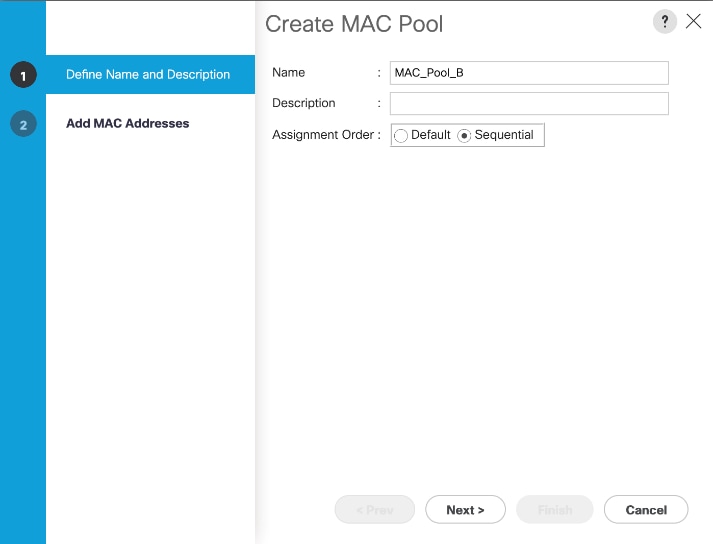

17.  Enter MAC_Pool_B as the name of the MAC pool.

18.  Optional: Enter a description for the MAC pool.

19.  Select Sequential as the option for Assignment Order.

20.  Click Next.

21.  Click Add.

22.  Specify a starting MAC address.

23.  Specify a size for the MAC address pool that is sufficient to support the future ScaleProtect cluster expansion and any available blade or server resources.

24.  Click OK.

25.  Click Finish.

26.   In the confirmation message, click OK.

Create UUID Suffix Pool

To configure the necessary universally unique identifier (UUID) suffix pool for the Cisco UCS environment, follow these steps:

1.     In Cisco UCS Manager, click the Servers tab in the navigation pane.

2.     Select Pools > root > Sub-Organizations > CV-ScaleProtect.

3.     Right-click UUID Suffix Pools.

4.     Select Create UUID Suffix Pool.

5.     Enter UUID_Pool as the name of the UUID suffix pool.

6.     Optional: Enter a description for the UUID suffix pool.

7.     Keep the prefix at the derived option.

8.     Select Sequential for the Assignment Order.

9.     Click Next.

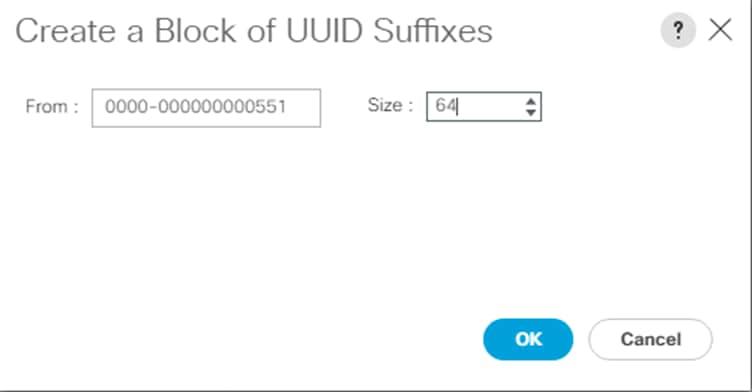

10.  Click Add to add a block of UUIDs.

11.  Keep the value in From field at the default setting.

12.  Specify a size for the UUID block that is sufficient to support the available server resources.

13.  Click OK.

14.  Click Finish.

15.  Click OK.

Create Server Pool

The following procedure guides you in creating two server pools, one for first server nodes in the chassis and the other of the second server nodes.

To configure the necessary server pool for the Cisco UCS environment, follow these steps:

1.     In Cisco UCS Manager, click the Servers tab in the navigation pane.

2.     Select Pools > root > Sub-Organizations > CV-ScaleProtect.

3.     Right-click Server Pools.

4.     Select Create Server Pool.

5.     Enter CVLT_SP_C240_M5 as the name of the server pool.

6.     Optional: Enter a description for the server pool.

7.     Click Next.

8.     Select C240 M5 server nodes and click >> to add them to the CVLT_SP_C240_M5 server pool.

9.     Click Finish.

10.  Click OK.

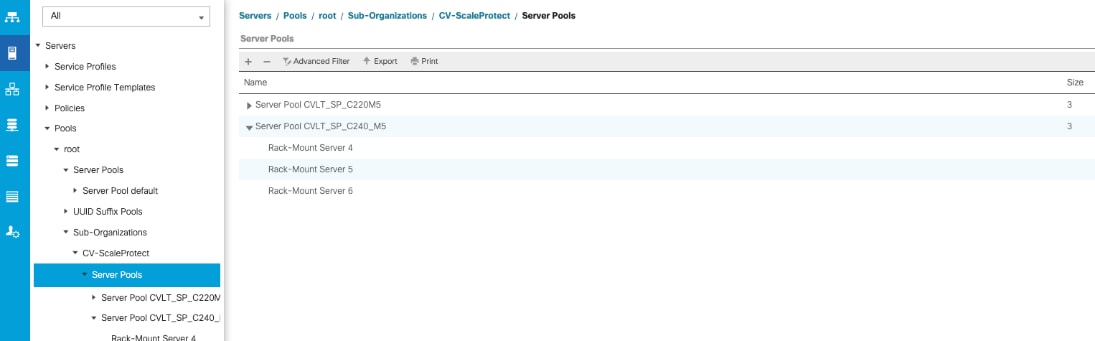

11.  Verify that the server pools have been created.

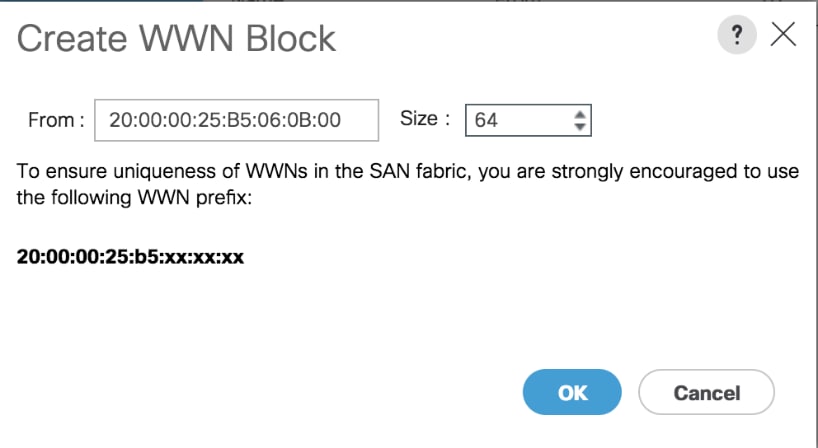

Optional: Create a WWNN Address Pool for FC-based Storage Access

For FC connectivity to SAN fabrics, create a World Wide Node Name (WWNN) pool by following these steps:

1.     In Cisco UCS Manager, click the SAN tab in the navigation pane.

2.     Select Pools > root.

3.     Right-click WWNN Pools under the root organization and choose Create WWNN Pool to create the WWNN address pool.

4.     Enter WWNN-Pool as the name of the WWNN pool.

5.     Optional: Enter a description for the WWNN pool.

6.     Select the Sequential Assignment Order and click Next.

7.     Click Add.

8.     Specify a starting WWNN address.

9.     Specify a size for the WWNN address pool that is sufficient to support the available blade or rack server resources. Each server will receive one WWNN.



10.  Click OK and click Finish.

11.  In the confirmation message, click OK.

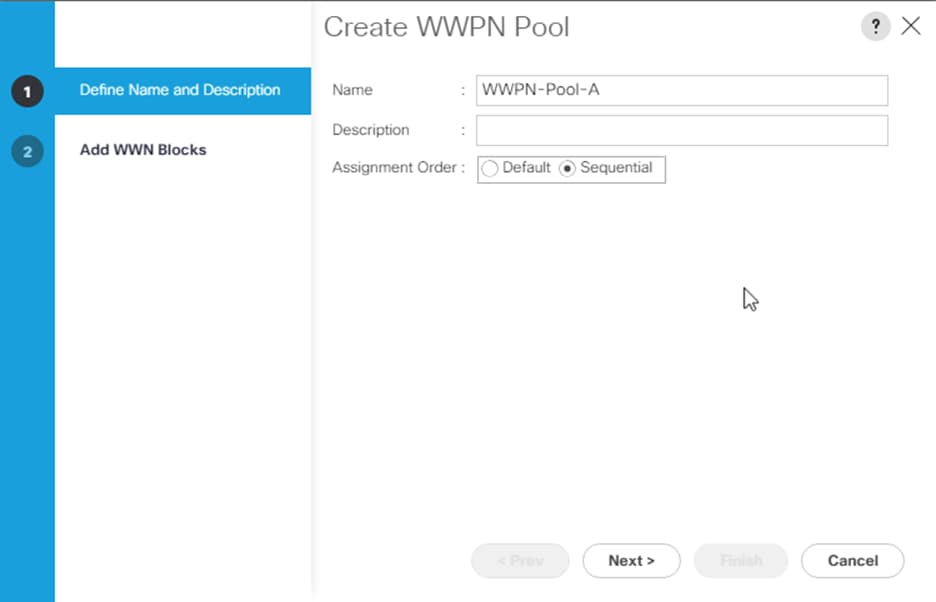

Optional: Create a WWPN Address Pools for FC-based Storage Access

For FC connectivity to SAN fabrics, create a World Wide Port Name (WWPN) pool for each SAN switching fabric by following these steps:

1.     In Cisco UCS Manager, click the SAN tab in the navigation pane.

2.     Select Pools > root.

3.     Right-click WWPN Pools under the root organization and choose Create WWPN Pool to create the first WWPN address pool.

4.     Enter WWPN-Pool-A as the name of the WWPN pool.

5.     Optional: Enter a description for the WWPN pool.

6.     Select the Sequential Assignment Order and click Next.

7.     Click Add.

8.     Specify a starting WWPN address.

9.     Specify a size for the WWPN address pool that is sufficient to support the available blade or rack server resources. Each server’s Fabric A vHBA will receive one WWPN from this pool.



10.  Click OK and click Finish.

11.  In the confirmation message, click OK.

12.  Right-click WWPN Pools under the root organization and choose Create WWPN Pool to create the second WWPN address pool.

13.  Enter WWPN-Pool-B as the name of the WWPN pool.

14.  Optional: Enter a description for the WWPN pool.

15.  Select the Sequential Assignment Order and click Next.

16.  Click Add.

17.  Specify a starting WWPN address.

18.  Specify a size for the WWPN address pool that is sufficient to support the available blade or rack server resources. Each server’s Fabric B vHBA will receive one WWPN from this pool.



19.  Click OK and click Finish.

20.  In the confirmation message, click OK.

Create VLANs

To configure the necessary virtual local area networks (VLANs) for the Cisco UCS ScaleProtect environment, follow these steps:

1.     In Cisco UCS Manager, click the LAN tab in the navigation pane.

2.     Select LAN > LAN Cloud.

3.     Right-click VLANs.

4.     Select Create VLANs.

5.     Enter Data_VLAN as the name of the VLAN to be used for the native VLAN.

6.     Keep the Common/Global option selected for the scope of the VLAN.

7.     Keep the Sharing Type as None.

8.     Click OK and then click OK again.

9.     Repeat steps 3-8 to add Cluster VLAN as shown below:

Create Host Firmware Package

Firmware management policies allow the administrator to select the corresponding packages for a given server configuration. These policies often include packages for adapter, BIOS, board controller, FC adapters, host bus adapter (HBA) option ROM, and storage controller properties.

To create a firmware management policy for a given server configuration in the Cisco UCS environment, follow these steps:

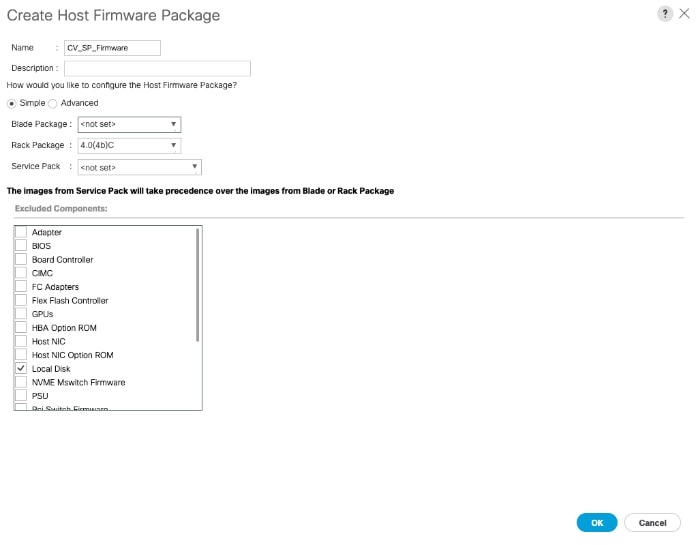

1.     In Cisco UCS Manager, click the Servers tab in the navigation pane.

2.     Select Policies > root > Sub-Organizations > CV-ScaleProtect.

3.     Expand Host Firmware Packages.

4.     Right-click and Select Create Host Firmware Package.

5.     Enter name as CV_SP_Firmware

6.     Select the version 4.0(4b)C for Rack Packages.

7.     Click OK to add the host firmware package.

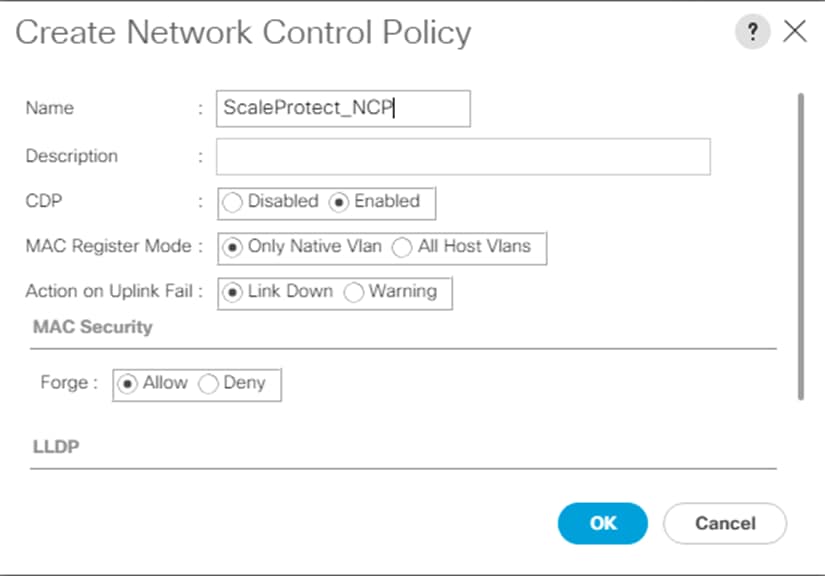

Create Network Control Policy for Cisco Discovery Protocol

To create a network control policy that enables Cisco Discovery Protocol (CDP) on virtual network ports, follow these steps:

1.     In Cisco UCS Manager, click the LAN tab in the navigation pane.

2.     Select Policies > root >Sub-Organization > CV-ScaleProtect.

3.     Right-click Network Control Policies.

4.     Select Create Network Control Policy.

5.     Enter ScaleProtect_NCP as the policy name.

6.     For CDP, select the Enabled option.

7.     For LLDP, scroll down and select Enabled for both Transit and Receive.

8.     Click OK to create the network control policy.



9.     Click OK.

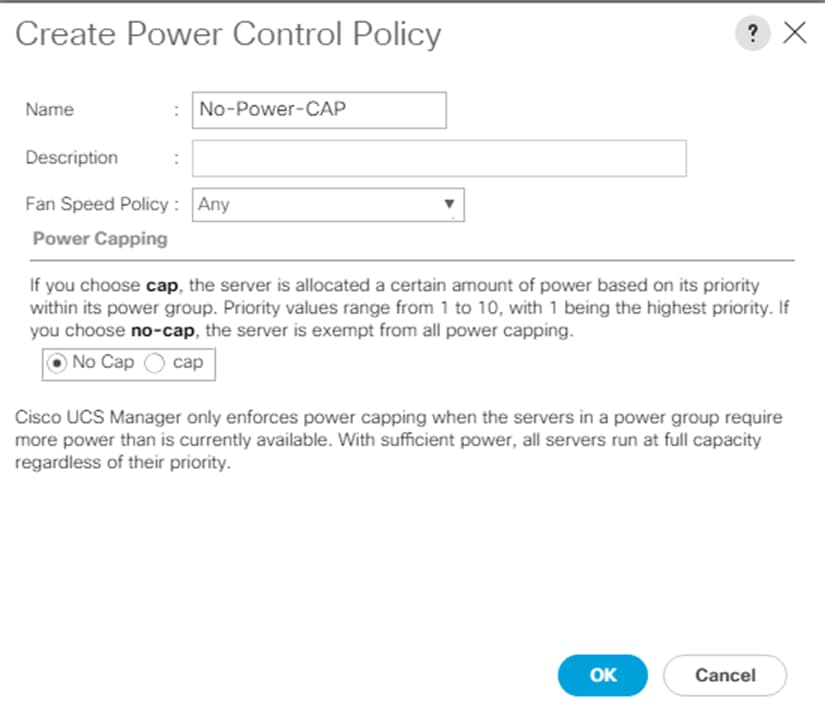

Create Power Control Policy

To create a power control policy for the Cisco UCS environment, follow these steps:

1.     In Cisco UCS Manager, click the Servers tab in the navigation pane. Select Policies > root >Sub-Organizations > CV-ScaleProtect.

2.     Right-click Power Control Policies.

3.     Select Create Power Control Policy.

4.     Enter No-Power-Cap as the power control policy name.

5.     Change the power capping setting to No Cap.

6.     Click OK to create the power control policy.

7.     Click OK.

Create Server BIOS Policy

To create a server BIOS policy for the Cisco UCS environment, follow these steps:

1.     In Cisco UCS Manager, click the Servers tab in the navigation pane.

2.     Select Policies > root > sub-Organizations > CV-ScaleProtect.

3.     Right-click BIOS Policies.

4.     Select Create BIOS Policy.

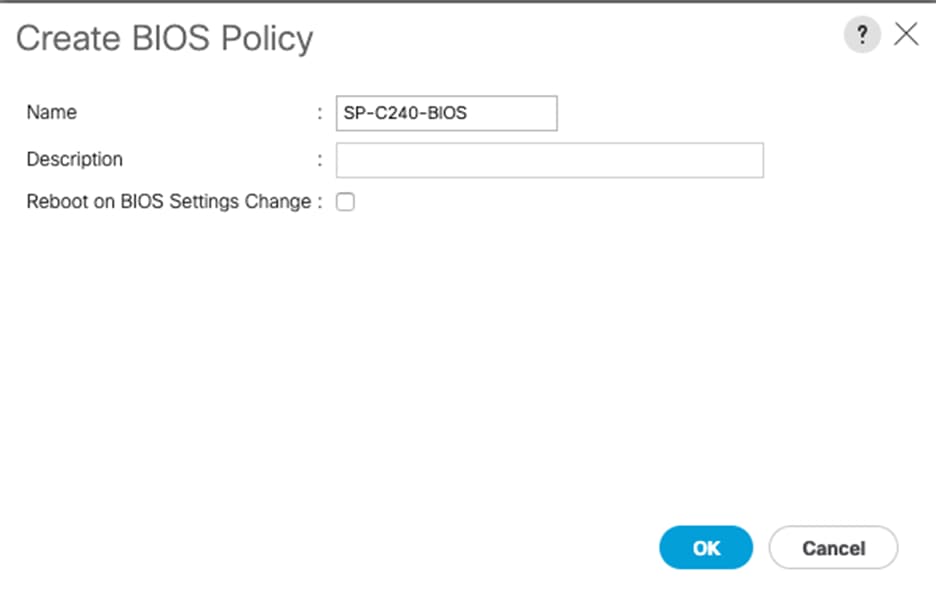

5.     Enter SP-C240-BIOS as the BIOS policy name.

6.     Click OK.

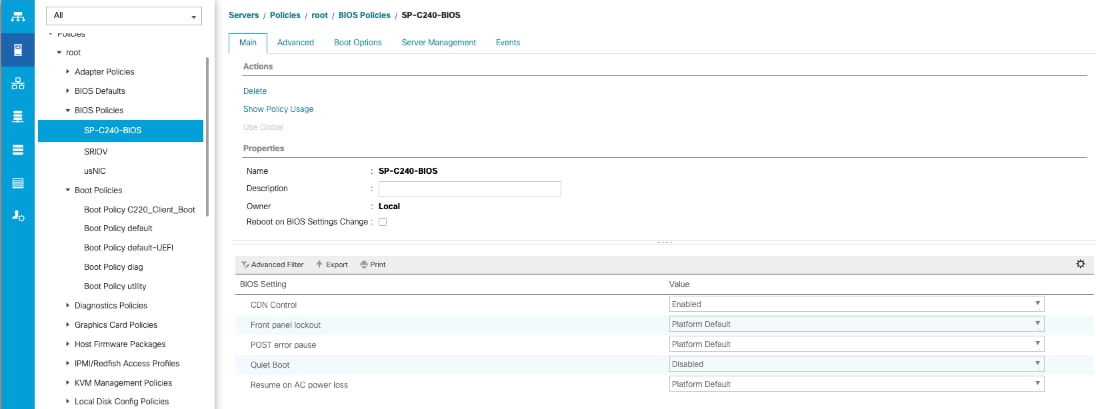

7.     Select the newly created BIOS Policy.

8.     Change the Quiet Boot setting to disabled.

9.     Change Consistent Device Naming to enabled.

10.  Click Advanced tab and then select Processor.

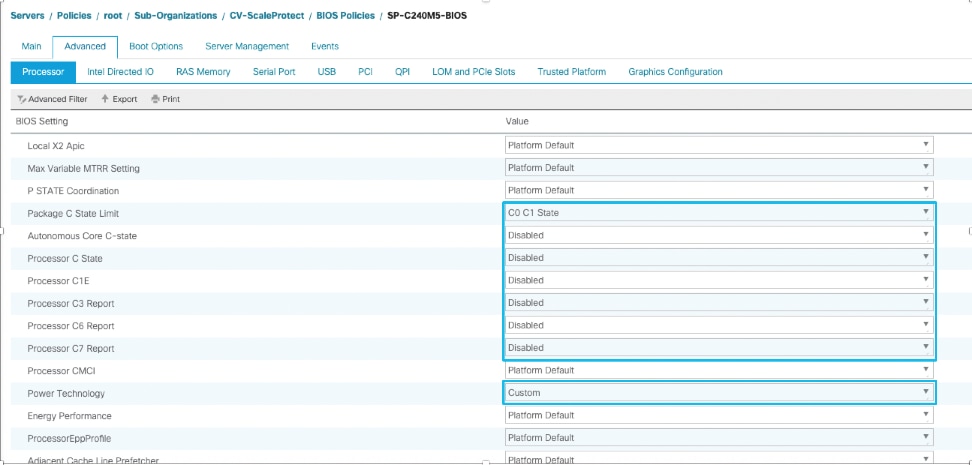

11.  From the Processer tab, make changes as shown below.



12.  Change the Workload Configuration to IO Sensitive on the same page.

13.  Click Save Changes.

Create Maintenance Policy

To update the default Maintenance Policy, follow these steps:

1.     In Cisco UCS Manager, click the Servers tab in the navigation pane.

2.     Select Policies > root > sub-Organizations > CV-ScaleProtect.

3.     Right-click Maintenance Policies and Select Create Maintenance Policy.

4.     Enter UserAck_Pol as the Maintenance Policy name

5.     Change the Reboot Policy to User Ack.

6.     Optional: Click “On Next Boot” to delegate maintenance windows to server owners.

7.     Click OK.

Create Adapter Policy

To create adaptor policy, follow these steps:

1.     In Cisco UCS Manager, click the Servers tab in the navigation pane.

1.     Select Policies > root > Sub-Organizations > CV-ScaleProtect.

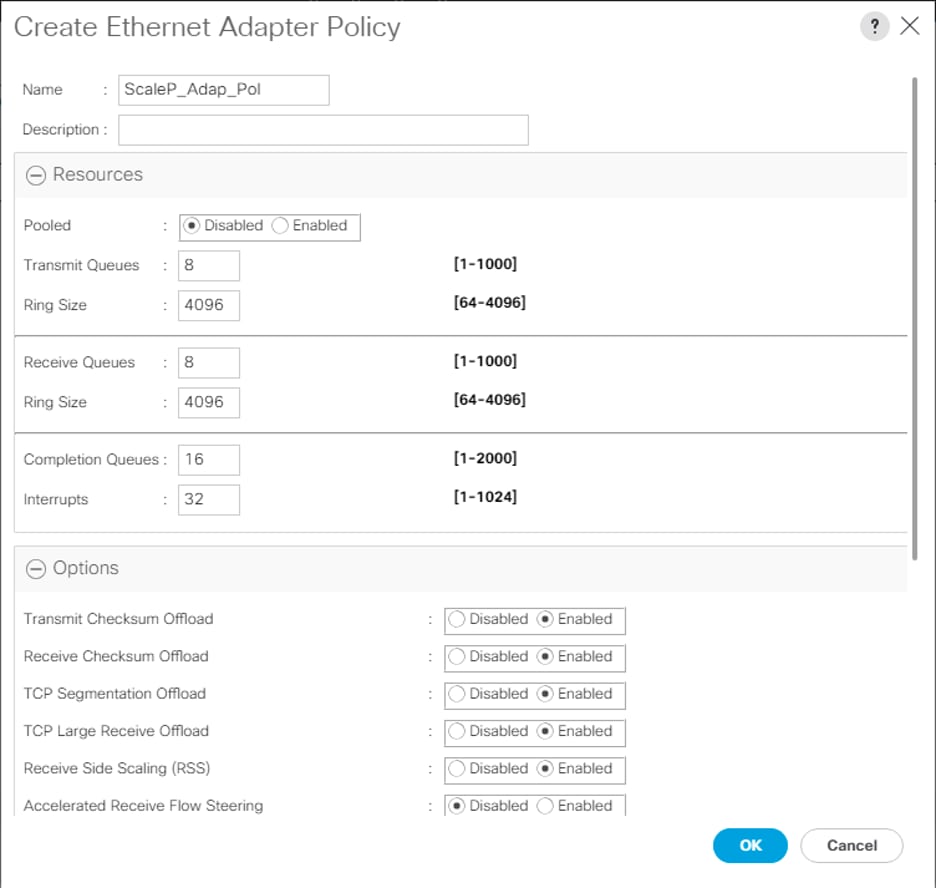

2.     Right-click Adapter Policies and Select Ethernet Adaptor Policy.

3.     Enter name as ScaleP_Adap_Pol.

4.     Enter Transmit Queues = 8, Receive Queues = 8 , Ring Size = 4096.

5.     Enter Completion Queues = 16 and Interrupts = 32.

6.     Under Options, make sure Receive Side Scaling (RSS) is enabled.

7.     Click OK.

Create vNIC Templates

To create multiple virtual network interface card (vNIC) templates for the Cisco UCS environment, follow these steps. A total of 2 vNIC Templates will be created:

·       vNIC_data – ScaleProtect Data Protection and Management vNIC. This vNIC provides management access and enables communication from backup clients to ScaleProtect Cluster.

·       vNIC_cluster - ScaleProtect Cluster vNIC. This vNIC provides communication with in ScaleProtect Cluster for Cluster related traffic.

Create Data and Cluster vNICs

1.     In Cisco UCS Manager, click the LAN tab in the navigation pane.

2.     Select Policies > root > Sub-Organizations > CV-ScaleProtect.

3.     Right-click vNIC Templates.

4.     Select Create vNIC Template.

5.     Enter vNIC_SP_Data as the vNIC template name.

6.     Keep Fabric A selected.

7.     Select the Enable Failover checkbox.

8.     Select Updating Template as the Template Type.

9.     Select Redundancy Type as No Redundancy

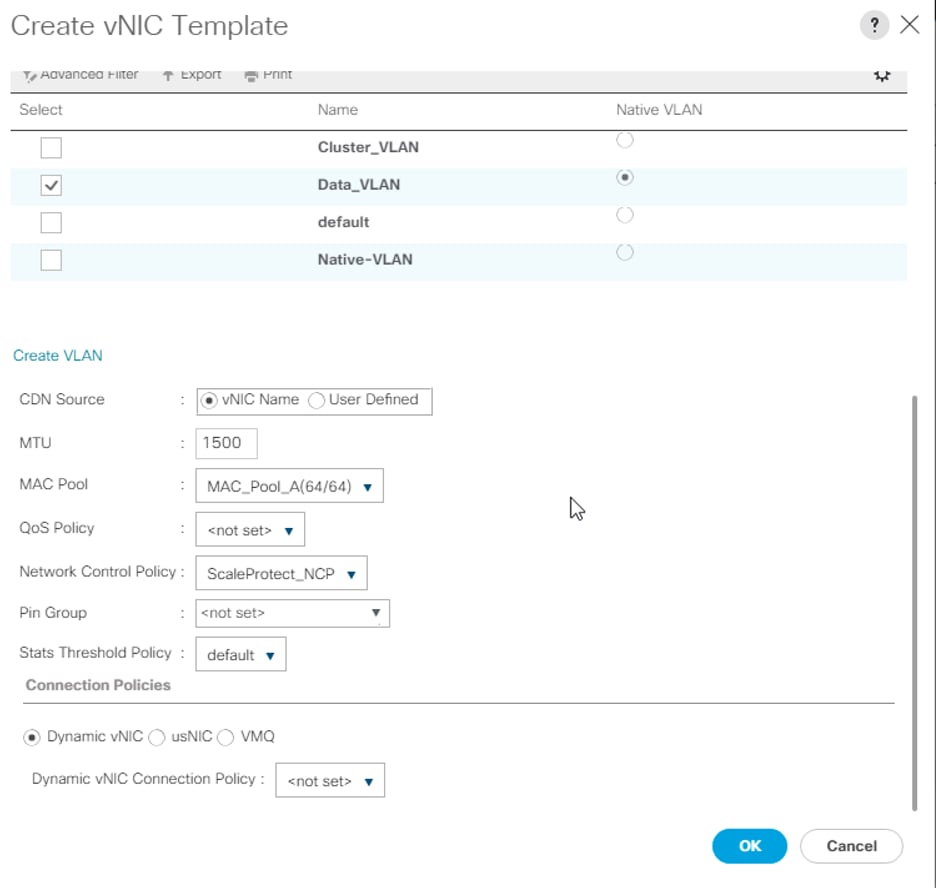

10.  Under VLANs, select the checkbox for Data_VLAN VLAN.

11.  Set Data_VLAN as the native VLAN.

12.  For MTU, enter 1500.

13.  In the MAC Pool list, select MAC_Pool_A.

14.  In the Network Control Policy list, select ScaleProtect_NCP.

15.  Click OK to create the vNIC template.

16.  Click OK.

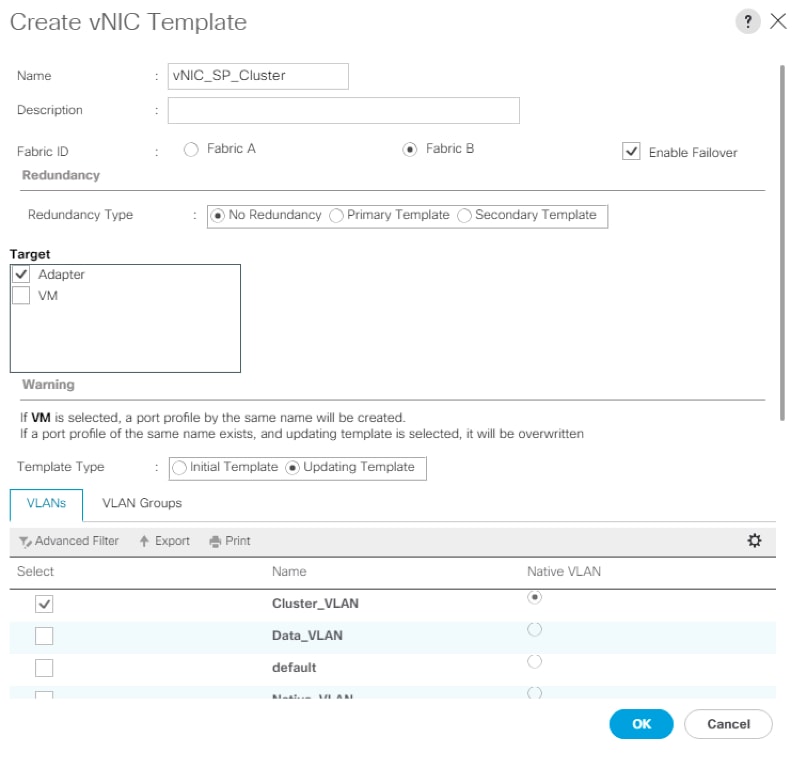

To create the Cluster VLAN template, follow these steps:

1.     In the navigation pane, select the LAN tab.

2.     Select Policies > root.

3.     Right-click vNIC Templates.

4.     Select Create vNIC Template.

5.     Enter vNIC_SP_Cluster as the vNIC template name.

6.     Select Fabric B.

7.     Select the Enable Failover checkbox.

8.     Under Target, make sure the VM checkbox is not selected.

9.     Select Redundancy Type as No Redundancy.

10.  Select Updating Template as the template type.

11.  Under VLANs, select the checkboxes for Cluster_VLAN.

12.  Set Cluster_VLAN as the native VLAN.

13.  Select vNIC Name for the CDN Source.

14.  For MTU, enter 9000.

15.  In the MAC Pool list, select MAC_Pool_B.

16.  In the Network Control Policy list, select ScaleProtect_NCP.

17.  Click OK to create the vNIC template.

18.  Click OK.

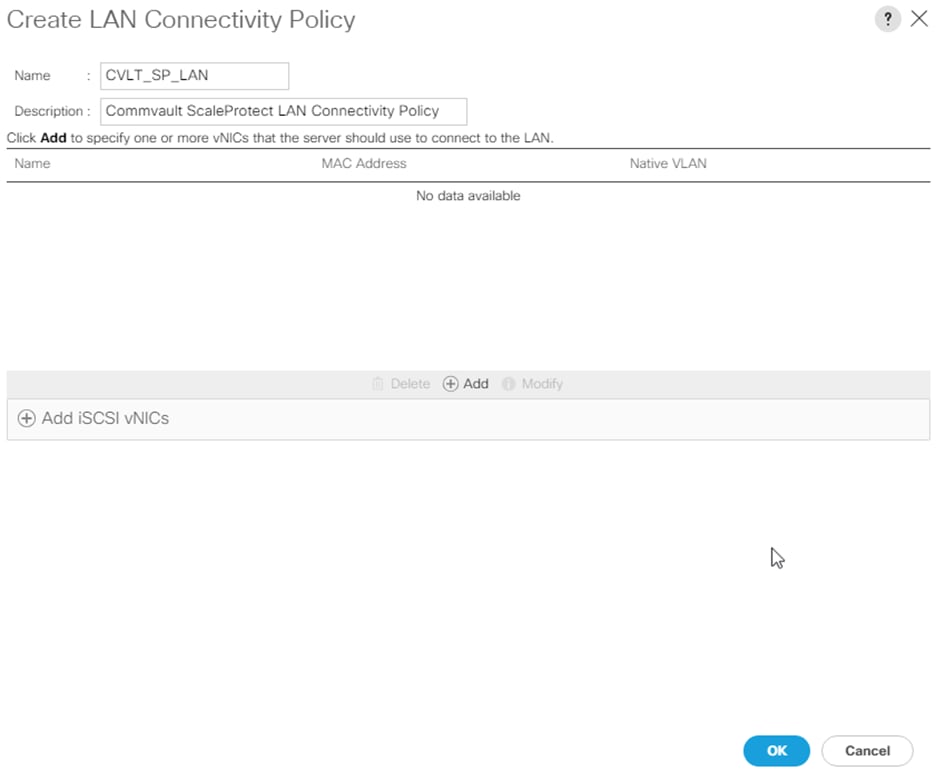

Create LAN Connectivity Policy

To configure the necessary Infrastructure LAN Connectivity Policy, follow these steps:

1.     In Cisco UCS Manager, click LAN on the left.

2.     Select LAN > Policies > root > Sub-Organizations > CV-ScaleProtect.

3.     Right-click LAN Connectivity Policies.

4.     Select Create LAN Connectivity Policy.

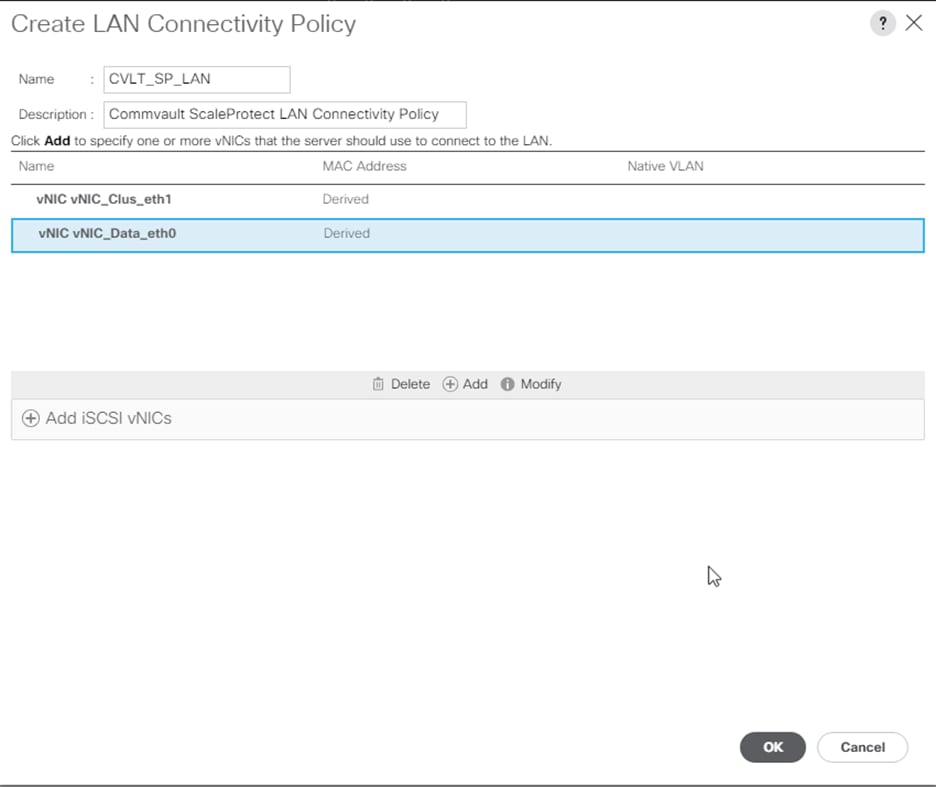

5.     Enter CVLT_SP_LAN as the name of the policy.

6.     Click the upper Add button to add a vNIC.

7.     In the Create vNIC dialog box, enter vNIC_Data_eth0 as the name of the vNIC.

8.     Select the Use vNIC Template checkbox.

9.     In the vNIC Template list, select vNIC_Data_eth0.

10.  In the Adapter Policy list, select ScaleP_Adap_Pol.

11.  Click OK to add this vNIC to the policy.

12.  Click Add to add another vNIC to the policy.

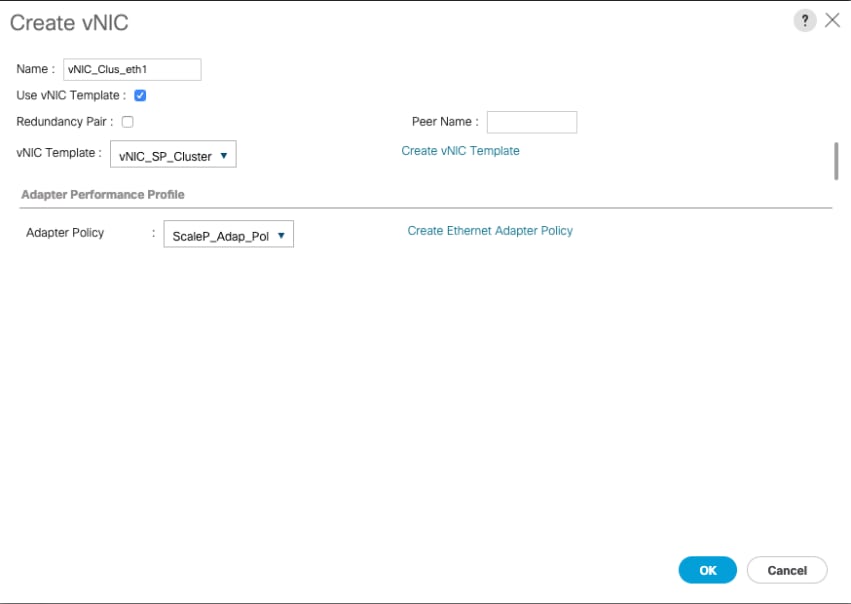

13.  In the Create vNIC box, vNIC_Clus_eth1 as the name of the vNIC.

14.  Select the Use vNIC Template checkbox.

15.  In the vNIC Template list, select vNIC_SP_Cluster.

16.  In the Adapter Policy list, select ScaleP_Adap_Pol.



17.  Click OK to add the vNIC to the policy.

18.  Click OK, then click OK again to create the LAN Connectivity Policy.

Optional: Create vHBA Templates for FC Connectivity

To create virtual host bus adapter (vHBA) templates for the Cisco UCS environment, follow these steps:

1.     In Cisco UCS Manager, click the SAN tab in the navigation pane.

2.     Select Policies > root.

3.     Right-click vHBA Templates and choose Create vHBA Template.

4.     Enter Infra-vHBA-A as the vHBA template name.

5.     Click the radio button to select Fabric A.

6.     In the Select VSAN list, Choose vsan-A.

7.     In the WWPN Pool list, Choose WWPN-Pool-A.

8.     Click OK to create the vHBA template.

9.     Click OK.

10.  Right-click vHBA Templates again and choose Create vHBA Template.

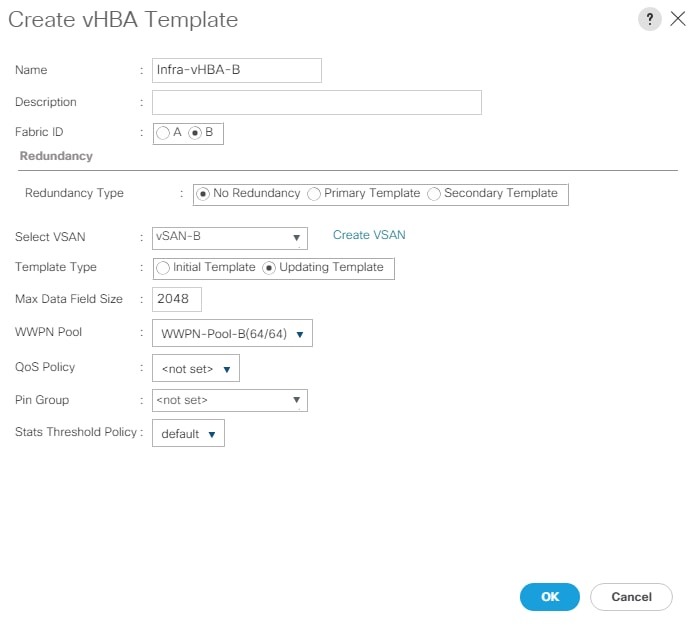

11.  Enter Infra-vHBA-B as the vHBA template name.

12.  Click the radio button to select Fabric B.

13.  In the Select VSAN list, Choose VSAN-B.

14.  In the WWPN Pool, Choose WWPN-Pool-B.

15.  Click OK to create the vHBA template.

16.  Click OK.

17.  In Cisco UCS Manager, click the SAN tab in the navigation pane.

18.  Select Policies > root > Sub-Organizations > CV-ScaleProtect.

19.  Right-click vHBA Templates and choose Create vHBA Template.

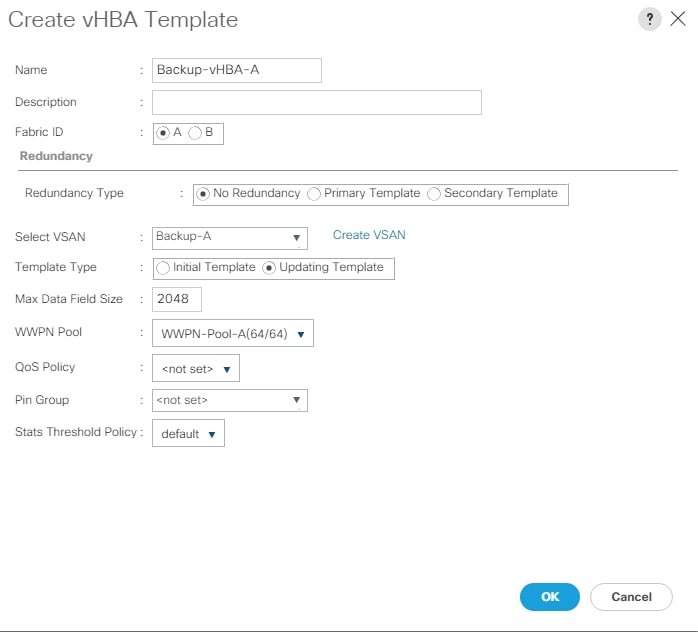

20.  Enter Backup-vHBA-A as the vHBA template name.

21.  Click the radio button to select Fabric A.

22.  In the Select VSAN list, Choose Backup-A.

23.  In the WWPN Pool list, Choose WWPN-Pool-A.

24.  Click OK to create the vHBA template.

25.  Click OK.

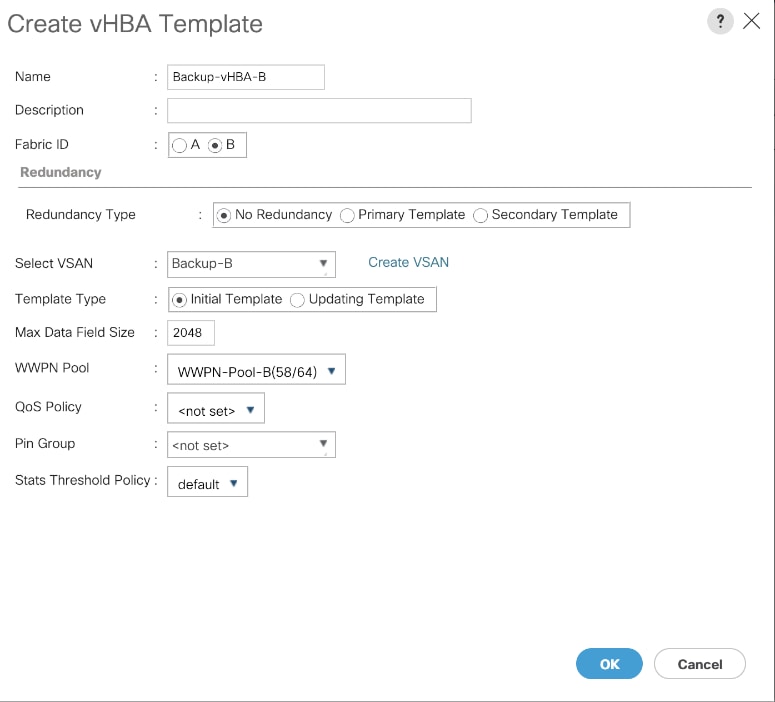

26.  Right-click vHBA Templates again and choose Create vHBA Template.

27.  Enter Backup-vHBA-B as the vHBA template name.

28.  Click the radio button to select Fabric B.

29.  In the Select VSAN list, Choose Backup-B.

30.  In the WWPN Pool, Choose WWPN-Pool-B.

31.  Click OK to create the vHBA template.

32.  Click OK.

Optional: Create FC SAN Connectivity Policies

A SAN connectivity policy defines the vHBAs that will be created as part of a service profile deployment.

To configure the necessary FC SAN Connectivity Policies, follow these steps:

1.     In Cisco UCS Manager, click the SAN tab in the navigation pane.

2.     Select SAN > Policies > root >Sub-Organizations > CV-ScaleProtect.

3.     Right-click SAN Connectivity Policies and choose Create SAN Connectivity Policy.

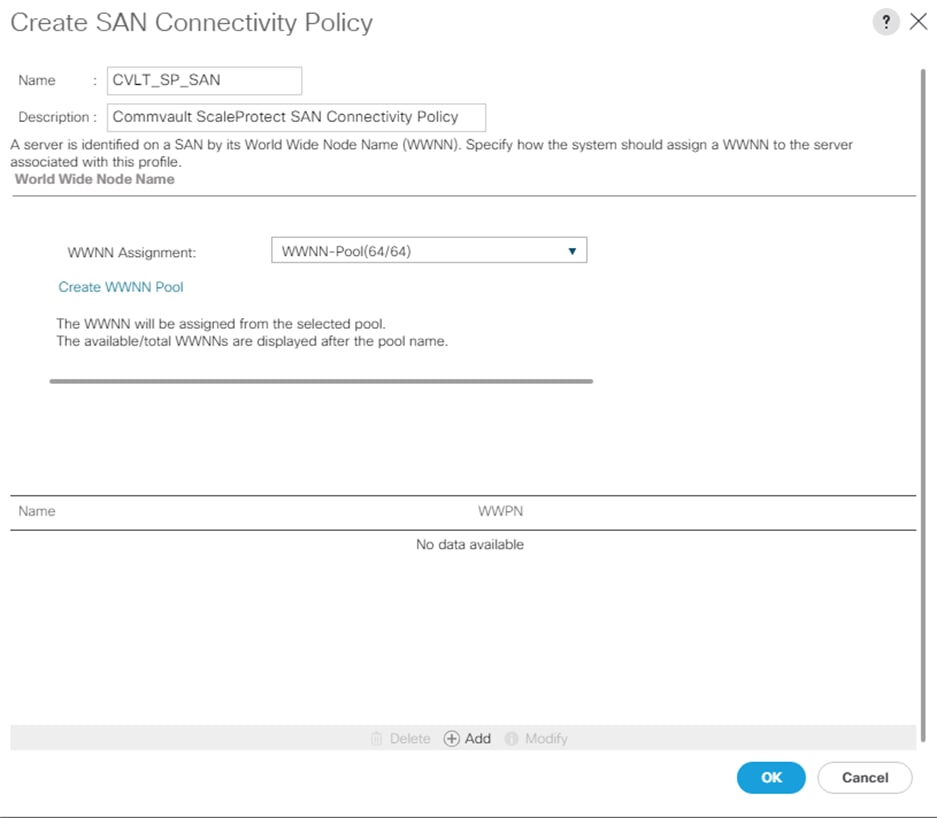

4.     Enter CVLT_SP_SAN as the name of the policy.

5.     Select WWNN-Pool from the drop-down list under World Wide Node Name.



6.     Click Add. You might have to scroll down the screen to see the Add link.

7.     Under Create vHBA, enter vHBA1 in the Name field.

8.     Check the check box Use vHBA Template.

9.     From the vHBA Template drop-down list, select Infra-vHBA-A.

10.  From the Adapter Policy drop-down list, select Linux.

11.  Click OK.

12.  Click Add.

13.  Under Create vHBA, enter vHBA2 in the Name field.

14.  Check the check box next to Use vHBA Template.

15.  From the vHBA Template drop-down list, select Infra-vHBA-B.

16.  From the Adapter Policy drop-down list, select Linux.

17.  Click OK.

18.  Click Add.

19.  Under Create vHBA, enter vHBA3 in the Name field.

20.  Check the check box next to Use vHBA Template.

21.  From the vHBA Template drop-down list, select Backup-vHBA-A.

22.  From the Adapter Policy drop-down list, select Linux.

23.  Click OK.

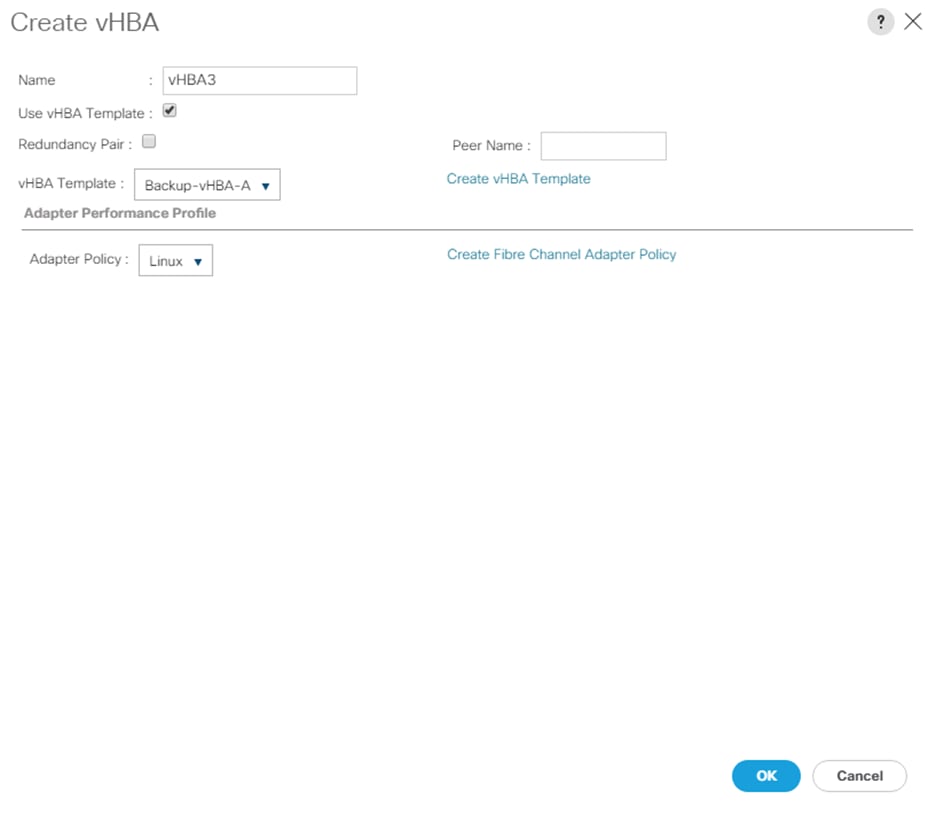

24.  Click Add.

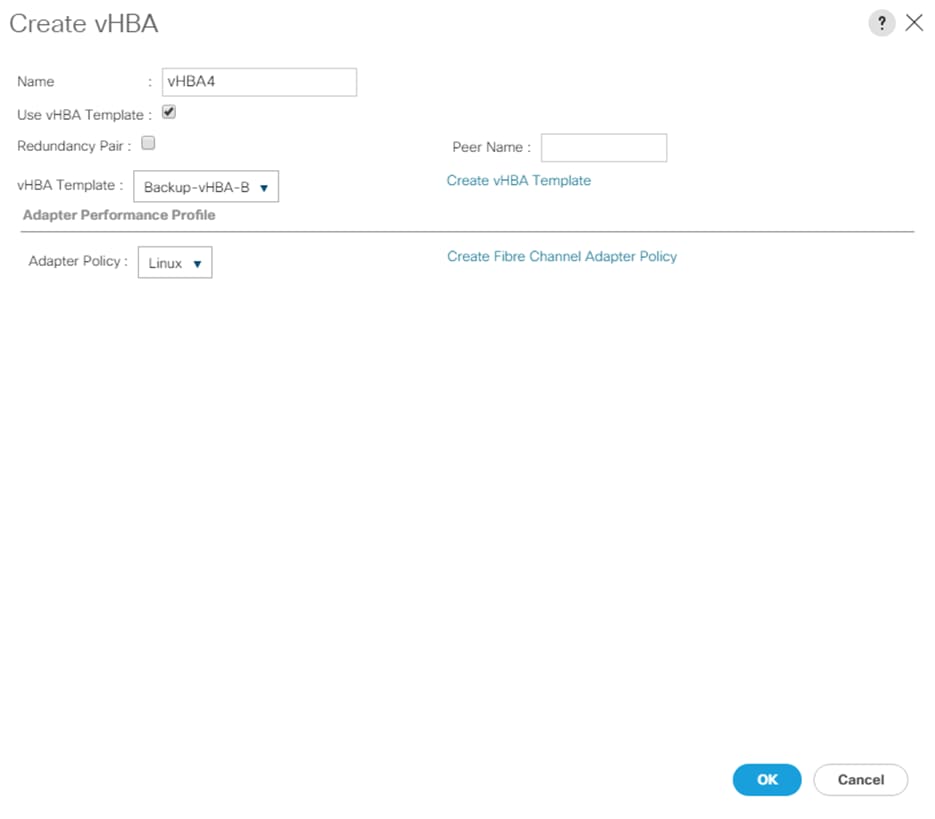

25.  Under Create vHBA, enter vHBA4 in the Name field.

26.  Check the check box next to Use vHBA Template.

27.  From the vHBA Template drop-down list, select Backup-vHBA-B.

28.  From the Adapter Policy drop-down list, select Linux.

29.  Click OK.

30.  Click OK again to accept creating the SAN connectivity policy.

Cisco UCS C240 M5 Server Storage Setup

The following procedures describe how to configure the Cisco UCS C240 M5 Server’s disk storage.

LUN Cleanup

For any Cisco UCS C240 server nodes that had LUNs created from previous Service Profile associations, there will be LUNs existing on those server nodes in an orphaned state preventing use of the disks from those LUNs to a new Service Profile association.

To clear up orphaned LUNs, follow these steps:

1.     In Cisco UCS Manager, click Equipment within the Navigation Pane and click the server node from the displayed list to clear LUNs from.

2.     Within that server node, click the Inventory tab, then the Storage tab within that, and finally the LUNs tab of the Storage tab of the server node.

3.     Select each of the Orphaned LUNs, and right-click the Delete Orphaned LUN option.

4.     Click Yes to confirm the action, and OK to continue.

ScaleProtect with Cisco UCS Server Storage Profile

The Storage Profile consists of Storage Polices used for creating Local LUNs out of allocated disks.

The next steps are dependent on the available disk drives on the Cisco UCS C240 M5 used for ScaleProtect with Cisco UCS. To complete the storage configuration, you need to identify the physical disks available for the operating system installation and disk library. For a configuration with 12 disk drives for disk library, use the steps presented here.

The Cisco UCS C240 rack server will use a storage profile similar to that for the Cisco UCS S3260 Storage Server, but it will not need a controller definition, because the Cisco UCS C240 in the environment has all disks in front-facing drive slots. Two disk policies need to be created for local LUNs to use for the boot device and disk library for the MediaAgent, and others can be created if additional local LUNs are needed. The ScaleProtect with Cisco UCS architecture with the Cisco UCS C240 M5 servers uses the internal M.2 SSD drives. These drives are managed by the software RAID controller in Cisco UCS, and server will boot to the internal M.2 SSDs in a software RAID 1 configuration.

The storage profile consists of storage polices used for creating local LUNs from the allocated disks (disk group policies). Because the Cisco UCS C240 M5 server for ScaleProtect with Cisco UCS uses internal M.2 SSDs for boot and the NVMe for the cache (deduplication database and the index cache) and the other HDDs as JBODs attached to the SAS HBA, you need to a create only a storage profile with the controller definition created to boot from software RAID. All the other drives will be presented to the ScaleProtect with Cisco UCS nodes as JBODs.

The disk layout of the Cisco UCS C240 M5 LFF nodes is as follows:

·       Boot Volume – 2x 960GB M.2 SSDs

-      Configured in RAID 1 using Software Raid

·       Accelerated Cache Volume – 1x 3.2TB NVMe SSD

-      Configured in Pass-through (JBOD) mode

·       Software Defined Storage Tier – 12x NL-SAS HDDs (Option of 4/6/8/12 TB sizes)

-      Configured in Pass-through (JBOD) mode

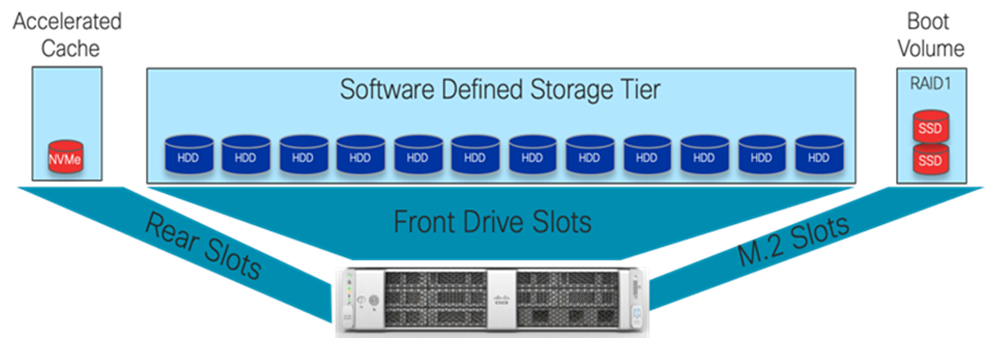

Figure 10 illustrates the disk layout of Cisco UCS C240 M5 LLF server node:

Create Storage Profile

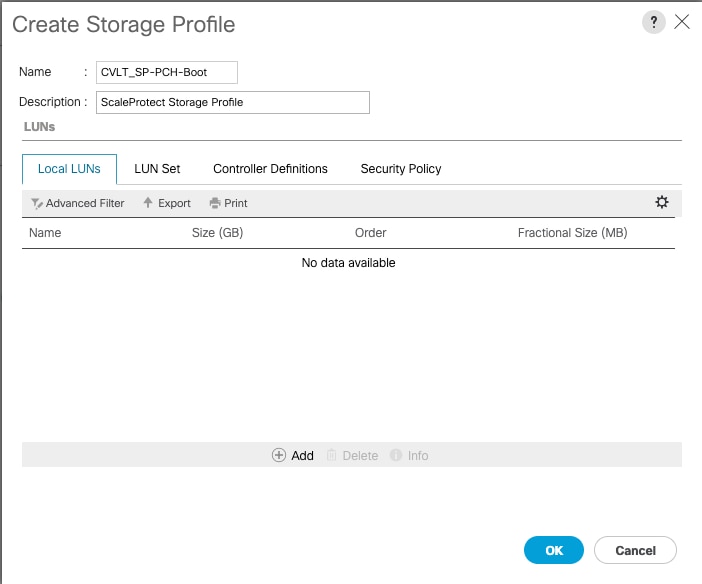

To create ScaleProtect Storage Profile for Cisco UCS C240 M5, follow these steps:

1.     In Cisco UCS Manager, click the Storage tab in the navigation pane.

2.     Select Storage Policies > root >Sub-Organizations > CV-ScaleProtect.

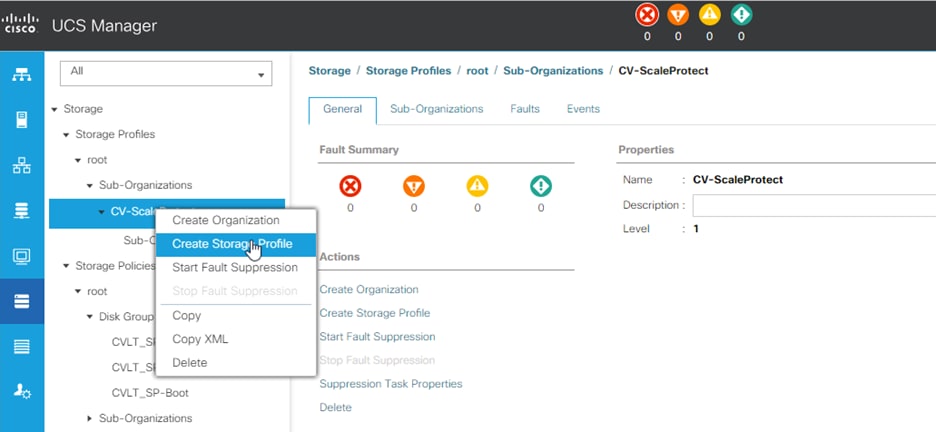

3.     Right-click and Select Create Storage Profile.

4.     Enter name as CVLT_SP-PCH-Boot.

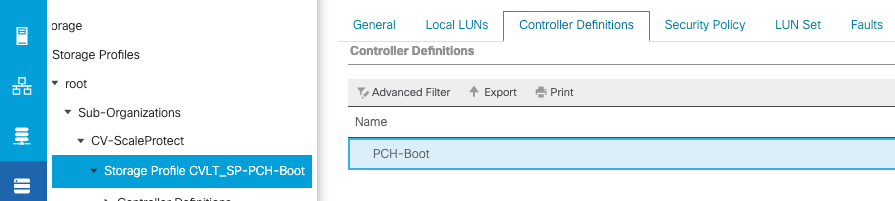

5.     Click on Controller Definitions tab.

6.     Select Add to add a controller definition that will be create a software Raid 1 LUN for operating system boot.

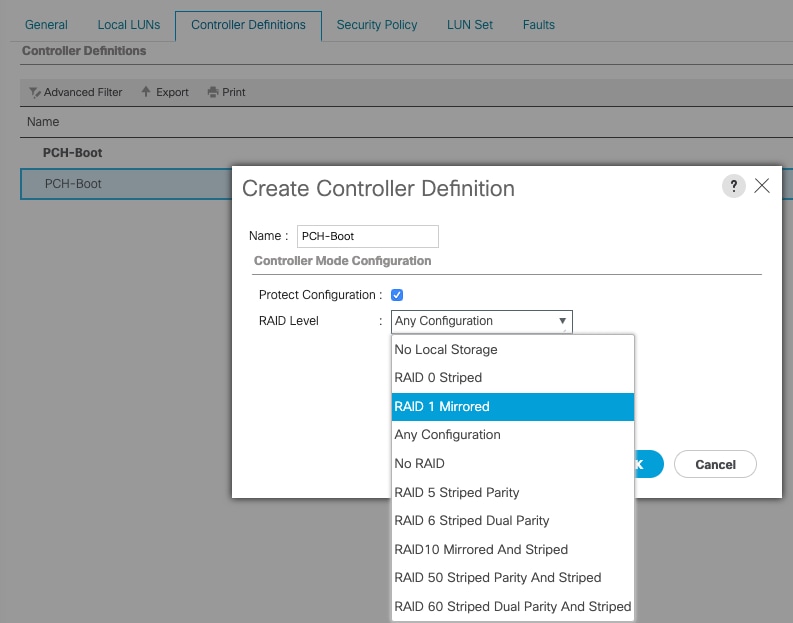

7.     Provide the following in the Create Controller Definition dialogue:

a.     Name: enter PCH-Boot.

b.     Leave Protect Configuration checked.

c.     From the RAID Level Configuration pull-down menu, choose RAID 1 Mirrored.

8.     Enter 1 as the size in GB.

9.     Check Expand to Available, this creates a single lun with maximum space available.

10.  Click OK and then click OK again to add the controller definition and complete storage profile creation.

Create Boot Policy

Cisco UCS Boot Policies define the boot devices used by blade and rack-mount servers, and the order that they are attempted to boot from. Cisco UCS C-Series M5 generation rack-mount servers which run the ScaleProtect Platform have their operating system installed to a pair of internal M.2 SSD boot drives, therefore they require a unique boot policy defining that the servers should boot from that location. In addition, a local CD/DVD boot option is included to allow the server to search for the installation ISO media during the installation steps.

To configure the Boot Policy, follow these steps:

1.     In Cisco UCS Manager, click Server within the Navigation Pane, and select Policies from within the Server pull-down options.

2.     Select root > Sub-Organizations > CV-ScaleProtect > Boot Policies.

3.     Right-click Boot Policies and select Create Boot Policy.

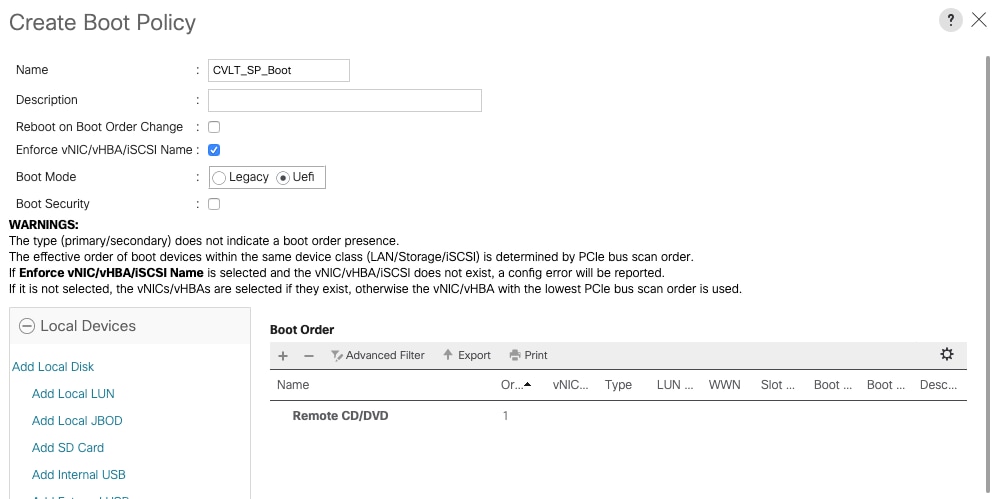

4.     Enter CVLT_SP_Boot as the name of the boot policy.

5.     Optional: Enter a description for the boot policy.

6.     Click the Uefi radio button to change the boot mode.

7.     Keep the Reboot on the Boot Order Change check box unchecked.

8.     Expand the Local Devices drop-down list and Choose Add Remote CD/DVD.



9.     Click Add Embedded Local LUN.

10.  Click OK and click OK again to create the Boot Policy.

Cisco UCS C240 Service Profile Template

Service profile template configuration for the Cisco UCS C240 server nodes is explained in this section.

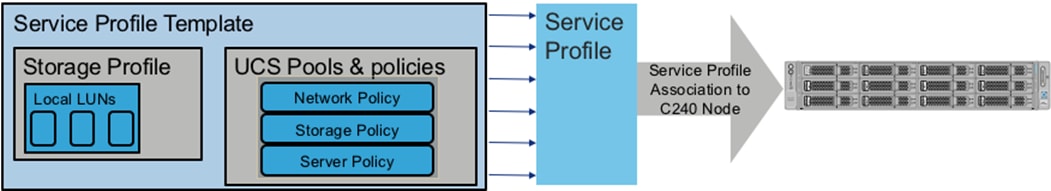

Create Service Profile Template

With a service profile template, you can quickly create several service profiles with the same basic parameters, such as the number of vNICs and vHBAs, and with identity information drawn from the same pools.

For example, if you need several service profiles with similar values to configure servers to host Commvault software in a cluster, you can create a service profile template, either manually or from an existing service profile. You then use the template to create the service profiles.

Cisco UCS supports the following types of service profile templates:

·       Initial template: Service profiles created from an initial template inherit all the properties of the template. However, after you create the profile, it is no longer connected to the template. If you need to make changes to one or more profiles created from this template, you must change each profile individually.

·       Updating template: Service profiles created from an updating template inherit all the properties of the template and remain connected to the template. Any changes to the template automatically update the service profiles created from the template.

To create the service profile template, follow these steps:

1.     In Cisco UCS Manager, click the Servers tab in the navigation pane.

2.     Select Service Profile Templates > root > Sub-Organizations > CV-ScaleProtect.

3.     Right-click CV-ScaleProtect.

4.     Select Create Service Profile Template to open the Create Service Profile Template wizard.

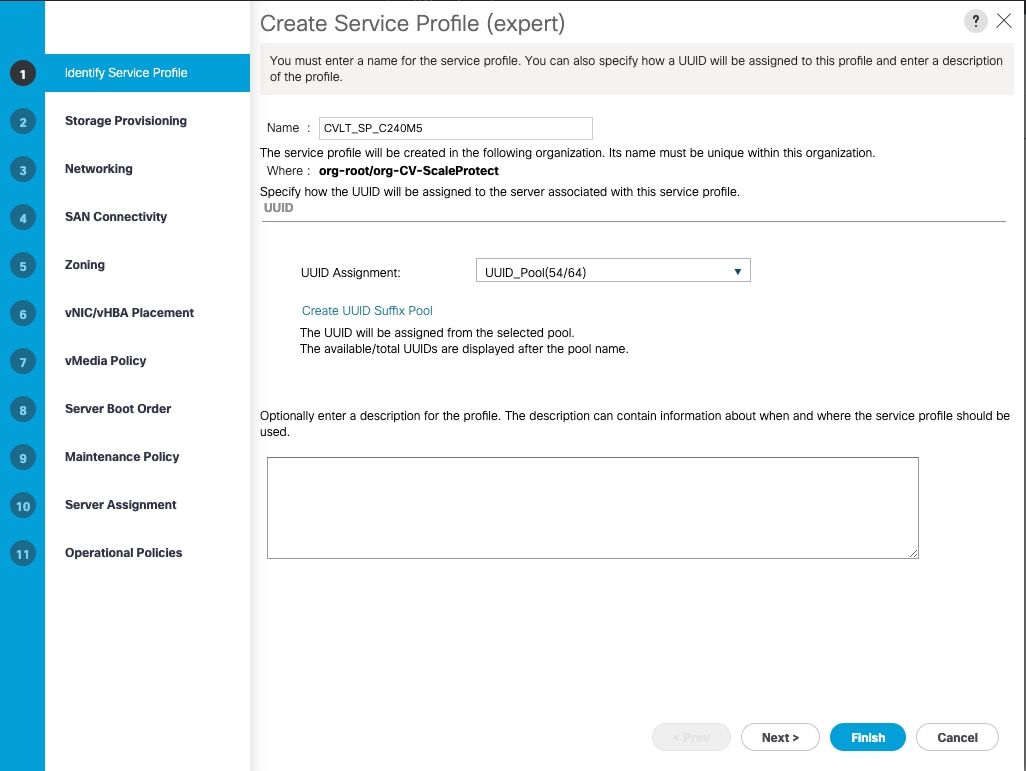

5.     Enter CVLT_SP_C240M5 as the name of the service profile template.

6.     Select the Updating Template option.

7.     Under UUID, select UUID_Pool as the UUID pool.

8.     Click Next.

Configure Storage Provisioning

To configure the storage provisioning, follow these steps:

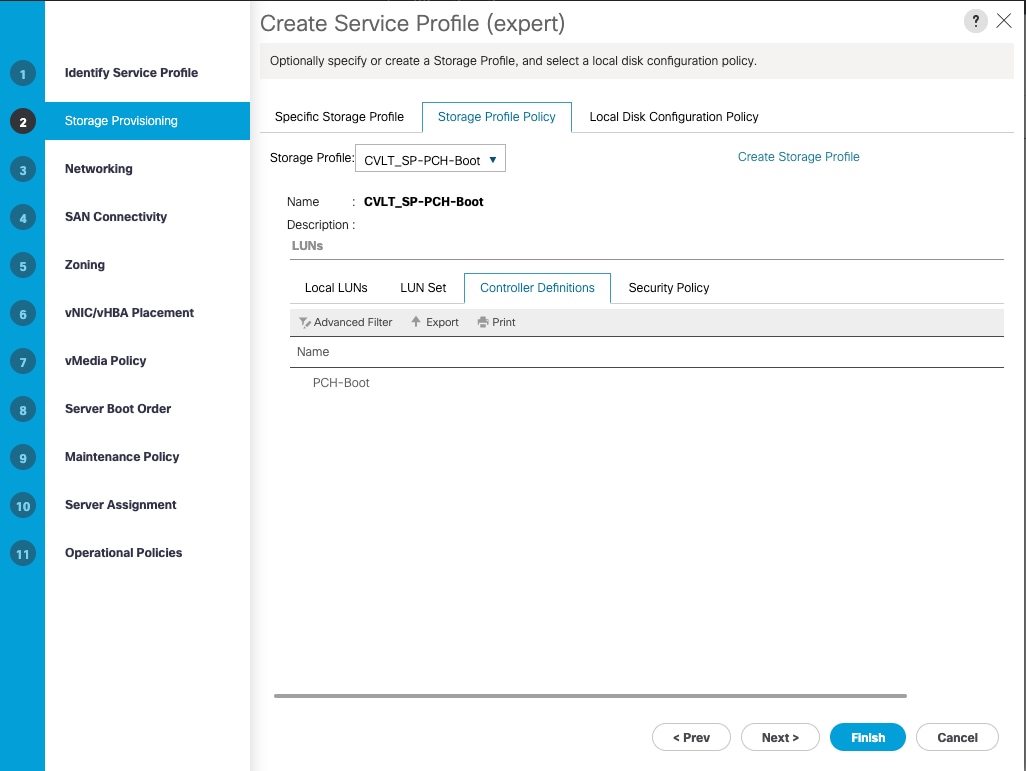

1.     Click Storage Profile Policy Tab and select CVLT_SP-PCH-Boot (as created under Storage Profile section).



2.     Click Next.

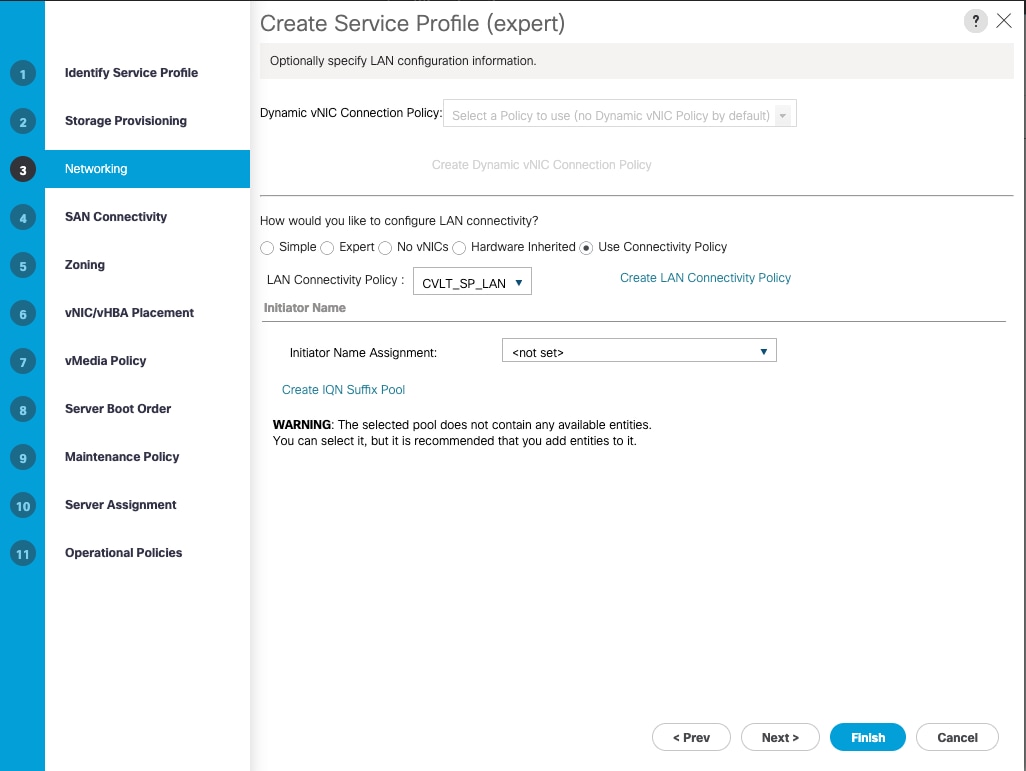

Configure Networking Options

To configure the networking options, follow these steps:

1.     Keep the default setting for Dynamic vNIC Connection Policy.

2.     Select the Use Connectivity Policy option to configure the LAN connectivity.

3.     Select CVLT_SP_LAN as the LAN connectivity policy.

4.     Click Next.

Configure Storage Options

To configure the storage options, follow these steps:

1.     Select the “No vHBA” option for the “How would you like to configure SAN connectivity?” field.

2.     Click Next.

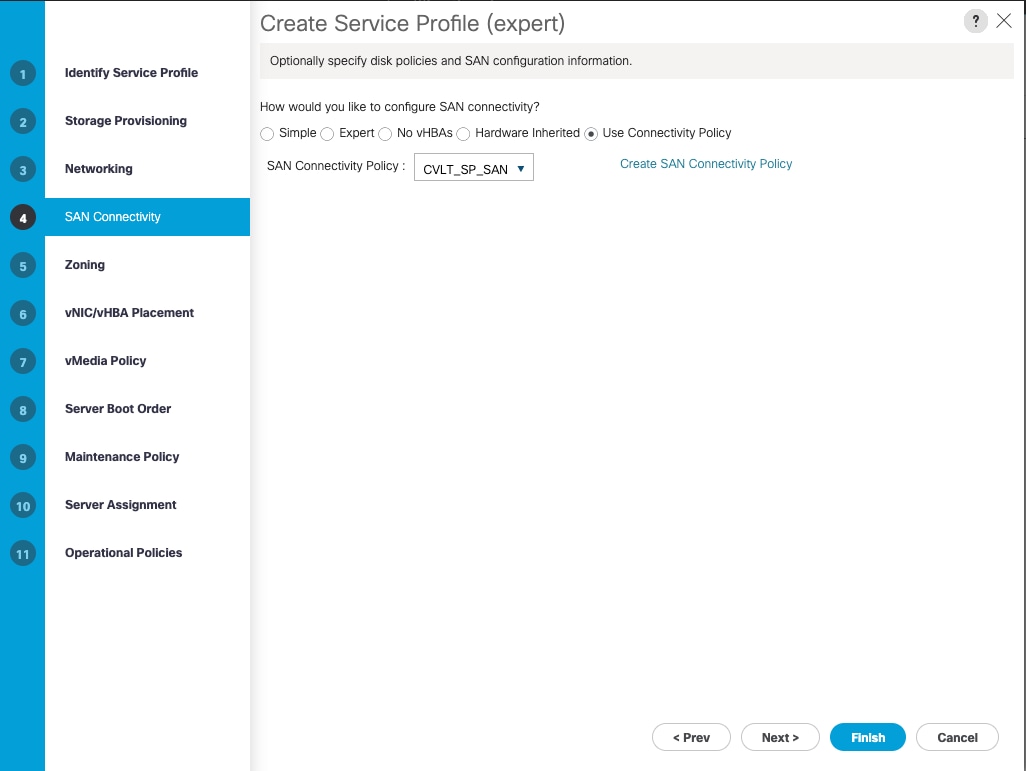

3.     In the SAN connectivity section, select Use Connectivity Policy in “How would you like to configure SAN connectivity?” field.

4.     Select CVLT_SP_SAN as the SAN connectivity policy. Click Next.

Configure Zoning Options

To configure the zoning options, follow these steps:

1.     It is not necessary to configure any Zoning options.

2.     Click Next.

Configure vNIC/HBA Placement

To configure the vNIC/HBA placement, follow these steps:

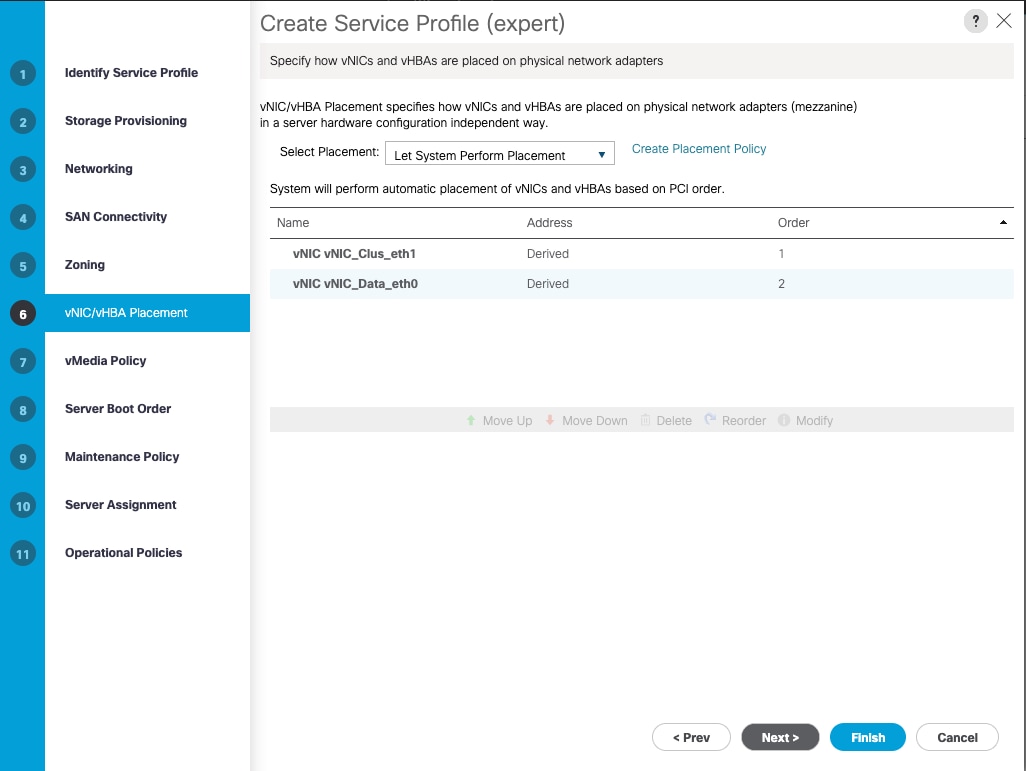

1.     In the Select Placement list, leave the placement policy as Let System Perform Placement.

2.     Click Next.

Configure vMedia Policy

To configure the vMedia policy, follow these steps:

1.     From the vMedia Policy, leave as default.



2.     Click Next.

Configure Server Boot Order

To configure the server boot order, follow these steps:

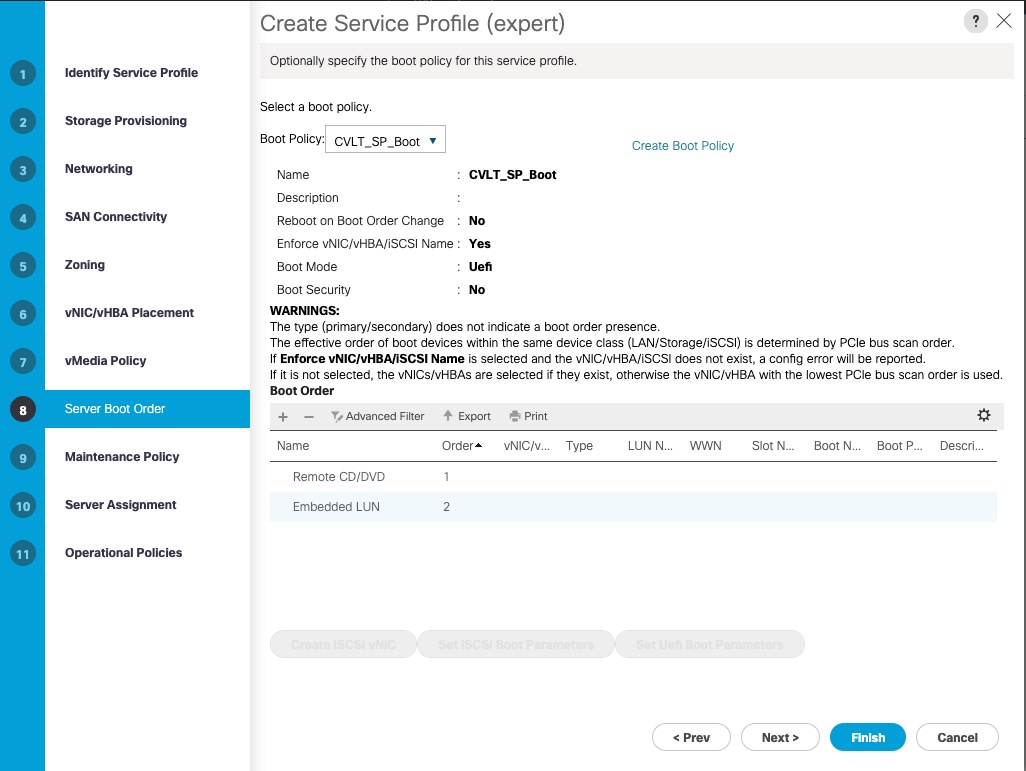

1.     Choose CVLT_SP_Boot as the Boot Policy that was created earlier.

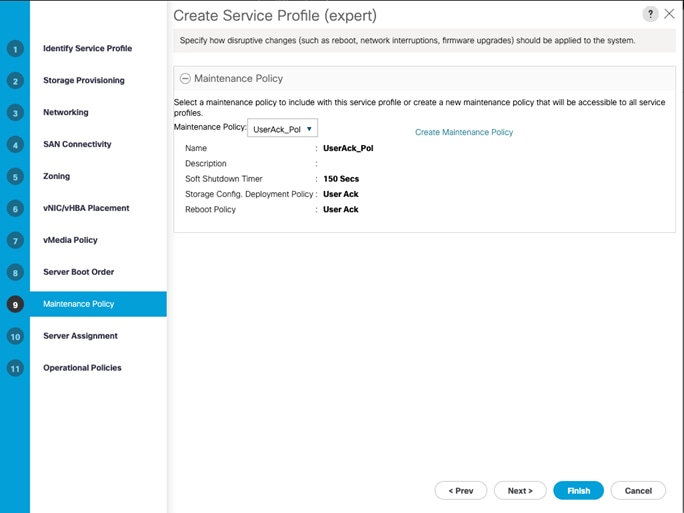

Configure Maintenance Policy

To configure the maintenance policy, follow these steps:

1.     Change the Maintenance Policy to UserAck_Pol.



2.     Click Next.

Configure Server Assignment

To configure server assignment, follow these steps:

1.     In the Server Assignment section, select the server pool created earlier.



2.     Expand Firmware Management at the bottom of the page and select CV_SP_Firmware as created in the previous section.

3.     Click Next.

Configure Operational Policies

To configure the operational policies, follow these steps:

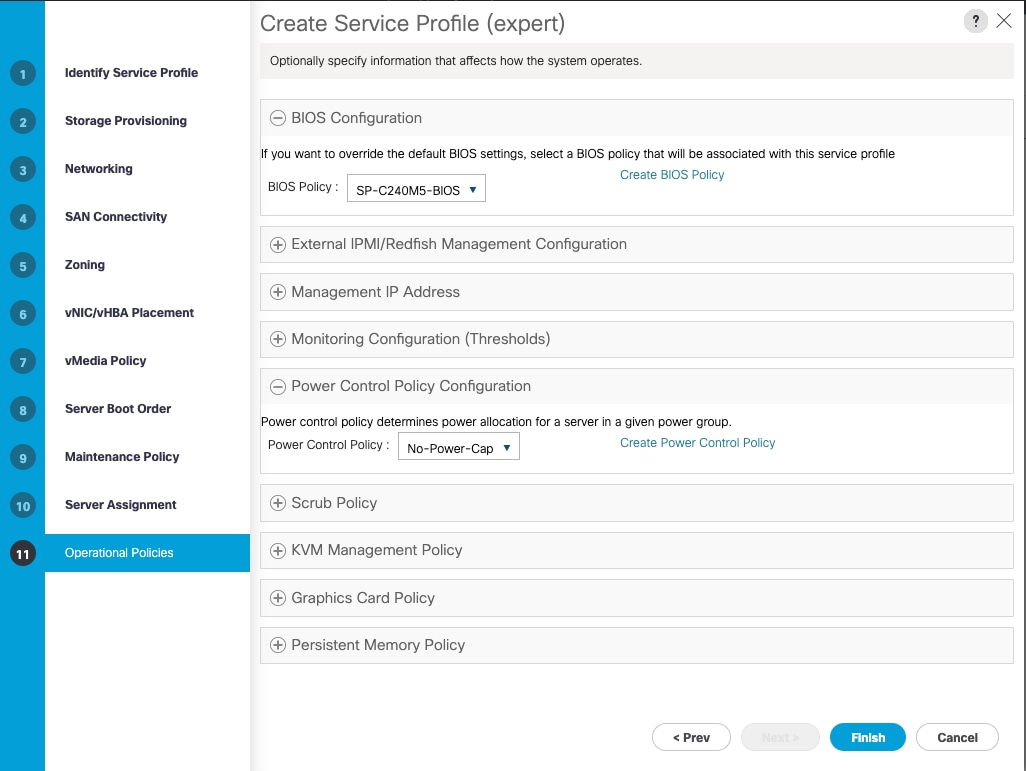

1.     In the BIOS Policy list, select SP-C240M5-BIOS.

2.     Expand Power Control Policy Configuration and select No-Power-Cap in the Power Control Policy list.

3.     Click Finish to create the service profile template.

4.     Click OK in the confirmation message to complete service profile template creation for first server nodes in the chassis.

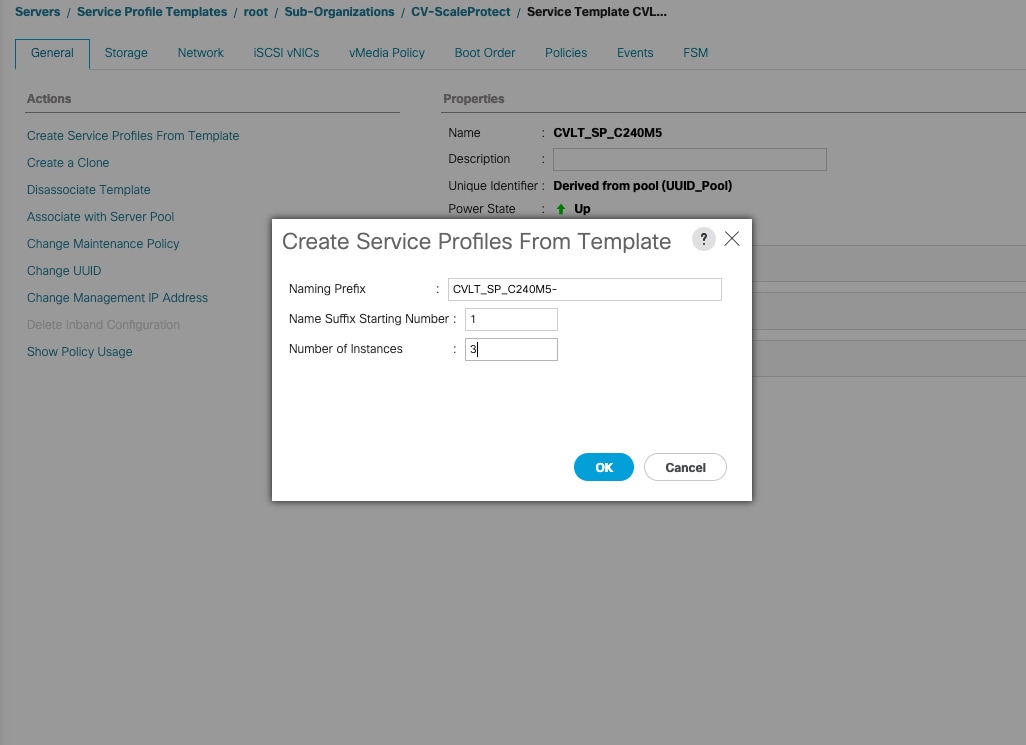

Create Service Profiles

This section describes how to associate the Cisco UCS C240 Compute Node to a Service Profile.

To create service profiles from the service profile template, follow these steps:

1.     On Servers tab in the navigation pane.

2.     Select Service Profile Templates > root > Sub-Organizations > CV-ScaleProtect > Service Template > CVLT_SP_C240M5.

3.     Right-click CVLT_SP_C240M5 Template and select Create Service Profiles from Template.

4.     Enter CVLT_SP_C240M5- as the service profile prefix.

5.     Enter 1 as “Name Suffix Starting Number.”

6.     Enter 3 as the “Number of Instances.”

7.     Click OK to create the service profiles.

8.     Click OK in the confirmation message.

9.     If a warning displays, click Yes.

10.  When Service Profile Association is complete, confirm that the overall status is OK.

11.  Verify the Controller Definition is added under Storage tab of Service Profile.

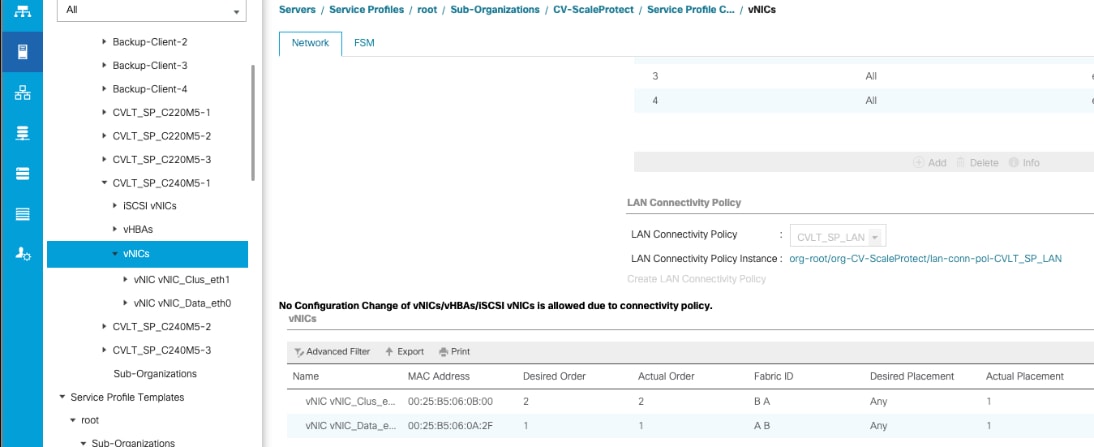

12.  Verify Service Profile has 2 vNICs.



This section explains the Commvault HyperScale installation and configuration on Cisco UCS C240 M5 Servers.

To install and configure the Commvault HyperScale software, follow these steps:

1.     Open a web browser and navigate to the Cisco UCS 6454 fabric interconnect cluster address.

2.     Under HTML, click the Launch UCS Manager link to launch the Cisco UCS Manager HTML5 User Interface.

3.     When prompted, enter admin as the user name and enter the administrative password.

4.     Click Login to log into Cisco UCS Manager.

5.     From the main menu, click the Servers tab.

6.     Select Servers > Service Profiles > root > Sub-Organizations > CV-ScaleProtect > CVLT_SP_C240M5-1.

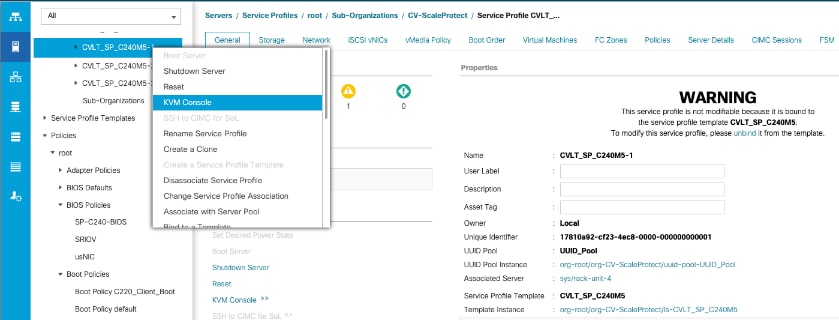

7.     Right-click CVLT_SP_C240M5-1and select KVM Console.

8.     If prompted to accept an Unencrypted KVM session, accept as necessary



9.     Attach the ISO to the server node using the KVM.

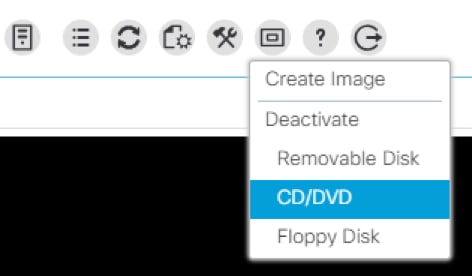

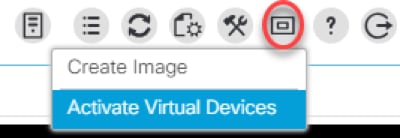

10.  Click the Virtual Media icon and now select CD/DVD and browse to where the ISO is located, then click Map Device.

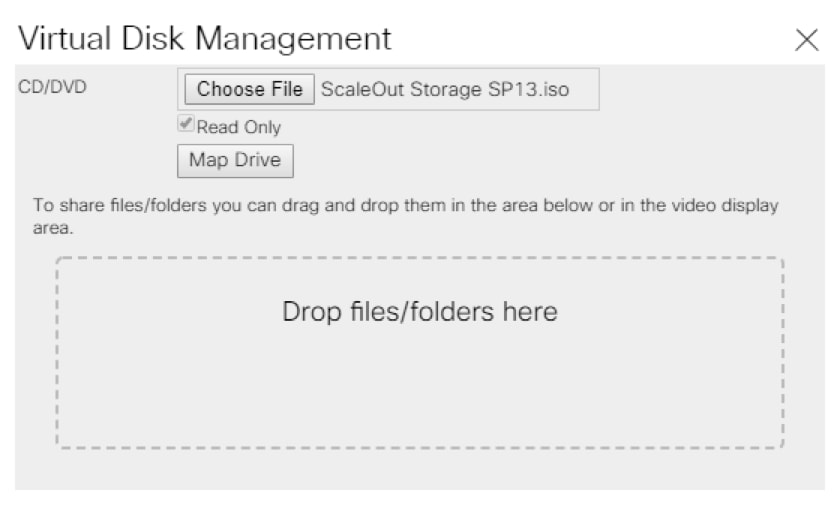

11.  Click Chose file and browse to the Commvault HyperScale ISO, then click Map Drive.

12.  Click the Server icon, then click Reset.

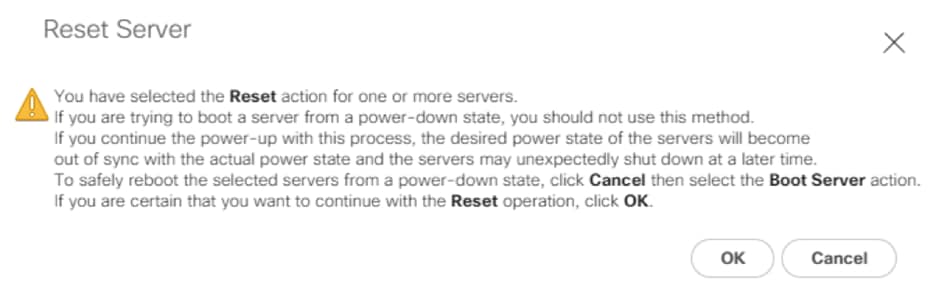

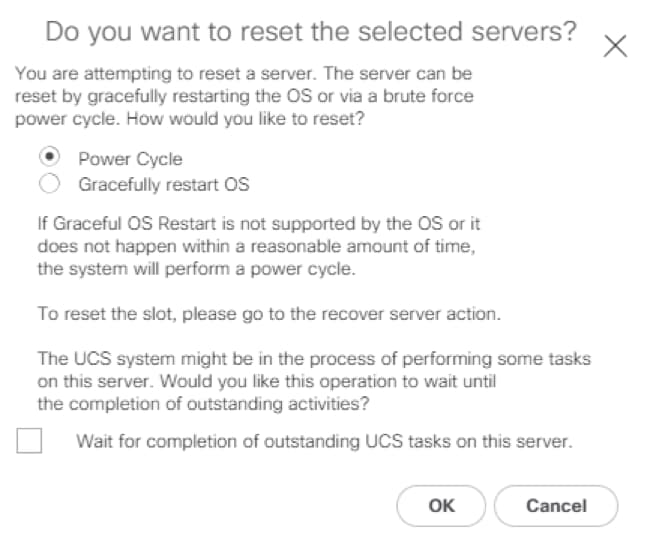

13.  On the Reset Server pop up, click OK.

14.  Select Power Cycle, then click OK.

15.  As the server is coming up, at the main screen, press F6 to enter the boot menu.

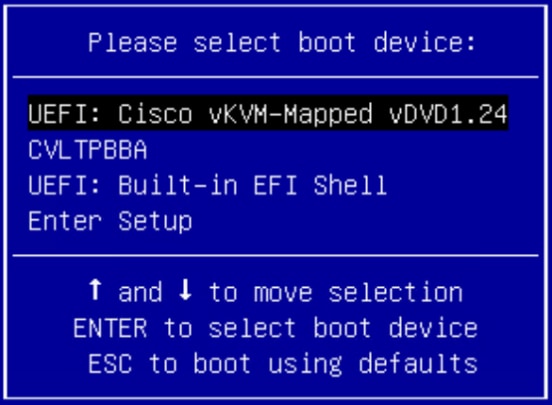

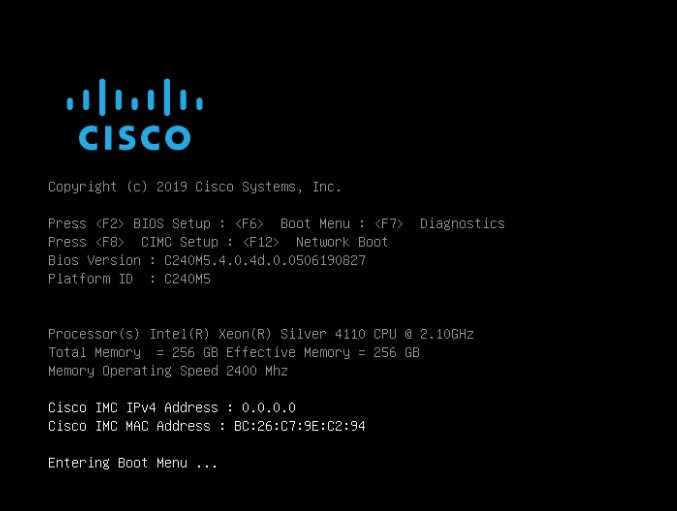

16.  When the boot menu appears select Cisco vKVM-Mapped vDVD.

17.  Once the ISO loads, it will start the install automatically in 30 seconds, or press Enter to start immediately.

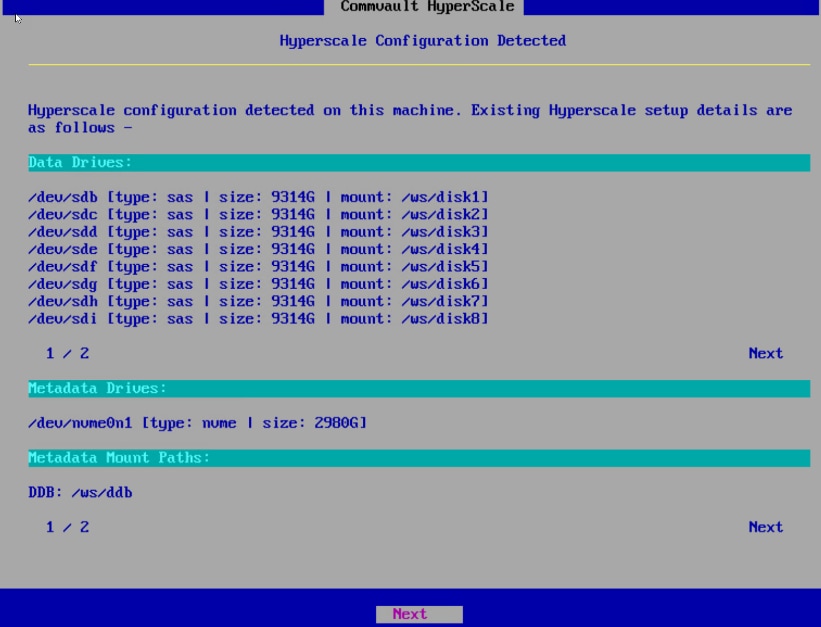

18.  The first screen will come up and show the drives detected for the storage and the accelerated cache metadata, in the case of the UCS C240, it sees the Data drives (in this case the 10TB drives, and it shows it found 12 (1/12) and also found the NVMe cache of 3.2TB. Press Tab to select Next at the bottom to continue.

19.  Select the option to Reinitialize Drives. Press tab to select Next at the bottom, then press Enter.

20.  Select Control Node and select Multi Node Installation then press the Tab button to move down to Next. Before hitting Enter, see the next step.

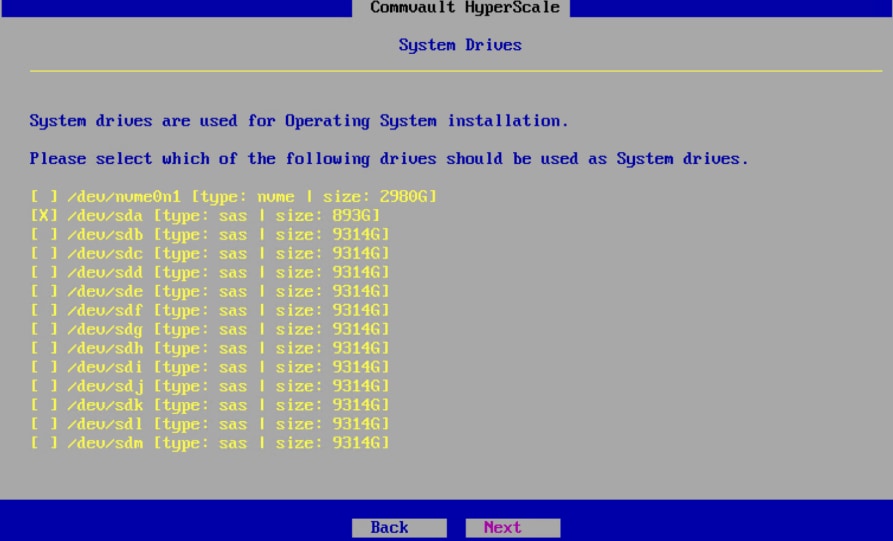

21.  On the System Drives screen, select the 893GB Drive (the 2 x M.2 960GB RAID1 drive), for the OS, then use Tab to select Next and press Enter.

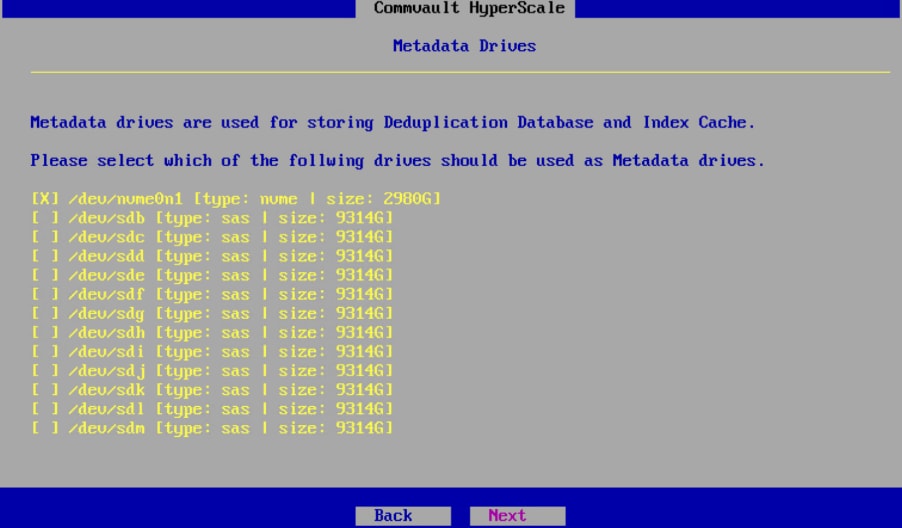

22.  On the MetaData Drives screen, select the 2980GB Drive (the 3.2TB NVMe) for the DDB and Index Cache, then press tab to select Next, then press Enter.

23.  On the Data Drives screen, the remaining drives should be selected, press Tab to select Next at the bottom, then press Enter.

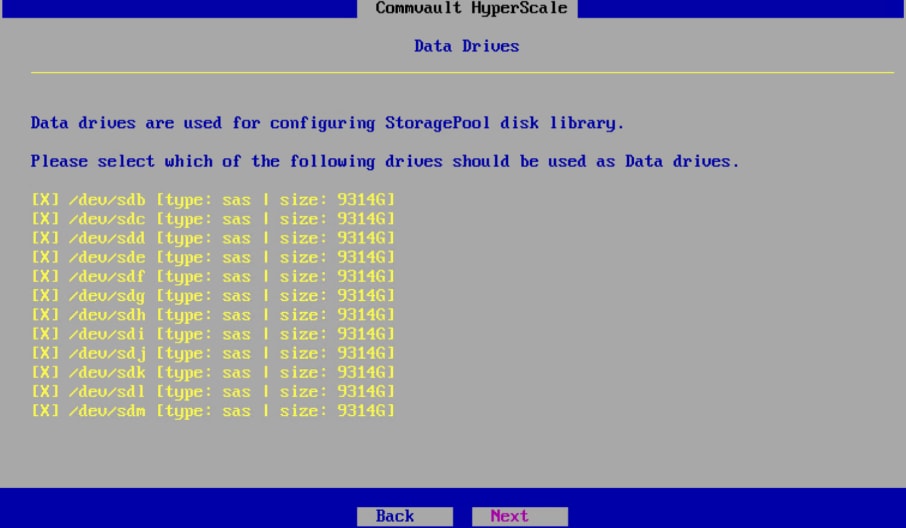

24.  On the Configuration Summary screen, the selected drives will be displayed. Press Tab to select Apply, then press Enter.

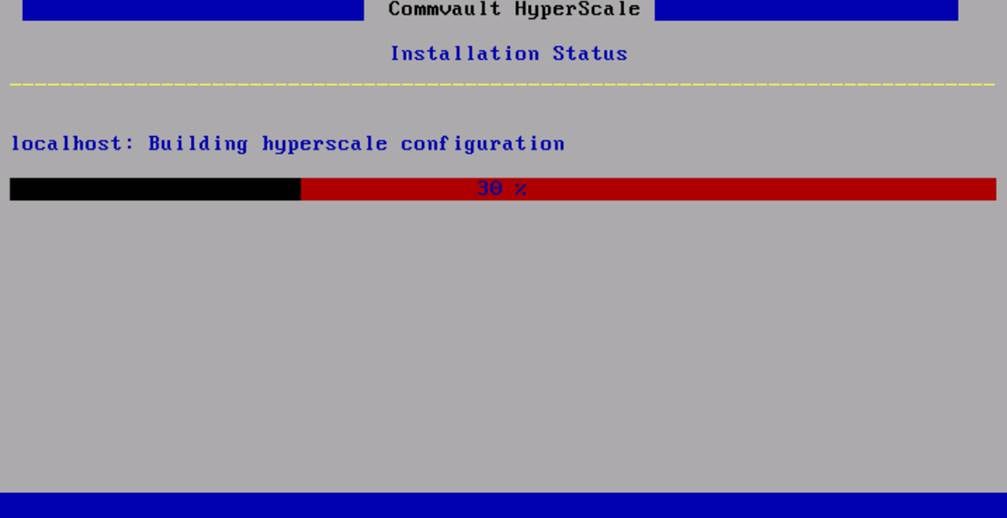

The Commvault HyperScale OS installation will now begin.

If using the Non Multi Node Installation option, the screen will look as follows:

If using the Multi Node Installation option, the screen will look as follows:

25.  The OS install is now complete, select Finish and press Enter.

26.  Completed install screen for the Non- Multi Node Installation is shown below. Repeat steps 1-25 on the remaining nodes before continuing.

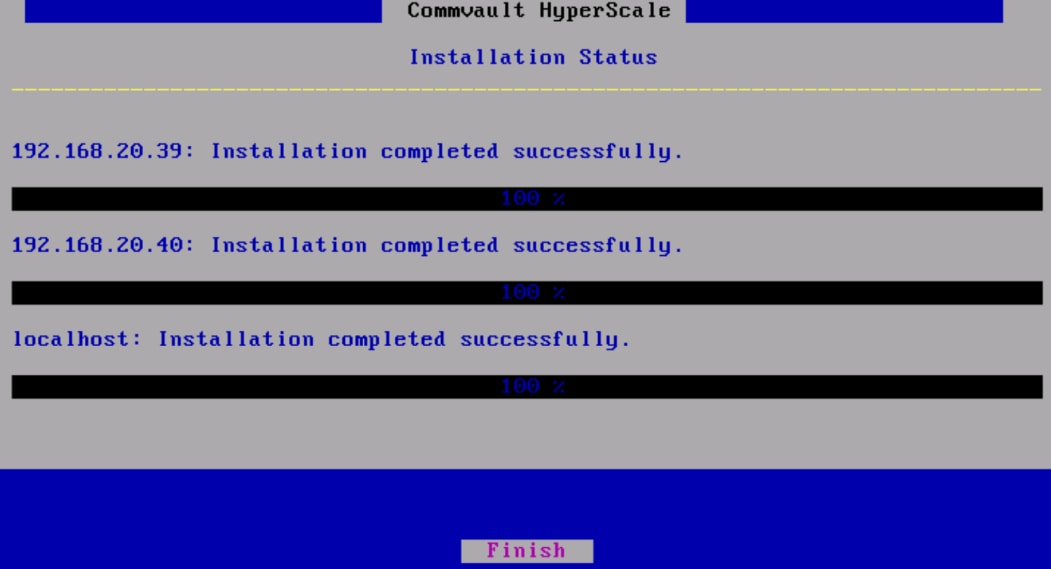

27.  Completed install screen for the Multi Node Installation.

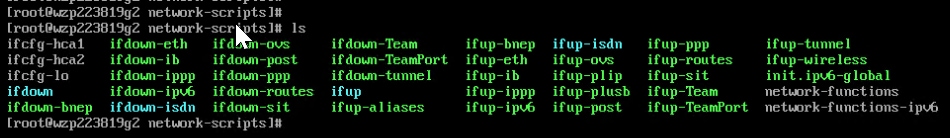

28.  Allow the server to reboot and Linux to start up. At the login screen, the default login is root and the password is cvadmin. When using UCS Manager, the networking must be configured first. To do this from the prompt change to the /etc/sysconfig/network-scripts directory and type ls then enter. You will see a few files beginning with ifcfg-XXXXX. These are the network interface configuration files (in this case ifcfg-hca1 and ifcfg-hca2). The ifcfg-lo is the loopback adapter and we do not need to touch this one.

29.  Type ifconfig, then enter, to see the network interfaces. In this case they are enp63s0f0 and enp63s0f1 (lo is the loopback interface). Also note the MAC address for each interface beside the word ether (in our case 00:25:b5:06:0a:2f and 00:25:b5:06:0b:00)

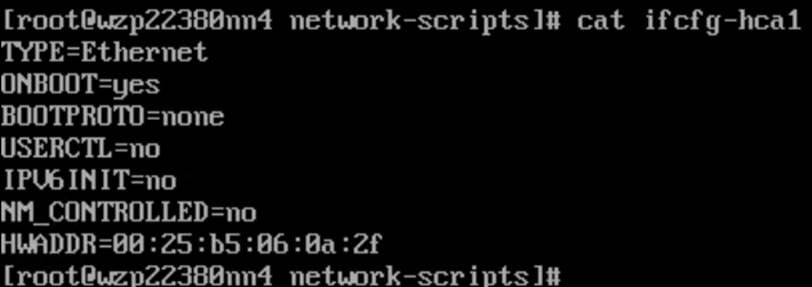

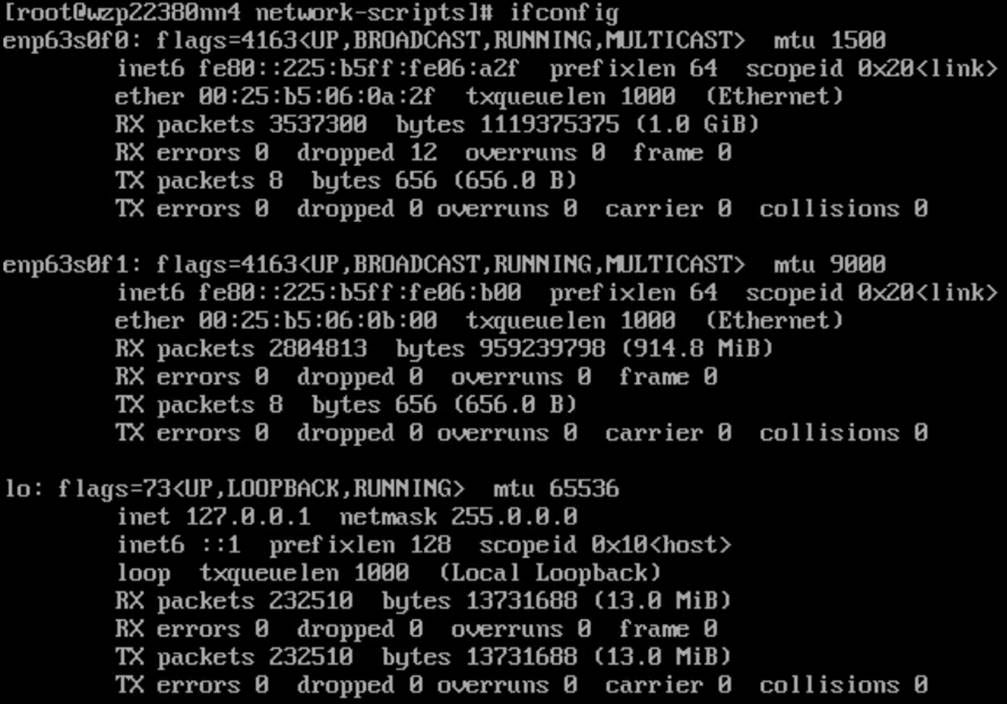

30.  Type cat ifcfg-hca1 to view the contents of the file. Look for the MAC address on the HWADDR line and match it to the interface from the previous step. In the below example it is 00:25:b5:06:0a:2f which matches the interface enp63s0f0 above, so this is the configuration file for that interface. Which means that ifcfg-hca2 is the configuration file for interface enp63s0f1, which can be verified by viewing that file with the cat command and looking at the MAC address in that file.

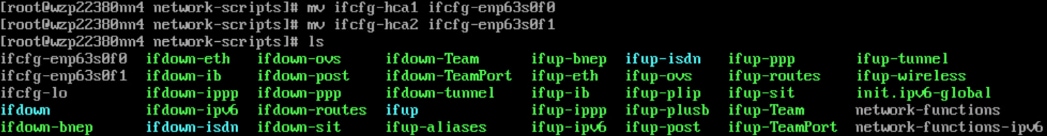

31.  Change the ifcfg files to match the interface names by using the mv command (for example, mv ifcfg-hca1 ifcfg-enp63s0f0). Then use the ls command to verify.

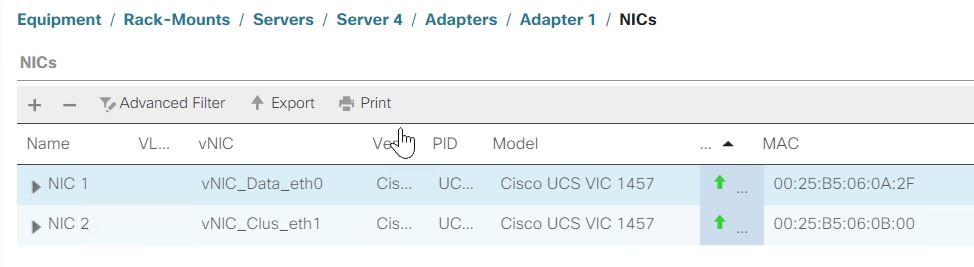

32.  Verify in Cisco UCS Manager which NIC is for Data and which one is for the Cluster. From below by the description in UCS Manager we can see that NIC 1 with MAC address 00:25:b5:06:0a:2f (enp63s0f0) is the data NIC, and NIC 2 is the cluster NIC.

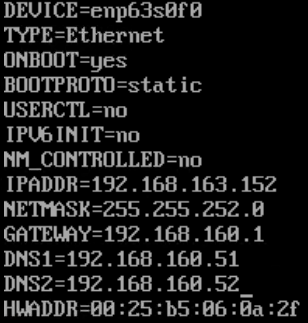

33.  Modify the ifcfg-enp63s0f0 file as per below, entering the device, IP address, default gateway, subnet mask, DNS server(s) and set the IP to static. This will be the Data network IP address.

.

34.  Modify the ifcfg-enp63s0f1 file as per below, entering the device, IP address, default gateway, subnet mask, DNS server(s) and set the IP to static. Depending on the network configuration, you may not need a DNS or gateway IP address. This will be the Cluster network IP address.

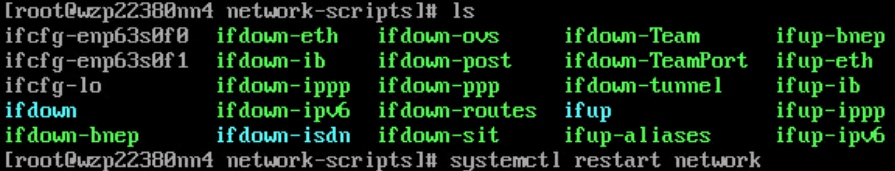

35.  Once modified, type in the systemctl restart network command to restart the networking on the server.



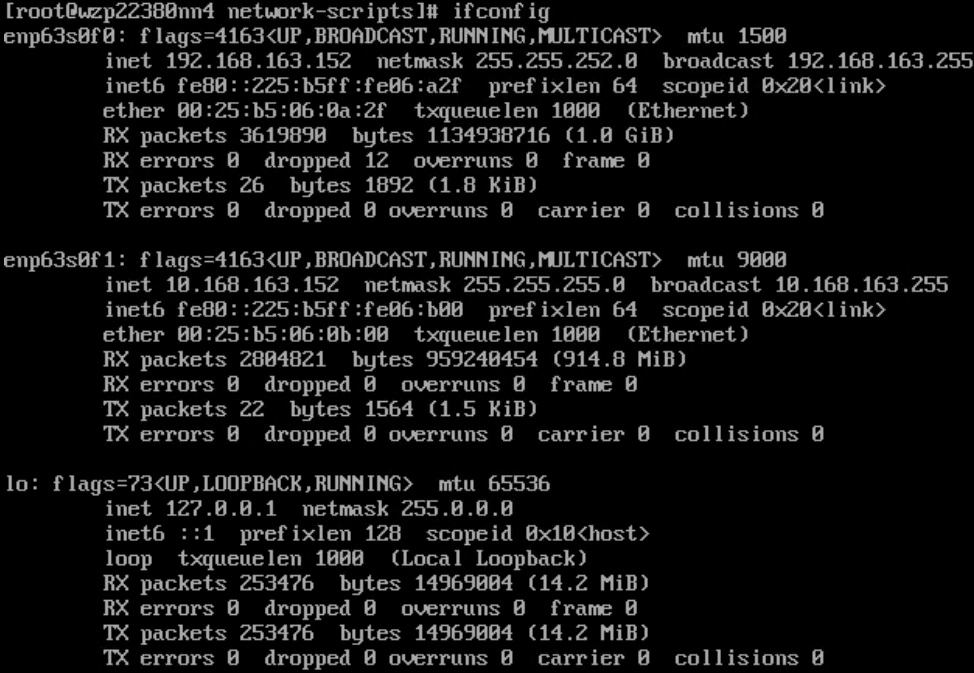

36.  Type ifconfig to verify the IP addresses are now assigned to the interfaces.

37.  Change the directory to /opt/commvault/MediaAgent and type the following command ./setupsds

38.  Enter the hostname of the server (use a FQDN if this will be part of a domain) and enter a new password, then use the arrow keys to select OK.

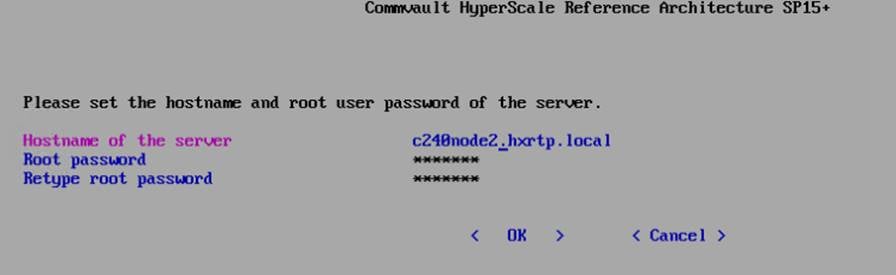

39.  Select Skip to skip the network configuration since this was already completed in the previous steps.

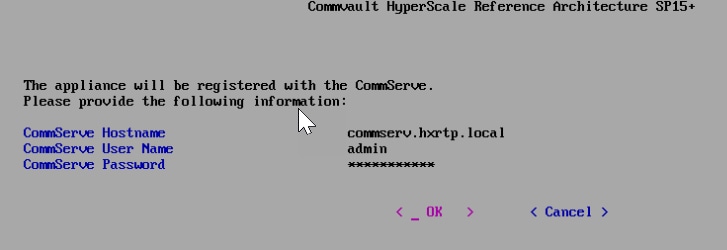

40.  Enter the CommServe information, then select OK.

41.  The server is now registered with the Commserve.

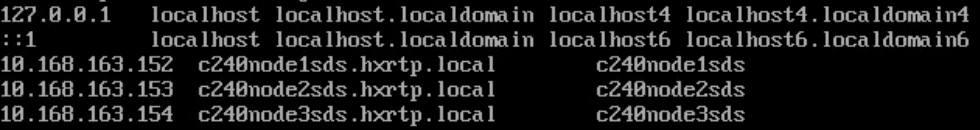

42.  Commvault appends a suffix of “sds” to the node names, for example our name of c240node1.hxrtp.local will use c240node1sds.hxrtp.local for the inter-cluster communication. You may want to put these inter-cluster names into the hosts file on each server.

43.  Repeat steps 1-42 on the remaining nodes.

44.  Once the final node has completed successfully, log on to the Command Center to complete the installation.

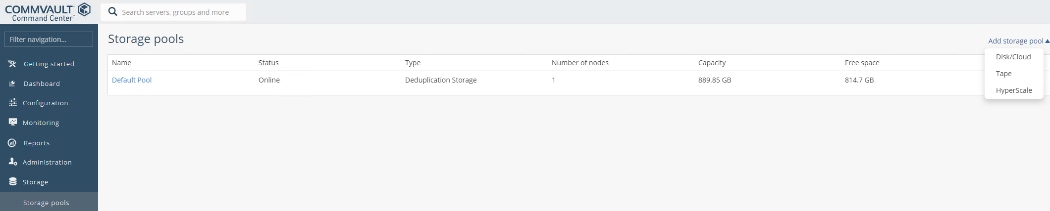

45.  On the left pane, click Storage, then Storage pools, click Add storage pool and select HyperScale.

46.  On the Create HyperScale storage pool page, enter a name for the pool, select the desired Resiliency/Redundancy factor and then click Configure.

47.  Standard – 3 Nodes, Disperse factor 6, Redundancy factor 2. Withstands loss of 2 drives or 1 node.

48.  Medium – 6 Nodes, Disperse factor 6, Redundancy factor 2. Withstands loss of 2 drives or 2 nodes.

49.  High – 6 Nodes, Disperse factor 12, Redundancy factor 4. Withstands loss of 4 drives or 2 nodes.

50.  The Storage Pool will get created. It will show “Scale-out pool creation in progress” with 0 capacity for a few minutes as there is a background process that runs to create the gluster file system then bring it online. As part of the Storage Pool creation, the disk library will be created along with a Global dedup policy.



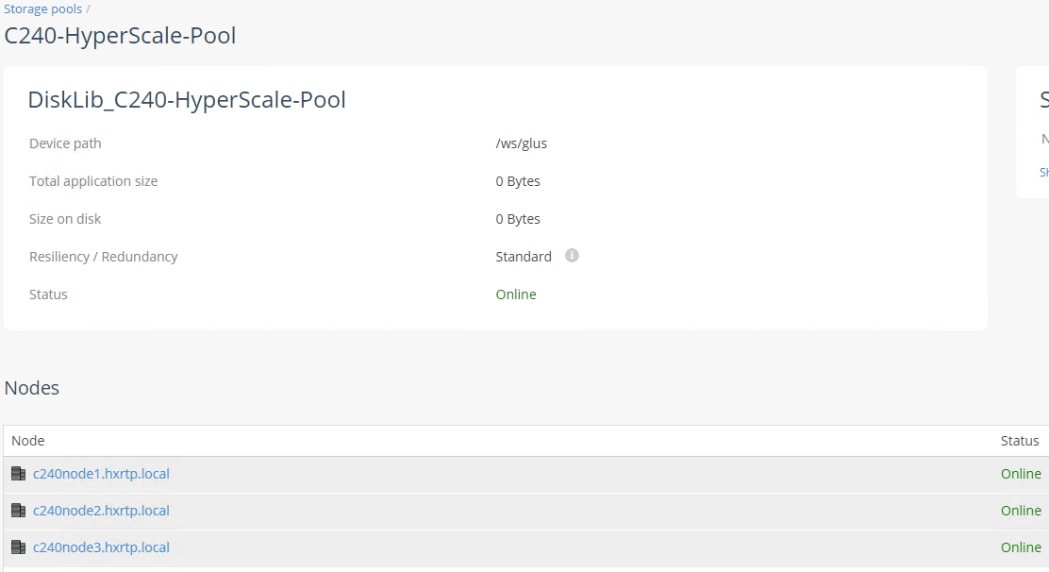

51.  Click the newly created HyperScale Pool and verify that the pool and all nodes show as online. The HyperScale Pool is now ready for use.

Post Install Checklist

The following redundancy checks can be performed to verify the robustness of the system. Network traffic, such as a continuous ping from backup client or CommServe to ScaleProtect Cluster IP address, which should not show significant failures (one or two ping drops might be observed at times). Also, all of the Storage Pools must remain mounted and accessible from all the hosts at all times.

·       Administratively disable one of the server ports on Fabric Interconnect A which is connected to one of the ScaleProtect hosts. The Data protection vNIC active on that Fabric Interconnect should failover to Fabric Interconnect B. Upon administratively re-enabling the port, the vNIC should return to normal state by failing back to the Fabric Interconnect A.

·       Administratively disable one of the server ports on Fabric Interconnect B which is connected to one of the ScaleProtect hosts. The Cluster vNIC active on that Fabric Interconnect should failover to Fabric Interconnect B. Upon administratively re-enabling the port, the vNIC should return to normal state by failing back to the Fabric Interconnect B.

·       Place a representative load of backup on the system. Log on to one of the nodes and shutdown the services (commvault stop). The backup operations and the access to storage pool should not be affected.

·       Log into the node and start the services (commvault start). The ScaleProtect cluster will show as healthy after a brief time after starting the services on that node. HyperScale should rebalance the VM distribution across the cluster over time.

·       Reboot one of the two Cisco UCS Fabric Interconnects while traffic is being sent and received on the ScaleProtect storage pool and the network. The reboot should not affect the proper operation of storage pool access and network traffic generated by the backup clients. Numerous faults and errors will be noted in Cisco UCS Manager, but all will be cleared after the FI comes back online.

Products and Solutions

Cisco Unified Computing System:

http://www.cisco.com/en/US/products/ps10265/index.html

Cisco UCS Fabric Interconnects:

https://www.cisco.com/c/en/us/products/servers-unified-computing/fabric-interconnects.html

Cisco UCS S-Series Storage Servers

https://www.cisco.com/c/en/us/products/servers-unified-computing/ucs-s-series-storage-servers/index.html

Cisco UCS C-Series Rack Servers:

http://www.cisco.com/c/en/us/products/servers-unified-computing/ucs-c-series-rack-servers/index.html

Cisco UCS Adapters:

http://www.cisco.com/en/US/products/ps10277/prod_module_series_home.html

Cisco UCS Manager:

http://www.cisco.com/en/US/products/ps10281/index.html

Cisco Nexus 9000 Series Switches:

http://www.cisco.com/c/en/us/support/switches/nexus-9000-series-switches/tsd-products-support-series-home.html

Commvault Complete Backup and Recovery:

https://www.commvault.com/solutions/by-function/data-protection-backup-and-recovery

Commvault HyperScale Software:

https://www.commvault.com/solutions/by-function/cloud-and-infrastructure-management/hyperscale

ScaleProtect with Cisco UCS:

https://www.commvault.com/solutions/by-technology/infrastructure/cisco-ucs/scaleprotect

Sreenivasa Edula, Technical Marketing Engineer, Cisco UCS Data Center Solutions Engineering, Cisco Systems, Inc.

Sreeni is a Technical Marketing Engineer in the UCS Data Center Solutions Engineering team focusing on converged and hyper-converged infrastructure solutions, prior to that he worked as a Solutions Architect at EMC Corporation. He has experience in Information Systems with expertise across Cisco Data Center technology portfolio, including DC architecture design, virtualization, compute, network, storage and cloud computing.

Acknowledgements

·       Ulrich Kleidon, Cisco Systems, Inc.

·       Samuel Nagalingam, Cisco Systems, Inc.

·       Julio Calderon, Commvault Systems, Inc.

·       Bryan Clarke, Commvault Systems, Inc.

NOTE: Available paragraph styles are listed in the Quick Styles Gallery in the Styles group on the Home tab. Alternatively, they can be accessed via the Styles window (press Alt + Ctrl + Shift + S).
