Routed Optical Networking

This chapter provides an overview of Routed Optical Networking, its benefits, and supported deployment models.

Routed Optical Networking

Benefits of Routed Optical Networking

Routed Optical Networking

  • simplifies complex multilayer networks by collapsing network layers and minimizing the functional overlap

  • improves overall network efficiency by optimizing each layer of the network, and

  • integrates open data models and standard APIs, enriching powerful automation.

Routed Optical Networking offers improvements and simplification because it

  • uses modern optical and routing technologies to converge services over an IP infrastructure connected by a simplified DWDM layer

  • merges IP and private line services onto a single unified IP layer

  • simplifies end-to-end network architecture

  • utilizes a modern software stack that spans across network management and control planes

  • improves the capacity and cost efficiency of networks

  • has a smaller carbon footprint

  • offers unified capacity planning, unified EMS, unified path optimization, orchestration, and assurance

  • provides an automation ecosystem with open, programmable, and modular components, and

  • provides savings on Total Cost of Ownership (TCO) across CapEx and OpEx.

Components of Routed Optical Networking

Routed Optical Networking uses these components:

  • High-density Cisco routers

  • High-capacity ZR or ZR+ pluggable digital coherent optics

  • Simplified DWDM line systems

  • End-to-end multi-layer automation

Legacy architecture and Routed Optical Networking architecture

Routed Optical Networking architecture unifies the WDM, OTN, and packet transport layers into a single, easy-to-control layer.

Figure 1. Routed Optical Networking strategy
Routed Optical Networking strategy

Agile Services Networking transport architecture

The Agile Services Networking architecture simplifies the network by converging services on a unified, automated infrastructure, providing scalability and agility for new services in the AI era and beyond. See Agile Services Networking.

Routed Optical Networking as part of Cisco’s Agile Services Networking architecture brings network simplification to the physical network infrastructure, just as EVPN and Segment Routing simplify the service and traffic engineering network layers. Routed Optical Networking collapses complex technologies and network layers into a more cost efficient and easy to manage network infrastructure.

Routed Optical Networking achieves this architecture by leveraging high-density routers, high-capacity digital coherent pluggable optical modules, simplified optical elements, and advanced automation capabilities. Components of Routed Optical Network are also fully compliant ROADM-based networks and can interoperate seamlessly with a mix or traditional transponders and Routed Optical Networking pluggable DCO.

The converged architecture enables

  • unified planning and design

  • seamless multi-layer provisioning

  • unified multi-layer management

  • end-to-end multi-layer and multi-domain network visibility

  • end-to-end network optimization for IP and private line services, and

  • convergence of IP and private line services on a single converged packet network infrastructure with guaranteed SLAs.

Comparison of legacy multilayered and Routed Optical Networking architectures

This table compares legacy multilayered and Routed Optical Networking architectures.

Table 1. Comparison of legacy multilayered and Routed Optical Networking architectures
Layered architecture Routed Optical Networking architecture
Trades off port density and capacity on router line cards for coherent optical transmission Higher port density and capacity on the router line cards using digital coherent pluggable optical modules
Proprietary components; noninteroperable Standards-based approach; interoperable across vendors
Siloed approach; separate control and management planes Common control and management planes for converged optical and IP layer
Manual service stitching necessary across network domains Enables end-to-end closed-loop automation and manageability

Independent capacity planning on IP and optical layers, where additional capacity is dimensioned on each layer separately leading to CapEx inefficiencies.

Unified capacity planning on a converged network optimizing CapEx investments

Routed Optical Networking architecture

Multilayer architecture

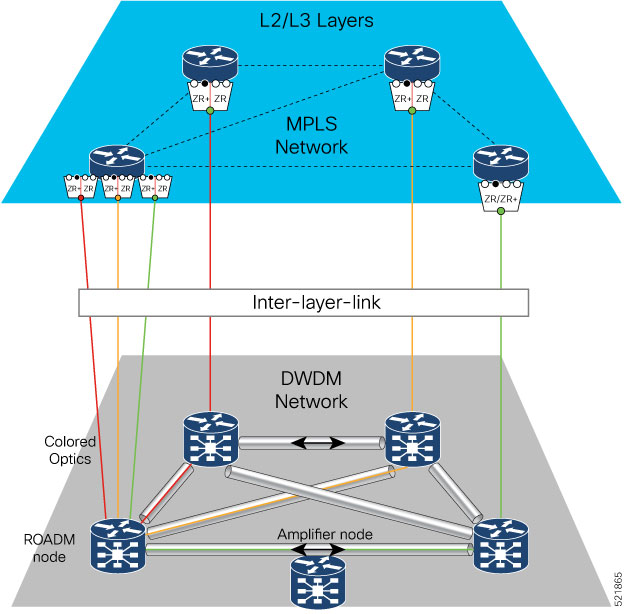

This diagram displays the current multilayer architecture.

Figure 2. Multilayer architecture
Multilayer architecture

Routed Optical Networking architecture

Routed Optical Networking is a transformative architecture that disrupts the existing multilayer network architecture. It converges all network services into a single layer.

The routers are connected through dark fiber or a DWDM network using standardized pluggable digital coherent optics, such as ZR and ZR+ transceivers. These transceivers reduce cabling, power consumption, and physical footprint compared to traditional external transponders.

With a single service layer based on IP, flexible management tools can leverage telemetry and model-driven programmability to streamline lifecycle operations. This simplified architecture integrates open data models and standard APIs, enabling a provider to focus on automation initiatives for a simpler topology.

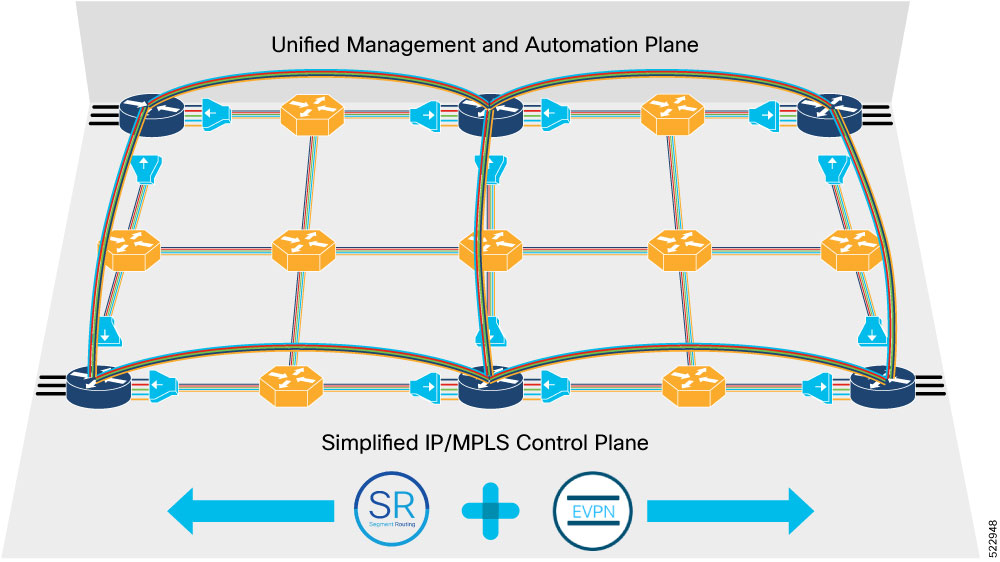

This diagram displays the Routed Optical Networking architecture.

Figure 3. Routed Optical Networking architecture
Routed Optical Networking architecture

Benefits of Routed Optical Networking

Routed Optical Networking has these benefits.

  • Cost Savings: Routed Optical Networking reduces the network's total cost of ownership. Routed Optical networks make the most efficient use of high capacity routers and DWDM optical infrastructure. The routers' high-capacity switching allows networks to achieve denser interconnection and move traffic protection to the IP layer. Routed Optical Networking saves costs by converging service layers, simplifying the DWDM optical system, and using industry-standard ZR and ZR+ pluggable digital coherent optics. Elimination of multiple layers reduces power usage and hardware footprint. End-to-end multi-layer automation enables better utilization of network capacity.

  • Simplification: Using Agile Services Networking technologies like Segment Routing, EVPN. and Routed Optical Networking simplifies networks from the base infrastructure layer to the services layer. Using Circuit-Style Segment Routing and Private Line Emulation, Routed Optical Networking allows providers to converge services while maintaining or exceeding existing private line service SLAs. This convergence leads to simplified planning, design, activation, management, and troubleshooting.

  • Automation: Automation enhances resiliency, improves failure detection, and simplifies repair processes. Enhanced multi-layer visibility and root cause analysis allow network operators to quickly discover and remedy faults. Troubleshooting is enhanced with rich network telemetry at each layer.

  • Optimize Capacity: Routed Optical Networking uses the IP layer's capability to statistically multiplex network traffic at the packet level. Statistical multiplexing efficiently carries network traffic, adapting to instantaneous traffic demands and avoiding idle link capacity. Routed Optical Networking networks utilize fiber capacity to its fullest by intelligently utilizing capacity at the IP layer instead of wasting DWDM resources with unnecessary bypass circuits.

Routed Optical Networking deployment models

There is no one-size-fits-all solution for deploying a new architecture. The approach depends on the structure of the network and the goals of its owner. Therefore, it is critical to have a flexible control platform that supports a phased deployment and a smooth evolution.

Routed Optical Networking deployment

When a new IP and optical network is deployed, the hardware, together with its control architecture – including Crosswork Hierarchical Controller, Crosswork Network Controller, and Cisco Optical Network Controller, are installed from scratch. Install Crosswork Hierarchical Controller ahead of time to prepare for Routed Optical Networking deployment. This helps in planning the network using accurate data on existing services, network, and fiber assets. See Automation Components.

Third-party optical network Routed Optical Networking deployment

When routers with ZR and ZR+ optics are deployed over networks that use third-party optical devices, Crosswork Hierarchical Controller is integrated with Crosswork Network Controller and the existing DWDM optical controllers. Crosswork Hierarchical Controller creates IP links between the routers by configuring the optical path through the optical controllers and terminates those paths on the DWDM transceivers in the routers.

What's new in Routed Optical Networking 4.0

Feature Release Description
Automation Starter Solution Crosswork Hierarchical Controller Release 11.0 Automation Starter Solution accelerates adoption of Routed Optical Networking by simplifying the installation and deployment of the overall Routed Optical Networking solution. It is a simplified automation stack that is used to manage ZR/ZR+ optics in Cisco routers. IOS XR adapter is not supported in the starter solution. Crosswork Network Controller EMS provides minimal installation to support full IP network inventory, basic topology, and PM data delivered through its integrated Crosswork Data Gateway.
Support for pluggable OLS monitoring in Crosswork Hierarchical Controller Crosswork Hierarchical Controller Release 11.0 QDD-OLS pluggable discovery and assurance is supported in Crosswork Hierarchical Controller Release 11.0. Enables you to view end to end connectivity and performance data for pluggable DCO connected to Cisco’s pluggable OLS amplifier.
Support for QDD 400G Ultra-Long Haul pluggable modules Cisco IOS XR Release 25.2.1

The following routers support DP04QSDD-ULH-A1:

• 88-LC0-36FH-M

• 88-LC0-36FH

• NC57-18DD-SE

• NC57-24DD

Support for QSFP28 ZR DCO Cisco IOS XR Release 25.2.1

The following routers support DP01QS28-E20 and DP01QS28-E25:

• ASR-9902

• ASR-9903

• A9903-20HG-PEC

• A9K-4HG

• A99-4HG

• A9K-8HG

• A9K-20HG

• A99-32HG

• A99-4T

• N540X-16Z4G8Q2C-D/A

• N540-ACC-SYS

CMIS AppSel support Cisco IOS XR Release 25.2.1 You can now manage your pluggable optical modules using Common Management Interface Specification AppSel.
QDD-OLS support on QSFP28 ports Cisco IOS XR Release 25.2.1 The QDD-OLS is now supported on select platforms on QSFP28 ports, expanding its applicability to platforms without QSFP-DD ports.
Pluggable DCO and QDD-OLS provisioning and monitoring in Crosswork Network Controller Crosswork Hierarchical Controller Release 11.0 Per-port pluggable DCO and QDD-OLS may now be provisioned using CNC’s configuration template functionality. Monitoring for DCO and QDD-OLS performance is provided by CNC’s Device Performance Measurement (DPM) function.
Enhanced integration between Crosswork Hierarchical Controller and Crosswork Network Controller Crosswork Hierarchical Controller Release 11.0 RON 4.0 brings additional integration between the Hierarchical and IP controller, eliminating the need for HCO to collect information from IOS-XR devices directly. The direct IOS-XR adapter has been deprecated in HCO 11.0.
Crosswork Hierarchical Controller RON support for EPNM 7.x/8.x Crosswork Hierarchical Controller Release 11.0 The Crosswork HCO EPNM adapter has been updated to fully support RON provisioning and monitoring use cases. The primary use case is support for NCS 2000 11.x SSON based networks managed by EPNM 7.x or 8.x. End to end provisioning and link assurance are supported.
Cisco Optical Network Controller support for NCS2000 Cisco Optical Network Controller, Release 25.1.2 Cisco Optical Network Controller release 25.1.2 now supports managing NCS2000 networks utilizing SVO/25.1.1. RON circuit discovery and provisioning is fully supported.
