Understand Traffic Flow in Foreign-Anchor Setup between 9800 WLC
Available Languages
Contents
Introduction
This document describes traffic flow in Foreign-Anchor setup between Cisco 9800 WLCs, covering L2/L3 client onboarding and troubleshooting.
Prerequisites
Mobility Tunnel between Foreign and Anchor Controller.
UDP port 16666 and 16667 allowed between both the WLC.
Policy profile configured for Central Switching.
Mobility Tunnel Status on Foreign WLC

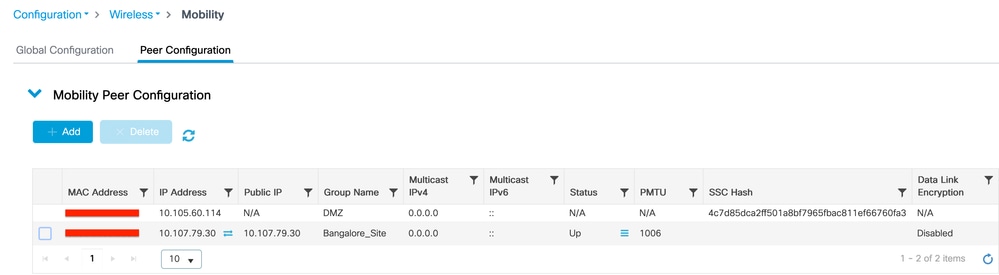

Mobility Tunnel Status on Anchor WLC
Requirements
Cisco recommends that you have the knowledge of these topics:
- Command Line Interface (CLI) or Graphic User Interface (GUI) access to the wireless controllers
- Mobility on Cisco Wireless LAN Controllers (WLCs)
- 9800 Wireless Controllers
- Radioactive Traces and Packet capture on 9800 WLC
Components Used
The information in this document is based on these software and hardware versions:
- 9800 Model WLC
- Cisco IOS XE 17.15.5 version
- 9100 series AP Model
The information in this document was created from the devices in a specific lab environment. All of the devices used in this document started with a cleared (default) configuration. If your network is live, ensure that you understand the potential impact of any command.
Overview of Foreign-Anchor Scenario
- Foreign Controller: This WLC manages Layer 2 or the wireless side of the network. It has access points connected to it, and all client traffic for the Anchored WLANs is encapsulated into the mobility tunnel and sent to the Anchor Controller. The traffic does not exit locally on the Foreign Controller.
- Anchor Controller: This serves as the Layer 3 exit point. It receives client traffic via mobility tunnel from the Foreign Controllers and decapsulates or terminates the client traffic into the exit point (VLAN). This is where clients are seen in the network.
Access points on the Foreign WLC broadcast the WLAN SSIDs and have a policy tag assigned that links the WLAN profile with the appropriate policy profile. When a wireless client connects to this SSID, the Foreign Controller sends both the SSID name and Policy Profile as part of the client information to the Anchor WLC. Upon receiving, the Anchor WLC checks its own configuration to match the SSID name as well as the Policy Profile name. Once the Anchor WLC finds a match, it applies the corresponding configuration and provides an exit point for the wireless client. Therefore, it is mandatory that the WLAN and Policy Profile names and configurations match on both the Foreign and Anchor 9800 WLCs, with the exception of the VLAN under the Policy Profile.
Topology

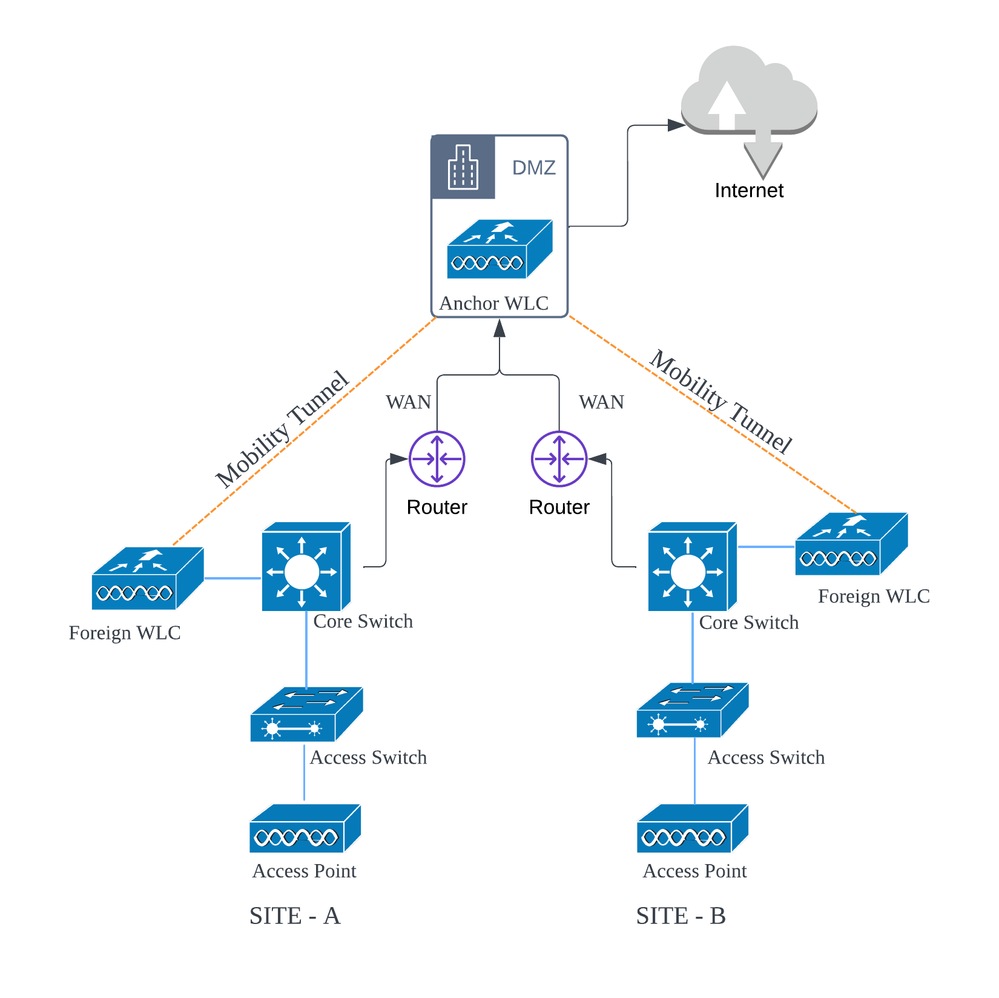

Foreign-Anchor Setup bewteen 9800 WLC
WLAN with Layer 2 Authentication
Configuration Requirement
1. Ensure that the WLAN name and configuration are identical on both the Foreign and Anchor WLCs and is configured for Layer 2 Authentication (PSK or 802.1x).
2. Create a Policy Profile with the same name on both the Foreign and Anchor WLCs with same configuration.
3. On the Foreign WLC, configure the Anchor WLC mapping within the respective Policy Profile.

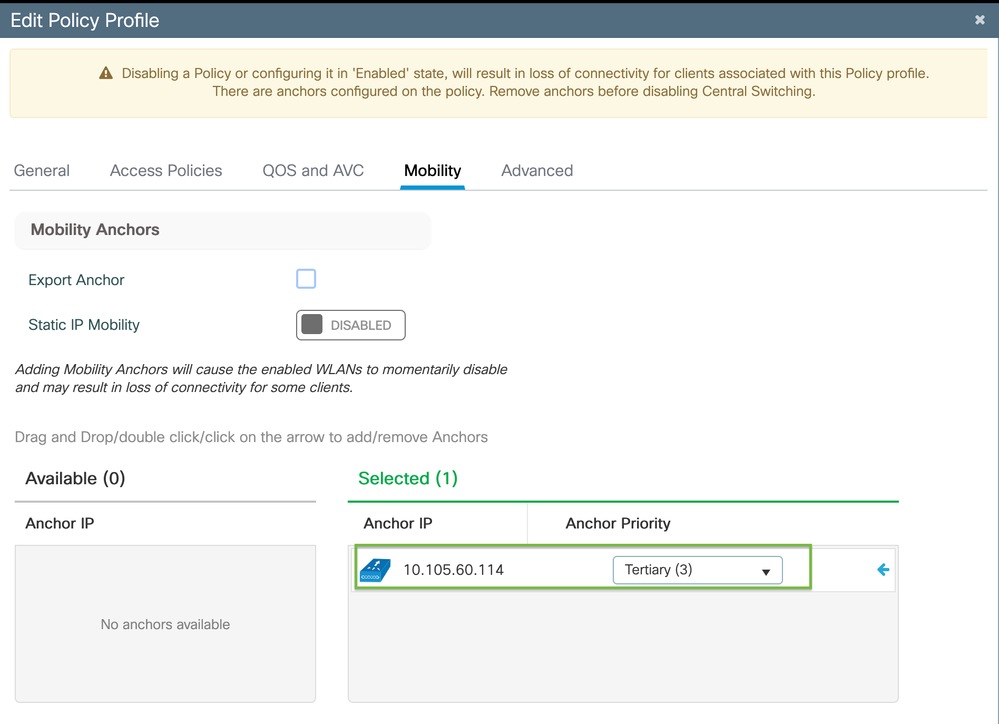

4. On the Anchor WLC, configure the Policy Profile to designate the controller as an Export Anchor.
5. On the Foreign WLC, map the WLAN to the appropriate Policy Profile using a Policy Tag.
Flow for Layer 2 Foreign-Anchor based SSID
1. The client initiates a connection to the SSID broadcasteded by the Foreign WLC. The Foreign WLC performs Layer 2 authentication, validating credentials either locally or through an external AAA server, depending on the configured security policy.
2. Upon successful authentication, the client session is Anchored to the Anchor WLC. The client is assigned an IP address and transitions to the RUN state on the Anchor WLC.
3. Once the session is established, all client data traffic is tunneled from the Foreign WLC to the Anchor WLC, where it egresses into the network.
Layer 2 Foreign Anchor Based WLAN Flow Diagram
Analyzing Layer 2 SSID Flow in Foreign-Anchor Setup Through Logs
This section explanis the flow of Layer 2 client connectivity by using Radioactive Trace (RA Trace), Embedded Packet Captures (EPC), and client status on both the Foreign and Anchor controllers.
Logs from Foreign Controller
Radioactive Traces
!! Client Association started !!
[client-orch-sm] Association received. BSSID BSSID-addr, WLAN DMZ_PSK, Slot 1 AP AP_MAC, AP_NAME, Site tag default-site-tag, Policy tag default-policy-tag, Policy profile DMZ_PSK_PP, Switching Central, Socket delay 0ms
[dot11] [17047] (info) MAC Client-MAC dot11 send association response. Sending assoc response of length 137 with resp_status_code 0, DOT11_STATUS DOT11_STATUS_SUCCESS
[dot11] [17047] (info) MAC Client-MAC DOT11 state transition S_DOT11_INIT -> S_DOT11_ASSOCIATED
!! Layer 2 Authentication started !!
[client-orch-state] Client state transition S_CO_ASSOCIATING -> S_CO_L2_AUTH_IN_PROGRESS
[client-auth] L2 Authentication initiated. method PSK, Policy VLAN 31, AAA override = 0, NAC = 0
[client-keymgmt] EAP key M1 Sent successfully
[client-keymgmt] M2 Status EAP key M2 validation success
[client-keymgmt]EAP key M3 Sent successfully
[client-keymgmt] M4 Status EAP key M4 validation is successful
[client-keymgmt] EAP Key management successful. AKMPSK CipherCCMP WPA Version WPA2 >> !! client succesfully authenticated !!
!! Mobility Handoff !!
{mobilityd_R0-0}{1} [mm-dgram-io] [18401] (debug) MAC Client-MAC Sending message mobile_announce to group DMZ
{mobilityd_R0-0}{1} [mm-pmtu] [18401] (debug) Peer IP Anchor-WLC-IP {mobilityd_R0-0}{1} [mm-client] [18401] (debug) MAC Client-MAC Sending mobile_announce of XID (176280) to (ipv4 Anchor-WLC-IP )
{mobilityd_R0-0}{1} [mm-transition] MMFSM transition S_MC_WAIT_ANNOUNCE_RSP -> S_MC_ANNOUNCE_TIMEDOUT_PROCESSED_TR on E_MC_REQUEST_TIMEDOUT from WNCD[0]
{wncd_x_R0-0}{1} [mm-client] [17047] (debug) MAC Client-MAC Received mobile_announce_nak, sub type 2 of XID (XID) from (MobilityD[0])
{wncd_x_R0-0}{1} [mm-transition] [17047] (info) MAC Client-MAC MMIF FSM transition S_MA_INIT_WAIT_ANNOUNCE_RSP -> S_MA_NAK_PROCESSED_TR on E_MA_NAK_RCVD
{wncd_x_R0-0}{1} [mm-client] [17047] (debug) MAC Client-MAC Sending export_Anchor_req of XID (XID) to (MobilityD[0])
{mobilityd_R0-0}{1} [mm-client] [18401] (debug) MAC Client-MAC Received export_Anchor_req, sub type 0 of XID (XID) from (WNCD[0])
{mobilityd_R0-0}{1} [mm-transition] [18401] (info) MAC Client-MAC MMFSM transition S_MC_WAIT_EXP_ANC_REQ -> S_MC_EXP_ANC_REQ_RCVD_TR on E_MC_EXP_ANC_REQ_RCVD from WNCD[0]
{mobilityd_R0-0}{1} [mm-client] [18401] (debug) MAC Client-MAC Export Anchor Request successfully processed.
{mobilityd_R0-0}{1} [mm-client] [18401] (debug) MAC Client-MAC Sending export_Anchor_req of XID (176282) to (ipv4 Anchor-WLC-IP )
{mobilityd_R0-0}{1} [mm-client] [18401] (debug) MAC Client-MAC Received export_Anchor_rsp, sub type 0 of XID (XID) from (ipv4 Anchor-WLC-IP )
{mobilityd_R0-0}{1} [mm-transition] [18401] (info) MAC Client-MAC MMFSM transition S_MC_WAIT_EXP_ANC_RSP -> S_MC_EXP_ANC_RSP_RCVD_TR on E_MC_EXP_ANC_RSP_RCVD from ipv4 Anchor-WLC-IP
{mobilityd_R0-0}{1} [mm-client] [18401] (debug) MAC Client-MAC Export Anchor Response successfully processed.
{wncd_x_R0-0}{1} [epm-misc] [17047] (info) Anchor Vlan-id 31 processed [mm-client] [17047] (info) MAC Client-MAC Mobility role changed - Unassoc -> Export Foreign
[mm-client] Mobility Successful. Roam Type L3 Requested, Sub Roam Type MM_SUB_ROAM_TYPE_NONE, Client IFID 0xa0000004, Client Role Export Foreign >> Client Successfully Anchored
{wncd_x_R0-0}{1} [client-orch-state] Client state transition S_CO_MOBILITY_DISCOVERY_IN_PROGRESS -> S_CO_DPATH_PLUMB_IN_PROGRESS
{wncd_x_R0-0}{1} [client-orch-state] Client state transition S_CO_DPATH_PLUMB_IN_PROGRESS -> S_CO_IP_LEARN_IN_PROGRESS
{wncd_x_R0-0}{1} [client-orch-sm] [17047] (debug) MAC Client-MAC Received ip learn response. method IPLEARN_METHOD_ROAMING
{wncd_x_R0-0}{1} [client-orch-state] Client state transition S_CO_IP_LEARN_IN_PROGRESS -> S_CO_RUN >> Client went to RUN state
Packet capture
The client sends an association request and performs Layer 2 authentication, handled by the Foreign Controller.

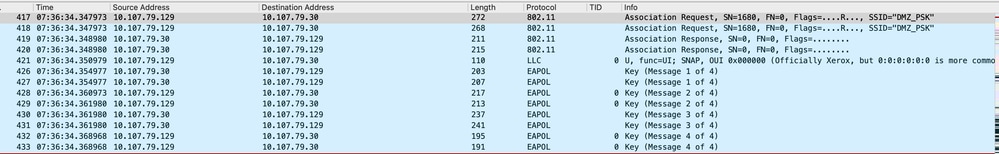

Client Association + Layer 2 Authentication Traffic
A mobility handoff triggers between the Foreign and Anchor Controllers via UDP port 16667. Upon a successful mobility event, the client state transitions to RUN with an Export Foreign role.
The Foreign Controller receives client DHCP traffic via the CAPWAP tunnel and forwards it to the Anchor Controller for further processing.

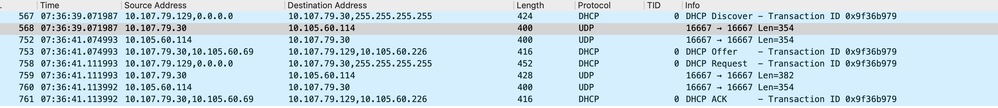

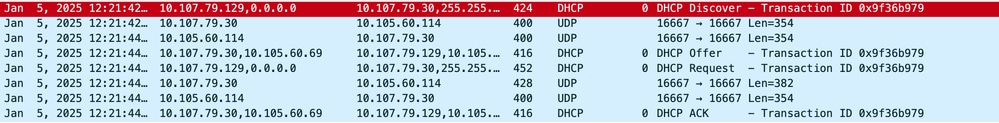

Client DHCP Traffic Received on Foreign Controller is Forwarded to Anchor Controller using Mobility Tunnel
Logs from Anchor 9800 Controller
Radioactive Traces from Anchor
!! Mobility Handoff !!
{mobilityd_R0-0}{1} [mm-client] [26021] (debug) MAC Client-MAC Received mobile_announce, sub type 0 of XID (XID) from (ipv4 Foreign-WLC-IP )
{mobilityd_R0-0}{1} [mm-client] [26021] (debug) MAC Client-MAC Received mobile_announce, sub type 0 of XID (XID) from (ipv4 Foreign-WLC-IP )
{mobilityd_R0-0}{1} [mm-client] [26021] (debug) MAC Client-MAC Received export_Anchor_req, sub type 0 of XID (XID) from (ipv4 Foreign-WLC-IP )
{mobilityd_R0-0}{1} [mm-client] [26021] (debug) MAC Client-MAC Number of client is BELOW wlan limit
{mobilityd_R0-0}{1} [mm-transition] [26021] (info) MAC Client-MAC MMFSM transition S_MC_INIT -> S_MC_Anchor_EXP_ANC_REQ_RCVD_TR on E_MC_EXP_ANC_REQ_RCVD from ipv4 Foreign-WLC-IP
{wncd_x_R0-0}{1} [mm-client] [24229] (info) MAC Client-MAC Roam type changed - None -> L3 Requested
{mobilityd_R0-0}{1} [mm-client] [26021] (debug) MAC Client-MAC Export Anchor Response successfully processed.
{mobilityd_R0-0}{1} [mm-client] [26021] (debug) MAC Client-MAC Forwarding Anchor Response to Foreign.
{mobilityd_R0-0}{1} [mm-client] [26021] (info) MAC Client-MAC Forwarding export_Anchor_rsp, sub type 0 of XID (XID) from (WNCD[0]) to (ipv4 Foreign-WLC-IP )
{mobilityd_R0-0}{1} [mm-client] [26021] (debug) MAC Client-MAC Client is AnchorED.
{ wncd_x_R0-0}{1} [mm-client] [24229] (info) MAC Client-MAC Mobility role changed - Unassoc -> Export Anchor
{mobilityd_R0-0}{1} [mm-client] [26021] (debug) MAC Client-MAC Client is AnchorED.>> Client is successfully Anchored
!! Client DHCP Traffic !!
{wncd_x_R0-0}{1} [client-orch-state] [24229] (note) MAC Client-MAC Client state transition S_CO_MOBILITY_DISCOVERY_IN_PROGRESS -> S_CO_DPATH_PLUMB_IN_PROGRESS
{wncd_x_R0-0}{1} [client-orch-state] [24229] (note) MAC Client-MAC Client state transition S_CO_DPATH_PLUMB_IN_PROGRESS -> S_CO_IP_LEARN_IN_PROGRESS {wncd_x_R0-0}{1} [client-iplearn] [24229] (info) MAC Client-MAC IP-learn state transition S_IPLEARN_INIT -> S_IPLEARN_IN_PROGRESS
{wncd_x_R0-0}{1} [sisf-packet] RX DHCPv4 from interface mobility_a0000001 on vlan 31 Src MAC Client-MAC Dst MAC ffff.ffff.ffff src_ip 0.0.0.0, dst_ip 255.255.255.255, BOOTPREQUEST, SISF_DHCPDISCOVER, giaddr 0.0.0.0, yiaddr 0.0.0.0, CMAC Client-MAC {wncd_x_R0-0}{1} [sisf-packet] TX DHCPv4 from interface mobility_a0000001 on vlan 31 Src MAC Client-MAC Dst MAC ffff.ffff.ffff src_ip 0.0.0.0, dst_ip 255.255.255.255, BOOTPREQUEST, SISF_DHCPDISCOVER,
{wncd_x_R0-0}{1} [sisf-packet] RX DHCPv4 from interface Tw0/0/1 on vlan 31 Src MAC DHCP-Reply-Source-MAC Dst MAC Client-MAC src_ip 10.105.60.69, dst_ip 10.105.60.226, BOOTPREPLY, SISF_DHCPOFFER, giaddr 0.0.0.0, yiaddr 10.105.60.226, CMAC Client-MAC
{wncd_x_R0-0}{1} [sisf-packet] TX DHCPv4 from interface Tw0/0/1 on vlan 31 Src MAC DHCP-Reply-Source-MAC Dst MAC Client-MAC src_ip 10.105.60.69, dst_ip 10.105.60.226, BOOTPREPLY, SISF_DHCPOFFER, giaddr
{wncd_x_R0-0}{1} [sisf-packet] RX DHCPv4 from interface mobility_a0000001 on vlan 31 Src MAC Client-MAC Dst MAC ffff.ffff.ffff src_ip 0.0.0.0, dst_ip 255.255.255.255, BOOTPREQUEST, SISF_DHCPREQUEST, giaddr 0.0.0.0, yiaddr 0.0.0.0, CMAC Client-MAC
{wncd_x_R0-0}{1} [sisf-packet] TX DHCPv4 from interface mobility_a0000001 on vlan 31 Src MAC Client-MAC Dst MAC ffff.ffff.ffff src_ip 0.0.0.0, dst_ip 255.255.255.255, BOOTPREQUEST, SISF_DHCPREQUEST,
{wncd_x_R0-0}{1} [sisf-packet] RX DHCPv4 from interface Tw0/0/1 on vlan 31 Src MAC DHCP-Reply-Source-MAC Dst MAC Client-MAC src_ip 10.105.60.69, dst_ip 10.105.60.226, BOOTPREPLY, SISF_DHCPACK, giaddr 0.0.0.0, yiaddr 10.105.60.226, CMAC Client-MAC
{wncd_x_R0-0}{1} [sisf-packet] TX DHCPv4 from interface Tw0/0/1 on vlan 31 Src MAC DHCP-Reply-Source-MAC Dst MAC Client-MAC src_ip 10.105.60.69, dst_ip 10.105.60.226, BOOTPREPLY, SISF_DHCPACK, giaddr 0.0.0.0, yiaddr 10.105.60.226, CMAC Client-MAC
{wncd_x_R0-0}{1} [client-iplearn] [24229] (note) MAC Client-MAC Client IP learn successful. Method DHCP IP 10.105.60.226 {wncd_x_R0-0}{1} [auth-mgr-feat_acct] [24229] (info) [Client-MACmobility_a0000001] SM Notified attribute Add/Update addr 10.105.60.226
{mobilityd_R0-0}{1} [mm-client] [26021] (debug) MAC Client-MAC Sending ipv4_address_update of XID (XID) to (ipv4 Foreign-WLC-IP )
{wncd_x_R0-0}{1} [client-iplearn] [24229] (info) MAC Client-MAC IP-learn state transition S_IPLEARN_IN_PROGRESS -> S_IPLEARN_COMPLETE {wncd_x_R0-0}{1}Received ip learn response. method IPLEARN_METHOD_DHCP >> IP Learn
Complete
{wncd_x_R0-0}{1} [avc-afc] [24229] (info) ReAnchor [client MAC Client-MAC] Client has Anchor role {wncd_x_R0-0}{1} [client-orch-state] [24229] (note) MAC Client-MAC Client state transition S_CO_IP_LEARN_IN_PROGRESS -> S_CO_RUN >> Client went to RUN state
Packet capture on Anchor
After the mobility handoff, the Anchor Controller receives DHCP traffic from the Foreign Controller via the mobility tunnel.
Upon completion of the DORA process, the client enters RUN state with an Export Anchor role. From this point forward, the Anchor Controller serves as the exit point for client data traffic.

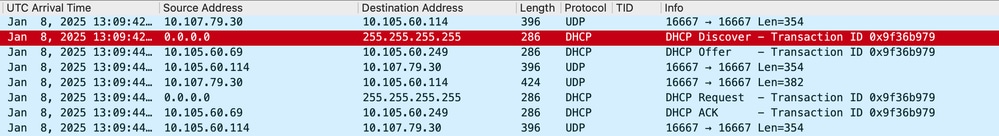

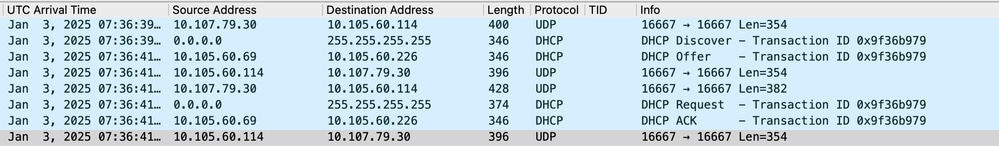

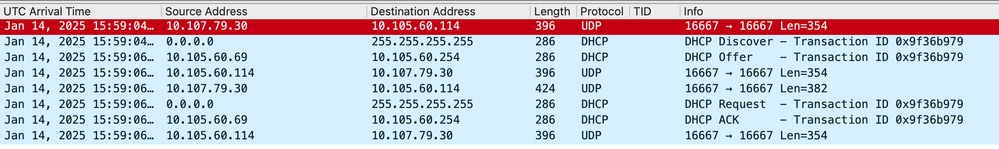

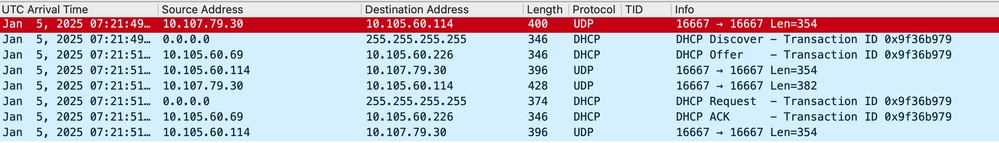

Client DHCP Traffic on Anchor Controller Recieved from Foreign Controller
Client State on Both Foreign and Anchor Controller

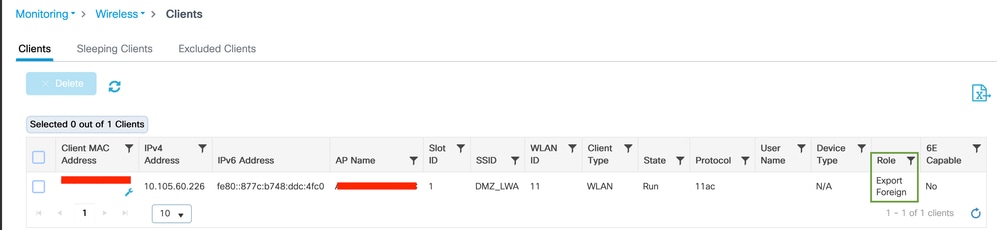

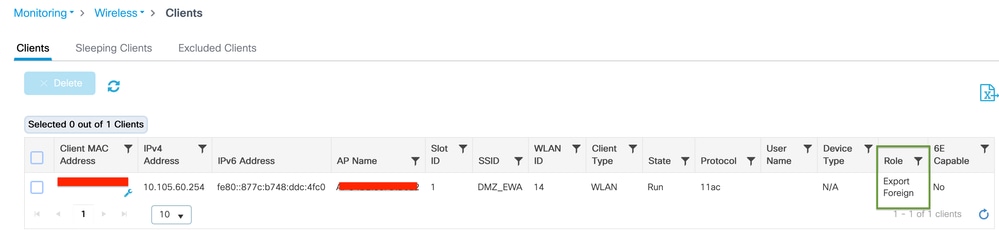

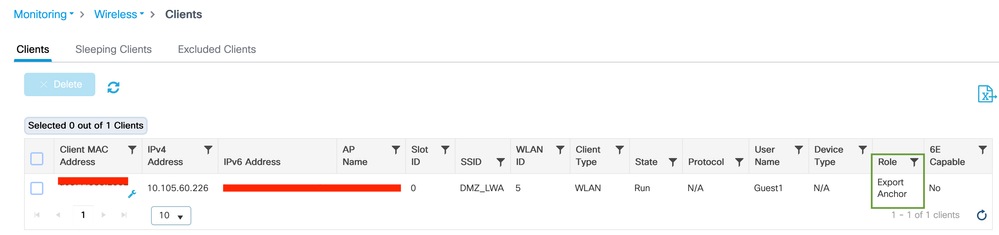

Client State on Foreign

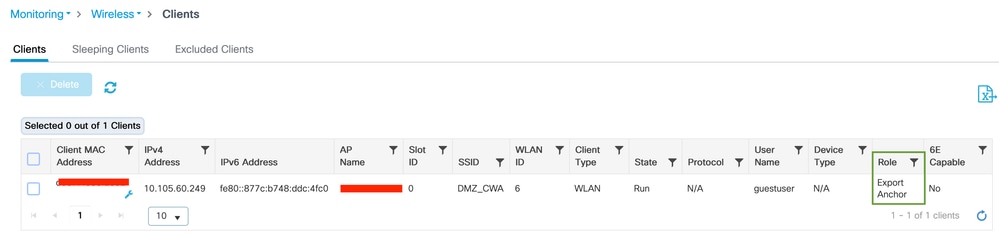

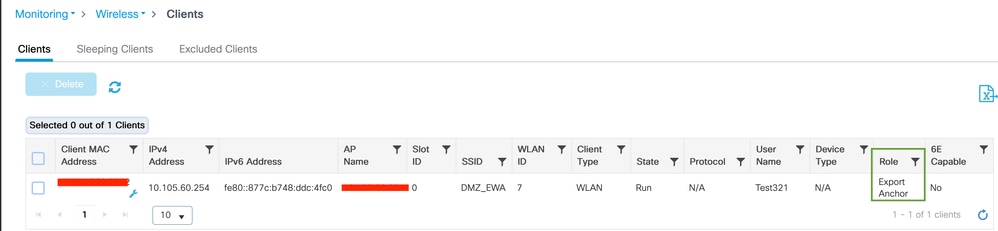

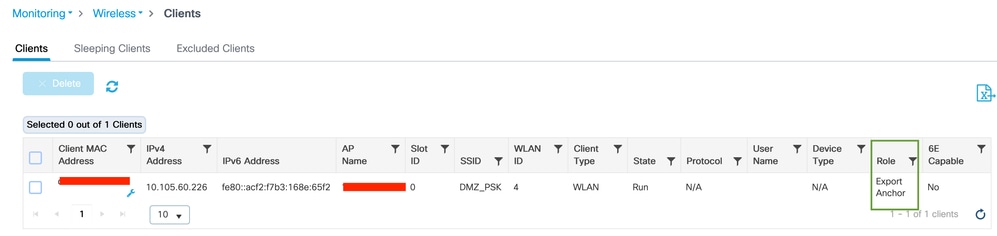

Client State on Anchor

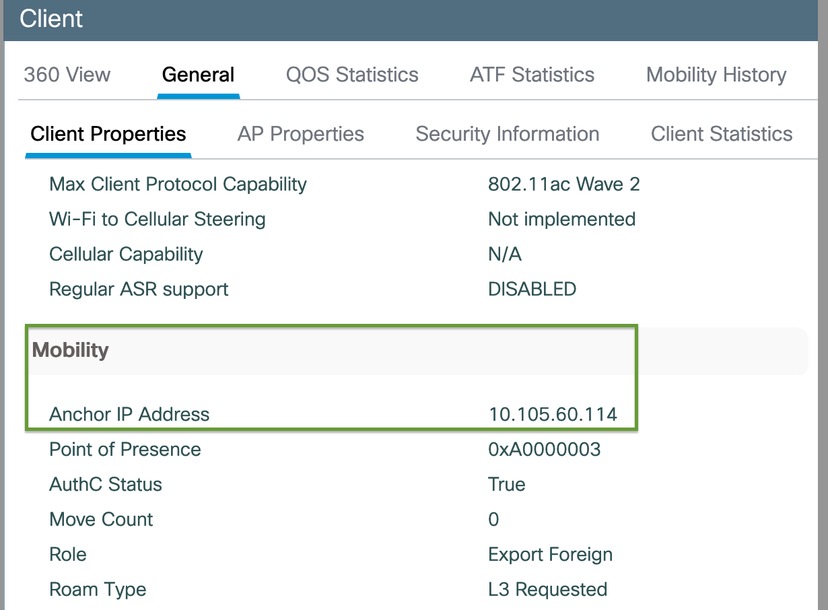

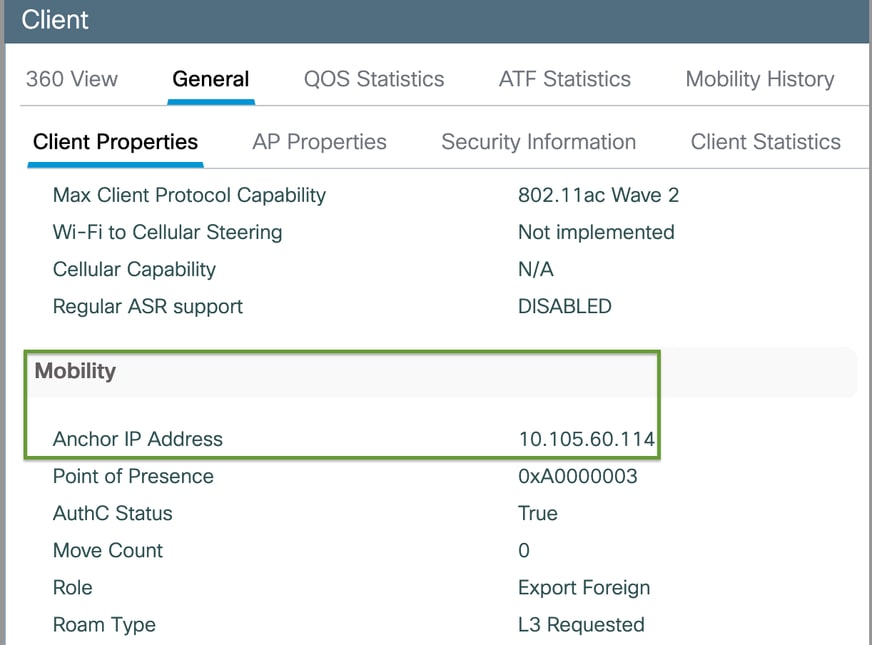

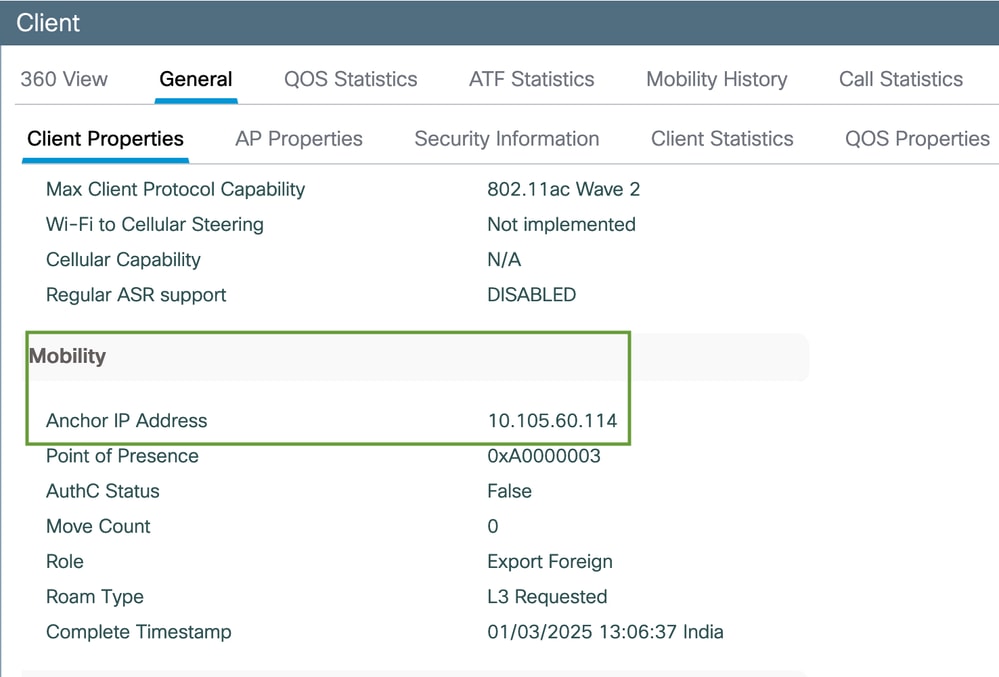

Client Properties on Foreign

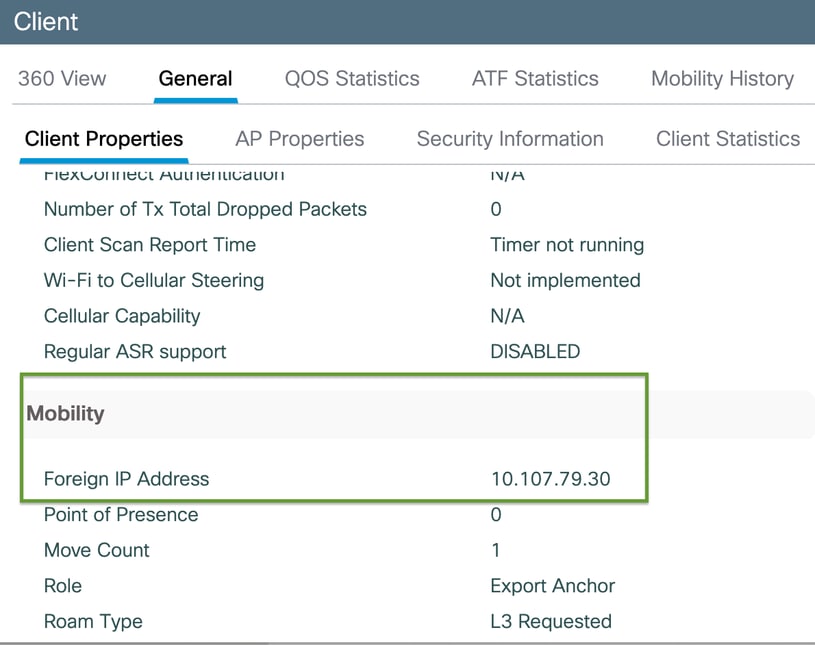

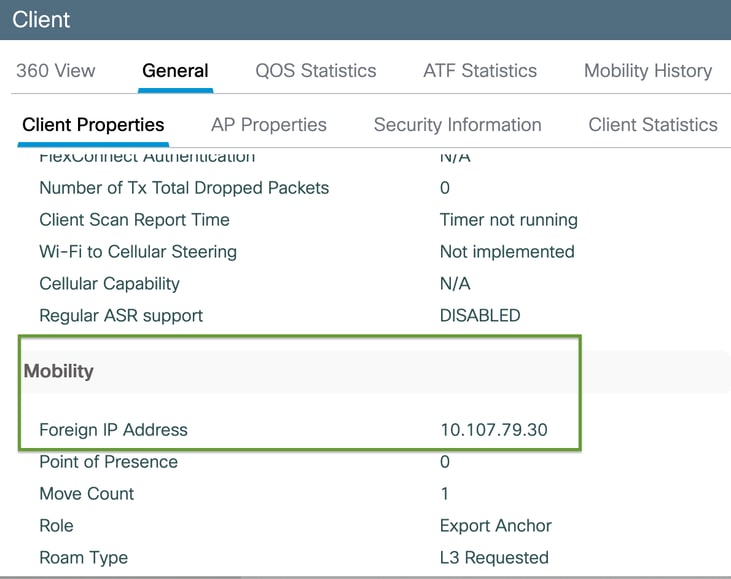

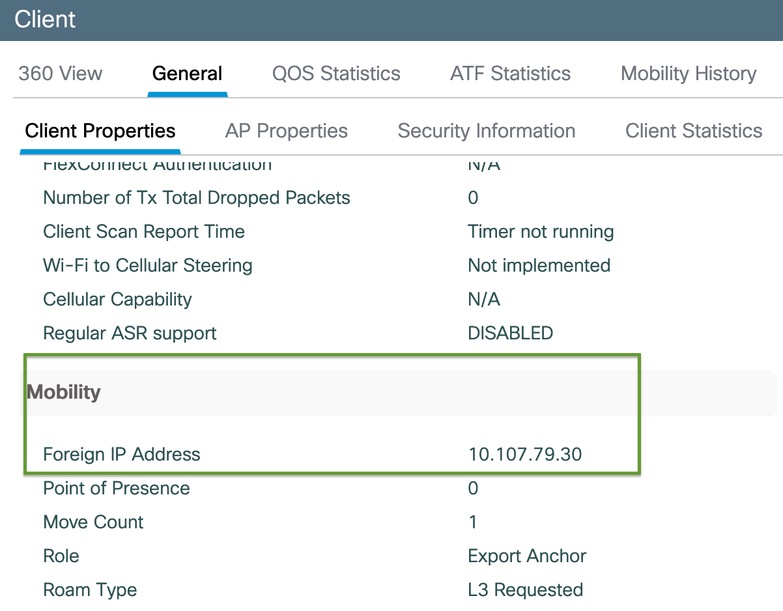

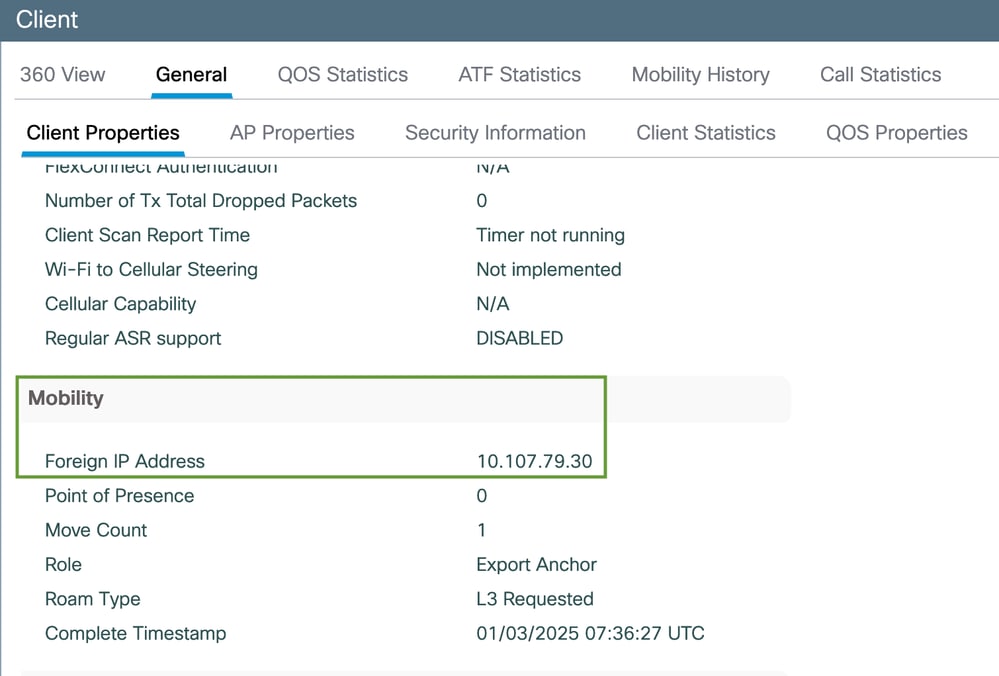

Client Properties on Anchor
WLAN with Layer 3 Authentication
Local Web Authentication
Flow for Local Webauth SSID in Foreign-Anchor Setup
1. The client initiates a connection to the SSID advertised by the Foreign WLC.
2. As no Layer 2 authentication is performed, the client is straight away Anchored to the Anchor WLC. The client enters RUN state on the Foreign WLC, with its mobility role designated as Export Foreign.
3. The client obtains an IP address and is redirected to a web page. This traffic is handled by Anchor Controller.
4. Upon successful authentication at the portal, the client transitions to RUN state on the Anchor WLC, with the Export Anchor role.
Client Connectivity Flow Diagram for Local Webauth SSID in Foreign-Anchor Setup
Analyzing Local Webauth SSID Flow in Foreign-Anchor Setup through Logs
This section explanis the flow of client connectivity for Local Web Authentication SSID by using Radioactive Trace (RA Trace), Embedded Packet Captures (EPC), and client status on both the Foreign and Anchor controllers.
Logs from Foreign Controller
Radioactive Traces
!! Client Association Phase !!
{wncd_x_R0-0}{1}: [client-orch-sm] [17047]: (note): MAC: Client_MAC Association received. BSSID BSSID_MAC, WLAN DMZ_LWA, Slot 1 AP AP_MAC, AP_NAME, Site tag default-site-tag, Policy tag default-policy-tag, Policy profile DMZ_LWA_PP, Switching Central, Socket delay 0ms
{wncd_x_R0-0}{1}: [client-orch-state] [17047]: (note): MAC: Client_MAC Client state transition: S_CO_INIT -> S_CO_ASSOCIATING
{wncd_x_R0-0}{1}: [dot11] [17047]: (info): MAC: Client_MAC dot11 send association response. Sending assoc response of length: 137 with resp_status_code: 0, DOT11_STATUS: DOT11_STATUS_SUCCESS
!! L2 Auth : None !!
{wncd_x_R0-0}{1}: [client-orch-state] [17047]: (note): MAC: Client_MAC Client state transition: S_CO_ASSOCIATING -> S_CO_L2_AUTH_IN_PROGRESS
{wncd_x_R0-0}{1}: [client-auth] [17047]: (info): MAC: Client_MAC Client auth-interface state transition: S_AUTHIF_L2_WEBAUTH_PENDING -> S_AUTHIF_WEBAUTH_DONE
{wncd_x_R0-0}{1}: [client-orch-state] [17047]: (note): MAC: Client_MAC Client state transition: S_CO_L2_AUTH_IN_PROGRESS -> S_CO_MOBILITY_DISCOVERY_IN_PROGRESS
!! Mobility Handoff Phase !!
{mobilityd_R0-0}{1} [mm-dgram-io] [18401] (debug) MAC Client-MAC Sending message mobile_announce to group DMZ
{mobilityd_R0-0}{1} [mm-pmtu] [18401] (debug) Peer IP Anchor-WLC-IP {mobilityd_R0-0}{1} [mm-client] [18401] (debug) MAC Client-MAC Sending mobile_announce of XID (176280) to (ipv4 Anchor-WLC-IP )
{mobilityd_R0-0}{1} [mm-transition] MMFSM transition S_MC_WAIT_ANNOUNCE_RSP -> S_MC_ANNOUNCE_TIMEDOUT_PROCESSED_TR on E_MC_REQUEST_TIMEDOUT from WNCD[0]
{wncd_x_R0-0}{1} [mm-client] [17047] (debug) MAC Client-MAC Received mobile_announce_nak, sub type 2 of XID (XID) from (MobilityD[0])
{wncd_x_R0-0}{1} [mm-transition] [17047] (info) MAC Client-MAC MMIF FSM transition S_MA_INIT_WAIT_ANNOUNCE_RSP -> S_MA_NAK_PROCESSED_TR on E_MA_NAK_RCVD
{wncd_x_R0-0}{1} [mm-client] [17047] (debug) MAC Client-MAC Sending export_Anchor_req of XID (XID) to (MobilityD[0])
{mobilityd_R0-0}{1} [mm-client] [18401] (debug) MAC Client-MAC Received export_Anchor_req, sub type 0 of XID (XID) from (WNCD[0])
{mobilityd_R0-0}{1} [mm-transition] [18401] (info) MAC Client-MAC MMFSM transition S_MC_WAIT_EXP_ANC_REQ -> S_MC_EXP_ANC_REQ_RCVD_TR on E_MC_EXP_ANC_REQ_RCVD from WNCD[0]
{mobilityd_R0-0}{1} [mm-client] [18401] (debug) MAC Client-MAC Export Anchor Request successfully processed.
{mobilityd_R0-0}{1} [mm-client] [18401] (debug) MAC Client-MAC Sending export_Anchor_req of XID (176282) to (ipv4 Anchor-WLC-IP )
{mobilityd_R0-0}{1} [mm-client] [18401] (debug) MAC Client-MAC Received export_Anchor_rsp, sub type 0 of XID (XID) from (ipv4 Anchor-WLC-IP )
{mobilityd_R0-0}{1} [mm-transition] [18401] (info) MAC Client-MAC MMFSM transition S_MC_WAIT_EXP_ANC_RSP -> S_MC_EXP_ANC_RSP_RCVD_TR on E_MC_EXP_ANC_RSP_RCVD from ipv4 Anchor-WLC-IP
{mobilityd_R0-0}{1} [mm-client] [18401] (debug) MAC Client-MAC Export Anchor Response successfully processed.
{wncd_x_R0-0}{1} [epm-misc] [17047] (info) Anchor Vlan-id 31 processed [mm-client] [17047] (info) MAC Client-MAC Mobility role changed - Unassoc -> Export Foreign
[mm-client] Mobility Successful. Roam Type L3 Requested, Sub Roam Type MM_SUB_ROAM_TYPE_NONE, Client IFID 0xa0000004, Client Role Export Foreign >> Client Successfully Anchored
{wncd_x_R0-0}{1} [client-orch-state] Client state transition S_CO_MOBILITY_DISCOVERY_IN_PROGRESS -> S_CO_DPATH_PLUMB_IN_PROGRESS
{wncd_x_R0-0}{1} [client-orch-state] Client state transition S_CO_DPATH_PLUMB_IN_PROGRESS -> S_CO_IP_LEARN_IN_PROGRESS {wncd_x_R0-0}{1} [client-orch-sm] [17047] (debug) MAC Client-MAC Received ip learn response. method IPLEARN_METHOD_ROAMING
{wncd_x_R0-0}{1}: [client-orch-state] [17047]: (note): MAC: Client_MAC Client state transition: S_CO_IP_LEARN_IN_PROGRESS -> S_CO_RUN
!! Client AAA Traffic handling !!
{mobilityd_R0-0}{1}: [mm-transition] [18401]: (info): MAC: Client_MAC MMFSM transition: S_MC_RUN -> S_MC_AAA_HANDOFF_PROCESSED_TR on E_MC_AAA_HANDOFF_RCVD from ipv4: Anchor-WLC-IP
{mobilityd_R0-0}{1}: [mm-client] [18401]: (info): MAC: Client_MAC Forwarding aaa_handoff, sub type: 0 of XID (10452) from (ipv4: Anchor-WLC-IP ) to (WNCD[0])
{mobilityd_R0-0}{1}: [mm-client] [18401]: (debug): MAC: Client_MAC Sending aaa_handoff of XID (10452) to (WNCD[0])
{mobilityd_R0-0}{1}: [mm-client] [18401]: (debug): MAC: Client_MAC AAA Handoff successfully forwarded.
{wncd_x_R0-0}{1}: [mm-client] [17047]: (debug): MAC: Client_MAC Received aaa_handoff, sub type: 0 of XID (10452) from (MobilityD[0])
{wncd_x_R0-0}{1}: [mm-transition] [17047]: (info): MAC: Client_MAC MMIF FSM transition: S_MA_Foreign -> S_MA_AAA_HANDOFF_PROCESSED_TR on E_MA_AAA_HANDOFF
{wncd_x_R0-0}{1}: [mm-client] [17047]: (debug): MAC: Client_MAC Mobile AAA Handoff update received.
{wncd_x_R0-0}{1}: [sanet-shim-miscellaneous] [17047]: (info): MAC: Client_MAC Received username=Guest1 username_len=6
{wncd_x_R0-0}{1}: [sanet-shim-miscellaneous] [17047]: (info): MAC: Client_MAC IPv6 Client payload is received in aaa handoff
{wncd_x_R0-0}{1}: [mm-client] [17047]: (debug): MAC: Client_MAC Sending aaa_handoff_ack of XID (10452) to (MobilityD[0])
{mobilityd_R0-0}{1}: [mm-client] [18401]: (debug): MAC: Client_MAC Received aaa_handoff_ack, sub type: 0 of XID (10452) from (WNCD[0])
{mobilityd_R0-0}{1}: [mm-client] [18401]: (debug): MAC: Client_MAC AAA Handoff Ack successfully handled.
{mobilityd_R0-0}{1}: [mm-client] [18401]: (debug): MAC: Client_MAC aaa_handoff_ack base check is VALID
{mobilityd_R0-0}{1}: [mm-client] [18401]: (debug): MAC: Client_MAC aaa_handoff_ack is VALID
{mobilityd_R0-0}{1}: [mm-transition] [18401]: (info): MAC: Client_MAC MMFSM transition: S_MC_RUN -> S_MC_AAA_HANDOFF_ACK_PROCESSED_TR on E_MC_AAA_HANDOFF_ACK_RCVD from WNCD[0]
{mobilityd_R0-0}{1}: [mm-client] [18401]: (info): MAC: Client_MAC Forwarding aaa_handoff_ack, sub type: 0 of XID (10452) from (WNCD[0]) to (ipv4: Anchor-WLC-IP )
{mobilityd_R0-0}{1}: [mm-pmtu] [18401]: (debug): Peer IP: Anchor-WLC-IP PMTU size is 1006 and calculated additional header length is 76
{mobilityd_R0-0}{1}: [mm-client] [18401]: (debug): MAC: Client_MAC Sending aaa_handoff_ack of XID (10452) to (ipv4: Anchor-WLC-IP )
{wncd_x_R0-0}{1}: [auth-mgr] [17047]: (info): [Client_MAC:capwap_90000003] auth mgr attr add/change notification is received for attr username(450)
{wncd_x_R0-0}{1}: [auth-mgr-feat_acct] [17047]: (info): [Client_MAC:capwap_90000003] SM Notified attribute Add/Update username Guest1
{mobilityd_R0-0}{1}: [mm-client] [18401]: (debug): MAC: Client_MAC aaa handoff ack successfully forwarded.
Packet Capture

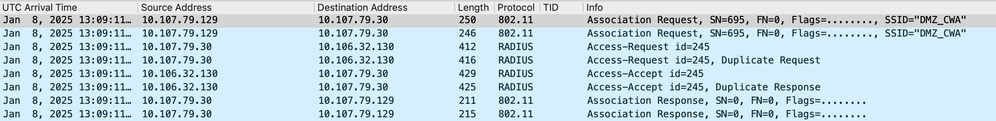

The client sends an association request, which the Foreign Controller handles.
Client Association Phase with Foreign Controller
A mobility handoff triggers between the Foreign and Anchor Controllers via port UDP 16667. Upon a successful mobility event, the client state transitions to RUN with an Export Foreign role.
The Foreign Controller receives client DHCP traffic via the CAPWAP tunnel and forwards it to the Anchor Controller for further processing.

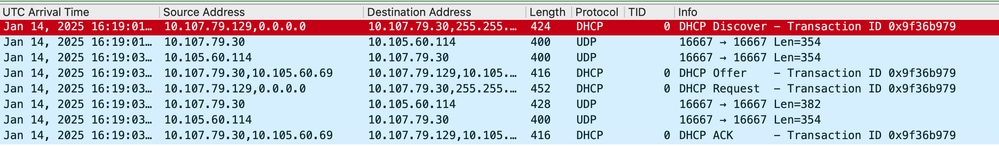

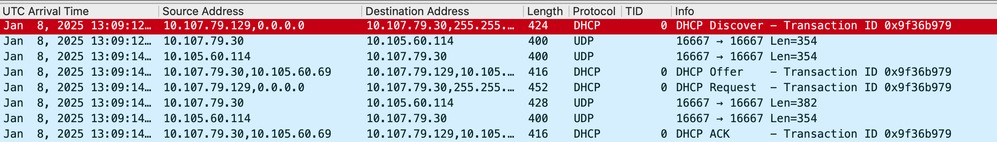

Client DHCP Traffic Received on Foreign Controller is Forwarded to Anchor Controller using Mobility Tunnel

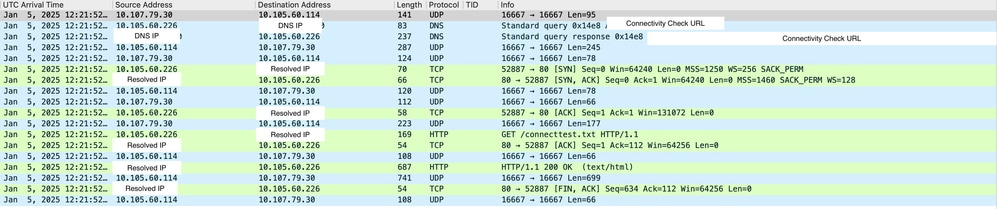

Similarly, the client sends network connectivity status and web page access check traffic to the Foreign WLC via the CAPWAP tunnel; the Foreign WLC forwards this to the Anchor WLC using the mobility tunnel, where the Anchor Controller intercepts or processes the traffic.

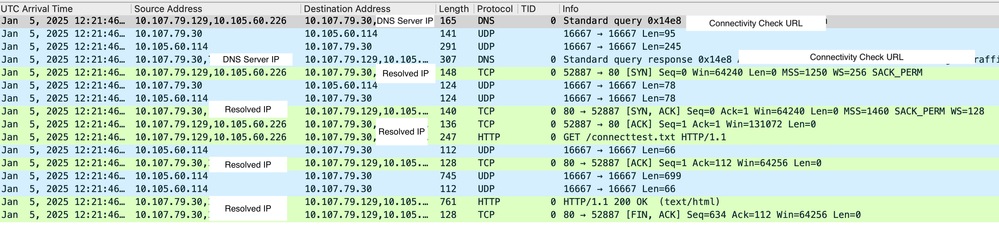

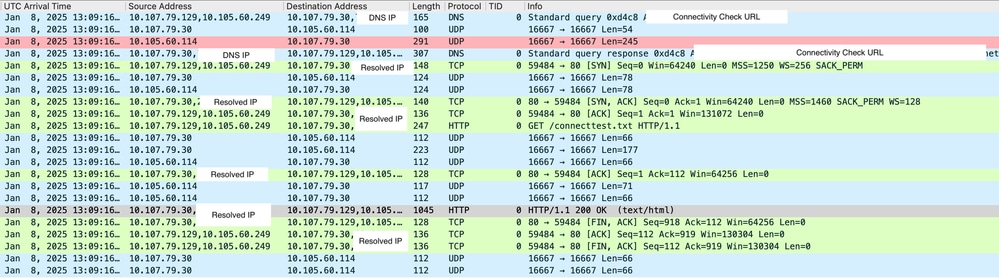

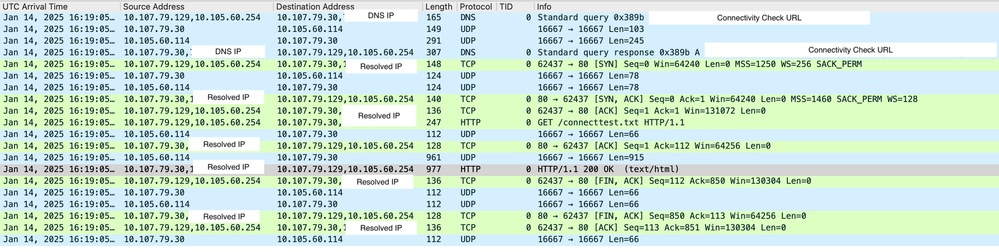

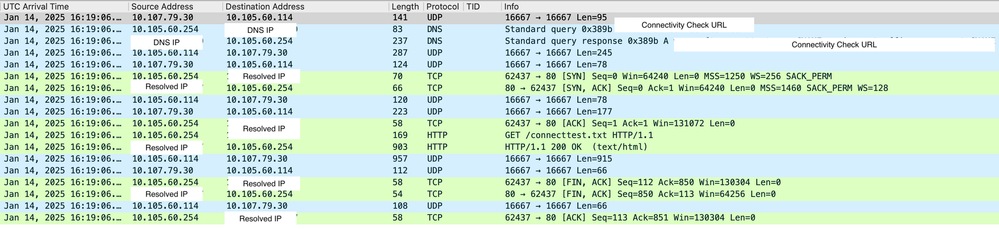

Network Connectivity Status Check on Foreign Controller

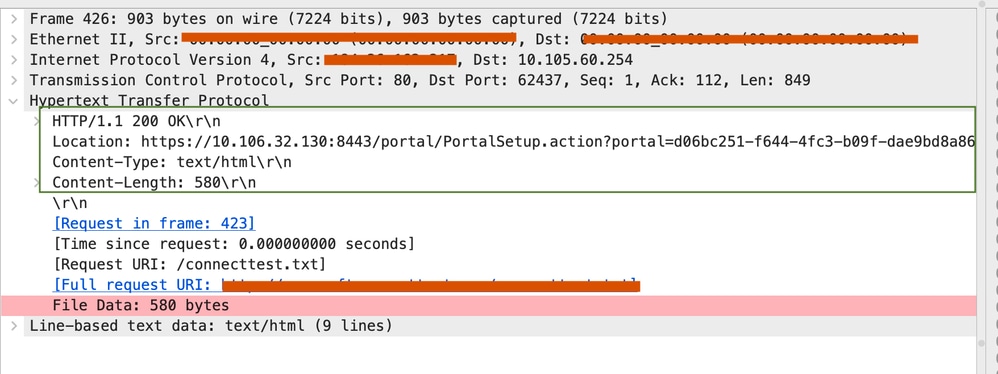

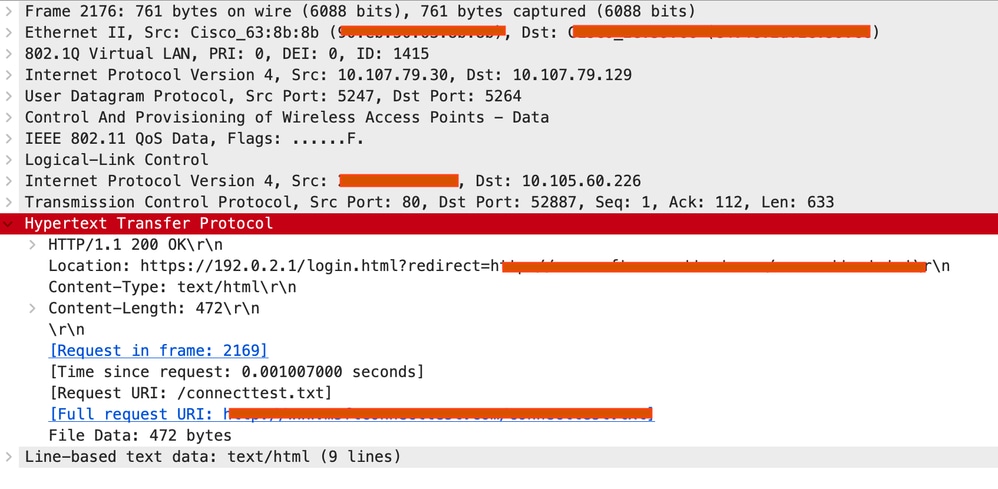

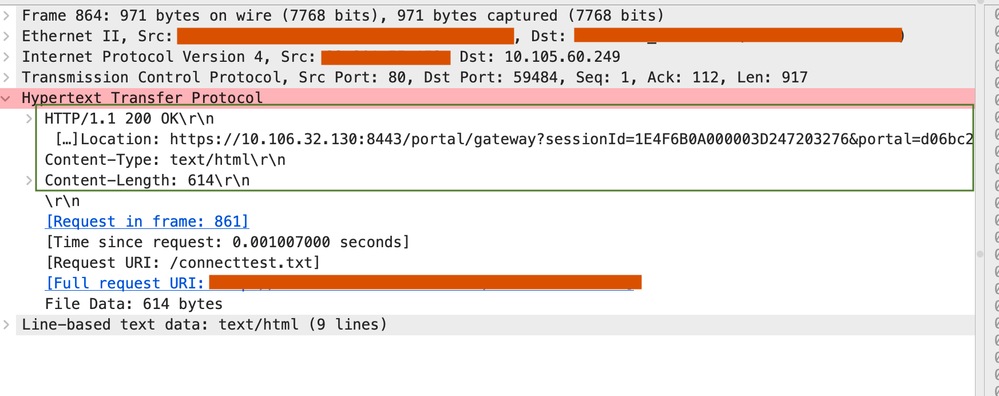

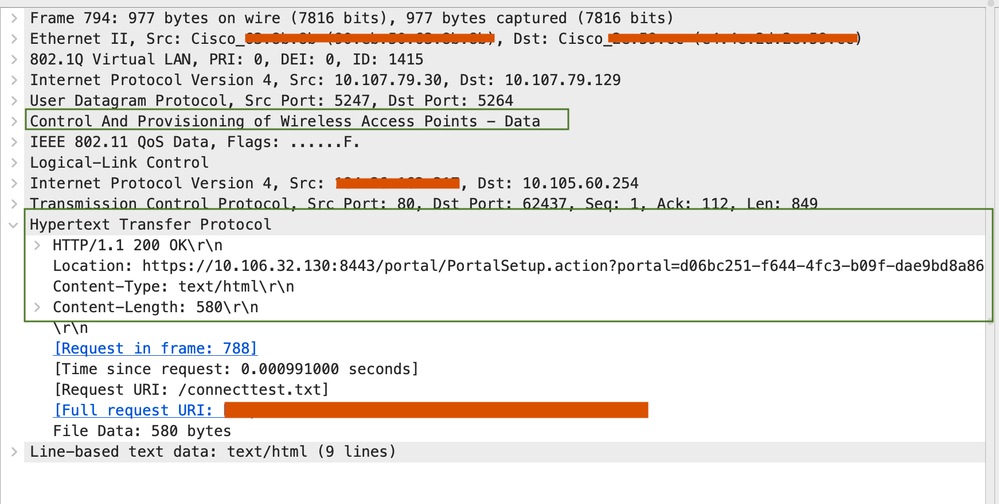

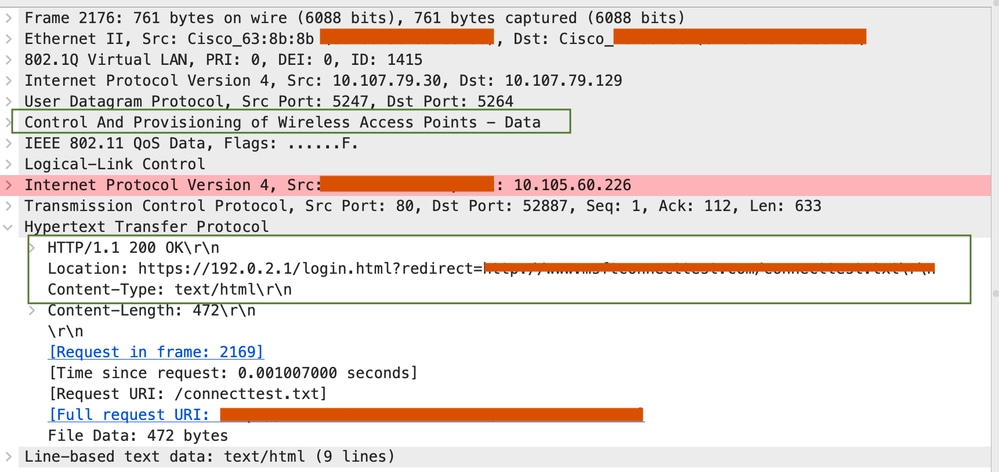

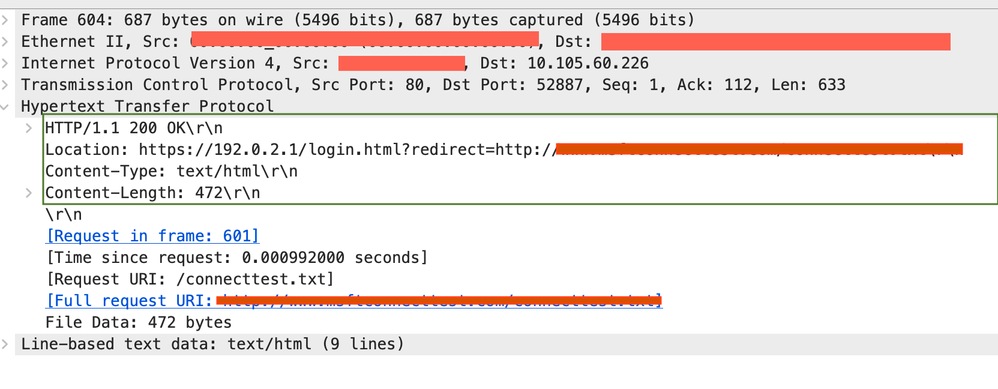

Redirect URL Sent to Client

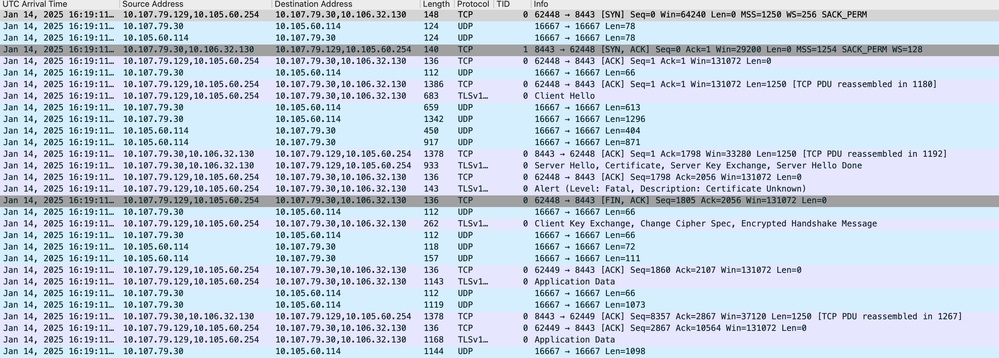

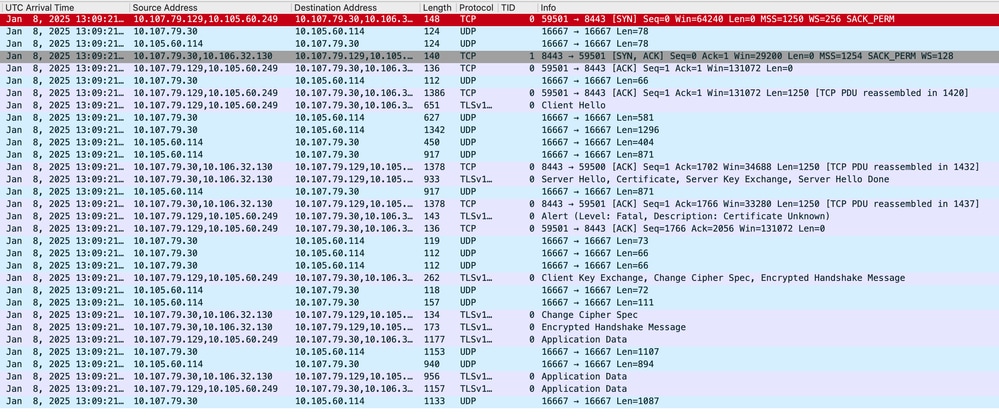

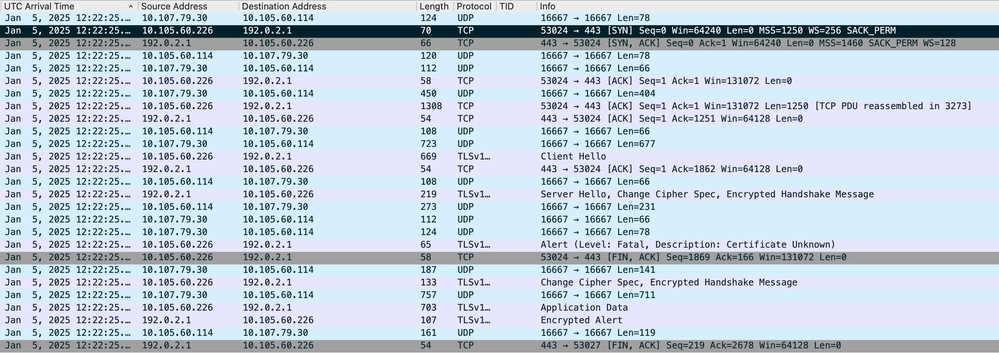

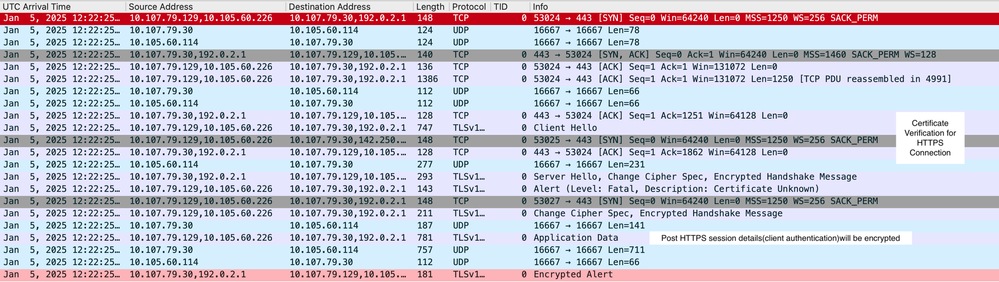

Client Access to Local Webauth Page to Provide Authentication Details
Logs from Anchor Controller
Radioactive Traces
!! Mobility Handoff !!
{mobilityd_R0-0}{1} [mm-client] [26021] (debug) MAC Client-MAC Received mobile_announce, sub type 0 of XID (XID) from (ipv4 Foreign-WLC-IP )
{mobilityd_R0-0}{1} [mm-client] [26021] (debug) MAC Client-MAC Received mobile_announce, sub type 0 of XID (XID) from (ipv4 Foreign-WLC-IP )
{mobilityd_R0-0}{1} [mm-client] [26021] (debug) MAC Client-MAC Received export_Anchor_req, sub type 0 of XID (XID) from (ipv4 Foreign-WLC-IP )
{mobilityd_R0-0}{1} [mm-client] [26021] (debug) MAC Client-MAC Number of client is BELOW wlan limit
{mobilityd_R0-0}{1} [mm-transition] [26021] (info) MAC Client-MAC MMFSM transition S_MC_INIT -> S_MC_Anchor_EXP_ANC_REQ_RCVD_TR on E_MC_EXP_ANC_REQ_RCVD from ipv4 Foreign-WLC-IP
{wncd_x_R0-0}{1} [mm-client] [24229] (info) MAC Client-MAC Roam type changed - None -> L3 Requested
!! Session Created for Client !!
{wncd_x_R0-0}{1}: [client-orch-state] [24229]: (note): MAC: Client_MAC Client state transition: S_CO_ASSOCIATING -> S_CO_CREATE_SM_SESSION_IN_PROGRESS
{wncd_x_R0-0}{1}: [client-auth] [24229]: (info): MAC: Client_MAC Client auth-interface state transition: S_AUTHIF_INIT -> S_AUTHIF_AWAIT_L2_WEBAUTH_START_RESP
{wncd_x_R0-0}{1}: [webauth-state] [24229]: (info): [Client_MAC][ 0.0.0.0]Param-map used: global
{wncd_x_R0-0}{1}: [webauth-acl] [24229]: (info): mobility_a0000001[Client_MAC][ 0.0.0.0]Applying IPv4 intercept ACL via SVM, name: IP-Adm-V4-Int-ACL-global, priority: 50, IIF-ID: 0
{wncd_x_R0-0}{1}: [client-auth] [24229]: (info): MAC: Client_MAC Client auth-interface state transition: S_AUTHIF_AWAIT_L2_WEBAUTH_START_RESP -> S_AUTHIF_L2_WEBAUTH_PENDING
{wncd_x_R0-0}{1}: [client-orch-state] [24229]: (note): MAC: Client_MAC Client state transition: S_CO_CREATE_SM_SESSION_IN_PROGRESS -> S_CO_MOBILITY_DISCOVERY_IN_PROGRESS
{wncd_x_R0-0}{1}: [mm-transition] [24229]: (info): MAC: Client_MAC MMIF FSM transition: S_MA_INIT -> S_MA_AnchorING_ASSOC_RESP_PROCESSED_TR on E_MA_CO_EXP_Anchor_REQ_ASSOC_RCVD
{mobilityd_R0-0}{1} [mm-client] [26021] (debug) MAC Client-MAC Export Anchor Response successfully processed.
{mobilityd_R0-0}{1} [mm-client] [26021] (debug) MAC Client-MAC Forwarding Anchor Response to Foreign.
{mobilityd_R0-0}{1} [mm-client] [26021] (info) MAC Client-MAC Forwarding export_Anchor_rsp, sub type 0 of XID (XID) from (WNCD[0]) to (ipv4 Foreign-WLC-IP )
{mobilityd_R0-0}{1} [mm-client] [26021] (debug) MAC Client-MAC Client is AnchorED.
{ wncd_x_R0-0}{1} [mm-client] [24229] (info) MAC Client-MAC Mobility role changed - Unassoc -> Export Anchor
{mobilityd_R0-0}{1} [mm-client] [26021] (debug) MAC Client-MAC Client is AnchorED.>> Client is successfully Anchored
!! Client DHCP Traffic !!
{wncd_x_R0-0}{1} [client-orch-state] [24229] (note) MAC Client-MAC Client state transition S_CO_MOBILITY_DISCOVERY_IN_PROGRESS -> S_CO_DPATH_PLUMB_IN_PROGRESS
{wncd_x_R0-0}{1} [client-orch-state] [24229] (note) MAC Client-MAC Client state transition S_CO_DPATH_PLUMB_IN_PROGRESS -> S_CO_IP_LEARN_IN_PROGRESS {wncd_x_R0-0}{1} [client-iplearn] [24229] (info) MAC Client-MAC IP-learn state transition S_IPLEARN_INIT -> S_IPLEARN_IN_PROGRESS
{wncd_x_R0-0}{1} [sisf-packet] RX DHCPv4 from interface mobility_a0000001 on vlan 31 Src MAC Client-MAC Dst MAC ffff.ffff.ffff src_ip 0.0.0.0, dst_ip 255.255.255.255, BOOTPREQUEST, SISF_DHCPDISCOVER, giaddr 0.0.0.0, yiaddr 0.0.0.0, CMAC Client-MAC {wncd_x_R0-0}{1} [sisf-packet] TX DHCPv4 from interface mobility_a0000001 on vlan 31 Src MAC Client-MAC Dst MAC ffff.ffff.ffff src_ip 0.0.0.0, dst_ip 255.255.255.255, BOOTPREQUEST, SISF_DHCPDISCOVER,
{wncd_x_R0-0}{1} [sisf-packet] RX DHCPv4 from interface Tw0/0/1 on vlan 31 Src MAC DHCP-Reply-Source-MAC Dst MAC Client-MAC src_ip 10.105.60.69, dst_ip 10.105.60.226, BOOTPREPLY, SISF_DHCPOFFER, giaddr 0.0.0.0, yiaddr 10.105.60.226, CMAC Client-MAC
{wncd_x_R0-0}{1} [sisf-packet] TX DHCPv4 from interface Tw0/0/1 on vlan 31 Src MAC DHCP-Reply-Source-MAC Dst MAC Client-MAC src_ip 10.105.60.69, dst_ip 10.105.60.226, BOOTPREPLY, SISF_DHCPOFFER, giaddr
{wncd_x_R0-0}{1} [sisf-packet] RX DHCPv4 from interface mobility_a0000001 on vlan 31 Src MAC Client-MAC Dst MAC ffff.ffff.ffff src_ip 0.0.0.0, dst_ip 255.255.255.255, BOOTPREQUEST, SISF_DHCPREQUEST, giaddr 0.0.0.0, yiaddr 0.0.0.0, CMAC Client-MAC
{wncd_x_R0-0}{1} [sisf-packet] TX DHCPv4 from interface mobility_a0000001 on vlan 31 Src MAC Client-MAC Dst MAC ffff.ffff.ffff src_ip 0.0.0.0, dst_ip 255.255.255.255, BOOTPREQUEST, SISF_DHCPREQUEST,
{wncd_x_R0-0}{1} [sisf-packet] RX DHCPv4 from interface Tw0/0/1 on vlan 31 Src MAC DHCP-Reply-Source-MAC Dst MAC Client-MAC src_ip 10.105.60.69, dst_ip 10.105.60.226, BOOTPREPLY, SISF_DHCPACK, giaddr 0.0.0.0, yiaddr 10.105.60.226, CMAC Client-MAC
{wncd_x_R0-0}{1} [sisf-packet] TX DHCPv4 from interface Tw0/0/1 on vlan 31 Src MAC DHCP-Reply-Source-MAC Dst MAC Client-MAC src_ip 10.105.60.69, dst_ip 10.105.60.226, BOOTPREPLY, SISF_DHCPACK, giaddr 0.0.0.0, yiaddr 10.105.60.226, CMAC Client-MAC
{wncd_x_R0-0}{1} [client-iplearn] [24229] (note) MAC Client-MAC Client IP learn successful. Method DHCP IP 10.105.60.226 {wncd_x_R0-0}{1} [auth-mgr-feat_acct] [24229] (info) [Client-MACmobility_a0000001] SM Notified attribute Add/Update addr 10.105.60.226
{mobilityd_R0-0}{1} [mm-client] [26021] (debug) MAC Client-MAC Sending ipv4_address_update of XID (XID) to (ipv4 Foreign-WLC-IP )
{wncd_x_R0-0}{1} [client-iplearn] [24229] (info) MAC Client-MAC IP-learn state transition S_IPLEARN_IN_PROGRESS -> S_IPLEARN_COMPLETE {wncd_x_R0-0}{1}Received ip learn response. method IPLEARN_METHOD_DHCP >> IP Learn
Complete
{wncd_x_R0-0}{1}: [client-orch-sm] [24229]: (debug): MAC: Client_MAC Received ip learn response. method: IPLEARN_METHOD_DHCP
!! Local Web Athentication !!
{wncd_x_R0-0}{1}: [client-orch-state] [24229]: (note): MAC: Client_MAC Client state transition: S_CO_IP_LEARN_IN_PROGRESS -> S_CO_L3_AUTH_IN_PROGRESS
{wncd_x_R0-0}{1}: [client-auth] [24229]: (note): MAC: Client_MAC L3 Authentication initiated. LWA
{wncd_x_R0-0}{1}: [webauth-io] [24229]: (info): mobility_a0000001[Client_MAC][ 10.105.60.226]52910/195 IO state NEW -> READING
{wncd_x_R0-0}{1}: [webauth-io] [24229]: (info): mobility_a0000001[Client_MAC][ 10.105.60.226]52911/235 IO state NEW -> READING
{wncd_x_R0-0}{1}: [webauth-io] [24229]: (info): mobility_a0000001[Client_MAC][ 10.105.60.226]52911/235 Read event, Message ready
{wncd_x_R0-0}{1}: [webauth-httpd] [24229]: (info): mobility_a0000001[Client_MAC][ 10.105.60.226]GET rcvd when in GET_REDIRECT state
{wncd_x_R0-0}{1}: [webauth-httpd] [24229]: (info): mobility_a0000001[Client_MAC][ 10.105.60.226]HTTP GET request
{wncd_x_R0-0}{1}: [webauth-httpd] [24229]: (info): mobility_a0000001[Client_MAC][ 10.105.60.226]Parse GET, src [10.105.60.226] dst [Resolved IP] url [http://www.connectivity check url/redirect]
{wncd_x_R0-0}{1}: [webauth-httpd] [24229]: (info): mobility_a0000001[Client_MAC][ 10.105.60.226]Read complete: parse_request return 8
{wncd_x_R0-0}{1}: [webauth-state] [24229]: (info): mobility_a0000001[Client_MAC][ 10.105.60.226]Param-map used: global
{wncd_x_R0-0}{1}: [webauth-state] [24229]: (info): mobility_a0000001[Client_MAC][ 10.105.60.226]State GET_REDIRECT -> GET_REDIRECT
{wncd_x_R0-0}{1}: [webauth-io] [24229]: (info): mobility_a0000001[Client_MAC][ 10.105.60.226]52911/235 IO state READING -> WRITING
{wncd_x_R0-0}{1}: [webauth-io] [24229]: (info): mobility_a0000001[Client_MAC][ 10.105.60.226]52911/235 IO state WRITING -> END
{wncd_x_R0-0}{1}: [webauth-httpd] [24229]: (info): mobility_a0000001[Client_MAC][ 10.105.60.226]52911/235 Remove IO ctx and close socket, id [1F000051]
{wncd_x_R0-0}{1}: [webauth-io] [24229]: (info): mobility_a0000001[Client_MAC][ 10.105.60.226]52910/195 Read event, Message ready
{wncd_x_R0-0}{1}: [webauth-httpd] [24229]: (info): mobility_a0000001[Client_MAC][ 10.105.60.226]GET rcvd when in GET_REDIRECT state
{wncd_x_R0-0}{1}: [webauth-httpd] [24229]: (info): mobility_a0000001[Client_MAC][ 10.105.60.226]HTTP GET request
{wncd_x_R0-0}{1}: [webauth-httpd] [24229]: (info): mobility_a0000001[Client_MAC][ 10.105.60.226]Parse GET, src [10.105.60.226] dst [Resolved IP] url [http://www.connectivity check url/favicon.ico]
{wncd_x_R0-0}{1}: [webauth-httpd] [24229]: (info): mobility_a0000001[Client_MAC][ 10.105.60.226]Read complete: parse_request return 8
{wncd_x_R0-0}{1}: [webauth-state] [24229]: (info): mobility_a0000001[Client_MAC][ 10.105.60.226]Param-map used: global
{wncd_x_R0-0}{1}: [webauth-state] [24229]: (info): mobility_a0000001[Client_MAC][ 10.105.60.226]State GET_REDIRECT -> GET_REDIRECT
{wncd_x_R0-0}{1}: [webauth-io] [24229]: (info): mobility_a0000001[Client_MAC][ 10.105.60.226]52910/195 IO state READING -> WRITING
{wncd_x_R0-0}{1}: [webauth-io] [24229]: (info): mobility_a0000001[Client_MAC][ 10.105.60.226]52910/195 IO state WRITING -> END
{wncd_x_R0-0}{1}: [webauth-httpd] [24229]: (info): mobility_a0000001[Client_MAC][ 10.105.60.226]52910/195 Remove IO ctx and close socket, id [86000054]
{wncd_x_R0-0}{1}: [webauth-io] [24229]: (info): mobility_a0000001[Client_MAC][ 10.105.60.226]52919/195 IO state NEW -> READING
{wncd_x_R0-0}{1}: [webauth-httpd] [24229]: (info): mobility_a0000001[Client_MAC][ 10.105.60.226]52919/195 Remove IO ctx and close socket, id [4200004C]
{wncd_x_R0-0}{1}: [webauth-io] [24229]: (info): mobility_a0000001[Client_MAC][ 10.105.60.226]52923/195 IO state NEW -> SSL_HANDSHAKING
{wncd_x_R0-0}{1}: [webauth-io] [24229]: (info): mobility_a0000001[Client_MAC][ 10.105.60.226]52924/195 IO state NEW -> SSL_HANDSHAKING
{wncd_x_R0-0}{1}: [webauth-io] [24229]: (info): mobility_a0000001[Client_MAC][ 10.105.60.226]52924/195 Read event, Message ready
{wncd_x_R0-0}{1}: [webauth-httpd] [24229]: (info): mobility_a0000001[Client_MAC][ 10.105.60.226]GET rcvd when in GET_REDIRECT state
{wncd_x_R0-0}{1}: [webauth-httpd] [24229]: (info): mobility_a0000001[Client_MAC][ 10.105.60.226]HTTP GET request
{wncd_x_R0-0}{1}: [webauth-httpd] [24229]: (info): mobility_a0000001[Client_MAC][ 10.105.60.226]Parse GET, src [10.105.60.226] dst [192.0.2.1] url [https://192.0.2.1:443/login.html?redirect=http://www.connectivity check url/redirect]
{wncd_x_R0-0}{1}: [webauth-httpd] [24229]: (info): mobility_a0000001[Client_MAC][ 10.105.60.226]Read complete: parse_request return 10
{wncd_x_R0-0}{1}: [webauth-state] [24229]: (info): mobility_a0000001[Client_MAC][ 10.105.60.226]Param-map used: global
{wncd_x_R0-0}{1}: [webauth-state] [24229]: (info): mobility_a0000001[Client_MAC][ 10.105.60.226]State GET_REDIRECT -> LOGIN
{wncd_x_R0-0}{1}: [webauth-page] [24229]: (info): mobility_a0000001[Client_MAC][ 10.105.60.226]Sending Webauth login form, len 8137
{wncd_x_R0-0}{1}: [webauth-io] [24229]: (info): mobility_a0000001[Client_MAC][ 10.105.60.226]53007/195 IO state READING -> WRITING
{wncd_x_R0-0}{1}: [webauth-io] [24229]: (info): mobility_a0000001[Client_MAC][ 10.105.60.226]53007/195 IO state WRITING -> READING
{wncd_x_R0-0}{1}: [webauth-io] [24229]: (info): mobility_a0000001[Client_MAC][ 10.105.60.226]53007/195 Read event, Message ready
{wncd_x_R0-0}{1}: [webauth-httpd] [24229]: (info): mobility_a0000001[Client_MAC][ 10.105.60.226]GET rcvd when in LOGIN state
{wncd_x_R0-0}{1}: [webauth-httpd] [24229]: (info): mobility_a0000001[Client_MAC][ 10.105.60.226]HTTP GET request
{wncd_x_R0-0}{1}: [webauth-httpd] [24229]: (info): mobility_a0000001[Client_MAC][ 10.105.60.226]Parse GET, src [10.105.60.226] dst [192.0.2.1] url [https://192.0.2.1:443/favicon.ico]
{wncd_x_R0-0}{1}: [webauth-httpd] [24229]: (info): mobility_a0000001[Client_MAC][ 10.105.60.226]Read complete: parse_request return 6
{wncd_x_R0-0}{1}: [webauth-error] [24229]: (info): mobility_a0000001[Client_MAC][ 10.105.60.226]Parse logo GET, File /favicon.ico not found
{wncd_x_R0-0}{1}: [webauth-io] [24229]: (info): mobility_a0000001[Client_MAC][ 10.105.60.226]53007/195 IO state READING -> END
{wncd_x_R0-0}{1}: [webauth-httpd] [24229]: (info): mobility_a0000001[Client_MAC][ 10.105.60.226]53007/195 Remove IO ctx and close socket, id [1D000064]
{wncd_x_R0-0}{1}: [webauth-io] [24229]: (info): mobility_a0000001[Client_MAC][ 10.105.60.226]53008/195 IO state NEW -> SSL_HANDSHAKING
{wncd_x_R0-0}{1}: [webauth-io] [24229]: (info): mobility_a0000001[Client_MAC][ 10.105.60.226]53009/195 IO state NEW -> SSL_HANDSHAKING
{wncd_x_R0-0}{1}: [webauth-io] [24229]: (info): mobility_a0000001[Client_MAC][ 10.105.60.226]53009/195 Read event, Message ready
{wncd_x_R0-0}{1}: [webauth-httpd] [24229]: (info): mobility_a0000001[Client_MAC][ 10.105.60.226]GET rcvd when in LOGIN state
{wncd_x_R0-0}{1}: [webauth-httpd] [24229]: (info): mobility_a0000001[Client_MAC][ 10.105.60.226]HTTP GET request
{wncd_x_R0-0}{1}: [webauth-httpd] [24229]: (info): mobility_a0000001[Client_MAC][ 10.105.60.226]Parse GET, src [10.105.60.226] dst [192.0.2.1] url [https://192.0.2.1:443/favicon.ico]
{wncd_x_R0-0}{1}: [webauth-httpd] [24229]: (info): mobility_a0000001[Client_MAC][ 10.105.60.226]Read complete: parse_request return 6
{wncd_x_R0-0}{1}: [webauth-error] [24229]: (info): mobility_a0000001[Client_MAC][ 10.105.60.226]Parse logo GET, File /favicon.ico not found
{wncd_x_R0-0}{1}: [webauth-io] [24229]: (info): mobility_a0000001[Client_MAC][ 10.105.60.226]53009/195 IO state READING -> END
{wncd_x_R0-0}{1}: [webauth-httpd] [24229]: (info): mobility_a0000001[Client_MAC][ 10.105.60.226]53009/195 Remove IO ctx and close socket, id [D1000066]
{wncd_x_R0-0}{1}: [webauth-io] [24229]: (info): mobility_a0000001[Client_MAC][ 10.105.60.226]53011/195 IO state NEW -> READING
{wncd_x_R0-0}{1}: [webauth-httpd] [24229]: (info): mobility_a0000001[Client_MAC][ 10.105.60.226]53011/195 Remove IO ctx and close socket, id [77000069]
{wncd_x_R0-0}{1}: [webauth-io] [24229]: (info): mobility_a0000001[Client_MAC][ 10.105.60.226]53020/195 IO state NEW -> SSL_HANDSHAKING
{wncd_x_R0-0}{1}: [webauth-io] [24229]: (info): mobility_a0000001[Client_MAC][ 10.105.60.226]53022/235 IO state NEW -> SSL_HANDSHAKING
{wncd_x_R0-0}{1}: [webauth-io] [24229]: (info): mobility_a0000001[Client_MAC][ 10.105.60.226]53023/195 IO state NEW -> SSL_HANDSHAKING
{wncd_x_R0-0}{1}: [webauth-io] [24229]: (info): mobility_a0000001[Client_MAC][ 10.105.60.226]53023/195 Read event, Message ready
{wncd_x_R0-0}{1}: [webauth-httpd] [24229]: (info): mobility_a0000001[Client_MAC][ 10.105.60.226]POST rcvd when in LOGIN state
{wncd_x_R0-0}{1}: [webauth-httpd] [24229]: (info): mobility_a0000001[Client_MAC][ 10.105.60.226]get url: /login.html
{wncd_x_R0-0}{1}: [webauth-httpd] [24229]: (info): mobility_a0000001[Client_MAC][ 10.105.60.226]Read complete: parse_request return 4
{wncd_x_R0-0}{1}: [sadb-attr] [24229]: (info): Removing ipv6 addresses from the attr list -1526718499,sm_ctx = 0x80806a1f10, num_ipv6 = 1
{wncd_x_R0-0}{1}: [caaa-authen] [24229]: (info): [CAAA:AUTHEN:4000544] NULL ATTR LIST
{wncd_x_R0-0}{1}: [webauth-state] [24229]: (info): mobility_a0000001[Client_MAC][ 10.105.60.226]Param-map used: global
{wncd_x_R0-0}{1}: [webauth-state] [24229]: (info): mobility_a0000001[Client_MAC][ 10.105.60.226]State LOGIN -> AUTHENTICATING
{wncd_x_R0-0}{1}: [webauth-io] [24229]: (info): mobility_a0000001[Client_MAC][ 10.105.60.226]53023/195 IO state READING -> AUTHENTICATING
{wncd_x_R0-0}{1}: [sadb-attr] [24229]: (info): Removing ipv6 addresses from the attr list 1761615853,sm_ctx = 0x80806a1f10, num_ipv6 = 1
{wncd_x_R0-0}{1}: [caaa-author] [24229]: (info): [CAAA:AUTHOR:4000544] NULL ATTR LIST
{wncd_x_R0-0}{1}: [webauth-state] [24229]: (info): mobility_a0000001[Client_MAC][ 10.105.60.226]Param-map used: global
{wncd_x_R0-0}{1}: [webauth-state] [24229]: (info): mobility_a0000001[Client_MAC][ 10.105.60.226]State AUTHENTICATING -> AUTHC_SUCCESS
{wncd_x_R0-0}{1}: [webauth-acl] [24229]: (info): mobility_a0000001[Client_MAC][ 10.105.60.226]Unapply IPv4 intecept ACL via SVM, name IP-Adm-V4-Int-ACL-global, pri 50, IIF 0
{wncd_x_R0-0}{1}: [auth-mgr] [24229]: (info): [Client_MAC:mobility_a0000001] Raising ext evt Template Deactivated (11) on this session, client (unknown) (0)
{wncd_x_R0-0}{1}: [webauth-acl] [24229]: (info): mobility_a0000001[Client_MAC][ 10.105.60.226]Unapply IPv6 intecept ACL via SVM, name IP-Adm-V6-Int-ACL-global, pri 52, IIF 0
{wncd_x_R0-0}{1}: [auth-mgr] [24229]: (info): [Client_MAC:mobility_a0000001] Raising ext evt Template Deactivated (11) on this session, client (unknown) (0)
{wncd_x_R0-0}{1}: [llbridge-main] [24229]: (debug): MAC: Client_MAC Link-local bridging not enabled for this client, not checking VLAN validity
{wncd_x_R0-0}{1}: [auth-mgr] [24229]: (info): [Client_MAC:mobility_a0000001] Authc success from WebAuth, Auth event success
{wncd_x_R0-0}{1}: [auth-mgr] [24229]: (info): [Client_MAC:mobility_a0000001] Raised event APPLY_USER_PROFILE (14)
{wncd_x_R0-0}{1}: [auth-mgr] [24229]: (info): [Client_MAC:mobility_a0000001] Raised event RX_METHOD_AUTHC_SUCCESS (3)
{wncd_x_R0-0}{1}: [client-auth] [24229]: (info): MAC: Client_MAC Client auth-interface state transition: S_AUTHIF_WEBAUTH_PENDING -> S_AUTHIF_WEBAUTH_PENDING
{wncd_x_R0-0}{1}: [aaa-attr-inf] [24229]: (info): Applying Attribute : username 0 Guest1
{wncd_x_R0-0}{1}: [aaa-attr-inf] [24229]: (info): Applying Attribute : aaa-author-type 0 1 (0x1)
{wncd_x_R0-0}{1}: [aaa-attr-inf] [24229]: (info): Applying Attribute : aaa-author-service 0 16 (0x10)
{wncd_x_R0-0}{1}: [aaa-attr-inf] [24229]: (info): Applying Attribute : clid-MAC-addr 0 Client_MAC
{wncd_x_R0-0}{1}: [aaa-attr-inf] [24229]: (info): Applying Attribute : addr 0 0xa693ce2
{wncd_x_R0-0}{1}: [aaa-attr-inf] [24229]: (info): Applying Attribute : method 0 1 [webauth]
{wncd_x_R0-0}{1}: [aaa-attr-inf] [24229]: (info): Applying Attribute : clid-MAC-addr 0 Client_MAC
{wncd_x_R0-0}{1}: [aaa-attr-inf] [24229]: (info): Applying Attribute : intf-id 0 2684354561 (0xa0000001)
{wncd_x_R0-0}{1}: [auth-mgr] [24229]: (info): [Client_MAC:mobility_a0000001] auth mgr attr add/change notification is received for attr username(450)
{wncd_x_R0-0}{1}: [auth-mgr-feat_acct] [24229]: (info): [Client_MAC:mobility_a0000001] SM Notified attribute Add/Update username Guest1
{wncd_x_R0-0}{1}: [auth-mgr] [24229]: (info): [Client_MAC:mobility_a0000001] Received User-Name Guest1 for client Client_MAC
{wncd_x_R0-0}{1}: [auth-mgr] [24229]: (info): [Client_MAC:mobility_a0000001] auth mgr attr add/change notification is received for attr auth-domain(954)
{wncd_x_R0-0}{1}: [auth-mgr] [24229]: (info): [Client_MAC:mobility_a0000001] Method webauth changing state from 'Running' to 'Authc Success'
{wncd_x_R0-0}{1}: [auth-mgr] [24229]: (info): [Client_MAC:mobility_a0000001] Context changing state from 'Running' to 'Authc Success'
{wncd_x_R0-0}{1}: [auth-mgr] [24229]: (info): [Client_MAC:mobility_a0000001] auth mgr attr add/change notification is received for attr method(757)
{wncd_x_R0-0}{1}: [auth-mgr] [24229]: (info): [Client_MAC:mobility_a0000001] Raised event AUTHZ_SUCCESS (11)
{wncd_x_R0-0}{1}: [auth-mgr] [24229]: (info): [Client_MAC:mobility_a0000001] Context changing state from 'Authc Success' to 'Authz Success'
{wncd_x_R0-0}{1}: [webauth-acl] [24229]: (info): mobility_a0000001[Client_MAC][ 10.105.60.226]Applying IPv4 logout ACL via SVM, name: IP-Adm-V4-LOGOUT-ACL, priority: 51, IIF-ID: 0
{wncd_x_R0-0}{1}: [svm] [24229]: (info): SVM_INFO: Applying Svc Templ IP-Adm-V4-LOGOUT-ACL (ML:NONE)
{wncd_x_R0-0}{1}: [epm] [24229]: (info): [Client_MAC:mobility_a0000001] Feature (EPM URL PLUG-IN) has been started (status Success)
{wncd_x_R0-0}{1}: [svm] [24229]: (info): SVM_INFO: Response of epm is SYNC with return code Success
{wncd_x_R0-0}{1}: [auth-mgr] [24229]: (info): [Client_MAC:mobility_a0000001] Raising ext evt Template Activated (9) on this session, client (unknown) (0)
{wncd_x_R0-0}{1}: [sanet-shim-miscellaneous] [24229]: (ERR): authc policy update from SANet vlan 31
{wncd_x_R0-0}{1}: [llbridge-main] [24229]: (debug): MAC: Client_MAC Link-local bridging not enabled for this client, not checking VLAN validity
{wncd_x_R0-0}{1}: [webauth-sess] [24229]: (info): mobility_a0000001[Client_MAC][ 10.105.60.226]Param-map used: global
{wncd_x_R0-0}{1}: [webauth-state] [24229]: (info): mobility_a0000001[Client_MAC][ 10.105.60.226]Param-map used: global
{wncd_x_R0-0}{1}: [webauth-state] [24229]: (info): mobility_a0000001[Client_MAC][ 10.105.60.226]State AUTHC_SUCCESS -> AUTHZ
{wncd_x_R0-0}{1}: [webauth-page] [24229]: (info): mobility_a0000001[Client_MAC][ 10.105.60.226]Sending Webauth success page
{wncd_x_R0-0}{1}: [webauth-io] [24229]: (info): mobility_a0000001[Client_MAC][ 10.105.60.226]53023/195 IO state AUTHENTICATING -> WRITING
{wncd_x_R0-0}{1}: [webauth-io] [24229]: (info): mobility_a0000001[Client_MAC][ 10.105.60.226]53023/195 IO state WRITING -> END
{wncd_x_R0-0}{1}: [webauth-httpd] [24229]: (info): mobility_a0000001[Client_MAC][ 10.105.60.226]53023/195 Remove IO ctx and close socket, id [EC00006C]
{wncd_x_R0-0}{1}: [auth-mgr] [24229]: (info): [Client_MAC:mobility_a0000001] SM will not send event Template Activated to PRE for 0x4000544
{wncd_x_R0-0}{1}: [client-auth] [24229]: (note): MAC: Client_MAC L3 Authentication Successful. ACL:[]
{wncd_x_R0-0}{1}: [client-auth] [24229]: (info): MAC: Client_MAC Client auth-interface state transition: S_AUTHIF_WEBAUTH_PENDING -> S_AUTHIF_WEBAUTH_DONE
{wncd_x_R0-0}{1}: [rog-proxy-capwap] [24229]: (debug): Managed client RUN state notification: Client_MAC
{wncd_x_R0-0}{1}: [avc-afc] [24229]: (info): ReAnchor [client MAC: Client_MAC] Client has Anchor role
{wncd_x_R0-0}{1}: [avc-afc] [24229]: (info): ReAnchor [client MAC: Client_MAC] Guest client detected. Skip it
{wncd_x_R0-0}{1}: [client-orch-state] [24229]: (note): MAC: Client_MAC Client state transition: S_CO_L3_AUTH_IN_PROGRESS -> S_CO_RUN >> !! Client went to RUN State !!
Packet Capture
After the mobility handoff, the Anchor Controller receives DHCP traffic from the Foreign Controller via the mobility tunnel.
Client DHCP Traffic on Anchor Controller Received from Foreign Controller

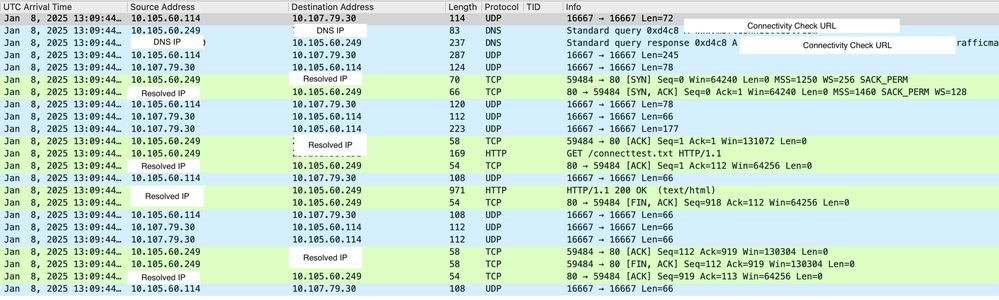

The Anchor Controller receives connectivity checks, webpage access requests, and authentication details to process further.
Network Connectivity Status Check on Anchor Controller
Redirect URL Sent to Client
Client Access to Local Webauth Page to Provide Authentication Details
After successful Local Web authentication, the client enters RUN state with an Export Anchor role. From this point forward, the Anchor Controller serves as the exit point for client data traffic.
Client State on Both Foreign and Anchor Controller
Client State on Foreign
Client State on Anchor
Client Properties on Foreign
Client Properties on Anchor
Central Web Authentication
Flow for Central Webauth SSID in Foreign-Anchor Setup
1. The client sends an association request for the SSID broadcasted by the Foreign Wireless LAN Controller (WLC).
2. The Foreign WLC performs MAC Filtering by sending an Access-Request to the RADIUS server. The RADIUS server responds with an Access-Accept, which includes the necessary Redirect URL and Access Control List (ACL).
3. The Foreign WLC sends the association response to the client.
4. The client is Anchored to the Anchor WLC. The client enters the RUN state on the Foreign WLC, with the mobility role set to Export Foreign.
5. The client obtains an IP address. At this stage, the Anchor WLC handles the redirection traffic, directing the client to the authentication portal.
6. Once redirected, the client communicates directly with the RADIUS server. This traffic is tunneled through the Anchor WLC toward the RADIUS server.
7. The client enters authentication credentials to the RADIUS server. Upon successful authentication, the RADIUS server sends a Change of Authorization (CoA) request to the Foreign WLC.
8. The Foreign WLC sends a CoA response to the RADIUS server. The client transitions to the RUN state on the Anchor WLC, with the role set to Export Anchor.
9. All subsequent client traffic is tunneled from the Foreign WLC to the Anchor WLC, where it exits the network.
Client Connectivity Flow Diagram for Central Webauth SSID in Foreign-Anchor Setup
Analyzing Central Webauth SSID Flow in Foreign-Anchor Setup through Logs
This section explanis the flow of client connectivity for Central Web Authentication SSID by using Radioactive Trace (RA Trace), Embedded Packet Captures (EPC), and client status on both the Foreign and Anchor controllers.
Logs from Foreign Controller
Radioactive Traces
!! Client Association Phase !!
{wncd_x_R0-0}{1}: [client-orch-sm] [17047]: (note): MAC: Client_MAC Association received. BSSID BSSID_MAC, WLAN DMZ_CWA, Slot 1 AP AP_MAC, AP_NAME, Site tag default-site-tag, Policy tag default-policy-tag, Policy profile DMZ_CWA_PP, Switching Central, Socket delay 0ms
{wncd_x_R0-0}{1}: [client-orch-state] [17047]: (note): MAC: Client_MAC Client state transition: S_CO_INIT -> S_CO_ASSOCIATING
!! MAC Authentication !!
{wncd_x_R0-0}{1}: [dot11] [17047]: (info): MAC: Client_MAC DOT11 state transition: S_DOT11_INIT -> S_DOT11_MAB_PENDING
{wncd_x_R0-0}{1}: [client-orch-state] [17047]: (note): MAC: Client_MAC Client state transition: S_CO_ASSOCIATING -> S_CO_MACAUTH_IN_PROGRESS
{wncd_x_R0-0}{1}: [client-auth] [17047]: (note): MAC: Client_MAC MAB Authentication initiated. Policy VLAN 31, AAA override = 1, NAC = 1
{wncd_x_R0-0}{1}: [auth-mgr-feat_wireless] [17047]: (info): [Client_MAC:capwap_90000003] - authc_list: DMZ_CWA_Authorization
{wncd_x_R0-0}{1}: [auth-mgr-feat_wireless] [17047]: (info): [Client_MAC:capwap_90000003] - authz_list: Not present under wlan configuration
{wncd_x_R0-0}{1}: [client-auth] [17047]: (info): MAC: Client_MAC Client auth-interface state transition: S_AUTHIF_INIT -> S_AUTHIF_AWAIT_MAB_AUTH_START_RESP
{wncd_x_R0-0}{1}: [client-auth] [17047]: (info): MAC: Client_MAC Client auth-interface state transition: S_AUTHIF_AWAIT_MAB_AUTH_START_RESP -> S_AUTHIF_MAB_AUTH_PENDING
{wncd_x_R0-0}{1}: [client-auth] [17047]: (info): MAC: Client_MAC Client auth-interface state transition: S_AUTHIF_MAB_AUTH_PENDING -> S_AUTHIF_MAB_AUTH_PENDING
{wncd_x_R0-0}{1}: [mab] [17047]: (info): [Client_MAC:capwap_90000003] Received event 'MAB_CONTINUE' on (Client_MAC)
{wncd_x_R0-0}{1}: [caaa-author] [17047]: (info): [CAAA:AUTHOR:a30003a6] NULL ATTR LIST
{wncd_x_R0-0}{1}: [radius] [17047]: (info): RADIUS: Send Access-Request to 10.106.32.130:1812 id 0/245, len 370
{wncd_x_R0-0}{1}: [radius] [17047]: (info): RADIUS: authenticator
{wncd_x_R0-0}{1}: [radius] [17047]: (info): RADIUS: User-Name [1] 14 user-MAC
{wncd_x_R0-0}{1}: [radius] [17047]: (info): RADIUS: User-Password [2] 18 *
{wncd_x_R0-0}{1}: [radius] [17047]: (info): RADIUS: Service-Type [6] 6 Call Check [10]
{wncd_x_R0-0}{1}: [radius] [17047]: (info): RADIUS: Vendor, Cisco [26] 31
{wncd_x_R0-0}{1}: [radius] [17047]: (info): RADIUS: Cisco AVpair [1] 25 service-type=Call Check
{wncd_x_R0-0}{1}: [radius] [17047]: (info): RADIUS: Framed-MTU [12] 6 1485
{wncd_x_R0-0}{1}: [radius] [17047]: (info): RADIUS: Message-Authenticator[80] 18 ...
{wncd_x_R0-0}{1}: [radius] [17047]: (info): RADIUS: EAP-Key-Name [102] 2 *
{wncd_x_R0-0}{1}: [radius] [17047]: (info): RADIUS: Vendor, Cisco [26] 49
{wncd_x_R0-0}{1}: [radius] [17047]: (info): RADIUS: Cisco AVpair [1] 43 audit-session-id=1E4F6B0A000003D247203276
{wncd_x_R0-0}{1}: [radius] [17047]: (info): RADIUS: Vendor, Cisco [26] 18
{wncd_x_R0-0}{1}: [radius] [17047]: (info): RADIUS: Cisco AVpair [1] 12 method=mab
{wncd_x_R0-0}{1}: [radius] [17047]: (info): RADIUS: Vendor, Cisco [26] 32
{wncd_x_R0-0}{1}: [radius] [17047]: (info): RADIUS: Cisco AVpair [1] 26 client-iif-id=3556776730
{wncd_x_R0-0}{1}: [radius] [17047]: (info): RADIUS: NAS-IP-Address [4] 6 10.107.79.30
{wncd_x_R0-0}{1}: [radius] [17047]: (info): RADIUS: NAS-Port-Type [61] 6 802.11 wireless [19]
{wncd_x_R0-0}{1}: [radius] [17047]: (info): RADIUS: NAS-Port [5] 6 141522
{wncd_x_R0-0}{1}: [radius] [17047]: (info): RADIUS: Vendor, Cisco [26] 31
{wncd_x_R0-0}{1}: [radius] [17047]: (info): RADIUS: Cisco AVpair [1] 25 cisco-wlan-ssid=DMZ_CWA
{wncd_x_R0-0}{1}: [radius] [17047]: (info): RADIUS: Vendor, Cisco [26] 33
{wncd_x_R0-0}{1}: [radius] [17047]: (info): RADIUS: Cisco AVpair [1] 27 wlan-profile-name=DMZ_CWA
{wncd_x_R0-0}{1}: [radius] [17047]: (info): RADIUS: Called-Station-Id [30] 27 called-station-id
{wncd_x_R0-0}{1}: [radius] [17047]: (info): RADIUS: Calling-Station-Id [31] 19 client-MAC
{wncd_x_R0-0}{1}: [radius] [17047]: (info): RADIUS: Vendor, Airespace [26] 12
{wncd_x_R0-0}{1}: [radius] [17047]: (info): RADIUS: Airespace-WLAN-ID [1] 6 12
{wncd_x_R0-0}{1}: [radius] [17047]: (info): RADIUS: Nas-Identifier [32] 16 ForeignSiteWLC
{wncd_x_R0-0}{1}: [radius] [17047]: (info): RADIUS: Started 5 sec timeout
{wncd_x_R0-0}{1}: [radius] [17047]: (info): RADIUS: Received from id 1812/245 10.106.32.130:0, Access-Accept, len 383
{wncd_x_R0-0}{1}: [radius] [17047]: (info): RADIUS: authenticator
{wncd_x_R0-0}{1}: [radius] [17047]: (info): RADIUS: User-Name [1] 19 Client_MAC
{wncd_x_R0-0}{1}: [radius] [17047]: (info): RADIUS: Class [25] 56 ...
{wncd_x_R0-0}{1}: [radius] [17047]: (info): RADIUS: Message-Authenticator[80] 18 ...
{wncd_x_R0-0}{1}: [radius] [17047]: (info): RADIUS: Vendor, Cisco [26] 37
{wncd_x_R0-0}{1}: [radius] [17047]: (info): RADIUS: Cisco AVpair [1] 31 url-redirect-acl=REDIRECT_ACL
{wncd_x_R0-0}{1}: [radius] [17047]: (info): RADIUS: Vendor, Cisco [26] 191
{wncd_x_R0-0}{1}: [radius] [17047]: (info): RADIUS: Cisco AVpair [1] 185 url-redirect=https://10.106.32.130:8443/portal/gateway?sessionId=1E4F6B0A000003D247203276&portal=d06bc251-f644-4fc3-b09f-dae9bd8a86d5&action=cwa&token=5e47010db56b160c902513244337064a
{wncd_x_R0-0}{1}: [radius] [17047]: (info): RADIUS: Vendor, Cisco [26] 42
{wncd_x_R0-0}{1}: [radius] [17047]: (info): RADIUS: Cisco AVpair [1] 36 profile-name=Windows10-Workstation
{wncd_x_R0-0}{1}: [mab] [17047]: (info): [Client_MAC:capwap_90000003] MAB received an Access-Accept for (Client_MAC)
{wncd_x_R0-0}{1}: [client-auth] [17047]: (info): MAC: Client_MAC Client auth-interface state transition: S_AUTHIF_MAB_AUTH_PENDING -> S_AUTHIF_MAB_AUTH_DONE
{wncd_x_R0-0}{1}: [client-orch-sm] [17047]: (debug): MAC: Client_MAC Processing MAB authentication result status: 0, CO_AUTH_STATUS_SUCCESS
{wncd_x_R0-0}{1}: [client-orch-state] [17047]: (note): MAC: Client_MAC Client state transition: S_CO_MACAUTH_IN_PROGRESS -> S_CO_ASSOCIATING
{wncd_x_R0-0}{1}: [dot11] [17047]: (info): MAC: Client_MAC dot11 send association response. Sending assoc response of length: 137 with resp_status_code: 0, DOT11_STATUS: DOT11_STATUS_SUCCESS >> Association Successful
{wncd_x_R0-0}{1}: [dot11] [17047]: (info): MAC: Client_MAC DOT11 state transition: S_DOT11_MAB_PENDING -> S_DOT11_ASSOCIATED
{wncd_x_R0-0}{1}: [client-orch-state] [17047]: (note): MAC: Client_MAC Client state transition: S_CO_ASSOCIATING -> S_CO_L2_AUTH_IN_PROGRESS
{wncd_x_R0-0}{1}: [client-auth] [17047]: (info): MAC: Client_MAC Client auth-interface state transition: S_AUTHIF_MAB_AUTH_DONE -> S_AUTHIF_WEBAUTH_DONE
{wncd_x_R0-0}{1}: [client-orch-sm] [17047]: (debug): MAC: Client_MAC L2 Authentication of station is successful., L3 Authentication : 0
{wncd_x_R0-0}{1}: [client-orch-sm] [17047]: (note): MAC: Client_MAC Mobility discovery triggered. Client mode: Local
{wncd_x_R0-0}{1}: [client-orch-state] [17047]: (note): MAC: Client_MAC Client state transition: S_CO_L2_AUTH_IN_PROGRESS -> S_CO_MOBILITY_DISCOVERY_IN_PROGRESS
!! Mobility Handoff !!
{mobilityd_R0-0}{1} [mm-dgram-io] [18401] (debug) MAC Client-MAC Sending message mobile_announce to group DMZ
{mobilityd_R0-0}{1} [mm-pmtu] [18401] (debug) Peer IP Anchor-WLC-IP {mobilityd_R0-0}{1} [mm-client] [18401] (debug) MAC Client-MAC Sending mobile_announce of XID (176280) to (ipv4 Anchor-WLC-IP )
{mobilityd_R0-0}{1} [mm-transition] MMFSM transition S_MC_WAIT_ANNOUNCE_RSP -> S_MC_ANNOUNCE_TIMEDOUT_PROCESSED_TR on E_MC_REQUEST_TIMEDOUT from WNCD[0]
{wncd_x_R0-0}{1} [mm-client] [17047] (debug) MAC Client-MAC Received mobile_announce_nak, sub type 2 of XID (XID) from (MobilityD[0])
{wncd_x_R0-0}{1} [mm-transition] [17047] (info) MAC Client-MAC MMIF FSM transition S_MA_INIT_WAIT_ANNOUNCE_RSP -> S_MA_NAK_PROCESSED_TR on E_MA_NAK_RCVD
{wncd_x_R0-0}{1} [mm-client] [17047] (debug) MAC Client-MAC Sending export_Anchor_req of XID (XID) to (MobilityD[0])
{mobilityd_R0-0}{1} [mm-client] [18401] (debug) MAC Client-MAC Received export_Anchor_req, sub type 0 of XID (XID) from (WNCD[0])
{mobilityd_R0-0}{1} [mm-transition] [18401] (info) MAC Client-MAC MMFSM transition S_MC_WAIT_EXP_ANC_REQ -> S_MC_EXP_ANC_REQ_RCVD_TR on E_MC_EXP_ANC_REQ_RCVD from WNCD[0]
{mobilityd_R0-0}{1} [mm-client] [18401] (debug) MAC Client-MAC Export Anchor Request successfully processed.
{mobilityd_R0-0}{1} [mm-client] [18401] (debug) MAC Client-MAC Sending export_Anchor_req of XID (176282) to (ipv4 Anchor-WLC-IP )
{mobilityd_R0-0}{1} [mm-client] [18401] (debug) MAC Client-MAC Received export_Anchor_rsp, sub type 0 of XID (XID) from (ipv4 Anchor-WLC-IP )
{mobilityd_R0-0}{1} [mm-transition] [18401] (info) MAC Client-MAC MMFSM transition S_MC_WAIT_EXP_ANC_RSP -> S_MC_EXP_ANC_RSP_RCVD_TR on E_MC_EXP_ANC_RSP_RCVD from ipv4 Anchor-WLC-IP
{mobilityd_R0-0}{1} [mm-client] [18401] (debug) MAC Client-MAC Export Anchor Response successfully processed.
{wncd_x_R0-0}{1} [epm-misc] [17047] (info) Anchor Vlan-id 31 processed [mm-client] [17047] (info) MAC Client-MAC Mobility role changed - Unassoc -> Export Foreign
[mm-client] Mobility Successful. Roam Type L3 Requested, Sub Roam Type MM_SUB_ROAM_TYPE_NONE, Client IFID 0xa0000004, Client Role Export Foreign >> Client Successfully Anchored
{wncd_x_R0-0}{1} [client-orch-state] Client state transition S_CO_MOBILITY_DISCOVERY_IN_PROGRESS -> S_CO_DPATH_PLUMB_IN_PROGRESS
{wncd_x_R0-0}{1} [client-orch-state] Client state transition S_CO_DPATH_PLUMB_IN_PROGRESS -> S_CO_IP_LEARN_IN_PROGRESS
{wncd_x_R0-0}{1} [client-orch-sm] [17047] (debug) MAC Client-MAC Received ip learn response. method IPLEARN_METHOD_ROAMING
{wncd_x_R0-0}{1} [client-orch-state] Client state transition S_CO_IP_LEARN_IN_PROGRESS -> S_CO_RUN >> !! Client went to RUN state !!
!! Post Succesful Web authentication, Change of Authorization !!
{wncd_x_R0-0}{1}: [client-auth] [17047]: (info): MAC: Client_MAC Client auth-interface state transition: S_AUTHIF_WEBAUTH_DONE -> S_AUTHIF_WEBAUTH_DONE
{wncd_x_R0-0}{1}: [caaa-ch] [17047]: (info): [CAAA:COMMAND HANDLER:a30003a6] Processing CoA request under Command Handler ctx.
{wncd_x_R0-0}{1}: [caaa-ch] [17047]: (info): [CAAA:COMMAND HANDLER:a30003a6] Reauthenticate request (0x5d71d3ad10e8) for Client_MAC
{wncd_x_R0-0}{1}: [sadb-attr] [17047]: (info): Removing ipv6 addresses from the attr list -50323943,sm_ctx = 0x80806aad00, num_ipv6 = 1
{wncd_x_R0-0}{1}: [mab] [17047]: (info): [Client_MAC:capwap_90000003] MAB re-authentication started for (Client_MAC)
{wncd_x_R0-0}{1}: [auth-mgr] [17047]: (info): [Client_MAC:capwap_90000003] Context changing state from 'Authz Success' to 'Running'
{wncd_x_R0-0}{1}: [auth-mgr] [17047]: (info): [Client_MAC:capwap_90000003] Method mab changing state from 'Authc Success' to 'Running'
{wncd_x_R0-0}{1}: [aaa-coa] [17047]: (info): radius coa proxy relay coa resp(wncd)
{wncd_x_R0-0}{1}: [aaa-coa] [17047]: (info): CoA Response Details
{wncd_x_R0-0}{1}: [aaa-attr-inf] [17047]: (info): << ssg-command-code 0 32 >>
{wncd_x_R0-0}{1}: [aaa-attr-inf] [17047]: (info): << formatted-clid 0 Client_MAC>>
{wncd_x_R0-0}{1}: [aaa-attr-inf] [17047]: (info): << error-cause 0 1 [Success]>>
{wncd_x_R0-0}{1}: [aaa-coa] [17047]: (info): server:10.107.79.30 cfg_saddr:10.107.79.30 udpport:51304 sport:0, tableid:0iden:2 rad_code:43 msg_auth_rcvd:TRUE coa_resp:ACK
{wncd_x_R0-0}{1}: [caaa-ch] [17047]: (info): [CAAA:COMMAND HANDLER] CoA response sent
{wncd_x_R0-0}{1}: [caaa-ch] [17047]: (info): [CAAA:COMMAND HANDLER:a30003a6] Identity preserved: MAC (Client_MAC), ip (0), audit_sid (1E4F6B0A000003D247203276), aaa_session_id (0)
{wncd_x_R0-0}{1}: [mab] [17047]: (info): [Client_MAC:capwap_90000003] Received event 'MAB_REAUTHENTICATE' on (Client_MAC)
{smd_R0-0}{1}: [aaa-coa] [18867]: (info): ++++++ Received CoA response Attribute List ++++++
{smd_R0-0}{1}: [radius] [18867]: (info): RADIUS(00000000): Send CoA Ack Response to 10.106.32.130:51304 id 2, len 69
{smd_R0-0}{1}: [radius] [18867]: (info): RADIUS: authenticator
{smd_R0-0}{1}: [radius] [18867]: (info): RADIUS: Vendor, Cisco [26] 9
{smd_R0-0}{1}: [radius] [18867]: (info): RADIUS: ssg-command-code [252] 3 ...
{smd_R0-0}{1}: [radius] [18867]: (info): RADIUS: Calling-Station-Id [31] 16 Client_MAC
{smd_R0-0}{1}: [radius] [18867]: (info): RADIUS: Dynamic-Author-Error-Cause[101] 6 Success [200]
{smd_R0-0}{1}: [radius] [18867]: (info): RADIUS: Message-Authenticator[80] 18 ...
{smd_R0-0}{1}: [aaa-pod] [18867]: (info): CoA response source port = 0, udpport = 51304,
{wncd_x_R0-0}{1}: [sadb-attr] [17047]: (info): Removing ipv6 addresses from the attr list 1627397682,sm_ctx = 0x80806aad00, num_ipv6 = 1
Packet capture
The client sends an association request and performs MAC authentication, this traffic is handled by the Foreign Controller.
Client Association Phase on Foreign Controller with Wireless MAB
A mobility handoff triggers between the Foreign and Anchor Controllers via port UDP 16667. Upon a successful mobility event, the client state transitions to RUN with an Export Foreign role.
The Foreign Controller receives client DHCP traffic via the CAPWAP tunnel and forwards it to the Anchor Controller for further processing.
Client DHCP Traffic Received on Foreign Controller is Forwarded to Anchor Controller using Mobility Tunnel
Similarly, the client sends network connectivity status and web page access check traffic to the Foreign WLC via the CAPWAP tunnel; the Foreign WLC forwards this to the Anchor WLC using the mobility tunnel, where the Anchor Controller intercepts or processes the traffic.
Network Connectivity Status Check on Foreign Controller
Redirect URL Sent to Client

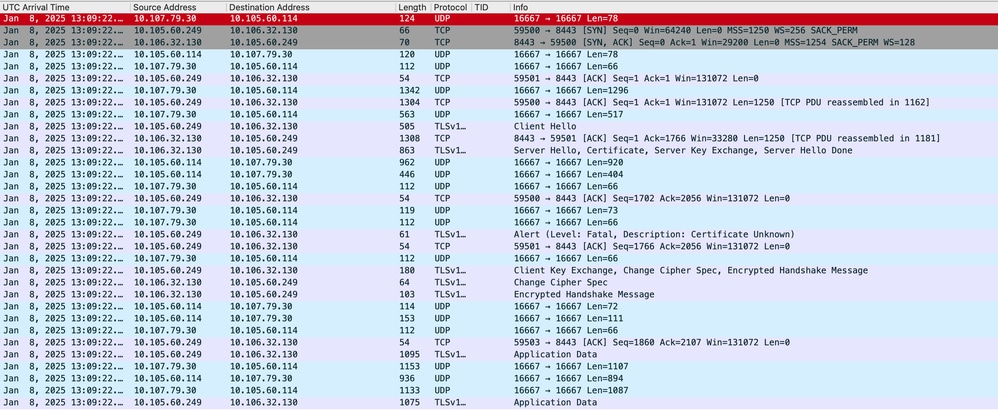

Client Access to Central Webauth Page to Provide Authentication Details
The Foreign Controller processes the CoA request After successful Central Web Authentication.
Change of Authorization (COA) with Foreign Controller
Logs from Anchor Controller
Radioactive Traces
!! Mobility Handoff !!
{mobilityd_R0-0}{1} [mm-client] [26021] (debug) MAC Client-MAC Received mobile_announce, sub type 0 of XID (XID) from (ipv4 Foreign-WLC-IP )
{mobilityd_R0-0}{1} [mm-client] [26021] (debug) MAC Client-MAC Received mobile_announce, sub type 0 of XID (XID) from (ipv4 Foreign-WLC-IP )
{mobilityd_R0-0}{1} [mm-client] [26021] (debug) MAC Client-MAC Received export_Anchor_req, sub type 0 of XID (XID) from (ipv4 Foreign-WLC-IP )
{mobilityd_R0-0}{1} [mm-client] [26021] (debug) MAC Client-MAC Number of client is BELOW wlan limit
{mobilityd_R0-0}{1} [mm-transition] [26021] (info) MAC Client-MAC MMFSM transition S_MC_INIT -> S_MC_Anchor_EXP_ANC_REQ_RCVD_TR on E_MC_EXP_ANC_REQ_RCVD from ipv4 Foreign-WLC-IP
{wncd_x_R0-0}{1} [mm-client] [24229] (info) MAC Client-MAC Roam type changed - None -> L3 Requested
!! Session Created for Client !!
{wncd_x_R0-0}{1}: [client-orch-state] [24229]: (note): MAC: Client_MAC Client state transition: S_CO_ASSOCIATING -> S_CO_CREATE_SM_SESSION_IN_PROGRESS
{wncd_x_R0-0}{1}: [client-auth] [24229]: (info): MAC: Client_MAC Client auth-interface state transition: S_AUTHIF_AWAIT_PUSH_START_RESP -> S_AUTHIF_SESSION_PUSH_PENDING
{wncd_x_R0-0}{1}: [client-auth] [24229]: (info): MAC: Client_MAC Client auth-interface state transition: S_AUTHIF_SESSION_PUSH_PENDING -> S_AUTHIF_L2_WEBAUTH_DONE
{wncd_x_R0-0}{1}: [client-orch-sm] [24229]: (debug): MAC: Client_MAC L2 Authentication of station is successful., L3 Authentication : 1
{wncd_x_R0-0}{1}: [client-orch-state] [24229]: (note): MAC: Client_MAC Client state transition: S_CO_CREATE_SM_SESSION_IN_PROGRESS -> S_CO_MOBILITY_DISCOVERY_IN_PROGRESS
{wncd_x_R0-0}{1}: [mm-transition] [24229]: (info): MAC: Client_MACMMIF FSM transition: S_MA_INIT -> S_MA_ANCHORING_ASSOC_RESP_PROCESSED_TR on E_MA_CO_EXP_ANCHOR_REQ_ASSOC_RCVD
{wncd_x_R0-0}{1}: [mm-client] [24229]: (info): MAC: Client_MACRoam type changed - None -> L3 Requested
{mobilityd_R0-0}{1} [mm-client] [26021] (debug) MAC Client-MAC Export Anchor Response successfully processed.
{mobilityd_R0-0}{1} [mm-client] [26021] (debug) MAC Client-MAC Forwarding Anchor Response to Foreign.
{mobilityd_R0-0}{1} [mm-client] [26021] (info) MAC Client-MAC Forwarding export_Anchor_rsp, sub type 0 of XID (XID) from (WNCD[0]) to (ipv4 Foreign-WLC-IP )
{mobilityd_R0-0}{1} [mm-client] [26021] (debug) MAC Client-MAC Client is AnchorED.
{ wncd_x_R0-0}{1} [mm-client] [24229] (info) MAC Client-MAC Mobility role changed - Unassoc -> Export Anchor
{mobilityd_R0-0}{1} [mm-client] [26021] (debug) MAC Client-MAC Client is AnchorED.>> Client is successfully Anchored
!! Central Web Authentication Applied !!
{wncd_x_R0-0}{1}: [webauth-dev] [24229]: (info): Central Webauth URL Redirect, Received a request to create a CWA session for a MAC [d0:37:45:88:25:52]
{wncd_x_R0-0}{1}: [webauth-state] [24229]: (info): [Client_MAC][ 0.0.0.0]Param-map used: global
{wncd_x_R0-0}{1}: [webauth-state] [24229]: (info): [Client_MAC][ 0.0.0.0]State Invalid State -> INIT
{wncd_x_R0-0}{1}: [epm-redirect] [24229]: (info): [0000.0000.0000:unknown] URL-Redirect = https://10.106.32.130:8443/portal/gateway?sessionId=1E4F6B0A000003D247203276&portal=d06bc251-f644-4fc3-b09f-dae9bd8a86d5&action=cwa&token=5e47010db56b160c902513244337064a
{wncd_x_R0-0}{1}: [aaa-attr-inf] [24229]: (info): Applied User Profile: method 0 2 [mab]
{wncd_x_R0-0}{1}: [aaa-attr-inf] [24229]: (info): Applied User Profile: clid-MAC-addr 0 Client_MAC
{wncd_x_R0-0}{1}: [aaa-attr-inf] [24229]: (info): Applied User Profile: intf-id 0 2415919107 (0x90000003)
{wncd_x_R0-0}{1}: [aaa-attr-inf] [24229]: (info): Applied User Profile: username 0 D0-37-45-88-25-52
{wncd_x_R0-0}{1}: [aaa-attr-inf] [24229]: (info): Applied User Profile: class 0 43 41 43 53 3a 31 45 34 46 36 42 30 41 30 30 30 30 30 33 44 32 34 37 32 30 33 32 37 36 3a 73 68 63 68 6f 75 62 65 49 53 45 2f 35 32 35 35 35 34 35 32 35 2f 31 38
{wncd_x_R0-0}{1}: [aaa-attr-inf] [24229]: (info): Applied User Profile: url-redirect-acl 0 REDIRECT_ACL
{wncd_x_R0-0}{1}: [aaa-attr-inf] [24229]: (info): Applied User Profile: url-redirect 0 https://10.106.32.130:8443/portal/gateway?sessionId=1E4F6B0A000003D247203276&portal=d06bc251-f644-4fc3-b09f-dae9bd8a86d5&action=cwa&token=5e47010db56b160c902513244337064a
!! Client DHCP Traffic !!
{wncd_x_R0-0}{1} [client-orch-state] [24229] (note) MAC Client-MAC Client state transition S_CO_MOBILITY_DISCOVERY_IN_PROGRESS -> S_CO_DPATH_PLUMB_IN_PROGRESS
{wncd_x_R0-0}{1} [client-orch-state] [24229] (note) MAC Client-MAC Client state transition S_CO_DPATH_PLUMB_IN_PROGRESS -> S_CO_IP_LEARN_IN_PROGRESS {wncd_x_R0-0}{1} [client-iplearn] [24229] (info) MAC Client-MAC IP-learn state transition S_IPLEARN_INIT -> S_IPLEARN_IN_PROGRESS
{wncd_x_R0-0}{1} [sisf-packet] RX DHCPv4 from interface mobility_a0000001 on vlan 31 Src MAC Client-MAC Dst MAC ffff.ffff.ffff src_ip 0.0.0.0, dst_ip 255.255.255.255, BOOTPREQUEST, SISF_DHCPDISCOVER, giaddr 0.0.0.0, yiaddr 0.0.0.0, CMAC Client-MAC {wncd_x_R0-0}{1} [sisf-packet] TX DHCPv4 from interface mobility_a0000001 on vlan 31 Src MAC Client-MAC Dst MAC ffff.ffff.ffff src_ip 0.0.0.0, dst_ip 255.255.255.255, BOOTPREQUEST, SISF_DHCPDISCOVER,
{wncd_x_R0-0}{1} [sisf-packet] RX DHCPv4 from interface Tw0/0/1 on vlan 31 Src MAC DHCP-Reply-Source-MAC Dst MAC Client-MAC src_ip 10.105.60.69, dst_ip 10.105.60.249, BOOTPREPLY, SISF_DHCPOFFER, giaddr 0.0.0.0, yiaddr 10.105.60.249, CMAC Client-MAC
{wncd_x_R0-0}{1} [sisf-packet] TX DHCPv4 from interface Tw0/0/1 on vlan 31 Src MAC DHCP-Reply-Source-MAC Dst MAC Client-MAC src_ip 10.105.60.69, dst_ip 10.105.60.249, BOOTPREPLY, SISF_DHCPOFFER, giaddr
{wncd_x_R0-0}{1} [sisf-packet] RX DHCPv4 from interface mobility_a0000001 on vlan 31 Src MAC Client-MAC Dst MAC ffff.ffff.ffff src_ip 0.0.0.0, dst_ip 255.255.255.255, BOOTPREQUEST, SISF_DHCPREQUEST, giaddr 0.0.0.0, yiaddr 0.0.0.0, CMAC Client-MAC
{wncd_x_R0-0}{1} [sisf-packet] TX DHCPv4 from interface mobility_a0000001 on vlan 31 Src MAC Client-MAC Dst MAC ffff.ffff.ffff src_ip 0.0.0.0, dst_ip 255.255.255.255, BOOTPREQUEST, SISF_DHCPREQUEST,
{wncd_x_R0-0}{1} [sisf-packet] RX DHCPv4 from interface Tw0/0/1 on vlan 31 Src MAC DHCP-Reply-Source-MAC Dst MAC Client-MAC src_ip 10.105.60.69, dst_ip 10.105.60.249, BOOTPREPLY, SISF_DHCPACK, giaddr 0.0.0.0, yiaddr 10.105.60.249, CMAC Client-MAC
{wncd_x_R0-0}{1} [sisf-packet] TX DHCPv4 from interface Tw0/0/1 on vlan 31 Src MAC DHCP-Reply-Source-MAC Dst MAC Client-MAC src_ip 10.105.60.69, dst_ip 10.105.60.249, BOOTPREPLY, SISF_DHCPACK, giaddr 0.0.0.0, yiaddr 10.105.60.249, CMAC Client-MAC
{wncd_x_R0-0}{1} [client-iplearn] [24229] (note) MAC Client-MAC Client IP learn successful. Method DHCP IP 10.105.60.249 {wncd_x_R0-0}{1} [auth-mgr-feat_acct] [24229] (info) [Client-MACmobility_a0000001] SM Notified attribute Add/Update addr 10.105.60.249
{mobilityd_R0-0}{1} [mm-client] [26021] (debug) MAC Client-MAC Sending ipv4_address_update of XID (XID) to (ipv4 Foreign-WLC-IP )
{wncd_x_R0-0}{1} [client-iplearn] [24229] (info) MAC Client-MAC IP-learn state transition S_IPLEARN_IN_PROGRESS -> S_IPLEARN_COMPLETE {wncd_x_R0-0}{1}Received ip learn response. method IPLEARN_METHOD_DHCP >> IP Learn
Complete
{wncd_x_R0-0}{1}: [client-orch-sm] [24229]: (debug): MAC: Client_MAC Received ip learn response. method: IPLEARN_METHOD_DHCP
!! Central Web Authentication !!
{wncd_x_R0-0}{1}: [webauth-io] [24229]: (info): [Client_MAC][ 10.105.60.249]59494/233 IO state NEW -> READING
{wncd_x_R0-0}{1}: [webauth-io] [24229]: (info): [Client_MAC][ 10.105.60.249]59495/235 IO state NEW -> READING
{wncd_x_R0-0}{1}: [webauth-io] [24229]: (info): [Client_MAC][ 10.105.60.249]59494/233 Read event, Message ready
{wncd_x_R0-0}{1}: [webauth-httpd] [24229]: (info): Captive bypass: No parameter map associated. Falling on global parameter map
{wncd_x_R0-0}{1}: [webauth-state] [24229]: (info): [Client_MAC][ 10.105.60.249]Param-map used: global
{wncd_x_R0-0}{1}: [webauth-state] [24229]: (info): [Client_MAC][ 10.105.60.249]State GET_REDIRECT -> GET_REDIRECT
{wncd_x_R0-0}{1}: [webauth-io] [24229]: (info): [Client_MAC][ 10.105.60.249]59494/233 IO state READING -> WRITING
{wncd_x_R0-0}{1}: [webauth-io] [24229]: (info): [Client_MAC][ 10.105.60.249]59494/233 IO state WRITING -> END
{wncd_x_R0-0}{1}: [webauth-httpd] [24229]: (info): [Client_MAC][ 10.105.60.249]59494/233 Remove IO ctx and close socket, id [1200007E]
{wncd_x_R0-0}{1}: [client-auth] [24229]: (info): MAC: Client_MAC Client auth-interface state transition: S_AUTHIF_WEBAUTH_PENDING -> S_AUTHIF_WEBAUTH_PENDING
{mobilityd_R0-0}{1}: [mm-client] [26021]: (debug): MAC: Client_MAC Sending export_anchor_rsp of XID (182425) to (ipv4: Foreign-WLC-IP )
{wncd_x_R0-0}{1}: [client-auth] [24229]: (note): MAC: Client_MAC L3 Authentication Successful. ACL:[]
{wncd_x_R0-0}{1}: [client-auth] [24229]: (info): MAC: Client_MAC Client auth-interface state transition: S_AUTHIF_WEBAUTH_PENDING -> S_AUTHIF_WEBAUTH_DONE
{wncd_x_R0-0}{1}: [client-orch-state] [24229]: (note): MAC: Client_MAC Client state transition: S_CO_L3_AUTH_IN_PROGRESS -> S_CO_RUN
Packet capture
After the mobility handoff, the Anchor Controller receives DHCP traffic from the Foreign Controller via the mobility tunnel.
Client DHCP traffic on Anchor Controller Recieved from Foreign Controller
The Anchor Controller receives connectivity checks, webpage access requests, and authentication details to process further.
Network Connectivity Status Check on Anchor Controller
Redirect URL Sent to Client
Client Access to Local Webauth page to Provide Authentication Details
When Central Web authentication succeeds, a Change of Authorization (CoA) triggers. After a successful CoA, the client transitions to RUN state with an Export Anchor role.
Client State on Both Foreign and Anchor Controller
Client State on Foreign
Client State on Anchor
Client Properties on Foreign
Client Properties on Anchor
External Webauthentication
Flow for External Webauth SSID in Foreign-Anchor Setup
1. The client initiates a connection to the SSID broadcasted by the Foreign WLC.
2. As no Layer 2 authentication is required, the client is Anchored to the Anchor WLC. The client transitions to the RUN state on the Foreign WLC, with the mobility role designated as Export Foreign.
3. The client acquires an IP address. The Anchor WLC intercepts the traffic and redirects the client to the external web server portal as defined in the web-authentication parameters.
4. The client submits authentication credentials via the portal. These credentials are validated either locally on the WLC or via an external authentication server, depending on the configured security policy.
5. Upon successful authentication, the client transitions to the RUN state on the Anchor WLC, assuming the Export Anchor role.
6. After successful authentication, all subsequent client traffic is tunneled from the Foreign WLC to the Anchor WLC, where it egresses the network.
Client Connectivity Flow Diagram for External Webauth SSID in Foreign-Anchor Setup
Analyzing External Webauth SSID Flow in Foreign-Anchor Setup through Logs
This section explanis the flow of client connectivity for External Web Authentication SSID by using Radioactive Trace (RA Trace), Embedded Packet Captures (EPC), and client status on both the Foreign and Anchor controllers.
Logs from Foreign Controller
Radioactive Traces
!! Client Association Phase !!
{wncd_x_R0-1}{1}: [client-orch-sm] [17162]: (note): MAC: Client_MAC Association received. BSSID BSSID_MAC, WLAN DMZ_EWA, Slot 1 AP AP-MAC, AP-NAME, Site tag default-site-tag, Policy tag default-policy-tag, Policy profile DMZ_EWA_PP, Switching Central, Socket delay 0ms
{wncd_x_R0-1}{1}: [client-orch-state] [17162]: (note): MAC: Client_MAC Client state transition: S_CO_INIT -> S_CO_ASSOCIATING
{wncd_x_R0-1}{1}: [dot11] [17162]: (info): MAC: Client_MAC dot11 send association response. Sending assoc response of length: 137 with resp_status_code: 0, DOT11_STATUS: DOT11_STATUS_SUCCESS
{wncd_x_R0-1}{1}: [dot11] [17162]: (note): MAC: Client_MAC Association success. AID 1, Roaming = False, WGB = False, 11r = False, 11w = False Fast roam = False
{wncd_x_R0-1}{1}: [dot11] [17162]: (info): MAC: Client_MAC DOT11 state transition: S_DOT11_INIT -> S_DOT11_ASSOCIATED
!! Layer 2 Authentication None !!
{wncd_x_R0-1}{1}: [client-orch-state] [17162]: (note): MAC: Client_MAC Client state transition: S_CO_ASSOCIATING -> S_CO_L2_AUTH_IN_PROGRESS
{wncd_x_R0-1}{1}: [client-auth] [17162]: (note): MAC: Client_MAC L2 Authentication initiated. method WEBAUTH, Policy VLAN 31, AAA override = 0
{wncd_x_R0-1}{1}: [client-auth] [17162]: (info): MAC: Client_MAC Client auth-interface state transition: S_AUTHIF_INIT -> S_AUTHIF_AWAIT_L2_WEBAUTH_START_RESP
{wncd_x_R0-1}{1}: [client-auth] [17162]: (info): MAC: Client_MAC Client auth-interface state transition: S_AUTHIF_AWAIT_L2_WEBAUTH_START_RESP -> S_AUTHIF_L2_WEBAUTH_PENDING
{wncd_x_R0-1}{1}: [client-auth] [17162]: (info): MAC: Client_MAC Client auth-interface state transition: S_AUTHIF_L2_WEBAUTH_PENDING -> S_AUTHIF_WEBAUTH_DONE
{wncd_x_R0-1}{1}: [client-orch-sm] [17162]: (debug): MAC: Client_MAC L2 Authentication of station is successful., L3 Authentication : 0
{wncd_x_R0-1}{1}: [client-orch-sm] [17162]: (note): MAC: Client_MAC Mobility discovery triggered. Client mode: Local
{wncd_x_R0-1}{1}: [client-orch-state] [17162]: (note): MAC: Client_MAC Client state transition: S_CO_L2_AUTH_IN_PROGRESS -> S_CO_MOBILITY_DISCOVERY_IN_PROGRESS
{wncd_x_R0-1}{1}: [client-orch-state] [17162]: (note): MAC: Client_MAC Client state transition: S_CO_MOBILITY_DISCOVERY_IN_PROGRESS -> S_CO_MOBILITY_DISCOVERY_IN_PROGRES
!! Mobility Handoff !!
{mobilityd_R0-0}{1} [mm-dgram-io] [18401] (debug) MAC Client-MAC Sending message mobile_announce to group DMZ
{mobilityd_R0-0}{1} [mm-pmtu] [18401] (debug) Peer IP Anchor-WLC-IP {mobilityd_R0-0}{1} [mm-client] [18401] (debug) MAC Client-MAC Sending mobile_announce of XID (176280) to (ipv4 Anchor-WLC-IP )
{mobilityd_R0-0}{1} [mm-transition] MMFSM transition S_MC_WAIT_ANNOUNCE_RSP -> S_MC_ANNOUNCE_TIMEDOUT_PROCESSED_TR on E_MC_REQUEST_TIMEDOUT from WNCD[0]
{wncd_x_R0-0}{1} [mm-client] [17047] (debug) MAC Client-MAC Received mobile_announce_nak, sub type 2 of XID (XID) from (MobilityD[0])
{wncd_x_R0-0}{1} [mm-transition] [17047] (info) MAC Client-MAC MMIF FSM transition S_MA_INIT_WAIT_ANNOUNCE_RSP -> S_MA_NAK_PROCESSED_TR on E_MA_NAK_RCVD
{wncd_x_R0-0}{1} [mm-client] [17047] (debug) MAC Client-MAC Sending export_Anchor_req of XID (XID) to (MobilityD[0])
{mobilityd_R0-0}{1} [mm-client] [18401] (debug) MAC Client-MAC Received export_Anchor_req, sub type 0 of XID (XID) from (WNCD[0])
{mobilityd_R0-0}{1} [mm-transition] [18401] (info) MAC Client-MAC MMFSM transition S_MC_WAIT_EXP_ANC_REQ -> S_MC_EXP_ANC_REQ_RCVD_TR on E_MC_EXP_ANC_REQ_RCVD from WNCD[0]
{mobilityd_R0-0}{1} [mm-client] [18401] (debug) MAC Client-MAC Export Anchor Request successfully processed.
{mobilityd_R0-0}{1} [mm-client] [18401] (debug) MAC Client-MAC Sending export_Anchor_req of XID (176282) to (ipv4 Anchor-WLC-IP )
{mobilityd_R0-0}{1} [mm-client] [18401] (debug) MAC Client-MAC Received export_Anchor_rsp, sub type 0 of XID (XID) from (ipv4 Anchor-WLC-IP )
{mobilityd_R0-0}{1} [mm-transition] [18401] (info) MAC Client-MAC MMFSM transition S_MC_WAIT_EXP_ANC_RSP -> S_MC_EXP_ANC_RSP_RCVD_TR on E_MC_EXP_ANC_RSP_RCVD from ipv4 Anchor-WLC-IP
{mobilityd_R0-0}{1} [mm-client] [18401] (debug) MAC Client-MAC Export Anchor Response successfully processed.
{wncd_x_R0-0}{1} [epm-misc] [17047] (info) Anchor Vlan-id 31 processed [mm-client] [17047] (info) MAC Client-MAC Mobility role changed - Unassoc -> Export Foreign
[mm-client] Mobility Successful. Roam Type L3 Requested, Sub Roam Type MM_SUB_ROAM_TYPE_NONE, Client IFID 0xa0000004, Client Role Export Foreign >> Client Successfully Anchored
{wncd_x_R0-0}{1} [client-orch-state] Client state transition S_CO_MOBILITY_DISCOVERY_IN_PROGRESS -> S_CO_DPATH_PLUMB_IN_PROGRESS
{wncd_x_R0-0}{1} [client-orch-state] Client state transition S_CO_DPATH_PLUMB_IN_PROGRESS -> S_CO_IP_LEARN_IN_PROGRESS {wncd_x_R0-0}{1} [client-orch-sm] [17047] (debug) MAC Client-MAC Received ip learn response. method IPLEARN_METHOD_ROAMING
{wncd_x_R0-0}{1}: [client-orch-state] [17047]: (note): MAC: Client_MAC Client state transition: S_CO_IP_LEARN_IN_PROGRESS -> S_CO_RUN
!! Client AAAA Traffic !!
{mobilityd_R0-0}{1}: [mm-client] [18401]: (debug): MAC: Client_MAC Received aaa_handoff, sub type: 0 of XID (38840) from (ipv4: Anchor-WLC-IP )
{mobilityd_R0-0}{1}: [mm-client] [18401]: (debug): MAC: Client_MAC aaa_handoff base check is VALID
{mobilityd_R0-0}{1}: [mm-transition] [18401]: (info): MAC: Client_MAC MMFSM transition: S_MC_RUN -> S_MC_AAA_HANDOFF_PROCESSED_TR on E_MC_AAA_HANDOFF_RCVD from ipv4: Anchor-WLC-IP
{mobilityd_R0-0}{1}: [mm-client] [18401]: (info): MAC: Client_MAC Forwarding aaa_handoff, sub type: 0 of XID (38840) from (ipv4: Anchor-WLC-IP ) to (WNCD[0])
{mobilityd_R0-0}{1}: [mm-client] [18401]: (debug): MAC: Client_MAC Sending aaa_handoff of XID (38840) to (WNCD[0])
{mobilityd_R0-0}{1}: [mm-client] [18401]: (debug): MAC: Client_MAC AAA Handoff successfully forwarded.
{wncd_x_R0-0}{1}: [mm-client] [17047]: (debug): MAC: Client_MAC Received aaa_handoff, sub type: 0 of XID (38840) from (MobilityD[0])
{wncd_x_R0-0}{1}: [mm-transition] [17047]: (info): MAC: Client_MAC MMIF FSM transition: S_MA_FOREIGN -> S_MA_AAA_HANDOFF_PROCESSED_TR on E_MA_AAA_HANDOFF
{wncd_x_R0-0}{1}: [mm-client] [17047]: (debug): MAC: Client_MAC Mobile AAA Handoff update received.
{wncd_x_R0-0}{1}: [sanet-shim-miscellaneous] [17047]: (info): MAC: Client_MAC Received username=Test321 username_len=7
{wncd_x_R0-0}{1}: [sanet-shim-miscellaneous] [17047]: (info): MAC: Client_MAC IPv6 Client payload is received in aaa handoff
{wncd_x_R0-0}{1}: [mm-client] [17047]: (debug): MAC: Client_MAC Sending aaa_handoff_ack of XID (38840) to (MobilityD[0])
{mobilityd_R0-0}{1}: [mm-client] [18401]: (debug): MAC: Client_MAC Received aaa_handoff_ack, sub type: 0 of XID (38840) from (WNCD[0])
{mobilityd_R0-0}{1}: [mm-client] [18401]: (debug): MAC: Client_MAC AAA Handoff Ack successfully handled.
{mobilityd_R0-0}{1}: [mm-client] [18401]: (debug): MAC: Client_MAC aaa_handoff_ack base check is VALID
{mobilityd_R0-0}{1}: [mm-client] [18401]: (debug): MAC: Client_MAC aaa_handoff_ack is VALID
{mobilityd_R0-0}{1}: [mm-transition] [18401]: (info): MAC: Client_MAC MMFSM transition: S_MC_RUN -> S_MC_AAA_HANDOFF_ACK_PROCESSED_TR on E_MC_AAA_HANDOFF_ACK_RCVD from WNCD[0]
{mobilityd_R0-0}{1}: [mm-client] [18401]: (info): MAC: Client_MAC Forwarding aaa_handoff_ack, sub type: 0 of XID (38840) from (WNCD[0]) to (ipv4: Anchor-WLC-IP )
Packet capture
The client sends an association request, which the Foreign Controller handles.
Client Association Phase with Foreign Controller
A mobility handoff triggers between the Foreign and Anchor Controllers via port UDP 16667. Upon a successful mobility event, the client state transitions to RUN with an Export Foreign role.
The Foreign Controller receives client DHCP traffic via the CAPWAP tunnel and forwards it to the Anchor Controller for further processing.
Client DHCP Traffic Received on Foreign Controller is Forwarded to Anchor Controller using Mobility Tunnel
Similarly, the client sends network connectivity status and web page access check traffic to the Foreign WLC via the CAPWAP tunnel; the Foreign WLC forwards this to the Anchor WLC using the mobility tunnel, where the Anchor Controller intercepts or processes the traffic.
Network Connectivity Status Check on Foreign Controller
Redirect URL Sent to Client

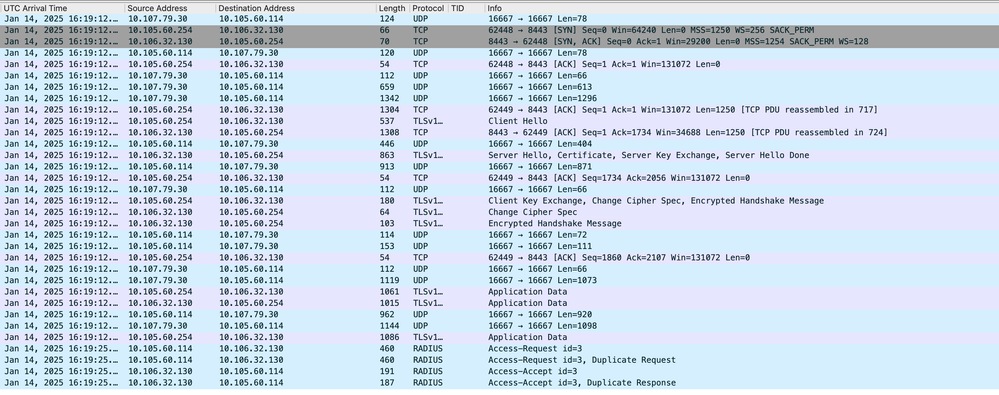

Client Access to External Webauth Page to Provide Authentication Details
Logs from Anchor Controller
Radioactive Traces
!! Mobility Handoff !!
{mobilityd_R0-0}{1} [mm-client] [26021] (debug) MAC Client-MAC Received mobile_announce, sub type 0 of XID (XID) from (ipv4 Foreign-WLC-IP )
{mobilityd_R0-0}{1} [mm-client] [26021] (debug) MAC Client-MAC Received mobile_announce, sub type 0 of XID (XID) from (ipv4 Foreign-WLC-IP )
{mobilityd_R0-0}{1} [mm-client] [26021] (debug) MAC Client-MAC Received export_Anchor_req, sub type 0 of XID (XID) from (ipv4 Foreign-WLC-IP )
{mobilityd_R0-0}{1} [mm-client] [26021] (debug) MAC Client-MAC Number of client is BELOW wlan limit
{mobilityd_R0-0}{1} [mm-transition] [26021] (info) MAC Client-MAC MMFSM transition S_MC_INIT -> S_MC_Anchor_EXP_ANC_REQ_RCVD_TR on E_MC_EXP_ANC_REQ_RCVD from ipv4 Foreign-WLC-IP
!! Session Created for Client !!
{wncd_x_R0-0}{1}: [client-orch-state] [24229]: (note): MAC: Client_MAC Client state transition: S_CO_ASSOCIATING -> S_CO_CREATE_SM_SESSION_IN_PROGRESS
{wncd_x_R0-0}{1}: [client-auth] [24229]: (info): MAC: Client_MAC Client auth-interface state transition: S_AUTHIF_INIT -> S_AUTHIF_AWAIT_L2_WEBAUTH_START_RESP
{wncd_x_R0-0}{1}: [webauth-state] [24229]: (info): [Client_MAC][ 0.0.0.0]Param-map used: global
{wncd_x_R0-0}{1}: [webauth-acl] [24229]: (info): mobility_a0000001[Client_MAC][ 0.0.0.0]Applying IPv4 intercept ACL via SVM, name: WA-v4-int-10.106.32.130-7, priority: 50, IIF-ID: 0
{wncd_x_R0-0}{1}: [client-auth] [24229]: (info): MAC: Client_MAC Client auth-interface state transition: S_AUTHIF_AWAIT_L2_WEBAUTH_START_RESP -> S_AUTHIF_L2_WEBAUTH_PENDING
{wncd_x_R0-0}{1}: [client-orch-state] [24229]: (note): MAC: Client_MAC Client state transition: S_CO_CREATE_SM_SESSION_IN_PROGRESS -> S_CO_MOBILITY_DISCOVERY_IN_PROGRESS
{wncd_x_R0-0}{1}: [mm-transition] [24229]: (info): MAC: Client_MAC MMIF FSM transition: S_MA_INIT -> S_MA_AnchorING_ASSOC_RESP_PROCESSED_TR on E_MA_CO_EXP_Anchor_REQ_ASSOC_RCVD
{wncd_x_R0-0}{1} [mm-client] [24229] (info) MAC Client-MAC Roam type changed - None -> L3 Requested
{mobilityd_R0-0}{1} [mm-client] [26021] (debug) MAC Client-MAC Export Anchor Response successfully processed.
{mobilityd_R0-0}{1} [mm-client] [26021] (debug) MAC Client-MAC Forwarding Anchor Response to Foreign.
{mobilityd_R0-0}{1} [mm-client] [26021] (info) MAC Client-MAC Forwarding export_Anchor_rsp, sub type 0 of XID (XID) from (WNCD[0]) to (ipv4 Foreign-WLC-IP )
{mobilityd_R0-0}{1} [mm-client] [26021] (debug) MAC Client-MAC Client is AnchorED.
{ wncd_x_R0-0}{1} [mm-client] [24229] (info) MAC Client-MAC Mobility role changed - Unassoc -> Export Anchor
{mobilityd_R0-0}{1} [mm-client] [26021] (debug) MAC Client-MAC Client is AnchorED.>> Client is successfully Anchored
!! Client DHCP Traffic !!
{wncd_x_R0-0}{1} [client-orch-state] [24229] (note) MAC Client-MAC Client state transition S_CO_MOBILITY_DISCOVERY_IN_PROGRESS -> S_CO_DPATH_PLUMB_IN_PROGRESS
{wncd_x_R0-0}{1} [client-orch-state] [24229] (note) MAC Client-MAC Client state transition S_CO_DPATH_PLUMB_IN_PROGRESS -> S_CO_IP_LEARN_IN_PROGRESS {wncd_x_R0-0}{1} [client-iplearn] [24229] (info) MAC Client-MAC IP-learn state transition S_IPLEARN_INIT -> S_IPLEARN_IN_PROGRESS
{wncd_x_R0-0}{1} [sisf-packet] RX DHCPv4 from interface mobility_a0000001 on vlan 31 Src MAC Client-MAC Dst MAC ffff.ffff.ffff src_ip 0.0.0.0, dst_ip 255.255.255.255, BOOTPREQUEST, SISF_DHCPDISCOVER, giaddr 0.0.0.0, yiaddr 0.0.0.0, CMAC Client-MAC {wncd_x_R0-0}{1} [sisf-packet] TX DHCPv4 from interface mobility_a0000001 on vlan 31 Src MAC Client-MAC Dst MAC ffff.ffff.ffff src_ip 0.0.0.0, dst_ip 255.255.255.255, BOOTPREQUEST, SISF_DHCPDISCOVER,
{wncd_x_R0-0}{1} [sisf-packet] RX DHCPv4 from interface Tw0/0/1 on vlan 31 Src MAC DHCP-Reply-Source-MAC Dst MAC Client-MAC src_ip 10.105.60.69, dst_ip 10.105.60.254, BOOTPREPLY, SISF_DHCPOFFER, giaddr 0.0.0.0, yiaddr 10.105.60.254, CMAC Client-MAC
{wncd_x_R0-0}{1} [sisf-packet] TX DHCPv4 from interface Tw0/0/1 on vlan 31 Src MAC DHCP-Reply-Source-MAC Dst MAC Client-MAC src_ip 10.105.60.69, dst_ip 10.105.60.254, BOOTPREPLY, SISF_DHCPOFFER, giaddr
{wncd_x_R0-0}{1} [sisf-packet] RX DHCPv4 from interface mobility_a0000001 on vlan 31 Src MAC Client-MAC Dst MAC ffff.ffff.ffff src_ip 0.0.0.0, dst_ip 255.255.255.255, BOOTPREQUEST, SISF_DHCPREQUEST, giaddr 0.0.0.0, yiaddr 0.0.0.0, CMAC Client-MAC
{wncd_x_R0-0}{1} [sisf-packet] TX DHCPv4 from interface mobility_a0000001 on vlan 31 Src MAC Client-MAC Dst MAC ffff.ffff.ffff src_ip 0.0.0.0, dst_ip 255.255.255.255, BOOTPREQUEST, SISF_DHCPREQUEST,
{wncd_x_R0-0}{1} [sisf-packet] RX DHCPv4 from interface Tw0/0/1 on vlan 31 Src MAC DHCP-Reply-Source-MAC Dst MAC Client-MAC src_ip 10.105.60.69, dst_ip 10.105.60.254, BOOTPREPLY, SISF_DHCPACK, giaddr 0.0.0.0, yiaddr 10.105.60.254, CMAC Client-MAC
{wncd_x_R0-0}{1} [sisf-packet] TX DHCPv4 from interface Tw0/0/1 on vlan 31 Src MAC DHCP-Reply-Source-MAC Dst MAC Client-MAC src_ip 10.105.60.69, dst_ip 10.105.60.254, BOOTPREPLY, SISF_DHCPACK, giaddr 0.0.0.0, yiaddr 10.105.60.254, CMAC Client-MAC
{wncd_x_R0-0}{1} [client-iplearn] [24229] (note) MAC Client-MAC Client IP learn successful. Method DHCP IP 10.105.60.254 {wncd_x_R0-0}{1} [auth-mgr-feat_acct] [24229] (info) [Client-MACmobility_a0000001] SM Notified attribute Add/Update addr 10.105.60.254
{mobilityd_R0-0}{1} [mm-client] [26021] (debug) MAC Client-MAC Sending ipv4_address_update of XID (XID) to (ipv4 Foreign-WLC-IP )
{wncd_x_R0-0}{1} [client-iplearn] [24229] (info) MAC Client-MAC IP-learn state transition S_IPLEARN_IN_PROGRESS -> S_IPLEARN_COMPLETE {wncd_x_R0-0}{1}Received ip learn response. method IPLEARN_METHOD_DHCP >> IP Learn
Complete
{wncd_x_R0-0}{1}: [client-orch-sm] [24229]: (debug): MAC: Client_MAC Received ip learn response. method: IPLEARN_METHOD_DHCP
!! External Web Authentication !!
{wncd_x_R0-0}{1}: [client-orch-state] [24229]: (note): MAC: Client_MAC Client state transition: S_CO_IP_LEARN_IN_PROGRESS -> S_CO_L3_AUTH_IN_PROGRESS
{wncd_x_R0-0}{1}: [webauth-io] [24229]: (info): mobility_a0000001[Client_MAC][ 10.105.60.254]62440/233 IO state NEW -> READING
{wncd_x_R0-0}{1}: [webauth-io] [24229]: (info): mobility_a0000001[Client_MAC][ 10.105.60.254]62441/235 IO state NEW -> READING
{wncd_x_R0-0}{1}: [webauth-io] [24229]: (info): mobility_a0000001[Client_MAC][ 10.105.60.254]62440/233 Read event, Message ready
{wncd_x_R0-0}{1}: [webauth-httpd] [24229]: (info): mobility_a0000001[Client_MAC][ 10.105.60.254]GET rcvd when in LOGIN state
{wncd_x_R0-0}{1}: [webauth-httpd] [24229]: (info): mobility_a0000001[Client_MAC][ 10.105.60.254]HTTP GET request
{wncd_x_R0-0}{1}: [webauth-httpd] [24229]: (info): mobility_a0000001[Client_MAC][ 10.105.60.254]Parse GET, src [10.105.60.254] dst [Resolved-IP] url [http://Connectivity Check URL/redirect]
{wncd_x_R0-0}{1}: [webauth-httpd] [24229]: (info): mobility_a0000001[Client_MAC][ 10.105.60.254]Read complete: parse_request return 9
{wncd_x_R0-0}{1}: [webauth-state] [24229]: (info): mobility_a0000001[Client_MAC][ 10.105.60.254]Param-map used: External_Webauth
{wncd_x_R0-0}{1}: [webauth-state] [24229]: (info): mobility_a0000001[Client_MAC][ 10.105.60.254]State LOGIN -> LOGIN
{wncd_x_R0-0}{1}: [webauth-io] [24229]: (info): mobility_a0000001[Client_MAC][ 10.105.60.254]62440/233 IO state READING -> WRITING
{wncd_x_R0-0}{1}: [webauth-io] [24229]: (info): mobility_a0000001[Client_MAC][ 10.105.60.254]62440/233 IO state WRITING -> READING
{wncd_x_R0-0}{1}: [webauth-io] [24229]: (info): mobility_a0000001[Client_MAC][ 10.105.60.254]62440/233 Read event, Message ready
{wncd_x_R0-0}{1}: [webauth-httpd] [24229]: (info): mobility_a0000001[Client_MAC][ 10.105.60.254]GET rcvd when in LOGIN state
{wncd_x_R0-0}{1}: [webauth-httpd] [24229]: (info): mobility_a0000001[Client_MAC][ 10.105.60.254]HTTP GET request
{wncd_x_R0-0}{1}: [webauth-httpd] [24229]: (info): mobility_a0000001[Client_MAC][ 10.105.60.254]Parse GET, src [10.105.60.254] dst [Resolved-IP] url [http://Connectivity Check URL/favicon.ico]
{wncd_x_R0-0}{1}: [webauth-httpd] [24229]: (info): mobility_a0000001[Client_MAC][ 10.105.60.254]Read complete: parse_request return 9
{wncd_x_R0-0}{1}: [webauth-state] [24229]: (info): mobility_a0000001[Client_MAC][ 10.105.60.254]Param-map used: External_Webauth
{wncd_x_R0-0}{1}: [webauth-state] [24229]: (info): mobility_a0000001[Client_MAC][ 10.105.60.254]State LOGIN -> LOGIN
{wncd_x_R0-0}{1}: [webauth-io] [24229]: (info): mobility_a0000001[Client_MAC][ 10.105.60.254]62440/233 IO state READING -> WRITING
{wncd_x_R0-0}{1}: [webauth-io] [24229]: (info): mobility_a0000001[Client_MAC][ 10.105.60.254]62440/233 IO state WRITING -> READING
{wncd_x_R0-0}{1}: [sisf-packet] [24229]: (info): RX: IPv6 DHCP from intf mobility_a0000001 on vlan 31 Src MAC: Client_MAC Dst MAC: 3333.0001.0002 Ipv6 SRC: fe80::877c:b748:ddc:4fc0, Ipv6 DST: ff02::1:2, type: msg type: DHCPV6_MSG_SOLICIT xid: 12241179
{wncd_x_R0-0}{1}: [sisf-packet] [24229]: (info): TX: IPv6 DHCP from intf mobility_a0000001 on vlan 31 Src MAC: Client_MAC Dst MAC: 3333.0001.0002 Ipv6 SRC: fe80::877c:b748:ddc:4fc0, Ipv6 DST: ff02::1:2, type: msg type: DHCPV6_MSG_SOLICIT xid: 12241179
{wncd_x_R0-0}{1}: [webauth-io] [24229]: (info): mobility_a0000001[Client_MAC][ 10.105.60.254]62480/238 IO state NEW -> SSL_HANDSHAKING
{wncd_x_R0-0}{1}: [webauth-io] [24229]: (info): mobility_a0000001[Client_MAC][ 10.105.60.254]62481/239 IO state NEW -> SSL_HANDSHAKING
{wncd_x_R0-0}{1}: [webauth-io] [24229]: (info): mobility_a0000001[Client_MAC][ 10.105.60.254]62482/238 IO state NEW -> SSL_HANDSHAKING
{wncd_x_R0-0}{1}: [webauth-io] [24229]: (info): mobility_a0000001[Client_MAC][ 10.105.60.254]62482/238 Read event, Message ready
{wncd_x_R0-0}{1}: [webauth-httpd] [24229]: (info): mobility_a0000001[Client_MAC][ 10.105.60.254]GET rcvd when in LOGIN state
{wncd_x_R0-0}{1}: [webauth-httpd] [24229]: (info): mobility_a0000001[Client_MAC][ 10.105.60.254]HTTP GET request
{wncd_x_R0-0}{1}: [webauth-httpd] [24229]: (info): mobility_a0000001[Client_MAC][ 10.105.60.254]Parse GET, src [10.105.60.254] dst [192.0.2.1] url Login URL
{wncd_x_R0-0}{1}: [sadb-attr] [24229]: (info): Removing ipv6 addresses from the attr list -654303708,sm_ctx = 0x80806adfc8, num_ipv6 = 1
{wncd_x_R0-0}{1}: [caaa-authen] [24229]: (info): [CAAA:AUTHEN:910007e3] NULL ATTR LIST
{wncd_x_R0-0}{1}: [webauth-state] [24229]: (info): mobility_a0000001[Client_MAC][ 10.105.60.254]Param-map used: External_Webauth
{wncd_x_R0-0}{1}: [webauth-state] [24229]: (info): mobility_a0000001[Client_MAC][ 10.105.60.254]State LOGIN -> AUTHENTICATING
{wncd_x_R0-0}{1}: [webauth-io] [24229]: (info): mobility_a0000001[Client_MAC][ 10.105.60.254]62482/238 IO state READING -> AUTHENTICATING
{wncd_x_R0-0}{1}: [radius] [24229]: (info): RADIUS: Send Access-Request to 10.106.32.130:1812 id 0/3, len 418
{wncd_x_R0-0}{1}: [radius] [24229]: (info): RADIUS: authenticator
{wncd_x_R0-0}{1}: [radius] [24229]: (info): RADIUS: Calling-Station-Id [31] 19 Client_MAC
{wncd_x_R0-0}{1}: [radius] [24229]: (info): RADIUS: User-Name [1] 9 Test321
{wncd_x_R0-0}{1}: [radius] [24229]: (info): RADIUS: Vendor, Cisco [26] 49
{wncd_x_R0-0}{1}: [radius] [24229]: (info): RADIUS: Cisco AVpair [1] 43 audit-session-id=723C690A000007ED659D99E5
{wncd_x_R0-0}{1}: [radius] [24229]: (info): RADIUS: Framed-IP-Address [8] 6 10.105.60.254
{wncd_x_R0-0}{1}: [radius] [24229]: (info): RADIUS: Cisco AVpair [1] 12 vlan-id=31
{wncd_x_R0-0}{1}: [radius] [24229]: (info): RADIUS: NAS-IP-Address [4] 6 10.105.60.114
{wncd_x_R0-0}{1}: [radius] [24229]: (info): RADIUS: NAS-Port-Type [61] 6 Virtual [5]
{wncd_x_R0-0}{1}: [radius] [24229]: (info): RADIUS: NAS-Port [5] 6 0
{wncd_x_R0-0}{1}: [radius] [24229]: (info): RADIUS: Vendor, Cisco [26] 31
{wncd_x_R0-0}{1}: [radius] [24229]: (info): RADIUS: Cisco AVpair [1] 25 cisco-wlan-ssid=DMZ_EWA
{wncd_x_R0-0}{1}: [radius] [24229]: (info): RADIUS: Vendor, Cisco [26] 33
{wncd_x_R0-0}{1}: [radius] [24229]: (info): RADIUS: Cisco AVpair [1] 27 wlan-profile-name=DMZ_EWA
{wncd_x_R0-0}{1}: [radius] [24229]: (info): RADIUS: Called-Station-Id [30] 27 Called-Station-ID
{wncd_x_R0-0}{1}: [radius] [24229]: (info): RADIUS: Vendor, Airespace [26] 12
{wncd_x_R0-0}{1}: [radius] [24229]: (info): RADIUS: Airespace-WLAN-ID [1] 6 7
{wncd_x_R0-0}{1}: [radius] [24229]: (info): RADIUS: Nas-Identifier [32] 12 DMZSiteWLC
{wncd_x_R0-0}{1}: [radius] [24229]: (info): RADIUS: Started 5 sec timeout
{wncd_x_R0-0}{1}: [radius] [24229]: (info): RADIUS: Received from id 1812/3 10.106.32.130:0, Access-Accept, len 145
{wncd_x_R0-0}{1}: [radius] [24229]: (info): RADIUS: authenticator
{wncd_x_R0-0}{1}: [radius] [24229]: (info): RADIUS: User-Name [1] 9 Test321
{wncd_x_R0-0}{1}: [radius] [24229]: (info): RADIUS: Class [25] 56 ...
{wncd_x_R0-0}{1}: [radius] [24229]: (info): RADIUS: Message-Authenticator[80] 18 ...
{wncd_x_R0-0}{1}: [radius] [24229]: (info): RADIUS: Vendor, Cisco [26] 42
{wncd_x_R0-0}{1}: [radius] [24229]: (info): RADIUS: Cisco AVpair [1] 36 profile-name=Windows10-Workstation
{wncd_x_R0-0}{1}: [radius] [24229]: (info): Valid Response Packet, Free the identifier
{wncd_x_R0-0}{1}: [webauth-state] [24229]: (info): mobility_a0000001[Client_MAC][ 10.105.60.254]Param-map used: External_Webauth
{wncd_x_R0-0}{1}: [webauth-state] [24229]: (info): mobility_a0000001[Client_MAC][ 10.105.60.254]State AUTHENTICATING -> AUTHC_SUCCESS
{wncd_x_R0-0}{1}: [webauth-acl] [24229]: (info): mobility_a0000001[Client_MAC][ 10.105.60.254]Unapply IPv4 intecept ACL via SVM, name WA-v4-int-10.106.32.130-7, pri 50, IIF 0
{wncd_x_R0-0}{1}: [webauth-acl] [24229]: (info): mobility_a0000001[Client_MAC][ 10.105.60.254]Unapply IPv6 intecept ACL via SVM, name IP-Adm-V6-Int-ACL-global, pri 52, IIF 0
{wncd_x_R0-0}{1}: [client-auth] [24229]: (info): MAC: Client_MAC Client auth-interface state transition: S_AUTHIF_WEBAUTH_PENDING -> S_AUTHIF_WEBAUTH_PENDING
{wncd_x_R0-0}{1}: [aaa-attr-inf] [24229]: (info): Applying Attribute : username 0 Test321
{wncd_x_R0-0}{1}: [aaa-attr-inf] [24229]: (info): Applying Attribute : class 0 43 41 43 53 3a 37 32 33 43 36 39 30 41 30 30 30 30 30 37 45 44 36 35 39 44 39 39 45 35 3a 73 68 63 68 6f 75 62 65 49 53 45 2f 35 32 35 35 35 34 35 32 35 2f 34 34
{wncd_x_R0-0}{1}: [aaa-attr-inf] [24229]: (info): Applying Attribute : Message-Authenticator 0 <hidden>
{wncd_x_R0-0}{1}: [aaa-attr-inf] [24229]: (info): Applying Attribute : method 0 1 [webauth]
{wncd_x_R0-0}{1}: [aaa-attr-inf] [24229]: (info): Applying Attribute : clid-MAC-addr 0 d0 37 45 88 25 52
{wncd_x_R0-0}{1}: [aaa-attr-inf] [24229]: (info): Applying Attribute : intf-id 0 2684354561 (0xa0000001)
{wncd_x_R0-0}{1}: [auth-mgr] [24229]: (info): [Client_MAC:mobility_a0000001] auth mgr attr add/change notification is received for attr username(450)
{wncd_x_R0-0}{1}: [auth-mgr-feat_acct] [24229]: (info): [Client_MAC:mobility_a0000001] SM Notified attribute Add/Update username Test321
{wncd_x_R0-0}{1}: [auth-mgr] [24229]: (info): [Client_MAC:mobility_a0000001] Received User-Name Test321 for client Client_MAC
{wncd_x_R0-0}{1}: [auth-mgr] [24229]: (info): [Client_MAC:mobility_a0000001] auth mgr attr add/change notification is received for attr auth-domain(954)
{wncd_x_R0-0}{1}: [auth-mgr] [24229]: (info): [Client_MAC:mobility_a0000001] Method webauth changing state from 'Running' to 'Authc Success'
{wncd_x_R0-0}{1}: [auth-mgr] [24229]: (info): [Client_MAC:mobility_a0000001] Context changing state from 'Running' to 'Authc Success'
{wncd_x_R0-0}{1}: [auth-mgr] [24229]: (info): [Client_MAC:mobility_a0000001] auth mgr attr add/change notification is received for attr method(757)
{wncd_x_R0-0}{1}: [auth-mgr] [24229]: (info): [Client_MAC:mobility_a0000001] Raised event AUTHZ_SUCCESS (11)
{wncd_x_R0-0}{1}: [auth-mgr] [24229]: (info): [Client_MAC:mobility_a0000001] Context changing state from 'Authc Success' to 'Authz Success'
{wncd_x_R0-0}{1}: [webauth-sess] [24229]: (info): mobility_a0000001[Client_MAC][ 10.105.60.254]Param-map used: External_Webauth
{wncd_x_R0-0}{1}: [webauth-state] [24229]: (info): mobility_a0000001[Client_MAC][ 10.105.60.254]Param-map used: External_Webauth
{wncd_x_R0-0}{1}: [webauth-state] [24229]: (info): mobility_a0000001[Client_MAC][ 10.105.60.254]State AUTHC_SUCCESS -> AUTHZ
{wncd_x_R0-0}{1}: [webauth-page] [24229]: (info): mobility_a0000001[Client_MAC][ 10.105.60.254]Sending Webauth success page
{wncd_x_R0-0}{1}: [webauth-io] [24229]: (info): mobility_a0000001[Client_MAC][ 10.105.60.254]62482/238 IO state AUTHENTICATING -> WRITING
{wncd_x_R0-0}{1}: [webauth-io] [24229]: (info): mobility_a0000001[Client_MAC][ 10.105.60.254]62482/238 IO state WRITING -> END
{wncd_x_R0-0}{1}: [webauth-httpd] [24229]: (info): mobility_a0000001[Client_MAC][ 10.105.60.254]62482/238 Remove IO ctx and close socket, id [4400004C]
{wncd_x_R0-0}{1}: [client-auth] [24229]: (note): MAC: Client_MAC L3 Authentication Successful. ACL:[]
{wncd_x_R0-0}{1}: [client-auth] [24229]: (info): MAC: Client_MAC Client auth-interface state transition: S_AUTHIF_WEBAUTH_PENDING -> S_AUTHIF_WEBAUTH_DONE
{wncd_x_R0-0}{1}: [client-orch-state] [24229]: (note): MAC: Client_MAC Client state transition: S_CO_L3_AUTH_IN_PROGRESS -> S_CO_RUN
{wncd_x_R0-0}{1}: [mm-transition] [24229]: (info): MAC: Client_MAC MMIF FSM transition: S_MA_ANCHOR -> S_MA_ANCHOR_AAA_HANDOFF_PROCESSED_TR on E_MA_CO_AAA_HANDOFF_RCVD
{mobilityd_R0-0}{1}: [mm-client] [26021]: (debug): MAC: Client_MAC Received aaa_handoff, sub type: 0 of XID (0) from (WNCD[0])
{mobilityd_R0-0}{1}: [mm-client] [26021]: (debug): MAC: Client_MAC aaa_handoff base check is VALID
{mobilityd_R0-0}{1}: [mm-transition] [26021]: (info): MAC: Client_MAC MMFSM transition: S_MC_RUN -> S_MC_ANCHOR_AAA_HANDOFF_PROCESSED_TR on E_MC_AAA_HANDOFF_RCVD from WNCD[0]
{mobilityd_R0-0}{1}: [mm-client] [26021]: (info): MAC: Client_MAC Forwarding aaa_handoff, sub type: 0 of XID (38840) from (WNCD[0]) to (ipv4: Foreign-WLC-IP)
{mobilityd_R0-0}{1}: [mm-client] [26021]: (debug): MAC: Client_MAC Sending aaa_handoff of XID (38840) to (ipv4: Foreign-WLC-IP)
{mobilityd_R0-0}{1}: [mm-client] [26021]: (debug): MAC: Client_MAC AAA Handoff successfully forwarded.
{mobilityd_R0-0}{1}: [mm-client] [26021]: (debug): MAC: Client_MAC Received aaa_handoff_ack, sub type: 0 of XID (38840) from (ipv4: Foreign-WLC-IP)
{mobilityd_R0-0}{1}: [mm-client] [26021]: (debug): MAC: Client_MAC AAA Handoff Ack successfully handled.
{mobilityd_R0-0}{1}: [mm-client] [26021]: (debug): MAC: Client_MAC aaa_handoff_ack base check is VALID
{mobilityd_R0-0}{1}: [mm-client] [26021]: (debug): MAC: Client_MAC aaa_handoff_ack is VALID
{mobilityd_R0-0}{1}: [mm-transition] [26021]: (info): MAC: Client_MAC MMFSM transition: S_MC_ANCHOR_WAIT_AAA_HANDOFF_ACK -> S_MC_ANCHOR_AAA_HANDOFF_ACK_PROCESSED_TR on E_MC_AAA_HANDOFF_ACK_RCVD from ipv4: Foreign-WLC-IP
Packet capture
After the mobility handoff, the Anchor Controller receives DHCP traffic from the Foreign Controller via the mobility tunnel.
Client DHCP Traffic on Anchor Controller Recieved from Foreign Controller
The Anchor Controller receives connectivity checks, webpage access requests, and authentication details to process further.
Network Connectivity Status Check on Anchor Controller
Redirect URL Sent to Client
The client submits authentication credentials via the portal. These credentials are validated either locally on the WLC or via an external authentication server, depending on the configured security policy.
Client Access to External Webauth Page to Provide Authentication Details
Client State on Both Foreign and Anchor Controller
Client State on Foreign
Client State on Anchor
Client Properties on Foreign
Client Properties on Anchor
Load Balancing Between Multiple Anchor Controller
When more than one Anchor Controller is mapped to a single WLAN, traffic distribution depends on priority. Three priority levels can be configured: Primary, Secondary, and Tertiary. The guest Anchor priority feature provides a mechanism for active/standby load distribution among the Anchor Controllers. This is achieved by assigning a fixed priority to each Anchor Controller: load is distributed to the highest-priority controller, and in round-robin fashion among controllers that share the same priority value.
Mapping Anchor Priority
Note: By default the priority tertiary is configured during the Anchor Controller mapping on Foreign Controller.
Troubleshooting Client Connectivity in Foreign-Anchor Scenario
- Client Onboarding Issues
- Tunnel Status: Verify that the mobility tunnel between the Foreign and Anchor Controllers remains active.
- Configuration Mismatch: Ensure configuration parity between both controllers. Discrepancies in WLAN names, Policy Profile names, or advanced settings—such as AAA override, IPv4 DHCP requirements, and NAC—lead to profile mismatch or Anchor deny errors.
- Other: If Tunnel is up without any configuration issue, troubleshooting approach is similar to normal client connectivity issue ensuring to check on the respective controller which handles the affected traffic.
- Intermittent Connectivity
- Tunnel Flaps: If keepalive packets between the two controllers fail to arrive, the tunnel flaps, preventing the client from maintaining a connection to the SSID.
- Low Bandwidth: If the Path MTU (PMTU) between mobility peers drops to lower value (576), clients experience performance degradation. This usually happens when path mtu keepalive messages are missed between both the mobility peer
Note: The controller with the lower mobility MAC address initiates both the standard keepalive and the Path MTU keepalive messages.
- Specific Website Access Issues
- Mobility traffic headers include mobility group identifiers, MAC addresses, IP addresses, and encrypted CAPWAP DTLS packets exchanged over UDP ports 16666 and 16667. This overhead adds to the existing CAPWAP header. For TCP traffic, post adjusting TCP MSS configured for AP, if the packet size exceeds the Mobility PMTU (maximum 1385 bytes) due to this additional overhead, fragmentation occurs.While fragmentation is generally handled by the network, issues arise if packets arrive out-of-order or late. These conditions impact packet re-assembly and result in data accessibility failures for specific websites.
Log Collection from Foreign and Anchor Controller
- Enable term exec prompt timestamp to have time reference for all the commands.
- Use show tech-support wireless !! to review the configuration.
- You can check the mobility tunnel status show wireless mobility summary !!
- Statistics for Mobility Peer that includes link status, client data and events, keep-alive statistics show wireless mobility peer ip <IP>
- Enable radioactive trace for Mobility Peer IP/MAC address
and client MAC address.
Via CLI:
debug wireless {MAC | ip} {aaaa.bbbb.cccc | x.x.x.x } {monitor-time} {N seconds} !! Setting time allows us to enable traces for up to 24 days .
no debug wireless {MAC | ip} {aaaa.bbbb.cccc | x.x.x.x !! To disable the debugging
WLC generates a debug trace file with Client_info, command to check for debug trace file generated dir bootflash: | i debug !!
Warning: The conditional debugging enables debug-level logging which in turn increases the volume of the logs generated. Leaving this running reduces how far back in time you can view logs from. So, it is recommended to always disable debugging at the end of the troubleshooting session.
-
In order to disable all debugging, run these commands:
# clear platform condition all !!
# undebug all !!
Via GUI:Step 1. Navigate to Troubleshooting > Radioactive Trace.
Step 2. Click Add and enter a Mobility Peer MAC/IP address or client MAC address that you want to troubleshoot.
Step 3. When you are ready to start the radioactive tracing, click Start. Once started, debug logging is written to disk about any control plane processing related to the tracked MAC addresses.
Step 4. When you reproduce the issue you want to troubleshoot, click Stop.
Step 5. For each MAC address debugged, you can generate a log file collating all the logs pertaining to that MAC address by clicking Generate.
Step 6. Choose how long back you want your collated log file to go and click Apply to Device.
Step 7. You can now download the file by clicking the small icon next to the file name. This file is present in the boot flash drive of the controller and can also be copied out of the box through CLI. - Embedded Captures
Via CLI:
monitor capture MYCAP clear !!
monitor capture MYCAP interface Po1 both !!
monitor capture MYCAP buffer size 100 !!
monitor capture MYCAP match access-list name !! (if tracking mobility tunnel traffic between WLC)
monitor capture MYCAP match any/ipv4/ipv6.MAC !!
monitor capture MYCAP start !!
!!Reproduce
monitor capture MYCAP stop
monitor capture MYCAP export flash:|tftp:|http:.../filename.pcap
Via GUI:
Step 1. Navigate to Troubleshooting > Packet Capture > +Add.
Step 2. Define the name of the packet capture. A maximum of 8 characters is allowed.
Step 3. Define filters, if any.
Step 4. Check the box to Monitor Control Traffic if you want to see traffic punted to the system CPU and injected back into the data plane.
Step 5. Define buffer size. A maximum of 100 MB is allowed.
Step 6. Define limit, either by duration which allows a range of 1 - 1000000 seconds or by number of packets which allows a range of 1 - 100000 packets, as desired.
Step 7. Choose the interface from the list of interfaces in the left column and select the arrow to move it to the right column.
Step 8. Click Save and Apply to Device.
Step 9. To start the capture, select Start.
Step 10. You can let the capture run to the defined limit. To manually stop the capture, select Stop.
Step 11. Once stopped, an Export button becomes available to click with the option to download the capture file (.pcap) on the local desktop via HTTP or TFTP server or FTP server or local system hard disk or flash.
Related Information
Configure Mobility Topologies on Catalyst 9800 WLCs
Configure WLAN Anchor Mobility Feature on Catalyst 9800
Technical Support & Documentation - Cisco Systems
Revision History
| Revision | Publish Date | Comments |
|---|---|---|
1.0 |
22-Jun-2026
|
Initial Release |
FeedbackContact Cisco
- Open a Support Case
- (Requires a Cisco Service Contract)
