Introduction

This document describes how to configure Layer 3 security in Wi-Fi 6E WLANs and what to expect on different clients.

Prerequisites

Requirements

Cisco recommends that you have knowledge of these topics:

Cisco Wireless Lan Controllers (WLC) 9800
Cisco Access Points (APs) that support Wi-Fi 6E.
IEEE Standard 802.11ax.
Tools: Wireshark v4.0.6

Components Used

The information in this document is based on these software and hardware versions:

WLC 9800-CL with IOS® XE 17.9.4.
APs C9136, CW9162, CW9164 and CW9166.
Wi-Fi 6E Clients:
- Lenovo X1 Carbon Gen11 with Intel AX211 Wi-Fi 6 and 6E Adapter with driver version 22.200.2(1).
- Mobile Phone Pixel 6a with Android 13;
- Mobile Phone Samsung S23 with Android 13.

The information in this document was created from the devices in a specific lab environment. All of the devices used in this document started with a cleared (default) configuration. If your network is live, ensure that you understand the potential impact of any command.

Background Information

The key thing to know is that Wi-Fi 6E is not an entirely new standard, but an extension. At its base, Wi-Fi 6E is an extension of the Wi-Fi 6 (802.11ax) wireless standard into the 6-GHz radio-frequency band.

Wi-Fi 6E builds on Wi-Fi 6, which is the latest generation of the Wi-Fi standard, but only Wi-Fi 6E devices and applications can operate in the 6-GHz band.

Layer 3 Security in WiFi 6E is the same as in WiFi 5 or 6, is a sense that the Web authentication flow does not differ in any scenario. The only difference of having Layer 3 Security in WiFI 6E is the fact that any WLAN in WiFI 6E must have Layer 2 security configured with WPA3 and PMF which are mandatory in WiFi 6E.

To know more about WiFi 6E Layer 2 security, please go through the document: Configure and Verify Wi-Fi 6E WLAN Layer 2 Security .

Web Authentication

Web authentication is a Layer 3 security solution designed for providing easy and secure guest access to hosts on WLAN with open authentication or appropriate layer 2 security methods.

These are the different types of web authentication methods:

Local Web Authentication (LWA): Configured as Layer 3 security on the controller, the web authentication page and the pre-authentication ACL are locally configured on the controller. The controller intercepts htttp(s) traffic and redirects the client to the internal web page for authentication. The credentials entered by the client on the login page is authenticated by the controller locally or through a RADIUS or LDAP server.
External Web Authentication (EWA): Configured as Layer 3 security on the controller, the controller intercepts htttp(s) traffic and redirects the client to the login page hosted on the external web server. The credentials entered by the client on the login page is authenticated by the controller locally or through a RADIUS or LDAP server. The pre-authentication ACL is configured statically on the controller.
Central Web Authentication (CWA): Configured mostly as Layer 2 security on the controller, the redirection URL and the pre-authentication ACL reside on ISE and are pushed during layer 2 authentication to the controller. The controller redirects all web traffic from the client to the ISE login page. ISE validates the credentials entered by the client through HTTPS and authenticates the user.

You can find more details in the document Web-Based Authentication on Cisco Catalyst 9800 Series Controllers .

Traditionally, Wi-Fi hotspots and guest WLANs have used open security without encryption or authentication. The Wi-Fi CERTIFIED Enhanced Open certification defines improved data privacy in open Wi-Fi networks.

This certification is based on the Opportunistic Wireless Encryption (OWE) protocol. OWE is defined in the IETF RFC 8110. The OWE protocol integrates established cryptography mechanisms to provide each user with unique individual encryption, protecting the data exchange between the user and the access point.

The OWE uses the Diffie-Hellman algorithms based Cryptography to setup the wireless encryption. With OWE, the client and AP perform a Diffie-Hellman key exchange during the access procedure and use the resulting pairwise master key (PMK) secret with the 4-way handshake.

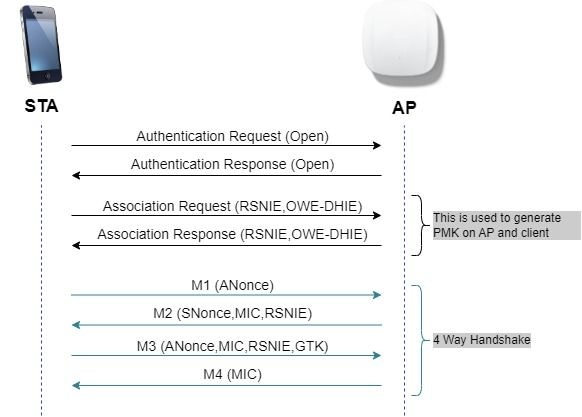

As shown in the next diagram, standard open authentication and association occur, and then the 4-Way Handshake process generates the necessary keys for encryption.

OWE frame exchange

You can find more details in the document Configure Enhanced Open SSID with Transition Mode - OWE .

OWE is the natural successor of an Open network in WiFi 6E, therefore, in this document, we use OWE as layer 2 security for WiFi6E compliance.

Cisco Catalyst Wi-Fi 6E APs

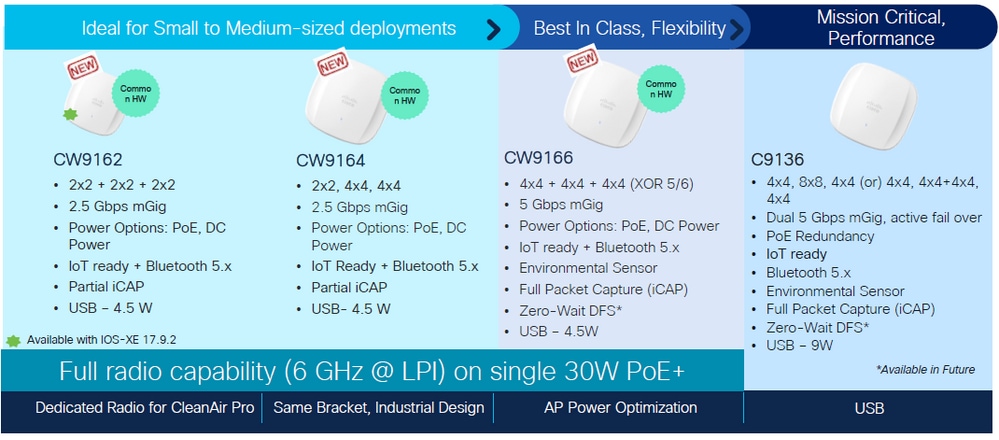

Quick reference to the WiFi 6E APs available at the time of writting this doc:

Wi-Fi 6E Access Points

Configure and Verify

In this section, we show how to configure and verify the connection of WiFi 6E clients to a WLAN using L3 Authentication.

The Layer 2 Security settings are be locked to Opportunistic Wireless Encryption (OWE) which is the closest to an "Open" network we can have in WiFi 6E.

We configure and verify these types of web authentication with WiFi 6E:

Local Web Authentication
External Web Authentication
Central Web Authentication

Network Diagram

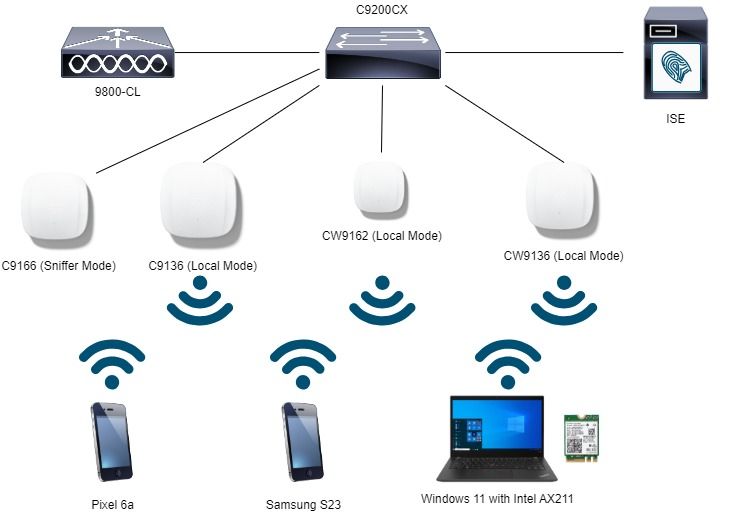

This is the lab setup diagram used in this document.

Network Diagram

Configure OWE with Local Web Authentication

Step 1. Create a Parameter Map for Local Web authentication:

LWA Parameter map

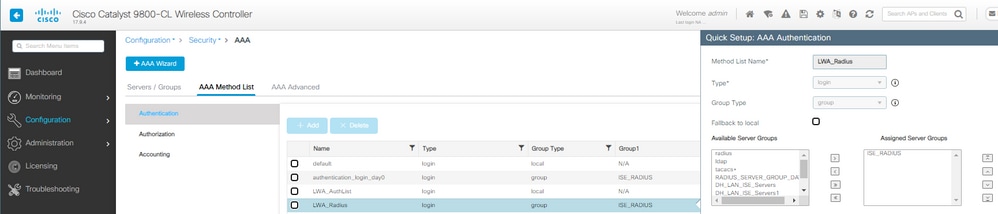

Step 2. In this example we use external user database for client authentication. The AAA server is ISE. Configure RADIUS server and Authentication profile:

LWA AAA Authentication Method

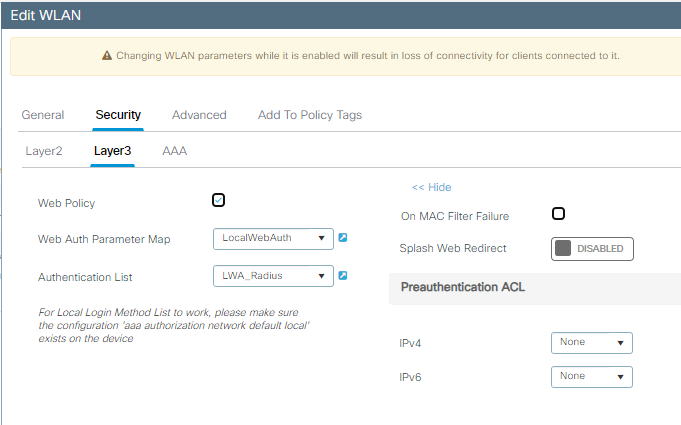

Step 3. Configure WLAN with OWE Layer 2 Security and Web Authentication as Layer 3 Security. Assure that you select the LocalWebAuth Parameter map and the LWA_Radius authentication list:

OWE with LWA Layer 3 configuration details

The WLAN results in the security settings shown in the right side:

WLAN OWE with LWA L3 Security

Step 4. Map the WLAN to a Policy Profile in a Policy Tag:

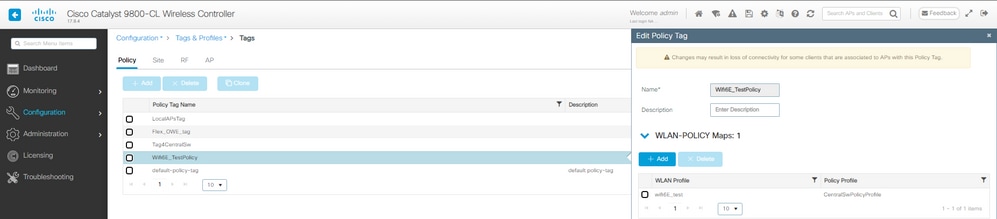

LWA Policy Tag configuration

Step 5. Assign the Policy Tag to the APs.

Step 6. Configure ISE accordingly.

Note: Refer to document Configure Local Web Authentication with External Authentication for detailed configuration.

Verify

This is the verification section of Local Web Authentication.

Verify the configuration on CLI:

!
aaa new-model
!
aaa group server radius ISE_RADIUS
 server name PSN01
 deadtime 5
 load-balance method least-outstanding
 subscriber mac-filtering security-mode mac
 mac-delimiter colon
!
aaa authentication login LWA_Radius group ISE_RADIUS
!
parameter-map type webauth global
 type webauth
 virtual-ip ipv4 192.0.2.1
 trustpoint eWLC-9800-01_WLC_TP
 webauth-http-enable
!
parameter-map type webauth LocalWebAuth
 type webauth
 timeout init-state sec 60
 max-http-conns 10
 custom-page login device bootflash:/custom_webauth/login.html
 custom-page success device bootflash:/custom_webauth/aup.html
 custom-page failure device bootflash:/custom_webauth/failed.html
 custom-page login expired device bootflash:/custom_webauth/logout.html
!
radius server PSN01
 address ipv4 192.168.1.7 auth-port 1812 acct-port 1813
 key 7 xxxxxxxxxxxx
!
wireless profile policy CentralSwPolicyProfile
!
 ipv4 dhcp required
 vlan default
 no shutdown
!
wireless tag policy Wifi6E_TestPolicy
 wlan wifi6E_test policy CentralSwPolicyProfile
!
wlan wifi6E_test 5 wifi6E_test
 dot11ax target-waketime
 dot11ax twt-broadcast-support
 radio policy dot11 6ghz
 no security ft adaptive
 no security wpa wpa2
 no security wpa akm dot1x
 security wpa akm owe
 security wpa wpa3
 security dot1x authentication-list ISE_RADIUS
 security pmf mandatory
 security web-auth
 security web-auth authentication-list LWA_Radius
 security web-auth parameter-map LocalWebAuth
 no shutdown
!

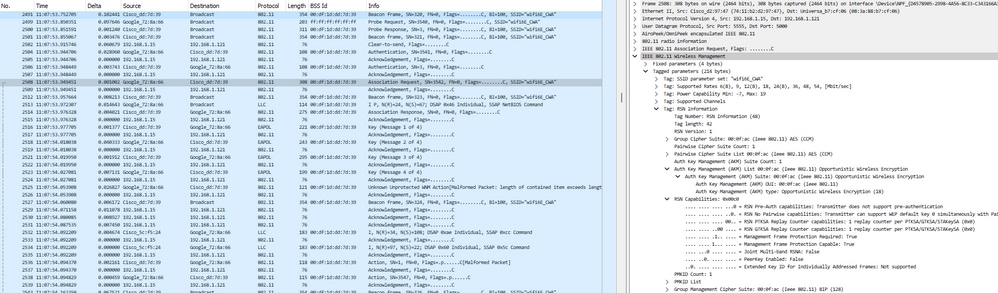

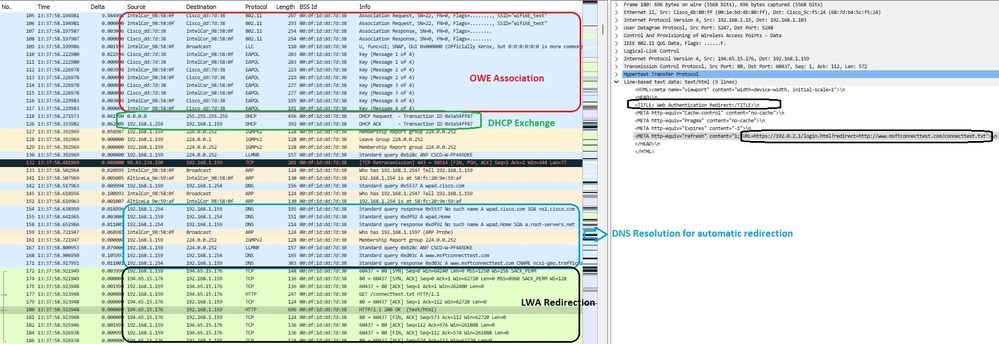

Here we can observe the OWE phase using AX211 client in this example. To note that this is an EPC at the WLC interface:

LWA OWE Association

Followed by the DHCP, DNS and HTTP redirection:

LWA OWE Redirection

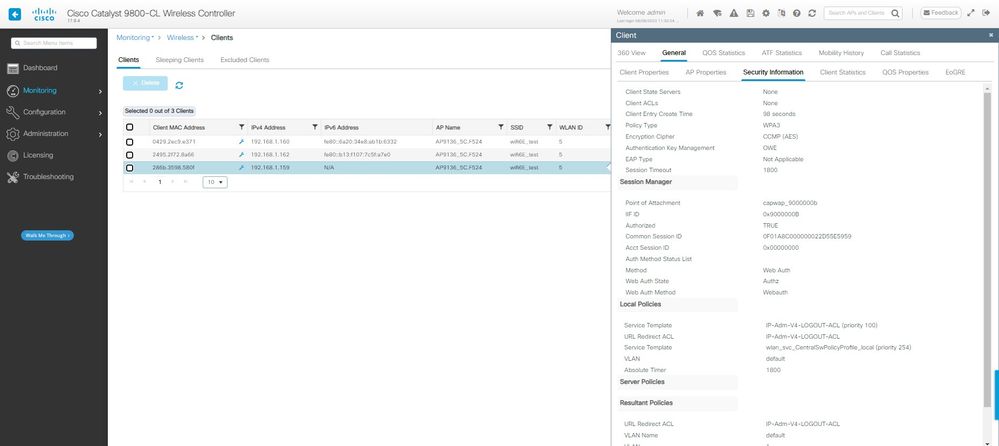

On the WLC GUI we can see the client details:

LWA OWE Client details on WLC GUI

Configure OWE with External Web Authentication

Step 1. Create a Parameter Map for External Web authentication:

EWA Parameter map

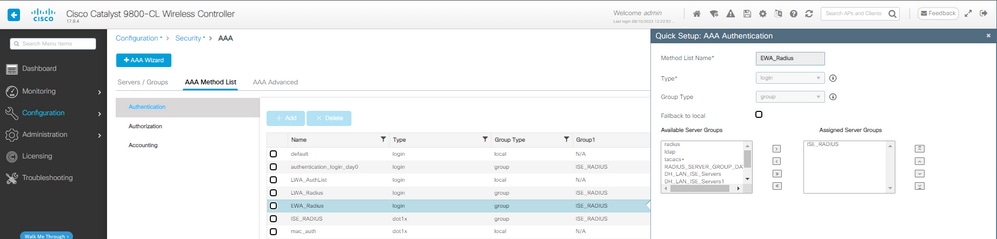

Step 2. In this example we use external user database for client authentication. The AAA server is ISE. Configure RADIUS server and Authentication profile:

AAA Authentication method configuration

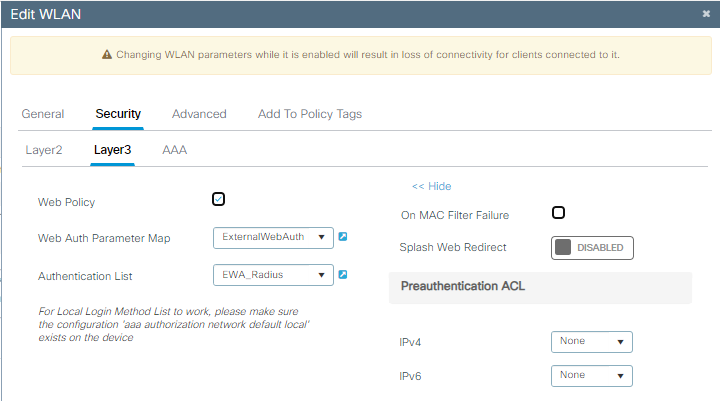

Step 3. Configure WLAN with OWE Layer 2 Security and Web Authentication as Layer 3 Security. Assure that you select the ExternalWebAuth Parameter map and the EWA_Radius authentication list:

OWE EWA Security configuration

The WLAN results in the security settings shown in the right side:

OWE EWA Security settings

Step 4. Map the WLAN to a Policy Profile in a Policy Tag:

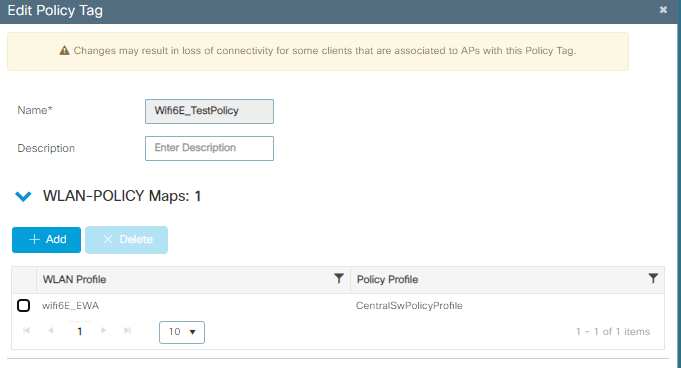

Policy Tag configuration

Step 5. Assign the Policy Tag to the APs.

Step 6. Configure ISE accordingly.

Note: Refer to document Configure and Troubleshoot External Web-Authentication on 9800 WLC for detailed configuration.

Verify

This is the verification section of External Web Authentication.

Verify the configuration on CLI:

!
aaa new-model
!
aaa group server radius ISE_RADIUS
 server name PSN01
 deadtime 5
 load-balance method least-outstanding
 subscriber mac-filtering security-mode mac
 mac-delimiter colon
!
aaa authentication login EWA_Radius group ISE_RADIUS
!
parameter-map type webauth global
 type webauth
 virtual-ip ipv4 192.0.2.1
 trustpoint eWLC-9800-01_WLC_TP
 webauth-http-enable
!
parameter-map type webauth ExternalWebAuth
 type webauth
 timeout init-state sec 60
 redirect for-login https://192.168.1.17/EWAPortal/login.html
 redirect append ap-mac tag ap_mac
 redirect append client-mac tag client_mac
 redirect append wlan-ssid tag ssid
 redirect portal ipv4 192.168.1.17
 max-http-conns 10
!
radius server PSN01
 address ipv4 192.168.1.7 auth-port 1812 acct-port 1813
 key 7 xxxxxxxxxxxx
!
wireless profile policy CentralSwPolicyProfile
!
 ipv4 dhcp required
 vlan default
 no shutdown
!
wireless tag policy Wifi6E_TestPolicy
 wlan wifi6E_EWA policy CentralSwPolicyProfile
!
wlan wifi6E_EWA 6 wifi6E_EWA
 radio policy dot11 6ghz
 no security ft adaptive
 no security wpa wpa2
 no security wpa akm dot1x
 security wpa akm owe
 security wpa wpa3
 security pmf mandatory
 security web-auth
 security web-auth authentication-list EWA_Radius
 security web-auth parameter-map ExternalWebAuth
 no shutdown
!

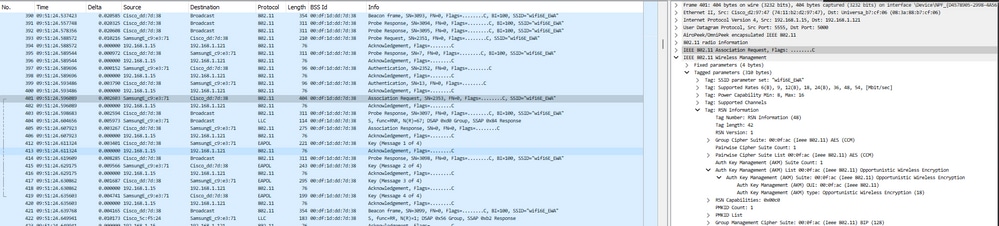

Here we can observe the OWE phase OTA using Samsung S23 as example:

OWE detail in EWA WLAN Association/Authentication

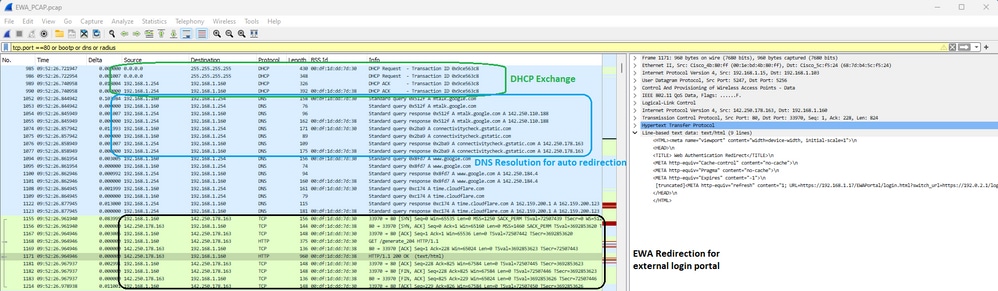

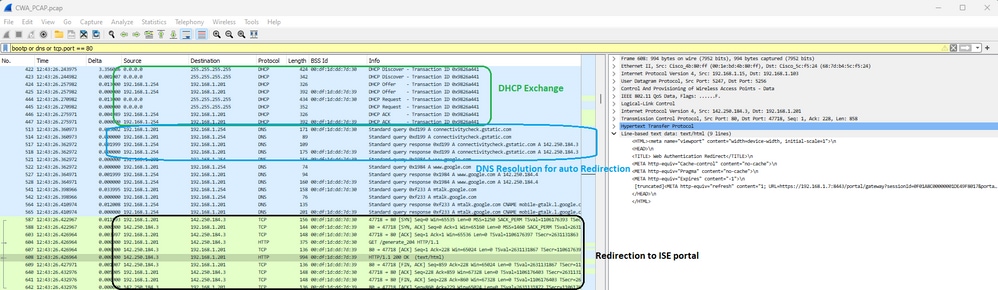

Followed by the DHCP, DNS and HTTP redirection. Please note that this capture is the view via EPC at the WLC because OTA the traffic is encrypted:

Packet capture detail on EWA

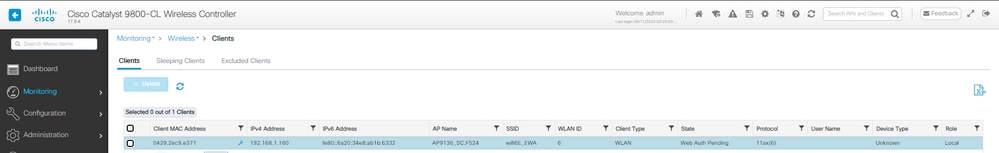

At this stage the client is in Web Auth Pending:

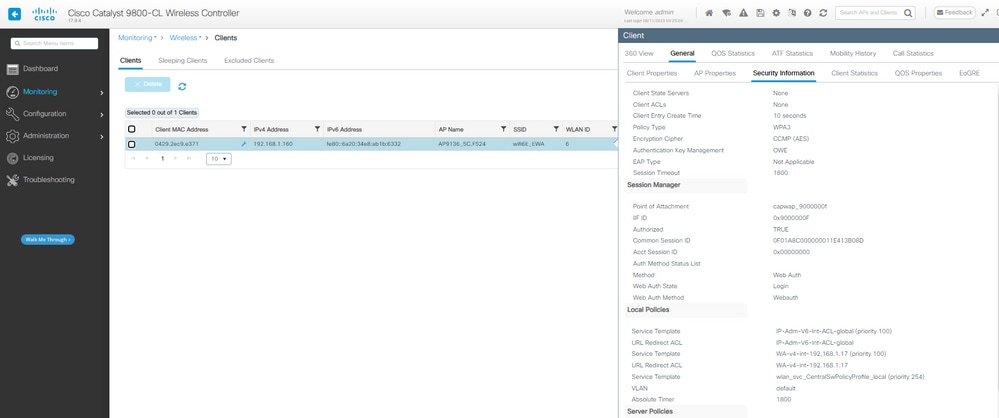

EWA client in Web Auth Pending

Client Security details of EWA Web Auth Pending

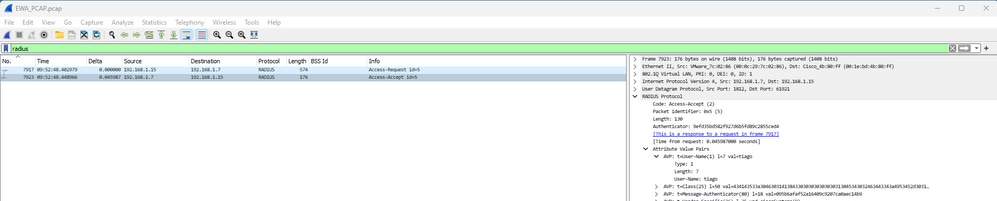

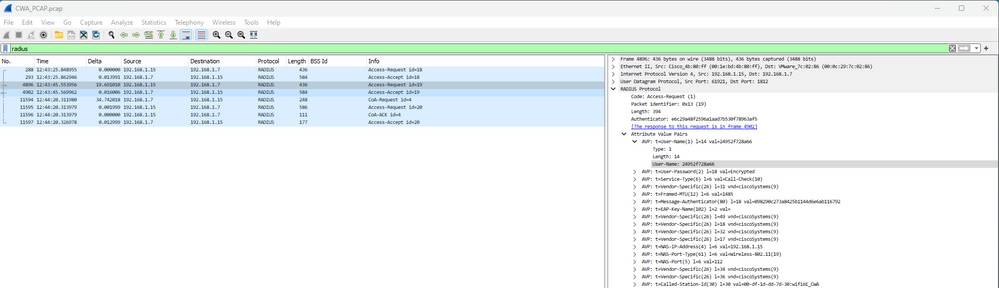

The Radius authentication of the suplied credentials from WLC to ISE:

EWA Radius authentication

And the client details after successfull login:

OWE EWA Client details

Configure OWE with Central Web Authentication

Step 1. Create Redirect ACL:

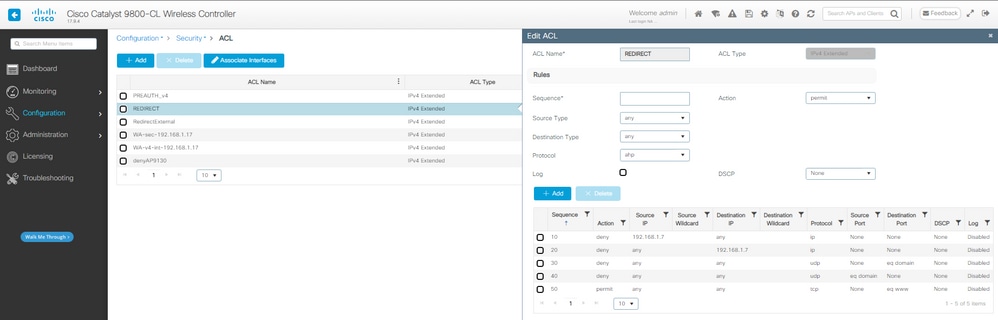

CWA Redirect ACL

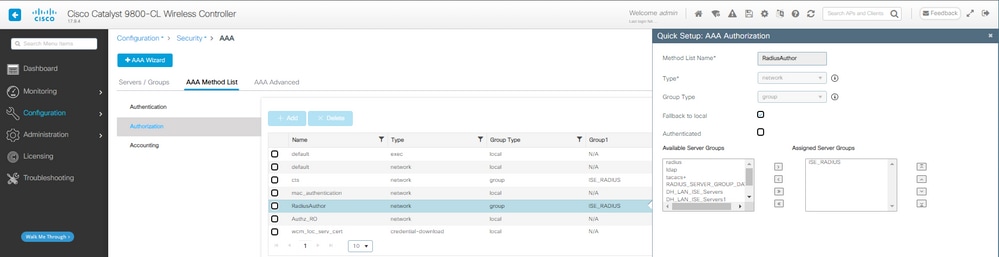

Step 2. Create the Authorization method to be used with mac filtering:

CWA AAA Authorization method

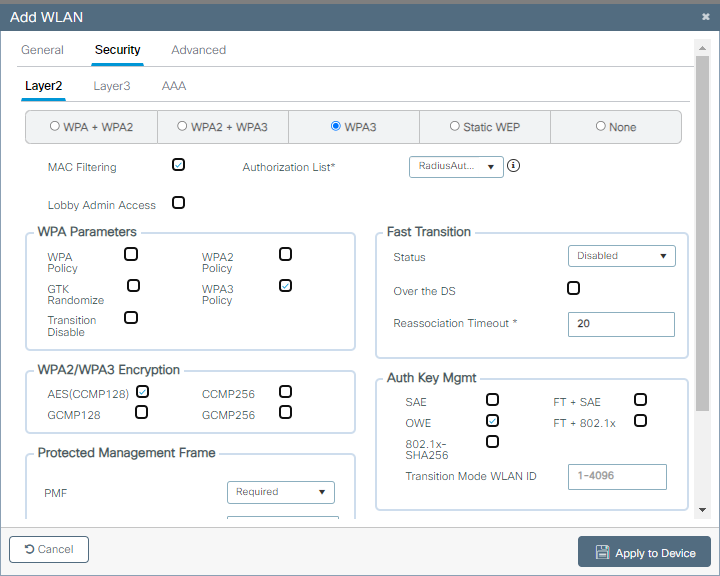

Step 3. Configure WLAN with OWE Layer 2 Security and mac filtering. Select the authorization list created previously.

OWE CWA Security configuration

The WLAN results in the security settings shown in the right side:

OWE CWA Security settings

Step 4. Create a Policy Profile with AAA override and Radius NAC enabled:

CWA Policy Profile

Step 5. Map the WLAN to a Policy Profile in a Policy Tag:

CWA Policy Tag

Step 6. Assign the Policy Tag to the APs.

Step 7. Configure ISE accordingly.

Note: Refer to document Configure Central Web Authentication (CWA) on Catalyst 9800 WLC and ISE for detailed CWA configuration.

Verify

This is the verification section of Central Web Authentication.

Verify the configuration on CLI:

!
aaa new-model
!
aaa group server radius ISE_RADIUS
 server name PSN01
 deadtime 5
 load-balance method least-outstanding
 subscriber mac-filtering security-mode mac
 mac-delimiter colon
!
aaa authorization network RadiusAuthor group ISE_RADIUS local
!
parameter-map type webauth global
 type webauth
 virtual-ip ipv4 192.0.2.1
 trustpoint eWLC-9800-01_WLC_TP
 webauth-http-enable
!
radius server PSN01
 address ipv4 192.168.1.7 auth-port 1812 acct-port 1813
 key 7 xxxxxxxxxxxx
!
wireless profile policy CentralSwPolicyProfile
!
 ipv4 dhcp required
 vlan default
 no shutdown
!
wireless tag policy Wifi6E_TestPolicy
 wlan wifi6E_CWA policy CentralSwPolicyProfile
!
wlan wifi6E_CWA 7 wifi6E_CWA
 mac-filtering RadiusAuthor
 radio policy dot11 6ghz
 no security ft adaptive
 no security wpa wpa2
 no security wpa akm dot1x
 security wpa akm owe
 security wpa wpa3
 security pmf mandatory
 no shutdown
!

Here we can observe the OWE phase OTA using Pixel 6a as example:

CWA OWE OTA connection

Then we have the Radius Exchange for the mac filtering:

OEW CWA Mac filtering

Followed by the DHCP, DNS and HTTP redirection:

CWA DHCP, DNS and Redirection

On ISE Live logs we can see the CWA Redirection:

CWA Redirection URL and ACL

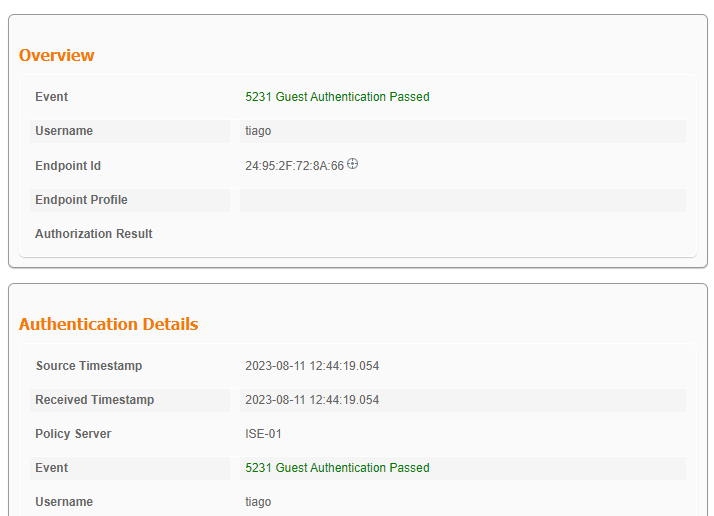

The ISE Live logs show that the client entered guest credentials and passed authentication:

CWA guest login successful

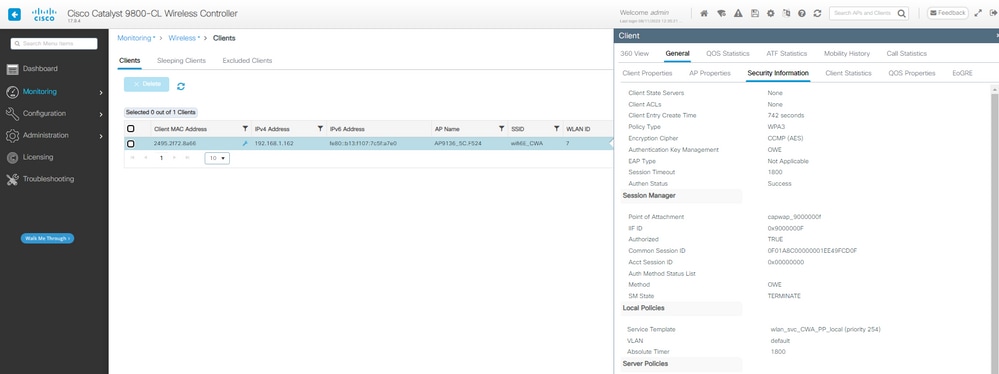

And the client details after successfull login:

OWE CWA Client details on WLC GUI

Troubleshoot

The troubleshooting used in this document was based on the online document:

Troubleshoot COS APs

The general guideline for troubleshooting is to collect RA trace in debug mode from the WLC using the client mac address making sure that the client is connecting using the device mac and not a randomized mac address.

For Over the Air troubleshooting, the recommendation is to use AP in sniffer mode capturing the traffic on the channel of the client serving AP.

Note: Note: Refer to Important Information on Debug Commands before you use debug commands.

OWE with LWA

Here we can see an example of LWA in the RA traces:

2023/08/08 13:37:58.196529135 {wncd_x_R0-0}{1}: [client-orch-sm] [15154]: (note): MAC: 286b.3598.580f Association received. BSSID 00df.1ddd.7d38, WLAN wifi6E_test, Slot 3 AP 00df.1ddd.7d30, AP9136_5C.F524
[...]
2023/08/08 13:37:58.198092314 {wncd_x_R0-0}{1}: [dot11] [15154]: (note): MAC: 286b.3598.580f Association success. AID 36, Roaming = False, WGB = False, 11r = False, 11w = True Fast roam = False
[...]
2023/08/08 13:37:58.198287303 {wncd_x_R0-0}{1}: [client-orch-sm] [15154]: (debug): MAC: 286b.3598.580f Starting L2 authentication. Bssid in state machine:00df.1ddd.7d38 Bssid in request is:00df.1ddd.7d38
2023/08/08 13:37:58.198308994 {wncd_x_R0-0}{1}: [client-orch-state] [15154]: (note): MAC: 286b.3598.580f Client state transition: S_CO_ASSOCIATING -> S_CO_L2_AUTH_IN_PROGRESS
[...]
2023/08/08 13:37:58.200859342 {wncd_x_R0-0}{1}: [ewlc-infra-evq] [15154]: (note): Authentication Success. Resolved Policy bitmap:11 for client 286b.3598.580f
[...]
2023/08/08 13:37:58.222523865 {wncd_x_R0-0}{1}: [client-auth] [15154]: (info): MAC: 286b.3598.580f Client auth-interface state transition: S_AUTHIF_ADD_MOBILE_ACK_WAIT_KM -> S_AUTHIF_PSK_AUTH_KEY_XCHNG_PENDING
2023/08/08 13:37:58.222547149 {mobilityd_R0-0}{1}: [mm-client] [16404]: (debug): MAC: 0000.0000.0000 Received pmk_update, sub type: 0 of XID (0) from (WNCD[0])
2023/08/08 13:37:58.222630557 {mobilityd_R0-0}{1}: [mm-dgram-io] [16404]: (debug): MAC: 0000.0000.0000 Sending message: pmk_update to group: holyfountain
2023/08/08 13:37:58.222641428 {mobilityd_R0-0}{1}: [mm-dgram-io] [16404]: (debug): MAC: 0000.0000.0000 Failed to send message: pmk_update, total configured peers: 2, no active peers
2023/08/08 13:37:58.222666535 {wncd_x_R0-0}{1}: [client-keymgmt] [15154]: (info): MAC: 286b.3598.580f EAP key M1 Sent successfully
2023/08/08 13:37:58.222678418 {wncd_x_R0-0}{1}: [client-keymgmt] [15154]: (info): MAC: 286b.3598.580f Client key-mgmt state transition: S_INITPMK -> S_PTK_START
2023/08/08 13:37:58.227626495 {wncd_x_R0-0}{1}: [client-keymgmt] [15154]: (info): MAC: 286b.3598.580f M2 Status: EAP key M2 validation success
2023/08/08 13:37:58.227791247 {wncd_x_R0-0}{1}: [client-keymgmt] [15154]: (info): MAC: 286b.3598.580f EAP key M3 Sent successfully
2023/08/08 13:37:58.227792680 {wncd_x_R0-0}{1}: [client-keymgmt] [15154]: (info): MAC: 286b.3598.580f Client key-mgmt state transition: S_PTK_START -> S_PTKINITNEGOTIATING
2023/08/08 13:37:58.230572903 {wncd_x_R0-0}{1}: [client-keymgmt] [15154]: (info): MAC: 286b.3598.580f M4 Status: EAP key M4 validation is successful
2023/08/08 13:37:58.230575999 {wncd_x_R0-0}{1}: [client-keymgmt] [15154]: (note): MAC: 286b.3598.580f EAP Key management successful. AKM:OWE Cipher:CCMP WPA Version: WPA3
2023/08/08 13:37:58.230603571 {wncd_x_R0-0}{1}: [client-keymgmt] [15154]: (info): MAC: 286b.3598.580f Client key-mgmt state transition: S_PTKINITNEGOTIATING -> S_PTKINITDONE
2023/08/08 13:37:58.230702678 {wncd_x_R0-0}{1}: [client-auth] [15154]: (note): MAC: 286b.3598.580f L2 Authentication initiated. method WEBAUTH, Policy VLAN 0, AAA override = 1
2023/08/08 13:37:58.230791777 {wncd_x_R0-0}{1}: [auth-mgr] [15154]: (info): [286b.3598.580f:capwap_9000000b] Session Start event called from SANET-SHIM, vlan: 0
2023/08/08 13:37:58.230807848 {wncd_x_R0-0}{1}: [auth-mgr] [15154]: (info): [286b.3598.580f:capwap_9000000b] Wireless session sequence, create context with method WebAuth
2023/08/08 13:37:58.230831713 {wncd_x_R0-0}{1}: [auth-mgr-feat_wireless] [15154]: (info): [286b.3598.580f:capwap_9000000b] - authc_list: LWA_Radius
2023/08/08 13:37:58.230834488 {wncd_x_R0-0}{1}: [auth-mgr-feat_wireless] [15154]: (info): [286b.3598.580f:capwap_9000000b] - authz_list: Not present under wlan configuration
2023/08/08 13:37:58.230857151 {wncd_x_R0-0}{1}: [client-auth] [15154]: (info): MAC: 286b.3598.580f Client auth-interface state transition: S_AUTHIF_PSK_AUTH_KEY_XCHNG_PENDING -> S_AUTHIF_L2_WEBAUTH_PENDING
2023/08/08 13:37:58.230912145 {wncd_x_R0-0}{1}: [auth-mgr] [15154]: (info): [286b.3598.580f:capwap_9000000b] Raised event RX_IDENTITY_UPDATE (18)
2023/08/08 13:37:58.230915511 {wncd_x_R0-0}{1}: [auth-mgr] [15154]: (info): [286b.3598.580f:capwap_9000000b] SESSION_START from WCM (exp 1476396949, got 1476396949) overriding with latest
2023/08/08 13:37:58.230971648 {wncd_x_R0-0}{1}: [auth-mgr] [15154]: (info): [286b.3598.580f:capwap_9000000b] Retrieved Client IIF ID 0x1476396949x in clientrx event
2023/08/08 13:37:58.230998298 {wncd_x_R0-0}{1}: [auth-mgr] [15154]: (info): [286b.3598.580f:capwap_9000000b] DC Profile-name has been changed to LENOVO 21CCS43W0T
2023/08/08 13:37:58.231001354 {wncd_x_R0-0}{1}: [auth-mgr] [15154]: (info): [286b.3598.580f:capwap_9000000b] DC Device-name has been changed to CSCO-W-PF445DKE
2023/08/08 13:37:58.231043724 {wncd_x_R0-0}{1}: [auth-mgr] [15154]: (info): [286b.3598.580f:capwap_9000000b] Session start (restart) for 286b.3598.580f
[...]
2023/08/08 13:37:58.231245206 {wncd_x_R0-0}{1}: [webauth-state] [15154]: (info): capwap_9000000b[286b.3598.580f][ 0.0.0.0]Param-map used: LocalWebAuth
2023/08/08 13:37:58.231251037 {wncd_x_R0-0}{1}: [webauth-state] [15154]: (info): capwap_9000000b[286b.3598.580f][ 0.0.0.0]State INIT -> INIT
2023/08/08 13:37:58.231273499 {wncd_x_R0-0}{1}: [webauth-acl] [15154]: (info): capwap_9000000b[286b.3598.580f][ 0.0.0.0]Applying IPv4 intercept ACL via SVM, name: IP-Adm-V4-Int-ACL-global, priority: 50, IIF-ID: 0
[...]
2023/08/08 13:37:58.239843453 {wncd_x_R0-0}{1}: [client-iplearn] [15154]: (info): MAC: 286b.3598.580f IP-learn state transition: S_IPLEARN_INIT -> S_IPLEARN_IN_PROGRESS
2023/08/08 13:37:58.239903667 {wncd_x_R0-0}{1}: [client-iplearn] [15154]: (note): MAC: 286b.3598.580f Client IP learn successful. Method: DHCP IP: 192.168.1.159
[...]
2023/08/08 13:37:58.240371152 {wncd_x_R0-0}{1}: [auth-mgr-feat_acct] [15154]: (info): [286b.3598.580f:capwap_9000000b] SM Notified attribute Add/Update addr 192.168.1.159
2023/08/08 13:37:58.240390128 {wncd_x_R0-0}{1}: [client-iplearn] [15154]: (info): MAC: 286b.3598.580f IP-learn state transition: S_IPLEARN_IN_PROGRESS -> S_IPLEARN_COMPLETE
2023/08/08 13:37:58.240437257 {wncd_x_R0-0}{1}: [client-orch-sm] [15154]: (debug): MAC: 286b.3598.580f Received ip learn response. method: IPLEARN_METHOD_DHCP
2023/08/08 13:37:58.240457105 {wncd_x_R0-0}{1}: [client-orch-sm] [15154]: (debug): MAC: 286b.3598.580f Triggered L3 authentication. status = 0x0, Success
2023/08/08 13:37:58.240459018 {wncd_x_R0-0}{1}: [client-orch-state] [15154]: (note): MAC: 286b.3598.580f Client state transition: S_CO_IP_LEARN_IN_PROGRESS -> S_CO_L3_AUTH_IN_PROGRESS
2023/08/08 13:37:58.240527728 {wncd_x_R0-0}{1}: [dot1x] [15154]: (info): [0000.0000.0000:capwap_9000000b] Couldn't find the supplicant in the list
2023/08/08 13:37:58.240760238 {wncd_x_R0-0}{1}: [client-auth] [15154]: (note): MAC: 286b.3598.580f L3 Authentication initiated. LWA
2023/08/08 13:37:58.240767232 {wncd_x_R0-0}{1}: [client-auth] [15154]: (info): MAC: 286b.3598.580f Client auth-interface state transition: S_AUTHIF_L2_WEBAUTH_DONE -> S_AUTHIF_WEBAUTH_PENDING
[...]
2023/08/08 13:37:58.924439975 {wncd_x_R0-0}{1}: [webauth-io] [15154]: (info): capwap_9000000b[286b.3598.580f][ 192.168.1.159]60437/5 IO state NEW -> READING
2023/08/08 13:37:58.924590710 {wncd_x_R0-0}{1}: [webauth-io] [15154]: (info): capwap_9000000b[286b.3598.580f][ 192.168.1.159]60437/5 Read event, Message ready
2023/08/08 13:37:58.924606621 {wncd_x_R0-0}{1}: [webauth-httpd] [15154]: (info): capwap_9000000b[286b.3598.580f][ 192.168.1.159]GET rcvd when in INIT state
2023/08/08 13:37:58.924617631 {wncd_x_R0-0}{1}: [webauth-httpd] [15154]: (info): capwap_9000000b[286b.3598.580f][ 192.168.1.159]HTTP GET request
2023/08/08 13:37:58.924646336 {wncd_x_R0-0}{1}: [webauth-httpd] [15154]: (info): capwap_9000000b[286b.3598.580f][ 192.168.1.159]Parse GET, src [192.168.1.159] dst [x.x.x.x] url [http://www.msftconnecttest.com/connecttest.txt]
2023/08/08 13:37:58.924811559 {wncd_x_R0-0}{1}: [webauth-httpd] [15154]: (info): capwap_9000000b[286b.3598.580f][ 192.168.1.159]Read complete: parse_request return 8
2023/08/08 13:37:58.924823291 {wncd_x_R0-0}{1}: [webauth-state] [15154]: (info): capwap_9000000b[286b.3598.580f][ 192.168.1.159]Param-map used: LocalWebAuth
2023/08/08 13:37:58.924830184 {wncd_x_R0-0}{1}: [webauth-state] [15154]: (info): capwap_9000000b[286b.3598.580f][ 192.168.1.159]State INIT -> GET_REDIRECT
2023/08/08 13:37:58.924836706 {wncd_x_R0-0}{1}: [webauth-io] [15154]: (info): capwap_9000000b[286b.3598.580f][ 192.168.1.159]60437/5 IO state READING -> WRITING
2023/08/08 13:37:58.924893704 {wncd_x_R0-0}{1}: [webauth-io] [15154]: (info): capwap_9000000b[286b.3598.580f][ 192.168.1.159]60437/5 IO state WRITING -> END
[...]
2023/08/08 13:38:16.814516928 {wncd_x_R0-0}{1}: [webauth-io] [15154]: (info): capwap_9000000b[286b.3598.580f][ 192.168.1.159]60515/217 IO state NEW -> SSL_HANDSHAKING
2023/08/08 13:38:16.814739389 {wncd_x_R0-0}{1}: [webauth-io] [15154]: (info): capwap_9000000b[286b.3598.580f][ 192.168.1.159]60516/218 IO state NEW -> SSL_HANDSHAKING
2023/08/08 13:38:16.843721875 {wncd_x_R0-0}{1}: [webauth-io] [15154]: (info): capwap_9000000b[286b.3598.580f][ 192.168.1.159]60517/217 IO state NEW -> SSL_HANDSHAKING
2023/08/08 13:38:16.863779947 {wncd_x_R0-0}{1}: [webauth-io] [15154]: (info): capwap_9000000b[286b.3598.580f][ 192.168.1.159]60517/217 Read event, Message ready
2023/08/08 13:38:16.863799384 {wncd_x_R0-0}{1}: [webauth-httpd] [15154]: (info): capwap_9000000b[286b.3598.580f][ 192.168.1.159]POST rcvd when in LOGIN state
2023/08/08 13:38:16.863812318 {wncd_x_R0-0}{1}: [webauth-httpd] [15154]: (info): capwap_9000000b[286b.3598.580f][ 192.168.1.159]get url: /undefined
2023/08/08 13:38:16.863857023 {wncd_x_R0-0}{1}: [webauth-httpd] [15154]: (info): capwap_9000000b[286b.3598.580f][ 192.168.1.159]Read complete: parse_request return 4
2023/08/08 13:38:16.863981829 {wncd_x_R0-0}{1}: [caaa-authen] [15154]: (info): [CAAA:AUTHEN:c8000018] NULL ATTR LIST
2023/08/08 13:38:16.864023268 {wncd_x_R0-0}{1}: [webauth-state] [15154]: (info): capwap_9000000b[286b.3598.580f][ 192.168.1.159]Param-map used: LocalWebAuth
2023/08/08 13:38:16.864026684 {wncd_x_R0-0}{1}: [webauth-state] [15154]: (info): capwap_9000000b[286b.3598.580f][ 192.168.1.159]State LOGIN -> AUTHENTICATING
2023/08/08 13:38:16.864039067 {wncd_x_R0-0}{1}: [webauth-io] [15154]: (info): capwap_9000000b[286b.3598.580f][ 192.168.1.159]60517/217 IO state READING -> AUTHENTICATING
2023/08/08 13:38:16.864184873 {wncd_x_R0-0}{1}: [radius] [15154]: (info): RADIUS: Send Access-Request to 192.168.1.7:1812 id 0/5, len 390
2023/08/08 13:38:16.864190705 {wncd_x_R0-0}{1}: [radius] [15154]: (info): RADIUS: authenticator 50 a9 ab 0d 42 ef 39 22 - 33 3d 07 b0 77 78 80 88
2023/08/08 13:38:16.864194552 {wncd_x_R0-0}{1}: [radius] [15154]: (info): RADIUS: Calling-Station-Id [31] 19 "28-6b-35-98-58-0f"
2023/08/08 13:38:16.864197568 {wncd_x_R0-0}{1}: [radius] [15154]: (info): RADIUS: User-Name [1] 7 "tiago"
[...]
2023/08/08 13:38:16.879241798 {wncd_x_R0-0}{1}: [radius] [15154]: (info): RADIUS: Received from id 1812/5 192.168.1.7:0, Access-Accept, len 128
[...]
2023/08/08 13:38:16.879504014 {wncd_x_R0-0}{1}: [webauth-state] [15154]: (info): capwap_9000000b[286b.3598.580f][ 192.168.1.159]Param-map used: LocalWebAuth
2023/08/08 13:38:16.879513532 {wncd_x_R0-0}{1}: [webauth-state] [15154]: (info): capwap_9000000b[286b.3598.580f][ 192.168.1.159]State AUTHENTICATING -> AUTHC_SUCCESS
2023/08/08 13:38:16.879530745 {wncd_x_R0-0}{1}: [webauth-acl] [15154]: (info): capwap_9000000b[286b.3598.580f][ 192.168.1.159]Unapply IPv4 intecept ACL via SVM, name "IP-Adm-V4-Int-ACL-global", pri 50, IIF 0
[...]
2023/08/08 13:38:16.880956564 {wncd_x_R0-0}{1}: [ewlc-infra-evq] [15154]: (note): Authentication Success. Resolved Policy bitmap:4 for client 286b.3598.580f
[...]
2023/08/08 13:38:16.882320225 {wncd_x_R0-0}{1}: [errmsg] [15154]: (info): %CLIENT_ORCH_LOG-6-CLIENT_ADDED_TO_RUN_STATE: R0/0: wncd: Username entry (tiago) joined with ssid (wifi6E_test) for device with MAC: 286b.3598.580f
[...]
2023/08/08 13:38:16.882451875 {wncd_x_R0-0}{1}: [rog-proxy-capwap] [15154]: (debug): Managed client RUN state notification: 286b.3598.580f
2023/08/08 13:38:16.882495928 {wncd_x_R0-0}{1}: [client-orch-state] [15154]: (note): MAC: 286b.3598.580f Client state transition: S_CO_L3_AUTH_IN_PROGRESS -> S_CO_RUN
[...]

Refer to document Configure Local Web Authentication with External Authentication for detailed troubleshoot steps.

OWE with EWA

Here we can see an example of EWA in the RA traces:

2023/08/10 14:35:20.685078384 {wncd_x_R0-0}{1}: [client-orch-sm] [15195]: (note): MAC: 0429.2ec9.e371 Association received. BSSID 00df.1ddd.7d39, WLAN wifi6E_EWA, Slot 3 AP 00df.1ddd.7d30, AP9136_5C.F524
2023/08/10 14:35:20.685117718 {wncd_x_R0-0}{1}: [client-orch-sm] [15195]: (debug): MAC: 0429.2ec9.e371 Received Dot11 association request. Processing started,SSID: wifi6E_EWA, Policy profile: CentralSwPolicyProfile, AP Name: AP9136_5C.F524, Ap Mac Address: 00df.1ddd.7d30BSSID MAC0000.0000.0000wlan ID: 6RSSI: -57, SNR: 41
2023/08/10 14:35:20.685226454 {wncd_x_R0-0}{1}: [client-orch-state] [15195]: (note): MAC: 0429.2ec9.e371 Client state transition: S_CO_INIT -> S_CO_ASSOCIATING
2023/08/10 14:35:20.685420591 {wncd_x_R0-0}{1}: [dot11-validate] [15195]: (info): MAC: 0429.2ec9.e371 Dot11 ie validate ext/supp rates. Validation Passed for Supported rates radio_type 16
2023/08/10 14:35:20.685422154 {wncd_x_R0-0}{1}: [dot11-validate] [15195]: (info): MAC: 0429.2ec9.e371 WiFi direct: Dot11 validate P2P IE. P2P IE not present.
2023/08/10 14:35:20.685864592 {wncd_x_R0-0}{1}: [dot11] [15195]: (debug): MAC: 0429.2ec9.e371 dot11 send association response. Framing association response with resp_status_code: 0
2023/08/10 14:35:20.685865002 {wncd_x_R0-0}{1}: [dot11] [15195]: (info): MAC: 0429.2ec9.e371 Dot11 capability privacy bit set TRUE
2023/08/10 14:35:20.685867818 {wncd_x_R0-0}{1}: [dot11] [15195]: (debug): MAC: 0429.2ec9.e371 Dot11 Capability info byte1 11, byte2: 10
2023/08/10 14:35:20.685886032 {wncd_x_R0-0}{1}: [dot11-frame] [15195]: (info): MAC: 0429.2ec9.e371 WiFi direct: skip build Assoc Resp with P2P IE: Wifi direct policy disabled
2023/08/10 14:35:20.685991953 {wncd_x_R0-0}{1}: [dot11] [15195]: (info): MAC: 0429.2ec9.e371 dot11 send association response. Sending assoc response of length: 183 with resp_status_code: 0, DOT11_STATUS: DOT11_STATUS_SUCCESS
2023/08/10 14:35:20.685995339 {wncd_x_R0-0}{1}: [dot11] [15195]: (note): MAC: 0429.2ec9.e371 Association success. AID 33, Roaming = False, WGB = False, 11r = False, 11w = True Fast roam = False
2023/08/10 14:35:20.686003685 {wncd_x_R0-0}{1}: [dot11] [15195]: (info): MAC: 0429.2ec9.e371 DOT11 state transition: S_DOT11_INIT -> S_DOT11_ASSOCIATED
2023/08/10 14:35:20.686061695 {wncd_x_R0-0}{1}: [client-orch-sm] [15195]: (debug): MAC: 0429.2ec9.e371 Station Dot11 association is successful.
2023/08/10 14:35:20.686088796 {wncd_x_R0-0}{1}: [client-orch-sm] [15195]: (debug): MAC: 0429.2ec9.e371 Starting L2 authentication. Bssid in state machine:00df.1ddd.7d39 Bssid in request is:00df.1ddd.7d39
2023/08/10 14:35:20.686099576 {wncd_x_R0-0}{1}: [client-orch-state] [15195]: (note): MAC: 0429.2ec9.e371 Client state transition: S_CO_ASSOCIATING -> S_CO_L2_AUTH_IN_PROGRESS
2023/08/10 14:35:20.686125926 {wncd_x_R0-0}{1}: [client-auth] [15195]: (note): MAC: 0429.2ec9.e371 L2 Authentication initiated. method PSK, Policy VLAN 0, AAA override = 1, NAC = 0
[...]
2023/08/10 14:35:20.687526737 {wncd_x_R0-0}{1}: [auth-mgr] [15195]: (info): [0429.2ec9.e371:capwap_90000010] Raised event AUTHZ_SUCCESS (11)
2023/08/10 14:35:20.687530575 {wncd_x_R0-0}{1}: [auth-mgr] [15195]: (info): [0429.2ec9.e371:capwap_90000010] Context changing state from 'Idle' to 'Authz Success'
2023/08/10 14:35:20.687533620 {wncd_x_R0-0}{1}: [auth-mgr] [15195]: (info): [0429.2ec9.e371:capwap_90000010] Authorized open auth session for 0429.2ec9.e371
[...]
2023/08/10 14:35:20.687804543 {wncd_x_R0-0}{1}: [client-auth] [15195]: (info): MAC: 0429.2ec9.e371 Client auth-interface state transition: S_AUTHIF_AWAIT_PSK_AUTH_START_RESP -> S_AUTHIF_PSK_AUTH_PENDING
2023/08/10 14:35:20.687807038 {wncd_x_R0-0}{1}: [ewlc-infra-evq] [15195]: (note): Authentication Success. Resolved Policy bitmap:11 for client 0429.2ec9.e371
[...]
2023/08/10 14:35:20.691676380 {wncd_x_R0-0}{1}: [client-auth] [15195]: (info): MAC: 0429.2ec9.e371 Client auth-interface state transition: S_AUTHIF_ADD_MOBILE_ACK_WAIT_KM -> S_AUTHIF_PSK_AUTH_KEY_XCHNG_PENDING
2023/08/10 14:35:20.691841904 {wncd_x_R0-0}{1}: [client-keymgmt] [15195]: (info): MAC: 0429.2ec9.e371 EAP key M1 Sent successfully
2023/08/10 14:35:20.691844278 {wncd_x_R0-0}{1}: [client-keymgmt] [15195]: (info): MAC: 0429.2ec9.e371 Client key-mgmt state transition: S_INITPMK -> S_PTK_START
2023/08/10 14:35:20.721636921 {wncd_x_R0-0}{1}: [client-keymgmt] [15195]: (info): MAC: 0429.2ec9.e371 M2 Status: EAP key M2 validation success
2023/08/10 14:35:20.721730809 {wncd_x_R0-0}{1}: [client-keymgmt] [15195]: (info): MAC: 0429.2ec9.e371 EAP key M3 Sent successfully
2023/08/10 14:35:20.721736890 {wncd_x_R0-0}{1}: [client-keymgmt] [15195]: (info): MAC: 0429.2ec9.e371 Client key-mgmt state transition: S_PTK_START -> S_PTKINITNEGOTIATING
2023/08/10 14:35:20.739641625 {wncd_x_R0-0}{1}: [client-keymgmt] [15195]: (info): MAC: 0429.2ec9.e371 M4 Status: EAP key M4 validation is successful
2023/08/10 14:35:20.739644982 {wncd_x_R0-0}{1}: [client-keymgmt] [15195]: (note): MAC: 0429.2ec9.e371 EAP Key management successful. AKM:OWE Cipher:CCMP WPA Version: WPA3
2023/08/10 14:35:20.739650121 {wncd_x_R0-0}{1}: [client-keymgmt] [15195]: (info): MAC: 0429.2ec9.e371 Client key-mgmt state transition: S_PTKINITNEGOTIATING -> S_PTKINITDONE
2023/08/10 14:35:20.739744971 {wncd_x_R0-0}{1}: [client-auth] [15195]: (note): MAC: 0429.2ec9.e371 L2 Authentication initiated. method WEBAUTH, Policy VLAN 0, AAA override = 1
2023/08/10 14:35:20.739838779 {wncd_x_R0-0}{1}: [auth-mgr] [15195]: (info): [0429.2ec9.e371:capwap_90000010] Session Start event called from SANET-SHIM, vlan: 0
2023/08/10 14:35:20.739847004 {wncd_x_R0-0}{1}: [auth-mgr] [15195]: (info): [0429.2ec9.e371:capwap_90000010] Wireless session sequence, create context with method WebAuth
2023/08/10 14:35:20.739861071 {wncd_x_R0-0}{1}: [auth-mgr-feat_wireless] [15195]: (info): [0429.2ec9.e371:capwap_90000010] - authc_list: EWA_Radius
[...]
2023/08/10 14:35:20.740069114 {wncd_x_R0-0}{1}: [webauth-state] [15195]: (info): capwap_90000010[0429.2ec9.e371][ 0.0.0.0]Param-map used: ExternalWebAuth
2023/08/10 14:35:20.740071629 {wncd_x_R0-0}{1}: [webauth-state] [15195]: (info): capwap_90000010[0429.2ec9.e371][ 0.0.0.0]State INIT -> INIT
2023/08/10 14:35:20.740083452 {wncd_x_R0-0}{1}: [webauth-sm] [15195]: (info): capwap_90000010[0429.2ec9.e371][ 0.0.0.0]Initiate session, forward state to 0 IF 0x90000010 mac [0429.2ec9.e371]
2023/08/10 14:35:20.740085425 {wncd_x_R0-0}{1}: [webauth-sm] [15195]: (info): capwap_90000010[0429.2ec9.e371][ 0.0.0.0]Initiate session, SM init sessions 1
2023/08/10 14:35:20.740091236 {wncd_x_R0-0}{1}: [webauth-state] [15195]: (info): capwap_90000010[0429.2ec9.e371][ 0.0.0.0]Param-map used: ExternalWebAuth
2023/08/10 14:35:20.740093601 {wncd_x_R0-0}{1}: [webauth-state] [15195]: (info): capwap_90000010[0429.2ec9.e371][ 0.0.0.0]State INIT -> INIT
2023/08/10 14:35:20.740103810 {wncd_x_R0-0}{1}: [webauth-acl] [15195]: (info): capwap_90000010[0429.2ec9.e371][ 0.0.0.0]Applying IPv4 intercept ACL via SVM, name: WA-v4-int-192.168.1.17, priority: 50, IIF-ID: 0
[...]
2023/08/10 14:35:21.942607594 {wncd_x_R0-0}{1}: [client-iplearn] [15195]: (note): MAC: 0429.2ec9.e371 Client IP learn successful. Method: DHCP IP: 192.168.1.160
[...]
2023/08/10 14:35:21.943838504 {wncd_x_R0-0}{1}: [client-iplearn] [15195]: (info): MAC: 0429.2ec9.e371 IP-learn state transition: S_IPLEARN_IN_PROGRESS -> S_IPLEARN_COMPLETE
2023/08/10 14:35:21.944028273 {wncd_x_R0-0}{1}: [client-orch-sm] [15195]: (debug): MAC: 0429.2ec9.e371 Received ip learn response. method: IPLEARN_METHOD_DHCP
2023/08/10 14:35:21.944069521 {wncd_x_R0-0}{1}: [client-orch-sm] [15195]: (debug): MAC: 0429.2ec9.e371 Triggered L3 authentication. status = 0x0, Success
2023/08/10 14:35:21.944074851 {wncd_x_R0-0}{1}: [client-orch-state] [15195]: (note): MAC: 0429.2ec9.e371 Client state transition: S_CO_IP_LEARN_IN_PROGRESS -> S_CO_L3_AUTH_IN_PROGRESS
2023/08/10 14:35:21.944201671 {wncd_x_R0-0}{1}: [dot1x] [15195]: (info): [0000.0000.0000:capwap_90000010] Couldn't find the supplicant in the list
2023/08/10 14:35:21.944759066 {wncd_x_R0-0}{1}: [client-auth] [15195]: (note): MAC: 0429.2ec9.e371 L3 Authentication initiated. LWA
2023/08/10 14:35:21.944776669 {wncd_x_R0-0}{1}: [client-auth] [15195]: (info): MAC: 0429.2ec9.e371 Client auth-interface state transition: S_AUTHIF_L2_WEBAUTH_DONE -> S_AUTHIF_WEBAUTH_PENDING
[...]
2023/08/10 14:35:24.110614486 {wncd_x_R0-0}{1}: [webauth-io] [15195]: (info): capwap_90000010[0429.2ec9.e371][ 192.168.1.160][2001:8a0:fb91:1c00:96e8:ab91:47c8:3d6e]capwap_90000010 60486/213 IO state NEW -> READING
2023/08/10 14:35:24.110679789 {wncd_x_R0-0}{1}: [webauth-io] [15195]: (info): capwap_90000010[0429.2ec9.e371][ 192.168.1.160][2001:8a0:fb91:1c00:96e8:ab91:47c8:3d6e]capwap_90000010 60486/213 Read event, Message ready
2023/08/10 14:35:24.110699827 {wncd_x_R0-0}{1}: [webauth-httpd] [15195]: (info): capwap_90000010[0429.2ec9.e371][ 192.168.1.160][2001:8a0:fb91:1c00:96e8:ab91:47c8:3d6e]capwap_90000010 GET rcvd when in LOGIN state
2023/08/10 14:35:24.110718893 {wncd_x_R0-0}{1}: [webauth-httpd] [15195]: (info): capwap_90000010[0429.2ec9.e371][ 192.168.1.160][2001:8a0:fb91:1c00:96e8:ab91:47c8:3d6e]capwap_90000010 HTTP GET request
2023/08/10 14:35:24.110754721 {wncd_x_R0-0}{1}: [webauth-httpd] [15195]: (info): capwap_90000010[0429.2ec9.e371][ 192.168.1.160][2001:8a0:fb91:1c00:96e8:ab91:47c8:3d6e]capwap_90000010 Parse GET, src [2001:8a0:fb91:1c00:96e8:ab91:47c8:3d6e] dst [2a00:1450:4003:811::2003] url [http://connectivitycheck.gstatic.com/generate_204]
2023/08/10 14:35:24.110951163 {wncd_x_R0-0}{1}: [webauth-httpd] [15195]: (info): capwap_90000010[0429.2ec9.e371][ 192.168.1.160][2001:8a0:fb91:1c00:96e8:ab91:47c8:3d6e]capwap_90000010 Read complete: parse_request return 10
2023/08/10 14:35:24.110960801 {wncd_x_R0-0}{1}: [webauth-state] [15195]: (info): capwap_90000010[0429.2ec9.e371][ 192.168.1.160][2001:8a0:fb91:1c00:96e8:ab91:47c8:3d6e]capwap_90000010 Param-map used: ExternalWebAuth
2023/08/10 14:35:24.110971331 {wncd_x_R0-0}{1}: [webauth-state] [15195]: (info): capwap_90000010[0429.2ec9.e371][ 192.168.1.160][2001:8a0:fb91:1c00:96e8:ab91:47c8:3d6e]capwap_90000010 State LOGIN -> LOGIN
2023/08/10 14:35:24.111046654 {wncd_x_R0-0}{1}: [webauth-page] [15195]: (info): capwap_90000010[0429.2ec9.e371][ 192.168.1.160][2001:8a0:fb91:1c00:96e8:ab91:47c8:3d6e]capwap_90000010 Sending Webauth login form, len 8077
[...]
2023/08/10 14:35:35.761960632 {wncd_x_R0-0}{1}: [webauth-io] [15195]: (info): capwap_90000010[0429.2ec9.e371][ 192.168.1.160][2001:8a0:fb91:1c00:d20a:fcc:5919:3f1a]capwap_90000010 47440/213 IO state NEW -> SSL_HANDSHAKING
2023/08/10 14:35:35.776669018 {wncd_x_R0-0}{1}: [webauth-io] [15195]: (info): capwap_90000010[0429.2ec9.e371][ 192.168.1.160][2001:8a0:fb91:1c00:d20a:fcc:5919:3f1a]capwap_90000010 47450/213 IO state NEW -> SSL_HANDSHAKING
2023/08/10 14:35:37.805884475 {wncd_x_R0-0}{1}: [webauth-io] [15195]: (info): capwap_90000010[0429.2ec9.e371][ 192.168.1.160][2001:8a0:fb91:1c00:d20a:fcc:5919:3f1a]capwap_90000010 55760/213 IO state NEW -> READING
2023/08/10 14:35:37.807261842 {wncd_x_R0-0}{1}: [webauth-io] [15195]: (info): capwap_90000010[0429.2ec9.e371][ 192.168.1.160][2001:8a0:fb91:1c00:d20a:fcc:5919:3f1a]capwap_90000010 55760/213 Read event, Message ready
2023/08/10 14:35:37.807273253 {wncd_x_R0-0}{1}: [webauth-httpd] [15195]: (info): capwap_90000010[0429.2ec9.e371][ 192.168.1.160][2001:8a0:fb91:1c00:d20a:fcc:5919:3f1a]capwap_90000010 POST rcvd when in LOGIN state
2023/08/10 14:35:37.807287911 {wncd_x_R0-0}{1}: [webauth-httpd] [15195]: (info): capwap_90000010[0429.2ec9.e371][ 192.168.1.160][2001:8a0:fb91:1c00:d20a:fcc:5919:3f1a]capwap_90000010 get url: /login.html
2023/08/10 14:35:37.807331213 {wncd_x_R0-0}{1}: [webauth-httpd] [15195]: (info): capwap_90000010[0429.2ec9.e371][ 192.168.1.160][2001:8a0:fb91:1c00:d20a:fcc:5919:3f1a]capwap_90000010 Read complete: parse_request return 4
[...]
2023/08/10 14:35:37.807498470 {wncd_x_R0-0}{1}: [webauth-state] [15195]: (info): capwap_90000010[0429.2ec9.e371][ 192.168.1.160][2001:8a0:fb91:1c00:d20a:fcc:5919:3f1a]capwap_90000010 Param-map used: ExternalWebAuth
2023/08/10 14:35:37.807503619 {wncd_x_R0-0}{1}: [webauth-state] [15195]: (info): capwap_90000010[0429.2ec9.e371][ 192.168.1.160][2001:8a0:fb91:1c00:d20a:fcc:5919:3f1a]capwap_90000010 State LOGIN -> AUTHENTICATING
2023/08/10 14:35:37.807515502 {wncd_x_R0-0}{1}: [webauth-io] [15195]: (info): capwap_90000010[0429.2ec9.e371][ 192.168.1.160][2001:8a0:fb91:1c00:d20a:fcc:5919:3f1a]capwap_90000010 55760/213 IO state READING -> AUTHENTICATING
2023/08/10 14:35:37.807653884 {wncd_x_R0-0}{1}: [radius] [15195]: (info): RADIUS: Send Access-Request to 192.168.1.7:1812 id 0/1, len 531
2023/08/10 14:35:37.807663221 {wncd_x_R0-0}{1}: [radius] [15195]: (info): RADIUS: authenticator 56 a6 f6 4e 84 f8 00 e9 - 06 14 c9 b3 8d 77 2b 4c
2023/08/10 14:35:37.807667159 {wncd_x_R0-0}{1}: [radius] [15195]: (info): RADIUS: Calling-Station-Id [31] 19 "04-29-2e-c9-e3-71"
2023/08/10 14:35:37.807670215 {wncd_x_R0-0}{1}: [radius] [15195]: (info): RADIUS: User-Name [1] 7 "tiago"
2023/08/10 14:35:37.807673040 {wncd_x_R0-0}{1}: [radius] [15195]: (info): RADIUS: Vendor, Cisco [26] 49
2023/08/10 14:35:37.807676226 {wncd_x_R0-0}{1}: [radius] [15195]: (info): RADIUS: Cisco AVpair [1] 43 "audit-session-id=0F01A8C00000000DDFDF94C0"
2023/08/10 14:35:37.807680083 {wncd_x_R0-0}{1}: [radius] [15195]: (info): RADIUS: Framed-IP-Address [8] 6 192.168.1.160
2023/08/10 14:35:37.807682217 {wncd_x_R0-0}{1}: [radius] [15195]: (info): RADIUS: Message-Authenticator[80] 18 ...
2023/08/10 14:35:37.807701825 {wncd_x_R0-0}{1}: [radius] [15195]: (info): RADIUS: Service-Type [6] 6 Outbound [5]
2023/08/10 14:35:37.807703838 {wncd_x_R0-0}{1}: [radius] [15195]: (info): RADIUS: Vendor, Cisco [26] 29
2023/08/10 14:35:37.807709459 {wncd_x_R0-0}{1}: [radius] [15195]: (info): RADIUS: Cisco AVpair [1] 23 "service-type=Outbound"
2023/08/10 14:35:37.807711783 {wncd_x_R0-0}{1}: [radius] [15195]: (info): RADIUS: Vendor, Cisco [26] 22
2023/08/10 14:35:37.807714509 {wncd_x_R0-0}{1}: [radius] [15195]: (info): RADIUS: Cisco AVpair [1] 16 "method=webauth"
[...]
2023/08/10 14:35:37.887128821 {wncd_x_R0-0}{1}: [radius] [15195]: (info): RADIUS: Received from id 1812/1 192.168.1.7:0, Access-Accept, len 130
2023/08/10 14:35:37.887152085 {wncd_x_R0-0}{1}: [radius] [15195]: (info): RADIUS: authenticator c1 c5 a3 4b 49 5d 11 42 - 74 50 bd e7 37 f3 07 1f
2023/08/10 14:35:37.887166342 {wncd_x_R0-0}{1}: [radius] [15195]: (info): RADIUS: User-Name [1] 7 "tiago"
[...]
2023/08/10 14:35:37.890143566 {wncd_x_R0-0}{1}: [auth-mgr] [15195]: (info): [0429.2ec9.e371:capwap_90000010] Authc success from WebAuth, Auth event success
[...]
2023/08/10 14:35:37.893926155 {wncd_x_R0-0}{1}: [rog-proxy-capwap] [15195]: (debug): Managed client RUN state notification: 0429.2ec9.e371
2023/08/10 14:35:37.893979316 {wncd_x_R0-0}{1}: [client-orch-state] [15195]: (note): MAC: 0429.2ec9.e371 Client state transition: S_CO_L3_AUTH_IN_PROGRESS -> S_CO_RUN
[...]

Refer to document Configure and Troubleshoot External Web-Authentication on 9800 WLC for more detailed troubleshoot steps.

OWE with CWA

Here we can see an example of CWA in the RA traces:

2023/08/11 12:43:45.551148898 {wncd_x_R0-0}{1}: [client-orch-sm] [15200]: (note): MAC: 2495.2f72.8a66 Association received. BSSID 00df.1ddd.7d39, WLAN wifi6E_CWA, Slot 3 AP 00df.1ddd.7d30, AP9136_5C.F524
2023/08/11 12:43:45.551185236 {wncd_x_R0-0}{1}: [client-orch-sm] [15200]: (debug): MAC: 2495.2f72.8a66 Received Dot11 association request. Processing started,SSID: wifi6E_CWA, Policy profile: CWA_PP, AP Name: AP9136_5C.F524, Ap Mac Address: 00df.1ddd.7d30BSSID MAC0000.0000.0000wlan ID: 7RSSI: -57, SNR: 41
[...]
2023/08/11 12:43:45.551873379 {wncd_x_R0-0}{1}: [client-auth] [15200]: (note): MAC: 2495.2f72.8a66 MAB Authentication initiated. Policy VLAN 0, AAA override = 1, NAC = 1
2023/08/11 12:43:45.551925177 {wncd_x_R0-0}{1}: [auth-mgr] [15200]: (info): [2495.2f72.8a66:capwap_9000000f] Session Start event called from SANET-SHIM, vlan: 0
2023/08/11 12:43:45.551935427 {wncd_x_R0-0}{1}: [auth-mgr] [15200]: (info): [2495.2f72.8a66:capwap_9000000f] Wireless session sequence, create context with method MAB
2023/08/11 12:43:45.551947760 {wncd_x_R0-0}{1}: [auth-mgr-feat_wireless] [15200]: (info): [2495.2f72.8a66:capwap_9000000f] - authc_list: RadiusAuthor
[...]
2023/08/11 12:43:45.553164283 {wncd_x_R0-0}{1}: [mab] [15200]: (info): [2495.2f72.8a66:capwap_9000000f] MAB authentication started for 2495.2f72.8a66
[...]
2023/08/11 12:43:45.553769929 {wncd_x_R0-0}{1}: [radius] [15200]: (info): RADIUS: Send Access-Request to 192.168.1.7:1812 id 0/19, len 394
2023/08/11 12:43:45.553775189 {wncd_x_R0-0}{1}: [radius] [15200]: (info): RADIUS: authenticator e6 c2 9a 48 f2 59 6a 1a - ad 7b 53 0f 78 96 3a f5
2023/08/11 12:43:45.553778666 {wncd_x_R0-0}{1}: [radius] [15200]: (info): RADIUS: User-Name [1] 14 "24952f728a66"
2023/08/11 12:43:45.553781110 {wncd_x_R0-0}{1}: [radius] [15200]: (info): RADIUS: User-Password [2] 18 *
2023/08/11 12:43:45.553786901 {wncd_x_R0-0}{1}: [radius] [15200]: (info): RADIUS: Service-Type [6] 6 Call Check [10]
2023/08/11 12:43:45.553789196 {wncd_x_R0-0}{1}: [radius] [15200]: (info): RADIUS: Vendor, Cisco [26] 31
2023/08/11 12:43:45.553792211 {wncd_x_R0-0}{1}: [radius] [15200]: (info): RADIUS: Cisco AVpair [1] 25 "service-type=Call Check"
2023/08/11 12:43:45.553795428 {wncd_x_R0-0}{1}: [radius] [15200]: (info): RADIUS: Framed-MTU [12] 6 1485
2023/08/11 12:43:45.553797431 {wncd_x_R0-0}{1}: [radius] [15200]: (info): RADIUS: Message-Authenticator[80] 18 ...
2023/08/11 12:43:45.553814193 {wncd_x_R0-0}{1}: [radius] [15200]: (info): RADIUS: EAP-Key-Name [102] 2 *
2023/08/11 12:43:45.553818431 {wncd_x_R0-0}{1}: [radius] [15200]: (info): RADIUS: Vendor, Cisco [26] 49
2023/08/11 12:43:45.553821036 {wncd_x_R0-0}{1}: [radius] [15200]: (info): RADIUS: Cisco AVpair [1] 43 "audit-session-id=0F01A8C00000001EE49FCD0F"
2023/08/11 12:43:45.553823100 {wncd_x_R0-0}{1}: [radius] [15200]: (info): RADIUS: Vendor, Cisco [26] 18
2023/08/11 12:43:45.553829221 {wncd_x_R0-0}{1}: [radius] [15200]: (info): RADIUS: Cisco AVpair [1] 12 "method=mab"
2023/08/11 12:43:45.553831265 {wncd_x_R0-0}{1}: [radius] [15200]: (info): RADIUS: Vendor, Cisco [26] 32
2023/08/11 12:43:45.553833720 {wncd_x_R0-0}{1}: [radius] [15200]: (info): RADIUS: Cisco AVpair [1] 26 "client-iif-id=2801797648"
2023/08/11 12:43:45.553835684 {wncd_x_R0-0}{1}: [radius] [15200]: (info): RADIUS: Vendor, Cisco [26] 17
2023/08/11 12:43:45.553838048 {wncd_x_R0-0}{1}: [radius] [15200]: (info): RADIUS: Cisco AVpair [1] 11 "vlan-id=1"
2023/08/11 12:43:45.553841395 {wncd_x_R0-0}{1}: [radius] [15200]: (info): RADIUS: NAS-IP-Address [4] 6 192.168.1.15
2023/08/11 12:43:45.553844270 {wncd_x_R0-0}{1}: [radius] [15200]: (info): RADIUS: NAS-Port-Type [61] 6 802.11 wireless [19]
2023/08/11 12:43:45.553846955 {wncd_x_R0-0}{1}: [radius] [15200]: (info): RADIUS: NAS-Port [5] 6 112
2023/08/11 12:43:45.553848758 {wncd_x_R0-0}{1}: [radius] [15200]: (info): RADIUS: Vendor, Cisco [26] 34
2023/08/11 12:43:45.553851193 {wncd_x_R0-0}{1}: [radius] [15200]: (info): RADIUS: Cisco AVpair [1] 28 "cisco-wlan-ssid=wifi6E_CWA"
2023/08/11 12:43:45.553853177 {wncd_x_R0-0}{1}: [radius] [15200]: (info): RADIUS: Vendor, Cisco [26] 36
2023/08/11 12:43:45.553855591 {wncd_x_R0-0}{1}: [radius] [15200]: (info): RADIUS: Cisco AVpair [1] 30 "wlan-profile-name=wifi6E_CWA"
2023/08/11 12:43:45.553858246 {wncd_x_R0-0}{1}: [radius] [15200]: (info): RADIUS: Called-Station-Id [30] 30 "00-df-1d-dd-7d-30:wifi6E_CWA"
2023/08/11 12:43:45.553860811 {wncd_x_R0-0}{1}: [radius] [15200]: (info): RADIUS: Calling-Station-Id [31] 19 "24-95-2f-72-8a-66"
2023/08/11 12:43:45.553863015 {wncd_x_R0-0}{1}: [radius] [15200]: (info): RADIUS: Vendor, Airespace [26] 12
2023/08/11 12:43:45.553865510 {wncd_x_R0-0}{1}: [radius] [15200]: (info): RADIUS: Airespace-WLAN-ID [1] 6 7
2023/08/11 12:43:45.553867995 {wncd_x_R0-0}{1}: [radius] [15200]: (info): RADIUS: Nas-Identifier [32] 14 "eWLC-9800-01"
2023/08/11 12:43:45.553929331 {wncd_x_R0-0}{1}: [radius] [15200]: (info): RADIUS: Started 5 sec timeout
2023/08/11 12:43:45.570301533 {wncd_x_R0-0}{1}: [radius] [15200]: (info): RADIUS: Received from id 1812/19 192.168.1.7:0, Access-Accept, len 538
2023/08/11 12:43:45.570313767 {wncd_x_R0-0}{1}: [radius] [15200]: (info): RADIUS: authenticator 17 42 8f 8e 13 78 91 01 - 6c 89 9e cb 51 3b 69 c8
2023/08/11 12:43:45.570319247 {wncd_x_R0-0}{1}: [radius] [15200]: (info): RADIUS: User-Name [1] 19 "24-95-2F-72-8A-66"
2023/08/11 12:43:45.570321902 {wncd_x_R0-0}{1}: [radius] [15200]: (info): RADIUS: Class [25] 51 ...
2023/08/11 12:43:45.570375383 {wncd_x_R0-0}{1}: [radius] [15200]: (info): RADIUS: Message-Authenticator[80] 18 ...
2023/08/11 12:43:45.570390662 {wncd_x_R0-0}{1}: [radius] [15200]: (info): RADIUS: Vendor, Cisco [26] 33
2023/08/11 12:43:45.570393618 {wncd_x_R0-0}{1}: [radius] [15200]: (info): RADIUS: Cisco AVpair [1] 27 "url-redirect-acl=REDIRECT"
2023/08/11 12:43:45.570395732 {wncd_x_R0-0}{1}: [radius] [15200]: (info): RADIUS: Vendor, Cisco [26] 208
2023/08/11 12:43:45.570403947 {wncd_x_R0-0}{1}: [radius] [15200]: (info): RADIUS: Cisco AVpair [1] 183 "url-redirect=https://192.168.1.7:8443/portal/gateway?sessionId=0F01A8C00000001EE49FCD0F&portal=26d19560-2e58-11e9-98fb-0050568775a3&action=cwa&token=a6a62b8619182aa81bd9f9f1781184f9"
2023/08/11 12:43:45.570435186 {wncd_x_R0-0}{1}: [radius] [15200]: (info): Valid Response Packet, Free the identifier
2023/08/11 12:43:45.570612622 {wncd_x_R0-0}{1}: [mab] [15200]: (info): [2495.2f72.8a66:capwap_9000000f] MAB received an Access-Accept for (2495.2f72.8a66)
2023/08/11 12:43:45.570621699 {wncd_x_R0-0}{1}: [mab] [15200]: (info): [2495.2f72.8a66:capwap_9000000f] Received event 'MAB_RESULT' on (2495.2f72.8a66)
2023/08/11 12:43:45.570648140 {wncd_x_R0-0}{1}: [auth-mgr] [15200]: (info): [2495.2f72.8a66:capwap_9000000f] Authc success from MAB, Auth event success
2023/08/11 12:43:45.570657648 {wncd_x_R0-0}{1}: [auth-mgr] [15200]: (info): [2495.2f72.8a66:capwap_9000000f] Raised event APPLY_USER_PROFILE (14)
2023/08/11 12:43:45.570668839 {wncd_x_R0-0}{1}: [auth-mgr] [15200]: (info): [2495.2f72.8a66:capwap_9000000f] Raised event RX_METHOD_AUTHC_SUCCESS (3)
2023/08/11 12:43:45.570709836 {wncd_x_R0-0}{1}: [aaa-attr-inf] [15200]: (info): Applying Attribute : username 0 "24-95-2F-72-8A-66"
2023/08/11 12:43:45.570718393 {wncd_x_R0-0}{1}: [aaa-attr-inf] [15200]: (info): Applying Attribute : class 0 43 41 43 53 3a 30 46 30 31 41 38 43 30 30 30 30 30 30 30 31 45 45 34 39 46 43 44 30 46 3a 49 53 45 2d 30 31 2f 34 38 31 31 32 30 33 32 39 2f 32 31
2023/08/11 12:43:45.570719545 {wncd_x_R0-0}{1}: [aaa-attr-inf] [15200]: (info): Applying Attribute : Message-Authenticator 0 <hidden>
2023/08/11 12:43:45.570720517 {wncd_x_R0-0}{1}: [aaa-attr-inf] [15200]: (info): Applying Attribute : url-redirect-acl 0 "REDIRECT"
2023/08/11 12:43:45.570722440 {wncd_x_R0-0}{1}: [aaa-attr-inf] [15200]: (info): Applying Attribute : url-redirect 0 "https://192.168.1.7:8443/portal/gateway?sessionId=0F01A8C00000001EE49FCD0F&portal=26d19560-2e58-11e9-98fb-0050568775a3&action=cwa&token=a6a62b8619182aa81bd9f9f1781184f9"
[...]
2023/08/11 12:43:45.571261140 {wncd_x_R0-0}{1}: [webauth-dev] [15200]: (info): [2495.2f72.8a66][ 192.168.1.162][2001:8a0:fb91:1c00:c093:8034:ca09:9d4f] Central Webauth URL Redirect, Received a request to create a CWA session for a mac [24:95:2f:72:8a:66]
[...]
2023/08/11 12:43:45.571316064 {wncd_x_R0-0}{1}: [webauth-state] [15200]: (info): [2495.2f72.8a66][ 0.0.0.0]Param-map used: global
2023/08/11 12:43:45.571318869 {wncd_x_R0-0}{1}: [webauth-state] [15200]: (info): [2495.2f72.8a66][ 0.0.0.0]State Invalid State -> INIT
[...]
2023/08/11 12:43:45.572346865 {wncd_x_R0-0}{1}: [dot11] [15200]: (info): MAC: 2495.2f72.8a66 dot11 send association response. Sending assoc response of length: 183 with resp_status_code: 0, DOT11_STATUS: DOT11_STATUS_SUCCESS
[...]
2023/08/11 12:43:45.576047520 {wncd_x_R0-0}{1}: [client-auth] [15200]: (info): MAC: 2495.2f72.8a66 Client auth-interface state transition: S_AUTHIF_ADD_MOBILE_ACK_WAIT_KM -> S_AUTHIF_PSK_AUTH_KEY_XCHNG_PENDING
2023/08/11 12:43:45.576136850 {wncd_x_R0-0}{1}: [client-keymgmt] [15200]: (info): MAC: 2495.2f72.8a66 EAP key M1 Sent successfully
2023/08/11 12:43:45.576138984 {wncd_x_R0-0}{1}: [client-keymgmt] [15200]: (info): MAC: 2495.2f72.8a66 Client key-mgmt state transition: S_INITPMK -> S_PTK_START
2023/08/11 12:43:45.576247599 {mobilityd_R0-0}{1}: [mm-client] [16431]: (debug): MAC: 0000.0000.0000 Received pmk_update, sub type: 0 of XID (0) from (WNCD[0])
2023/08/11 12:43:45.576379639 {mobilityd_R0-0}{1}: [mm-dgram-io] [16431]: (debug): MAC: 0000.0000.0000 Sending message: pmk_update to group: holyfountain
2023/08/11 12:43:45.576397212 {mobilityd_R0-0}{1}: [mm-dgram-io] [16431]: (debug): MAC: 0000.0000.0000 Failed to send message: pmk_update, total configured peers: 2, no active peers
2023/08/11 12:43:45.632584865 {wncd_x_R0-0}{1}: [client-keymgmt] [15200]: (info): MAC: 2495.2f72.8a66 M2 Status: EAP key M2 validation success
2023/08/11 12:43:45.632765557 {wncd_x_R0-0}{1}: [client-keymgmt] [15200]: (info): MAC: 2495.2f72.8a66 EAP key M3 Sent successfully
2023/08/11 12:43:45.632766960 {wncd_x_R0-0}{1}: [client-keymgmt] [15200]: (info): MAC: 2495.2f72.8a66 Client key-mgmt state transition: S_PTK_START -> S_PTKINITNEGOTIATING
2023/08/11 12:43:45.641844995 {wncd_x_R0-0}{1}: [client-keymgmt] [15200]: (info): MAC: 2495.2f72.8a66 M4 Status: EAP key M4 validation is successful
2023/08/11 12:43:45.641846798 {wncd_x_R0-0}{1}: [client-keymgmt] [15200]: (note): MAC: 2495.2f72.8a66 EAP Key management successful. AKM:OWE Cipher:CCMP WPA Version: WPA3
2023/08/11 12:43:45.641851597 {wncd_x_R0-0}{1}: [client-keymgmt] [15200]: (info): MAC: 2495.2f72.8a66 Client key-mgmt state transition: S_PTKINITNEGOTIATING -> S_PTKINITDONE
[...]
2023/08/11 12:43:45.645536693 {wncd_x_R0-0}{1}: [client-orch-state] [15200]: (note): MAC: 2495.2f72.8a66 Client state transition: S_CO_DPATH_PLUMB_IN_PROGRESS -> S_CO_IP_LEARN_IN_PROGRESS
[...]
2023/08/11 12:43:46.103210515 {wncd_x_R0-0}{1}: [client-iplearn] [15200]: (note): MAC: 2495.2f72.8a66 Client IP learn successful. Method: DHCP IP: 192.168.1.162
2023/08/11 12:43:46.103745268 {wncd_x_R0-0}{1}: [auth-mgr] [15200]: (info): [2495.2f72.8a66:capwap_9000000f] auth mgr attr add/change notification is received for attr addr(8)
2023/08/11 12:43:46.104324815 {wncd_x_R0-0}{1}: [webauth-sess] [15200]: (info): [2495.2f72.8a66][ 0.0.0.0]Change notif CB, Add address 192.168.1.162 [2495.2f72.8a66]
2023/08/11 12:43:46.104343430 {wncd_x_R0-0}{1}: [webauth-sess] [15200]: (info): adding webauth session to ipv4 hash table for vrf id 0, ipv4 vrf table id 0
2023/08/11 12:43:46.104416388 {wncd_x_R0-0}{1}: [auth-mgr-feat_acct] [15200]: (info): [2495.2f72.8a66:capwap_9000000f] SM Notified attribute Add/Update addr 192.168.1.162
2023/08/11 12:43:46.104460371 {wncd_x_R0-0}{1}: [client-iplearn] [15200]: (info): MAC: 2495.2f72.8a66 IP-learn state transition: S_IPLEARN_IN_PROGRESS -> S_IPLEARN_COMPLETE
2023/08/11 12:43:46.104607690 {wncd_x_R0-0}{1}: [client-orch-sm] [15200]: (debug): MAC: 2495.2f72.8a66 Received ip learn response. method: IPLEARN_METHOD_DHCP
2023/08/11 12:43:46.104669668 {wncd_x_R0-0}{1}: [client-orch-sm] [15200]: (debug): MAC: 2495.2f72.8a66 Triggered L3 authentication. status = 0x0, Success
2023/08/11 12:43:46.104674096 {wncd_x_R0-0}{1}: [client-orch-state] [15200]: (note): MAC: 2495.2f72.8a66 Client state transition: S_CO_IP_LEARN_IN_PROGRESS -> S_CO_L3_AUTH_IN_PROGRESS
2023/08/11 12:43:46.104749168 {wncd_x_R0-0}{1}: [dot1x] [15200]: (info): [0000.0000.0000:capwap_9000000f] Couldn't find the supplicant in the list
2023/08/11 12:43:46.104996176 {wncd_x_R0-0}{1}: [client-auth] [15200]: (note): MAC: 2495.2f72.8a66 L3 Authentication initiated. CWA
2023/08/11 12:43:46.105004562 {wncd_x_R0-0}{1}: [client-auth] [15200]: (info): MAC: 2495.2f72.8a66 Client auth-interface state transition: S_AUTHIF_L2_WEBAUTH_DONE -> S_AUTHIF_WEBAUTH_PENDING
[...]
2023/08/11 12:43:46.281818709 {wncd_x_R0-0}{1}: [webauth-state] [15200]: (info): [2495.2f72.8a66][ 192.168.1.162]Param-map used: global
2023/08/11 12:43:46.281822877 {wncd_x_R0-0}{1}: [webauth-state] [15200]: (info): [2495.2f72.8a66][ 192.168.1.162]State INIT -> GET_REDIRECT
2023/08/11 12:43:46.281825292 {wncd_x_R0-0}{1}: [webauth-io] [15200]: (info): [2495.2f72.8a66][ 192.168.1.162]43506/5 IO state READING -> WRITING
2023/08/11 12:43:46.281856060 {wncd_x_R0-0}{1}: [webauth-io] [15200]: (info): [2495.2f72.8a66][ 192.168.1.162]43506/5 IO state WRITING -> END
2023/08/11 12:43:46.281857933 {wncd_x_R0-0}{1}: [webauth-httpd] [15200]: (info): [2495.2f72.8a66][ 192.168.1.162]43506/5 Remove IO ctx and close socket, id [8800000D]
[...]
2023/08/11 12:44:20.312534457 {wncd_x_R0-0}{1}: [caaa-ch] [15200]: (info): [CAAA:COMMAND HANDLER:35000014] Processing CoA request under Command Handler ctx.
2023/08/11 12:44:20.312571788 {wncd_x_R0-0}{1}: [caaa-ch] [15200]: (info): [CAAA:COMMAND HANDLER:35000014] Reauthenticate request (0x560210e99bf8) for 2495.2f72.8a66
2023/08/11 12:44:20.312626401 {wncd_x_R0-0}{1}: [sadb-attr] [15200]: (info): Removing ipv6 addresses from the attr list 318769545,sm_ctx = 0x80806aea40, num_ipv6 = 3
2023/08/11 12:44:20.312673230 {wncd_x_R0-0}{1}: [mab] [15200]: (info): [2495.2f72.8a66:capwap_9000000f] MAB re-authentication started for (2495.2f72.8a66)
2023/08/11 12:44:20.312713736 {wncd_x_R0-0}{1}: [auth-mgr] [15200]: (info): [2495.2f72.8a66:capwap_9000000f] Context changing state from 'Authz Success' to 'Running'
2023/08/11 12:44:20.312720158 {wncd_x_R0-0}{1}: [auth-mgr] [15200]: (info): [2495.2f72.8a66:capwap_9000000f] Method mab changing state from 'Authc Success' to 'Running'
2023/08/11 12:44:20.312740637 {wncd_x_R0-0}{1}: [aaa-coa] [15200]: (info): radius coa proxy relay coa resp(wncd)
2023/08/11 12:44:20.312746478 {wncd_x_R0-0}{1}: [aaa-coa] [15200]: (info): CoA Response Details
2023/08/11 12:44:20.312756237 {wncd_x_R0-0}{1}: [aaa-attr-inf] [15200]: (info): << ssg-command-code 0 32 >>
2023/08/11 12:44:20.312758912 {wncd_x_R0-0}{1}: [aaa-attr-inf] [15200]: (info): << formatted-clid 0 "2495.2f72.8a66">>
2023/08/11 12:44:20.312762318 {wncd_x_R0-0}{1}: [aaa-attr-inf] [15200]: (info): << error-cause 0 1 [Success]>>
2023/08/11 12:44:20.312774040 {wncd_x_R0-0}{1}: [aaa-coa] [15200]: (info): server:192.168.1.15 cfg_saddr:192.168.1.15 udpport:42721 sport:0, tableid:0iden:4 rad_code:43 msg_auth_rcvd:TRUE coa_resp:ACK
2023/08/11 12:44:20.312876905 {wncd_x_R0-0}{1}: [caaa-ch] [15200]: (info): [CAAA:COMMAND HANDLER] CoA response sent
2023/08/11 12:44:20.312886633 {wncd_x_R0-0}{1}: [caaa-ch] [15200]: (info): [CAAA:COMMAND HANDLER:35000014] Identity preserved: mac (2495.2f72.8a66), ip (0), audit_sid (0F01A8C00000001EE49FCD0F), aaa_session_id (0)
2023/08/11 12:44:20.312902744 {wncd_x_R0-0}{1}: [mab] [15200]: (info): [2495.2f72.8a66:capwap_9000000f] Received event 'MAB_REAUTHENTICATE' on (2495.2f72.8a66)
2023/08/11 12:44:20.313249801 {wncd_x_R0-0}{1}: [sadb-attr] [15200]: (info): Removing ipv6 addresses from the attr list -855635574,sm_ctx = 0x80806aea40, num_ipv6 = 3
2023/08/11 12:44:20.313380288 {wncd_x_R0-0}{1}: [caaa-author] [15200]: (info): [CAAA:AUTHOR:35000014] NULL ATTR LIST
2023/08/11 12:44:20.313702758 {wncd_x_R0-0}{1}: [radius] [15200]: (info): RADIUS: Send Access-Request to 192.168.1.7:1812 id 0/20, len 544
2023/08/11 12:44:20.313714140 {wncd_x_R0-0}{1}: [radius] [15200]: (info): RADIUS: authenticator 7b 62 36 99 3d 55 15 f1 - c3 b9 08 ea 93 7f 26 79
2023/08/11 12:44:20.313722686 {wncd_x_R0-0}{1}: [radius] [15200]: (info): RADIUS: User-Name [1] 14 "24952f728a66"
[...]
2023/08/11 12:44:20.313914609 {smd_R0-0}{1}: [aaa-coa] [17281]: (info): ++++++ Received CoA response Attribute List ++++++
2023/08/11 12:44:20.313917665 {wncd_x_R0-0}{1}: [radius] [15200]: (info): RADIUS: NAS-IP-Address [4] 6 192.168.1.15
2023/08/11 12:44:20.313924488 {wncd_x_R0-0}{1}: [radius] [15200]: (info): RADIUS: NAS-Port-Type [61] 6 802.11 wireless [19]
2023/08/11 12:44:20.313931051 {wncd_x_R0-0}{1}: [radius] [15200]: (info): RADIUS: NAS-Port [5] 6 112
2023/08/11 12:44:20.313935559 {wncd_x_R0-0}{1}: [radius] [15200]: (info): RADIUS: Vendor, Cisco [26] 34
2023/08/11 12:44:20.313941611 {wncd_x_R0-0}{1}: [radius] [15200]: (info): RADIUS: Cisco AVpair [1] 28 "cisco-wlan-ssid=wifi6E_CWA"
2023/08/11 12:44:20.313946640 {wncd_x_R0-0}{1}: [radius] [15200]: (info): RADIUS: Vendor, Cisco [26] 36
2023/08/11 12:44:20.313952692 {wncd_x_R0-0}{1}: [radius] [15200]: (info): RADIUS: Cisco AVpair [1] 30 "wlan-profile-name=wifi6E_CWA"
2023/08/11 12:44:20.313959174 {wncd_x_R0-0}{1}: [radius] [15200]: (info): RADIUS: Called-Station-Id [30] 30 "00-df-1d-dd-7d-30:wifi6E_CWA"
2023/08/11 12:44:20.313965616 {wncd_x_R0-0}{1}: [radius] [15200]: (info): RADIUS: Calling-Station-Id [31] 19 "24-95-2f-72-8a-66"
2023/08/11 12:44:20.313978210 {wncd_x_R0-0}{1}: [radius] [15200]: (info): RADIUS: Vendor, Airespace [26] 12
2023/08/11 12:44:20.313978350 {smd_R0-0}{1}: [radius] [17281]: (info): RADIUS(00000000): Send CoA Ack Response to 192.168.1.7:42721 id 4, len 69
2023/08/11 12:44:20.313984442 {wncd_x_R0-0}{1}: [radius] [15200]: (info): RADIUS: Airespace-WLAN-ID [1] 6 7
2023/08/11 12:44:20.313989972 {smd_R0-0}{1}: [radius] [17281]: (info): RADIUS: authenticator c3 10 c5 26 16 87 54 7f - 9f 63 a2 03 db 61 3a 65
2023/08/11 12:44:20.313990713 {wncd_x_R0-0}{1}: [radius] [15200]: (info): RADIUS: Nas-Identifier [32] 14 "eWLC-9800-01"
2023/08/11 12:44:20.313993459 {smd_R0-0}{1}: [radius] [17281]: (info): RADIUS: Vendor, Cisco [26] 9
2023/08/11 12:44:20.313996655 {smd_R0-0}{1}: [radius] [17281]: (info): RADIUS: ssg-command-code [252] 3 ...
2023/08/11 12:44:20.314073240 {smd_R0-0}{1}: [radius] [17281]: (info): RADIUS: Calling-Station-Id [31] 16 "2495.2f72.8a66"
2023/08/11 12:44:20.314077337 {smd_R0-0}{1}: [radius] [17281]: (info): RADIUS: Dynamic-Author-Error-Cause[101] 6 Success [200]
2023/08/11 12:44:20.314079431 {smd_R0-0}{1}: [radius] [17281]: (info): RADIUS: Message-Authenticator[80] 18 ...
2023/08/11 12:44:20.314098387 {smd_R0-0}{1}: [aaa-pod] [17281]: (info): CoA response source port = 0, udpport = 42721,
2023/08/11 12:44:20.314099289 {wncd_x_R0-0}{1}: [radius] [15200]: (info): RADIUS: Started 5 sec timeout
2023/08/11 12:44:20.327831023 {wncd_x_R0-0}{1}: [radius] [15200]: (info): RADIUS: Received from id 1812/20 192.168.1.7:0, Access-Accept, len 131
2023/08/11 12:44:20.327850400 {wncd_x_R0-0}{1}: [radius] [15200]: (info): RADIUS: authenticator a6 13 03 f0 f7 62 06 e0 - f3 c6 95 6e 36 cb 13 0b
2023/08/11 12:44:20.327861140 {wncd_x_R0-0}{1}: [radius] [15200]: (info): RADIUS: User-Name [1] 7 "tiago"
2023/08/11 12:44:20.327867512 {wncd_x_R0-0}{1}: [radius] [15200]: (info): RADIUS: Class [25] 51 ...
2023/08/11 12:44:20.327938827 {wncd_x_R0-0}{1}: [radius] [15200]: (info): RADIUS: Message-Authenticator[80] 18 ...
2023/08/11 12:44:20.327978472 {wncd_x_R0-0}{1}: [radius] [15200]: (info): RADIUS: Vendor, Cisco [26] 35
2023/08/11 12:44:20.327985516 {wncd_x_R0-0}{1}: [radius] [15200]: (info): RADIUS: Cisco AVpair [1] 29 "profile-name=Android-Google"
2023/08/11 12:44:20.328027385 {wncd_x_R0-0}{1}: [radius] [15200]: (info): Valid Response Packet, Free the identifier
2023/08/11 12:44:20.328322423 {wncd_x_R0-0}{1}: [mab] [15200]: (info): [2495.2f72.8a66:capwap_9000000f] MAB received an Access-Accept for (2495.2f72.8a66)
2023/08/11 12:44:20.328341299 {wncd_x_R0-0}{1}: [mab] [15200]: (info): [2495.2f72.8a66:capwap_9000000f] Received event 'MAB_RESULT' on (2495.2f72.8a66)
2023/08/11 12:44:20.328394871 {wncd_x_R0-0}{1}: [auth-mgr] [15200]: (info): [2495.2f72.8a66:capwap_9000000f] Authc success from MAB, Auth event success
2023/08/11 12:44:20.328412885 {wncd_x_R0-0}{1}: [auth-mgr] [15200]: (info): [2495.2f72.8a66:capwap_9000000f] Raised event APPLY_USER_PROFILE (14)
2023/08/11 12:44:20.328421270 {wncd_x_R0-0}{1}: [auth-mgr] [15200]: (info): [2495.2f72.8a66:capwap_9000000f] Raised event RX_METHOD_AUTHC_SUCCESS (3)
2023/08/11 12:44:20.328519506 {wncd_x_R0-0}{1}: [aaa-attr-inf] [15200]: (info): Applying Attribute : username 0 "tiago"
[...]
2023/08/11 12:44:20.328759310 {wncd_x_R0-0}{1}: [auth-mgr] [15200]: (info): [2495.2f72.8a66:capwap_9000000f] Received User-Name tiago for client 2495.2f72.8a66
2023/08/11 12:44:20.328773066 {wncd_x_R0-0}{1}: [auth-mgr] [15200]: (info): [2495.2f72.8a66:capwap_9000000f] Method mab changing state from 'Running' to 'Authc Success'
2023/08/11 12:44:20.328791892 {wncd_x_R0-0}{1}: [auth-mgr] [15200]: (info): [2495.2f72.8a66:capwap_9000000f] Context changing state from 'Running' to 'Authc Success'
[...]
2023/08/11 12:44:20.330928236 {wncd_x_R0-0}{1}: [auth-mgr] [15200]: (info): [2495.2f72.8a66:capwap_9000000f] Raised event AUTHZ_SUCCESS (11)
2023/08/11 12:44:20.330937604 {wncd_x_R0-0}{1}: [auth-mgr] [15200]: (info): [2495.2f72.8a66:capwap_9000000f] Context changing state from 'Authc Success' to 'Authz Success'
2023/08/11 12:44:20.331059194 {wncd_x_R0-0}{1}: [client-auth] [15200]: (note): MAC: 2495.2f72.8a66 L3 Authentication Successful. ACL:[]
2023/08/11 12:44:20.331065276 {wncd_x_R0-0}{1}: [client-auth] [15200]: (info): MAC: 2495.2f72.8a66 Client auth-interface state transition: S_AUTHIF_WEBAUTH_PENDING -> S_AUTHIF_WEBAUTH_DONE
[...]
2023/08/11 12:44:20.332171950 {wncd_x_R0-0}{1}: [errmsg] [15200]: (info): %CLIENT_ORCH_LOG-6-CLIENT_ADDED_TO_RUN_STATE: R0/0: wncd: Username entry (tiago) joined with ssid (wifi6E_CWA) for device with MAC: 2495.2f72.8a66
[...]
2023/08/11 12:44:20.332437363 {wncd_x_R0-0}{1}: [rog-proxy-capwap] [15200]: (debug): Managed client RUN state notification: 2495.2f72.8a66
2023/08/11 12:44:20.332544836 {wncd_x_R0-0}{1}: [client-orch-state] [15200]: (note): MAC: 2495.2f72.8a66 Client state transition: S_CO_L3_AUTH_IN_PROGRESS -> S_CO_RUN
[...]
2023/08/11 12:44:20.337221359 {wncd_x_R0-0}{1}: [client-auth] [15200]: (info): MAC: 2495.2f72.8a66 Client auth-interface state transition: S_AUTHIF_WEBAUTH_DONE -> S_AUTHIF_WEBAUTH_DONE
