Introduction
This document describes the configuration of Microsoft Azure Virtual WAN (vWAN) site-to-site VPN connectivity to Cisco Secure Firewall.
Prerequisites
Requirements
Cisco recommends knowledge of these topics:
- Microsoft Azure Virtual Wide Area Network (vWAN)
- Cisco Secure Firewall Management Center (FMC)
- Cisco Secure Firewall Threat Defense (FTD)
Components Used
The information in this document is based on these software and hardware versions:
- Cisco Secure FTD Version 10.0
- Cisco Secure FMC Version 10.0
The information in this document was created from the devices in a specific lab environment. All of the devices used in this document started with a cleared (default) configuration. If your network is live, ensure that you understand the potential impact of any command.
Background Information
Microsoft Azure Virtual WAN (vWAN) combines several Azure networking, security, and routing capabilities behind a single Hub construct. Each vWAN Hub can host a Microsoft-managed Site-to-Site VPN gateway that remote devices, such as Secure Firewall, use to reach into Azure without the having to build and maintain the gateway infrastructure.
Unlike a conventional two-endpoint IPsec VPN, the Azure vWAN Site-to-Site VPN gateway deploys as an active-active pair of instances (Instance0 and Instance1), each with their own public IP address and Border Gateway Protocol (BGP) peering address. To take advantage of both instances for redundancy and additional throughput, the branch FTD establishes one IP security (IPsec) tunnel to each instance and uses BGP, rather than static routing alone, to dynamically learn and withdraw routes as instances become available or unavailable. Equal-Cost Multi-Path (ECMP) routing and BGP multipath on the FTD then keep both tunnels active at the same time, instead of treating one as a passive standby.
This document configures that design in three phases: the Azure vWAN Hub and VPN Site objects are created first, the resulting connection parameters are downloaded, and those same parameters are then used to configure matching Virtual Tunnel Interfaces (VTIs), Internet Key Exchange Version 2 (IKEv2)/IPsec policies, static routes, ECMP, and BGP peering on the FTD through FMC.
Diagram

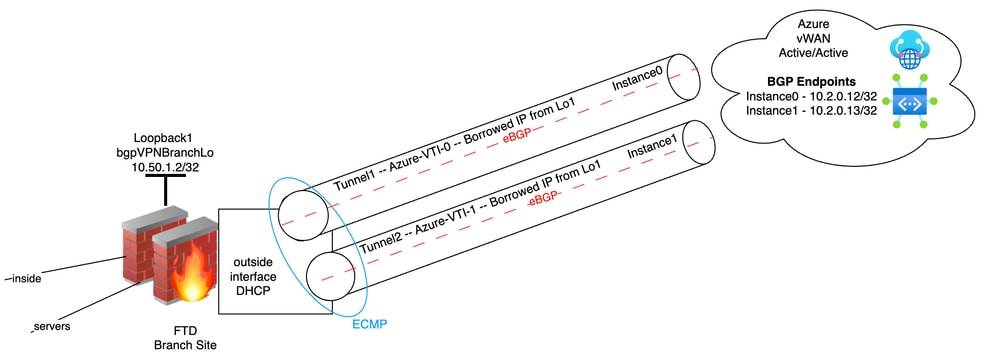

The diagram shows the topology of the configuration described in this article. The single Direct Internet Access (DIA) variant sources both Azure tunnels from one outside interface on the FTD.
Single DIA Link vWAN Connectivity Between Azure and FTD (Azure Load-Balancing/Redundancy)
Configure
Complete the three phases in order. The Azure-side objects created in Phase 1 and Phase 2 produce the peer IP addresses, BGP Autonomous System (AS) numbers, and pre-shared key that Phase 3 then applies to the FTD.
Phase 1: Azure vWAN/Hub Configuration
Note: The configuration steps in this document are high level and provide the necessary steps to connect the FTD to Azure vWAN. Refer to Azure vWAN documentation from Microsoft to understand the significance of the configurations. See What is Azure Virtual WAN? and further documentation.
Step 1: Create vWAN

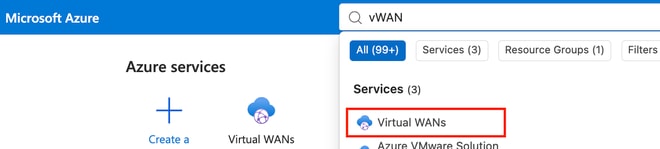

a) Search for vWAN in the Azure search box, click Virtual WANs.

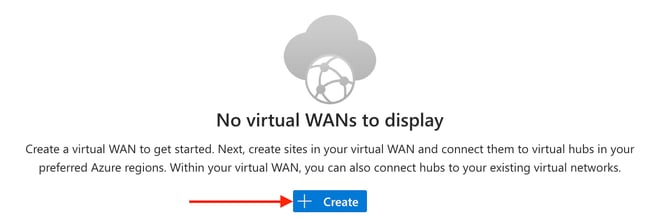

b) Click + Create.

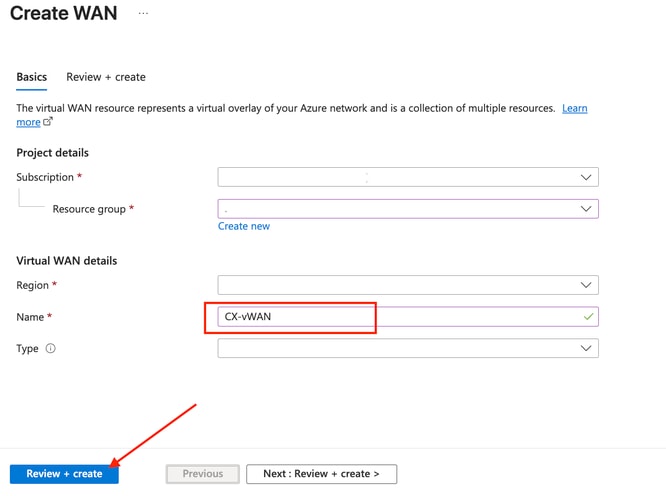

c) Enter a Name for the new vWAN instance, click Review + create, and click Create on the Review + Create page within the wizard.
Note: White space covering values in various fields in the images is intentional for the publishing of this document.

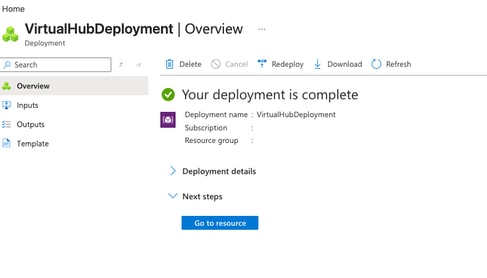

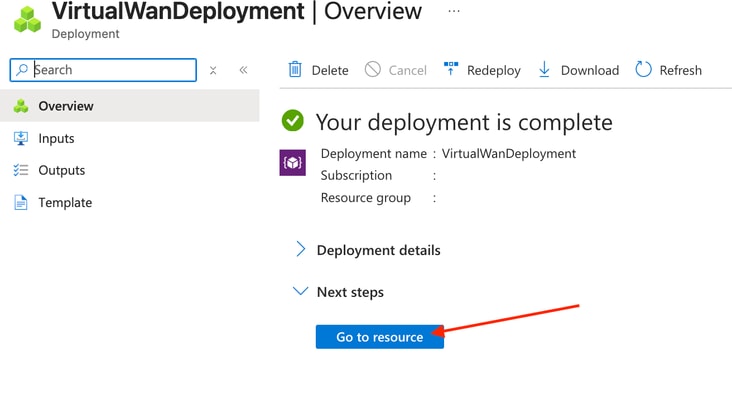

d) Click Go to resource.

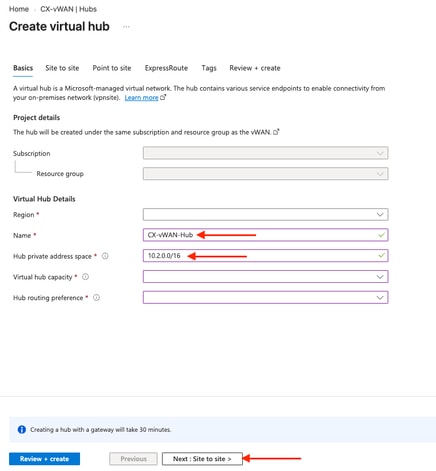

Step 2: Create vWAN Hub

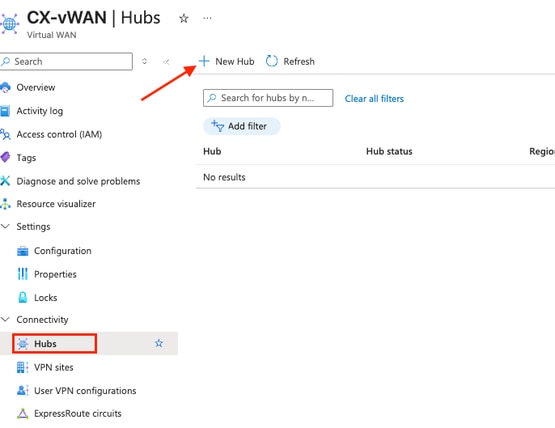

a) Navigate to Connectivity > Hubs and click + New Hub.
b) Refer to Azure documentation for further context on further configuration. Ensure that your Hub private address space allocated does not overlap any of your internal address spaces. Configure Name, Virtual Hub, Hub routing preference. Click Next : Site to site >.
c) Further refer to Microsoft Azure vWAN Hub documentation for information on the fields presented. Toggle Yes to create a Site to site (VPN Gateway). The default BGP Autonomous System (AS) number allocated is 65515, as allocated by the Internet Engineering Task Force (IETF) in Request For Comments (RFC) 6996 defining Private Use AS Reservation.

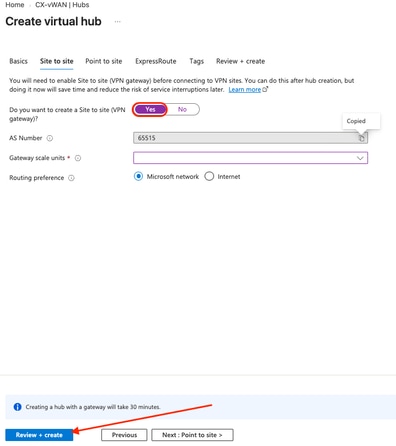

Note: Take record of the BGP AS for future configuration steps on the FMC.
Click Review + create, or click Next : Point to site > to configure optional settings.

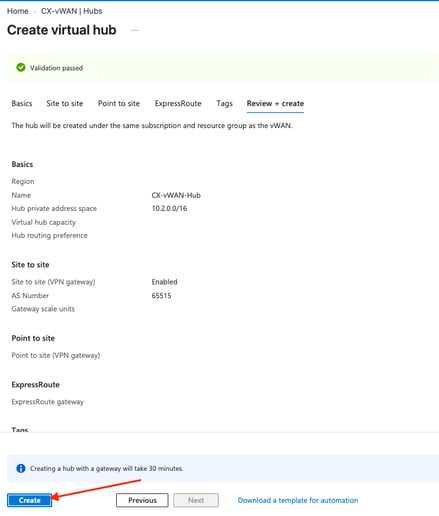

d) Once the summary is verified, click Create.
Note: As Azure states, creating the hub takes 30 minutes.

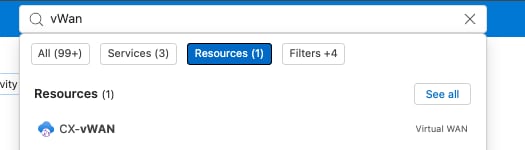

e) Once deployment is complete, search for your original vWAN resource name. To further narrow down your search, click Resources.
Phase 2: Azure vWAN VPN Site Configuration
Step 1: Create Azure vWAN VPN Site (Remote FTD Device)
a) Enter into the created hub via Connectivity > Hubs and click the hub created in previous steps.

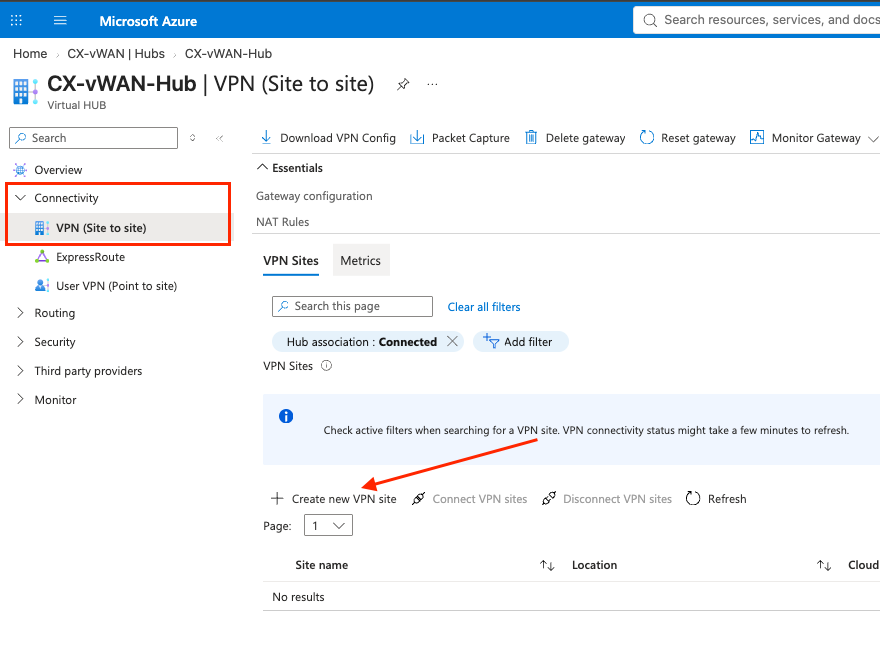

b) Click Connectivity > VPN (Site to site) and click + Create new VPN site.

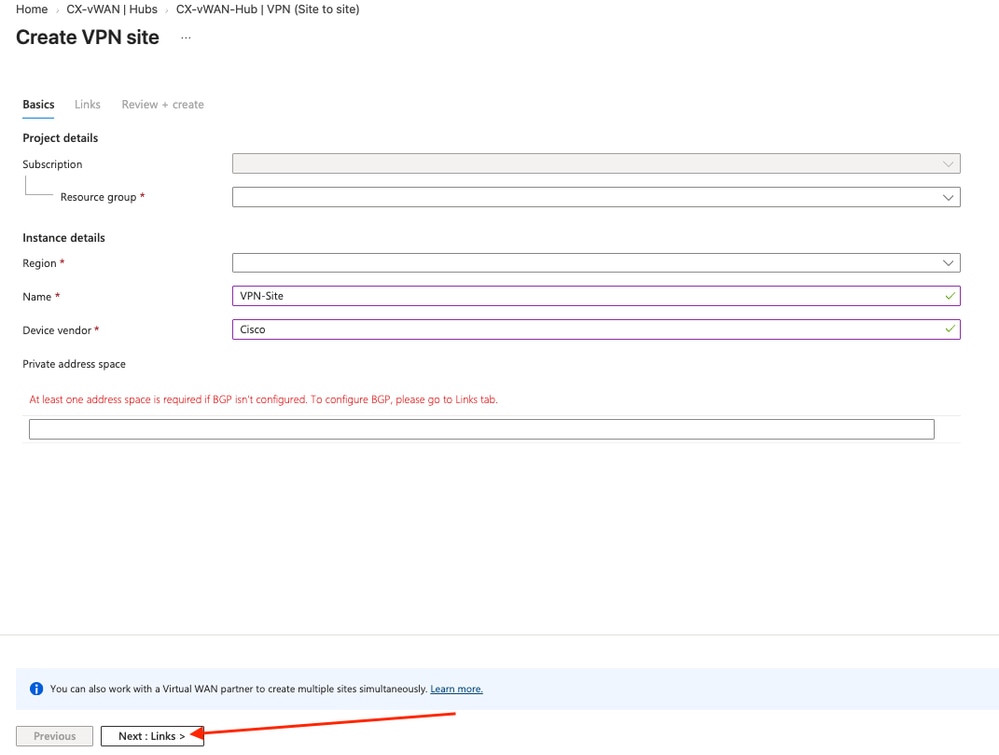

c) Enter the values in the required fields. When done, click Next: Links > to move forward.

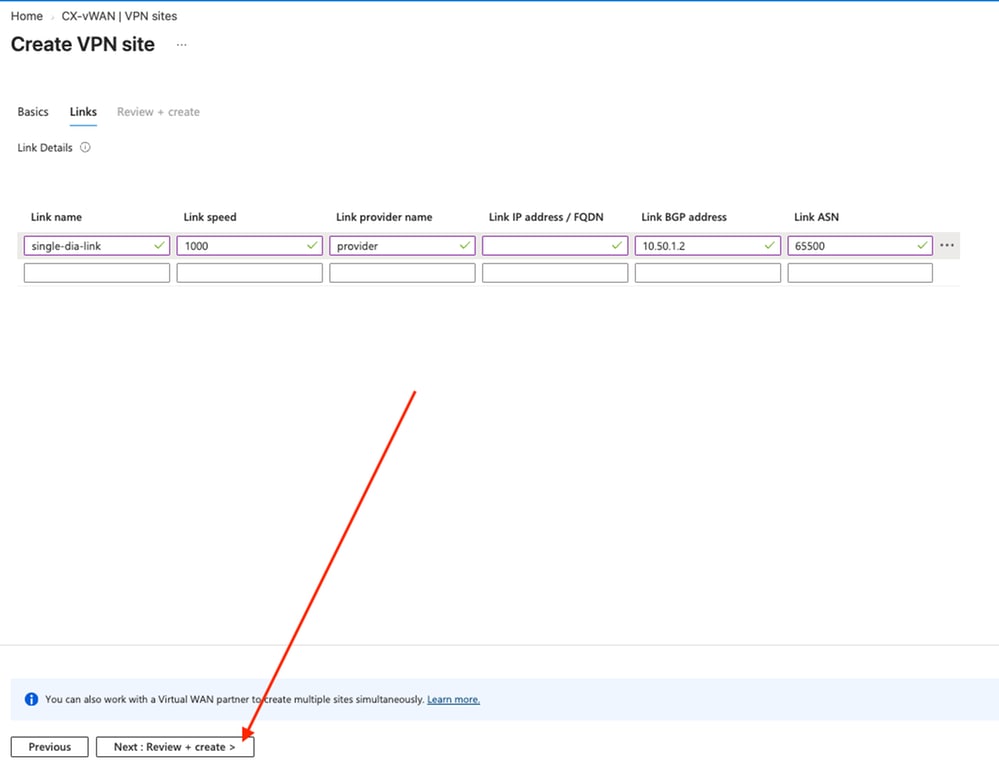

d) Enter the required link information. The Link BGP Address and the Link ASN fields reflect the inner-tunnel BGP Layer 3 destination address and BGP AS number on the branch site the neighborship with Azure is formed with over the site-to-site tunnels. The Link BGP Address is a non-overlapping subnet address (/32) outside of the previously configured Hub private address space subnet, which Azure installs as a /32 route to reach as a BGP neighbor. The Link IP address/FQDN is the outer-header Layer 3 destination IP address of traffic going to the branch site necessary to provision IPsec/IKEv2 connectivity.
Note: If you are using addresses ranging from 169.254.21.0 to 169.254.22.255 for tunnel addresses, ensure that you review How to configure BGP for Azure VPN Gateway for specific requirements.

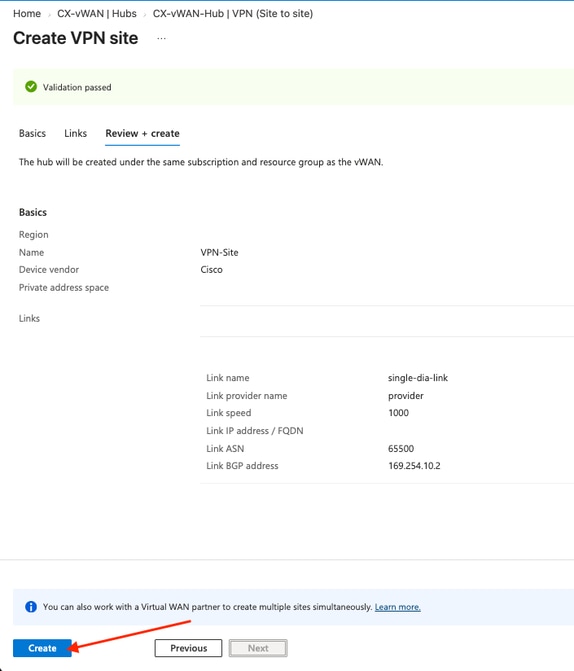

e) After you confirm that the settings are correct, click Create.

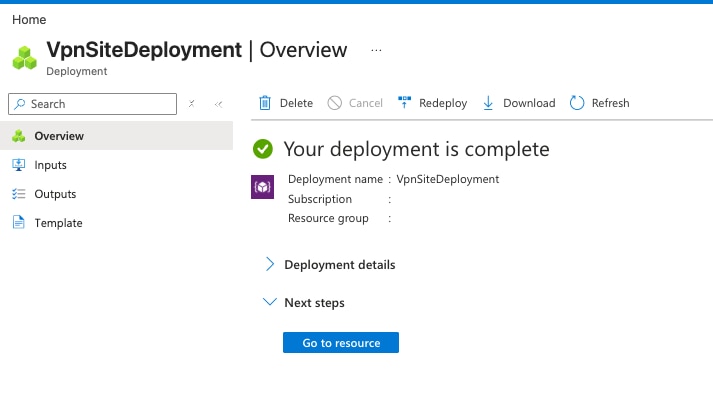

f) Once deployment of the VPN site completes, navigate back to the vWAN Hub configuration.
Step 2: Configure Azure vWAN Site VPN Parameters

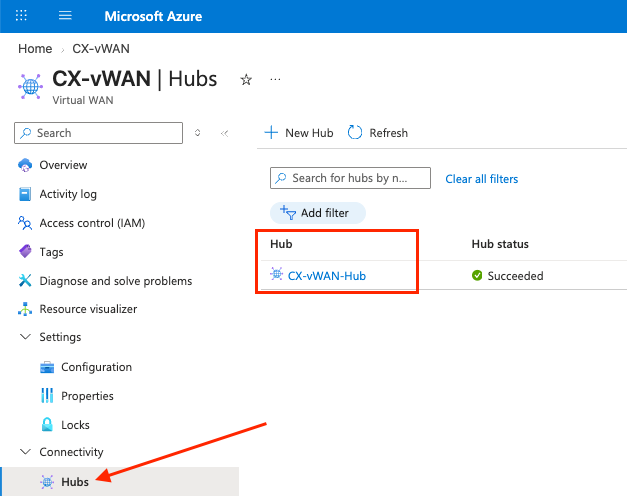

a) Enter into the created hub via Connectivity > Hubs and click the hub created in previous steps.

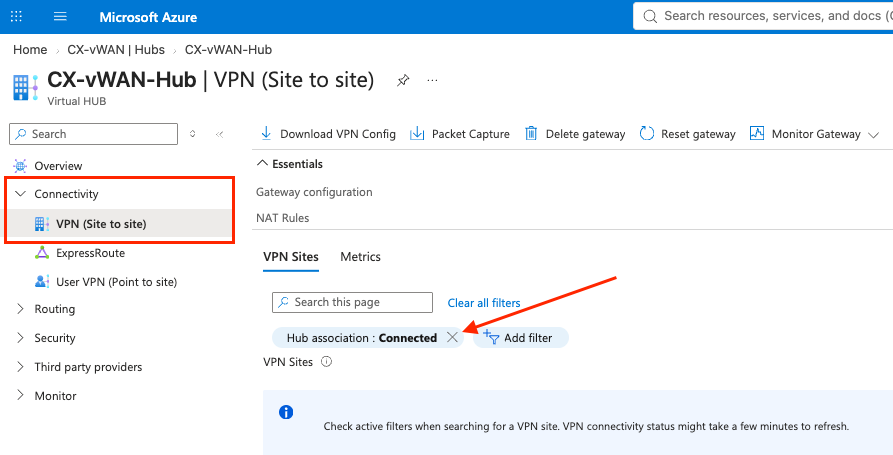

b) Navigate once again to Connectivity > VPN (Site to site) and click the X to clear the Hub Association: Connected filtering to view disconnected sites.

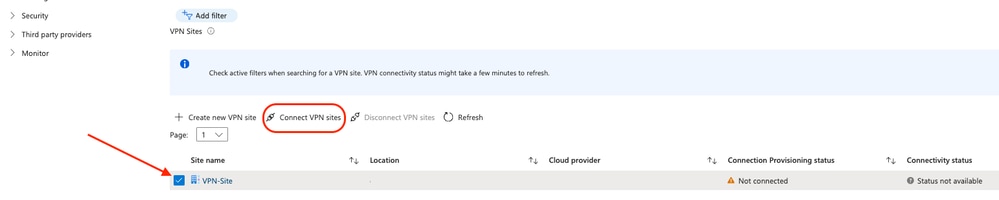

c) Check the box next to the previously configured VPN site, and then click Connect VPN sites, which becomes enabled after the site is selected.

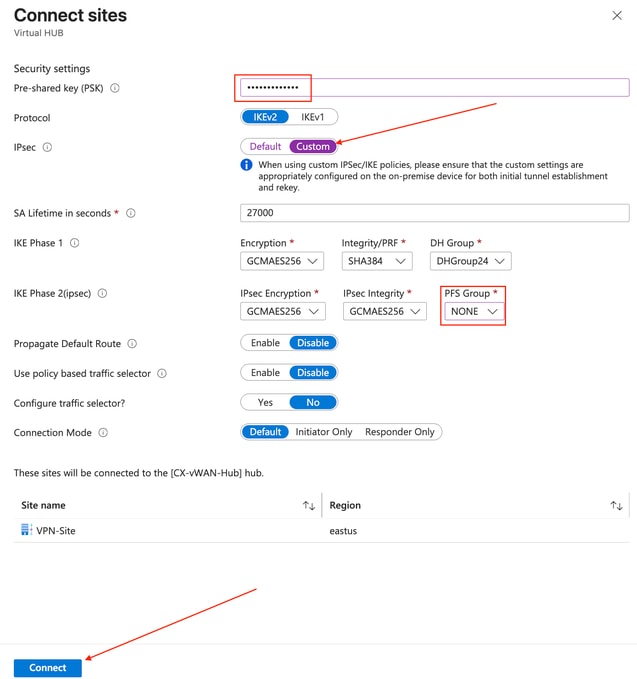

d) The Connect sites side drawer panel appears. Enter a Pre-shared key (PSK) and configure the desired Phase 1 IKEv2 and Phase 2 IPsec settings. When you choose Custom from the IPsec drop-down list, the values populate automatically; note these values, as they must match on the FTD. You must also choose whether Perfect Forward Secrecy (PFS) is desired. Because this is a route-based tunnel, configure the settings accordingly. Once complete, click Connect to save the configuration.
Note: See Default vs. Custom IPsec Polices Azure vWAN for further information.

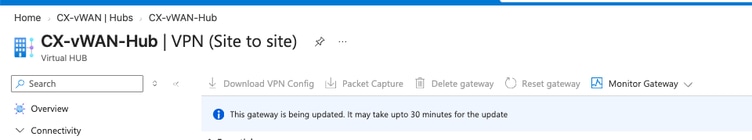

e) Information is displayed stating that the gateway is being updated, along with the estimated time to completion.
Step 3: Download Azure vWAN Site Tunnel Configuration

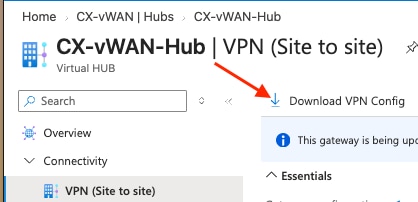

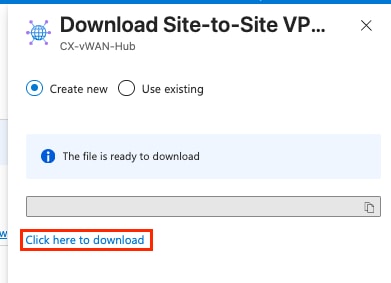

a) While the gateway is being updated, you can download the VPN configuration.
With the VPN Site created and its connection parameters (peer addresses, BGP AS numbers, and PSK) downloaded, the same values are used to configure the matching elements on the FTD in Phase 3.
Phase 3: FTD Configuration
Step 1: Analyze Azure VPN Configuration
a) Open the downloaded VPN configuration file from Azure. It looks similar to the condensed output shown and provides helpful information:
Note: For enhanced focus, several irrelevant objects and key/value pairs are pruned for brevity.
[
{
"configurationVersion": {
"LastUpdatedTime": "<Last Update Time>",
"Version": "<Version UUID"
},
"vpnSiteConfiguration": {
"Name": "VPN-Site",
"IPAddress": "<FTD public IP address>",
"BgpSetting": {
"Asn": 65500,
"BgpPeeringAddress": "10.50.1.2"
},
"LinkName": "single-dia-link"
},
"vpnSiteConnections": [
{
"hubConfiguration": {
"AddressSpace": "10.2.0.0/16",
"Region": "<Azure Region>"
},
"gatewayConfiguration": {
"IpAddresses": {
"Instance0": "57.x.x.x",
"Instance1": "52.x.x.x"
},
"BgpSetting": {
"Asn": 65515,
"BgpPeeringAddresses": {
"Instance0": "10.2.0.12",
"Instance1": "10.2.0.13"
}
}
},
"connectionConfiguration": {
"IsBgpEnabled": true,
"PSK": "<IPSec PSK>",
"IPsecParameters": {
"IpsecEncryption": "GCMAES256",
"IpsecIntegrity": "GCMAES256",
"IkeEncryption": "GCMAES256",
"IkeIntegrity": "SHA384",
"PfsGroup": "None",
"DhGroup": "DHGroup14",
"SADataSizeInKilobytes": 0,
"SALifeTimeInSeconds": 27000
}
}
}
]
}
]
Step 2: Configure Loopback
Each VTI configured later needs a stable tunnel source, so a loopback interface is configured first and shared between both VTIs.

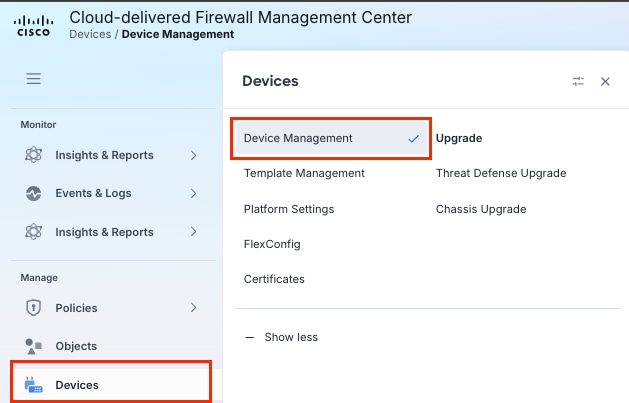

a) Navigate to Devices > Device Management.
Note: This lab uses cloud-delivered Firewall Management Center (cdFMC); however, the steps remain the same for on-prem FMC.

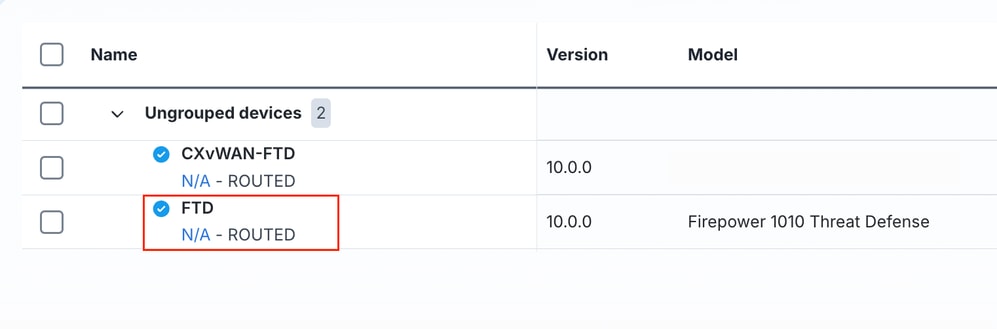

b) Select the FTD you are configuring as the branch/site VPN device.

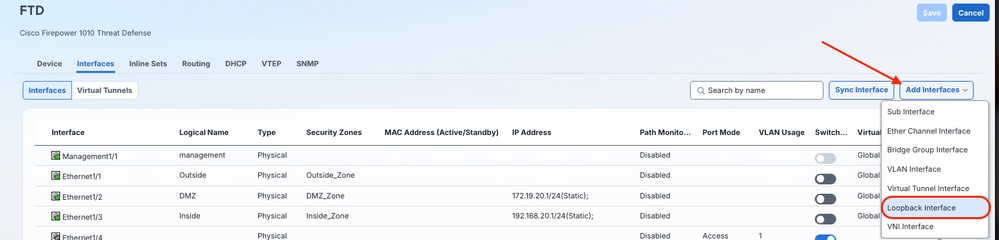

c) Click the Add Interfaces dropdown menu, and click Loopback Interface.

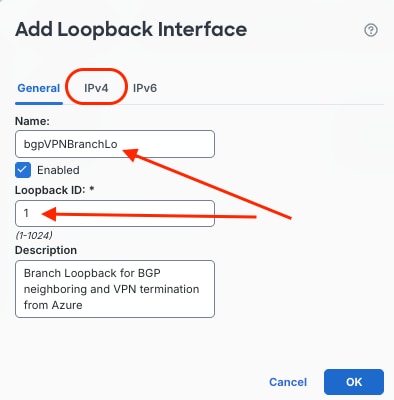

d) Give the Loopback Interface its Name, Loopback ID, and Description if necessary. Click IPv4.

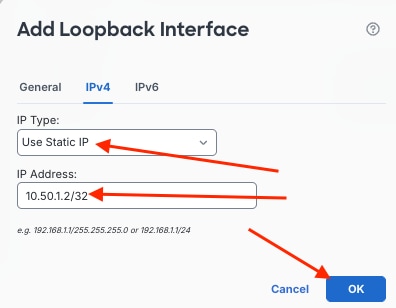

e) Ensure that the IP Type is defined as Use Static IP, enter the Link BGP Address as configured in Phase 2, step 1d. You can refer to the value previously defined in the downloaded VPN config JSON under vpnSiteConfiguration.BgpSetting.BgpPeeringAddress
Note: Define the address with a /32 mask and within RFC 1918 address-space.

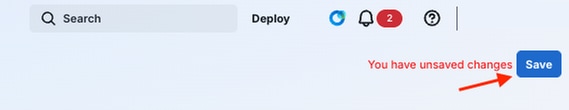

f) Click Save
Step 3: Configure Phase 1/Phase 2 Policy Objects

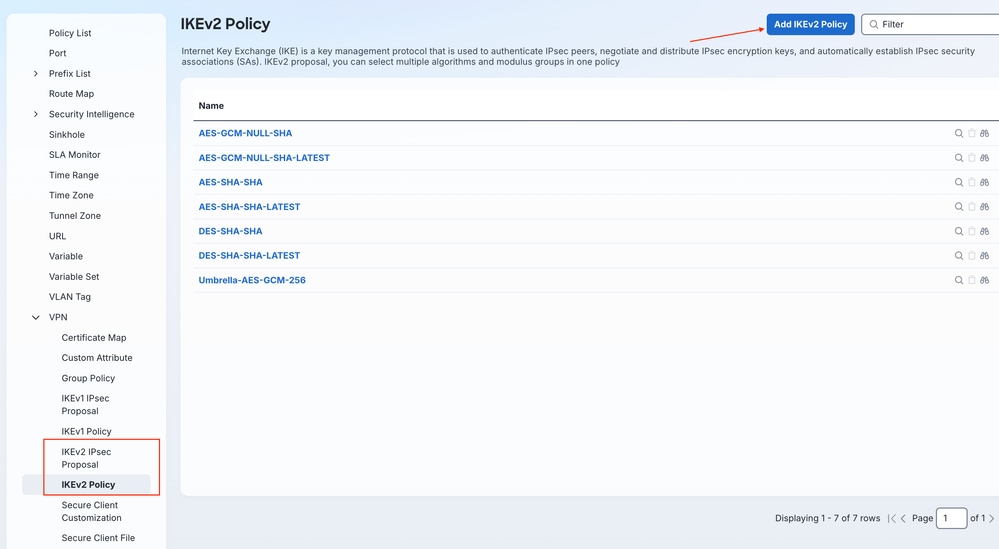

a) To configure matching IKEv2/IPsec configuration on the FMC to apply in the FTD VPN topologies, navigate to Manage > Objects, scroll down on the left menu to VPN, and expand the sub menu. Configure the IKEv2 Phase 1 Policy by choosing IKEv2 Policy in the menu and clicking Add IKEv2 Policy.

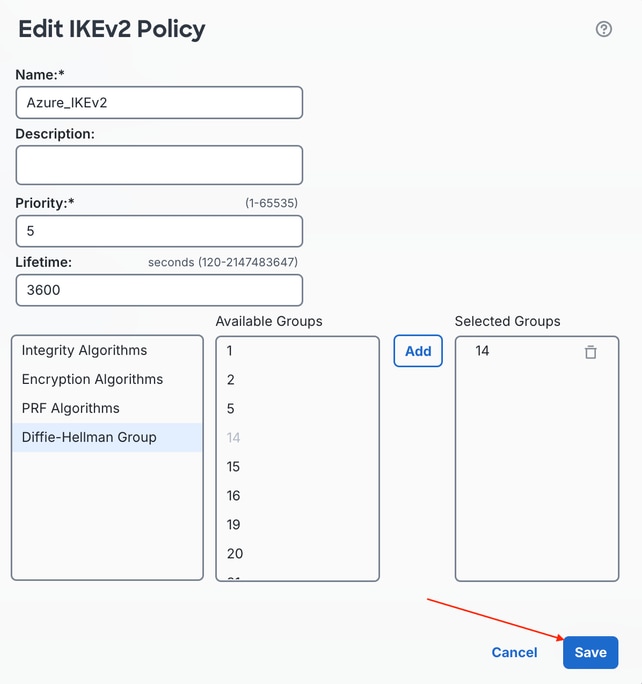

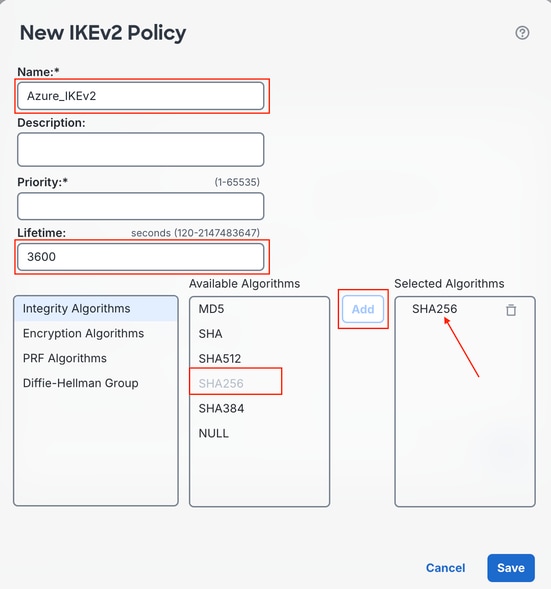

b) Enter a name for the new IKEv2 Policy, choose Priority and/or Lifetime. Ensure that the policy matches on both ends of the tunnel regarding Integrity, Encryption, PRF, and Diffie-Hellman (DH) Group. Choose the aligned Algorithm/Group elements to match with the Azure configuration, and click Add.
Note: You can reference these exact values within the downloaded configuration file at vpnSiteConnections[0].connectionConfiguration.IPsecParameters
c) Once configuration is done, click Save.

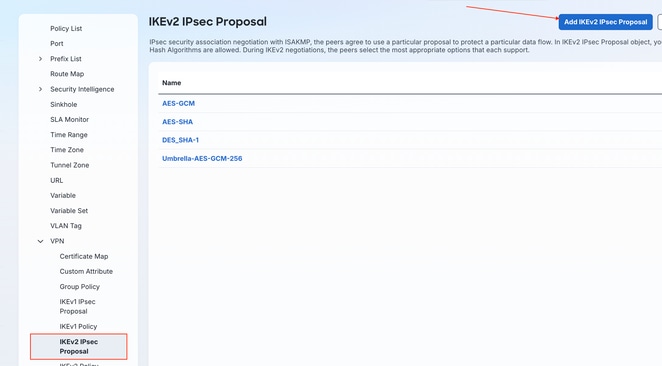

d) Configure Phase 2/IPsec parameters in the IKEv2 IPsec Proposal sub-menu and click Add IKEv2 IPsec Proposal.

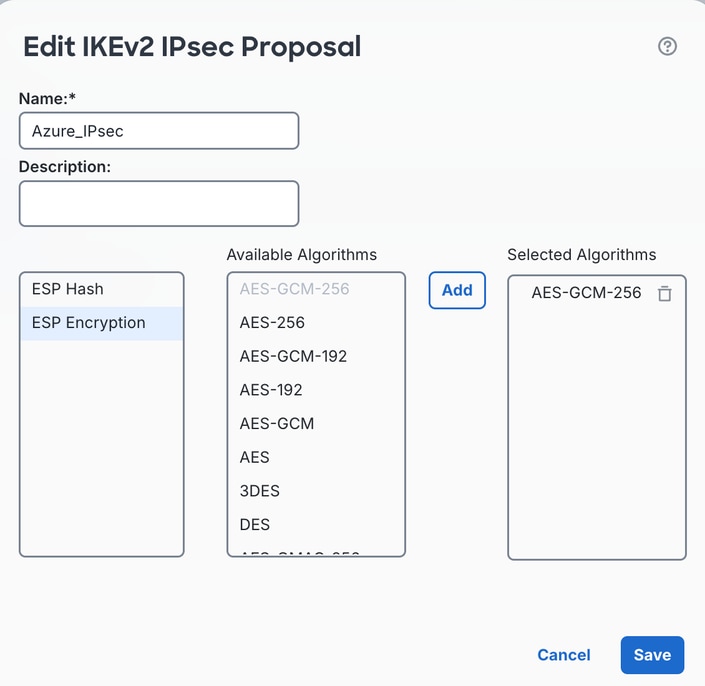

e) Name the IKEv2 IPsec Proposal and ensure that the same settings align. Once done, click Save.
Note: You can reference these values within your downloaded configuration file at vpnSiteConnections[0].connectionConfiguration.IPsecParameters
Step 4: Configure Secure Connectivity to Azure

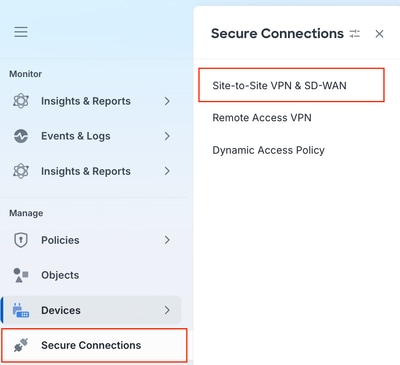

a) Navigate to Manage > Secure Connections > Site-to-Site VPN & SD-WAN.

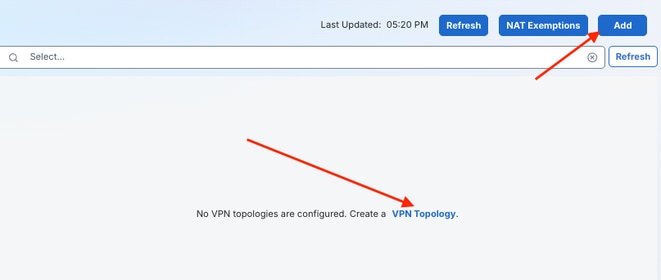

b) Click either the initial VPN Topology configuration hyperlink in the middle, or click Add.

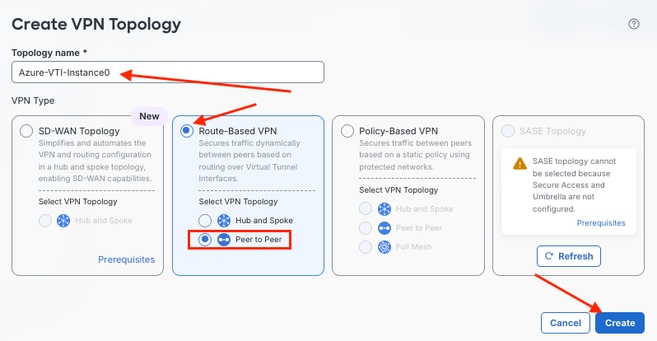

c) Enter a Topology name for the first tunnel to Azure Instance0, click the Route-Based VPN radio button, and click the Peer to Peer VPN topology type. Once completed, click Create.

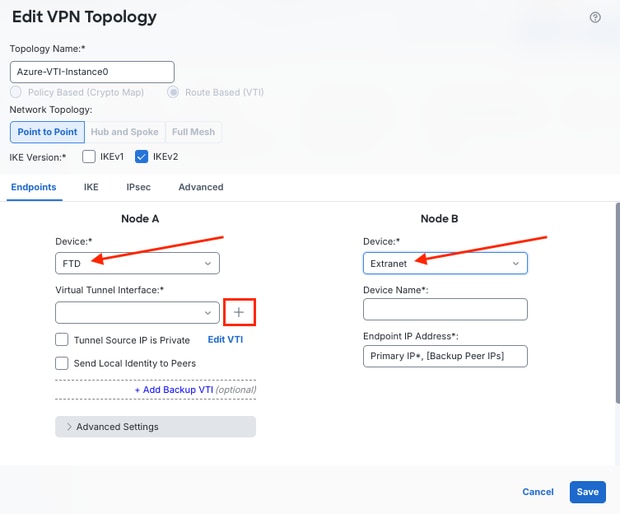

d) For Node A, click the Device drop-down list and choose the name of the managed FTD/FTD HA-Pair that the configuration is being deployed to. For Node B, because it is the remote end of the connection in the topology terminating on Azure vWAN instances, choose Extranet from the Device drop-down list. Next, for Node A, click the + icon adjacent to the Virtual Tunnel Interface (VTI) drop-down list.

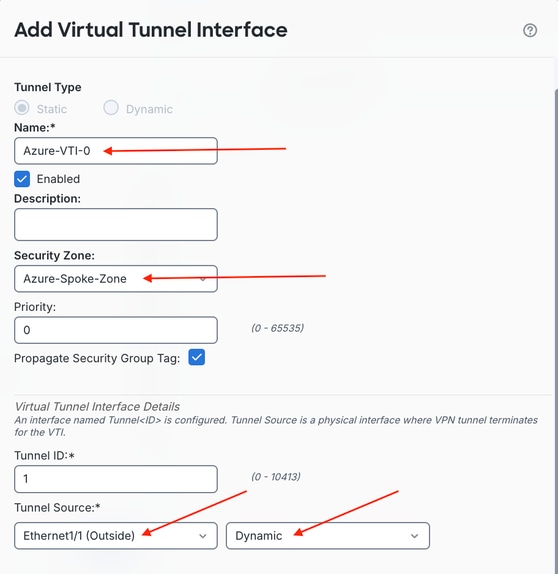

e) Give the first VTI a Name, and ensure that it is Enabled. Assign a new or existing Security Zone to the VTI, assign the Tunnel Source, and choose the IP address from the adjacent drop-down list.

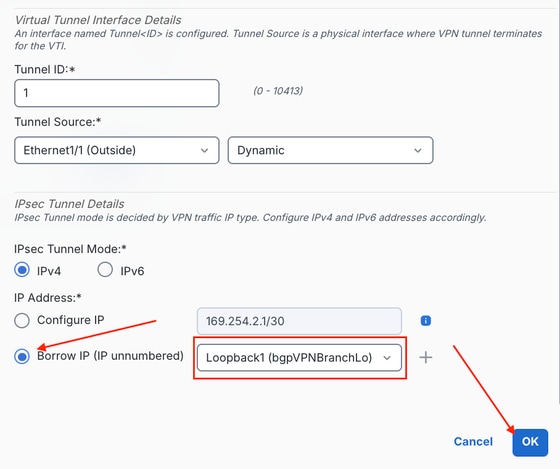

f) Next, ensure that the Borrow IP (IP unnumbered) radio button is selected, then choose the same loopback from the right drop-down list. Click OK once complete.

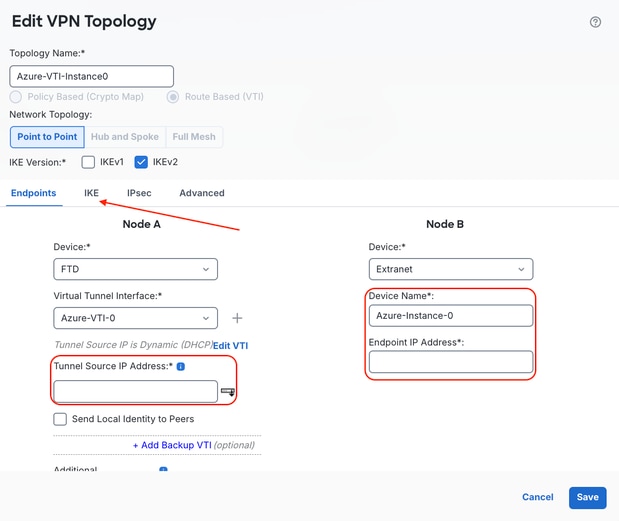

g) Once the VTI is configured and applied, manually populate the Tunnel Source IP Address (it populates automatically if parent interface address is populated from DHCP), and ensure that the Node B device name is configured, as well as the Instance Endpoint IP Address. Once complete, click the IKE tab.
Note: You can reference Instance0 Endpoint IP Address value in the downloaded configuration file at vpnSiteConnections[0].gatewayConfiguration.IpAddresses.Instance0

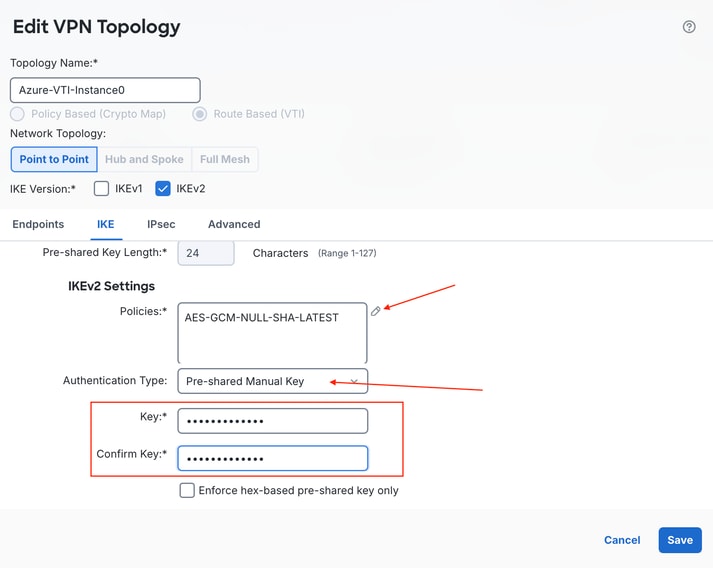

h) Scroll down to IKEv2 Settings and ensure that the Authentication Type is set to Pre-shared Manual Key, and enter the PSK configured in Azure in previous steps. Configure the IKEv2 Phase 1 Policies by clicking the pencil icon to edit available IKEv2 policies.
Note: Note: You can reference the pre-shared key in the downloaded configuration file at vpnSiteConnections[0].connectionConfiguration.IPsecParameters.PSK

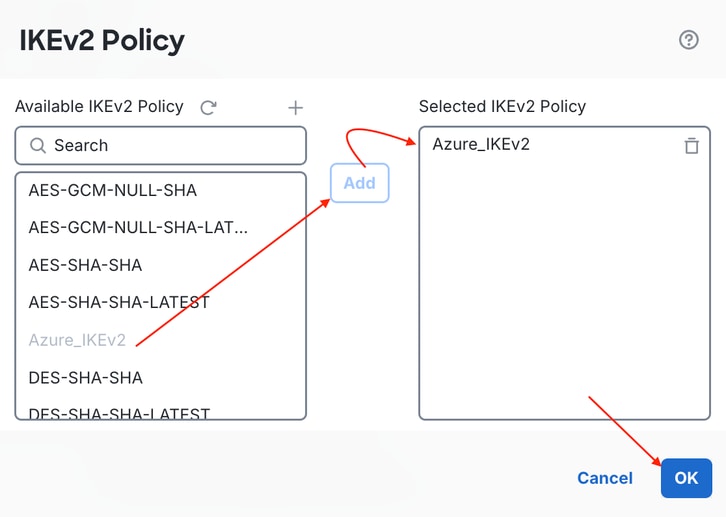

i) Add the IKEv2 Phase 1 policy configured initially in Step 3.

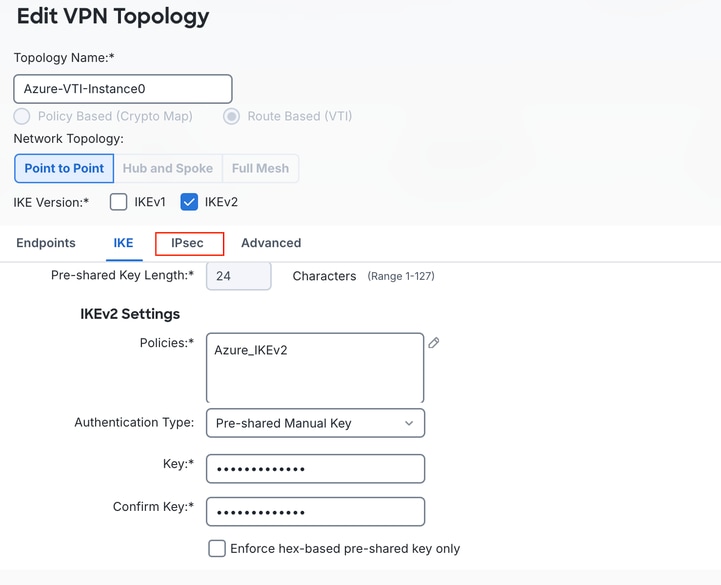

j) Select the IPsec tab.

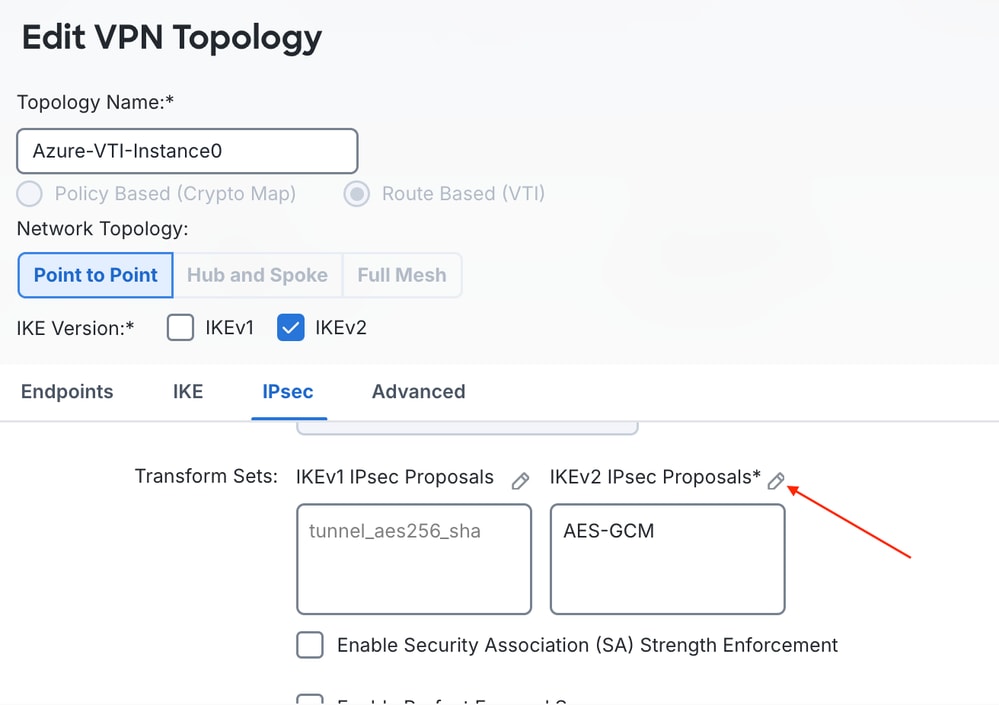

k) Edit the IKEv2 IPsec Proposal under Transform Sets by clicking the pencil icon.

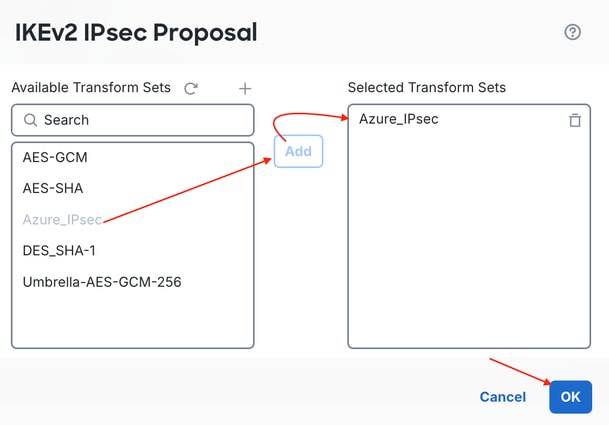

l) Click the trash bin icon to remove the default AES-GCM transform set, and add the custom Azure_IPsec transform set/IKEv2 IPsec Proposal created in the second half of Step 3. Click OK.

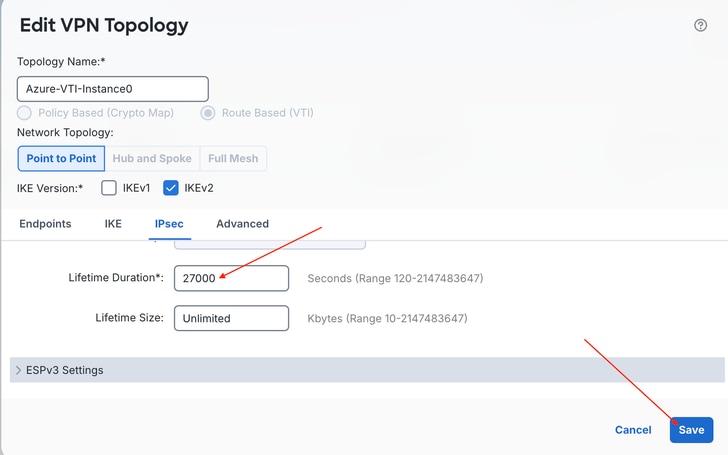

m) Scroll down and enter 27000 for the lifetime duration matching Azure parameters. Enable PFS Group if applicable. Click Save.
Note: You can reference the lifetime value in the downloaded configuration file at vpnSiteConnections[0].connectionConfiguration.IPsecParameters.SALifeTimeInSeconds

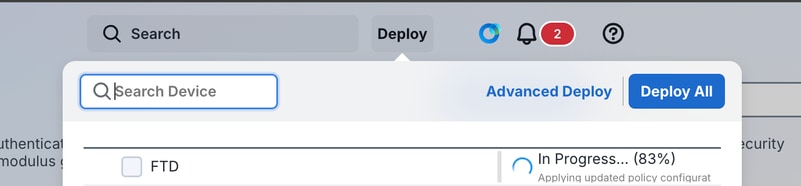

n) Deploy the changes.

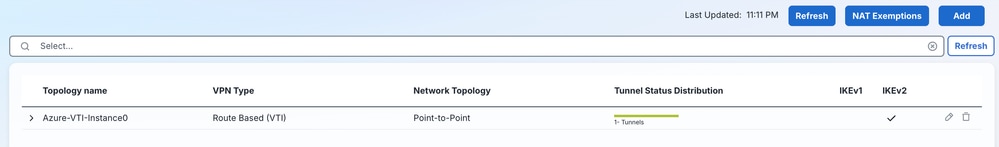

o) Once deployment concludes, check under Manage > Secure Connections > Site-to-Site VPN & SD-WAN under Tunnel Status Distribution; successful connectivity reflects Green (Up).
With the first tunnel deployed, confirm that it establishes successfully at both the IKE/IPsec and BGP layers before configuring the second tunnel for redundancy.
Step 5: Verify Initial Connectivity to Azure
a) SSH into the FTD and enter system support diagnostic-cli, type en, and press Enter,as there is no password on the read-only FTD CLI.
> system support diagnostic-cli
Attaching to Diagnostic CLI ... Press 'Ctrl+a then d' to detach.
Type help or '?' for a list of available commands.
ftd> en
Password:
ftd#
b) Check phase 1/phase 2 tunnel status.
ftd# show crypto isakmp sa | i Status:
Session-id:1, Status:UP-ACTIVE, IKE count:1, CHILD count:1
ftd#
ftd#
ftd# show crypto ipsec sa | i State|spi
current outbound spi: 5E83023A
current inbound spi : 62BC7C9E
spi: 0x62BC7C9E (0x00010B45)
SA State: active
spi: 0x5E83023A (0x0002029B)
SA State: active
ftd#
c) Perform captures to check for BGP Transmission Control Protocol (TCP) packets received from Azure in the tunnel and either Network Address Translation - Traversal (NAT-T) User Datagram Protocol (UDP) port 4500/UDP port 500 traffic on the outside capture from the public IP of Instance-0 Azure Tunnel.
ftd# capture out-instance-0 trace interface Outside match ip host <Azure-instance0-IP> any
ftd# capture tun-vti-0 interface Azure-VTI-0 trace match ip host <Link BGP IP> any
ftd# show cap tun-vti-0
3 packets captured
1: 03:23:43.510074 10.2.0.12.62061 > 10.50.1.2.179: SWE 2114095813:2114095813(0) win 64240 <mss 1360,nop,wscale 8,nop,nop,sackOK>
2: 03:23:44.511204 10.2.0.12.62061 > 10.50.1.2.179: SWE 2114095813:2114095813(0) win 64240 <mss 1360,nop,wscale 8,nop,nop,sackOK>
3: 03:23:46.512211 10.2.0.12.62061 > 10.50.1.2.179: S 2114095813:2114095813(0) win 64240 <mss 1360,nop,wscale 8,nop,nop,sackOK>
ftd#
With connectivity to Instance0 confirmed, repeat the same VTI and VPN topology configuration for Instance1 so that both Azure gateway instances are reachable.
Step 6: Configure Second Tunnel to Azure Instance1 Endpoint

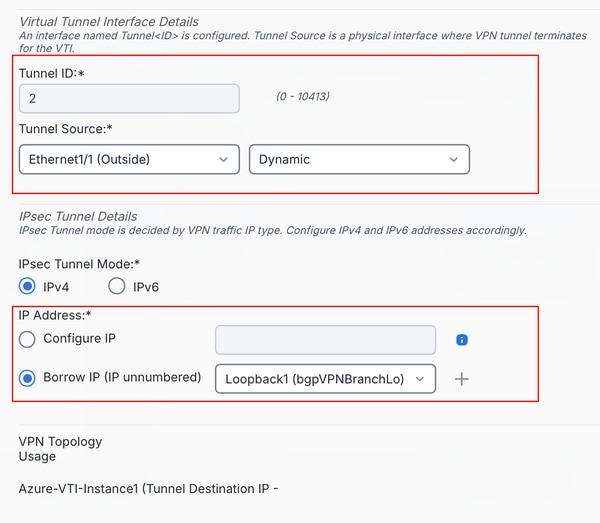

a) Create Second VTI (Azure-VTI-1) borrowing from same loopback (Step 3 b-f).

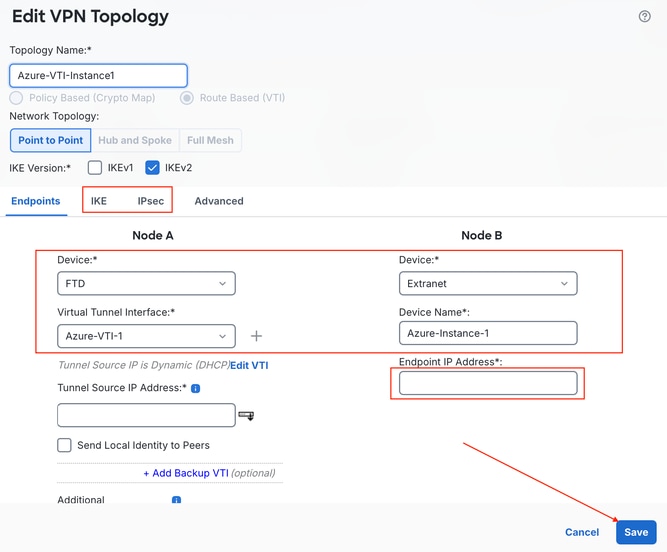

b) Configure second instance VPN topology (Step 4 g-n).
Note: You can reference Instance1 Endpoint IP Address value in the downloaded configuration file at vpnSiteConnections[0].gatewayConfiguration.IpAddresses.Instance1

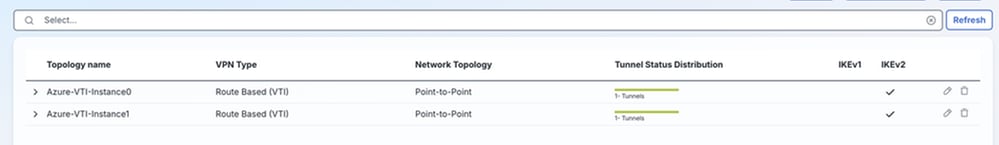

c) Deploy configuration changes, and check the tunnel status.

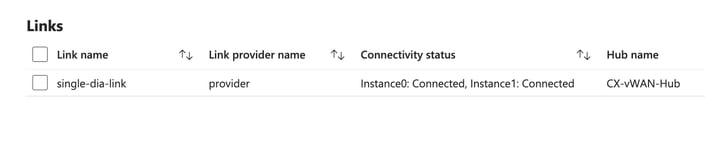

d) Checking in Azure, both Instance0 and Instance1 yield Connected.
With both tunnels active, the FTD needs ECMP routing so that traffic can use both paths at the same time, instead of treating the second tunnel as a passive standby.
Step 7: Configure ECMP
a) Navigate to Manage > Devices > Device Management and select the FTD configured with VPNs to Azure.

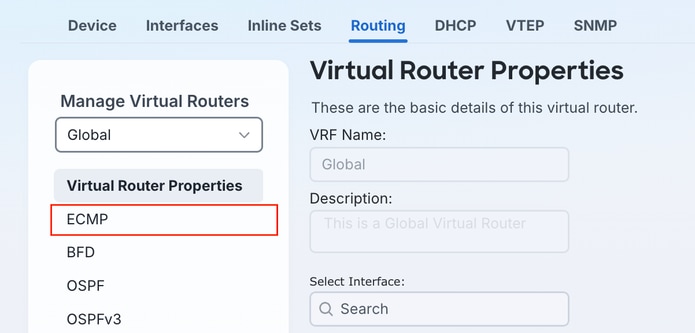

b) Click the Routing tab and choose ECMP.

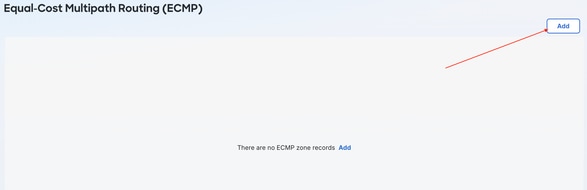

c) Click Add to create a new ECMP Zone.

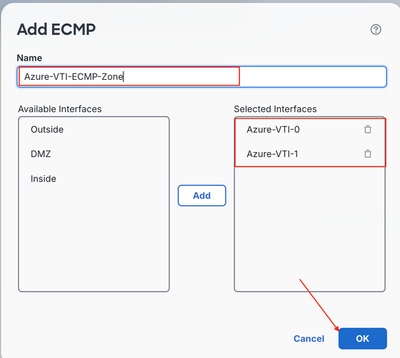

d) Toggle to highlight the VTIs by clicking both VTIs in the Available Interfaces panel and click Add to apply the VTIs to the named ECMP Zone.

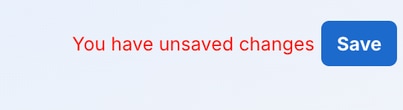

e) After you confirm that the settings are correct, click Save.
Step 8: Configure Static Routes to Instance Private IPs
BGP requires routes to successfully connect to neighbors, and because the endpoints are not directly connected, no routes are populated by default. ECMP allows you to configure static routes with the same metric (Administrative Distance) to the same destination, so that both routes are installed in the Routing Information Base (RIB) and used simultaneously.
a) Navigate to Manage > Devices > Device Management and choose the applicable FTD device.

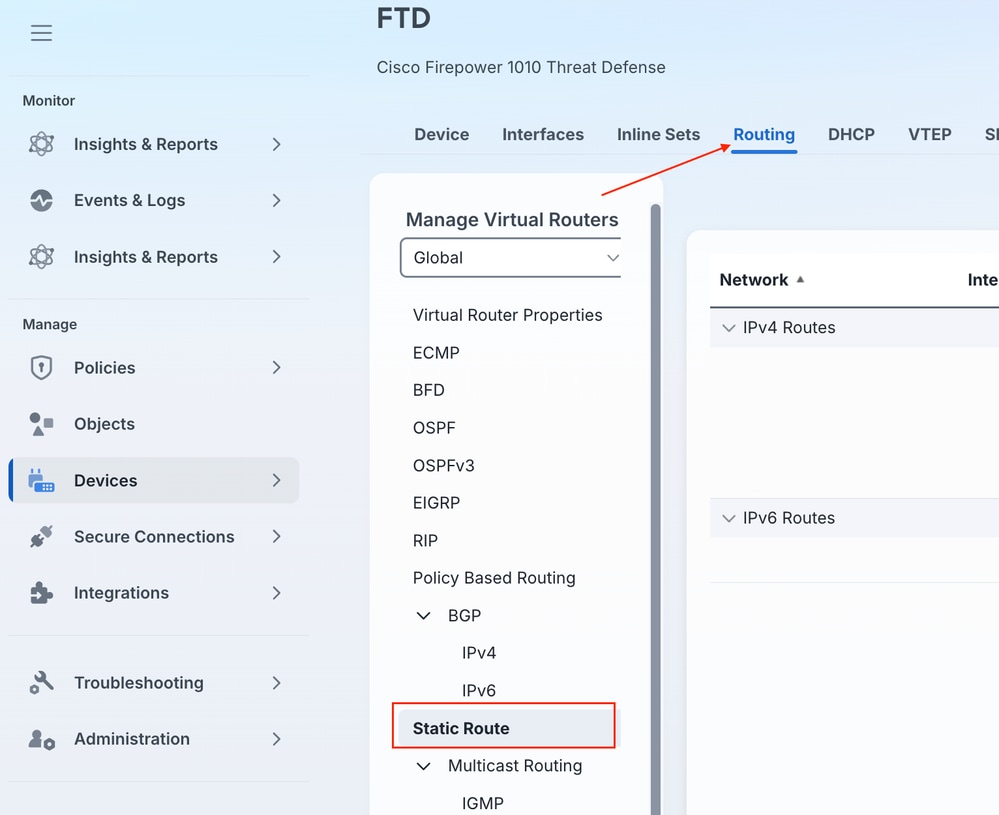

b) Navigate to Routing > Static Route.

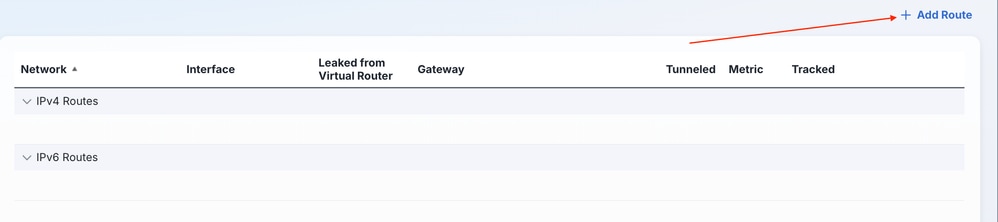

c) Click + Add Route.

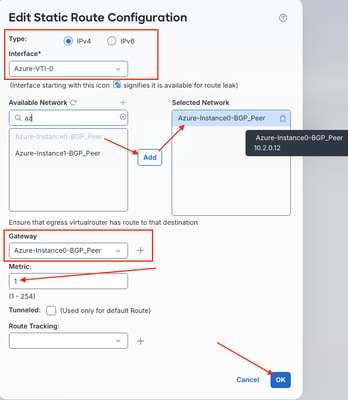

d) Add routes for both Instance IP addresses by creating the first route to your Instance0 VTI, and add the destination network object for it by clicking the + next to Available Network. Then, click the network object from the list and click the Add button to add it as the destination of the static route. Ensure that you choose the Instance0 IP and it is set as the Gateway. Once complete, click OK.
Note: These static route destination network values are under vpnSiteConnections[0].BgpSetting.BgpPeeringAddresses.Instance0 and vpnSiteConnections[0].BgpSetting.BgpPeeringAddresses.Instance1 in the downloaded configuration file.

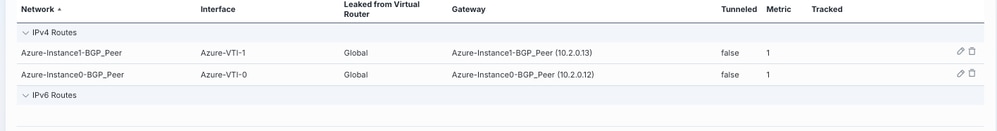

e) Repeat steps c-d to add the second static route via the Instance1 VTI. Ensure that you click Save to save your changes.
Static routes only reach the BGP peering addresses; BGP itself must still be enabled and peered so that Azure and the FTD exchange routes dynamically to/from each others greater networks.
Step 9: Configure BGP

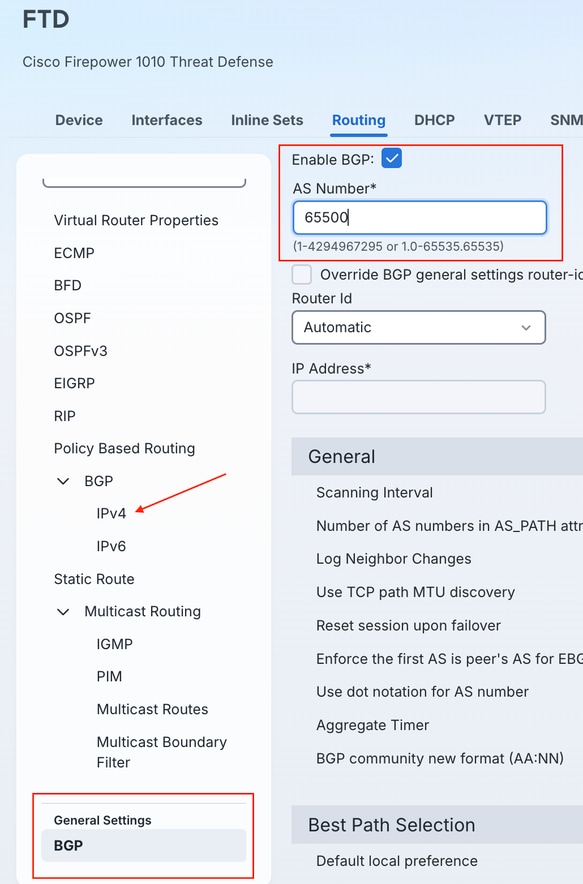

a) Enable BGP Process 65500 on FTD under Routing > General Settings > BGP. Check the Enable BGP check box, and enter the AS number configured earlier in Phase 2, Step 1. Navigate next to Routing > BGP > IPv4.

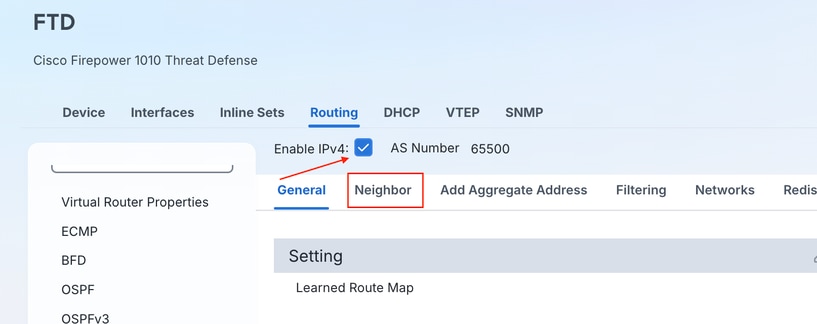

b) Enable IPv4 BGP routing for process/AS 65500 by checking the adjacent Enable IPv4 check box, and click Neighbor to configure BGP neighbors.

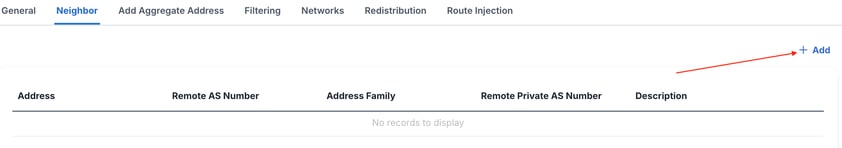

c) Click + Add.

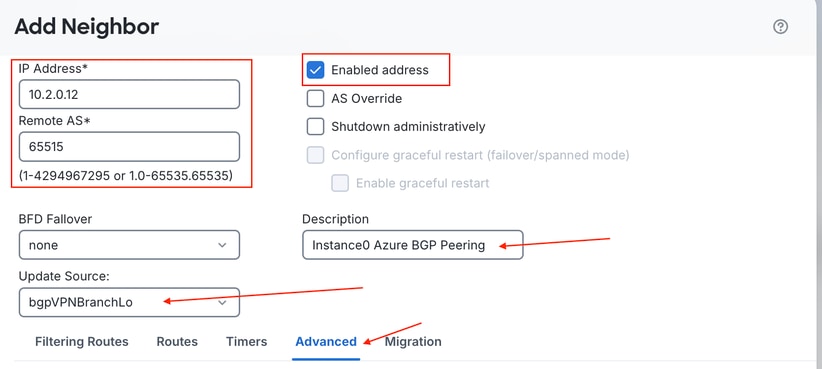

d) Enter the Instance0 BGP peering information, reference the noted BGP AS from the vWAN hub and enter it as the Neighbor Remote AS, and add a description if desired. Click Advanced.
Important: Ensure that you change the BGP Update Source to reference the Loopback parent of both VTI interfaces on the FTD.

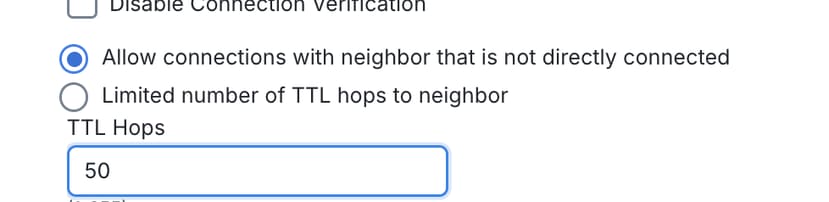

e) Within the Advanced menu of BGP Neighbor configuration on FTD, you can change the number of TTL hops from eBGP default of 1 hop to a variable number. Azure BGP endpoints are not directly connected over the tunnel into Azure infrastructure, and there tend to be more hops to the endpoint than the default eBGP TTL of 1 permits.

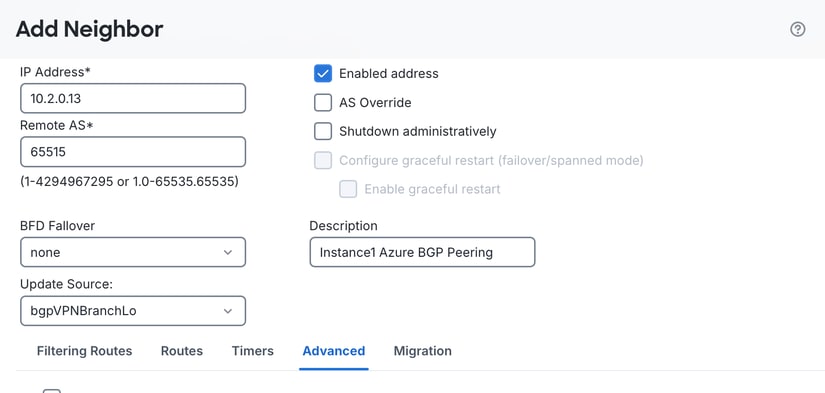

f) Repeat same steps for Azure Instance1 BGP Peer.

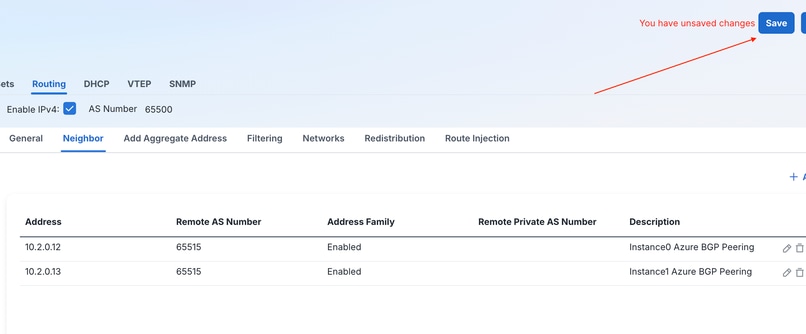

g) Ensure that you Save changes once complete.
By default, BGP installs only a single best path in the routing table, even though ECMP makes both static routes available. BGP multipath must be enabled separately so that both learned paths are installed and used at the same time.
Step 10: Configure BGP Multi-path

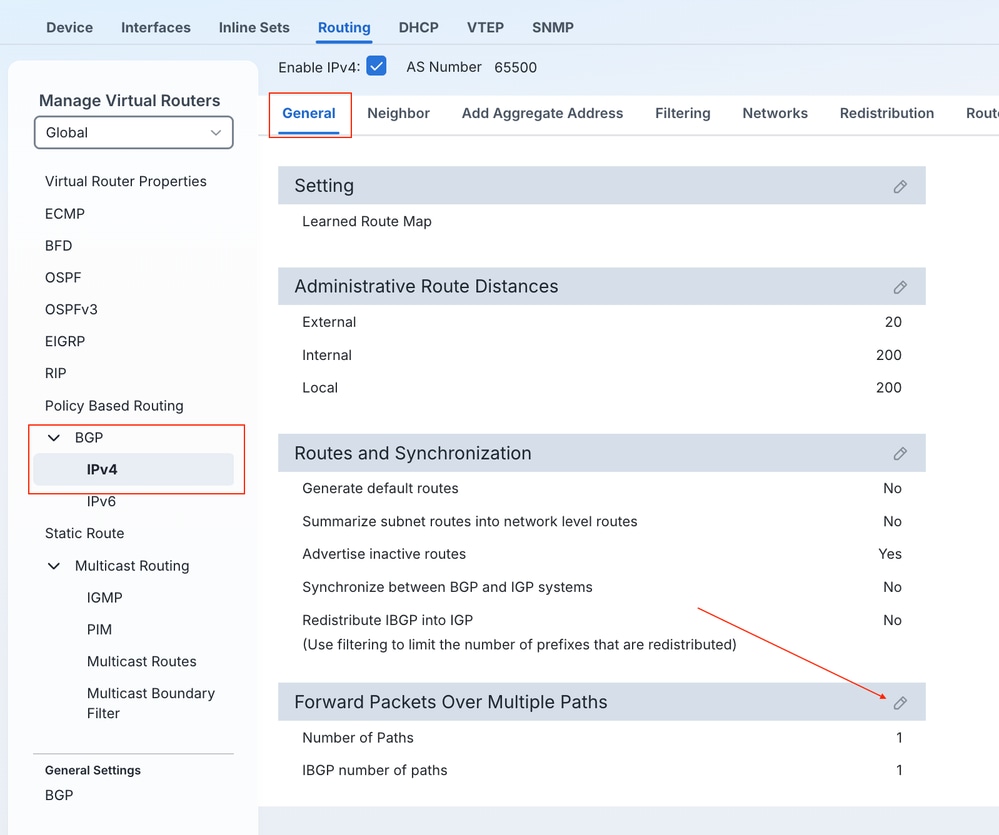

a) Navigate to Routing > BGP > IPv4, click the General tab, and click the pencil icon adjacent to Forward Packets Over Multiple Paths.

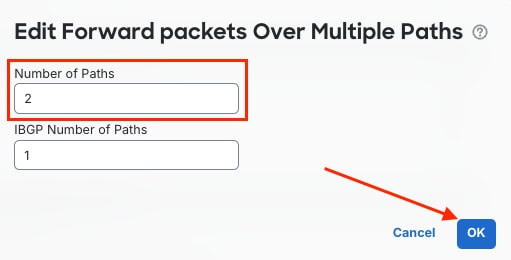

b) Change the Number of Paths field default value from 1 to 2.
c) Ensure that you Save and deploy the changes.
Verify
After the deployment completes, confirm that BGP forms adjacencies with both Azure instances. Subsequently confirm that routes are learned over both tunnels, and that traffic uses both VTIs, using the same diagnostic CLI access established in Phase 3, Step 5.
Navigate to system support diagnostic-cli on FTD CLI.
a) Once deployed, BGP neighbors are expected to come up and prefixes are received.
> system support diagnostic-cli
Attaching to Diagnostic CLI ... Press 'Ctrl+a then d' to detach.
Type help or '?' for a list of available commands.
ftd#
ftd# show bgp summary
BGP router identifier 10.50.1.2, local AS number 65500
BGP table version is 5, main routing table version 5
2 network entries using 400 bytes of memory
4 path entries using 320 bytes of memory
2 multipath network entries and 4 multipath paths
1/1 BGP path/bestpath attribute entries using 208 bytes of memory
1 BGP AS-PATH entries using 24 bytes of memory
0 BGP route-map cache entries using 0 bytes of memory
0 BGP filter-list cache entries using 0 bytes of memory
BGP using 952 total bytes of memory
BGP activity 2/0 prefixes, 4/0 paths, scan interval 60 secs
Neighbor V AS MsgRcvd MsgSent TblVer InQ OutQ Up/Down State/PfxRcd
10.2.0.12 4 65515 5 3 5 0 0 00:01:02 2
10.2.0.13 4 65515 3 4 5 0 0 00:00:55 2
ftd#
b) Check that routes received from Azure show as multipath routes.
ftd# show bgp
BGP table version is 7, local router ID is 10.50.1.2
Status codes: s suppressed, d damped, h history, * valid, > best, i - internal,
r RIB-failure, S Stale, m multipath
Origin codes: i - IGP, e - EGP, ? - incomplete
Network Next Hop Metric LocPrf Weight Path
*m 10.2.0.0/16 10.2.0.12 0 65515 i
*> 10.2.0.13 0 65515 i
*m 172.27.0.0 10.2.0.12 0 65515 i
*> 10.2.0.13 0 65515 i
ftd#c) Check the VTI packet count.
ftd# show interface Tunnel1 | i packets
118 packets input, 31385 bytes
134 packets output, 8780 bytes
0 packets dropped
ftd# show interface Tunnel2 | i packets
127 packets input, 33629 bytes
230 packets output, 15119 bytes
0 packets dropped
ftd#
d) Confirm static routes for BGP neighborships.
ftd# show running-config route
route Azure-VTI-0 10.2.0.12 255.255.255.255 10.2.0.12 1
route Azure-VTI-1 10.2.0.13 255.255.255.255 10.2.0.13 1
ftd#
e) Confirm ECMP Zones.
ftd# show zone
Zone: Azure-VTI-ECMP-Zone ecmp
Security-level: 0
Zone member(s): 2
Azure-VTI-1 Tunnel2
Azure-VTI-0 Tunnel1
ftd#
f) Confirm BGP configuration.
ftd# show running-config router bgp
router bgp 65500
bgp log-neighbor-changes
bgp router-id vrf auto-assign
address-family ipv4 unicast
neighbor 10.2.0.12 remote-as 65515
neighbor 10.2.0.12 description Instance0 Azure BGP Peering
neighbor 10.2.0.12 ebgp-multihop 50
neighbor 10.2.0.12 transport path-mtu-discovery disable
neighbor 10.2.0.12 update-source bgpVPNBranchLo
neighbor 10.2.0.12 activate
neighbor 10.2.0.13 remote-as 65515
neighbor 10.2.0.13 description Instance1 Azure BGP Peering
neighbor 10.2.0.13 ebgp-multihop 50
neighbor 10.2.0.13 transport path-mtu-discovery disable
neighbor 10.2.0.13 update-source bgpVPNBranchLo
neighbor 10.2.0.13 activate
no auto-summary
no synchronization
exit-address-family
ftd#
g) Confirm Routing Table.
ftd# show route bgp
Codes: L - local, C - connected, S - static, R - RIP, M - mobile, B - BGP
D - EIGRP, EX - EIGRP external, O - OSPF, IA - OSPF inter area
N1 - OSPF NSSA external type 1, N2 - OSPF NSSA external type 2
E1 - OSPF external type 1, E2 - OSPF external type 2, V - VPN
i - IS-IS, su - IS-IS summary, L1 - IS-IS level-1, L2 - IS-IS level-2
ia - IS-IS inter area, * - candidate default, U - per-user static route
o - ODR, P - periodic downloaded static route, + - replicated route
SI - Static InterVRF, BI - BGP InterVRF
Gateway of last resort is 10.0.0.1 to network 0.0.0.0
B 10.2.0.0 255.255.0.0 [20/0] via 10.2.0.13, 15:50:50
[20/0] via 10.2.0.12, 15:50:50
B 172.27.0.0 255.255.0.0 [20/0] via 10.2.0.13, 15:50:50
[20/0] via 10.2.0.12, 15:50:50
Other Considerations
The base configuration in this document assumes a single outside interface and a single ISP at the branch FTD. These considerations extend that design.
AS-Path Prepending
If you need to influence which of the two tunnels Azure or the FTD prefers as primary, rather than sharing load equally through ECMP and BGP multipath, prepend the local AS number one or more additional times on the BGP neighbor to be be treated as secondary. The neighbor with the longer, prepended AS path is deprioritized during standard BGP best-path selection, without needing to remove that neighbor from the ECMP zone entirely.
Troubleshoot
- Phase 1/Phase 2 tunnel does not come up: Confirm that the pre-shared key and the IKEv2/IPsec policy parameters (encryption, integrity, PRF, DH group, and lifetime) match exactly between the FMC IKEv2 policy/IPsec proposal and the values in the downloaded Azure VPN configuration file. Use
show crypto isakmp saandshow crypto ipsec sa, as shown in Phase 3, Step 5.
- Tunnel is up, but BGP neighbors do not form
update-source: Verify that the BGP is set to the loopback interface, not the VTI itself, and thatebgp-multihopis configured with a value high enough to reach the Azure BGP peering address, which is not directly connected to the FTD.
- BGP forms, but only one tunnel carries traffic: Confirm that both VTIs are members of the same ECMP zone, that static routes to both Azure instance BGP addresses are installed with the same administrative distance, and that BGP multipath is configured for two paths, as described in Phase 3, Step 10.
- No return traffic, or asymmetric routing to Azure: Because Azure vWAN advertises the hub address space over both tunnels, ensure that ECMP is not disabled elsewhere in the routing configuration, and check for route maps or policy-based routing that could pin traffic to a single path.
- BGP is up and routes are installed, but traffic appears to be blocked: Ensure that you have Access Control rules configured with the Security Zone assigned to the VTIs allowing traffic to ingress and egress.
Related Information
Revision History
| Revision | Publish Date | Comments |
|---|---|---|
1.0 |
07-Oct-2026
|
Initial Release |
FeedbackContact Cisco
- Open a Support Case
- (Requires a Cisco Service Contract)
