Troubleshoot FTD Software Upgrade Fatal Error on FDM

Issue

A fatal error when upgrading FTD software occurs with these symptoms:

• Firewall Threat Defense (FTD) managed by Secure Firewall Device Manager (FDM) failed to upgrade.

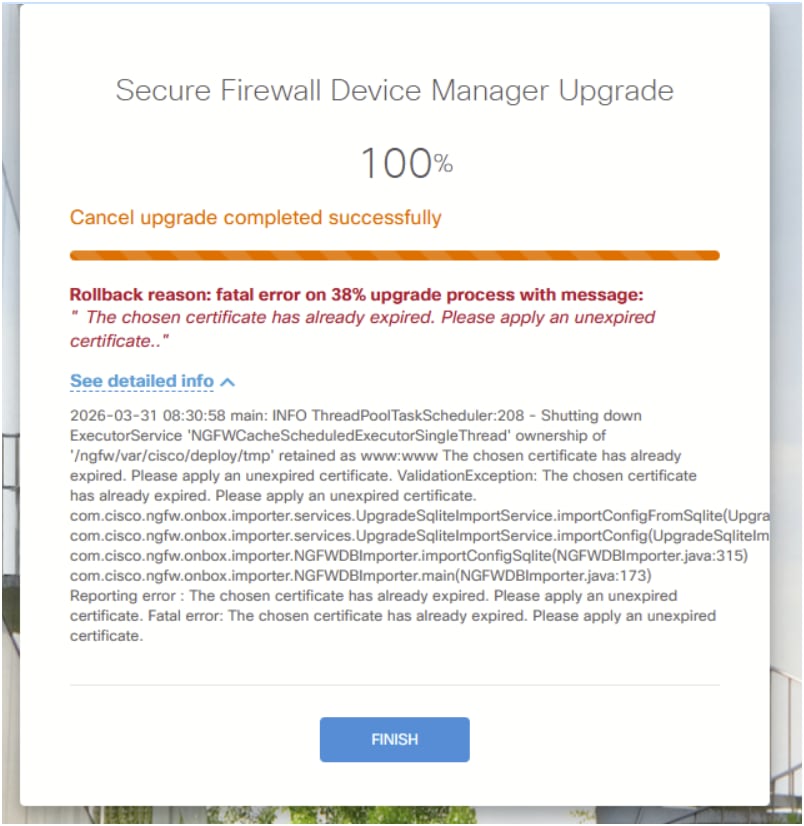

• The FDM user interface (UI) shows an error message mentioning ‘Rollback reason: fatal error on 38% upgrade process with message: "The chosen certificate has already expired. Please apply an unexpired certificate."


Environment

• First seen on FTD 1010. Other hardware platforms can be also affected.

• First seen on software version 6.6.5.1-15. Other software platforms can be also affected.

• FTD is FDM-managed.

Resolution

The certificate renewal process was successfully completed, allowing the software upgrade to proceed. This approach was used to resolve the certificate issue:

Certificate Management Process

Step 1: Create a new certificate in FDM.

The procedure is described in the FDM configuration guide under System Administration > System Settings section:

https://www.cisco.com/c/en/us/td/docs/security/firepower/10-0/fdm/fptd-fdm-config-guide-10-0/fptd-fdm-system.html#task_31B0F47D39444D6EB91A552A2B93B63E

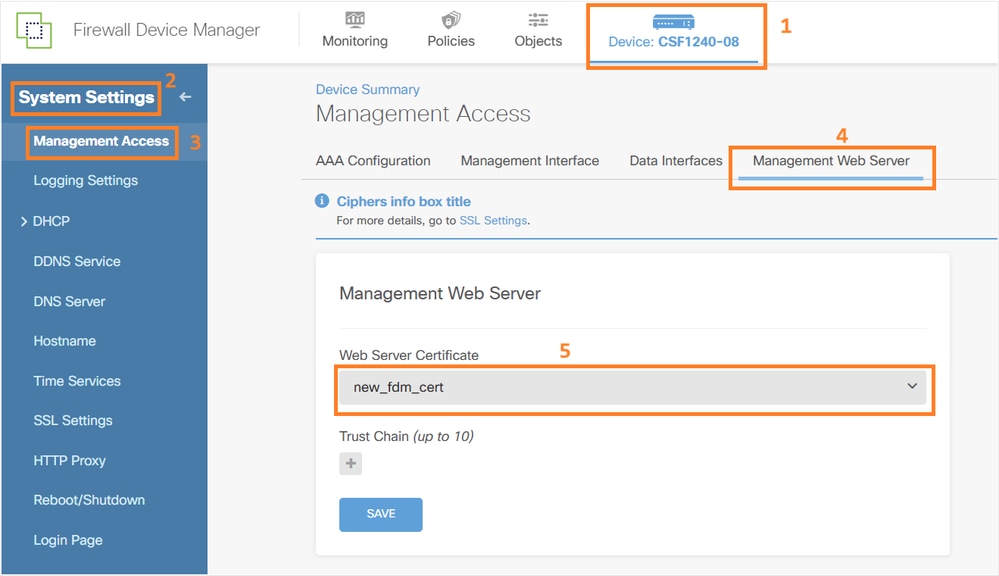

Step 2: Create and assign the new certificate to the FDM Management Web Server.


Step 3: Deploy the change.

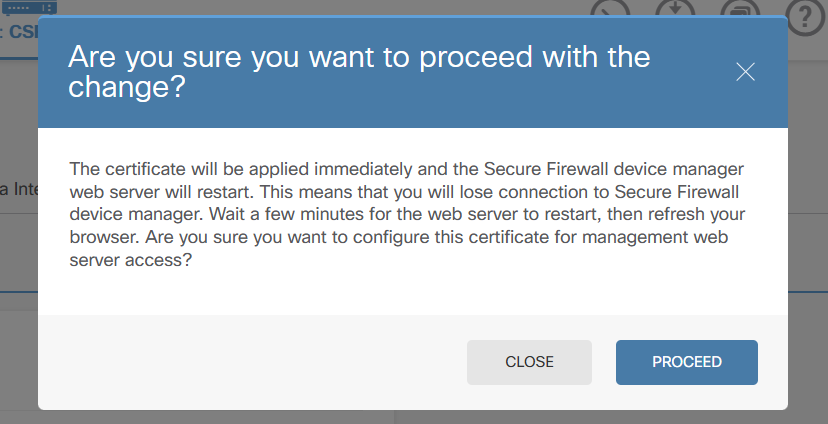

Note that the web server restarts:


Step 4: Retry the upgrade.

Cause

The upgrade failure was caused by an expired certificate on the firewall device. During the software upgrade process, the system performs certificate validation checks, and when the certificate is expired, these validation checks fail, preventing the upgrade from proceeding to completion.

Related Content

• https://www.cisco.com/c/en/us/td/docs/security/firepower/10-0/fdm/fptd-fdm-config-guide-10-0/fptd-fdm-system.html#task_31B0F47D39444D6EB91A552A2B93B63E

• https://www.cisco.com/c/en/us/support/docs/security-vpn/public-key-infrastructure-pki/215850-certificate-installation-and-renewal-on.html
