Troubleshoot Secure Client Upload Failure 'Error during file upload. Please ensure that the Firewall Management Center has enough space'

Available Languages

Download Options

  • PDF     (74.2 KB)
    View with Adobe Reader on a variety of devices
Updated:August 12, 2026
Document ID:226250

Bias-Free Language

The documentation set for this product strives to use bias-free language. For the purposes of this documentation set, bias-free is defined as language that does not imply discrimination based on age, disability, gender, racial identity, ethnic identity, sexual orientation, socioeconomic status, and intersectionality. Exceptions may be present in the documentation due to language that is hardcoded in the user interfaces of the product software, language used based on RFP documentation, or language that is used by a referenced third-party product. Learn more about how Cisco is using Inclusive Language.

Contents

Issue

Uploading a Cisco Secure Client package file such as cisco-secure-client-macos-5.1.18.314-webdeploy-k9.pkg to a Firewall Management Center (FMC) via the graphical user interface (GUI) fails with this error message:

Error during file upload. Please ensure that the Firewall Management Center has enough space, the file is valid and that the file name contains only letters, digits, - and _. Secure Client Image file names may contain .

The upload consistently fails with this error message even if the file checksum is correct and the filename contain no spaces or invalid characters.

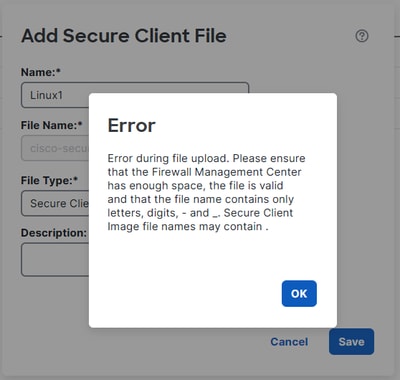

FMC Error

Environment

  • FMC 7.6.5. Other versions can be also affected.

  • Cisco Secure Client package: cisco-secure-client-macos-5.1.18.314-webdeploy-k9.pkg. Other packages can be also affected.

  • Uploading Secure Client package on FMC under Object > Object Management > VPN > Secure Client File that is larger than 100MB.

Resolution

Workaround

1. Open the FMC CLI via an SSH session (or console).

2. Run these commands:

> expert
admin@device:~$ sudo vim +76 /usr/local/sf/htdocs/ddd/fileUpload.cgi

3. Press i on the keyboard to switch Vim into Insert mode.

4. Update the line to allow larger file packages. Specifically, change from:

ANY_CONNECT_IMAGE => 100  1024  1024,

To:

ANY_CONNECT_IMAGE => 300 1024  1024,
note-icon

Note: The value must be larger than your package file size. For example, if your package is 180MB, you can safely set it to 200 1024 1024. Using 300 provides headroom for larger packages.

5. Save and exit the file by pressing ESC, typing :wq, and pressing Enter.

6. Upload the file again via the FMC web interface.

Long-term Solution

Depending on your FMC version and the size of the Secure Client image, upgrade to a version that has the fix for any of these defects:

  • Cisco bug ID CSCwi86503 increased the limit to 200 MBytes.

  • Cisco bug ID CSCwq95649 increased the limit to 300 MBytes.

Cause

This issue is caused by Cisco bug IDs CSCwi86503 and CSCwq95649, which prevent the successful upload of packages larger than 100 MB or 200 MB, respectively, to FMC devices. The defects affect the file upload mechanism in the FMC GUI, causing legitimate package files to be rejected despite meeting all stated requirements for filename format and file integrity.

Related Content

Revision History

Revision Publish Date Comments
1.0
12-Aug-2026
Initial Release
TAC Authored

Contributed by Cisco Engineers

  • Mikis Zafeiroudis
    Cisco TAC Engineer
  • Ilkin Gasimov
    Cisco TAC Engineer
