Troubleshoot FMCv300 License Compatibility with SF-FMC-VMW-2-K9 for Single FTD 3115 Management

Issue

A user needed clarification on license compatibility when deploying an FMCv300 virtual Firewall Management Center (FMC) to manage a single Cisco Secure Firewall Threat Defense (FTD) 3115 device. Specifically, the user wanted to confirm whether the SF-FMC-VMW-2-K9 license could be used in this configuration scenario.

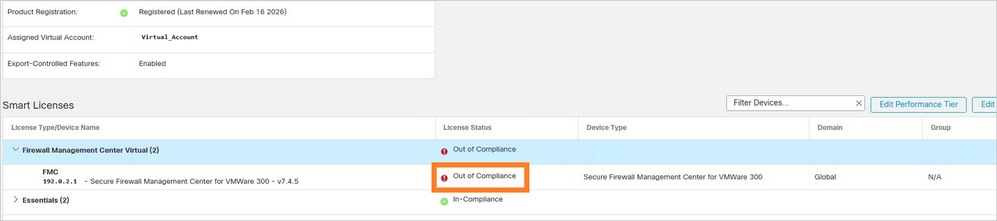

The FMC Smart Licenses shows an error about 'Out of Compliance':


Environment

• FTD 7.4. Other software versions can be also affected

• FMCv300 virtual FMC

• Single FTD 3115 managed device. Other platforms can be also affected

• SF-FMC-VMW-2-K9 license under consideration

Resolution

There are 2 types of virtual FMCv: The "small" (FMCv) and "large" (FMCv300).

For the "small" the valid licenses are:

• SF-FMC-VMW-2-K9: Cisco Secure Firewall Management Center, for 2 devices

• SF-FMC-VMW-10-K9: Cisco Secure Firewall Management Center, for 10 devices

• SF-FMC-VMW-K9: Cisco Secure Firewall Management Center, for 25 devices

There are similar licenses for KVM as well (SF-FMC-KVM-K9, and so on).

For the "large" the applicable license is:

• SF-FMC-VMW-300-K9

There is also an upgrade SKU (stock keeping unit) to move from an FMCv25 to an FMCv300:

• SF-FMC-VMW-25-300

Cause

FMCv300 has only a single license option (SF-FMC-VMW-300-K9) and cannot be licensed with SF-FMC-VMW-2-K9.
