Troubleshoot "Smart Agent is not registered with Smart Licensing Cloud" after FMC VM Migration

Available Languages

Download Options

  • PDF     (398.8 KB)
    View with Adobe Reader on a variety of devices
  • ePub     (509.1 KB)
    View in various apps on iPhone, iPad, Android, Sony Reader, or Windows Phone
  • Mobi (Kindle)     (366.8 KB)
    View on Kindle device or Kindle app on multiple devices
Updated:May 8, 2026
Document ID:225872

Bias-Free Language

The documentation set for this product strives to use bias-free language. For the purposes of this documentation set, bias-free is defined as language that does not imply discrimination based on age, disability, gender, racial identity, ethnic identity, sexual orientation, socioeconomic status, and intersectionality. Exceptions may be present in the documentation due to language that is hardcoded in the user interfaces of the product software, language used based on RFP documentation, or language that is used by a referenced third-party product. Learn more about how Cisco is using Inclusive Language.

Contents

Issue

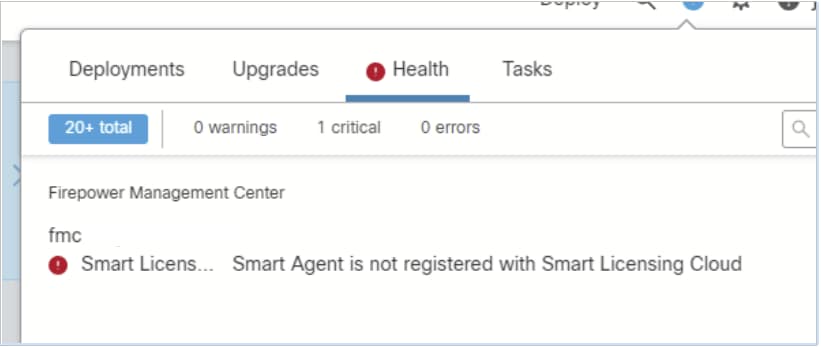

After moving a Firewall Management Center (FMC) virtual machine (VM) to a different hypervisor, the system displays an error in the health monitor indicating that the Smart Agent is not registered with Smart Licensing Cloud. The specific error message observed is:

Smart License Monitor
Smart Agent is not registered with Smart Licensing Cloud

This issue prevents the FMC from maintaining proper licensing status and compliance with Cisco Smart Licensing requirements after the VM migration process.

Environment

  • Secure Firewall Management Center (FMC) version 7.6.2.1. Other software versions can be also affected.

  • FMC deployed as a virtual machine.

  • VM migrated from one hypervisor to another hypervisor environment.

  • Smart Licensing Cloud connectivity previously established before migration.

Resolution

The resolution involves re-registering the FMC with the Smart Licensing Cloud after the VM migration.

Step 1. In Cisco Smart Software Manager, generate a new registration token:

  • Go to Inventory

  • Click New Token

  • Copy the token

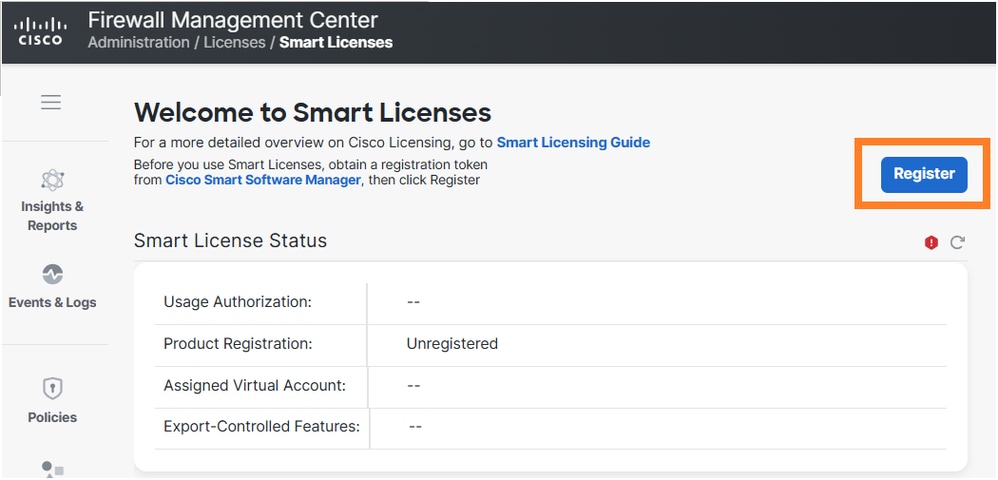

Step 2. In FMC, go to System > Licenses > Smart Licenses (in newer FMC versions is Administration > Licenses > Smart Licenses).

  • Click Register

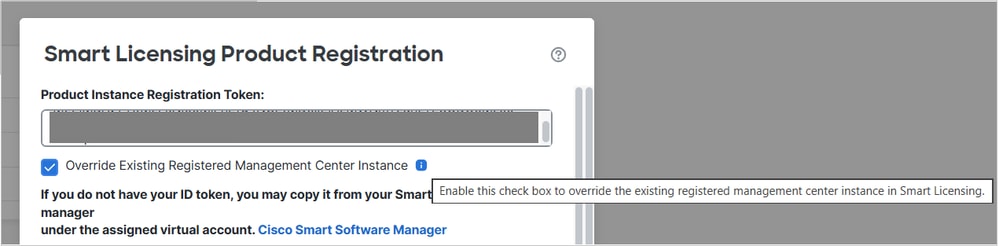

Step 3. Paste the new token and select Override Existing Registered Management Center Instance:


Step 4. Click Apply Changes

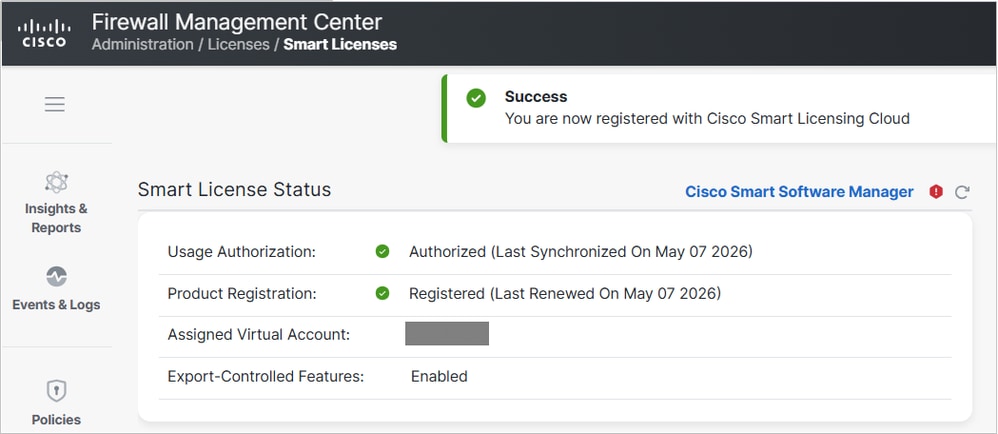

Expected result:

  • Product Registration: Registered

  • Usage Authorization: Authorized or In Compliance

  • The Smart License Monitor alert clears after the next polling cycle



If you want to do a quick validation before retrying, confirm these points:

  • DNS resolution works from the FMC

  • Outbound HTTPS on TCP/443 is allowed

  • System time and NTP are correct

  • Proxy settings are correct

Cause

When an FMC virtual machine is migrated to a different hypervisor, the Smart Licensing registration can be disrupted due to changes in the underlying system characteristics that Smart Licensing uses for device identification and registration validation. This migration process can cause the Smart Agent to lose its registration state with the Smart Licensing Cloud, requiring manual re-registration to restore proper licensing functionality.
