Provision Users and Groups to Secure Access via Entra ID

Introduction

This document describes how to provision users and groups from Entra ID to Cisco Secure Access.

Prerequisites

Requirements

Cisco recommends that you have knowledge of these topics:

• Cisco Secure Access
• Entra ID



Components Used

This document is not restricted to specific software and hardware versions.

• Admin Access to Cisco Secure Access Dashboard
• Admin Access to Entra ID dashboard

The information in this document was created from the devices in a specific lab environment. All of the devices used in this document started with a cleared (default) configuration. If your network is live, ensure that you understand the potential impact of any command.

Background Information

Cisco Secure Access supports the provisioning of users and groups from Microsoft Entra ID (formerly Azure Active Directory).

This provisioning enables Secure Access to maintain a directory of users authorized to:

• Enroll in Zero Trust Access (ZTA).
• Connect to VPNaaS.
• Apply identity-based policies to Umbrella Roaming users.

Configure

Configure Cisco Secure Access

In order to begin the provisioning process, you must first configure the directory integration within the Cisco Secure Access dashboard. This step generates the necessary credentials and configuration parameters required to establish a secure connection with Microsoft Entra ID.

1. Sign in to the Cisco Secure Access Dashboard.

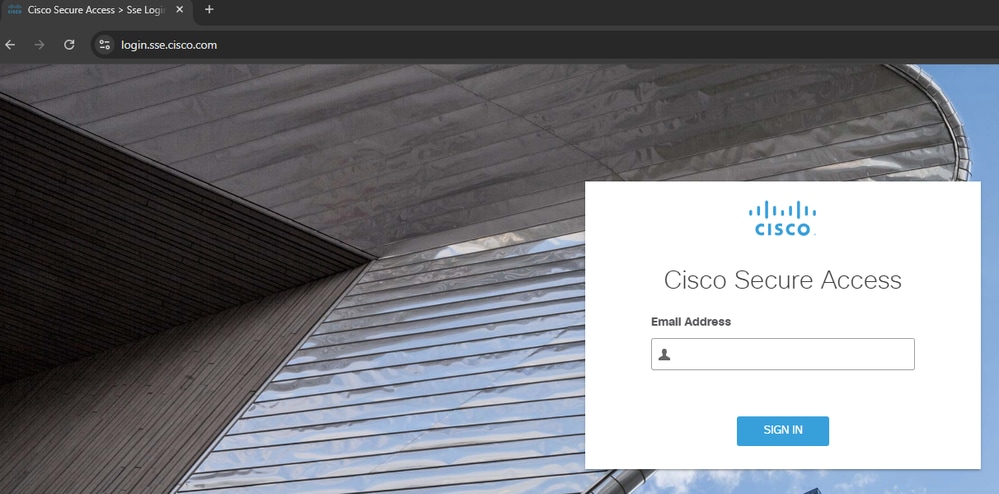

   Sign in to CSA



2. Navigate to Connect > Users, Groups and Endpoint Devices.

   Users and Groups



3. Click Configuration management.

   Configuration Management

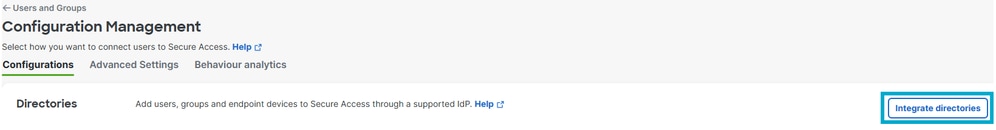

4. Click Integrate Directory.

Integrate Directory

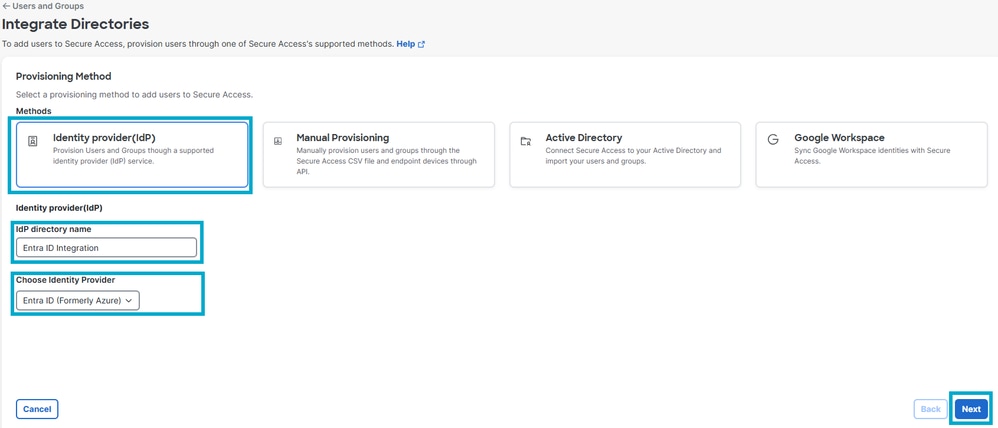

5. Under Provision Method click Identity Provider.
   • IdP directory name: Entra ID Integration.
   • Choose Identity Provider: Entra ID (Formerly Azure).
   • Click Next.

     Directory Configuration


6. Click Generate token. Save the generated token and the provisioning URL, then click Done.

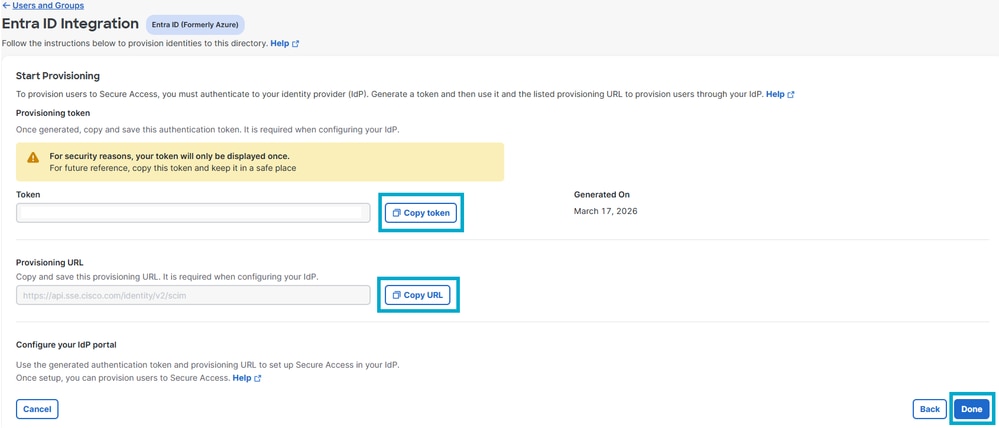

   Generate Token





Configure Provisioning in Microsoft Entra ID

Once you have generated your credentials in the Cisco Secure Access dashboard, you must configure the provisioning settings within your Microsoft Entra ID tenant to enable the synchronization of users and groups.

1. Sign in to Entra ID.

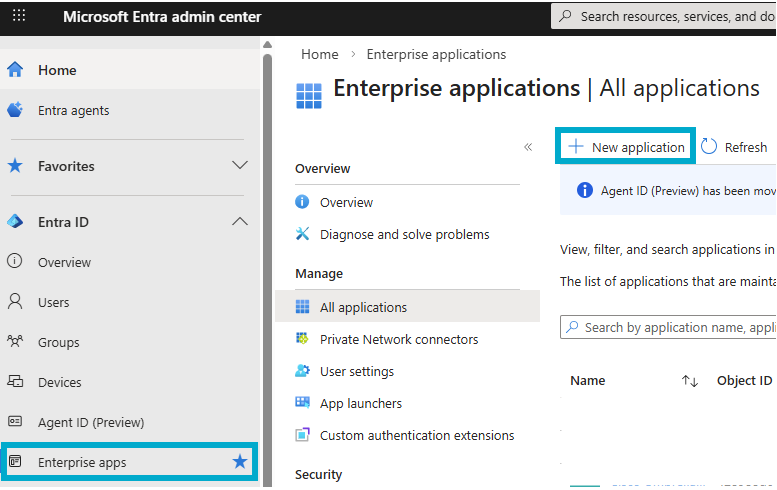

2. Navigate to Enterprise Apps > New Application.

   New Enterprise App



3. In the Entra App Gallery look for Cisco User Management for Secure Access and click Create.

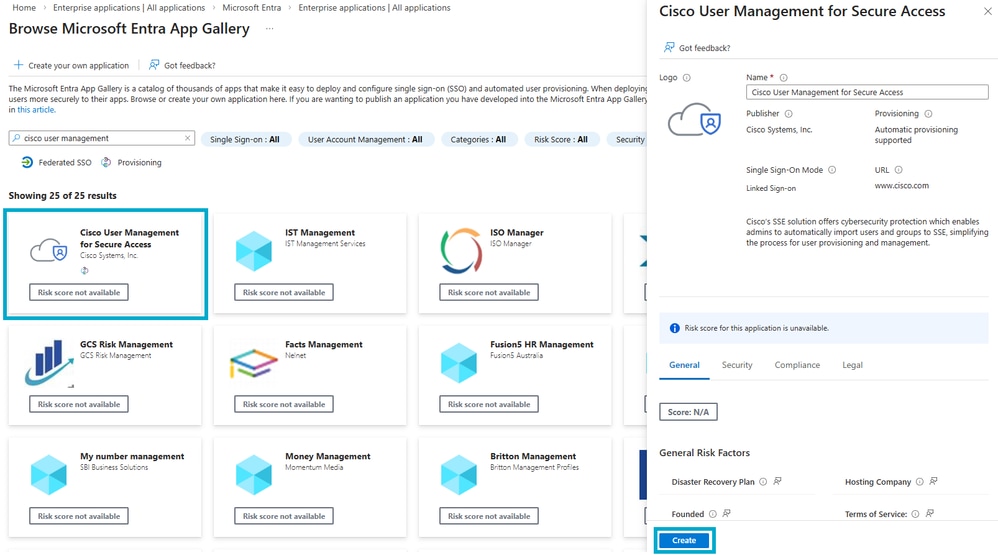

New App


4. Navigate to Users and Groups > Add user/group.

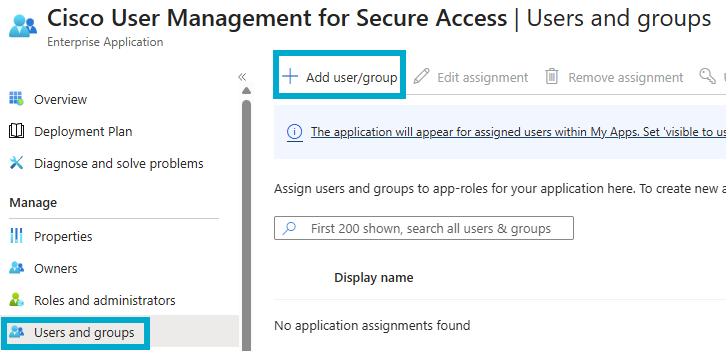

   Entra Users and Groups



5. Assign the users/groups you want to provision to Cisco Secure Access and click Select and then Assign.

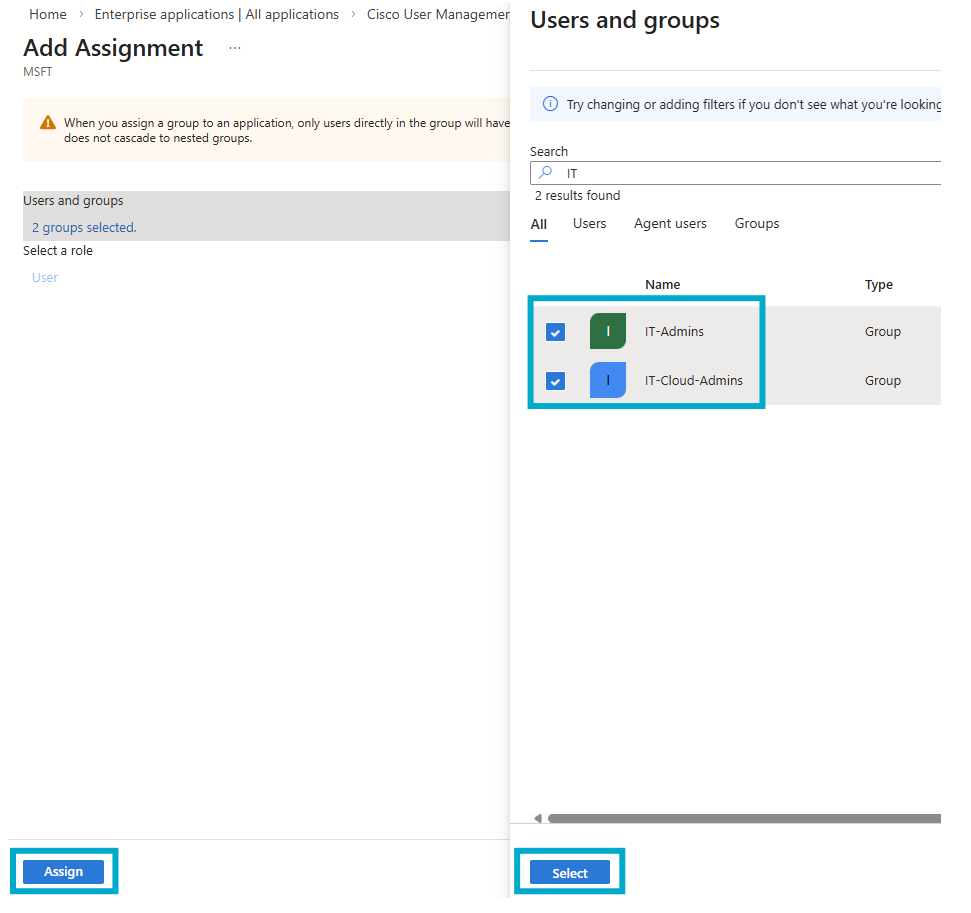

Assign Users and Groups

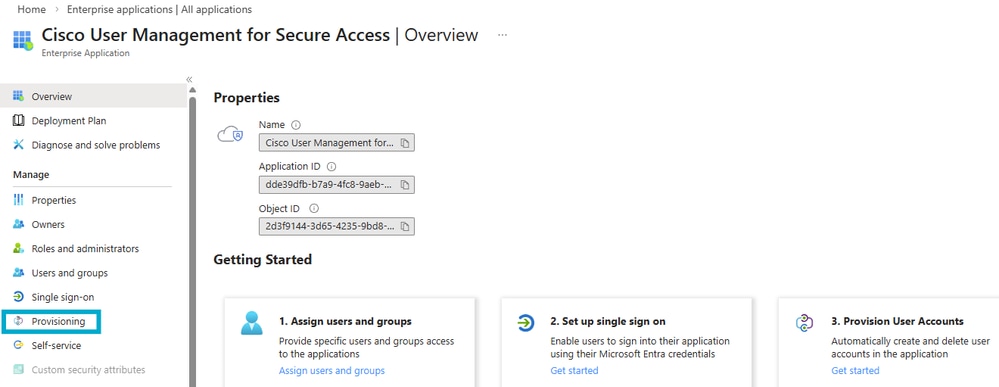

6. Navigate to Provisioning.

   Entra ID Provisioning

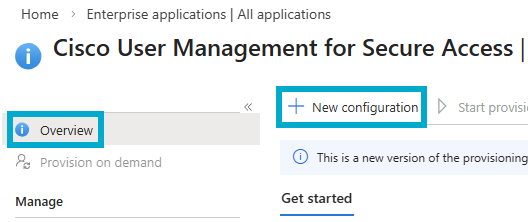

7. Click Overview and then New Configuration.

   New Configuration

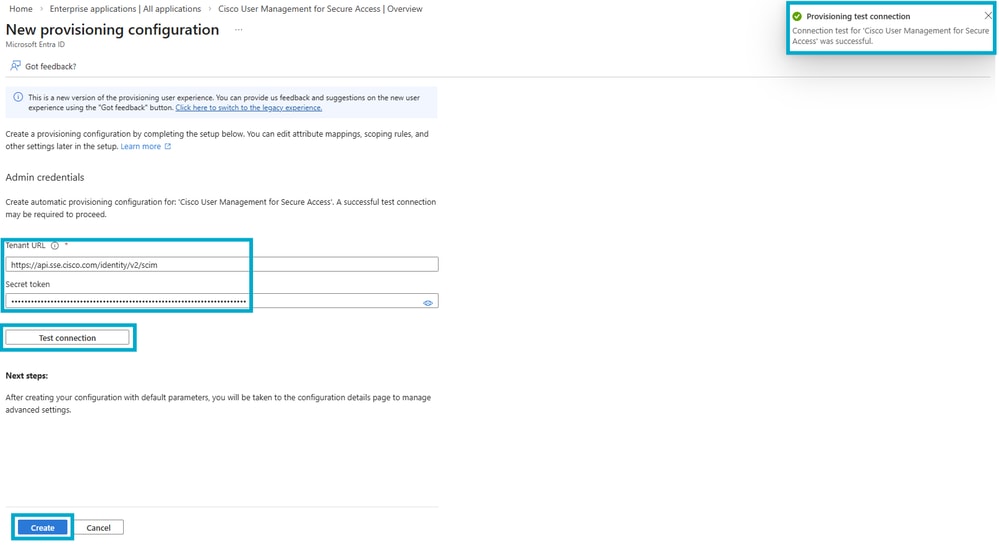

8. Enter the Tenant URL and Secret Token saved from step #6 of the Secure Access Configuration. Click Test Configuration and then Create.


   After creating your configuration, you are taken to the configuration details page to manage advanced settings.



   Test Integration


9. Navigate to Overview > Start Provisioning.

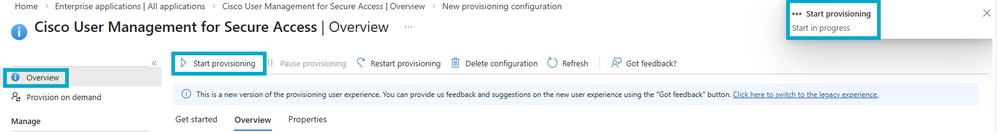

   Start Provisioning



Verify

Verity in Cisco Secure Access

• Navigate to Connect > Users, Groups and Endpoint Devices.

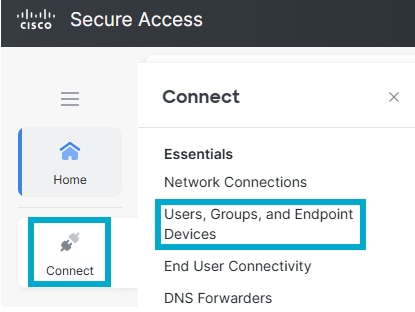

Users and Groups in CSA

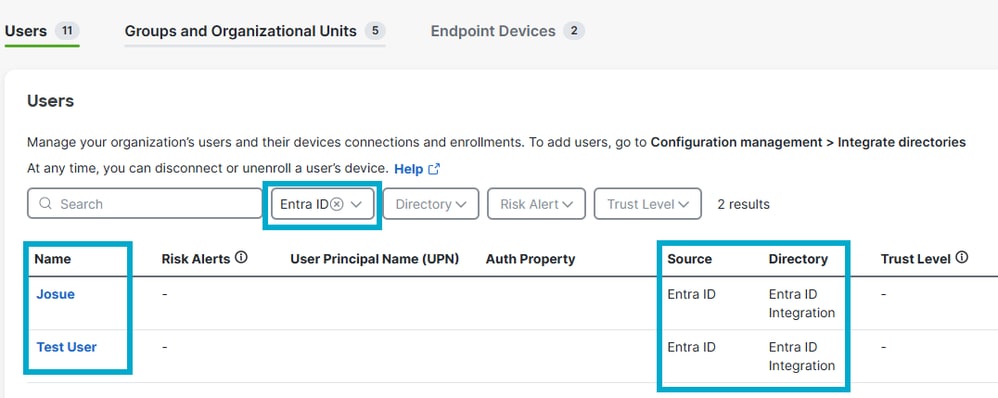

• Click Users.

  Verify Users in CSA

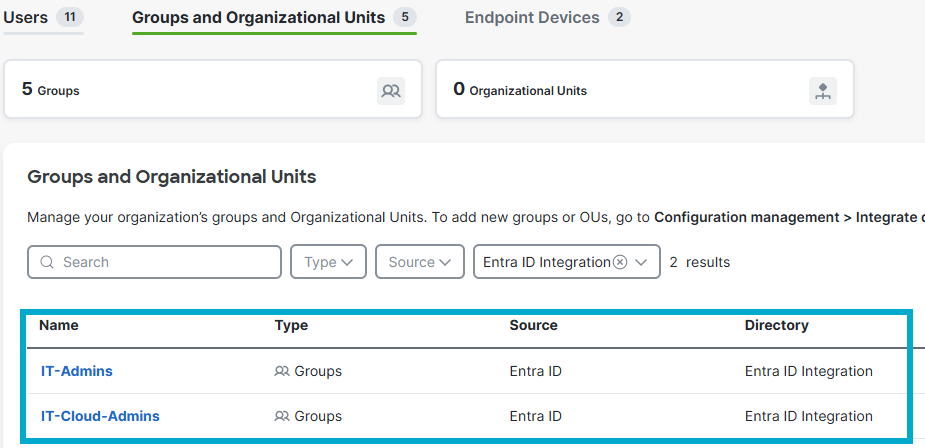

• Click Groups and Organizational Units.

Verify Groups in CSA


Verify in Entra ID

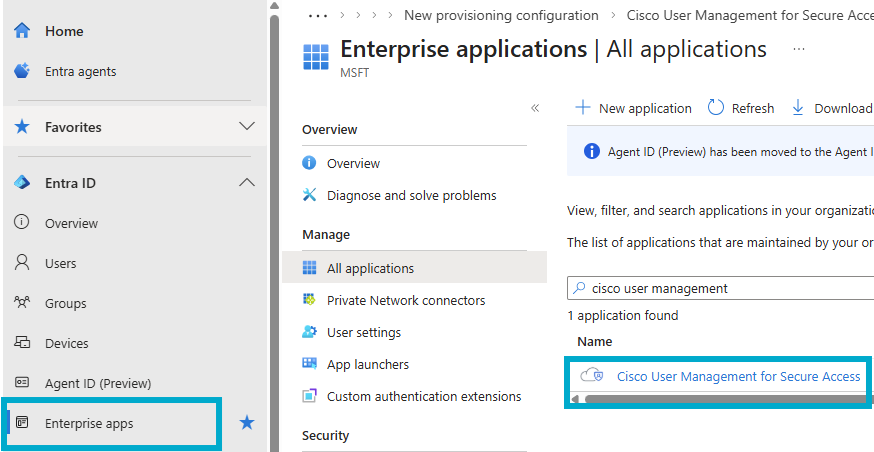

• Navigate to Enterprise Apps and click Cisco User Management for Secure Access.



Verify in Entra

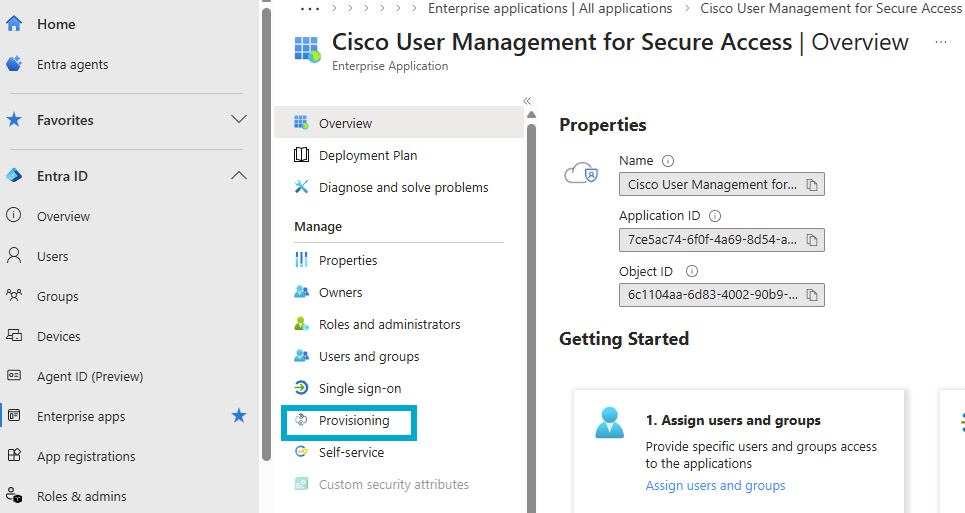

• Click Provisioning.

Verify in Entra ID


• Click Overview.

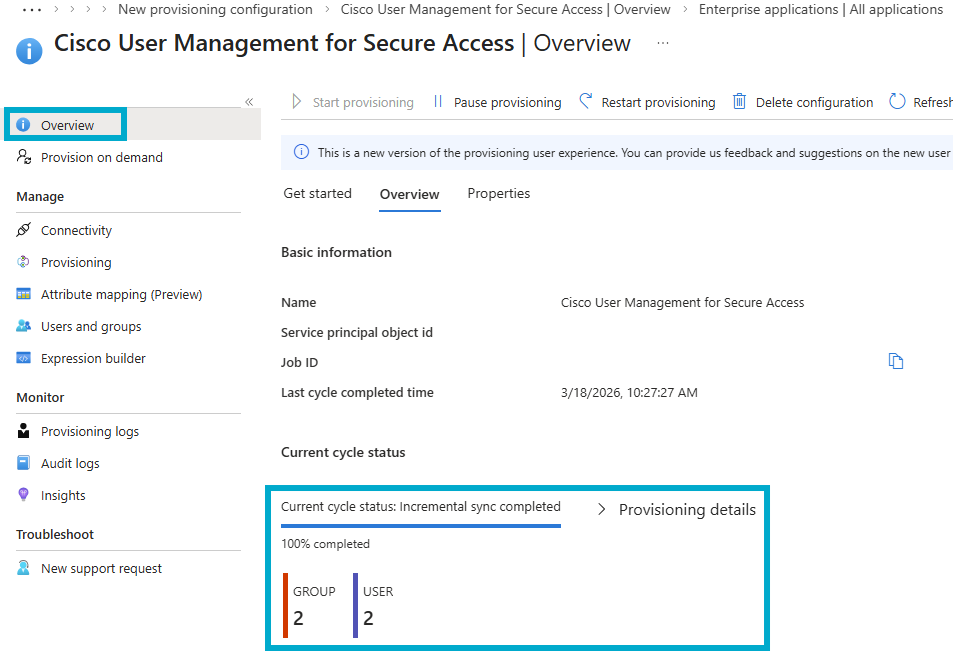

Verify Provisioning in Entra

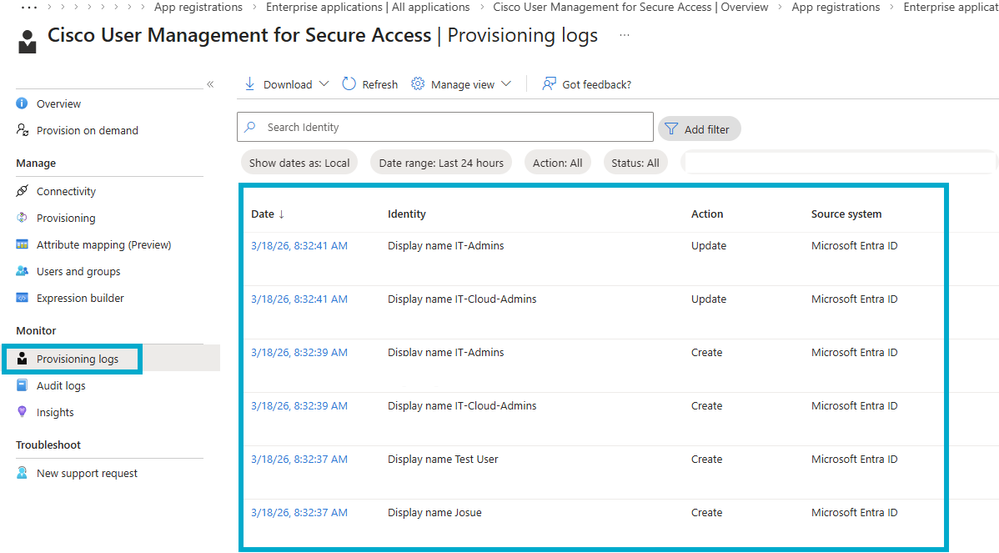

• Click Provisioning logs.

Provisioning Logs





Related Information

Configure Identity Providers

Provision Users and Groups from Microsoft Entra ID

Revision History

Revision	Publish Date	Comments
1.0	11-May-2026	Initial Release
