Configure Single SSID Wireless BYOD on Windows and ISE

Introduction

This document describes how to configure Bring Your Own Device (BYOD) on Cisco Identity Services Engine (ISE) for Windows Machine using both Single-SSID and Dual-SSID.

Prerequisites

Requirements

Cisco recommends that you have knowledge of these topics:

• Configuration of Cisco ISE Versions 3.0
• Configuration of Cisco WLC
• BYOD Working

Components Used

The information in this document is based on these software and hardware versions:

• Cisco ISE Version 3.0
• Windows 10
• WLC and AP

The information in this document was created from the devices in a specific lab environment. All of the devices used in this document started with a cleared (default) configuration. If your network is live, ensure that you understand the potential impact of any command.

Theory

In Single SSID BYOD only one SSID is used for both onboardings of devices and later giving full access to the Registered Devices. First, the user connects to the SSID using the user name and password ( MSCHAPv2 ). Once authenticated successfully on ISE, the user gets redirected to the BYOD Portal. Once the Device Registration is done, the end-client downloads the Native Supplicant  Assistant (NSA) from ISE . NSA is installed on the end client and downloads the Profile and certificate from ISE. The NSA configures the Wireless supplicant and the client installs the certificate. Endpoint performs another authentication to the same SSID using the downloaded certificate using EAP-TLS. ISE checks the new request from the client and verifies the EAP Method and Device Registration and gives full access to the device.

Windows BYOD Single SSID Steps-

• Initial EAP-MSCHAPv2 authentication
• Redirection to BYOD portal
• Device registration
• NSA download
• Profile download
• Certificate download
• EAP-TLS Authentication

Configure

ISE Configuration

Step 1. Add network Device on ISE and configure RADIUS and shared key.

Navigate to ISE > Administration > Network Devices > Add Network Device.

Step 2. Create a certificate template for BYOD users. The template must have Client Authentication Enhanced Key Usage. You can use the default EAP_Certificate_Template.

Step 3. Create a Native Supplicant Profile for a Wireless profile.

Navigate to ISE > Work Centres > BYOD > Client Provisioning. Click on Add and choose Native Supplicant Profile (NSP)  from the drop-down.

Here the SSID name must be the same as you connected before you are doing a single SSID BYOD. Select the Protocol as TLS. Chose Certificate template as created in the previous step or you can use the default EAP_Certificate_Template .

Under optional settings select user or User and Machine authentication as per your requirement. In this example, it is configured as user authentication. Leave other settings as default.

Step 4. Create Client Provisioning Policy for Windows Device.

Navigate to ISE > Work Centres > BYOD > Client Provisioning > Client Provisioning Policy . Select the Operating System as Windows ALL. Select WinSPWizard 3.0.0.2 and NSP created in the previous step.

Step 5. Create an Authorization Profile for devices not registered as BYOD devices.

Navigate to ISE > Policy > Policy Elements > Results> Authorization > Authorization Profiles > Add.

Under Common Task, select Native Supplicant Provisioning. Define a Redirect ACL Name that is created on WLC and select the BYOD Portal. Here Default Portal is used. You can create a custom BYOD Portal. Navigate to ISE > Work Centres > BYOD > Portals and components and click on Add.

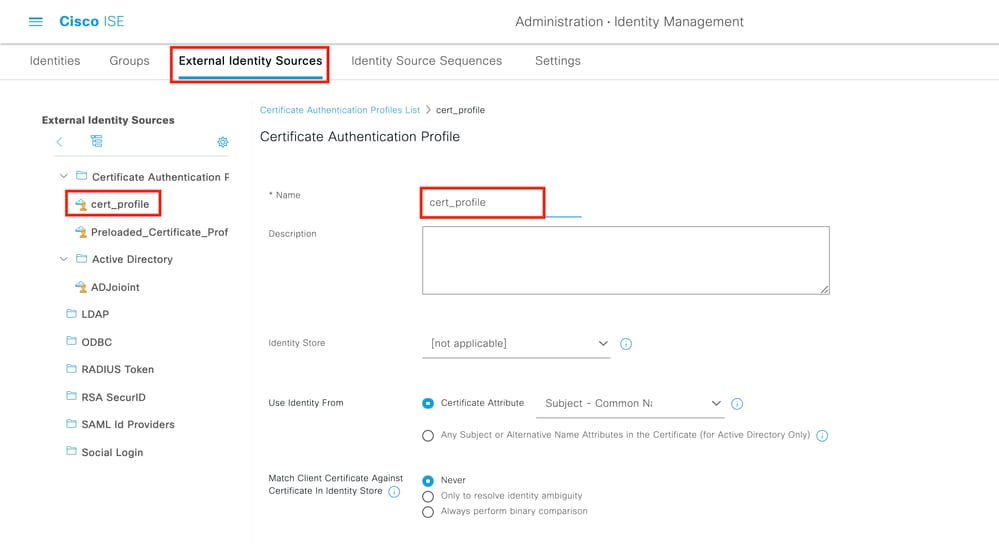

Step 6. Create a certificate profile.

Navigate to ISE > Administration > External Identity Sources > Certificate Profile. Here create a new certificate profile or use the default certificate profile.

Step 7. Create an identity source sequence and select the certificate profile created in the previous step or use the default certificate profile. This is required when users perform EAP-TLS after BYOD registration to get full access.

Step 8. Create a Policy Set, authentication Policy, and Authorization Policy.

Navigate to ISE > Policy > Policy Sets. Create a Policy Set and Save.

Create an Authentication Policy and select the identity source sequence created in the previous step.

Create an Authorization Policy. You must create two policies.

1. For devices that are not BYOD Registered. Give redirect profile created in step 5.

2. Devices that are BYOD registered and doing EAP-TLS. Give full access to these devices.

WLC Configuration

Step 1. Configure Radius Server on WLC.

Navigate to Security > AAA > Radius > Authentication.

Navigate to Security > AAA > Radius > Accounting.

Step 2. Configure a Dot1x SSID.

Step 3. Configure Redirect ACL to provide limited access for provisioning the device.

• Permit UDP traffic to DHCP and DNS (DHCP is allowed by default).
• Communication to ISE.
• Deny other traffic.

Name: BYOD-Initial (OR whatever you manually named the ACL in the Authorization Profile)

Verify

Authentication Flow Verification

1. At first log in, user performs PEAP authentication using a username and password. On ISE, user hits the Redirect Rule BYOD-Redirect.

2. After the BYOD Registration, user is added to the Registered Device and now performs EAP-TLS and gets Full Access.

Check the My Devices Portal

Navigate to MyDevices Portal and Log In with the credentials.  You can see the device name and the Registration status.

You can create a URL for the MyDevices Portal.

Navigate to ISE > Work Centres > BYOD > Portal and Components > My Devices Portal > Login Settings and then Enter the Fully Qualified URL.

Troubleshoot

General Information

For BYOD process, these ISE components have to be enabled in debug on PSN nodes -

scep- scep log messages. Target log filesguest.log and ise-psc.log.

client-webapp– the component responsible for infrastructure messages. Target log file –ise-psc.log

portal-web-action- the component responsible for client provisioning policy processing. Target log file -guest.log.

portal- all Portal related events. Target log file -guest.log

portal-session-manager -Target log files - Portal session related debug messages - gues.log

ca-service- ca-service messages -Target log files -caservice.log and caservice-misc.log

ca-service-cert- ca-service certificate messages - Target log files - caservice.log and caservice-misc.log

admin-ca- ca-service admin messages -Target log files ise-psc.log, caservice.log and casrvice-misc.log

certprovisioningportal- certificate provisioning portal messages -Target log files ise-psc.log

nsf- NSF related messages -Target log files ise-psc.log

nsf-session- Session cache-related messages -Target log files ise-psc.log

runtime-AAA– All Runtime events. Target log file –prrt-server.log.

For the client-side logs :

Look for %temp%\spwProfileLog.txt (ex: C:\Users\<username>\AppData\Local\Temp\spwProfileLog.txt)

Working Log Analysis

ISE Logs

Initial Access-Accept with redirect ACL and Redirect URL for BYOD Portal.

Prrt-server.log-

Radius,2020-12-02 05:43:52,395,DEBUG,0x7f433e6b8700,cntx=0008590803,sesn=isee30-primary/392215758/699,CPMSessionID=0a6a21b20000009f5fc770c7,user=dot1xuser,CallingStationID=50-3e-aa-e4-81-b6,RADIUS PACKET:: Code=2(AccessAccept) Identifier=254 Length=459

     [1] User-Name - value: [dot1xuser]

     [25] Class - value: [****]

     [79] EAP-Message - value: [ñ

     [80] Message-Authenticator - value: [.2{wëbÙ¨ÅþO5‹Z]

     [26] cisco-av-pair - value: [url-redirect-acl=BYOD-Initial]

     [26] cisco-av-pair - value: [url-redirect=https://10.106.32.119:8443/portal/gateway?sessionId=0a6a21b20000009f5fc770c7&portal=7f8ac563-3304-4f25-845d-be9faac3c44f&action=nsp&token=53a2119de6893df6c6fca25c8d6bd061]

     [26] MS-MPPE-Send-Key - value: [****]

     [26] MS-MPPE-Recv-Key - value: [****] ,RADIUSHandler.cpp:2216

When an end-user tries to navigate to a website and was redirected by WLC to the ISE redirect URL.

Guest.log -

2020-12-02 05:43:58,339 DEBUG  [https-jsse-nio-10.106.32.119-8443-exec-5][] com.cisco.ise.portal.Gateway -::- Gateway Params (after update):

redirect=www.msftconnecttest.com/redirect

client_mac=null

daysToExpiry=null

ap_mac=null

switch_url=null

wlan=null

action=nsp

sessionId=0a6a21b20000009f5fc770c7

portal=7f8ac563-3304-4f25-845d-be9faac3c44f

isExpired=null

token=53a2119de6893df6c6fca25c8d6bd061



2020-12-02 05:43:58,339 DEBUG  [https-jsse-nio-10.106.32.119-8443-exec-5][] cisco.ise.portalwebaction.utils.RadiusSessionUtil -::- sessionId=0a6a21b20000009f5fc770c7 : token=53a2119de6893df6c6fca25c8d6bd061



2020-12-02 05:43:58,339 DEBUG  [https-jsse-nio-10.106.32.119-8443-exec-5][] cisco.ise.portalwebaction.utils.RadiusSessionUtil -::- Session token successfully validated.



2020-12-02 05:43:58,344 DEBUG  [https-jsse-nio-10.106.32.119-8443-exec-5][] cisco.ise.portal.util.PortalUtils -::- UserAgent : Mozilla/5.0 (Windows NT 10.0; Win64; x64; rv:83.0) Gecko/20100101 Firefox/83.0

2020-12-02 05:43:58,344 DEBUG  [https-jsse-nio-10.106.32.119-8443-exec-5][] cisco.ise.portal.util.PortalUtils -::- isMozilla: true

2020-12-02 05:43:58,344 DEBUG  [https-jsse-nio-10.106.32.119-8443-exec-5][] com.cisco.ise.portal.Gateway -::- url: /portal/PortalSetup.action?portal=7f8ac563-3304-4f25-845d-be9faac3c44f&sessionId=0a6a21b20000009f5fc770c7&action=nsp&redirect=www.msftconnecttest.com%2Fredirect



2020-12-02 05:43:58,355 DEBUG  [https-jsse-nio-10.106.32.119-8443-exec-7][] cisco.ise.portalwebaction.controller.PortalFlowInterceptor -::- start guest flow interceptor...



2020-12-02 05:43:58,356 DEBUG  [https-jsse-nio-10.106.32.119-8443-exec-7][] cisco.ise.portalwebaction.actions.BasePortalAction -::- Executing action PortalSetup via request /portal/PortalSetup.action



2020-12-02 05:43:58,356 DEBUG  [https-jsse-nio-10.106.32.119-8443-exec-7][] cisco.ise.portalwebaction.actions.PortalSetupAction -::- executeAction...



2020-12-02 05:43:58,360 DEBUG  [https-jsse-nio-10.106.32.119-8443-exec-7][] cisco.ise.portalwebaction.actions.BasePortalAction -::- Result from action, PortalSetup: success

2020-12-02 05:43:58,360 DEBUG  [https-jsse-nio-10.106.32.119-8443-exec-7][] cisco.ise.portalwebaction.actions.BasePortalAction -::- Action PortalSetup Complete for request /portal/PortalSetup.action



2020-12-02 05:43:58,360 DEBUG  [https-jsse-nio-10.106.32.119-8443-exec-7][] cpm.guestaccess.flowmanager.processor.PortalFlowProcessor -::- Current flow step: INIT, otherInfo=id: 226ea25b-5e45-43f5-b79d-fb59cab96def



2020-12-02 05:43:58,361 DEBUG  [https-jsse-nio-10.106.32.119-8443-exec-7][] cpm.guestaccess.flowmanager.step.StepExecutor -::- Getting next flow step for INIT with TranEnum=PROCEED

2020-12-02 05:43:58,361 DEBUG  [https-jsse-nio-10.106.32.119-8443-exec-7][] cpm.guestaccess.flowmanager.step.StepExecutor -::- StepTran for Step=INIT=> tranEnum=PROCEED, toStep=BYOD_WELCOME

2020-12-02 05:43:58,361 DEBUG  [https-jsse-nio-10.106.32.119-8443-exec-7][] cpm.guestaccess.flowmanager.step.StepExecutor -::- Find Next Step=BYOD_WELCOME

2020-12-02 05:43:58,361 DEBUG  [https-jsse-nio-10.106.32.119-8443-exec-7][] cpm.guestaccess.flowmanager.step.StepExecutor -::- Step : BYOD_WELCOME will be visible!

2020-12-02 05:43:58,361 DEBUG  [https-jsse-nio-10.106.32.119-8443-exec-7][] cpm.guestaccess.flowmanager.step.StepExecutor -::- Returning next step =BYOD_WELCOME



2020-12-02 05:43:58,362 DEBUG  [https-jsse-nio-10.106.32.119-8443-exec-7][] cpm.guestaccess.flowmanager.adaptor.PortalUserAdaptorFactory -::- Looking up Guest user with uniqueSubjectId=5f5592a4f67552b855ecc56160112db42cf7074e

2020-12-02 05:43:58,365 DEBUG  [https-jsse-nio-10.106.32.119-8443-exec-7][] cpm.guestaccess.flowmanager.adaptor.PortalUserAdaptorFactory -::- Found Guest user 'dot1xuserin DB using uniqueSubjectID '5f5592a4f67552b855ecc56160112db42cf7074e'.  authStoreName in DB=Internal Users, authStoreGUID in DB=9273fe30-8c01-11e6-996c-525400b48521. DB ID=bab8f27d-c44a-48f5-9fe4-5187047bffc0





2020-12-02 05:43:58,366 DEBUG  [https-jsse-nio-10.106.32.119-8443-exec-7][] cisco.ise.portalwebaction.controller.PortalStepController -::- ++++ updatePortalState: PortalSession (e0d457d9-a346-4b6e-bcca-5cf29e12dacc) current state is INITIATED and current step is BYOD_WELCOME

2020-12-02 05:40:35,611 DEBUG  [https-jsse-nio-10.106.32.119-8443-exec-6][] com.cisco.ise.portalSessionManager.PortalSession -::- Setting the portal session state to ACTIVE

2020-12-02 05:40:35,611 DEBUG  [https-jsse-nio-10.106.32.119-8443-exec-6][] cisco.ise.portalwebaction.controller.PortalStepController -::- nextStep: BYOD_WELCOME

Click on Start on the BYOD Welcome page.

020-12-02 05:44:01,926 DEBUG  [https-jsse-nio-10.106.32.119-8443-exec-3][] cisco.ise.portalwebaction.actions.BasePortalAction -:dot1xuser:- Executing action ByodStart via request /portal/ByodStart.action



2020-12-02 05:44:01,926 DEBUG  [https-jsse-nio-10.106.32.119-8443-exec-3][] cisco.ise.portalwebaction.controller.PortalPreResultListener -:dot1xuser:- currentStep: BYOD_WELCOME

At this point, ISE evaluates if the necessary files/resources required for BYOD are present or not and sets itself to BYOD INIT state.

2020-12-02 05:44:01,936 DEBUG  [https-jsse-nio-10.106.32.119-8443-exec-3][] guestaccess.flowmanager.step.guest.ByodWelcomeStepExecutor -:dot1xuser:- userAgent=Mozilla/5.0 (Windows NT 10.0; Win64; x64; rv:83.0) Gecko/20100101 Firefox/83.0, os=Windows 10 (All), nspStatus=SUCCESS



2020-12-02 05:44:01,936 DEBUG  [https-jsse-nio-10.106.32.119-8443-exec-3][] guestaccess.flowmanager.step.guest.ByodWelcomeStepExecutor -:dot1xuser:- NSP Downloadalble Resource data=>, resource=DownloadableResourceInfo :WINDOWS_10_ALL https://10.106.32.119:8443/auth/provisioning/download/a2b317ee-df5a-4bda-abc3-e4ec38ee188c/WirelessNSP.xml?sessionId=0a6a21b20000009f5fc770c7&os=WINDOWS_10_ALL null null https://10.106.32.119:8443/auth/provisioning/download/90a6dc9c-4aae-4431-a453-81141ec42d2d/ null null  https://10.106.32.119:8443/auth/provisioning/download/90a6dc9c-4aae-4431-a453-81141ec42d2d/NetworkSetupAssistant.exe, coaType=NoCoa

2020-12-02 05:44:01,936 DEBUG  [https-jsse-nio-10.106.32.119-8443-exec-3][] cpm.guestaccess.flowmanager.utils.NSPProvAccess -:dot1xuser:- It is a WIN/MAC!

2020-12-02 05:44:01,936 DEBUG  [https-jsse-nio-10.106.32.119-8443-exec-3][] cpm.guestaccess.flowmanager.step.StepExecutor -:dot1xuser:- Returning next step =BYOD_REGISTRATION





2020-12-02 05:44:01,950 DEBUG  [https-jsse-nio-10.106.32.119-8443-exec-3][] cisco.ise.portalwebaction.controller.PortalStepController -:dot1xuser:- ++++ updatePortalState: PortalSession (e0d457d9-a346-4b6e-bcca-5cf29e12dacc) current state is ACTIVE and current step is BYOD_REGISTRATION

2020-12-02 05:44:01,950 DEBUG  [https-jsse-nio-10.106.32.119-8443-exec-3][] cisco.ise.portalwebaction.controller.PortalStepController -:dot1xuser:- nextStep: BYOD_REGISTRATION

Enter the device name and click on register.

2020-12-02 05:44:14,682 DEBUG  [https-jsse-nio-10.106.32.119-8443-exec-1][] cisco.ise.portalwebaction.actions.BasePortalAction -:dot1xuser:- Executing action ByodRegister via request /portal/ByodRegister.action



Request Parameters:

from=BYOD_REGISTRATION

token=PZBMFBHX3FBPXT8QF98U717ILNOTD68D

device.name=My-Device

device.description=





2020-12-02 05:44:14,682 DEBUG  [https-jsse-nio-10.106.32.119-8443-exec-1][] cisco.ise.portal.actions.ByodRegisterAction -:dot1xuser:- executeAction...



2020-12-02 05:44:14,682 DEBUG  [https-jsse-nio-10.106.32.119-8443-exec-1][] cisco.ise.portalwebaction.actions.BasePortalAction -:dot1xuser:- Result from action, ByodRegister: success

2020-12-02 05:44:14,682 DEBUG  [https-jsse-nio-10.106.32.119-8443-exec-1][] cisco.ise.portalwebaction.actions.BasePortalAction -:dot1xuser:- Action ByodRegister Complete for request /portal/ByodRegister.action



2020-12-02 05:44:14,683 DEBUG  [https-jsse-nio-10.106.32.119-8443-exec-1][] cpm.guestaccess.apiservices.mydevices.MyDevicesServiceImpl -:dot1xuser:- Register Device : 50:3E:AA:E4:81:B6

username= dot1xuser

idGroupID= aa13bb40-8bff-11e6-996c-525400b48521

authStoreGUID= 9273fe30-8c01-11e6-996c-525400b48521

nadAddress= 10.106.33.178

isSameDeviceRegistered = false



2020-12-02 05:44:14,900 DEBUG  [https-jsse-nio-10.106.32.119-8443-exec-1][] cpm.guestaccess.flowmanager.step.StepExecutor -:dot1xuser:- Returning next step =BYOD_INSTALL



2020-12-02 05:44:14,902 DEBUG  [https-jsse-nio-10.106.32.119-8443-exec-1][] cisco.ise.portalwebaction.controller.PortalStepController -:dot1xuser:- ++++ updatePortalState: PortalSession (e0d457d9-a346-4b6e-bcca-5cf29e12dacc) current state is ACTIVE and current step is BYOD_INSTALL



2020-12-02 05:44:01,954 DEBUG  [https-jsse-nio-10.106.32.119-8443-exec-3][] cisco.ise.portalwebaction.controller.PortalFlowInterceptor -:dot1xuser:- result: success



2020-12-02 05:44:14,969 DEBUG  [https-jsse-nio-10.106.32.119-8443-exec-10][] cisco.cpm.client.provisioning.StreamingServlet -::- StreamingServlet URI:/auth/provisioning/download/90a6dc9c-4aae-4431-a453-81141ec42d2d/NetworkSetupAssistant.exe

Now, when the user clicks on Start on the NSA, a file named spwProfile.xml is temporarily created on the client copying the content from Cisco-ISE-NSP.xml downloaded on TCP port 8905.

Guest.log -

2020-12-02 05:45:03,275 DEBUG [portal-http-service15][] cisco.cpm.client.provisioning.StreamingServlet -::- StreamingServlet URI:/auth/provisioning/download/a2b317ee-df5a-4bda-abc3-e4ec38ee188c/WirelessNSP.xml
2020-12-02 05:45:03,275 DEBUG [portal-http-service15][] cisco.cpm.client.provisioning.StreamingServlet -::- Streaming to ip:10.106.33.167 file type: NativeSPProfile file name:WirelessNSP.xml



2020-12-02 05:45:03,308 DEBUG [portal-http-service15][] cisco.cpm.client.provisioning.StreamingServlet -::- SPW profile ::
2020-12-02 05:45:03,308 DEBUG [portal-http-service15][] cisco.cpm.client.provisioning.StreamingServlet -::- <?xml version="1.0" encoding="UTF-8"?><spwProfile xmlns="spwProfile">
<name>WirelessNSP</name>
<spw_xml_version>2.0</spw_xml_version>
<description/>
<OSs>
<os>ALL</os>
</OSs>
<ConnectionSetting>
<connectionTypes>
<connectionType>wireless</connectionType>
</connectionTypes>
<wifiSSIDs>
<SSID>BYOD-Dot1x</SSID>
</wifiSSIDs>
<EAPConfig>
<EncryptionTunnel>
<SecurityType>WPA2</SecurityType>
<OuterEAPMethod xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xsi:type="TLS">
<EAPType>TLS</EAPType>
<enableServerCertValidation>false</enableServerCertValidation>
</OuterEAPMethod>
</EncryptionTunnel>
</EAPConfig>
<CertTemplateInfo>
<certTemplateId>e2c32ce0-313d-11eb-b19e-e60300a810d5</certTemplateId>

---output omitted---


2020-12-02 05:45:03,310 DEBUG [portal-http-service15][] cisco.cpm.client.provisioning.StreamingServlet -::- Done Streaming file to ip:10.106.33.167:WirelessNSP.xml

After you read the content from the spwProfile.xml, NSA configures the network profile and generates a CSR, and sends it to the ISE to get a certificate using the URL https://10.106.32.119:8443/auth/pkiclient.exe

ise-psc.log-

2020-12-02 05:45:11,298 DEBUG  [https-jsse-nio-10.106.32.119-8443-exec-1][] cisco.cpm.provisioning.cert.CertProvisioningFactory -::::- Found incoming certifcate request for internal CA. Increasing Cert Request counter.



2020-12-02 05:45:11,331 DEBUG  [https-jsse-nio-10.106.32.119-8443-exec-1][] cisco.cpm.provisioning.cert.CertProvisioningFactory -::::- Key type is RSA, retrieving ScepCertRequestProcessor for caProfileName=ISE Internal CA



2020-12-02 05:45:11,331 DEBUG  [https-jsse-nio-10.106.32.119-8443-exec-1][] cisco.cpm.provisioning.cert.CertRequestValidator -::::- Session user has been set to = dot1xuser



2020-12-02 05:45:11,331 DEBUG  [https-jsse-nio-10.106.32.119-8443-exec-1][] cisco.cpm.scep.util.ScepUtil -::::- Algorithm OID in CSR: 1.2.840.113549.1.1.1

2020-12-02 05:45:11,331 INFO   [https-jsse-nio-10.106.32.119-8443-exec-1][] com.cisco.cpm.scep.ScepCertRequestProcessor -::::- About to forward certificate request C=IN,ST=Karnataka,L=bangalore,O=cisco,OU=tac,CN=dot1xuser with transaction id n@P~N6E to server http://127.0.0.1:9444/caservice/scep

2020-12-02 05:45:11,332 DEBUG  [https-jsse-nio-10.106.32.119-8443-exec-1][] org.jscep.message.PkiMessageEncoder -::::- Encoding message: org.jscep.message.PkcsReq@5c1649c2[transId=4d22d2e256a247a302e900ffa71c35d75610de67,messageType=PKCS_REQ,senderNonce=Nonce [7d9092a9fab204bd7600357e38309ee8],messageData=org.bouncycastle.pkcs.PKCS10CertificationRequest@4662a5b0]

2020-12-02 05:45:11,332 DEBUG  [https-jsse-nio-10.106.32.119-8443-exec-1][] org.jscep.message.PkcsPkiEnvelopeEncoder -::::- Encrypting session key using key belonging to [issuer=CN=Certificate Services Endpoint Sub CA - isee30-primary; serial=162233386180991315074159441535479499152]

2020-12-02 05:45:11,333 DEBUG  [https-jsse-nio-10.106.32.119-8443-exec-1][] org.jscep.message.PkiMessageEncoder -::::- Signing message using key belonging to [issuer=CN=isee30-primary.anshsinh.local; serial=126990069826611188711089996345828696375]

2020-12-02 05:45:11,333 DEBUG  [https-jsse-nio-10.106.32.119-8443-exec-1][] org.jscep.message.PkiMessageEncoder -::::- SignatureAlgorithm SHA1withRSA

2020-12-02 05:45:11,334 DEBUG  [https-jsse-nio-10.106.32.119-8443-exec-1][] org.jscep.message.PkiMessageEncoder -::::- Signing org.bouncycastle.cms.CMSProcessableByteArray@5aa9dfcc content

ca-service.log -

2020-12-02 05:45:11,379 DEBUG  [CAService-Scep][scep job 4d22d2e256a247a302e900ffa71c35d75610de67 0x67ee11d5 request] com.cisco.cpm.caservice.CrValidator -:::::- performing certificate request validation:

version      [0]

subject      [C=IN,ST=Karnataka,L=bangalore,O=cisco,OU=tac,CN=dot1xuser]

---output omitted---

2020-12-02 05:45:11,379 DEBUG  [CAService-Scep][scep job 4d22d2e256a247a302e900ffa71c35d75610de67 0x67ee11d5 request validation] com.cisco.cpm.caservice.CrValidator -:::::- RDN value = dot1xuser

2020-12-02 05:45:11,379 DEBUG  [CAService-Scep][scep job 4d22d2e256a247a302e900ffa71c35d75610de67 0x67ee11d5 request] com.cisco.cpm.caservice.CrValidator -:::::- request validation result CA_OK

caservice-misc.log -

2020-12-02 05:45:11,380 DEBUG  [CAService-Scep][scep job 4d22d2e256a247a302e900ffa71c35d75610de67 0x67ee11d5 request issuance] cisco.cpm.scep.util.ScepUtil -:::::- Algorithm OID in CSR: 1.2.840.113549.1.1.1

2020-12-02 05:45:11,380 DEBUG  [CAService-Scep][scep job 4d22d2e256a247a302e900ffa71c35d75610de67 0x67ee11d5 request issuance] com.cisco.cpm.scep.CertRequestInfo -:::::- Found challenge password with cert template ID.

caservice.log -

2020-12-02 05:45:11,380 DEBUG  [CAService-Scep][scep job 4d22d2e256a247a302e900ffa71c35d75610de67 0x67ee11d5 request issuance] cisco.cpm.caservice.util.CaServiceUtil -:::::- Checking cache for certificate template with ID: e2c32ce0-313d-11eb-b19e-e60300a810d5



2020-12-02 05:45:11,380 DEBUG  [CAService-Scep][scep job 4d22d2e256a247a302e900ffa71c35d75610de67 0x67ee11d5 request issuance] com.cisco.cpm.caservice.CertificateAuthority -:::::- CA SAN Extensions = GeneralNames:

    1: 50-3E-AA-E4-81-B6



2020-12-02 05:45:11,380 DEBUG  [CAService-Scep][scep job 4d22d2e256a247a302e900ffa71c35d75610de67 0x67ee11d5 request issuance] com.cisco.cpm.caservice.CertificateAuthority -:::::- CA : add SAN extension...

2020-12-02 05:45:11,380 DEBUG  [CAService-Scep][scep job 4d22d2e256a247a302e900ffa71c35d75610de67 0x67ee11d5 request issuance] com.cisco.cpm.caservice.CertificateAuthority -:::::- CA Cert Template name = BYOD_Certificate_template



2020-12-02 05:45:11,395 DEBUG  [CAService-Scep][scep job 4d22d2e256a247a302e900ffa71c35d75610de67 0x67ee11d5 request issuance] cisco.cpm.caservice.util.CaServiceUtil -:::::- Storing certificate via REST for serial number: 518fa73a4c654df282ffdb026080de8d

2020-12-02 05:45:11,395 INFO   [CAService-Scep][scep job 4d22d2e256a247a302e900ffa71c35d75610de67 0x67ee11d5 request issuance] com.cisco.cpm.caservice.CertificateAuthority -:::::- issuing Certificate Services Endpoint Certificate:

class [com.cisco.cpm.caservice.CaResultHolder] [1472377777]: result: [CA_OK]

subject      [CN=dot1xuser, OU=tac, O=cisco, L=bangalore, ST=Karnataka, C=IN]

version      [3]

serial       [0x518fa73a-4c654df2-82ffdb02-6080de8d]

validity     [after [2020-12-01T05:45:11+0000] before [2030-11-27T07:35:10+0000]]

keyUsages    [ digitalSignature nonRepudiation keyEncipherment ]

ise-psc.log -

2020-12-02 05:45:11,407 DEBUG  [AsyncHttpClient-15-9][] org.jscep.message.PkiMessageDecoder -::::- Verifying message using key belonging to 'CN=Certificate Services Endpoint RA - isee30-primary'

caservice.log -

2020-12-02 05:45:11,570 DEBUG  [Infra-CAServiceUtil-Thread][] cisco.cpm.caservice.util.CaServiceUtil -:::::- Successfully stored endpoint certificate.

ise-psc.log -

2020-12-02 05:45:13,381 DEBUG  [https-jsse-nio-10.106.32.119-8443-exec-10][] cisco.cpm.provisioning.cert.CertProvisioningFactory -::::- Performing doGetCertInitial found Scep certificate processor for txn id n@P~N6E

2020-12-02 05:45:13,381 DEBUG  [https-jsse-nio-10.106.32.119-8443-exec-10][] com.cisco.cpm.scep.ScepCertRequestProcessor -::::- Polling C=IN,ST=Karnataka,L=bangalore,O=cisco,OU=tac,CN=dot1xuser for certificate request n@P~N6E with id {}

2020-12-02 05:45:13,385 INFO   [https-jsse-nio-10.106.32.119-8443-exec-10][] com.cisco.cpm.scep.ScepCertRequestProcessor -::::- Certificate request Complete for C=IN,ST=Karnataka,L=bangalore,O=cisco,OU=tac,CN=dot1xuser  Trx Idn@P~N6E

2020-12-02 05:45:13,596 DEBUG  [https-jsse-nio-10.106.32.119-8443-exec-10][] cisco.cpm.provisioning.cert.CertProvisioningFactory -::::- BYODStatus:COMPLETE_OTA_NSP

After certificate installation, clients initiate another authentication using EAP-TLS and get full access.

prrt-server.log -

Eap,2020-12-02 05:46:57,175,INFO ,0x7f433e6b8700,cntx=0008591342,sesn=isee30-primary/392215758/701,CPMSessionID=0a6a21b20000009f5fc770c7,CallingStationID=50-3e-aa-e4-81-b6,EAP: Recv EAP packet, code=Response, identifier=64, type=EAP-TLS, length=166

,EapParser.cpp:150



Radius,2020-12-02 05:46:57,435,DEBUG,0x7f433e3b5700,cntx=0008591362,sesn=isee30-primary/392215758/701,CPMSessionID=0a6a21b20000009f5fc770c7,user=dot1xuser,CallingStationID=50-3e-aa-e4-81-b6,RADIUS PACKET:: Code=2(AccessAccept) Identifier=5 Length=231

     [1] User-Name - value: [dot1xuser]

     [25] Class - value: [****]

     [79] EAP-Message - value: [E

     [80] Message-Authenticator - value: [Ù(ØyËöžö|kÔ‚¸}]

     [26] MS-MPPE-Send-Key - value: [****]

     [26] MS-MPPE-Recv-Key - value: [****] ,RADIUSHandler.cpp:2216

Client Logs (spw logs)

The client initiates to download the Profile.

[Mon Nov 30 03:34:27 2020] Downloading profile configuration...

[Mon Nov 30 03:34:27 2020] Discovering ISE using default gateway

[Mon Nov 30 03:34:27 2020] Identifying wired and wireless network interfaces, total active interfaces: 1

[Mon Nov 30 03:34:27 2020] Network interface - mac:50-3E-AA-E4-81-B6, name: Wi-Fi 2, type: unknown

[Mon Nov 30 03:34:27 2020] Identified default gateway: 10.106.33.1

[Mon Nov 30 03:34:27 2020] Identified default gateway: 10.106.33.1, mac address: 50-3E-AA-E4-81-B6

[Mon Nov 30 03:34:27 2020] DiscoverISE - start

[Mon Nov 30 03:34:27 2020] DiscoverISE input parameter : strUrl [http://10.106.33.1/auth/discovery]

[Mon Nov 30 03:34:27 2020] [HTTPConnection] CrackUrl: host = 10.106.33.1, path = /auth/discovery, user = , port = 80, scheme = 3, flags = 0

[Mon Nov 30 03:34:27 2020] [HTTPConnection] HttpSendRequest: header = Accept: */*

 headerLength = 12 data =  dataLength = 0

[Mon Nov 30 03:34:27 2020]  HTTP Response header: [HTTP/1.1 200 OK



Location: https://10.106.32.119:8443/portal/gateway?sessionId=0a6a21b20000009c5fc4fb5e&portal=7f8ac563-3304-4f25-845d-be9faac3c44f&action=nsp&token=29354d43962243bcb72193cbf9dc3260&redirect=10.106.33.1/auth/discovery



[Mon Nov 30 03:34:36 2020] [HTTPConnection] CrackUrl: host = 10.106.32.119, path = /auth/provisioning/download/a2b317ee-df5a-4bda-abc3-e4ec38ee188c/WirelessNSP.xml?sessionId=0a6a21b20000009c5fc4fb5e&os=WINDOWS_10_ALL, user = , port = 8443, scheme = 4, flags = 8388608



Mon Nov 30 03:34:36 2020] parsing wireless connection setting

[Mon Nov 30 03:34:36 2020] Certificate template: [keytype:RSA, keysize:2048, subject:OU=tac;O=cisco;L=bangalore;ST=Karnataka;C=IN, SAN:MAC]

[Mon Nov 30 03:34:36 2020] set ChallengePwd

Client Checks if WLAN Service is running.

[Mon Nov 30 03:34:36 2020] WirelessProfile::StartWLanSvc - Start

[Mon Nov 30 03:34:36 2020] Wlansvc service is in Auto mode ...

[Mon Nov 30 03:34:36 2020] Wlansvc is running in auto mode...

[Mon Nov 30 03:34:36 2020] WirelessProfile::StartWLanSvc - End



[Mon Nov 30 03:34:36 2020] Wireless interface 1 - Desc: [TP-Link Wireless USB Adapter], Guid: [{65E78DDE-E3F1-4640-906B-15215F986CAA}]...

[Mon Nov 30 03:34:36 2020] Wireless interface - Mac address: 50-3E-AA-E4-81-B6

[Mon Nov 30 03:34:36 2020] Identifying wired and wireless interfaces...

[Mon Nov 30 03:34:36 2020] Found wireless interface - [ name:Wi-Fi 2, mac address:50-3E-AA-E4-81-B6]

[Mon Nov 30 03:34:36 2020] Wireless interface [Wi-Fi 2] will be configured...

[Mon Nov 30 03:34:37 2020] Host - [ name:DESKTOP-965F94U, mac addresses:50-3E-AA-E4-81-B6]

The client starts applying profile  -

[Mon Nov 30 03:34:37 2020] ApplyProfile - Start...

[Mon Nov 30 03:34:37 2020] User Id: dot1xuser, sessionid: 0a6a21b20000009c5fc4fb5e, Mac: 50-3E-AA-E4-81-B6, profile: WirelessNSP

[Mon Nov 30 03:34:37 2020] number of wireless connections to configure: 1

[Mon Nov 30 03:34:37 2020] starting configuration for SSID : [BYOD-Dot1x]

[Mon Nov 30 03:34:37 2020] applying certificate for ssid [BYOD-Dot1x]

Client install certificate.

[Mon Nov 30 03:34:37 2020] ApplyCert - Start...

[Mon Nov 30 03:34:37 2020] using ChallengePwd

[Mon Nov 30 03:34:37 2020] creating certificate with subject = dot1xuser and subjectSuffix = OU=tac;O=cisco;L=bangalore;ST=Karnataka;C=IN

[Mon Nov 30 03:34:38 2020] Self signed certificate

[Mon Nov 30 03:34:44 2020] Installed [isee30-primary.anshsinh.local, hash: 5b a2 08 1e 17 cb 73 5f  ba 5b 9f a2 2d 3b fc d2 86 0d a5 9b

] as rootCA

[Mon Nov 30 03:34:44 2020] Installed CA cert for authMode machineOrUser - Success



Certificate is downloaded . Omitted for brevity -



[Mon Nov 30 03:34:50 2020] creating response file name C:\Users\admin\AppData\Local\Temp\response.cer

[Mon Nov 30 03:34:50 2020] Certificate issued - successfully

[Mon Nov 30 03:34:50 2020] ScepWrapper::InstallCert start

[Mon Nov 30 03:34:50 2020] ScepWrapper::InstallCert: Reading scep response file  [C:\Users\admin\AppData\Local\Temp\response.cer].

[Mon Nov 30 03:34:51 2020] ScepWrapper::InstallCert GetCertHash -- return val 1

[Mon Nov 30 03:34:51 2020] ScepWrapper::InstallCert end

[Mon Nov 30 03:34:51 2020] ApplyCert - End...

[Mon Nov 30 03:34:51 2020] applied user certificate using template id e2c32ce0-313d-11eb-b19e-e60300a810d5

ISE Configures Wireless Profile

[Mon Nov 30 03:34:51 2020] Configuring wireless profiles...

[Mon Nov 30 03:34:51 2020] Configuring ssid [BYOD-Dot1x]

[Mon Nov 30 03:34:51 2020] WirelessProfile::SetWirelessProfile - Start

[Mon Nov 30 03:34:51 2020] TLS - TrustedRootCA Hash: [ 5b a2 08 1e 17 cb 73 5f  ba 5b 9f a2 2d 3b fc d2 86 0d a5 9b]

profile

<WLANProfile xmlns="http://www.microsoft.com/networking/WLAN/profile/v1">

<name>BYOD-Dot1x</name><SSIDConfig>

<SSID>

<name>BYOD-Dot1x</name>

</SSID>

<nonBroadcast>true</nonBroadcast>

</SSIDConfig>

<connectionType>ESS</connectionType>

<connectionMode>auto</connectionMode>

<autoSwitch>false</autoSwitch>

<MSM>

<security>

<authEncryption>

<authentication>WPA2</authentication>

<encryption>AES</encryption>

<useOneX>true</useOneX>

</authEncryption>

<OneX xmlns="http://www.microsoft.com/networking/OneX/v1">

<cacheUserData>true</cacheUserData>

<authMode>user</authMode>

<EAPConfig>

<EapHostConfig xmlns="http://www.microsoft.com/provisioning/EapHostConfig"

xmlns:eapCommon="http://www.microsoft.com/provisioning/EapCommon"

xmlns:baseEap="http://www.microsoft.com/provisioning/BaseEapMethodConfig">

<EapMethod>

<eapCommon:Type>13</eapCommon:Type>

<eapCommon:AuthorId>0</eapCommon:AuthorId>

</EapMethod>

<Config xmlns:baseEap="http://www.microsoft.com/provisioning/BaseEapConnectionPropertiesV1"

xmlns:eapTls="http://www.microsoft.com/provisioning/EapTlsConnectionPropertiesV1">

<baseEap:Eap>

<baseEap:Type>13</baseEap:Type>

<eapTls:EapType>

<eapTls:CredentialsSource>

<eapTls:CertificateStore>

<eapTls:SimpleCertSelection>true</eapTls:SimpleCertSelection>

</eapTls:CertificateStore>

</eapTls:CredentialsSource>

<eapTls:ServerValidation>

<eapTls:DisableUserPromptForServerValidation>false</eapTls:DisableUserPromptForServerValidation>

<eapTls:ServerNames />

<eapTls:TrustedRootCA>5b a2 08 1e 17 cb 73 5f  ba 5b 9f a2 2d 3b fc d2 86 0d a5 9b

</eapTls:TrustedRootCA>

</eapTls:ServerValidation>

<eapTls:DifferentUsername>false</eapTls:DifferentUsername>

</eapTls:EapType>

</baseEap:Eap>

</Config>

</EapHostConfig>

</EAPConfig>

</OneX>

</security>

</MSM>

</WLANProfile>



Wireless interface succesfully initiated, continuing to configure SSID

[Mon Nov 30 03:34:51 2020] Currently connected to SSID: [BYOD-Dot1x]



[Mon Nov 30 03:34:51 2020] Wireless profile: [BYOD-Dot1x] configured successfully

[Mon Nov 30 03:34:51 2020] Connect to SSID

[Mon Nov 30 03:34:51 2020] Successfully connected profile: [BYOD-Dot1x]

[Mon Nov 30 03:34:51 2020] WirelessProfile::SetWirelessProfile. - End



[Mon Nov 30 03:35:21 2020] WirelessProfile::IsSingleSSID - Start

[Mon Nov 30 03:35:21 2020] Currently connected to SSID: [BYOD-Dot1x], profile ssid: [BYOD-Dot1x], Single SSID

[Mon Nov 30 03:35:21 2020] WirelessProfile::IsSingleSSID - End



[Mon Nov 30 03:36:07 2020] Device configured successfully.
