    Introduction

    This document describes Identity Service Engine (ISE) node registration pre-requisites, step by step process, PCAP analysis, log analysis.

    Pre-Requisites

    You must have the basic knowledge of the Cisco Identity Service Engine (ISE).

    Background Information

    • Standalone Node: a deployment that has a single Cisco ISE node. This node runs the Administration, Policy Service, and Monitoring personas.
    • Distributed deployment: a deployment that has more than one Cisco ISE node. To support failover and to improve performance, you can set up a deployment with multiple Cisco ISE nodes in a distributed fashion. In a Cisco ISE distributed deployment, administration and monitoring activities are centralized, and processing is distributed across the Policy Service nodes. Depending on your performance needs, you can scale your deployment.
    • An ISE node can be in one of the state primary, secondary or stand alone node.

    • An ISE node can assume any of these personas: Administration, Policy Service, and Monitoring.

    • You need to perform registration process to add more nodes to a primary node to form a cluster.

    Requirements

    • After Installing ISE nodes, you must choose one of the nodes and change its state from standalone to primary. Navigate to Administration > Deployment, click the ISE node > Make Primary .
    • You can have a single primary node in a distributed deployment.

    • FQDN of the secondary node to be registered must be resolvable from primary node. Forward and reverse DNS lookup must work.

    • Version/patch details of both nodes are the same.

    • You must have super admin credentials of the secondary node.
    • Ensure the admin certificate of both nodes are trusted, If third party CA signed certificate, add the root CA to the trusted certificates store.

    • Latency between nodes is less than 300ms.

    Components Required

    The information in this document is based on these software and hardware versions

    • Cisco Identity service Engine 3.3
    • ISE VM

    The information in this document was created from the devices in a specific lab environment. All of the devices used in this document started with a cleared (default) configuration. If your network is live, ensure that you understand the potential impact of any command.

    Ports Required

    • HTTPS (SOAP): TCP/443

    • Data Synchronization/ Replication (JGroups): TCP/12001

    • ISE Messaging Service: SSL: TCP/8671

    • ISE internal communication: TCP/15672

    • Profiler Endpoint ownership Synchronization/ Replication: TCP/6379

    Debugs Required

    Attributes to be set to debug level:

    • Replication-Deployment (replication.log and ise-psc.log)
    • Replication-JGroup (replication.log and ise-psc.log)
    • Replication Tracker (tracking.log)
    • hibernate (hibernate.log)
    • JMS (replication.log)
    • ca-service (caservice.log)
    • admin-ca (ise-psc.log)

    Node details

    • ise330.tac.local (10.127.197.174) is the PAN node
    • ise331.tac.local (10.127.197.175) is the SAN node

    Topology

    nodes

    Time Stamps Involved

    Node ise331.tac.local is registered on ise330.tac.local

    Register Click- 2025-01-31, 16:00:01

    Next Click (After filling secondary node FQDN details) -2025-01-31, 16:00:13

    Submit Click (After selecting personas)-2025-01-31, 16:00:21

    Replication-2025-01-31, 16:02:22

    Completed Sync-2025-01-31 16:30:54

    Registration Process

    Node registration: a process of authenticated configuration database replication from primary admin node to the secondary node

    Step 1: Make the ISE node as primary

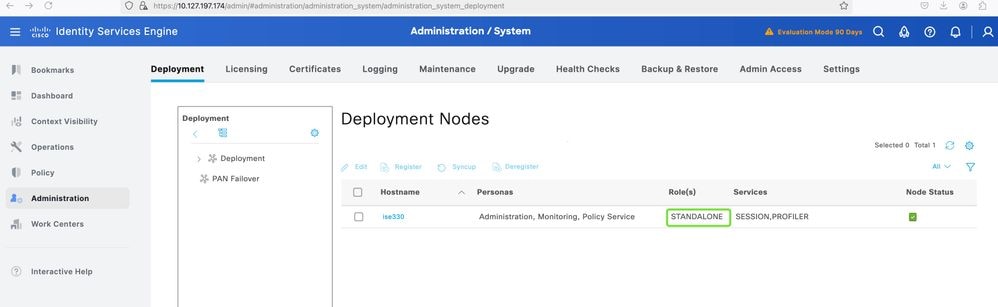

    Initially, every node is in standalone mode. To register other nodes, make one of the nodes the primary node.

    Navigate to Administration > Deployment > Click the ISE node/Edit the node .

    Click Make Primary.

    Standalone

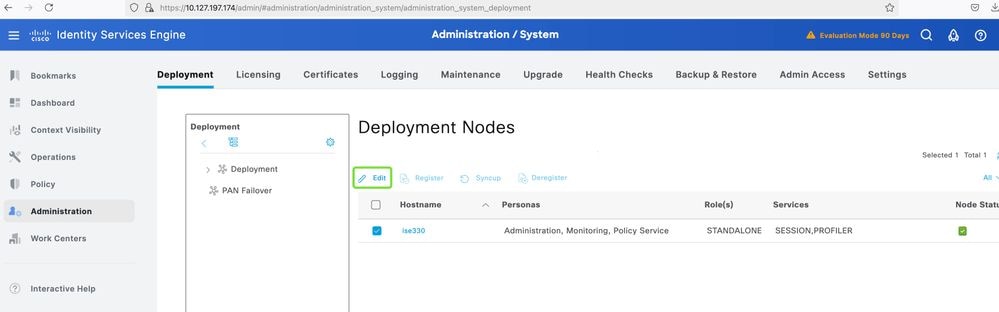

    Click Edit the node.
    Edit

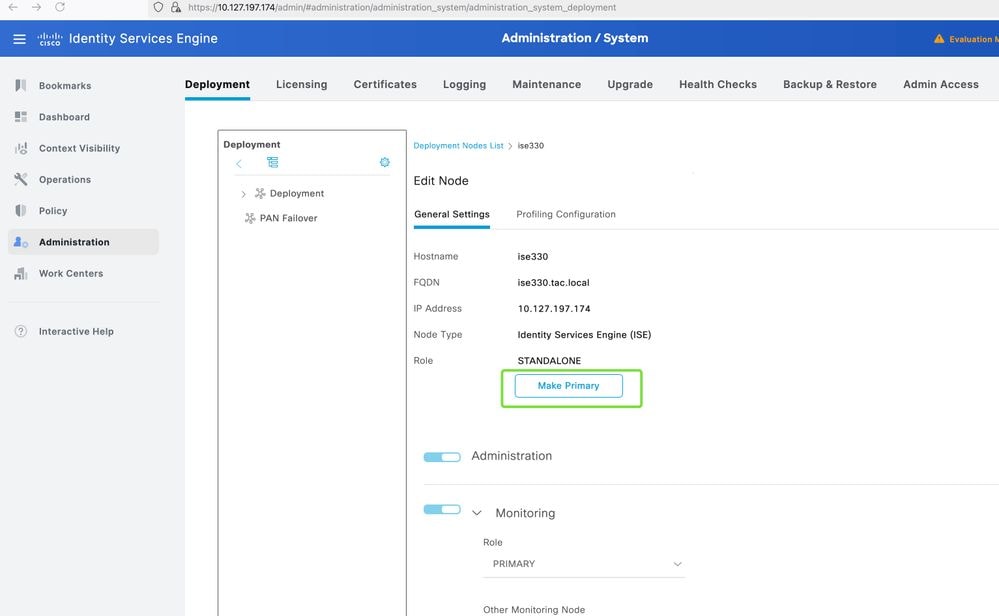

    Click Make Primary and Save it.

    Primary

    The role now becomes primary.

    Primary

    Step 2: Register the secondary node

    The node to be registered must be in standalone mode.

    Go to the secondary node and get the FQDN.

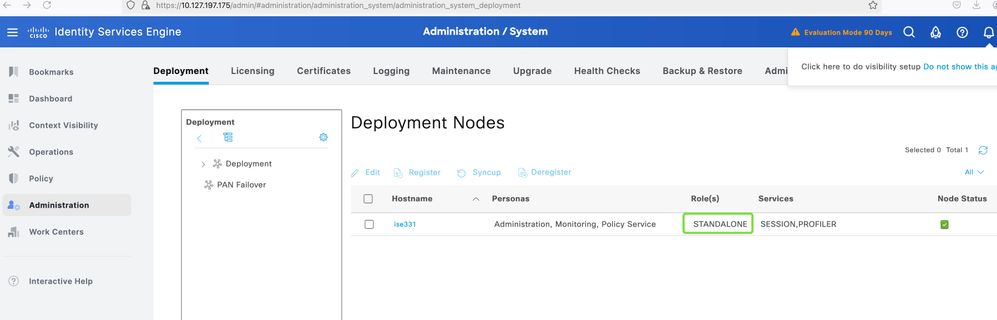

    Navigate to Administration > Deployment. Click on the node name.

    Standalone

    Go to the PAN GUI.

    Navigate to Administration > Deployment.

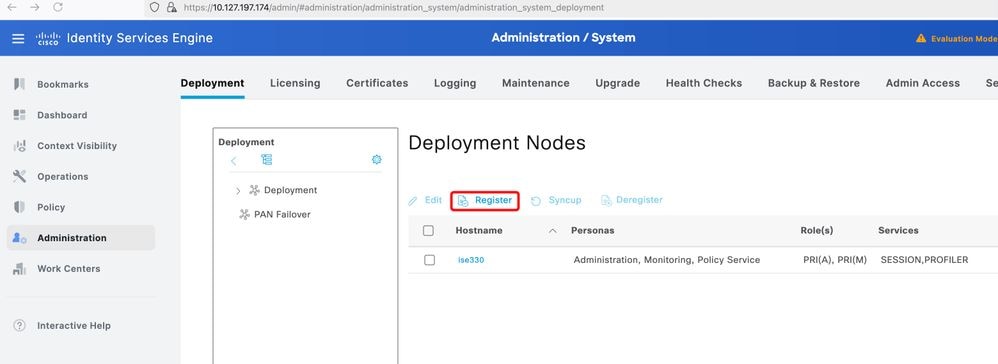

    Click Register.

    It asks for the FQDN and credentials of the node to be registered.

    Register

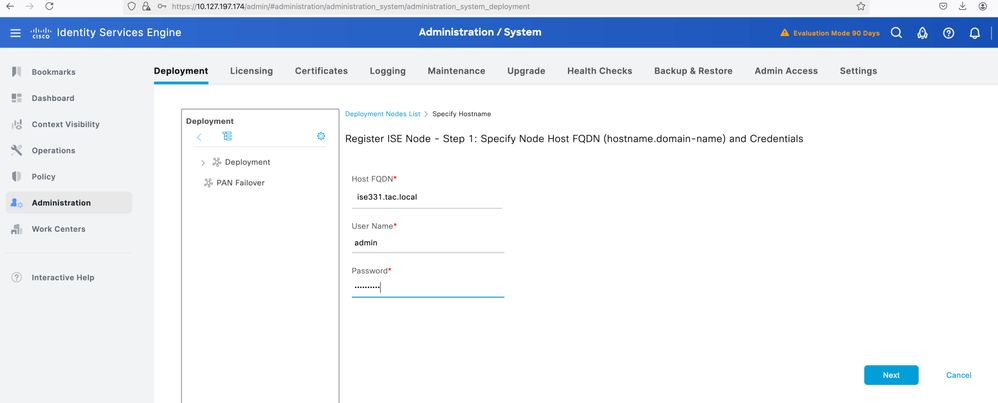

    Enter the FQDN and super admin user credentials of the secondary node.

    FQDN

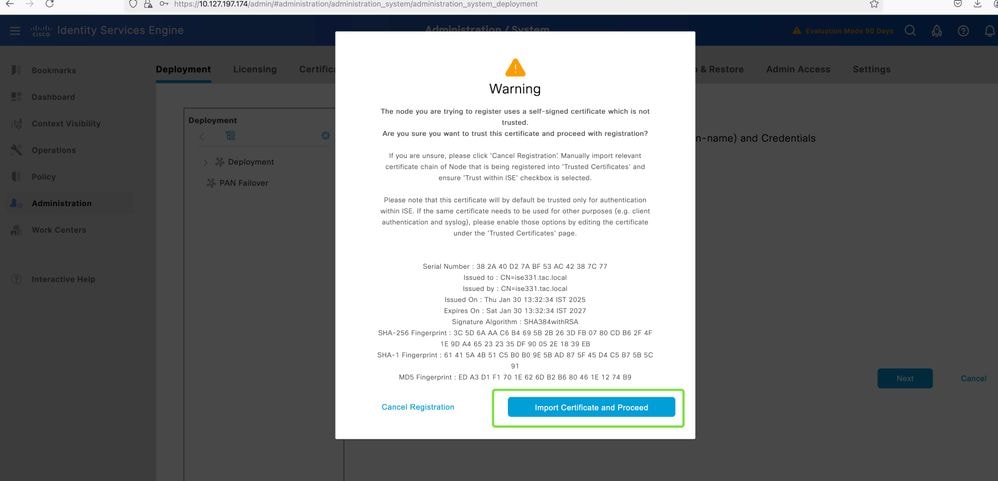

    When you click Next, it imports the certificate of the secondary node.

    Click Import certificate and proceed.
    Import Certificate

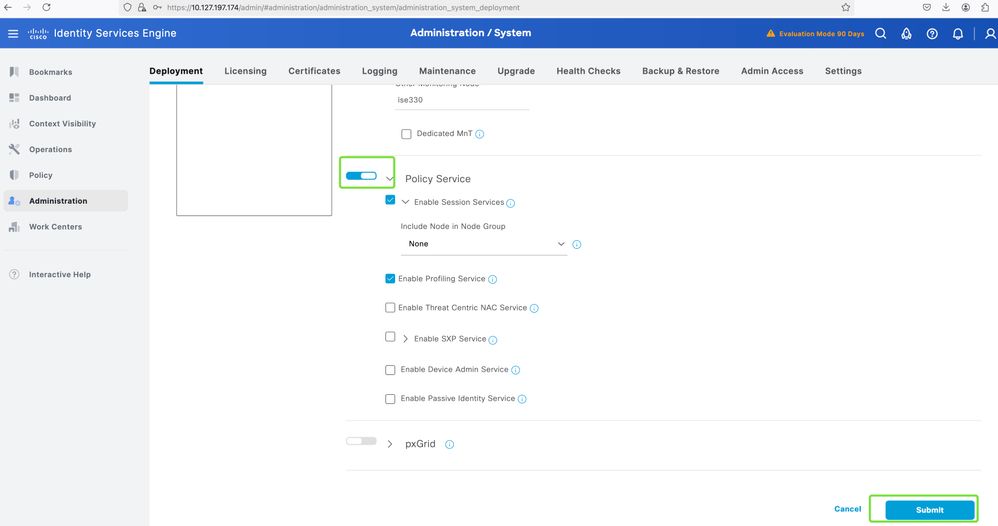

    Now select the personas required on the secondary node, click Submit.

    Submit

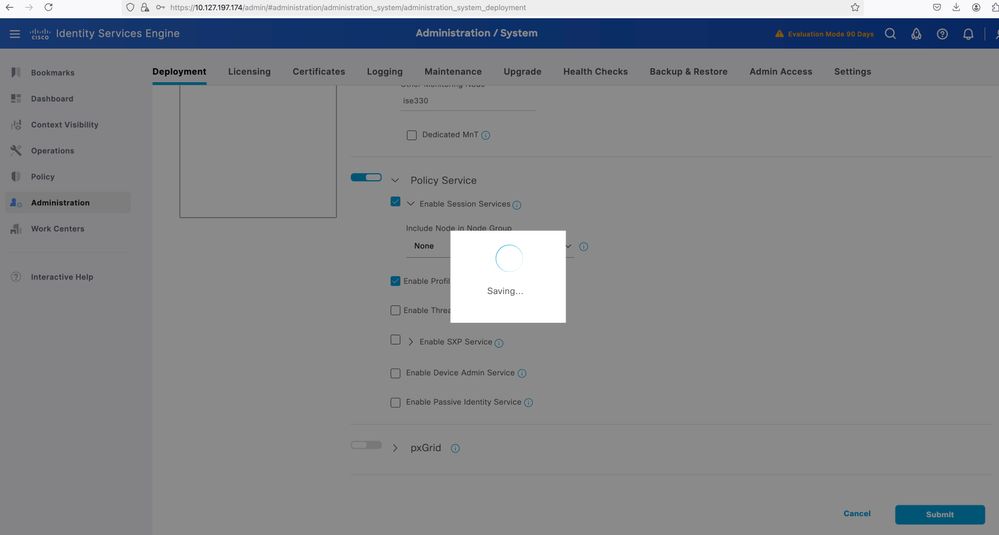

    Save

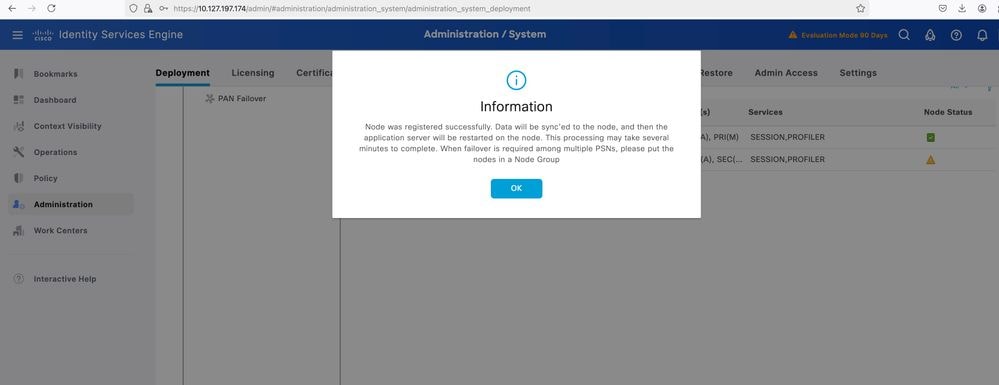

    The secondary node is then registered to primary node.Click OK.

    Warning

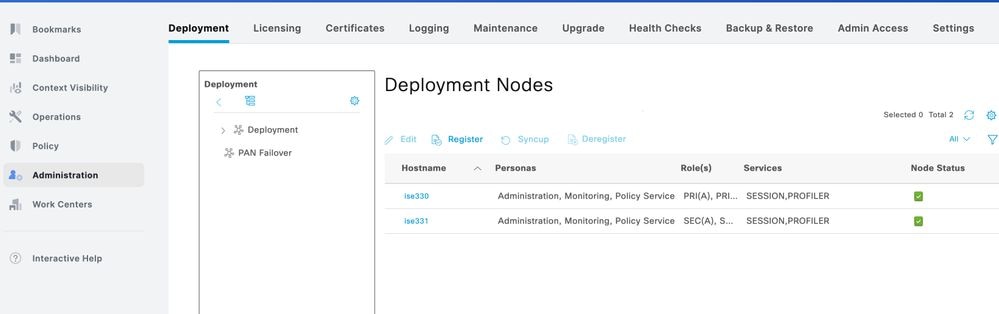

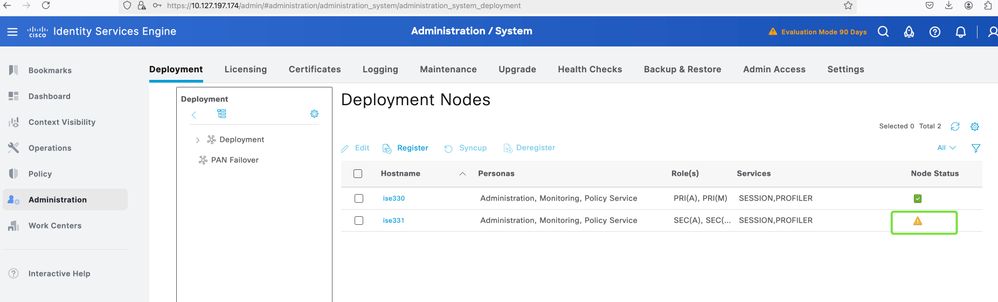

    Verify that the secondary node added to the PAN and amber color indicates that registration/sync is in progress.

    Sync

    Step 4: When you selected secondary admin node (SAN), you need to renew the license. It is not applicable for PSNs.

    Navigate to Administration>Licensing.
    Click Renew Registration.

    License Renew

    Step 5: Registration is successful.

    Final

    PCAP Analysis

    In PCAP, you see DNS, certificate exchanges over 443.

    Certificatiom

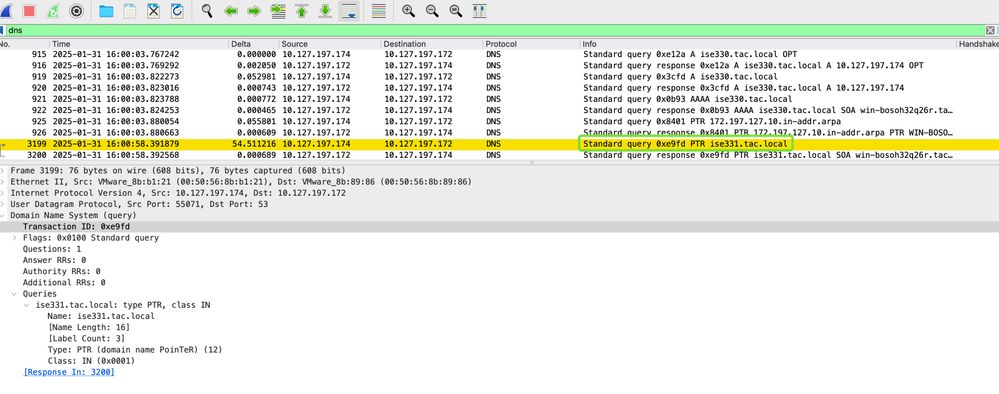

    DNS traffic: When you click register and provided the FQDN, the primary node tries to resolve the FQDN of the secondary node.

    DNS

    You can see the certificate exchange between both the nodes as well.

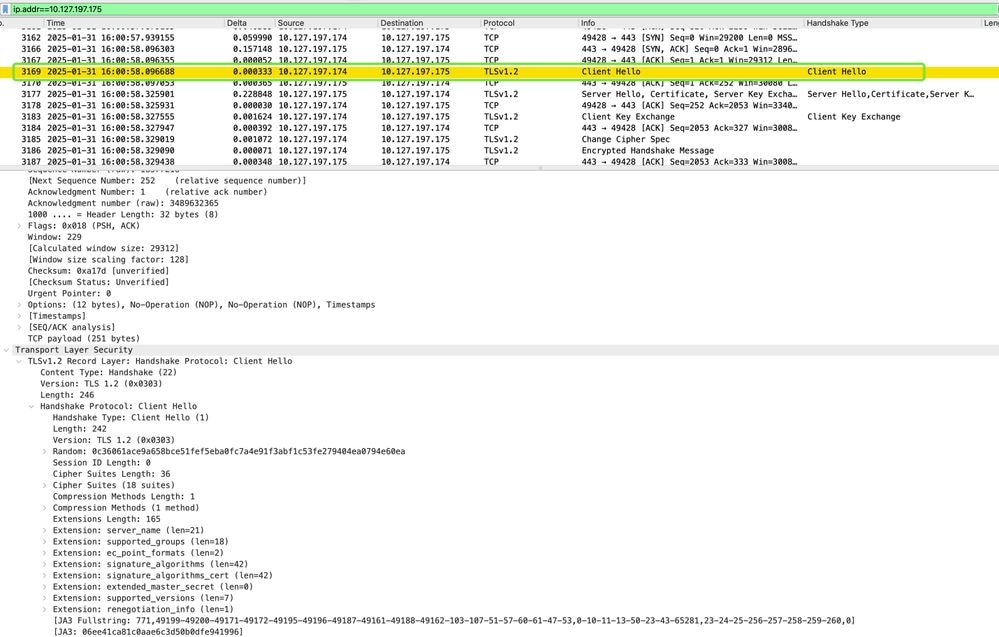

    Client Hello

    Client hello

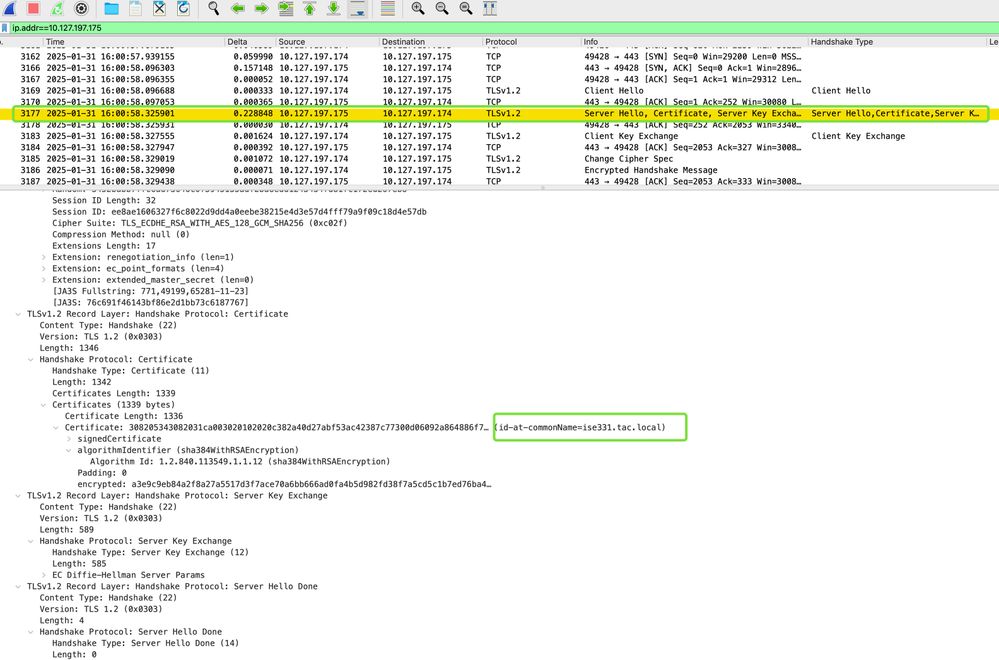

    Server Hello, Certificate, Server Key Exchange, Server Hello

    We can see ise331.tac.local shares it certificate to PAN node.

    Server hello

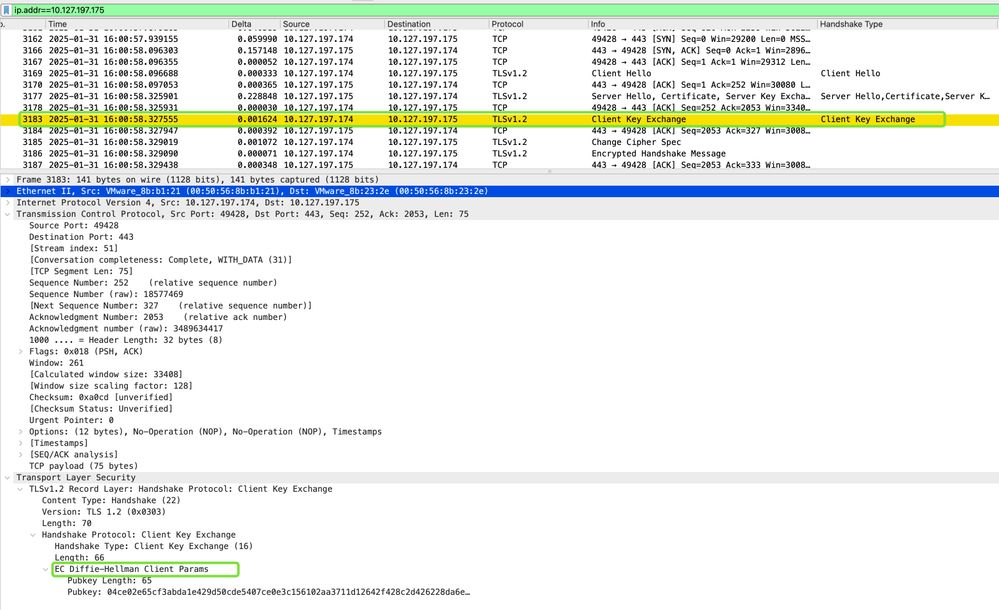

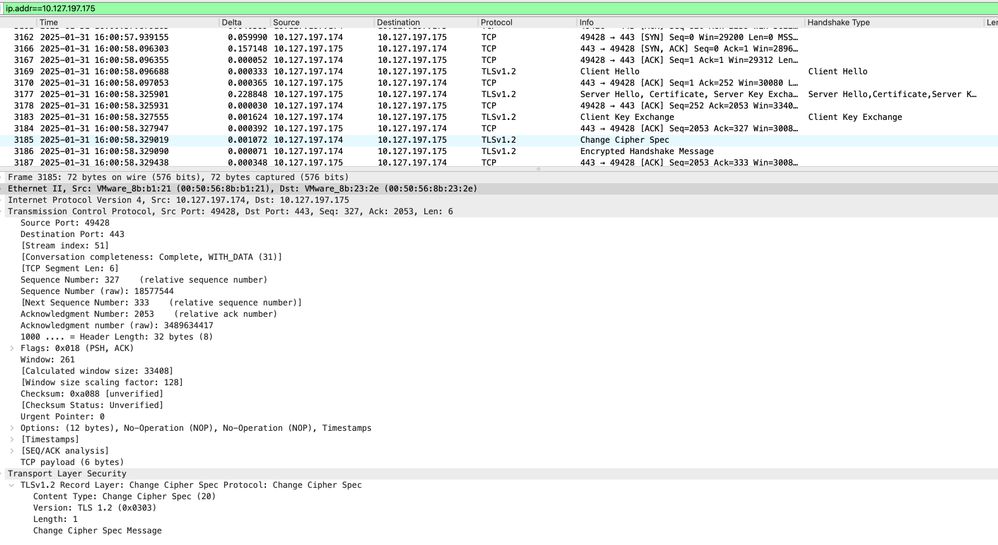

    Client Key Exchange has the public key. Client Key Exchange

    Both nodes fix on the the cipher suites and create the encrypted tunnel to share the details.

    Change cipher spec

    CLI Utilities

    • ise-psc.log- DNS query / cert validation / cert replication / sync status control

    Path from root: /opt/CSCOcpm/logs/ise-psc.log

    From CLI,

    #show logg application ise-psc.log tail

    • ADE.log- DB import/export, service start/stop

    Path From root: /var/log/ade/ADE.log

    From CLI,

    #show logg system ade/ADE.log tail

    • Replication.log- Logs for issue after DB import or DMP file transfer

    Path from root: /opt/CSCOcpm/logs/replication.log

    From CLI,

    #show application replication.log tail

    • Deployment.log- Logs related to certs, response pages

    Path From root: /opt/CSCOcpm/logs/deployment.log

    From CLI,

    #show logging application deployment.log

    Log Analysis

    Step 1: Click on Register ISE Node

    ise330-ise-psc.log:

    2025-01-31 16:00:01,992 INFO  [admin-http-pool2][[]] cpm.admin.infra.spring.ISEAdminControllerUtils -::admin:::- mapping path found in action-forwards,forwarding to: /pages/modules/infra/deployment/deploymentRegister.jsp

    Step 2: Fill the details of secondary node.

    ise330-deployment.log:

    2025-01-31 16:00:11,313 INFO   [admin-http-pool5][[]] cpm.infrastructure.deployment.client.DeploymentRegistrationClient -::admin:ise331.tac.local:registerNode:-Calling register for host FQDNise331.tac.local

    2025-01-31 16:00:11,371 DEBUG  [admin-http-pool5][[]] deployment.client.cert.validator.HttpsCertPathValidatorImpl -::admin:ise331.tac.local:registerNode:-Is cert path valid?true

    ise331-deployment.log
    2025-01-31 16:00:11,708 INFO [admin-http-pool14][[]] cpm.infrastructure.deployment.rpc.DeploymentRegistrationListener -:::::-Received request for doPost /register
    2025-01-31 16:00:11,710 INFO [admin-http-pool14][[]] cpm.infrastructure.deployment.rpc.DeploymentRegistrationListener -:::::-Received request for doGet/register
    2025-01-31 16:00:11,716 INFO [admin-http-pool14][[]] cpm.infrastructure.deployment.rpc.DeploymentRegistrationListener -:::::-Primary hostname retrieved is ise330.tac.local

    Step 3: DNS Resolution

    ise330- ise-psc.log:

    2025-01-31 16:00:13,208 INFO  [admin-http-pool5][[]] cpm.admin.infra.action.DeploymentEditAction -::admin:ise331.tac.local:registerNode:-Node being registered has FQDN 'ise331.tac.local'.This name resolves to IP address10.127.197.175

    2025-01-31 16:00:20,638 INFO [admin-http-pool3][[]] cpm.admin.infra.action.DeploymentEditAction -::admin:::- Node being added is Secondary PAP :ise331

    ise331-ise-psc.log
    2025-01-31 16:00:11,716 INFO [admin-http-pool14][[]] epm.pap.api.handler.CommonUtil -:::::-Checking if the host ise330.tac.local is dns resolvable
    2025-01-31 16:00:11,721 INFO [admin-http-pool14][[]] epm.pap.api.handler.CommonUtil -:::::-Host ise330.tac.local is dns resolvable within 5 ms

    Step 4:Certificates

    ise330-ise.psc.log

    2025-01-31 16:00:20,887 INFO [admin-http-pool5][[]] cpm.admin.infra.action.DeploymentEditAction -::admin:ise331:registerNode:-preparing to call getServCert

    ise330-deployment.log
    2025-01-31 16:00:20,888 DEBUG [admin-http-pool5][[]] cpm.infrastructure.deployment.client.DeploymentRegistrationClient -::admin:ise331:registerNode:- hostAlias ::ise331.tac.local ipAddrString :: 10.127.197.175 urlStr ::https://ise331.tac.local/admin/API/mnt/api/ServCert

    2025-01-31 16:00:21,419 DEBUG [admin-http-pool5][[]] cpm.infrastructure.deployment.client.DeploymentRegistrationClient -::admin:ise331:registerNode:- GET: request tohttps://ise331.tac.local/admin/API/mnt/api/ServCert completed.

    Step 5: Adding secondary node with personas submitted

    ise330-ise-psc.log
    2025-01-31 16:00:21,905 INFO [admin-http-pool5][[]] cisco.mnt.dbms.handler.DataSourceReInitializingHandler -::admin:ise331:registerNode:- Received NG event:Add
    2025-01-31 16:00:21,905 INFO [admin-http-pool5][[]] cisco.mnt.dbms.handler.DataSourceReInitializingHandler -::admin:ise331:registerNode:-Current : Node masterStatus: STANDBY
    2025-01-31 16:00:21,905 INFO [admin-http-pool5][[]] cisco.mnt.dbms.handler.DataSourceReInitializingHandler -::admin:ise331:registerNode:-Current : NodeRoleStatus: SECONDARY
    2025-01-31 16:00:21,905 INFO [admin-http-pool5][[]] cisco.mnt.dbms.handler.DataSourceReInitializingHandler -::admin:ise331:registerNode:- Current : HostConfig event hostAlias: ise331.tac.local

    Node details created and save successfully

    ise330-deployment.log
    2025-01-31 16:01:22,247 DEBUG [admin-http-pool5][[]] cisco.cpm.infrastructure.deployment.DeploymentManager -::admin:ise331:registerNode:- HostConfig 'ise331' was created successfully
    2025-01-31 16:01:22,251 DEBUG [admin-http-pool5][[]] cisco.cpm.infrastructure.deployment.DeploymentManager -::admin:ise331:registerNode:- Retrieved HostConfig [hostName=ise331, dispayName=ise331, hostId=5ff70820-dfbe-11ef-bb78-12467b70bb3d, gateWay=10.127.197.1,masterStatus=STANDBY, nodeRoleStatus=SECONDARY, nodeTypes=PAP+MNT+PDP, nodeServiceType=SESSION,PROFILER, userName=null, smtpPort=null, smtpHost=null, hostAlias=ise331.tac.local, udiPid=ISE-VM-K9, udiVid=V01, udiSN=S7LEAGKMIHM, udiPT=VM, installType=null, vmInfo=16179780|12|LARGE||2025-01-30 21:44:33 IST|0 MB|0 MHz|4294967295 MB|5000 MHz, isApiNode=false] DBInterface [id=5ff70823-dfbe-11ef-bb78-12467b70bb3d, userName=<not shown>, passWd=<not shown>, portNum=1521, sId=cpm10] MasterInterface [id=5ff70822-dfbe-11ef-bb78-12467b70bb3d, userName=<not shown>, passWd=<not shown>, portNum=80, domainName=Default Domain, contextRoot=admin, serviceType=WEBSERVICE, isSSLEnable=false] NICInterface [id=5ff70821-dfbe-11ef-bb78-12467b70bb3d, ipAddress=10.127.197.175, subNetMask=255.255.255.0, macAddress=00-50-56-8b-23-2e, nicCards=eth0]

    Step 6: Certificates

    ise330-ise-psc.log
    2025-01-31 16:01:22,251 INFO [admin-http-pool5][[]] cpm.admin.infra.action.DeploymentEditAction -::admin:ise331:registerNode:- HostConfig hostId of registering node ise331 at time of local cert save: 5ff70820-dfbe-11ef-bb78-12467b70bb3d. All local certs and CSRs reference the HostConfig using this hostId.

    ise330-deployment.log
    2025-01-31 16:01:22,841 DEBUG [admin-http-pool5][[]] cpm.infrastructure.deployment.client.DeploymentRegistrationClient -::admin:ise331:registerNode:-Importing deployment shared certificates
    2025-01-31 16:01:22,841 DEBUG [admin-http-pool5][[]] cpm.infrastructure.deployment.client.DeploymentRegistrationClient -::admin:ise331:registerNode:- Preparing connection

    2025-01-31 16:01:23,804 DEBUG [admin-http-pool5][[]] cpm.infrastructure.deployment.client.DeploymentRegistrationClient -::admin:ise331:registerNode:- connected to registering node
    2025-01-31 16:01:23,804 DEBUG [admin-http-pool5][[]] cpm.infrastructure.deployment.client.DeploymentRegistrationClient -::admin:ise331:registerNode:-Sending import CertParams to registering node
    2025-01-31 16:01:23,822 DEBUG [admin-http-pool5][[]] cpm.infrastructure.deployment.client.DeploymentRegistrationClient -::admin:ise331:registerNode:- Importing CertParams sent to registering node
    2025-01-31 16:01:23,823 DEBUG [admin-http-pool5][[]] cpm.infrastructure.deployment.client.DeploymentRegistrationClient -::admin:ise331:registerNode:- Receiveing imported certs ids

    2025-01-31 16:01:24,147 DEBUG [admin-http-pool5][[]] cpm.infrastructure.deployment.client.DeploymentRegistrationClient -::admin:ise331:registerNode:-Imported certs ids received:
    2025-01-31 16:01:24,148 DEBUG [admin-http-pool5][[]] cpm.infrastructure.deployment.client.DeploymentRegistrationClient -::admin:ise331:registerNode:-Importing deployment shared certificates - done
    2025-01-31 16:01:24,382 DEBUG [admin-http-pool5][[]] cisco.cpm.infrastructure.deployment.DeploymentManager -::admin:ise331:registerNode:- Inside getHostConfigForLocalNode to fetch localhostconfig
    2025-01-31 16:01:24,382 DEBUG [admin-http-pool5][[]] cisco.cpm.infrastructure.deployment.DeploymentManager -::admin:ise331:registerNode:- hostName = ise330
    2025-01-31 16:01:24,385 DEBUG [admin-http-pool5][[]] cisco.cpm.infrastructure.deployment.DeploymentManager -::admin:ise331:registerNode:- Retrieved HostConfig [hostName=ise330, dispayName=ise330, hostId=50451540-dee0-11ef-90b1-0050568bb121, gateWay=10.127.197.1, masterStatus=ACTIVE, nodeRoleStatus=PRIMARY, nodeTypes=PAP+MNT+PDP, nodeServiceType=SESSION,PROFILER, userName=null, smtpPort=null, smtpHost=null, hostAlias=ise330.tac.local, udiPid=ISE-VM-K9, udiVid=V01, udiSN=IRJN9DCFIG9, udiPT=VM, installType=null, vmInfo=16179788|12|LARGE|300 GiB|2025-01-31 01:44:51 IST|0 MB|0 MHz|4294967295 MB|5000 MHz, isApiNode=false] DBInterface [id=50451543-dee0-11ef-90b1-0050568bb121, userName=<not shown>, passWd=<not shown>, portNum=1521, sId=cpm10] MasterInterface [id=50451542-dee0-11ef-90b1-0050568bb121, userName=<not shown>, passWd=<not shown>, portNum=80, domainName=Default Domain, contextRoot=admin, serviceType=WEBSERVICE, isSSLEnable=true] NICInterface [id=50451541-dee0-11ef-90b1-0050568bb121, ipAddress=10.127.197.174, subNetMask=255.255.255.0, macAddress=00-50-56-8b-b1-21, nicCards=eth0]

    Wildcard check

    ise-psc.log <==
    2025-01-31 16:01:25,304 INFO [admin-http-pool5][[]] cpm.infrastructure.certreqmgmt.notifications.IseEapCertNotificationHandler -::admin:ise331:registerNode:- Received ISE Local Cert notification.
    2025-01-31 16:01:25,304 INFO [admin-http-pool5][[]] cpm.infrastructure.certreqmgmt.notifications.IseEapCertNotificationHandler -::admin:ise331:registerNode:- Local Cert is an EAP cert. Updating KeyAndCertStoreUtil
    2025-01-31 16:01:25,304 INFO [admin-http-pool5][[]] cpm.infrastructure.certreqmgmt.util.KeyAndCertStoreUtil -::admin:ise331:registerNode:- Received notification to update this node's EAP cert chain.
    2025-01-31 16:01:25,304 INFO [admin-http-pool5][[]] cpm.infrastructure.certreqmgmt.notifications.IseEapCertNotificationHandler -::admin:ise331:registerNode:- Sent update requests.
    2025-01-31 16:01:25,305 INFO [admin-http-pool5][[]] cpm.infrastructure.certreqmgmt.notifications.WildcardCertNotificationHandler -::admin:ise331:registerNode:- Received ISE Local Cert notification.
    2025-01-31 16:01:25,305 INFO [admin-http-pool5][[]] cpm.infrastructure.certreqmgmt.notifications.WildcardCertNotificationHandler -::admin:ise331:registerNode:- Checking certificate type
    2025-01-31 16:01:25,305 INFO [admin-http-pool5][[]] cpm.infrastructure.certreqmgmt.notifications.WildcardCertNotificationHandler -::admin:ise331:registerNode:- Default self-signed server certificate is a wildcard cert: false
    2025-01-31 16:01:25,305 INFO [admin-http-pool5][[]] cpm.infrastructure.certreqmgmt.notifications.WildcardCertNotificationHandler -::admin:ise331:registerNode:- Checking for SAML,APNS, CMCS or ProfileSigning certificate
    2025-01-31 16:01:25,306 INFO [admin-http-pool5][[]] cpm.infrastructure.certreqmgmt.notifications.WildcardCertNotificationHandler -::admin:ise331:registerNode:- Default self-signed server certificate is it SAML Cert: false
    2025-01-31 16:01:25,306 INFO [admin-http-pool5][[]] cisco.cpm.provisioning.cert.CertProvisioningFactory -::admin:ise331:registerNode:- CertChangeHandler.handle(): building EAP Cert chain on insert event of Local Certificate and Trust Certificate

    ise330-ise-psc.log
    2025-01-31 16:01:25,830 INFO [admin-http-pool5][[]] cpm.admin.infra.action.DeploymentEditAction -::admin:ise331:registerNode:- Saved LocalCertificate: LocalCertificate [basicCertificateFields=X509BasicCertificateFields[version=0,serialNumber=17382241548535177602714336375,issuer=<null>,notBefore=Thu Jan 30 13:32:34 IST 2025,notAfter=Sat Jan 30 13:32:34 IST 2027,subject=CN=ise331.tac.local,issuedTo=ise331.tac.local,issuedBy=ise331.tac.local,certificateFilename=<null>,digestHash=<null>], id=f0463881-4c64-4ff5-96a2-4f0089f50459, name=ise331_tac_local#382a40d27abf53ac42387c77#PID$_ISE-VM-K9$_VID$_V01$_SN$_S7LEAGKMIHM, friendlyName=Default self-signed server certificate, x509Certificate=null, iseRoles=[EAP, Admin, Portal, DTLS], hostConfigId=7ec82060-dee0-11ef-898d-0050568b232e, hostUDI=PID: ISE-VM-K9, VID: V01, SN: S7LEAGKMIHM, keySize=0, fipsCompliant=false, privateKeyGuid=[-2, -92, -78, 78, 73, -87, 65, 60, -71, 0, 7, -127, -104, -124, 56, -83], description=null]
    2025-01-31 16:01:25,830 INFO [admin-http-pool5][[]] cpm.admin.infra.action.DeploymentEditAction -::admin:ise331:registerNode:- Preparing to save LocalCertificate: LocalCertificate [basicCertificateFields=X509BasicCertificateFields[version=0,serialNumber=17382241611749295087684098633,issuer=<null>,notBefore=Thu Jan 30 13:32:41 IST 2025,notAfter=Tue Jan 29 13:32:41 IST 2030,subject=CN=SAML_ise331.tac.local,issuedTo=SAML_ise331.tac.local,issuedBy=SAML_ise331.tac.local,certificateFilename=<null>,digestHash=<null>], id=26fd28f0-6346-4fd5-8699-312dfdf97a8e, name=SAML_ise331_tac_local#382a40d5e804fc9a4ba71a49#PID$_ISE-VM-K9$_VID$_V01$_SN$_S7LEAGKMIHM, friendlyName=Default self-signed saml server certificate - CN=SAML_ise331.tac.local, x509Certificate=null, iseRoles=[NO_SSOCert], hostConfigId=7ec82060-dee0-11ef-898d-0050568b232e, hostUDI=PID: ISE-VM-K9, VID: V01, SN: S7LEAGKMIHM, keySize=0, fipsCompliant=false, privateKeyGuid=[-18, 47, -17, -88, 79, -30, 69, -12, -73, 120, -111, -36, 40, 27, 43, 68], description=null] Host Name: ise331 Host ConfigId: 5ff70820-dfbe-11ef-bb78-12467b70bb3d

    ise330-replication.log
    2025-01-31 16:01:34,051 DEBUG [admin-http-pool5][[]] cisco.cpm.deployment.replication.PublisherImpl -::admin:ise331:registerNode:- Add to publish queue Id: 8afb25b0-dfbe-11ef-bb78-12467b70bb3d, seqNo: 0, data: 3058 bytes

    ise330-replication.log
    2025-01-31 16:02:14,488 INFO [admin-http-pool5][[]] api.services.server.distribution.RegistrationAndSyncHelper -::admin:ise331:registerNode:- Tracking RegistrationAndSync Entering addNodeToDistributionSetup for host: ise331.tac.local
    2025-01-31 16:02:14,488 INFO [admin-http-pool5][[]] api.services.server.distribution.RegistrationAndSyncHelper -::admin:ise331:registerNode:- Tracking RegistrationAndSync - entering addNodeToDistributionSetupUsingJgroups
    2025-01-31 16:02:14,501 INFO [admin-http-pool5][[]] api.services.persistance.dao.ReplicationStatusDAOImpl -::admin:ise331:registerNode:- Host Name: ise331, DB 'SEC_REPLICATIONSTATUS' = IN PROGRESS, Node Persona: SECONDARY, ReplicationStatus obj status: SYNC_INPROGRESS
    2025-01-31 16:02:14,502 INFO [admin-http-pool5][[]] api.services.server.distribution.RegistrationAndSyncHelper -::admin:ise331:registerNode:- Tracking RegistrationAndSync - exiting addNodeToDistributionSetupUsingJgroups
    2025-01-31 16:02:14,502 INFO [admin-http-pool5][[]] api.services.server.distribution.RegistrationAndSyncHelper -::admin:ise331:registerNode:- Tracking RegistrationAndSync Done addNodeToDistributionSetup for host: ise331.tac.local

    2025-01-31 16:02:14,508 INFO [admin-http-pool5][[]] api.services.server.distribution.RegistrationAndSyncHelper -::admin:ise331:registerNode:- Tracking RegistrationAndSync - entering offerSyncRequestToQueue
    2025-01-31 16:02:14,524 INFO [admin-http-pool5][[]] class com.cisco.epm.fullsync.FullSyncInfoHelper -::admin:ise331:registerNode:- Created FullSyncInfo[ a31cab00-dfbe-11ef-bb78-12467b70bb3d ]
    2025-01-31 16:02:14,524 INFO [admin-http-pool5][[]] api.services.server.distribution.RegistrationAndSyncHelper -::admin:ise331:registerNode:- Tracking RegistrationAndSync The sync request is hostFQDN[ise331.tac.local] exportFilePath[null] syncRequestIdentifier[null] syncRequestTime[null] syncStatus[SYNC_INPROGRESS] transientSyncStatus[null] syncRequestType[REGISTER]
    2025-01-31 16:02:14,524 INFO [admin-http-pool5][[]] api.services.server.distribution.RegistrationAndSyncHelper -::admin:ise331:registerNode:- Tracking RegistrationAndSync - exiting offerSyncRequestToQueue

    Step 7: Registering the node in the cluster

    ise330-ise-psc.log
    2025-01-31 16:02:14,524 INFO [admin-http-pool5][[]] api.services.server.distribution.DistributionImpl -::admin:ise331:registerNode:- Tracking RegistrationAndSync -New Reg Code completed for node ise331
    2025-01-31 16:02:14,524 INFO [admin-http-pool5][[]] cpm.admin.infra.action.DeploymentEditAction -::admin:ise331:registerNode:- Node ise331 was registered successfully with persona(s)Administration, Monitoring, Policy Service

    Step 8: Firewall Rules

    ise330-ise-psc.log

    2025-01-31 16:00:39,945 INFO [admin-http-pool5][[]] cisco.cpm.infrastructure.utils.FwUtil-::admin:ise331:registerNode:- Deployment Hosts IPs: [10.127.197.174, 10.127.197.175]iptable Hosts : [10.127.197.174]

    2025-01-31 16:00:43,526 INFO [admin-http-pool5][[]] cisco.cpm.infrastructure.utils.FwUtil-::admin:ise331:registerNode:- syncUpfwList : DB access allowed for ips: [10.127.197.175]

    2025-01-31 16:00:46,617 INFO [admin-http-pool5][[]] cisco.cpm.infrastructure.utils.FwUtil-::admin:ise331:registerNode:- syncUpfwList : DB access disallowed for ips: []

    2025-01-31 16:00:46,617 INFO [admin-http-pool5][[]] cisco.cpm.infrastructure.utils.JGroupsFWUtil-::admin:ise331:registerNode:-Applying Firewall rules for jGroup

    2025-01-31 16:00:53,678 INFO [admin-http-pool5][[]] cisco.cpm.infrastructure.utils.JGroupsFWUtil-::admin:ise331:registerNode:-Applied Firewall rules for jGroup.

    2025-01-31 16:14:32,420 INFO [DefaultQuartzScheduler_Worker-5][[]] cisco.cpm.infrastructure.utils.FwUtil-:::::- Deployment Hosts IPs: [10.127.197.174, 10.127.197.175]iptable Hosts : [10.127.197.175, 10.127.197.174]

    2025-01-31 16:14:33,605 INFO [DefaultQuartzScheduler_Worker-5][[]] cisco.cpm.infrastructure.utils.FwUtil-:::::- syncUpfwList : DB access allowed for ips: []

    2025-01-31 16:14:34,785 INFO [DefaultQuartzScheduler_Worker-5][[]] cisco.cpm.infrastructure.utils.FwUtil-:::::- syncUpfwList : DB access disallowed for ips: []

    2025-01-31 16:14:34,785 INFO [DefaultQuartzScheduler_Worker-5][[]] cisco.cpm.infrastructure.utils.JGroupsFWUtil-:::::- Applying Firewall rules for jGroup

    2025-01-31 16:14:36,173 INFO [DefaultQuartzScheduler_Worker-5][[]] cisco.cpm.infrastructure.utils.JGroupsFWUtil-:::::- Applied Firewall rules for jGroup.

    2025-01-31 16:14:36,184 INFO [DefaultQuartzScheduler_Worker-5][[]] cisco.cpm.infrastructure.utils.NodeGroupFWUtil-:::::- Applying Firewall rules for node group.

    2025-01-31 16:14:38,964 INFO [DefaultQuartzScheduler_Worker-5][[]] cisco.cpm.infrastructure.utils.NodeGroupFWUtil-:::::- Applied Firewall rules for node group.

    2025-01-31 16:29:33,320 INFO [DefaultQuartzScheduler_Worker-5][[]] cisco.cpm.infrastructure.utils.FwUtil-:::::- Deployment Hosts IPs: [10.127.197.174, 10.127.197.175]iptable Hosts : [10.127.197.175, 10.127.197.174]

    2025-01-31 16:29:35,505 INFO [DefaultQuartzScheduler_Worker-5][[]] cisco.cpm.infrastructure.utils.FwUtil-:::::- syncUpfwList : DB access allowed for ips: []

    2025-01-31 16:29:37,792 INFO [DefaultQuartzScheduler_Worker-5][[]] cisco.cpm.infrastructure.utils.FwUtil-:::::- syncUpfwList : DB access disallowed for ips: []

    2025-01-31 16:29:37,793 INFO [DefaultQuartzScheduler_Worker-5][[]] cisco.cpm.infrastructure.utils.JGroupsFWUtil-:::::-Applying Firewall rules for jGroup

    2025-01-31 16:29:40,551 INFO [DefaultQuartzScheduler_Worker-5][[]] cisco.cpm.infrastructure.utils.JGroupsFWUtil-:::::-Applied Firewall rules for jGroup.

    2025-01-31 16:29:40,558 INFO [DefaultQuartzScheduler_Worker-5][[]] cisco.cpm.infrastructure.utils.NodeGroupFWUtil-:::::-Applying Firewall rules for node group.

    2025-01-31 16:29:45,254 INFO [DefaultQuartzScheduler_Worker-5][[]] cisco.cpm.infrastructure.utils.NodeGroupFWUtil-:::::-Applied Firewall rules for node group.

    ise331-ise-psc.lohg

    2025-01-31 16:00:39,945 INFO [admin-http-pool5][[]] cisco.cpm.infrastructure.utils.FwUtil-::admin:ise331:registerNode:- Deployment Hosts IPs: [10.127.197.174, 10.127.197.175]iptable Hosts : [10.127.197.174]

    2025-01-31 16:00:43,526 INFO [admin-http-pool5][[]] cisco.cpm.infrastructure.utils.FwUtil-::admin:ise331:registerNode:- syncUpfwList :DB access allowed for ips: [10.127.197.175]

    2025-01-31 16:00:46,617 INFO [admin-http-pool5][[]] cisco.cpm.infrastructure.utils.FwUtil-::admin:ise331:registerNode:- syncUpfwList : DB access disallowed for ips: []

    2025-01-31 16:00:46,617 INFO [admin-http-pool5][[]] cisco.cpm.infrastructure.utils.JGroupsFWUtil-::admin:ise331:registerNode:-Applying Firewall rules for jGroup

    2025-01-31 16:00:53,678 INFO [admin-http-pool5][[]] cisco.cpm.infrastructure.utils.JGroupsFWUtil-::admin:ise331:registerNode:-Applied Firewall rules for jGroup.

    2025-01-31 16:14:32,420 INFO [DefaultQuartzScheduler_Worker-5][[]] cisco.cpm.infrastructure.utils.FwUtil-:::::- Deployment Hosts IPs: [10.127.197.174, 10.127.197.175]iptable Hosts : [10.127.197.175, 10.127.197.174]

    2025-01-31 16:14:33,605 INFO [DefaultQuartzScheduler_Worker-5][[]] cisco.cpm.infrastructure.utils.FwUtil-:::::- syncUpfwList : DB access allowed for ips: []

    2025-01-31 16:14:34,785 INFO [DefaultQuartzScheduler_Worker-5][[]] cisco.cpm.infrastructure.utils.FwUtil-:::::- syncUpfwList : DB access disallowed for ips: []

    2025-01-31 16:14:34,785 INFO [DefaultQuartzScheduler_Worker-5][[]] cisco.cpm.infrastructure.utils.JGroupsFWUtil-:::::- Applying Firewall rules for jGroup

    2025-01-31 16:14:36,173 INFO [DefaultQuartzScheduler_Worker-5][[]] cisco.cpm.infrastructure.utils.JGroupsFWUtil-:::::- Applied Firewall rules for jGroup.

    2025-01-31 16:14:36,184 INFO [DefaultQuartzScheduler_Worker-5][[]] cisco.cpm.infrastructure.utils.NodeGroupFWUtil-:::::- Applying Firewall rules for node group.

    2025-01-31 16:14:38,964 INFO [DefaultQuartzScheduler_Worker-5][[]] cisco.cpm.infrastructure.utils.NodeGroupFWUtil-:::::- Applied Firewall rules for node group.

    2025-01-31 16:29:33,320 INFO [DefaultQuartzScheduler_Worker-5][[]] cisco.cpm.infrastructure.utils.FwUtil-:::::- Deployment Hosts IPs: [10.127.197.174, 10.127.197.175]iptable Hosts : [10.127.197.175, 10.127.197.174]

    2025-01-31 16:29:35,505 INFO [DefaultQuartzScheduler_Worker-5][[]] cisco.cpm.infrastructure.utils.FwUtil-:::::- syncUpfwList : DB access allowed for ips: []

    2025-01-31 16:29:37,792 INFO [DefaultQuartzScheduler_Worker-5][[]] cisco.cpm.infrastructure.utils.FwUtil-:::::- syncUpfwList : DB access disallowed for ips: []

    2025-01-31 16:29:37,793 INFO [DefaultQuartzScheduler_Worker-5][[]] cisco.cpm.infrastructure.utils.JGroupsFWUtil-:::::-Applying Firewall rules for jGroup

    2025-01-31 16:29:40,551 INFO [DefaultQuartzScheduler_Worker-5][[]] cisco.cpm.infrastructure.utils.JGroupsFWUtil-:::::-Applied Firewall rules for jGroup.

    2025-01-31 16:29:40,558 INFO [DefaultQuartzScheduler_Worker-5][[]] cisco.cpm.infrastructure.utils.NodeGroupFWUtil-:::::-Applying Firewall rules for node group.

    2025-01-31 16:29:45,254 INFO [DefaultQuartzScheduler_Worker-5][[]] cisco.cpm.infrastructure.utils.NodeGroupFWUtil-:::::-Applied Firewall rules for node group.

    Step 9: Datadump export until the current system change number (SCN) and transferring files to ise331

    ise330-ade.log

    2025-01-31T16:02:41.682824+05:30 ise330 root: info:[sync_export.sh]Starting the datadump export for sync identifier b33db240-dfbe-11ef-bb78-12467b70bb3d...

    2025-01-31T16:02:43.545110+05:30 ise330 root: info:[sync_export.sh] SCN retrieved for sync identifier b33db240-dfbe-11ef-bb78-12467b70bb3d... now starting export for CSCN 6022419 and host ise330025-01-31T16:09:35.095186+05:30 ise330 root: info:[sync_export.sh]Export success for sync identifier b33db240-dfbe-11ef-bb78-12467b70bb3d...

    ise330-replication.log

    2025-01-31 16:02:41,563 INFO [Deployment-Sync-Manager-Thread-0][[]] cisco.epm.fullsync.primary.PrimarySyncManager -::::FullSync:-Processing Sync Requests
    2025-01-31 16:02:41,563 INFO [Deployment-Sync-Manager-Thread-0][[]] class com.cisco.epm.fullsync.FullSyncInfoHelper -::::FullSync:- updateFullSyncStatus:a31cab00-dfbe-11ef-bb78-12467b70bb3d,null
    2025-01-31 16:02:41,572 INFO [Deployment-Sync-Manager-Thread-0][[]] cisco.epm.fullsync.primary.PrimarySyncManager -::::FullSync:-Found 1 sync requests.
    2025-01-31 16:02:41,572 INFO [Deployment-Sync-Manager-Thread-0][[]] class com.cisco.epm.fullsync.FullSyncInfoHelper -:::b33db240-dfbe-11ef-bb78-12467b70bb3d:FullSync:-updateFullSyncStatus:a31cab00-dfbe-11ef-bb78-12467b70bb3d,b33db240-dfbe-11ef-bb78-12467b70bb3d2025-01-31 16:02:41,584 INFO [Deployment-Sync-Manager-Thread-0][[]] class com.cisco.epm.fullsync.ExportImportExecutor -:::b33db240-dfbe-11ef-bb78-12467b70bb3d:FullSync:-Tracking RegistrationAndSync - export script started for identifier [b33db240-dfbe-11ef-bb78-12467b70bb3d]
    2025-01-31 16:02:41,586 INFO [Deployment-Sync-Manager-Thread-0][[]] class com.cisco.epm.fullsync.ExportImportExecutor -:::b33db240-dfbe-11ef-bb78-12467b70bb3d:FullSync:

    2025-01-31 16:09:40,602 INFO [Deployment-Sync-Manager-Thread-0][[]] class com.cisco.epm.fullsync.ExportImportExecutor -:::b33db240-dfbe-11ef-bb78-12467b70bb3d:FullSync:- Tracking RegistrationAndSync -export script finished for identifier [b33db240-dfbe-11ef-bb78-12467b70bb3d] returnVal + 0
    2025-01-31 16:09:40,602 INFO [Deployment-Sync-Manager-Thread-0][[]] cisco.epm.fullsync.primary.PrimarySyncManager -:::b33db240-dfbe-11ef-bb78-12467b70bb3d:FullSync:-DB Export Completed: returnValue : 0
    2025-01-31 16:09:40,603 INFO [Deployment-Sync-Manager-Thread-0][[]] cisco.epm.fullsync.primary.PrimarySyncManager -:::b33db240-dfbe-11ef-bb78-12467b70bb3d:FullSync:-Exported the DB Dump:/opt/oracle/base/admin/cpm10/dpdump/cpmsync_b33db240-dfbe-11ef-bb78-12467b70bb3d.dmp Size(bytes): 131614567
    2025-01-31 16:09:40,606 INFO [Deployment-Sync-Manager-Thread-0][[]] class com.cisco.epm.fullsync.FileUtil -:::b33db240-dfbe-11ef-bb78-12467b70bb3d:FullSync:- Tracking RegistrationAndSync -Creating file /opt/oracle/base/admin/cpm10/dpdump/config_b33db240-dfbe-11ef-bb78-12467b70bb3d.properties
    2025-01-31 16:09:40,606 INFO [Deployment-Sync-Manager-Thread-0][[]] class com.cisco.epm.fullsync.FileUtil -:::b33db240-dfbe-11ef-bb78-12467b70bb3d:FullSync:- Tracking RegistrationAndSync -Created file /opt/oracle/base/admin/cpm10/dpdump/config_b33db240-dfbe-11ef-bb78-12467b70bb3d.properties
    2025-01-31 16:09:40,606 INFO [Deployment-Sync-Manager-Thread-0][[]] cisco.epm.fullsync.primary.PrimarySyncManager -:::b33db240-dfbe-11ef-bb78-12467b70bb3d:FullSync:- Created properties file
    2025-01-31 16:09:40,606 INFO [Deployment-Sync-Manager-Thread-0][[]] class com.cisco.epm.fullsync.FileUtil -:::b33db240-dfbe-11ef-bb78-12467b70bb3d:FullSync:- Creating file /opt/oracle/base/admin/cpm10/dpdump/primaryCert_b33db240-dfbe-11ef-bb78-12467b70bb3d.jks
    2025-01-31 16:09:40,688 INFO [Deployment-Sync-Manager-Thread-0][[]] class com.cisco.epm.fullsync.FileUtil -:::b33db240-dfbe-11ef-bb78-12467b70bb3d:FullSync:- Created file /opt/oracle/base/admin/cpm10/dpdump/primaryCert_b33db240-dfbe-11ef-bb78-12467b70bb3d.jks
    2025-01-31 16:09:40,688 INFO [Deployment-Sync-Manager-Thread-0][[]] cisco.epm.fullsync.primary.PrimarySyncManager -:::b33db240-dfbe-11ef-bb78-12467b70bb3d:FullSync:- Created cert
    2025-01-31 16:09:40,688 INFO [Deployment-Sync-Manager-Thread-0][[]] class com.cisco.epm.fullsync.FullSyncInfoHelper -:::b33db240-dfbe-11ef-bb78-12467b70bb3d:FullSync:- updateFullSyncStatus:a31cab00-dfbe-11ef-bb78-12467b70bb3d,b33db240-dfbe-11ef-bb78-12467b70bb3d
    2025-01-31 16:09:40,696 INFO [Deployment-Sync-Manager-Thread-0][[]] cisco.epm.fullsync.primary.PrimarySyncManager -:::b33db240-dfbe-11ef-bb78-12467b70bb3d:FullSync:- Sync request hostFQDN[ise331.tac.local] exportFilePath[/opt/oracle/base/admin/cpm10/dpdump/cpmsync_b33db240-dfbe-11ef-bb78-12467b70bb3d.dmp] syncRequestIdentifier[b33db240-dfbe-11ef-bb78-12467b70bb3d] syncRequestTime[Fri Jan 31 16:14:40 IST 2025] syncStatus[SYNC_INPROGRESS] transientSyncStatus[DBEXPORT_SUCCEEDED] syncRequestType[REGISTER]
    2025-01-31 16:09:40,697 INFO [Deployment-Sync-Manager-Thread-0][[]] cisco.epm.fullsync.primary.PrimarySyncManager -:::b33db240-dfbe-11ef-bb78-12467b70bb3d:FullSync:- Added future object to the Map with key :ise331b33db240-dfbe-11ef-bb78-12467b70bb3d, the syncThreadsFutureMap: {ise331b33db240-dfbe-11ef-bb78-12467b70bb3d=java.util.concurrent.FutureTask@25d5b491}
    2025-01-31 16:09:40,697 INFO [Deployment-Sync-Manager-Thread-0][[]] cisco.epm.fullsync.primary.PrimarySyncManager -:::b33db240-dfbe-11ef-bb78-12467b70bb3d:FullSync:- the timeout set for the Executor thread pool is :300 (minutes)
    2025-01-31 16:09:40,697 INFO [Deployment-SyncRequest-Thread-0][[]] class com.cisco.epm.fullsync.AbstractSyncRequest -:::::- Sync thread Deployment-SyncRequest-Thread-0 execution started for the host :ise331, sync identifier :b33db240-dfbe-11ef-bb78-12467b70bb3d
    2025-01-31 16:09:40,697 INFO [Deployment-SyncRequest-Thread-0][[]] class com.cisco.epm.fullsync.AbstractSyncRequest -:::::- overriding the sync start time from Fri Jan 31 16:14:40 IST 2025 to Fri Jan 31 16:09:40 IST 2025

    Transferring Sync files

    2025-01-31 16:09:40,697 INFO [Deployment-SyncRequest-Thread-0][[]] class com.cisco.epm.fullsync.AbstractSyncRequest -:::::-Transferring sync files...
    2025-01-31 16:09:40,697 INFO [Deployment-SyncRequest-Thread-0][[]] class com.cisco.epm.fullsync.FullSyncInfoHelper -:::::- updateFullSyncStatus:a31cab00-dfbe-11ef-bb78-12467b70bb3d,b33db240-dfbe-11ef-bb78-12467b70bb3d
    2025-01-31 16:09:40,705 INFO [Deployment-SyncRequest-Thread-0][[]] class com.cisco.epm.fullsync.HttpClientHelper -:::::- Tracking RegistrationAndSync - File Name : [ cpmsync_b33db240-dfbe-11ef-bb78-12467b70bb3d.dmp], Size in bytes : [ 131614567 ]
    2025-01-31 16:09:40,705 INFO [Deployment-SyncRequest-Thread-0][[]] class com.cisco.epm.fullsync.HttpClientHelper -:::::- Tracking RegistrationAndSync - File Name : [ primaryCert_b33db240-dfbe-11ef-bb78-12467b70bb3d.jks], Size in bytes : [ 25683 ]
    2025-01-31 16:09:40,705 INFO [Deployment-SyncRequest-Thread-0][[]] class com.cisco.epm.fullsync.HttpClientHelper -:::::- Tracking RegistrationAndSync - File Name : [ config_b33db240-dfbe-11ef-bb78-12467b70bb3d.properties], Size in bytes : [ 263 ]
    2025-01-31 16:09:40,706 INFO [Deployment-SyncRequest-Thread-0][[]] class com.cisco.epm.fullsync.HttpClientHelper -:::::- Tracking RegistrationAndSync - File Name : [ repo_random.key], Size in bytes : [ 24 ]
    2025-01-31 16:09:41,920 INFO [Deployment-SyncRequest-Thread-0][[]] class com.cisco.epm.fullsync.HttpClientHelper -:::::- Creating http connection manager
    2025-01-31 16:09:42,002 INFO [Deployment-SyncRequest-Thread-0][[]] class com.cisco.epm.fullsync.HttpClientHelper -:::::- Setting credentials on http client
    2025-01-31 16:09:42,002 INFO [Deployment-SyncRequest-Thread-0][[]] class com.cisco.epm.fullsync.HttpClientHelper -:::::- Tracking RegistrationAndSync -Starting transfering the file to the secondary node ise331.tac.local
    2025-01-31 16:09:42,002 INFO [Deployment-SyncRequest-Thread-0][[]] class com.cisco.epm.fullsync.HttpClientHelper -:::::- Tracking RegistrationAndSync -the secondary url ishttps://ise331.tac.local/deployment-rpc/uploadSyncFiles

    2025-01-31 16:09:52,567 WARN [Deployment-SyncRequest-Thread-0][[]] class com.cisco.epm.fullsync.HttpClientHelper -:::::-Successfully Transferd the file to the secondary node ise331.tac.local
    2025-01-31 16:09:52,568 WARN [Deployment-SyncRequest-Thread-0][[]] class com.cisco.epm.fullsync.HttpClientHelper -:::::- Upload complete, response=
    2025-01-31 16:09:52,568 INFO [Deployment-SyncRequest-Thread-0][[]] class com.cisco.epm.fullsync.FullSyncInfoHelper -:::::- updateFullSyncStatus:a31cab00-dfbe-11ef-bb78-12467b70bb3d,b33db240-dfbe-11ef-bb78-12467b70bb3d
    2025-01-31 16:09:52,570 INFO [Deployment-SyncRequest-Thread-0][[]] class com.cisco.epm.fullsync.AbstractSyncRequest -:::::-Sync files transferred. Now starting the sync process on secondary node...

    Step 10: Receiving files from ise330

    ise331-replication.log

    2025-01-31 16:09:45,814 INFO[admin-http-pool14][[]] cpm.infrastructure.deployment.rpc.DeploymentRegistrationListener -:::::-Tracking RegistrationAndSync - starting receiveSyncFiles PAP:

    2025-01-31 16:09:45,819 INFO[admin-http-pool14][[]] cpm.infrastructure.deployment.rpc.DeploymentRegistrationListener -:::::- Tracking RegistrationAndSync - Inside downloadSyncFilesAndVerify : Request org.apache.catalina.connector.RequestFacade@524def8e Response :org.apache.catalina.connector.ResponseFacade@51b18399

    2025-01-31 16:09:45,821 INFO[admin-http-pool14][[]] cpm.infrastructure.deployment.rpc.DeploymentRegistrationListener -:::::- The max upload file count for sync set to : 6

    2025-01-31 16:09:48,164 INFO[admin-http-pool14][[]] cpm.infrastructure.deployment.rpc.DeploymentRegistrationListener -:::::- Number of items downloaded : 6

    2025-01-31 16:09:48,190 INFO[admin-http-pool14][[]] cpm.infrastructure.deployment.rpc.DeploymentRegistrationListener -:::::- FileItem name : cpmsync_b33db240-dfbe-11ef-bb78-12467b70bb3d.dmp

    2025-01-31 16:09:49,228 WARN[admin-http-pool14][[]] cpm.infrastructure.deployment.rpc.DeploymentRegistrationListener -:::::- secondaryCheckSum [9d2a72222b701adc69f8f70a85e83eca3bbeead3fe025fbac94e9d77fc8fb269]

    2025-01-31 16:09:49,229 INFO[admin-http-pool14][[]] cpm.infrastructure.deployment.rpc.DeploymentRegistrationListener -:::::- Field Name = cpmsync_b33db240-dfbe-11ef-bb78-12467b70bb3d.dmp,File Name = null,Content type = null,File Size = 131614567

    2025-01-31 16:09:49,229 INFO[admin-http-pool14][[]] cpm.infrastructure.deployment.rpc.DeploymentRegistrationListener -:::::- Saving file : cpmsync_b33db240-dfbe-11ef-bb78-12467b70bb3d.dmp

    2025-01-31 16:09:49,229 INFO[admin-http-pool14][[]] cpm.infrastructure.deployment.rpc.DeploymentRegistrationListener -:::::- Saved file : cpmsync_b33db240-dfbe-11ef-bb78-12467b70bb3d.dmp

    2025-01-31 16:09:49,229 INFO[admin-http-pool14][[]] cpm.infrastructure.deployment.rpc.DeploymentRegistrationListener -:::::- FileItem name : primaryCert_b33db240-dfbe-11ef-bb78-12467b70bb3d.jks

    2025-01-31 16:09:49,229 INFO[admin-http-pool14][[]] cpm.infrastructure.deployment.rpc.DeploymentRegistrationListener -:::::- Field Name = primaryCert_b33db240-dfbe-11ef-bb78-12467b70bb3d.jks,File Name = null,Content type = null,File Size = 25683

    2025-01-31 16:09:49,229 INFO[admin-http-pool14][[]] cpm.infrastructure.deployment.rpc.DeploymentRegistrationListener -:::::- Saving file : primaryCert_b33db240-dfbe-11ef-bb78-12467b70bb3d.jks

    2025-01-31 16:09:49,229 INFO[admin-http-pool14][[]] cpm.infrastructure.deployment.rpc.DeploymentRegistrationListener -:::::- Saved file : primaryCert_b33db240-dfbe-11ef-bb78-12467b70bb3d.jks

    2025-01-31 16:09:49,229 INFO[admin-http-pool14][[]] cpm.infrastructure.deployment.rpc.DeploymentRegistrationListener -:::::- FileItem name : config_b33db240-dfbe-11ef-bb78-12467b70bb3d.properties

    2025-01-31 16:09:49,229 INFO[admin-http-pool14][[]] cpm.infrastructure.deployment.rpc.DeploymentRegistrationListener -:::::- Field Name = config_b33db240-dfbe-11ef-bb78-12467b70bb3d.properties,File Name = null,Content type = null,File Size = 263

    2025-01-31 16:09:49,229 INFO[admin-http-pool14][[]] cpm.infrastructure.deployment.rpc.DeploymentRegistrationListener -:::::- Saving file : config_b33db240-dfbe-11ef-bb78-12467b70bb3d.properties

    2025-01-31 16:09:49,229 INFO[admin-http-pool14][[]] cpm.infrastructure.deployment.rpc.DeploymentRegistrationListener -:::::- Saved file : config_b33db240-dfbe-11ef-bb78-12467b70bb3d.properties

    2025-01-31 16:09:49,229 INFO[admin-http-pool14][[]] cpm.infrastructure.deployment.rpc.DeploymentRegistrationListener -:::::- FileItem name : repo_random.key

    2025-01-31 16:09:49,229 INFO[admin-http-pool14][[]] cpm.infrastructure.deployment.rpc.DeploymentRegistrationListener -:::::- Field Name = repo_random.key,File Name = null,Content type = null,File Size = 24

    2025-01-31 16:09:49,229 INFO[admin-http-pool14][[]] cpm.infrastructure.deployment.rpc.DeploymentRegistrationListener -:::::- Saving file : repo_random.key

    2025-01-31 16:09:49,229 INFO[admin-http-pool14][[]] cpm.infrastructure.deployment.rpc.DeploymentRegistrationListener -:::::- Saved file : repo_random.key

    2025-01-31 16:09:49,229 INFO[admin-http-pool14][[]] cpm.infrastructure.deployment.rpc.DeploymentRegistrationListener -:::::- FileItem name : checkSum

    2025-01-31 16:09:49,229 INFO[admin-http-pool14][[]] cpm.infrastructure.deployment.rpc.DeploymentRegistrationListener -:::::- FileItem name : syncRequestIdentifier

    2025-01-31 16:09:49,229 INFO[admin-http-pool14][[]] cpm.infrastructure.deployment.rpc.DeploymentRegistrationListener -:::::-Tracking RegistrationAndSync - about to validateAndPrepareForSync

    2025-01-31 16:09:49,243 INFO[admin-http-pool14][[]] cisco.epm.fullsync.secondary.SecondarySyncHelper -:::::-files downloaded )cpmsync_b33db240-dfbe-11ef-bb78-12467b70bb3d.dmpconfig_b33db240-dfbe-11ef-bb78-12467b70bb3d.propertiesprimaryCert_b33db240-dfbe-11ef-bb78-12467b70bb3d.jks

    2025-01-31 16:09:50,294 INFO[admin-http-pool14][[]] cisco.epm.fullsync.secondary.SecondarySyncHelper -:::::- secondaryCheckSum [9d2a72222b701adc69f8f70a85e83eca3bbeead3fe025fbac94e9d77fc8fb269] primaryCheckSum [9d2a72222b701adc69f8f70a85e83eca3bbeead3fe025fbac94e9d77fc8fb269]

    2025-01-31 16:09:52,544 INFO[admin-http-pool14][[]] cpm.infrastructure.deployment.rpc.DeploymentRegistrationListener -:::::- Tracking RegistrationAndSync - completed receiveSyncFilesTracking RegistrationAndSync -

    2025-01-31 16:09:52,901 INFO[admin-http-pool14][[]] cpm.infrastructure.deployment.rpc.DeploymentRegistrationListener -:::::- Tracking RegistrationAndSync - about to startSync

    2025-01-31 16:09:52,902 INFO[admin-http-pool14][[]] cpm.infrastructure.deployment.rpc.DeploymentRegistrationListener -:::::- Received syncRequestIdentifier from PAP: b33db240-dfbe-11ef-bb78-12467b70bb3d

    2025-01-31 16:09:52,902 INFO[admin-http-pool14][[]] cpm.infrastructure.deployment.rpc.DeploymentRegistrationListener -:::::- Received secondaryHostName from PAP: ise331.tac.local

    2025-01-31 16:09:52,902 INFO[admin-http-pool14][[]] cpm.infrastructure.deployment.rpc.DeploymentRegistrationListener -:::::- Received primUserDbPwd from PAP

    2025-01-31 16:09:52,902 INFO[admin-http-pool14][[]] cpm.infrastructure.deployment.rpc.DeploymentRegistrationListener -:::::- Received dataDirectDbPwd from PAP

    2025-01-31 16:09:52,902 INFO[admin-http-pool14][[]] cpm.infrastructure.deployment.rpc.DeploymentRegistrationListener -:::::- Received nodeExporterPwd from PAP

    2025-01-31 16:09:52,902 INFO[admin-http-pool14][[]] cpm.infrastructure.deployment.rpc.DeploymentRegistrationListener -:::::- Received piProfilerMetricPwd from PAP

    2025-01-31 16:09:52,902 INFO[admin-http-pool14][[]] cpm.infrastructure.deployment.rpc.DeploymentRegistrationListener -:::::- Received primKekKey from PAP

    2025-01-31 16:09:52,902 INFO[admin-http-pool14][[]] cpm.infrastructure.deployment.rpc.DeploymentRegistrationListener -:::::-Received papAdminPwd from PAP

    2025-01-31 16:09:52,902 INFO[admin-http-pool14][[]] cpm.infrastructure.deployment.rpc.DeploymentRegistrationListener -:::::-Received syncRequestType from PAP: REGISTER

    2025-01-31 16:09:52,902 INFO[admin-http-pool14][[]] cpm.infrastructure.deployment.rpc.DeploymentRegistrationListener -:::::-About to invoke startImportSyncPollerScript

    2025-01-31 16:09:52,902 INFO[admin-http-pool14][[]] cisco.epm.fullsync.secondary.SecondarySyncManager -:::::- Invoke sync poller to wait for sync completion ise331.tac.local b33db240-dfbe-11ef-bb78-12467b70bb3d [PrimaryDBPSWD] REGISTER

    2025-01-31 16:09:53,082 INFO[admin-http-pool14][[]] cisco.epm.fullsync.secondary.SecondarySyncManager -:::::- returning sync poller to wait for sync completion

    2025-01-31 16:09:53,083 INFO[admin-http-pool14][[]] cpm.infrastructure.deployment.rpc.DeploymentRegistrationListener -:::::-invoked startImportSyncPollerScript

    2025-01-31 16:10:16,217 DEBUG[main][[]] cisco.cpm.cluster.impl.BaseServiceInvoker -:::::-Registering NodeInfoService

    2025-01-31 16:11:29,181 INFO[main][[]] cisco.epm.fullsync.secondary.SecondarySyncManager -:::b33db240-dfbe-11ef-bb78-12467b70bb3d:FullSync:- Sending Transient Sync status:DBIMPORT_INITIATED, Node Sync Status:SYNC_INPROGRESS to PAP. Sync req id : b33db240-dfbe-11ef-bb78-12467b70bb3d

    2025-01-31 16:11:29,199 INFO[main][[]] class com.cisco.epm.fullsync.FileUtil -:::b33db240-dfbe-11ef-bb78-12467b70bb3d:FullSync:- Reading primary node info from : /opt/oracle/base/admin/cpm10/dpdump/config_b33db240-dfbe-11ef-bb78-12467b70bb3d.properties

    2025-01-31 16:11:29,199 INFO[main][[]] class com.cisco.epm.fullsync.HttpClientHelper -:::b33db240-dfbe-11ef-bb78-12467b70bb3d:FullSync:- syncRequestIdentifier..local value : b33db240-dfbe-11ef-bb78-12467b70bb3d & syncRequestIdentifier in config file : b33db240-dfbe-11ef-bb78-12467b70bb3d

    2025-01-31 16:11:29,199 INFO[main][[]] class com.cisco.epm.fullsync.HttpClientHelper -:::b33db240-dfbe-11ef-bb78-12467b70bb3d:FullSync:- Sending sync status to [https://ise330.tac.local/deployment-rpc/updateSyncStatus] for syncRequestIdentifier b33db240-dfbe-11ef-bb78-12467b70bb3d

    2025-01-31 16:11:29,199 INFO[main][[]] class com.cisco.epm.fullsync.HttpClientHelper -:::b33db240-dfbe-11ef-bb78-12467b70bb3d:FullSync:- Creating http connection manager

    2025-01-31 16:11:29,212 DEBUG[main][[]] class com.cisco.epm.fullsync.HttpClientHelper -:::b33db240-dfbe-11ef-bb78-12467b70bb3d:FullSync:- syncRequestIdentifier ---> b33db240-dfbe-11ef-bb78-12467b70bb3d

    2025-01-31 16:12:27,369 INFO[main][[]] class com.cisco.epm.fullsync.HttpClientHelper -:::b33db240-dfbe-11ef-bb78-12467b70bb3d::- Setting credentials on http client

    2025-01-31 16:12:27,744 INFO[main][[]] class com.cisco.epm.fullsync.HttpClientHelper -:::b33db240-dfbe-11ef-bb78-12467b70bb3d::- Successfully udpated primary with the sync status

    Step 11: DB import on ise331

    ise331-replication.log

    2025-01-31 16:12:27,746 INFO[main][[]] class com.cisco.epm.fullsync.DbImportDaemon -:::b33db240-dfbe-11ef-bb78-12467b70bb3d::-Starting DB import..

    2025-01-31 16:12:27,746 INFO[main][[]] class com.cisco.epm.fullsync.DbImportDaemon -:::b33db240-dfbe-11ef-bb78-12467b70bb3d::- Script to run [ /usr/bin/sudo /opt/CSCOcpm/bin/sync_import.sh ise331.tac.local b33db240-dfbe-11ef-bb78-12467b70bb3d REGISTER ]

    2025-01-31 16:16:20,351 INFO[main][[]] class com.cisco.epm.fullsync.DbImportDaemon -:::b33db240-dfbe-11ef-bb78-12467b70bb3d::-DB import completed.

    2025-01-31 16:16:20,351 INFO[main][[]] class com.cisco.epm.fullsync.DbImportDaemon -:::b33db240-dfbe-11ef-bb78-12467b70bb3d::- Script to run [ /usr/bin/sudo /opt/CSCOcpm/bin/setdbpw.sh primaryUserDbPWD ]

    2025-01-31 16:18:32,753 INFO[main][[]] class com.cisco.epm.fullsync.DbImportDaemon -:::b33db240-dfbe-11ef-bb78-12467b70bb3d::- DB password is reset.

    2025-01-31 16:18:32,754 INFO[main][[]] cisco.epm.fullsync.secondary.SecondarySyncManager -:::b33db240-dfbe-11ef-bb78-12467b70bb3d::- Sending Transient Sync status:SECONDARY_SYNC_COMPLETED, Node Sync Status: SYNC_COMPLETED to PAP

    ise331-ade.log

    2025-01-31T16:12:30.546657+05:30 ise331 root: info:[sync_import.sh] b33db240-dfbe-11ef-bb78-12467b70bb3d:Starting the datadump import ...

    2025-01-31T16:16:19.734878+05:30 ise331 root: info:[application:operation:sync_import.sh] b33db240-dfbe-11ef-bb78-12467b70bb3d:DB Sync Import successfully completed

    Deleting DB after import is completed

    2025-01-31T16:16:19.895863+05:30 ise331 root: info:[application:operation:sync_import.sh]Deleting provisioning resources from DB after sync completed ...

    2025-01-31T16:16:20.341542+05:30 ise331 root: info:[application:operation:sync_import.sh] b33db240-dfbe-11ef-bb78-12467b70bb3d:Released the DATABASE_SYNCIMPORT Lock

    2025-01-31T16:16:20.345768+05:30 ise331 root: info:[application:operation:sync_import.sh] b33db240-dfbe-11ef-bb78-12467b70bb3d:Datadump import process completed

    2025-01-31T16:16:20.738342+05:30 ise331 root: info:[application:operation:setdbpw.sh]Resetting internal DB user password to match that of ISE Primary

    Step 12: Updating sync completion status to ise330

    ise331-replication.log

    2025-01-31 16:18:32,754 INFO[main][[]] cisco.epm.fullsync.secondary.SecondarySyncManager -:::b33db240-dfbe-11ef-bb78-12467b70bb3d::- Sending Transient Sync status:SECONDARY_SYNC_COMPLETED,Node Sync Status: SYNC_COMPLETED to PAP. Sync req id : b33db240-dfbe-11ef-bb78-12467b70bb3d

    2025-01-31 16:29:59,419 INFO[Psc-SyncStatusUpdaterJob-Thread][[]] Replication-Deployment.PrimaryNodeProxy -:::b33db240-dfbe-11ef-bb78-12467b70bb3d:FullSync:- Sending ise331's sync statusSYNC_COMPLETEDafter full sync to Primary, objId: a31cab00-dfbe-11ef-bb78-12467b70bb3d, syncReqId: b33db240-dfbe-11ef-bb78-12467b70bb3d, hostConfigMdDate: 2025-01-31 16:16:19.880098

    ise330-replication.log

    2025-01-31 16:29:59,429 INFO[OOB-8,ISERepCluster-F3ixn,ise330-46234][[]] cisco.cpm.deployment.replication.MasterNodeHandlerImpl -:::b33db240-dfbe-11ef-bb78-12467b70bb3d:FullSync:-Recieved status:SYNC COMPLETED,objid:a31cab00-dfbe-11ef-bb78-12467b70bb3d,syncReqId:b33db240-dfbe-11ef-bb78-12467b70bb3d,hostconfigModDt:2025-01-31 16:16:19.880098 from ise331

    2025-01-31 16:29:59,480 INFO[OOB-8,ISERepCluster-F3ixn,ise330-46234][[]] cisco.cpm.deployment.replication.MasterNodeHandlerImpl -:::b33db240-dfbe-11ef-bb78-12467b70bb3d:FullSync:-The update is for the latest full sync information found in the database.

    2025-01-31 16:29:59,480 INFO[OOB-8,ISERepCluster-F3ixn,ise330-46234][[]] cisco.cpm.deployment.replication.MasterNodeHandlerImpl -:::b33db240-dfbe-11ef-bb78-12467b70bb3d:FullSync:- Updating ise331's status fromIN PROGRESS to SYNC COMPLETED

    Alarms related to node sync issues

    • Slow replication Info
    • Slow replication warning
    • Slow replication Error
    • Replication failed
    • Replication Stopped
    • Node out of sync

    Known Defects

    Bug ID

    Description

    CSCwj67089

    Cisco ISE app server crashes while importing large files to secondary node through local disk management.

    CSCwi78722

    Azure VM: Not able to register node to deployment.

    CSCwh70275

    While registering node with left over certificates from deregistration, the certificates that are currently in use get deleted.

    CSCwh08408

    Cisco ISE Release 3.3 cannot register new nodes to the deployment post upgrade due to the node exporter password not being found.

    Revision History

    Revision Publish Date Comments
    1.0
    13-Mar-2025
    Initial Release
    TAC Authored

    Contributed by Cisco Engineers

    • Kanamarlapudi Venkata Lakshmi Bhargavi
      Technical Consulting Engineer

    Was this Document Helpful?

    FeedbackFeedback

    Contact Cisco

    This Document Applies to These Products
