Applicability

Splunk Synthetics Monitoring

Description

There is an option to link Synthetic spans to APM spans, to follow the story of data from front-end to back-end.

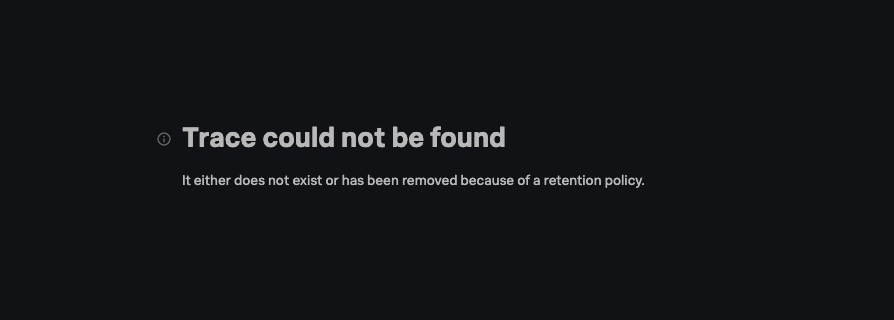

However, it could happen that in some tests, when clicking on APM link icon, it results with “Trace not found” info:





Investigation

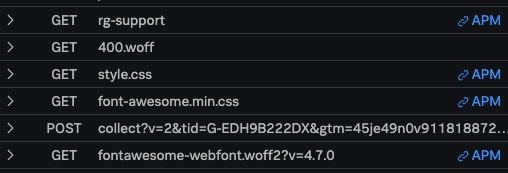

  • First, check if APM link appears next to the span in the waterfall view of run results page:

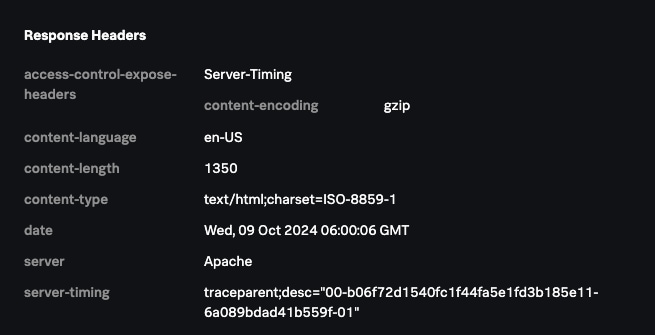

  • then, expand one of these spans and validate that server-timing header is present:



Resolution

To fix:

  • If the required header is present but  "trace not found" error is still displayed
    • check the token used by the application to send spans to Splunk APM.
    • This issue can occur if APM trace data is being sent with an expired token, causing it to be dropped.
      • Meanwhile, Synthetics data might still be accepted if it’s sent using a valid token.
    • Once the token gets updated to a valid one, the links begin to work.

Link Synthetic spans to apm spans
