View RUM Session Usage by Access Token Using Usage Analysis Metrics
Available Languages
Applicability
Splunk Real User MonitoringDescription

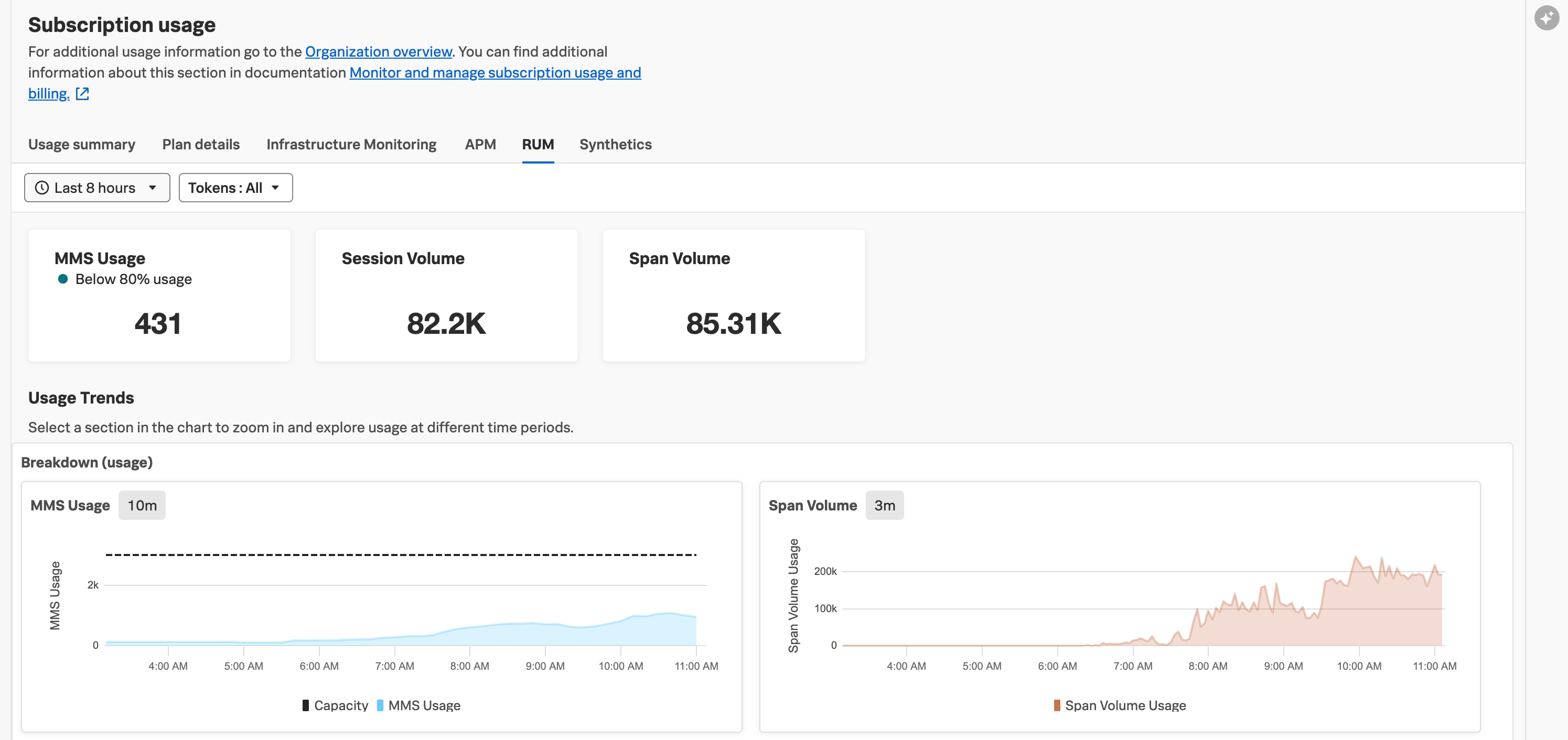

RUM licensing is based on the number of sessions collected. The Settings > Subscription Usage > RUM page displays overall session usage but does not provide a breakdown by individual access token.
Organizations that use multiple RUM access tokens may need to determine:
- Which access token is generating RUM sessions.
- How many sessions are associated with each token.
- Which applications are responsible for the highest usage.
This information is also available from the Subscription Usage page but can be used via Usage Analysis metrics. Filer "Token:All" is applied by default. Can be changed to any specific token to see the data.
Investigation
Verify whether token-level usage information is required rather than the aggregate subscription usage.
Navigate to:
Metrics → Usage Analysis
Most organization usage metrics include the tokenId dimension, which can be used to filter or group usage by access token.
The following RUM usage metrics are available:
| Metric | Description |
|---|---|

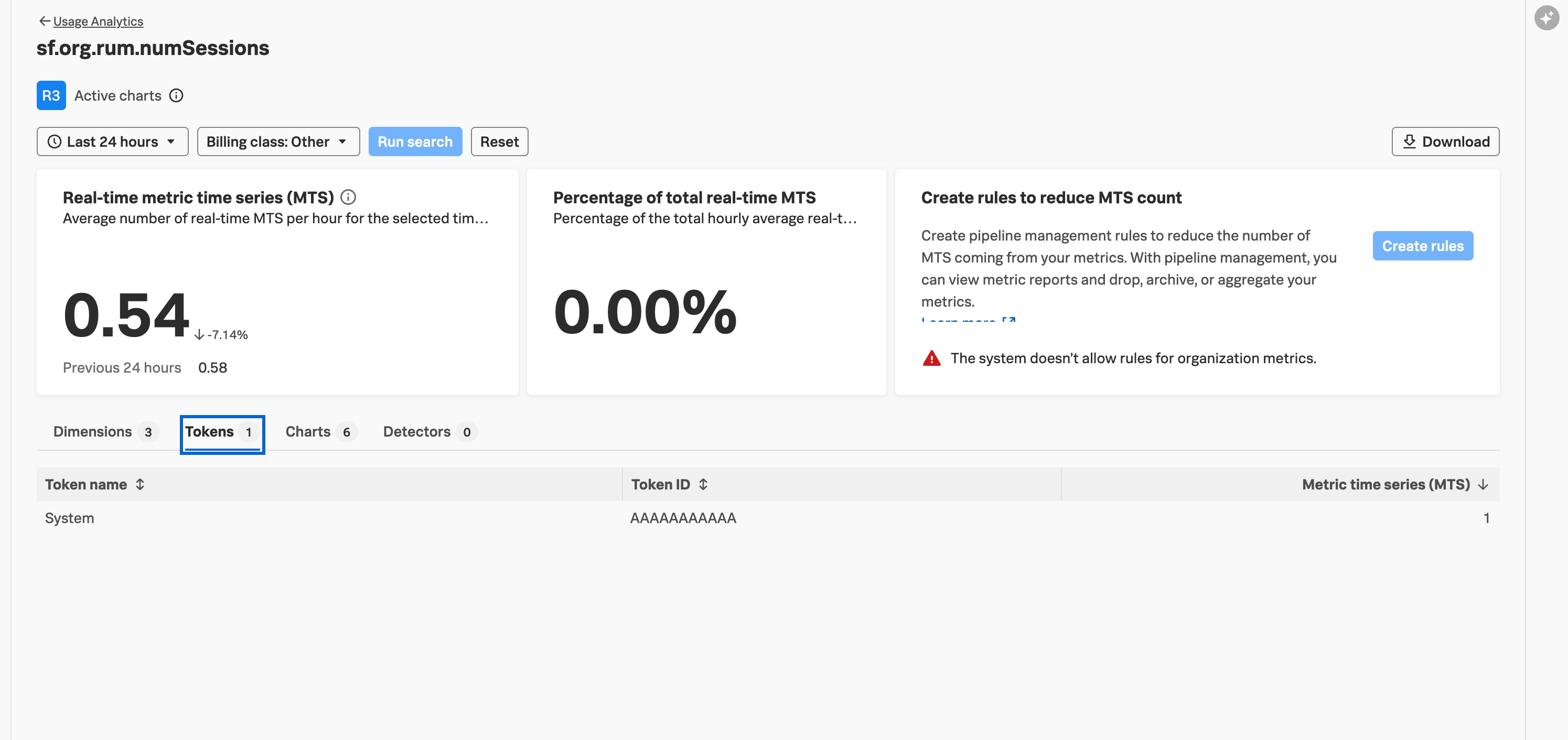

| sf.org.rum.numSessions | Number of RUM sessions received. Supports the tokenId dimension. If the metric is not immediately visible, select Run full search. |
| sf.org.rum.numSpansReceivedByToken | Number of RUM spans received for each access token. |
| sf.org.rum.subscription.sessionsPerMonth | Monthly RUM session usage. Can also be used to analyze usage by token. |
| sf.org.numRumMonitoringMetricSetMetricsByToken | Number of Monitoring MetricSets associated with each token. |
Another option is to create a chart using one of these metrics and group or filter the data by the tokenId dimension.
Resolution
Use Metrics → Usage Analysis instead of Settings → Subscription Usage when token-level visibility is required.
The Usage Analysis metrics expose the tokenId dimension, allowing RUM usage to be analyzed for individual access tokens.
Current capabilities include:
- Viewing RUM sessions per token.
- Viewing spans received per token.
- Viewing monthly session usage by token.
- Viewing Monitoring MetricSet usage by token.
The Subscription Usage pages continue to display organization-wide totals and do not currently provide a per-token breakdown.
If sf.org.rum.numSessions does not appear in the metric search, select Run full search to display all available usage metrics.
Additional Information
For more information about RUM subscription usage, see the Splunk documentation:
Revision History
| Revision | Publish Date | Comments |
|---|---|---|
1.0 |
01-Oct-2026
|
Initial Release |
