"itsi_entities" lookup fails to match with uppercase entities

Available Languages

Updated:September 29, 2026

Document ID:SPLK047204

Bias-Free Language

The documentation set for this product strives to use bias-free language. For the purposes of this documentation set, bias-free is defined as language that does not imply discrimination based on age, disability, gender, racial identity, ethnic identity, sexual orientation, socioeconomic status, and intersectionality. Exceptions may be present in the documentation due to language that is hardcoded in the user interfaces of the product software, language used based on RFP documentation, or language that is used by a referenced third-party product. Learn more about how Cisco is using Inclusive Language.

Applicability

Splunk IT Service Intelligence

Description

Two entities exist in ITSI with the same configuration, but in different cases (one lowercase, one uppercase).

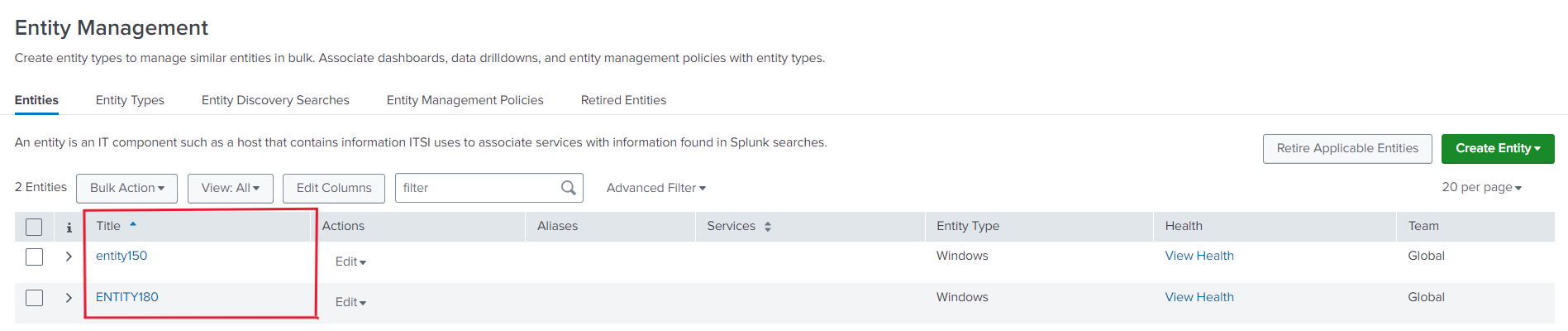

Screenshot 2024-09-30 072612.png
When searching for the entity title using the search irrespective of case sensitivity, different results were obtained

Lowercase entity: Lookup via "itsi_entities" returns information as expected for the entity "entity150" which is created in lowercase.

Screenshot 2024-09-30 073047.png

Uppercase entity: Lookup via "itsi_entities" returns no information for the entity "ENTITY180" which is created in uppercase.

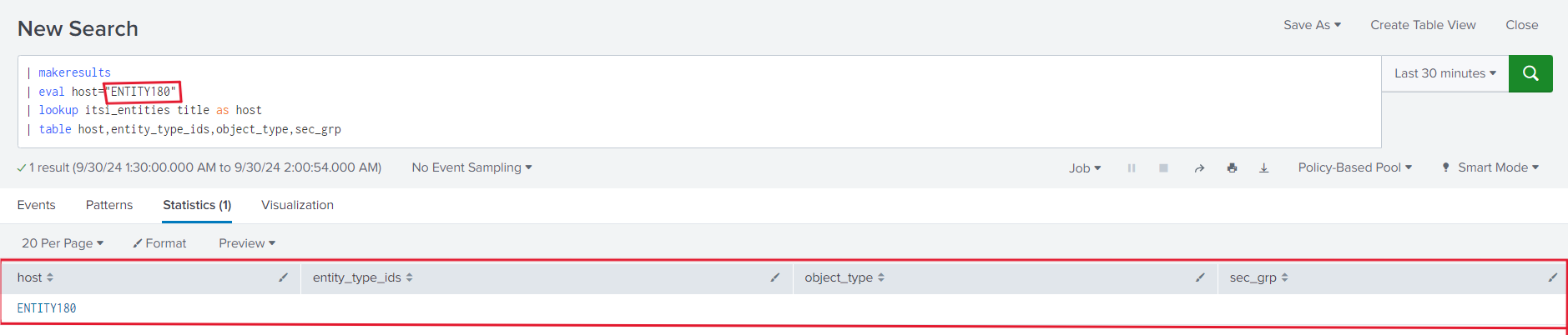

Screenshot 2024-09-30 073120.png

This suggests a case-sensitivity issue in the lookup process.

Investigation

When examining the configuration for lookup tables in

$SPLUNK_HOME/etc/apps/SA-ITOA/default/transforms.conf

it was found that the "case_sensitive_match" setting is set to false for the "itsi_entities" lookup.

[itsi_entities]
external_type = kvstore
collection = itsi_services
fields_list = _key, title, identifier.values, informational.values, informational.fields, services._key, in_maintenance, sec_grp, _itsi_identifier_lookups, _itsi_informational_lookups, Cloud, entity_type, entity_type_ids, sai_entity_key, _status, _itsi_entity_status_lookups, retired, retirable, last_retired, retiring_policy
filter = object_type="entity"
max_matches = 1
case_sensitive_match = false

The "case_sensitive_match" parameter has specific conditions:

If set to true: Splunk performs case-sensitive matching for all fields in a lookup table.

If set to false: Splunk performs case-insensitive matching for all fields in a lookup table.

However, for KV Store lookups, this setting ("case_sensitive_match=false") only functions as expected if all data within the KV Store lookup table is entirely in lowercase. The input data being queried can be in any case.

Given that "itsi_entities" is a KV Store lookup, setting "case_sensitive_match" to false doesn't automatically enable case-insensitive matching. If the data in the KV Store includes any uppercase characters, the lookup might not recognize entries correctly.

This issue can particularly impact fields like title, where entity names might include uppercase characters, causing searches that rely on case-insensitive matching to fail when trying to locate these entities by their title.

Resolution

To retrieve the maintenance status of all entities, we can use the lookup "operative_maintenance_log" with "itsi_entities" lookup as this lookup solely does not retrieve maintenance status of the entity:

| inputlookup operative_maintenance_log
| lookup itsi_entities _key as maintenance_object_key
| search title= "entity_title"
| table title,entity_type_ids,object_type,sec_grp,calendar_origin,maintenance_object_key,maintenance_object_type,start_time,end_time

After running the search, the maintenance status of the entities was displayed irrespective of case sensitivity.

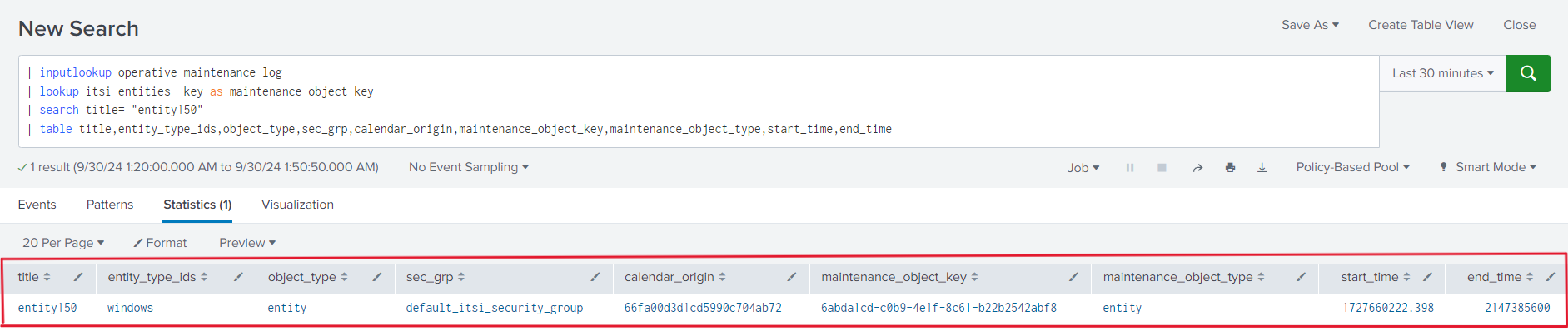

Screenshot 2024-09-30 072647.png

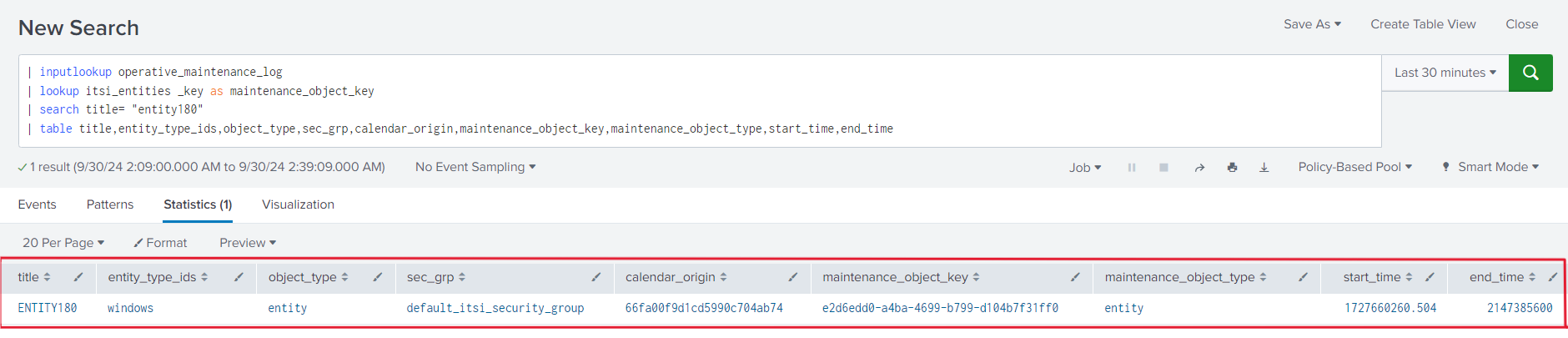

Screenshot 2024-09-30 080945.png
