One Platform. 34 Controls. ACSC-Aligned Architecture. White Paper



Executive Summary

Australian organisations face a compliance landscape where Essential Eight is mandated, NIST Cybersecurity Framework (CSF) 2.0 is best practice, and both frameworks are treated as separate exercises. This whitepaper eliminates that duplication.

Cisco Security delivers 34 of 37 Australian Cyber Security Centre (ACSC) Top 37 mitigation strategies through unified architecture — including all 8 Essential Eight controls. By architecting to NIST CSF 2.0, organisations can demonstrate Essential Eight alignment through their existing security architecture.

This mapping enables three outcomes: (1) streamlined compliance assessments with line-by-line ACSC capability coverage documentation, (2) clear maturity level pathways tied to deployment patterns, and (3) competitive differentiation against point-solution aggregation through network-native segmentation and Splunk-powered detection.

1. Introduction

Australian CISOs face a structural problem: Essential Eight is compliance-mandated, NIST CSF 2.0 is the board-level strategic framework, and most organisations treat them as separate implementations. This creates vendor sprawl, duplicated effort, and attribution blind spots.

Cisco's approach resolves this by aligning portfolio architecture to NIST CSF 2.0 functions — providing Essential Eight capability coverage as a derivative outcome. The result: one platform, 34 of 37 ACSC strategies addressed, and measurable control effectiveness without point-solution aggregation.

The NIST CSF 2.0 provides a unique value proposition compared to other frameworks such as ISO 27001, CIS Controls, or Australia's Essential Eight. While most frameworks offer a "checklist" of security controls, NIST CSF serves as a strategic communication tool that bridges the gap between technical teams and executive leadership.

The primary value of NIST CSF lies in its outcome-based approach. Rather than mandating specific technologies, the framework focuses on six high-level functions: Govern, Identify, Protect, Detect, Respond, and Recover.

●     Common Language: It provides a non-technical vocabulary that allows chief information security officers (CISOs) and cybersecurity leadership teams to explain cybersecurity risks and investments to Board members and stakeholders.

●     Flexibility and Scalability: It is designed to be tailored. Australian organisations can adapt the framework to meet local Australian requirements (such as APRA CPS 234) while maintaining a global standard.

●     Risk-Based, Not Compliance-Based: Unlike "pass/fail" frameworks, NIST CSF uses "Implementation Tiers" (Partial to Adaptive) to help organisations measure their maturity and prioritise spending based on their specific risk appetite.

Most mature organisations do not choose just one framework; they use NIST CSF as the "umbrella" and map other frameworks under it.

The Australian Signals Directorate (ASD) Strategies to Mitigate Cyber Security Incidents are a prioritised list of mitigation strategies that provide a comprehensive, defence-in-depth framework to assist organisations mitigate cybersecurity incidents that could be caused by various cyber threats. The strategies offer a holistic approach to cybersecurity encompassing a wide range of technical and administrative controls. The effectiveness of implementing a control is classified as “Essential,” “Excellent,” “Very Good,” “Good,” and “Limited.” There are eight controls classed as Essential which are the Essential Eight that are a prioritised set of baseline mitigation strategies designed to help organisations protect their internet-connected information technology environments from various cyber threats.

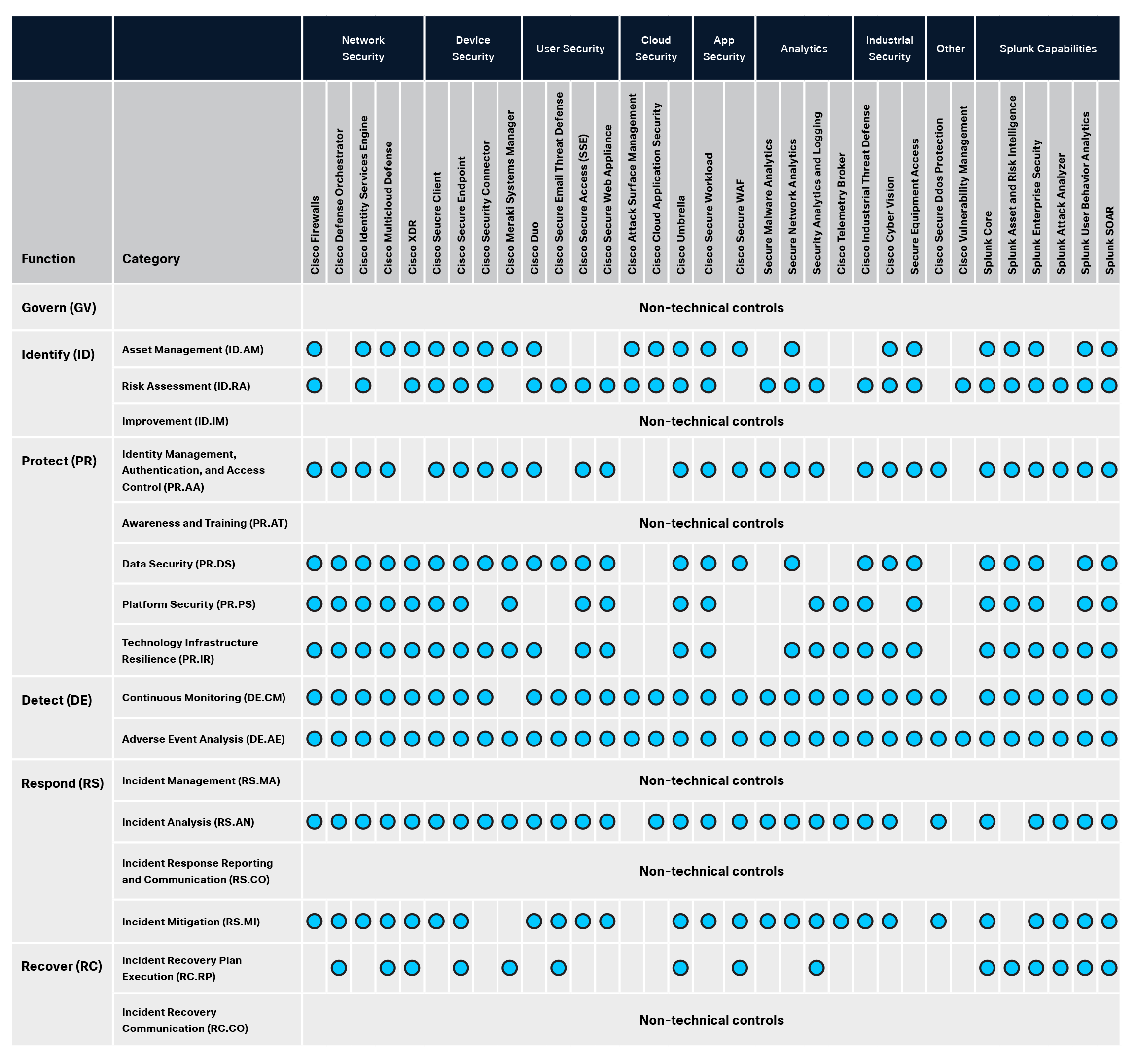

As depicted in the Cisco Security Portfolio, Splunk, and The NIST Cybersecurity Framework 2.0 solution guide, Cisco^® aligns its security architecture directly with the NIST CSF functions to help organisations move from "theory" to "implementation." For example:

●     Identify and Govern: Cisco Identity Services Engine (ISE) helps organisations identify every device on the network, fulfilling the "Asset Management" category of the Identify function.

●     Protect: Cisco Secure Access, a Security Service Edge (SSE) solution, and Duo provide the Zero Trust foundations required for the Protect function.

●     Detect and Respond: Cisco Secure Cloud Analytics and Talos^® threat intelligence provide the continuous monitoring and rapid response capabilities central to the Detect and Respond functions.

●     Interoperability: Cisco solutions are designed to be "open," meaning they can report data into a NIST CSF—aligned dashboard even if you are also using ISO 27001 for compliance.

The purpose of this paper is to inform and educate by mapping Cisco security portfolio capabilities across NIST CSF 2.0 and the Australian Cyber Security Centre (ACSC) Top37 Strategies to Mitigate Cyber Security Incidents of which the Essential Eight are a subset list. The Top37 provide more holistic defence in-depth mitigations over and above a baseline such as the Essential Eight.

Cisco Security

Hybrid Mesh Firewall

The Cisco Hybrid Mesh Firewall solution is a highly distributed security fabric optimised to stop advanced threats, protect application vulnerabilities, and implement zero trust segmentation across environments, fusing security into the network, cloud, container, and workload for a highly distributed fabric.

Cisco’s Hybrid Mesh Firewall offers:

●     Intelligent Centralised Management: Automatically configures, deploys, and auto scales firewalls across multi-cloud environments without scripting. Plus, the AI Assistant reduces management overhead and frees up resources and expertise.

●     Advanced Threat Protection: Sees through encryption to detect threats in encrypted traffic without sacrificing performance using industry’s first, ML-based encrypted visibility engine. Where decryption is essential, high- performance hardware offload architecture delivers price-performance leadership and deep visibility. Protect against known and unknown threats with Cisco Talos Threat Intelligence, industry-leading Snort 3 IPS, and Snort ML.

●     Segmentation: Prevent unauthorized lateral movement and safeguard applications across data centre and clouds with topology-aware security that understands app dependencies and applies zero-trust segmentation policies across the Cisco security fabric.

●     AI Model Protection: Fuses AI guardrails into the fabric of the network to safeguard in real-time against the dynamic threats introduced through the development and deployment of AI applications.

●     Exploit Protection: Mitigates vulnerabilities by applying a surgical mitigation shield that is optimally placed in the path of the application to block the exploit—all while ensuring application uptime.

Zero Trust Access

Zero Trust Access from Cisco is a comprehensive solution enabling every user and device to securely connect to any application, anywhere, ensuring a consistent experience. It unifies identity-first zero trust access for modern and legacy apps, IoT/OT devices, and complex network environments, combining industry-leading performance, policy assurance, and end-to-end visibility to eliminate complexity and protect critical assets. Cisco Zero Trust Access supports flexible enforcement, in the cloud or on-premises, so that sensitive data is protected, and governance objectives met. Our approach helps organisations modernize application access with Zero Trust Network Access (ZTNA) and VPN-as-a-Service in a consistent way, extend identity context to include users and things, and build operational resilience through end-to-end digital experience monitoring and policy assurance.

Cisco Zero Trust Access benefits include:

●     Networking expertise: Foundational skills in SD-WAN, VPN, and firewalls ensure seamless zero-trust policy integration across hybrid environments.

●     Hybrid private access: Consistent zero-trust policy enforcement for remote, branch, and campus users across cloud and on-premises environments from a single management tool.

●     Shadow AI management: Detects and manages unauthorized AI applications to prevent data leakage and ensure compliance.

●     Comprehensive application support: Seamless handling of modern, legacy, SaaS, and private apps without disruptions.

●     Dynamic risk-based access: Continuously adjusts access based on user behaviour, device posture, and network conditions.

Security Operations – SOC of the Future

Cisco's vision for the Security Operations Center (SOC) of the future is an environment where security operations are not just reactive, but proactive—a world where threats are anticipated and neutralised before they have a devastating impact on an organisation. The SOC then becomes a powerful enabler to help an organisation strengthen its digital resilience. The SOC of the future is not just a concept; it is a reality built on innovation, powered by AI, and supported by continuous research. It's a world where security is proactive, intelligent, and automated, providing peace of mind in an ever-evolving threat landscape.

Cisco’s SOC of the future includes several important elements:

●     Cisco's market-leading Splunk Security Information and Event Management (SIEM) and innovative Cisco Extended Detection and Response (XDR) technologies are the foundation.

●     Federated data management is at the heart of the transformation to achieve the SOC of the future where a vast network of data sources is seamlessly integrated and managed, providing a unified view of your security landscape ensuring that no threat goes unnoticed, no matter where it originates.

●     Advanced detections are powered by cutting-edge algorithms that evolve with the threat landscape, ensuring defences are always one step ahead.

●     AI-accelerated investigations bring the power of Artificial Intelligence (AI) to your fingertips with AI acting as your trusted advisor, rapidly sifting through vast amounts of data, pinpointing the root cause of incidents, and providing actionable insights.

●     Automated threat response mechanisms act like a well-oiled machine, executing predefined actions to mitigate threats swiftly and effectively, ensuring that the SOC team can focus on strategic tasks, knowing that routine responses are handled automatically.

●     Embedded AI, which acts as the engine driving the SOC of the future, supercharges all the above capabilities and ensures they work together harmoniously, creating a cohesive and robust security posture.

●     A wealth of content and threat intelligence research supports this advanced infrastructure providing a library of the latest threat intelligence, curated by experts who are constantly monitoring the cyber landscape. This research informs and enhances every aspect of the SOC, ensuring you are always prepared for the next threat.

2. Detailed Mapping

Methodology

The mapping follows three layers:

1.     ACSC Strategy → NIST CSF 2.0 Function/Category: Based on the primary security outcome of each ACSC strategy and aligned to the CSF Core taxonomy.

2.     NIST CSF 2.0 Category → Cisco Capability: Based on Cisco's published CSF 2.0 portfolio mapping.

3.     Cross-validation: Ensuring the Cisco capability is relevant in addressing the intent of the ACSC strategy.

Note: Some ACSC strategies span multiple NIST CSF categories. In such cases, the primary category is indicated with secondary mappings noted. Mappings are based on conceptual alignment consistent with NIST IR 8477 [2] methodology.

Mapping Tables

1. Mitigation Strategies to Prevent Malware Delivery and Execution

1.1 Application Control (Essential)

ACSC Description: Prevent execution of unapproved/malicious programs including .exe, Dynamic Link Library (DLL), scripts (PowerShell, HTML Application [HTA]) and installers.

1.2 Patch Applications (Essential)

ACSC Description: Patch Flash, browsers, Office, Java, PDF viewers. Mitigate “extreme risk” vulnerabilities within 48 hours.

1.3 Configure Microsoft Office Macro Settings (Essential)

ACSC Description: Block macros from the internet; only allow vetted macros in trusted locations or digitally signed.

1.4 User Application Hardening (Essential)

ACSC Description: Block Flash, ads, Java in browsers; disable unneeded features in Office and PDF viewers.

1.5 Automated Dynamic Analysis / Sandboxing (Excellent)

ACSC Description: Analyse email and web content in a sandbox; block if suspicious behaviour is identified.

1.6 Email Content Filtering (Excellent)

ACSC Description: Allow only approved attachment types; analyse/sanitise hyperlinks and Office/PDF attachments; quarantine macros.

1.7 Web Content Filtering (Excellent)

ACSC Description: Allow only approved web content types and reputable sites; block malicious domains, IPs, anonymity networks, and free domains.

1.8 Deny Direct Internet Connectivity / Gateway Firewall (Excellent)

ACSC Description: Require use of authenticated proxy, split DNS, and email gateway for outbound connections.

1.9 Operating System Exploit Mitigation (Excellent)

ACSC Description: Enable OS-level exploit mitigations including Data Execution Prevention (DEP) and Address Space Layout Randomisation (ASLR).

1.10 Server Application Hardening (Very Good)

ACSC Description: Harden internet-accessible web applications and databases; sanitise input, use Transport Layer Security (TLS).

1.11 Operating System Hardening (Very Good)

ACSC Description: Harden OSes and network devices; disable Remote Desktop Protocol (RDP), AutoRun, LanMan, Server Message Block/Network Basic Input/Output System [SMB/NetBIOS], Link-Local Multicast Name Resolution (LLMNR), Web Proxy Auto-Discovery (WPAD).

1.12 Antivirus with Heuristics and Reputation Ratings (Very Good)

ACSC Description: Use AV with heuristics and reputation to check file prevalence and digital signatures.

1.13 Control Removable Storage Media (Very Good)

ACSC Description: Block unapproved USB, CD/DVD, smartphones, tablets, and wireless devices.

1.14 Block Spoofed Emails (SPF, DMARC) (Very Good)

ACSC Description: Configure Sender Policy Framework (SPF) and Domain-based Message Authentication, Reporting, and Conformance (DMARC) DNS records to mitigate email spoofing.

1.15 User Education (Phishing Awareness) (Good)

ACSC Description: Educate users on phishing, weak passphrases, passphrase reuse, and unapproved services.

2. Mitigation Strategies to Limit the Extent of Cybersecurity Incidents

2.1 Restrict Administrative Privileges (Essential)

ACSC Description: Limit admin privileges based on user duties; revalidate regularly; no privileged use for email/web browsing.

2.2 Patch Operating Systems (Essential)

ACSC Description: Patch OSes and network devices with “extreme risk” vulnerabilities within 48 hours; use latest supported OS versions.

2.3 Multi-Factor Authentication (Essential)

ACSC Description: MFA for VPNs, RDP, SSH, remote access, and privileged actions or access to important data repositories.

2.4 Disable Local Administrator Accounts (Excellent)

ACSC Description: Disable or assign unique random passphrases to local administrator accounts to prevent lateral movement.

2.5 Network Segmentation (Excellent)

ACSC Description: Deny traffic between computers unless required; constrain BYOD/IoT; restrict access to network shares.

2.6 Protect Authentication Credentials (Excellent)

ACSC Description: Remove CPassword values, configure WDigest, use Credential Guard, change default passwords, enforce long complex passphrases.

2.7 Non-Persistent Virtualised Sandboxed Environments (Very Good)

ACSC Description: Use virtualised sandboxed environments for risky activities such as web browsing and viewing untrusted files.

2.8 Software-Based Firewall (Inbound Blocking) (Very Good)

ACSC Description: Block incoming malicious/unauthorised network traffic; deny by default.

2.9 Software-Based Firewall (Outbound Blocking) (Very Good)

ACSC Description: Block outgoing traffic not generated by approved programs; deny by default.

2.10 Outbound Web and Email Data Loss Prevention (Very Good)

ACSC Description: Block unapproved cloud services; log outbound emails; block emails with sensitive data patterns.

3. Mitigation Strategies to Detect Cybersecurity Incidents and Respond

3.1 Continuous Incident Detection and Response (Excellent)

ACSC Description: Automated real-time analysis of centralised, time-synchronised logs of events, authentication, file access, and network activity.

3.2 Host-Based Intrusion Detection/Prevention System (Very Good)

ACSC Description: Identify anomalous behaviour during program execution including process injection and persistence.

3.3 Endpoint Detection and Response (EDR) (Very Good)

ACSC Description: Centralised logging of system behaviour to facilitate incident response.

3.4 Threat Hunting (Very Good)

ACSC Description: Hunt for incidents using adversary tradecraft knowledge and threat intelligence.

3.5 Network-Based IDS/IPS (Limited)

ACSC Description: Use signatures and heuristics to identify anomalous traffic internally and at network perimeters.

3.6 Capture Network Traffic (Limited)

ACSC Description: Capture network traffic from critical assets and perimeter to support incident detection and analysis.

4. Mitigation Strategies to Recover Data and System Availability

4.1 Regular Backups (Essential)

ACSC Description: Regular backups of data, software, and configurations; stored disconnected; retained ≥3 months; tested regularly.

4.2 Business Continuity and Disaster Recovery Plans (Very Good)

ACSC Description: Tested, documented Business Continuity Plans (BCPs); printed hardcopy with offline softcopy; focus on highest-priority systems.

4.3 System Recovery Capabilities (Very Good)

ACSC Description: Virtualisation with snapshots, remote OS reinstallation, enterprise mobility, and vendor support contracts.

5. Mitigation Strategy Specific to Preventing Malicious Insiders

5.1 Personnel Management (Very Good)

ACSC Description: Ongoing vetting for privileged users; immediately disable departing user accounts; remind users of security obligations.

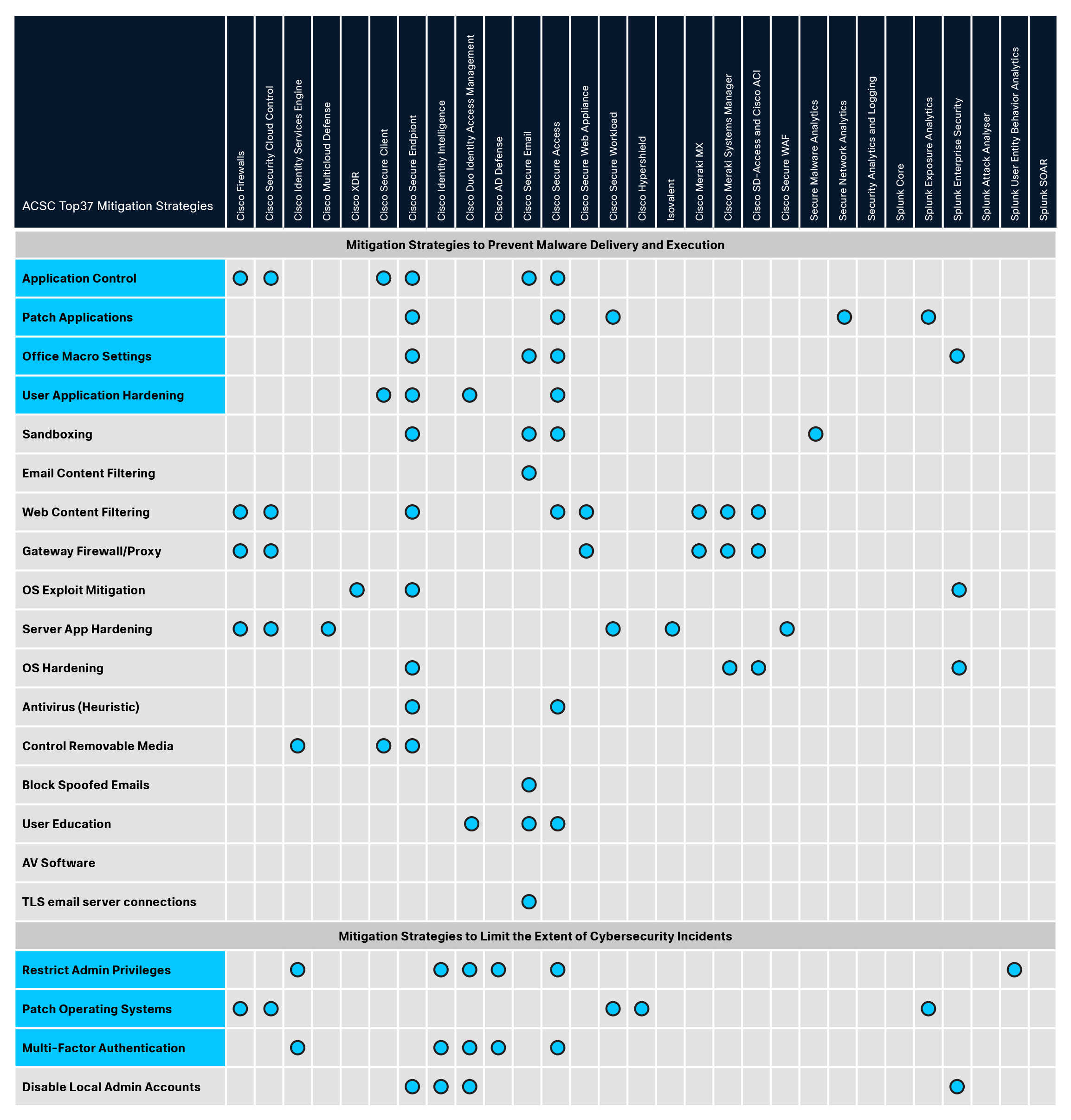

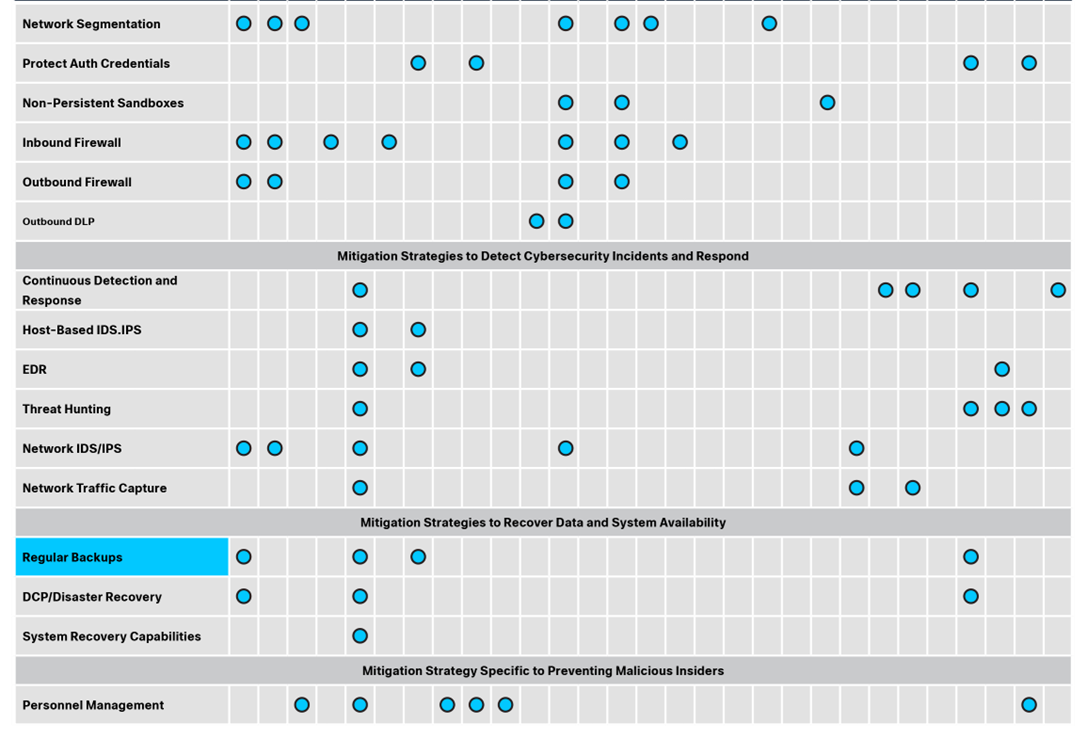

3. Cisco Security Product - Consolidated Mapping

The table below provides a high-level summary view of the full mapping of Cisco Security products that have relevance to each ACSC mitigation strategy:

4. Key Observations

NIST CSF 2.0 Functions Coverage

The ACSC strategies collectively provide strong coverage across all six NIST CSF 2.0 Functions:

●     GOVERN (GV): Addressed primarily through the non-technical strategies (Personnel Management, User Education) and the governance dimensions of privilege management.

●     IDENTIFY (ID): Strongly addressed through patching strategies, which require robust asset and vulnerability identification.

●     PROTECT (PR): The most heavily addressed function, with the majority of ACSC strategies mapping here — particularly PR.AA, PR.PS, and PR.DS.

●     DETECT (DE): Directly addressed by the detection and response category strategies.

●     RESPOND (RS): Addressed through the continuous detection/response, EDR, and threat-hunting strategies.

●     RECOVER (RC): Addressed through the three recovery-specific strategies.

Cisco Portfolio Coverage Observations

●     Cisco Duo Identity Access Management is the single most broadly applicable Cisco product, supporting the three Essential Eight MFA-related controls and extending across PR.AA broadly.

●     Cisco Secure Endpoint provides foundational coverage across Prevention, Detection, and Response categories.

●     Splunk Enterprise Security and Cisco XDR are the primary enablers of the Threat Detection and Incident Response strategy cluster.

●     Cisco Secure Firewall, Cisco Secure Workload, Cisco Secure Access, and Cisco ISE together address the network-layer prevention strategies most comprehensively.

●     Cisco Secure Email solutions address the email-specific ACSC strategies.

Architectural Differentiation

Three capabilities distinguish Cisco’s approach from best-of-breed aggregation:

1.     Network-Native Segmentation (ACSC 2.5 — Excellent)

Cisco ISE, Secure Workload, and Hypershield deliver agentless micro segmentation across IT/OT/IoT environments. Competitive approaches (CrowdStrike + Zscaler) require host agents on every endpoint — a non-starter for industrial control systems, medical devices, and legacy infrastructure common in ANZ utilities, healthcare, and transport sectors.

2.     Splunk Integration for Detection/Response (ACSC 3.1–3.4)

ACSC Continuous Detection (3.1 — Excellent) requires SIEM-class log aggregation and correlation. Cisco XDR + Splunk Enterprise Security deliver this natively. Point-solution stacks (Palo Alto Cortex, Microsoft Sentinel) require custom integration overhead and lack Splunk’s data platform extensibility for IT Ops and business analytics.

3.     Cohesity Partnership for Backup/Recovery (ACSC 4.1 — Essential)

Essential Eight mandates tested, disconnected backups. Cisco XDR with Cohesity delivers ransomware recovery with immutable snapshots. Competitors position backup as out-of-scope (CrowdStrike) or require separate vendor relationships (Zscaler + Veeam), fragmenting the recovery workflow.

5. Close

This paper has demonstrated that the ACSC Strategies to Mitigate Cyber Security Incidents and NIST CSF 2.0 are highly complementary frameworks. The ACSC strategies provide prescriptive, operationally focused controls that map cleanly to NIST CSF 2.0's outcome-based categories. Australian organisations can use both frameworks simultaneously without duplication of effort.

Cisco's Security portfolio provides comprehensive capability coverage across virtually all mapped control areas, with strength in Protection (PR), Detection (DE), and Response (RS) Functions. By deploying the Cisco capabilities identified in this paper, Australian organisations can simultaneously progress their ACSC Essential Eight implementation and their NIST CSF 2.0 alignment — achieving a robust, internationally recognised cybersecurity posture.

This white paper references the ASD Strategies to Mitigate Cyber Security Incidents (February 2017), NIST CSF 2.0 (February 2024), and Cisco's Security Portfolio Mapping to NIST CSF 2.0. Organisations should consult current versions of all referenced frameworks and engage qualified cybersecurity professionals for implementation guidance.

Next steps

For Public Sector / Regulated Industry:

Use Appendix C (Product-ACSC Matrix) to assess current security stack capability coverage against Essential Eight requirements.

For Commercial / Enterprise:

Assess network segmentation capabilities — ACSC 2.5 (Network Segmentation — Excellent) is the highest-ROI control for ransomware containment.

APPENDIX A

ACSC Mitigation Strategies (Top37)

Mitigation Strategies to Prevent Malware Delivery and Execution [17]

●     Essential Application control to prevent execution of unapproved/malicious programs including .exe, DLL, scripts (e.g. Windows Script Host, PowerShell and HTA) and installers.

●     Essential Patch applications (e.g. Flash, web browsers, Microsoft Office, Java and PDF viewers). Patch/mitigate computers with “extreme risk” vulnerabilities within 48 hours. Use the latest version of applications.

●     Essential Configure Microsoft Office macro settings to block macros from the internet, and allow only vetted macros either in “trusted locations” with limited write access or digitally signed with a trusted certificate.

●     Essential User application hardening. Configure web browsers to block Flash (ideally uninstall it), ads, and Java on the internet. Disable unneeded features in Microsoft Office (e.g. Object Linking and Embedding [OLE]), web browsers, and PDF viewers.

●     Excellent Automated dynamic analysis of email and web content run in a sandbox, blocked if suspicious behaviour is identified (e.g. network traffic, new or modified files, or other system configuration changes).

●     Excellent Email content filtering. Allow only approved attachment types (including in archives and nested archives). Analyse/sanitise hyperlinks, PDF, and Microsoft Office attachments. Quarantine Microsoft Office macros.

●     Excellent Web content filtering. Allow only approved types of web content and websites with good reputation ratings. Block access to malicious domains and IP addresses, ads, anonymity networks, and free domains.

●     Excellent Deny corporate computers direct internet connectivity. Use a gateway firewall to require use of a split DNS server, an email server, and an authenticated web proxy server for outbound web connections.

●     Excellent Operating system generic exploit mitigation e.g. Data Execution Prevention (DEP), Address Space Layout Randomisation (ASLR), and Enhanced Mitigation Experience Toolkit (EMET).

●     Very Good Server application hardening especially internet-accessible web applications (sanitise input and use TLS not SSL) and databases, as well as applications that access important (sensitive/high-availability) data.

●     Very Good Operating system hardening (including for network devices) based on a Standard Operating Environment, disabling unneeded functionality (e.g. RDP, AutoRun, LanMan, SMB/NetBIOS, LLMNR, and WPAD).

●     Very Good Antivirus software using heuristics and reputation ratings to check a file’s prevalence and digital signature prior to execution. Use antivirus software from different vendors for gateways versus computers.

●     Very Good Control removable storage media and connected devices. Block unapproved CD/DVD/USB storage media. Block connectivity with unapproved smartphones, tablets, and Bluetooth/Wi-Fi/3G/4G/5G devices.

●     Very Good Block spoofed emails. Use Sender Policy Framework (SPF) or Sender ID to check incoming emails. Use “hard fail” Sender Policy Framework (SPF) TXT and DMARC DNS records to mitigate emails that spoof the organisation’s domain.

●     Good User education. Avoid phishing emails (e.g. with links to login to fake websites), weak passphrases, passphrase reuse, as well as unapproved: removable storage media, connected devices, and cloud services.

●     Limited Antivirus software with up-to-date signatures to identify malware, from a vendor that rapidly adds signatures for new malware. Use antivirus software from different vendors for gateways versus computers.

●     Limited TLS encryption between email servers to help prevent legitimate emails being intercepted and subsequently leveraged for social engineering. Perform content scanning after email traffic is decrypted.

Mitigation Strategies to Limit the Extent of Cybersecurity Incidents: [10]

●     Essential Restrict administrative privileges to operating systems and applications based on user duties. Regularly revalidate the need for privileges. Do not use privileged accounts for reading email and web browsing.

●     Essential Patch operating systems. Patch/mitigate computers (including network devices) with “extreme risk” vulnerabilities within 48 hours. Use the latest operating system version. Do not use unsupported versions.

●     Essential Multi-factor authentication including for VPNs, RDP, SSH and other remote access, and for all users when they perform a privileged action or access an important (sensitive/high-availability) data repository.

●     Excellent Disable local administrator accounts or assign passphrases that are random and unique for each computer’s local administrator account to prevent propagation using shared local administrator credentials.

●     Excellent Network segmentation. Deny traffic between computers unless required. Constrain devices with low assurance (e.g. BYOD and IoT). Restrict access to network drives and data repositories based on user duties.

●     Excellent Protect authentication credentials. Remove CPassword values (MS14-025). Configure WDigest (KB2871997). Use Windows Defender Credential Guard. Change default passphrases. Require long complex passphrases.

●     Very Good Non-persistent virtualised sandboxed environment, denying access to important (sensitive/high-availability) data, for risky activities (e.g. web browsing, and viewing untrusted Microsoft Office and PDF files).

●     Very Good Software-based application firewall, blocking incoming network traffic that is malicious/unauthorised, and denying network traffic by default (e.g. unneeded/unauthorised RDP and SMB/NetBIOS traffic).

●     Very Good Software-based application firewall, blocking outgoing network traffic that is not generated by approved/trusted programs, and denying network traffic by default.

●     Very Good Outbound web and email data loss prevention. Block unapproved cloud computing services. Log recipient, size, and frequency of outbound emails. Block and log emails with sensitive words or data patterns.

Mitigation Strategies to Detect Cybersecurity Incidents and Respond: [6]

●     Excellent Continuous incident detection and response with automated immediate analysis of centralised time-synchronised logs of allowed and denied computer events, authentication, file access and network activity.

●     Very Good Host-based intrusion detection/prevention system to identify anomalous behaviour during program execution (e.g. process injection, keystroke logging, driver loading, and persistence).

●     Very Good Endpoint detection and response software on all computers to centrally log system behaviour and facilitate cybersecurity incident response activities. Microsoft’s free SysMon tool is an entry-level option.

●     Very Good Hunt to discover incidents based on knowledge of adversary tradecraft. Leverage threat intelligence consisting of analysed threat data with context enabling mitigating action, not just indicators of compromise.

●     Limited Network-based intrusion detection/prevention system using signatures and heuristics to identify anomalous traffic both internally and crossing network perimeter boundaries.

●     Limited Capture network traffic to and from corporate computers storing important data or considered as critical assets, and network traffic traversing the network perimeter, to perform incident detection and analysis.

Mitigation Strategies to Recover Data and System Availability: [3]

●     Essential Regular backups of important new/changed data, software and configuration settings, stored disconnected, retained for at least three months. Test restoration initially, annually and when IT infrastructure changes.

●     Very Good Business continuity and disaster recovery plans which are tested, documented and printed in hardcopy with a softcopy stored offline. Focus on the highest priority systems and data to recover.

●     Very Good System recovery capabilities e.g. virtualisation with snapshot backups, remotely installing operating systems and applications on computers, approved enterprise mobility, and onsite vendor support contracts.

Mitigation Strategy Specific to Preventing Malicious Insiders: [1]

●     Very Good Personnel management, e.g. ongoing vetting especially for users with privileged access, immediately disable all accounts of departing users, and remind users of their security obligations and penalties.

APPENDIX B

Cisco Product Mappings - NIST CSF 2.0

APPENDIX C

How to Use This Matrix

For RFP Responses: Copy the relevant rows for Essential Eight strategies (highlighted in blue) directly into capability coverage matrix sections. Each checkmark = product capability that addresses the control.

For Gap Analysis: Audit your current security stack against this matrix. Missing checkmarks = coverage gaps. Prioritize by ACSC Effectiveness rating (Essential > Excellent > Very Good).

For Deployment Planning: Checkmarks indicate technical capability coverage. Organisations remain responsible for configuration, testing, and validation against ACSC guidance (e.g., Duo MFA must be configured for phishing-resistant methods; ISE must be configured for role-based segmentation policies).

Cisco Product – ACSC Mitigation Strategies Matrix
