Cisco ONS 15216 8-Channel CWDM Multiplexer/Demultiplexer Data Sheet
Available Languages
The Cisco® ONS 15216 8-Channel CWDM Multiplexer/Demultiplexer is a passive unit that in the transmit direction, combines eight ITU-T G.694.2 coarse wavelength-division multiplexing (CWDM) wavelengths into a composite signal. In the receive direction, the unit separates a composite signal into eight individual wavelengths.
Applications

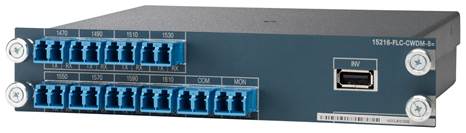

The Cisco ONS 15216 8-Channel CWDM Multiplexer/Demultiplexer (Figure 1) is ideal for building point-to-point networks with limited scale requirements. Gigabit Ethernet and Fibre Channel (1-, 2-, and 4-Gbps) CWDM wavelengths can be provisioned using Cisco CWDM Small Form-Factor Pluggable (SFP) units housed directly in Cisco routers and switches, while 10-Gbps CWDM wavelengths are supported through the Multirate DWDM OTU2 XPonder Card for the Cisco ONS 15454 MSTP card hosting CWDM 10-Gigabit Small Form-Factor Pluggable (XFP) units. This card supports two wavelengths and can be housed in the Cisco ONS 15454 M2 or M6 chassis, providing a small, cost-effective, AC-powered solution for 10-Gbps CWDM applications.
Edge Mounting Bracket
The Cisco ONS 15216 8-Channel CWDM Multiplexer/Demultiplexer occupies two positions in the Cisco ONS 15216 Edge Mounting Bracket. The mounting bracket occupies one rack unit (1RU) and mounts into a standard 19-inch rack. It has four positions for mounting Optical Add/Drop Multiplexers (OADMs).
Features and Benefits
The Cisco ONS 15216 product family provides the following customer benefits:
● Cost-effectiveness for point-to-point, low-channel-count applications
● Best-in-class operational efficiency, with zero electrical power requirements
● Low optical insertion loss for improved distance and performance
Product Specifications
Tables 1 through 4 provide optical, mechanical, and compliance specifications for the muxponder/demuxponder.
Table 1. Cisco ONS 15216 8-Channel CWDM Muxponder/Demuxponder Channel Plan
| Channel ID |
Frequency (THz) |
Wavelength (nm) |
| 1 |
195.9 |
1470.00 |
| 2 |
195.8 |
1490.00 |
| 3 |
195.7 |
1510.00 |
| 4 |
195.6 |
1530.00 |
| 5 |
195.5 |
1550.00 |
| 6 |
195.4 |
1570.00 |
| 7 |
195.3 |
1590.00 |
| 8 |
195.2 |
1610.00 |
Table 2. Optical Specifications
| Parameters |
Minimum |
Maximum |
| Channel center wavelengths |
1470 nm |
1610 nm |
| Channel spacing |
20 nm |
|
| Maximum input optical power |
500 mW |
|
| Insertion loss |
0.8 dB |
3.5 dB |
| Drop adjacent channel isolation |
30 dB |
|
| Drop nonadjacent channel isolation |
45 dB |
|
| Add adjacent channel isolation |
30 dB |
|
| Add nonadjacent channel isolation |
45 dB |
|
| Add CrossTalk |
14 dB |
|
| Return loss |
45 dB |
|
| Monitor add/drop loss |
17.5 dB |
21.5 dB |
| Filter type |
A-thermal array waveguide |
A-thermal array waveguide |
| Polarization dependent loss (PDL) |
0.2 dB |
0.2 dB |
| Polarization mode dispersion (PMD) |
0.1 ps |
0.1 ps |
| Insertion loss uniformity |
1 dB |
1 dB |
| Chromatic dispersion (CD) |
± 20.0 ps/nm |
Table 3. Environmental and Mechanical Specifications
| Part Number |
Parameters |
Minimum |
Maximum |
| 15216-HD-EXT-PNL= 15216-FLC-CWDM-8= |
Operating temperature range |
32°F (0°C) |
158°F (+70ºC) |
| 15216-HD-EXT-PNL= 15216-FLC-CWDM-8= |
Storage temperature range |
–40ºF (–40ºC) |
185°F (+85ºC) |
| 15216-HD-EXT-PNL= |
Height |
1.744 in. (44.298 mm) |
|
| Width |
19 in. (482.6 mm) |
||
| Depth |
0.394 in. (10.018 mm) |
||
| Weight |
0.5 lb (0.22679618 kg) |
||
| Humidity |
5% noncondensing |
95% noncondensing |
|
| 15216-FLC-CWDM-8= |
Height |
1.385 in. (35.179 mm) |
|
| Width |
7.047 in. (178.994 mm) |
||
| Depth |
6.496 in. (164.998 mm) |
||
| Weight |
3 lb (1.36 kg) |
||
| Humidity |
5% noncondensing |
95% noncondensing |
|
| USB port power |
400 mW |
600 mW |
|
| Connector type |
LC UPC II |
||
| USB |
Type A |
Table 4. Regulatory Compliance
| Description |
Specification |
| Safety |
GR-1089 UL60950/CSA 22.2 No. 60950-00 IEC 60950 |
| Environmental |
GR-63-CORE |
Table 5 provides ordering information for the multiplexer/demultiplexer and edge mounting bracket.
Table 5. Ordering Information
| Part Number |
Product Name |
| 15216-HD-EXT-PNL= |
Cisco ONS 15216 Edge Mounting Bracket |
| 15216-FLC-CWDM-8= |
Cisco ONS 15215 8-Channel CWDM Muxponder/Demuxponder |
Ordering Information
To place an order, visit the Cisco Ordering Home Page. To download software, visit the Cisco Software Center.
