Creating DHCP Scopes for Wireless Networks
To create DHCP scopes, follow the steps below:
We enabled DHCP and created a pool for Management during the Day 0 Intial Setup Wizard. We also created Employee and Guest Networks. In this procedure, we will create and assign a DHCP pools for Employee and Guest networks which were created during Day 0.
Navigate to Wireless Settings > DHCP Server > Add new Pool.

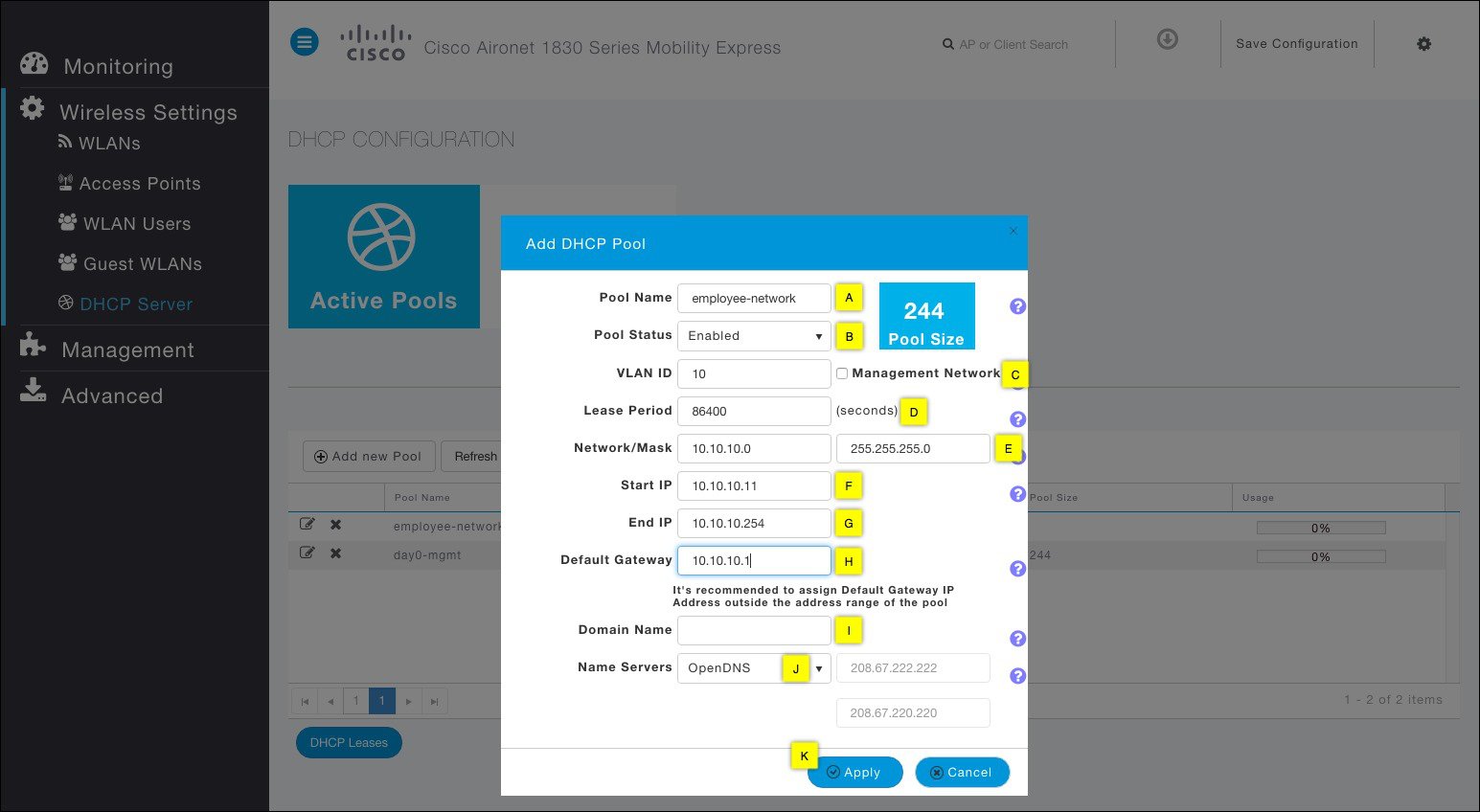

On the Add DHCP Pool window. Enter the following fields:
A. Enter the Pool Name for the Employee network
B. Enable the Pool Status
C. Enter the VLAN Id for the Employee Network
D. Enter the Lease Period for the clients. Defaul is 1 Day
E. Enter the Network address and Mask
F. Enter the Start IP for the DHCP Pool
G. Enter the End IP for the DHCP Pool
H. Enter the Default Gateway
I. Enter the Domain Name (Optional)
J. For Name Servers, select User Defined if one needs to enter IP addresses of Name Servers or select OpenDNS in which case openDNS Name Server IP addresses are automatically populated
K. Click on Apply

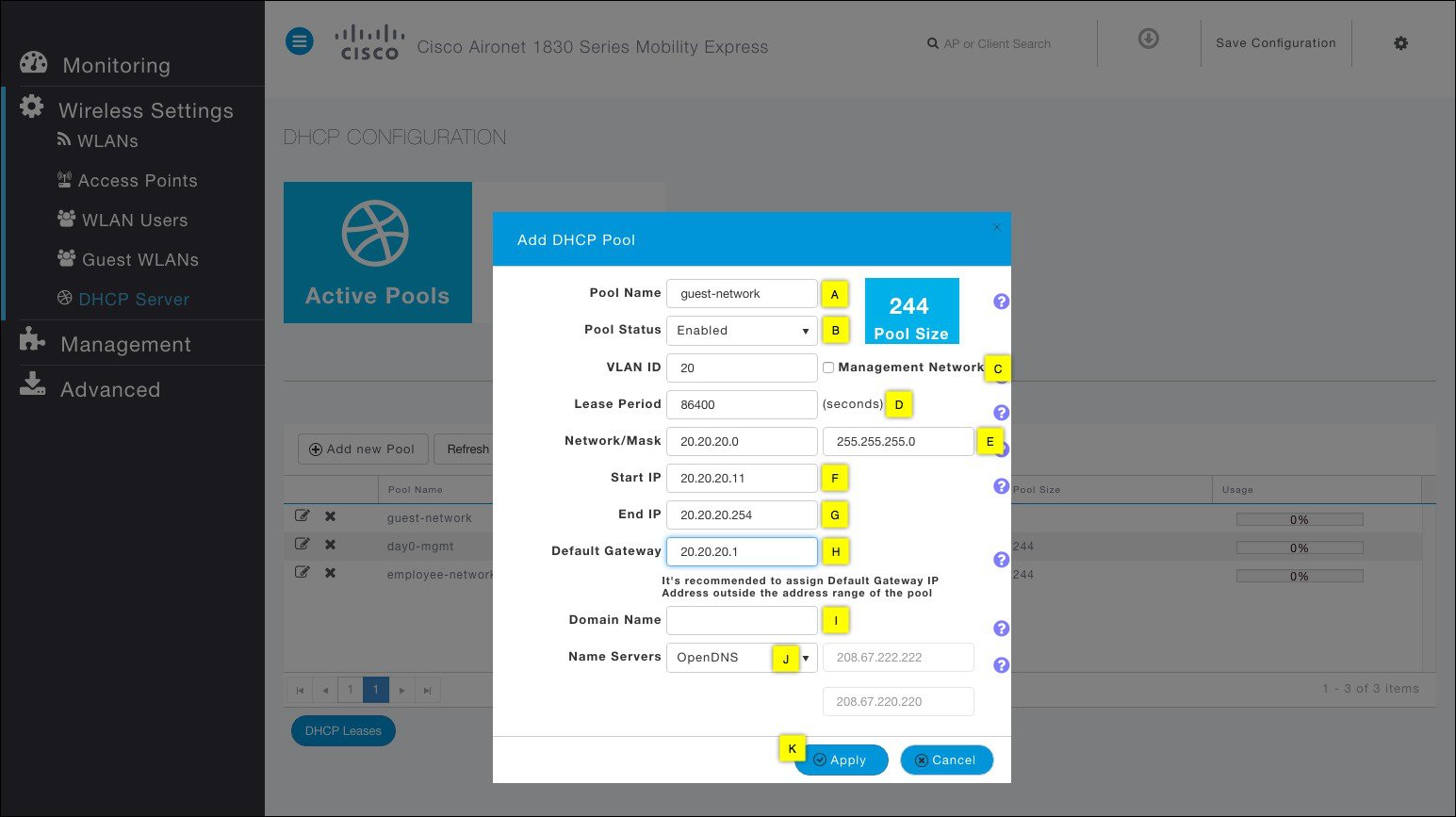

Repeat Step 2 above for the Guest network.

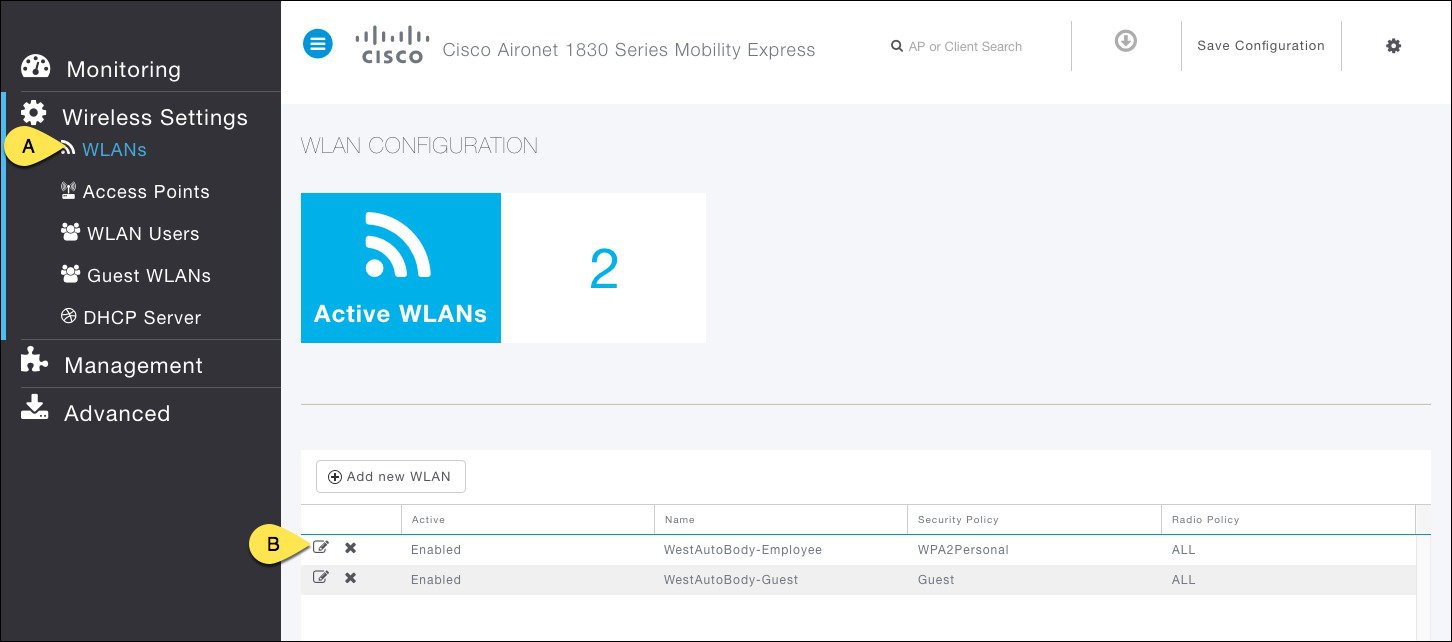

To assign the DHCP Pool to Employee Network, navigate to Wireless Settings > WLANs and then click on B to edit the Employee WLAN.

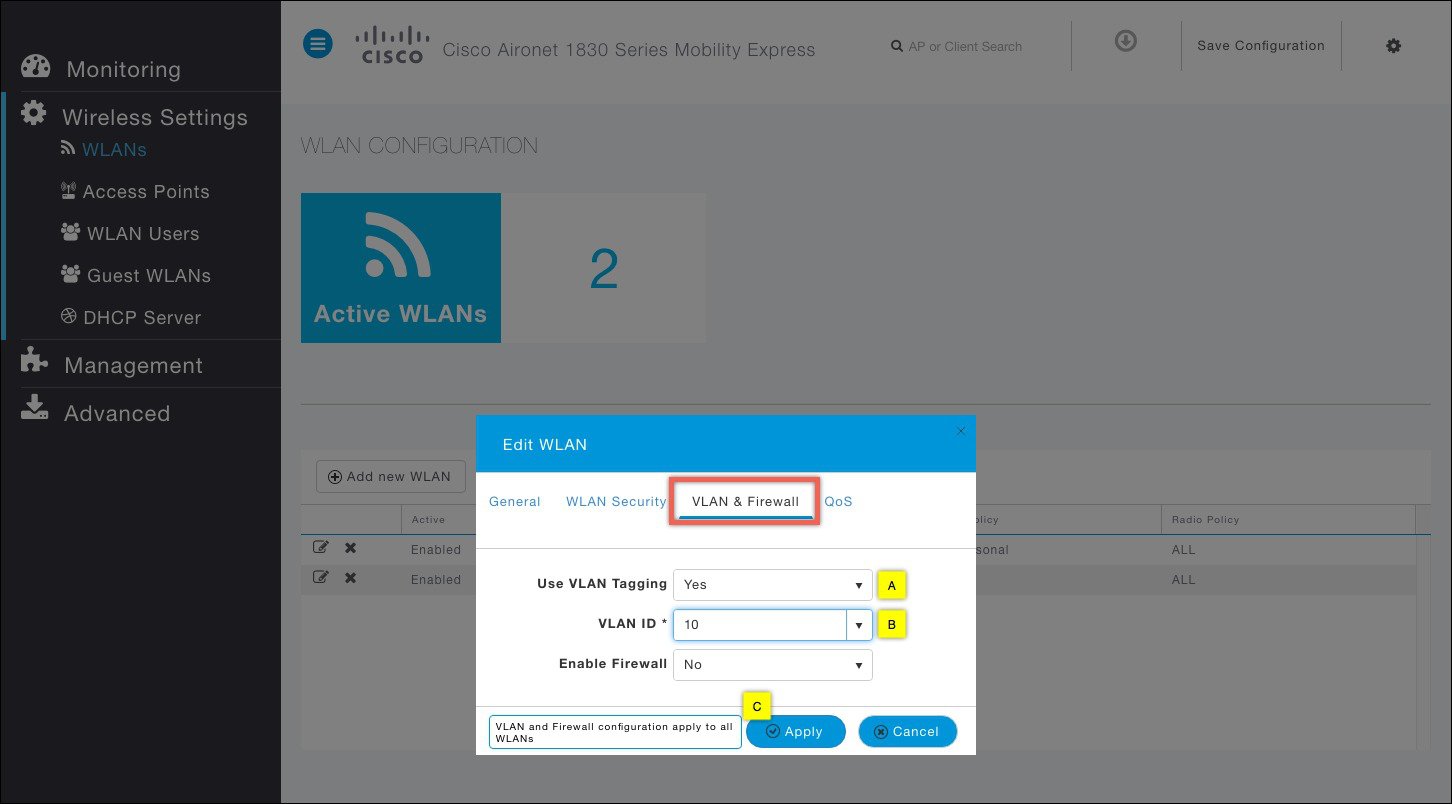

In the Edit WLAN window, go to VLAN & Firewall, and configure the following:
A. Select Yes from the VLAN Tagging
B. Enter the VLAN ID used for the Employee DHCP Pool
C. Click on the Apply Button
Repeat the same for the Guest WLAN.

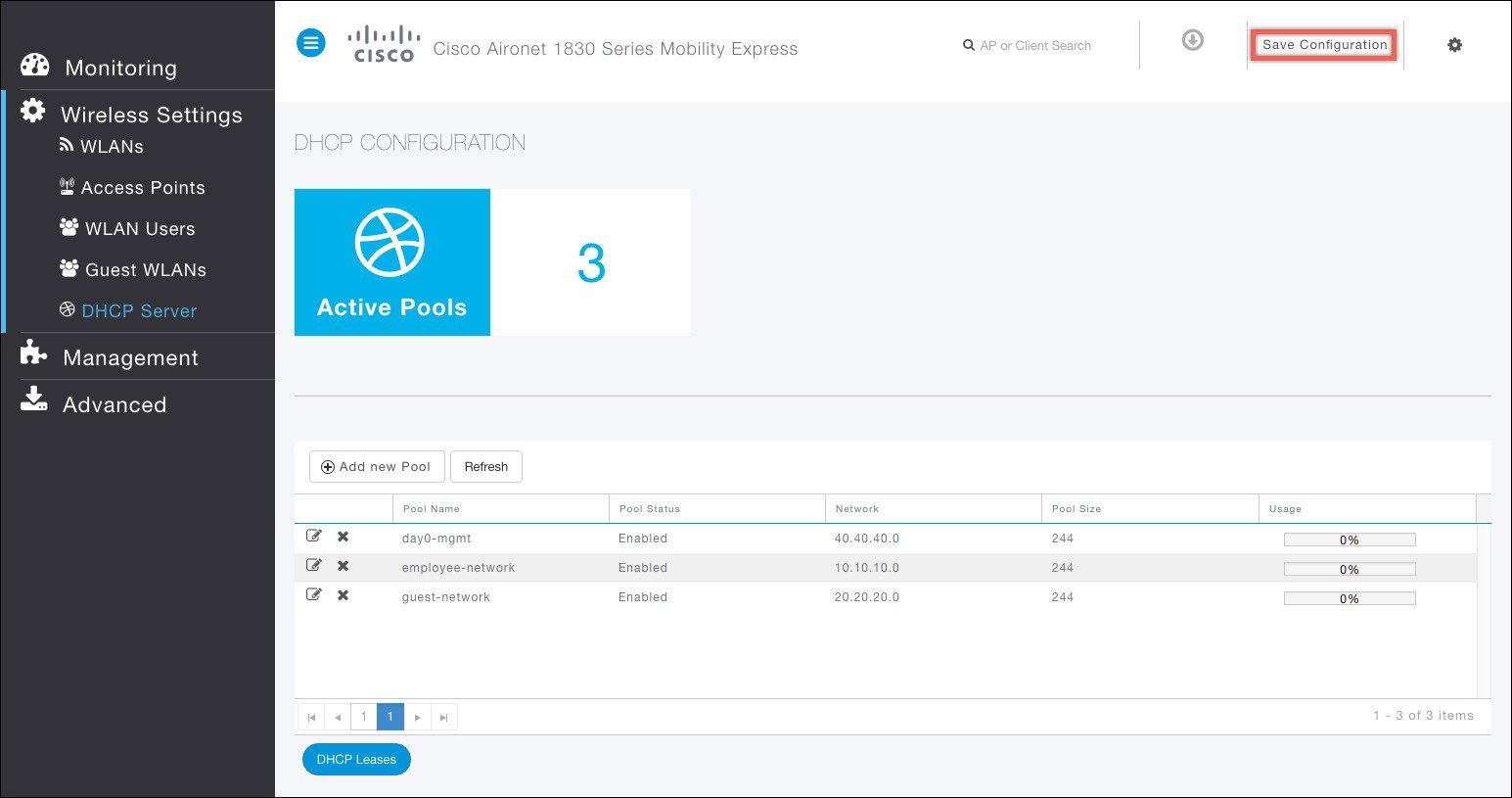

Save the configuration.

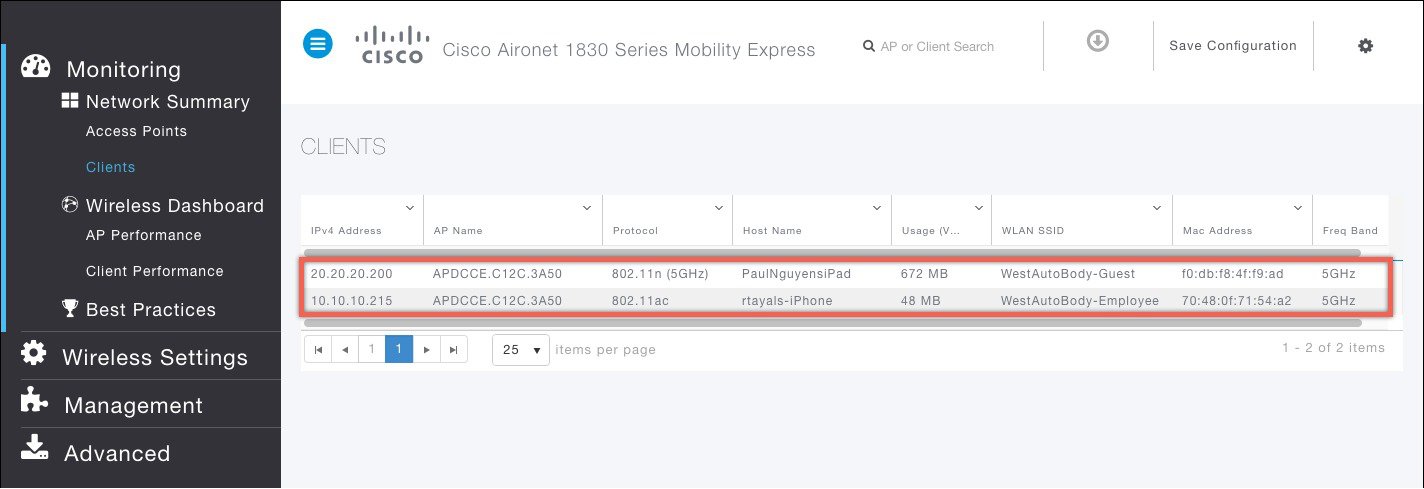

Connect the clients to Employee and Guest networks and verify their IP Addresses from their respective DHCP Pools.
