Concepts
Overview
A streaming media framework called
RTP over RTSP
makes it possible for DMPs to play streaming video on demand through RTSP connections. This framework prevents data loss inside streams and maintains proper synchronization of audio to video, even in high-definition.
You must maintain two data files for each VoD that you will stream in this way.
-
An MPEG2-TS source file, which uses the filename extension
MPG
. Its program stream might be encoded as MPEG-1, MPEG-2, or MPEG-4 Part 10 (H.264).
-
A “hinted”
MOV
file, which is derived from your MPG source file and imposes order upon it.
You must use our
Cisco Hinter
utility to output each hinted MOV file.
Cisco Hinter prepares MPEG2-TS files for interleaved RTP transmission through open source software called
Darwin Streaming Server
(DSS). Hinter adds delivery information to a media track, which tells DSS how to pack and stream (
multiplex
, or
mux
) data from the audio channel and the video channel. This method improves audiovisual synchronization because these channels traverse the network together. Your DSS can then deliver such hinted video to your DMPs upon demand, after you stage the MPG-MOV pair to its media serving directory.
Cisco Hinter versions for Windows and Linux users are downloadable from your DMM appliance.
Note We do not develop, maintain, sell, or support Darwin Streaming Server. Nor do we warrant its suitability for any purpose.
Workflow
1. Download and set up Cisco Hinter.
2. Download Darwin Streaming Server (DSS).
Note The official repository for DSS is http://dss.macforge.org. Alternatively, you can use http://developer.apple.com/opensource/server/streaming/index.html.
3. Install and configure DSS on
equipment
other than
any Cisco DMS server appliance
.
4. Process each of your MPG files with Cisco Hinter to output a small, hinted MOV file.
5. Stage your MPG and MOV files together in the DSS serving directory.
6. Request streams from
rtsp://
<
DSS_IP_address
>
:
<
optional_port_number
>
/
<
filename
>
.mov
.
In DMPDM
a. Enter your stream’s address in the URL field at Display Actions > Media URL.
b. Click
Start
.
In Digital Signs
a. Click the URL (recommended) radio button on the Simple property sheet in the Add Asset dialog box.
b. Enter your stream’s address in the URL field.
c. Choose
RTSP
from the File Type list.
d. Click
Save
.
Restrictions
RTSP Variants
-
There are many variants of RTSP and
we support only one of them
. You must use
RTP over RTSP
, which is also called
RTP over TCP
or
Interleaved TCP
. In this variant, RTP, RTCP, and RTSP data stream together over one logical port — typically, port 554.
-
Our RTSP does not support live streaming (multicast or unicast) in this release.
-
Our RTSP does not support “trick mode.” This means that you cannot pause video during playback, fast-forward through it, or fast-rewind through it. You can merely start or stop playback.
Darwin Streaming Server
• DSS cannot read any file whose file size is greater than 2.1 GB. You must split such large files into smaller ones before you derive hinted MOV output from them. (CSCtb27324)
-
Although DSS is an open source streaming media platform and available for multiple operating systems,
we have tested DSS on Linux exclusively
.
Cisco Hinter
•
Cisco Hinter
software is available for Windows and Linux, exclusively.
-
We do not support any other hinter.
-
We do not support playback of hinted files that you output from any other hinter.
Protocols
-
We do not support
User Datagram Protocol
(UDP).
-
We do not support
Session Announcement Protocol
(SAP).
-
We do not support
Session Description Protocol
(SDP) or its announcements.
Procedures
Download Cisco Hinter
Procedure
Step 1 Start DMS-Admin.

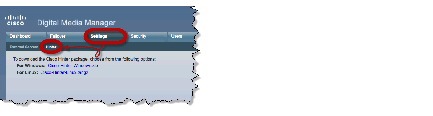

Step 2 Choose
Settings > Hinter
.
Step 3 Click to download either the Windows or the Linux version.
-
Cisco-Hinter-Windows.zip
-
Cisco-Hinter-Linux.tar.gz
Step 4 Decompress the archive.
Step 5 Stop. You have completed this procedure.
Install Cisco Hinter on Windows
Procedure
Step 1 Open a command prompt where you decompressed the archive.
Step 2 Type the command
cd CiscoHinter
, and then press
Enter
.
Step 3 Type the command
install.bat
, and then press
Enter
.
Step 4 Stop. You have completed this procedure.
Run Cisco Hinter on Windows
Procedure
Step 1 Open a command prompt where you decompressed the archive.
Step 2 Type the command
runHinter.bat
, and then press
Enter
.
Step 3 Enter the MPEG2-TS filename in the Source MPEG field.
OR
Click
Browse
or
Choose File
(depending on which browser you use) to find your MPEG2-TS file.
We populate the Output Name field automatically. It is identical to the name in the Source MPEG field, except that the filename extension is MOV and not MPG.
Step 4 Click
Generate
, and then wait for the “Hinting finished successfully” message.
Step 5 Find your hinted MOV output file in the
..\hinted-files
subdirectory.
Step 6 Move or copy both the MPG file and its MOV derivative to the DSS root directory.
Step 7 Stop. You have completed this procedure.
Install Cisco Hinter on Linux
Procedure
Step 1 Open a command prompt where you decompressed the archive.
Step 2 Type the command
run Install.sh
, and then press
Enter
.
Step 3 Stop. You have completed this procedure.
Run Cisco Hinter on Linux
Procedure
Step 1 Open a command prompt where you decompressed the archive.
Step 2 Type the command
run runHinter.sh
, and then press
Enter
.
Step 3 Enter the MPEG2-TS filename in the Source MPEG field.
OR
Click
Browse
or
Choose File
(depending on your browser) to find your MPEG2-TS file.
We populate the Output Name field automatically. It is identical to the name in the Source MPEG field except that the filename extension is MOV and not MPG.
Step 4 Click
Generate
, and then wait for the “Hinting finished successfully” message.
Step 5 Find your hinted MOV output file in the
..\hinted-files
subdirectory.
Step 6 Move or copy both the MPG file and its MOV derivative to the DSS root directory.
Step 7 Stop. You have completed this procedure.
Reference
Troubleshoot RTP Over RTSP
These general troubleshooting ideas might help you to diagnose and resolve problems with this feature.
-
Verify that both the MPG source file and its hinted MOV derivative are present together in the media root directory on your DSS.
-
Use a utility like openRTSP to test both the MPG source file and its hinted MOV derivative. The correct Linux command line syntax in this case is
openRTSP -V -v -t rtsp://
DSS_server_IP_address
/
filename
.mov
-
Use
HexEdit
,
WinHex
, or a similar utility to open your hinted MOV file and verify that it contains:
– An explicit reference to the full and literal filename of your MPG source.
– The signature for MOV output from Cisco Hinter:
Hinted MPEG1 Muxed Track
– The signature for interleaved RTP:
m=OTHER 0 RTP/AVP 96
-
Check the system logs on your DSS.
Note • openRTSP — http://www.live555.com/openRTSP/
• HexEdit — http://hexedit.sourceforge.net/
• WinHex — http://www.winhex.com/winhex/
