Front Mezzanine Module Overview

This chapter includes the following topics:

Overview

The UCSC X24g tri-mode M1 front mezzanine module intended for use in Cisco UCS X-Series compute nodes, starting with Cisco UCS X210c M8.

Each Cisco UCS X24g tri-mode M1 front mezzanine module consists of the following components:

  • UCS X24g tri-mode RAID controller

  • Up to six (6) SAS/SATA/NVMe SSD drives. Each drive slot supports either SAS, SATA or NVMe U.3 SSDs (RAID Controller)

    • SAS: 12G, 24G in a x1 config

    • SATA: 6G in a x1 config

    • NVMe: Gen 4 in a x2 config

  • Supercap

    • FBU345 or smaller size (TBD)

Front Mezzanine Module

The Cisco UCS X24g Tri-mode M1 front mezzanine module supports up to six (6) SAS/SATA/NVMe SSD drives. Each drive slot supports either SAS, SATA or NVMe U.3 SSDs (RAID Controller).

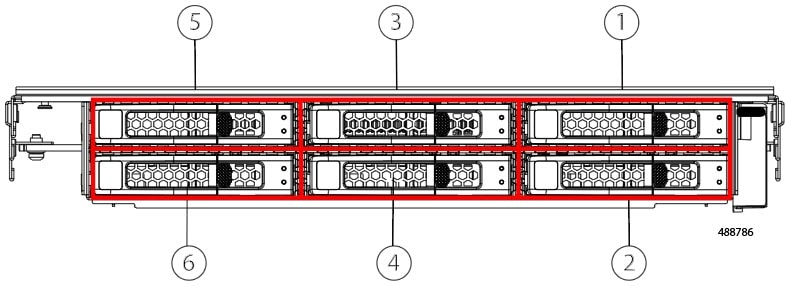

The following illustration shows the location of the drives.

1

drive slot 1

2

drive slot 2

3

drive slot 3

4

drive slot 4

5

drive slot 5

6

drive slot 6

Drive Bays

Each Cisco UCS X24g M1 front mezzanine drive slot can support local storage drives of different types and quantities of 2.5-inch SAS, SATA, or NVMe drives. A drive blank panel (UCSC-BBLKD-S2) must cover all empty drive bays.

Drive bays are numbered sequentially from 1 through 6 as shown.

Figure 1. Front Loading Drives

Drives and Drive LEDs

Each 24g Tri-mode drive is a front loading drive that slides into and out of the front mezzanine module's storage cage.

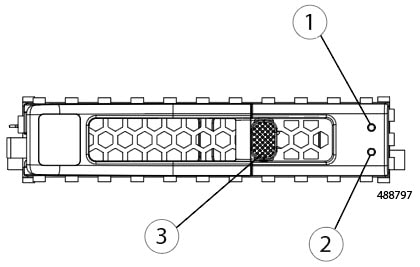

1

Drive Health LED

2

Drive Activity LED

3

Ejector button

Each 24g Tri-mode drive also has LED's that indicate drive health and activity.

Table 1. Drive LEDs

LED

Color

Description

Drive Activity

Off

Drive Not Present.

On

Green ON for presence and Green Flashing for I/O activity.
