Introduction

This introduction contains the following topics:

Introduction

Component Description
GPU

Support HGX 8-GPU SXM5 with GPU BB Sled

AMD: MI300X 750W

CPU-GPU Interconnect: 8xPCIe Gen5x16

(Refer to the PCIe topology in Figure 4 and 5)
CPU

2 x AMD SP5 sockets, LGA6096

Compatible with AMD EPYC™ 9004 and 9005 Series CPU
Storage (OS)

1 x PCIe Gen3 NVMe M.2 (on board/HPM) +

Dual M.2 PCIe Gne4 NVME SSD
Storage (Data Cache) Up to 16x 2.5” NVMe U.2 (PCIe SW) + 8X2.5” SAS/SATA (optional by SAS RAID card)
Network (Cluster) card

8 x Gen 5 x16 HHHL Slots compatible with InfiniBand and Ethernet

InfiniBand (default): Up to 400Gbps

Ethernet: 400GbE, 200GbE, 100GbE, 50GbE, 40GbE, 25GbE, and 10GbE

Network (North-South) card

5 x Gen5 x16 FHHL Slots compatible with Infini Band and Ethernet

Ethernet (default): 400GbE, 200GbE, 100GbE, 50GbE, 40GbE, 25GbE, and 10GbE

InfiniBand: Up to 400Gbps
System Memory (DIMM) 24 x DDR5 DIMM Slots, up to 4800 / 6400 MHz, depends on CPU Model, Total capacity up to 6TB
DC-SCM (out-of-band system management)

1 GbE RJ45 interface

Supports IPMI 2.0, KVM, and Watchdog
OCP NIC 3.0 1 x OCP 3.0 SFF Slot, supporting Ethernet from 1G to 10G
Power Supply 6 x 3 kW + 2 x 2.4 kW

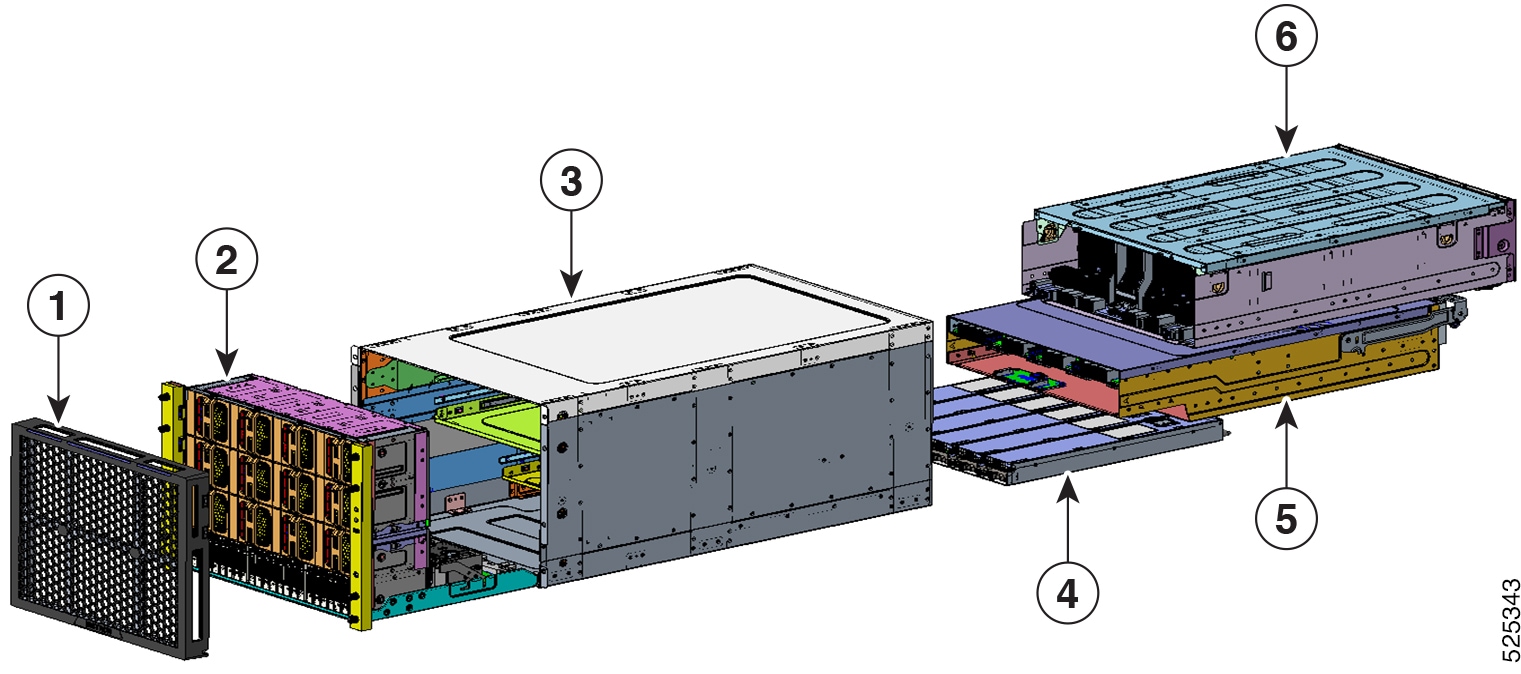

Figure 1. System Exploded Drawing

1

Front Bezel

2

Fan 12x

Storage 16+8

3

19``@800mm

Main Chassis

4

PSU

5

CPU Sled

6

HGBB Sled

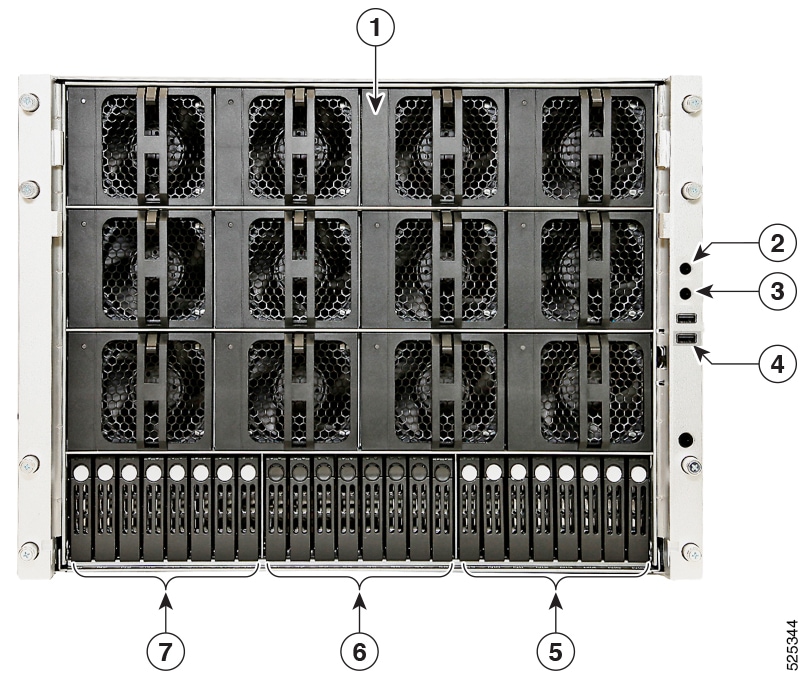

Figure 2. System Front View

1

80105 Fan X 12

2

Power Button with LED

3

UID Button with LED

4

USB2.0 X 2

5

NVMe SSD X 8

6

SAS / SATA SSD X 8

7

NVMe SSD X 8

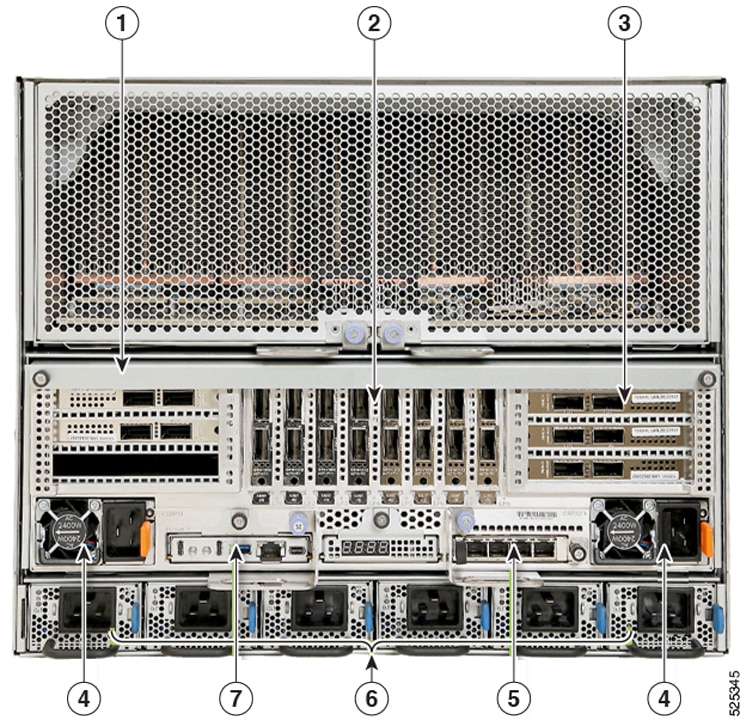

Figure 3. System Rear View

1

FHHL PCIe X 2 (Max.)

2

LP PCIe X 8 (Max.)

3

FHHL PCIe X 3 (Max.)

4

2400W PSU

5

OCP Module

6

3000W*6 PSU

7

DC-SCM

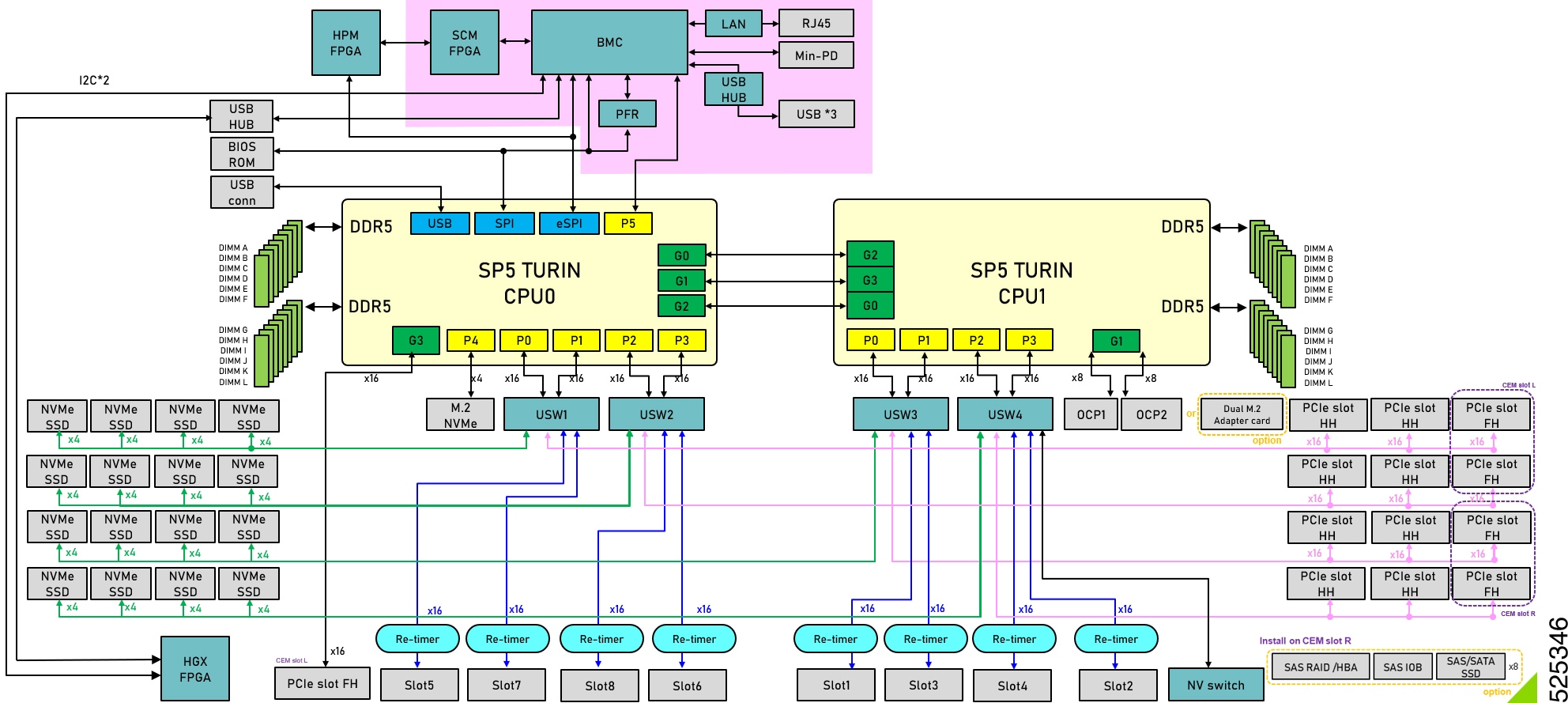

Figure 4. Block diagram (8U GPU Server with NV H100 and H200)

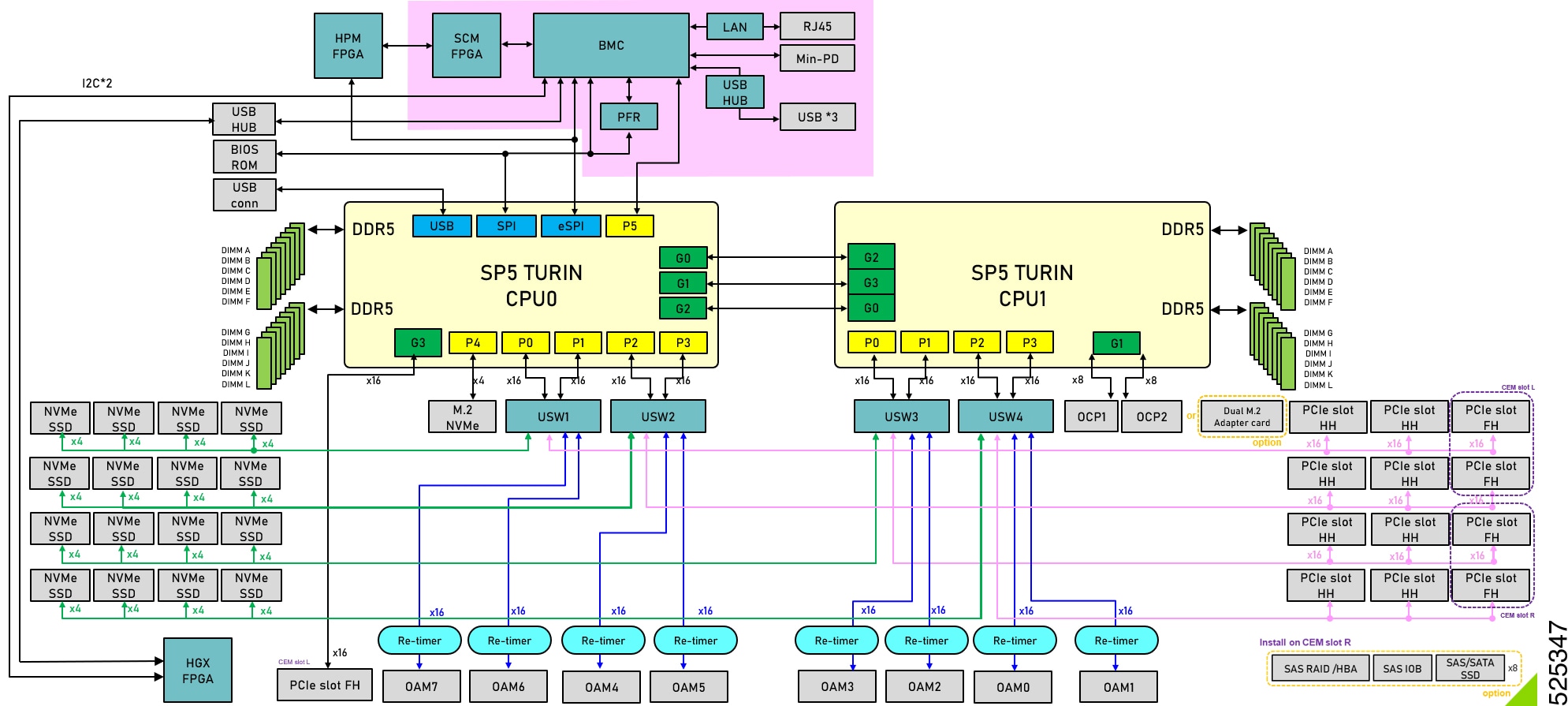

Figure 5. Block diagram (8U GPU Server w/ AMD MI300)

Terminology

Term Definition
CPU Central Processing Unit. Common reference to both CISC (complex instruction set computer) and RISC (reduced instruction set computer) processors
FHHL PCIe card form factor, Full Height Half Length
GPU Graphics Processing Unit
NIC Network Interface Card
NVMe Non-Volatile Memory Express
OCP Open Compute Project
PCIe Peripheral Component Interconnect Express. Refers to a communication like defined within PCISIG standards body.
BMC Baseboard Management Controller
FRU Field Replace Unit
DCSCM Datacenter Secure control Module Specification
IPMI Intelligent Platform Management Interface
