Installing the Cisco VSG and the Cisco VNMC-Quick Start

This chapter contains the following sections:

Information About Installing the Cisco VNMC and the Cisco VSG

This chapter describes how to install and set up a basic working configuration of the Cisco VNMC and Cisco VSG. The example in this chapter uses the OVF template method to install the OVA files of the software. The steps assume that the Cisco Nexus 1000V Series switch is operational, and endpoint VMs are already installed.

Cisco VSG and Cisco VNMC Installation Planning Checklists

Planning the arrangement and architecture of your network and equipment is essential for a successful operation of the Cisco VNMC and Cisco VSG.

Basic Hardware and Software Requirements

The following table lists the basic hardware and software requirements for Cisco VSG and Cisco VNMC installation.

  • x86 Intel or AMD server with 64-bit processor listed in the VMware compatibility matrix
  • Intel VT enabled in the BIOS
  • VMware ESX 4.1, 5.0, or 5.1
  • ESX or ESXi platform that runs VMware software release 4.1. or 5.0 with a minimum of 4-GB physical RAM for the Cisco VSG and similar for the Cisco VNMC or 6 GB for both.
  • VMware vSphere Hypervisor
  • VMware vCenter 5.0 (4.1 VMware supports only 4.1 host)
  • 1 processor
  • CPU speed of 1.5 Ghz
  • Datastore with at least 25-GB disk space available on shared NFS/SAN storage when the Cisco VNMC is deployed in an HA cluster
  • Internet Explorer 8.0 or Mozilla Firefox 3.6.x on Windows
  • Flash 10.0 or 10.1
  • Cisco VSG software available for download at http:/​/​www.cisco.com/​en/​US/​products/​ps13095/​index.html
  • Cisco VNMC software available for download at http:/​/​www.cisco.com/​en/​US/​products/​ps11213/​index.html

VLAN Configuration Requirements

Follow these VLAN requirements top prepare the Cisco Nexus 1000V Series switch for further installation processes:

  • You must have two VLANs that are configured on the Cisco Nexus 1000V Series switch uplink ports: the service VLAN and an HA VLAN (the VLAN does not need to be the system VLAN).
  • You must have two port profiles that are configured on the Cisco Nexus 1000V Series switch: one port profile for the service VLAN and one port profile for the HA VLAN (you will be configuring the Cisco VSG IP address on the Cisco VSG so that the Cisco Nexus 1000V Series switch can communicate with it)

Required Cisco VNMC and Cisco VSG Information

The following information can be used later during the Cisco VNMC and Cisco VSG installation.

Type Your Information

Cisco VSG name—Unique within the inventory folder and up to 80 characters



Hostname—Where the Cisco VSG will be installed in the inventory folder



Datastore name—Where the VM files will be stored



Cisco VSG management IP address



VSM management IP address



Cisco VNMC instance IP address



Mode for installing the Cisco VSG
  • Standalone
  • HA primary
  • HA secondary
  • Manual installation

Cisco VSG VLAN number

  • Service (1)
  • Management (2)
  • High availability (HA) (3)


Cisco VSG port profile name

  • Data (1)
  • Management (2)
  • High availability (HA) (3)
Note

The numbers indicate the VSG port profile that must be associated with the VSG VLAN number.


HA pair ID (HA domain ID)



Cisco VSG admin password



Cisco VNMC admin password



Cisco VSM admin password



Shared secret password (Cisco VNMC, Cisco VSG policy agent, Cisco VSM policy agent)



Tasks and Prerequisites Checklist

Tasks

 Prerequisites
Task 1: Installing the Cisco VNMC from an OVA Template
Make sure that you know the following:
  • The Cisco VNMC OVA image is available in the vCenter.
  • Know the IP/subnet mask/gateway information for the Cisco VNMC.
  • Know the admin password, shared_secret, hostname that you want to use.
  • Know the DNS server and domain name information.
  • Know the management port-profile name for the Virtual Machine (VM) (management).
    Note

    The management port profile is the same port profile that is used for the Virtual Supervisor Module (VSM). The port profile is configured in the VSM and is used for the Cisco VNMC management interface.
  • The host has 2-GB RAM and 25-GB available hard-disk space.
  • A shared secret password is available (this password enables communication between the Cisco VNMC, VSM, and Cisco VSG).
Task 2: On the Cisco VNMC, Setting Up VM-Mgr for vCenter Connectivity
Make sure that you know the following:
  • Install Adobe Flash Player (Version 10.1.102.64)
  • IP address of the Cisco VNMC
  • Admin user password
Task 3: On the VSM, Configuring the Cisco VNMC Policy Agent
Make sure that you know the following:
  • The Cisco VNMC policy-agent image is available on the VSM (for example, vnmc-vsmpa.2.1.1b.bin)
    Note

    The string vsmpa must appear in the image name as highlighted.
  • The IP address of the Cisco VNMC
  • The shared secret password you defined during the Cisco VNMC installation
  • That IP connectivity between the VSM and the Cisco VNMC is working
    Note

    If you upgrade your VSM, you must also copy the latest Cisco VSM policy agent image. This image is available in the Cisco VNMC image bundle to boot from a flash drive and to complete registration with the Cisco VNMC.
Task 4: On the VSM, Preparing Cisco VSG Port Profiles
Make sure that you know the following:
  • The uplink port-profile name.
  • The VLAN ID for the Cisco VSG data interface (for example,100).
  • The VLAN ID for the Cisco VSG-ha interface (for example, 200).
  • The management VLAN (management).
    Note

    None of these VLANs need to be system VLANs.
Task 5: Installing the Cisco VSG from an OVA Template
Make sure that you know the following:
  • The Cisco VSG OVA image is available in the vCenter.
  • Cisco VSG-Data and Cisco VSG-ha port profiles are created on the VSM.
  • The management port profile (management)
    Note

    The management port profile is the same port profile that is used for the VSM. The port profile is configured in the VSM and is used for the Cisco VNMC management interface.
  • The Cisco VSG-Data port profile: VSG-Data
  • The Cisco VSG-ha port profile: VSG-ha
  • The HA ID
  • The IP/subnet mask/gateway information for the Cisco VSG
  • The admin password
  • 2-GB RAM and 3-GB hard disk space are available
  • The Cisco VNMC IP address
  • The shared secret password
  • The IP connectivity between Cisco VSG and Cisco VNMC is okay.
  • The Cisco VSG VNM-PA image name (vnmc-vsgpa.2.1.1b.bin) is available.

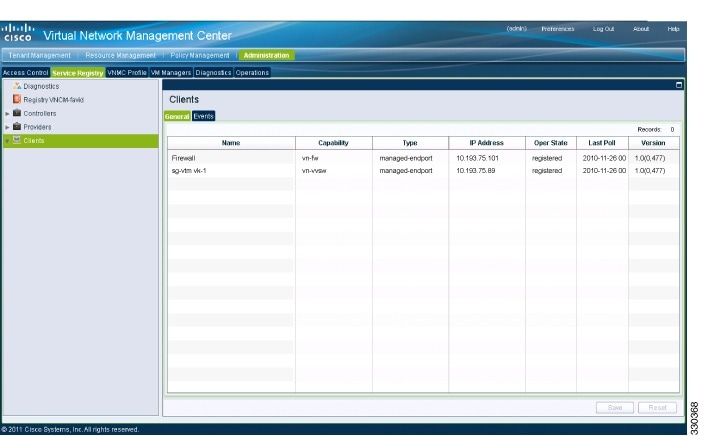

Task 6: On the Cisco VSG and Cisco VNMC, Verifying the VNM Policy-Agent Status —

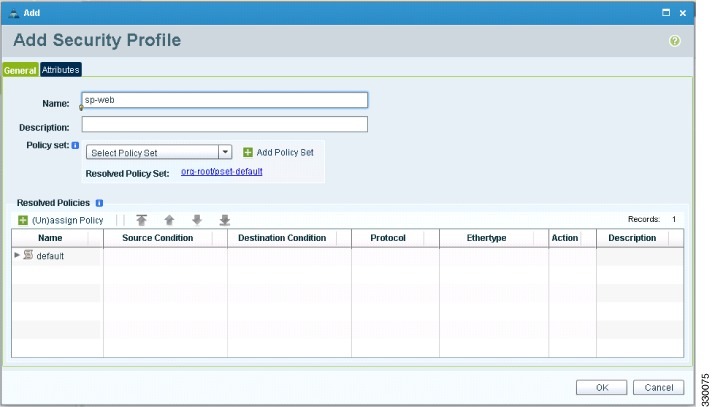

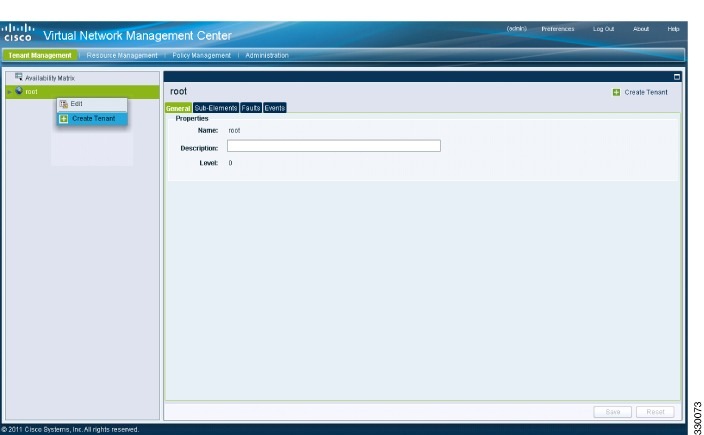

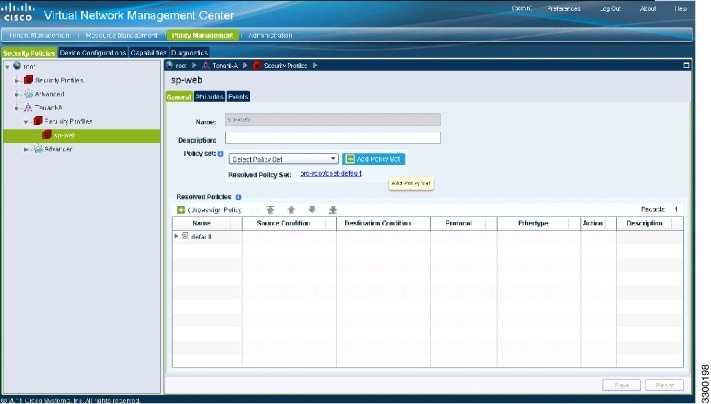

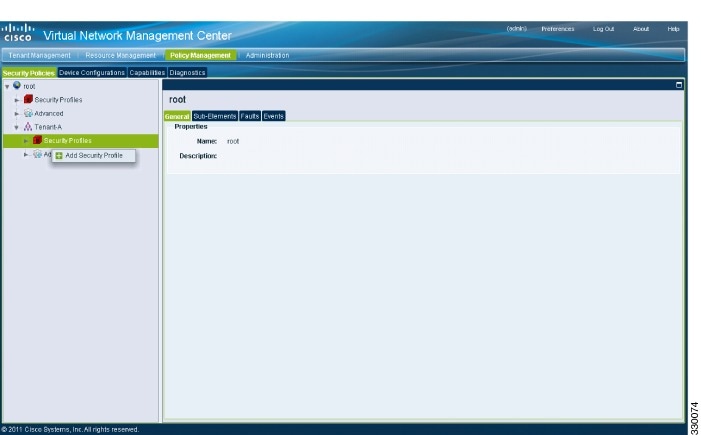

Task 7: On the Cisco VNMC, Configuring a Tenant, Security Profile, and Compute Firewall
Make sure that you know the following:
  • Adobe Flash Player (Version 10.1 or later) has been installed
  • The IP address of the Cisco VNMC
  • The admin user password

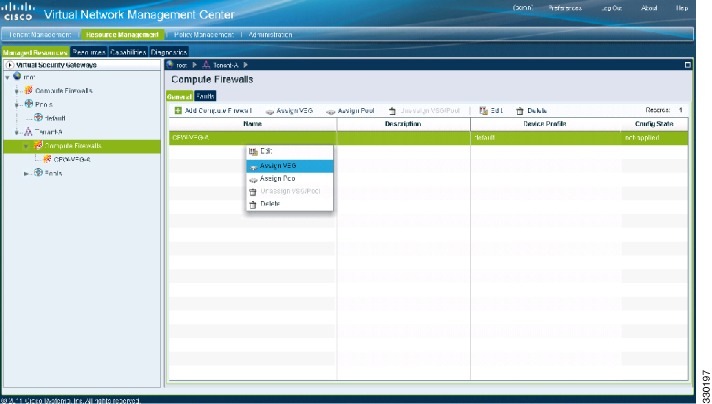

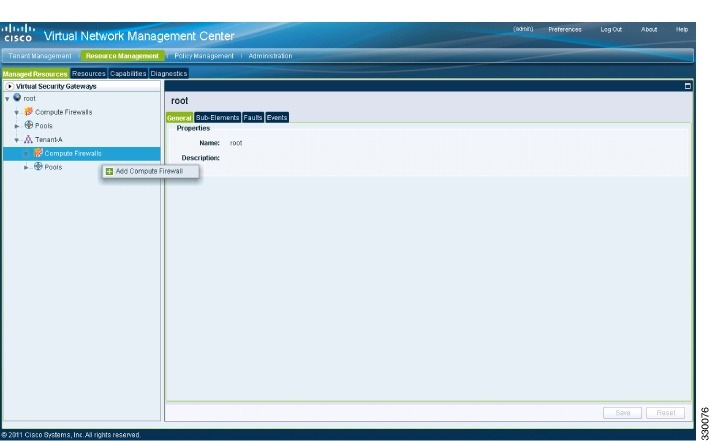

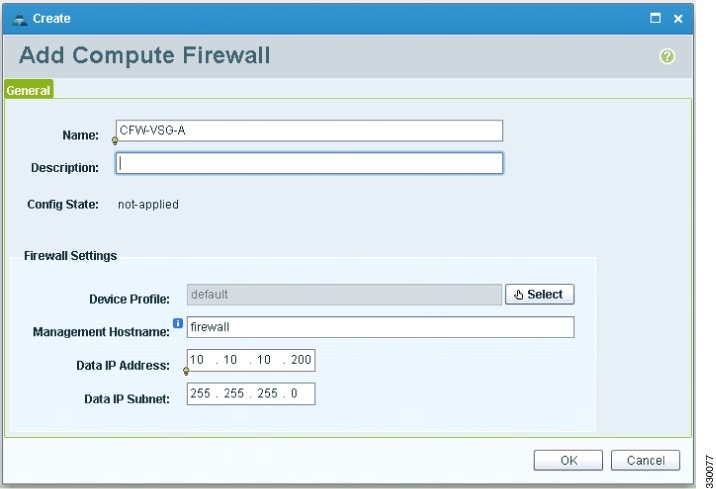

Task 8: On the Cisco VNMC, Assigning the Cisco VSG to the Compute Firewall —

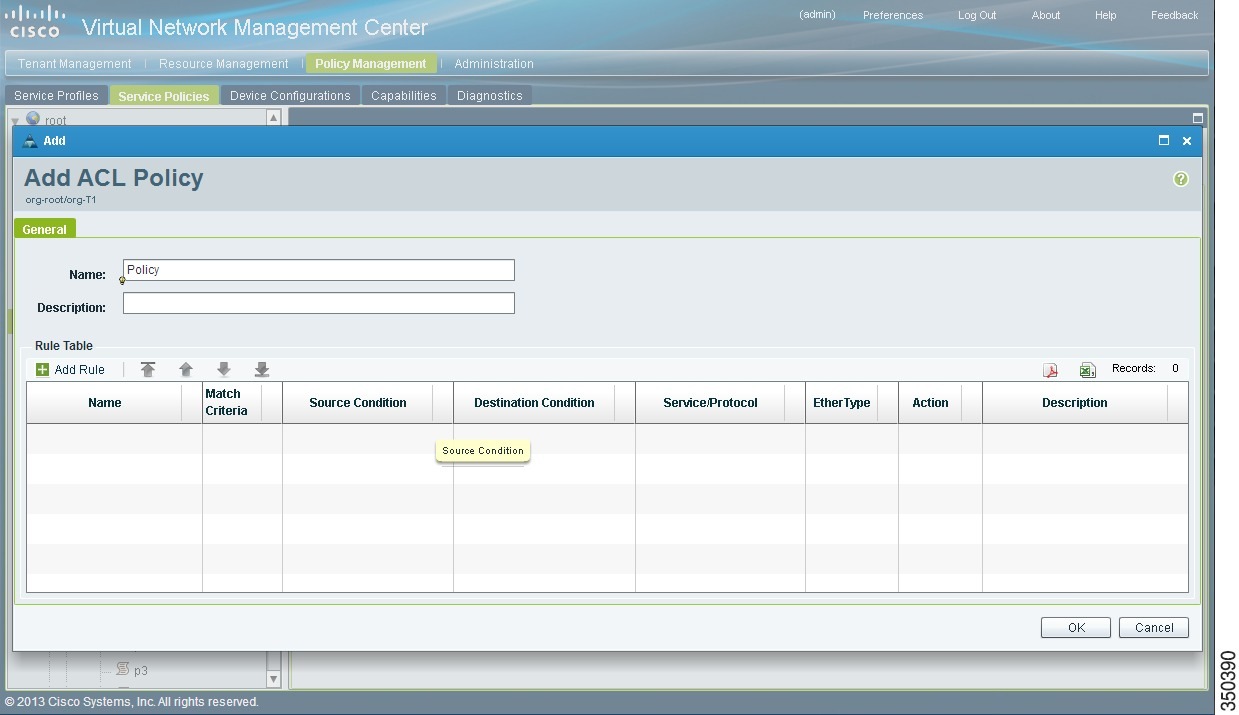

Task 9: On the Cisco VNMC, Configuring a Permit-All Rule —
Task 10: On the Cisco VSG, Verifying the Permit-All Rule —

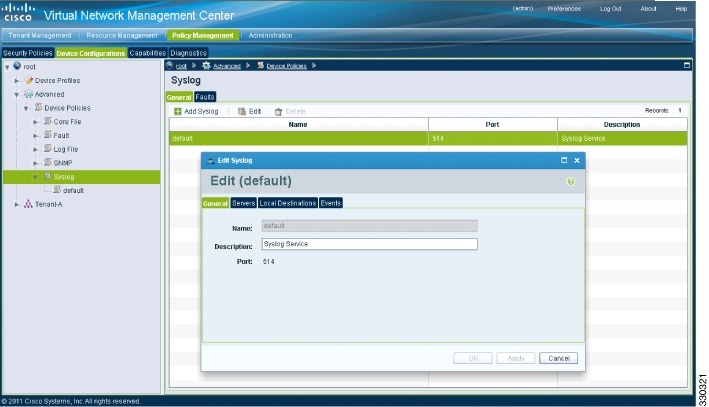

Task 11: Enabling Logging —

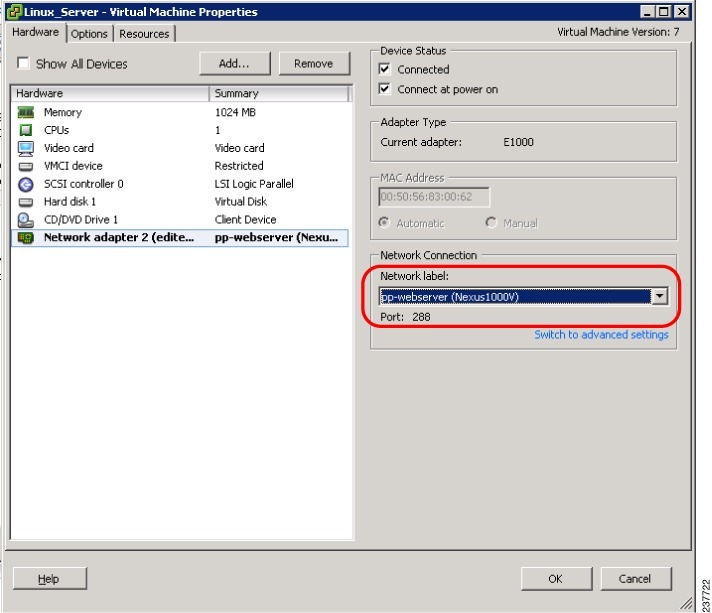

Task12: Enabling the Traffic VM Port-Profile for Firewall Protection and Verifying the Communication Between the VSM, VEM, and VSG
Make sure that you know the following:
  • The server virtual machine that runs with an access port profile (for example, web server)
  • The Cisco VSG data IP address (10.10.10.200) and VLAN ID (100)
  • The security profile name (for example, sp-web)
  • The organization (Org) name (for example, root/Tenant-A)
  • The port profile that you would like to edit to enable firewall protection
  • That one active port in the port-profile with vPath configuration has been set up
Task13: Sending Traffic Flow and on the Cisco VSG Verifying Statistics and Logs —

Host Requirements

  • ESX or ESXi platform that runs VMware software release 4.1, 5.0 , 5.1 with a minimum of 4 GB physical RAM for the Cisco VSG and similar requirements for the Cisco VNMC, or 6 GB for both.
  • 1 processor
  • CPU speed of 1.5 GHz

Obtaining the Cisco VNMC and the Cisco VSG Software

The Cisco VSG software is available for download at the following URL:

http:/​/​www.cisco.com/​en/​US/​products/​ps13095/​index.html

The Cisco VNMC software is available for download at the following URL:

http:/​/​www.cisco.com/​en/​US/​products/​ps11213/​index.html

Task 1: Installing the Cisco VNMC from an OVA Template

Before You Begin

Know the following:

  • The Cisco VNMC OVA image is available in the vCenter.
  • Know the IP/subnet mask/gateway information for the Cisco VNMC.
  • Know the admin password, shared_secret, hostname that you want to use.
  • Know the DNS server and domain name information.
  • Know the management port-profile name for the Virtual Machine (VM) (management).

    Note

    The management port profile is the same port profile that is used for the Virtual Supervisor Module (VSM). The port profile is configured in the VSM and is used for the Cisco VNMC management interface.
  • The host has 2-GB RAM and 25-GB available hard-disk space.
  • A shared secret password is available (this password enables communication between the Cisco VNMC, VSM, and Cisco VSG).
SUMMARY STEPS

    1.    Choose the host on which to deploy the Cisco VNMC VM.

    2.    Choose File > Deploy OVF Template.

    3.    In the Source window, do the following:

    4.    In the OVF Template Details window, review the details of the Cisco VNMC template and click Next.

    5.    In the End User License Agreement window, do the following:

    6.    In the Name and Location window, do the following:

    7.    In the Deployment Configuration window, do the following:

    8.    In the Datastore window, choose the datastore for the VM and click Next.

    9.    In the Disk Format window, do the following:

    10.    In the Network Mapping window, do the following:

    11.    In the Properties window, do the following:

    12.    Click Next.

    13.    In the Ready to Complete window, review the deployment settings information and click Finish.

    14.    Click Close.

    15.    Power on the Cisco VSG VM.


DETAILED STEPS
    Step 1   Choose the host on which to deploy the Cisco VNMC VM.
    Step 2   Choose File > Deploy OVF Template.
    Figure 1. Deploy OVF Template—Source Window

    The Source window opens.
    Step 3   In the Source window, do the following:
    1. Enter the path to the Cisco VNMC OVA file in the Deploy from a file or URL field.
    2. Click Next.

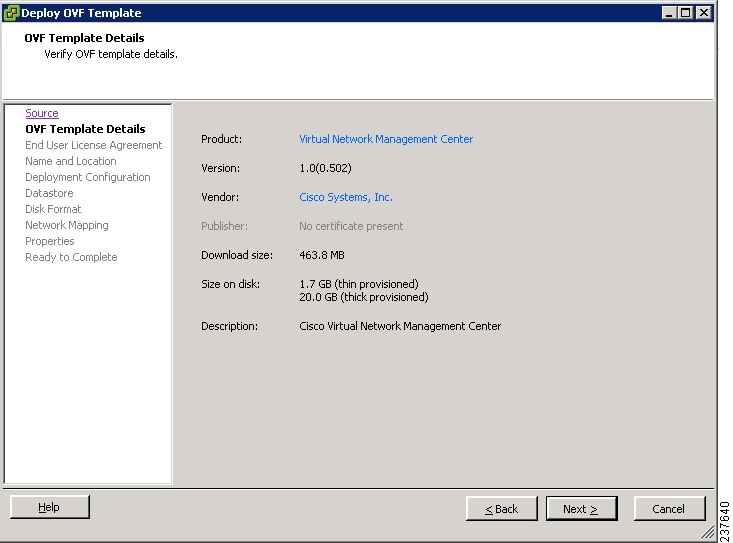

      Figure 2. Deploy OVF Template–OVF Template Details Window



      The OVF Template Details window opens.
    Step 4   In the OVF Template Details window, review the details of the Cisco VNMC template and click Next.

    The End User License Agreement window opens.
    Step 5   In the End User License Agreement window, do the following:
    1. Review the End User License Agreement and click Accept.
    2. Click Next.

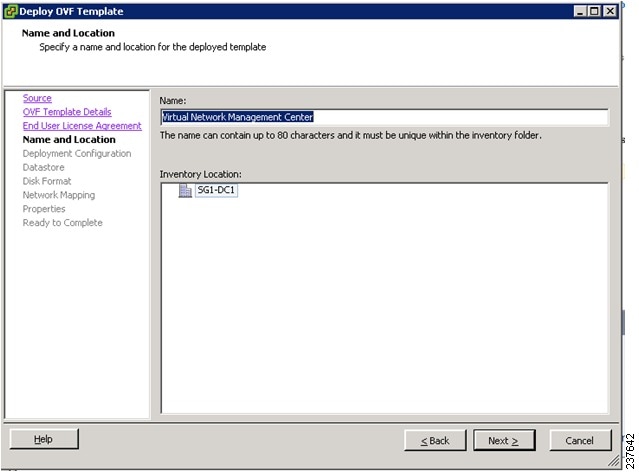

      Figure 3. Deploy OVF Template–Name and Location



      The Name and Location window opens.
    Step 6   In the Name and Location window, do the following:
    1. In the Name field, enter the name of the Cisco Virtual Network Management Center.

      The name can contain up to 80 characters and must be unique within the inventory folder.

    2. In the Work pane, choose the Inventory location that you would like to use.
    3. Click Next.

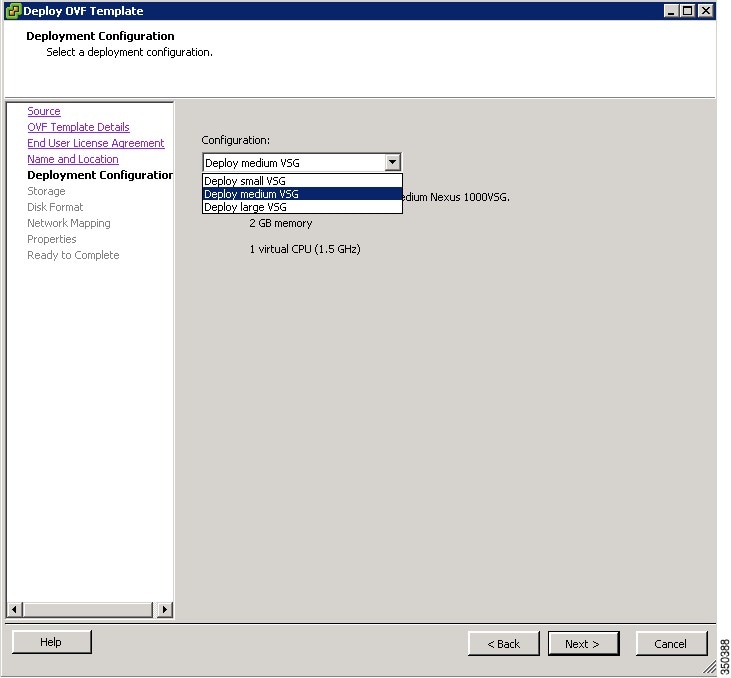

    Step 7   In the Deployment Configuration window, do the following:
    1. From the Configuration drop-down list, choose VNMC Installer.
    2. Click Next.
    Step 8   In the Datastore window, choose the datastore for the VM and click Next.

    The Disk Format window opens.

    Note

    The storage can be local or shared remote such as the network file storage (NFS) or the storage area network (SAN). If only one storage location is available for an ESX host, this window does not display and you are assigned to the one that is available.

    Figure 4. Deployment OVF Template–Disk Format



    Step 9   In the Disk Format window, do the following:
    1. Choose either Thin provisioned format or Thick provisioned format to store the VM vdisks.
    2. Click Next.

      The Network Management window opens.

      The default is thick provisioned. If you do not want to allocate the storage immediately, use thin provisioned. Ignore the red text in the window.

      Figure 5. Deploy OVF Template–Network Mapping Window



    Step 10   In the Network Mapping window, do the following:
    1. Choose the management network port profile for the VM in the Network Mapping pane.
    2. Click Next.

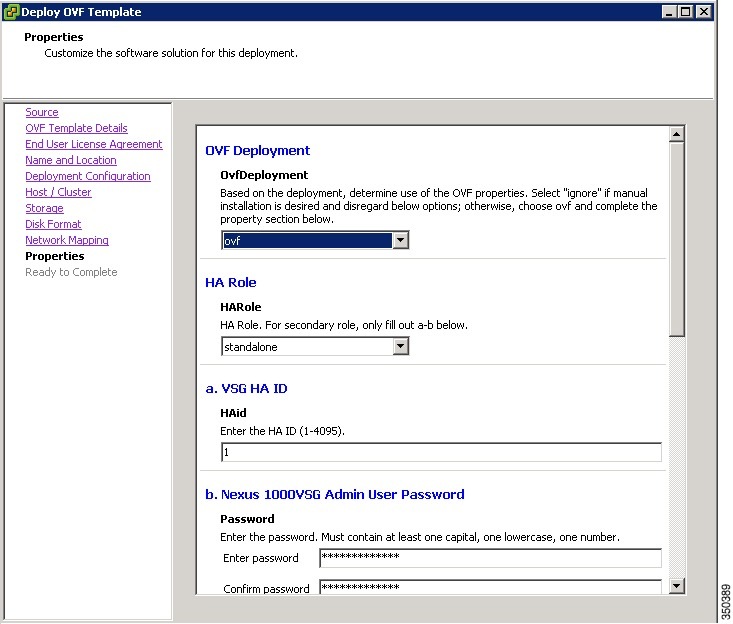

      Figure 6. Deploy OVF Template–Properties Window



      The Properties window opens.
    Step 11   In the Properties window, do the following:
    1. In the IPv4 field, enter the IP address
    2. In the Netmas field, enter the subnet mask
    3. In the IPv4Gateway field, enter the gateway.
    4. In the DomainName field, enter the domain name.
    5. In the DNS field, enter the domain name server name.
    6. In the Password field, enter the admin password.
    7. In the Secret field, enter the shared secret password.
      Note
      Follow these parameters for choosing the shared secret password:
      • The password must be more than eight characters.
      • Characters not supported for shared secret password: & ' " ` ( )< >| \ characters and all other characters supported on the keyboard.
      • The password should contain lowercase letters, uppercase letters, digits, and special characters.
      • The password should not contain characters repeated three or more times consecutively.
      • The new shared secret passwords should not repeat or reverse the username.
      • The password should not be cisco, ocsic, or any variant obtained by changing the capitalization of letters.
      • The password should not be formed by easy permutations of characters present in the username or Cisco.
    Step 12   Click Next.
    Figure 7. Deploy OVF Template–Ready to Complete Window



    Note

    Make sure that red text messages do not appear before you click Next. If you do not want to enter valid information in the red-indicated fields, use null values to fill those fields. If those fields are left empty or filled with invalid null values, the application does not power on.

    Ignore the VNMC Restore fields.

    The Ready to Complete window opens.
    Step 13   In the Ready to Complete window, review the deployment settings information and click Finish.

    The progress bar in the Deploying Virtual Network Management Center window shows how much of the deployment task is completed before the Cisco VNMC is deployed.

    Wait for the Deployment completed Successfully window.
    Step 14   Click Close.
    Step 15   Power on the Cisco VSG VM.

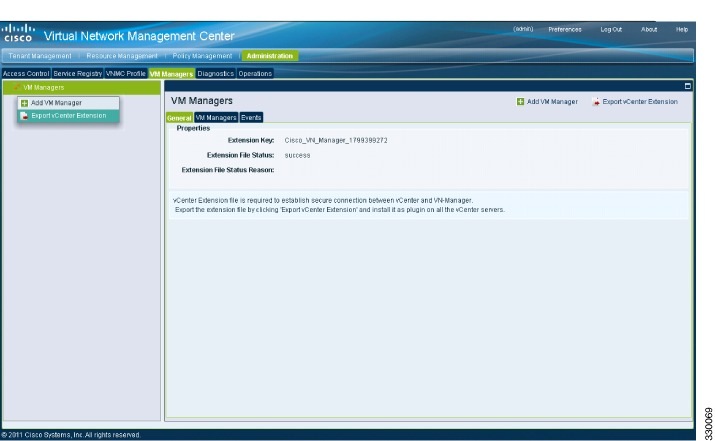

    Task 2: On the Cisco VNMC, Setting Up VM-Mgr for vCenter Connectivity

    Perform the following tasks in the same order as listed below to set up the VM-manager for vCenter connectivity:

    Downloading the vCenter Extension File from the Cisco VNMC

    Before You Begin

    Make sure that you know the following:

    • Install Adobe Flash Player (Version 10.1.102.64)
    • IP address of the Cisco VNMC
    • Admin user password
    SUMMARY STEPS

      1.    To access the Cisco VNMC from your client machine, open Internet Explorer and access https://vnmc-ip/ (https://xxx.xxx.xxx.xxx).

      2.    In the Website Security Certificate window, choose Continue to this website.

      3.    In the Cisco VNMC Access window, do the following:

      4.    In the VNMC Main window, choose Administration > VM Managers.

      5.    In the Cisco Virtual Network Management Center VM Managers window, do the following:


    DETAILED STEPS
      Step 1   To access the Cisco VNMC from your client machine, open Internet Explorer and access https://vnmc-ip/ (https://xxx.xxx.xxx.xxx).

      The Website Security Certificate window opens.

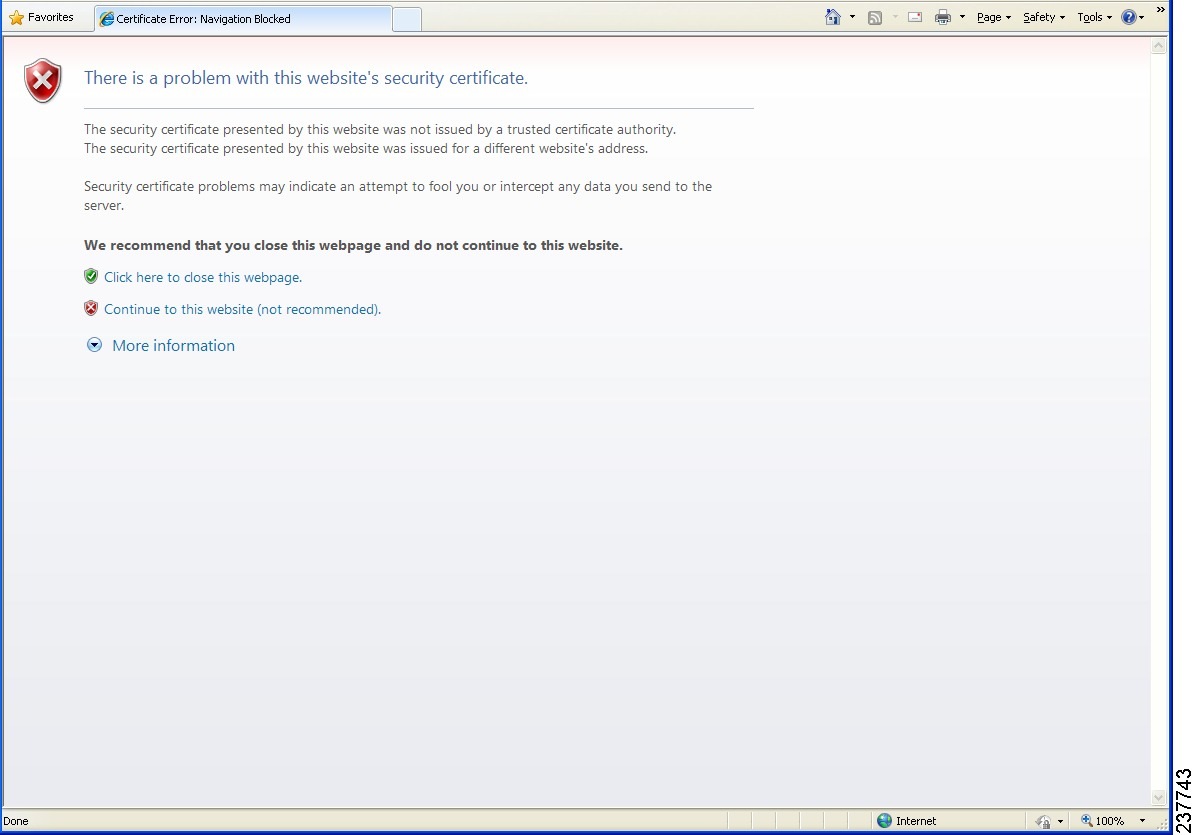

      Figure 8. Website Security Certification Window



      Step 2   In the Website Security Certificate window, choose Continue to this website.
      Step 3   In the Cisco VNMC Access window, do the following:
      1. Enter the login name admin.
      2. Enter the password that you set when installing the application.

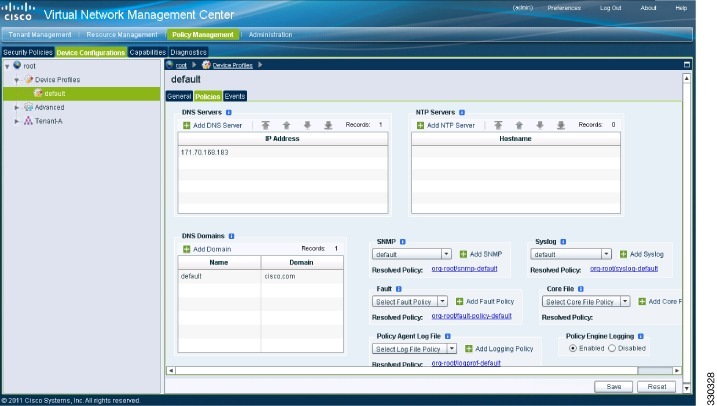

        Figure 9. Cisco VNMC Window



        The VNMC main window opens.
      Step 4   In the VNMC Main window, choose Administration > VM Managers.

      The VM Managers window opens.
      Step 5   In the Cisco Virtual Network Management Center VM Managers window, do the following:
      1. Right-click and choose Export vCenter Extension from the VM Managers pane.
      2. Save the file on your vCenter desktop.
      What to Do Next

      Go to Registering the vCenter Extension Plugin in the vCenter.

      Registering the vCenter Extension Plugin in the vCenter

      This task is completed within your client desktop vSphere client directory

      Before You Begin

      See Downloading the vCenter Extension File from the Cisco VNMC.

      SUMMARY STEPS

        1.    From vSphere client, log in to vCenter.

        2.    In the Vsphere Client window, choose Plug-ins > Manage Plug-ins.

        3.    Right-click in an empty space, and choose New Plug-in from the drop-down list.

        4.    In the Register Plug-in window, do the following:

        5.    On the Register Plug-in progress indicator, click OK after the successful registration message appears.

        6.    Click Close.


      DETAILED STEPS
        Step 1   From vSphere client, log in to vCenter.
        Figure 10. vSphere Client Directory Window



        The vSphere Client Directory window opens.
        Step 2   In the Vsphere Client window, choose Plug-ins > Manage Plug-ins.
        Step 3   Right-click in an empty space, and choose New Plug-in from the drop-down list.

        The Register Plug-in window that contains the vSphere client and vCenter directory for managing plug-ins opens.

        Figure 11. vSphere Client and vCenter Directory for Managing Plug-ins with Security Warning



        Step 4   In the Register Plug-in window, do the following:
        1. Browse to the Cisco VNMC vCenter extension file and click Register Plug-in.
        2. On the Security Warning dialog box, click Ignore.
        Step 5   On the Register Plug-in progress indicator, click OK after the successful registration message appears.
        Step 6   Click Close.
        What to Do Next

        Go to Configuring the vCenter in VM-Manager in the Cisco VNMC.

        Configuring the vCenter in VM-Manager in the Cisco VNMC

        Before You Begin

        See Task 2: On the Cisco VNMC, Setting Up VM-Mgr for vCenter Connectivity.

        SUMMARY STEPS

          1.    Go to the Cisco VNMC and click Administration > VM Managers.

          2.    In the Cisco Virtual Network Management Center window, click the VM Manager tab.

          3.    In the left pane, choose Vm Manager > Add VM Manager.

          4.    In the Add VM Manager dialog box do the following:

          5.    Click OK.


        DETAILED STEPS
          Step 1   Go to the Cisco VNMC and click Administration > VM Managers.
          Step 2   In the Cisco Virtual Network Management Center window, click the VM Manager tab.
          Step 3   In the left pane, choose Vm Manager > Add VM Manager.
          Step 4   In the Add VM Manager dialog box do the following:
          1. In the Name field, enter the vCenter name (no spaces allowed).
          2. In the Description field, enter a brief description of the vCenter.
          3. In the Hostname/IP Address field, enter the vCenter IP address.
          Step 5   Click OK.
          Note

          The successful addition should display the Admin State as enable and the Operational State as up with the version information.

          Task 3: On the VSM, Configuring the Cisco VNMC Policy Agent

          Once the Cisco VNMC is installed, you must register the VSM with the Cisco VNMC policy.

          Before You Begin

          Make sure that you know the following:

          • The Cisco VNMC policy-agent image is available on the VSM (for example, vnmc-vsmpa.2.1.1b.bin)

            Note

            The string vsmpa must appear in the image name as highlighted.
          • The IP address of the Cisco VNMC
          • The shared secret password you defined during the Cisco VNMC installation
          • That IP connectivity between the VSM and the Cisco VNMC is working

            Note

            If you upgrade your VSM, you must also copy the latest Cisco VSM policy agent image. This image is available in the Cisco VNMC image bundle to boot from a flash drive and to complete registration with the Cisco VNMC.
          SUMMARY STEPS

            1.    On the VSM, enter the following commands:

            2.    Check the status of the VNM policy agent configuration to verify that you have installed the Cisco VNMC correctly and it is reachable by entering the show vnm-pa status command. This example shows that the Cisco VNMC is reachable and the installation is correct:


          DETAILED STEPS
            Step 1   On the VSM, enter the following commands:
            vsm# configure terminal
vsm(config)# vnm-policy-agent
vsm(config-vnm-policy-agent)# registration-ip 10.193.75.95
vsm(config-vnm-policy-agent)# shared-secret Example_Secret123
vsm(config-vnm-policy-agent)# policy-agent-image vnmc-vsmpa.2.1.1b.bin
vsm(config-vnm-policy-agent)# exit
vsm(config)# copy running-config startup-config
vsm(config)# exit
            Step 2   Check the status of the VNM policy agent configuration to verify that you have installed the Cisco VNMC correctly and it is reachable by entering the show vnm-pa status command. This example shows that the Cisco VNMC is reachable and the installation is correct:
            vsm# show vnm-pa status
VNM Policy-Agent status is - Installed Successfully. Version 2.1(1b)-vsm
vsm

            The VSM is now registered with the Cisco VNMC.

            This example shows that the Cisco VNMC is unreachable or an incorrect IP is configured:

            vsm# show vnm-pa status
VNM Policy-Agent status is - Installation Failure
VNMC not reachable.
vsm#

            This example shows that the VNM policy-agent is not configured or installed:

            vsm# show vnm-pa status
VNM Policy-Agent status is - Not Installed

            Task 4: On the VSM, Preparing Cisco VSG Port Profiles

            To prepare Cisco VSG port profiles, you must create the VLANs and use the VLANs in the Cisco VSG data port profile and the Cisco VSG-ha port profile.

            Before You Begin

            Make sure that you know the following:

            • The uplink port-profile name.
            • The VLAN ID for the Cisco VSG data interface (for example,100).
            • The VLAN ID for the Cisco VSG-ha interface (for example, 200).
            • The management VLAN (management).

              Note

              None of these VLANs need to be system VLANs.
            SUMMARY STEPS

              1.    On the VSM, create the VLANs by first entering global configuration mode using the following command:

              2.    Enter the following configuration commands:

              3.    Press Ctrl-Z to exit.

              4.    Create a Cisco VSG data port profile and a Cisco VSG-ha port profile by first enabling the Cisco VSG data port-profile configuration mode. Use the configure command to enter global configuration mode.

              5.    Enter the following configuration commands:

              6.    Press Ctrl-Z to end the session.

              7.    Enable the Cisco VSG-ha port profile configuration mode.

              8.    Enter the following configuration commands:

              9.    Add the VLANs created for the Cisco VSG data and Cisco VSG-ha interfaces as part of the allowed VLANs into the uplink port profile. Use the configure command to enter global configuration mode.

              10.    Enter the following configuration commands:

              11.    Press Ctrl-Z to end the session.


            DETAILED STEPS
              Step 1   On the VSM, create the VLANs by first entering global configuration mode using the following command:
              vsm# configure
              Step 2   Enter the following configuration commands:
              vsm(config)# vlan 100
vsm(config-vlan)# no shutdown
vsm(config-vlan)# exit
vsm(config)# vlan 200
vsm(config-vlan)# no shutdown
vsm(config-vlan)# exit
vsm(config)# exit
vsm# configure
vsm(config)# copy running-config startup-config
vsm(config)# exit
              Step 3   Press Ctrl-Z to exit.
              Step 4   Create a Cisco VSG data port profile and a Cisco VSG-ha port profile by first enabling the Cisco VSG data port-profile configuration mode. Use the configure command to enter global configuration mode.
              vsm# configure
              Step 5   Enter the following configuration commands:
              vsm(config)# port-profile VSG-Data
vsm(config-port-prof)# vmware port-group
vsm(config-port-prof)# switchport mode access
vsm(config-port-prof)# switchport access vlan 100
vsm(config-port-prof)# no shutdown
vsm(config-port-prof)# state enabled
vsm(config-port-prof)# exit
vsm(config)#
vsm(config)# copy running-config startup-config
vsm(config)# exit
              Step 6   Press Ctrl-Z to end the session.
              Step 7   Enable the Cisco VSG-ha port profile configuration mode.
              vsm# configure
              Step 8   Enter the following configuration commands:
              vsm(config)# port-profile VSG-HA
vsm(config-port-prof)# vmware port-group
vsm(config-port-prof)# switchport mode access
vsm(config-port-prof)# switchport access vlan 200
vsm(config-port-prof)# no shutdown
vsm(config-port-prof)# state enabled
vsm(config-port-prof)# exit
vsm(config)# copy running-config startup-config
vsm(config)# exit
              Step 9   Add the VLANs created for the Cisco VSG data and Cisco VSG-ha interfaces as part of the allowed VLANs into the uplink port profile. Use the configure command to enter global configuration mode.
              vsm# configure
              Step 10   Enter the following configuration commands:
              vsm(config)# port-profile type ethernet uplink
vsm(config-port-prof)# switchport trunk allowed vlan add 100, 200
vsm(config-port-prof)# exit
vsm(config)#
              Step 11   Press Ctrl-Z to end the session.

              Task 5: Installing the Cisco VSG from an OVA Template

              Before You Begin

              Make sure that you know the following:

              • The Cisco VSG OVA image is available in the vCenter.
              • Cisco VSG-Data and Cisco VSG-ha port profiles are created on the VSM.
              • The management port profile (management)

                Note

                The management port profile is the same port profile that is used for the VSM. The port profile is configured in the VSM and is used for the Cisco VNMC management interface.
              • The Cisco VSG-Data port profile: VSG-Data
              • The Cisco VSG-ha port profile: VSG-ha
              • The HA ID
              • The IP/subnet mask/gateway information for the Cisco VSG
              • The admin password
              • 2-GB RAM and 3-GB hard disk space are available
              • The Cisco VNMC IP address
              • The shared secret password
              • The IP connectivity between Cisco VSG and Cisco VNMC is okay.
              • The Cisco VSG VNM-PA image name (vnmc-vsgpa.2.1.1b.bin) is available.
              SUMMARY STEPS

                1.    Choose the host on which to deploy the Cisco VSG VM.

                2.    Choose File > Deploy OVF Template.

                3.    In the Deploy OVF Template—Source window, do the following:

                4.    In the Deploy OVF Template—OVF Template Details window, review the product information including the size of the file and the VM disk.

                5.    Click Next.

                6.    In the Deploy OVF Template—End User License Agreement window, do the following:

                7.    In the Deploy OVF Template—Name and Location window, do the following:

                8.    In the Deploy OVF Template—Deployment Configuration window, do the following:

                9.    In the Deploy OVF Template—Datastore window, choose the data store for the VM and click Next. The Disk Format window opens.

                10.    In the Deploy OVF Template—Disk Format window, do the following:

                11.    In the Deploy OVF Template—Network Mapping window, do the following:

                12.    In the Deploy OVF Template—Properties window, do the following:

                13.    Click Next. The Ready to Complete window opens.

                14.    In the Ready to Complete window, review the deployment settings information .

                15.    Click Finish. The Deploying Nexus 1000VSG dialog box opens.

                16.    Wait and click Close after the progress indicator shows that the deployment is completed successfully.

                17.    From your virtual machines, do one of the following:

                18.    In the Virtual Machine Properties window, do the following:

                19.    Power on the Cisco VSG VM.


              DETAILED STEPS
                Step 1   Choose the host on which to deploy the Cisco VSG VM.
                Step 2   Choose File > Deploy OVF Template.
                Step 3   In the Deploy OVF Template—Source window, do the following:
                1. Browse to the path to the Cisco VSG OVA file in the Deploy from a file or URL field.
                2. Click Next.
                Step 4   In the Deploy OVF Template—OVF Template Details window, review the product information including the size of the file and the VM disk.
                Step 5   Click Next.
                Step 6   In the Deploy OVF Template—End User License Agreement window, do the following:
                1. Review the end user license agreement and click Accept.
                2. Click Next. The Name and Location window opens.
                Step 7   In the Deploy OVF Template—Name and Location window, do the following:
                1. In the Name field, enter a name for the Cisco VSG that is unique within the inventory folder and has up to 80 characters.
                2. In the Inventory Location pane, choose the location that you would like to use for hosting the Cisco VSG.
                3. Click Next. The Deployment Configuration window opens.
                Figure 12. Deploy OVF Template—Deployment Configuration Window

                Step 8   In the Deploy OVF Template—Deployment Configuration window, do the following:
                1. From the Configuration drop-down list, choose Deploy medium VSG.
                2. Click Next. The Datastore window opens.
                Step 9   In the Deploy OVF Template—Datastore window, choose the data store for the VM and click Next. The Disk Format window opens.

                The storage can be local or shared remote such as the network file storage (NFS) or the storage area network (SAN).

                Note

                If only one storage location is available for an ESX host, this window does not display and you are assigned to the one that is available.
                Step 10   In the Deploy OVF Template—Disk Format window, do the following:
                1. Click either Thin provisioned format or Thick provisioned format to store the VM vdisks.
                2. Click Next. The Network Mapping window opens.

                  The default is thick provisioned. If you do not want to allocate the storage immediately, use thin provisioned. Ignore the red text in the window.

                Figure 13. Deploy OVF Template—Network Mapping



                Step 11   In the Deploy OVF Template—Network Mapping window, do the following:
                1. Choose VSG Data for the data interface port profile.
                2. Choose Management for the management interface port profile.
                3. Choose VSG-ha for the HA interface port profile .
                4. Click Next. The Properties window opens.
                Note

                In this example, for Cisco VSG-Data and Cisco VSG-ha port profiles created in the previous task, the management port profile is used for management connectivity and is the same as in the VSM and Cisco VNMC.
                Figure 14. Deploy OVF Template—Properties Window

                Step 12   In the Deploy OVF Template—Properties window, do the following:
                1. In the OvfDeployment field, select ovf to continue the configuration. Select ignore for manual configuration.
                2. From the HARole drop-down list, choose HA role.
                3. In the HAid field, enter the high-availability identification number for a Cisco VSG pair (value from 1 through 4095).
                4. In the Password field, enter a password that contains at least one uppercase letter, one lowercase letter, and one number.
                5. In the ManagementIpV4 field, enter the IP address for the Cisco VSG.
                6. In the ManagementIpV4 Subnet field, enter the subnet mask.
                7. In the Gateway field, enter the gateway name.
                8. In the VnmcIpV4 field, enter the IP address of the Cisco VNMC.
                9. In the SharedSecret field, enter the shared secret password defined during the Cisco VNMC installation.

                10. Note
                  Follow these parameters for choosing the shared secret password:
                  • The password must be more than eight characters.
                  • Characters not supported for the shared secret password: & ' " ` ( )< >| \ characters and all other characters supported on the keyboard.
                  • The password should contain lowercase letters, uppercase letters, digits, and special characters.
                  • The password should not contain characters, repeated three or more times consecutively.
                  • The new shared secret passwords should not repeat or reverse the username
                  • The password should not be cisco, ocsic, or any variant obtained by changing the capitalization of letters.
                  • The password should not be formed by easy permutations of characters present in the username or Cisco.
                Note

                In the following step, make sure that red text messages do not appear before you click Next. If you do not want to enter valid information in the red-indicated fields, use null values to fill those fields. If those fields are left empty or filled with invalid null values, the application does not power on. Ignore the VNMC Restore fields.
                Step 13   Click Next. The Ready to Complete window opens.
                Step 14   In the Ready to Complete window, review the deployment settings information .
                Note

                Review the IP/mask/gateway information carefully because any discrepancies might cause the VM to have bootup issues.
                Step 15   Click Finish. The Deploying Nexus 1000VSG dialog box opens.

                The progress bar in the Deploying Nexus 1000VSG dialog box shows how much of the deployment task is completed before the Cisco VNMC is deployed.
                Step 16   Wait and click Close after the progress indicator shows that the deployment is completed successfully.
                Step 17   From your virtual machines, do one of the following:
                1. Right click and choose Edit Settings.
                2. Click the Getting Started tab from the menu bar and then click the link Edit Virtual Machine Settings.

                  The Virtual Machine Properties window opens.
                Step 18   In the Virtual Machine Properties window, do the following:
                1. From the CPUs drop-down list, choose the appropriate vCPU number.

                  For older version of ESXi hosts, you can directly select a number for the vCPUs.

                2. From the Number of Virtual Sockets drop down list, choose the appropriate socket with cores.

                  For the latest version of ESXi hosts, you can directly select a number for the vCPUs.

                Choosing 2 CPUs results in a higher performance.
                Step 19   Power on the Cisco VSG VM.

                Task 6: On the Cisco VSG and Cisco VNMC, Verifying the VNM Policy-Agent Status

                You can use the show vnm-pa status command to verify the VNM policy-agent status (which can indicate that you have installed the policy-agent successfully).

                SUMMARY STEPS

                  1.    Log in to the Cisco VSG.

                  2.    Check the status of VNM-PA configuration by entering the following command:

                  3.    Log in to the Cisco VNMC. The VNMC Administration on Service Registry window opens.

                  4.    Choose Administration > Service Registry > Clients > General.

                  5.    In the Client pane of the VNMC Administration Service Registry window, verify that the Cisco VSG and VSM information is listed.


                DETAILED STEPS
                  Step 1   Log in to the Cisco VSG.
                  Step 2   Check the status of VNM-PA configuration by entering the following command:
                  vsg# show vnm-pa status
VNM Policy-Agent status is - Installed Successfully. Version 2.0(1a)-vsg
vsg#
                  Step 3   Log in to the Cisco VNMC. The VNMC Administration on Service Registry window opens.
                  Figure 15. VNMC Administration Service Registry Window



                  Step 4   Choose Administration > Service Registry > Clients > General.
                  Step 5   In the Client pane of the VNMC Administration Service Registry window, verify that the Cisco VSG and VSM information is listed.

                  Task 7: On the Cisco VNMC, Configuring a Tenant, Security Profile, and Compute Firewall

                  Now that you have the Cisco VNMC and the Cisco VSG successfully installed with the basic configurations (completed through the OVA File Template wizard), you should configure some of the basic security profiles and policies.

                  This task includes the following subtasks:

                  Before You Begin

                  Make sure that you know the following:

                  • Adobe Flash Player (Version 10.1 or later) has been installed
                  • The IP address of the Cisco VNMC
                  • The admin user password
                  SUMMARY STEPS

                    1.    For Cisco VNMC access, from your client machine, open Internet Explorer and access https://vnmc-ip/ (https://xxx.xxx.xxx.xxx).

                    2.    In the Website Security Certification window, click Continue to this website.

                    3.    In the Cisco VNMC Access window, log in to the Cisco VNMC:

                    4.    In the Cisco VNMC main window, choose Administration > Service Registry > Clients to check the Cisco VSG and VSM registration in the Cisco VNMC.


                  DETAILED STEPS
                    Step 1   For Cisco VNMC access, from your client machine, open Internet Explorer and access https://vnmc-ip/ (https://xxx.xxx.xxx.xxx).
                    Step 2   In the Website Security Certification window, click Continue to this website.
                    Step 3   In the Cisco VNMC Access window, log in to the Cisco VNMC:
                    1. Enter the username admin.
                    2. Enter your password.
                    Step 4   In the Cisco VNMC main window, choose Administration > Service Registry > Clients to check the Cisco VSG and VSM registration in the Cisco VNMC.

                    The Clients pane lists the Cisco VSG and VSM information.
                    What to Do Next

                    Go to Configuring a Tenant on the Cisco VNMC

                    Configuring a Tenant on the Cisco VNMC

                    Tenants are entities (businesses, agencies, institutions, and so on) whose data and processes are hosted on VMs on the virtual data center. To provide firewall security for each tenant, the tenant must first be configured in the Cisco VNMC.

                    SUMMARY STEPS

                      1.    From the Cisco VNMC toolbar, click the Tenant Management tab.

                      2.    In the Navigation pane directory tree, right-click on root, and from the drop-down list, choose Create Tenant.

                      3.    In the root pane, click the General tab and do the following:

                      4.    Click OK.


                    DETAILED STEPS
                      Step 1   From the Cisco VNMC toolbar, click the Tenant Management tab.
                      Figure 16. VNMC Window Tenant Management Tab root Pane



                      Step 2   In the Navigation pane directory tree, right-click on root, and from the drop-down list, choose Create Tenant.
                      Step 3   In the root pane, click the General tab and do the following:
                      1. In the Name field, enter the tenant name; for example, Tenant-A.
                      2. In the Description field, enter a description for that tenant.
                      Step 4   Click OK.

                      Notice that the tenant you just created is listed in the left-side pane under root.
                      What to Do Next

                      Go to Configuring a Security Profile on the Cisco VNMC

                      Configuring a Security Profile on the Cisco VNMC

                      You can configure a security profile on the Cisco VNMC.

                      SUMMARY STEPS

                        1.    Click the Policy Management tab in the Cisco VNMC toolbar. The Policy Management window opens.

                        2.    In the Policy Management Security Policies window, from the directory path, choose Security Policies > root > Tenant-A > Security Profiles.

                        3.    Right click in an empty space and choose Add Security Profile from the drop-down list.

                        4.    In the Add Security Profile dialog box, do the following:

                        5.    Click OK


                      DETAILED STEPS
                        Step 1   Click the Policy Management tab in the Cisco VNMC toolbar. The Policy Management window opens.
                        Figure 17. Security Policies root Window



                        Step 2   In the Policy Management Security Policies window, from the directory path, choose Security Policies > root > Tenant-A > Security Profiles.
                        Step 3   Right click in an empty space and choose Add Security Profile from the drop-down list.

                        The Add Security Profile dialog box opens.

                        Figure 18. Add Security Profile Dialog Box



                        Step 4   In the Add Security Profile dialog box, do the following:
                        1. In the Name field, enter a name for the security profile; for example, sp-web.
                        2. In the Description field, enter a brief description of this security profile.
                        Step 5   Click OK
                        What to Do Next

                        Go to Configuring a Compute Firewall on the Cisco VNMC

                        Configuring a Compute Firewall on the Cisco VNMC

                        The compute firewall is a logical virtual entity that contains the device profile that you can bind (assign) to a Cisco VSG VM. The device policy in the device profile is then pushed from the Cisco VNMC to the Cisco VSG. Once this is complete, the compute firewall is in the applied configuration state on the Cisco VNMC.

                        SUMMARY STEPS

                          1.    From the Cisco VNMC, choose Resource Management > Managed Resources.

                          2.    On the left-pane directory tree, choose root > Tenant-A > Compute Firewall.

                          3.    From the drop-down list, choose Add Compute Firewall. The Add Compute Firewall dialog box opens.

                          4.    In the Add Compute Firewall dialog box, do the following:

                          5.    Click OK.


                        DETAILED STEPS
                          Step 1   From the Cisco VNMC, choose Resource Management > Managed Resources.

                          The Firewall Profiles window opens.

                          Figure 19. VNMC Resource Management, Managed Resources, Firewall Profiles Window



                          Step 2   On the left-pane directory tree, choose root > Tenant-A > Compute Firewall.
                          Step 3   From the drop-down list, choose Add Compute Firewall. The Add Compute Firewall dialog box opens.
                          Figure 20. Add Compute Firewall Dialog Box



                          Step 4   In the Add Compute Firewall dialog box, do the following:
                          1. In the Name field, enter a name for the compute firewall.
                          2. In the Description field, enter a brief description of the compute firewall.
                          3. In the Management Hostname field, enter the name for your Cisco VSG.
                          4. In the Data IP Address field, enter the data IP address.
                          Step 5   Click OK.

                          The new Compute Firewall pane displays with the information that you provided.

                          Task 8: On the Cisco VNMC, Assigning the Cisco VSG to the Compute Firewall

                          The compute firewall is a logical virtual entity that contains the device profile that can be later bound to the device for communication with the Cisco VNMC and VSM.

                          SUMMARY STEPS

                            1.    Choose Resource Management > Managed Resources.The Deploy OVF Template window opens.

                            2.    In the Deploy OVF Template window, choose root > Tenant-A > Compute Firewalls.

                            3.    Right-click in the Compute Firewalls pane and choose Assign VSG from the drop-down list.

                            4.    From the Name drop-down list, choose the Cisco VSG IP address.

                            5.    Click OK.


                          DETAILED STEPS
                            Step 1   Choose Resource Management > Managed Resources.The Deploy OVF Template window opens.
                            Step 2   In the Deploy OVF Template window, choose root > Tenant-A > Compute Firewalls.
                            Figure 21. VNMC Resource Management Resources Compute Firewalls Window



                            Step 3   Right-click in the Compute Firewalls pane and choose Assign VSG from the drop-down list.

                            The Assign VSG dialog box opens.

                            Figure 22. Assign VSG Dialog Box



                            Step 4   From the Name drop-down list, choose the Cisco VSG IP address.
                            Step 5   Click OK.
                            Note

                            The Config State status changes from “not-applied” to “applying” and then to “applied.”

                            Task 9: On the Cisco VNMC, Configuring a Permit-All Rule

                            You can configure a permit-all rule in the Cisco VNMC.

                            SUMMARY STEPS

                              1.    Log in to the Cisco VSG.

                              2.    Choose Policy Management > Service Policies. The Cisco VNMC Policy Management Security Policies window opens.

                              3.    In the Cisco VNMC Policy Management Security Policies, window do the following:

                              4.    Click Add Policy. The Add Policy dialog box opens.

                              5.    In the Add Policy dialog box, do the following:

                              6.    In the Add Rule dialog box, do the following:

                              7.    In the Add Policy dialog box, click OK.

                              8.    In the Add Policy Set dialog box, click OK.

                              9.    In the Security Profile window, click Save.


                            DETAILED STEPS
                              Step 1   Log in to the Cisco VSG.
                              Step 2   Choose Policy Management > Service Policies. The Cisco VNMC Policy Management Security Policies window opens.
                              Figure 23. Cisco VNMC Policy Management Security Policies Window



                              Step 3   In the Cisco VNMC Policy Management Security Policies, window do the following:
                              1. Choose root > Tenant-A > Security-Profile > sp-web.
                              2. In the right pane, click Add policy set.
                              Step 4   Click Add Policy. The Add Policy dialog box opens.
                              Figure 24. Add Policy Dialog Box

                              Step 5   In the Add Policy dialog box, do the following:
                              1. In the Name field, enter the security policy name.
                              2. In the Description field, enter a brief description of the security policy.
                              3. Above the Name column, click Add Rule.
                              Step 6   In the Add Rule dialog box, do the following:
                              1. In the Name field, enter the rule name.
                              2. In the Match Criteria field, select the matching condition.
                              3. In the Source Condition field, enter the source condition of the rule.
                              4. In the Destination Condition field, enter the destination of the rule.
                              5. In the Service/Protocol field, select a service or protocol for the rule.
                              6. In the EtherType field, specify ethertype for the rule.
                              7. Under the Action button, choose an action that you want this rule to have in this case, permit.
                              8. Click OK.
                              Step 7   In the Add Policy dialog box, click OK.

                              The newly created policy is displayed in the Assigned field.
                              Step 8   In the Add Policy Set dialog box, click OK.
                              Step 9   In the Security Profile window, click Save.

                              Task 10: On the Cisco VSG, Verifying the Permit-All Rule

                              You can verify the rule presence in the Cisco VSG, by using the Cisco VSG CLI and the show commands.

                              vsg# show running-config | begin security
security-profile SP_web@root/Tenant-A
  policy PS_web@root/Tenant-A
  custom-attribute vnsporg "root/tenant-a"
security-profile default@root
  policy default@root
  custom-attribute vnsporg "root"
rule Pol_web/permit-all@root/Tenant-A cond-match-criteria: match-all
  action permit
  action log
rule default/default-rule@root cond-match-criteria: match-all
  action drop
Policy PS_web@root/Tenant-A
  rule Pol_web/permit-all@root/Tenant-A order 101
Policy default@root
  rule default/default-rule@root order 2

                              Task 11: Enabling Logging

                              To enable logging follow these procedures:

                              Enabling Logging level 6 for Policy-Engine Logging

                              Logging enables you to see what traffic is going through your monitored virtual machine. This logging is helpful for verifying that you have a proper configuration and to help in troubleshooting. You can enable Logging Level 6 for policy-engine logging in a monitor session.

                              SUMMARY STEPS

                                1.    Log in to the Cisco VNMC.

                                2.    Choose Policy Management > Device Configurations.

                                3.    In the Device Configuration window, do the following:

                                4.    In the Edit Syslog dialog box, do the following:

                                5.    In the Edit (Primary) Syslog Server dialog box, do the following:

                                6.    Click OK.


                              DETAILED STEPS
                                Step 1   Log in to the Cisco VNMC.
                                Step 2   Choose Policy Management > Device Configurations.
                                Step 3   In the Device Configuration window, do the following:
                                1. In the Navigation pane, choose root > Advanced > Device Policies > Syslog.
                                2. In the Work pane, choose Default and click Edit.

                                  The Edit (default) dialog box opens.

                                  Figure 25. Cisco Virtual Network Center Syslog Pane



                                Step 4   In the Edit Syslog dialog box, do the following:
                                Figure 26. Edit Syslog Dialog Box



                                1. Click the Servers tab.
                                2. From the Server Type column, choose the primary server type from the displayed list.
                                3. From the pane toolbar, click Edit.
                                Step 5   In the Edit (Primary) Syslog Server dialog box, do the following:
                                1. In the Hostname/IP address field, enter the syslog server IP address.
                                2. From the Severity drop-down list, choose Information(6).
                                3. From the Admin State drop-down list, choose Enabled.
                                4. Click OK.
                                Step 6   Click OK.
                                What to Do Next

                                Go to Enabling Global Policy-Engine Logging.

                                Enabling Global Policy-Engine Logging

                                Logging enables you to see what traffic is going through your monitored VM. This logging is helpful for verifying that you have a proper configuration and to help in troubleshooting.

                                SUMMARY STEPS

                                  1.    Log in to the Cisco VNMC.

                                  2.    In the Virtual Network Management Control window, choose Policy Management > Device Configurations > Device Configurations > root > Device Profiles > default. The default Device Profile window opens.

                                  3.    In the default window, do the following:

                                  4.    Click Save.


                                DETAILED STEPS
                                  Step 1   Log in to the Cisco VNMC.
                                  Figure 27. Cisco Virtual Management Center Policy management Device Configuration Profiles Pane



                                  Step 2   In the Virtual Network Management Control window, choose Policy Management > Device Configurations > Device Configurations > root > Device Profiles > default. The default Device Profile window opens.
                                  Step 3   In the default window, do the following:
                                  1. In the Work pane, click the Policies tab.
                                  2. At the bottom of the Work pane, under the Policy Engine Logging field, click Enabled.
                                  Step 4   Click Save.

                                  Task12: Enabling the Traffic VM Port-Profile for Firewall Protection and Verifying the Communication Between the VSM, VEM, and VSG

                                  This section includes the following topics:

                                  Enabling Traffic VM Port-Profile for Firewall Protection

                                  Verifying the VSM or VEM for Cisco VSG Reachability

                                  Checking the VM Virtual Ethernet Port for Firewall Protection

                                  Before You Begin

                                  Make sure that you know the following:

                                  • The server virtual machine that runs with an access port profile (for example, web server)
                                  • The Cisco VSG data IP address (10.10.10.200) and VLAN ID (100)
                                  • The security profile name (for example, sp-web)
                                  • The organization (Org) name (for example, root/Tenant-A)
                                  • The port profile that you would like to edit to enable firewall protection
                                  • That one active port in the port-profile with vPath configuration has been set up

                                  Enabling Traffic VM Port-Profile for Firewall Protection

                                  You can enable a traffic VM port profile for traffic protection.

                                  SUMMARY STEPS

                                    1.    Verify the traffic VM port profile before firewall protection.


                                  DETAILED STEPS
                                  Verify the traffic VM port profile before firewall protection.
                                  vsm(config)# port-profile type vethernet pp-webserver
   vmware port-group
   switchport mode access
   switchport access vlan 756
   no shutdown
   state enabled

                                  Enable firewall protection.

                                  VSM(config)# port-profile pp-webserver
VSM(config-port-prof)# vservice node vsg1 profile SP_web
VSM(config-port-prof)# org root/Tenant-A

                                  Verify the traffic VM port profile after firewall protection.

                                  VSM(config)# port-profile type vethernet pp-webserver
  vmware port-group
  switchport mode access
  switchport access vlan 756
  org root/Tenant-A
  vservice node vsg1 profile SP_web
  no shutdown
  state enabled
                                  What to Do Next

                                  Go toVerifying the VSM or VEM for Cisco VSG Reachability.

                                  Verifying the VSM or VEM for Cisco VSG Reachability

                                  This example shows how to verify the communication between the VEM and the VSG:

                                  vsm# show vservice brief
--------------------------------------------------------------------------------
                                   License Information
--------------------------------------------------------------------------------
Type      In-Use-Lic-Count  UnLicensed-Mod
vsg                      4
asa                      0

--------------------------------------------------------------------------------
                                   Node Information
--------------------------------------------------------------------------------
 ID Name                     Type   IP-Address      Mode   State   Module
  1 vsg1                     vsg    40.40.40.40     l3     Alive   4,5,

--------------------------------------------------------------------------------
                                   Path Information
--------------------------------------------------------------------------------
--------------------------------------------------------------------------------
                                   Port Information
--------------------------------------------------------------------------------

PortProfile:pp-webserver
Org:root/Tenant-A
Node:vsg1(40.40.40.40)         Profile(Id):SP_web(29) Veth Mod VM-Name    vNIC IP-Address
                                  23                     4       vm1        2  14.14.14.21

                                  A display showing the MAC-ADDR Listing and Up state verifies that the VEM can communicate with the Cisco VSG.


                                  Note

                                  In order to see the above status, one active port in the port profile with vPath configuration needs to be up.

                                  Checking the VM Virtual Ethernet Port for Firewall Protection

                                  This example shows how to verify the VM Virtual Ethernet port for firewall protection:

                                  VSM(config)# show vservice port brief vethernet 23
--------------------------------------------------------------------------------
                                   Port Information
--------------------------------------------------------------------------------
PortProfile:pp-webserver
Org:root/Tenant-A
Node:vsg1(40.40.40.40)                        Profile(Id):SP_web(29)
Veth Mod VM-Name                              vNIC IP-Address
 23  4     vm1                                 2   14.14.14.21

                                  Note

                                  Make sure that your VNSP ID value is greater than 1.

                                  Task13: Sending Traffic Flow and on the Cisco VSG Verifying Statistics and Logs

                                  This section includes the following topics:

                                  Sending Traffic Flow

                                  You can send traffic flow through the Cisco VSG to ensure that it is functioning properly.

                                  SUMMARY STEPS

                                    1.    Ensure that you have the VM (Server-VM) that is using the port profile (pp-webserver) configured for firewall protection.

                                    2.    In the Virtual Machine Properties window, do the following:

                                    3.    Check the policy-engine statistics and log on the Cisco VSG.


                                  DETAILED STEPS
                                    Step 1   Ensure that you have the VM (Server-VM) that is using the port profile (pp-webserver) configured for firewall protection.
                                    Figure 28. Virtual Machine Properties Window



                                    Step 2   In the Virtual Machine Properties window, do the following:
                                    1. Log in to any of your client virtual machine (Client-VM).
                                    2. Send traffic (for example, HTTP) to your Server-VM.
                                    [root@]# wget http://172.31.2.92/
--2010-11-28 13:38:40--  http://172.31.2.92/
Connecting to 172.31.2.92:80... connected.
HTTP request sent, awaiting response... 200 OK
Length: 258 [text/html]
Saving to: `index.html'

100%[=======================================================================>] 258         --.-K/s   in 0s

2010-11-28 13:38:40 (16.4 MB/s) - `index.html' saved [258/258]

[root]#
                                    Step 3   Check the policy-engine statistics and log on the Cisco VSG.
                                    What to Do Next

                                    Go to Verifying Policy-Engine Statistics and Logs on the Cisco VSG.

                                    Verifying Policy-Engine Statistics and Logs on the Cisco VSG

                                    Log in to the Cisco VSG and check the policy-engine statistics and logs.

                                    This example shows how to check the policy-engine statistics and logs:

                                    vsg# show policy-engine stats
Policy Match Stats:
default@root                 :         0
  default/default-rule@root  :         0 (Drop)
  NOT_APPLICABLE             :         0 (Drop)

PS_web@root/Tenant-A :         1
  pol_web/permit-all@root/Tenant-A :         1 (Log, Permit)
  NOT_APPLICABLE                :         0 (Drop)

vsg# terminal monitor
vsg# 2010 Nov 28 05:41:27 firewall %POLICY_ENGINE-6-POLICY_LOOKUP_EVENT: policy=PS_web@root/Tenant-A rule=pol_web/permit-all@root/Tenant-A action=Permit direction=egress src.net.ip-address=172.31.2.91 src.net.port=48278 dst.net.ip-address=172.31.2.92 dst.net.port=80 net.protocol=6 net.ethertype=800
