Install and connect the Router

This chapter describes how to install and connect Cisco 8100 Series Secure Routers to LAN and WAN networks.

Unpack the router

Unpack the router only when you are ready to install it. If the installation site is not ready, to prevent accidental damage, keep the chassis in its shipping container until you are ready to install. The router, accessory kit, publications, and any optional equipment you order may be shipped in more than one container. When you unpack the containers, check the packing list to ensure that you have received all the listed items.

Items shipped with your router

Unpack the box and verify that all items listed on the invoice were shipped with the Cisco 8100 Series Secure Routers.

The following items are shipped with your router:

  • Getting Started/Product Document of Compliance

  • Grounding Lug Kit

  • Power Supply

  • AC Power Cord

Install the router

After unpacking, based on your requirements, you can set up the Cisco 8100 Series Secure Router under-desk, on a desktop, a rack, or the wall.


Note

You can install external modules before or after mounting a router. However, if you choose to install the external modules after mounting the router on the rack or wall, ensure that you have optimal access to the back/front panel of the router.


Note

To prevent the system from overheating, do not operate the device in an area that exceeds a local ambient of 40°C. For altitudes above sea-level, de-rate the ambient operating temperature by 1°C per 1000-feet of elevation.


Note

When mounting a Cisco 8100 Series Secure Router, the local ambient should be measured 2-inches below the fully mounted product when possible. When this is not possible the local ambient should be measured 2-inches from the I/O side of the product.

Module

Mounting Options

C8130-G2

Desktop, Rack mount, Under Desk/Shelf Mount, Wall mount using Key-hole slots, Wall mount DIN-rail brackets

C8140-G2

C8151-G2

C8161-G2

Desktop

If you choose to setup the router on a desktop, you can place the router on a desktop, bench top, or shelf.


Caution

Do not place anything on top of the device and do not stack devices on a desktop, else, this causes the product to overheat.

Rack mount

Secure rack mounting brackets on the chassis before you set up the chassis on the rack.


Caution

Do not stack multiple Cisco 8100 Series Secure Routers when mounting the routers on a tabletop.

Do not put any object on the sides or on top of the routers ensuring that there is ample space for air circulation and heat removal. Your chassis installation must allow unrestricted airflow for chassis cooling.


Important

Periodic Inspection and Cleaning:

We recommend that you periodically inspect and clean the external surface of the router. Removing is recommended to minimize the negative impact of environmental dust, debris, and liquid contamination. The frequency of inspection and cleaning is dependent upon the severity of the environmental conditions, but we recommend cleaning the router once every six months.


Note

Sites with ambient temperatures consistently above 25°C or 77°F and with potentially high levels of dust or debris might require periodic preventative maintenance cleaning.


Note

When mounting Cisco 8100 Series Secure Routers on a rack, ensure at least one rack unit (1RU) of vertical space between routers. This ensures more heat removal, which in turn helps the surrounding air temperature to stay within the specified operating conditions.

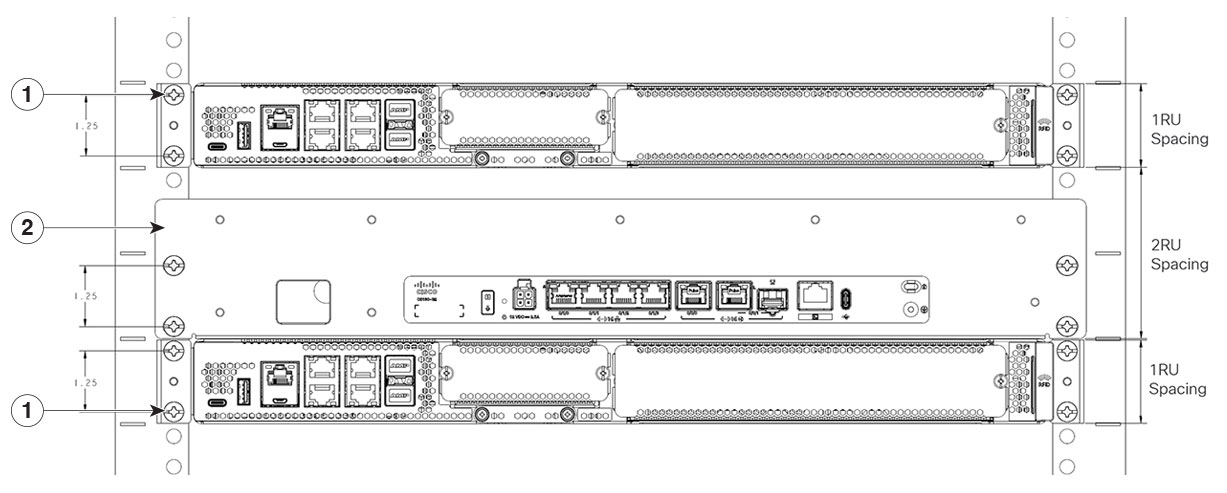

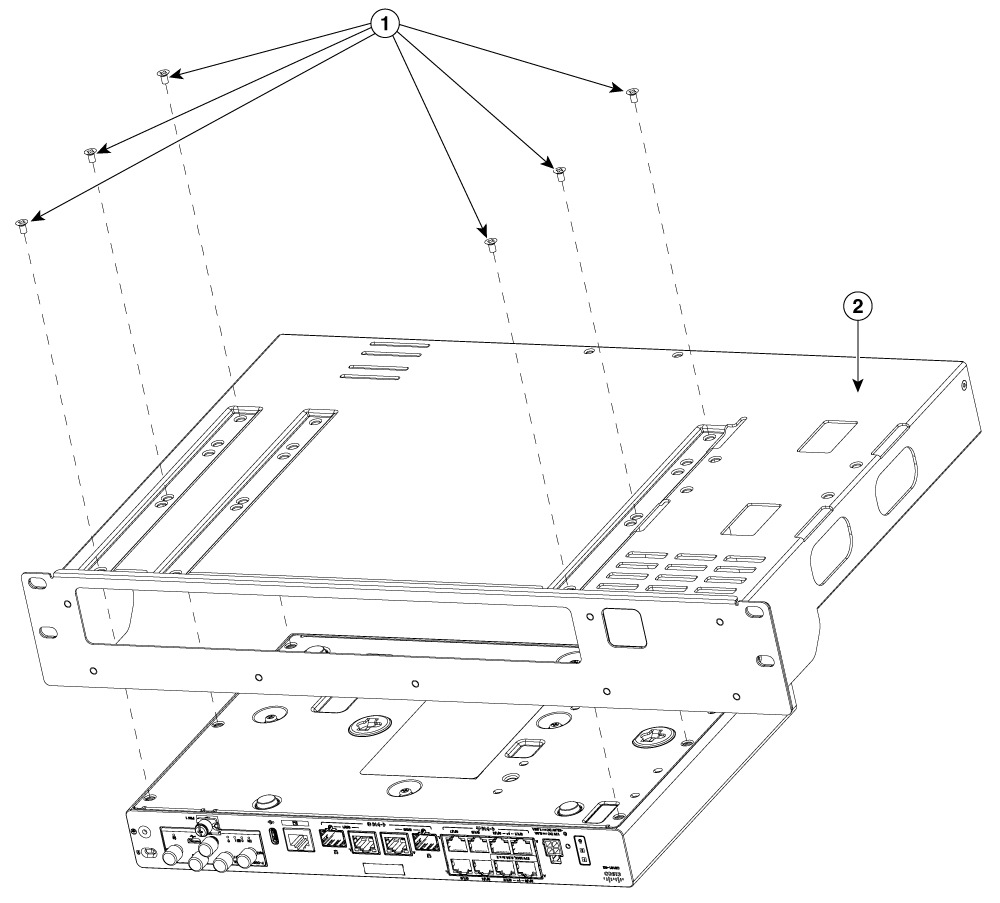

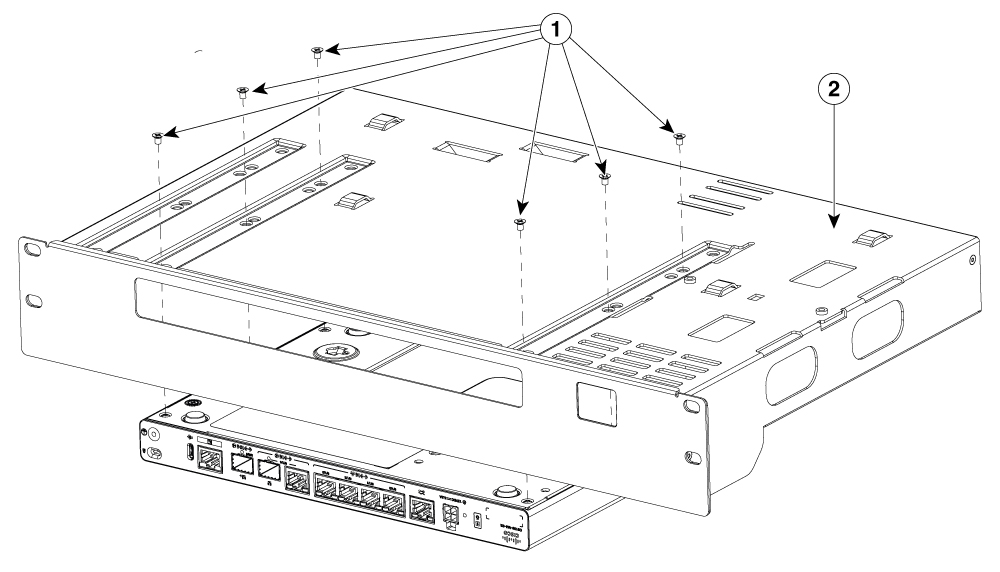

Figure 1. Rack-tray assembly

1

Typical 1RU Product (reference only)

2

Rack-tray installed

Attach the rack mount brackets

This procedure describes how to attach the brackets on the router chassis for C8130-G2, C8140-G2, C8151-G2 and C8161-G2:

Procedure

Step 1

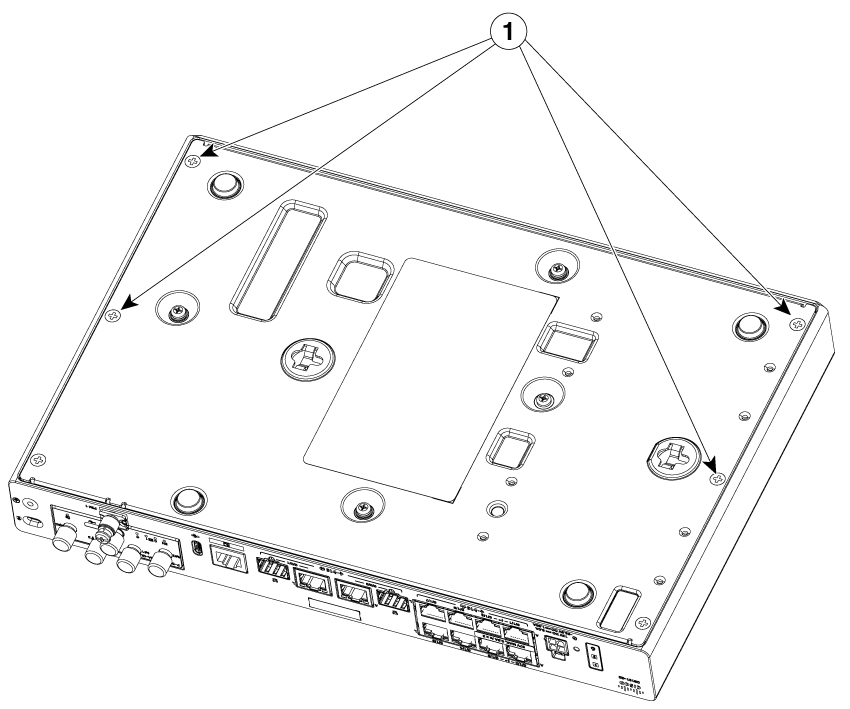

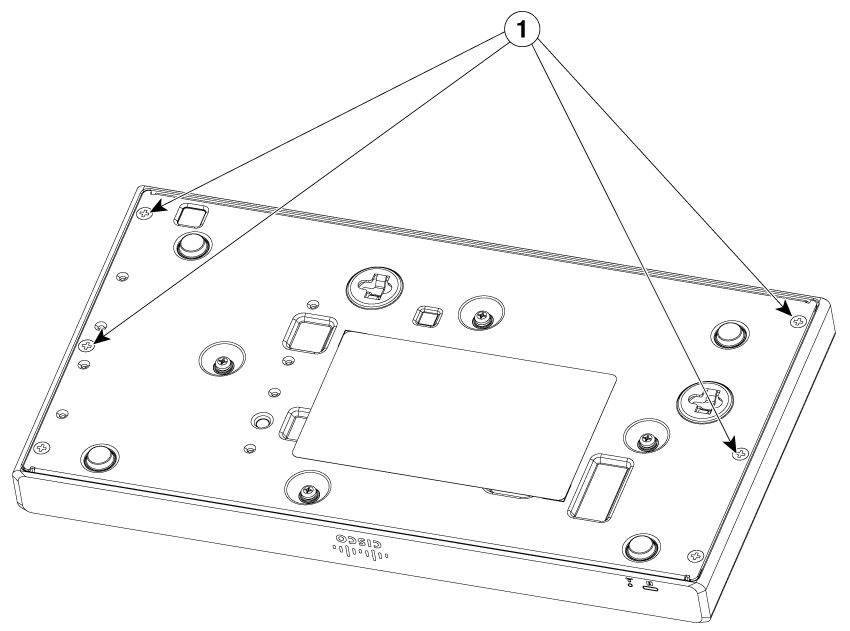

Remove the screws from the bottom of the chassis as per shown in the following figures.

Example:

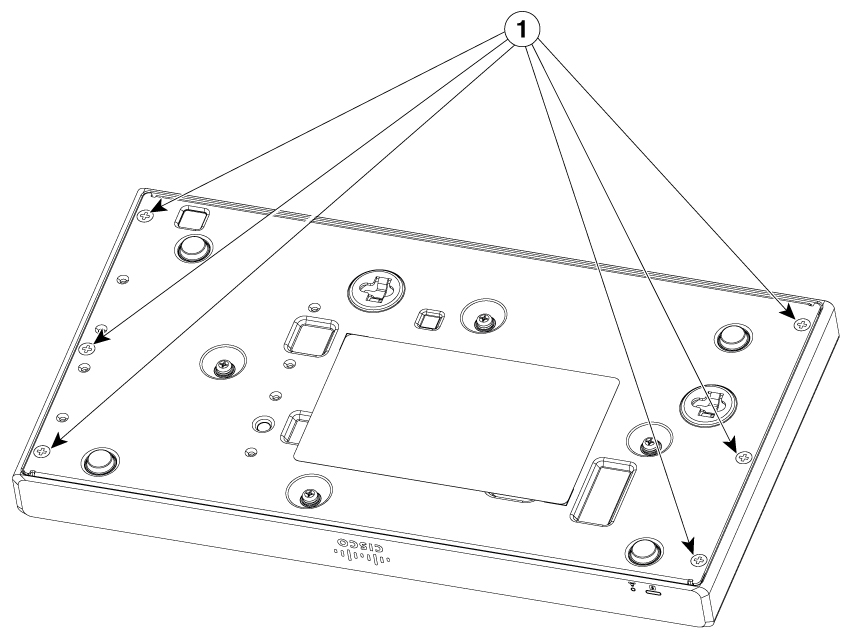

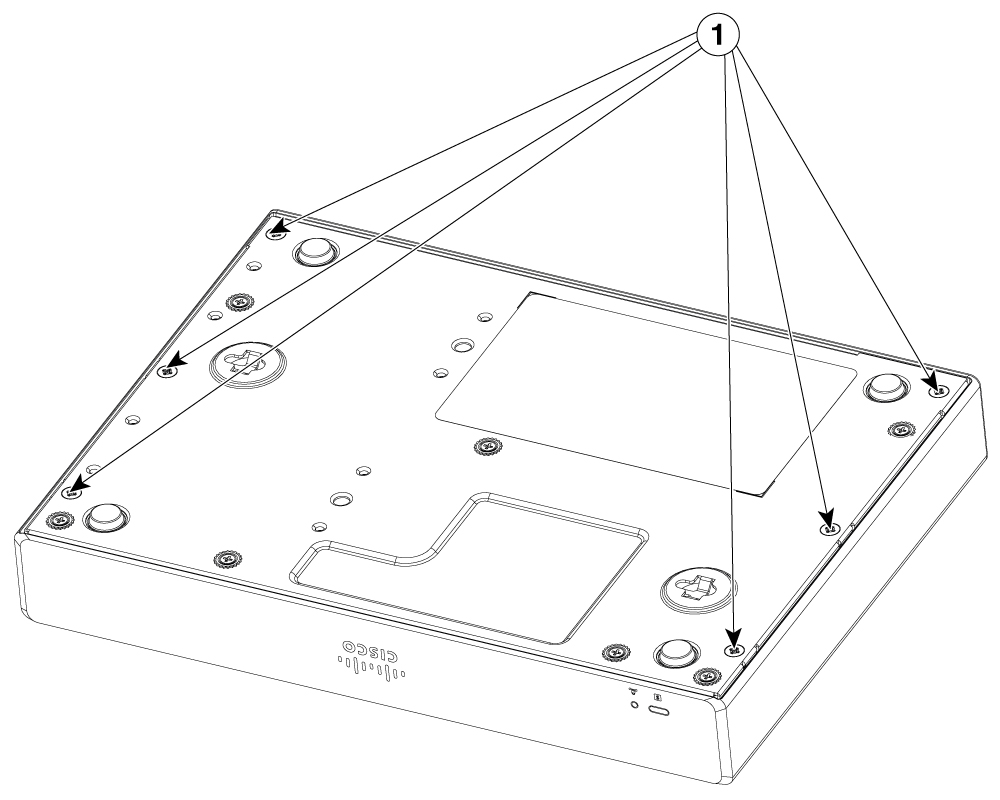

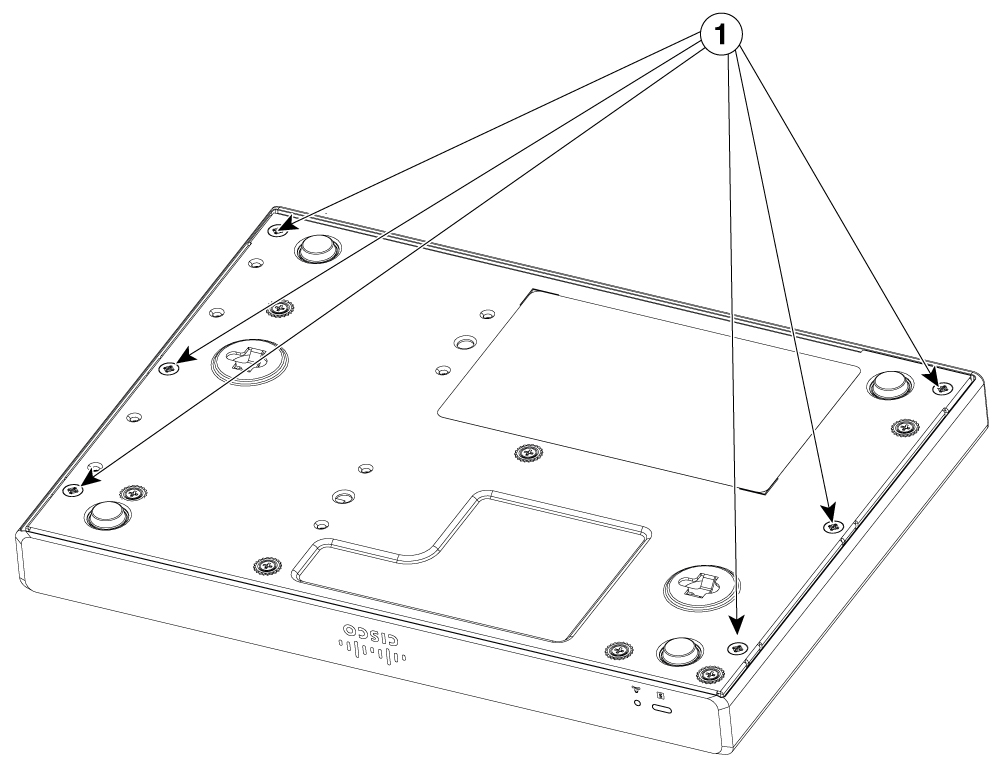

Figure 2. Removing screws from C8130-G2

1

Screws
Example:
Figure 3. Removing screws from C8140-G2

1

Screws
Example:

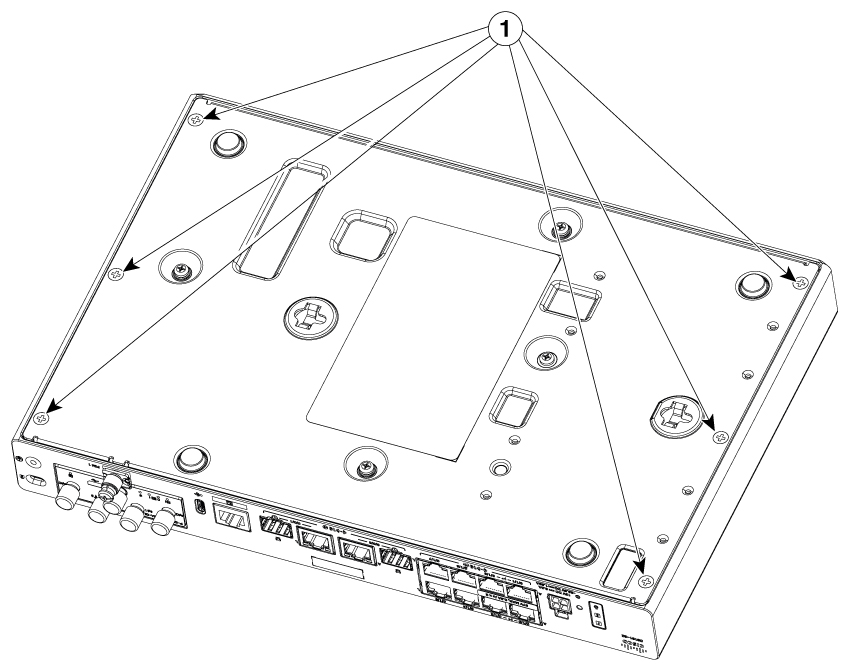

Figure 4. Removing screws from C8151-G2 and C8161-G2

1

Screws

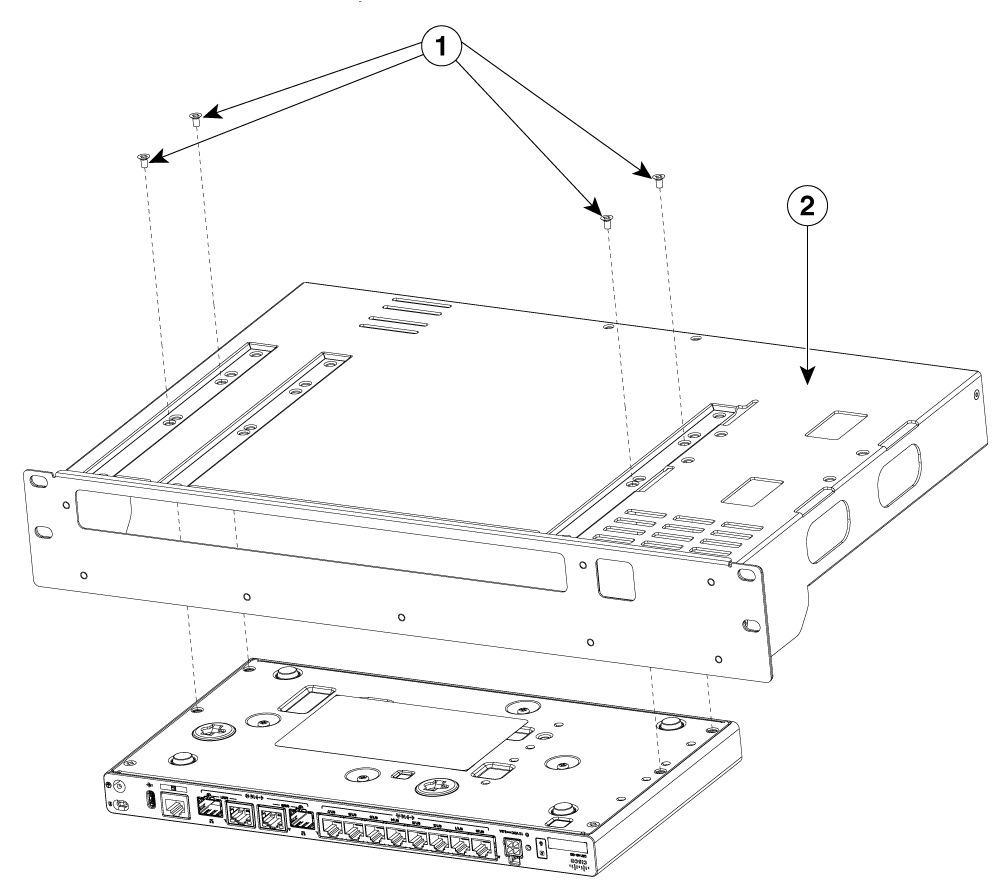

Step 2

Align the bracket to the indicated holes of the chassis.

Step 3

Secure the bracket to the router using the screws that were removed.

Example:

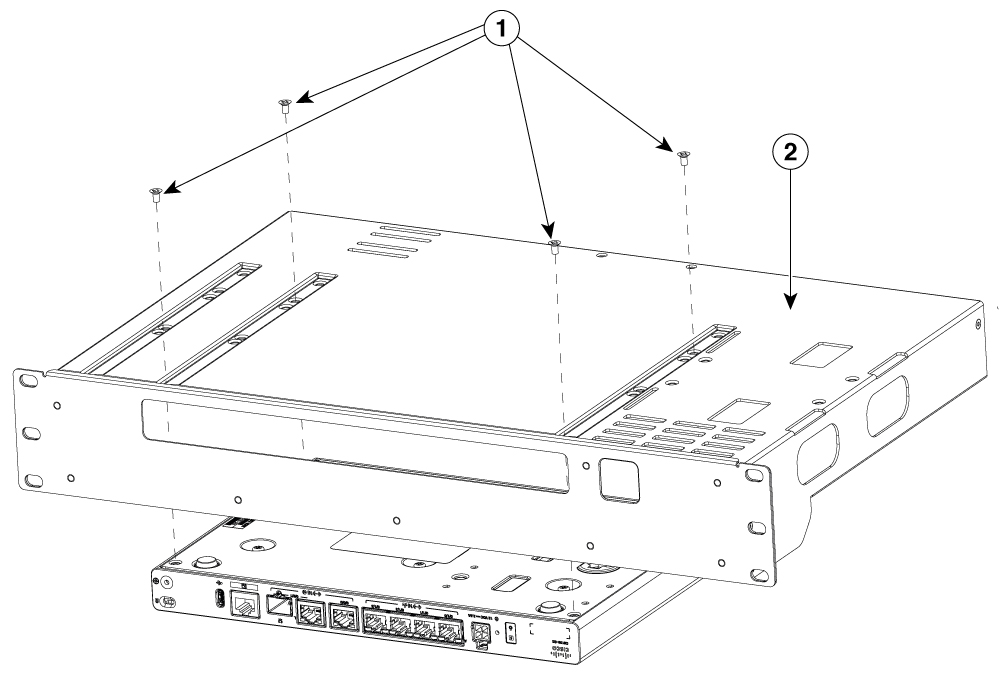

Figure 5. Rack mounting bracket installation for C8130-G2

1

Screws

2

Brackets
Example:
Figure 6. Rack mounting bracket installation for C8140-G2

1

Screws

2

Brackets
Example:
Figure 7. Rack mounting bracket installation for C8151-G2 and C8161-G2

1

Screws

2

Brackets

Mount the router

Before you begin

Before mounting the router on to the rack, refer to the following safety warning statements:


Warning

Statement 1006—Chassis Warning for Rack-Mounting and Servicing

To prevent bodily injury when mounting or servicing this unit in a rack, you must take special precautions to ensure that the system remains stable. The following guidelines are provided to ensure your safety:

  • This unit should be mounted at the bottom of the rack if it is the only unit in the rack.

  • When mounting this unit in a partially filled rack, load the rack from the bottom to the top with the heaviest component at the bottom of the rack.

  • If the rack is provided with stabilizing devices, install the stabilizers before mounting or servicing the unit in the rack.

Procedure

To install the router, use the screws provided with the accessory kit to secure the router when you mount it over the rack.

Under desk or shelf mount

Installing the router under a desk requires an optional bracket kit that is not included with the router. The kit contains the under-desk brackets and screws to secure the brackets to the bottom of the desk. You can order these kits from your Cisco representative. This procedure describes how to mount a router under a desk or a shelf.

Procedure

Step 1

Remove the screws from the bottom of the chassis.

Example:

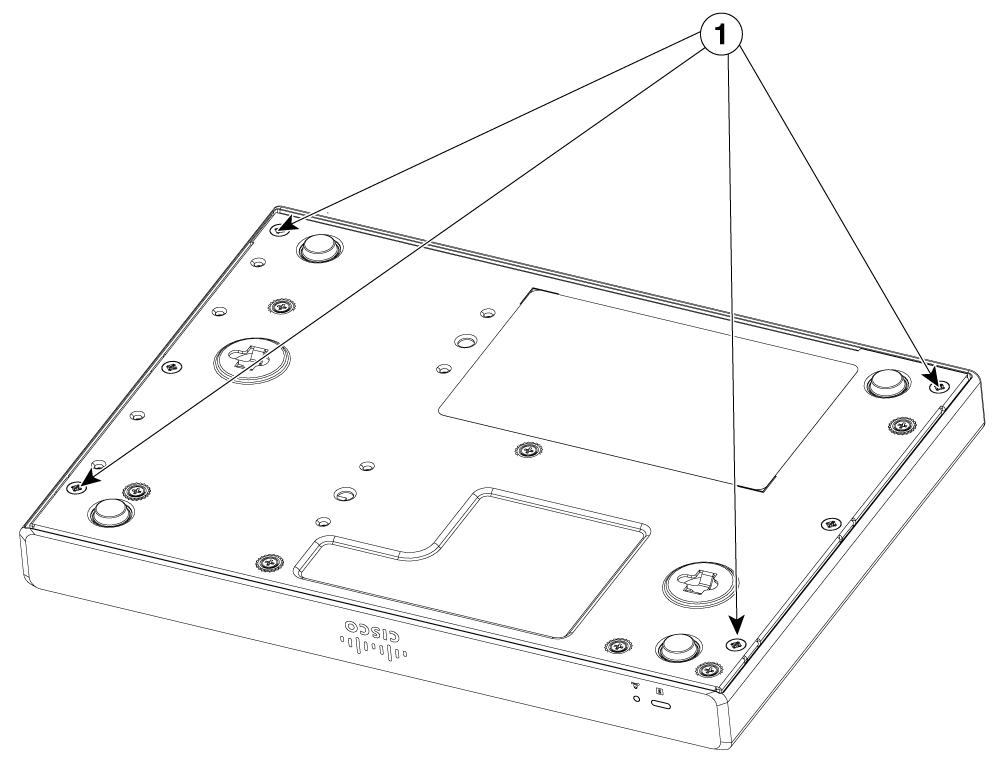

Figure 8. Removing screws from C8130-G2

1

Screws

Example:

Figure 9. Removing screws from C8140-G2

1

Screws

Example:

Figure 10. Removing screws from C8151-G2 and C8161-G2

1

Screws

Step 2

Align the brackets to the indicated screw holes of the chassis.

Example:

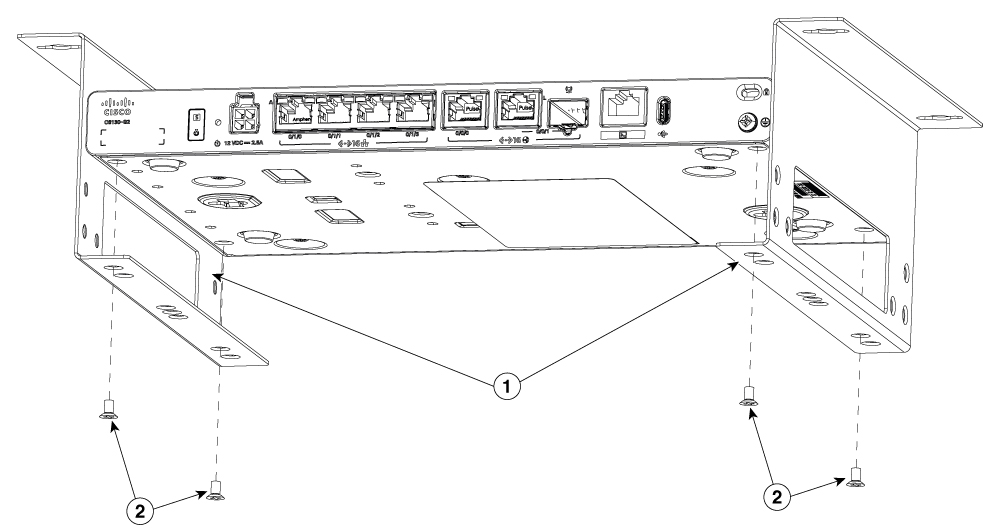

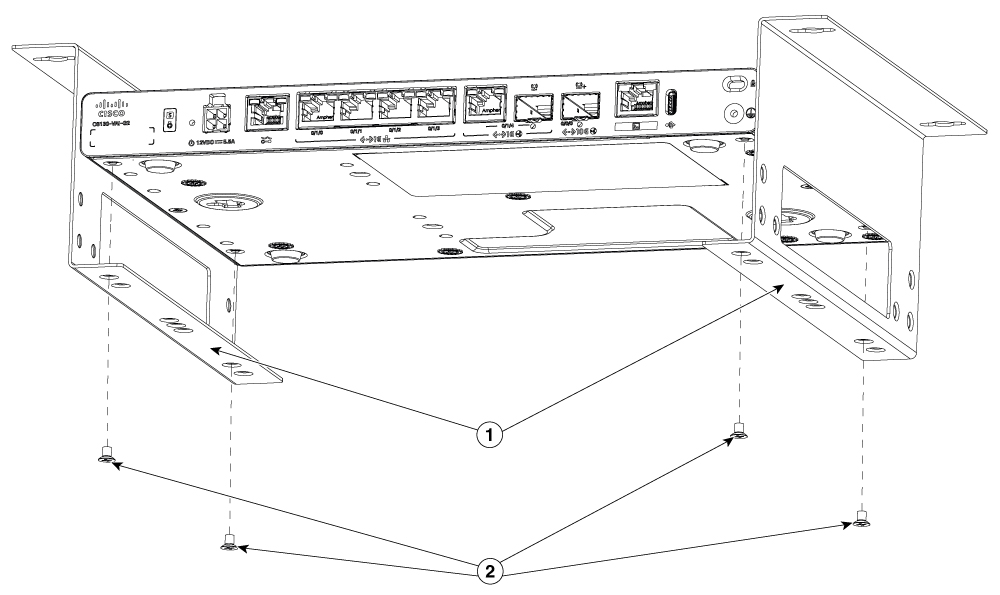

Figure 11. Under desk mounting brackets installation for C8130-G2

1

Under desk mounting brackets

2

Screws

Example:

Figure 12. Under desk mounting brackets installation for C8140-G2

1

Under desk mounting brackets

2

Screws

Example:

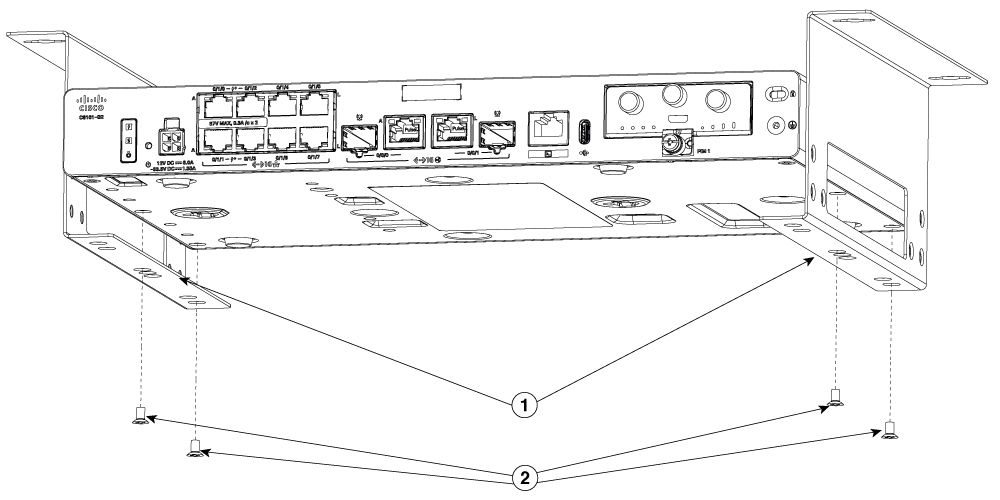

Figure 13. Under desk mounting brackets installation for C8151-G2 and C8161-G2

1

Under desk mounting brackets

2

Screws

Step 3

Secure the under desk mounting brackets to the router using the screws. Ensure that all the screw fasteners on the installed components are securely tightened.

Example:

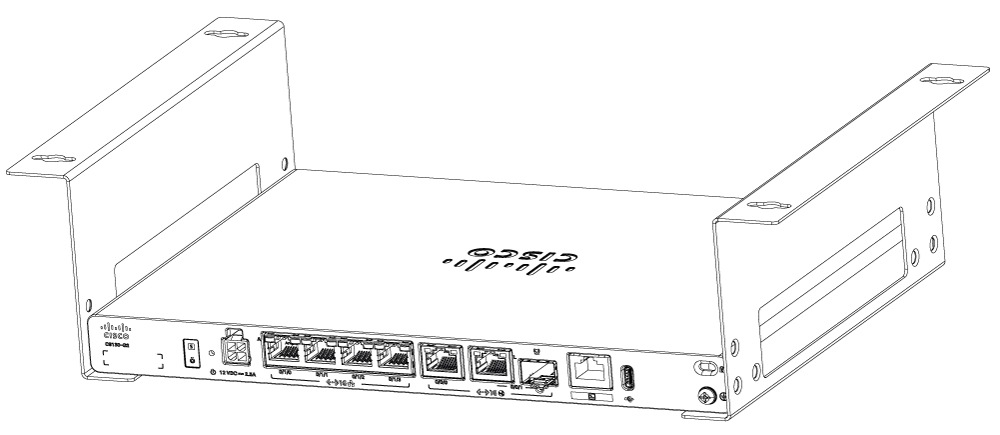

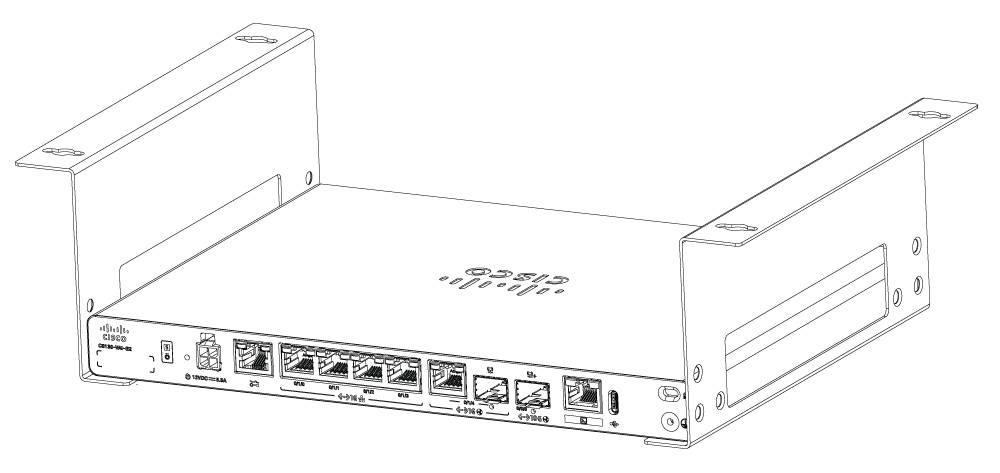

Figure 14. C8130-G2 with attached under desk mounting brackets

Example:

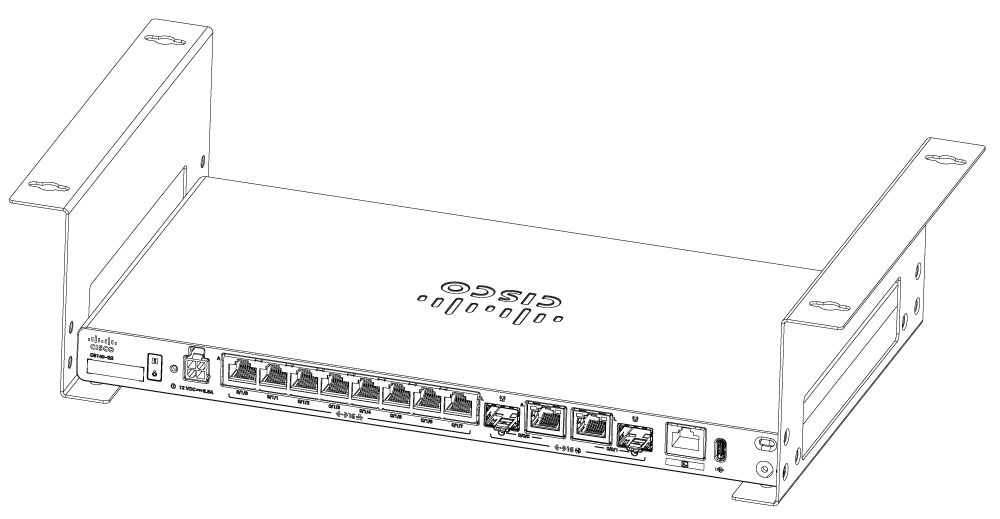

Figure 15. C8140-G2 with attached under desk mounting brackets

Example:

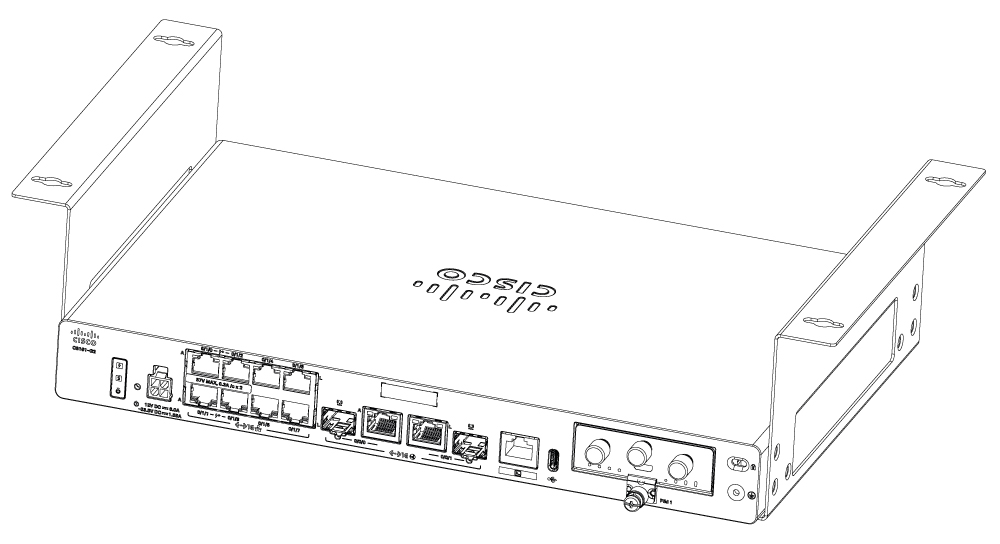

Figure 16. C8151-G2 and C8161-G2 with attached under desk mounting brackets

Step 4

After the bracket is attached, drill a 2mm hole under the desk and insert the wooden screws. Mount the router under the desk or shelf using the pan-head wood screws.

Example:

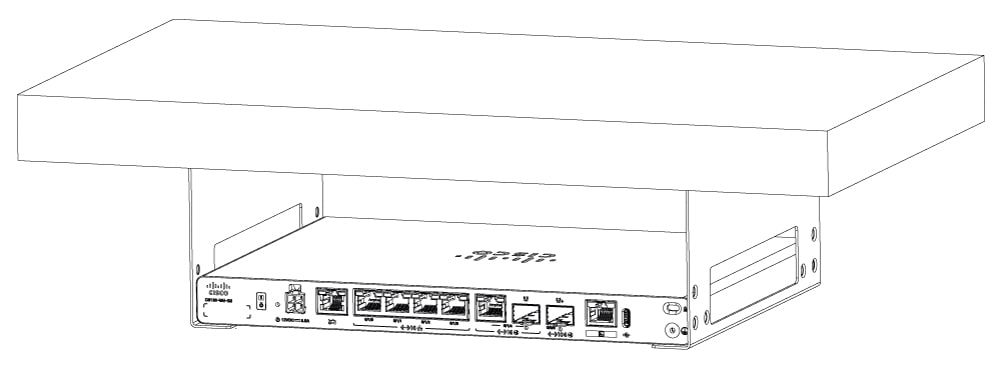

Figure 17. Mounting C8130-G2 under a shelf

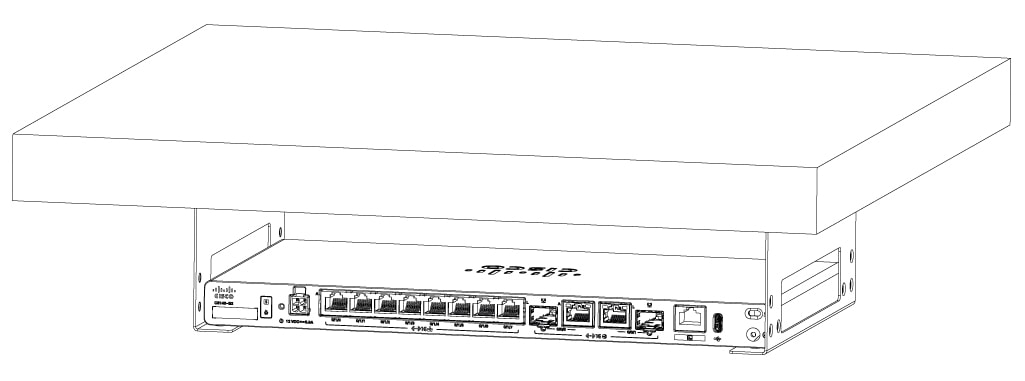

Figure 18. Mounting C8140-G2 under a shelf

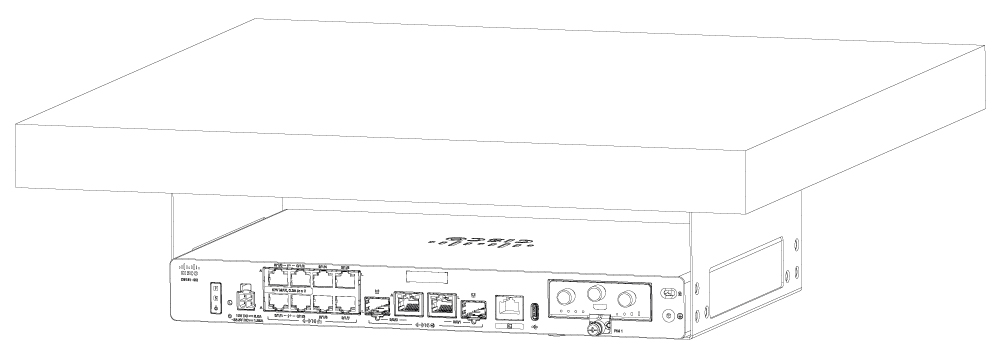

Figure 19. Mounting C8151-G2 and C8161-G2 under a shelf
Figure 20. Pan-head wood screws

Wall mount

There are two ways to mount a router on the wall, using Keyhole slots and DIN rail brackets.


Warning

Statement 1094—Read Wall-Mounting Instructions Before Installation

Read the wall-mounting instructions carefully before beginning installation. Failure to use the correct hardware or to follow the correct procedures could result in a hazardous situation to people and damage to the system.


Note

The recommended clearance when a router is horizontally mounted is 1.5 inches on both sides for clearance and 1.75 inches on top. I/O side clearance is needed as it is required to access the cable connections. Clearance is not required on the backside (opposite side from I/O face) unless mounting on a DIN rail. Clearance is required to attach and mount the DIN rail bracket.

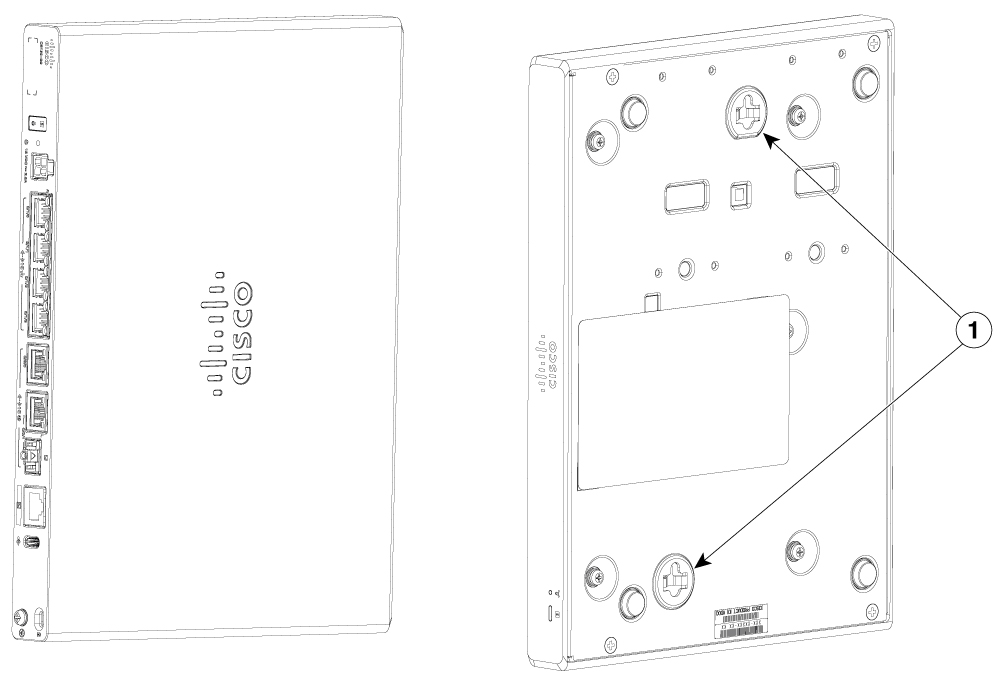

Wall mount using Keyhole Slots

The Cisco 8100 Series Secure Routers have keyhole slots at the bottom of the chassis for mounting on a wall or any vertical surface.


Note

When choosing a location for wall mounting the router, consider cable limitations and wall structure.

Note

Route the cables so that they do not put a strain on the connectors or mounting hardware.
Procedure

Step 1

Measure the distance between both the keyhole slots and mark them onto the wall.

Step 2

Drill holes into the wall as per the markings you took in Step 1, and insert the screws in it.

To attach a router to the wall stud, each bracket should have one number 10 wood screw (pan-head) with number 10 washers, or two number 10 washer-head screws. The screws must be long enough to penetrate at least 1.5 inches (38.1 mm) into the supporting wood or metal wall stud.

For hollow-wall mounting, each bracket requires two wall anchors with washers. Wall anchors and washers must be size number 6 (pan-head).

Step 3

Place the router onto the screws and slide the router to lock it into place.

Example:

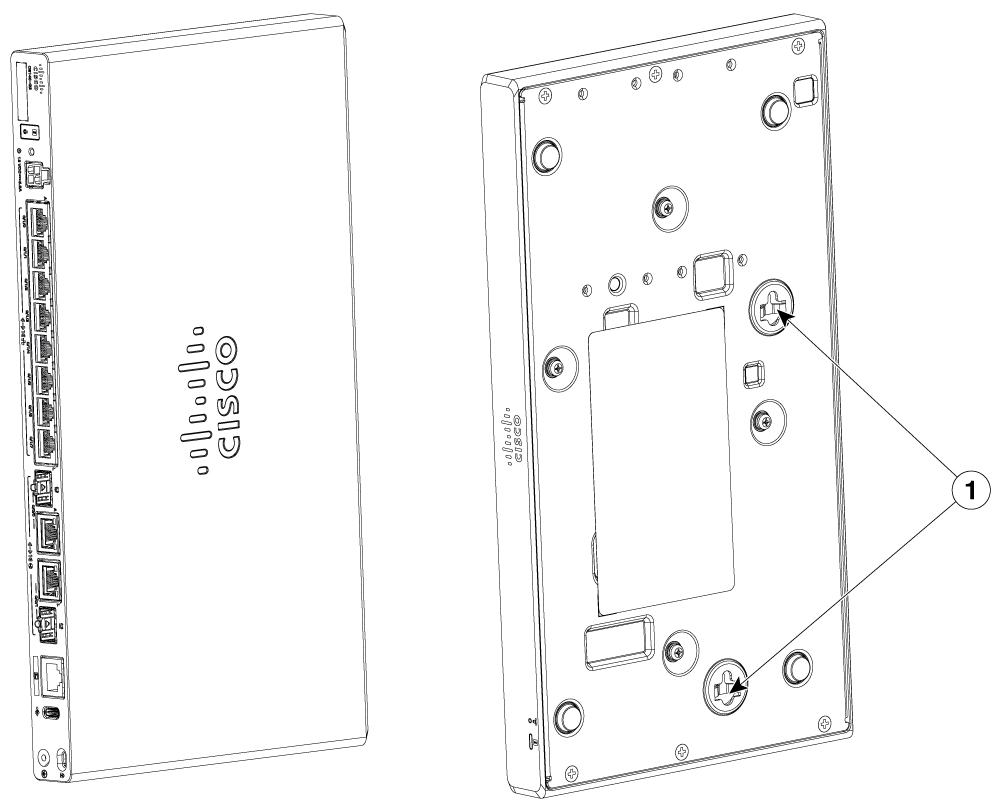

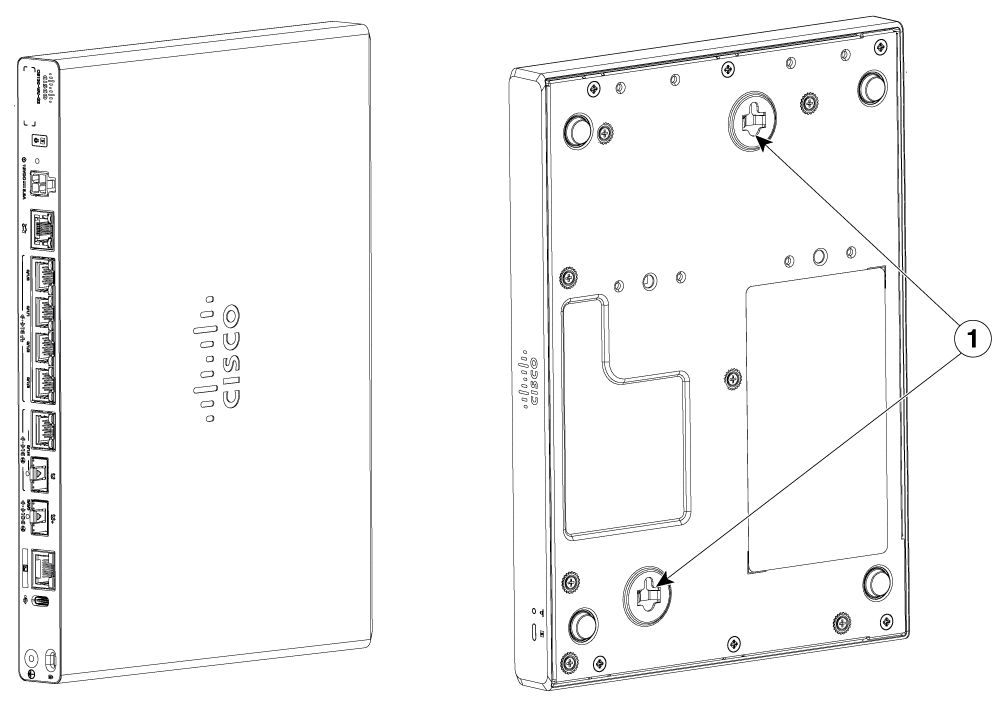

Figure 21. Wall mount using keyhole slots for C8130-G2

1

Keyhole slots

Horizontal spacing: 1.693 in(43.00 mm)

Vertical spacing: 8.113 in(206.07 mm)
Figure 22. Wall mount using keyhole slots for C8140-G2

1

Keyhole slots

Horizontal spacing: 1.330 in(33.78 mm)

Vertical spacing: 6.500 in(165.10 mm)

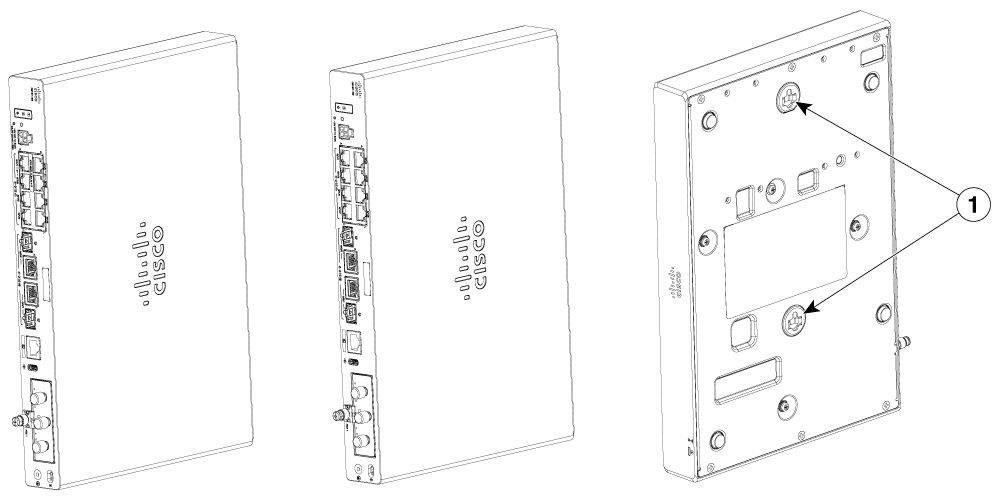

Figure 23. Wall mount using keyhole slots for C8151-G2 and C8161-G2

1

Keyhole slots

Key-hole slots spacing: 7.250 in(184.15 mm)

Wall mount using DIN rail brackets

The router is shipped with DIN rail brackets that are to be secured on the bottom side of the chassis. Your chassis installation must allow unrestricted airflow for chassis cooling.

Procedure

Step 1

Align the din rail brackets to the holes indicated in the following figure.To attach the DIN rail brackets to the router chassis, use the PHMS screws and the plastic spacers provided for each bracket.

Example:

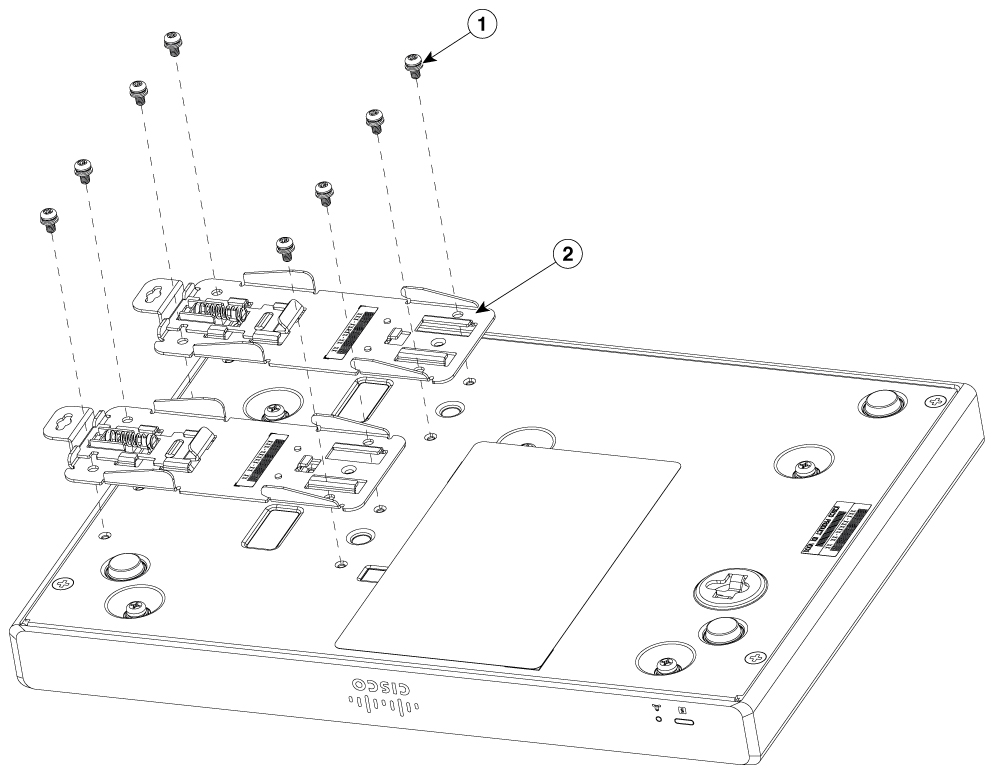

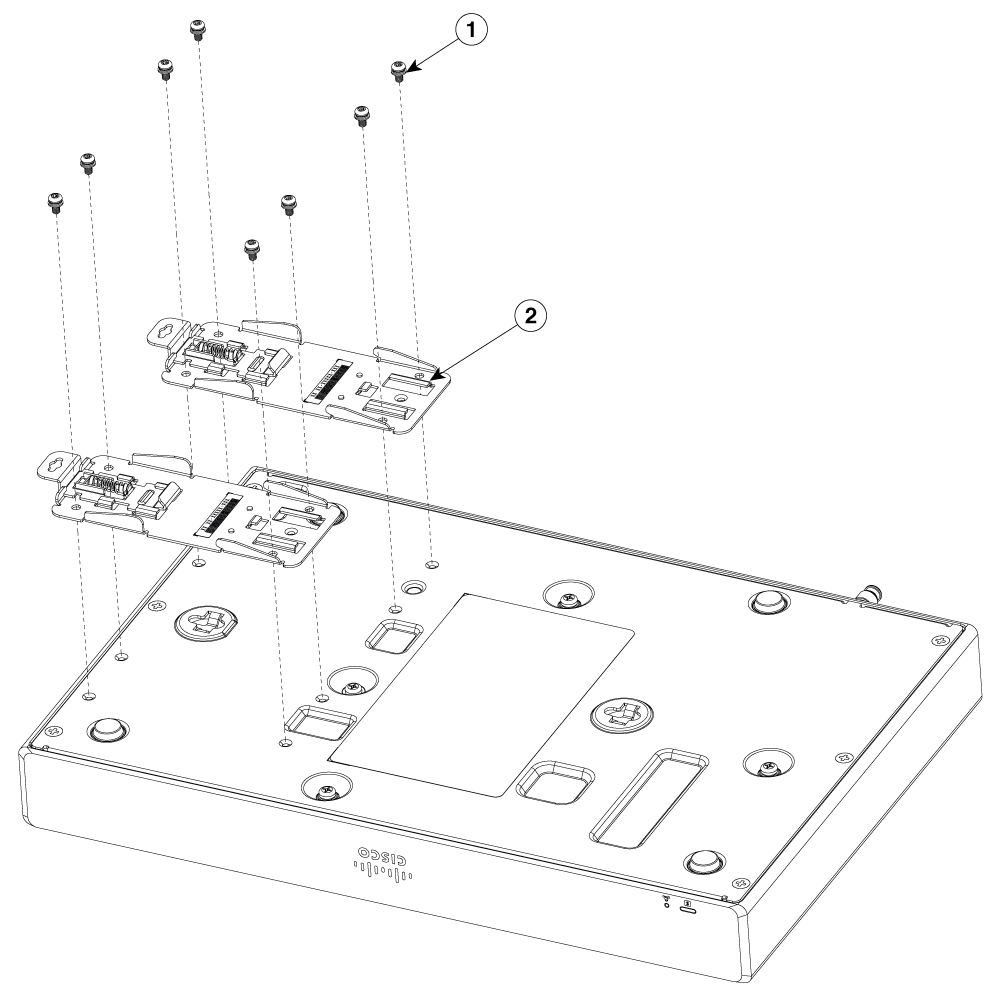

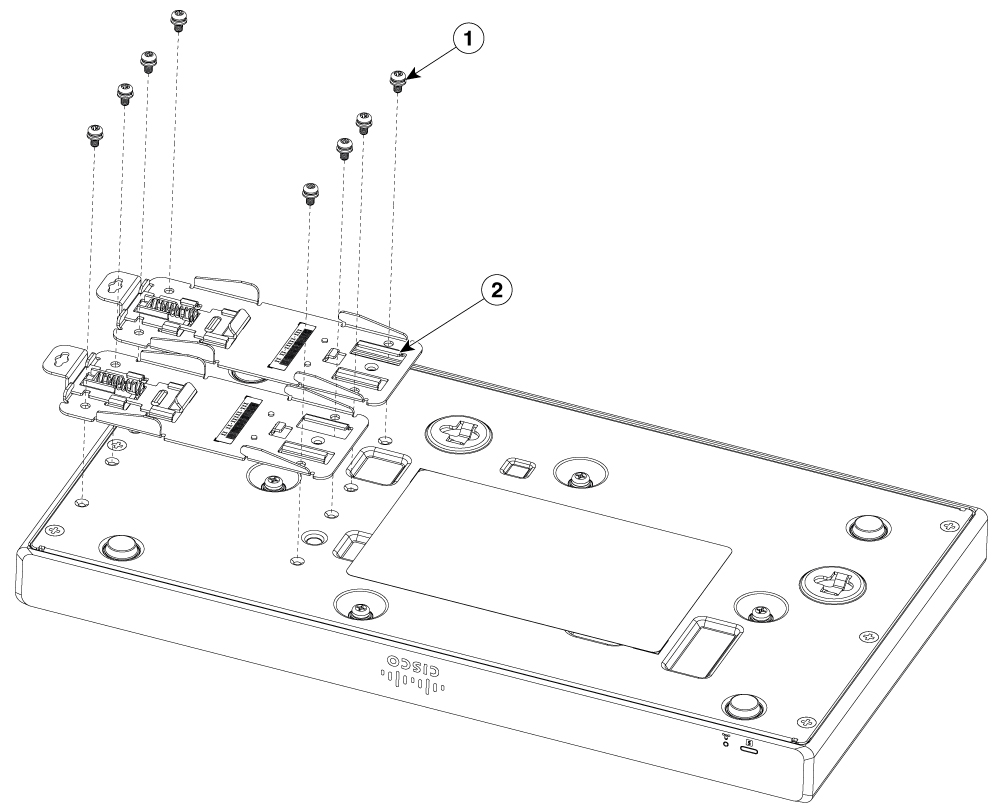

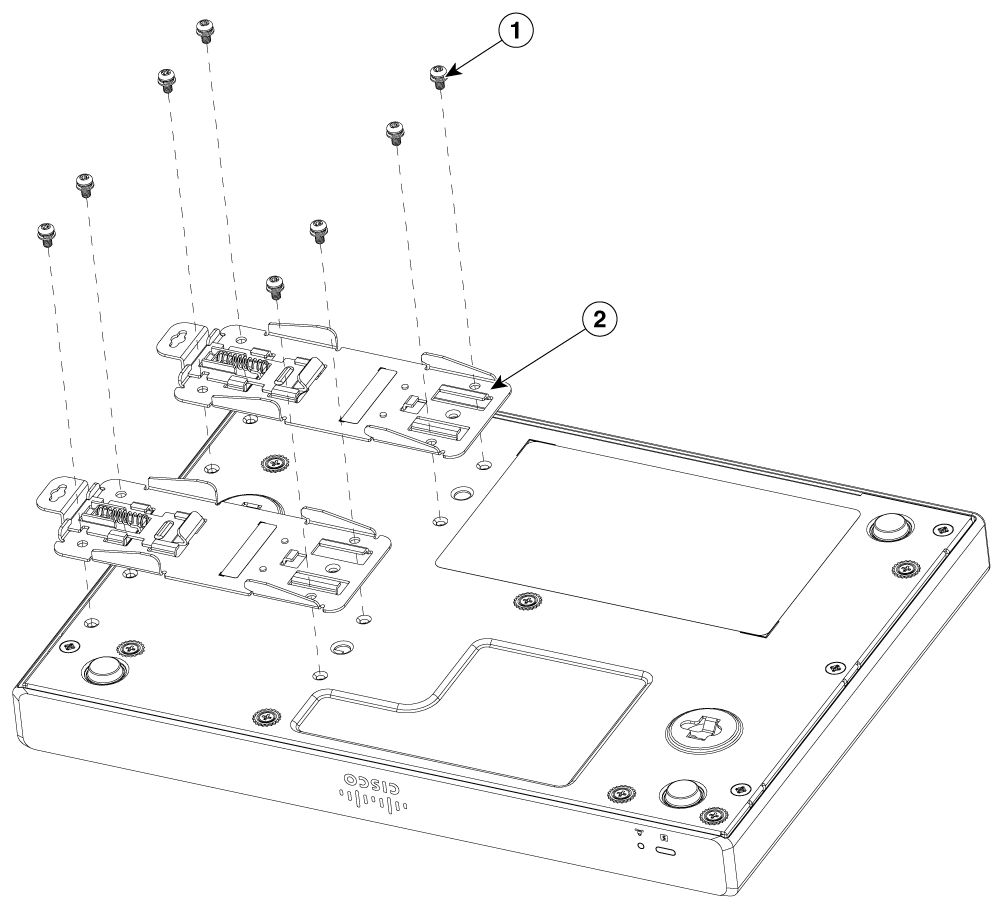

Figure 24. DIN rail bracket installation for C8130-G2

1

PHMS screws

2

DIN rail brackets
Example:
Figure 25. DIN rail bracket installation for C8140-G2

1

PHMS screws

2

DIN rail brackets
Example:
Figure 26. DIN rail bracket installation for C8151-G2 and C8161-G2

1

PHMS screws

2

DIN rail brackets

Step 2

Secure the din rail brackets to the router using the PHMS screws and the plastic spacers provided for each bracket.

Example:

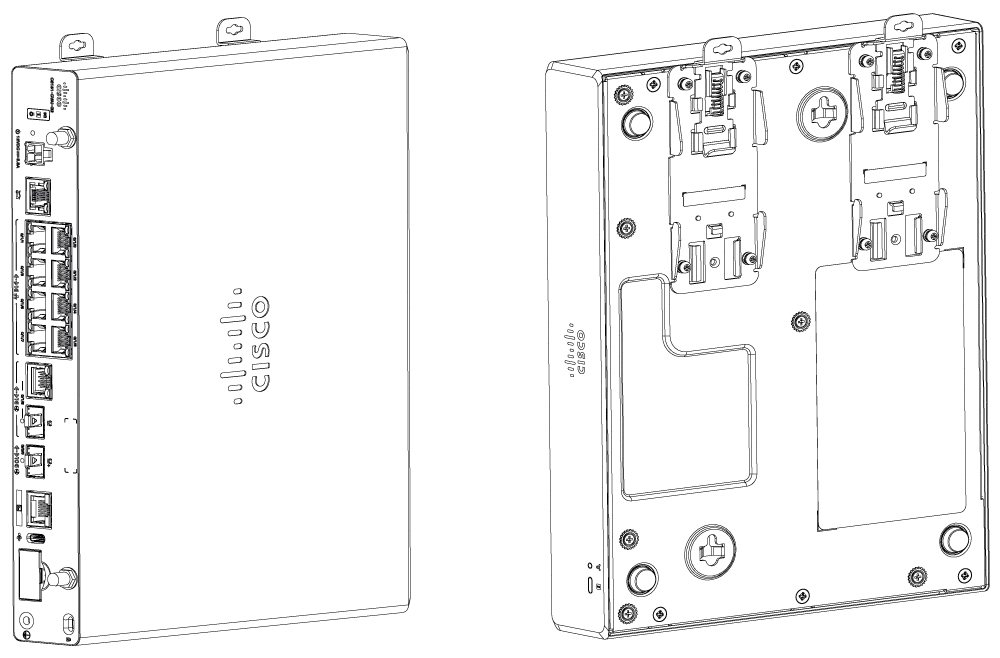

Figure 27. C8130-G2 with attached DIN rail brackets

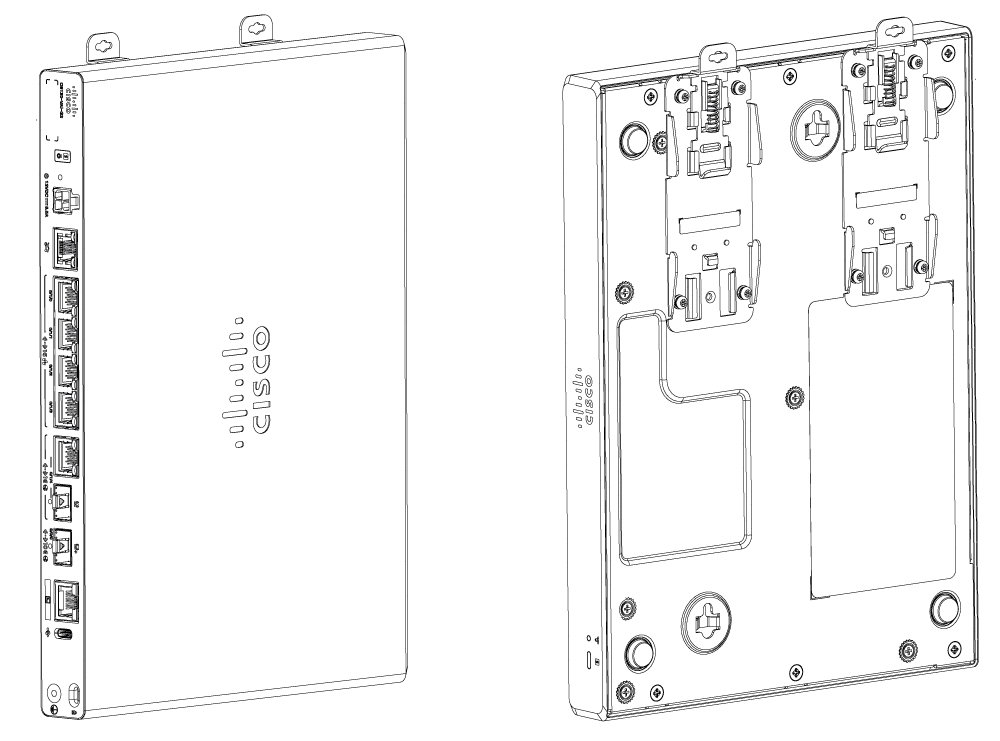

Figure 28. C8140-G2 with attached DIN rail brackets
Figure 29. C8151-G2 and C8161-G2 with attached DIN rail brackets

Note



Do not over-torque the screws. The recommended torque is 8 to 10 inch-lbf (0.9 to 1.1 N-m).

Step 3

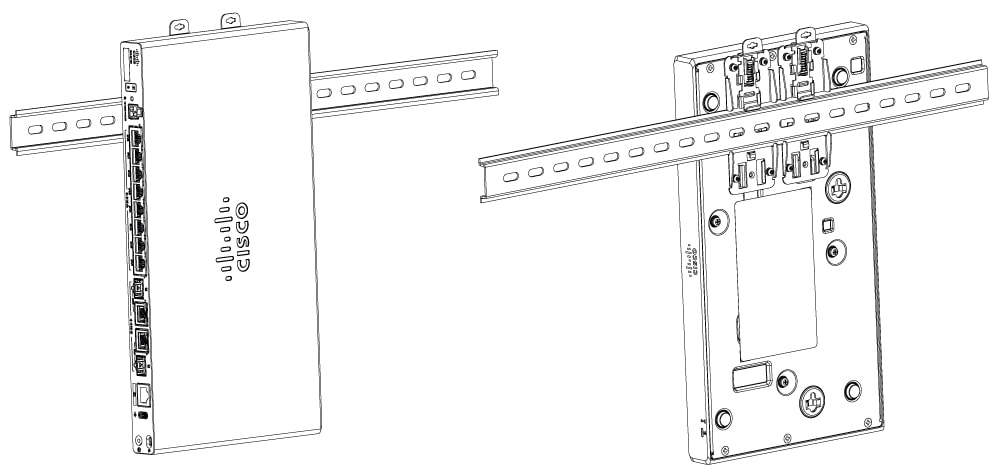

Attach the brackets onto the DIN rail to clamp it together.

Example:

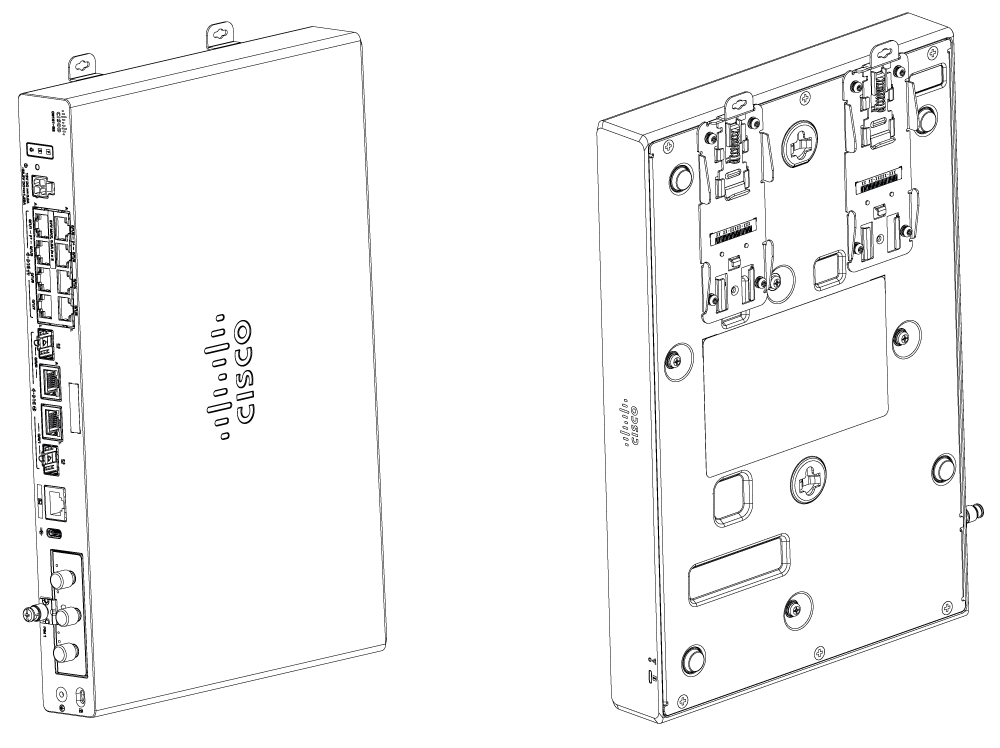

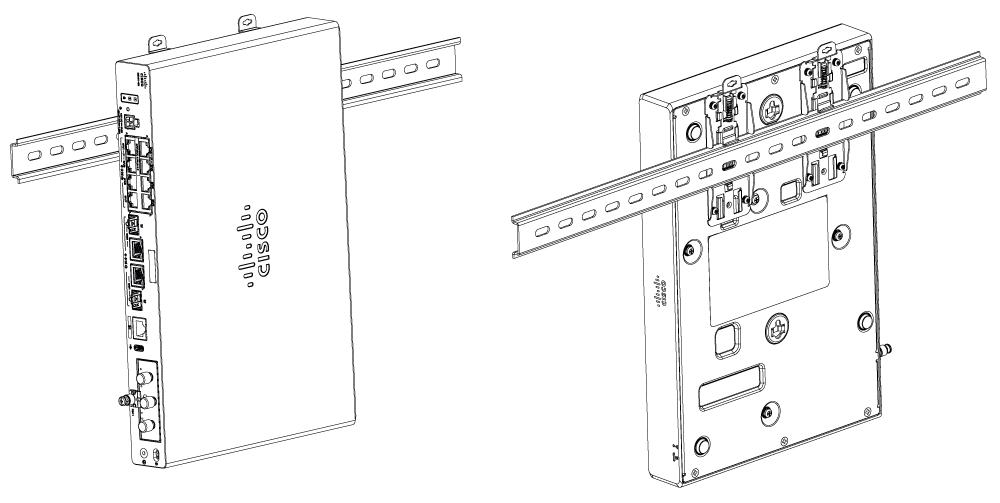

Figure 30. Mounting C8130-G2 using DIN rail brackets

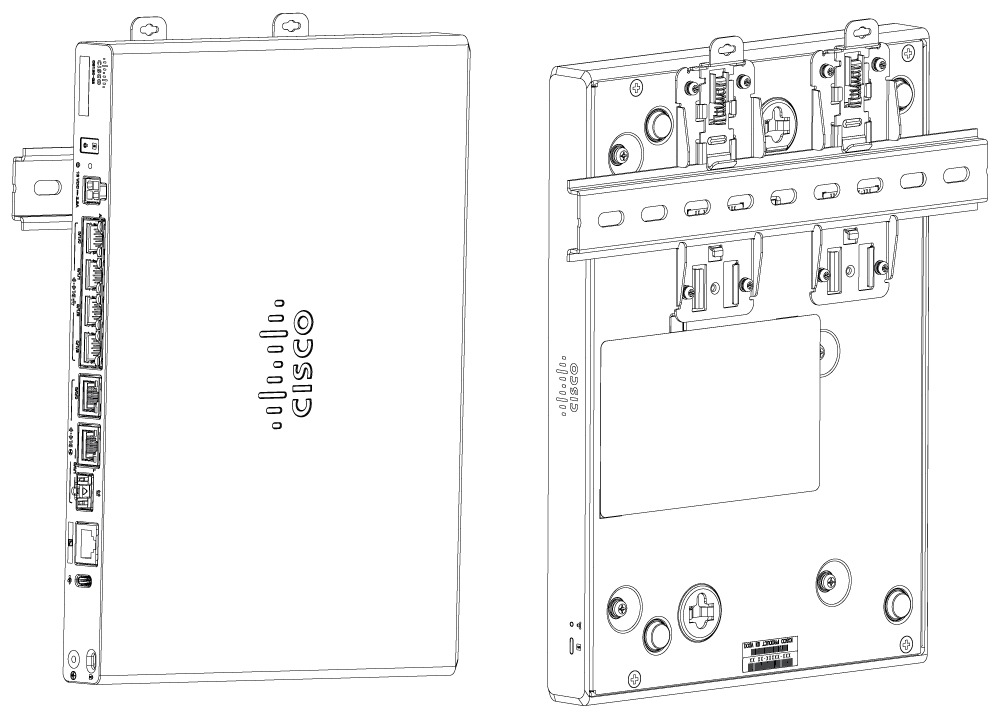

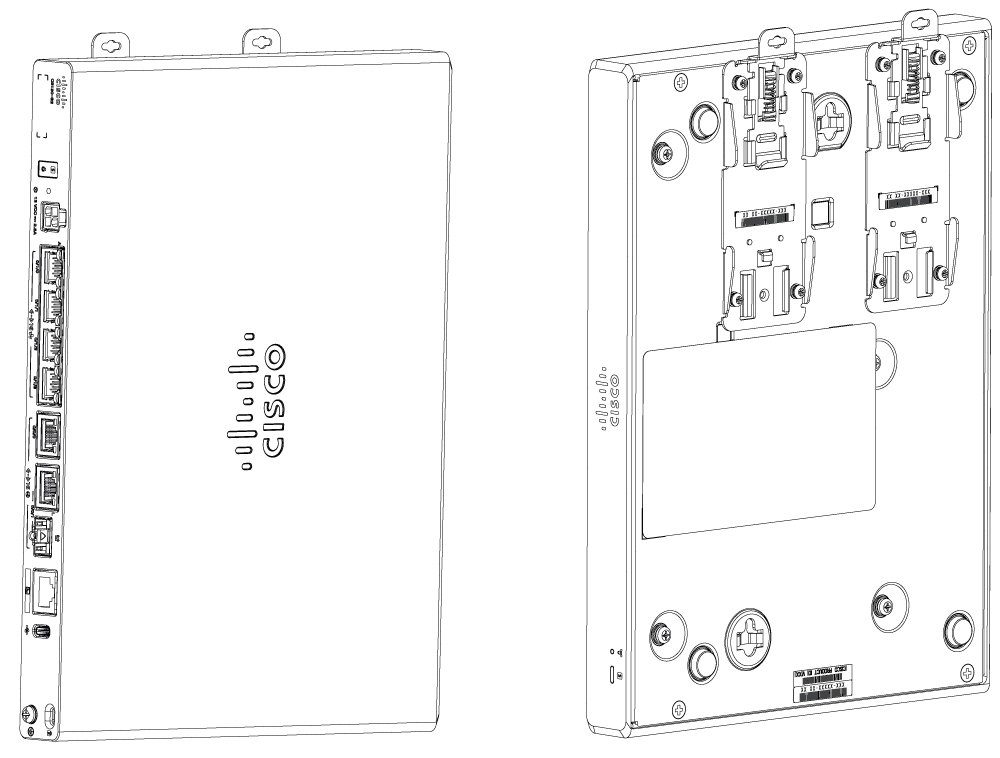

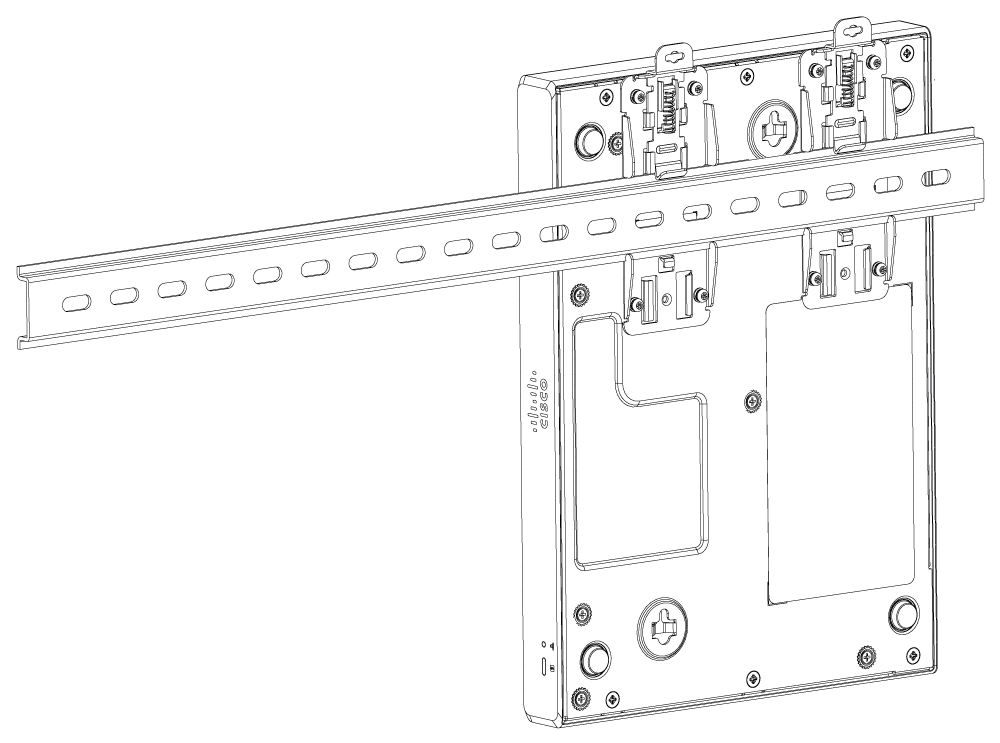

Figure 31. Mounting C8140-G2 using DIN rail brackets

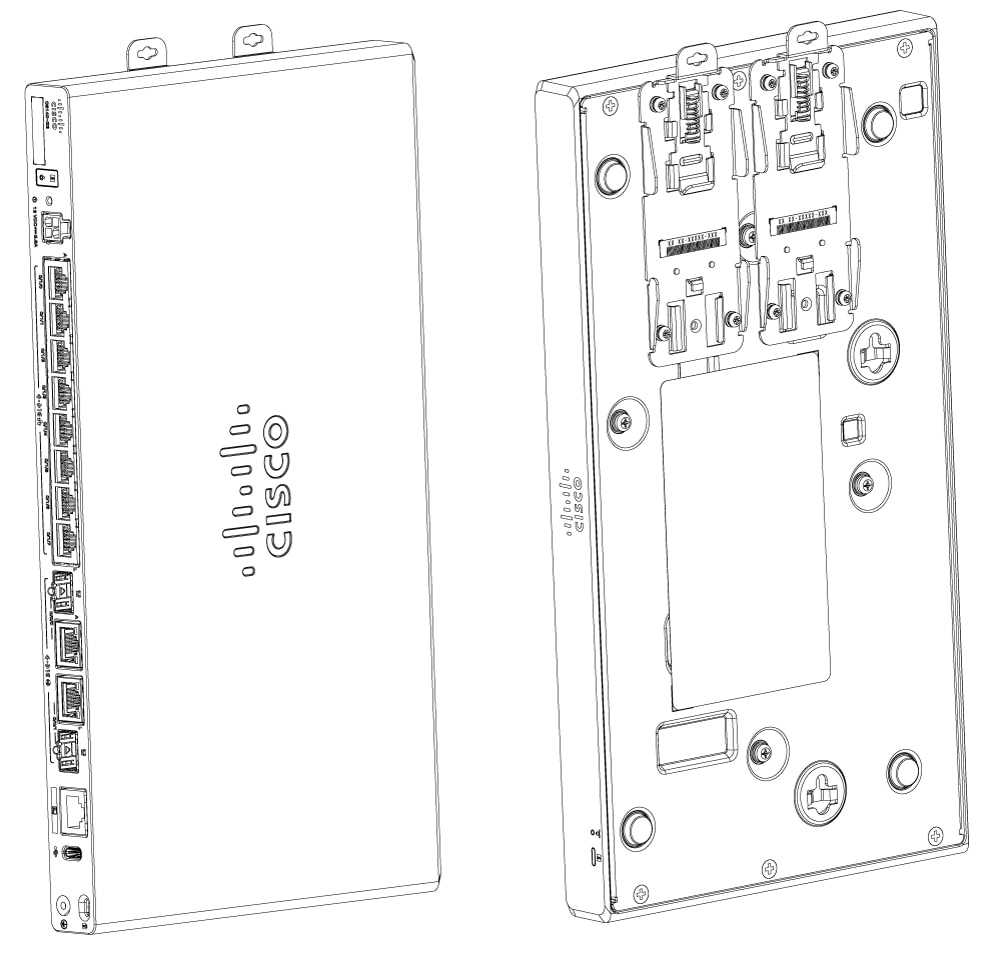

Figure 32. Mounting C8151-G2 and C8161-G2 using DIN rail brackets

Ground connection warnings

Take note of the following ground connection warnings:


Warning

Statement 1101—Connected To Grounded Outlet

In the Scandinavian countries (Denmark, Finland, Iceland, Norway, and Sweden) the appliance must be connected to a grounded outlet.

Chassis grounding

After you set up the router, connect the chassis to a reliable earth ground. The ground wire must be installed in accordance with local electrical safety standards. For grounding the chassis, use a copper wire of size of 14 AWG (2 mm²). Following components are provided along with the router:

  1. Ground Lug

  2. UNC 5-32 screws which have a length of about 0.25 inches.

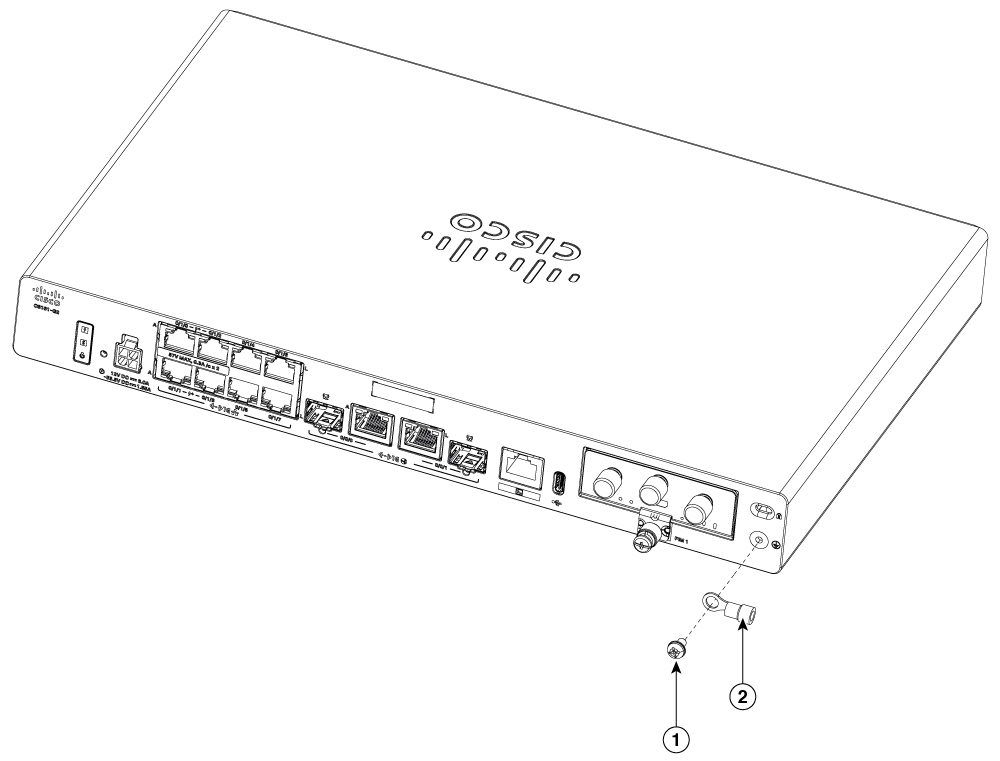

To install the ground connection for your router, perform the following steps:

  1. Strip one end of the ground wire to the length approximately 0.75 inch (20 mm) for the ground lug.

  2. Crimp the ground wire to the ground lug using a crimp tool of the appropriate size.

  3. Attach the ground lug to the chassis as shown in the below figures. Tighten the screw; the recommended torque is 8 to 10 inch-lbf (0.9 to 1.1 N-m).

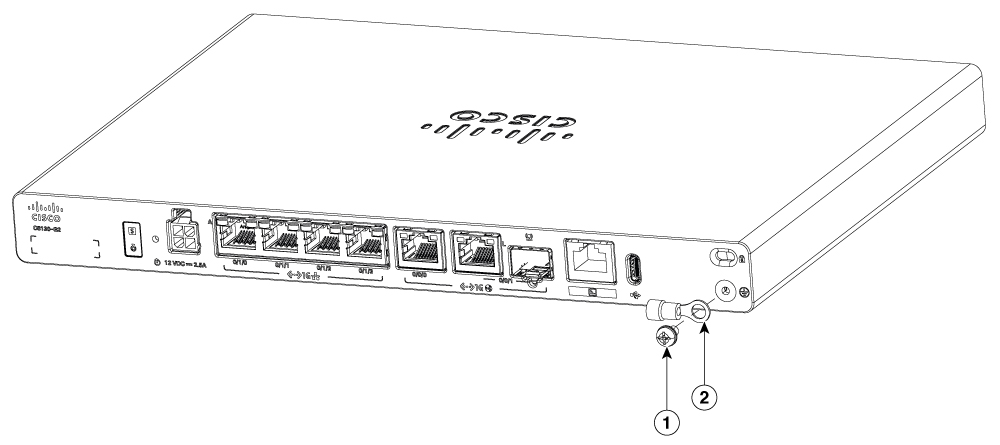

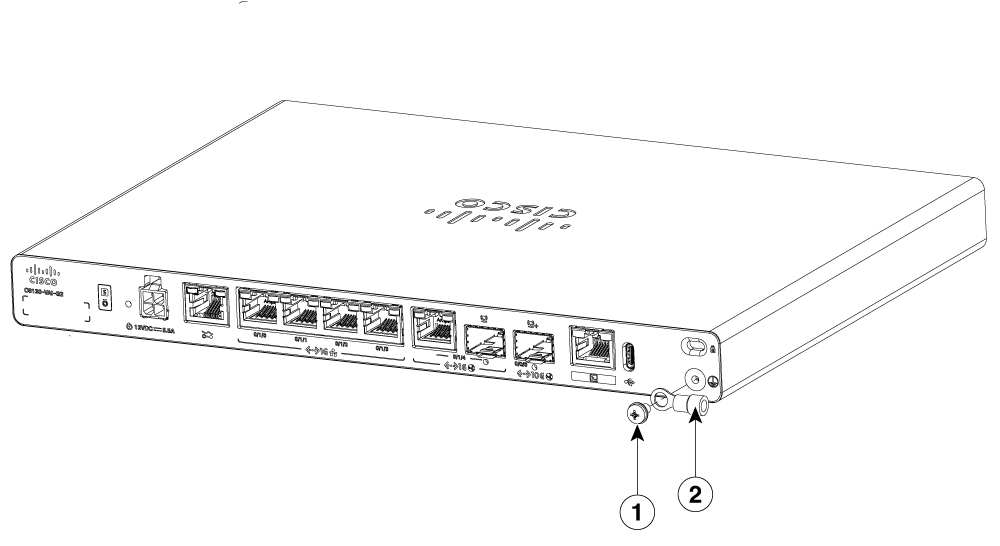

Figure 33. Chassis ground connection - C8130-G2

1

Screw (UNC 6-32)

2

Ground lug

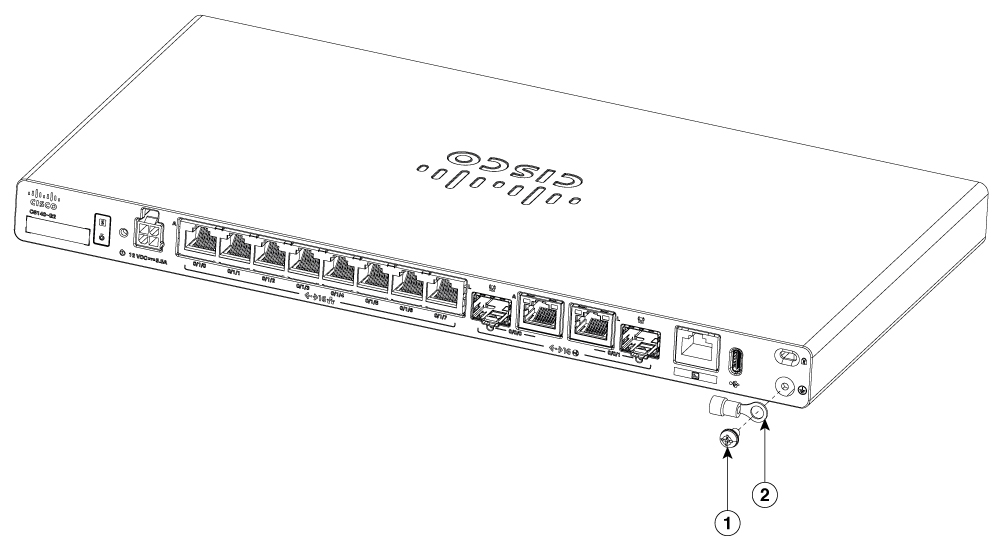

Figure 34. Chassis ground connection - C8140-G2

1

Screw (UNC 6-32)

2

Ground lug

Figure 35. Chassis ground connection - C8151-G2 and C8161-G2

1

Screw (UNC 6-32)

2

Ground lug

Optical connection SFP warnings

Take note of the following optical connection warnings:


Warning

Statement 1051—Laser Radiation

Invisible laser radiation may be emitted from disconnected fibers or connectors. Do not stare into beams or view directly with optical instruments.

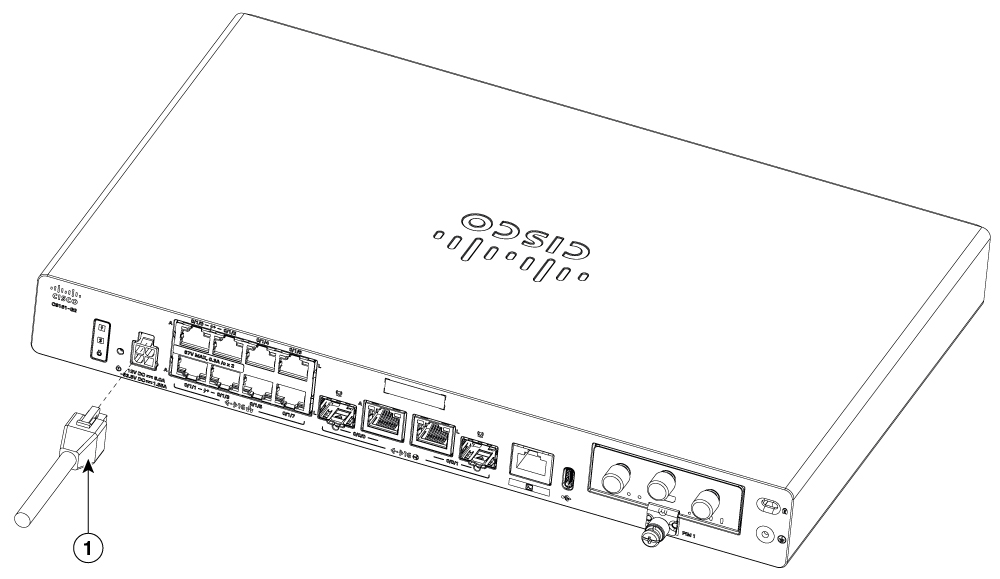

Connect the power cable

Power supply of the Cisco 8100 Series Secure Routers is an external AC to DC power adapter. The external DC power connector plugs into the router's 4 points power connector.

The router does not have a power button. Refer the following to Power on/off the Router:

  • To power on the router – you can locate the power cable and connect it to a power source.

  • To power off the router – unplug the power cord from the back of the router or gently pull the power cable from the router or the wall outlet.

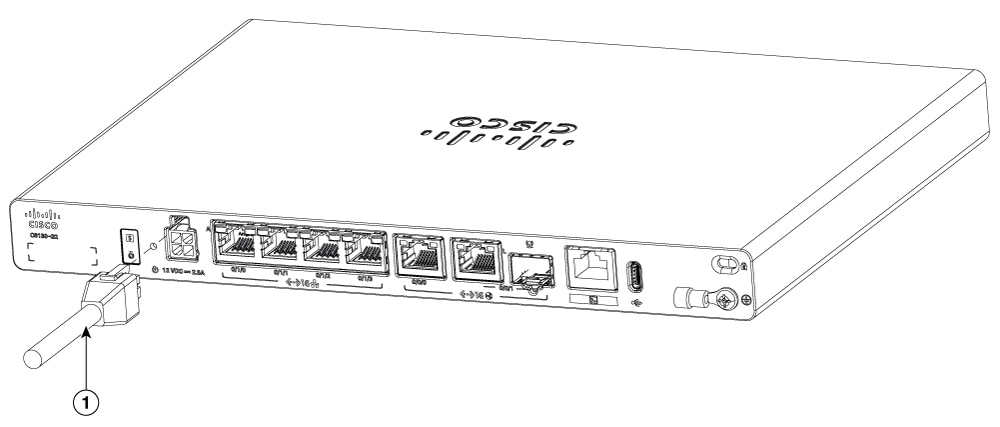

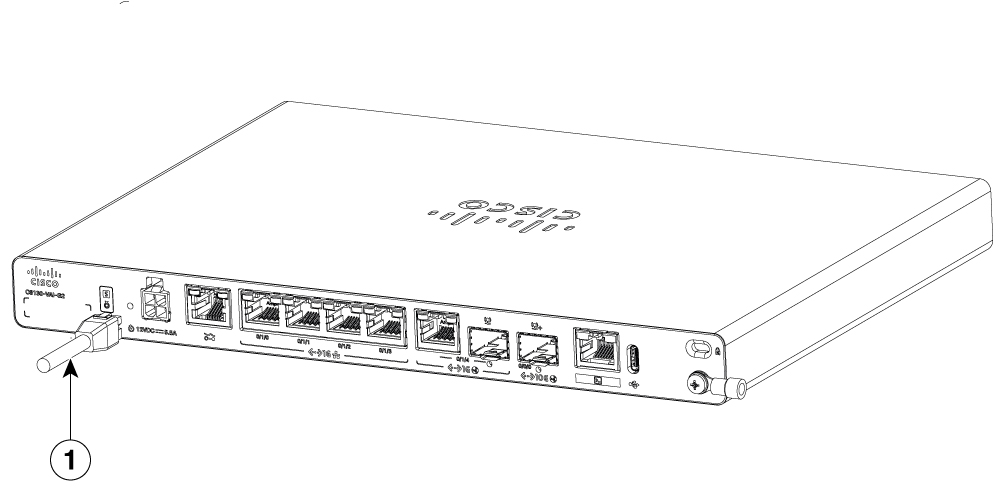

Figure 36. Power cable - C8130-G2

1

Power cable

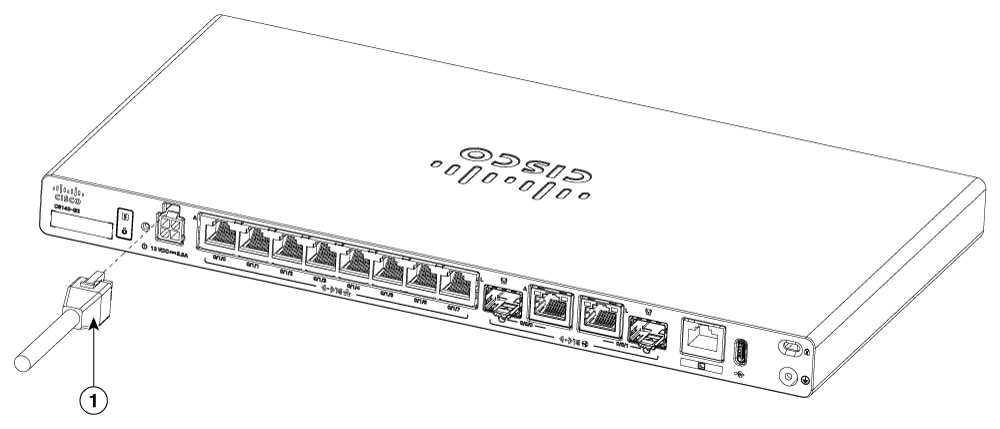

Figure 37. Power cable - C8140-G2

1

Power cable

Figure 38. Power cable - C8151-G2 and C8161-G2

1

Power cable

Connect the router to a console

The Cisco 8100 Series Secure Routers contains a RJ45 console port. This port provides administrative access to the router through a console terminal or a PC.

Use the RJ45 console port on the router to access the Cisco Internetwork Operating System (IOS XE) command line interface (CLI) on the router and perform configuration tasks. A terminal emulation program is required to establish communication between the router and a PC.

To configure the router through the CLI, you must establish a connection between the router console port and either a PC or a terminal.

Use the following cables and adapters to establish a local or remote connection.

Table 1. Local and remote connections

Port type

Cable

Action

Serial (RJ45)

RJ45 serial console cable

Connecting to the serial port with terminal emulation program.

Connect to the Serial Port with Microsoft Windows

This procedure describes how to connect a Microsoft Window USB port to a console port.

Before you begin

To establish a physical connectivity between the router and a PC, you need to install a Microsoft Windows USB.

Procedure

Step 1

Connect the end of the console cable with the RJ45 connector to the light blue console port on the router.

Step 2

Connect the end of the cable with the DB-9 connector (or USB Type-A) to the terminal or PC. If your terminal or PC has a console port that does not accommodate a DB-9 connector, you must provide an appropriate adapter for that port.

Step 3

Start a terminal emulator application to communicate with the router. Configure the software with the following parameters:

  • 9600 baud

  • 8 data bits

  • no parity

  • 1 stop bit

  • no flow control

Connect to the console port with Mac OS X

This procedure describes how to connect a Mac OS X system USB port to the console using the built in OS X Terminal utility.

Procedure

Step 1

Use the Finder to go to Applications > Utilities > Terminal.

Step 2

Connect the OS X USB port to the router.

Step 3

Enter the following commands to find the OS X USB port number

Example:


macbook:user$ cd /dev
macbook:user$ ls -ltr /dev/*usb*
crw-rw-rw-  1 root    wheel       9,  66 Apr  1 16:46 tty.usbmodem1a21 DT-macbook:dev user$

Step 4

Connect to the USB port with the following command followed by the router USB port speed

Example:


macbook:user$ screen /dev/tty.usbmodem1a21 9600

To disconnect the OS X USB console from the Terminal window

Enter Ctrl-a followed by Ctrl-\

Connect to the console port with Linux

This procedure shows how to connect a Linux system USB port to the console using the built in Linux terminal utility.

Procedure

Step 1

Open the Linux terminal window.

Step 2

Connect the Linux USB port to the router.

Step 3

Enter the following commands to find the Linux USB port number.

Example:


root@usb-suse# cd /dev
root@usb-suse /dev# ls -ltr *ACM*
crw-r--r--    1 root     root     188,   0 Jan 14 18:02 ttyACM0
root@usb-suse /dev#

Step 4

Connect to the USB port with the following command followed by the router USB port speed.

Example:


root@usb-suse /dev# screen /dev/ttyACM0 9600

Note



To disconnect the Linux USB console from the terminal window:

Enter Ctrl-a followed by : then quit.

Connect WAN and LAN interfaces

This section describes how to connect WAN and LAN interface cables.

Ports and cabling

This section summarizes typical WAN and LAN connections for Cisco 8100 Series Secure Routers. The connections summarized here are described in detail in the Cisco Modular Access Router Cable Specifications document on cisco.com.

Table 2. WAN and LAN connections

Port

Port Type

Connection

Cable

Ethernet

RJ45

Ethernet hub or Ethernet switch

Category 5 or higher Ethernet

Gigabit Ethernet SFP, optical

LC

1000BASE-SX, -LX, -LH, -ZX, -CWDM

Optical fiber as specified on applicable data sheet

Gigabit Ethernet SFP, copper

RJ45

1000BASE-T

Category 5, 5e, 6 UTP

Connection procedures and precautions

After you have installed the router chassis, perform these steps to connect the WAN and LAN interfaces:

Procedure

Step 1

Connect each WAN and LAN cable to the appropriate ports on the chassis.

Step 2

Position the cables carefully so that you do not strain the connectors.

Step 3

Organize cables in bundles so that cables do not intertwine.

Step 4

Inspect the cables to make sure that the routing and bend radius is satisfactory. If necessary, reposition the cables.

Step 5

Install cable ties in accordance with site requirements.
