This article describes the LEDs, reset button, and the SD card slot on the front panel of the vEdge 2000 router. See At a Glance for the exact location of these components on the front panel of the router.

LEDs

The vEdge 2000 router has four chassis status LEDs located in the center of the front panel next to the USB ports. See the following figure.

The following table describes the LEDs , their color and states, and the status they indicate.

Reset Button

The front panel of the vEdge 2000 router has a reset button. The reset button is recessed to avoid accidentally pressing it while the router is operational. To press the reset button, use a sharp narrow tool. The following table describes the effects of pressing the reset button.

SD Card Slot

The front panel of the vEdge 2000 router has an SD card slot. The SD card slot has the following specifications:

• High speed bus: maximum 25 MB/second

• Supported card types: SD, SDHC

This article describes the Pluggable Interface Modules (PIMs) for the vEdge 2000 router as well as the SFP and SFP+ transceivers for those PIMs.

PIMs for the vEdge 2000 Router

The vEdge 2000 router offers interface modularity, providing two PIM slots that support two types of PIMs:

• 8x1-Gigabit Ethernet SFP PIM (Model: PIM-8x1GE-SFP)

• 2x10-Gigabit Ethernet SFP+ PIM (Model: PIM-2x10GE-SFP+)

The two PIM slots are labeled PIM Slot 0 and PIM Slot 1.

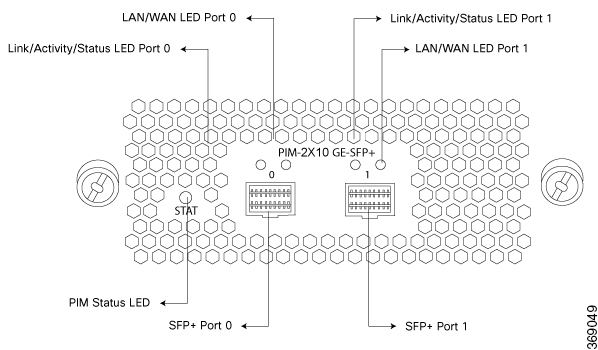

The following figures show the front panel of the 8x1-Gigabit Ethernet SFP PIM and the 2x10-Gigabit Ethernet SFP+ PIM, respectively.

The status LED on the front panel indicates the status of the PIM. For an explanation of the LAN/WAN LED and the Link/Activity/Status LED, see Network Port LEDs .

Note

You can install the 8x1-Gigabit Ethernet SFP PIM​ in either PIM Slot 0 or PIM Slot 1. However, when it is installed in PIM Slot 0, only four ports are usable. When it is installed in PIM Slot 1, all eight ports are usable. There is no such restriction with the 2x10-Gigabit Ethernet SFP+ PIM. For details, see Interface Port Combinations for the vEdge 2000 Router below.

Interface Port Combinations for the vEdge 2000 Router

A vEdge 2000 router has four fixed 1-Gigabit Ethernet interfaces, and you can install one or two PIM modules for additional interfaces.

You can combine the fixed interfaces and the PIM modules as follows:

• Two 2x10-Gigabit Ethernet SFP+ PIMs. This combination allows you to configure four 10-Gigabit Ethernet interfaces. This would give you a total of four 10-Gigabit Ethernet interfaces and four 1-Gigabit Ethernet interfaces in the router.

• One 2x10-Gigabit Ethernet SPF+ PIM (in PIM Slot 0) and one 8x1-Gigabit Ethernet SPF PIM (in PIM Slot 1). This combination allows you to configure two 10-Gigabit Ethernet interfaces and eight 1-Gigabit Ethernet interfaces. This would give you a total of two 10-Gigabit Ethernet interface and twelve 1-Gigabit Ethernet interfaces in the router.

• Two 8x1-Gigabit Ethernet SFP PIMs. This combination allows you to configure twelve 1-Gigabit Ethernet interfaces. This would give you a total of sixteen 1-Gigabit Ethernet interfaces in the router.

When the 8x1-Gigabit Ethernet SFP PIM is in PIM Slot 0, only the first four ports are usable; the remaining four ports are unusable.

Changing PIM Types

If you change the type of PIM that is installed in a vEdge 2000 router slot from a 1-Gigabit Ethernet to a 10-Gigabit Ethernet PIM, or vice versa, possibly as part of an RMA process, follow these steps:

1. Delete the configuration for the old PIM (the PIM you are removing or returning as part of the RMA process).

2. Remove the old PIM.

3. Insert the new PIM (the PIM you received as part of the RMA process).

4. Reboot the vEdge 2000 router.

5. Configure the interfaces for the new PIM.

Supported Transceiver Modules

The built-in Gigabit Ethernet network ports on the vEdge 2000 router and the network ports on the 8x1-Gigabit Ethernet SFP PIM support SFP transceivers. The 10-Gigabit Ethernet ports on the 2x10-Gigabit Ethernet SFP+ PIM support SFP+ transceivers.

This section describes the optical interfaces supported for the SFP and SFP+ transceivers and the copper interfaces supported for the SFP transceivers.

Note	It is recommended that you use the optical transceivers and optical connectors purchased from Viptela for your vEdge routers.

The tables below describe the optical interface support over single-mode fiber-optic (SMF) and multimode fiber-optic (MMF) cables for SFP and  SFP+ transceivers and over the copper interface for SFP transceivers.

This article provides a list of copper and fiber transceivers that have been tested and qualified for use in vEdge 1000, vEdge 2000, and vEdge 5000 routers. You can order the transceivers that have a Viptela part number in the tables below directly from Viptela.

The vEdge 2000 router supports three types of ports: network ports (also called SFP ports), management port, and console port.

Network Ports (SFP Ports)

The built-in network ports on the vEdge 2000 router as well as the 8x1-Gigabit Ethernet SFP PIM module support 1-Gbps SFP module. The 2x10-Gigabit Ethernet SFP+ PIM module supports 10-Gbps SFP+ module.

The following table provides the pinout information for the built-in SFP and the PIM SFP/SFP+ port connector. The SFP/SFP+ ports comply with the SFP/SFP+ MSA standards.

Network Port LEDs

Each network port on the vEdge 2000 router has two LEDs—the link/activity/status LED and the LAN/WAN LED. See the following figures.

The following table describes the LAN/WAN LED on the network ports.

Management Port

The management port on a vEdge 2000 router uses an RJ-45 connector to connect to a management device for out-of-band management.

The management port uses an autosensing RJ-45 connector to support a 10/100/1000Base-T connection. The two LEDs on the port indicate link/activity on the port and the administrative status of the port. See Management Port LEDs below.

The following table provides the pinout information for the RJ-45 connector for the management port.

Management Port LEDs

The management port on the vEdge 2000 router has two LEDs that indicate link/activity and port status. See the following figure.

The following table describes the LEDs on the management port.

Console Port

The console port on a vEdge 2000 router is accessible via the following external interfaces:

• An RS-232 serial interface that uses an RJ-45 connector to connect to a console management device.

• A USB serial interface that uses a standard USB Type B connector to connect to a console management device. See Figure 5.

Note

At any given time, you can activate only one of the external interfaces. The default baud rate for the console port is 115,200 baud. When you connect a device such as a PC or a terminal server to the console serial port of a vEdge router, ensure that the PC or terminal serial port is configured to disable flow control.

The following table provides the pinout information for the RJ-45 console port connector.

RJ-45-to-DB-9 Serial Port Adapter Pinout

The console port on a vEdge 2000 router is an RS-232 serial interface that uses an RJ-45 connector to connect to a management device such as a PC or a laptop. If your PC or laptop does not have a DB-9 male connector pin and you want to connect your PC or laptop to a vEdge 2000 router, use a combination of the RJ-45-to-DB-9 female adapter along with a USB-to-DB-9 male adapter. See the following figure.

The following table provides the wiring and pinout information for the RJ-45-to-DB-9 serial port adapter cable.

You can also connect the vEdge 2000 router to a management device such as a PC or a laptop using an RJ-45-to-RJ45 cable as shown in the following figure. Note that the vEdge 2000 router does not ship with an RJ-45-to-RJ-45 cable.

The vEdge 2000 router is a stiff sheet-metal structure that houses the hardware components. Field-replaceable units (FRUs) are hardware components that you can remove and replace at your site. Table 1 lists the FRUs in the vEdge routers.

The power supply, transceivers, and fan tray are hot-removable and hot-insertable. You can remove and replace these components without powering off the router or disrupting router functions.

The vEdge 2000 router ships with two AC power supplies installed. Read this article to learn more about the AC power supply in the router as well as about the cooling system and airflow through the router chassis.

AC Power Supply in vEdge 2000 Router

The vEdge 2000 router ships with two AC power supplies installed. The second power supply is for redundancy and load-balancing. If one of the AC power supplies fails due to device failure or input power line failure, a single unit is sufficient to power the entire router.

The AC power supply in a vEdge 2000 router is a hot-insertable and hot-removable field replacement unit (FRU). You can remove and replace the power supply in the rear of the chassis without powering off the router or disrupting normal functioning.

The following table describes the AC power supply specifications for the vEdge 2000 router.

AC Power Supply LEDs

The vEdge 2000 AC power supply has an LED faceplate that displays information about the status of the power supply. The following table describes the LEDs on an AC power supply in a vEdge 2000 router.

*Flashing frequency: 1Hz (0.5 seconds Red/0.5 seconds Blue)

AC Power Cord Specifications

The vEdge 2000 router ships with a detachable AC power cord. The power cord has a C13 connector at one end and the other end is specific to the country/locality to which the product is shipped.

Cooling System and Airflow in a vEdge 2000 Router

The cooling system in a vEdge 2000 router consists of four individual fan trays, each comprising a double-stacked fan module. The fan trays cool the router itself, except the power supply units, which have their own fans for cooling.

The fan tray is a hot-insertable and hot-removable field-replaceable unit (FRU). The fan trays provide front-to-back cooling, as shown in Figure 4. If one of the fans in a fan tray fails, you can remove the specific fan tray and replace it with a spare fan tray module without powering off the router or disrupting normal functions. Also, if one of the fans fails, the rest of the working fans will keep the system running indefinitely.

The fan tray installs horizontally in the rear of the chassis. It has two thumbscrews that serve as handles and also as a mechanism to secure the fan tray to the main chassis.

The air intake to cool the chassis flows through the perforations in the front of the chassis. Hot air exits from the rear of the chassis via the vents provided near the fans.

Temperature sensors in the chassis monitor the internal chassis temperature. When a single fan/fan tray fails at room temperature, the system can still provide sufficient cooling.

If a fan/fan tray fails or if the ambient temperature inside the chassis rises above the acceptable range, the router raises an alarm. If the temperature inside the chassis rises above the maximum threshold temperature, the router shuts down automatically.

This article provide guidelines and requirements for preparing your site to install the vEdge 2000 router.

Site Preparation Guidelines

Efficient operation of your vEdge 2000 router requires proper site planning and proper layout of your equipment rack or wiring closet:

• Ensure that the area around the router is kept free of dust and conductive material.

• Follow appropriate airflow guidelines so that the cooling system functions normally.

• Follow ESD prevention procedures to avoid any damage to the router.

• Install the router in an enclosed, secure area allowing only authorized personnel to access the device.

Environmental Requirements

Install the vEdge 2000 router in a dry, clean, temperature-controlled, and well-ventilated environment:

• Maintain ambient airflow for the router to operate normally. The ambient intake air temperature should be in the range 0°C to 40°C (32°F to 104°F). If the airflow is blocked or if the air intake is too warm, the router can get overheated.

• Avoid temperature extremes. Ensure that the router is operating at an ambient temperature not more that 40°C (104°F) at sea level. For higher altitudes, a derating of 1.50°C per 1,000 feet applies.

• High humidity conditions can cause moisture to penetrate into the chassis. The device supports 10% to 85%  humidity levels, non-condensing.

Rack Requirements

You can mount the vEdge 2000 router in a two-post or a four-post rack. The following table provides the rack requirements for the router.

Airflow Requirements

When planning your site for installing the vEdge 2000 router, allow enough clearance around the installed router. Since the router works with a front-to-back airflow there are no clearance requirements for the sides, but it is recommended that you provide at least 3 in. of clearance at the back.

Once you have  prepared your site  for router installation, follow the instructions below to unpack the vEdge 2000 router and install it on either two front posts, four posts, or two mid-posts in a 19-inch rack.

Unpack the vEdge 2000 Router

A vEdge 2000 router is shipped in a cardboard carton and secured firmly in place with foam packing material. The carton contains an accessory box with Quick Start instructions. It is recommended that you do not unpack the router until you are ready to install it.

To unpack the router>

1. Move the cardboard carton close to the installation site, making sure you have adequate space to remove all the contents of the box.

2. Open the top flaps of the carton. The router chassis and the accessories are packed together in the same box with partitions in the packing foam to accommodate the accessories.

3. Gradually remove the packing foam holding the router and the accessories in place. See Figure 1.

4. Take out the router and each accessory.

5. Verify the router components against the packing list included in the box.

Note	It is recommended that you do not discard the shipping carton and packing material when you unpack the router. Flatten and store the box in case you need to move or return the router in the future. See Return Hardware .

Packing List for a vEdge 2000 Router

The cardboard carton in which the router is packed includes a packing list. Check the parts you receive with your router against the items on the packing list. The packing list specifies the name, part number, and quantity of each item in the carton and the accessory box.

If any part on the packing list is missing, contact your customer service representative or contact Viptela customer support from within the U.S. or Canada by telephone at 800-525-5033 or by email to support@viptela.com .

The following table lists the parts shipped with the vEdge 2000 router and their quantities.

Mount the vEdge 2000 Router in a Rack

You can mount the vEdge 2000 router in a 19-inch rack in one of the following ways:

• Mount the router on two front posts

• Mount the router on all four posts

• Mount the router on two mid-posts

In addition to the accessory box, you need the following tools to mount a vEdge 2000 router in a 19-inch rack:

• Number 2 Phillips (+) screwdriver

• Tape measure

Mount the vEdge 2000 Router on Two Posts

To mount the vEdge 2000 router on two front posts in a 19-inch rack:

1. Place the router chassis on the floor or on a sturdy table near the rack.

2. Verify the internal dimensions of the rack with a tape measure.  The chassis is 440 mm wide and must fit within the mounting posts.

3. Secure the two extended mounting ears, marked Left and Right, to either side of the router chassis using the eight screws for mounting ears (four on each side) in the packet marked B plus the four additional screws for extended mounting ears (two on each side) in the packet marked C.



4. Grasp both sides of the router, then lift and position it in the rack, making sure that the mounting ear holes are aligned with the threaded holes in the rack rail. Align the bottom hole in both the mounting ears with a hole in each rack rail, making sure the chassis is level.



5. Have a second person secure the mounting ears to the rack, using four rack-mount screws (two on each side) from the packet marked A. Tighten the screws.



6. Use a tape measure or level to verify that the chassis is installed straight and that all screws on one side of the rack are aligned with the screws on the other side.

Tip	It is recommended that you retain the dust covers in any unused ports.

Mount the vEdge 2000 Router on Four Posts

To mount a vEdge 2000 router on four posts in a 19-inch rack:

1. Place the router chassis on the floor or on a sturdy table near the rack.

2. Verify the internal dimensions of the rack with a tape measure. The chassis is 440 mm wide and must fit within the mounting posts.

3. Secure the two short mounting ears, marked Left and Right, to either side of the router chassis using the eight screws for mounting ears (four on each side) in the packet marked B.



4. Slide out the two interchangeable 1U sliders, and secure to either side of the router chassis using the eight screws for sliders (four on each side) in the packet marked D.



5. Grasp both sides of the router, then lift and position it in the rack, aligning the front bracket holes with the threaded holes in the front post of the rack rail. Align the bottom hole in both the mounting brackets with a hole in each rack rail, making sure the chassis is level.



6. Have a second person secure the mounting ears to the front of the rack using four rack-mount screws (two on each side) from the packet marked A. Tighten the screws.



7. Secure the 1U sliders to the rear post, using the remaining four rack-mount screws (two on each side) in the packet marked A. Tighten the screws.



8. Lock the 1U sliders in place using the screws in the packet marked E. Tighten the screws.



9. Verify that the router chassis is straight by making sure that all screws in the front are aligned with the screws in the back of the chassis.

Warning

To prevent bodily injury when mounting or servicing the vEdge 2000 router in a rack, you must take special precautions to ensure that the system remains stable. The following guidelines are provided to ensure your safety: ​If this is the only router in the rack, mount it at the bottom of the rack. If you are mounting the router in a partially filled rack, start to load the rack from the bottom, placing the heaviest component at the bottom of the rack.

Mount the vEdge 2000 Router on Mid-Posts

To mount a vEdge 2000 router on two mid-posts in a 19-inch rack:

1. Place the router chassis on the floor or on a sturdy table near the rack.

2. Verify the internal dimensions of the rack with a tape measure. The chassis is 440 mm wide and must fit within the mounting posts.

3. Secure the two short mounting ears, marked Left and Right, to either side of the router chassis using the eight screws for mounting ears (four on each side) in the packet marked B.



4. Grasp both sides of the router, then lift and position it in the rack, making sure that the mounting ear holes are aligned with the threaded holes in the rack rail. Align the bottom hole in both the mounting ears with a hole in each rack rail, making sure the chassis is level.



5. Have a second person attach the mounting ears to the rack, using four rack-mount screws (two on each side) from the packet marked A. Tighten the screws.

6. Use a tape measure or level to verify that the chassis is installed straight and that all screws on one side of the rack are aligned with the screws on the other side.

Tip	It is recommended that you retain the dust covers in any unused ports.

This article describes how to connect the vEdge 2000 router to system ground, an AC power source, a management console, and to a network for out-of-band-management.

Step 1: Connect Earth Ground to the Router

To meet safety and electromagnetic interference (EMI) requirements and to ensure proper operation of the vEdge 2000 router, connect the router to earth ground before you power it on. To do so, you need the following tools:

• Number 2 Phillips (+) screwdriver

To connect system ground to the vEdge 2000 router:

1. Connect one end of the grounding cable to a proper earth ground, such as the rack in which the vEdge 2000 router is mounted.

2. Secure the grounding lug to the protective grounding terminal with the washers and screws.

3. Dress the grounding cable, and make sure that it does not touch or block access to other router components.

The vEdge 2000 router is a stiff sheet-metal structure that houses various hardware components. Some of these hardware components are field-replaceable units (FRUs) including:

• Power supplies

• Fan trays

• Pluggable Interface Modules (PIMs)

• SFP and SFP+ transceivers

This article provides step-by-step procedures for installing these router components. For instructions on removing the components, see Remove Router Components.

Caution

Before you install any components in the router chassis, make sure that you understand how to prevent electrostatic discharge (ESD) damage. See General Safety Standards.

Note	Before you install any components in the router chassis, ensure that you have an ESD grounding strap and a number 2 Phillips (+) screwdriver.

Install an AC Power Supply in a vEdge 2000 Router

The AC power supply in a vEdge 2000 router is a hot-insertable and hot-removable field replacement unit (FRU). You can remove and replace the power supply without powering off the router or disrupting normal functioning.

To install an AC power supply in a router:

1. Check the model number and ensure that you have the correct power supply.

2. Attach the ESD grounding strap to your bare wrist. Then connect the strap to the ESD point on the rack.

3. Press the release latch to carefully remove the existing power supply from the power supply slot in the rear panel of the router chassis.

4. Remove the new power supply from the plastic bag in which it was shipped, taking care that you do not touch any of the power supply pins, leads, or solder connections.

5. With both hands, place the new power supply into the power supply slot in the rear panel of the router chassis and slide it in until it is firmly seated. You will hear a click sound when the power supply is firmly seated in the slot. See Figure 1.

Install a Fan Tray in a vEdge 2000 Router

The vEdge 2000 router contains four individual fan trays, each comprising a double-stacked fan module. The fan tray is a hot-insertable and hot-removable field-replaceable unit (FRU). You can remove and replace an individual fan tray without powering off the router or disrupting normal functioning.

The fan tray installs horizontally in the rear of the router chassis. Handles on each side facilitate installing and removing of the fan tray.

To install a fan tray in a vEdge 2000 router:

1. Attach the ESD grounding strap to your bare wrist. Then connect the strap to the ESD point on the router chassis.

2. Unscrew and carefully remove the existing fan tray from the fan tray slot in the rear of the chassis.

3. Gently remove the new fan tray from the plastic bag in which it was shipped.

4. With both hands, hold the thumb screws on each side of the fan tray and align the fan tray along the fan tray slot.

5. Slide in the fan tray until it is firmly seated in the router chassis and then tighten the screws. See Figure 2.

Install a PIM in a vEdge 2000 Router

The vEdge 2000 router supports two types of Pluggable Interface Modules (PIMs).

To install a PIM in a vEdge 2000 router:

1. Remove the PIM from its bag, taking care not to touch module components, pins, leads, or solder connections.

2. Remove the black plastic protective cover that covers the gold-plated contact pins.



3. Using both hands, place the PIM in the empty slot and slide it in gently until it is fully seated.



4. Tighten the captive thumb screws using the number 2 Phillips (+) screwdriver.

Note	To remove a PIM and replace it with a different type of PIM in a PIM slot, you must do the following: 1. Delete the configuration for the old PIM (the PIM you are removing). 2. Remove the PIM from the router. 3. Insert the new PIM. 4. Reboot the router. 5. Configure the interfaces for the new PIM.

Note	If you do not remove the black plastic protective cover before installing the PIM, you will damage the PIM slot in the router chassis and the entire unit will become unusable.

Caution

Before you slide the PIM into the slot in the router chassis, make sure that the PIM is aligned correctly. Misalignment might cause the pins to bend, making the PIM unusable.

Install a Transceiver in a vEdge 2000 Router

The transceivers for the vEdge 2000 router are hot-removable and hot-insertable field-replaceable units (FRUs). You can remove and replace them without powering off the router or disrupting router functions.

To install any type of transceiver in a vEdge 2000 router:

1. Gently remove the new transceiver from the plastic bag in which it was shipped.

2. Cover the transceiver with a rubber safety cap, if it is not already covered.

3. If the port in which you plan to install the transceiver is covered with a dust cover, remove the cover, and save it for later use.

4. Carefully slide the transceiver in the empty port until it is firmly seated. See Figure 5.

5. Remove the safety cap when you are ready to connect an optic fiber cable to the port.

Note	It is recommended that you purchase the optical transceivers and optical connectors for your vEdge routers from Viptela.

Warning

Do not look directly into a fiber-optic transceiver or into the ends of fiber-optic cables. Fiber-optic transceivers and fiber-optic cables connected to a transceiver emit laser light that can damage your eyes.

The default configuration file looks like this:

vEdge2000# show running-config
system
 vbond ztp.viptela.com
 aaa
  auth-order local radius tacacs
  usergroup basic
   task system read write
   task interface read write
  !
  usergroup netadmin
  !
  usergroup operator
   task system read
   task interface read
   task policy read
   task routing read
   task security read
  !
  user admin
   password $6$t.vzhbSwOUaaCnRu$<wbr/>AiJYG3VFR1NurXPY7YXSputMMv4hg3<wbr/>Bign362rj4IIWXm7uVfiReqv/<wbr/>4EhKG2QUJSaZnZZPveQYBfIozCioyE<wbr/>/
  !
 !
 logging
  disk
   enable
  !
 !
!
omp
 no shutdown
 graceful-restart
 advertise connected
 advertise static
!
security
 ipsec
  authentication-type ah-sha1-hmac sha1-hmac
 !
!
vpn 0
interface ge2/0
  ip dhcp-client
  tunnel-interface
   encapsulation ipsec
   no allow-service bgp
   allow-service dhcp
   allow-service dns
   allow-service icmp
   no allow-service sshd
   no allow-service netconf
   no allow-service ntp
   no allow-service ospf
   no allow-service stun
  !
  no shutdown
 !
!
vpn 512
interface mgmt0
  ip address 192.168.1.1/24
  no shutdown
!

The vEdge 2000 router is a stiff sheet-metal structure that houses the hardware components. The field-replaceable units (FRUs) in the vEdge routers are:

• Power supply

• Fan tray

• Pluggable Interface Modules (PIM)

• SFP and SFP+ transceiver

This article provides step-by-step procedures for removing these router components. For instructions on installing the components, see Install vEdge 2000 Router Components .

Caution

Before you install any components in the router chassis, make sure that you understand how to prevent Electrostatic discharge (ESD) damage. See General Safety Standards.

Remove an AC Power Supply from a vEdge 2000 Router

The AC power supply in a vEdge 2000 router is a hot-insertable and hot-removable field replacement unit (FRU). You can remove and replace the power supply without powering off the router or disrupting normal functioning.

To remove the power supply from the router chassis, you need the following parts and tools:

• An antistatic bag or an antistatic mat

• A replacement power supply or a cover panel for the power supply slot

To remove an AC power supply from the router:

1. Place the antistatic bag or the antistatic mat on a firm, flat surface.

2. Attach the ESD grounding strap to your bare wrist. Then connect the strap to the ESD point on the rack.

3. Turn the power switch on the outlet (if one exists) to the OFF (0) position.

4. Disconnect the power cord from the power source.

5. Press the release latch on the right side of the power supply to disconnect the power supply from the chassis.

6. Grasp the power supply handle with one hand and slide the power supply firmly halfway out of the chassis.

7. Place the other hand underneath the power supply and slide it completely out of the chassis making sure not to touch any power supply pins, leads, or solder connection.

8. Place the removed power supply in the antistatic bag or on the antistatic mat.

Caution

Make sure that you do not leave the power supply slot in the rear of the chassis empty for a long time while the router is operational. Once you remove the power supply, either replace it promptly or install a cover panel over the empty slot.

Remove a Fan Tray from a vEdge 2000 Router

The vEdge 2000 router contains four individual fan trays each comprising of a double-stacked fan module. The fan tray is a hot-insertable and hot-removable field-replaceable unit (FRU). You can remove and replace an individual fan tray without powering off the router or disrupting normal functioning.

The fan tray installs horizontally in the rear of the router chassis. Handles on each side facilitate installing and removing of the fan tray.

To remove the fan tray from the router chassis, you need the following parts and tools:

• An antistatic bag or an antistatic mat

• A replacement fan tray

To remove a fan tray from a vEdge 2000 router:

1. Place the antistatic bag or the antistatic mat on a firm, flat surface.

2. Attach the ESD grounding strap to your bare wrist. Then connect the strap to the ESD point on the rack.

3. Unscrew the two thumb screws on the fan tray to release it from the router chassis. Then remove the fan tray.

4. Place the fan tray in the antistatic bag or the antistatic mat.

Warning

When removing the fan tray, keep your hands and finger away from the spinning fan blades as the fans might still be spinning.

Remove a PIM from a vEdge 2000 Router

The vEdge 2000 router supports two flavors of the Pluggable Interface Modules (PIMs). Both modules install horizontally on the front of the chassis. See Front Panel of the vEdge 2000 Router .

To remove a PIM from a PIM slot in a vEdge 2000 router, you need the following parts and tools:

• Number 2 Phillips (+) screwdriver

• A replacement PIM or cover panel

• An antistatic bag or antistatic mat

To remove a PIM from a PIM slot in a vEdge 2000 router:

1. Power down the router.

2. Using a number 2 Phillips (+) screwdriver, loosen the captive screws.

3. Pull the PIM halfway out by holding on to the captive thumb screws.

4. Hold the front edge of the PIM with both hands and slide it completely out of the chassis.

5. Place the PIM in an antistatic bag or on an antistatic mat.

6. Power up the router.

Note

To remove a PIM and replace it with a different type of PIM in a PIM slot, you must power down the router, replace the PIM, and then power the router back again. Also, if there are any transceivers installed in the PIM, remove them before you remove the PIM. For instructions on removing a transceiver from a vEdge router, see below.

Caution

Make sure that you do not leave the PIM slot in the front of the chassis empty for a long time while the router is operational. Once you remove the PIM, either replace it promptly or install a cover panel over the empty slot.

Remove a Transceiver from a vEdge 2000 Router

The transceivers for the vEdge router are hot-removable and hot-insertable field-replaceable units (FRUs): You can remove and replace them without powering off the router or disrupting router functions.

To remove any type of transceiver from a vEdge 2000 router, you need the following parts and tools:

• A transceiver slot dust cover

• An antistatic mat or an electrostatic bag

• A rubber safety cap for the transceiver

To remove any type of from a vEdge router:

1. Place the antistatic mat or the electrostatic bag on a firm, flat surface.

2. Attach the ESD grounding strap to your bare wrist. Then connect the strap to the ESD point on the rack.

3. Label the cables connected to the transceiver so that you can reconnect them correctly later.

4. Remove the cable connector from the transceiver.

5. Unlock the transceiver by pulling down the ejector handle from the transceiver.

6. Grasp the transceiver ejector handle and pull the transceiver approximately 0.5 in. out of the router.

7. Using your fingers, grasp the body of the transceiver and pull it out of the router completely.

8. Place a rubber safety cap over the transceiver.

9. Place the removed transceiver on the antistatic mat or in an electrostatic bag.

10. If you are not installing a new transceiver, place the transceiver slot dust cover over the empty port.

Note	It is recommended that you purchase the optical transceivers and optical connectors for your vEdge routers from Viptela.

Warning

Do not look directly into a fiber-optic transceiver or into the ends of fiber-optic cables. Fiber-optic transceivers and fiber-optic cables connected to a transceiver emit laser light that can damage your eyes.

This article explains how to revert the configuration for a vEdge router to the factory-default values. It also explains how to do a soft and hard reset of the router.

Reverting to the vEdge Router Factory-Default Configuration

After you set up and start the virtual machines (VMs) for the vEdge Cloud routers and set up and start the hardware vEdge routers in your overlay network, they come up with a factory-default configuration . When you make and commit changes to the default configuration, a new configuration file is created. This new configuration file then becomes the active configuration.

If desired, you can revert to the default factory configuration:

vEdge# request software reset

Reset the Router

You can reset the vEdge router by doing either a hard press or a soft press. To perform either type of press, locate the Reset button on the front panel of the router. The Reset button is recessed to avoid accidentally pressing it while the router is operational. To press the Reset button, use a sharp narrow tool.

Perform a Long Press Reset

A long press reset of the vEdge router erases passwords, keys, and most other configuration parameters, restoring the router to its factory-default configuration.

To perform a long press reset, press the Reset button for more than 10 seconds. After you release the Reset button, the router will reboot and resume normal operation.

Perform a Short Press Reset

A short press reset of the Edge router is equivalent to a graceful software reboot and is the same as entering the reboot command at the CLI prompt.

To perform a short press reset, press the Reset button for two seconds. The short press reset takes effect almost instantaneously and reboots the router.

This article describes how to return a vEdge router or a hardware component to Viptela for repair or replacement.

Locate Serial and Model Number

To return a vEdge router or a hardware component to Viptela, you need the serial and model number of the router or the component being returned.

You can locate the serial and model number of a vEdge router in one of the following ways:

• In vManage NMS, select the Configuration ► Devices screen. The device table lists the serial and model numbers of the routers in the network.

• Enter the show hardware inventory command at the CLI prompt.

• The serial number is printed on a label on the right side of the router; the model number is printed on a label on the back of the router.



Obtain an RMA Number

If you are returning a vEdge router or a hardware component to Viptela for repair or replacement, contact the Viptela Customer Support team to open a support case and obtain a Return Materials Authorization (RMA) number.

Before you open a case and request an RMA number, keep the following information ready:

• Your existing service contract number, if you have one

• Serial number of the router or component

• Model number of the router or component

• Physical location of the router

• Your name, organization name, telephone number, fax number, and shipping address

• Failure or problem description with details

• Type of activity being performed on the router when the problem occurred

• Configuration data displayed by one or more show commands

To obtain an RMA number:

1. Open a support case with Viptela in one of the following ways:

   • Log in to www.viptela.com/support

   • Send email to  support@viptela.com

   • Call toll-free 800-525-5033

2. A Viptela Customer Support representative validates your request and issues an RMA number for returning the router or a hardware component.

Note	Do not return the router or any component to Viptela before first obtaining an RMA number. Viptela reserves the right to refuse to take any shipment that does not have an RMA number.

Repack the Router

If you need to move or return the vEdge router, repack the router in its original packing. Before you repack the router follow these steps:

1. Shut down the vEdge router by issuing the poweroff command at the CLI prompt.

2. Disconnect power to the router.

3. Remove the cables and transceivers.

You will need the following tools to repack the router:

• Phillips Number 2 (+) screwdriver

• Cardboard carton and original packing in which you received the router

To repack the router in its original packing:

1. If you do not have a vEdge 1000 router, skip this step. Otherwise:

   1. If the router is installed in a rack using the rack-mount kit from Viptela, remove the front stopper screwed along the front side of the rack-mount tray.

   2. Then remove the rack-mount tray from the rack by having one person support the weight of the rack-mount tray while a second person unscrews the rack-mount screws.

   3. Place the rack-mount tray on a firm, flat surface.

   4. Slide out the vEdge 1000 router from the rack-mount tray.

2. Place the router chassis in the plastic packing bag.

3. Place the side packing foam on both sides of the router chassis.

4. Secure the chassis in the cardboard carton.

5. Secure the top of the chassis by placing the top packing foam over the top of the chassis.

6. Close the cardboard shipping box and seal it with packing tape.

7. Write the RMA number on top of the box for purposes of tracking.

If you are returning any field-replaceable units with the router, repack them as described in Repack Router Components below.

Repack Router Components

If you need to return any router components, follow these steps:

1. Ensure that you have the antistatic bag for each component and an ESD grounding strap.

2. Place each component in its antistatic bag.

3. Pack each component in its original packing material. If you do not have the original packing material, ensure that the component is packed adequately with packing material to prevent any damage in transit.

4. Place the component in the original cardboard box or another cardboard box if the original is not available.

5. Secure the box with tape.

6. Write the RMA number on top of the box for purposes of tracking.
