Managing Firmware Upgrades

This section describes managing firmware upgrade settings in IoT FND, and includes the following sections:

■FAR Firmware Updates

■Configuring Firmware Group Settings

■Working with FAR Firmware Images

■Performing OS Migrations

■Working with Mesh Endpoint Firmware Images

Use IoT FND to upgrade the firmware running on FARs (CGRs, C800s, IR800s, and AP800s) and MEs (CGEs and range extenders). IoT FND stores the firmware binaries in its database for later transfer to FARs in a firmware group through a IoT-DM file transfer, and to MEs using IoT FND.

Cisco provides the firmware bundles as a zip file. IoT FND automatically unzips the kickstart and system images included in the bundle. Firmware system images are large (approximately 130 MB); kickstart images are approximately 30 MB. Every firmware bundle includes a manifest file with metadata about the images in the bundle. You can pause, stop, or resume the upload process.

FAR Firmware Updates

IoT FND updates FAR firmware in two steps:

1. Uploads the firmware image from IoT FND to the devices.

Because of their large size, firmware-image uploads to FARs takes approximately 30 minutes, depending on interface speeds.

2. Installs the firmware on the device and reloads it.

Note: You must initiate the installation process. IoT FND does not start it automatically after the image upload.

When a FAR contacts IoT FND for the first time to register and request tunnel provisioning, IoT FND rolls the FAR back to the default factory configuration (ps-start-config) before uploading and installing the new firmware image.

Note: This rollback requires a second reload to update the boot parameters in ps-start-config and apply the latest configuration. This second reload adds an additional 10–15 minutes to the installation and reloading operation.

Upgrading Guest OS Images

Depending on CGR factory configuration, a Guest OS (GOS) may be present in the VM instance. You can install or upgrade Cisco IOS on the Config > Firmware Update page (see FAR Firmware Updates). The GOS, hypervisor, and Cisco IOS all upgrade when you perform a Cisco IOS image bundle installation or update.

After after any Cisco IOS install or upgrade, when IoT FND discovers a GOS, it checks if the initial communications setup is complete before it performs the required setup. The CGR must have a DHCP pool and GigabitEthernet 0/1 interface configured to provide an IP address and act as the gateway for the GOS. The new GOS image overwrites existing configurations. IoT FND has an internal backup and restore mechanism that ports existing apps to the upgraded Guest OS (see Managing a Guest OS).

See the Cisco 1000 Series Connected Grid Routers Configuration Guides documentation page for information on configuring the CGR.

Note: If IoT FND detects a non-Cisco OS installed on the VM, the firmware bundle will not upload and the Cisco reference GOS will not install.

Changing the CGR Timer

You can use the cgnms_preferences.sh script to set or retrieve the FAR timer expiration value in the IoT FND database:

/opt/cgms
/bin/cgnms_preferences setCgrActionExpirationTimeout 50


Valid options are:

■set <pkg>actionExpirationTimeoutMins<value>

where,

– <pkg> is the preference package (required for set and get operations).

– actionExpirationTimeoutMins is the preference key (required for set and get operations).

– <value> is the preferred value, in minutes (required for set and setCgrActionExpirationTimeout operations).

■setCgrActionExpirationTimeout <value>

■get <pkg>actionExpirationTimeoutMins

■ getCgrActionExpirationTimeout

Example

In the following example, CGR timer value is retrieved, set, the current value retrieved again, the value removed, and a null value retrieved:

[root@userID-lnx2 cgms]#./dist/cgms-1.x/bin/cgnms_preferences.sh getCgrActionExpirationTimeout
2013-08-12 22:38:42,004:INFO:main:CgmsConnectionProvider: registered the database url for CG-NMS: [jdbc:oracle:thin:@localhost:1522:cgms]
5
[root@userID-lnx2 cgms]#./dist/cgms-1.x/bin/cgnms_preferences.sh setCgrActionExpirationTimeout 50
2013-08-12 22:38:51,907:INFO:main:CgmsConnectionProvider: registered the database url for CG-NMS: [jdbc:oracle:thin:@localhost:1522:cgms]
Successfully set the preferences.
[root@userID-lnx2 cgms]#./dist/cgms-1.x/bin/cgnms_preferences.sh getCgrActionExpirationTimeout
2013-08-12 22:38:58,591:INFO:main:CgmsConnectionProvider: registered the database url for CG-NMS: [jdbc:oracle:thin:@localhost:1522:cgms]
50
[root@userID-lnx2 cgms]#./dist/cgms-1.x/bin/cgnms_preferences.sh get com.cisco.cgms.elements.ciscocgr actionExpirationTimeoutMins
2013-08-12 22:39:12,921:INFO:main:CgmsConnectionProvider: registered the database url for CG-NMS: [jdbc:oracle:thin:@localhost:1522:cgms]
50
[root@userID-lnx2 cgms]#./dist/cgms-1.x/bin/cgnms_preferences.sh set com.cisco.cgms.elements.ciscocgr actionExpirationTimeoutMins 15
2013-08-12 22:39:23,594:INFO:main:CgmsConnectionProvider: registered the database url for CG-NMS: [jdbc:oracle:thin:@localhost:1522:cgms]
Successfully set the preferences.
[root@userID-lnx2 cgms]#./dist/cgms-1.x/bin/cgnms_preferences.sh get com.cisco.cgms.elements.ciscocgr actionExpirationTimeoutMins
2013-08-12 22:39:29,231:INFO:main:CgmsConnectionProvider: registered the database url for CG-NMS: [jdbc:oracle:thin:@localhost:1522:cgms]
15

Mesh Endpoint Firmware Updates

When you instruct IoT FND to upload a firmware image to the members of an ME firmware group or subnet, IoT FND pushes the image to the group members in the background and tracks the upload progress to ensure that the devices receive the image.

A mesh endpoint stores three firmware images:

■Uploaded image: Image most recently uploaded.

■Running image: Image that is currently operational.

■Backup image: It serves as a golden (fallback) image for the endpoint if there is an issue with the running image.

Note: You can initiate up to 3 firmware downloads simultaneously.

Mesh Firmware Migration (CG-OS CG4 platforms only)

Note: Mesh Firmware Migration to Cisco Mesh is not supported for CGRs running CG-OS version CG4(4).

IoT FND allows you to update earlier versions of CGR firmware to allow Cisco mesh networking using the following IoT FND North Bound APIs:

■findEidByIpAddress

■startReprovisionByEidList

■startReprovisionByEidListAbridged

■startReprovisionByGroup

■startReprovisionByGroupAbridged

See the Cisco Connected Grid NMS North Bound API Programming Guide for usage information.

Configuring Firmware Group Settings

This section describes how to add, delete, and configure firmware groups, and includes the following topics:

■Adding Firmware Groups

■Assigning Devices to a Firmware Group

■Renaming a Firmware Group

■Deleting Firmware Groups

Note: Upload operations only begin when you click the Resume button.

When you add FARs or MEs to IoT FND, the application sorts the devices into the corresponding default firmware group: default- <router> or default-cgmesh. Use these groups to upload and install firmware images on member devices. Add firmware groups to manage custom sets of devices. You can assign devices to firmware groups manually or in bulk. Before deleting a firmware group, you must move all devices in the group to another group. You cannot delete non-empty groups.

Note: When creating firmware groups note the following caveats:

■CGRs, IR800s, and C800s can coexist on a network; however, for firmware management, they cannot belong to the same firmware group.

■IR500s and other mesh endpoint devices can coexist on a network; however, for firmware management, they cannot belong to the same group.

The Groups tab on the Config > Firmware Update page displays various device metrics.

IoT FND displays this information about the image on the FARs in the selected firmware group:

Field
Description

Selected Firmware Image

The name of the current image zip archive or the image being uploaded to group members.

Current Action

The name of the firmware action being performed.

Current Status

The status of the image uploading. Possible statuses are:

■Image Loading, Upload Paused, Upload Stopped, Upload Finished, Upload Stopping, Upload Pausing

■Scheduling Reload, Reload Paused, Reload Stopped, Reload Scheduling Finished, Reload Stopping, Reload Pausing

■Setting Backup, Backup Paused, Backup Stopped, Backup Finished, Backup Stopping, Backup Pausing

Written/Devices

Specifies how many devices received or installed the image out of the total number of devices in the group.

For example, 1/3 means that one device received the firmware image out of 3 devices in the group.

Error/Devices

Specifies how many devices failed to receive or install the image out of the total number of devices in the group. For example, 2/3 means that two out of the three devices in the group failed to install the image.

Tip: Click the Error/Devices link (1 in Firmware Update Page – Errored Devices) to view the devices that are in the errored state.

For every FAR in the group, IoT FND displays this information:

Field
Description

Status

Device status of the (for example, Up, Down, or Unheard).

Name

EID of the device.

IP Address

IP address of the device.

Firmware Version

Version of the firmware image installed on the device.

Activity

Device activity.

Update Progress

Firmware image updating progress. A progress of 100% indicates that the image uploading is complete.

Last Firmware Status Heard

The last time the firmware status was heard.

Error Message

Error message if image upload failed.

Error Details

Displays error details for the selected device.

Tip: Click the Error/Devices link (1 in Firmware Update Page – Errored Devices) to apply a filter (3). Click the Clear (2) button to revert to an unfiltered view of the selected device group.

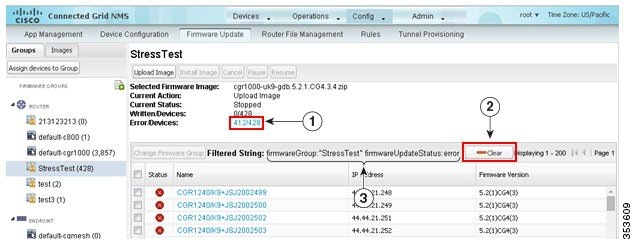

Figure 1 Firmware Update Page – Errored Devices



Adding Firmware Groups

To add a firmware group:

1. Choose Config > Firmware Update.

2. Click the Groups tab.







3. In the FIRMWARE GROUPS pane, select default-cgr1000, default-c800, default-ir500, default-ir800, or default-cgmesh.

4. Click Add Group () at the top-right of the FIRMWARE GROUPS pane.

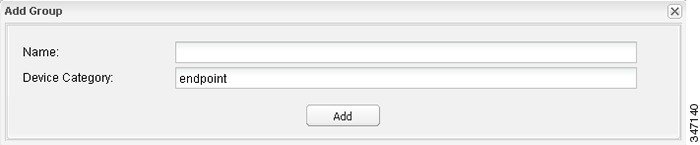

5. In the Add Group dialog box, enter the name of the firmware group. Device Category is dependent on the device type you select in In the FIRMWARE GROUPS pane, select default-cgr1000, default-c800, default-ir500, default-ir800, or default-cgmesh..



6. Click Add.

The new group label appears under the corresponding device type in the FIRMWARE GROUPS pane.

To assign devices to the new group, see Assigning Devices to a Firmware Group.

Assigning Devices to a Firmware Group

This section describes moving devices, and includes the following topics:

■Moving Devices to Another Group Manually

■Moving Devices to Another Group In Bulk

Moving Devices to Another Group Manually

To manually move devices to a group:

1. Choose Config > Firmware Update.

2. Click the Groups tab.

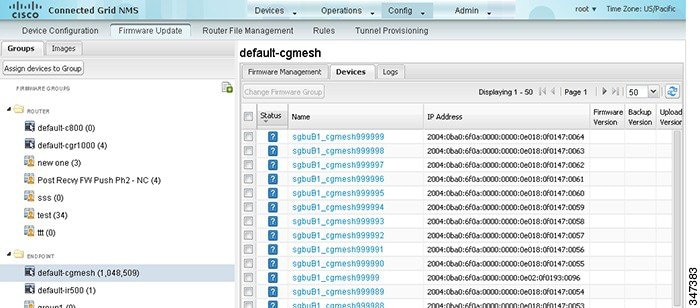

3. In the FIRMWARE GROUPS pane, select the desired firmware group based on device type.

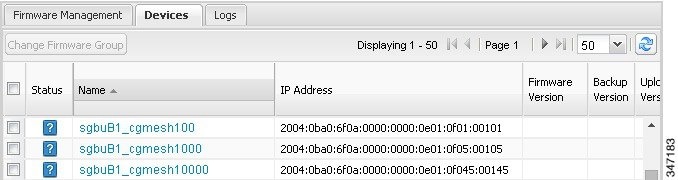

Note: If this is an ENDPOINT firmware group, click the Devices tab above the main pane.



4. Check the check boxes of the devices that you want to move.

5. Click Change Firmware Group.

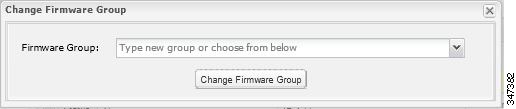

6. From the Firmware Group drop-down menu, choose the firmware group to which you want to move the devices or enter a new group name.

7. Click Change Firmware Group.

8. Click Close.

Moving Devices to Another Group In Bulk

To move devices from one group to another in bulk:

1. Create a CSV or XML file listing devices that you want to move using the format shown in the following examples:



DeviceType/EID for CGRs:

eid
CGR1120/k9+JS1
CGR1120/k9+JS2
CGR1120/k9+JS3

EID only for MEs:

eid
00078108003c1e07
00078108003C210b

EID only for IR800s

eid
ir800

EID only for ISR 800s:

eid
C819HGW-S-A-K9+FTX174685V0
C819HGW-S-A-K9+FTX174686V0
C819HGW-S-A-K9+FTX174687V0

EID only for IR500s:

eid
da1
da2

da3



Note: Each file can only list one device type.

2. Choose Config > Firmware Update.

3. Click the Groups tab.

4. Click Assign Devices to Group.



5. Click Browse and locate the device list CSV or XML file.

6. From the Group drop-down menu, choose the destination group.

7. Click Change Group.

IoT FND moves the devices listed in the file from their current group to the destination group.

8. Click Close.

Renaming a Firmware Group

To rename a firmware group:

1. Choose Config > Firmware Update.

2. Click the Groups tab.

3. In the FIRMWARE GROUPS pane, select the firmware group to rename.

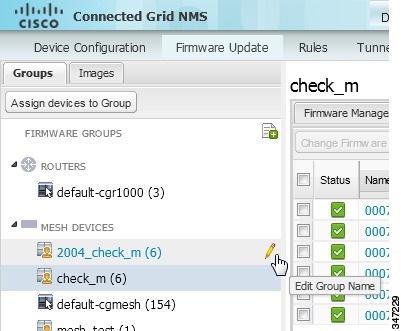

4. Move the cursor over the group and click the Edit Group Name pencil icon.



5. In the Rename Group window, enter the new name and then click OK.



Note: As shown above, when you enter an invalid character entry (such as, @, #, !, or +) within a field, IoT FND displays a red alert icon, highlights the field in red, and disables the OK button.

Deleting Firmware Groups

Note: Before deleting a firmware group, you must move all devices in the group to another group. You cannot delete non-empty groups.

To delete a firmware group:

1. Choose Config > Firmware Update.

2. Click the Groups tab.

3. In the FIRMWARE GROUPS pane, select the firmware group to delete.

4. Move the cursor over the group and click Delete Group ().



5. To confirm deletion, click Yes.

6. Click OK.

Working with FAR Firmware Images

This section describes how to add FAR firmware images to IoT FND and how to upload and install the images on FARs, and includes the following topics:

■Viewing Firmware Image Files in IoT FND

■Adding a Firmware Image to IoT FND

■Uploading a Firmware Image to a FAR Group

■Canceling FAR Firmware Image Upload

■Pausing and Resuming FAR Firmware Image Uploads

■Installing a Firmware Image

■Stopping Firmware Image Installation

■Pausing and Resuming FAR Firmware Image Installation

Viewing Firmware Image Files in IoT FND

You can display firmware image information from the Images pane in the Config > Firmware Update page. Select ROUTER or ENDPOINT to display all firmware images for those devices in the IoT FND database. Select the firmware image type to refine the display. For example, Config > Firmware Update Images Pane shows that selecting ENDPOINT > BBU displays the available BBU firmware image file name and version, and supported Hardware ID.

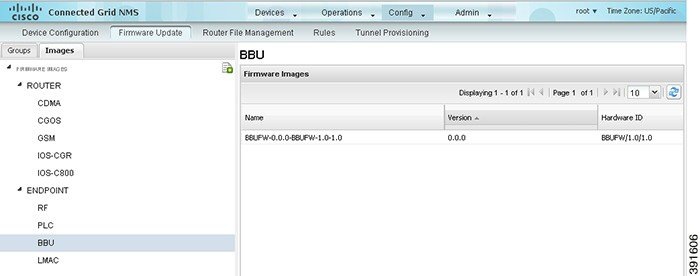

Figure 2 Config > Firmware Update Images Pane



For every image in the list, IoT FND provides this information:



Field
Description

Name

The filename of the firmware image bundle.

Version

The version of the firmware bundle.

Hardware ID

The hardware family to which you can download this image.

Size

The size of the firmware bundle.

Active Download

The active firmware using the firmware image.

Adding a Firmware Image to IoT FND

Before you can upload and install a firmware image on a device, add the image file (as a zip archive) to IoT FND. IoT FND stores the image in its database.

Note: Do not unzip the image file. IoT FND unzips the file.

To add a firmware image to IoT FND:

1. Choose Config > Firmware Update.

2. Click the Images tab (Config > Firmware Update Images Pane).

3. In the Firmware Images pane, select ROUTER or ENDPOINT, and the type of device group.

4. Click Add Image ().

5. Click Browse to locate the firmware image. Select the image, then click Choose.

6. Click Upload.

The image appears in the Firmware Images pane.





■To delete an image, click its Delete link. Click Yes to confirm.

Firmware images with a download in progress (with Yes in the Active Download? column) cannot be deleted.

■To upload the firmware image to devices in a group, select the group and then click Upload Image. See Uploading a Firmware Image to a FAR Group.

Uploading a Firmware Image to a FAR Group

When you upload a firmware image to FAR firmware group members, IoT FND pushes the image to the group members in the background and tracks the upload progress to ensure that the devices receive the image.

On FARs, firmware image upload and installation requires 200 MB of free disk space. IoT FND stores image files in the.../managed/images directory on the FAR.

Note: If there is not enough disk space on the FAR for the firmware image, the IoT FND initiates disk cleanup process on the FAR and removes the following files, sequentially, until there is enough disk space to upload the new image:

■Unused files in the.../managed/images directory that are not currently running or referenced in the before-tunnel-config, before-registration-config, express-setup-config, and factory-config files for IOS CGRs; golden-config, ps-start-config, express-setup-config, or factory-config for CG-OS CGRs

■Unused.gbin and.bin files from the bootflash directory in CG-OS CGRs

If there is still not enough space, you must manually delete unused files on the FAR.

To upload a firmware image to FAR group members:

1. Choose Config > Firmware Update.

2. Click the Groups tab.

3. In the FIRMWARE GROUPS pane, select the firmware group to update.

Note: CGR groups can include devices running Cisco IOS and CG-OS. Therefore, Cisco IOS software images only upload to devices running Cisco IOS (IR800s, ISR800s, CGRs); only CGRs accept CG-OS images.

IoT FND displays the firmware image type applicable the router:

Type
Applicable Device

CDMA

all

Cisco IOS CGRs, IR800s, and ISR800s

CGOS

cgr1000

Cisco IOS CGRs running Guest OS

GSM

all

Cisco IOS CGRs, IR800s, and ISR800s

IOS-CGR

cgr1000

Cisco IOS CGRs

IOS_C800

c800

Cisco 800 Series ISR connected devices.

IOS-AP800

ap800

Cisco 800 Series Access Points.

IOS-IR800

ir800

Cisco 800 Series ISRs.

4. Click Upload Image.

5. From the Select Type: drop-down menu, choose the firmware type for your device.

6. From the Select an Image: drop-down menu, choose the firmware bundle to upload.

7. Click Upload Image.

8. Click OK.

IoT FND starts the upload process. After the image uploads, install the image as described in Installing a Firmware Image.

Canceling FAR Firmware Image Upload

You can stop the image upload process to firmware router groups at any time. Stopping the upload can take a few minutes. When you cancel the image upload, the image upload process immediately stops currently running tasks, and blocks all queued tasks.

Note: Running tasks do not complete, leaving partial files on the disk and sets the firmware group status to CANCELING until you complete the upload operation.

To stop firmware image uploading to a group:

1. Choose Config > Firmware Update.

2. Click the Groups tab.

3. In the FIRMWARE GROUPS pane, select the firmware group.

4. Click Cancel.

5. Click Yes.

Pausing and Resuming FAR Firmware Image Uploads

You can pause the image upload process to FAR firmware groups at any time, and resume it later.

Note: The image upload process does not immediately pause; all queued (but not running) operations pause, but currently running tasks complete. The status changes to PAUSING until the active operations complete.

To pause firmware image upload:

1. Choose Config > Firmware Update.

2. Click the Groups tab.

3. In the FIRMWARE GROUPS pane, select the firmware group.

4. Click Pause.

The Status column displays PAUSING until the active upload operations complete. No new upload operations start until you click the Resume button.

5. Click Yes.

To resume the upload process, click Resume.

Note: If a IoT FND server goes down while the firmware image is being uploaded to devices, the server resumes the upload process for the scheduled devices after the server comes up. For IoT FND server clusters, if one server goes down during the upload process, another server in the cluster resumes the process.

Installing a Firmware Image

To install an image on devices in a router firmware group:

1. Choose Config > Firmware Update.

2. Click the Groups tab.

3. In the FIRMWARE GROUPS pane, select the firmware group.

Note: IoT FND recognizes devices as firmware-specific, and uploads the proper image to selected devices. Select a device subgroup in the Images pane to refine the display to those device types.

4. Click Install Image.

IoT FND sends commands to the FARs in the group to install the uploaded image and reload the FAR to ensure that the new image is operational.

5. Click Yes.

IoT FND starts the installation or reloading process.

Note: If you restart IoT FND during the image installation process, IoT FND restarts the firmware installation operations that were running prior to IoT FND going offline.

You can pause or stop the installation operation as described in:

■Stopping Firmware Image Installation

■Pausing and Resuming FAR Firmware Image Installation.

Note: The firmware installation operation can time out on some routers. If routers are not heard from for more than an hour, IoT FND logs error messages.

Stopping Firmware Image Installation

You can stop firmware image installation at any time. When you stop image installation, the running version of the firmware remains in place.

Note: Stopping the installation cancels all queued tasks. Currently running tasks complete.

To stop firmware image installation to devices in a firmware group:

1. Choose Config > Firmware Update.

2. Click Groups.

3. In the FIRMWARE GROUPS pane, select the firmware group.

4. Click Cancel.

5. Click Yes.

Pausing and Resuming FAR Firmware Image Installation

You can pause the firmware image installation process at any time.

Note: Pausing the installation pauses all queued tasks. Currently running tasks complete.

To pause firmware image installation to devices in a firmware group:

1. Choose Config > Firmware Update.

2. In the FIRMWARE GROUPS pane, select the firmware group.

3. Click Pause.

4. Click Yes.

You can resume the installation process by clicking Resume.

Performing OS Migrations

You can upgrade CGRs from CG-OS to IOS in bulk or by device. The migration package is in the IoT Field Network Director installation package, and is available in the Select IOS Image menu.

Note: The Migration to IOS button is disabled if all CGRs in the group are IOS.

BEFORE YOU BEGIN

For CG-OS CGRs that you are migrating, modify the device configuration properties CSV or XML file to include the following IOS properties (see Changing Device Configuration Properties):

EXAMPLE BOOTSTRAP PROPERTIES

This example preserves tunnels during migration:

enable
!
configure terminal
!
!
!
interface GigabitEthernet2/2
no switchport
ip address 66.66.0.75 255.255.0.0
duplex auto
speed auto
no shut
!
crypto key generate rsa label LDevID modulus 2048
!
hostname IOS-IOT1
!
enable password cisco
!
aaa new-model
!
!
aaa authentication login default local
aaa authorization exec default local
!
!
aaa session-id common
clock timezone PDT -8 0
!
!
no ip domain lookup
ip domain name ios.com
ip host nms.sgbu.cisco.com 55.55.0.5
ip host ps.sgbu.cisco.com 55.55.0.8
ip cef
ipv6 unicast-routing
ipv6 cef
!
!
!
crypto pki profile enrollment NMS
enrollment url http://55.55.0.17/certsrv/mscep/mscep.dll
!
crypto pki trustpoint LDevID
enrollment mode ra
enrollment profile NMS
serial-number none
ip-address none
password
fingerprint 1D33B1A88574F11E50F5B758EF217D1D51A7C83F
subject-name CN=mig.ios.com/serialNumber=PID:CGR1240/K9 SN:JAF1712BCAP
revocation-check none
rsakeypair LDevID 2048
!
!
!
license accept end user agreement
license boot module cgr1000 technology-package securityk9
license boot module cgr1000 technology-package datak9
!
!
!
username admin password 0 cisco
username cg-nms-administrator privilege 15 secret Sgbu123!
!
!
do mkdir flash:archive
#await Create directory filename
#send_CR
!
!
archive
path flash:archive/
maximum 8
!
!
!
no ip http server
ip http authentication local
ip http secure-server
ip http secure-ciphersuite aes-128-cbc-sha aes-256-cbc-sha dhe-aes-128-cbc-sha dhe-aes-256-cbc-sha
ip http secure-client-auth
ip http secure-port 8443
ip http secure-trustpoint LDevID
ip http max-connections 2
ip http timeout-policy idle 600 life 86400 requests 3
ip http client connection timeout 5
ip http client connection retry 5
ip http client source-interface GigabitEthernet2/2
ip http client secure-ciphersuite aes-128-cbc-sha aes-256-cbc-sha dhe-aes-128-cbc-sha dhe-aes-256-cbc-sha
!
ip route 0.0.0.0 0.0.0.0 66.66.0.8
!
!
privilege exec level 2 dir /recursive
privilege exec level 2 dir
privilege exec level 2 show memory statistics
privilege exec level 2 show memory
privilege exec level 2 show inventory
privilege exec level 2 show platform hypervisor
privilege exec level 2 show platform led summary
privilege exec level 2 show platform led
privilege exec level 2 show processes cpu
privilege exec level 2 show processes
privilege exec level 2 show environment temperature
privilege exec level 2 show environment
privilege exec level 2 show module
privilege exec level 2 show version
privilege exec level 2 show logging
privilege exec level 2 show platform
privilege exec level 2 show
!
!
wsma agent exec
profile exec
!
wsma agent config
profile config
!
!
wsma profile listener exec
transport https path /wsma/exec
!
wsma profile listener config
transport https path /wsma/config
!
cgna profile cg-nms-tunnel
add-command show hosts | format flash:/managed/odm/cg-nms.odm
add-command show interfaces | format flash:/managed/odm/cg-nms.odm
add-command show ipv6 dhcp | format flash:/managed/odm/cg-nms.odm
add-command show ipv6 interface | format flash:/managed/odm/cg-nms.odm
add-command show version | format flash:/managed/odm/cg-nms.odm
interval 10
url https://ps.sgbu.cisco.com:9120/cgna/ios/tunnel
active
!
!
cgna exec-profile CGNA-default-exec-profile
add-command event manager run no_config_replace.tcl flash:/before-tunnel-config cg-nms-tunnel 1 0
interval 1
exec-count 1
!
event manager environment ZTD_SCEP_CGNA_Profile cg-nms-tunnel
event manager environment ZTD_SCEP_LDevID_trustpoint_name LDevID
event manager directory user policy "flash:/managed/scripts"
event manager policy tm_ztd_scep.tcl type system authorization bypass
event manager policy no_config_replace.tcl type system authorization bypass
event manager environment ZTD_SCEP_Enabled TRUE
!
!
do write memory
!
do reload in 005
#await Proceed with reload?
#send_CR
!
crypto pki authenticate LDevID
!
end




Note: You can only migrate from CG4(3) to the minimum IOS image for that device. Refer to Table 1 for minimum IOS image requirements.

To add CGR IOS images to IoT Field Network Director and upload and install the migration image on CGRs:

1. Select Config > Firmware Update, and click the Migration to IOS tab.





2. In the ROUTERS pane, select a CGR group.

3. Select the check box at the top of the devices list for group migration or individual CGRs, and click Upload Image.

4. From the Select IOS Image drop-down menu, choose the desired image, and click Upload Image.



5. Click OK to begin the upload.



Upload progress appears in the device list.

6. Upload the following properties files (see Installing Cisco IoT FND):

■config

■tunnel provisioning

■bootstrap

■runtime configuration

7. Click the Migrate To IOS button.



8. Click Yes to confirm and begin the migration process.



You can follow the update progress in the devices list. Error messages also appear in the devices list. You can cancel, pause, and resume the migration process.

Tip: If any routers fail to upgrade, restart migration on the group. IoT Field Network Director skips upgraded routers.

Interface Names After Migration

IoT Field Network Director preserves metrics for the various interfaces and associated properties during migration. CG-OS-to-IOS Interface Migration Map maps CG-OS interfaces to the corresponding IOS interfaces to preserve metrics.

Table 1 CG-OS-to-IOS Interface Migration Map
CG-OS Interface
Corresponding IOS Interface

Wifi2/1

Dot11Radio2/1

Ethernet2/1

GigabitEthernet2/1

Ethernet2/2

GigabitEthernet2/2

Ethernet2/3

FastEthernet2/3

Ethernet2/4

FastEthernet2/4

Ethernet2/5

FastEthernet2/5

Ethernet2/6

FastEthernet2/6

Wpan4/1

Wpan4/1

Serial1/1

Async1/1

Serial1/2

Async1/2

Cellular3/1

Cellular3/1

N/A

GigabitEthernet0/1

Working with Mesh Endpoint Firmware Images

This section describes how to add ME firmware images to IoT FND, and how to upload and install the images on FARs, and includes the following topics:

■Uploading a Firmware Image to a Mesh Endpoint Group

■Viewing Mesh Device Firmware Image Upload Logs

■Viewing Mesh Endpoint Firmware Update Information

Note: IR500s and other mesh endpoint devices can coexist on a network; however, for firmware management they cannot belong to the same group.

Note: ENDPOINT devices can report BL/Boot Loader image types to IoT FND, but IoT FND cannot upload boot loader images to devices.

Uploading a Firmware Image to a Mesh Endpoint Group

To upload a firmware image to ME group members:

1. Choose Config > Firmware Update.

2. Click the Groups tab.

3. In the FIRMWARE GROUPS pane, select the firmware group to update.

4. Click Firmware Management.

5. Click Upload Image.

6. From the Select Type: drop-down menu, choose the firmware type for your device.

IoT FND can upload these image types to ENDPOINT devices.

Image Type
Description

RF

RFLAN connected devices.

PLC

Power line communication devices.

BBU

Devices with battery back up.

LMAC

Local MAC connected devices.

PLC-RF

PLC-Radio Frequency devices.

7. From the Select an Image: drop-down menu, choose the firmware bundle to upload.

8. Click Upload Image.

9. Click OK.

IoT FND adds the image to the list of images in the Firmware Management pane and starts the upload process in the background.





1

Sync membership button
2

Schedule Install and Reload button
3

Set as Backup button

For every image in the list, IoT FND displays the following information:

Column
Description


Image name.

Uploaded

Specifies the number of devices that uploaded the image. Click the number to display a list of these devices.

Running

Specifies the number of devices running this image. Click the number to display a list of these devices.

Backup

Specifies the number of devices using this image as a backup. Click the number to display a list of these devices.

Boot Loader

Specifies the boot loader image version.

LMAC

Specifies the LMAC image version.

BBU

Specifies the BBU image version.

Status

Specifies the status of the upload process.

Scheduled Reload

Specifies the scheduled reload time.

Actions

Provides two actions:

■Schedule Install and Reload—Schedule the installation of the loaded image and the rebooting of the ME.

■Set as Backup—Set the image as the backup image.

Setting the Installation Schedule

To set the installation schedule:

1. Click the Schedule Install and Reload button (2).

2. Specify the date and time for the installation of the image and the rebooting of the device.



3. Click Set Reboot Time.

■To set the selected image as the firmware image backup, click the Set as Backup button (3).

4. Click Yes.

■To sync the group members in the same firmware group, click Sync Membership (1).

■To view member devices, click the Devices tab.

■To view log files for the group, click the Logs tab.

Viewing Mesh Device Firmware Image Upload Logs

To view the firmware image upload logs for mesh devices:

1. Choose Config > Firmware Update.

2. Click the Groups tab.

3. In the FIRMWARE GROUPS pane, select the mesh device firmware group.

4. Click the Logs tab.

Viewing Mesh Endpoint Firmware Update Information

You can view the endpoint firmware update process down to the subnet level for greater visibility.

To view details of firmware updates for mesh endpoint devices (by subnet) during the upgrade process or after the firmware upgrade completes in a tabular and graphical manner (histogram):

1. Choose Config > Firmware Update.

2. Click the Groups tab.

3. In the FIRMWARE GROUPS pane, select a MESH DEVICES group.

4. Click the Firmware Management tab.









Field
Description

(Top, Left Panel)

Upload Image radio button

Click radio button to begin the firmware upload.
Note: By default, all subnets listed at the bottom of the screen will receive the image upload.

To exclude a subnet from the firmware upload, check the box (such as 1 or 2) next to that subnet. For more details, see PAN ID definition below.

Current Status

Status of the firmware upload (for example, Image Loading or Upload Finished).

■Image Loading, Upload Paused, Upload Stopped, Upload Finished, Upload Stopping, Upload Pausing

■Scheduling Reload, Reload Paused, Reload Stopped, Reload Scheduling Finished, Reload Stopping, Reload Pausing

■Setting Backup, Backup Paused, Backup Stopped, Backup Finished, Backup Stopping, Backup Pausing


Firmware image name.

Uploaded/Devices

Number of completed, successful firmware updates against the total devices that will receive the updates.

Error/Devices

Number of devices the operation failed (error) against the total devices in the group.

Not Synced/Devices

Number of firmware group membership non-synchronized devices against the total number of devices in the group.

(Right Panel) Histogram

% Completed

Visual status of upload percentage completed.

Filter by

Filter and display results by: Subnet, Pan ID, Group

(Bottom Panel)

All or RF

All displays information about all images in the Running, uploaded and backup slot as well as the BBU and PLC information for all device images (RF mesh, IR500 WPAN Range Extender and WPAN Range Extender with BBU and PLC) in the group; and the schedule reload and status information.

RF displays information regarding RF mesh images in the Running, uploaded and backup slots as well as the schedule reload and status information.


Displays image file name and provides the completion percentage of the firmware upload (0 to 100) with respect to the following states:

■Uploaded, Running, Backup, Bootloader, LMAC, BBU, Status, Sched Reload

Clear filter

Click radio button to clear selected firmware image update results.

PAN ID

Identifies the Personal Area Network Identifier for a group of endpoints (nodes).

To exclude a group of nodes from a new firmware upload, you must select the Pan ID check box next to that group of nodes before selecting the Upload Image radio button in the Firmware Management pane.

Note: The check boxes next to the PAN IDs are not visible during a firmware upload.

Note: You can sort PAN IDs in an ascending or descending manner or filter by PAN ID to define which PAN ID displays in the window by selecting the downward arrow to the right of the column. Select Clear Filter to leave that view.

Note: To see a listing of all nodes within a subnet, select the Device tab.

Subnet Prefix

Identifies the IPv6 subnet prefix for the endpoint. To view all of the nodes within a given subnet, select the Devices tab.

Note: You can filter by Subnet by entering a portion of the subnet (for example, 200b:0:0) by selecting the downward arrow to the right of the column. Select Clear Filter to leave that view.

Nodes in Group

Number of nodes within the group. In the screen shot above, there are a total of 25 nodes within the group, which are split across two different subnets (8 nodes in 200b:0:0:0:0:0:0:0 and 17 nodes in 200c:0:0:0:0:0:0:0).

Total in Subnet

Number of nodes with the subnet. In the screen shot above, there are 19 nodes in the subnet.

Upload status

Number of nodes out of the total nodes that have been successfully upgraded with the new firmware.

Last message sent

Display of latest message relevant to the current firmware update process within the given PAN.





Viewing Mesh Device Firmware Information

To view the firmware information for mesh devices:

1. Choose Config > Firmware Update.

2. Click the Groups tab.

3. In the FIRMWARE GROUPS pane, select a MESH DEVICES group.

4. Click the Devices tab.







For every device in the group, IoT FND displays this information:

Field
Description

Status

Status of the device (for example, Up, Down, or Unheard).

Name

EID of the device.

IP Address

IP address of the device.

Firmware Version

Version of the firmware image running on the device.

Backup Version

Version of the firmware image used as a backup.

Uploaded Version

Version of the firmware image loaded on the device.

Member Synced?

Whether the device is in sync with the rest of the group.

Activity

Firmware image upload activity.

Update Progress

Firmware image upload progress. An update progress of 100% indicates that the upload is complete.

Last Firmware Status Heard

Last time the firmware status was heard.

Scheduled Reload Time

The time set for upload image reloads.

Error Message

Error message if image upload failed.
