Router Hardware Exterior Features
This section includes detailed information about the exterior hardware features and contains the following topics:
Chassis Enclosure
The Cisco CGR 1240 Router industrial enclosure (see Cisco 1240 Connected Grid Router with Integrated Antennas Installed) meets Type 4X and IP67 standards and is designed for deployment in extreme weather. The enclosure can be painted to comply with aesthetic requirements.
Caution: Painting or otherwise modifying the router enclosure can affect the chassis operating temperature limitations.
UV testing has not been performed on the unit. The chassis has TGIC (triglycidyl isocyanurate) powder coating, so UV will not harm the device. The antennas are a polycarbonate blend and are UV stabilized. The exact life of the device is unknown. However, the device is designed for approximately 10-15 years of life, and there are devices in the field for 10 years already.
Specifications
Specification |
Description |
Dimensions |
12 x 8 x 7.5 inches (30.5 x 20.3 x 19 cm) |
Environmental |
Type 4x compliant IP67 compliant |
Operating temperature |
-40 to +158°F (-40 to +70°C) |
Additional Information
For router regulatory compliance information, see the Regulatory Compliance and Safety Information for the Cisco 1000 Series Routers on Cisco.com, at : www.cisco.com/go/cgr1000-docs

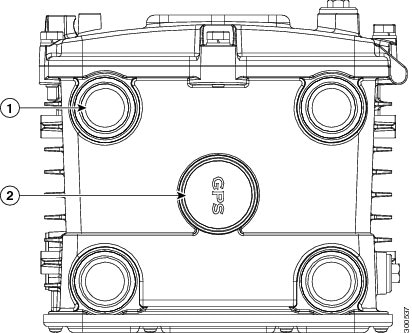

Chassis Cable Ports
The router chassis has the following cable ports for router network and power cables:
Cable Glands
A cable gland (also known as a cable connector) is required to install cables in the chassis cable ports. Use a compatible cable gland to attach and secure the end of a cable to the router. The cable gland provides cable strain relief and seals the cable entry into the router chassis to prevent damage to the router interior.
Note : Cable Glands are ordered separately.
Figure 10 Cable Gland
Table 11 Supported Cisco Cable Glands
Cisco Product ID |
Description |
CGR-IP67GLAND |
Contains 1 gland and 1 tube of anti-seize compound |
Specifications
Specification |
Description |
Size |
PG 13 Cable diameters: 0.20-0.35 inches (5.08-8.89 mm) |
Environmental |
Liquid Tight Type 4x & IP67 |
Cable Port Seals
Unused router ports are sealed with a liquid-tight cover (PG13) to protect the router interior from environmental elements.
Caution: Do not install the router unless all unused chassis cable ports are sealed. Leaving chassis ports unsealed can damage the router.
Figure 11 Cable Port Seal
Console Port
The router features a single, asynchronous console port (see Router Right Side Exterior and Console Port Detail) for connecting a console or PC directly to the router. To configure the router locally, using the command-line interface (CLI), you must establish a connection to the router with a terminal session.
Caution: This port does not support cable glands; the router interior is exposed to environmental elements while the port is in use. This port should be exposed only during active terminal sessions with the router and should never be left unattended when exposed.
Note: The router also supports wireless console connections with an integrated WiFi short-range access point. For more information see, WiFi Short-Range Access Point.
Console Port Default Settings
The console port does not support hardware flow control. The default settings for the port are: 9600 baud, 8 data bits, no parity, and 1 stop bit.
Connecting to the Console Port
Your router kit includes a console cable with an RJ-45 connector on one end (for connecting to the router console port) and a DB-9 connector on the other end (for connecting to a PC or terminal).
Detailed information about connecting and using the console port is in Installing the Router.
Figure 12 Console Port Detail
SD Flash Memory Module
The router is shipped with one 2-GB Cisco Secure Digital (SD) flash memory module (see Router Left Side Exterior and SD Flash Memory Slot Detail), which stores router software and configurations. For detailed information on using the SD flash memory module with the router, see Using the SD Flash Memory Module.
Figure 13 SD Flash Memory Slot Detail
Caution: You must use only the Cisco SD card designed to support the router. Using an unsupported SD card can impact the router performance, especially in extreme environmental conditions.

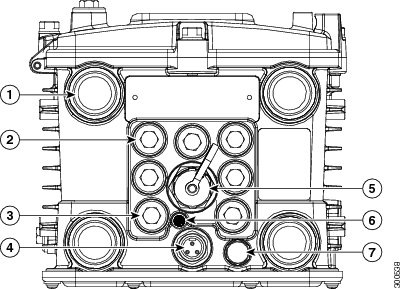

10/100BASE-T Fast Ethernet Connector
The router has an external Fast Ethernet (FE) connector (see Router Base Exterior) that enables you to connect the router to an Ethernet hub or switch without opening the chassis.
The external connector is connected to the one of the fast Ethernet ports inside the router chassis. The internal port used depends on the router hardware configuration. If you are connecting the external Ethernet connector to an internal Ethernet port for the first time, Cisco recommends you connect it to the ETH 2/5 port. For more information, see Fast Ethernet Ports.
Specifications
Specification |
Description |
Connector type |
RJ-45, ODVA-compliant Copper Ethernet |
Cable type for connection to internal FE port |
Category 5 shielded, RJ-45 to RJ-45 |
Cable type for connection to Ethernet |
Category 5 or higher shielded, Ethernet |
Protective Vent
The protective vent on the router base (see Router Base Exterior) relieves pressure buildup inside the router chassis that can be caused by changing temperatures in the router installation environment. This prevents pressure from building up and damaging enclosure seals, exposing sensitive components to water. The vent also protects the router interior from dust, dirt, water, and other environmental elements.
AC Power Supply
The router has two power sources: an AC power supply and the battery backup units.
The AC power supply connector on the router base (see Router Base Exterior) is the connection to AC power. If AC power is no longer being supplied to the router, the battery backup units will continue to supply power to the router until AC power is restored. For details about how the battery backup units operate, see Installing Battery Backup Units (BBUs).
Note : The AC power cable part number CGR-PWRCORD-NA or CGR-PWRCORD-EU must be ordered separately.
Specifications
Specification |
Description |
Input voltage |
100-240 Vrms AC |
Output |
60W |
Cooling |
Convection, conduction |
Operating temperature range |
-40 to 158°F (-40 to 70°C), external ambient |
Router Hardware Interior Features
This section includes detailed information about the interior hardware features illustrated in Router Hardware Overview, and contains the following topics:
Alarm Port
Attach the alarm port inputs (see Router Alarm Port) to an alarm system to monitor external events that occur in the router’s physical installation environment (for example, indicating that the router door has been opened). Attach the alarm port outputs to an alarm indicator such as a siren or light that is enabled by a relay dry contact open or closed circuit. The port supports two alarm inputs and two alarm outputs.
The alarm-trigger setting determines when an alarm is sent to the attached alarm system.
Figure 14 Router Alarm Port
Input Alarm Trigger Settings
- Open —The open setting indicates that the normal (non-alarm state) router operating condition has an electrical current passing through the alarm circuits (DRY contact closed). If this electrical current is no longer detected (DRY contact open), an alarm is generated.
- Closed —The closed setting indicates that the normal (non-alarm state) router operating condition is that no electrical current is passing through the alarm circuits (DRY contact open). If an electrical current is detected (DRY contact closed), an alarm is generated.
Output Alarm Trigger Settings
If interfaces fail or other non-fatal errors occur, the alarm port does not respond. Continue to use SNMP to manage these types of errors.
Note: Due to the RJ-50 pin spacing, the alarm port does not support AC signaling.
Specifications
Specification |
Description |
Connector type |
RJ-50 |
Alarm input |
8 volts @ 1 mA |
Alarm output |
30 volts @ 1 A |
Module Slots
The router has four module slots to support installation of up to four compatible Cisco Connected Grid modules, for additional router WAN and NAN interfaces. Modules should be installed in the slots according to the module slot numbers shown in Router Module Slot Numbering and Module Installation Locations. For more information about installing modules, see the corresponding installation and configuration guide for each module at: www.cisco.com/go/cg-modules
Module Numbering
The system software uses a module numbering scheme to identify router components, including the modules. Some system software commands refer to module numbers. The numbers refer to the following router hardware components:
- The router supervisor engine (located on the CPU motherboard) is referred to as module 1.
- The router’s integrated Ethernet switch module, which has four Fast Ethernet ports and two Gigabit Ethernet ports, is referred to as module 2.
- Modules are installed in the router module slots numbered 3–6 (see Router Module Slot Numbering for module slot numbering). For information on the module (3G, WPAN, WiMAX) to slot allocation, see Module Installation Locations.
Figure 15 Router Module Slot Numbering
Reset Buttons
Use these reset buttons (see Router Reset Buttons) as follows:
Caution: When you use the CONFIG Reset button to restore the router to the factory default software configuration, the current software configuration is permanently deleted from the router.
Note : The CONFIG Reset button operates differently whether the device is running IOS or CGOS. Both modes are described here, see the Software Configuration Guide for more details.
- CONFIG Reset— IOS — Press the CONFIG Reset button for at least 10 seconds to erase the startup-config, and power cycle the router. Power cycling the router turns the router off, then immediately back on. The router will temporarily stop operating on the network during the power cycle, then resume operating when the power cycle process is complete. If the CONFIG Reset button is pressed for more than 5 seconds (but less than 10 seconds), the router will only be power-cycled.
–If the CONFIG Reset button is pressed for more than 5 seconds (but less than 10 seconds), and the config file express-setup-config exists on the flash: partition, the router configuration will be rolled back to that express-setup-config and reloaded.
–If the CONFIG Reset button is pressed for more than 5 seconds (but less than 10 seconds), and the config file express-setup-config file does NOT exist on the flash: partition, the router will simply be power-cycled.
- CONFIG Reset— CGOS— Press the CONFIG Reset button for at least 5 seconds to return the router software configuration to the factory default, and power cycle the router. Power cycling the router turns the router off, then immediately back on. The router will temporarily stop operating on the network during the power cycle, then resume operating when the power cycle process is complete.
- PWR RESET— Press the PWR RESET button for at least 5 seconds to power cycle the router. Power cycling the router turns the router off, then immediately back on. The router will temporarily stop operating on the network during the power cycle, then resume operating when power cycle process is complete.
Figure 16 Router Reset Buttons
Fast Ethernet and Gigabit Ethernet Ports
The CGR 1240 router has two types of Ethernet port: fast Ethernet and Gigabit Ethernet port. These are described in the following sections:
Fast Ethernet Ports
The router features four fast Ethernet (FE) ports that can be connected to LAN devices such as Intelligent Electronic Devices (IEDs), sensors, meters, protective relays, and reclosers. CGR 1240 Fast Ethernet Port Naming describes how the Fast Ethernet ports are labeled on the router and referred to in software. The ports are shown in Cisco CGR 1240 Router Fast Ethernet and Gigabit Ethernet Ports.

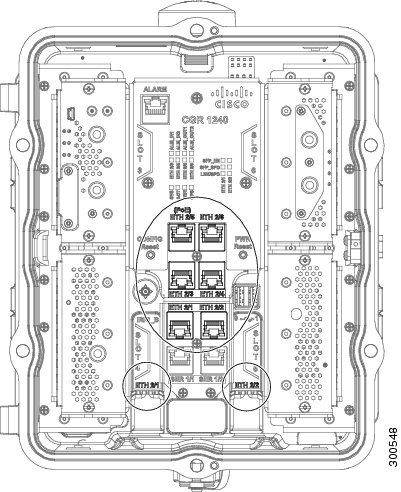

Figure 17 Cisco CGR 1240 Router Fast Ethernet and Gigabit Ethernet Ports
Table 12 CGR 1240 Fast Ethernet Port Naming
CGR 1240 Router Label |
CG-OS Software Port Name |
Cisco IOS Software Port Name |
ETH 2/3 |
FE 2/3 |
FE 2/3 |
ETH 2/4 |
FE 2/4 |
FE 2/4 |
ETH 2/5 (PoE 1) |
FE 2/5 |
FE 2/5 |
ETH 2/6 |
FE 2/6 |
FE 2/6 |
1 PoE = Power over Ethernet (provides up to 15.4 W per port). |
Gigabit Ethernet Ports
The router features two Gigabit Ethernet (GE) ports that can be used to enable WAN connectivity to a primary substation or a control center. The ports are shown in GE Ports and SFP Ports Share Interfaces ETH 2/1 and ETH 2/2.
CGR 1240 Gigabit Ethernet Port Naming describes how the GE ports are labeled on the router and referred to in software.
Table 13 CGR 1240 Gigabit Ethernet Port Naming
CGR 1240 Router Label |
Cisco CG-OS Software Port Name |
Cisco IOS Software Port Name |
ETH 2/1 |
GE 2/1 |
GE 2/1 |
ETH 2/2 |
GE 2/2 |
GE 2/2 |
Note: Interfaces ETH 2/1 and ETH 2/2 are also used by the small form-factor pluggable (SFP) ports (see Small Form-Factor Pluggable (SFP) Ports. For more information about how these ports are used together, see Combo Ports.
The GE ports automatically detect the type of any connected cable (fiber or copper) and then switch to the corresponding mode (fiber or copper). When both cables types are connected to the router, the first cable that establishes a link is enabled.
Fast Ethernet and Gigabit Ethernet Port Specifications
Table 14 Fast Ethernet and Gigabit Ethernet Port Specification Overview
Specification |
Description |
Ethernet Standard |
IEEE 802.3. |
Connector type |
RJ-45 |
Interface speed |
10BASE-T, 100BASE-TX, 1000-BASE-TX |
Pinouts |
See Connector and Cable Specifications. |
Table 15 Fast Ethernet and Gigabit Ethernet Port Specification Detail
Speed |
Descriptions |
Cable Type |
Distance |
1000BASETX |
1000 Mbps full-duplex transmission |
Category 5 or better |
328 feet (100 meters) |
100BASE-TX |
100 Mbps full-duplex transmission |
Category 5 or better shielded twisted-pair (STP) cable |
328 feet (100 meters) |
10BASE-T |
10 Mbps full-duplex transmission |
Category 5 or better shielded twisted-pair (STP) cable |
328 feet (100 meters) |
Small Form-Factor Pluggable (SFP) Ports
The router features two fiber optical SFP ports that support optional Cisco rugged SFP modules for Gigabit Ethernet WAN connectivity to a primary substation or control center.
Note : The SFPs do not come with a Cable Gland kit, Those must be ordered separately.

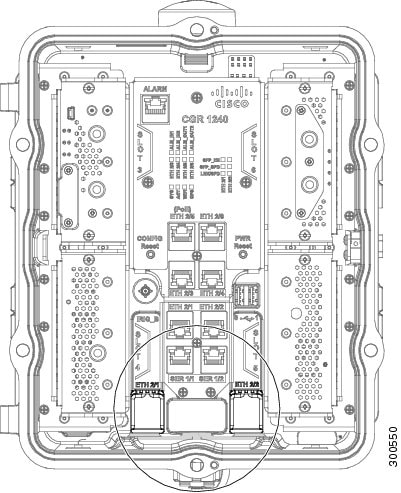

The ports are labeled as follows (see Router SFP Ports):
Note: Interfaces ETH 2/1 and ETH 2/2 are also used by the Gigabit Ethernet ports (see Gigabit Ethernet Ports. For more information about how these ports are used together, see Combo Ports.
Figure 18 Router SFP Ports
Hot Swapping SFP Modules
The SFP modules can be installed or removed while the router is on and operating normally.
Supported SFPs
Supported SFP Modules lists the supported SFP modules.
Note: See the Cisco 1000 Series Connected Grid Routers Release Notes for the most recent information about supported hardware and software.
Table 16 Supported SFP Modules
Cisco Product ID |
Description |
GLC-BX-D |
1000BASE-BX10-D downstream bidirectional single fiber; with DOM |
GLC-BX-U |
1000BASE-BX10-U upstream bidirectional single fiber; with DOM |
GLC-SX-MM-RGD |
1000BASE-SX short wavelength; rugged |
GLC-LX-SM-RGD |
1000BASE-LX/LH long wavelength; rugged |
GLC-ZX-SM-RGD |
1000BASE-ZX extended distance; rugged |
GLC-FE-100FX-RGD |
100BASE-FX SFP; rugged |
GLC-FE-100LX-RGD |
100BASE-LX10 SFP; rugged |
Specifications
Specification |
Description |
Connector type |
LC |
Optical Interface |
100Base-FX, LX; 1000Base-SX, LX, ZX |
Coding Scheme |
SFP modules:
- 1000 Mbps 8B/10B coding
- 100 Mbps 4B/5B coding
|
Pinouts |
See Connector and Cable Specifications. |
Combo Ports
The combo ports are two Gigabit Ethernet ports and two SFP ports on the router that are labeled identically. GE Ports and SFP Ports Share Interfaces ETH 2/1 and ETH 2/2 shows the ports.
The GE and SFP ports share the same physical ports or connections and are labeled identically on the router (ETH 2/1, ETH 2/2) and in the software (GE 2/1, GE 2/2). Cisco CGR 1240 Gigabit Ethernet and SFP Port Naming describes the port naming on the router and in software.
The Gigabit Ethernet ports support copper GE connections and the SFP modules support fiber optic GE connections. Only one connection on each interface (ETH 2/1 and ETH 2/2) can be in use at any time.
These ports automatically detect the type of any connected cable (fiber or copper) and then switch to the corresponding mode (fiber or copper).
Note: If connections are made to both interfaces of the same name (ETH 2/1 or ETH 2/2), only the first connection that establishes a link is enabled.

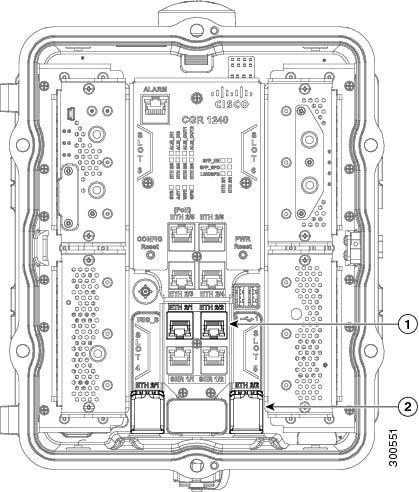

Figure 19 GE Ports and SFP Ports Share Interfaces ETH 2/1 and ETH 2/2
Items |
Description |
Gigabit Ethernet Connection Type |
1 |
Gigabit Ethernet ports |
Copper |
2 |
SFP module ports |
Fiber optic |
Table 17 Cisco CGR 1240 Gigabit Ethernet and SFP Port Naming
CGR 1240 Router Label |
Cisco CG-OS Software Port Name |
Cisco IOS Software Port Name |
ETH 2/1 |
GE 2/1 |
GE 2/1 |
ETH 2/2 |
GE 2/2 |
GE 2/2 |
Serial Ports
The router has two serial ports for connection to legacy devices, such as remote terminal units (RTUs). These ports support the following modes (selected with system software commands):
Note: When running IOS, these two serial ports are referred to as Async 1/1 and Async 1/2.

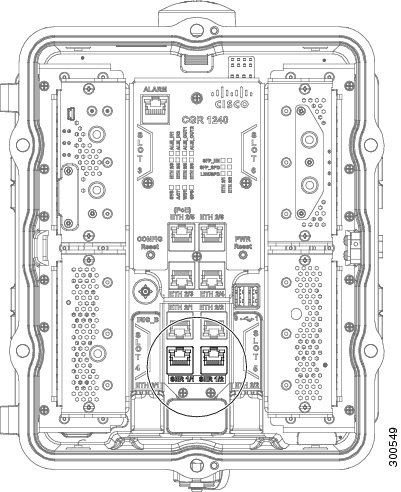

The ports are labeled as follows (Router Serial Ports):
Figure 20 Router Serial Ports
Before you connect a device to a serial port, you need to know the following:
- Type of device, data terminal equipment (DTE), or data communications equipment (DCE), you are connecting to the synchronous serial interface
- Signaling standard required by the device
- Serial ports can be configured as DTE or DCE, depending on the serial cable used
Serial Port Cables
You can order a Cisco RJ-45 shielded serial-transition cable that has the appropriate connector for the standard you specify. The documentation for the device should indicate the standard used for that device. The router end of the shielded serial transition cable has a DB-25 connector, which connects to the DB-25 port on a serial grid router WAN interface card. The other end of the serial transition cable is available with a connector appropriate for the standard you specify. The synchronous serial port can be configured as DTE or DCE, depending on the attached cable.
Specifications
Table 18 Serial Signal Transmission Speeds and Distances
|
Distance for EIA/TIA-232 |
Rate (bps) |
Feet |
Meters |
2400 |
200 |
60 |
4800 |
100 |
30 |
9600 |
50 |
15 |
19200 |
25 |
7.6 |
38400 |
12 |
3.7 |
56000 |
8.6 |
2.6 |
1544000 (T1) |
— |
— |
Specification |
RS232 |
RS485 |
Connector type |
RJ-45 |
RJ-45 |
Cable |
See Serial Port Cables |
See Serial Port Cables |
Signaling |
Single-ended |
Differential |
Max. drivers |
1 |
32 |
Max. receivers |
1 |
256 |
Operating mode |
Full duplex |
Half duplex Full duplex |
Network topology |
Point-to-point |
Multipoint Note: Multipoint is not enabled by software. |
Max. distance (standard) |
15 m |
1200 m |
Max speed (at 12 m/1200 m) |
20 Kbps/1 Kbps |
35 Mbms/100 Kbps |
Pinouts |
See Connector and Cable Specifications. |
IRIG-B Timing Port
The router features a single IRIG-B timing port (see Router IRIG-B Timing Port), which provides serial formatted time codes to an optional connected device. IRIG-B output provides standard time codes so timing devices can correlate time information with network devices. The router-integrated GPS provides the time information that is provided by this interface.
Note: The IRIG-B timing port supports timing output only.
Note: There is no IOS support for the IRIG-B Timing Port.
Figure 21 Router IRIG-B Timing Port
Table 19 Supported IRIG Serial Time Code Formats
Format |
Modulations |
Carrier Frequency |
Code Expression |
Interface |
B000 |
DC Level Shift (DCLS) pulse-width coded |
None |
BCD time of year, CF and SBS |
RS232/RS485 |
B120 |
Amplitude Modulation (AM) |
1kHz sine wave |
BCD time of year, CF and SBS |
50 Ohms BNC |
Specifications
Specification |
Description |
Connector type |
SMB coaxial RF |
Supported Code Formats |
IRIG-B000 and B120 |
USB Ports
The router features two standard USB 2.0 ports for connecting and powering optional USB peripheral devices. These ports also support USB devices that are powered by an external source, such as an AC adapter or batteries.
These ports are labeled as follows (see Router USB Ports):
The USB ports operate at the following speeds:
Note: Supported by the Guest Operating System on the IOx bundle.

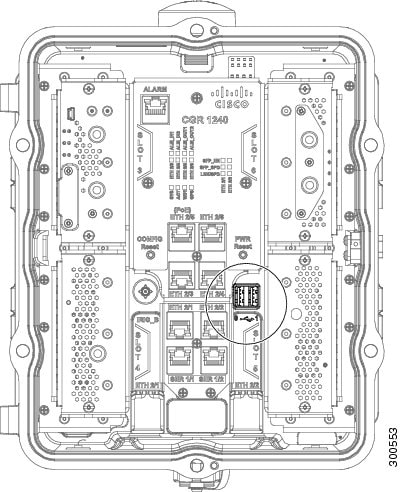

Figure 22 Router USB Ports
Connection Considerations
- Depending on the USB devices you connect to these ports, you might require a USB extension cable to connected devices to these ports.
- To prevent USB devices from being stolen or accidentally removed, secure any connected USB device with a locking mechanism.
Specifications
Specification |
Description |
USB Port Type |
Type A |
USB Device Types Supported |
USB 1.1, USB 2.0 |
Power Output |
2.5W (+5V +/-5% @ 500mA) per port |
Memory
SDRAM
The router features 1 GB of double data rate (DDR) SDRAM.
Boot Flash
The router features 16 MB of boot flash memory, consisting of two 8 MB Serial Peripheral Interface (SPI) flash devices.
DC Power for External Devices
The router features a 4-pin Micro-Fit 3.0 power connector to support a compatible external device, such as an optional non-Cisco wireless module installed on the router exterior.
Specifications
Specification |
Description |
Voltage |
12 VDC +/-5% |
Maximum Power |
12 W (continuous) |
DC Power Connector |
Molex Micro-Fit 3.0 (4-pin receptacle) |
GPS Module
The router has an internal Global Positioning System (GPS) module, which receives precise time and location information from the GPS network, and provides this information to the system software. If the router is running IOS, GPS can also be a source clock for the IOS NTP server.
This section has information on:
GPS LED
You can view the GPS LED to determine the GPS state and whether or not it is successfully connected to a GPS satellite. For information on the GPS LED, see Router LED Locations and States.
GPS Specifications
GPS Specifications for Cisco Connected Grid 1000 Series Routers shows the GPS specifications for the Cisco Connected Grid 1000 Series Routers.
Table 20 GPS Specifications for Cisco Connected Grid 1000 Series Routers
Specification |
Description |
Channels |
12 |
Tracking sensitivity |
-160 dBm |
Acquisition sensitivity |
-148 dBM |
Fast TTFF (Cold start) |
38 seconds |
Error correction |
Space Based Augmentation Systems (SBAS) |
Using the CLI to Display GPS Current Time and Location for a Cisco Router
Displaying GPS Current Time and Location for a Cisco CG-OS Router
Use the commands in this section to see the GPS current time and location.
Use the show gps time command to display the current GPS time:
8:46:9.923 UTC Fri Oct 10 2013
Use the show gps location command to display the GPS latitude and longitude:
CGR1240# show gps location
Displaying GPS Current Time and Location for a Cisco IOS Router
Use the commands in this section to see the GPS current time and location.
Use the show platform gps time command to display the current GPS time:
CGR1240# show platform gps time
0:55:26.588 UTC Tue May 14 2013
Use the show platform gps location command to display the GPS latitude and longitude:
CGR1000# show platform gps location
WiFi Short-Range Access Point
The router features an integrated, short-range WiFi access point to support a wireless console connection to the router. Generally, the router is installed on a pole above the ground, which makes a wired console connection impractical during router operation.
The WiFi connection is available only when the system software is operating. If the system software is not operating, you cannot use the WiFi connection to connect to or administer the router.
When running IOS, Wi-Fi can be used as an access point for up to 5 devices, but also as a layer-3 interface.
WiFi Hardware
The CGR 1240 router is equipped with an 802.11b/g/n 2.4GHz radio that works as the access point to provide WiFi connectivity to the router. The WiFi hardware is a Broadcom BCM4325 chipset based radio with an external WiFi antenna.
WiFi Default Settings
The default WiFi interface identity settings for the Cisco CG-OS and Cisco IOS operating systems are detailed in Default WiFi Interface Identity Settings.
Note: The CGR 1240 WiFi interface is assigned to module 2 and cannot be changed.
Table 21 Default WiFi Interface Identity Settings
Cisco Operating System |
Interface Identity |
Cisco CG-OS |
wifi 2/1 |
Cisco IOS |
dot11Radio 2/1 |
For more information on the WiFi configuration and setting it, see the Cisco 1000 Series Connected Grid Routers WiFi Software Configuration Guide on Cisco.com, at: www.cisco.com/go/cgr1000-docs.
Related Commands
Displaying WiFi Configuration Information for a Cisco CG-OS Router
Note: For a CGR 1240 router using the Cisco CG-OS operating system, the WiFi interface is identified as ‘wimax 2/1’.
To display WiFi configuration information, enter any or all of the following commands in privileged EXEC or user EXEC mode:
- show interface wifi slot/port [associations | brief | description | statistics] –Displays the status of the interface as up or down, the five second input and output rate and the number of input and output packets. Additionally, the Cisco CG-OS router displays hardware details such as radio type (802.11N, 2.4 GHz radio), MAC address and MTU setting.
- show controller wifi slot/port–Displays serial number, software version, and configured frequency and power settings
For detailed information about these commands, see “Configuring the WiFi Interface” in the Cisco 1000 Series Connected Grid Routers WiFi Software Configuration Guide, at www.cisco.com/go/cgr1000-docs.
Displaying WiFi Configuration Information for a Cisco IOS Router
Note: For a CGR 1240 router using the Cisco IOS operating system, the WiFi interface is identified as ‘Dot11Radio 2/1’.
To display WiFi configuration information, enter any or all of the following commands in privileged EXEC or user EXEC mode:
- show interface dot11Radio 2/1 —Displays the status of the interface as up or down, the five second input and output rate and the number of input and output packets. Also displays hardware details such as radio type (802.11N, 2.4 GHz radio), MAC address and MTU setting.
- show controller dot11Radio 2/1 —Displays the serial number, software version, and configured frequency and power settings.
For detailed information on how to use these commands, see the Cisco 1000 Series Connected Grid Routers WiFi Software Configuration Guide on Cisco.com, at: www.cisco.com/go/cgr1000-docs.
Real-Time Clock (RTC)
The router features an integrated real-time clock (RTC) with battery backup that supplies the system software with accurate date and time information.
Temperature Sensor
The router hardware features an internal temperature sensor used by the router software to monitor the system operating temperature. The router can be configured to generate alerts when the temperature falls outside of a user-defined temperature range. The router can also be configured to store historical temperature data.
For more information about monitoring and storing router temperature data, see the router configuration guide on Cisco.com at: www.cisco.com/go/cgr1000-docs
