Overview of the Cisco ASR 1000 Series Fixed Ethernet Line Card
This chapter provides an introduction to the Cisco ASR 1000 Series Fixed Ethernet Line Cards. It includes the following sections:
Introduction to the Cisco ASR 1000 Series Fixed Ethernet Line Cards
This section lists and describes the line cards that are supported by the Cisco ASR 1000 Series Routers:
ASR1000-2T+20X1GE
The Cisco ASR 1000 Series Fixed Ethernet Line Card ASR1000-2T+20X1GE is a fixed-port Ethernet line card for the Cisco ASR 1000 Series Aggregation Services Routers. This line card is capable of 40-Gbps full-duplex traffic forwarding using a fixed-port interface design. This line card has twenty 1-GE ports and two 10-GE ports.
The small form-factor pluggables (SFP and XFP modules) allow the line card to be configured for different media types (copper or fiber) and different optical requirements (single-mode fiber or multimode fiber), as available. There is one power LED, one line card status LED, and 22 port or link status LEDs, as shown in Figure 1-1.
Figure 1-1 Cisco ASR 1000 Series Fixed Ethernet Line Card ASR1000-2T+20X1GE Faceplate
ASR1000-6TGE
The Cisco ASR 1000 Series Fixed Ethernet Line Card ASR1000-6TGE is a fixed-port Ethernet line card for the Cisco ASR 1000 Series Aggregation Services Routers. This line card is capable of 60-Gbps input traffic and 40-Gbps output traffic forwarding using a fixed-port interface design. This line card has six 10-GE ports.
The small form-factor pluggables (XFP modules) allow the line card to be configured for different optical requirements (single-mode fiber or multimode fiber), as available. There is one power LED, one line card status LED, and six port or link status LEDs, as shown in Figure 1-2.
Figure 1-2 Cisco ASR 1000 Series Fixed Ethernet Line Card ASR1000-6TGE Faceplate
Product Overview
The system features listed here specify some of the key performance metrics and capabilities of the Cisco ASR 1000 Series Fixed Ethernet Line Card.
–
Number of VLANs per port: 4096
– Number of VLANs per line card: 49152
– Number of EVCs per port: 4096
- Number of HSRPDA MAC addresses per line card: 8192
- Number of MAC ACLs per line card: 20480
- Number of Connectivity Fault Management (CFM)/Y.1731 sessions: 480
- Supports Quality of Service (QoS) and over-subscription handling
- Supports interframe gap of 5 bytes for 1 GE (ASR1000-2T+20X1GE), and 8 bytes for 10 GE
- Supports Synchronous Ethernet (SyncE). Defined by ITU-T standards, such as G.8261, G.8262, G.8264, and G.781
Displaying the Cisco ASR 1000 Series Fixed Ethernet Line Card Details
To display the details about a Cisco ASR 1000 Series Fixed Ethernet Line Card, execute the show platform command in the EXEC mode:
To display the operation status of a line card, execute the show platform diag command:
To display the voltage margin information of a line card, execute the show environment location 3 command:
To display the subslot-level sensor listings, execute the show hw-module subslot 3/0 sensor command:
To display the temperature sensors of a line card, execute the show hw-module subslot 3/0 sensor limit command:
Cisco ASR 1000 Series Fixed Ethernet Line Card Slot, Bay, and Port Locations
ASR1000-2T+20x1GE
The Cisco ASR 1000 Series Fixed Ethernet Line Card ASR1000-2T+20x1GE uses a < slot, subslot, port > numbering scheme. The slot refers to whichever slot the line card occupies in the router.
Port numbering ranges from 0 to 21. This physical port numbering is reflected in CLI messages and all the references to port numbers that are visible to the user. (See Figure 1-3 and Figure 1-4.)

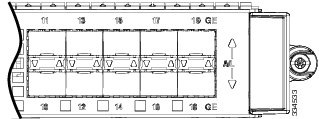

Figure 1-3 A Section of the Cisco ASR1000-2T+20x1GE Ethernet Line Card Showing Multiple Ports
Figure 1-4 A Section of the Cisco ASR1000-2T+20x1GE Ethernet Line Card Showing One of the Two 10-GE Ports
ASR1000-6TGE
The Cisco ASR 1000 Series Fixed Ethernet Line Card ASR1000-6TGE uses a < slot, subslot, port > numbering scheme. The slot refers to whichever slot the line card occupies in the router.
Port numbering ranges from 0 to 5. This physical port numbering is reflected in CLI messages and all the references to port numbers that are visible to the user. (Figure 1-5)

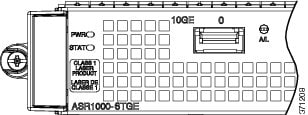

Figure 1-5 A Section of the Cisco ASR1000-6TGE Ethernet Line Card Showing One of the Six 10-GE Ports
The following is a sample output from the show interface command for the line card located in slot 1 of a Cisco ASR 1000 Series Aggregation Services Router chassis:
Supported Platforms
The Cisco ASR 1000 Series Fixed Ethernet Line Cards are supported on the Cisco ASR 1004, Cisco ASR 1006, and Cisco ASR 1013 Router with RP2+ESP40, RP2+ESP100, and RP2+ESP200.
Note The Cisco ASR 1000 Series Fixed Ethernet Line Cards are not supported in slot 4 and slot 5 of the Cisco ASR 1013 Router when the line card is used with the RP2+ESP40 combination.
Cisco IOS Software Release and Hardware Revision Requirements
The Cisco ASR 1000 Series Fixed Ethernet Line Cards have certain Cisco IOS software requirements. Also, to ensure compatibility with the Cisco IOS software, the Cisco ASR 1000 Series Fixed Ethernet Line Cards have a specific hardware revision number, which are printed on labels affixed to the component side of the cards and can be displayed using the show diag slot slot number eeprom command.
Table 1-1 lists the hardware and software requirements for the Cisco ASR 1000 Series Fixed Ethernet Line Cards.
The show diag slot slot number eeprom and the show version commands display the current hardware configuration of the router, including the system software version that is currently loaded and running, and the hardware revision number.
Checking Hardware and Software Compatibility
To check the minimum software requirements of Cisco IOS software with the hardware installed on your router, Cisco maintains the Software Advisor tool on Cisco.com. This tool does not verify whether the Cisco ASR 1000 Series Fixed Ethernet Line Cards and the system within which they are installed are compatible, but it does provide the minimum Cisco IOS requirements for individual hardware modules or components.
Note Access to this tool is limited to users with Cisco.com login accounts.
To access the Software Advisor tool, click Log In at Cisco.com. In the log in page, enter your Cisco username and password and click Log In. Type Software Advisor in the SEARCH box, and click the search icon. Click the link for the Software Advisor tool.
Choose a product family or enter a specific product number to search for the minimum supported software release needed for your hardware.
Modular Optics Compatibility
The Cisco ASR 1000 Series Fixed Ethernet Line Cards use SFP or XFP optical transceivers to provide network connectivity.
The external interfaces support the following optical modules.
SFP Modules
Note This section is only applicable to the Cisco ASR 1000 Series Fixed Ethernet Line Card ASR1000-2T+20x1GE. The Cisco ASR 1000 Series Fixed Ethernet Line Card ASR1000-6TGE does not support SFP modules.
The Cisco ASR 1000 Series Fixed Ethernet Line Card ASR1000-2T+20x1GE supports the SFP optical transceiver modules. SFPs are integrated fiber-optic transceivers that provide high-speed serial links from a port or a slot to the network. Various latching mechanisms can be used on the SFPs. There is no correlation between the latch type and the model type (such as SX, LX, or LH) or technology type (such as Gigabit Ethernet). See the label on the SFP for the technology type and model.
Accepted SFP temperature ranges are:
- COM—Commercial operating temperature range from -5 to 70 degrees C (23 to 158 degrees F)
- EXT—Extended operating temperature range from -5 to 85 degrees C (23 to 185 degrees F)
- IND—Industrial operating temperature range from -40 to 85 degrees C (-40 to 85 degrees F)
The following SFP modules are supported:
Note For Cisco IOS XE Release 3.10, SFP-GE-T= is supported only in the 1 Gbps mode.
Connectors and Cabling for SFP Modules
The SFP optical transceiver module on the Cisco ASR 1000 Series Fixed Ethernet Line Card requires dual or single LC and PC connectors. Only connections with patch cords having PC or UPC connectors are supported. Patch cords with APC connectors are not supported. All cables and cable assemblies used must be compliant with the standards specified here:
- GR-20-CORE—Generic Requirements for Optical Fiber and Optical Fiber Cable
- GR-326-CORE—Generic Requirements for Single-mode Optical Connectors and Jumper Assemblies
- GR-1435-CORE—Generic Requirements for Multi-Fiber Optical Connectors
For single-mode and multimode optical fiber connections, you can use either a Duplex LC-Type Cable and Connector or two simplex LC-type cables, one for transmit (TX) and one for receive (RX).
Figure 1-6 Duplex LC-Type Cable and Connector
Coarse Wavelength-Division Multiplexing Optics Compatibility
The following Coarse Wavelength-Division Multiplexing (CWDM) modules (Cisco part numbers) are supported:
Dense Wavelength-Division Multiplexing Optics Compatibility
The following Dense Wavelength-Division Multiplexing (DWDM) modules (Cisco part numbers) are supported:
- DWDM-SFP-3033=
- DWDM-SFP-3112=
- DWDM-SFP-3190=
- DWDM-SFP-3268=
- DWDM-SFP-3425=
- DWDM-SFP-3504=
- DWDM-SFP-3582=
- DWDM-SFP-3661=
- DWDM-SFP-3819=
- DWDM-SFP-3898=
- DWDM-SFP-3977=
- DWDM-SFP-4056=
- DWDM-SFP-4214=
- DWDM-SFP-4294=
- DWDM-SFP-4373=
- DWDM-SFP-4453=
- DWDM-SFP-4612=
- DWDM-SFP-4692=
- DWDM-SFP-4772=
- DWDM-SFP-4851=
- DWDM-SFP-5012=
- DWDM-SFP-5092=
- DWDM-SFP-5172=
- DWDM-SFP-5252=
- DWDM-SFP-5413=
- DWDM-SFP-5494=
- DWDM-SFP-5575=
- DWDM-SFP-5655=
- DWDM-SFP-5817=
- DWDM-SFP-5898=
- DWDM-SFP-5979=
- DWDM-SFP-6061=
XFP Modules
The XFP modules provide high-speed serial links at the following rates: 9.95 Gbps (OC-192) and 10.3125 Gbps (10 Gigabit Ethernet) on single-mode optical fiber (SMF). The transmit side recovers and retimes the 10-Gbps serial data and passes it to a laser driver. The laser driver biases and modulates a 1310-nm or 1550-nm laser, enabling data transmission over SMF through an LC connector. The receive side recovers and retimes the 10-Gbps optical data stream from a photodetector transimpedance amplifier and passes it to an output driver. See the label on the XFP module for technology type and model.
The XFP module temperature range is 0 degree C to 70 degree C.
Connectors and Cabling for XFP Modules
The XFP optical transceiver module on the Cisco ASR 1000 Series Fixed Ethernet Line Cards require dual LC and PC connectors. Only connections with patch cords having PC or UPC connectors are supported. Patch cords with APC connectors are not supported. All the cables and cable assemblies that are used must be compliant with the following standards:
- GR-20-CORE—Generic Requirements for Optical Fiber and Optical Fiber Cable
- GR-326-CORE—Generic Requirements for Single-Mode Optical Connectors and Jumper Assemblies
- GR-1435-CORE—Generic Requirements for Multi-Fiber Optical Connectors
Figure 1-7 shows the cable type to be used with the XFP optical transceiver module on the Cisco ASR 1000 Series Fixed Ethernet Line Cards.
Figure 1-7 Duplex LC-Type Cable and Connector
Power Management
A Cisco ASR 1000 Series Fixed Ethernet Line Card consumes chassis power. You must, therefore, ensure that the chassis is within the power budget on the Cisco ASR 1000 Series Aggregation Services Routers.
The current power requirement for a Cisco ASR 1000 Series Fixed Ethernet Line Card is a maximum of 145 W.
Line Card LED Details
This section provides information about the LEDs on the line card. The Cisco ASR 1000 Series Fixed Ethernet Line Card ASR1000-2T+20x1GE has one power LED, one line card status LED, and 22 port or link status LEDs.
The Cisco ASR 1000 Series Fixed Ethernet Line Card ASR1000-6TGE has one power LED, one line card status LED, and six port or link status LEDs.
Power and Status LEDs
The line cards have two LEDs on the front panel to show the status of the card. Table 1-2 describes the details of the LEDs.
|
|
|
|
|---|---|---|
SFP Status LEDs
Each SFP port has a single bicolor LED to indicate the status. Table 1-3 describes the details of the LEDs.
|
|
|
|
|---|---|---|
XFP Status LEDs
Each XFP port has a single bicolor LED to indicate the status. Table 1-4 describes the details of the LEDs.
|
|
|
|
|---|---|---|
