The 2-Port 10-Gigabit + 20-Port Gigabit Ethernet (GE) combination line card provides two cages for XFP Ethernet optical interface modules that operate at a rate of 10 Gbps, and 10 double-stacked cages (20 total) for SFP Ethernet optical modules that operate at a rate of 1 Gbps.

The two XFP modules can be 10GE multimode connections The 20 SFP cages support either fiber-optic or copper Gigabit Ethernet transceivers.

The 2-Port 10GE + 20-Port GE combination line card is available in base, extended, and low-queue versions. All versions are functionally equivalent, but vary in configuration scale and buffer capacity.

Each XFP and SFP cage on the 2-Port 10GE + 20-Port GE combination line card has an adjacent Link LED visible on the front panel. The Link LED indicates the status of the associated XFP or SFP port, as described in Line Card LEDs.

The following figure shows the 2-Port 10GE + 20-Port GE combination line card front panel and LEDs.

Note	The interface numbering starts with zero for the GE and 10GE ports, so this line card has ports identified as Te0/x/0/0 and a Gig0/x/0/0.

For a list of the optics and connectors used by the two 10GE ports on the 2-Port 10GE + 20-Port GE combination line and for a list of all supported SFP modules, see https://tmgmatrix.cisco.com.

The 8-Port 10GE 2:1 oversubscribed line card provides eight cages for XFP Ethernet optical interface modules that operate at a rate of 10 Gbps. The eight XFP modules can be 10GE multimode connections. The 8-Port 10GE line card is a 40 Gbps line rate card with a maximum line rate of 8 ports at 50 percent (2-1 oversubscribed).

Oversubscription results from port pairs sharing the same Network Processor Unit (NPU). The oversubscribed port pairs are port 0:port 4, port 1:port 5, port 2:port 6 and port 3:port 7.

The 8-Port 10GE line card is available in base, extended, and low-queue versions. All versions are functionally equivalent, but vary in configuration scale and buffer capacity.

Each XFP cage on the 8-Port 10GE line card has an adjacent Link LED visible on the front panel. The Link LED indicates the status of the associated XFP port, as described in Line Card LEDs.

The following figure shows the 8-Port 10GE line card front panel and LEDs.

The 4-Port 10-Gigabit Ethernet (GE) line card provides four cages for XFP Ethernet optical interface modules that operate at a rate of 10 Gbps. The four XFP modules can be 10GE Ethernet multimode connections. For supported tranceiver modules, see

The 4-Port 10GE line card is available in base, extended, and low-queue versions. All versions are functionally equivalent, but vary in configuration scale and buffer capacity.

Each XFP cage on the 4-Port 10GE line card has an adjacent Link LED visible on the front panel. The Link LED indicates the status of the associated XFP port, as described in Line Card LEDs.

The following figure shows the 4-Port 10GE line card front panel and LEDs.

The 8-Port 10-Gigabit Ethernet (GE) 80 Gbps line rate card provides eight cages for XFP Ethernet optical interface modules that operate at a rate of 10 Gbps. The eight XFP modules can be10GE multimode connections. The 8-Port 10GE line card is a full 80 Gbps line rate card.

The 8-Port 10GE 80 Gbps line rate card is available in base, extended, and low-queue versions. All versions are functionally equivalent, but vary in configuration scale and buffer capacity.

Each XFP cage on the 8-Port 10GE 80 Gbps line rate card has an adjacent Link LED visible on the front panel. The Link LED indicates the status of the associated XFP port, as described in Line Card LEDs. See Technical Specifications for a list of all XFPs supported on the 8-Port 10GE 80 Gbps line rate card.

The following figure shows the 8-Port 10GE 80 Gbps line rate card front panel and connectors.

The 4-Port 10GE + 16-Port GE combination line card provides four cages for SFP+ Ethernet optical interface modules that operate at a rate of 10 Gbps, and 8 double-stacked (16 total) cages for SFP Ethernet optical modules that operate at a rate of 1 Gbps. This line card is available in either an -SE (Service Edge Optimized) or -TR (Packet Transport Optimized) version. All versions are functionally equivalent, but vary in configuration scale and buffer capacity.

Each SFP and SFP+ cage on the 4-Port 10GE + 16-Port GE combination line card has an adjacent Link LED visible on the front panel. The Link LED indicates the status of the associated SFP or SFP+ port, as described in Line Card LEDs.

The following figure shows the 4-Port 10GE + 16-Port GE combination line card front panel and connectors.

Note	The 4-Port 10GE + 16-Port GE combination line card comes with 16x1GE + 2x10GE ports enabled. The two 10GE ports that are enabled by default are Port16 and Port17. To enable the additional two 10GE ports, the license must be enabled. Upon acquiring the license, Port18 and Port19 are enabled.

For information on enabling the license, see the Software Entitlement chapter in the Cisco ASR 9000 Series Aggregation Services Router System Management Configuration Guide, Release 5.3.x. The license product number for the A9K-4T16GE-TR card is A9K-2T-TR-LIC. The license product number for the A9K-4T16GE-SE card is A9K-2T-SE-LIC.

Note	The interface numbering for the GE ports on the line card is Gig0/x/0/0 through Gig0/x/0/15. The interface numbering for the 10GE ports on the line card is tenGigE0/x/0/16 through tenGigE0/x/0/19.

The 16-Port 10-Gigabit Ethernet (GE) oversubscribed line card provides two stacked 2x4 cage assemblies for SFP+ Ethernet optical interface modules. The 16 SFP+ modules operate at a rate of 10 Gbps.

Oversubscription results from port pairs sharing the same NPU. The oversubscribed port pairs are port 0:port 8, port 1:port 9, port 2:port 10, port 3:port 11, port 4:port 12, port 5:port 13, port 6:port 14, and port 7:port 15. The maximum bandwidth per port pair sharing a single NPU is 14.62 Gbps (7.31 Gbps per port).

• With two RSP cards installed in the router, the 16-Port 10GE line card can achieve greater than a 2:1 oversubscription rate. Each port pair sharing an NPU can reach 7.31 Gbps per port, so the maximum bandwidth with two RSPs in the system is 117 Gbps.

• With a single RSP card installed in the router, the 16-Port 10GE line card is an 80 Gbps line rate card with a maximum line rate of 16 ports at 50 percent (2-1 oversubscribed).

The 16-Port 10GE line card is available in a base version.

Each SFP+ cage on the 16-Port 10GE line card has an adjacent Link LED visible on the front panel. The Link LED indicates the status of the associated SFP+ port, as described in Line Card LEDs.

The following figure shows the 16-Port 10GE oversubscribed line card front panel and connectors.

The 24-Port 10-Gigabit Ethernet (GE) line card provides two stacked 2x6 cage assemblies for SFP+ Ethernet optical interface modules.

• With two RSP cards installed in the router, the 24-Port 10GE line card runs at line rate.

• With a single RSP card installed in the router, the 24-Port 10GE line card is a 220 Gbps line rate card.

The 24-Port 10GE line card is available in either an -SE (Service Edge Optimized) or -TR (Packet Transport Optimized) version.

Each SFP+ cage on the 24-Port 10GE line card has an adjacent Link LED visible on the front panel. The Link LED indicates the status of the associated SFP+ port, as described in Line Card LEDs.

The following figure shows the 24-Port 10GE line card front panel and connectors.

Note	Oversubscription will be supported on this line card in a future release of IOS XR 6.2.x train.

The 24-Port 10-Gigabit Ethernet (10GE)/Gigabit Ethernet (GE) line card has twenty-four dual-rate ports that accept 10GE SFP+ or 1GE SFP modules.

Note	The 24-port line card has a single Network Processor Unit (NPU). Configuring more than 20x10GE ports per NPU could result in line drops across all ports, depending on the packet size and traffic type. See Configuring the Dual-Rate Line Cards for information on specifying the port speed.

The 24-Port 10GE/1GE line card is available in these variants:

• -SE (Service Edge Optimized)

• -TR (Packet Transport Optimized)

• -CM (Consumption Model)

The -SE and -TR variants are functionally equivalent, but vary in configuration scale and buffer capacity. The -CM variant is same as the -SE variant except that the -CM variant functions on Consumption Based Pricing Model supported with Smart Licensing. For details related to the Consumption Based Pricing Model, see the chapter Software Entitlement in the Cisco ASR 9000 Series Aggregation Services Router System Management Configuration Guide.

Each SFP+ cage on the 24-Port 10GE/1GE line card has an adjacent Link LED visible on the front panel. The Link LED indicates the status of the associated SFP+ port, as described in Line Card LEDs.

The following figure shows the 24-Port 10GE/1GE line card front panel connectors and indicators.

The 36-Port 10-Gigabit Ethernet (GE) line card has thirty-six 10-Gigabit SFP+ (10GE SFP) module ports. The following figure shows the 36-Port 10GE line card front panel connectors and indicators.

Note	Oversubscription will be supported on this line card in a future release of IOS XR 6.2.x train.

The 48-Port 10-Gigabit Ethernet (10GE)/Gigabit Ethernet (GE) line card has forty-eight dual-rate ports that accept 10GE SFP+ or 1GE SFP modules.

Note	The 48-port line card has two NPUs (one for each group of 24 ports). Configuring more than 20x10GE ports per NPU could result in line drops across all ports, depending on the packet size and traffic type. See Configuring the Dual-Rate Line Cards for information on specifying the port speed.

The 48-Port 10GE/1GE line card is available in these variants:

• -SE (Service Edge Optimized)

• -TR (Packet Transport Optimized)

• -CM (Consumption Model)

The -SE and -TR variants are functionally equivalent, but vary in configuration scale and buffer capacity. The -CM variant is same as the -SE variant except that the -CM variant functions on Consumption Based Pricing Model supported with Smart Licensing. For details related to the Consumption Based Pricing Model, see the Software Entitlement chapter in the Cisco ASR 9000 Series Aggregation Services Router System Management Configuration Guide.

Each SFP+ cage on the 48-Port 10GE/1GE line card has an adjacent Link LED visible on the front panel. The Link LED indicates the status of the associated SFP+ port, as described in Line Card LEDs.

The following figure shows the 48-Port 10GE/1GE line card front panel connectors and indicators.

The 40-Port Gigabit Ethernet (GE) line card provides 20 double-stacked SFP (40 total) cages that support either fiber-optic or copper transceivers.

The 40-Port GE line card is available in base, extended, low-queue, and next-generation -SE (Service Edge Optimized), or -TR (Packet Transport Optimized) versions. All versions are functionally equivalent, but vary in configuration scale and buffer capacity.

Each SFP cage on the 40-Port GE line card has an adjacent Link LED visible on the front panel. The Link LED indicates the status of the associated SFP port, as described in Line Card LEDs.

The following figure shows 40-Port GE line card front panel and connectors.

The 1-Port 100-Gigabit Ethernet (GE) line card provides one CFP cage for an CFP Ethernet optical interface module that operates at a rate of 100 Gbps. The CFP module can be a 100GE multimode connection.

The 1-port 100GE line card is available in either an -SE (Service Edge Optimized) or -TR (Packet Transport Optimized) version. Both versions are functionally equivalent, but vary in configuration scale and buffer capacity. The CFP cage has an adjacent Link LED visible on the front panel as described in Line Card LEDs.

The following table lists the supported optics and connectors for 1-port 100GE line card.

The following figure shows the 1-port 100GE line card front panel and connector.

The 2-Port 100-Gigabit Ethernet (GE) line card provides two CFP cages for CFP Ethernet optical interface modules that operate at a rate of 100 Gbps. The two CFP modules can be 100GE multimode connections.

The line card is available in either an -SE (Service Edge Optimized) or -TR (Packet Transport Optimized) version. All versions are functionally equivalent, but vary in configuration scale and buffer capacity.

Each CFP cage on the 2-Port 100GE line card has an adjacent Link LED visible on the front panel. The Link LED indicates the status of the associated CFP port, as described in Line Card LEDs.

The following figure shows the 2-Port 100GE line card front panel and LEDs.

The 4-Port 100GE line card provides four CPAK cages for CPAK modules that operate at a rate of 100 Gbps.

The line card is available in -SE (Service Edge Optimized) and -TR (Packet Transport Optimized) variants. The two variants are functionally equivalent, but vary in configuration scale and buffer capacity.

Each CPAK cage on the 4-port 100GE line card has an adjacent Link LED visible on the front panel. The Link LED indicates the status of the associated CPAK port, as described in Line Card LEDs.

The following figure shows the 4-Port 100GE line card front panel and connectors.

The 8-Port 100-Gigabit Ethernet (GE) line card provides eight CPAK cages for CPAK modules that operate at a rate of 100 Gbps.

Each CPAK cage on the 8-Port 100GE line card has an adjacent Link LED visible on the front panel. The Link LED indicates the status of the associated CPAK port as described in Line Card LEDs.

The following figure shows the 8-Port 100GE line card front panel and connectors.

This line card is available in two versions. The LAN version line card is available as an Service Edge Optimized (-SE) variant only. The OTN version line card is available in three variants:

• Service Edge Optimized (-SE)

• Packet Transport Optimized (-TR)

• Consumption Model Optimized (-CM)

The -SE and -TR variants are functionally equivalent, but vary in configuration scale and buffer capacity. The -CM variant is same as the -SE variant except that the -CM variant functions on Consumption Based Pricing Model supported with Smart Licensing. For details related to the Consumption Based Pricing Model, see the chapter Software Entitlement on the Cisco ASR 9000 Series Router in Cisco ASR 9000 Series Aggregation Services Router System Management Configuration Guide. For the -CM variant, you need to purchase a minimum of 20 of foundational software licenses each of which licenses 10G worth of bandwidth. The foundational software licenses are available in four types based on the software features:

• IP/MPLS - For ports that use only IP/MPLS software feature.
• IP/MPLS + L2VPN - For ports that uses IP/MPLS with layer 2 Ethernet Flow Point (EFP) software feature.
• IP/MPLS + L3VPN - For ports that uses IP/MPLS with layer 3 Virtual Routing and Forwarding (VRF) software feature.
• IP/MPLS + L2VPN + L3VPN - For ports that uses IP/MPLS with layer 2 EFP as well as layer 3 VRF software features.

Additionally, each foundational software license is available in two tiers called as basic and advanced that provide lower and higher scale support respectively for the supported software feature. You can also optionally purchase additional licenses for specific software features that are not included in the foundational licenses. These additional licenses are available metered on a per 10G bandwidth basis or for the entire router.

Note	If you are installing the 8-port 100-Gigabit Ethernet Line Cards (TR and SE variants) in the chassis, ensure that V2 fan trays are installed in all the fan tray slots.

The 16-Port 100-Gigabit Ethernet (GE) line card provides sixteen ports for QSFP28/QSFP+ modules that operate at a rate of 100 Gbps.

Each line card has a single tristate Status LED to display card status. Each QSFP28/QSFP+ port on the line card has a port status LED visible on the front panel. The LEDs are described in Line Card LEDs.

When the 16-port 100GE Line Card with QSFP28/QSFP+ is inserted in a Cisco ASR 9922 chassis, you must use the ASR 9922 Fan Tray V3.

The following figure shows the 16-Port 100-GE line card front panel and LEDs.

The 32-Port 100-Gigabit Ethernet (GE) line card provides thirty two ports for QSFP28/QSFP+ modules that operate at a rate of 100 Gbps.

Each line card has a single tristate Status LED to display card status. Each QSFP28/QSFP+ port on the line card has a port status LED visible on the front panel. The LEDs are described in Line Card LEDs.

When the 32-port 100GE Line Card with QSFP28/QSFP+ is inserted in a Cisco ASR 9922 chassis, you must use the ASR 9922 Fan Tray V3. In a 32-port 100GE Line Card, QSFP+ is permitted only from port 0 to port 20.

The following figure shows the 32-Port 100-GE line card front panel and LEDs.

The 4-Port 100-Gigabit Ethernet (GE) line card provides four ports for QSFP28 modules that operate at a rate of 100 Gbps.

Each line card has a single tristate Status LED to display card status. Each QSFP28 port on the line card has a port status LED visible on the front panel. The LEDs are described in Line Card LEDs. The following figure shows the 4-Port 100-GE line card front panel and LEDs.

Note	If the 4-port 100GE line card is inserted in a chassis, it is important to use filler panels that have two screens [A9K-LC-FILR-V2]. This ensures optimal cooling and EMI.

The 12-Port 100-Gigabit Ethernet (GE) line card provides twelve ports for QSFP28 modules that operate at a rate of 100 Gbps.

Each line card has a single tristate Status LED to display card status. Each QSFP28 port on the line card has a port status LED visible on the front panel. The LEDs are described in Line Card LEDs. The following figure shows the 12-Port 100-GE line card front panel and LEDs.

Note	The 12-port 100-Gigabit Ethernet Line card with QSFP28 is also supported on IOS XR 64-bit environment.

Note	If the 12-port 100GE line card is inserted in a chassis, it is important to use filler panels that have two screens [A9K-LC-FILR-V2]. This ensures optimal cooling and EMI.

The 32-Port 100-Gigabit Ethernet (GE) line card provides thirty two ports for QSFP28/QSFP+ modules that operate at a rate of 100 Gbps.

Each line card has a single tristate Status LED to display card status. Each QSFP28/QSFP+ port on the line card has a port status LED visible on the front panel. The LEDs are described in Line Card LEDs.

When the 32-port 100GE Line Card with QSFP28/QSFP+ is inserted in a Cisco ASR 9922 chassis, you must use the ASR 9922 Fan Tray V3. In a 32-port 100GE Line Card, QSFP+ is permitted only from port 0 to port 20.

The following figure shows the 32-Port 100-GE line card front panel and LEDs.

The 20-Port 100-Gigabit Ethernet (GE) line card provides:

• Fifteen QSFP28 ports capable of 10Gb, 40Gb, and 100Gb Ethernet traffic support.

• Five QSFP-DD ports capable of 10Gb, 40Gb, 100Gb, 200Gb, and 400Gb Ethernet traffic support.

Each line card has a single tristate Status LED to display card status. Each QSFP28/QSFPDD port on the line card has a port status LED visible on the front panel. The LEDs are described in Line Card LEDs.

When the 20-port 100GE Line Card with QSFP28/QSFPDD is inserted in a Cisco ASR 9922 chassis, you must use the ASR 9922 Fan Tray V3.

The following figure shows the 20-Port 100-GE line card front panel and LEDs.

The 8-Port 100-Gigabit Ethernet (GE) line card provides:

• Six QSFP28 ports capable of 10Gb, 40Gb, and 100Gb Ethernet traffic support.

• Two QSFP-DD ports capable of 10Gb, 40Gb, 100Gb, 200Gb, and 400Gb Ethernet traffic support.

Each line card has a single tristate Status LED to display card status. Each QSFP28/QSFPDD port on the line card has a port status LED visible on the front panel. The LEDs are described in Line Card LEDs.

When the 8-port 100GE Line Card with QSFP28/QSFPDD is inserted in a Cisco ASR 9922 chassis, you must use the ASR 9922 Fan Tray V3.

The following figure shows the 8-Port 100-GE line card front panel and LEDs.

The 10-Port 400-Gigabit Ethernet (GE) line card provides ten ports for QSFPDD modules that are capable of 10Gb, 40Gb, 100Gb, 200Gb, and 400Gb Ethernet traffic support.

Each line card has a single tristate Status LED to display card status. Each QSFPDD port on the line card has a port status LED visible on the front panel. The LEDs are described in Line Card LEDs.

The 2-Port 100G + 20-Port 10-Gigabit Ethernet Combination IPodWDM Line Card with CFP2 and SFP+ provides two double stacked 2x5 cage assemblies (total 20 ports) for SFP+ Ethernet optical interface modules and two cages of 100G coherent transceiver CFP2. The line card is available only in -TR (Packet Transport Optimized) version.

Each SFP+ and CFP2 cage has an adjacent Link LED visible on the front panel. The Link LED indicates the status of the associated SFP+ or CFP2 cage, as described in Line Card LEDs.

The following figure shows this line card’s front panel and connectors.

The 400G combo multi-rate line card has 44 ports:

• 24 SFP+ ports capable of 10GE

• 16 SPF28 ports capable of 10GE or 25GE

• 4 QSFP+ or QSFP28 ports capable of 40GE or 100GE

Note	The line card has an aggregate bandwidth of 400GE. See the table below for supported port configurations.

Note	You must use the Cisco ASR 9922 Fan Tray V3 while operating 400G Combo Multi-Rate Line Card (e.g., A9K-4HG-FLEX-TR) in a Cisco ASR 9922 router.

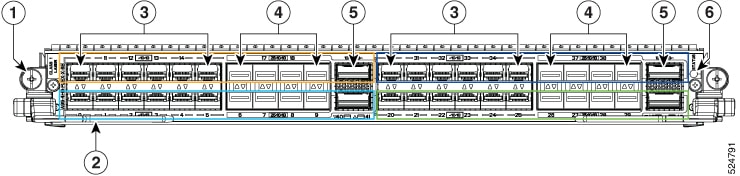

The line card ports are color-coded in the following manner:

• Ports 0 – 5 (blue), 10 – 15 (red), 20 – 25 (magenta), 30 – 35 (orange) support 10GE SFP+ modules

• Ports 6 – 9 (blue), 16 – 19 (red), 26 – 29 (magenta), 36 – 39 (orange) support 10GE SFP+ or 10GE/25GE SFP28 modules

• Ports 40 (blue), 41 (red), 42 (magenta), 43 (orange) support 40GE QSFP+ or 100GE QSFP28 modules

Note	SFP28/QSFP+/QSFP28 optics for particular color group are mutually exclusive. Only one of the optics type can be used at a time.

Each group of colored ports supports up to 100GE. The following port configurations are supported:

For a list of the optics and connectors used by the 400GE combo multi-rate line card and for a list of all supported transceiver modules, see https://tmgmatrix.cisco.com.

The 1-Port 100-Gigabit Ethernet (GE) modular port adapter (MPA) supports LAN/WAN/OTN mode and provides a single cage of coherent transceiver CFP2 module that operate at a rate of 100 Gbps. The 1-Port 100GE MPA is supported in both bay 0 and bay 1 of 400 Gigabit Modular Line Card (A9K-MOD400-SE, A9K-MOD400-TR) and 200 Gigabit Modular Line Card (A9K-MOD200-SE, A9K-MOD200-TR).

This MPA supports 10X10 and 2X40 breakout configuration.

Note

V02 version of the CFP2-DCO module is introduced. V02 version of the optical module supports Staircase FEC. Staircase FEC is an industry standard that enables high-speed optical communications. The version ID information of the optical module can be obtained from the output of the show inventory command. This MPA does not support 1X40 breakout configuration. The CFP2 Digital Coherent Optics (DCO) are supported with the following hardware versions (VID): Line Card PID MPA PID MPA Hardware Version (VID) A9K-MOD200-TR A9K-MOD200-SE A9K-MOD400-TR A9K-MOD400-SE A9K-MPA-1x100GE V03

The CFP2 cage on the MPA has an adjacent A/L (Active/Link) LED visible on the front panel. The A/L LED indicates the status of the associated CFP2 port and the Status LED indicates the status for the MPA

The following table shows the LED behavior when interface type is 100G breakout is configured:

You can use a CFP2 adapter to connect the CPAK transceivers to the MPA. The router only detects a connected CPAK transceiver module and does not detect the physically intermediate CFP2 adapter. The show inventory command shows the connected CPAK transceiver module.

This table lists the CFP2 adapters and the supported CPAK modules:

Caution

Plugging a non-supported CPAK to a CFP2 adapter can damage the CFP2 adapter. Ensure that you read the PID label on the CFP2 adapter carefully.

Caution

We recommend that you wait for 60 seconds before successive insertion or removal of optics. Failing to follow this recommendation may affect the functionality of optics.

Note	When you use the CPAK optical module with the CFP2 adapter, you must remove and insert both parts. Removing or inserting the CPAK optical module without having removed or inserted the CFP2 adapter results in the "not a valid part" error.

Caution

The metal surfaces of CPF2-DCO modules may exhibit high temperatures and thus be unsafe for handling with bare hands.

For more information about how to remove the CFP2-DCO module, see Safe Removal of CFP2-DCO Modules.

The 1-Port 200-Gigabit Ethernet (GE) modular port adapter (MPA) supports OTN mode and provides a single cage of coherent transceiver CFP2-DCO module that operate at a rate of 100 Gbps or 200Gbps. The 1-Port 200GE MPA is supported in both bay 0 and bay 1 of 400 Gigabit Modular Line Card (A9K-MOD400-SE, A9K-MOD400-TR) and only on Bay 0 of 200 Gigabit Modular Line Card (A9K-MOD200-SE, A9K-MOD200-TR).

Note

V02 version of the CFP2-DCO module is introduced. V02 version of the optical module supports Staircase FEC. Staircase FEC is an industry standard that enables high-speed optical communications. The version ID information of the optical module can be obtained from the output of the show inventory command. This MPA does not support any breakout configuration.

The MPA provides one port of CFP2-DCO transceiver that can operate at 100GE (included) or 200GE with the CFP2-LIC-UPG-200G upgrade license. The 200GE rate is supported by combining two 100G Interfaces at the back end requiring two separate MAC/IP addresses to be assigned.

Note	The CFP2 Digital Coherent Optics (DCO) are supported with the following hardware versions (VID): Line Card PID MPA PID MPA Hardware Version (VID) A9K-MOD200-TR A9K-MOD200-SE A9K-MOD400-TR A9K-MOD400-SE A9K-MPA-1x200GE V00

The CFP2 cage on the MPA has two adjacent A/L (Active/Link) LEDs visible on the front panel. The A/L LEDs indicates the status of the associated CFP2 port and the Status LED indicates the status of the MPA.

The following table shows the LED behavior when interface type is 100G:

Caution

Plugging a non-supported CPAK to a CFP2 adapter can damage the CFP2 adapter. Ensure that you read the PID label on the CFP2 adapter carefully.

Caution

We recommend that you wait for 60 seconds before successive insertion or removal of optics. Failing to follow this recommendation may affect the functionality of optics.

Caution

The metal surfaces of CPF2-DCO modules may exhibit high temperatures and thus be unsafe for handling with bare hands. A hot surface warning label is provided on the faceplate of the MPA where the optical module is inserted.

For more information about how to remove the CFP2-DCO module, see Safe Removal of CFP2-DCO Modules.

The 2-Port 100-Gigabit Ethernet (GE) modular port adapter (MPA) supports LAN/WAN/OTN mode and provides two cages of coherent transceiver CFP2 modules that operate at a rate of 100 Gbps.

The 2-Port 100GE MPA is supported on both bay 0 and bay 1 of 400 Gigabit Modular Line Card (A9K-MOD400-SE, A9K-MOD400-TR, A9K-MOD400-CM) and on bay 0 of the 200-Gigabit Line Card (A9K-MOD200-SE, A9K-MOD200-TR).

This MPA supports 10X10 and 2X40 breakout configuration.

Note

V02 version of the CFP2-DCO module is introduced. V02 version of the optical module supports Staircase FEC. Staircase FEC is an industry standard that enables high-speed optical communications. The version ID information of the optical module can be obtained from the output of the show inventory command output. This MPA does not support 1X40 breakout configuration. The CFP2 Digital Coherent Optics (DCO) are supported with the following hardware versions (VID): Line Card PID MPA PID MPA Hardware Version (VID) A9K-MOD200-TR A9K-MOD200-SE A9K-MOD400-TR A9K-MOD400-SE A9K-MPA-2x100GE V04 A9K-MOD400-CM A9K-MPA-2x100GE-CM V02

Each CFP2 cage on the MPA has an adjacent A/L (Active/Link) LED visible on the front panel. The A/L LED indicates the status of the associated CFP2 port and the Status LED indicates the status for the MPA.

The following table shows the LED behavior when interface type is 100G:

The following table shows the LED behavior when breakout is configured:

You can use a CFP2 adapter to connect the CPAK transceivers to the MPA. The router only detects a connected CPAK transceiver module and does not detect the physically intermediate CFP2 adapter. The show inventory command shows the connected CPAK transceiver module.

This table lists the CFP2 adapters and the supported CPAK modules:

Caution

Plugging a non-supported CPAK to a CFP2 adapter can damage the CFP2 adapter. Ensure that you read the PID label on the CFP2 adapter carefully.

Caution

We recommend that you wait for 60 seconds before successive insertion or removal of optics. Failing to follow this recommendation may affect the functionality of optics.

Caution

The metal surfaces of CPF2-DCO modules may exhibit high temperatures and thus be unsafe for handling with bare hands.

For more information about how to remove the CFP2-DCO module, see Safe Removal of CFP2-DCO Modules.

The 20-Port Gigabit Ethernet (GE) modular port adapter (MPA) provides 10 double-stacked SFP (20 total) cages that support either fiber-optic or copper GE transceivers.

Each SFP cage on the 20-Port GE MPA has an adjacent A/L (Active/Link) LED visible on the front panel. The A/L LED indicates the status of the associated SFP port, as described in table 20-Port Gigabit Ethernet MPA LEDs . See Technical Specifications for a list of all SFP modules supported on the 20x1GE modular port adapter.

Note	Note: This MPA is not compatible with the consumption-model MOD400 line card.

The following figure shows the 20-Port GE MPA and corresponding LEDs.

The 2-Port 10-Gigabit Ethernet (GE) modular port adapter (MPA) provides two cages for XFP Ethernet optical interface modules that operate at a rate of 10 Gbps. The two XFP modules can be 10GE multimode or single mode connections.

Each XFP cage on the 4-Port 10GE MPA has an adjacent A/L (Active/Link) LED visible on the front panel. The A/L (Active/link) LED indicates the status of the associated XFP port, as described in the below table 2-Port 10-Gigabit Ethernet MPA LEDs, and a Status LED for the MPA as shown in the following figure.

The 4-Port 10-Gigabit Ethernet (GE) modular port adapter (MPA) provides four cages for XFP Ethernet optical interface modules that operate at a rate of 10 Gbps. The four XFP modules can be 10GE multimode or single mode connections.

The MPA has two types of LEDs: an A/L (Active/Link) LED for each individual port and a Status LED for the MPA as shown in the following figure. The A/L LED indicates the status of the associated XFP port, as described in the below table 4-Port 10-Gigabit Ethernet MPA LEDs .

The 20-Port 10-Gigabit Ethernet (GE) modular port adapter (MPA) provides two 2x5 double-stacked cages for SFP+ Ethernet optical interface modules.

Each SFP+ cage on the 20-Port 10GE MPA has an adjacent A/L (Active/Link) LED visible on the front panel of the card as shown in the following figure. The A/L (Active/Link) LED indicates the status of the associated SFP+ port, as described in Modular Port Adapter LEDs.

Note	LED status could be wrong when a port is put into loopback internal mode on Gigabit Ethernet interface for 20x1EP. Loopback internal is used for debugging purpose.

The 1-Port 40-Gigabit Ethernet (GE) modular port adapter (MPA) provides a cage for a QSFP+ Ethernet optical interface module that operates at a rate of 40 Gbps. The QSFP+ module can support either a 40GE multimode connection or a 40GE single mode connection.

Each QSFP cage on the 1-Port 40GE MPA has an adjacent A/L (Active/Link) LED visible on the front panel. The A/L LED indicates the status of the associated QSFP port, as described in 1-Port 40-Gigabit Ethernet MPA LEDs table below and a Status LED as shown in the following figure.

The 2-Port 40-Gigabit Ethernet (GE) modular port adapter (MPA) provides two cages for QSFP+ Ethernet optical interface modules that operate at a rate of 40 Gbps. The two QSFP+ modules can be 40-Gigabit Ethernet multimode or single mode connections.

Each QSFP cage on the MPA has an adjacent A/L (Active/Link) LED visible on the front panel. The A/L LED indicates the status of the associated QSFP port as described in 2-Port 40-Gigabit Ethernet MPA LEDs table below, and a Status LED for the MPA as shown in the following figure.

Note	Note: This MPA is not compatible with consumption-model MOD400 line card.

The 32-Port Gigabit Ethernet (GE) modular port adapter (MPA) provides support for MACsec security. The key functionality of this MPA is to provide MACsec feature over 32 ports of 1GE over 16 Compact SFP (CSFP) modules. This MPA uses dual channel 1GE Compact-SFP technology (CSFP) to increase the port density. Along with CSFP, this MPA also supports all other types of traditional SFPs.

This MPA is supported on MOD 200 and OD 400 line cards.

Each SFP cage on the 32-Port GE MPA has an adjacent A/L (Active/Link) LED visible on the front panel. The A/L LED indicates the status of the associated SFP port.

The SFP slot 0 slot starts from top left and increments towards right till SFP slot 7. The SFP slot 8 is at the bottom right and increments towards left till SFP slot 15. If all SFP optics are plugged in, then port numbers are in even starting from 0 to 31 [For example: Starting from slot 0,2,4,6,8 till slot 30].

It is possible to have a mix of SFP and CSFP optics in this MPA. If all SFP slots are populated with SFPs, the number of slots is 16.

If all the CSFP ports are used, the port numbering will be contiguous from slot 0 to 31.

The following figure shows the 32-Port GE MPA and corresponding LEDs.

The following tables list the MPAs supported with MOD200 (A9K-MOD200-SE, A9K-MOD200-TR) and MOD400 (A9K-MOD400-SE, A9K-MOD400-TR) line cards.

Note	100G CPAK modules, CPAK-100G-ER4L and CPAK-100G-CWDM4, are supported on 100G line cards from Release 6.3.2 onwards. Refer to CPAK module support table for more information.

The following table lists the MPAs supported with consumption-model MOD400 (A9K-MOD400-CM) line card.

Note	The consumption-model MPAs can only be used only with consumption-model line cards.
