Troubleshoot Jabber SIP Call Issues with Wireshark

Introduction

This document describes how to troubleshoot Jabber SIP calls issues with Wireshark.

Prerequisites

Requirements

Cisco recommends that you have knowledge of these topics:

• SIP signaling
• Jabber call flows
• Wireshark and basic knowledge of packet filtering

Components Used

• Jabber for Windows 15.0.2
• CUCM 15su2
• Wireshark 4.4.7

The information in this document was created from the devices in a specific lab environment. All of the devices used in this document started with a cleared (default) configuration. If your network is live, ensure that you understand the potential impact of any command.

Background Information

Session Initiation Protocol (SIP) is the standard protocol for signaling in VoIP communications. SIP manages call setup, modification, and teardown. When calls fail to establish, the problem often lies in SIP signaling. Cisco Jabber uses SIP for signaling when making voice or video calls. Wireshark allows engineers to capture and analyze SIP messages, identify errors, and pinpoint the cause of call setup failures.

Troubleshoot

1. Identify and isolate the affected call flow, this is an important step as this determines the network devices involved on the issue. For this document purposes, use as a reference a point-to-point call between 2 Jabber clients registered to CUCM, however, this basic troubleshoot applies to multiple scenarios.

2. Open Wireshark.

3. Select the correct network interface and start Wireshark packet captures on the affected device.

4. Replicate the issue and note important information such as timestamp, called number, calling number and any specific error or behavior during the call.

5. Stop and collect the Wireshark packet capture.

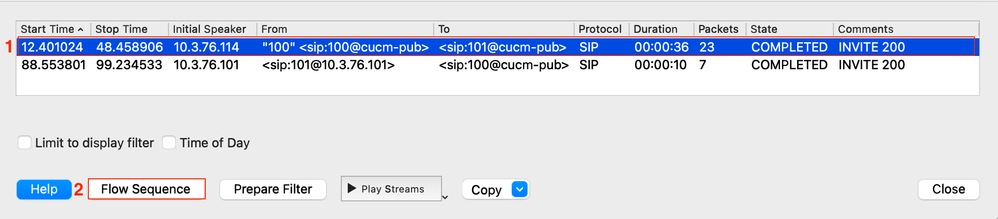

6. Open the packet capture and navigate to Telephony > VoIP Calls > Identify the test call and click Flow Sequence.

7. Wireshark displays the call flow diagram from the device perspective. Identify the network devices part of the flow and analyze the SIP signaling looking for SIP errors or any indication of why the call is terminated or not initiated.

8. If any of the SIP messages is of interest for the investigation click the message and Wireshark automatically highlights the message in the packet capture. You can then perform a deep inspection to that specific packet. Expand the Session Initiation Protocol information of concern here, which is found  in the packet details.

9. The packet details section of Wireshark contains all the information of that packet. From here, you can obtain detailed information such as Call-ID, From, To, Date, Time, Errors and Reason of those errors or messages. This information is relevant in case you need to track this call along the call flow path.

10. Most common errors for SIP calls are specified in the table below:

11. At this point, you must have a Big Picture of where the issue relays, common scenarios are:

• Jabber generates the error or terminates the call. If that is the case, you must collect Jabber logs and track the call with the information from the packet details section obtained before. For the Jabber logs analysis is recommended a text editor and you can filter using the Call-ID information to show the information relevant for that call, also, a useful keyword to filter is sipio in order for it to show all the SIP messages in the logs. You must search for errors or events around the SIP failure that could cause our issue.
• Jabber receives error from another device or server, in this case, you must collect additional logs from the servers part of the call flow. In some cases, Call Manager logs and traces, Expressway logs and Gateway debugs. The information needed varies based on the affected call flow.

Wireshark Display Filters for SIP

Display filters can be used in Wireshark to filter and display specific information, multiple calls or messages. Some examples are mentioned in the table:

Conclusion

This structured workflow can be used by engineers to troubleshoot Cisco Jabber SIP calls issues efficiently. Wireshark’s combination of SIP flow visualization and packet analysis makes it a critical tool to resolve Jabber calls setup problems.
