Product Overview

The Cisco® Small Form-Factor Pluggable (SFP), Enhanced Small Form-Factor Pluggable (SFP+), and X2 devices for use on the Cisco MDS 9000 family of products are hot-swappable transceivers that plug into ports on the Cisco MDS 9000 family director switching modules and fabric switches. These transceivers give users the flexibility to choose different cabling types and distances on a port-by-port basis.
Cisco SFP, SFP+, and X2 transceivers are available for use in conjunction with the Cisco MDS 9000 family products as outlined in Table 1.

Table 1. Cisco MDS 9000 Family Switching Modules and Fabric Switch Transceiver Support

Switching Module and Fabric Switch

DS-SFP-FC-2G-xx

DS-CWDM-xxxx=

DWDM-SFP-xxxx=A

DS-SFP-FCGE-xx

DS-SFP-GE-T

DS-SFP-FC4G-xx

DS-X9016

Yes

Yes

Yes

Yes





DS-X9032

Yes

Yes

Yes

Yes





DS-X9032-SSM

Yes

Yes

Yes

Yes





DS-X9112



Yes

Yes2





Yes2

DS-X9124



Yes

Yes2





Yes2

DS-X9148



Yes

Yes2





Yes2

DS-X9302-14K9

Yes

Yes6

Yes

Yes

Yes



DS-X9304-18K9



Yes6

Yes2, 6

Yes1

YesD

Yes2

DS-X9304-SMIP



Yes



Yes

Yes



DS-X9308-SMIP



Yes



Yes

Yes



DS-X9704













DS-C9216A-K9

Yes

Yes

Yes

Yes





DS-C9216i-K9

Yes

Yes6

Yes

Yes

Yes



DS-C9222i-K9



Yes

Yes2

Yes1

YesD

Yes2

DS-C9120-K9

Yes

Yes

Yes

Yes





DS-C9124-K9



Yes3







Yes2

DS-C9134-K9



Yes3







Yes2

DS-C9140-K9

Yes

Yes

Yes

Yes





DS-C9020-20K9











Yes

DS-X9248-48K9



Yes2

DS-X9224-96K9



Yes2

DS-X9248-96K9



Yes2

Switching Module and Fabric Switch

DS-CWDM4Gxxxx=A

DS-X2-FC10G-xx (non CX4)B

DS-X2-FC10G-CX4=C

DS-X2-E10G-SR=A

DWDM-X2-xx.xx=E

DS-SFP-FC8G-SW

DS-SFP-FC8G-LW

DS-X9016











DS-X9032











DS-X9032-SSM











DS-X9112

Yes2









DS-X9124

Yes2









DS-X9148

Yes2









DS-X9302-14K9











DS-X9304-18K9

Yes2









DS-X9304-SMIP











DS-X9308-SMIP











DS-X9704



Yes2



Yes2

Yes2



DS-C9216A-K9











DS-C9216i-K9











DS-C9222i-K9

Yes2









DS-C9120-K9











DS-C9124-K9

Yes2, 4









DS-C9134-K9

Yes4

Yes2, 5

Yes2

Yes2, F

Yes2, F



DS-C9140-K9











DS-C9020-20K9











DS-X9248-48K9



Yes2



DS-X9224-96K9



Yes2



DS-X9248-96K9



Yes2




A: Supported on switches running Cisco MDS 9000 SAN-OS Software Release 3.1(3) or later.
B: DS-X2-FC10G-ER supported on switches running Cisco MDS 9000 SAN-OS Software Release 3.1(3) or later.
C: Supported on switches running Cisco MDS 9000 SAN-OS Software Release 3.2(1) or later.
D: Supported on switches running Cisco MDS 9000 SAN-OS Software Release 3.3(1) or later.
E: Supported on switches running Cisco MDS 9000 NX-OS Software Release 4.1(1) or later.
F: Supported on switches running Cisco MDS 9000 NX-OS Software Release 4.2(1) or later.
1: Supported on Ethernet ports only.
2: Digital diagnostic monitoring supported.
3: Limited to 60 km.
4: Limited to 30 km.
5: DS-X2-FC10G-ER not supported.
6: Supported on both Fibre Channel and Ethernet ports.

Cisco 2-Gbps Fibre Channel SFPs

The Cisco 2-Gbps Fibre Channel SFPs (Figure 1) are designed to provide cost-effective Fibre Channel connectivity for the Cisco MDS 9000 Fibre Channel switching modules. There are two types of Cisco 2-Gbps Fibre Channel SFP: the Cisco Fibre Channel Shortwave SFP (part number DS-SFP-FC-2G-SW) and the Cisco Fibre Channel Longwave SFP (part number DS-SFP-FC-2G-LW). Each product offers 1/2-Gbps autosensing Fibre Channel connectivity.

Figure 1. Cisco 2-Gbps Fibre Channel SFPs

Technical Specifications

Connectors and Cabling

• Connectors: Dual LC connector

Table 2 summarizes the cabling specifications.

Table 2. Cisco 2-Gbps Fibre Channel SFP Cabling Specifications

SFP

Wavelength (nanometers)

Fiber Type

Core Size (microns)

Baud Rate (Gigabaud [GBd])

Cable Distance

DS-SFP-FC-2G-SW

850

MMF

62.5

1.0625

300 m (984 ft)

62.5

2.125

150 m (492 ft)

50.0 (Optical Multimode 2 [OM2])

1.0625

500 m (1640 ft)

50.0 (OM2)

2.125

300 m (984 ft)

DS-SFP-FC-2G-LW

1310

SMF

9.0

1.0625

10 km (6.2 miles)

9.0

2.125

10 km (6.2 mi)

Note: The minimum cable distance for all SFPs listed (multimode fiber [MMF] and single-mode fiber [SMF]) is 6.5 feet (2 meters).

Dimensions

• Dimensions (H x W x D): 8.5 x 13.75 x 55.2 mm

Environmental Conditions and Power Requirements

Table 3 presents the optical parameters, and Table 4 presents the temperature ranges.

Table 3. Optical Parameters

SFP

Average Transmit Power (decibels per milliwatt [dBm])

Average Receive Power (dBm)

Fiber Loss Budget (decibels [dB])


Max

Min

Max

Min



DS-SFP-FC-2G-SW

-2.5

-10.0

0

-

2.1 (62.5 microns) and 2.62 (50.0 microns [OM2])

DS-SFP-FC-2G-LW

-3

-11.7

-3

-

7.8

Table 4. Operating and Storage Temperature Ranges

SFP

Operating

Storage


Max

Min

Max

Min

DS-SFP-FC-2G-SW

40°C

0°C

85°C

-40°C

DS-SFP-FC-2G-LW

40°C

0°C

85°C

-40°C

Regulatory and Standards Compliance

• Compliant with Fibre Channel FC-PI 200-SM-LC-L, FC-PI 200-M5-SN-I, and 200-M6-SN-I 2.125 GBd specifications

• Compliant with Fibre Channel FC-PI 100-SM-LC-L, FC-PI 100-M5-SN-I, and FC-PI 100-M6-SN-I; and FC-PH2 100-SM-LC-L, FC-PH2 100-M5-SN-I, and FC-PH2 100-M6-SN-I 1.0625 GBd specifications

• Laser Class I 21CFR1040

Ordering Information

Table 5 provides ordering information.

Table 5. Cisco 2-Gbps Fibre Channel SFP Ordering Information

Part Number

Description

DS-SFP-FC-2G-SW

1/2-Gbps Fibre Channel-Shortwave, SFP, LC

DS-SFP-FC-2G-SW=

1/2-Gbps Fibre Channel-Shortwave, SFP, LC, Spare

DS-FC-SW-4PK=

1/2-Gbps Fibre Channel-Shortwave, SFP, LC, 4 pack, Spare

DS-SFP-FC-2G-LW

1/2-Gbps Fibre Channel-Longwave, SFP, LC

DS-SFP-FC-2G-LW=

1/2-Gbps Fibre Channel-Longwave, SFP, LC, Spare

Cisco 4-Gbps Fibre Channel SFPs

The Cisco 4-Gbps Fibre Channel SFPs (Figure 2) are designed to provide cost-effective Fibre Channel connectivity for the 1/2/4-Gbps ports on the Cisco MDS 9000 family platform. There are three types of Cisco 4-Gbps Fibre Channel SFP: the Cisco Fibre Channel Shortwave SFP (part number DS-SFP-FC4G-SW), the Cisco 4-km Fibre Channel Longwave SFP (part number DS-SFP-FC4G-MR), and the Cisco 10-km Fibre Channel Longwave SFP (part number DS-SFP-FC4G-LW). Each product offers 1/2/4-Gbps autosensing Fibre Channel connectivity.

Figure 2. Cisco 4-Gbps Fibre Channel SFPs

Technical Specifications

Connectors and Cabling

• Connectors: Dual LC connector

Table 6 summarizes the cabling specifications.

Table 6. Cisco 4-Gbps Fibre Channel SFP Cabling Specifications

SFP

Wavelength (nanometers)

Fiber Type

Core Size (microns)

Baud Rate (GBd)

Cable Distance

DS-SFP-FC4G-SW

850

MMF

62.5

1.0625

300 m (984 ft)

62.5

2.125

150 m (492 ft)

62.5

4.250

70 m (230 ft)

50.0 (OM2)

1.0625

500 m (1640 ft)

50.0 (OM2)

2.125

300 m (984 ft)

50.0 (OM2)

4.250

150 m (492 ft)

50.0 (OM3)

1.0625

860 m (2821 ft)

50.0 (OM3)

2.125

500 m (1640 ft)

50.0 (OM3)

4.250

380 m (1246 ft)

DS-SFP-FC4G-MR

1310

SMF

9.0

1.0625

4 km (2.4 mi)

9.0

2.125

4 km (2.4 mi)

9.0

4.250

4 km (2.4 mi)

DS-SFP-FC4G-LW

1310

SMF

9.0

1.0625

10 km (6.2 mi)

9.0

2.125

10 km (6.2 mi)

9.0

4.250

10 km (6.2 mi)

Note: The minimum cable distance for all SFPs listed (MMF and SMF) is 6.5 feet (2 meters).

Dimensions

• Dimensions (H x W x D): 8.5 x 13.75 x 55.2 mm

Environmental Conditions and Power Requirements

Table 7 presents the optical parameters, and Table 8 presents the temperature ranges.

Table 7. Optical Parameters

SFP

Average Transmit Power (dBm)

Average Receive Power (dBm)

Fiber Loss Budget (dB)


Max

Min

Max

Min



DS-SFP-FC4G-SW

-2.5

-9

0

-

1.78 (62.5 microns), 2.06 (50.0 microns [OM2]), and 2.88 (50.0 microns [OM3])

DS-SFP-FC4G-MR

-3

-11.2

-1

-

4.8

DS-SFP-FC4G-LW

-3

-8.4

-1

-

7.8

Table 8. Operating and Storage Temperature Ranges

SFP

Operating

Storage


Max

Min

Max

Min

DS-SFP-FC4G-SW

40°C

0°C

85°C

-40°C

DS-SFP-FC4G-MR

40°C

0°C

85°C

-40°C

DS-SFP-FC4G-LW

40°C

0°C

85°C

-40°C

Regulatory and Standards Compliance

• Compliant with Fibre Channel FC-PI 400-SM-LC-L, FC-PI 400-SM-LC-M, FC-PI 400-M5-SN-I, and FC-PI 400-M6-SN-I 4.25 GBd specifications

• Compliant with Fibre Channel FC-PI 200-SM-LC-L, FC-PI 200-M5-SN-I. and 200-M6-SN-I 2.125 GBd specifications

• Compliant with Fibre Channel FC-PI 100-SM-LC-L, FC-PI 100-M5-SN-I, and FC-PI 100-M6-SN-I; and FC-PH2 100-SM-LC-L, FC-PH2 100-M5-SN-I, and FC-PH2 100-M6-SN-I 1.0625 GBd specifications

• Laser Class I 21CFR1040

Ordering Information

Table 9 provides ordering information.

Table 9. Cisco Fibre Channel SFP Ordering Information

Part Number

Description

DS-SFP-FC4G-SW

1/2/4-Gbps Fibre Channel-Shortwave, SFP, LC

DS-SFP-FC4G-SW=

1/2/4-Gbps Fibre Channel-Shortwave, SFP, LC, Spare

DS-SFP-4G-SW-4=

1/2/4-Gbps Fibre Channel-Shortwave, SFP, LC, 4 pack, Spare

DS-SFP-FC4G-MR

1/2/4-Gbps Fibre Channel-Longwave 4-km, SFP, LC

DS-SFP-FC4G-MR=

1/2/4-Gbps Fibre Channel-Longwave 4-km, SFP, LC, Spare

DS-SFP-FC4G-LW

1/2/4-Gbps Fibre Channel-Longwave 10-km, SFP, LC

DS-SFP-FC4G-LW=

1/2/4-Gbps Fibre Channel-Longwave 10-km, SFP, LC, Spare

Cisco 8-Gbps Fibre Channel SFP+

The Cisco 8-Gbps Fibre Channel SFP+ (Figure 3) is designed to provide Fibre Channel connectivity for the 2/4/8-Gbps ports on the Cisco MDS 9000 family platform. There are two types of Cisco 8-Gbps Fibre Channel SFP+: the Cisco Fibre Channel Shortwave SFP+ (part number DS-SFP-FC8G-SW) and the Cisco Fibre Channel Longwave SFP+ (part number DS-SFP-FC8G-LW). Each product offers 2/4/8-Gbps autosensing Fibre Channel connectivity.

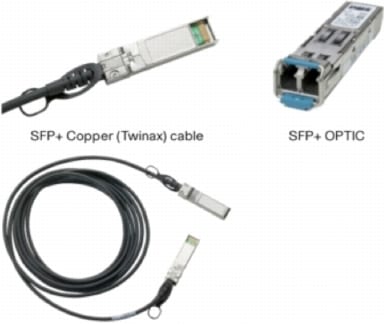

Figure 3. Cisco 8-Gbps Fibre Channel SFP+

Technical Specifications

Connectors and Cabling

• Connectors: Dual LC connector

Table 10 summarizes the cabling specifications.

Table 10. Cisco 8-Gbps Fibre Channel SFP+ Cabling Specifications

SFP+

Wavelength (nanometers)

Fiber Type

Core Size (microns)

Baud Rate (GBd)

Cable Distance

DS-SFP-FC8G-SW

850

MMF

62.5

2.125

150 m (492 ft)

62.5

4.250

70 m (230 ft)

62.5

8.500

21 m (69 ft)

50.0 (OM2)

2.125

300 m (984 ft)

50.0 (OM2)

4.250

150 m (492 ft)

50.0 (OM2)

8.500

50 m (164 ft)

50.0 (OM3)

2.125

500 m (1640 ft)

50.0 (OM3)

4.250

380 m (1246 ft)

50.0 (OM3)

8.500

150 m (492 ft)

DS-SFP-FC8G-LW

1310

SMF

9.0

2.125

10 km (6.2 mi)

9.0

4.250

10 km (6.2 mi)

9.0

8.500

10 km (6.2 mi)

Note: The minimum cable distance for all SFP+ listed (MMF and SMF) is 6.5 feet (2 meters).

Dimensions

• Dimensions (H x W x D): 8.5 x 13.55 x 56.5 mm

Environmental Conditions and Power Requirements

Table 11 presents the optical parameters, and Table 12 presents the temperature ranges.

Table 11. Optical Parameters

SFP+

Average Transmit Power (dBm)

Average Receive Power (dBm)

Fiber Loss Budget (dB)


Max

Min

Max

Min



DS-SFP-FC8G-SW

-1.3

-10 (2 Gbps)

-9 (4 Gbps)

-8.2 (8 Gbps)

0

-

(62.5 microns)

(50.0 microns [OM2])

 (50.0 microns [OM3])


2.10 (2 Gbps)

1.78 (4 Gbps)

1.58 (8 Gbps)

2.62
(2 Gbps)

2.06
(4 Gbps)

1.68
(8 Gbps)

3.31
(2 Gbps)

2.88
(4 Gbps)

2.04
(8 Gbps)

DS-SFP-FC8 Gbps-LW

-3 (2 Gbps)

-1 (4 Gbps)

+0.5 (8 Gbps)

-11.7 (2 Gbps)

-8.4 (4 Gbps)

-8.4 (8 Gbps)

-3 (2 Gbps)

-1 (4 Gbps)

+0.5 (8 Gbps)

-

7.8 (2 Gbps)

7.8 (4 Gbps)

6.4 (8 Gbps)

Table 12. Operating and Storage Temperature Ranges

SFP+

Operating

Storage


Max

Min

Max

Min

DS-SFP-FC8G-SW

40°C

0°C

85°C

-40°C

DS-SFP-FC8G-LW

40°C

0°C

85°C

-40°C

Regulatory and Standards Compliance

• Compliant with Fibre Channel FC-PI 800-SM-LC-L, FC-PI 800-M5-SN-S, FC-PI 800-M5E-SN-I, and FC-PI 800-M6-SN-S 8.5 GBd specifications

• Compliant with Fibre Channel FC-PI 400-SM-LC-L, FC-PI 400-M5-SN-I, FC-PI 400-M5E-SN-I, and FC-PI 400-M6-SN-I 4.25 GBd specifications

• Compliant with Fibre Channel FC-PI 200-SM-LC-L, FC-PI 200-M5-SN-I, FC-PI 200-M5E-SN-I, and 200-M6-SN-I 2.125 GBd specifications

• Laser Class I 21CFR1040

Ordering Information

Table 13 provides ordering information.

Table 13. Cisco Fibre Channel SFP+ Ordering Information

Part Number

Description

DS-SFP-FC8G-SW

2/4/8-Gbps Fibre Channel-Shortwave, SFP+, LC

DS-SFP-FC8G-SW=

2/4/8-Gbps Fibre Channel-Shortwave, SFP+, LC, Spare

DS-SFP-8G-SW-4=

2/4/8-Gbps Fibre Channel-Shortwave, SFP+, LC, 4 pack, Spare

DS-SFP-FC8G-LW

2/4/8-Gbps Fibre Channel-Longwave, SFP+, LC

DS-SFP-FC8G-LW=

2/4/8-Gbps Fibre Channel-Longwave, SFP+, LC, Spare

Cisco Tri-Rate Multiprotocol SFPs

To ease management and sparing concerns, Cisco offers SFPs that can be used in both Fibre Channel (FC) and Gigabit Ethernet (GE) ports. The Cisco Tri-Rate Multiprotocol SFPs can run at 1- and 2-Gbps Fibre Channel and 1-Gbps Ethernet, thus enabling the user to use one type of SFP for all ports on the Cisco MDS 9000 family platform.
There are two types of Cisco Tri-Rate Multiprotocol SFP (Figure 4): the Cisco Tri-Rate Multiprotocol Shortwave SFP (part number DS-SFP-FCGE-SW) and the Cisco Tri-Rate Multiprotocol Longwave SFP (part number DS-SFP-FCGE-LW). Each product offers autosensing 1/2-Gbps Fibre Channel connectivity and 1-Gbps Ethernet connectivity.

Figure 4. Cisco Tri-Rate Multiprotocol SFPs

Technical Specifications

Connectors and Cabling

• Connectors: Dual LC connector

Table 14 summarizes the cabling specifications.

Table 14. Cisco Tri-Rate Multiprotocol SFP Cabling Specifications

SFP

Wavelength (nanometers)

Fiber Type

Core Size (microns)

Baud Rate (GBd)

Cable Distance

DS-SFP-FCGE-SW

850

MMF

62.5

1.0625

300 m (984 ft)

62.5

2.125

150 m (492 ft)

50.0 (OM2)

1.0625

500 m (1640 ft)

50.0 (OM2)

2.125

300 m (984 ft)

DS-SFP-FCGE-LW

1310

SMF

9.0

1.0625

10 km (6.2 mi)

9.0

2.125

10 km (6.2 mi)

Note: The minimum cable distance for all SFPs listed (MMF and SMF) is 6.5 feet (2 meters).

Dimensions

• Dimensions (H x W x D): 8.5 x 13.75 x 55.2 mm

Environmental Conditions and Power Requirements

Table 15 presents the optical parameters, and Table 16 presents the temperature ranges.

Table 15. Optical Parameters

SFP

Average Transmit Power (dBm)

Average Receive Power (dBm)

Fiber Loss Budget (dBm)


Max

Min

Max

Min



DS-SFP-FCGE-SW

-1.2

-10.0 (FC) and -9.5 (GE)

0

-17 (GE)
• 2.1 (FC: 62.5 microns) and 2.62 (FC: 50.0 microns [OM2])
• 2.38 (GE: 62.5 microns) and 3.37 (GE: 50.0 microns [OM2])

DS-SFP-FCGE-LW

-3

-11.0

-3

-19 (GE)
• 7.8 (FC)
• 4.57 (GE)

Note: The fiber loss budget is derived from taking the difference between the minimum average transmit power and the minimum average receive power and subtracting the link penalties. The specified fiber loss budget should be used in calculating the maximum link distance.

Table 16. Operating and Storage Temperature Ranges

SFP

Operating

Storage


Max

Min

Max

Min

DS-SFP-FCGE-SW

40°C

0°C

85°C

-40°C

DS-SFP-FCGE-LW

40°C

0°C

85°C

-40°C

Regulatory and Standards Compliance

• Compliant with Fibre Channel FC-PI 200-SM-LC-L, FC-PI 200-M5-SN-I, and FC-PI 200-M6-SN-I 2.125 GBd; and IEEE 802.3 Gigabit Ethernet (1.25 GBd) 1000BASE-SX specifications

• Compliant with the Fibre Channel FC-PI 100-SM-LC-L, FC-PI 100-M5-SN-I, and FC-PI 100-M6-SN-I; and FC-PH2 100-SM-LC-L, FC-PH2 100-M5-SN-I, and FC-PH2 100-M6-SN-I 1.0625 GBd specifications

• Laser Class I 21CFR1040

Warranty

• Standard warranty: One year

Ordering Information

Table 17 provides ordering information.

Table 17. Cisco Tri-Rate Multiprotocol SFP Ordering Information

Part Number

Description

DS-SFP-FCGE-SW

1/2-Gbps Fibre Channel and Gigabit Ethernet-Shortwave, SFP, LC

DS-SFP-FCGE-SW=

1/2-Gbps Fibre Channel and Gigabit Ethernet-Shortwave, SFP, LC, Spare

DS-SFP-FCGE-LW

1/2-Gbps Fibre Channel and Gigabit Ethernet-Longwave, SFP, LC

DS-SFP-FCGE-LW=

1/2-Gbps Fibre Channel and Gigabit Ethernet-Longwave, SFP, LC, Spare

Cisco Copper Gigabit Ethernet SFPs

To enable even more cabling flexibility, the Cisco MDS 9000 family offers a copper Gigabit Ethernet SFP. Based on the 1000BASE-T standard, the Cisco Copper Gigabit Ethernet SFP (Figure 5) provides cost-effective connectivity for data center applications. The Cisco Copper Gigabit Ethernet SFP (part number DS-SFP-GE-T) allows a user to use standard Category-5 unshielded twisted pair (UTP) cabling for Ethernet connectivity.

Figure 5. Cisco Copper Gigabit Ethernet SFP

Technical Specifications

Connectors and Cabling

• Connectors: RJ-45 connector

Table 18 summarizes the cabling specifications.

Table 18. Cisco Copper Gigabit Ethernet SFP Cabling Specifications

SFP

Cable Type

Cable Distance

DS-SFP-GE-T

Category 5 UTP

100 m (328 ft)

Dimensions

• Dimensions (H x W x D): 13.75 x 13.75 x 67.8 mm

Environmental Conditions and Power Requirements

Table 19 presents the temperature ranges.

Table 19. Operating and Storage Temperature Ranges

SFP

Operating

Storage


Max

Min

Max

Min

DS-SFP-GE-T

40°C

0°C

85°C

-40°C

Regulatory and Standards Compliance

• Compliant with the IEEE 802.3 Gigabit Ethernet (1.25 GBd) 1000BASE-T specification

Warranty

• Standard warranty: One year

Ordering Information

Table 20 provides ordering information.

Table 20. Cisco Copper Gigabit Ethernet SFP Ordering Information

Part Number

Description

DS-SFP-GE-T

1-Gbps Copper Gigabit Ethernet SFP, 1000Base-T, RJ-45

DS-SFP-GE-T=

1-Gbps Copper Gigabit Ethernet SFP, 1000Base-T, RJ-45, Spare

Cisco 10-Gbps Fibre Channel X2 Transceivers

The Cisco Fibre Channel X2 transceivers are designed to provide high-performance Fibre Channel connectivity for the 10-Gbps Fibre Channel ports on the Cisco MDS 9000 family platform. There are three types of Cisco 10-Gbps Fibre Channel X2 transceivers for transmission on optical cables: Cisco Short Reach (up to 300 m; part number DS-X2-FC10G-SR), Cisco Long Reach (up to 10 km; part number DS-X2-FC10G-LR), and Cisco Extended Reach (up to 40 km; part number DS-X2-FC10G-ER) (Figure 6). There is also a 10-Gbps Fibre Channel X2 transceiver for transmission on copper cable (up to 15 m; part number DS-X2-FC10G-CX4) (Figure 7). Each product offers 10-Gbps Fibre Channel connectivity.

Figure 6. Cisco 10-Gbps Fibre Channel X2 Transceiver (Part Numbers DS-X2-FC10G-SR, DS-X2-FC10G-LR, and DS-X2-FC10G-ER)

Figure 7. Cisco 10-Gbps Fibre Channel CX4 X2 Transceiver (Part Number DS-X2-FC10G-CX4)

Technical Specifications

Connectors and Cabling

• Connectors

– Dual SC connector (DS-X2-FC10G-SR, DS-X2-FC10G-LR, and DS-X2-FC10G-ER)

– CX4 Connector (DS-X2-FC10G-CX4)

Table 21 summarizes the cabling specifications.

Table 21. X2 Port Cabling Specifications

X2

Wavelength (nanometers)

Fiber Type

Core Size (microns)

Baud Rate (GBd)

Cable Distance

DS-X2-FC10G-SR

850

MMF

62.5

10.51875

33 m (108 ft)

50.0 (OM3)

10.51875

300 m (984 ft)

DS-X2-FC10G-LR

1310

SMF

9.0

10.51875

10 km (6.2 mi)

DS-X2-FC10G-ER

1550

SMF

9.0

10.51875

40 km (24.8 mi)

DS-X2-FC10G-CX4

-

Copper

-

10.51875

15 m (49.2 ft)

Note: The minimum cable distance for all listed transceivers (MMF and SMF) except CX4 is 6.5 feet (2 meters).

Dimensions

• Dimensions (H x W x D): 19.2 x 41.8 x 90.8 mm

Environmental Conditions and Power Requirements

Table 22 presents the optical parameters, and Table 23 presents the temperature ranges.

Table 22. Optical Parameters

X2

Average Transmit Power (dBm)

Average Receive Power (dBm)

Fiber Loss Budget (dBm)


Max

Min

Max

Min



DS-X2-FC10G-SR

-1.2

-7.3

-1.0

-9.9

2.6 (50.0 microns [OM3])

DS-X2-FC10G-LR

0.5

-8.2

0.5

-14.4

6.2

DS-X2-FC10G-ER

4.0

-4.7

-1.0

-15.8

11.1

Note: DS-X2-FC10G-CX4 is not an optical module and is therefore not listed in this table.

Table 23. Operating and Storage Temperature Ranges

X2

Operating

Storage


Max

Min

Max

Min

DS-X2-FC10G-SR

40°C

0°C

85°C

-40°C

DS-X2-FC10G-LR

40°C

0°C

85°C

-40°C

DS-X2-FC10G-ER

40°C

0°C

85°C

-40°C

DS-X2-FC10G-CX4

40°C

0°C

85°C

-40°C

Regulatory and Standards Compliance

• Compliant with Fibre Channel 10GFC 1200-M6-SN-I, 10GFC 1200-M5-SN-I, 10GFC 1200-M5E-SN-I, and 10GFC 1200-SM-LL-L 10.51875 GBd specifications

• Compliant with IEEE 802.3 10GBASE-ER

• Compliant with IEEE 802.3 10GBASE-CX4

• Laser Class I 21CFR1040

Ordering Information

Table 24 provides ordering information.

Table 24. Cisco 10-Gbps Fibre Channel X2 Transceiver Ordering Information

Part Number

Description

DS-X2-FC10G-SR

10-Gbps Fibre Channel-Short-reach, X2, SC

DS-X2-FC10G-SR=

10-Gbps Fibre Channel-Short-reach, X2, SC, Spare

DS-X2-FC10G-LR

10-Gbps Fibre Channel-Long-reach, X2, SC

DS-X2-FC10G-LR=

10-Gbps Fibre Channel-Long-reach, X2, SC, Spare

DS-X2-FC10G-ER

10-Gbps Fibre Channel-Extended-reach, X2, SC

DS-X2-FC10G-ER=

10-Gbps Fibre Channel-Extended-reach, X2, SC, Spare

DS-X2-FC10G-CX4

10-Gbps Fibre Channel-Copper Transceiver, X2, CX4

DS-X2-FC10G-CX4=

10-Gbps Fibre Channel-Copper Transceiver, X2, CX4, Spare

DS-CAB-15M=

15m Cable for 10G Copper X2 transceiver, spare

DS-CAB-1M=

1m Cable for 10G Copper X2 transceiver, spare

Cisco 10-Gbps Ethernet X2 Transceivers

The Cisco Ethernet X2 Transceiver Short Reach (up to 300 m; part number DS-X2-E10G-SR) enables high-performance Fibre Channel connectivity for the Cisco MDS 9000 family 10-Gbps Fibre Channel switching module to an existing Ethernet Dense Wavelength-Division Multiplexing (DWDM) transponder (Figure 8). The data format transmitted by the Ethernet X2 transceiver (DS-X2-E10G-SR) onto the fiber is identical to that transmitted by the Fibre Channel transceiver (DS-X2-FC10G-SR), except that the Fibre Channel packets are clocked at the 10 gigabit Ethernet rate, which allows Fibre Channel packets to be carried over an existing 10-Gbps Ethernet DWDM infrastructure. The Cisco MDS 9000 family 10-Gbps Fibre Channel switching module will automatically detect DS-X2-E10G-SR; no software configuration is required.

Figure 8. Cisco 10-Gbps Ethernet X2 Transceiver

Technical Specifications

Connectors and Cabling

• Connectors: Dual SC connector

Table 25 summarizes the cabling specifications.

Table 25. Cisco 10-Gbps Ethernet X2 Transceiver Cabling Specifications

X2

Wavelength (nanometers)

Fiber Type

Core Size (microns)

Baud Rate (GBd)

Cable Distance

DS-X2-E10G-SR

850

MMF

62.5

10.3125

33 m (108 ft)

50.0 (OM3)

10.3125

300 m (984 ft)

Note: The minimum cable distance for all transceivers listed (MMF and SMF) is 6.5 feet (2 meters).

Dimensions

• Dimensions (H x W x D): 19.2 x 41.8 x 90.8 mm

Environmental Conditions and Power Requirements

Table 26 presents the optical parameters, and Table 27 presents the temperature ranges.

Table 26. Optical Parameters

X2

Average Transmit Power (dBm)

Average Receive Power (dBm)

Fiber Loss Budget


Max

Min

Max

Min



DS-X2-E10G-SR

-1.2

-7.3

-1.0

-9.9

2.6 (50.0 microns [OM3])

Table 27. Operating and Storage Temperature Ranges

X2

Operating

Storage


Max

Min

Max

Min

DS-X2-E10G-SR

40°C

0°C

85°C

-40°C

Regulatory and Standards Compliance

• Compliant with IEEE 802.3 10GBASE-SR

• Laser Class I 21CFR1040

Ordering Information

Table 28 provides ordering information.

Table 28. Cisco 10-Gbps Ethernet X2 Transceiver Ordering Information

Part Number

Description

DS-X2-E10G-SR=

10-Gbps Ethernet-Short-reach, X2, SC, Spare

Cisco Coarse Wavelength-Division Multiplexing Extended Distance SFP Solution

The Cisco MDS 9000 family offers cost-effective multiprotocol extended distance connectivity that optimizes the use of a customer's existing optical infrastructure through the Cisco Coarse Wavelength-Division Multiplexing (CWDM) SFP solution (Figure 9). The Cisco CWDM SFP solution has two main components: a set of eight wavelength-specific SFPs and a set of CWDM optical add-drop modules (OADMs). A Cisco CWDM chassis enables rack-mounting of up to two Cisco CWDM OADMs. The Cisco CWDM OADMs are passive and require no power or configuration.

Figure 9. Cisco CWDM Extended Distance SFP Solution

The Cisco CWDM SFP solution enables the transport of up to eight channels over one pair of single-mode fiber strands, enabling enterprises to increase the bandwidth of an existing optical infrastructure without adding new fiber strands. The solution can be used in parallel with other Cisco SFP devices on the same platform.

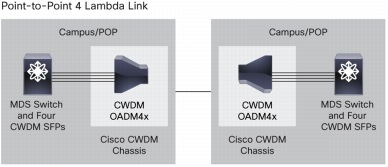

Figure 10 shows a common point-to-point deployment scenario for the Cisco MDS 9000 family using the Cisco CWDM SFP solution. Two endpoints are directly connected through a fiber link. The Cisco CWDM SFP solution enables customers to add or drop up to eight channels onto a pair of single-mode fiber strands. As a result, the need for additional fiber is reduced. Redundant point-to-point links can be implemented by adding or dropping redundant channels onto a second pair of single-mode fiber strands.

Figure 10. Point-to-Point Architecture (Dual-Fiber Link)

Cisco 1/2-Gbps CWDM SFPs

Technical Specifications for Cisco 1/2-Gbps CWDM SFPs

Connectors and Cabling

• Equipment: Standard SFP interface

• Network: Dual LC connector

Dimensions

• Dimensions (H x W x D): 8.5 x 13.75 x 55.2 mm

Environmental Conditions and Power Requirements

Table 29 presents the optical parameters, and Table 30 presents the temperature ranges.

Table 29. Optical Parameters for Cisco 1/2-Gbps CWDM SFPs

Parameter

Symbol

Minimum

Typical

Maximum

Units

Notes and Conditions

Transmitter center wavelength

lambda_c

(x-4)

-

(x+7)

nm

Available center wavelengths are 1470, 1490, 1510, 1530, 1550, 1570, 1590, and 1610 nm

Side-mode suppression ratio

SMSR

30

-

-

dB

-

Transmitter optical output power

Pout

0.0



5.0

dBm

Average power coupled into single-mode fiber

Receiver optical input power (BER <10-12 with PRBS 2-7-1)

Pin

-28.0

-

-7.0

dBm

At 2.12 Gbps, 140°F (60°C) case temperature

Receiver optical input power (BER <10-12 with PRBS 2-7-1)

Pin

-29.0

-

-7.0

dBm

At 1.25 Gbps, 140°F (60°C) case temperature

Receiver optical input wavelength

Lambda_in

1450

-

1620

nm

-

Transmitter extinction ratio

OMI

9

-

-

dB

-

Dispersion penalty at 100 km (62.1 mi)

-

-

-

3

dB

At 2.12 Gbps

Dispersion penalty at 100 km (62.1 mi)

-

-

-

2

dB

At 1.25 Gbps

Note:

• Parameters are specified over temperature and at end of life unless otherwise noted.

• When shorter distances of single-mode fiber are used, you may need to insert an inline optical attenuator in the link to avoid overloading the receiver.

Table 30. Operating and Storage Temperature Ranges

Operating

Storage

Max

Min

Max

Min

40°C

0°C

85°C

-40°C

Regulatory and Standards Compliance

• Compatible with 1000BASE-X standard as specified in IEEE 802.3z

• Compatible with Fibre Channel Draft Physical Interface Specification (FC-PI 10.0)

• Laser Class I 21CFR1040

Ordering Information

Table 31 provides ordering information.

Table 31. Cisco 1/2-Gbps CWDM SFP Ordering Information

Part Number

Description

Color

DS-CWDM-1470=

1470 nm CWDM 1/2-Gbps Fibre Channel SFP

Gray

DS-CWDM-1490=

1490 nm CWDM 1/2-Gbps Fibre Channel SFP

Violet

DS-CWDM-1510=

1510 nm CWDM 1/2-Gbps Fibre Channel SFP

Blue

DS-CWDM-1530=

1530 nm CWDM 1/2-Gbps Fibre Channel SFP

Green

DS-CWDM-1550=

1550 nm CWDM 1/2-Gbps Fibre Channel SFP

Yellow

DS-CWDM-1570=

1570 nm CWDM 1/2-Gbps Fibre Channel SFP

Orange

DS-CWDM-1590=

1590 nm CWDM 1/2-Gbps Fibre Channel SFP

Red

DS-CWDM-1610=

1610 nm CWDM 1/2-Gbps Fibre Channel SFP

Brown

Cisco 4-Gbps CWDM SFPs

Technical Specifications for Cisco 4-Gbps CWDM SFPs

Connectors and Cabling

• Equipment: Standard SFP interface

• Network: Dual LC connector

Dimensions

• Dimensions (H x W x D): 8.46 x 13.27 x 56.64 mm

Environmental Conditions and Power Requirements

Table 32 presents the optical parameters, and Table 33 presents the temperature ranges.

Table 32. Optical Parameters for Cisco 4-Gbps CWDM SFPs

Parameter

Symbol

Minimum

Typical

Maximum

Units

Notes and Conditions

Transmitter center wavelength

lambda_c

(x-6)

x

(x+6)

nm

Available center wavelengths are 1470, 1490, 1510, 1530, 1550, 1570, 1590, and 1610 nm

Side-mode suppression ratio

SMSR

30

-

-

dB

-

Transmitter optical output power

Pout

1.0

-

5.0

dBm

Average power coupled into single-mode fiber

Receiver optical input power (BER <10-12 with PRBS 2-23-1)

Pin

-15.7

-

0.0

dBm

140°F (60°C) case temperature

Link budget

-

17.8

-

-

dB



Receiver optical input wavelength

Lambda_in

1450

-

1620

nm

-

Transmitter extinction ratio

OMI

4

-

-

dB

-

Dispersion penalty at 25 km (15.5 mi)

-

-

-

3

dB

-

Note:

• In typical point-to-point deployments, all wavelengths have a minimum reach of 40 km (24.8 mi).

• Parameters are specified over temperature and at end of life unless otherwise noted.

• When shorter distances of single-mode fiber are used, you may need to insert an inline optical attenuator in the link to avoid overloading the receiver.

• Up to 24 Cisco 4-Gbps CWDM SFP Transceivers are supported in a single Cisco MDS 9000 family switching module.

• When interoperating a Cisco 4-Gbps CWDM SFP Transceiver with a Cisco 1/2-Gbps CWDM SFP Transceiver, you must manually configure the port speeds on the Cisco 4-Gbps CWDM SFP Transceiver to 1 or 2 Gbps.

Table 33. Operating and Storage Temperature Ranges

Operating

Storage

Max

Min

Max

Min

40°C

0°C

85°C

-40°C

Regulatory and Standards Compliance

• Compatible with Fibre Channel Draft Physical Interface Specification (FC-PI -4 6.01)

• Laser Class I 21CFR1040

Ordering Information

Table 34 provides ordering information.

Table 34. Cisco 4-Gbps CWDM SFP Ordering Information

Part Number

Description

Color

DS-CWDM4G1470=

1470 nm CWDM 1/2/4-Gbps Fibre Channel SFP

Gray

DS-CWDM4G1490=

1490 nm CWDM 1/2/4-Gbps Fibre Channel SFP

Violet

DS-CWDM4G1510=

1510 nm CWDM 1/2/4-Gbps Fibre Channel SFP

Blue

DS-CWDM4G1530=

1530 nm CWDM 1/2/4-Gbps Fibre Channel SFP

Green

DS-CWDM4G1550=

1550 nm CWDM 1/2/4-Gbps Fibre Channel SFP

Yellow

DS-CWDM4G1570=

1570 nm CWDM 1/2/4-Gbps Fibre Channel SFP

Orange

DS-CWDM4G1590=

1590 nm CWDM 1/2/4-Gbps Fibre Channel SFP

Red

DS-CWDM4G1610=

1610 nm CWDM 1/2/4-Gbps Fibre Channel SFP

Brown

Cisco CWDM OADMs

Technical Specifications for Cisco CWDM OADMs

The Cisco CWDM OADMs are passive devices that provide the capability to multiplex and demultiplex, or add and drop wavelengths from multiple fibers onto one fiber. The OADM connectors are interfaced with color-matching Cisco CWDM SFPs on the equipment side. All modules are the same size. The Cisco CWDM chassis enables rack mounting for up to two Cisco CWDM OADMs in a single rack unit.
The Cisco MDS 9000 family offers two CWDM OADMs and a multiplexer and demultiplexer:

• Cisco Dual Fiber 4-Channel OADMs (part numbers DS-CWDMOADM4A= and DS-CWDMOADM4B=): This device allows you to add and drop four channels (with different wavelengths) onto one direction of an optical ring. The other wavelengths are passed through the OADM. Dual fiber is used for both network and SFP connections. The four wavelengths are set to 1470, 1490, 1510, and 1530 nm for DS-CWDMOADM4A=, and 1550, 1570, 1590, and 1610 nm for DS-CWDMOADM4B=.

• Cisco Dual Fiber 8-Channel Multiplexer/Demultiplexer (DS-CWDM-MUX8A=): This device allows you to multiplex and demultiplex eight separate channels onto one pair of fiber. Dual fiber is used for both network and SFP connections. The eight wavelengths are set to 1470, 1490, 1510, 1530, 1550, 1570, 1590, and 1610 nm.

Tables 35 and 36 provide comparisons of the OADM types.

Table 35. OADM Type Comparison

Product Number

Type

Architecture Options

DS-CWDMOADM4x=

OADM

Ring and point-to-point

DS-CWDM-MUX8A=

Multiplexer/demultiplexer

Ring and point-to-point

Table 36. Maximum Insertion Loss in dB for Each Passive CWDM Filter

Model

Maximum Insertion Loss (dB)


Add/Drop

Pass 1550

Pass 1300

Monitor

DS-CWDMOADM4x=

1.8

2.1

2.1

23

DS-CWDM-MUX8A=

2.2

-

-

23

Connectors and Cabling

• DS-CWDMOADM4x=: Dual LC connector

• DS-CWDM-MUX8A=: Dual LC connector

Environmental Conditions and Power Requirements

The operating temperature range is 23 to 131°F (-5 and 55°C), and the storage temperature range is -40 to 185°F (-40 to 85°C).
The Cisco CWDM OADMs and the Cisco CWDM chassis are passive components that do not require power.

Dimensions and Weight

All the Cisco CWDM OADMs have the same dimensions: W x D x H: 21.2 x 3.0 x 26.5 cm. Two of these modules fit into one Cisco CWDM chassis. The Cisco CWDM chassis is one-rack-unit (1RU) in height and fits in a standard 19-inch rack.

Regulatory and Standards Compliance

• Network Equipment Building Standards (NEBS) Level 3

Warranty

• Standard warranty: One year

Ordering Information

Table 37 provides ordering information.

Table 37. Cisco Dual Fiber 4-Channel OADM, Dual Fiber 8-Channel Multiplexer/Demultiplexer, and CWDM Chassis Ordering Information

Product Number

Description

DS-CWDMOADM4A=

4-channel (1470, 1490, 1510, and 1530 nm) optical add/drop multiplexer OADM

DS-CWDMOADM4B=

4-channel (1550, 1570, 1590, and 1610 nm) optical add/drop multiplexer OADM

DS-CWDM-MUX8A=

8-channel multiplexer/demultiplexer

DS-CWDMCHASSIS=

2-slot chassis for Cisco OADM and multiplexer/demultiplexer

Cisco Dense Wavelength-Division Multiplexing Extended Distance Solution

2-Gbps DWDM SFP Transceiver

The Cisco DWDM SFP modules enable enterprises and service providers to provide scalable, easy-to-deploy DWDM Fibre Channel services in their networks.
The main features of the Cisco DWDM SFP include:

• Support for International Telecommunication Union (ITU) 100-GHz wavelength grid

• Match for wavelength plan of Cisco ONS 100-GHz product family

• Fixed-wavelength SFP, with 32 SFP models

Note: Up to eight 2-Gbps DWDM SFPs are supported in a single Cisco MDS 9000 family switching module. Refer to http://www.cisco.com/en/US/prod/collateral/modules/ps5455/ps6576/product_data_sheet0900aecd80582763.html for details.

Ordering Information

Table 38 provides ordering information.

Table 38. Cisco 2-Gbps DWDM SFP Transceiver Ordering Information

Part Number

Description

DWDM-SFP-6061=

Cisco 1560.61 NM DWDM Gigabit Ethernet and 1/2-Gbps Fibre Channel SFP, spare

DWDM-SFP-5979=

Cisco 1559.79 NM DWDM Gigabit Ethernet and 1/2-Gbps Fibre Channel SFP, spare

DWDM-SFP-5898=

Cisco 1558.98 NM DWDM Gigabit Ethernet and 1/2-Gbps Fibre Channel SFP, spare

DWDM-SFP-5817=

Cisco 1558.17 NM DWDM Gigabit Ethernet and 1/2-Gbps Fibre Channel SFP, spare

DWDM-SFP-5655=

Cisco 1556.55 NM DWDM Gigabit Ethernet and 1/2-Gbps Fibre Channel SFP, spare

DWDM-SFP-5575=

Cisco 1555.75 NM DWDM Gigabit Ethernet and 1/2-Gbps Fibre Channel SFP, spare

DWDM-SFP-5494=

Cisco 1554.94 NM DWDM Gigabit Ethernet and 1/2-Gbps Fibre Channel SFP, spare

DWDM-SFP-5413=

Cisco 1554.13 NM DWDM Gigabit Ethernet and 1/2-Gbps Fibre Channel SFP, spare

DWDM-SFP-5252=

Cisco 1552.52 NM DWDM Gigabit Ethernet and 1/2-Gbps Fibre Channel SFP, spare

DWDM-SFP-5172=

Cisco 1551.72 NM DWDM Gigabit Ethernet and 1/2-Gbps Fibre Channel SFP, spare

DWDM-SFP-5092=

Cisco 1550.92 NM DWDM Gigabit Ethernet and 1/2-Gbps Fibre Channel SFP, spare

DWDM-SFP-5012=

Cisco 1550.12 NM DWDM Gigabit Ethernet and 1/2-Gbps Fibre Channel SFP, spare

DWDM-SFP-4851=

Cisco 1548.51 NM DWDM Gigabit Ethernet and 1/2-Gbps Fibre Channel SFP, spare

DWDM-SFP-4772=

Cisco 1547.72 NM DWDM Gigabit Ethernet and 1/2-Gbps Fibre Channel SFP, spare

DWDM-SFP-4692=

Cisco 1546.92 NM DWDM Gigabit Ethernet and 1/2-Gbps Fibre Channel SFP, spare

DWDM-SFP-4612=

Cisco 1546.12 NM DWDM Gigabit Ethernet and 1/2-Gbps Fibre Channel SFP, spare

DWDM-SFP-4453=

Cisco 1544.53 NM DWDM Gigabit Ethernet and 1/2-Gbps Fibre Channel SFP, spare

DWDM-SFP-4373=

Cisco 1543.73 NM DWDM Gigabit Ethernet and 1/2-Gbps Fibre Channel SFP, spare

DWDM-SFP-4294=

Cisco 1542.94 NM DWDM Gigabit Ethernet and 1/2-Gbps Fibre Channel SFP, spare

DWDM-SFP-4214=

Cisco 1542.14 NM DWDM Gigabit Ethernet and 1/2-Gbps Fibre Channel SFP, spare

DWDM-SFP-4056=

Cisco 1540.56 NM DWDM Gigabit Ethernet and 1/2-Gbps Fibre Channel SFP, spare

DWDM-SFP-3977=

Cisco 1539.77 NM DWDM Gigabit Ethernet and 1/2-Gbps Fibre Channel SFP, spare

DWDM-SFP-3898=

Cisco 1538.98 NM DWDM Gigabit Ethernet and 1/2-Gbps Fibre Channel SFP, spare

DWDM-SFP-3819=

Cisco 1538.19 NM DWDM Gigabit Ethernet and 1/2-Gbps Fibre Channel SFP, spare

DWDM-SFP-3661=

Cisco 1536.61 NM DWDM Gigabit Ethernet and 1/2-Gbps Fibre Channel SFP, spare

DWDM-SFP-3582=

Cisco 1535.82 NM DWDM Gigabit Ethernet and 1/2-Gbps Fibre Channel SFP, spare

DWDM-SFP-3504=

Cisco 1535.04 NM DWDM Gigabit Ethernet and 1/2-Gbps Fibre Channel SFP, spare

DWDM-SFP-3425=

Cisco 1534.25 NM DWDM Gigabit Ethernet and 1/2-Gbps Fibre Channel SFP, spare

DWDM-SFP-3268=

Cisco 1532.68 NM DWDM Gigabit Ethernet and 1/2-Gbps Fibre Channel SFP, spare

DWDM-SFP-3190=

Cisco 1531.90 NM DWDM Gigabit Ethernet and 1/2-Gbps Fibre Channel SFP, spare

DWDM-SFP-3112=

Cisco 1531.12 NM DWDM Gigabit Ethernet and 1/2-Gbps Fibre Channel SFP, spare

DWDM-SFP-3033=

Cisco 1530.33 NM DWDM Gigabit Ethernet and 1/2-Gbps Fibre Channel SFP, spare

Cisco 10-Gbps Ethernet DWDM X2 Transceiver

The Cisco 10-Gbps Ethernet DWDM X2 Transceiver pluggable module (part number DWDM-X2-xx.xx=) enables high-performance Fibre Channel connectivity for the Cisco MDS 9000 family 10-Gbps Fibre Channel switching module to an existing Ethernet DWDM infrastructure. The data format transmitted by the Ethernet DWDM X2 transceiver (DWDM-X2-xx.xx=) onto the fiber is identical to that transmitted by the Fibre Channel X2 transceiver (DS-X2-FC10G-SR), except that the Fibre Channel packets are clocked at the 10 Gigabit Ethernet rate, which allows Fibre Channel packets to be carried over an existing 10-Gbps Ethernet DWDM infrastructure. The Cisco MDS 9000 10-Gbps Fibre Channel switching module will automatically detect DWDM-X2-xx.xx=; no software configuration is required.
The main features of the Cisco 10-Gbps Ethernet DWDM X2 Transceiver include:

• Support for 32 nontunable ITU 100-GHz wavelengths compatible with the Cisco ONS DWDM channel plan

• Support for digital optical monitoring capability

A detailed data sheet is available at http://www.cisco.com/en/US/products/ps6576/index.html and http://www.cisco.com/en/US/products/hw/modules/ps5455/products_data_sheets_list.html.

Ordering Information

Table 39 provides ordering information.

Table 39. Cisco 10-Gbps Ethernet DWDM X2 Transceiver Ordering Information

Part Number

Description

ITU Channel

DWDM-X2-60.61=

10GBASE-DWDM 1560.61 nm X2 (100-GHz ITU grid)

21

DWDM-X2-59.79=

10GBASE-DWDM 1559.79 nm X2 (100-GHz ITU grid)

22

DWDM-X2-58.98=

10GBASE-DWDM 1558.98 nm X2 (100-GHz ITU grid)

23

DWDM-X2-58.17=

10GBASE-DWDM 1558.17 nm X2 (100-GHz ITU grid)

24

DWDM-X2-56.55=

10GBASE-DWDM 1556.55 nm X2 (100-GHz ITU grid)

26

DWDM-X2-55.75=

10GBASE-DWDM 1555.75 nm X2 (100-GHz ITU grid)

27

DWDM-X2-54.94=

10GBASE-DWDM 1554.94 nm X2 (100-GHz ITU grid)

28

DWDM-X2-54.13=

10GBASE-DWDM 1554.13 nm X2 (100-GHz ITU grid)

29

DWDM-X2-52.52=

10GBASE-DWDM 1552.52 nm X2 (100-GHz ITU grid)

31

DWDM-X2-51.72=

10GBASE-DWDM 1551.72 nm X2 (100-GHz ITU grid)

32

DWDM-X2-50.92=

10GBASE-DWDM 1550.92 nm X2 (100-GHz ITU grid)

33

DWDM-X2-50.12=

10GBASE-DWDM 1550.12 nm X2 (100-GHz ITU grid)

34

DWDM-X2-48.51=

10GBASE-DWDM 1548.51 nm X2 (100-GHz ITU grid)

36

DWDM-X2-47.72=

10GBASE-DWDM 1547.72 nm X2 (100-GHz ITU grid)

37

DWDM-X2-46.92=

10GBASE-DWDM 1546.92 nm X2 (100-GHz ITU grid)

38

DWDM-X2-46.12=

10GBASE-DWDM 1546.12 nm X2 (100-GHz ITU grid)

39

DWDM-X2-44.53=

10GBASE-DWDM 1544.53 nm X2 (100-GHz ITU grid)

41

DWDM-X2-43.73=

10GBASE-DWDM 1543.73 nm X2 (100-GHz ITU grid)

42

DWDM-X2-42.94=

10GBASE-DWDM 1542.94 nm X2 (100-GHz ITU grid)

43

DWDM-X2-42.14=

10GBASE-DWDM 1542.14 nm X2 (100-GHz ITU grid)

44

DWDM-X2-40.56=

10GBASE-DWDM 1540.56 nm X2 (100-GHz ITU grid)

46

DWDM-X2-39.77=

10GBASE-DWDM 1539.77 nm X2 (100-GHz ITU grid)

47

DWDM-X2-38.98=

10GBASE-DWDM 1538.98 nm X2 (100-GHz ITU grid)

48

DWDM-X2-38.19=

10GBASE-DWDM 1538.19 nm X2 (100-GHz ITU grid)

49

DWDM-X2-36.61=

10GBASE-DWDM 1536.61 nm X2 (100-GHz ITU grid)

51

DWDM-X2-35.82=

10GBASE-DWDM 1535.82 nm X2 (100-GHz ITU grid)

52

DWDM-X2-35.04=

10GBASE-DWDM 1535.04 nm X2 (100-GHz ITU grid)

53

DWDM-X2-34.25=

10GBASE-DWDM 1534.25 nm X2 (100-GHz ITU grid)

54

DWDM-X2-32.68=

10GBASE-DWDM 1532.68 nm X2 (100-GHz ITU grid)

56

DWDM-X2-31.90=

10GBASE-DWDM 1531.90 nm X2 (100-GHz ITU grid)

57

DWDM-X2-31.12=

10GBASE-DWDM 1531.12 nm X2 (100-GHz ITU grid)

58

DWDM-X2-30.33=

10GBASE-DWDM 1530.33 nm X2 (100-GHz ITU grid)

59

For More Information

For more information about the Cisco MDS 9000 Series Multilayer SAN Switches, visit http://www/en/US/products/hw/ps4159/ps4358/index.html.
