The Cisco® ONS 15454 OC-192/STM-64 10-Gigabit Small Form-Factor Pluggable-Based (XFP-Based) Optics Card improves the system flexibility for the Cisco ONS 15454 Multiservice Provisioning Platform (MSPP) and lowers the cost of sparing 10-Gbps interfaces.

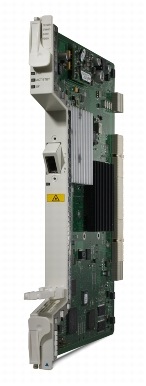

The Cisco ONS 15454 OC-192/STM-64 XFP-Based Optics Card provides a single XFP-based pluggable optics module. The multiple-rate optics card (Figure 1) operates in either Cisco ONS 15454 SONET or SDH systems, providing multiple-reach capabilities including short-reach/inter-office (SR/IO), intermediate-reach/short-haul (IR/SH), and long-reach/long-haul (LR/LH). Additionally, the SR/IO-only card provides a cost-effective, fixed SR/IO configuration to support first cost-sensitive installations where flexibility is not paramount.
Cisco ONS 15454 OC-192/STM-64 XFP-Based Optics Card
The OC-192/STM-64 XFP card can carry concatenated payloads of STS-3c/VC-4, STS-6c/VC-4-2c, STS-12c/VC-4-4c, STS-24c/VC-4-8c, and STS-48c/VC-4-16c, as well as nonconcatenated payloads on an STS-1, VC-4, VC-3, VC-12, VC-11, and VT1.5 basis. In SONET applications, the card is software-provisionable to transport SDH payloads over SONET in the form of STS-Nc-concatenated payloads. When operated within the outlined specifications (Table 4), each card will transport the 10-Gbps signal with a maximum bite error rate (BER) of 10E-12.
The card is deployable in the four high-speed interface card slots (5, 6, 12, and 13) of the Cisco ONS 15454 MSPP. The card's port can be commissioned for use in unidirectional-path switched ring/subnetwork connection protection (UPSR/SNCP), 2-fiber and 4-fiber bidirectional line switched ring/multiplex section-shared protection ring (BLSR/MS-SPR), 1+1 automatic protection switching/line multiplex section protection (APS/LMSP), or path-protected mesh network (PPMN) architectures, providing the flexibility to build the type of networks required to meet service demands, traffic patterns, and user needs. This card-provisioning flexibility also helps reduce the cost of inventory and simplifies engineering and deployment.
The OC-192/STM-64 XFP card supports in-service bandwidth upgrade capabilities from lower-speed cards including the single-port OC-12/STM-4, OC-48/STM-16, and OC-192/STM-64 cards, using the Cisco Transport Controller's simple span-upgrade wizard.
The OC-192/STM-64 XFP card incorporates faceplate-mounted LEDs to provide a quick visual check of the operational status at the card as well as the interface port. The LEDs will be exercised during a user-requested lamp test operation. The fan-tray-mounted liquid crystal display (LCD) and soft keys provide the technician local access to the port status of the optical port without the need to access the craft manager. Printed on the faceplate is a blue triangle icon, which indicates the shelf slot where the card can be physically installed.
The card is supported by the integrated Cisco Transport Controller craft manager for the Cisco ONS 15454 MSPP. The controller provides the user with access to operations, administration, maintenance, and provisioning (OAM&P) for the system. Access to inventory data for the installed OC-192/STM-64 XFP card and XFP are available through the craft manager, Cisco Transport Manager element management system, and through TL1 requests.
The XFP modules used with the OC-192/STM-64 XFP card are SONET/SDH-compliant optical interfaces. The transmitter and receiver reside on the same module and are interconnected to the fiber using small form-factor LC connectors. The XFP optics in the OC-192/STM-64 XFP card support a provisionable automatic laser shutdown feature (ITU G.664) to turn off the transmitting laser in the event of a fiber failure on the span. The XFP optical parameters, including laser bias current, optical transmit power, and optical receive power will be available through Cisco Transport Controller and TL1 to enable simplified troubleshooting and advanced warning of potential impending issues, using user-configurable high and low threshold crossing alerts (TCAs). The XFP cage is angled down relative to the faceplate to reduce bend-induced stresses on the optical fibers attached to the XFP.
A Cisco ONS 15454 MSPP equipped with the OC-192/STM-64 XFP cards provides application solutions for both service provider and enterprise customers, including the following:

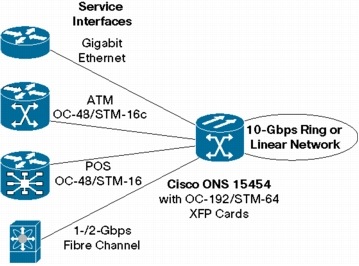

Application Solution: High-Capacity Multiservice Transport Network-The OC-192/STM-64 XFP card provides the bandwidth to transport many high-speed services over a single pair of optical fibers (Figure 2).
High-Capacity Multiservice Transport over OC-192/STM-64
The Cisco ONS 15454 also supports lower-speed service interfaces as well, starting at 1.5 Mbps/2.0 Mbps (DS-1/E1), Ethernet, Fast Ethernet, and others to offer a complete multiservice transport solution.
Key Features and Benefits
Table 1 outlines some of the key features and benefits of the OC-192/STM-64 XFP card.
Table 1. Features and Benefits
More cost-effective sparing of XFPs versus fixed card alternatives. Suitable for all metro applications between central offices, colocation offices, or enterprise and campus facilities with span lengths from 2 km to 80 km. Allows common carrier card to support many user applications through plug-in devices and simplifies support for system changes.
Full complement of performance management features including 15-minute and 24-hour statistics, SONET/SDH alarms and conditions, threshold crossing alerts (TCAs), loopbacks, J0 section/regenerator section trace, and J1 path trace
Enhances network maintenance and troubleshooting activities.
SDH tunneling over SONET support
Allows transport for SDH terminal equipment over installed optical network.
User-defined automatic in-service (AINS) of ports
Allows service port and path to be created awaiting valid signal without creating invalid system alarms.
Telcordia Technologies OSMINE
Support for Telcordia TIRKS for both card and XFP optics in card.
The Cisco ONS 15454 OC-192/STM-64 XFP-Based Optics Card adds significant value to user networks by enhancing system flexibility and lowering operational costs.
Table 2 outlines the regulatory compliance specifications that are met by the OC-192/STM-64 XFP card.
Table 2. Regulatory Compliance
European Union (EU)
NEBS Telcordia Technologies GR-1089-CORE, Issue 3 (Level 3, Type 2 and Type 4)
IEC CISPR 22, CISPR 24
ICES-003, Issue 3, 1997
EU EN55024, EN55022
Resolution 237 (Brazil)
CSA CAN/CSA-C22.2 No. 950-95, 3rd Edition
NEBS Telcordia Technologies GR-1089-CORE, Issue 3, (Level 3, Type 2 and Type 4)
IEC 60950-1 / EN 60950-1, 1st edition
UL and cUL / CSA 60950-1, 1st edition
UL / CSA 60950-1 or IEC 60950-1 / EN60950-1
EN or IEC 60825-1
EN or IEC 60825-2
NEBS Telcordia Technologies GR-63-CORE, Level 3
ETS 300 019-2-1 (Storage, Class 1.1)
ETS 300 019-2-2 (Transportation, Class 2.3)
ETS 300 019-2-3 (Operational, Class 3.1E)
Telcordia Technologies GR-253-CORE (OC-192)
European Union G.707, G.825, G.957
Japan JATE Technical Requirements (Green Book)
AT&T Network Equipment Development Standards (NEDS) Generic Requirements
Verizon TCG Checklist
Table 3 outlines the OC-192/STM-64 XFP product specifications. Table 4 outlines the optical specifications for the XFP modules.
Table 3. Product Specifications
VT-1.5, VT-2, STS-1, and STS-Nc; where N = 3, 6, 9, 12, 18, 24, 36, 48, 192
VC-11, VC-12, VC-3, VC-4, and VC-4-Nc; where N = 2, 3, 4, 8, 16, 64
Signal fail (SF)
Operational state (bi-color)
Operational, ready to carry traffic
Line condition present
Card Power Draw, Maximum (with XFP)
Standard (with CWDM and DWDM XFP optics)
-23 to 131°F (-5 to 55°C)
5 to 95% noncondensing
-40 to 185°F (-40 to 85°C)
5 to 95% noncondensing
1 card slot
Weight (Including XFP)
1.78 lbs. (without XFP)
Table 4. XFP Optical Specifications
Attenuation Range (dB)
Transmit Output Power, Minimum (dBm)
Transmit Output Power, Maximum (dBm)
Receiver Sensitivity, Minimum1 (dBm)
Receiver Sensitivity, Maximum (dBm)
Dispersion Tolerance (ps/nm)
Optical Power Penalty, Maximum (dB)
1. Bit Error Rate = 1x10-12
2. ITU-T G.959.1 long-haul specification
Table 5 outlines the minimum requirements to operate the OC-192/STM-64 XFP card.
Table 5. System Requirements
Cisco ONS 15454 SONET/ANSI System
Cisco ONS 15454 SDH/ETSI System
Timing, communications, and control card
TCC2 or TCC2P
TCC2 or TCC2P
Cisco ONS 15454 system software
Release 6.0 or greater
Release 6.0 or greater
Slots 5, 6, 12, 13
Slots 5, 6, 12, 13
To place an order, visit the Cisco Ordering Home Page. Table 6 outlines the orderable part numbers for the OC-192/STM-64 XFP card. Table 7 outlines the orderable part numbers for the XFP modules that are qualified for the OC-192/STM-64 XFP card.
Table 6. Ordering Information
OC-192 XFP-based multiple-reach optics card, 1 ckt., SONET systems
STM-64 XFP-based multiple-reach optics card, 1 ckt., SDH systems
