Data Sheet

The Cisco® ML-Series interface cards provide exceptional Ethernet switching and IP routing capabilities for multiservice provisioning platforms (MSPPs). Cisco Systems® has coupled the market-leading optical capabilities of the Cisco ONS 15454 MSPP with proven Cisco IOS® Software to deliver profitable Metro Ethernet and IP solutions over a multiservice network architecture.

BACKGROUND

Information connectivity is becoming ubiquitous as businesses and consumers look for ways to improve their productivity. Access to this information can be over a wide variety of networks, including the many forms of wire-line (DSL, T1, E1, dialup, cable modem, fiber to the premises, and so on) and wireless (cell, 802.11, WiMAX, and so on) vehicles. The main benefit of this information connectivity is user access to a wide variety of information that can be located anywhere in the world.
Ethernet technology has become the protocol of choice for the LAN environment. It is also becoming increasingly commonplace in metropolitan-area networks (MANs) with the release of Fast Ethernet and Gigabit Ethernet (GE) interfaces on DSL access multiplexers (DSLAMs), fixed wireless, and private branch exchanges (PBXs). Thus, service providers are creating tariffs to efficiently interconnect to and transport users' data traffic using Ethernet handoffs, and they must deploy metropolitan (metro) transport equipment that will permit them to deliver these services cost-effectively and with the reliability required by their service-level agreements (SLAs). Although Ethernet-based services are growing, they are still not the dominant share of the market demand. Therefore, the service provider's metro networking equipment must support both traditional time-division multiplexing (TDM) services as well as newer Ethernet services without a major upgrade - this explains why the multiservice provisioning platform has taken hold in the metro marketplace.

PRODUCT OVERVIEW

The Cisco ML-Series cards for the Cisco ONS 15454 MSPP (Figure 1) are industry-leading Ethernet and IP switching modules for integration into a SONET/SDH optical transport platform. The cards extend the multiservice capabilities and flexibility offered by the Cisco ONS 15454 platform.

Figure 1. Cisco ML-Series Cards for Cisco ONS 15454 MSPP

Through the integration of the industry's most widely deployed and tested Ethernet and IP technology, Cisco IOS Software, with the industry's most successful multiservice provisioning platform, the Cisco ONS 15454, service providers and enterprise customers are provided with a single integrated platform for delivering true carrier-class Metro Ethernet, TDM, and optical transport services and applications.
The Cisco MultiLayer-Series (ML-Series) for the Cisco ONS 15454 consists of three interface cards: the Cisco MultiLayer (ML) 100X-8, MultiLayer (ML) 100T-12, and MultiLayer (ML) 1000-2 models. The Cisco ML100X-8 is an 8-port, 100-Mbps Ethernet interface card that supports the 100BASE-FX short-reach Small Form-Factor Pluggable (SFP) and 100BASE-LX long-reach SFP. The Cisco ML100T-12 is a 12-port, 10/100-Mbps Ethernet module. The Cisco ML1000-2 is a 2-port Gigabit Ethernet module using SFP optical interface modules. The Cisco ML-Series cards use a common hardware and software base, providing the same Layer 2 and Layer 3 feature set. These single-slot cards can be installed in any of the 12 multiservice interface slots in a Cisco ONS 15454 shelf assembly and can be mixed and matched within the assembly or network to provide flexible architectures to meet the user's application needs. Each card has virtual interfaces that are mapped to SONET/SDH optical interfaces for transport with other services between network elements over 155-Mbps to 10-Gbps optical line rates. Packet transport bandwidth over the chosen optical interface is provisionable, allowing efficient matching and scalability of ingress to transport traffic requirements, based upon oversubscription requirements.
The Cisco ML-Series cards support proprietary Resilient Packet Ring (SW-RPR), which provides increased bandwidth usage over a SONET/SDH ring. SW-RPR features also include shortest-path selection and spatial reuse for bridging. The Cisco ML-Series offers standards-based 802.17b RPR. In addition to the features of SW-RPR, 802.17b RPR benefits include steering protection and standardized ring fairness.
The Cisco ML-Series cards offer an advanced set of quality-of-service (QoS) features to allow the network administrator to fine-tune the network and create and support a wide range of SLAs. Some of the features and benefits are listed in Table 1.

Table 1. Features and Benefits for QoS

Feature

Benefit

Flexible packet classification

Classifies packets based on input port, VLAN, class of service (CoS), IP Precedence, or IP-differentiated services code points (DSCPs), allowing the service provider to tailor packet handling based on the user's traffic

Policing

Through highly granular per-flow and input port policing, allows the service provider to contain a user to the SLA bandwidth requirements, reducing the likelihood that a user will flood the network

Priority marking

Provides a mechanism, when using either .1Q or Q, in Q features for a service provider to reclassify (mark) a packet with a wrapper Ethernet 802.1p value, allowing downstream nodes to treat the packet differently and transparently transporting the original CoS bits of the packet across a service provider network

Per-class queuing

Provides fair access to excess network resources, allows allocation of bandwidth to support SLAs, and helps ensure that applications with high network resource requirements are adequately serviced

Weighted Deficit Round-Robin (WDRR) scheduling

Adds weighting capabilities to deficit round-robin scheduling to provide fair access to excess bandwidth as well as throughput to each class

The Cisco ML-Series cards offer important advantages in service provider network architectures, permitting new, profitable services as well as simplifying service activation. Some of these capabilities are outlined in Table 2.

Table 2. Features and Benefits for Service Provider Network Architectures

Feature

Benefit

Admission control

During service provisioning, the Cisco ML-Series card verifies that QoS resources have not been accidentally overcommitted.

Network scaling and flexibility

The Cisco ML-Series cards support VLAN-ID translation. This capability allows the service provider to change the ingress VLAN tags (802.1Q or 802.1Q in .1Q) to avoid VLAN collisions within the network (resulting from the use of the same VLAN ID by different customers) and translate them back at the egress of the network.

Network resiliency

Support for RPR or SONET/SDH provides resiliency of less than 50 ms for data services, depending on the service offering.

Efficient bandwidth use

The use of RPR technology allows full use of the network bandwidth during normal network operation of a properly designed network.

SLA management

The Cisco IOS Software IP SLA tool monitors packet latency, jitter, and loss over metro optical networks or a combination of metro optical and IP and Multiprotocol Label Switching (MPLS) networks. The IP SLA tool can be used with Cisco IOS Software devices and other vendor devices. Comprehensive performance management statistics are provided at the interface or subinterface level (VLAN) for proactive SLA tracking and network problem identification.

Packet over SONET/SDH (PoS) virtual ports support

PoS support allows the service provider to transport Ethernet traffic originating on a Cisco ML-Series card over an optical interface and terminate the signal on an optical port of existing Layer 2 and Layer 3 equipment, eliminating the need to bookend the Cisco ML-Series cards within the network.

Reduced interface costs

The use of the Cisco ML-Series cards and shared bandwidth transport allows the service provider to benefit from statistically multiplexing the edge traffic before handing off a more efficiently filled interface to the core router or switch.

APPLICATIONS

The Cisco ONS 15454 ML-Series cards provide the flexibility to meet the demands of a wide variety of network applications found within many service providers' transport networks. The following figures show a few of the applications that can be cost-effectively deployed using the Cisco ONS 15454 with the Cisco ML-Series cards.

Ethernet Service Delivery

The Cisco ONS 15454 with either the Cisco ML100X-8 or ML1000-2 Cisco ML-Series cards can be used for efficient 100BASE-FX and Gigabit Ethernet service delivery over fiber to better reach customers from a central office or point of presence (POP), refer to Figure 2. In addition, when the Cisco ONS 15454 with the Cisco ML-Series cards is placed in a telco wiring closet in the basement of a customer building, fiber from the riser can be used to more efficiently deliver 100BASE-FX and Gigabit Ethernet services. Customers can use the Cisco ML-Series cards to offer a wide range of Ethernet services with Layer  2 switching, RPR, and advanced QoS capabilities.

Figure 2. Ethernet Service Delivery

Interoffice Facility Networks

All traditional local exchange carriers (LEC) have used SONET/SDH technology to interconnect their central offices. With the explosion of data-related services and the growth of termination equipment with integrated Ethernet interfaces and protocols, these carriers increasingly need to transport data traffic more efficiently. Using the Cisco ML-Series cards to interconnect data traffic between the remote terminal equipment and the central core router provides transport bandwidth efficiency by statistically multiplexing and aggregating traffic for efficient router port use, reducing the quantity of core router interfaces. Management benefits are garnered through the integration of data switching into the optical platform, reducing the number of data-communication-network (DCN) ports. Figure 3 shows an interoffice facility (IOF) transport network.

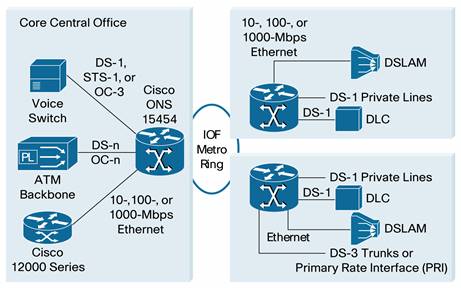

Figure 3. IOF Transport Network

Metro Data Services Network

Metropolitan networks deliver services to end-user customers. A metropolitan network that supports a wide range of service capabilities allows the service provider to offer a tariff mix to meet customer needs. The Cisco ONS 15454 provides the foundation for building an advanced multiservice network over an extremely reliable SONET/SDH infrastructure (refer to Figure 4). Data services delivery, such as transparent LAN services (TLS) or Internet access, are supported by the Cisco ONS 15454 ML-Series cards through the use of 802.1Q in the .1Q VLAN protocol, VLAN translation, input rate limiting, and advanced QoS features, including queue bandwidth control and traffic priority marking. These flexible features allow the service provider to build, control, and guarantee the delivery of the SLAs offered for each service type. To help service provider technicians manage and use the network, the Cisco ML-Series cards integrate Cisco IOS Software, the industry's best-known Layer 2 and Layer 3 technology, reducing training time and cost.

Figure 4. Metro Data Services Network TLS

Cable Television Data Transport

Cable television operators are experiencing rapid growth of subscribers to their data services. The Cisco ONS 15454 with Cisco ML-Series cards provides a solution to efficiently transport the increasing data on cable television networks. The Cisco solution allows the cable operator to aggregate data traffic, using the Cisco ML-Series cards, from multiple secondary headends and statistically multiplex it onto shared transport bandwidth for handoff to a core router at the master headend (Figure 5). Cable modem traffic is bursty, and the sharing of bandwidth allows better use of optical transport resources compared to dedicated point-to-point connections. The advanced QoS capabilities of the Cisco ML-Series cards allow the cable network engineer to design the network to support the committed information rate (CIR) necessary for the types of services being offered, such as Web browsing, VoIP, and video on demand (VoD). The Cisco ML-Series cards allow the user to build traffic queues and associate priority and bandwidth with each queue type, allowing the transport demands of each service to be met. The Cisco ONS 15454 platform supports in-service bandwidth upgrades and allows the transport network to scale from 155 Mbps to 320 Gbps using dense wavelength-division multiplexing (DWDM) so that growth demands should be easily met.

Figure 5. Cable Television Data Networking

THE CISCO ADVANTAGE

The Cisco ONS 15454 MSPP solution offers significant advantages over traditional optical network elements combined with external Layer 2 and Layer 3 devices. These advantages are summarized as follows.

Integrated Multiservice Capabilities

The Cisco ONS 15454 MSPP solution supports traditional TDM-based, private-line services (for example, DS-1/E-1, DS-3/E-3, and OC- n/STM- n) along with advanced Ethernet-based services, simplifying service provider migration to new data tariffs and interface flexibility for enterprise users.

Flexible Architectures

The Cisco ONS 15454 platform supports two- or four-fiber bidirectional line switched ring (BLSR) or multiplex section-shared protection ring (MS-SPR), unidirectional path switched ring (UPSR) or multiplex section protection (MSP), linear automatic protection switching (APS) or subnetwork connection (SNC), and path-protected mesh networking (PPMN) architectures. The Cisco ML-Series services cards can be deployed over any of these architectures and protection schemes, allowing the service provider to build a network that meets the customer's SLA requirements. The platform facilitates in-service optical bandwidth expansion using card upgrades, allowing customers to expand their networks to match demand without major replacement, and allowing network expenditures to better match revenue and bandwidth requirements.

Efficient Network Management

Management is simplified through a common DCN network connection and user access for Ethernet and optical functions.

Unified Software Load

One software load supports transport and data capabilities, eliminating unnecessary guesswork from ordering, installation, and upgrades.

Familiar, Proven Cisco IOS Software Technology

The Cisco ML-Series cards incorporate Cisco IOS Software technology, the leading Ethernet and IP delivery vehicle. Most data networking professionals are well trained on Cisco IOS Software, reducing the need for additional training and improving service deployment timelines.
The Cisco ONS 15454, the industry-leading metro optical transport platform, delivers supercharged SONET/SDH transport, integrated optical networking, outstanding multiservice interfaces, and competitive economic benefits.

CISCO ML-SERIES ETHERNET CARDS FOR CISCO ONS 15454 FEATURES AND SPECIFICATIONS

Compact Design

• Single-width card slot design for increased shelf flexibility and scalability

• Up to 12 Cisco ML-Series cards per shelf assembly

Data Architecture Options

• Hub and spoke

• Point to point

• RPR with optional Dual RPR Interconnect (DRPRI) or Redundant Interconnect for fail-safe ring-to-ring networking

• 802.17b standard RPR with optional Redundant Interconnect for fail-safe ring-to-ring and ring-to-node networking

Optical Transport Options

• UPSR or subnetwork connection protection (SNCP)

• Two-fiber and four-fiber BLSR or MS-SPR

• APS or MSP (1 + 1 unidirectional or bidirectional)

• Path-protected mesh network (PPMN)

• Unprotected (0 + 1)

Network Architecture Flexibility

• Ring

• Multiple rings

• Linear add-drop multiplexer

• Terminal

REGULATORY COMPLIANCE

Table 3 summarizes regulatory compliance for the Cisco ONS 15454 MSPP solution.

Table 3. Regulatory Compliance

Countries

SONET System

• Canada
• USA
• Mexico
• Korea
• Japan
• EU

SDH System

• EU
• Australia
• New Zealand
• Singapore
• China
• Mexico
• Hong Kong
• Korea

EMC Emissions (Radiated, Conducted)

• ICES-003
• GR-1089-CORE
• 47CFR15
• VCCI V-3/2000.04
• CISPR24



• EN 300 386-TC
• EN50081-1
• EN55022
• AS/NZS3548, Amendment 1 + 2 1995

EMC Immunity

• GR-1089-CORE
• CISPR24
• EN50082-2



• EN300-386-TC
• EN55024

Safety

• CAN/CSA-C22.2 No. 60950-00 Third Ed., 12/ 1/2002
• GR-1089-CORE
• GR-63-CORE
• TS001



• UL 1950 Third Ed., 12/1/2000
• EN60950 (to A4)
• IEC60950/EN60950, 3rd Ed.
• AS/NZS3260 Supplement 1, 2, 3, 4, 1997

Environmental

• GR-63-CORE
• AT&T Network Equipment Design Specification



• ETS 300-019 (Class 3.1E) (Note 2)

Structural Dynamics

• GR-63-CORE
• AT&T Network Equipment Design Specification



• ETS 300-019 (Class 3.1E) (Note 2)

Power and Grounding

• SBC (TP76200MP)
• ETS 300-132-1 (DC power)



• ETS 300-253 (grounding)

SYSTEM REQUIREMENTS

Table 4 lists system requirements for the Cisco ONS 15454 MSPP solution.

Table 4. System Requirements

Component

Cisco ONS 15454 SONET

Cisco ONS 15454 SDH

Processor

TCC+or TCC2

TCC2

Cross-connect

Cisco 15454 XC1, XC-VT, XC-10G, or XC-VXC-10G

Cisco 15454 XC-10G, XC-VXL-10G, XC-VXL-2.5G, or XC-VXC-10G

Shelf assembly

Network Equipment Building Standards (NEBS), NEBS3E, and ANSI versions with appropriate fan tray assembly

European Telecommunications Standards Institute (ETSI) version with SDH 48V fan tray assembly

System software

Cisco ML100T-12 and ML1000-2: Revision 4.0.0 or greater

Cisco ML100X-8: Revision 6.0.0 or greater

Cisco ML100T-12 and ML1000-2: Revision 4.0.0 or greater

Cisco ML100X-8: Revision 6.0.0 or greater

Slot compatibility

Cisco 15454 XC and XC-VT: Slots 5, 6, 12, and 13
Cisco 15454 XC-10G and XC-VXC-10G: Slots 1 to 6 and 12 to 17

Cisco 15454 XC-10G, XC-VXL-2.5G, XC-VXL-10G, and XC-VXC-10G: Slots 1 to 6 and 12 to 17

1. The Cisco ML100X-8 card is not compatible with the Cisco 15454 XC cross-connect.

SPECIFICATIONS

Table 5 lists the specifications for the Cisco ML-Series cards.

Table 5. Specifications for Cisco ML-Series Cards

Attribute

Cisco ML100T-12 and ML100X-8

Cisco ML1000-2

Client Interfaces

Ports


• Card

Cisco ML100T-12: 12 RJ-45

Cisco ML100X-8: Eight SFPs (100BASE-FX or 100BASE-LX)

Two SFP slots (SX or LX SFP)

• Shelf (maximum 12 cards)

Up to 144

Up to 24

• Rack (maximum four shelves)

Up to 576

Up to 96

Speed

Cisco ML100T-12: 10/100 Mbps

Cisco ML100X-8: 100 Mbps

1000 Mbps

Autonegotiation of duplex mode

Cisco ML100T-12: Yes

Cisco ML100X-8: Fixed at 100 Mbps

Yes

Flow control pause

Yes

Yes

SONET/SDH Virtual Interfaces

Ports

Two

Two

Circuit size

SONET: STS-1, -3c, -6c, -9c, -12c, and -24c (virtual concatenation: STS-1-2v, STS-3c-2v, and STS-12c-2v)


SDH: VC-3, -4, -4-2c, -4-3c, -4-4c, and -4-8c (virtual concatenation: VC-3-2v, VC-4-2v, and VC-4-4c-2v)

SONET: STS-1, -3c, -6c, -9c, -12c, and -24c
(virtual concatenation: STS-1-2v, STS-3c-2v, and STS-12c-2v)

SDH: VC-3, -4, -4-2c, -4-3c, -4-4c, and -4-8c (virtual concatenation: VC-3-2v, VC-4-2v, and VC-4-4c-2v)

Maximum card bandwidth

SONET: STS-48

SDH: VC-4-16

SONET: STS-48

SDH: VC-4-16

Encapsulation

Generic framing procedure framing (GFP-F) and virtual concatenation (VCAT)

Cisco High-Level Data Link Control (HDLC)

Point-to-Point Protocol (PPP) (RFC 2615) and Bridge Control Protocol (BCP) (RFC 2878)

LAN extension (LEX) (Cisco G-Series compatible)

GFP-F and VCAT

Cisco HDLC

PPP (RFC 2615) and BCP (RFC 2878)

LEX (Cisco G-Series compatible)

Protocols

Layer 3 switching

IP switching, static routes, Routing Information Protocol Version 2 (RIPv2), Enhanced Interior Gateway Routing Protocol (EIGRP), Open Shortest Path First (OSPF), Border Gateway Protocol (BGP), Intermediate System-to-Intermediate System (IS-IS), Hot Standby Router Protocol (HSRP), VPN routing and forwarding (VRF-lite with OSPF, BGP, and RIP), QoS, IP Multicast (Protocol Independent Multicast dense mode [PIM-DM], PIM sparse mode [PIM-SM], PIM-SM-DM, Internet Group Management Protocol [IGMP], Source Specific Multicast [SSM], and Multiprotocol BGP [MBGP])

Layer 2 switching

Ethernet switching and bridging (802.1D), VLAN (802.1Q), priority (802.1p), spanning tree (802.1D), rapid spanning tree (Rapid Spanning Tree Protocol [RSTP], 802.1w), flow control (802.3x), Cisco Fast EtherChannel® technology, Cisco Gigabit EtherChannel technology, PoS Channel (PEC), 802.1Q in 802.1Q, per VLAN rapid spanning tree (PVRSTP) switching

QoS

Classifiers (ingress: 254 classes)

IP Precedence

Input interface (port)

Bridge group (VLAN)

Priority (802.1p)

DSCPs

IP Precedence

Input interface (port)

Bridge group (VLAN)

Priority (802.1p)

DSCPs

Policing

1-Mbps rate limiting (sustained rate and burst)

Dual CIR and peak information rate (PIR) leaky bucket (port)

Admission control to prevent overcommitment

1-Mbps rate limiting (sustained rate and burst)

Dual CIR and PIR leaky bucket (port)

Admission control to prevent overcommitment

Queuing

400+ scheduling queues

Load and committed bandwidth-based buffer control, 4000 packet buffers, and tail drop

Low-latency queues

400+ scheduling queues

Load and committed bandwidth-based buffer control, 4000 packet buffers, and tail drop

Low-latency queues

Schedulers

WDRR

WDRR

Cisco Modular QoS command-line interface (CLI)

Supported

Supported

Statistics

Ethernet ports

• Receive

Bytes, packets, unicast packets, multicast packets, broadcast packets, giants, frame-check-sequence (FCS) errors, runts, jabber, and alignment errors

• Transmit

Bytes, packets, unicast packets, multicast packets, broadcast packets, giants, and collisions

Virtual ports (PoS)

• Receive

Pre-HDLC bytes, post-HDLC bytes, packets, short, runts, long, cyclic-redundancy-check (CRC) errors, input drop packet, and input abort packet

• Transmit

Pre-HDLC bytes, post-HDLC bytes, packets, and port drop counter

Security

Access control list (ACL)

Standard IP on input and output of routed packets

Standard IP on input of bridged packets

Extended IP to limit control-plane access

4000 entries per card

Ethernet

Bridge groups (card)

255

255

Supported 802.1Q VLAN range

1 to 4095

1 to 4095

Hierarchical VLANs (.1Q in .1Q)

255

255

Spanning-tree instances (802.1D)

255

255

Per-VLAN rapid spanning tree (PVRST) instances

255

255

Maximum-transmission-unit (MTU) sizes

64 to 9000 bytes

64 to 9000 bytes

Link aggregation

• Client interfaces
• Virtual interfaces (Pos channel)

Cisco Fast EtherChannel links (maximum four links per group), 2 ports per link or 1 link

Cisco Gigabit EtherChannel links (maximum 2 links per group), 2 ports per link or 1 link

Cable

Cisco ML100T-12: Shielded twisted-pair (STP) Ethernet cable, RJ-45 plug connector (NEBS locations)

Cisco ML100X-8: Optical fiber, LC connector, single- or multimode (refer to Table 6)

Optical fiber, LC connector, single- or multimode (refer to Table 6)

Performance

Layer 2 and Layer 3 switching

Up to 5.0 Mbps

Up to 5.0 Mbps

Management Interfaces

Data

Cisco IOS Software CLI through console port, Telnet, configured user (client) port, or Cisco transport controller window Simple Network Management Protocol (SNMP) traps

Transport (SONET/SDH)

Cisco transport controller or Transaction Language One (TL-1) using Telnet or serial port SNMP traps and TL-1 autonomous messages

Cisco ML-Series card

• Console port



RJ-11 jack and data communications equipment (DCE)



RJ-11 jack and DCE

TCC card

• LAN access and Cisco transport



RJ-45 jack and 10BASE-T



RJ-45 jack and 10BASE-T

Controller

• Serial port



DB-9 jack



DB-9 jack

Security

Multilevel access control, data, and transport planes

Card LEDs

• Failure (FAIL)
• Status (ACT)

Port LEDs (per port)

• Link (LINK)
• Activity (ACT)



Red

Green



Green

Amber (flash)



Red

Green



Green

Amber (flash)

Performance Monitoring

SONET (virtual ports)

Path terminating equipment (PTE); the following SONET/SDH path alarms are supported:

• Alarm indication signal (AIS)
• Loss of pointer (LoP)
• Unequipped (UNEQ)
• Remote failure indicator (RFI)
• Trace identifier mismatch (TIM)
• Bit error rate signal fail/signal degrade (SF/SD)
• Path trace (J1 byte) - Transmit and receive

SNMP traps

Spanning Tree Protocol traps: Bridge-MIB (RFC 1493)

Authentication trap: RFC 1157

Link-up and Link-down traps for Ethernet ports: IF-MIB (RFC 1573) and SONET/SDH MIB (RFC 2558)

Power

Card

53W

49W

Physical

Size

Single card slot

12.65 H x 0.72 W x 9.00 D (in.)

32.13 H x 1.83 W x 22.86 D (cm)

Single card slot

12.65 H x 0.72 W x 9.00 D (in.)

32.13 H x 1.83 W x 22.86 D (cm)

Weight

2.59 lb (1.17 kg)

2.48 lb (1.12 kg)

Operating Environment

Temperature

23 to 131°F (-5 to 55°C)

23 to 131°F (-5 to 55°C)

Humidity

5 to 95%, noncondensing

5 to 95%, noncondensing

Storage Environment

Temperature

-40 to 185°F (-40 to 85°C)

-40 to 185°F (-40 to 85°C)

Humidity

5 to 95%, noncondensing

5 to 95%, noncondensing

ORDERING INFORMATION

Table 6 lists ordering information for the Cisco ONS 15454 MSPP solution.

Table 6. Ordering Information

Part Number

Description

15454-ML100X-8

100 Mbps BASE-FX/LX Ethernet card, eight SFP connections, Layer 2 and Layer 3 switching, SONET (ANSI) system

15454E-ML100X-8

100 Mbps BASE-FX/LX Ethernet card, eight SFP connections, Layer 2 and Layer 3 switching, SDH (ETSI) system

ONS-SE-100-LX10

SFP - 100-Mbps Long Reach - 1310 nm - SM - LC, EXT-TEMP

ONS-SE-100-FX

SFP - 100-Mbps Short Reach - 1310 nm - MM - LC, EXT-TEMP

15454-ML100T-12

10/100-Mbps Ethernet card, 12 ports, RJ-45, Layer 2 and Layer 3 switching, SONET (ANSI) system, includes console cable

15454E-ML100T-12

10/100-Mbps Ethernet card, 12 ports, RJ-45, Layer 2 and Layer 3 switching, SDH (ETSI) system, includes console cable

15454-ML1000-2

1000-Mbps Ethernet card, 2 SFP slots, Layer 2 and Layer 3 switching, SONET (ANSI) system

15454E-ML1000-2

1000-Mbps Ethernet card, 2 SFP slots, Layer 2 and Layer 3 switching, SDH (ETSI) system

15454-CONSOLE-02

Cable, console, Cisco ML-Series, RJ-11 plug to RJ-45 jack, 22 in. (55.9 cm) long, SONET (ANSI) system

15454E-CONSOLE-02

Cable, console, Cisco ML-Series, RJ-11 plug to RJ-45 jack, 22 in. (55.9 cm) long, SDH (ETSI) system
