Cable and Port Specifications

This appendix provides the cable and port specifications, and includes the following sections:

•Cables and Adapters Provided

•Console Port

•MGMT 10/100/1000 Ethernet Port

•Supported Power Cords and Plugs

Cables and Adapters Provided

The Cisco MDS 9250i switch accessory kit includes the following items:

•RJ-45 rollover cable

•RJ-45/DSUB F/F adapter—RJ-45 to DB-25 female DTE adapter (labeled "Terminal")

•RJ-45/DSUB R/P adapter—RJ-45 to DB-25 male DCE adapter (labeled "Modem")

Note Additional cables and adapters can be ordered from your customer service representative.

Note If you purchased Cisco support through a Cisco reseller, contact the reseller directly. If you purchased support directly from Cisco Systems, contact Cisco Technical Support at this URL: http://www.cisco.com/en/US/support/tsd_cisco_worldwide_contacts.html

Console Port

The console port is an asynchronous RS-232 serial port with an RJ-45 connector. You can use the RJ-45 rollover cable and the RJ-45/DSUB F/F adapter or the RJ-45F PC terminal adapter to connect the console port to a computer running terminal emulation software.

Console Port Pinouts

Table C-1 lists the pinouts for the console port on the Cisco MDS 9250i switch.

Table C-1 Console Port Pinouts

Pin

Signal

1¹

RTS

2

DTR

3

TxD

4

GND

5

GND

6

RxD

7

DSR

8

CTS

¹Pin 1 is connected internally to pin 8.

Connecting the Console Port to a Computer Using the DB-25 Adapter

You can use the RJ-45 rollover cable and RJ-45/DSUB F/F adapter (labeled "Terminal") to connect the console port to a computer running terminal emulation software. Table C-2 lists the pinouts for the console port, the RJ-45 rollover cable, and the RJ-45/DSUB F/F adapter.

Table C-2 Port Mode Signaling and Pinouts with the DB-25 Adapter

Console Port

RJ-45 Rollover Cable

RJ4-5/DSUB F/F Terminal Adapter

Console

Device

Signal

RJ-45 Pin

RJ-45 Pin

DB-25 Pin

Signal

RTS

1

8

5

CTS

DTR

2

7

6

DSR

TxD

3

6

3

RxD

GND

4

5

7

GND

GND

5

4

7

GND

RxD

6

3

2

TxD

DSR

7

2

20

DTR

CTS

8

1

4

RTS

MGMT 10/100/1000 Ethernet Port

The MGMT 10/100/1000 Ethernet port is an Ethernet port with an RJ-45 connector. You can use a modular, RJ-45, straight-through UTP cable to connect the management port to an external hub, switch, or router (see Figure C-1).

Figure C-1 RJ-45 Interface Cable Connector

1

Pin 1

2

Pin 8

Table C-3 lists the connector pinouts and signal names for a 10/100/1000BASE-T management port (MDI) cable.

Note The RJ-45 interface only uses pins 1, 2, 3, and 6.

Table C-3 10/100/1000BASE-T Management Port Cable Pinout (MDI)

Pin

Signal

1

TD+

2

TD-

3

RD+

6

RD-

4

Not used

5

Not used

7

Not used

8

Not used

Figure C-2 shows a schematic of the 10/100/1000BASE-T cable required to connect the management port to a switch or hub (not provided with the switch).

Figure C-2 Twisted-Pair 10/100/1000BASE-T Cable Schematic

Supported Power Cords and Plugs

Each power supply has a separate power cord. Standard power cords or jumper power cords are available for connection to a power distribution unit having IEC 60320 C19 outlet receptacles.

Power Cords

The standard power cords have an IEC C19 connector on the end that plugs into the switch. The optional jumper power cords have an IEC C19 connector on the end that plugs into the switch, and an IEC C20 connector on the end that plugs into an IEC C19 outlet receptacle.

Note Only the regular power cords or jumper power cords provided with the switch are supported.

Table C-4 lists the power cords for the Cisco MDS 9250i switch and provides their lengths in feet and meters.

Table C-4 Power Cords for the MDS 9250i Switch

Description

Length

Feet

Meters

MDS 9250i - 300W Power Supply

Power Cord, 250VAC 20A NEMA, 6-20 Plug, USA

13.12

4

Power Cord, 250VAC 20A NEMA L6-20 Twist Lock Plug, USA

13.58

4.14

Power Cord, 250VAC 16A CEE 7/7 Plug, EU

13.12

4

Power Cord, 250VAC 16A IEC 309 Plug, International

13.58

4.14

Power Cord, 250VAC 16A SEV 1011 Plug, Switzerland

8

2.44

Power Cord, 250VAC SABS 1661 Plug, South Africa

14

4.27

Power Cord, 250VAC 16A SI16S3 Plug, Israel

14

4.27

Power Cord 250VAC 16A, Src Plug EL224-C19, Brazil,

14

4.27

Power Cord 250VAC 16A, Src Plug IR2073-C19, Argentina,

14

4.27

Power Cords

The standard power cords have an IEC C15 connector on the end that plugs into the switch. The optional jumper power cords have an IEC C15 connector on the end that plugs into the switch, and an IEC C14 connector on the end that plugs into an IEC C13 outlet receptacle.

Note Only the standard power cords or jumper power cords provided with the switch are supported.

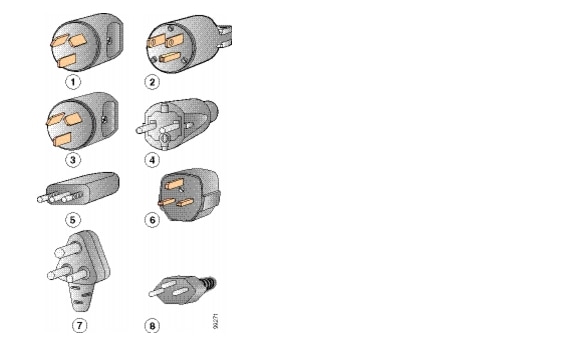

Figure C-3

300-W Power Supply Plugs

300-W Power Supply Plugs

1

Argentina,
IRAM 2073 plug (10 A)

5

Italy
1/3G plug, CEI 23-16 (10 A)

2

North America
NEMA 5-15P plug (15 A)

6

United Kingdom
BS89/13, BS 1363/A
(13 A; replaceable fuse)

3

Australia, New Zealand
SAA/3 plug, AS/NZS 3112-1993 (10 A)

7

South Africa
EL 208, SABS 164-1 (10 A)

4

Europe
VIIG Plug, CEE (7) VII (16 A)

8

Switzerland
12G SEV 1011 (10 A)
