Installing ONS 15454 SDH TCC-I Cards
TCC-I Timing Communication and Control Card Description
Verify Successful Turn Up of the TCC-I Card
Obtaining Technical Assistance
Installing ONS 15454 SDH TCC-I Cards
Product Name: 15454E-TCC-I=
This document contains a description of TCC-I card features, installation procedures, removal instructions, and technical specifications. Use this document in conjunction with the Cisco ONS 15454 SDH Installation and Operations Guide and the Cisco ONS 15454 SDH Troubleshooting and Reference Guide when working with TCC-I cards.
This document contains the following sections:
•
"TCC-I Timing Communication and Control Card Description" section
•
"TCC-I Card Specifications" section
•
"Installation Procedures" section
•
"Related Documentation" section
•
"Obtaining Documentation" section
•
"Obtaining Technical Assistance" section
This document contains the following procedures:
"Installation Procedures" procedure
"Verify Successful Turn Up of the TCC-I Card" procedure
"Removal Procedures" procedure
"Initiate a Software Reset" procedure
Note
For information about circuits and card capacities, see the Cisco ONS 15454 SDH Installation and Operations Guide.
TCC-I Timing Communication and Control Card Description
The TCC-I performs system initialization, provisioning, alarm reporting, maintenance, diagnostics, IP address detection/resolution, SDH SOH Data Communications Channel (DCC) termination, and system fault detection for the ONS 15454 SDH. The TCC-I also ensures that the system maintains Stratum 3 E (G.813) timing requirements. Figure 1 shows the TCC-I faceplate and Figure 2 shows a block diagram of the card.
Figure 1 TCC-I faceplate

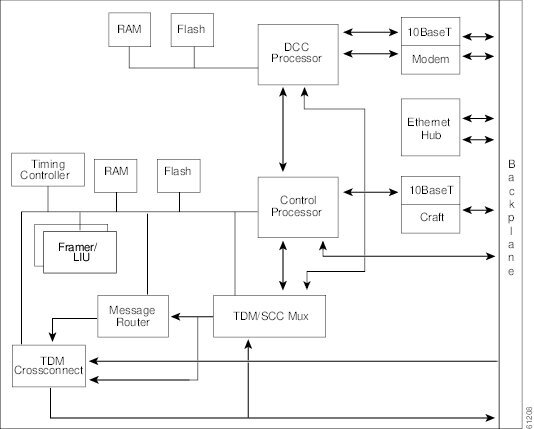

Figure 2 TCC-I block diagram
TCC-I Functionality
The TCC-I supports multichannel, high-level data link control (HDLC) processing for the DCC. Up to 48 DCCs can be routed over the TCC-I and up to ten DCCs can be terminated at the TCC-I (subject to available optical digital communication channels). The TCC-I selects and processes ten DCCs to facilitate remote system management interfaces.
The TCC-I also originates and terminates a cell bus carried over the module. The cell bus supports links between any two cards in the system, which is essential for peer-to-peer communication. Peer-to-peer communication accelerates protection switching for redundant cards.
The node database, IP address, and system software are stored in TCC-I non-volatile memory, which allows quick recovery in the event of a power or card failure.
The TCC-I performs all system-timing functions for each ONS 15454 SDH. The TCC-I monitors the recovered clocks from each traffic card and two BITS ports for frequency accuracy. The TCC-I selects a recovered clock, a BITS or an internal Stratum 3 E reference as the system-timing reference. You can provision any of the clock inputs as primary or secondary timing sources. A slow-reference tracking loop allows the TCC-I to synchronize with the recovered clock, which provides holdover if the reference is lost.
Install TCC-I cards in Slots 7 and 11 for redundancy. If the active TCC-I fails, traffic switches to the protect TCC-I. All TCC-I protection switches conform to protection switching standards when the BER counts are not in excess of 1*10-3 and completion time is less than 50 ms.
The TCC-I uses a 10Base-T LAN port for user interfaces, being led via the back plane to the port accessible on the front panel of the MIC-C/T/P unit.
Note
Cisco does not support operating the ONS 15454 SDH with only one TCC-I card. For full functionality and to safeguard your system, always operate in a redundant configuration.
Note
CTC software does not monitor for the presence or absence of FMECs unless the TCC-I(s) card has reached the active/standby state. During transitional states such as power-up or TCC-I reset CTC ignores the FMEC inventory displayed in node view.
Note
When a second TCC-I card is inserted into the shelf, it will synchronize its software, its backup software, and its database with the active TCC-I.
If its software version does not match the version on the active TCC-I, the newly inserted TCC-I will copy from the active TCC-I. This copying will take about 15 to 20 minutes.
If its backup software version does not match the version on the active TCC-I, the newly inserted TCC-I will copy the backup software from the active TCC-I. This copying, again, will take about 15 to 20 minutes.
Copying the database from the active TCC-I will take about 3 minutes.
So, depending on the software existing in the new TCC-I, booting it up will take between 3 and about 40 minutes.
TCC-I Card-Level Indicators
The TCC-I faceplate has eight LEDs. The first two LEDs are card-level indicators.
Network-Level Indicators
The TCC-I faceplate has eight LEDs. Six LEDs are network-level indicators.
.
TCC-I Card Specifications
•
CTC Software
–
Interface: 10 Base-T LAN (via back plane)
–
Access: on the MIC-A/P unit
•
Synchronization
–
Stratum 3 E, per ITU-T G.813
–
Free running access: accuracy + 4.6 ppm
–
Holdover Stability: 3.7 * 10-7 /day including temperature (<255 slips in first 24 hours)
–
Reference: External BITS, line, internal
•
Environmental
–
Operating Temperature: -5 to +45 degrees Celsius
–
Operating Humidity: 5 - 95%, non-condensing
–
Power Consumption: 9.82 W, 0.20 A (AMPS) @ -48V, 33.5 BTU/Hr.
•
Dimensions
–
Height: 321.3 mm, (12.650 in.)
–
Width: 18.2 mm, (0.716 in.)
–
Depth: 228.6 mm, (9.000 in.)
–
Depth with backplane connector: 235 mm, (9.250 in.)
–
Weight not including clam shell: 0.7 kg (1.5 lbs.)
•
Compliance
ONS15454 SDH cards, when installed in a system, comply with these standards:–
Safety: IEC 60950, EN 60950, UL 60950, CSA C22.2 No. 60950, TS 001, AS/NZS 3260
Installation Procedures
Use this section if you are installing or removing the TCC-I card for the first time. After you become familiar with ONS 15454 SDH card installation and boot up, use this section as a reference.
CautionAlways use the supplied electrostatic discharge (ESD) wristband when working with an ONS 15454 SDH. Plug the wristband cable into the ESD jack located on the lower right outside edge of the shelf assembly and ensure the shelf assembly is properly grounded.
CautionHazardous voltage or energy may be present on the backplane when the system is operating. Use caution when servicing.
Step 1
Open the card ejectors.
Step 2
Carefully insert the card into the guide rails of the desired slot (Figure 3). The TCC-I card has to be inserted into slot 7 or slot 11.
Step 3
Push the card into the connector on the back plane by closing the ejectors.
Figure 3 Installing cards in an ONS 15454 SDH
Card Turn Up
Follow the steps in this section to verify card turn up. If one or more of the Cisco Transport Controller (CTC) software screen conditions according to "Verify Successful Turn Up of the TCC-I Card" section are not met, re-install the card. Replace the unit if the faulty state persists.
Verify Successful Turn Up of the TCC-I Card
Step 1
Verify that power is applied to the shelf assembly.
Step 2
Verify that the TCC-I card has been installed in the correct slot (Slot 7 or slot 11).
Note
The TCC-I card takes several minutes to reboot and display the amber standby LED after rebooting.
Note
When a second TCC-I card is inserted into the shelf, it will synchronize its software, its backup software, and its database with the active TCC-I.
If its software version does not match the version on the active TCC-I, the newly inserted TCC-I will copy from the active TCC-I. This copying will take about 15 to 20 minutes.
If its backup software version does not match the version on the active TCC-I, the newly inserted TCC-I will copy the backup software from the active TCC-I. This copying, again, will take about 15 to 20 minutes.
Copying the database from the active TCC-I will take about 3 minutes.
So, depending on the software existing in the new TCC-I, booting it up will take between 3 and about 40 minutes.Step 3
Verify that the card appears in the correct slot on the CTC software screen.
Step 4
Verify that the card is white on the CTC software screen.
Step 5
Verify that the card is shown in Inventory on the CTC software screen.
Removal Procedures
Use this section if you are installing or removing the TCC-I card for the first time. After you become familiar with ONS 15454 SDH card installation and boot up, use this section as a reference.
CautionAlways use the supplied electrostatic discharge (ESD) wristband when working with an ONS 15454 SDH. Plug the wristband cable into the ESD jack located on the lower right outside edge of the shelf assembly and ensure the shelf assembly is properly grounded.
CautionHazardous voltage or energy may be present on the backplane when the system is operating. Use caution when servicing.
Note
To determine whether the TCC-I card is in active mode or standby mode, view it in the CTC software and position the cursor over the TCC-I card graphic to display the status.
Step 1
If you need to perform a card pull on an active TCC-I card, initiate a software reset on the active TCC-I card first. (See the "Initiate a Software Reset" section).
Step 2
When the TCC-I is in standby mode, unlatch the top and bottom ejector levers on the TCC-I card.
Step 3
Carefully remove the card from the shelf.
Initiate a Software Reset
Step 1
Log into the CTC software.
Step 2
Right-click the TCC-I card to reveal a pull-down menu.
Step 3
Click Reset Card. (See Figure 4).

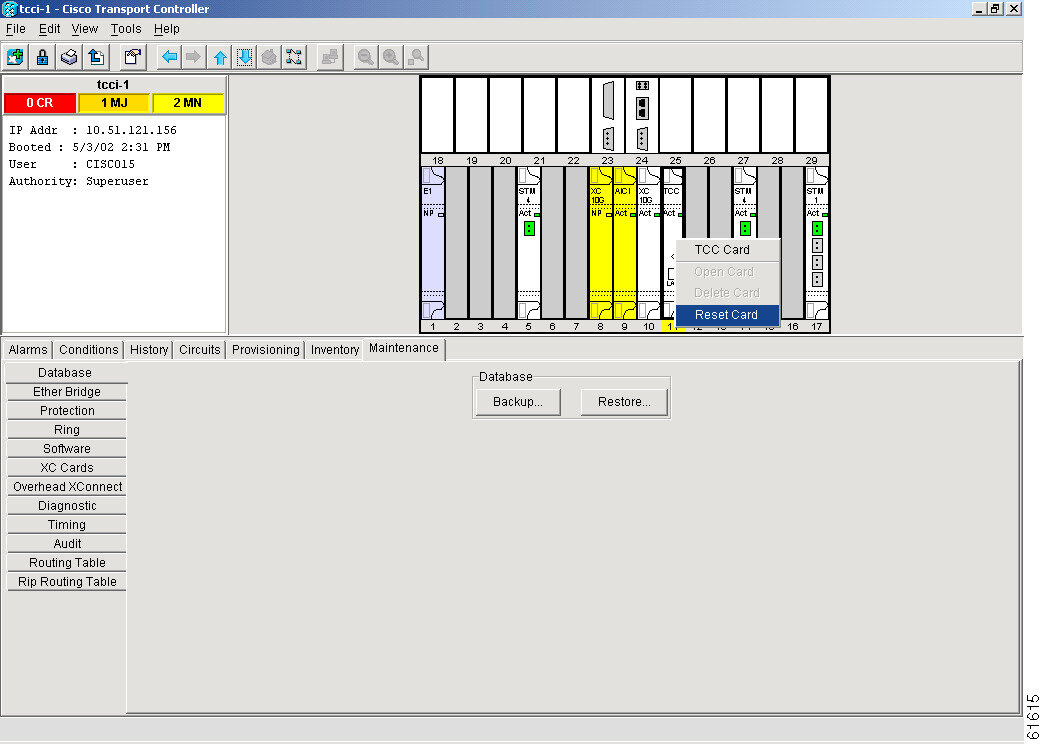

Figure 4 Resetting from the TCC-I card pull-down menu
Step 4
Click Yes in the dialog box when the "Are You Sure?" prompt appears.
Step 5
Click OK in the dialog box when the "Lost connection to node, changing to Network View" prompt appears.
Step 6
Confirm that the TCC-I card is in standby mode after the reset.
Related Documentation
•
DOC-7813038= Cisco ONS 15454 SDH Installation and Operations Guide
•
DOC-7813037= Cisco ONS 15454 SDH Troubleshooting and Reference Guide
Obtaining Documentation
The following sections explain how to obtain documentation from Cisco Systems.
World Wide Web
You can access the most current Cisco documentation on the World Wide Web at the following URL:
Translated documentation is available at the following URL:
http://www.cisco.com/public/countries_languages.shtml
Documentation CD-ROM
Cisco documentation and additional literature are available in a Cisco Documentation CD-ROM package, which is shipped with your product. The Documentation CD-ROM is updated monthly and may be more current than printed documentation. The CD-ROM package is available as a single unit or through an annual subscription.
Ordering Documentation
Cisco documentation is available in the following ways:
•
Registered Cisco Direct Customers can order Cisco product documentation from the Networking Products MarketPlace:
http://www.cisco.com/cgi-bin/order/order_root.pl
•
Registered Cisco.com users can order the Documentation CD-ROM through the online Subscription Store:
http://www.cisco.com/go/subscription
•
Nonregistered Cisco.com users can order documentation through a local account representative by calling Cisco corporate headquarters (California, USA) at 408 526-7208 or, elsewhere in North America, by calling 800 553-NETS (6387).
Documentation Feedback
If you are reading Cisco product documentation on Cisco.com, you can submit technical comments electronically. Click Leave Feedback at the bottom of the Cisco Documentation home page. After you complete the form, print it out and fax it to Cisco at 408 527-0730.
You can e-mail your comments to bug-doc@cisco.com.
To submit your comments by mail, use the response card behind the front cover of your document, or write to the following address:
Cisco Systems
Attn: Document Resource Connection
170 West Tasman Drive
San Jose, CA 95134-9883We appreciate your comments.
Obtaining Technical Assistance
Cisco provides Cisco.com as a starting point for all technical assistance. Customers and partners can obtain documentation, troubleshooting tips, and sample configurations from online tools by using the Cisco Technical Assistance Center (TAC) Web Site. Cisco.com registered users have complete access to the technical support resources on the Cisco TAC Web Site.
Cisco.com
Cisco.com is the foundation of a suite of interactive, networked services that provides immediate, open access to Cisco information, networking solutions, services, programs, and resources at any time, from anywhere in the world.
Cisco.com is a highly integrated Internet application and a powerful, easy-to-use tool that provides a broad range of features and services to help you to
•
Streamline business processes and improve productivity
•
Resolve technical issues with online support
•
Download and test software packages
•
Order Cisco learning materials and merchandise
•
Register for online skill assessment, training, and certification programs
You can self-register on Cisco.com to obtain customized information and service. To access Cisco.com, go to the following URL:
Technical Assistance Center
The Cisco TAC is available to all customers who need technical assistance with a Cisco product, technology, or solution. Two types of support are available through the Cisco TAC: the Cisco TAC Web Site and the Cisco TAC Escalation Center.
Inquiries to Cisco TAC are categorized according to the urgency of the issue:
•
Priority level 4 (P4)—You need information or assistance concerning Cisco product capabilities, product installation, or basic product configuration.
•
Priority level 3 (P3)—Your network performance is degraded. Network functionality is noticeably impaired, but most business operations continue.
•
Priority level 2 (P2)—Your production network is severely degraded, affecting significant aspects of business operations. No workaround is available.
•
Priority level 1 (P1)—Your production network is down, and a critical impact to business operations will occur if service is not restored quickly. No workaround is available.
Which Cisco TAC resource you choose is based on the priority of the problem and the conditions of service contracts, when applicable.
Cisco TAC Web Site
The Cisco TAC Web Site allows you to resolve P3 and P4 issues yourself, saving both cost and time. The site provides around-the-clock access to online tools, knowledge bases, and software. To access the Cisco TAC Web Site, go to the following URL:
All customers, partners, and resellers who have a valid Cisco services contract have complete access to the technical support resources on the Cisco TAC Web Site. The Cisco TAC Web Site requires a Cisco.com login ID and password. If you have a valid service contract but do not have a login ID or password, go to the following URL to register:
http://www.cisco.com/register/
If you cannot resolve your technical issues by using the Cisco TAC Web Site, and you are a Cisco.com registered user, you can open a case online by using the TAC Case Open tool at the following URL:
http://www.cisco.com/tac/caseopen
If you have Internet access, it is recommended that you open P3 and P4 cases through the Cisco TAC Web Site.
Cisco TAC Escalation Center
The Cisco TAC Escalation Center addresses issues that are classified as priority level 1 or priority level 2; these classifications are assigned when severe network degradation significantly impacts business operations. When you contact the TAC Escalation Center with a P1 or P2 problem, a Cisco TAC engineer will automatically open a case.
To obtain a directory of toll-free Cisco TAC telephone numbers for your country, go to the following URL:
http://www.cisco.com/warp/public/687/Directory/DirTAC.shtml
Before calling, please check with your network operations center to determine the level of Cisco support services to which your company is entitled; for example, SMARTnet, SMARTnet Onsite, or Network Supported Accounts (NSA). In addition, please have available your service agreement number and your product serial number.
This document is to be used in conjunction with the documents listed in the "Related Documentation" section.
