Create Circuits and Low-Order Tunnels
This chapter explains how to create Cisco ONS 15454 SDH low-order circuits and tunnels, high-order circuits, Ethernet circuits, and virtual concatenated (VCAT) circuits. For additional information about ONS 15454 SDH circuits, refer to the "Circuits and Tunnels" chapter in the Cisco ONS 15454 SDH Reference Manual.
Before You Begin
Before performing any of the following procedures, investigate all alarms and clear any trouble conditions. Refer to the Cisco ONS 15454 SDH Troubleshooting Guide as necessary.
This section lists the chapter procedures (NTPs). Turn to a procedure for applicable tasks (DLPs).
1.
D127 Verify Network Turn-Up—Complete this procedure before you create any circuits.
2. D81 Create an Automatically Routed Low-Order VC12 Circuit—Complete as needed.
3. D82 Create a Manually Routed Low-Order VC12 Circuit—Complete as needed.
4. D83 Create a Unidirectional Low-Order VC12 Circuit with Multiple Drops—Complete as needed.
5. D54 Create an Automatically Routed Low-Order VC3 Circuit—Complete as needed.
6. D55 Create a Manually Routed Low-Order VC3 Circuit—Complete as needed.
7. D56 Create a Unidirectional Low-Order VC3 Circuit with Multiple Drops—Complete as needed.
8. D133 Create an Automatically Routed Low-Order Tunnel—Complete as needed.
9. D134 Create a Manually Routed Low-Order Tunnel—Complete as needed.
10. D216 Create a Low-Order Path Tunnel for Port Grouping—Complete as needed.
11. D187 Create a Low-Order Aggregation Point—Complete as needed.
12. D135 Test Low-Order Circuits—Complete this procedure after you create an electrical circuit.
13. D323 Create an Automatically Routed High-Order Circuit—Complete as needed.
14. D324 Create a Manually Routed High-Order Circuit—Complete as needed.
15. D190 Create a Unidirectional High-Order Circuit with Multiple Drops—Complete as needed.
16. D62 Test High-Order Circuits—Complete this procedure after you create a high-order optical circuit.
17. D139 Create a Half Circuit on an MS-SPRing or 1+1 Node—Complete this procedure as needed to create a half circuit using an STM-N as a destination in a multiplex section-shared protection ring (MS-SPRing) or 1+1 protection.
18. D140 Create a Half Circuit on an SNCP Ring Node—Complete as needed to create a half circuit using an STM-N as a destination in an subnetwork connection protection (SNCP) ring.
19. D191 Create an E-Series EtherSwitch Circuit (Multicard or Single-Card Mode)—Complete as needed.
20. D192 Create a Circuit for an E-Series Card in Port-Mapped Mode—Complete as needed.
21. D142 Create an E-Series Shared Packet Ring Ethernet Circuit—Complete as needed.
22. D143 Create an E-Series Hub-and-Spoke Ethernet Configuration—Complete as needed.
23. D144 Create an E-Series Single-Card EtherSwitch Manual Cross-Connect—Complete as needed.
24. D145 Create an E-Series Multicard EtherSwitch Manual Cross-Connect—Complete as needed.
25. D146 Test E-Series Circuits—Complete this procedure after creating E-Series SDH circuits.
26. D147 Create a G-Series Circuit—Complete as needed.
27. D148 Create a Manual Cross-Connect for a G-Series or E-Series Card in Port-Mapped Mode—Complete as needed.
28. D241 Provision G-Series Ports for Transponder Mode—Complete as needed.
29. D149 Test G-Series Circuits—Complete this procedure after creating G-Series SDH circuits.
30. D194 Create Overhead Circuits—Complete as needed to create data communications channel (DCC) tunnels, create IP-encapsulated tunnels, provision orderwire, or create user data channel circuits.
31. D283 Create an Automatically Routed VCAT Circuit—Complete as needed.
32. D284 Create a Manually Routed VCAT Circuit—Complete as needed.
33. D325 Create an STM Test Circuit around the Ring—Complete as needed.
Table 6-1 defines ONS 15454 SDH circuit creation terms and options.
Table 6-1 ONS 15454 SDH Circuit Options
Circuit Option
|
Description
|
Source
|
The circuit source is where the circuit enters the ONS 15454 SDH network.
|
Destination
|
The circuit destination is where the circuit exits an ONS 15454 SDH network.
|
Automatic circuit routing
|
Cisco Transport Controller (CTC) routes the circuit automatically on the shortest available path based on routing parameters and bandwidth availability.
|
Manual circuit routing
|
Manual routing allows you to choose a specific path, not just the shortest path chosen by automatic routing. You can choose a specific VC4, VC3, or VC12 for each circuit segment and create circuits from work orders prepared by an operations support system (OSS).
|
Low-order tunnel
|
Low-order tunnels allow VC3 and VC12 circuits to pass through an ONS 15454 SDH without using low-order cross-connect resources on the cross-connect cards. Low-order circuits using tunnels use low-order cross-connect capacity only at the source and destination nodes. One low-order tunnel can carry three VC3s, and each VC3 can contain a VC3 circuit span or 21 VC12 circuit spans.
|
Low-order aggregation point
|
Low-order aggregation points (LAPs) allow low-order VC12 and VC3 circuits to be aggregated into a VC4 for handoff to non-ONS 15454 SDH networks or equipment, such as interoffice facilities (IOFs), switches, or digital access cross-connect systems. The VC4 grooming end of the LAP requires an STM-N card. LAPs can be created on MS-SPRings, 1+1, or unprotected nodes, but cannot be created on SNCP nodes.
|
ONS 15454 SDH circuits are either low-order or high-order circuits. Table 6-2 shows the circuit source and destination options for low-order circuits.
Table 6-2 CTC Circuit Source and Destination Options for Low-Order VC3 Circuits
Card
|
Ports
|
VC4s
|
VC3s
|
E3-12
|
12
|
1 per port
|
3 per VC4
|
DS3i-N-12
|
12
|
1 per port
|
3 per VC4
|
STM1E-12
|
12
|
1 per port
|
3 per VC4
|
OC3 IR 4/STM1
|
4
|
1 per port
|
3 per VC4
|
OC3 IR 4/STM1-8
|
8
|
1 per port
|
3 per VC4
|
OC12 IR/STM4 SH 1310
OC12 LR/STM4 LH 1310
OC12 LR/STM4 LH 1550
|
1
|
4 per port
|
3 per VC4
|
OC12 IR/STM4 SH 1310-4
|
4
|
4 per port
|
3 per VC4
|
All OC-48/STM16 cards (includes ML-Series card)
|
1
|
16 per port
|
3 per VC4
|
All OC-192/STM64 cards
|
1
|
64 per port
|
3 per VC4
|
FC_MC-4
|
4
|
—
|
—
|
Table 6-3 shows the circuit source and destination options for VC12 circuits.
Table 6-3 CTC Circuit Source and Destination Options for Low-Order VC12 Circuits
Card
|
Ports
|
VC4s
|
VC3/TUG3s
|
TUG2s
|
VC12s
|
E1-N-14
|
14
|
—
|
—
|
—
|
1 per port
|
E1-42
|
42
|
—
|
—
|
—
|
1 per port
|
STM1E-12
|
12
|
1 per port
|
3 per VC4
|
7 per TUG3
|
3 per TUG2
|
OC3 IR 4/STM1
|
4
|
1 per port
|
3 per VC4
|
7 per TUG3
|
3 per TUG2
|
OC3 IR 4/STM1-8
|
8
|
1 per port
|
3 per VC4
|
7 per TUG3
|
3 per TUG2
|
OC12 IR/STM4 SH 1310
OC12 LR/STM4 LH 1310
OC12 LR/STM4 LH 1550
|
1
|
4 per port
|
3 per VC4
|
7 per TUG3
|
3 per TUG2
|
OC12 IR/STM4 SH 1310-4
|
4
|
4 per port
|
3 per VC4
|
7 per TUG3
|
3 per TUG2
|
All OC-48/STM16 cards (includes ML-Series card)
|
1
|
16 per port
|
3 per VC4
|
7 per TUG3
|
3 per TUG2
|
OC-192/STM64
|
1
|
64 per port
|
3 per VC4
|
7 per TUG3
|
3 per TUG2
|
FC_MC-4
|
4
|
—
|
—
|
—
|
—
|
Table 6-4 shows the options that appear for high-order circuits.
Table 6-4 CTC Circuit Source and Destination Options for High-Order VC4 Circuits
Card
|
Ports
|
VC4s
|
E1-42
|
—
|
1
|
STM1E-12
|
12
|
1 per port
|
OC3 IR 4/STM1
|
4
|
1 per port
|
OC3 IR 4/STM1-8
|
8
|
1 per port
|
OC12 IR/STM4, OC12 LR/STM4
|
1
|
4 per port
|
OC12 IR 4/STM4, OC12 LR 4/STM4
|
4
|
4 per port
|
All OC-48/STM16 cards (includes ML-Series card)
|
1
|
16 per port
|
All OC-192/STM64 cards
|
1
|
64 per port
|
FC_MC-4
|
4
|
—
|
NTP-D127 Verify Network Turn-Up
Purpose
|
This procedure verifies that the ONS 15454 SDH network is ready for circuit provisioning.
|
Tools/Equipment
|
None
|
Prerequisite Procedures
|
Chapter 5, "Turn Up Network"
|
Required/As Needed
|
Required
|
Onsite/Remote
|
Onsite or remote
|
Security Level
|
Provisioning or higher
|
Step 1 Complete the "DLP-D60 Log into CTC" task on page 17-47 at an ONS 15454 SDH on the network where you will create circuits. If you are already logged in, continue with Step 2.
Step 2 From the View menu, choose Go to Network View. Wait for all the nodes that are part of the network to appear on the network map. (Large networks might take several minutes to display all the nodes.)
Note If this is the first time your computer has connected to this ONS 15454 SDH network, the node icons are stacked on the left side of the graphic area, possibly out of view. Use the scroll bar under the network map to display the icons. To separate the icons press Ctrl and drag and drop the icon to the new location. Repeat until all the nodes are visible on the graphic area.
Step 3 Verify node accessibility. In the network view, all node icons must be either green, yellow, orange, or red.
If all network nodes do not appear after a few minutes, or if a node icon is gray with "Unknown" under it, do not continue. Look at the Net box in the lower right corner of the window. If it is gray, log in again, making sure not to check the Disable Network check box in the CTC Login dialog box. If problems persist, see Chapter 5, "Turn Up Network" to review the network turn-up procedure appropriate for your network topology, or refer to the Cisco ONS 15454 SDH Troubleshooting Guide for troubleshooting procedures.
Step 4 Verify DCC connectivity. All nodes must be connected by green lines. If lines are missing or gray in color, do not continue. See Chapter 5, "Turn Up Network" and follow the network turn-up procedure appropriate for your network topology. Verify that all nodes have DCC connectivity before continuing. If DCCs need to be created, complete the "DLP-D464 Provision Section DCC Terminations" task on page 21-44.
Step 5 Click the Alarms tab to view alarm descriptions. Investigate and resolve, if necessary, all critical (red node icon) or major (orange node icon) alarms. Refer to the Cisco ONS 15454 SDH Troubleshooting Guide to resolve alarms before continuing.
Step 6 From the View menu, choose Go to Home View. Verify that the node is provisioned according to your site or engineering plan:
a. View the cards that appear in the shelf map. Verify that the ONS 15454 SDH cards appear in the specified slots.
b. Click the Provisioning > General tabs. Verify that the node name, contacts, date, time, and Network Time Protocol/Simple Network Time Protocol (NTP/SNTP) server IP address (if used) are correctly provisioned. If needed, make corrections using the "DLP-D140 Change the Node Name, Date, Time, and Contact Information" task on page 18-16.
c. Click the Network tab. Verify that the IP address, Subnet mask, Default Router, Prevent LCD IP Config, and Gateway Settings are correctly provisioned. If not, make corrections using the "NTP-D201 Change CTC Network Access" procedure on page 10-2.
d. Click the Protection tab. Verify that protection groups are created as specified in your site plan. If the protection groups are not created, complete the "NTP-D203 Modify or Delete Card Protection Settings" procedure on page 10-4.
e. If the node is in an MS-SPRing, click the MS-SPRing tab. (If the node is not in an MS-SPRing, continue with Step f.) Verify that the following items are provisioned as specified in your site plan:
•MS-SPRing type (2-fiber or 4-fiber)
•MS-SPRing ring ID and node IDs
•Ring reversion time
•East and west card assignments
•4-fiber MS-SPRings: span reversion and east/west protect card assignments
If you need to make corrections, see the "NTP-D40 Provision MS-SPRing Nodes" procedure on page 5-10 for instructions.
f. Click the Security tab. Verify that the users and access levels are provisioned as specified. If not, see the "NTP-D30 Create Users and Assign Security" procedure on page 4-3 to correct the information.
g. If simple network management protocol (SNMP) is used, click the SNMP tab and verify the trap and destination information. If the information is not correct, see the "NTP-D87 Change SNMP Settings" procedure on page 10-6 to correct the information.
h. Click the Comm Channels tab. Verify that DCCs were created to the applicable STM-N slots and ports. If DCCs were not created for the appropriate STM-N slots and ports, see Chapter 5, "Turn Up Network" and complete the turn-up procedure appropriate for your network topology.
i. Click the Timing tab. Verify that timing is provisioned as specified. If not, use the "NTP-D85 Change Node Timing" procedure on page 10-5 to make the changes.
j. Click the Alarm Profiles tab. If you provisioned optional alarm profiles, verify that the alarms are provisioned as specified. If not, see the "NTP-D71 Create, Download, and Assign Alarm Severity Profiles" procedure on page 7-6 to change the information.
k. Verify that the network element defaults listed in the status area of the node view window are correct.
Step 7 Repeat Step 6 for each node in the network.
Step 8 Complete the appropriate circuit creation procedure from the NTP list in the "Before You Begin" section.
Stop. You have completed this procedure.
NTP-D81 Create an Automatically Routed Low-Order VC12 Circuit
Purpose
|
This procedure creates an automatically routed low-order VC12 circuit, meaning CTC chooses the circuit route based on the parameters you specify and on the software version.
|
Tools/Equipment
|
XC-VXL-10G or XC-VXL-2.5G cards must be installed at the circuit source and destination nodes.
|
Prerequisite Procedures
|
D127 Verify Network Turn-Up
|
Required/As Needed
|
As needed
|
Onsite/Remote
|
Onsite or remote
|
Security Level
|
Provisioning or higher
|
Step 1 Complete the "DLP-D60 Log into CTC" task on page 17-47 at an ONS 15454 SDH on the network where you will create circuit. If you are already logged in, continue with Step 2.
Step 2 On the shelf graphic, verify that XC-VXL-10G or XC-VXL-2.5G cross-connect cards are installed in Slots 8 and 10.
Step 3 If you want to assign a name to the circuit source and destination ports before you create the circuit, complete the "DLP-D314 Assign a Name to a Port" task on page 20-9. If not, continue with Step 4.
Step 4 From the View menu, choose Go to Network View.
Step 5 Click the Circuits tab, then click Create.
Step 6 In the Circuit Creation dialog box, complete the following fields:
•Circuit Type—Choose VC_LO_PATH_CIRCUIT.
•Number of Circuits—Enter the number of VC-12 circuits you want to create. The default is 1. If you are creating multiple circuits with the same slot and consecutive port numbers, you can use Auto-ranged to create the circuits automatically.
•Auto-ranged—This check box is automatically selected if you enter more than 1 in the Number of Circuits field. Auto-ranging creates identical (same source and destination), sequential circuits automatically. Uncheck the box if you do not want CTC to create sequential circuits automatically.
Step 7 Click Next.
Step 8 Define the circuit attributes (Figure 6-1):
•Name—Assign a name to the circuit. The name can be alphanumeric and up to 48 characters, (including spaces). Circuit names should be 44 characters or less if you want the ability to create monitor circuits. If you leave the field blank, CTC assigns a default name to the circuit.
•Size—Choose VC12.
•Bidirectional—Leave checked for this circuit (default).
•Create cross-connects only (TL1-like)—Check this check box if you want to create one or more cross-connects to complete a signal path for TL1-generated circuits. Also, low order tunnels and Ethergroup sources and destinations are unavailable.
•State—Choose the administrative state to apply to all of the cross-connects in a circuit:
–Unlocked—Puts the circuit cross-connects in the Unlocked-enabled service state.
–Locked,disabled—Puts the circuit cross-connects in the Locked-enabled,disabled service state. Traffic is not passed on the circuit.
–Unlocked,automaticInService—Puts the circuit cross-connects in the Unlocked-disabled,automaticInService service state and suppresses alarms and conditions. When the connections receive a valid signal, the service state automatically changes to Unlocked-enabled.
–Locked,maintenance—Puts the circuit cross-connects in the Locked-enabled,maintenance service state. The maintenance state does not interrupt traffic flow; it suppresses alarms and conditions and allows loopbacks to be performed on the circuit. Use Locked,maintenance for circuit testing or to suppress circuit alarms temporarily. Change the administrative state to Unlocked; Unlocked,automaticInService; or Locked,disabled when testing is complete. See the "DLP-D230 Change a Circuit State" task on page 19-19.
For additional information about circuit service states, refer to the "Circuits and Tunnels" chapter in the Cisco ONS 15454 SDH Reference Manual.
•Apply to drop ports—Check this check box if you want to apply the state chosen in the State field to the circuit source and destination ports. CTC applies the circuit state to the ports only if the circuit bandwidth is the same as the port bandwidth or, if the port bandwidth is larger than the circuit, the circuit must be the first circuit to use the drop port. If not, a Warning dialog box shows the ports where the circuit state could not be applied. If the box is unchecked, CTC does not change the state of the source and destination ports.
Note Loss of signal alarms are generated if Unlocked ports are not receiving signals.
•Protected Drops—Check this check box if you want the circuit routed on protected drops only, that is, to ONS 15454 SDH cards that are in 1:1, 1:N, or 1+1 protection. If you check this check box, CTC shows only protected cards and ports as source and destination choices.
Figure 6-1 Setting Circuit Attributes for a Low-Order VC12 Circuit
Step 9 If the circuit will be routed on an SNCP ring, complete the "DLP-D218 Provision SNCP Ring Selectors During Circuit Creation" task on page 19-11. Otherwise, continue with Step 10.
Step 10 Click Next.
Step 11 Complete the "DLP-D95 Provision a Low-Order VC12 Circuit Source and Destination" task on page 17-91.
Step 12 In the Circuit Routing Preferences area (Figure 6-2), choose Route Automatically. Two options are available; choose either, both, or none based on your preferences.
•Using Required Nodes/Spans—Check this check box if you want to specify nodes and spans to include or exclude in the CTC-generated circuit route.
Including nodes and spans for a circuit ensures that those nodes and spans are in the working path of the circuit (but not the protect path). Excluding nodes and spans ensures that the nodes and spans are not in the working or protect path of the circuit.
•Review Route Before Creation—Check this check box if you want to review and edit the circuit route before the circuit is created.

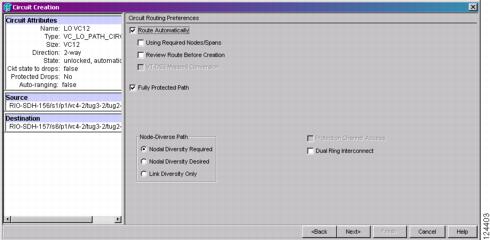

Figure 6-2 Setting Circuit Routing Preferences
Step 13 Set the circuit path protection:
•To route the circuit on a protected path, leave Fully Protected Path checked and continue with Step 14. CTC creates a fully protected circuit route based on the path diversity option you choose. Fully protected paths might or might not have SNCP path segments (with primary and alternate paths), and the path diversity options apply only to SNCP path segments, if any exist.
•To create an unprotected circuit, uncheck Fully Protected Path and continue with Step 16.
•To route the circuit on an MS-SPRing protection channel, if available, uncheck Fully Protected Path, check Protection Channel Access, click Yes in the Warning dialog box, and then continue with Step 16.
Caution Circuits routed on MS-SPRing protection channels are not protected. They are preempted during MS-SPRing switches.
Step 14 If you selected Fully Protected Path in Step 13 and the circuit will be routed on a SNCP, choose one of the following:
•Nodal Diversity Required—Ensures that the primary and alternate paths within SNCP ring portions of the complete circuit path are nodally diverse.
•Nodal Diversity Desired—Specifies that node diversity is preferred, but if node diversity is not possible, CTC creates fiber-diverse paths for the SNCP ring portion of the complete circuit path.
•Link Diversity Only—Specifies that only fiber-diverse primary and alternate paths for SNCP ring portions of the complete circuit path are needed. The paths might be node-diverse, but CTC does not check for node diversity.
Step 15 If you selected Fully Protected Path in Step 13 and the circuit will be routed on an SNCP DRI, check the Dual Ring Interconnect check box.
Step 16 If you selected Using Required Nodes/Spans in Step 12, complete the following substeps. If not, continue with Step 18.
a. Click Next.
b. In the Circuit Route Constraints For Auto Routing area, click a node or span on the circuit map.
c. Click Include to include the node or span in the circuit. Click Exclude to exclude the node or span from the circuit. The order in which you choose included nodes and spans is the order in which the circuit will be routed. Click spans twice to change the circuit direction.
d. Repeat Step c for each node or span you wish to include or exclude.
e. Review the circuit route. To change the circuit routing order, choose a node from the Required Nodes/Lines or Excluded Notes Links lists and click the Up or Down buttons to change the circuit routing order. Click Remove to remove a node or span.
Step 17 Click Next. In the VC LO Matrix Optimization panel, choose one of the following:
•Create VC LO tunnel on transit nodes—This option is available if the VC12 circuit passes through a node that does not have a low-order tunnel, or if an existing low-order tunnel is full. Low-order tunnels allow VC12 circuits to pass through ONS 15454 SDHs without consuming low-order cross-connect card resources. Low-order tunnels are required if the circuit passes through a node with XC10G cross-connect cards. In general, creating low-order tunnels is a good idea if you are creating many low-order circuits from the same source and destination. Refer to the Cisco ONS 15454 SDH Reference Manual for more information.
•Create VC LO aggregation point—This option is available if you are creating a VC12 circuit to an STM-N port for handoff to non-ONS 15454 SDH networks or equipment, such as an IOF, switch, or DACS. A low-order aggregation point (LAP) allows low-order circuits to be routed through a node using one VC4 connection on the cross-connect card high-order matrix rather than multiple connections on the low-order matrix. If you want to aggregate the low-order circuit you are creating with others onto an VC4 for transport outside the ONS 15454 network, choose one of the following:
–VC4 grooming node is [source node], VC12 grooming node is [destination node]—Creates the LAP on the VC12 circuit source node. This option is available only if the VC12 circuit originates on an STM-N card.
–VC4 grooming node is [destination node], VC12 grooming node is [source node]—Creates the LAP on the VC12 circuit destination node. This option is available only if the VC12 circuit terminates on an STM-N card.
•None—Choose this option if you do not want to create a low-order tunnel or a LAP. This is the only available option if CTC cannot create a low-order tunnel or LAP.
Step 18 If you selected Review Route Before Creation in Step 12, complete the following substeps. If not, continue with Step 19.
a. Click Next.
b. Review the circuit route. To add or delete a circuit span, choose a node on the circuit route. Blue arrows show the circuit route. Green arrows indicate spans that you can add. Click a span arrowhead, then click Include to include the span or Remove to remove the span.
c. If the provisioned circuit does not reflect the routing and configuration you want, click Back to verify and change circuit information. If the circuit needs to be routed to a different path, see the "D82 Create a Manually Routed Low-Order VC12 Circuit" procedure.
Step 19 Click Finish. One of the following results occurs, depending on the circuit properties you chose in the Circuit Creation dialog box:
•If you entered more than 1 in the Number of Circuits field and selected Auto-ranged, CTC automatically creates the number of circuits entered in the Number of Circuits field. If auto-ranging cannot complete all the circuits, for example, because sequential ports are unavailable at the source or destination, a dialog box appears. Set the new source or destination for the remaining circuits, then click Finish to continue auto-ranging. After completing the circuits, the Circuits window appears.
•If you entered more than 1 in the Number of Circuits field and did not choose Auto-ranged, the Circuit Creation dialog box appears so you can create the remaining circuits. Repeat Steps 6 through 18 for each additional circuit. After completing the circuits, the Circuits window appears.
Step 20 In the Circuits window, verify that the new circuits appear in the circuits list.
Step 21 Complete the "D135 Test Low-Order Circuits" procedure. Skip this step if you built a test circuit.
Stop. You have completed this procedure.
NTP-D82 Create a Manually Routed Low-Order VC12 Circuit
Purpose
|
This procedure creates low-order VC12 circuit and allows you to provision the circuit route.
|
Tools/Equipment
|
XC-VXL-10G or XC-VXL-2.5G cards must be installed at the circuit source and destination nodes.
|
Prerequisite Procedures
|
D127 Verify Network Turn-Up
|
Required/As Needed
|
As needed
|
Onsite/Remote
|
Onsite or remote
|
Security Level
|
Provisioning or higher
|
Step 1 Complete the "DLP-D60 Log into CTC" task on page 17-47 at an ONS 15454 SDH on the network where you will create circuit. If you are already logged in, continue with Step 2.
Step 2 On the shelf graphic, verify that XC-VXL-10G or XC-VXL-2.5G cross-connect cards are installed in Slots 8 and 10.
Step 3 If you want to assign a name to the circuit source and destination ports before you create the circuit, complete the "DLP-D314 Assign a Name to a Port" task on page 20-9. If not, continue with Step 4.
Step 4 From the View menu, choose Go to Network View.
Step 5 Click the Circuits tab, then click Create.
Step 6 In the Circuit Creation dialog box, complete the following fields:
•Circuit Type—Choose VC_LO_PATH_CIRCUIT.
•Number of Circuits—Enter the number of VC12 circuits you want to create. The default is 1. If you are creating multiple circuits with the same slot and consecutive port numbers, you can use Auto-ranged to create the circuits automatically.
•Auto-ranged—This check box is automatically checked if you enter more than 1 in the Number of Circuits field. Auto-ranging creates identical (same source and destination), sequential circuits automatically. Uncheck the box if you do not want CTC to create sequential circuits automatically.
Step 7 Click Next.
Step 8 Define the circuit attributes (Figure 6-1):
•Name—Assign a name to the circuit. The name can be alphanumeric and up to 48 characters, (including spaces). Circuit names should be 44 characters or less if you want the ability to create monitor circuits. If you leave the field blank, CTC assigns a default name to the circuit.
•Size—Choose VC12.
•Create cross-connects only (TL1-like)—Check this check box if you want to create one or more cross-connects to complete a signal path for TL1-generated circuits. Also, low order tunnels and Ethergroup sources and destinations are unavailable.
•State—Choose the administrative state to apply to all of the cross-connects in a circuit:
–Unlocked—Puts the circuit cross-connects in the Unlocked-enabled service state.
–Locked,disabled—Puts the circuit cross-connects in the Locked-enabled,disabled service state. Traffic is not passed on the circuit.
–Unlocked,automaticInService—Puts the circuit cross-connects in the Unlocked-disabled,automaticInService service state and suppresses alarms and conditions. When the connections receive a valid signal, the service state automatically changes to Unlocked-enabled.
–Locked,maintenance—Puts the circuit cross-connects in the Locked-enabled,maintenance service state. The maintenance state does not interrupt traffic flow; it suppresses alarms and conditions and allows loopbacks to be performed on the circuit. Use Locked,maintenance for circuit testing or to suppress circuit alarms temporarily. Change the administrative state to Unlocked; Unlocked,automaticInService; or Locked,disabled when testing is complete. See the "DLP-D230 Change a Circuit State" task on page 19-19.
For additional information about circuit service states, refer to the "Circuits and Tunnels" chapter in the Cisco ONS 15454 SDH Reference Manual.
•Apply to drop ports—Select this check box if you want to apply the state chosen in the State field to the circuit source and destination ports. CTC applies the circuit state to the ports only if the circuit bandwidth is the same as the port bandwidth or, if the port bandwidth is larger than the circuit, the circuit must be the first circuit to use the drop port. If not, a Warning dialog box shows the ports where the circuit state could not be applied. If the box is unchecked, CTC does not change the state of the source and destination ports.
Note Loss of signal alarms are generated if Unlocked ports are not receiving signals.
•Protected Drops—Check this check box if you want the circuit routed on protected drops only, that is, to ONS 15454 SDH cards that are in 1:1, 1:N, or 1+1 protection. If you check this check box, CTC shows only protected cards and ports as source and destination choices.
Step 9 If the circuit will be routed on an SNCP ring, complete the "DLP-D218 Provision SNCP Ring Selectors During Circuit Creation" task on page 19-11. Otherwise, continue with Step 10.
Step 10 Click Next.
Step 11 Complete the "DLP-D95 Provision a Low-Order VC12 Circuit Source and Destination" task on page 17-91.
Step 12 In the Circuit Routing Preferences area (Figure 6-2), uncheck Route Automatically.
Step 13 Set the circuit path protection:
•To route the circuit on a protected path, leave Fully Protected Path checked and continue with Step 14. Fully protected paths might or might not have SNCP path segments (with primary and alternate paths), and the path diversity options apply only to SNCP path segments, if any exist.
•To create an unprotected circuit, uncheck Fully Protected Path and continue with Step 17.
•To route the circuit on an MS-SPRing protection channel, if available, uncheck Fully Protected Path, check Protection Channel Access, click Yes in the Warning dialog box, and then continue with Step 17.
Caution Circuits routed on MS-SPRing protection channels are not protected and are preempted during MS-SPRing switches.
Step 14 If you selected Fully Protected Path in Step 13 and the circuit will be routed on a SNCP, choose a Node-Diverse Path option:
•Nodal Diversity Required—Ensures that the primary and alternate paths within the SNCP ring portions of the complete circuit path are nodally diverse.
•Nodal Diversity Desired— Specifies that node diversity is preferred, but if node diversity is not possible, CTC creates fiber-diverse paths for the SNCP ring portion of the complete circuit path.
•Link Diversity Only—Specifies that only fiber-diverse primary and alternate paths for SNCP ring portions of the complete circuit path are needed. The paths might be node-diverse, but CTC does not check for node diversity.
Step 15 If you selected Fully Protected Path in Step 13 and the circuit will be routed on an SNCP DRI, click the Dual Ring Interconnect check box.
Step 16 Click Next. In the VC LO Matrix Optimization panel, choose one of the following:
•Create VC LO tunnel on transit nodes—This option is available if the VC12 circuit passes through a node that does not have a low-order tunnel, or if an existing low-order tunnel is full. Low-order tunnels allow VC12 circuits to pass through ONS 15454 SDHs without consuming low-order cross-connect card resources. Low-order tunnels are required if the circuit passes through a node with XC10G cross-connect cards. In general, creating low-order tunnels is a good idea if you are creating many low-order circuits from the same source and destination. Refer to the Cisco ONS 15454 SDH Reference Manual for more information.
•Create VC LO aggregation point—This option is available if you are creating a VC12 circuit to an STM-N port for handoff to non-ONS 15454 SDH networks or equipment, such as an IOF, switch, or DACS. A low-order aggregation point (LAP) allows low-order circuits to be routed through a node using one VC4 connection on the cross-connect card high-order matrix rather than multiple connections on the low-order matrix. If you want to aggregate the low-order circuit you are creating with others onto a VC4 for transport outside the ONS 15454 SDH network, choose one of the following:
–VC4 grooming node is [source node], VC12 grooming node is [destination node]—Creates the LAP on the VC12 circuit source node. This option is available only if the VC12 circuit originates on an STM-N card.
–VC4 grooming node is [destination node], VC12 grooming node is [source node]—Creates the LAP on the VC12 circuit destination node. This option is available only if the VC12 circuit terminates on an STM-N card.
•None—Choose this option if you do not want to create a low-order tunnel or a LAP. This is the only available option if CTC cannot create a low-order tunnel or LAP.
Step 17 Click Next. In the Route Review/Edit area, node icons appear for circuit routing. The circuit source node is selected. Green arrows pointing from the source node to other network nodes indicate spans that are available for routing the circuit.
Step 18 Complete the "DLP-D3 Provision a Low-Order VC12 Circuit Route" task on page 17-2 for the VC12 circuit you are creating.
Step 19 Click Finish. CTC compares your manually provisioned circuit route with the specified path diversity option you chose in Step 14. If the path does not meet the specified path diversity requirement, CTC displays an error message and allows you to change the circuit path.
Step 20 If you entered more than 1 in the Number of Circuits field, the Circuit Creation dialog box appears so you can create the remaining circuits. Repeat Steps 6 through 19 for each additional circuit.
Step 21 When all the circuits are created, the main Circuits window appears. Verify that the circuits you created are correct.
Step 22 Complete the "D135 Test Low-Order Circuits" procedure. Skip this step if you built a test circuit.
Stop. You have completed this procedure.
NTP-D83 Create a Unidirectional Low-Order VC12 Circuit with Multiple Drops
Purpose
|
This procedure creates a unidirectional low-order VC12 circuit with multiple drops (destinations).
|
Tools/Equipment
|
None
|
Prerequisite Procedures
|
D127 Verify Network Turn-Up
|
Required/As Needed
|
As needed
|
Onsite/Remote
|
Onsite or remote
|
Security Level
|
Provisioning or higher
|
Step 1 Complete the "DLP-D60 Log into CTC" task on page 17-47 at an ONS 15454 SDH on the network where you will create circuit. If you are already logged in, continue with Step 2.
Step 2 On the shelf graphic, verify that XC-VXL-10G or XC-VXL-2.5G cross-connect cards are installed in Slots 8 and 10.
Step 3 If you want to assign a name to the circuit source and destination ports before you create the circuit, complete the "DLP-D314 Assign a Name to a Port" task on page 20-9. If not, continue with Step 4.
Step 4 From the View menu, choose Go to Network View.
Step 5 Click the Circuits tab, then click Create.
Step 6 In the Circuit Creation dialog box, complete the following fields:
•Circuit Type—Choose VC_LO_PATH_CIRCUIT.
•Number of Circuits—Leave the default unchanged (1).
•Auto-ranged—Unavailable when the Number of Circuits field is 1.
Step 7 Click Next.

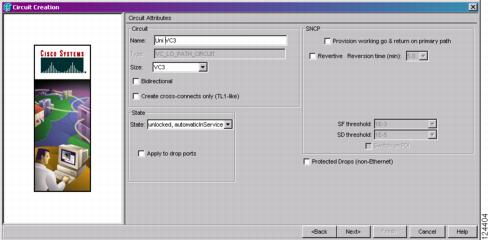

Step 8 Define the circuit attributes:
•Name—Assign a name to the circuit. The name can be alphanumeric and up to 48 characters, (including spaces). Circuit names should be 44 characters or less if you want the ability to create monitor circuits. If you leave the field blank, CTC assigns a default name to the circuit.
•Size—Choose VC12.
•Bidirectional—Uncheck for this circuit.
•Create cross-connects only (TL1-like)—Check this check box if you want to create one or more cross-connects to complete a signal path for TL1-generated circuits. Also, low order tunnels and Ethergroup sources and destinations are unavailable.
•State—Choose the administrative state to apply to all of the cross-connects in a circuit:
–Unlocked—Puts the circuit cross-connects in the Unlocked-enabled service state.
–Locked,disabled—Puts the circuit cross-connects in the Locked-enabled,disabled service state. Traffic is not passed on the circuit.
–Unlocked,automaticInService—Puts the circuit cross-connects in the Unlocked-disabled,automaticInService service state and suppresses alarms and conditions. When the connections receive a valid signal, the service state automatically changes to Unlocked-enabled.
–Locked,maintenance—Puts the circuit cross-connects in the Locked-enabled,maintenance service state. The maintenance state does not interrupt traffic flow; it suppresses alarms and conditions and allows loopbacks to be performed on the circuit. Use Locked,maintenance for circuit testing or to suppress circuit alarms temporarily. Change the administrative state to Unlocked; Unlocked,automaticInService; or Locked,disabled when testing is complete. See the "DLP-D230 Change a Circuit State" task on page 19-19.
For additional information about circuit service states, refer to the "Circuits and Tunnels" chapter in the Cisco ONS 15454 SDH Reference Manual.
•Apply to drop ports—Check this box if you want to apply the state chosen in the State field to the circuit source and destination ports. CTC applies the circuit state to the ports only if the circuit bandwidth is the same as the port bandwidth or, if the port bandwidth is larger than the circuit, the circuit must be the first circuit to use the drop port. If not, a Warning dialog box shows the ports where the circuit state could not be applied. If the box is unchecked, CTC does not change the state of the source and destination ports.
Note Loss of signal alarms appear if Unlocked ports are not receiving signals.
•Protected Drops—Check this box if you want the circuit routed to protect drops only, that is, to ONS 15454 SDH cards that are in 1:1, 1:N, or 1+1 protection. If you check this box, CTC displays only protected cards as source and destination choices.
Step 9 Click Next.
Step 10 Complete the "DLP-D95 Provision a Low-Order VC12 Circuit Source and Destination" task on page 17-91.
Step 11 In the Circuit Routing Preferences area, uncheck Route Automatically. When Route Automatically is not selected, the Using Required Nodes/Spans and Review Route Before Circuit Creation check boxes are unavailable.
Step 12 Set the circuit path protection:
•To route the circuit on a protected path, leave Fully Protected Path checked and continue with Step 13. Fully protected paths might or might not have SNCP path segments (with primary and alternate paths), and the path diversity options apply only to SNCP path segments, if any exist.
•To create an unprotected circuit, uncheck Fully Protected Path and continue with Step 16.
•To route the circuit on an MS-SPRing protection channel, if available, uncheck Fully Protected Path, check Protection Channel Access, click Yes in the Warning dialog box, and then continue with Step 16.
Caution Circuits routed on MS-SPRing protection channels are not protected and are preempted during MS-SPRing switches.
Step 13 If you selected Fully Protected Path in Step 12 and the circuit will be routed on a SNCP, choose one of the following:
•Nodal Diversity Required—Ensures that the primary and alternate paths within the SNCP ring portions of the complete circuit path are nodally diverse.
•Nodal Diversity Desired—Specifies that node diversity is preferred, but if node diversity is not possible, CTC creates fiber-diverse paths for the SNCP ring portion of the complete circuit path.
•Link Diversity Only—Specifies that only fiber-diverse primary and alternate paths for SNCP ring portions of the complete circuit path are needed. The paths might be node-diverse, but CTC does not check for node diversity.
Step 14 If you selected Fully Protected Path in Step 12 and the circuit will be routed on an SNCP DRI, click the Dual Ring Interconnect check box.
Step 15 Click Next. In the VC LO Matrix Optimization panel, choose one of the following:
•Create VC LO tunnel on transit nodes—This option is available if the VC12 circuit passes through a node that does not have a low-order tunnel, or if an existing low-order tunnel is full. Low-order tunnels allow VC12 circuits to pass through ONS 15454 SDHs without consuming low-order cross-connect card resources. Low-order tunnels are required if the circuit passes through a node with XC10G cross-connect cards. In general, creating low-order tunnels is a good idea if you are creating many low-order circuits from the same source and destination. Refer to the Cisco ONS 15454 SDH Reference Manual for more information.
•Create VC LO aggregation point—This option is available if you are creating a VC12 circuit to an STM-N port for handoff to non-ONS 15454 SDH networks or equipment, such as an IOF, switch, or DACS. A low-order aggregation point (LAP) allows low-order circuits to be routed through a node using one VC4 connection on the cross-connect card high-order matrix rather than multiple connections on the low-order matrix. If you want to aggregate the low-order circuit you are creating with others onto an VC4 for transport outside the ONS 15454 SDH network, choose one of the following:
–VC4 grooming node is [source node], VC12 grooming node is [destination node]—Creates the LAP on the VC12 circuit source node. This option is available only if the VC12 circuit originates on an STM-N card.
–VC4 grooming node is [destination node], VC12 grooming node is [source node]—Creates the LAP on the VC12 circuit destination node. This option is available only if the VC12 circuit terminates on an STM-N card.
•None—Choose this option if you do not want to create a low-order tunnel or a LAP. This is the only available option if CTC cannot create a low-order tunnel or LAP.
Step 16 Click Next. In the Route Review and Edit area, node icons appear so you can route the circuit manually. The circuit source node is selected. Green arrows pointing from the source node to other network nodes indicate spans that are available for routing the circuit.
Step 17 Complete the "DLP-D3 Provision a Low-Order VC12 Circuit Route" task on page 17-2 for the VC12 circuit you are creating.
Step 18 Click Finish. CTC completes the circuit and the Circuits window appears.
Step 19 In the Circuits window, click the circuit that you want to route to multiple drops. The Delete, Edit, and Search buttons become active.
Step 20 Click Edit (or double-click the circuit row). The Edit Circuit window appears with the General tab selected.
All nodes in the DCC network appear on the network. Circuit source and destination information appears under the source and destination nodes. To see a detailed view of the circuit, click Show Detailed Map. To rearrange a node icon, select the node, press Ctrl, then drag and drop the icon to the new location.
Step 21 In the Edit Circuit dialog box, click the Drops tab. A list of existing drops appears.
Step 22 Click Create.
Step 23 In the Define New Drop dialog box, create the new drop:
a. Node—Choose the target node for the circuit drop.
b. Slot—Choose the target card and slot.
c. Port, VC4, VC3/TUG3, TUG2, VC12—Choose the Port, VC4, VC3/TUG3, TUG2, or VC12 from the Port, VC4, VC3/TUG3, TUG2, or VC12 drop-down lists. The card selected in Step b determines the fields that appear. See Table 6-3 for a list of options.
d. The routing preferences for the new drop match those of the original circuit. However, you can modify the following:
•If the original circuit was routed on a protected SNCP path, you can change the nodal diversity options: Nodal Diversity Required, Nodal Diversity Desired, or Link Diversity Only. See in Step 13 for descriptions.
•If the original circuit was not routed on a protected path, the Protection Channel Access option is available. See Step 12 for a description of the PCA option.
e. Click OK. The new drop appears in the Drops list.
Step 24 If you need to create additional drops for the circuit, repeat Step 22 and 23 to create the additional drops.
Step 25 Click Close. The Circuits window appears.
Step 26 Verify that the new drops appear in the Destination column for the circuit you edited. If they do not appear repeat Steps 5 through 25, making sure all options are provisioned correctly.
Step 27 Complete the "D135 Test Low-Order Circuits" procedure. Skip this step if you built a test circuit.
Stop. You have completed this procedure.
NTP-D54 Create an Automatically Routed Low-Order VC3 Circuit
Purpose
|
This procedure creates an automatically routed low-order VC12 circuit, meaning CTC chooses the circuit route based on the parameters you specify and on the software version.
|
Tools/Equipment
|
None
|
Prerequisite Procedures
|
D127 Verify Network Turn-Up
XC-VXL-10G or XC-VXL-2.5G cards must be installed at the circuit source and destination nodes.
|
Required/As Needed
|
As needed
|
Onsite/Remote
|
Onsite or remote
|
Security Level
|
Provisioning or higher
|
Step 1 Complete the "DLP-D60 Log into CTC" task on page 17-47 at an ONS 15454 SDH on the network where you will create circuit. If you are already logged in, continue with Step 2.
Step 2 On the shelf graphic, verify that XC-VXL-10G or XC-VXL-2.5G cross-connect cards are installed in Slots 8 and 10.
Step 3 If you want to assign a name to the circuit source and destination ports before you create the circuit, complete the "DLP-D314 Assign a Name to a Port" task on page 20-9. If not, continue with Step 4.
Step 4 From the View menu, choose Go to Network View.
Step 5 Click the Circuits tab, then click Create.
Step 6 In the Circuit Creation dialog box, complete the following fields:
•Circuit Type—Choose VC_LO_PATH_CIRCUIT.
•Size—Choose VC3.
•Number of Circuits—Enter the number of VC3 circuits you want to create. The default is 1. If you are creating multiple circuits with the same slot and consecutive port numbers, you can use Auto-ranged to create the circuits automatically.
Step 7 Click Next.
Step 8 Define the circuit attributes (Figure 6-3):
•Name—Assign a name to the circuit. The name can be alphanumeric and up to 48 characters, (including spaces). Circuit names should be 44 characters or less if you want the ability to create monitor circuits. If you leave the field blank, CTC assigns a default name to the circuit.
•Auto-ranged—This check box is automatically selected if you enter more than 1 in the Number of Circuits field. Auto-ranging creates identical (same source and destination), sequential circuits automatically. Uncheck the box if you do not want CTC to create sequential circuits automatically.
•Create cross-connects only (TL1-like)—Check this check box if you want to create one or more cross-connects to complete a signal path for TL1-generated circuits. Also, low order tunnels and Ethergroup sources and destinations are unavailable.
•State—Choose the administrative state to apply to all of the cross-connects in a circuit:
–Unlocked—Puts the circuit cross-connects in the Unlocked-enabled service state.
–Locked,disabled—Puts the circuit cross-connects in the Locked-enabled,disabled service state. Traffic is not passed on the circuit.
–Unlocked,automaticInService—Puts the circuit cross-connects in the Unlocked-disabled,automaticInService service state and suppresses alarms and conditions. When the connections receive a valid signal, the service state automatically changes to Unlocked-enabled.
–Locked,maintenance—Puts the circuit cross-connects in the Locked-enabled,maintenance service state. The maintenance state does not interrupt traffic flow; it suppresses alarms and conditions and allows loopbacks to be performed on the circuit. Use Locked,maintenance for circuit testing or to suppress circuit alarms temporarily. Change the administrative state to Unlocked; Unlocked,automaticInService; or Locked,disabled when testing is complete. See the "DLP-D230 Change a Circuit State" task on page 19-19.
For additional information about circuit service states, refer to the "Circuits and Tunnels" chapter in the Cisco ONS 15454 SDH Reference Manual.
•Apply to drop ports—Check this check box if you want to apply the state chosen in the State field to the circuit source and destination ports. CTC applies the circuit state to the ports only if the circuit bandwidth is the same as the port bandwidth or, if the port bandwidth is larger than the circuit, the circuit must be the first circuit to use the drop port. If not, a Warning dialog box shows the ports where the circuit state could not be applied. If the box is unchecked, CTC does not change the state of the source and destination ports.
Note Loss of signal alarms are generated if Unlocked ports are not receiving signals.
•Protected Drops—Select this check box if you want the circuit routed on protected drops only, that is, to ONS 15454 SDH cards that are in 1:1, 1:N, or 1+1 protection. If you select this check box, CTC displays only protected cards and ports as source and destination choices.
Figure 6-3 Setting Circuit Attributes For a Low-Order VC3 Circuit
Step 9 If the circuit will be routed on an SNCP ring, complete the "DLP-D218 Provision SNCP Ring Selectors During Circuit Creation" task on page 19-11. Otherwise, continue with Step 10.
Step 10 Click Next.
Step 11 Complete the "DLP-D318 Provision a Low-Order VC3 Circuit Source and Destination" task on page 20-11.
Step 12 In the Circuit Routing Preferences area (Figure 6-2), choose Route Automatically. Two options are available; choose either, both, or none based on your preferences.
•Using Required Nodes/Spans—Check this check box if you want to specify nodes and spans to include or exclude in the CTC-generated circuit route.
Including nodes and spans for a circuit ensures that those nodes and spans are in the working path of the circuit (but not the protect path). Excluding nodes and spans ensures that the nodes and spans are not in the working or protect path of the circuit.
•Review Route Before Creation—Check this check box if you want to review and edit the circuit route before the circuit is created.
Step 13 Set the circuit path protection:
•To route the circuit on a protected path, leave Fully Protected Path checked and continue with Step 14. CTC creates a fully protected circuit route based on the path diversity option you choose. Fully protected paths might or might not have SNCP path segments (with primary and alternate paths), and the path diversity options apply only to SNCP path segments, if any exist.
•To create an unprotected circuit, uncheck Fully Protected Path and continue with Step 16.
•To route the circuit on an MS-SPRing protection channel, if available, uncheck Fully Protected Path, check Protection Channel Access, click Yes in the Warning dialog box, and then continue with Step 16.
Caution Circuits routed on MS-SPRing protection channels are not protected. They are preempted during MS-SPRing switches.
Step 14 If you selected Fully Protected Path in Step 13 and the circuit will be routed on a SNCP, choose one of the following:
•Nodal Diversity Required—Ensures that the primary and alternate paths within SNCP ring portions of the complete circuit path are nodally diverse.
•Nodal Diversity Desired—Specifies that node diversity is preferred, but if node diversity is not possible, CTC creates fiber-diverse paths for the SNCP ring portion of the complete circuit path.
•Link Diversity Only—Specifies that only fiber-diverse primary and alternate paths for SNCP ring portions of the complete circuit path are needed. The paths might be node-diverse, but CTC does not check for node diversity.
Step 15 If you selected Fully Protected Path in Step 13 and the circuit will be routed on an SNCP DRI, click the Dual Ring Interconnect check box.
Step 16 If you selected Using Required Nodes/Spans in Step 12, complete the following substeps. If not, continue with Step 18.
a. Click Next.
b. In the Circuit Route Constraints For Auto Routing area, click a node or span on the circuit map.
c. Click Include to include the node or span in the circuit. Click Exclude to exclude the node or span from the circuit. The order in which you choose included nodes and spans is the order in which the circuit is routed. Click spans twice to change the circuit direction.
d. Repeat Step c for each node or span you wish to include or exclude.
e. Review the circuit route. To change the circuit routing order, choose a node from the Required Nodes/Lines or Excluded Notes Links lists and click the Up or Down buttons to change the circuit routing order. Click Remove to remove a node or span.
Step 17 Click Next. In the VC LO Matrix Optimization panel, choose one of the following:
•Create VC LO tunnel on transit nodes—This option is available if the VC3 circuit passes through a node that does not have a low-order tunnel, or if an existing low-order tunnel is full. Low-order tunnels allow VC3 circuits to pass through ONS 15454 SDHs without consuming low-order cross-connect card resources. Low-order tunnels are required if the circuit passes through a node with XC10G cross-connect cards. In general, creating low-order tunnels is a good idea if you are creating many low-order circuits from the same source and destination. Refer to the Cisco ONS 15454 SDH Reference Manual for more information.
•Create VC LO aggregation point—This option is available if you are creating a VC3 circuit to an STM-N port for handoff to non-ONS 15454 SDH networks or equipment, such as an IOF, switch, or DACS. A low-order aggregation point (LAP) allows low-order circuits to be routed through a node using one VC4 connection on the cross-connect card high-order matrix rather than multiple connections on the low-order matrix. If you want to aggregate the low-order circuit you are creating with others onto an VC4 for transport outside the ONS 15454 SDH network, choose one of the following:
–VC4 grooming node is [source node], VC12 grooming node is [destination node]—Creates the LAP on the VC3 circuit source node. This option is available only if the VC3 circuit originates on an STM-N card.
–VC4 grooming node is [destination node], VC12 grooming node is [source node]—Creates the LAP on the VC12 circuit destination node. This option is available only if the VC3 circuit terminates on an STM-N card.
•None—Choose this option if you do not want to create a low-order tunnel or a LAP. This is the only available option if CTC cannot create a low-order tunnel or LAP.
Step 18 If you selected Review Route Before Creation in Step 12, complete the following substeps. If not, continue with Step 19.
a. Click Next.
b. Review the circuit route. To add or delete a circuit span, choose a node on the circuit route. Blue arrows show the circuit route. Green arrows indicate spans that you can add. Click a span arrowhead, then click Include to include the span or Remove to remove the span.
c. If the provisioned circuit does not reflect the routing and configuration you want, click Back to verify and change circuit information. If the circuit needs to be routed to a different path, see the "D82 Create a Manually Routed Low-Order VC12 Circuit" procedure.
Step 19 Click Finish. One of the following results occurs, depending on the circuit properties you chose in the Circuit Creation dialog box:
•If you entered more than 1 in the Number of Circuits field and selected Auto-ranged, CTC automatically creates the number of circuits entered in the Number of Circuits field. If auto-ranging cannot complete all the circuits, for example, because sequential ports are unavailable at the source or destination, a dialog box appears. Set the new source or destination for the remaining circuits, then click Finish to continue auto-ranging. After completing the circuits, the Circuits window appears.
•If you entered more than 1 in the Number of Circuits field and did not choose Auto-ranged, the Circuit Creation dialog box appears so you can create the remaining circuits. Repeat Steps 6 through 18 for each additional circuit. After completing the circuits, the Circuits window appears.
Step 20 In the Circuits window, verify that the new circuits appear in the circuits list.
Step 21 Complete the "D135 Test Low-Order Circuits" procedure. Skip this step if you built a test circuit.
Stop. You have completed this procedure.
NTP-D55 Create a Manually Routed Low-Order VC3 Circuit
Purpose
|
This procedure creates low-order VC3 circuit and allows you to provision the circuit route.
|
Tools/Equipment
|
XC-VXL-10G or XC-VXL-2.5G cards must be installed at the circuit source and destination nodes.
|
Prerequisite Procedures
|
D127 Verify Network Turn-Up
|
Required/As Needed
|
As needed
|
Onsite/Remote
|
Onsite or remote
|
Security Level
|
Provisioning or higher
|
Step 1 Complete the "DLP-D60 Log into CTC" task on page 17-47 at an ONS 15454 SDH on the network where you will create circuit. If you are already logged in, continue with Step 2.
Step 2 On the shelf graphic, verify that XC-VXL-10G or XC-VXL-2.5G cross-connect cards are installed in Slots 8 and 10.
Step 3 If you want to assign a name to the circuit source and destination ports before you create the circuit, complete the "DLP-D314 Assign a Name to a Port" task on page 20-9. If not, continue with Step 4.
Step 4 From the View menu, choose Go to Network View.
Step 5 Click the Circuits tab, then click Create.
Step 6 In the Circuit Creation dialog box, complete the following fields:
•Circuit Type—Choose VC_LO_PATH_CIRCUIT.
•Number of Circuits—Enter the number of VC3 circuits you want to create. The default is 1. If you are creating multiple circuits with the same slot and consecutive port numbers, you can use Auto-ranged to create the circuits automatically.
•Auto-ranged—This check box is automatically selected if you enter more than 1 in the Number of Circuits field. Auto-ranging creates identical (same source and destination), sequential circuits automatically. Uncheck the box if you do not want CTC to create sequential circuits automatically.
Step 7 Click Next.
Step 8 Define the circuit attributes (Figure 6-3):
•Name—Assign a name to the circuit. The name can be alphanumeric and up to 48 characters, (including spaces). Circuit names should be 44 characters or less if you want the ability to create monitor circuits. If you leave the field blank, CTC assigns a default name to the circuit.
•Size—Choose VC3.
•Create cross-connects only (TL1-like)—Check this check box if you want to create one or more cross-connects to complete a signal path for TL1-generated circuits. Also, low order tunnels and Ethergroup sources and destinations are unavailable.
•State—Choose the administrative state to apply to all of the cross-connects in a circuit:
–Unlocked—Puts the circuit cross-connects in the Unlocked-enabled service state.
–Locked,disabled—Puts the circuit cross-connects in the Locked-enabled,disabled service state. Traffic is not passed on the circuit.
–Unlocked,automaticInService—Puts the circuit cross-connects in the Unlocked-disabled,automaticInService service state and suppresses alarms and conditions. When the connections receive a valid signal, the service state automatically changes to Unlocked-enabled.
–Locked,maintenance—Puts the circuit cross-connects in the Locked-enabled,maintenance service state. The maintenance state does not interrupt traffic flow; it suppresses alarms and conditions and allows loopbacks to be performed on the circuit. Use Locked,maintenance for circuit testing or to suppress circuit alarms temporarily. Change the administrative state to Unlocked; Unlocked,automaticInService; or Locked,disabled when testing is complete. See the "DLP-D230 Change a Circuit State" task on page 19-19.
For additional information about circuit service states, refer to the "Circuits and Tunnels" chapter in the Cisco ONS 15454 SDH Reference Manual.
•Apply to drop ports—Select this check box if you want to apply the state chosen in the State field to the circuit source and destination ports. CTC applies the circuit state to the ports only if the circuit bandwidth is the same as the port bandwidth or, if the port bandwidth is larger than the circuit, the circuit must be the first circuit to use the drop port. If not, a Warning dialog box shows the ports where the circuit state could not be applied. If the box is unchecked, CTC does not change the state of the source and destination ports.
Note Loss of signal alarms are generated if Unlocked ports are not receiving signals.
•Protected Drops—Select this check box if you want the circuit routed on protected drops only, that is, to ONS 15454 SDH cards that are in 1:1, 1:N, or 1+1 protection. If you select this check box, CTC displays only protected cards and ports as source and destination choices.
Step 9 If the circuit will be routed on an SNCP ring, complete the "DLP-D218 Provision SNCP Ring Selectors During Circuit Creation" task on page 19-11. Otherwise, continue with Step 10.
Step 10 Click Next.
Step 11 Complete the "DLP-D318 Provision a Low-Order VC3 Circuit Source and Destination" task on page 20-11.
Step 12 In the Circuit Routing Preferences area (Figure 6-2), uncheck Route Automatically.
Step 13 Set the circuit path protection:
•To route the circuit on a protected path, leave Fully Protected Path checked and continue with Step 14. Fully protected paths might or might not have SNCP path segments (with primary and alternate paths), and the path diversity options apply only to SNCP path segments, if any exist.
•To create an unprotected circuit, uncheck Fully Protected Path and continue with Step 17.
•To route the circuit on an MS-SPRing protection channel, if available, uncheck Fully Protected Path, check Protection Channel Access, click Yes in the Warning dialog box, then continue with Step 17.
Caution Circuits routed on MS-SPRing protection channels are not protected and are preempted during MS-SPRing switches.
Step 14 If you selected Fully Protected Path in Step 13 and the circuit will be routed on a SNCP, choose a Node-Diverse Path option:
•Nodal Diversity Required—Ensures that the primary and alternate paths within the SNCP ring portions of the complete circuit path are nodally diverse.
•Nodal Diversity Desired— Specifies that node diversity is preferred, but if node diversity is not possible, CTC creates fiber-diverse paths for the SNCP ring portion of the complete circuit path.
•Link Diversity Only—Specifies that only fiber-diverse primary and alternate paths for SNCP ring portions of the complete circuit path are needed. The paths might be node-diverse, but CTC does not check for node diversity.
Step 15 If you selected Fully Protected Path in Step 13 and the circuit will be routed on an SNCP DRI, click the Dual Ring Interconnect check box.
Step 16 Click Next. In the VC LO Matrix Optimization panel, choose one of the following:
•Create VC LO tunnel on transit nodes—This option is available if the VC3 circuit passes through a node that does not have a low-order tunnel, or if an existing low-order tunnel is full. Low-order tunnels allow VC3 circuits to pass through ONS 15454 SDHs without consuming low-order cross-connect card resources. Low-order tunnels are required if the circuit passes through a node with XC10G cross-connect cards. In general, creating low-order tunnels is a good idea if you are creating many low-order circuits from the same source and destination. Refer to the Cisco ONS 15454 SDH Reference Manual for more information.
•Create VC LO aggregation point—This option is available if you are creating a VC3 circuit to an STM-N port for handoff to non-ONS 15454 SDH networks or equipment, such as an IOF, switch, or DACS. A low-order aggregation point (LAP) allows low-order circuits to be routed through a node using one VC4 connection on the cross-connect card high-order matrix rather than multiple connections on the low-order matrix. If you want to aggregate the low-order circuit you are creating with others onto an VC4 for transport outside the ONS 15454 SDH network, choose one of the following:
–VC4 grooming node is [source node], VC12 grooming node is [destination node]—Creates the LAP on the VC3 circuit source node. This option is available only if the VC3 circuit originates on an STM-N card.
–VC4 grooming node is [destination node], VC3 grooming node is [source node]—Creates the LAP on the VC3 circuit destination node. This option is available only if the VC3 circuit terminates on an STM-N card.
•None—Choose this option if you do not want to create a low-order tunnel or a LAP. This is the only available option if CTC cannot create a low-order tunnel or LAP.
Step 17 Click Next. In the Route Review and Edit area, node icons appear for you to route the circuit. The circuit source node is selected. Green arrows pointing from the source node to other network nodes indicate spans that are available for routing the circuit.
Step 18 Complete the "DLP-D96 Provision a Low-Order VC3 Circuit Route" task on page 17-93 for the VC3 circuit you are creating.
Step 19 Click Finish. CTC compares your manually provisioned circuit route with the specified path diversity option you chose in Step 14. If the path does not meet the specified path diversity requirement, CTC displays an error message and allows you to change the circuit path.
Step 20 If you entered more than 1 in the Number of Circuits field, the Circuit Creation dialog box appears so you can create the remaining circuits. Repeat Steps 6 through 19 for each additional circuit.
Step 21 When all the circuits are created, the main Circuits window appears. Verify that the circuits you created are correct.
Step 22 Complete the "D135 Test Low-Order Circuits" procedure. Skip this step if you built a test circuit.
Stop. You have completed this procedure.
NTP-D56 Create a Unidirectional Low-Order VC3 Circuit with Multiple Drops
Purpose
|
This procedure creates a unidirectional low-order VC3 circuit with multiple drops (destinations).
|
Tools/Equipment
|
None
|
Prerequisite Procedures
|
D127 Verify Network Turn-Up
|
Required/As Needed
|
As needed
|
Onsite/Remote
|
Onsite or remote
|
Security Level
|
Provisioning or higher
|
Step 1 Complete the "DLP-D60 Log into CTC" task on page 17-47 at an ONS 15454 SDH on the network where you will create circuit. If you are already logged in, continue with Step 2.
Step 2 On the shelf graphic, verify that XC-VXL-10G or XC-VXL-2.5G cross-connect cards are installed in Slots 8 and 10.
Step 3 If you want to assign a name to the circuit source and destination ports before you create the circuit, complete the "DLP-D314 Assign a Name to a Port" task on page 20-9. If not, continue with Step 4.
Step 4 From the View menu, choose Go to Network View.
Step 5 Click the Circuits tab, then click Create.
Step 6 In the Circuit Creation dialog box, complete the following fields:
•Circuit Type—Choose VC_LO_PATH_CIRCUIT.
•Number of Circuits—Leave the default unchanged (1).
•Auto-ranged—Unavailable when the Number of Circuits field is 1.
Step 7 Click Next.
Step 8 Define the circuit attributes (Figure 6-4):
•Name—Assign a name to the circuit. The name can be alphanumeric and up to 48 characters, (including spaces). Circuit names should be 44 characters or less if you want the ability to create monitor circuits. If you leave the field blank, CTC assigns a default name to the circuit.
•Size—Choose VC3.
•Bidirectional—Uncheck for this circuit.
•Number of Circuits—Leave the default unchanged (1).
•Auto-ranged—Unavailable when the Number of Circuits field is 1.
•Create cross-connects only (TL1-like)—Check this check box if you want to create one or more cross-connects to complete a signal path for TL1-generated circuits. Also, low order tunnels and Ethergroup sources and destinations are unavailable.
•State—Choose the administrative state to apply to all of the cross-connects in a circuit:
–Unlocked—Puts the circuit cross-connects in the Unlocked-enabled service state.
–Locked,disabled—Puts the circuit cross-connects in the Locked-enabled,disabled service state. Traffic is not passed on the circuit.
–Unlocked,automaticInService—Puts the circuit cross-connects in the Unlocked-disabled,automaticInService service state and suppresses alarms and conditions. When the connections receive a valid signal, the service state automatically changes to Unlocked-enabled.
–Locked,maintenance—Puts the circuit cross-connects in the Locked-enabled,maintenance service state. The maintenance state does not interrupt traffic flow; it suppresses alarms and conditions and allows loopbacks to be performed on the circuit. Use Locked,maintenance for circuit testing or to suppress circuit alarms temporarily. Change the administrative state to Unlocked; Unlocked,automaticInService; or Locked,disabled when testing is complete. See the "DLP-D230 Change a Circuit State" task on page 19-19.
For additional information about circuit service states, refer to the "Circuits and Tunnels" chapter in the Cisco ONS 15454 SDH Reference Manual.
•Apply to drop ports—Check this box if you want to apply the state chosen in the State field to the circuit source and destination ports. CTC applies the circuit state to the ports only if the circuit bandwidth is the same as the port bandwidth or, if the port bandwidth is larger than the circuit, the circuit must be the first circuit to use the drop port. If not, a Warning dialog box shows the ports where the circuit state could not be applied. If the box is unchecked, CTC does not change the state of the source and destination ports.
Note Loss of signal alarms appear if Unlocked ports are not receiving signals.
•Protected Drops—Check this box if you want the circuit routed to protect drops only, that is, to ONS 15454 SDH cards that are in 1:1, 1:N, or 1+1 protection. If you check this box, CTC displays only protected cards as source and destination choices.
Figure 6-4 Setting Circuit Attributes for a Unidirectional Low-Order VC3 Circuit
Step 9 Click Next.
Step 10 Complete the "DLP-D318 Provision a Low-Order VC3 Circuit Source and Destination" task on page 20-11.
Step 11 In the Circuit Routing Preferences area, uncheck Route Automatically. When Route Automatically is not selected, the Using Required Nodes/Spans and Review Route Before Circuit Creation check boxes are unavailable.
Step 12 Set the circuit path protection:
•To route the circuit on a protected path, leave Fully Protected Path checked and continue with Step 13. Fully protected paths might or might not have SNCP path segments (with primary and alternate paths), and the path diversity options apply only to SNCP path segments, if any exist.
•To create an unprotected circuit, uncheck Fully Protected Path and continue with Step 16.
•To route the circuit on an MS-SPRing protection channel, if available, uncheck Fully Protected Path, check Protection Channel Access, click Yes in the Warning dialog box, then continue with Step 16.
Caution Circuits routed on MS-SPRing protection channels are not protected and are preempted during MS-SPRing switches.
Step 13 If you selected Fully Protected Path in Step 12 and the circuit will be routed on a SNCP, choose one of the following:
•Nodal Diversity Required—Ensures that the primary and alternate paths within the SNCP ring portions of the complete circuit path are nodally diverse.
•Nodal Diversity Desired—Specifies that node diversity is preferred, but if node diversity is not possible, CTC creates fiber-diverse paths for the SNCP ring portion of the complete circuit path.
•Link Diversity Only—Specifies that only fiber-diverse primary and alternate paths for SNCP ring portions of the complete circuit path are needed. The paths might be node-diverse, but CTC does not check for node diversity.
Step 14 If you selected Fully Protected Path in Step 12 and the circuit will be routed on an SNCP DRI, click the Dual Ring Interconnect check box.
Step 15 Click Next. In the VC LO Matrix Optimization panel, choose one of the following:
•Create VC LO tunnel on transit nodes—This option is available if the VC3 circuit passes through a node that does not have a low-order tunnel, or if an existing low-order tunnel is full. Low-order tunnels allow VC3 circuits to pass through ONS 15454 SDHs without consuming low-order cross-connect card resources. Low-order tunnels are required if the circuit passes through a node with XC10G cross-connect cards. In general, creating low-order tunnels is a good idea if you are creating many low-order circuits from the same source and destination. Refer to the Cisco ONS 15454 SDH Reference Manual for more information.
•Create VC LO aggregation point—This option is available if you are creating a VC3 circuit to an STM-N port for handoff to non-ONS 15454 SDH networks or equipment, such as an IOF, switch, or DACS. A low-order aggregation point (LAP) allows low-order circuits to be routed through a node using one VC4 connection on the cross-connect card high-order matrix rather than multiple connections on the low-order matrix. If you want to aggregate the low-order circuit you are creating with others onto an VC4 for transport outside the ONS 15454 SDH network, choose one of the following:
–VC4 grooming node is [source node], VC12 grooming node is [destination node]—Creates the LAP on the VC3 circuit source node. This option is available only if the VC3 circuit originates on an STM-N card.
–VC4 grooming node is [destination node], VC12 grooming node is [source node]—Creates the LAP on the VC3 circuit destination node. This option is available only if the VC3 circuit terminates on an STM-N card.
•None—Choose this option if you do not want to create a low-order tunnel or a LAP. This is the only available option if CTC cannot create a low-order tunnel or LAP.
Step 16 Click Next. In the Route Review and Edit area, node icons appear so you can route the circuit manually. The circuit source node is selected. Green arrows pointing from the source node to other network nodes indicate spans that are available for routing the circuit.
Step 17 Complete the "DLP-D96 Provision a Low-Order VC3 Circuit Route" task on page 17-93 for the VC3 circuit you are creating.
Step 18 Click Finish. The Circuits window appears.
Step 19 In the Circuits window, click the circuit that you want to route to multiple drops. The Delete, Edit, and Search buttons become active.
Step 20 Click Edit (or double-click the circuit row). The Edit Circuit window appears with the General tab selected.
All nodes in the DCC network appear on the network. Circuit source and destination information appears under the source and destination nodes. To see a detailed view of the circuit, click Show Detailed Map. To rearrange a node icon, select the node, press Ctrl, then drag and drop the icon to the new location.
Step 21 In the Edit Circuit dialog box, click the Drops tab. A list of existing drops appears.
Step 22 Click Create.
Step 23 In the Define New Drop dialog box, create the new drop:
a. Node—Choose the target node for the circuit drop.
b. Slot—Choose the target card and slot.
c. Port, VC4, or VC3—Choose the Port, VC4, or VC3 from the Port, VC4, or VC3 drop-down lists. The card selected in Step b determines the fields that appear. See Table 6-3 for a list of options.
d. The routing preferences for the new drop match those of the original circuit. However, you can modify the following:
•If the original circuit was routed on a protected SNCP path, you can change the nodal diversity options: Nodal Diversity Required, Nodal Diversity Desired, or Link Diversity Only. See Step 13 for descriptions.
•If the original circuit was not routed on a protected path, the Protection Channel Access option is available. See Step 12 for a description of the PCA option.
e. Click OK. The new drop appears in the Drops list.
Step 24 If you need to create additional drops for the circuit, repeat Step 22 and 23 to create the additional drops.
Step 25 Choose Close. The Circuits window appears.
Step 26 Verify that the new drops appear in the Destination column for the circuit you edited. If they do not appear repeat Steps 5 through 25, making sure all options are provisioned correctly.
Step 27 Complete the "D135 Test Low-Order Circuits" procedure. Skip this step if you built a test circuit.
Stop. You have completed this procedure.
NTP-D133 Create an Automatically Routed Low-Order Tunnel
Purpose
|
This procedure creates an automatically routed low-order tunnel from source to destination nodes.
|
Tools/Equipment
|
None
|
Prerequisite Procedures
|
D127 Verify Network Turn-Up
|
Required/As Needed
|
As needed
|
Onsite/Remote
|
Onsite or remote
|
Security Level
|
Provisioning or higher
|
Note Low-order tunnels allow low-order VC12 and VC3 circuits to pass through intermediary ONS 15454 SDH nodes without consuming low-order matrix resources on the cross-connect card. In general, creating low-order tunnels is a good idea if you are creating many low-order circuits from the same source and destination. Low-order tunnels are required if low-order circuits must pass through nodes with XC10G cross-connect cards. Refer to the "Circuits and Tunnels" chapter in the Cisco ONS 15454 SDH Reference Manual for more information.
Step 1 Complete the "DLP-D60 Log into CTC" task on page 17-47 at an ONS 15454 SDH on the network where you will create circuit. If you are already logged in, continue with Step 2.
Step 2 If you want to assign a name to the tunnel source and destination ports before you create the circuit, complete the "DLP-D314 Assign a Name to a Port" task on page 20-9. If not, continue with Step 3.
Step 3 From the View menu, choose Go to Network View.
Step 4 Click the Circuits tab, then click Create.
Step 5 In the Circuit Creation dialog box, complete the following fields:
•Circuit Type—Choose VC_LO_PATH TUNNEL.
•For VC3 Port Grouping Only—Leave this box unchecked.
Step 6 Click Next.
Step 7 Define the circuit attributes (Figure 6-5):
•Name—Assign a name to the low-order tunnel. The name can be alphanumeric and up to 48 characters (including spaces). Circuit names should be 44 characters or less if you want the ability to create monitor circuits. If you leave the field blank, CTC assigns a default name to the tunnel.
•Size—The default size is VC4. You cannot change this value.
•Bidirectional—The default is Bidirectional. You cannot change this value.
•State—Choose the administrative state to apply to all of the cross-connects in a circuit:
–Unlocked—Puts the circuit cross-connects in the Unlocked-enabled service state.
–Locked,disabled—Puts the circuit cross-connects in the Locked-enabled,disabled service state. Traffic is not passed on the circuit.
–Unlocked,automaticInService—Puts the circuit cross-connects in the Unlocked-disabled,automaticInService service state and suppresses alarms and conditions. When the connections receive a valid signal, the service state automatically changes to Unlocked-enabled.
–Locked,maintenance—Puts the circuit cross-connects in the Locked-enabled,maintenance service state. The maintenance state does not interrupt traffic flow; it suppresses alarms and conditions and allows loopbacks to be performed on the circuit. Use Locked,maintenance for circuit testing or to suppress circuit alarms temporarily. Change the administrative state to Unlocked; Unlocked,automaticInService; or Locked,disabled when testing is complete. See the "DLP-D230 Change a Circuit State" task on page 19-19.
Note A low-order tunnel automatically transitions into the Unlocked service state after a VC12 or VC3 circuit is created.
For additional information about circuit service states, refer to the "Circuits and Tunnels" chapter in the Cisco ONS 15454 SDH Reference Manual.
•Apply to drop ports—Unavailable for low-order tunnels.

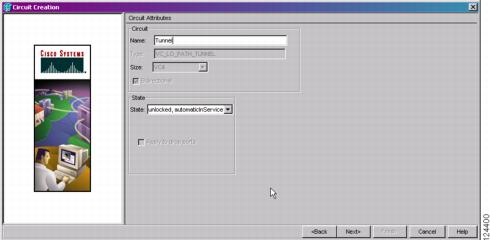

Figure 6-5 Setting Attributes for a Low-Order Tunnel
Step 8 Click Next.
Step 9 In the Circuit Source area, choose the node where the low-order tunnel will originate from the Node drop-down list.
Step 10 Click Next.
Step 11 In the Circuit Destination area, choose the node where the low-order tunnel will terminate from the Node drop-down list.
Step 12 Click Next.
Step 13 In the Circuit Routing Preferences area, choose Route Automatically. Two options are available; choose either, both, or none based on your preferences.
•Using Required Nodes/Spans—Check this check box to specify nodes and spans to include or exclude in the CTC-generated tunnel route.
Including nodes and spans for a circuit ensures that those nodes and spans are in the working path of the circuit (but not the protect path). Excluding nodes and spans ensures that the nodes and spans are not in the working or protect path of the circuit.
•Review Route Before Creation—Check this check box to review and edit the low-order tunnel route before the circuit is created.
Step 14 If you selected Using Required Nodes/Spans in Step 13:
a. Click Next.
b. In the Circuit Route Constraints For Auto Routing area, click a span on the low-order tunnel map.
c. Click Include to include the node or span in the low-order tunnel. Click Exclude to exclude the node or span from the low-order tunnel. The order in which you choose included nodes and spans sets the low-order tunnel sequence. Click spans twice to change the circuit direction.
d. Repeat Step c for each node or span you wish to include or exclude.
e. Review the low-order tunnel route. To change the tunnel routing order, choose a node from the Required Nodes/Lines or Excluded Notes Links lists, then click the Up or Down buttons to change the tunnel routing order. Click Remove to remove a node or span.
Step 15 If you selected Review Route Before Creation in Step 13:
a. Click Next.
b. Review the tunnel route. To add or delete a tunnel span, choose a node on the tunnel route. Blue arrows show the tunnel route. Green arrows indicate spans that you can add. Click a span arrowhead, then click Include to include the span or Remove to remove the span.
c. If the provisioned tunnel does not reflect the routing and configuration you want, click Back to verify and change tunnel information.
Step 16 Click Finish. The Circuits window appears.
Step 17 Verify that the tunnel you just created appears in the circuits list. Low-order tunnels are identified by LOT in the Type column.
Stop. You have completed this procedure.
NTP-D134 Create a Manually Routed Low-Order Tunnel
Purpose
|
This procedure creates a manually routed, low-order tunnel from source to destination nodes.
|
Tools/Equipment
|
None
|
Prerequisite Procedures
|
D127 Verify Network Turn-Up
|
Required/As Needed
|
As needed
|
Onsite/Remote
|
Onsite or remote
|
Security Level
|
Provisioning or higher
|
Note Low-order tunnels allow low-order circuits to pass through intermediary ONS 15454 SDHs without consuming low-order matrix resources on the cross-connect card. In general, creating low-order tunnels is a good idea if you are creating many low-order circuits from the same source and destination. Refer to the "Circuits and Tunnels" chapter in the Cisco ONS 15454 SDH Reference Manual for more information.
Step 1 Complete the "DLP-D60 Log into CTC" task on page 17-47 at an ONS 15454 SDH on the network where you will create circuit. If you are already logged in, continue with Step 2.
Step 2 If you want to assign a name to the tunnel source and destination ports before you create the circuit, complete the "DLP-D314 Assign a Name to a Port" task on page 20-9. If not, continue with Step 4.
Step 3 From the View menu, choose Go to Network View.
Step 4 Click the Circuits tab, then click Create.
Step 5 In the Circuit Creation dialog box, complete the following fields:
•Circuit Type—Choose VC_LO_PATH TUNNEL.
•For VC3 Port Grouping Only—Leave this box unchecked.
Step 6 Click Next.
Step 7 Define the circuit attributes (Figure 6-6):
•Name—Assign a name to the low-order tunnel. The name can be alphanumeric and up to 48 characters (including spaces). Circuit names should be 44 characters or less if you want the ability to create monitor circuits. If you leave the field blank, CTC assigns a default name to the tunnel.
•Size—The default size is VC4. You cannot change this value.
•Bidirectional—Unavailable for low-order tunnels.
•State—Choose the administrative state to apply to all of the cross-connects in a circuit:
–Unlocked—Puts the circuit cross-connects in the Unlocked-enabled service state.
–Locked,disabled—Puts the circuit cross-connects in the Locked-enabled,disabled service state. Traffic is not passed on the circuit.
–Unlocked,automaticInService—Puts the circuit cross-connects in the Unlocked-disabled,automaticInService service state and suppresses alarms and conditions. When the connections receive a valid signal, the service state automatically changes to Unlocked-enabled.
–Locked,maintenance—Puts the circuit cross-connects in the Locked-enabled,maintenance service state. The maintenance state does not interrupt traffic flow; it suppresses alarms and conditions and allows loopbacks to be performed on the circuit. Use Locked,maintenance for circuit testing or to suppress circuit alarms temporarily. Change the administrative state to Unlocked; Unlocked,automaticInService; or Locked,disabled when testing is complete. See the "DLP-D230 Change a Circuit State" task on page 19-19.
Note A low-order tunnel automatically transitions into the Unlocked service state after a VC12 or VC3 circuit is created.
For additional information about circuit service states, refer to the "Circuits and Tunnels" chapter in the Cisco ONS 15454 SDH Reference Manual.
•Apply to drop ports—Unavailable for low-order tunnels.
Step 8 Click Next.
Step 9 In the Circuit Source area, choose the node where the low-order tunnel will originate from the Node drop-down list.
Step 10 Click Next.
Step 11 In the Circuit Destination area, choose the node where the low-order tunnel will terminate from the Node drop-down list.
Step 12 Click Next.
Step 13 In the Circuit Routing Preferences area, uncheck Route Automatically.
Step 14 Click Next. In the Route Review and Edit area, node icons appear for tunnel routing. The circuit source node is selected. Green arrows pointing from the source node to other network nodes indicate spans that are available for routing the tunnel.
Step 15 Complete the "DLP-D219 Provision a Low-Order Tunnel Route" task on page 19-12 for the tunnel you are creating. The Circuits window appears.
Step 16 Verify that the tunnel you just created appears in the circuits list. Low-order tunnels are identified by LOT in the Type column.
Stop. You have completed this procedure.
NTP-D216 Create a Low-Order Path Tunnel for Port Grouping
Purpose
|
This procedure creates a low-order path tunnel for the E3 and DS3i-N-12 cards in networks with XC10G cross-connect cards installed. The XC10G card does not have low-order cross-connect capacity, so port group tunnels must be used to transport VC3 signal rates.
|
Tools/Equipment
|
None
|
Prerequisite Procedures
|
D127 Verify Network Turn-Up
|
Required/As Needed
|
As needed
|
Onsite/Remote
|
Onsite or remote
|
Security Level
|
Provisioning or higher
|
Step 1 Complete the "DLP-D60 Log into CTC" task on page 17-47 at an ONS 15454 SDH on the network where you will create circuit. If you are already logged in, continue with Step 2.
Step 2 If you want to assign a name to the tunnel source and destination ports before you create the circuit, complete the "DLP-D314 Assign a Name to a Port" task on page 20-9. If not, continue with Step 3.
Step 3 From the View menu, choose Go to Network View.
Step 4 Click the Circuits tab, then click Create.
Step 5 In the Circuit Creation dialog box, complete the following fields:
•Circuit Type—Choose VC_LO_PATH TUNNEL.
•For VC3 Port Grouping Only—Check this box.
Step 6 Click Next.
Step 7 Define the circuit attributes:
•Name—Assign a name to the low-order tunnel. The name can be alphanumeric and up to 48 characters (including spaces). Circuit names should be 44 characters or less if you want the ability to create monitor circuits. If you leave the field blank, CTC assigns a default name to the tunnel.
•Size—The default size is VC4. You cannot change this value.
•Bidirectional—This check box is automatically checked.
Three ports form one port group. For example, in one E3 or one DS3i-N-12 card, there are four port groups:
–Ports 1 to 3 = PG1
–Ports 4 to 6 = PG2
–Ports 7 to 9 = PG3
–Ports 10 to 12 = PG4
Low-order path tunneling is performed at the VC3 level.
•State—Choose the administrative state to apply to all of the cross-connects in a circuit:
–Unlocked—Puts the circuit cross-connects in the Unlocked-enabled service state.
–Locked,disabled—Puts the circuit cross-connects in the Locked-enabled,disabled service state. Traffic is not passed on the circuit.
–Unlocked,automaticInService—Puts the circuit cross-connects in the Unlocked-disabled,automaticInService service state and suppresses alarms and conditions. When the connections receive a valid signal, the service state automatically changes to Unlocked-enabled.
–Locked,maintenance—Puts the circuit cross-connects in the Locked-enabled,maintenance service state. The maintenance state does not interrupt traffic flow; it suppresses alarms and conditions and allows loopbacks to be performed on the circuit. Use Locked,maintenance for circuit testing or to suppress circuit alarms temporarily. Change the administrative state to Unlocked; Unlocked,automaticInService; or Locked,disabled when testing is complete. See the "DLP-D230 Change a Circuit State" task on page 19-19.
Note A low-order tunnel automatically transitions into the Unlocked service state after a VC12 or VC3 circuit is created.
For additional information about circuit service states, refer to the "Circuits and Tunnels" chapter in the Cisco ONS 15454 SDH Reference Manual.
•Apply to drop ports—Uncheck this box.
Step 8 If the tunnel will be routed on an SNCP ring, complete the "DLP-D218 Provision SNCP Ring Selectors During Circuit Creation" task on page 19-11. Otherwise, continue with Step 9.
Step 9 Click Next.
Step 10 In the Circuit Source area, choose the node where the low-order tunnel will originate from the Node drop-down list. Complete the following:
a. From the Slot drop-down list, choose the slot containing the card where the circuit will originate.
b. For optical circuits, choose the VC4 from the VC4 drop-down list.
c. For electrical circuits on E3 or DS3I cards, choose the port group from the Port Group drop-down list.
d. Click Next.
Step 11 In the Circuit Destination area, choose the node where the low-order tunnel will terminate from the Node drop-down list. Complete the following:
a. From the Slot drop-down list, choose the slot containing the card where the circuit will terminate.
b. For optical circuits, choose the VC4 from the VC4 drop-down list.
c. For electrical circuits on E3 or DS3I cards, choose the port group from the Port Group drop-down list.
d. Click Next.
Step 12 In the Circuit Routing Preferences area, choose Route Automatically. Two options are available; choose either, both, or none based on your preferences.
•Using Required Nodes/Spans—Check this check box to specify nodes and spans to include or exclude in the CTC-generated tunnel route.
Including nodes and spans for a circuit ensures that those nodes and spans are in the working path of the circuit (but not the protect path). Excluding nodes and spans ensures that the nodes and spans are not in the working or protect path of the circuit.
•Review Route Before Creation—Select this check box to review and edit the low-order tunnel route before the circuit is created.
Step 13 If you selected Using Required Nodes/Spans in Step 12:
a. Click Next.
b. In the Circuit Route Constraints For Auto Routing area, click a span on the low-order tunnel map.
c. Click Include to include the node or span in the low-order tunnel. Click Exclude to exclude the node or span from the low-order tunnel. The order in which you choose included nodes and spans sets the low-order tunnel sequence. Click spans twice to change the circuit direction.
d. Repeat Step c for each node or span you wish to include or exclude.
e. Review the low-order tunnel route. To change the tunnel routing order, choose a node from the Required Nodes/Lines or Excluded Notes Links lists, then click the Up or Down buttons to change the tunnel routing order. Click Remove to remove a node or span.
Step 14 If you selected Review Route Before Creation in Step 12:
a. Click Next.
b. Review the tunnel route. To add or delete a tunnel span, choose a node on the tunnel route. Blue arrows show the tunnel route. Green arrows indicate spans that you can add. Click a span arrowhead, then click Include to include the span or Remove to remove the span.
c. If the provisioned tunnel does not reflect the routing and configuration you want, click Back to verify and change tunnel information.
Step 15 Click Finish. The Circuits window appears.
Step 16 Verify that the tunnel you just created appears in the circuits list. Low-order tunnels are identified by LOT in the Type column.
Stop. You have completed this procedure.
NTP-D187 Create a Low-Order Aggregation Point
Purpose
|
This procedure creates a low-order aggregation point (LAP). LAPs allow multiple VC3 or VC12 low-order circuits to be aggregated on a single VC4 circuit. LAPs allow multiple low-order circuits to pass through cross-connect cards without utilizing resources on the cross-connect card low-order matrix.
|
Tools/Equipment
|
None
|
Prerequisite Procedures
|
D127 Verify Network Turn-Up
|
Required/As Needed
|
As needed
|
Onsite/Remote
|
Onsite or remote
|
Security Level
|
Provisioning or higher
|
Note You can create low-order aggregation points for circuits in MS-SPRing or 1+1 protection, or for unprotected circuits. You cannot create them for SNCP ring circuits.
Note The maximum number of LAPs that you can create depends on the node protection topology and number of low-order circuits that terminate on the node. Assuming no other low-order circuits terminate at the node, the maximum number of LAPs that you can terminate at one node is 8 for 1+1 and 12 for MS-SPRing protection.
Step 1 Complete the "DLP-D60 Log into CTC" task on page 17-47 at an ONS 15454 SDH on the network where you will create circuit. If you are already logged in, continue with Step 2.
Step 2 If you want to assign a name to the tunnel source and destination ports before you create the circuit, complete the "DLP-D314 Assign a Name to a Port" task on page 20-9. If not, continue with Step 3.
Step 3 From the View menu, choose Go to Network View.
Step 4 Click the Circuits tab, then click Create.
Step 5 In the Circuit Creation dialog box, choose VC_LO_PATH_AGGREGATION.
Step 6 Click Next.
Step 7 Define the circuit attributes (Figure 6-6):
•Name—Assign a name to the low-order aggregation point. The name can be alphanumeric and up to 48 characters (including spaces). Circuit names should be 44 characters or less if you want the ability to create monitor circuits. If you leave the field blank, CTC assigns a default name to the LAP.
•Size—Defaults to VC4. You cannot change the value.
•Bidirectional—Defaults to Bidirectional. You cannot change the value.
•State—Choose the administrative state to apply to all of the cross-connects in a circuit:
–Unlocked—Puts the circuit cross-connects in the Unlocked-enabled service state.
–Locked,disabled—Puts the circuit cross-connects in the Locked-enabled,disabled service state. Traffic is not passed on the circuit.
–Unlocked,automaticInService—Puts the circuit cross-connects in the Unlocked-disabled,automaticInService service state and suppresses alarms and conditions. When the connections receive a valid signal, the service state automatically changes to Unlocked-enabled.
–Locked,maintenance—Puts the circuit cross-connects in the Locked-enabled,maintenance service state. The maintenance state does not interrupt traffic flow; it suppresses alarms and conditions and allows loopbacks to be performed on the circuit. Use Locked,maintenance for circuit testing or to suppress circuit alarms temporarily. Change the administrative state to Unlocked; Unlocked,automaticInService; or Locked,disabled when testing is complete. See the "DLP-D230 Change a Circuit State" task on page 19-19.
Note A low-order aggregation point automatically transitions into the Unlocked service state after a VC12 or VC3 circuit is created.
For additional information about circuit service states, refer to the "Circuits and Tunnels" chapter in the Cisco ONS 15454 SDH Reference Manual.
•Apply to drop ports—Uncheck this box.

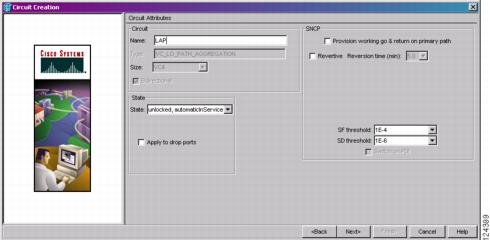

Figure 6-6 Setting Attributes for a Low-Order Aggregation Point
Note LAPs cannot be routed on an SNCP ring, so the SNCP path selectors do not apply.
Step 8 Click Next.
Step 9 In the Circuit Source area, choose the source node, slot, port, and VC4 for the LAP. The LAP source is where the low-order circuits are aggregated into a single VC4. The LAP destination is where the low-order circuits originate.
a. From the Node drop-down list, choose the node where the LAP will originate.
b. From the Slot drop-down list, choose the slot containing the STM-N, E3-12, DS3i-N-12, or STM1E-12 card where the LAP will originate.
c. Depending on the card chosen in Step b, choose the port and/or VC4 from the Port and VC4 drop-down lists.
Step 10 Click Next.
Step 11 In the Circuit Destination area, choose the node where the low-order circuits aggregated by the LAP will terminate from the Node drop-down list.
Step 12 Click Next.
Step 13 In the Circuit Routing Preferences area, choose Route Automatically. Two options are available; choose either, both, or none based on your preferences.
•Using Required Nodes/Spans—Check this check box to specify nodes and spans to include or exclude in the CTC-generated tunnel route.
Including nodes and spans for a circuit ensures that those nodes and spans are in the working path of the circuit (but not the protect path). Excluding nodes and spans ensures that the nodes and spans are not in the working or protect path of the circuit.
•Review Route Before Creation—Check this check box to review and edit the low-order tunnel route before the circuit is created.
Step 14 If you selected Using Required Nodes/Spans in Step 13:
a. Click Next.
b. In the Circuit Route Constraints For Auto Routing area, click a span on the LAP map.
c. Click Include to include the node or span in the LAP. Click Exclude to exclude the node or span from the LAP. The sequence in which you choose the nodes and spans sets the LAP sequence. Click spans twice to change the circuit direction.
d. Repeat Step c for each node or span you wish to include or exclude.
e. Review the LAP route. To change the tunnel routing order, choose a node from the Required Nodes/Lines or Excluded Notes Links lists, then click the Up or Down buttons to change the tunnel routing order. Click Remove to remove a node or span.
Step 15 If you selected Review Route Before Creation in Step 13:
a. Click Next.
b. Review the tunnel route. To add or delete a tunnel span, choose a node on the tunnel route. Blue arrows show the tunnel route. Green arrows indicate spans that you can add. Click a span arrowhead, then click Include to include the span or Remove to remove the span.
c. If the provisioned tunnel does not reflect the routing and configuration you want, click Back to verify and change tunnel information.
Step 16 Click Finish. The Circuits window appears.
Step 17 Verify that the LAP you just created appears in the circuits list. LAPs are identified in the Type column.
Stop. You have completed this procedure.
NTP-D135 Test Low-Order Circuits
Step 1 Complete the "DLP-D60 Log into CTC" task on page 17-47 at an ONS 15454 SDH on the network where you will create circuit. If you are already logged in, continue with Step 2.
Step 2 From the View menu, choose Go to Network View.
Step 3 Click the Circuit tab.
Step 4 Complete the "DLP-D230 Change a Circuit State" task on page 19-19 and set the circuit ports to the Locked-enabled,maintenance service state. Take note of the original state because you will return the circuit to that state later.
Step 5 Attach loopback cables to the circuit destination card.
a. Verify the integrity of the loopback cable by looping the test set transmit (Tx) connector to the test set receive (Rx) connector. If the test set does not run error-free, check the cable for damage and check the test set to make sure it is set up correctly before going to Step b.
b. Attach the loopback cable to the port you are testing. Connect the Tx connector to the Rx connector of the port.
Step 6 Attach loopback cables to the circuit source node.
a. Verify the integrity of loopback cable by looping the test set Tx connector to the test set Rx connector. If the test set does not run error-free, check the cable for damage and check the test set to make sure it is set up correctly before going to Step b.
b. Attach the loopback cable to the port you are testing. Connect the test set to the circuit source port. Connect the Tx port of the test set to the circuit Rx port and the test set Rx port to the circuit Tx port.
Step 7 Configure the test set for the ONS 15454 SDH card that is the source of the circuit you are testing:
•VC4 or VC4-nc—If you are testing a VC4 circuit or a VC4-nc circuit on an STM-N card, you must have a direct optical interface into the ONS 15454 SDH. Set the test set for STM-N. For information about configuring your test set, consult your test set user guide.
•VC3—If you are testing a clear channel E3/DS3i-N-12, you must have a patch panel or a direct E3/DS3i-N-12 interface into the ONS 15454 SDH. Set the test set for clear channel E3/DS3i-N-12. For information about configuring your test set, consult your test set user guide.
•VC12—If you are testing an E1, you must have a patch panel or a direct E1 interface to the ONS 15454 SDH. Set the test set for E1. For information about configuring your test set, consult your test set user guide.
Step 8 Verify that the test set has a clean signal. If a clean signal is not shown, repeat Steps 4 through 7 to make sure the test set and cabling are configured correctly.
Step 9 Inject errors from the test set. Verify that the errors appear at the source and destination nodes.
Step 10 Clear the performance monitoring (PM) counts for the ports that you tested. See the "DLP-D459 Clear Selected PM Counts" task on page 21-39 for instructions.
Step 11 Complete the "DLP-D230 Change a Circuit State" task on page 19-19 and put the circuit and circuit ports back to the state they were in at the beginning of the test.
Step 12 Perform the protection switch test appropriate to the SDH topology:
•For SNCP rings, complete the "DLP-D94 SNCP Protection Switching Test" task on page 17-90
•For MS-SPRings complete the "DLP-D91 MS-SPRing Switch Test" task on page 17-83.
Step 13 Perform a bit error rate test (BERT) for 12 hours or follow your site requirements for length of time. For information about configuring your test set for BERT, see your test set user guide.
Step 14 After the BERT is complete, print the results or save them to a disk for future reference. For information about printing or saving test results, see your test set user guide.
Stop. You have completed this procedure.
NTP-D323 Create an Automatically Routed High-Order Circuit
Purpose
|
This procedure creates an automatically routed bidirectional or unidirectional high-order circuit, including VC4 and concatenated VC4-2c, VC4-3c, VC4-4c, VC4-8c, VC4-16c, and VC4-64c speeds.
|
Tools/Equipment
|
None
|
Prerequisite Procedures
|
D127 Verify Network Turn-Up
|
Required/As Needed
|
As needed
|
Onsite/Remote
|
Onsite or remote
|
Security Level
|
Provisioning or higher
|
Step 1 Complete the "DLP-D60 Log into CTC" task on page 17-47 at an ONS 15454 SDH on the network where you will create circuit. If you are already logged in, continue with Step 2.
Step 2 If you want to assign a name to the circuit source and destination ports before you create the circuit, complete the "DLP-D314 Assign a Name to a Port" task on page 20-9. If not, continue with Step 3.
Step 3 From the View menu, choose Go to Network View.
Step 4 Click the Circuits tab, then click Create.
Step 5 In the Circuit Creation dialog box, complete the following fields:
•Circuit Type—Choose VC_HO_PATH_CIRCUIT.
•Number of Circuits—Enter the number of high-order circuits you want to create. The default is 1. If you are creating multiple circuits with the same source and destination, you can use auto-ranging to create the circuits automatically.
•Auto-ranged—This check box is automatically selected when you enter more than 1 in the Number of Circuits field. Leave this check box selected if you are creating multiple high-order circuits with the same source and destination and you want CTC to create the circuits automatically. Uncheck the box if you do not want CTC to create the circuits automatically.
Step 6 Click Next.
Step 7 Define the circuit attributes (Figure 6-7):
•Name—Assign a name to the circuit. The name can be alphanumeric and up to 48 characters (including spaces). Circuit names should be 44 characters or less if you want the ability to create monitor circuits. If you leave the field blank, CTC assigns a default name to the circuit.
•Size—Choose the high-order circuit size: VC4, VC4-2c, VC4-3c, VC4-4c, VC4-8c, VC4-9c, VC4-16c, or VC4-64c.
•Bidirectional—Leave checked for this circuit (default).
•Create cross-connects only (TL1-like)—Check this check box if you want to create one or more cross-connects to complete a signal path for TL1-generated circuits. Also, low order tunnels and Ethergroup sources and destinations are unavailable.
•State—Choose the administrative state to apply to all of the cross-connects in a circuit:
–Unlocked—Puts the circuit cross-connects in the Unlocked-enabled service state.
–Locked,disabled—Puts the circuit cross-connects in the Locked-enabled,disabled service state. Traffic is not passed on the circuit.
–Unlocked,automaticInService—Puts the circuit cross-connects in the Unlocked-disabled,automaticInService service state and suppresses alarms and conditions. When the connections receive a valid signal, the service state automatically changes to Unlocked-enabled.
–Locked,maintenance—Puts the circuit cross-connects in the Locked-enabled,maintenance service state. The maintenance state does not interrupt traffic flow; it suppresses alarms and conditions and allows loopbacks to be performed on the circuit. Use Locked,maintenance for circuit testing or to suppress circuit alarms temporarily. Change the administrative state to Unlocked; Unlocked,automaticInService; or Locked,disabled when testing is complete. See the "DLP-D230 Change a Circuit State" task on page 19-19.
For additional information about circuit service states, refer to the "Circuits and Tunnels" chapter in the Cisco ONS 15454 SDH Reference Manual.
•Apply to drop ports—Check this box if you want to apply the state chosen in the State field to the circuit source and destination ports. CTC applies the circuit state to the ports only if the circuit bandwidth is the same as the port bandwidth or, if the port bandwidth is larger than the circuit, the circuit must be the first circuit to use the drop port. If not, a Warning dialog box shows the ports where the circuit state could not be applied. If the box is unchecked, CTC does not change the state of the source and destination ports.
Note Loss of signal alarms appear if Unlocked ports are not receiving signals.
•Protected Drops—Select this check box if you want the circuit routed to protected drops only, that is, to ONS 15454 SDH cards that are in 1:1, 1:N, or 1+1 protection. If you select this check box, CTC shows only protected cards as source and destination choices.

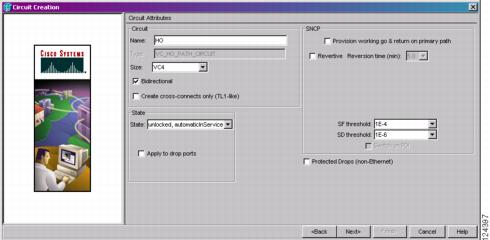

Figure 6-7 Setting Circuit Attributes for an High-Order Circuit
Step 8 If the circuit will be routed on an SNCP ring, complete the "DLP-D218 Provision SNCP Ring Selectors During Circuit Creation" task on page 19-11.
Step 9 Click Next.
Step 10 Complete the "DLP-D97 Provision a High-Order Circuit Source and Destination" task on page 17-94 for the high-order circuit you are creating.
Step 11 In the Circuit Routing Preferences area, choose Route Automatically. Two options are available; choose either, both, or none based on your preferences.
•Using Required Nodes/Spans—Check this check box to specify nodes and spans to include or exclude in the CTC-generated circuit route.
Including nodes and spans for a circuit ensures that those nodes and spans are in the working path of the circuit (but not the protect path). Excluding nodes and spans ensures that the nodes and spans are not in the working or protect path of the circuit.
•Review Route Before Creation—Check this check box to review and edit the circuit route before the circuit is created.
Step 12 Set the circuit path protection:
•To route the circuit on a protected path, leave Fully Protected Path checked and continue with Step 13. CTC creates a fully protected circuit route based on the path diversity option you choose. Fully protected paths might or might not have SNCP path segments (with primary and alternate paths), and the path diversity options apply only to SNCP path segments, if any exist.
•To create an unprotected circuit, uncheck Fully Protected Path and continue with Step 15.
•To route the circuit on an MS-SPRing protection channel, if available, uncheck Fully Protected Path, check Protection Channel Access, click Yes in the Warning dialog box, then continue with Step 15.
Step 13 If you selected Fully Protected Path in Step 12 and the circuit will be routed on SNCP, choose one of the following:
•Nodal Diversity Required—Ensures that the primary and alternate paths within SNCP ring portions of the complete circuit path are nodally diverse.
•Nodal Diversity Desired—Specifies that node diversity is preferred, but if node diversity is not possible, CTC creates fiber-diverse paths for the SNCP ring portion of the complete circuit path.
•Link Diversity Only—Specifies that only fiber-diverse primary and alternate paths for SNCP ring portions of the complete circuit path are needed. The paths might be node-diverse, but CTC does not check for node diversity.
Step 14 If you selected Fully Protected Path in Step 12 and the circuit will be routed on an MS-SPRing DRI or SNCP DRI, check the Dual Ring Interconnect check box. If not, continue with Step 17.
Step 15 If you checked Dual Ring Interconnect for a SNCP in Step 14, complete the following substeps. If you checked Dual Ring Interconnect for a MS-SPRing, skip this step and continue with Step 16.
a. Click Next.
b. In the Circuit Route Constraints For Auto Routing area, click a node or span on the circuit map.
c. Click Include to include the node or span in the circuit, or click Exclude to exclude the node or span from the circuit. The order in which you choose included nodes and spans is the order in which the circuit is routed. Click spans twice to change the circuit direction.
d. Repeat Step c for each node or span you wish to include or exclude.
e. Review the circuit route. To change the circuit routing order, choose a node from the Required Nodes/Lines or Excluded Notes Links lists, then click the Up or Down buttons to change the circuit routing order. Click Remove to remove a node or span.
Step 16 If you checked Dual Ring Interconnect for a MS-SPRing in Step 14, complete the following substeps to assign primary and secondary nodes and ring type.
a. In the Circuit Constraints for Automatic Routing area, click Add MS-SPRing DRI.
b. In the confirmation window, click OK.
c. In the Node Options area of the MS-SPRing DRI Options dialog box, complete the following (for an example of a traditional and integrated route on primary and secondary nodes):
•Primary Node—For a traditional or integrated MS-SPRing DRI, choose the node where the circuit interconnects the rings.
•Secondary Node—For a traditional or integrated MS-SPRing DRI, choose the secondary node for the circuit to interconnect the rings. This route is used if the route on the primary node fails.
•Primary Node #2—For a traditional MS-SPRing DRI where two primary nodes are required to interconnect rings, choose the second primary node.
•Secondary Node #2—For a traditional MS-SPRing DRI where two secondary nodes are required, choose the second secondary node.
d. In the Ring and Path Options area, complete the following:
•The first ring is—Choose SNCP or MS-SPRing from the drop-down list.
•The second ring is—Choose SNCP or MS-SPRing from the drop-down list.
•Use ring interworking protection (RIP) on secondary path—Check this box to carry the secondary spans on the protection channels. These spans will be preempted during a ring/span switch.
e. Click OK. The node information appears in the Required Nodes/Lines list, and the map graphic indicates which nodes are primary and secondary.
f. In the Circuit Constraints for Automatic Routing area, click a node or span on the circuit map.
g. Click Include to include the node or span in the circuit, or click Exclude to exclude the node or span from the circuit. The order in which you choose included nodes and spans is the order in which the circuit will be routed. Click spans twice to change the circuit direction. If you are creating an SNCP to MS-SPRing traditional handoff, exclude the unprotected links from the primary node towards the secondary node. If you are creating an SNCP to MS-SPRing integrated handoff, exclude unnecessary DRIs on the SNCP segments.
h. Review the circuit constraints. To change the circuit routing order, choose a node in the Required Nodes/Lines lists and click the Up or Down buttons to change the circuit routing order. Click Remove to remove a node or span.
Step 17 If you selected Review Route Before Creation in Step 11, complete the following substeps; otherwise, continue with Step 19:
a. Click Next.
b. Review the circuit route. To add or delete a circuit span, choose a node on the circuit route. Blue arrows show the circuit route. Green arrows indicate spans that you can add. Click a span arrowhead, then click Include to include the span or Remove to remove the span.
c. If the provisioned circuit does not reflect the routing and configuration you want, click Back to verify and change circuit information. If the circuit needs to be routed to a different path, see the "D324 Create a Manually Routed High-Order Circuit" procedure to assign the circuit route yourself.
Step 18 If you selected Review Route Before Creation in Step 11, click Next. If not, continue with Step 19. View the route in the Route Review/Edit window. As necessary, click Add MS-SPRing DRI to add another DRI. Click Remove to remove a DRI assignment. Click the Included Spans tab to view the spans. The map graphic updates as you apply changes.
Step 19 Click Finish. One of the following occurs, based on the circuit properties you provisioned in the Circuit Creation dialog box:
•If you entered more than 1 in the Number of Circuits field and selected Auto-ranged, CTC automatically creates the number of circuits entered in Number of Circuits. If auto-ranging cannot complete all the circuits, for example, because sequential ports are unavailable on the source or destination, a dialog box appears. Set the new source or destination for the remaining circuits, then click Finish to continue auto-ranging. After completing the circuits, the Circuits window appears.
•If you entered more than 1 in Number of Circuits and did not choose Auto-ranged, the Circuit Creation dialog box appears so you can create the remaining circuits. Repeat Steps 5 through 18 for each additional circuit. After completing the circuits, the Circuits window appears.
Step 20 In the Circuits window, verify that the circuits you created appear in the circuits list.
Step 21 Complete the "D62 Test High-Order Circuits" procedure. Skip this step if you built a test circuit.
Stop. You have completed this procedure.
NTP-D324 Create a Manually Routed High-Order Circuit
Purpose
|
This procedure creates a manually routed, bidirectional or unidirectional high-order circuit, including VC4 and concatenated VC4-2c, VC4-3c, VC4-4c, VC4-8c, VC4-16c, and VC4-64c speeds.
|
Tools/Equipment
|
None
|
Prerequisite Procedures
|
D127 Verify Network Turn-Up
|
Required/As Needed
|
As needed
|
Onsite/Remote
|
Onsite or remote
|
Security Level
|
Provisioning or higher
|
Step 1 Complete the "DLP-D60 Log into CTC" task on page 17-47 at an ONS 15454 SDH on the network where you will create circuit. If you are already logged in, continue with Step 2.
Step 2 If you want to assign a name to the circuit source and destination ports before you create the circuit, complete the "DLP-D314 Assign a Name to a Port" task on page 20-9. If not, continue with Step 3.
Step 3 From the View menu, choose Go to Network View.
Step 4 In the Circuit Creation dialog box, complete the following fields:
•Circuit Type—Choose VC_HO_PATH_CIRCUIT.
•Number of Circuits—Enter the number of high-order circuits you want to create. The default is 1.
•Auto-ranged—Applies to automatically routed circuits only. If you entered more than 1 in Number of Circuits, uncheck this check box. (The check box is unavailable if only one circuit is entered in Number of Circuits.)
Step 5 Click Next.
Step 6 Define the circuit attributes:
•Name—Assign a name to the circuit. The name can be alphanumeric and up to 48 characters (including spaces). Circuit names should be 44 characters or less if you want the ability to create monitor circuits. If you leave the field blank, CTC assigns a default name to the circuit.
•Size—Choose the high-order circuit size: VC4, VC4-2c, VC4-3c, VC4-4c, VC4-8c, VC4-16c, or VC4-64c.
•Bidirectional—Leave checked for this circuit.
•Create cross-connects only (TL1-like)—Check this check box if you want to create one or more cross-connects to complete a signal path for TL1-generated circuits. Also, low order tunnels and Ethergroup sources and destinations are unavailable.
•State—Choose the administrative state to apply to all of the cross-connects in a circuit:
–Unlocked—Puts the circuit cross-connects in the Unlocked-enabled service state.
–Locked,disabled—Puts the circuit cross-connects in the Locked-enabled,disabled service state. Traffic is not passed on the circuit.
–Unlocked,automaticInService—Puts the circuit cross-connects in the Unlocked-disabled,automaticInService service state and suppresses alarms and conditions. When the connections receive a valid signal, the service state automatically changes to Unlocked-enabled.
–Locked,maintenance—Puts the circuit cross-connects in the Locked-enabled,maintenance service state. The maintenance state does not interrupt traffic flow; it suppresses alarms and conditions and allows loopbacks to be performed on the circuit. Use Locked,maintenance for circuit testing or to suppress circuit alarms temporarily. Change the administrative state to Unlocked; Unlocked,automaticInService; or Locked,disabled when testing is complete. See the "DLP-D230 Change a Circuit State" task on page 19-19.
For additional information about circuit service states, refer to the "Circuits and Tunnels" chapter in the Cisco ONS 15454 SDH Reference Manual.
•Apply to drop ports—Check this box if you want to apply the state chosen in the State field to the circuit source and destination ports. CTC applies the circuit state to the ports only if the circuit bandwidth is the same as the port bandwidth or, if the port bandwidth is larger than the circuit, the circuit must be the first circuit to use the drop port. If not, a Warning dialog box shows the ports where the circuit state could not be applied. If the box is unchecked, CTC does not change the state of the source and destination ports.
Note Loss of signal alarms appear if Unlocked ports are not receiving signals.
•Protected Drops—Select this check box if you want the circuit routed to protect drops only, that is, to ONS 15454 SDH cards that are in 1:1, 1:N, or 1+1 protection. If you select this check box, CTC shows only protected cards as source and destination choices.
Step 7 If the circuit will be routed on an SNCP ring, complete the "DLP-D218 Provision SNCP Ring Selectors During Circuit Creation" task on page 19-11.
Step 8 Click Next.
Step 9 Complete the "DLP-D97 Provision a High-Order Circuit Source and Destination" task on page 17-94 for the high-order circuit you are creating.
Step 10 In the Circuit Routing Preferences area, uncheck Route Automatically.
Step 11 Set the circuit path protection:
•To route the circuit on a protected path, leave Fully Protected Path checked and continue with Step 12.
•To create an unprotected circuit, uncheck Fully Protected Path and continue with Step 14.
•To route the circuit on an MS-SPRing protection channel, if available, uncheck Fully Protected Path, check Protection Channel Access, click Yes in the Warning dialog box, then continue with Step 14.
Caution Circuits routed on MS-SPRing protection channels are not protected and are preempted during MS-SPRing switches.
Step 12 If you selected Fully Protected Path in Step 11 and the circuit will be routed on a SNCP, choose one of the following:
•Nodal Diversity Required—Ensures that the primary and alternate paths within the SNCP ring portions of the complete circuit path are nodally diverse.
•Nodal Diversity Desired—Specifies that node diversity is preferred, but if node diversity is not possible, CTC creates fiber-diverse paths for the SNCP ring portion of the complete circuit path.
•Link Diversity Only—Specifies that only fiber-diverse primary and alternate paths for SNCP ring portions of the complete circuit path are needed. The paths might be node-diverse, but CTC does not check for node diversity.
Step 13 If you selected Fully Protected Path in Step 11 and the circuit will be routed on an MS-SPRing DRI or SNCP DRI, click the Dual Ring Interconnect check box.
Step 14 Click Next. In the Route Review/Edit area, node icons appear for you to route the circuit manually. If you checked Dual Ring Interconnect for MS-SPRing, continue with Step 15. If not, continue with Step 16.
Step 15 If you checked Dual Ring Interconnect in Step 11 for a MS-SPRing DRI, complete the following substeps to assign primary and secondary nodes and ring type.
a. In the Route/Review Edit area, click the MS-SPRing DRI Nodes tab.
b. Click Add MS-SPRing DRI.
c. In the Node Options area of the MS-SPRing DRI Options dialog box, complete the following:
•Primary Node—For a traditional or integrated MS-SPRing DRI, choose the node where the circuit interconnects the rings.
•Secondary Node—For a traditional or integrated MS-SPRing DRI, choose the secondary node for the circuit to interconnect the rings. This route is used if the route on the primary node fails.
•Primary Node #2—For a traditional MS-SPRing DRI where two primary nodes are required to interconnect rings, choose the second primary node.
•Secondary Node #2—For a traditional MS-SPRing DRI where two secondary nodes are required, choose the second secondary node.
d. Click OK.
e. Review the circuit constraints. To change the circuit routing order, choose a node in the Required Nodes/Lines lists and click the Up or Down buttons to change the circuit routing order. Click Remove to remove a node or span.
f. Click the Included Spans tab, and continue with Step 16.
Step 16 Complete the "DLP-D98 Provision a High-Order Circuit Route" task on page 17-95.
Step 17 Click Finish. If the path does not meet the specified path diversity requirement, CTC shows an error message and allows you to change the circuit path. If you entered more than 1 in the Number of Circuits field, the Circuit Creation dialog box appears after the circuit is created so you can create the remaining circuits. Repeat Steps 4 through 16 for each additional circuit.
Step 18 When all the circuits are created, the main Circuits window appears. Verify that the circuits you created appear in the window.
Step 19 Complete the "D62 Test High-Order Circuits" procedure.
Stop. You have completed this procedure.
NTP-D190 Create a Unidirectional High-Order Circuit with Multiple Drops
Purpose
|
This procedure creates a unidirectional STM-N circuit with multiple traffic drops (circuit destinations).
|
Tools/Equipment
|
None
|
Prerequisite Procedures
|
D127 Verify Network Turn-Up
|
Required/As Needed
|
As needed
|
Onsite/Remote
|
Onsite or remote
|
Security Level
|
Provisioning or higher
|
Step 1 Complete the "DLP-D60 Log into CTC" task on page 17-47 at an ONS 15454 SDH on the network where you will create circuit. If you are already logged in, continue with Step 2.
Step 2 If you want to assign a name to the tunnel source and destination ports before you create the circuit, complete the "DLP-D314 Assign a Name to a Port" task on page 20-9. If not, continue with Step 3.
Step 3 From the View menu, choose Go to Network View.
Step 4 Click the Circuits tab, then click Create.
Step 5 In the Circuit Creation dialog box, complete the following fields:
•Circuit Type—Choose VC_HO_PATH_CIRCUIT.
•Number of Circuits—Leave the default unchanged (1).
•Auto-ranged—Unavailable when the Number of Circuits field is 1.
Step 6 Click Next.
Step 7 Define the circuit attributes:
•Name—Assign a name to the circuit. The name can be alphanumeric and up to 48 characters (including spaces). Circuit names should be 44 characters or less if you want the ability to create monitor circuits. If you leave the field blank, CTC assigns a default name to the circuit.
•Size—Choose the high-order circuit size: VC4, VC4-2c, VC4-3c, VC4-4c, VC4-8c, VC4-9c, VC4-16c, VC4-64c.
•Bidirectional—Uncheck this check box for this circuit.
•Create cross-connects only (TL1-like)—Check this check box if you want to create one or more cross-connects to complete a signal path for TL1-generated circuits. Also, low order tunnels and Ethergroup sources and destinations are unavailable.
•State—Choose the administrative state to apply to all of the cross-connects in a circuit:
–Unlocked—Puts the circuit cross-connects in the Unlocked-enabled service state.
–Locked,disabled—Puts the circuit cross-connects in the Locked-enabled,disabled service state. Traffic is not passed on the circuit.
–Unlocked,automaticInService—Puts the circuit cross-connects in the Unlocked-disabled,automaticInService service state and suppresses alarms and conditions. When the connections receive a valid signal, the service state automatically changes to Unlocked-enabled.
–Locked,maintenance—Puts the circuit cross-connects in the Locked-enabled,maintenance service state. The maintenance state does not interrupt traffic flow; it suppresses alarms and conditions and allows loopbacks to be performed on the circuit. Use Locked,maintenance for circuit testing or to suppress circuit alarms temporarily. Change the administrative state to Unlocked; Unlocked,automaticInService; or Locked,disabled when testing is complete. See the "DLP-D230 Change a Circuit State" task on page 19-19.
For additional information about circuit service states, refer to the "Circuits and Tunnels" chapter in the Cisco ONS 15454 SDH Reference Manual.
•Apply to drop ports—Check this box if you want to apply the state chosen in the State field to the circuit source and destination ports. CTC applies the circuit state to the ports only if the circuit bandwidth is the same as the port bandwidth or, if the port bandwidth is larger than the circuit, the circuit must be the first circuit to use the drop port. If not, a Warning dialog box shows the ports where the circuit state could not be applied. If the box is unchecked, CTC does not change the state of the source and destination ports.
Note Loss of signal alarms appear if Unlocked ports are not receiving signals.
•Protected Drops—Select this check box if you want the circuit routed to protect drops only, that is, to ONS 15454 SDH cards that are in 1:1, 1:N, or 1+1 protection. If you select this check box, CTC shows only protected cards as source and destination choices.
Step 8 If the circuit will be routed on an SNCP ring, complete the "DLP-D218 Provision SNCP Ring Selectors During Circuit Creation" task on page 19-11.
Step 9 Click Next.
Step 10 Complete the "DLP-D97 Provision a High-Order Circuit Source and Destination" task on page 17-94 for the circuit you are creating.
Step 11 Uncheck Route Automatically. When Route Automatically is not selected, the Using Required Nodes/Spans and Review Route Before Circuit Creation check boxes are unavailable.
Step 12 Set the circuit path protection:
•To route the circuit on a protected path, leave Fully Protected Path checked and continue with Step 13. Fully protected paths might or might not have SNCP path segments (with primary and alternate paths), and the path diversity options apply only to SNCP path segments, if any exist.
•To create an unprotected circuit, uncheck Fully Protected Path and continue with Step 15.
•To route the circuit on an MS-SPRing protection channel, if available, uncheck Fully Protected Path, check Protection Channel Access, click Yes in the Warning dialog box, then continue with Step 15.
Caution Circuits routed on MS-SPRing protection channels are not protected and are preempted during MS-SPRing switches.
Step 13 If you selected Fully Protected Path in Step 12 and the circuit will be routed on a SNCP, choose one of the following:
•Nodal Diversity Required—Ensures that the primary and alternate paths within the SNCP ring portions of the complete circuit path are nodally diverse.
•Nodal Diversity Desired—Specifies that node diversity is preferred, but if node diversity is not possible, CTC creates fiber-diverse paths for the SNCP ring portion of the complete circuit path.
•Link Diversity Only—Specifies that only fiber-diverse primary and alternate paths for SNCP ring portions of the complete circuit path are needed. The paths might be node-diverse, but CTC does not check for node diversity.
Note For manually routed circuits, CTC checks your manually provisioned path against the path diversity option you choose. If the path does not meet the path diversity requirement that is specified, an error message appears.
Step 14 If you selected Fully Protected Path in Step 12 and the circuit will be routed on an SNCP DRI, click the Dual Ring Interconnect check box.
Step 15 Click Next. In the Route Review and Edit area, node icons appear so you can route the circuit manually. The green arrows pointing from the selected node to other network nodes indicate spans that are available for routing the circuit.
Step 16 Complete the "DLP-D98 Provision a High-Order Circuit Route" task on page 17-95.
Step 17 Click Finish. After completing the circuit, the Circuits window appears.
Step 18 In the Circuits window, click the circuit that you want to route to multiple drops. The Delete, Edit, and Search buttons become active.
Step 19 Click Edit. The Edit Circuit window appears with the General tab selected. Nodes in the DCC network are shown graphically. Circuit source and destination information appears under the source and destination nodes. To see a detailed view of the circuit, click Show Detailed Map. You can rearrange the node icons by pressing Ctrl while you drag and drop the icon to the new location.
Step 20 In the Edit Circuit dialog box, click the Drops tab. A list of existing drops appears.
Step 21 Click Create.
Step 22 In the Define New Drop dialog box, define the new drop:
a. Node—Choose the target node for the circuit drop.
b. Slot—Choose the target card and slot.
c. Port, VC4—Choose the port and/or VC4 from the Port and VC4 drop-down lists. The choice in these menus depends on the card selected in Step b. See Table 6-2 for a list of options.
d. The routing preferences for the new drop match those of the original circuit. However, you can modify the following:
•If the original circuit was routed on a protected SNCP path, you can change the nodal diversity options: Nodal Diversity Required, Nodal Diversity Desired, or Link Diversity Only. See Step 13 for descriptions.
•If the original circuit was not routed on a protected path, the Protection Channel Access option is available. See Step 12 for a description of the PCA option.
e. Click OK. The new drop appears in the Drops list.
Step 23 If you need to create additional drops on the circuit, repeat Steps 20 through 22.
Step 24 Click Close. The Circuits window appears.
Step 25 Verify that the new drops appear in the Destination column for the circuit you edited. If they do not appear, repeat Steps 21 through 24 making sure all options are provisioned correctly.
Step 26 Complete the "D62 Test High-Order Circuits" procedure.
Stop. You have completed this procedure.
NTP-D62 Test High-Order Circuits
Purpose
|
This procedure tests a high-order circuit.
|
Tools/Equipment
|
Test set capable of optical speeds, appropriate fibers, and attenuators
|
Prerequisite Procedures
|
This procedure assumes you completed facility loopback tests to test the fibers and cables from the source and destination ONS 15454 SDHs to the fiber distribution panel or the DSX and one of following circuit procedures:
D323 Create an Automatically Routed High-Order Circuit
D324 Create a Manually Routed High-Order Circuit
|
Required/As Needed
|
Required
|
Onsite/Remote
|
Onsite
|
Security Level
|
Provisioning or higher
|
Step 1 Complete the "DLP-D60 Log into CTC" task on page 17-47 at an ONS 15454 SDH on the network where you will test the high-order circuits. If you are already logged in, continue with Step 2.
Step 2 From the View menu, choose Go to Network View.
Step 3 Click the Circuits tab.
Step 4 Complete the "DLP-D230 Change a Circuit State" task on page 19-19 and set the circuit and circuit ports to the Locked-enabled,maintenance service state.
Step 5 Set up the patch cable at the destination node:
a. Test the patch cable by connecting one end to the test set Tx port and the other end to the test Rx port. If the test set does not run error-free, check the cable for damage and check the test set to make sure it is set up correctly.
b. Install the loopback cable on the port you are testing between the Tx and Rx connections.
Step 6 Set up the loopback cable at the source node:
a. Test the loopback cable by connecting one end to the test set Tx port and the other end to the test Rx port. If the test set does not run error-free, check the cable for damage and check the test set to make sure it is set up correctly.
b. At the source node attach the loopback cable to the port you are testing. Connect the test set to the circuit source port: Tx port of the test set to the circuit Rx port, and the test set Rx port to the circuit Tx port.
Step 7 Configure the test set for the source ONS 15454 SDH card:
•STM-1 cards—You will test a VC4 circuit on one of the STM-1 ports. Configure the test set for an STM-1 port.
•STM-4 cards—You will test either a VC4-4c or a multiplexed VC4-4. If you are testing a VC4-4c, configure the test set for a VC4-4c. If you are testing a multiplexed VC4-4, configure the test set for a multiplexed VC4-4 and choose the E3, DS3i-N-12, or E1 you will test. For information about configuring your test set, consult your test set user guide.
•STM-16 cards—You will test either a VC4-16c or a multiplexed VC4-16. If you are testing a VC4-16c configure the test set for a VC4-16c. If you are testing a multiplexed VC4-16, configure the test set for a multiplexed VC4-16 and choose the E3, DS3i-N-12, or E1 you will test. For information about configuring your test set, consult your test set user guide.
•STM-64 cards—You will test a VC4-64c or a multiplexed VC4-64. If you are testing a VC4-64c configure the test set for a VC4-64c. If you are testing a multiplexed VC4-64, configure the test set for a multiplexed VC4-64 and choose the E3, DS3i-N-12, or E1 you will test. For information about configuring your test set, consult your test set user guide.
Step 8 Verify that the test set shows a clean signal. If a clean signal does not appear, repeat Steps 1 through 7 to make sure you have configured the test set and cabling correctly.
Step 9 Inject errors from the test set. Verify that the errors appear at the source and destination nodes.
Step 10 Clear the PM counts for the ports that you tested. See the "DLP-D459 Clear Selected PM Counts" task on page 21-39 for instructions.
Step 11 Perform protection switch testing appropriate to the SDH topology:
•For SNCP rings, see the "DLP-D94 SNCP Protection Switching Test" task on page 17-90.
•For MS-SPRings see the "DLP-D91 MS-SPRing Switch Test" task on page 17-83.
Step 12 Perform a bit error rate test (BERT) for 12 hours or follow your site requirements for length of time. For information about configuring your test set for BERT, see your test set user guide.
Step 13 After the BERT is complete, print the results or save them to a disk for future reference. For information about printing or saving test results, see your test set user guide.
Step 14 Complete the "DLP-D230 Change a Circuit State" task on page 19-19 and change the circuit and circuit ports from Unlocked,maintenance to their previous service states.
Stop. You have completed this procedure.
NTP-D139 Create a Half Circuit on an MS-SPRing or 1+1 Node
Purpose
|
This procedure creates a low-order or high-order circuit from a drop card to an STM-N trunk (span) card on the same node in an MS-SPRing or 1+1 topology.
|
Tools/Equipment
|
None
|
Prerequisite Procedures
|
D127 Verify Network Turn-Up
|
Required/As Needed
|
As needed
|
Onsite/Remote
|
Onsite or remote
|
Security Level
|
Provisioning or higher
|
Step 1 Complete the "DLP-D60 Log into CTC" task on page 17-47 at the ONS 15454 SDH where you will create the half circuit. If you are already logged in, continue with Step 2.
Step 2 If you want to assign a name to the circuit source and destination ports before you create the circuit, complete the "DLP-D314 Assign a Name to a Port" task on page 20-9. If not, continue with Step 3.
Step 3 From the View menu, choose Go to Network View.
Step 4 Click the Circuits tab, then click Create.
Step 5 In the Circuit Creation dialog box, complete the following fields:
•Circuit Type—For low-order circuits, choose VC_LO_PATH_CIRCUIT. For high-order circuits, choose VC_HO_PATH_CIRCUIT. VC4 cross-connects carry the circuit across the ONS 15454 SDH network.
•Number of Circuits—Enter the number of circuits you want to create. The default is 1.
•Auto-ranged—This check box is automatically selected if you enter more than 1 in the Number of Circuits field. Uncheck the box.
Step 6 Click Next.
Step 7 Define the circuit attributes:
•Name—Assign a name to the circuit. The name can be alphanumeric and up to 48 characters (including spaces). Circuit names should be 44 characters or less if you want the ability to create monitor circuits. If you leave the field blank, CTC assigns a default name to the circuit.
•Size—For high-order circuits, choose the VC4. For low-order circuits, choose VC12 or VC3.
•Bidirectional—Leave checked for this circuit (default).
•Create cross-connects only (TL1-like)—Check this check box if you want to create one or more cross-connects to complete a signal path for TL1-generated circuits. Also, low order tunnels and Ethergroup sources and destinations are unavailable.
•State—Choose the administrative state to apply to all of the cross-connects in a circuit:
–Unlocked—Puts the circuit cross-connects in the Unlocked-enabled service state.
–Locked,disabled—Puts the circuit cross-connects in the Locked-enabled,disabled service state. Traffic is not passed on the circuit.
–Unlocked,automaticInService—Puts the circuit cross-connects in the Unlocked-disabled,automaticInService service state and suppresses alarms and conditions. When the connections receive a valid signal, the service state automatically changes to Unlocked-enabled.
–Locked,maintenance—Puts the circuit cross-connects in the Locked-enabled,maintenance service state. The maintenance state does not interrupt traffic flow; it suppresses alarms and conditions and allows loopbacks to be performed on the circuit. Use Locked,maintenance for circuit testing or to suppress circuit alarms temporarily. Change the administrative state to Unlocked; Unlocked,automaticInService; or Locked,disabled when testing is complete. See the "DLP-D230 Change a Circuit State" task on page 19-19.
For additional information about circuit service states, refer to the "Circuits and Tunnels" chapter in the Cisco ONS 15454 SDH Reference Manual.
•Apply to drop ports—Select this check box if you want to apply the state chosen in the State field to the circuit source and destination ports. CTC applies the circuit state to the ports only if the circuit bandwidth is the same as the port bandwidth or, if the port bandwidth is larger than the circuit, the circuit must be the first circuit to use the drop port. If not, a Warning dialog box shows the ports where the circuit state could not be applied. If the box is unchecked, CTC does not change the state of the source and destination ports.
Note Loss of signal alarms appear if Unlocked ports are not receiving signals.
•Protected Drops—Uncheck this check box if it is selected.
Step 8 Click Next.
Step 9 Complete the "DLP-D311 Provision a Half Circuit Source and Destination on an MS-SPRing or 1+1" task on page 20-6.
Step 10 Click Finish. One of the following results occurs, depending on the circuit properties you chose in the Circuit Creation dialog box:
•If you entered more than 1 in Number of Circuits and selected Auto-ranged, CTC automatically creates the number of circuits entered in Number of Circuits. If auto-ranging cannot complete all the circuits, for example, because sequential ports are unavailable at the source or destination, a dialog box appears. Set the new source or destination for the remaining circuits, then click Finish to continue auto-ranging. After completing the circuits, the Circuits window appears.
•If you entered more than 1 in the Number of Circuits field and did not choose Auto-ranged, the Circuit Creation dialog box appears so you can create the remaining circuits. Repeat Steps 4 through 9 for each additional circuit. After completing the circuits, the Circuits window appears.
Step 11 In the Circuits window, verify that the new circuits appear in the circuits list.
Stop. You have completed this procedure.
NTP-D140 Create a Half Circuit on an SNCP Ring Node
Purpose
|
This procedure creates a low-order or high-order circuit from a drop card to an STM-N trunk (span) card on the same SNCP ring node.
|
Tools/Equipment
|
None
|
Prerequisite Procedures
|
D127 Verify Network Turn-Up
|
Required/As Needed
|
As needed
|
Onsite/Remote
|
Onsite or remote
|
Security Level
|
Provisioning or higher
|
Step 1 Complete the "DLP-D60 Log into CTC" task on page 17-47 at the ONS 15454 SDH where you will create the half circuit. If you are already logged in, continue with Step 2.
Step 2 If you want to assign a name to the circuit source and destination ports before you create the circuit, complete the "DLP-D314 Assign a Name to a Port" task on page 20-9. If not, continue with Step 3.
Step 3 From the View menu, choose Go to Network View.
Step 4 Click the Circuits tab, then click Create.
Step 5 In the Circuit Creation dialog box, complete the following fields:
•Circuit Type—For low-order circuits, choose VC_LO_PATH_CIRCUIT. For high-order circuits, choose VC_HO_PATH_CIRCUIT. VC4 cross-connects carry the circuit across the ONS 15454 SDH network.
•Number of Circuits—Enter the number of circuits you want to create. The default is 1.
•Auto-ranged—This check box is automatically selected if you enter more than 1 in the Number of Circuits field. Uncheck the box.
Step 6 Click Next.
Step 7 Define the circuit attributes:
•Name—Assign a name to the circuit. The name can be alphanumeric and up to 48 characters (including spaces). Circuit names should be 44 characters or less if you want the ability to create monitor circuits. If you leave the field blank, CTC assigns a default name to the circuit.
•Size—For high-order circuits, choose the VC4. For low-order circuits, choose VC12 or VC3.
•Bidirectional—Leave checked for this circuit (default).
•Create cross-connects only (TL1-like)—Check this check box if you want to create one or more cross-connects to complete a signal path for TL1-generated circuits. Also, low order tunnels and Ethergroup sources and destinations are unavailable.
–Unlocked—Puts the circuit cross-connects in the Unlocked-enabled service state.
–Locked,disabled—Puts the circuit cross-connects in the Locked-enabled,disabled service state. Traffic is not passed on the circuit.
–Unlocked,automaticInService—Puts the circuit cross-connects in the Unlocked-disabled,automaticInService service state and suppresses alarms and conditions. When the connections receive a valid signal, the service state automatically changes to Unlocked-enabled.
–Locked,maintenance—Puts the circuit cross-connects in the Locked-enabled,maintenance service state. The maintenance state does not interrupt traffic flow; it suppresses alarms and conditions and allows loopbacks to be performed on the circuit. Use Locked,maintenance for circuit testing or to suppress circuit alarms temporarily. Change the administrative state to Unlocked; Unlocked,automaticInService; or Locked,disabled when testing is complete. See the "DLP-D230 Change a Circuit State" task on page 19-19.
For additional information about circuit service states, refer to the "Circuits and Tunnels" chapter in the Cisco ONS 15454 SDH Reference Manual.
•Apply to drop ports—Check this box if you want to apply the state chosen in the State field to the circuit source and destination ports. CTC applies the circuit state to the ports only if the circuit bandwidth is the same as the port bandwidth or, if the port bandwidth is larger than the circuit, the circuit must be the first circuit to use the drop port. If not, a Warning dialog box shows the ports where the circuit state could not be applied. If the box is unchecked, CTC does not change the state of the source and destination ports.
Note Loss of signal alarms appear if Unlocked ports are not receiving signals.
•Protected Drops—Uncheck this check box if it is selected.
Step 8 Complete the "DLP-D218 Provision SNCP Ring Selectors During Circuit Creation" task on page 19-11.
Step 9 Click Next.
Step 10 Complete the "DLP-D312 Provision a Half Circuit Source and Destination on an SNCP Ring" task on page 20-7.
Step 11 Click Finish. One of the following results occurs, depending on the circuit properties you chose in the Circuit Creation dialog box:
•If you entered more than 1 in the Number of Circuits field and selected Auto-ranged, CTC automatically creates the number of circuits entered in the Number of Circuits field. If auto-ranging cannot complete all the circuits, for example, because sequential ports are unavailable at the source or destination, a dialog box appears. Set the new source or destination for the remaining circuits, then click Finish to continue auto-ranging. After completing the circuits, the Circuits window appears.
•If you entered more than 1 in the Number of Circuits field and did not choose Auto-ranged, the Circuit Creation dialog box appears so you can create the remaining circuits. Repeat Steps 5 through 9 for each additional circuit. After completing the circuits, the Circuits window appears.
Step 12 In the Circuits window, verify that the new circuits appear in the circuits list.
Step 13 Complete the "D135 Test Low-Order Circuits" procedure. Skip this step if you built a test circuit.
Stop. You have completed this procedure.
NTP-D191 Create an E-Series EtherSwitch Circuit (Multicard or Single-Card Mode)
Purpose
|
This procedure creates a multicard or single-card EtherSwitch circuit. It does not apply to E-Series cards in port-mapped mode. To create a port-mapped mode circuit, see the "D192 Create a Circuit for an E-Series Card in Port-Mapped Mode" procedure.
|
Tools/Equipment
|
E-Series Ethernet cards (E100T-G or E1000-2-G) must be installed at each end of the Ethernet circuit.
|
Prerequisite Procedures
|
D127 Verify Network Turn-Up
|
Required/As Needed
|
As needed
|
Onsite/Remote
|
Onsite or remote
|
Security Level
|
Provisioning or higher
|
Step 1 Complete the "DLP-D60 Log into CTC" task on page 17-47 at an ONS 15454 SDH on the network where you will create circuit. If you are already logged in, continue with Step 2.
Step 2 If you want to assign a name to the circuit source and destination ports before you create the circuit, complete the "DLP-D314 Assign a Name to a Port" task on page 20-9. If you want CTC to assign a name automatically based on circuit type, node name, and sequence number, continue with Step 3.
Step 3 If a high number of VLANs is already used by the network, complete the "DLP-D99 Determine Available VLANs" task on page 17-96 to verify that sufficient VLAN capacity is available. (You will create a VLAN during each circuit creation task.)
Step 4 If enough VLANs are not available, complete the "DLP-D34 Delete VLANs" task on page 17-27 to free space.
Step 5 Verify that the circuit source and destination Ethernet cards are provisioned for the mode of the circuit you will create, either multicard or single-card. See the "DLP-D246 Provision E-Series Ethernet Card Mode" task on page 19-28.
Step 6 From the View menu, choose Go to Network View.
Step 7 Click the Circuits tab, then click Create.
Step 8 In the Circuit Creation dialog box, complete the following fields:
•Circuit Type—Choose VC_HO_PATH_CIRCUIT.
•Number of Circuits—Leave the default unchanged (1).
•Auto-ranged—Unavailable.
Step 9 Click Next.
Step 10 Define the circuit attributes:
•Name—Assign a name to the circuit. The name can be alphanumeric and up to 48 characters (including spaces). Circuit names should be 44 characters or less if you want the ability to create monitor circuits. If you leave the field blank, CTC assigns a default name to the circuit.
•Size—Choose the circuit size. Valid circuit sizes for an Ethernet multicard circuit are VC4 and VC4-2c. Valid circuit sizes for an Ethernet single-card circuit are VC4, VC4-2c, and VC4-4c.
•Bidirectional—Leave the default unchanged (checked).
•Create cross-connects only (TL1-like)—Check this check box if you want to create one or more cross-connects to complete a signal path for TL1-generated circuits. Also, low order tunnels and Ethergroup sources and destinations are unavailable.
•State—Choose IS. Ethergroup circuits are always in service.
•Apply to drop ports—Uncheck this box.
•Protected Drops—Leave the default unchanged (unchecked).
Step 11 If the circuit will be routed on an SNCP ring, complete the "DLP-D218 Provision SNCP Ring Selectors During Circuit Creation" task on page 19-11.
Caution Layer 1 SDH protection does not extend to multicard EtherSwitch circuits on SNCP rings.
Caution A TCC2/TCC2P card reset disrupts single-card and multicard Etherswitch circuits for 45 seconds to two minutes. During this time a spanning tree topology is created by the newly activated TCC2/TCC2P card.
Step 12 Click Next.
Step 13 Provision the circuit source:
a. From the Node drop-down list, choose one of the EtherSwitch circuit endpoint nodes. (Either end node can be the EtherSwitch circuit source.)
b. From the Slot drop-down list, choose one of the following:
•If you are building a multicard EtherSwitch circuit, choose Ethergroup.
•If you are building a single-card EtherSwitch circuit, choose the Ethernet card where you enabled the single-card EtherSwitch.
Step 14 Click Next.
Step 15 Provision the circuit destination:
a. From the Node drop-down list, choose the second EtherSwitch circuit endpoint node.
b. From the Slot drop-down list, choose one of the following:
•If you are building a multicard EtherSwitch circuit, choose Ethergroup.
•If you are building a single-card EtherSwitch circuit, choose the Ethernet card where you enabled the single-card EtherSwitch.
Step 16 Click Next.
Step 17 In the Circuit VLAN Selection area, click New VLAN. If the VLAN already exists, continue with Step 20.
Tip You can also add VLANs in network view by choosing Tools > Manage VLANs. In the All VLANs dialog box, click the Create button to open the Define New VLAN dialog box.
Step 18 In the New VLAN dialog box, complete the following:
•VLAN Name—Assign an easily identifiable name to your VLAN.
•VLAN ID—Assign a VLAN ID. The VLAN ID should be the next available number between 2 and 4093 that is not already assigned to an existing VLAN. Each ONS 15454 SDH network supports a maximum of 509 user-provisionable VLANs.
•Topology Host—Choose the topology host ID from the drop-down list.
Step 19 Click OK.
Step 20 In the Circuit VLAN Selection area, highlight the VLAN name and click the arrow button (>>) to move the available VLANs to the Circuit VLANs column.
Step 21 If you are building a single-card EtherSwitch circuit and want to disable spanning tree protection on this circuit, uncheck the Enable Spanning Tree check box and click OK on the Disabling Spanning Tree dialog box. The Enable Spanning Tree box remains checked or unchecked for the creation of the next single-card, point-to-point Ethernet circuit.
Caution Disabling spanning tree protection increases the likelihood of logic loops on an Ethernet network.
Caution Turning off spanning tree on a circuit-by-circuit basis means that the ONS 15454 SDH is no longer protecting the Ethernet circuit and that the circuit must be protected by another mechanism in the Ethernet network.
Caution Multiple circuits with spanning tree protection enabled incur blocking if the circuits traverse the same E-Series card and use the same VLAN.
Note Spanning tree rules prevent users from creating new circuits or modifying existing circuits if the circuits do not meet certain VLAN assignment constraints. If the VLAN set of the new circuit overlaps with existing circuits, the same spanning tree instance is used for all circuits. If the VLAN set of the new circuit overlaps with VLAN sets of existing circuits with different spanning tree instances, the VLAN assignment fails. Cisco recommends that you plan VLAN assignments so that circuits with larger VLAN sets and a higher chance of overlap are added first. This means that if a circuit with an overlapping VLAN set is added, it collapses into the same spanning tree. To view circuits mapped to a spanning tree and their VLAN assignments, see the "DLP-D23 View Spanning Tree Information" task on page 17-19.
Note You can disable or enable spanning tree protection on a circuit-by-circuit basis only for single-card, point-to-point Ethernet circuits. Other E-Series Ethernet configurations disable or enable spanning tree on a port-by-port basis.
Step 22 Click Next.
Step 23 Confirm that the following information about the circuit is correct:
•Circuit name
•Circuit type
•Circuit size
•ONS 15454 SDH circuit nodes
Step 24 Click Finish.
Step 25 Complete the "DLP-D220 Provision E-Series Ethernet Ports" task on page 19-12.
Step 26 Complete the "DLP-D221 Provision E-Series Ethernet Ports for VLAN Membership" task on page 19-13.
Stop. You have completed this procedure.
NTP-D192 Create a Circuit for an E-Series Card in Port-Mapped Mode
Purpose
|
This procedure creates an E-Series point-to-point SDH circuit with an E-Series card in port-mapped mode.
|
Tools/Equipment
|
An E-Series Ethernet card must be installed at each end of the circuit and configured in port-mapped mode.
|
Prerequisite Procedures
|
D127 Verify Network Turn-Up
|
Required/As Needed
|
As needed
|
Onsite/Remote
|
Onsite or remote
|
Security Level
|
Provisioning or higher
|
Step 1 Complete the "DLP-D60 Log into CTC" task on page 17-47 at an ONS 15454 SDH on the network where you will create circuit. If you are already logged in, continue with Step 2.
Step 2 If you want to assign a name to the circuit source and destination ports before you create the circuit, complete the "DLP-D314 Assign a Name to a Port" task on page 20-9. If you want CTC to assign a name automatically based on circuit type, node name, and sequence number, continue with Step 3.
Step 3 Complete the "DLP-D246 Provision E-Series Ethernet Card Mode" task on page 19-28.
Step 4 Provision and enable the Ethernet ports. See "DLP-D220 Provision E-Series Ethernet Ports" task on page 19-12.
Step 5 From the View menu, choose Go to Network View.
Step 6 Click the Circuits tab and click Create.
Step 7 In the Circuit Creation dialog box, complete the following fields:
•Circuit Type—Choose VC_HO_PATH_CIRCUIT.
•Number of Circuits—Leave the default unchanged (1).
Step 8 Click Next.
Step 9 Define the circuit attributes:
•Name—Assign a name to the circuit. The name can be alphanumeric and up to 48 characters (including spaces). Circuit names should be 44 characters or less if you want the ability to create monitor circuits. If you leave the field blank, CTC assigns a default name to the circuit.
•Size—Choose the circuit size. Valid circuit sizes for an E-Series in port-mapped mode are VC4, VC4-2c, and VC4-4c.
•Bidirectional—Leave the default unchanged (checked).
•Create cross-connects only (TL1-like)—Check this check box if you want to create one or more cross-connects to complete a signal path for TL1-generated circuits. Also, low order tunnels and Ethergroup sources and destinations are unavailable.
•State—Choose the administrative state to apply to all of the cross-connects in a circuit:
–Unlocked—Puts the circuit cross-connects in the Unlocked-enabled service state.
–Locked,disabled—Puts the circuit cross-connects in the Locked-enabled,disabled service state. Traffic is not passed on the circuit.
–Unlocked,automaticInService—Puts the circuit cross-connects in the Unlocked-disabled,automaticInService service state and suppresses alarms and conditions. When the connections receive a valid signal, the service state automatically changes to Unlocked-enabled.
–Locked,maintenance—Puts the circuit cross-connects in the Locked-enabled,maintenance service state. The maintenance state does not interrupt traffic flow; it suppresses alarms and conditions and allows loopbacks to be performed on the circuit. Use Locked,maintenance for circuit testing or to suppress circuit alarms temporarily. Change the administrative state to Unlocked; Unlocked,automaticInService; or Locked,disabled when testing is complete. See the "DLP-D230 Change a Circuit State" task on page 19-19.
For additional information about circuit service states, refer to the "Circuits and Tunnels" chapter in the Cisco ONS 15454 SDH Reference Manual.
•Apply to drop ports—Select this check box if you want to apply the state chosen in the State field (Unlocked or Locked,maintenance only) to the Ethernet circuit source and destination ports. You cannot apply Unlocked,automaticInService to E-Series Ethernet card ports. CTC applies the circuit state to the ports only if the circuit bandwidth is the same as the port bandwidth or, if the port bandwidth is larger than the circuit, the circuit must be the first circuit to use the drop port. If not, a Warning dialog box shows the ports where the circuit state could not be applied. If the box is unchecked, CTC does not change the state of the source and destination ports.
Note Loss of signal alarms appear if Unlocked ports are not receiving signals.
•Auto-ranged—Unavailable.
•Protected Drops—Leave the default unchanged (unchecked).
Step 10 If the circuit will be routed on an SNCP ring, complete the "DLP-D218 Provision SNCP Ring Selectors During Circuit Creation" task on page 19-11.
Step 11 Click Next.
Step 12 Provision the circuit source:
a. From the Node drop-down list, choose the circuit source node. Either end node can be the point-to-point circuit source.
b. From the Slot drop-down list, choose the slot containing the E-Series card that you will use for one end of the point-to-point circuit.
c. From the Port drop-down list, choose a port.
Step 13 Click Next.
Step 14 Provision the circuit destination:
a. From the Node drop-down list, choose the circuit destination node.
b. From the Slot drop-down list, choose the slot containing the E-Series card that you will use for other end of the point-to-point circuit.
c. From the Port drop-down list, choose a port.
Step 15 Click Next. The Circuits window appears.
Step 16 Confirm that the following circuit information is correct:
•Circuit name
•Circuit type
•Circuit size
•ONS 15454 SDH circuit nodes
Step 17 Click Finish.
Step 18 Complete the "D146 Test E-Series Circuits" procedure.
Stop. You have completed this procedure.
NTP-D142 Create an E-Series Shared Packet Ring Ethernet Circuit
Purpose
|
This procedure creates a shared packet ring Ethernet circuit. It does not apply to E-Series cards in port-mapped mode.
|
Tools/Equipment
|
E-Series Ethernet cards must be installed at both Ethernet circuit endpoint nodes.
|
Prerequisite Procedures
|
D127 Verify Network Turn-Up
|
Required/As Needed
|
As needed
|
Onsite/Remote
|
Onsite or remote
|
Security Level
|
Provisioning or higher
|
Step 1 Complete the "DLP-D60 Log into CTC" task on page 17-47 at an ONS 15454 SDH on the network where you will create circuit. If you are already logged in, continue with Step 2.
Step 2 If you want to assign a name to the circuit source and destination ports before you create the circuit, complete the "DLP-D314 Assign a Name to a Port" task on page 20-9. If you want CTC to assign a name automatically based on circuit type, node name, and sequence number, continue with Step 3.
Step 3 If a high number of VLANs is already used by the system, complete the "DLP-D99 Determine Available VLANs" task on page 17-96 to verify that sufficient VLAN capacity is available. (You will create a VLAN during each circuit creation task.)
Step 4 Verify that the Ethernet cards that will carry the circuit are provisioned for Multicard EtherSwitch Group. See the "DLP-D246 Provision E-Series Ethernet Card Mode" task on page 19-28.
Step 5 Provision and enable the Ethernet ports. See "DLP-D220 Provision E-Series Ethernet Ports" task on page 19-12.
Step 6 From the View menu, choose Go to Network View.
Step 7 Click the Circuits tab and click Create.
Step 8 In the Circuit Creation dialog box, complete the following fields:
•Circuit Type—Choose VC_HO_PATH_CIRCUIT.
•Number of Circuits—Leave the default unchanged (1).
•Auto-ranged—Unavailable.
Step 9 Click Next.
Step 10 Provision the circuit destination:
•Name—Assign a name to the circuit. The name can be alphanumeric and up to 48 characters (including spaces). Circuit names should be 44 characters or less if you want the ability to create monitor circuits.
•Size—Choose the circuit size. Valid shared packet ring circuit sizes are VC4 and VC4-2c.
•Bidirectional—Leave the default unchanged (checked).
•Create cross-connects only (TL1-like)—Check this check box if you want to create one or more cross-connects to complete a signal path for TL1-generated circuits. Also, low order tunnels and Ethergroup sources and destinations are unavailable.
•State—Choose IS (in service). Ethergroup circuits are always in service.
•Apply to drop ports—Uncheck this box; states cannot be applied to E-Series ports.
•Protected Drops—Leave the default unchanged (unchecked).
Step 11 If the circuit will be routed on an SNCP ring, complete the "DLP-D218 Provision SNCP Ring Selectors During Circuit Creation" task on page 19-11.
Caution Layer 1 SDH protection does not extend to multicard EtherSwitch circuits on SNCP rings.
Step 12 Click Next.
Step 13 Provision the circuit source:
a. From the Node drop-down list, choose one of the shared packet ring circuit endpoint nodes. (Either end node can be the shared packet ring circuit source.)
b. From the Slot drop-down list, choose Ethergroup.
Step 14 Click Next.
Step 15 Provision the circuit destination:
a. From the Node drop-down list, choose the second shared packet ring circuit endpoint node.
b. From the Slot drop-down list, choose Ethergroup.
Step 16 Click Next.
Step 17 Review the VLANs in the Available VLANs list. If the VLAN you want to use appears, continue with Step 18. If you need to create a new VLAN, complete the following steps:
a. Click the New VLAN button.
b. In the New VLAN dialog box, complete the following:
•VLAN Name—Assign an easily identifiable name to your VLAN.
•VLAN ID—Assign a VLAN ID. The VLAN ID should be the next available number between 2 and 4093 that is not already assigned to an existing VLAN. Each ONS 15454 SDH network supports a maximum of 509 user-provisionable VLANs.
•Topology Host—Choose the topology host ID from the drop-down list.
c. Click OK.
Tip You can also add VLANs in network view by choosing Tools > Manage VLANs. In the All VLANs dialog box, click the Create button to open the Define New VLAN dialog box.
Step 18 In the Available VLANs column, click the VLAN you want to use and click the arrow button (>>) to move the VLAN to the Circuit VLANs column.
Note Moving the VLAN from Available VLANs to Circuit VLANs forces all the VLAN traffic to use the shared packet ring you are creating.
Step 19 Click Next.
Step 20 In the Circuit Routing Preferences area, uncheck the Route Automatically check box and click Next.
Step 21 In the Route Review and Edit area, click the source node, then click a span (green arrow) leading away from the source node.
The span turns white.
Step 22 Click Add Span.
The span turns blue. CTC adds the span to the Included Spans list.
Step 23 Click the node at the end of the blue span.
Step 24 Click the green span attached to the node you clicked in Step 23.
The span turns white.
Step 25 Click Add Span.
The span turns blue.
Step 26 Repeat Steps 22 through 25 for every node in the ring.
Step 27 Verify that the new circuit is correctly configured in the Route Review and Edit. If the circuit information is not correct, click the Back button and repeat the procedure with the correct information.
Note If the circuit is incorrect, you can also click Finish, delete the completed circuit, and begin the procedure again.
Step 28 Click Finish.
Step 29 Complete the "DLP-D220 Provision E-Series Ethernet Ports" task on page 19-12 for each node that carries the circuit.
Step 30 Complete the "DLP-D221 Provision E-Series Ethernet Ports for VLAN Membership" task on page 19-13 for each node that carries the circuit.
Step 31 Complete the "D146 Test E-Series Circuits" procedure.
Stop. You have completed this procedure.
NTP-D143 Create an E-Series Hub-and-Spoke Ethernet Configuration
Purpose
|
This procedure creates a hub-and-spoke Ethernet configuration, which is made up of multiple circuits that share a common endpoint. It does not apply to E-Series cards in port-mapped mode.
|
Tools/Equipment
|
E-Series Ethernet cards (E100T-G or E1000-2-G) must be installed at all Ethernet circuit endpoint nodes.
|
Prerequisite Procedures
|
D127 Verify Network Turn-Up
|
Required/As Needed
|
As needed
|
Onsite/Remote
|
Onsite or remote
|
Security Level
|
Provisioning or higher
|
Step 1 Complete the "DLP-D60 Log into CTC" task on page 17-47 at the hub node (the common endpoint). If you are already logged in, continue with Step 2.
Step 2 If you want to assign a name to the circuit source and destination ports before you create the circuit, complete the "DLP-D314 Assign a Name to a Port" task on page 20-9. If you want CTC to assign a name automatically based on circuit type, node name, and sequence number, continue with Step 3.
Step 3 Complete the "DLP-D99 Determine Available VLANs" task on page 17-96 to verify that sufficient VLAN capacity is available. (You will create a VLAN during each circuit creation task.)
Step 4 Verify that the Ethernet card that will carry the hub-and-spoke circuit is provisioned for Single-card EtherSwitch Group. See the "DLP-D246 Provision E-Series Ethernet Card Mode" task on page 19-28.
Step 5 Provision and enable the Ethernet ports. See "DLP-D220 Provision E-Series Ethernet Ports" task on page 19-12.
Step 6 Log into the spoke node and repeat Steps 4 and 5 for the Ethernet card in the other circuit endpoint. (You only need to verify that the hub node is provisioned for single-card EtherSwitch once.)
Step 7 Click the Circuits tab and click Create.
Step 8 In the Circuit Creation dialog box, complete the following fields:
•Circuit Type—Choose VC_HO_PATH_CIRCUIT.
•Number of Circuits—Leave the default unchanged (1).
•Auto-ranged—Unavailable.
Step 9 Click Next.
Step 10 Define the circuit attributes:
•Name—Assign a name to the circuit. The name can be alphanumeric and up to 48 characters (including spaces). Circuit names should be 44 characters or less if you want the ability to create monitor circuits. If you leave the field blank, CTC assigns a default name to the circuit.
•Size—Choose the circuit size. Valid circuit sizes for a single-card EtherSwitch circuit are VC4, VC4-2c, and VC4-4c.
•Bidirectional—Leave the default unchanged (checked).
•Create cross-connects only (TL1-like)—Check this check box if you want to create one or more cross-connects to complete a signal path for TL1-generated circuits. Also, low order tunnels and Ethergroup sources and destinations are unavailable.
•State—Leave the default (IS) unchanged. Ethergroup circuits are always in service.
•Apply to drop ports—Uncheck this box; states cannot be applied to E-Series ports.
•Protected Drops—Leave the default unchanged (unchecked).
Step 11 If the circuit will be routed on an SNCP ring, complete the "DLP-D218 Provision SNCP Ring Selectors During Circuit Creation" task on page 19-11.
Step 12 Click Next.
Step 13 Provision the circuit source:
a. From the Node drop-down list, choose the hub node.
b. From the Slot drop-down list, choose the Ethernet card where you enabled the single-card EtherSwitch.
Step 14 Click Next.
Step 15 Provision the circuit destination:
a. From the Node drop-down list, choose an EtherSwitch circuit endpoint node.
b. From the Slot drop-down list, choose the Ethernet card where you enabled the single-card EtherSwitch.
Step 16 Click Next.
Step 17 Review the VLANs in the Available VLANs list. If the VLAN you want to use appears, continue with Step 19. If you need to create a new VLAN, complete the following steps:
a. Click the New VLAN button.
b. In the New VLAN dialog box, complete the following:
•VLAN Name—Assign an easily identifiable name to your VLAN.
•VLAN ID—Assign a VLAN ID. The VLAN ID should be the next available number between 2 and 4093 that is not already assigned to an existing VLAN. Each ONS 15454 SDH network supports a maximum of 509 user-provisionable VLANs.
•Topology Host—Choose the topology host ID from the drop-down list.
c. Click OK.
Tip You can also add VLANs in network view by choosing Tools > Manage VLANs. In the All VLANs dialog box, click the Create button to open the Define New VLAN dialog box.
Step 18 In the Available VLANs column, click the VLAN you want to use and click the arrow button (>>) to move the VLAN to the Circuit VLANs column.
Note Moving the VLAN from Available VLANs to Circuit VLANs forces all the VLAN traffic to use the shared packet ring you are creating.
Step 19 Click Next.
Step 20 Confirm that the following information about the hub-and-spoke circuit is correct:
•Circuit name
•Circuit type
•Circuit size
•VLAN names
•ONS 15454 SDH circuit nodes
If the circuit information is not correct, click the Back button and repeat the procedure with the correct information. If the information is correct, check Route Automatically.
Note You can also click Finish, delete the completed circuit, and start the procedure from the beginning.
Step 21 Click Finish.
Step 22 Complete the "DLP-D220 Provision E-Series Ethernet Ports" task on page 19-12.
Step 23 Complete the "DLP-D221 Provision E-Series Ethernet Ports for VLAN Membership" task on page 19-13.
Step 24 Complete the "D146 Test E-Series Circuits" procedure.
Step 25 To create additional circuits (spokes), repeat Steps 3 through 24.
Stop. You have completed this procedure.
NTP-D144 Create an E-Series Single-Card EtherSwitch Manual Cross-Connect
Purpose
|
This procedure manually creates a single-card EtherSwitch cross-connect between E-Series Ethernet cards and an STM-N cards connected to non-ONS equipment.
|
Tools/Equipment
|
E-Series Ethernet cards (E100T-G or E1000-2-G) must be installed at the circuit source node.
|
Prerequisite Procedures
|
D127 Verify Network Turn-Up
|
Required/As Needed
|
As needed
|
Onsite/Remote
|
Onsite or remote
|
Security Level
|
Provisioning or higher
|
Note In this procedure, cross-connect refers to a circuit connection created within the same node between the Ethernet card and an STM-N card connected to third-party equipment. You create cross-connects at the source and destination nodes so an Ethernet circuit can be routed from source to destination across third-party equipment.
Step 1 Complete the "DLP-D60 Log into CTC" task on page 17-47 at an ONS 15454 SDH on the network where you will create circuit. If you are already logged in, continue with Step 2.
Step 2 If you want to assign a name to the circuit source and destination ports before you create the circuit, complete the "DLP-D314 Assign a Name to a Port" task on page 20-9. If you want CTC to assign a name automatically based on circuit type, node name, and sequence number, continue with Step 3.
Step 3 If a high number of VLANs is already used by the network, complete the "DLP-D99 Determine Available VLANs" task on page 17-96 to verify that sufficient VLAN capacity is available. (You will create a VLAN during each circuit creation task.)
Step 4 In the node view, double-click the Ethernet card that will carry the cross-connect.
Step 5 Verify that the Ethernet card that will carry the circuit is provisioned for single-card EtherSwitch. See the "DLP-D246 Provision E-Series Ethernet Card Mode" task on page 19-28.
Step 6 From the View menu, choose Go to Network View.
Step 7 Click the Circuits tab and click Create.
Step 8 In the Circuit Creation dialog box, complete the following fields:
•Circuit Type—Choose VC_HO_PATH_CIRCUIT.
•Number of Circuits—Leave the default unchanged (1).
•Auto-ranged—Unavailable.
Step 9 Click Next.
Step 10 Define the circuit attributes:
•Name—Assign a name to the cross-connect. The name can be alphanumeric and up to 48 characters (including spaces). Circuit names should be 44 characters or less if you want the ability to create monitor circuits. If you leave the field blank, CTC assigns a default name to the cross-connect.
•Size—Choose the cross-connect size. For single-card EtherSwitch, the available sizes are VC4, VC4-2c, and VC4-4c.
•Bidirectional—Leave the default unchanged (checked).
•Create cross-connects only (TL1-like)—Check this check box if you want to create one or more cross-connects to complete a signal path for TL1-generated circuits. Also, low order tunnels and Ethergroup sources and destinations are unavailable.
•State—Choose the administrative state to apply to all of the cross-connects in a circuit:
–Unlocked—Puts the circuit cross-connects in the Unlocked-enabled service state.
–Locked,disabled—Puts the circuit cross-connects in the Locked-enabled,disabled service state. Traffic is not passed on the circuit.
–Unlocked,automaticInService—Puts the circuit cross-connects in the Unlocked-disabled,automaticInService service state and suppresses alarms and conditions. When the connections receive a valid signal, the service state automatically changes to Unlocked-enabled.
–Locked,maintenance—Puts the circuit cross-connects in the Locked-enabled,maintenance service state. The maintenance state does not interrupt traffic flow; it suppresses alarms and conditions and allows loopbacks to be performed on the circuit. Use Locked,maintenance for circuit testing or to suppress circuit alarms temporarily. Change the administrative state to Unlocked; Unlocked,automaticInService; or Locked,disabled when testing is complete. See the "DLP-D230 Change a Circuit State" task on page 19-19.
For additional information about circuit service states, refer to the "Circuits and Tunnels" chapter in the Cisco ONS 15454 SDH Reference Manual.
•Apply to drop ports—Uncheck this box.
•Protected Drops—Leave the default unchanged (unchecked).
Step 11 If the circuit will be routed on an SNCP ring, complete the "DLP-D218 Provision SNCP Ring Selectors During Circuit Creation" task on page 19-11.
Step 12 Click Next.
Step 13 Provision the circuit source:
a. From the Node drop-down list, choose the cross-connect source node.
b. From the Slot drop-down list, choose the Ethernet card where you verified the single-card EtherSwitch in Step 5.
Step 14 Click Next.
Step 15 Provision the circuit destination:
a. From the Node drop-down list, choose the cross-connect circuit source node selected in Step 13. (For Ethernet cross-connects, the source and destination nodes are the same.)
b. From the Slot drop-down list, choose the STM-N card that is connected to the non-ONS equipment.
c. Depending on the STM-N card, choose the port and/or circuit size from the Port and Size drop-down lists.
Step 16 Click Next.
Step 17 Review the VLANs in the Available VLANs list. If the VLAN you want to use appears, continue with Step 18. If you need to create a new VLAN, complete the following steps:
a. Click the New VLAN button.
b. In the New VLAN dialog box, complete the following:
•VLAN Name—Assign an easily identifiable name to your VLAN.
•VLAN ID—Assign a VLAN ID. The VLAN ID should be the next available number between 2 and 4093 that is not already assigned to an existing VLAN. Each ONS 15454 SDH network supports a maximum of 509 user-provisionable VLANs.
•Topology Host—Choose the topology host ID from the drop-down list.
c. Click OK.
Tip You can also add VLANs in network view by choosing Tools > Manage VLANs. In the All VLANs dialog box, click the Create button to open the Define New VLAN dialog box.
Step 18 Click the VLAN you want to use on the Available VLANs column, then click the arrow (>>) button to move the VLAN to the Circuit VLANs column.
Step 19 Click Next. The Circuit Creation (Circuit Routing Preferences) dialog box appears.
Step 20 Confirm that the following information about the single-card EtherSwitch manual cross-connect is correct (in this task, "circuit" refers to the Ethernet cross-connect):
•Circuit name
•Circuit type
•Circuit size
•VLAN names
•ONS 15454 SDH nodes
If the information is not correct, click the Back button and repeat the procedure with the correct information.
Step 21 Click Finish.
Step 22 Complete the "DLP-D220 Provision E-Series Ethernet Ports" task on page 19-12.
Step 23 Complete the "DLP-D221 Provision E-Series Ethernet Ports for VLAN Membership" task on page 19-13.
Step 24 Complete the "D146 Test E-Series Circuits" procedure.
Stop. You have completed this procedure.
NTP-D145 Create an E-Series Multicard EtherSwitch Manual Cross-Connect
Purpose
|
This procedure manually creates multicard EtherSwitch cross-connects between E-Series Ethernet cards and STM-N cards connected to non-ONS equipment.
|
Tools/Equipment
|
E-Series Ethernet cards must be installed at the circuit source node.
|
Prerequisite Procedures
|
D127 Verify Network Turn-Up
|
Required/As Needed
|
As needed
|
Onsite/Remote
|
Onsite or remote
|
Security Level
|
Provisioning or higher
|
Note In this procedure, cross-connect refers to a circuit connection created within the same node between the Ethernet card and an STM-N card connected to third-party equipment. You create cross-connects at the source and destination nodes so an Ethernet circuit can be routed from source to destination across third-party equipment.
Step 1 Complete the "DLP-D60 Log into CTC" task on page 17-47 at a circuit endpoint. If you are already logged in, continue with Step 3.
Step 2 If you want to assign a name to the circuit source and destination ports before you create the circuit, complete the "DLP-D314 Assign a Name to a Port" task on page 20-9. If you want CTC to assign a name automatically based on circuit type, node name, and sequence number, continue with Step 3.
Step 3 Complete the "DLP-D99 Determine Available VLANs" task on page 17-96 to verify that sufficient VLAN capacity is available. (You will create a VLAN during each circuit creation task.)
Step 4 Verify that the Ethernet card that will carry the circuit is provisioned for Multicard EtherSwitch Group. See the "DLP-D246 Provision E-Series Ethernet Card Mode" task on page 19-28.
Step 5 Provision and enable the Ethernet ports. See "DLP-D220 Provision E-Series Ethernet Ports" task on page 19-12.
Step 6 From the View menu, choose Go to Network View.
Step 7 Click the Circuits tab and click Create.
Step 8 In the Circuit Creation dialog box, complete the following fields:
•Circuit Type—Choose VC_HO_PATH_CIRCUIT.
•Number of Circuits—Leave the default unchanged (1).
•Auto-ranged—Unavailable.
Step 9 Click Next.
Step 10 Define the circuit attributes:
•Name—Assign a name to the source cross-connect. The name can be alphanumeric and up to 48 characters (including spaces). Circuit names should be 44 characters or less if you want the ability to create monitor circuits. If you leave the field blank, CTC assigns a default name to the source cross-connect.
•Size—Choose the size of the circuit that will be carried by the cross-connect. For multicard EtherSwitch circuits, the available sizes are VC4 and VC4-2c.
•Bidirectional—Leave the default unchanged (checked).
•Create cross-connects only (TL1-like)—Check this check box if you want to create one or more cross-connects to complete a signal path for TL1-generated circuits. Also, low order tunnels and Ethergroup sources and destinations are unavailable.
•State—Choose the administrative state to apply to all of the cross-connects in a circuit:
–Unlocked—Puts the circuit cross-connects in the Unlocked-enabled service state.
–Locked,disabled—Puts the circuit cross-connects in the Locked-enabled,disabled service state. Traffic is not passed on the circuit.
–Unlocked,automaticInService—Puts the circuit cross-connects in the Unlocked-disabled,automaticInService service state and suppresses alarms and conditions. When the connections receive a valid signal, the service state automatically changes to Unlocked-enabled.
–Locked,maintenance—Puts the circuit cross-connects in the Locked-enabled,maintenance service state. The maintenance state does not interrupt traffic flow; it suppresses alarms and conditions and allows loopbacks to be performed on the circuit. Use Locked,maintenance for circuit testing or to suppress circuit alarms temporarily. Change the administrative state to Unlocked; Unlocked,automaticInService; or Locked,disabled when testing is complete. See the "DLP-D230 Change a Circuit State" task on page 19-19.
For additional information about circuit service states, refer to the "Circuits and Tunnels" chapter in the Cisco ONS 15454 SDH Reference Manual.
•Apply to drop ports—Uncheck this box.
•Protected Drops—Leave the default unchanged (unchecked).
Step 11 If the circuit will be routed on an SNCP ring, complete the "DLP-D218 Provision SNCP Ring Selectors During Circuit Creation" task on page 19-11.
Step 12 Click Next.
Step 13 Provision the cross-connect source:
a. From the Node drop-down list, choose the cross-connect source node.
b. From the Slot drop-down list, choose Ethergroup.
Step 14 Click Next.
Step 15 From the Node drop-down list under Destination, choose the circuit source node selected in Step 13. (For Ethernet cross-connects, the source and destination nodes are the same.)
The Slot field is provisioned automatically for Ethergroup.
Step 16 Click Next.
Step 17 Review the VLANs in the Available VLANs list. If the VLAN you want to use appears, continue with Step 18. If you need to create a new VLAN, complete the following steps:
a. Click the New VLAN button.
b. In the New VLAN dialog box, complete the following:
•VLAN Name—Assign an easily identifiable name to your VLAN.
•VLAN ID—Assign a VLAN ID. The VLAN ID should be the next available number between 2 and 4093 that is not already assigned to an existing VLAN. Each ONS 15454 SDH network supports a maximum of 509 user-provisionable VLANs.
•Topology Host—Choose the topology host ID from the drop-down list.
c. Click OK.
Note You can also add VLANs in network view by choosing Tools > Manage VLANs. In the All VLANs dialog box, click the Create button to open the Define New VLAN dialog box.
Step 18 In the Available VLANs column, click the VLAN you want to use and click the arrow button (>>) to move the VLAN to the Circuit VLANs column.
Step 19 Click Next.
The Circuit Creation (Circuit Routing Preferences) dialog box appears.
Step 20 Verify the cross-connect information (in this step, "circuit" refers to the Ethernet cross-connect):
•Circuit name
•Circuit type
•Circuit size
•VLANs
•ONS 15454 SDH nodes
If the information is not correct, click the Back button and repeat the procedure with the correct information. If the information is correct, check Route Automatically.
Step 21 Click Finish.
Step 22 Complete the "DLP-D220 Provision E-Series Ethernet Ports" task on page 19-12.
Step 23 Complete the "DLP-D221 Provision E-Series Ethernet Ports for VLAN Membership" task on page 19-13.
Step 24 From the View menu, choose Go to Home View.
Step 25 Click the Circuits tab.
Step 26 Highlight the circuit and click Edit.
The Edit Circuit dialog box appears.
Step 27 Click Drops and click Create.
The Define New Drop dialog box appears.
Step 28 From the Slot menu, choose the STM-N card that links the ONS 15454 SDH to the non-ONS 15454 SDH equipment.
Step 29 From the Port menu, choose the appropriate port.
Step 30 From theVC4 menu, choose the VC4 that matches the VC4 of the connecting non-ONS 15454 SDH equipment.
Step 31 Click OK.
Step 32 Confirm the circuit information appears in the Edit Circuit dialog box and click Close.
Step 33 Repeat Steps 3 through 32 at the second Ethernet manual cross-connect endpoint. The first and second created Ethernet circuits will be bridged by the appropriate circuit in the non-ONS equipment.
Note The appropriate circuit must exist in the non-ONS equipment to connect the two Ethernet manual cross-connect endpoints.
Caution If a CARLOSS alarm repeatedly appears and clears on an Ethernet manual cross-connect,
the two Ethernet circuits might have a circuit-size mismatch. For example, a circuit size of VC4 was configured on the first ONS 15454 SDH and circuit size of VC4-2c was configured on the second ONS 15454 SDH. Refer to the Cisco ONS 15454 SDH Troubleshooting Guide if the alarm persists
.
Step 34 Complete the "D146 Test E-Series Circuits" procedure.
Stop. You have completed this procedure.
NTP-D146 Test E-Series Circuits
Step 1 Complete the "DLP-D60 Log into CTC" task on page 17-47 at the ONS 15454 SDH source Ethernet node. If you are already logged in, continue with Step 2.
Step 2 On the shelf graphic, double-click the circuit source card.
Step 3 Click the Provisioning > Port tabs.
Step 4 Verify the following settings:
•Mode—Set to Auto, 10 Half, 10 Full, 100 Half, or 100 Full.
•Enabled—Checked.
•Priority—Set to the priority level indicated by the circuit or site plan. Priority does not apply to E-Series cards in port-mapped mode.
•Stp State—Checked if Spanning Tree Protocol is enabled for the circuit. STP does not apply to E-Series cards in port-mapped mode.
Step 5 Click the VLAN tab. If the E-Series cards is not in port-mapped mode, verify that the source port is on the same VLAN as the destination port.
Step 6 Repeat Steps 2 through 5 for the destination node.
Step 7 At the destination node connect the Ethernet test set to the destination port and configure the test set to send and receive the appropriate Ethernet traffic.
Note At this point, you are not able to send and receive Ethernet traffic.
Step 8 At the source node connect an Ethernet test set to the source port and configure the test set to send and receive the appropriate Ethernet traffic.
Step 9 Transmit Ethernet frames between both test sets. If you cannot transmit and receive Ethernet traffic between the nodes, repeat Steps 2 through 8 to make sure you configured the Ethernet ports and test set correctly.
Step 10 Perform protection switch testing appropriate to the topology:
•For SNCP rings, see the "DLP-D94 SNCP Protection Switching Test" task on page 17-90
•For MS-SPRings see the "DLP-D91 MS-SPRing Switch Test" task on page 17-83.
Configure your test set according to local site practice. For information about configuring your test set, see your test set user guide.
Step 11 After the Ethernet test is complete, print the results or save them to a disk for future reference. For information about printing or saving test results, see your test set user guide.
Stop. You have completed this procedure.
NTP-D147 Create a G-Series Circuit
Purpose
|
This procedure creates a G-Series circuit.
|
Tools/Equipment
|
A G-Series card must be installed at the end of the circuit.
|
Prerequisite Procedures
|
D127 Verify Network Turn-Up
|
Required/As Needed
|
As needed
|
Onsite/Remote
|
Onsite or remote
|
Security Level
|
Provisioning or higher
|
Step 1 Complete the "DLP-D60 Log into CTC" task on page 17-47 at an ONS 15454 SDH on the network where you will create circuit. If you are already logged in, continue with Step 2.
Step 2 If you want to assign a name to the circuit source and destination ports before you create the circuit, complete the "DLP-D314 Assign a Name to a Port" task on page 20-9. If you want CTC to assign a name automatically based on circuit type, node name, and sequence number, continue with Step 4.
Step 3 Complete the "DLP-D222 Provision G-Series Ethernet Ports" task on page 19-14 before or after you create the G-Series circuit.
Step 4 From the View menu, choose Go to Network View.
Step 5 Click the Circuits tab and click Create.
Step 6 In the Circuit Creation dialog box, complete the following fields:
•Circuit Type—Choose VC_HO_PATH_CIRCUIT.
•Number of Circuits—Leave the default unchanged (1).
Step 7 Click Next.
Step 8 Define the circuit attributes:
•Name—Assign a name to the circuit. The name can be alphanumeric and up to 48 characters (including spaces). Circuit names should be 44 characters or less if you want the ability to create monitor circuits. If you leave the field blank, CTC assigns a default name to the circuit.
•Size—Choose the circuit size. Valid circuit sizes for a G-Series circuit are VC4, VC4-2c, VC4-3c, VC4-4c, VC4-8c, and VC4-16c.
•Bidirectional—Leave the default unchanged (checked).
•Create cross-connects only (TL1-like)—Check this check box if you want to create one or more cross-connects to complete a signal path for TL1-generated circuits. Also, low order tunnels and Ethergroup sources and destinations are unavailable.
•State—Choose the administrative state to apply to all of the cross-connects in a circuit:
–Unlocked—Puts the circuit cross-connects in the Unlocked-enabled service state.
–Locked,disabled—Puts the circuit cross-connects in the Locked-enabled,disabled service state. Traffic is not passed on the circuit.
–Unlocked,automaticInService—Puts the circuit cross-connects in the Unlocked-disabled,automaticInService service state and suppresses alarms and conditions. When the connections receive a valid signal, the service state automatically changes to Unlocked-enabled.
–Locked,maintenance—Puts the circuit cross-connects in the Locked-enabled,maintenance service state. The maintenance state does not interrupt traffic flow; it suppresses alarms and conditions and allows loopbacks to be performed on the circuit. Use Locked,maintenance for circuit testing or to suppress circuit alarms temporarily. Change the administrative state to Unlocked; Unlocked,automaticInService; or Locked,disabled when testing is complete. See the "DLP-D230 Change a Circuit State" task on page 19-19.
For additional information about circuit service states, refer to the "Circuits and Tunnels" chapter in the Cisco ONS 15454 SDH Reference Manual.
•Apply to drop ports—Leave the default unchanged (unchecked).
Note Loss of signal alarms appear if Unlocked ports are not receiving signals.
•Auto-ranged—Unavailable.
•Protected Drops—Leave unchecked.
Step 9 If the circuit will be routed on an SNCP ring, complete the "DLP-D218 Provision SNCP Ring Selectors During Circuit Creation" task on page 19-11.
Step 10 Click Next.
Step 11 Provision the circuit source:
a. From the Node drop-down list, choose the circuit source node. Either end node can be the point-to-point circuit source.
b. From the Slot drop-down list, choose the slot containing the G-Series card that you will use for one end of the point-to-point circuit.
c. From the Port drop-down list, choose a port.
Step 12 Click Next.
Step 13 Provision the circuit destination:
a. From the Node drop-down list, choose the circuit destination node.
b. From the Slot drop-down list, choose the slot containing the G-Series card that you will use for other end of the point-to-point circuit.
c. From the Port drop-down list, choose a port.
Step 14 Click Next. The Circuits window appears.
Step 15 Confirm that the following circuit information is correct:
•Circuit name
•Circuit type
•Circuit size
•ONS 15454 SDH circuit nodes
If the information is not correct, click the Back button and repeat the procedure with the correct information. If the information is correct, check Route Automatically.
Step 16 Click Finish.
Note To change the capacity of a G-Series circuit, you must delete the original circuit and reprovision a new larger circuit.
Step 17 Complete the "D149 Test G-Series Circuits" procedure.
Stop. You have completed this procedure.
NTP-D148 Create a Manual Cross-Connect for a G-Series or E-Series Card in Port-Mapped Mode
Purpose
|
This procedure manually creates a cross-connect between a G-Series Ethernet card or an E-Series in Port-mapped mode and an STM-N card connected to non-ONS equipment.
|
Tools/Equipment
|
A G-Series or E-Series card must be installed at the circuit source node.
|
Prerequisite Procedures
|
D127 Verify Network Turn-Up
|
Required/As Needed
|
As needed
|
Onsite/Remote
|
Onsite or remote
|
Security Level
|
Provisioning or higher
|
Note In this procedure, cross-connect refers to a circuit connection created within the same node between the Ethernet card and an STM-N card connected to third-party equipment. You create cross-connects at the source and destination nodes so an Ethernet circuit can be routed from source to destination across third-party equipment.
Step 1 Complete the "DLP-D60 Log into CTC" task on page 17-47 at an ONS 15454 SDH where you will create the cross-connect. If you are already logged in, continue with Step 2.
Step 2 If you are provisioning an E-Series card, verify that the Ethernet card that will carry the circuit is provisioned for port-mapped mode. See the "DLP-D246 Provision E-Series Ethernet Card Mode" task on page 19-28.
Step 3 If you are provisioning a G-Series card, complete the "DLP-D222 Provision G-Series Ethernet Ports" task on page 19-14.
Step 4 If you want to change the default flow control settings, complete the "DLP-D353 Provision G-Series Flow Control Watermarks" task on page 20-60.
Step 5 Click the Circuits
