Shelf and FMEC Hardware
Note
The terms "Unidirectional Path Switched Ring" and "UPSR" may appear in Cisco literature. These terms do not refer to using Cisco ONS 15xxx products in a unidirectional path switched ring configuration. Rather, these terms, as well as "Path Protected Mesh Network" and "PPMN," refer generally to Cisco's path protection feature, which may be used in any topological network configuration. Cisco does not recommend using its path protection feature in any particular topological network configuration.
This chapter provides a description of Cisco ONS 15454 SDH shelf and backplane hardware. Card and cable descriptions are provided in "Common Control Cards," "Electrical Cards," "Optical Cards," and "Ethernet Cards." To install equipment, refer to the Cisco ONS 15454 SDH Procedure Guide.
Chapter topics include:
•Overview
•Front Door
•Front Mount Electrical Connection
•E1-75/120 Conversion Panel
•Coaxial Cable
•Twisted-Pair Balanced Cable
•Fan-Tray Assembly
•Air Filter
•Power and Ground Description
•Alarm, Timing, LAN, and Craft Pin Connections
•Cards and Slots
•Software and Hardware Compatibility
Note The Cisco ONS 15454 SDH assembly is intended for use with telecommunications equipment only.
Warning Only trained and qualified personnel should be allowed to install, replace, or service this equipment.
Warning This equipment must be installed and maintained by service personnel as defined by AS/NZS 3260. Incorrectly connecting this equipment to a general-purpose outlet could be hazardous. The telecommunications lines must be disconnected 1) before unplugging the main power connector or 2) while the housing is open, or both.
Warning The ONS 15454 SDH is intended for installation in restricted access areas. A restricted access area is where access can only be gained by service personnel through the use of a special tool, lock, key, or other means of security. A restricted access area is controlled by the authority responsible for the location.
Warning The ONS 15454 SDH is suitable for mounting on concrete or other non-combustible surfaces only.
Caution Unused card slots should be filled with a blank faceplate (Cisco P/N 15454E-BLANK). The blank faceplate ensures proper airflow when operating the ONS 15454 SDH without the front door attached, although Cisco recommends that the front door remain attached.
1.1 Overview
When installed in an equipment rack, the ONS 15454 SDH assembly is typically connected to a fuse and alarm panel to provide centralized alarm connection points and distributed power for the ONS 15454 SDH. Fuse and alarm panels are third-party equipment and are not described in this documentation. If you are unsure about the requirements or specifications for a fuse and alarm panel, consult the user documentation for the related equipment. The front door of the ONS 15454 SDH allows access to the shelf assembly, fan-tray assembly, and cable-management area. The FMEC cover at the top of the shelf allows access to power connectors, external alarms and controls, timing input and output, and craft interface terminals.
Warning This unit is intended for installation in restricted access areas. A restricted access area can be accessed only through the use of a special tool, lock and key, or other means of security.
Warning Ultimate disposal of this product should be handled according to all national laws and regulations.
Warning A readily accessible two-poled disconnect device must be incorporated in the fixed wiring.
Note The ONS 15454 SDH is suitable for mounting on concrete or other noncombustible surfaces only.
You can mount the ONS 15454 SDH in an ETSI rack. The shelf assembly weighs approximately 26 kg (57 pounds) with no cards installed. The shelf assembly includes a front door and an FMEC cover for added security, a fan tray module for cooling, and extensive cable-management space.
All ONS 15454 SDH optical cards have SC connectors on the card faceplate, except the STM-1SH 1310-8 and MXP_2.5_10G cards, which have LC connectors. Fiber-optic cables are routed into the front of the optical and Ethernet cards. Electrical cards (E-1, E-3, DS-3i, STM-1E) require front mount electrical connection cards (FMECs) to provide the cable connection points for the shelf assembly.
The ONS 15454 SDH is powered using -48V DC power. Negative, return, and ground power terminals are connected via the MIC-A/P and the MIC-C/T/P cards.
Note In this chapter, the terms "ONS 15454 SDH" and "shelf assembly" are used interchangeably. In the installation context, these terms have the same meaning. Otherwise, shelf assembly refers to the physical steel enclosure that holds cards and connects power, and ONS 15454 SDH refers to the entire system, both hardware and software.
Install the ONS 15454 SDH in compliance with your local and national electrical codes:
•United States: National Fire Protection Association (NFPA) 70; United States National Electrical Code
•Canada: Canadian Electrical Code, Part I, CSA C22.1
•Other countries: If local and national electrical codes, are not available, refer to IEC 364, Part 1 through Part 7.
Warning Dispose of this product according to all national laws and regulations.
Figure 1-1 provides the dimensions of the ONS 15454 SDH.
Figure 1-1 ONS 15454 SDH Dimensions
1.2 Front Door
The Critical, Major, and Minor alarm LEDs visible through the front door indicate whether a Critical, Major, or Minor alarm is present anywhere on the ONS 15454 SDH. These LEDs must be visible so technicians can quickly determine if any alarms are present. You can use the LCD to further isolate alarms.
The ONS 15454 SDH features a locked door to the front compartment. A pinned hex key that unlocks the front door ships with the ONS 15454 SDH. A button on the right side of the shelf assembly releases the door. The front door provides access to the shelf assembly, cable-management tray, fan-tray assembly, and LCD screen (Figure 1-2).
Figure 1-2 The ONS 15454 SDH Front Door
You can remove the front door of the ONS 15454 SDH to provide unrestricted access to the front of the shelf assembly (Figure 1-3).
Figure 1-3 Removing the ONS 15454 SDH Front Door
An erasable label is pasted on the inside of the front door (Figure 1-4). You can use the label to record slot assignments, port assignments, card types, node ID, rack ID, and serial number for the ONS 15454 SDH.
Figure 1-4 Front-Door Erasable Label
Note The front door label also includes the Class I and Class 1M laser warning (Figure 1-5).
Figure 1-5 Laser Warning on the Front-Door Label
1.3 Front Mount Electrical Connection
The positive and negative power terminals are located on Front Mount Electrical Connection (FMEC) cards in the Electrical Facility Connection Assembly (EFCA). The ground connection is the grounding receptacle on the side panel of the shelf.
The ONS 15454 SDH electrical facility connection assembly (EFCA) at the top of the shelf has 12 front mount electrical connection (FMEC) slots numbered sequentially from left to right (18 to 29). Slots 18 to 22 and 25 to 29 provide electrical connections. Slots 23 and 24 host the MIC-A/P and MIC-C/T/P cards, respectively.
FMEC-E1, FMEC-DS1/E1, FMEC E1-120NP, and FMEC E1-120PROA cards can be installed in Slots 18 to 21; the FMEC E1-120PROB card can be installed in Slots 26 to 29; and FMEC-E3/DS3, FMEC STM1E NP, FMEC STM1E 1:1, and FMEC STM1E 1:3 cards can be installed in Slots 18 to 21 or Slots 26 to 29. FMEC/electrical card assignment is as follows:
•FMEC Slot 18 supports an electrical card in Slot 1.
•FMEC Slot 19 supports an electrical card in Slot 2.
•FMEC Slot 20 supports an electrical card in Slot 3.
•FMEC Slot 21 supports an electrical card in Slot 4.
•FMEC Slot 22 supports an electrical card in Slot 5.
•FMEC Slot 23 hosts the MIC-A/P alarm and power card.
•FMEC Slot 24 supports the MIC-C/T/P timing, craft, and power card.
•FMEC Slot 25 supports an electrical card in Slot 13.
•FMEC Slot 26 supports an electrical card in Slot 14.
•FMEC Slot 27 supports an electrical card in Slot 15.
•FMEC Slot 28 supports an electrical card in Slot 16.
•FMEC Slot 29 supports an electrical card in Slot 17.
FMEC slots have symbols indicating the type of cards that you can install in the slots. Each ONS 15454 SDH FMEC has a corresponding symbol. The symbol on the FMEC must match the symbol on the slot. Table 1-1 shows the slot-FMEC symbol definitions.
Table 1-1 Slot and FMEC Symbols
Color/Shape
|
Definition
|
Orange/Circle
|
Electrical 75-ohm E-1 connection via 1.0/2.3 miniature coax connectors. Only install ONS 15454 SDH FMECs with a circle symbol on the faceplate.
|
Orange/Circle
|
Electrical 120-ohm E-1 connection via DB-37 connectors. Only install ONS 15454 SDH FMECs with a circle symbol on the faceplate.
|
Green/Star
|
Electrical 75-ohm E3/DS3 connection via 1.0/2.3 miniature coax connectors. Only install ONS 15454 SDH FMECs with a star symbol on the faceplate.
|
Red/Vertical ellipse
|
Node power and interface for environmental alarms. Only install ONS 15454 SDH FMECs with a vertical ellipse symbol on the faceplate.
|
Red/Horizontal ellipse
|
Node power and LAN timing. Only install ONS 15454 SDH FMECs with a horizontal ellipse symbol on the faceplate.
|
Table 1-2 lists the number of ports, line rates, connector options, and connector locations for ONS 15454 SDH electrical FMECs.
Table 1-2 FMEC, Ports, Line Rates, and Connectors
FMEC
|
Ports
|
Line Rate per Port
|
Connector Types
|
Connector Location
|
FMEC-E1
|
14
|
2.048 Mbps
|
1.0/2.3 miniature coax connector
|
EFCA
|
FMEC-DS1/E1
|
14
|
2.048 Mbps
|
DB-37
|
EFCA
|
FMEC E1-120NP
|
42
|
2.048 Mbps
|
Molex 96-pin LFH connector
|
EFCA
|
FMEC E1-120PROA
|
3 * 42
|
2.048 Mbps
|
Molex 96-pin LFH connector
|
EFCA,
Slots 18 to 21
|
FMEC E1-120PROB
|
3 * 42
|
2.048 Mbps
|
Molex 96-pin LFH connector
|
EFCA,
Slots 26 to 29
|
FMEC-E3/DS3
|
12
|
34.368 Mbps
44.736 Mbps
|
1.0/2.3 miniature coax connector
|
EFCA
|
FMEC STM1E NP
|
12
|
155.52 Mbps
|
1.0/2.3 miniature coax connector
|
EFCA
|
FMEC STM1E 1:1
|
4 * 12
|
155.52 Mbps
|
1.0/2.3 miniature coax connector
|
EFCA
|
FMEC STM1E 1:3
|
4 * 12
|
155.52 Mbps
|
1.0/2.3 miniature coax connector
|
EFCA,
Slots 18 to 21 or
Slots 26 to 29
|
1.4 E1-75/120 Conversion Panel
You need an E1-75/120 conversion panel if you want to convert the balanced 120-ohm interfaces of the E1-42 card and the corresponding FMECs to unbalanced 75-ohm interfaces.
The E1-75/120 contains eighty-four 1.0/2.3 miniature coax connectors (42 for transmit, 42 for receive) to the customer side and two Molex 96-pin LFH connectors to the E1-42 FMEC 120-ohm side. Each of the Molex 96-pin LFH connectors connects 21 inputs and 21 outputs. The E1-75/120 conversion panel is intended to be used in digital distribution frames (DDFs), ETSI racks, and ANSI racks.
You can install the E1-75/120 conversion panel in the rack of your ONS 15454 SDH or in a nearby rack. If you install the E1-75/120 conversion panel in a place where a longer cable is required, make sure that the total cable loss of the balanced 120-ohm cable and the unbalanced 75-ohm cable does not exceed the maximum allowed value. Refer to the Cisco ONS 15454 SDH Reference Manual for details. To ensure that the E1-75/120 conversion panel is secure, use one or two M6 mounting screws for each side of the shelf assembly. Figure 1-6 shows the rack-mounting for the E1-75/120 conversion panel.
Note If required, the mounting brackets of the E1-75/120 conversion panel can be uninstalled and re-installed rotated 90 degrees to enable 19-inch rack mounting.

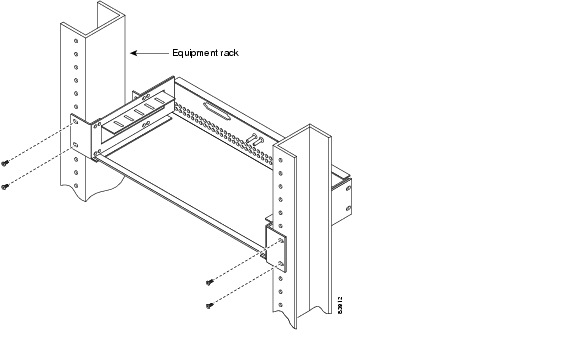

Figure 1-6 Mounting the E1-75/120 Conversion Panel in a Rack
1.5 Coaxial Cable
Caution Always use the supplied ESD wristband when working with a powered ONS 15454 SDH. Plug the wristband cable into the ESD jack located on the lower-right outside edge of the shelf assembly.
All interfaces that are listed in Table 1-2 with 1.0/2.3 miniature coax connectors (E-1, E-3, DS-3, and STM-1E) must be connected using a 75-ohm coaxial cable.
The electromagnetic compatibility (EMC) performance of the node depends on good-quality coaxial cables, such as Shuner Type G 03233 D or the equivalent.
1.6 Twisted-Pair Balanced Cable
Caution Always use the supplied ESD wristband when working with a powered ONS 15454 SDH. Plug the wristband cable into the ESD jack located on the lower-right outside edge of the shelf assembly.
All E-1 interfaces that are listed in Table 1-2 with DB-37 or with Molex 96-pin LFH connectors must be connected using a 120-ohm twisted-pair balanced cable. For the interfaces that use Molex 96-pin LFH connectors, Cisco offers ready-made cables.
1.7 Fan-Tray Assembly
The fan-tray assembly is located at the bottom of the ONS 15454 SDH. After you install the fan-tray assembly, you only need to open the drawer if a fan fails, or if you need to replace or clean the fan-tray air filter. Do not operate an ONS 15454 SDH without a fan-tray air filter. Refer to the Maintenance chapter in the Cisco ONS 15454 SDH Procedure Guide for information about cleaning and maintaining the fan-tray air filter.
The fan-tray assembly is a removable drawer that holds fans and fan-control circuitry for the ONS 15454 SDH. Cisco recommends removing the front door of the chassis when removing or installing the fan-tray assembly. The front of the fan-tray assembly has an LCD screen that provides slot and port-level information for all ONS 15454 SDH card slots, including the number of critical, major, and minor alarms. It also displays whether the software load is SONET or SDH and the software version number.
The temperature measured by the TCC2 sensors is displayed on the LCD screen.
See Figure 1-7 for the position of the fan tray assembly.
Figure 1-7 Position of the Fan-Tray Assembly
Caution Do not operate an ONS 15454 SDH without a fan-tray air filter. A fan-tray air filter is mandatory.
1.7.1 Fan Speed
If one or more fans fail on the fan-tray assembly, replace the entire assembly. You cannot replace individual fans. The red Fan Fail LED on the front of the fan tray illuminates when one or more fans fail. For fan tray replacement instructions, refer to the Cisco ONS 15454 SDH Troubleshooting Guide. The red Fan Fail LED clears after you install a working fan-tray assembly.
Fan speed is controlled by TCC2 card temperature sensors. The sensors measure the input air temperature at the fan-tray assembly. Fan speed options are low, medium, and high. If the TCC2 card fails, the fans automatically shift to high speed. The temperature measured by the TCC2 sensors is displayed on the LCD screen.
1.7.2 Air Filter
The ONS 15454 SDH contains a reusable air filter that is installed beneath the fan-tray assembly.
Warning Do not reach into a vacant slot or chassis while you install or remove a module or a fan. Exposed circuitry could constitute an energy hazard.
The reusable filter is made of a gray, open-cell, polyurethane foam that is specially coated to provide fire and fungi resistance. Spare filters should be kept in stock.
1.8 Power and Ground Description
Ground the equipment according to standards or local practices.
The ONS 15454 SDH has redundant -48 VDC power connectors on the MIC-A/P and MIC-C/T/P faceplates.
To install redundant power feeds, use the two power cables shipped with the ONS 15454 SDH and one ground cable.
For details, see the "MIC-A/P Card" section and the "MIC-C/T/P Card" section.
Caution Only use the power cables shipped with the ONS 15454 SDH.
1.9 Alarm, Timing, LAN, and Craft Pin Connections
Caution Always use the supplied ESD wristband when working with a powered ONS 15454 SDH. Plug the wristband cable into the ESD jack located on the lower-right outside edge of the shelf assembly.
The MIC-A/P and the MIC-C/T/P cards in the EFCA area at the top of the ONS 15454 SDH shelf are used to connect alarm, timing, LAN, and craft connections to the ONS 15454 SDH.
For details, see the "MIC-A/P Card" section and the "MIC-C/T/P Card" section.
1.10 Cards and Slots
ONS 15454 SDH cards have electrical plugs at the back that plug into electrical connectors on the shelf assembly backplane. When the ejectors are fully closed, the card plugs into the assembly backplane Figure 1-8 shows the card installation.
Figure 1-8 Installing Cards in the ONS 15454 SDH
For card and slot requirements, refer to the Cisco ONS 15454 SDH Procedure Guide.
1.10.1 Card Slot Requirements
The ONS 15454 SDH shelf assembly has 17 card slots numbered sequentially from left to right. Slots 1 to 4 and 14 to 17 are multispeed slots. Slots 5, 6, 12 and 13 are high-speed slots.
Slots 7 and 11 are dedicated to TCC2 cards. Slots 8 and 10 are dedicated to cross-connect (XC-VXL-2.5G, XC-VXL-10G, XC10G) cards. Slot 9 is reserved for the optional Alarm Interface Controller-International (AIC-I) card. Slots 3 and 15 can also host protect cards that are used in 1:N protection.
Caution Do not operate the ONS 15454 SDH with a single TCC2 card or a single XC-VXL-2.5G/XC-VXL-10G/XC10G card installed. Always operate the shelf assembly with one working and one protect card of the same type.
Shelf assembly slots have symbols indicating the type of cards that you can install in them. Each ONS 15454 SDH card has a corresponding symbol. The symbol on the card must match the symbol on the slot.
Table 1-3 shows the slot and card symbol definitions.
Table 1-3 Slot and Card Symbols
Symbol Color/Shape
|
Definition
|
Orange/Circle
|
Multispeed slots and high-speed slots, that is, Slots 1 to 6 and 12 to 17. Only install ONS 15454 cards with a circle symbol on the faceplate.
|
Blue/Triangle
|
High-speed slots, that is, Slots 5, 6, 12, and 13. Only install ONS 15454 SDH cards with circle or a triangle symbol on the faceplate.
|
Purple/Square
|
TCC2 slot, Slots 7 and 11. Only install ONS 15454 SDH cards with a square symbol on the faceplate.
|
Green/Cross
|
Cross-connect (XC-VXL-2.5G/XC-VXL-10G/XC10G) slot, that is, Slots 8 and 10. Only install ONS 15454 SDH cards with a cross symbol on the faceplate.
|
Red/P
|
Protection slot in 1:N protection schemes.
|
Red/Diamond
|
AIC-I slot, that is, Slot 9. Only install ONS 15454 SDH cards with a diamond symbol on the faceplate.
|
Gold/Star
|
Multispeed slots, that is, Slots 1 to 4 and 14 to 17. Only install ONS 15454 SDH cards with a star symbol on the faceplate.
|
Table 1-4 lists the number of ports, line rates, connector options, and connector locations for ONS 15454 SDH optical and electrical cards.
Table 1-4 Card Ports, Line Rates, and Connectors
Card
|
Ports
|
Line Rate per Port
|
Connector Types
|
Connector Location
|
E1-N-14
|
14
|
2.048 Mbps
|
1.0/2.3 miniature coax connector
or
DB-37
|
EFCA
|
E1-42
|
14
|
2.048 Mbps
|
1.0/2.3 miniature coax connector
or
Molex 96-pin LFH connector
|
EFCA
|
E3-12
|
12
|
34.386 Mbps
|
1.0/2.3 miniature coax connector
|
EFCA
|
DS3i-N-12
|
12
|
44.736 Mbps
|
1.0/2.3 miniature coax connector
|
EFCA
|
STM1E-12
|
12
|
Configurable
155.52 Mbps
or
139.264 Mbps
|
1.0/2.3 miniature coax connector
|
EFCA
|
E100T-G
|
12
|
100 Mbps
|
RJ-45
|
Faceplate
|
E1000-2-G
|
2
|
1 Gbps
|
SC (GBIC)
|
Faceplate
|
G1000-4
|
4
|
1 Gbps
|
SC (GBIC)
|
Faceplate
|
G1K-4
|
4
|
1 Gbps
|
SC (GBIC)
|
Faceplate
|
ML100T-12
|
12
|
100 Mbps
|
RJ-45
|
Faceplate
|
ML1000-2
|
2
|
1 Gbps
|
LC (SFP)
|
Faceplate
|
OC3 IR 4/STM1 SH 1310
|
4
|
155.52 Mbps (STM-1)
|
SC
|
Faceplate
|
OC3IR/STM1SH 1310-8
|
8
|
155.52 Mbps (STM-1)
|
LC
|
Faceplate
|
OC12 IR/STM4 SH 1310
|
1
|
622.08 Mbps (STM-4)
|
SC
|
Faceplate
|
OC12 LR/STM4 LH 1310
|
1
|
622.08 Mbps (STM-4)
|
SC
|
Faceplate
|
OC12 LR/STM4 LH 1550
|
1
|
622.08 Mbps (STM-4)
|
SC
|
Faceplate
|
OC12 IR/STM4 SH 1310-4
|
4
|
622.08 Mbps (STM-4)
|
SC
|
Faceplate
|
OC48 IR/STM16 SH AS 1310
|
1
|
2488.32 Mbps (STM-16)
|
SC
|
Faceplate
|
OC48 LR/STM16 LH AS 1550
|
1
|
2488.32 Mbps (STM-16)
|
SC
|
Faceplate
|
OC48 ELR/STM16 EH 100 GHz
|
1
|
2488.32 Mbps (STM-16)
|
SC
|
Faceplate
|
OC192 SR/STM64 IO 1310
|
1
|
9.95 Gbps (STM-64)
|
SC
|
Faceplate
|
OC192 IR/STM64 SH 1550
|
1
|
9.95 Gbps (STM-64)
|
SC
|
Faceplate
|
OC192 LR/STM64 LH 1550
|
1
|
9.95 Gbps (STM-64)
|
SC
|
Faceplate
|
OC192 LR/STM64 LH ITU 15xx.xx
|
1
|
9.95 Gbps (STM-64)
|
SC
|
Faceplate
|
TXP_MR_10G
|
1 (client)
1 (trunk)
|
9.95 Gbps (STM-64)
9.95 Gbps (STM-64)
|
SC
SC
|
Faceplate
|
MXP_2.5G_10G
|
4 (client)
1 (trunk)
|
2488.32 Mbps (STM-16)
9.95 Gbps (STM-64)
|
LC SFP
SC
|
Faceplate
|
1.10.2 Card Replacement
To replace an ONS 15454 SDH card with another card of the same type, you do not need to make any changes to the database; remove the old card and replace it with a new card. To replace a card with a card of a different type, physically remove the card and replace it with the new card, then delete the original card from CTC. For specifics, refer to the Cisco ONS 15454 SDH Procedure Guide.
Caution Removing any active card from the ONS 15454 SDH can result in traffic interruption. Use caution when replacing cards and verify that only inactive or standby cards are being replaced. If the active card needs to be replaced, switch it to standby prior to removing the card from the node. For traffic switching procedures, refer to the
Cisco ONS 15454 SDH Procedure Guide.
Note An improper removal (IMPROPRMVL) alarm is raised whenever a card pull (reseat) is performed, unless the card is deleted in CTC first. The alarm will clear after the card replacement is complete.
Note In a path protection configuration, pulling the active XC/XCVT/XC10G without a lockout will cause path protection configuration circuits to switch.
Warning Do not reach into a vacant slot or chassis while you install or remove a module or a fan. Exposed circuitry could constitute an energy hazard.
1.11 Software and Hardware Compatibility
Table 1-5 shows ONS 15454 SDH software and hardware compatibility for systems configured with XC-VXL-2.5G cards for Releases 3.3, 3.4, and 4.0.
Table 1-5 ONS 15454 Software/Hardware Compatibility—XC-VXL-2.5G Configurations
Hard ware
|
3.30.0x (3.3)
|
3.40.0x (3.4)
|
4.0.0x (4.0)
|
XC-VXL-2.5G
|
Not Supported
|
Not Supported
|
Fully Compatible
|
TCC2
|
Not Supported
|
Not Supported
|
Required
|
AIC-I
|
Not Supported
|
Fully Compatible
|
Fully Compatible
|
E1N-14
|
Fully Compatible
|
Fully Compatible
|
Fully Compatible
|
E1-42
|
Not Supported
|
Not Supported
|
Fully Compatible
|
E3-12
|
Fully Compatible
|
Fully Compatible
|
Fully Compatible
|
DS3i-N-12
|
Fully Compatible
|
Fully Compatible
|
Fully Compatible
|
STM1E-12
|
Not Supported
|
Not Supported
|
Fully Compatible
|
E100T-G
|
Fully Compatible
|
Fully Compatible
|
Fully Compatible
|
E1000-2-G
|
Fully Compatible
|
Fully Compatible
|
Fully Compatible
|
G1000-4
|
Not Supported
|
Not Supported
|
Not Supported
|
G1K-4
|
Not Supported
|
Not Supported
|
Supported in Slots 5, 6, 12, 13
|
ML100T-12
|
Not Supported
|
Not Supported
|
Supported in Slots 5, 6, 12, 13
|
ML1000-2
|
Not Supported
|
Not Supported
|
Supported in Slots 5, 6, 12, 13
|
OC3 IR 4/STM1 SH 1310
|
Fully Compatible
|
Fully Compatible
|
Fully Compatible
|
OC3IR/STM1SH 1310-8
|
Not Supported
|
Not Supported
|
Fully Compatible, Slots 1-4, 14-17
|
OC12 IR/STM4 SH 1310
|
Fully Compatible
|
Fully Compatible
|
Fully Compatible
|
OC12 LR/STM4 LH 1310
|
Fully Compatible
|
Fully Compatible
|
Fully Compatible
|
OC12 LR/STM4 LH 1550
|
Fully Compatible
|
Fully Compatible
|
Fully Compatible
|
OC12 IR/STM4 SH 1310-4
|
Fully Compatible
|
Fully Compatible
|
Fully Compatible
|
OC48 IR/STM16 SH AS 1310
|
Fully Compatible
|
Fully Compatible
|
Fully Compatible
|
OC48 LR/STM16 LH AS 1550
|
Fully Compatible
|
Fully Compatible
|
Fully Compatible
|
OC48 ELR/STM16 EH 100 GHz
|
Fully Compatible
|
Fully Compatible
|
Fully Compatible
|
OC192 SR/STM64 IO 1310
|
Not Supported
|
Not Supported
|
Not Supported
|
OC192 IR/STM64 SH 1550
|
Not Supported
|
Not Supported
|
Not Supported
|
OC192 LR/STM64 LH 1550
|
Not Supported
|
Not Supported
|
Not Supported
|
OC192 LR/STM64 LH ITU 15xx.xx
|
Not Supported
|
Not Supported
|
Not Supported
|
TXP_MR_10G
|
Not Supported
|
Not Supported
|
Fully Supported
|
MXP_2.5G_10G
|
Not Supported
|
Not Supported
|
Fully Supported
|
Table 1-6 shows ONS 15454 SDH software and hardware compatibility for systems configured with XC10G and XC-VXL-10G cards for Releases 3.3, 3.4, and 4.0.
Table 1-6 ONS 15454 Software/Hardware Compatibility—XC10G and XC-VXL-10G Configurations
Hardware
|
3.30.0x (3.3)
|
3.40.0x (3.4)
|
4.0.0x (4.0)
|
XC-VXL-10G
|
Not Supported
|
Not Supported
|
Fully Compatible
|
XC10G
|
Fully Compatible
|
Fully Compatible
|
Fully Compatible
|
TCC2
|
Not Supported
|
Not Supported
|
Required
|
AIC-I
|
Not Supported
|
Fully Compatible
|
Fully Compatible
|
E1N-14
|
Fully Compatible
|
Fully Compatible
|
Fully Compatible
|
E1-42
|
Not Supported
|
Not Supported
|
Fully Compatible
|
E3-12
|
Fully Compatible
|
Fully Compatible
|
Fully Compatible
|
DS3i-N-12
|
Fully Compatible
|
Fully Compatible
|
Fully Compatible
|
STM1E-12
|
Not Supported
|
Not Supported
|
Fully Compatible
|
E100T-G
|
Fully Compatible
|
Fully Compatible
|
Fully Compatible
|
E1000-2-G
|
Fully Compatible
|
Fully Compatible
|
Fully Compatible
|
G1000-4
|
Fully Compatible
|
Fully Compatible
|
Fully Compatible
|
G1K-4
|
Fully Compatible
|
Fully Compatible
|
Fully Compatible
|
ML100T-12
|
Not Supported
|
Not Supported
|
Fully Compatible
|
ML1000-2
|
Not Supported
|
Not Supported
|
Fully Compatible
|
OC3 IR 4/STM1 SH 1310
|
Fully Compatible
|
Fully Compatible
|
Fully Compatible
|
OC3IR/STM1SH 1310-8
|
Not Supported
|
Not Supported
|
Fully Compatible, Slots 1-4, 14-17
|
OC12 IR/STM4 SH 1310
|
Fully Compatible
|
Fully Compatible
|
Fully Compatible
|
OC12 LR/STM4 LH 1310
|
Fully Compatible
|
Fully Compatible
|
Fully Compatible
|
OC12 LR/STM4 LH 1550
|
Fully Compatible
|
Fully Compatible
|
Fully Compatible
|
OC12 IR/STM4 SH 1310-4
|
Fully Compatible
|
Fully Compatible
|
Fully Compatible
|
OC48 IR/STM16 SH AS 1310
|
Fully Compatible
|
Fully Compatible
|
Fully Compatible
|
OC48 LR/STM16 LH AS 1550
|
Fully Compatible
|
Fully Compatible
|
Fully Compatible
|
OC48 ELR/STM16 EH 100 GHz
|
Fully Compatible
|
Fully Compatible
|
Fully Compatible
|
OC192 SR/STM64 IO 1310
|
Fully Compatible
|
Fully Compatible
|
Fully Compatible
|
OC192 IR/STM64 SH 1550
|
Fully Compatible
|
Fully Compatible
|
Fully Compatible
|
OC192 LR/STM64 LH 1550
|
Fully Compatible
|
Fully Compatible
|
Fully Compatible
|
OC192 LR/STM64 LH ITU 15xx.xx
|
Fully Compatible
|
Fully Compatible
|
Fully Compatible
|
TXP_MR_10G
|
Fully Compatible
|
Fully Compatible
|
Fully Compatible
|
MXP_2.5G_10G
|
Fully Compatible
|
Fully Compatible
|
Fully Compatible
|
If an upgrade is required for compatibility, call the Cisco Technical Assistance Center at +1-877-323-7368.
Feedback
