Monitor Performance
Performance monitoring (PM) parameters are used by service providers to gather, store, threshold, and report performance data for early detection of problems. For more PM information, details, and definitions refer to the Cisco ONS 15454 SDH Reference Manual. This chapter explains how to enable and view performance monitoring statistics for the Cisco ONS 15454 SDH.
Before You Begin
Before performing any of the following procedures, investigate all alarms and clear any trouble conditions. Refer to the Cisco ONS 15454 SDH Troubleshooting Guide as necessary.
This section lists the chapter procedures (NTPs). Turn to a procedure for applicable tasks (DLPs).
1.
D73 Enable Performance Monitoring—Complete as needed.
2. D195 Monitor Electrical or Optical Performance—Complete this procedure as needed to monitor electrical or optical performance.
3. D198 Monitor Ethernet Performance—Complete this procedure as needed to monitor Ethernet performance.
Note For additional information regarding PM parameters, refer to ITU G.826, Telcordia GR-820-CORE, Telcordia GR-499-CORE, and Telcordia GR-253-CORE.
NTP-D73 Enable Performance Monitoring
Purpose
|
This procedure describes how to enable performance monitoring.
|
Tools/Equipment
|
None
|
Prerequisite Procedures
|
None
|
Required/As Needed
|
As Needed
|
Onsite/Remote
|
Onsite or Remote
|
Security Level
|
Provisioning or higher
|
Step 1 Log into CTC at the node that you want to monitor. See the "DLP-D60 Log into CTC" task on page 3-23 for instructions. If you are already logged in, proceed to Step 2.
Step 2 Complete the "DLP-D121 Enable Pointer Justification Count Performance Monitoring" task if you need to monitor clock synchronization.
Step 3 Complete the "DLP-D122 Enable Intermediate Path Performance Monitoring" task if you need to monitor large amounts of VC4 traffic through intermediate nodes.
Stop. You have completed this procedure.
DLP-D121 Enable Pointer Justification Count Performance Monitoring
Purpose
|
This task enables pointer justification counts, which provide a way to align the phase variations in VC4 payloads and to monitor the clock synchronization between nodes. A consistent, large pointer justification count indicates clock synchronization problems between nodes.
|
Tools/Equipment
|
None
|
Prerequisite Procedures
|
"DLP-D60 Log into CTC" task on page 3-23
|
Required/As Needed
|
As needed
|
Onsite/Remote
|
Onsite or Remote
|
Security Level
|
Provisioning or higher
|
Step 1 In node view, double-click the card where the line terminates (drops), called a line terminating equipment (LTE) card. The card view appears.
See Table 8-1 for a list of Cisco ONS 15454 SDH LTE cards.
Table 8-1 Traffic Cards that Terminate the Line (LTEs)
Line Terminating Equipment
|
E1-N-14
|
E1-42
|
E3-12
|
DS3i-N-12
|
STM1E-12
|
OC3 IR 4/STM1 SH 1310
|
OC3 IR/STM1SH 1310-8
|
OC12 IR/STM4 SH 1310
|
OC12 LR/STM4 LH 1310
|
OC12 LR/STM4 LH 1550
|
OC12-4 IR/STM4 SH 1310-4
|
OC48 IR/STM16 SH AS 1310
|
OC48 LR/STM16 LH AS 1550
|
OC48 ELR/STM16 EH 100 GHz
|
OC192 SR/STM64 IO 1310
|
OC192 IR/STM64 SH 1550
|
OC192 LR/STM64 LH ITU 15xx.xx
|
E100T-G
|
E1000-2-G
|
G1000-4
|
G1K-4
|
ML100T-12
|
ML1000-2
|
TXP_MR_10G
|
MXP_2.5G_10G
|
|
Step 2 Click the Provisioning > Line tabs.
Step 3 Click the PJVC4Mon# menu and make a selection based on the following rules.
Note Figure 8-1 shows the PJVC4Mon# menu on the Provisioning window.
•The default value Off means pointer justification monitoring is disabled.
•The values 1 to n are the number of VC4s on the port. One VC4 per port can be enabled from the PJVC4Mon# card menu.

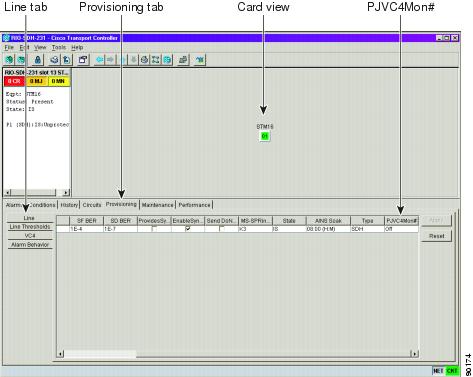

Figure 8-1 LIne Tab for Enabling Pointer Justification Count Parameters
Step 4 In the State field, confirm that the port is in service (IS).
Step 5 If the port is in service, click Apply and go to Step 7.
Step 6 If the port is out of service (OOS, OOS_MT, OOS_AINS), select IS in the State field and click Apply.
Step 7 Click the Performance tab to view PM parameters. Figure 8-2 shows pointer justification count. Refer to the Cisco ONS 15454 SDH Reference Manual for more PM information, details, and definitions.
Note In CTC, the count fields for PPJC and NPJC PM parameters appear white and blank unless they are enabled on the Provisioning > Line tabs.

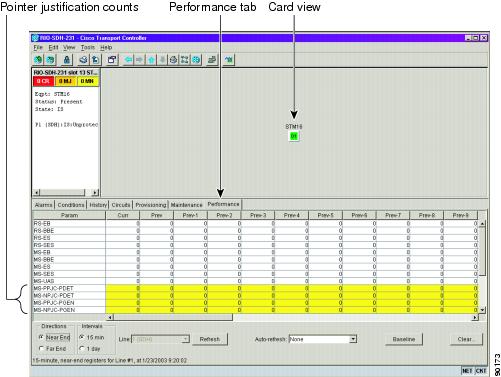

Figure 8-2 Viewing Pointer Justification Counts
Step 8 Return to your originating procedure (NTP).
DLP-D122 Enable Intermediate Path Performance Monitoring
Purpose
|
This task enables IPPM, which allows you to monitor large amounts of VC4 traffic through intermediate nodes.
|
Tools/Equipment
|
None
|
Prerequisite Procedures
|
"DLP-D60 Log into CTC" task on page 3-23
|
Required/As Needed
|
As needed
|
Onsite/Remote
|
Onsite or Remote
|
Security Level
|
Provisioning or higher
|
Note The monitored intermediate path performance monitoring (IPPM) parameters are P-EB, P-BBE, P-ES, P-SES, and P-UAS. For more information about IPPM parameters, refer to the Cisco ONS 15454 SDH Reference Manual.
Step 1 In node view, double-click the LTE card you want to monitor. The card view appears.
See Table 8-1 for a list of Cisco ONS 15454 SDH LTE cards.
Step 2 Click the Provisioning tab.
Step 3 Click the VC4 tab. Figure 8-3 shows the VC4 tab on the Provisioning window.

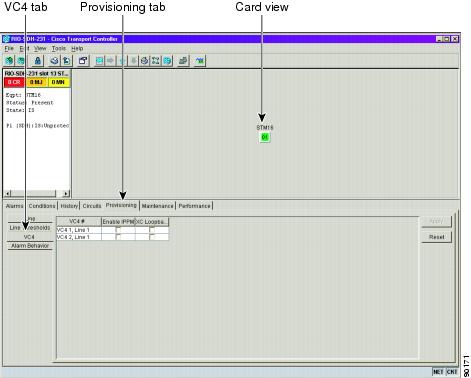

Figure 8-3 VC4 Tab for Enabling IPPM
Step 4 Click the check box in the Enable IPPM column for the VC4 you want to monitor.
Step 5 Click the Apply button.
Step 6 Click the Performance tab to view PM parameters. For IPPM parameter definitions, refer to the Cisco ONS 15454 SDH Reference Manual.
Step 7 Return to your originating procedure (NTP).
NTP-D195 Monitor Electrical or Optical Performance
Purpose
|
The Performance Monitoring window allows you to view node near-end or far-end performance on a selected card and port at selected time intervals to detect possible performance problems.
|
Tools/Equipment
|
None
|
Prerequisite Procedures
|
Before you monitor performance, be sure you have created the appropriate circuits and provisioned the card according to your specifications. For more information, see Chapter 6, "Create Circuits and Low-Order Tunnels" and Chapter 11, "Change Card Settings."
|
Required/As Needed
|
As needed
|
Onsite/Remote
|
Onsite
|
Security Level
|
Retrieve or higher
|
Step 1 Log into CTC at the node that you want to monitor. See the "DLP-D60 Log into CTC" task on page 3-23 for instructions. If you are already logged in, proceed to Step 2
Step 2 Complete the "DLP-D123 View Electrical or Optical STM-N PM Parameters" task.
Step 3 Complete the "DLP-D345 View TXP-MR-10G or MXP-2.5G-10G Optics PM Parameters" task.
Step 4 Complete the "DLP-D346 View TXP-MR-10G or MXP-2.5G-10G Payload PM Parameters" task.
Step 5 Complete the "DLP-D347 View TXP-MR-10G or MXP-2.5G-10G OTN PM Parameters" task.
Step 6 As needed, use the following tasks to change the display of electrical, optical, and TXP-MR-10G or MXP-2.5G-10G PM counts:
•"DLP-D261 Refresh PM Counts for a Different Port" task
•"DLP-D124 Refresh Electrical or Optical PM Counts at 15-Minute Intervals" task
•"DLP-D125 Refresh Electrical or Optical PM Counts at One-Day Intervals" task
•"DLP-D126 Monitor Near-End PM Counts" task
•"DLP-D127 Monitor Far-End PM Counts" task
•"DLP-D128 Monitor PM Counts for Selected Signal Types" task
•"DLP-D129 Reset Current PM Counts" task
•"DLP-D130 Clear Selected PM Counts" task
Stop. You have completed this procedure.
DLP-D123 View Electrical or Optical STM-N PM Parameters
Purpose
|
This task enables you to view PM counts on a selected electrical or optical (STM-N) card and port to detect possible performance problems.
|
Tools/Equipment
|
None
|
Prerequisite Procedures
|
"DLP-D60 Log into CTC" task on page 3-23
|
Required/As Needed
|
As needed
|
Onsite/Remote
|
Onsite or Remote
|
Security Level
|
Retrieve or higher
|
Step 1 In node view, double-click the electrical or optical (STM-N) card of choice. The card view appears.
Step 2 Click the Performance tab (Figure 8-4).

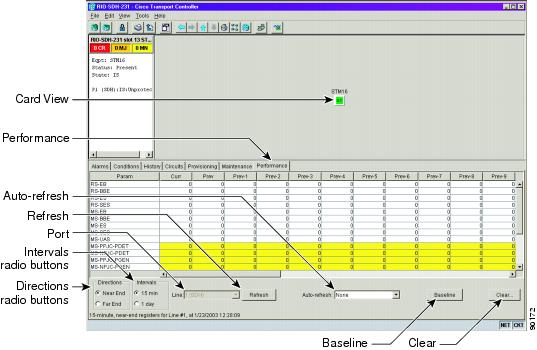

Figure 8-4 Viewing Performance Monitoring Information
Step 3 View the PM parameter names that appear on the left portion of the window in the Param column. The PM values appear on the right portion of the window in the Curr (current), and Prev-n (previous) columns. For PM parameter definitions, refer to the Cisco ONS 15454 SDH Reference Manual.
Step 4 Return to your originating procedure (NTP).
DLP-D345 View TXP-MR-10G or MXP-2.5G-10G Optics PM Parameters
Purpose
|
This task enables you to view the optics PM counts on a selected TXP-MR-10G or MXP-2.5G-10G optical card and port to detect possible performance problems.
|
Tools/Equipment
|
None
|
Prerequisite Procedures
|
"DLP-D60 Log into CTC" task on page 3-23
|
Required/As Needed
|
As needed
|
Onsite/Remote
|
Onsite or Remote
|
Security Level
|
Retrieve or higher
|
Step 1 In node view, double-click the TXP-MR-10G or MXP-2.5G-10G optical card of choice. The card view appears.
Step 2 Click the Performance tab.
Step 3 Click the Optics PM tab (Figure 8-5).
View the PM parameter names that appear on the left portion of the window in the Param column. The PM values appear on the right portion of the window in the Curr (current), and Prev-n (previous) columns. For PM parameter definitions, refer to the Cisco ONS 15454 SDH Reference Manual.
Figure 8-5 Viewing TXP-MR-10G or MXP-2.5G-10G Optics Performance Monitoring Information
Step 4 Return to your originating procedure (NTP).
DLP-D346 View TXP-MR-10G or MXP-2.5G-10G Payload PM Parameters
Purpose
|
This task enables you to view the payload PM counts on a selected TXP-MR-10G or MXP-2.5G-10G optical card and port to detect possible performance problems.
|
Tools/Equipment
|
None
|
Prerequisite Procedures
|
"DLP-D60 Log into CTC" task on page 3-23
|
Required/As Needed
|
As needed
|
Onsite/Remote
|
Onsite or Remote
|
Security Level
|
Retrieve or higher
|
Step 1 In node view, double-click the TXP-MR-10G or MXP-2.5G-10G optical card of choice. The card view appears.
Step 2 Click the Performance tab.
Step 3 Click the Payload PM tab (Figure 8-6).
View the PM parameter names that appear on the left portion of the window in the Param column. The PM values appear on the right portion of the window in the Curr (current), and Prev-n (previous) columns. For PM parameter definitions, refer to the Cisco ONS 15454 SDH Reference Manual.

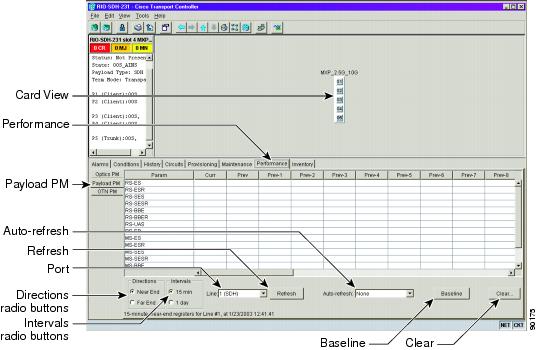

Figure 8-6 Viewing TXP-MR-10G or MXP-2.5G-10G Payload Performance Monitoring Information
Step 4 Return to your originating procedure (NTP).
DLP-D347 View TXP-MR-10G or MXP-2.5G-10G OTN PM Parameters
Purpose
|
This task enables you to view the OTN PM counts on a selected TXP-MR-10G or MXP-2.5G-10G optical card and port to detect possible performance problems.
|
Tools/Equipment
|
None
|
Prerequisite Procedures
|
DLP-D60 Log into CTC, page 3-23
|
Required/As Needed
|
As needed
|
Onsite/Remote
|
Onsite or Remote
|
Security Level
|
Retrieve or higher
|
Step 1 In node view, double-click the TXP-MR-10G or MXP-2.5G-10G optical card of choice. The card view appears.
Step 2 Click the Performance tab.
Step 3 Click the OTN PM tab.

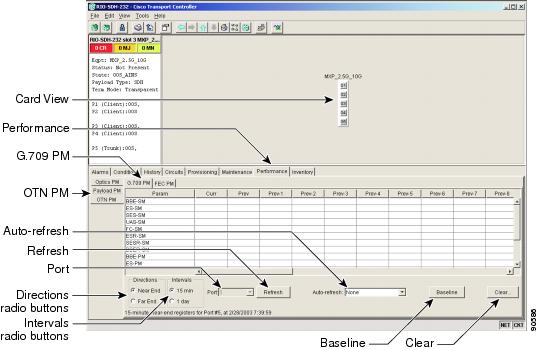

Step 4 Click the G.709 PM tab (Figure 8-7).
View the PM parameter names that appear on the left portion of the window in the Param column. The PM values appear on the right portion of the window in the Curr (current), and Prev-n (previous) columns. For PM parameter definitions, refer to the Cisco ONS 15454 SDH Reference Manual.
Figure 8-7 Viewing TXP-MR-10G or MXP-2.5G-10G OTN G.709 Performance Monitoring Information
Step 5 Click the FEC PM tab (Figure 8-8).
View the PM parameter names that appear on the left portion of the window in the Param column. The PM values appear on the right portion of the window in the Curr (current), and Prev-n (previous) columns. For PM parameter definitions, refer to the Cisco ONS 15454 SDH Reference Manual.

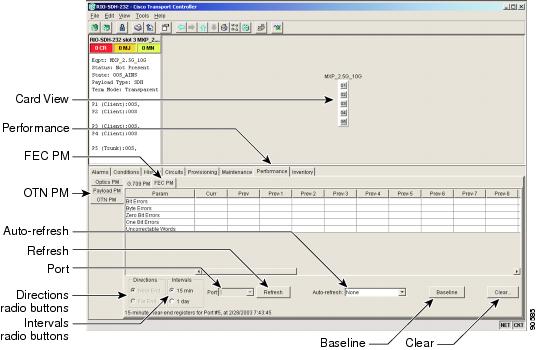

Figure 8-8 Viewing TXP-MR-10G or MXP-2.5G-10G OTN FEC Performance Monitoring Information
Step 6 Return to your originating procedure (NTP).
DLP-D261 Refresh PM Counts for a Different Port
Purpose
|
This task changes the window view to display PM counts for another port on a multi-port card.
|
Tools/Equipment
|
None
|
Prerequisite Procedures
|
DLP-D60 Log into CTC, page 3-23
|
Required/As Needed
|
As needed
|
Onsite/Remote
|
Onsite or Remote
|
Security Level
|
Retrieve or higher
|
Step 1 In node view, double-click the electrical, Ethernet, or optical (STM-N) card of choice. The card view appears.
Step 2 Click the Performance tab.
Step 3 For E-Series or G-Series Ethernet cards, click the History tab.
Step 4 Click the pull-down menu button in the Port field to display the port menu.
Step 5 Click the desired port to highlight your selection.
Step 6 Click the Refresh button. The PM counts for the newly selected port appear.
Step 7 Return to your originating procedure (NTP).
DLP-D124 Refresh Electrical or Optical PM Counts at 15-Minute Intervals
Purpose
|
This task changes the window view to display PM counts in 15-minute intervals.
|
Tools/Equipment
|
None
|
Prerequisite Procedures
|
DLP-D60 Log into CTC, page 3-23
|
Required/As Needed
|
As needed
|
Onsite/Remote
|
Onsite or Remote
|
Security Level
|
Retrieve or higher
|
Step 1 In node view, double-click the electrical or optical (STM-N) card of choice. The card view appears.
Step 2 Click the Performance tab.
Step 3 Click the 15 min radio button.
Step 4 Click the Refresh button. Performance monitoring parameters display in 15-minute intervals synchronized with the time of day.
Step 5 View the Curr column to find PM counts for the current 15-minute interval.
Each monitored performance parameter has corresponding threshold values for the current time period. If the value of the counter exceeds the threshold value for a particular 15-minute interval, a threshold crossing alert (TCA) is raised. The number represents the counter value for each specific performance monitoring parameter.
Step 6 View the Prev-n columns to find PM counts for the previous 15-minute intervals.
Note If a complete 15-minute interval count is not possible, the value appears with a yellow background. An incomplete or incorrect count can be caused by monitoring for less than 15 minutes after the counter started, changing node timing settings, changing the time zone settings, replacing a card, resetting a card, or changing port states. When the problem is corrected, the subsequent 15-minute interval appears with a white background.
Step 7 Return to your originating procedure (NTP).
DLP-D125 Refresh Electrical or Optical PM Counts at One-Day Intervals
Purpose
|
This task changes the window view to display PM parameters in 1-day intervals.
|
Tools/Equipment
|
None
|
Prerequisite Procedures
|
DLP-D60 Log into CTC, page 3-23
|
Required/As Needed
|
As needed
|
Onsite/Remote
|
Onsite or Remote
|
Security Level
|
Retrieve or higher
|
Step 1 In node view, double-click the electrical or optical (STM-N) card of choice. The card view appears.
Step 2 Click the Performance tab.
Step 3 Click the 1 day radio button.
Step 4 Click the Refresh button. Performance monitoring appears in 1-day intervals synchronized with the time of day.
Step 5 View the Curr column to find PM counts for the current 1-day interval.
Each monitored performance parameter has corresponding threshold values for the current time period. If the value of the counter exceeds the threshold value for a particular 1-day interval, a threshold crossing alert (TCA) is raised. The number represents the counter value for each specific performance monitoring parameter.
Step 6 View the Prev-n columns to find PM counts for the previous 1-day intervals.
Note If a complete count over a 1-day interval is not possible, the value appears with a yellow background. An incomplete or incorrect count can be caused by monitoring for less than 24 hours after the counter started, changing node timing settings, changing the time zone settings, replacing a card, resetting a card, or by changing port states. When the problem is corrected, the subsequent 1-day interval appears with a white background.
Step 7 Return to your originating procedure (NTP).
DLP-D126 Monitor Near-End PM Counts
Purpose
|
Use this task to view near-end PM counts for the selected card and port.
|
Tools/Equipment
|
None
|
Prerequisite Procedures
|
DLP-D60 Log into CTC, page 3-23
|
Required/As Needed
|
As needed
|
Onsite/Remote
|
Onsite or Remote
|
Security Level
|
Retrieve or higher
|
Step 1 In node view, double-click the electrical or optical (STM-N) card of choice. The card view appears.
Step 2 Click the Performance tab.
Step 3 Click the Near End radio button.
Step 4 Click the Refresh button. All PM parameters occurring for the selected card on the incoming signal are displayed. For PM parameter definitions, refer to the Cisco ONS 15454 SDH Reference Manual.
Step 5 View the Curr column to find PM counts for the current time interval.
Step 6 View the Prev-n columns to find PM counts for the previous time intervals.
Step 7 Return to your originating procedure (NTP).
DLP-D127 Monitor Far-End PM Counts
Purpose
|
Use this task to view far-end PM parameters for the selected card and port.
|
Tools/Equipment
|
None
|
Prerequisite Procedures
|
DLP-D60 Log into CTC, page 3-23
|
Required/As Needed
|
As needed
|
Onsite/Remote
|
Onsite or Remote
|
Security Level
|
Retrieve or higher
|
Note Only cards that allow far-end monitoring have this radio button as an option.
Step 1 In node view, double-click the electrical or optical (STM-N) card of choice. The card view appears.
Step 2 Click the Performance tab.
Step 3 Click the Far End radio button.
Step 4 Click the Refresh button. All PM parameters recorded by the far-end node for the selected card on the outgoing signal are displayed. For PM parameter definitions, refer to the Cisco ONS 15454 SDH Reference Manual.
Step 5 View the Curr column to find PM counts for the current time interval.
Step 6 View the Prev-n columns to find PM counts for the previous time intervals.
Step 7 Return to your originating procedure (NTP).
DLP-D128 Monitor PM Counts for Selected Signal Types
Purpose
|
This task uses signal-type menus to monitor near-end or far-end PM counts for specific signals on a selected card and port.
|
Tools/Equipment
|
None
|
Prerequisite Procedures
|
DLP-D60 Log into CTC, page 3-23
|
Required/As Needed
|
As needed
|
Onsite/Remote
|
Remote
|
Security Level
|
Retrieve or higher
|
Step 1 In node view, double-click the electrical or optical (STM-N) card of choice. The card view appears.
Step 2 Click the Performance tab.
Note Different port and signal-type menus appear depending on the card type and the circuit type. The appropriate signal types (DS3i, E1, E3, VC4, STM-N line, and VC4) appear based on the card. For example, the STM16 LH AS 1550 card lists the line and VC4 PM parameters as signal types. This enables selection of both the line and the VC4 within the specified line.
Step 3 Click the Port/Line pull-down menu and highlight the desired port/line. Depending on the card, the options vary.
Step 4 Click the signal type pull-down menu and highlight the desired signal. Depending on the card, the options vary. Figure 8-9 shows the Port and Signal-type menus on the Performance Monitoring window for a STM16 card.
Figure 8-9 Signal-type Menus for a STM16 Card
Step 5 Click the Refresh button. All PM counts recorded by the near-end or far-end node for the specified outgoing signal type on the selected card and port are displayed. For PM parameter definitions, refer to the Cisco ONS 15454 SDH Reference Manual.
Step 6 View the Curr column to find PM counts for the current time interval.
Step 7 View the Prev-n columns to find PM counts for the previous time intervals.
Step 8 Return to your originating procedure (NTP).
DLP-D129 Reset Current PM Counts
Purpose
|
This task uses the Baseline button to clear the PM count displayed in the current time interval, but it does not clear the cumulative PM count. This task allows you to see how quickly PM counts rise.
|
Tools/Equipment
|
None
|
Prerequisite Procedures
|
DLP-D60 Log into CTC, page 3-23
|
Required/As Needed
|
As needed
|
Onsite/Remote
|
Onsite or Remote
|
Security Level
|
Retrieve or higher
|
Step 1 In node view, double-click the Ethernet, electrical, or optical (STM-N) card of choice. The card view appears.
Step 2 Click the Performance tab.
Step 3 Click the Baseline button.
Note The Baseline button clears the PM counts displayed in the current time interval, but does not clear the PM counts on the card. When the current time interval expires or the window view changes, the total number of PM counts on the card and on the window appear in the appropriate column. The baseline values are discarded if you change views to a different window and then return to the Performance Monitoring window.
Step 4 View the current statistics column(s) to observe changes to PM counts for the current time interval.
Step 5 Return to your originating procedure (NTP).
DLP-D130 Clear Selected PM Counts
Purpose
|
This task uses the Clear button to clear specified PM counts depending on the option selected.
|
Tools/Equipment
|
None
|
Prerequisite Procedures
|
DLP-D60 Log into CTC, page 3-23
|
Required/As Needed
|
As needed
|
Onsite/Remote
|
Onsite or Remote
|
Security Level
|
Retrieve or higher
|
Caution Pressing the Clear button can mask problems if used incorrectly. This button is commonly used for testing purposes.
Step 1 In node view, double-click the Ethernet, electrical, or optical (STM-N) card of choice. The card view appears.
Step 2 Click the Performance tab.
Step 3 Click the Clear button.
Step 4 From the Clear Statistics menu, choose one of three options:
•Selected statistics: Clearing selected statistics erases from the card and the window display all PM counts associated with the current combination of statistics on the selected port. This means that the selected time interval, direction, and signal type counts are erased from the card and the window display.
•All statistics on port x: Clearing all statistics on port x erases from the card and the window display all PM counts associated with all combinations of the statistics on the selected port. This means that all time intervals, directions, and signal type counts are erased from the card and the window display.
•All statistics in current view: Clearing all statistics in the current view erases from the card and the window display all PM counts for all ports.
Step 5 From the Clear Statistics menu, click Yes to clear the selected statistics.
Step 6 View the displayed columns to verify that the selected PM counts have been cleared.
Step 7 Return to your originating procedure (NTP).
NTP-D198 Monitor Ethernet Performance
Purpose
|
This procedure allows you to view node transmit and receive performance on a selected Ethernet card and port at selected time intervals to detect possible performance problems.
|
Tools/Equipment
|
None
|
Prerequisite Procedures
|
Before you monitor performance, be sure you have created the appropriate circuits and provisioned the card according to your specifications. For more information, see Chapter 6, "Create Circuits and Low-Order Tunnels" and Chapter 11, "Change Card Settings."
|
Required/As Needed
|
As needed
|
Onsite/Remote
|
Onsite
|
Security Level
|
Retrieve or higher
|
Step 1 Log into CTC at the node that you want to monitor. See the "DLP-D60 Log into CTC" task on page 3-23 for instructions. If you are already logged in, proceed to Step 2.
Step 2 Complete the "DLP-D256 View Ethernet Statistics PM Parameters" task.
As needed, use the following tasks to change the display of Ethernet statistical PM counts:
•"DLP-D260 Set Auto-Refresh Interval for Displayed PM Counts" task
•"DLP-D129 Reset Current PM Counts" task
•"DLP-D130 Clear Selected PM Counts" task
Step 3 Complete the "DLP-D257 View Ethernet Utilization PM Parameters" task.
As needed, use the "DLP-D259 Refresh Ethernet PM Counts at a Different Time Interval" task to change the display of Ethernet utilization PM counts.
Step 4 Complete the "DLP-D258 View Ethernet History PM Parameters" task.
As needed, use the following tasks to change the display of Ethernet history PM counts:
•"DLP-D261 Refresh PM Counts for a Different Port" task
•"DLP-D259 Refresh Ethernet PM Counts at a Different Time Interval" task
Step 5 Complete the "DLP-D348 View ML-Series Ether Ports PM Parameters" task.
As needed, use the following tasks to change the display of Ether port PM counts:
•"DLP-D260 Set Auto-Refresh Interval for Displayed PM Counts" task
•"DLP-D129 Reset Current PM Counts" task
Step 6 Complete the "DLP-D349 View ML-Series POS Ports PM Parameters" task.
As needed, use the following tasks to change the display of POS port PM counts:
•"DLP-D260 Set Auto-Refresh Interval for Displayed PM Counts" task
•"DLP-D129 Reset Current PM Counts" task
Stop. You have completed this procedure.
DLP-D256 View Ethernet Statistics PM Parameters
Purpose
|
This task enables you to view current statistical PM counts on an Ethernet card and port to detect possible performance problems.
|
Tools/Equipment
|
None
|
Prerequisite Procedures
|
DLP-D60 Log into CTC, page 3-23
|
Required/As Needed
|
As needed
|
Onsite/Remote
|
Onsite or Remote
|
Security Level
|
Retrieve or higher
|
Step 1 In node view, double-click the E-series or G-series Ethernet card of choice. The card view appears.
Step 2 Click the Performance tab.
Step 3 Click the Statistics subtab. Figure 8-10 shows the Statistics pane on the Performance tab.
Figure 8-10 G-Series Statistics Pane on the Card View Performance Tab
Step 4 Click the Refresh button. Performance monitoring statistics for each port on the card are displayed.
Step 5 View the PM parameter names that appear on the left portion of the window in the Param column. The parameter numbers appear on the right portion of the window in the Port # columns. For PM parameter definitions, refer to the Cisco ONS 15454 SDH Reference Manual.
Step 6 View the Port # columns to view the current PM statistics for each port.
Step 7 Return to your originating procedure (NTP).
DLP-D260 Set Auto-Refresh Interval for Displayed PM Counts
Purpose
|
This task changes the window auto-refresh intervals for updating the displayed PM counts.
|
Tools/Equipment
|
None
|
Prerequisite Procedures
|
DLP-D60 Log into CTC, page 3-23
|
Required/As Needed
|
As needed
|
Onsite/Remote
|
Onsite or Remote
|
Security Level
|
Retrieve or higher
|
Step 1 In node view, double-click the Ethernet, electrical, or optical (STM-N) card of choice. The card view appears.
Step 2 Click the Performance tab.
Step 3 Click the Auto-refresh pull-down menu button.
Step 4 From the Auto-refresh pull-down menu, choose one of six options:
•None: This option disables the auto-refresh feature.
•15 Seconds: This option sets the window auto-refresh to 15-second time intervals.
•30 Seconds: This option sets the window auto-refresh to 30-second time intervals.
•1 Minute: This option sets the window auto-refresh to 1-minute time intervals.
•3 Minutes: This option sets the window auto-refresh to 3-minute time intervals.
•5 Minutes: This option sets the window auto-refresh to 5-minute time intervals.
Step 5 Click the Refresh button. The PM counts for the newly selected auto-refresh time interval appear.
Depending on the selected auto-refresh interval, the displayed PM counts are automatically updated at completion of each refresh interval. If the auto-refresh interval is set to None, the displayed PM counts are not updated unless you click the Refresh button.
Step 6 Return to your originating procedure (NTP).
DLP-D257 View Ethernet Utilization PM Parameters
Purpose
|
This task enables you to view line utilization PM counts on an Ethernet card and port to detect possible performance problems.
|
Tools/Equipment
|
None
|
Prerequisite Procedures
|
DLP-D60 Log into CTC, page 3-23
|
Required/As Needed
|
As needed
|
Onsite/Remote
|
Onsite or Remote
|
Security Level
|
Retrieve or higher
|
Step 1 In node view, double-click the E-series or G-series Ethernet card of choice. The card view appears.
Step 2 Click the Performance tab.
Step 3 Click the Utilization subtab. Figure 8-11 shows the Utilization pane on the Performance tab.
Figure 8-11 G-Series Utilization Pane on the Card View Performance Tab
Step 4 Click the Refresh button. Performance monitoring utilization values for each port on the card are displayed.
Step 5 View the Port # column to find the port you wish to monitor.
Step 6 View the Prev-n columns to find transmit (Tx) and receive (Rx) bandwidth utilization values for the previous time intervals.
Step 7 Return to your originating procedure (NTP).
DLP-D259 Refresh Ethernet PM Counts at a Different Time Interval
Purpose
|
This task changes the view to display specified PM counts in time intervals depending on the interval option selected.
|
Tools/Equipment
|
None
|
Prerequisite Procedures
|
DLP-D60 Log into CTC, page 3-23
|
Required/As Needed
|
As needed
|
Onsite/Remote
|
Onsite or Remote
|
Security Level
|
Retrieve or higher
|
Step 1 In node view, double-click the E-series or G-series Ethernet card of choice. The card view appears.
Step 2 Click the Performance tab.
Step 3 Click either the Utilization or History tab.
Step 4 Click the Interval pull-down menu button.
Step 5 From the Interval menu, choose one of four options:
•1 min: This option displays the specified PM counts in one-minute time intervals.
•15 min: This option displays the specified PM counts in fifteen-minute time intervals.
•1 hour: This option displays the specified PM counts in one-hour time intervals.
•1 day: This option displays the specified PM counts in one-day (24 hours) time intervals.
Step 6 Click the Refresh button. The PM counts refresh with values based on the selected time interval.
Step 7 Return to your originating procedure (NTP).
DLP-D258 View Ethernet History PM Parameters
Purpose
|
This task enables you to view historical PM counts at selected time intervals on an Ethernet card and port to detect possible performance problems.
|
Tools/Equipment
|
None
|
Prerequisite Procedures
|
DLP-D60 Log into CTC, page 3-23
|
Required/As Needed
|
As needed
|
Onsite/Remote
|
Onsite or Remote
|
Security Level
|
Retrieve or higher
|
Step 1 In node view, double-click the E-series or G-series Ethernet card of choice. The card view appears.
Step 2 Click the Performance tab.
Step 3 Click the History subtab. Figure 8-12 shows the History pane on the Performance tab.
Figure 8-12 History Pane on the Card View Performance Tab
Step 4 Click the Refresh button. Performance monitoring statistics for each port on the card are displayed.
Step 5 View the PM parameter names that appear on the left portion of the window in the Param column. The parameter numbers appear on the right portion of the window in the Port # columns. For PM parameter definitions, refer to the Cisco ONS 15454 SDH Reference Manual.
Step 6 View the Port # columns to view the current PM statistics for each port.
Step 7 Return to your originating procedure (NTP).
DLP-D348 View ML-Series Ether Ports PM Parameters
Purpose
|
This task enables you to view Ethernet port PM counts at selected time intervals on an Ethernet card and port to detect possible performance problems.
|
Tools/Equipment
|
None
|
Prerequisite Procedures
|
DLP-D60 Log into CTC, page 3-23
|
Required/As Needed
|
As needed
|
Onsite/Remote
|
Onsite or Remote
|
Security Level
|
Retrieve or higher
|
Step 1 In node view, double-click the ML-series Ethernet card of choice. The card view appears.
Step 2 Click the Performance tab.
Step 3 Click the Ether Ports subtab. Figure 8-13 shows the Ether Ports pane on the Performance tab.
Figure 8-13 Ether Ports Pane on the Card View Performance Tab
Step 4 Click the Refresh button. Performance monitoring statistics for each port on the card are displayed.
Step 5 View the PM parameter names that appear on the left portion of the window in the Param column. The parameter numbers appear on the right portion of the window in the Port # columns. For PM parameter definitions, refer to the Cisco ONS 15454 SDH Reference Manual.
Step 6 View the Port # columns to view the current PM counts for each port.
Step 7 Return to your originating procedure (NTP).
DLP-D349 View ML-Series POS Ports PM Parameters
Purpose
|
This task enables you to view packet over SONET/SDH (POS) port PM counts at selected time intervals on an Ethernet card and port to detect possible performance problems.
|
Tools/Equipment
|
None
|
Prerequisite Procedures
|
DLP-D60 Log into CTC, page 3-23
|
Required/As Needed
|
As needed
|
Onsite/Remote
|
Onsite or Remote
|
Security Level
|
Retrieve or higher
|
Step 1 In node view, double-click the ML-series Ethernet card of choice. The card view appears.
Step 2 Click the Performance tab.
Step 3 Click the POS Ports subtab. Figure 8-14 shows the POS Ports pane on the Performance tab.
Figure 8-14 POS Ports Pane on the Card View Performance Tab
Step 4 Click the Refresh button. Performance monitoring statistics for each port on the card are displayed.
Step 5 View the PM parameter names that appear on the left portion of the window in the Param column. The parameter numbers appear on the right portion of the window in the Port # columns. For PM parameter definitions, refer to the Cisco ONS 15454 SDH Reference Manual.
Step 6 View the Port # columns to view the current PM counts for each port.
Step 7 Return to your originating procedure (NTP).
