Change Card Settings
This chapter explains how to change transmission settings for electrical, optical, transponder, and muxponder cards; change orderwire and environmental alarm setting, and change card protection from 1:1 to 1:N on the Cisco ONS 15454 SDH.
Before You Begin
Before performing any of the following procedures, complete the "NTP-D195 Document Existing Provisioning" procedure on page 7-2. Also, investigate all alarms and clear any trouble conditions. Refer to the Cisco ONS 15454 SDH Troubleshooting Guide as necessary.
Caution
Changing card settings can be service affecting. You should make all changes during a scheduled maintenance window.
This section lists the chapter procedures (NTPs). Turn to a procedure for applicable tasks (DLPs).
1. 88 Modify Line Settings and PM Parameter Thresholds for Electrical Cards—As needed, complete this procedure to change transmission settings, including line and threshold settings, for all electrical cards (E1-N-14, E1-42, E3-12, DS3i-N-12, and STM1E-12).
2. 89 Modify Line Settings and PM Parameter Thresholds for Optical Cards—As needed, complete this procedure to change transmission settings, including line and threshold settings, for all optical (STM-N) cards.
3. 206 Modify Line Settings and PM Parameter Thresholds for TXP_MR_10G Cards—As needed, complete this procedure to change transmission settings, including line and threshold settings, for TXP_MR_10G (transponder) cards.
4. 207 Modify Line Settings and PM Parameter Thresholds for MXP_2.5G_10G Cards—As needed, complete this procedure to change transmission settings, including line and threshold settings, for MXP_2.5G_10G (muxponder) cards.
5. 118 Modify Alarm Interface Controller-International Settings—As needed, complete this procedure to change external alarms and controls and/or orderwire settings.
6. 91 Upgrade E1-N-14 and DS3 i-N-12 Protect Cards from 1:1 Protection to 1:N Protection—As needed, complete this procedure to change the protection type on E-1 or DS-3 cards.
NTP-D88 Modify Line Settings and PM Parameter Thresholds for Electrical Cards
Step 1 Log into the ONS 15454 SDH node where you want to change the card settings or thresholds. See the "DLP-D60 Log into CTC" task on page 3-23.
Step 2 Complete the "NTP-D108 Back Up the Database" procedure on page 15-8 to preserve the existing database.
Step 3 Perform any of the following tasks as needed:
•339 Change Line and Threshold Settings for E1-N-14 or E1-42 Cards
•340 Change Line and Threshold Settings for the E3-12 Cards
•341 Change Line and Threshold Settings for the DS3i-N-12 Cards
•342 Change Line and Threshold Settings for the STM1E-12 Card
Step 4 When you are finished changing the card settings, complete the "NTP-D108 Back Up the Database" procedure on page 15-8.
Stop. You have completed this procedure
DLP-D339 Change Line and Threshold Settings for E1-N-14 or E1-42 Cards
Purpose
|
Use this task to change the line and threshold settings for the E1-N-14 or E1-42 (E-1) cards. Table C-1 on page C-5 lists the default E-1 card settings.
|
Tools/Equipment
|
None
|
Prerequisite Procedures
|
DLP-D60 Log into CTC, page 3-23
|
Required/As Needed
|
As needed
|
Onsite/Remote
|
Onsite or remote
|
Security Level
|
Provisioning or higher
|
Step 1 In the node view, double-click the E1-N-14 or E1-42 card where you want to change the line or threshold settings.
Step 2 Click the Provisioning tab Figure 11-1.

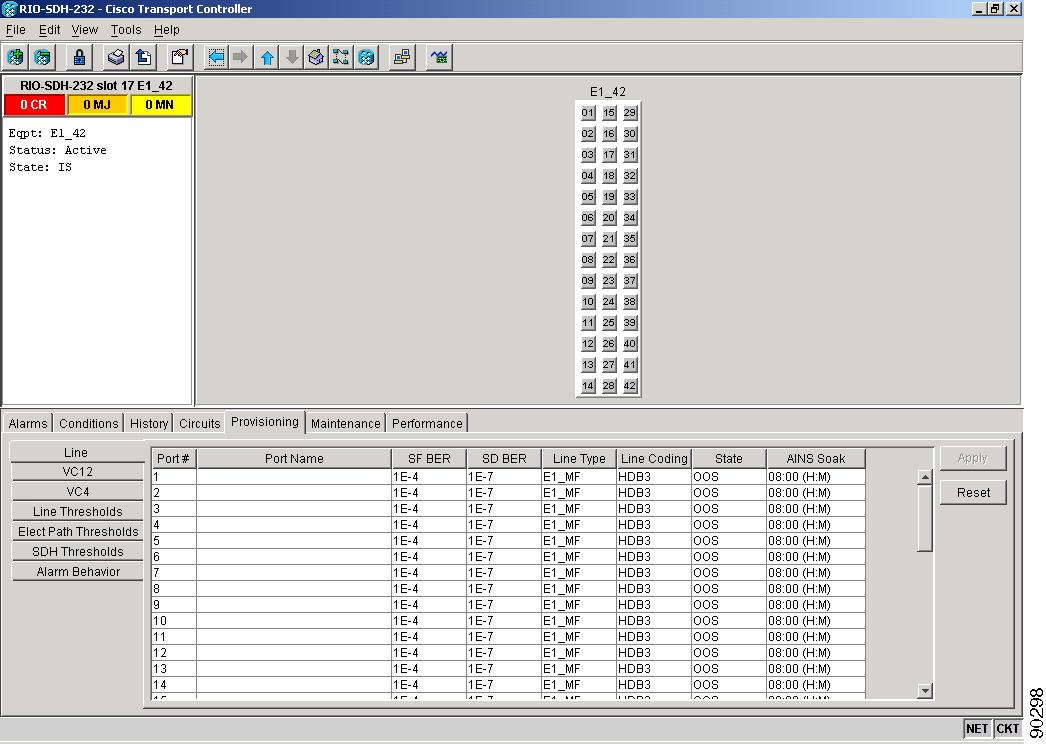

Figure 11-1 Provisioning Line Parameters on the E1-42 Card
Step 3 Depending on the setting you need to modify, click the Line, VC12, VC4, Line Thresholds, Elect Path Thresholds, or SDH Thresholds tab.
Note See Chapter 7, "Manage Alarms" for information about the Alarm Behavior tab.
Step 4 Modify any of the settings found under these subtabs. For definitions of the Line settings, see Table 11-1. For definitions of the VC12 and VC4 settings, see Table 11-2. For definitions of the Line Thresholds settings, see Table 11-3. For definitions of the Electrical Path Thresholds settings, see Table 11-4. For definitions of the SDH Thresholds settings, see Table 11-5.
For the factory default settings for the E1-N-14 and E1-42 cards, see Table C-1 on page C-5.
Step 5 Click Apply.
Step 6 Repeat Steps 4 and 5 for each subtab that has parameters you want to provision.
Table 11-1 describes the values on the Provisioning > Line tabs for the E-1 cards.
Table 11-1 Line Options for E1-N-14 and E1-42 Cards
Parameter
|
Description
|
Options
|
Port #
|
Port number
|
•1 to 14, E1-N-14, (read-only)
•1 to 42, E1-42, (read-only)
|
Port
|
Port name
|
User-defined, up to 32 alphanumeric/special characters. Blank by default
See the "DLP-D314 Assign a Name to a Port" procedure on page 6-18.
|
SF BER
|
Sets the signal fail bit error rate
|
•1E-3
•1E-4
•1E-5
|
SD BER
|
Sets the signal degrade bit error rate
|
•1E-5
•1E-6
•1E-7
•1E-8
•1E-9
|
Line Type
|
Defines the line framing type
|
•E1_MF
•E1_CRCMF
•E1_UNFRAMED
|
Line Coding
|
Defines the E-1 transmission coding type
|
HDB3 - High density bipolar - 3 Zero Substitution (read-only)
|
State
|
Places port in service,
out of service,
out of service-maintenance, or out of service-auto in service.
|
•IS
•OOS
•OOS_MT
•OOS_AINS
|
AINS Soak
|
Automatic in-service soak
|
•Duration of valid input signal in hh.mm after which the card becomes in service (IS) automatically.
•0 to 48 hours, 15 minutes increments.
|
Table 11-2 describes the values on the Provisioning > VC12 and VC4 tabs for the E-1 cards.
Table 11-2 VC12 and VC4 Circuit Alarm Level Options for E1-N-14 and E1-42 Cards
Parameter
|
Description
|
Options
|
VC LO #
|
VC12 circuit name
|
(as configured in "circuits", here read-only)
|
VC4 #
|
VC4 circuit name
|
(as configured in "circuits", here read-only)
|
SF Ber Level
|
Sets the signal fail bit error rate for the configured VC12 or VC4 circuit
|
•1E-3
•1E-4
•1E-5
|
SD Ber Level
|
Sets the signal degrade bit error rate for the configured VC12 or VC4 circuit
|
•1E-5
•1E-6
•1E-7
•1E-8
•1E-9
|
Table 11-3 describes the values on the Provisioning > Line Thresholds tabs for the E-1 cards.
Table 11-3 Line Thresholds Options for E1-N-14 and E1-42 Cards
Parameter
|
Description
|
Options
|
Port
|
Port number
|
•1 to 14, E1-N-14, (read-only)
•1 to 42, E1-42, (read-only)
|
CV
|
Coding violations
|
Numeric. Can be set for 15-minute or one-day intervals. Select the bullet and click the Refresh button.
|
ES
|
Errored seconds
|
Numeric. Can be set for 15-minute or one-day intervals. Select the bullet and click the Refresh button.
|
SES
|
Severely errored seconds
|
Numeric. Can be set for 15-minute or one-day intervals. Select the bullet and click the Refresh button.
|
Table 11-4 describes the values on the Provisioning > Elect Path Thresholds tabs for the E-1 cards.
Table 11-4 Electrical Path Threshold Options for E1-N-14 and E1-42 Cards
Parameter
|
Description
|
Options
|
Port
|
Port number
|
•1 to 14, E1-N-14, (read-only)
•1 to 42, E1-42, (read-only)
|
EB
|
Errored blocks
|
Numeric. Can be set for 15-minute or one-day intervals, near end or far end. Select the bullet and click the Refresh button.
|
BBE
|
Background block errors
|
Numeric. Can be set for 15-minute or one-day intervals, near end or far end. Select the bullet and click the Refresh button.
|
ES
|
Errored seconds
|
Numeric. Can be set for 15-minute or one-day intervals, near end or far end. Select the bullet and click the Refresh button.
|
SES
|
Severely errored seconds
|
Numeric. Can be set for 15-minute or one-day intervals, near end or far end. Select the bullet and click the Refresh button.
|
UAS
|
Unavailable seconds
|
Numeric. Can be set for 15-minute or one-day intervals, near end or far end. Select the bullet and click the Refresh button.
|
Table 11-5 describes the values on the Provisioning > SDH Thresholds tabs for the E-1 cards.
Table 11-5 SDH Threshold Options for E1-N-14 and E1-42 Cards
Parameter
|
Description
|
Options
|
Port #
|
E-1 port
|
•1 to 14, E1-N-14, (read-only)
•1 to 42, E1-42, (read-only)
|
ES
|
Errored seconds
|
Numeric. Can be set for 15-minute or one-day intervals, near end or far end. Select the bullet and click the Refresh button.
|
SES
|
Severely errored seconds
|
Numeric. Can be set for 15-minute or one-day intervals, near end or far end. Select the bullet and click the Refresh button.
|
EB
|
Errored blocks
|
Numeric. Can be set for 15-minute or one-day intervals, near end or far end. Select the bullet and click the Refresh button.
|
UAS
|
Unavailable seconds
|
Numeric. Can be set for 15-minute or one-day intervals, near end or far end. Select the bullet and click the Refresh button.
|
BBE
|
Background block errors
|
Numeric. Can be set for 15-minute or one-day intervals, near end or far end. Select the bullet and click the Refresh button.
|
Note The threshold value displays after the circuit is created.
Step 7 Return to your originating procedure (NTP).
DLP-D340 Change Line and Threshold Settings for the E3-12 Cards
Purpose
|
Use this task to change the line and threshold settings for the E3-12 cards. Table C-2 on page C-6 lists the default E-3 values.
|
Tools/Equipment
|
None
|
Prerequisite Procedures
|
DLP-D60 Log into CTC, page 3-23
|
Required/As Needed
|
As needed
|
Onsite/Remote
|
Onsite or remote
|
Security Level
|
Provisioning or higher
|
Step 1 Double-click the E3-12 card where you want to change the line or threshold settings.
Step 2 Click the Provisioning tab.
Step 3 Depending on the setting you need to modify, click the Line, Line Thrshld, Elec Path Thrshld, or SDH Thrshld subtab.
Note See Chapter 7, "Manage Alarms" for information about the Alarm Behavior tab.
Step 4 Modify any of the settings found under these subtabs. For definitions of the Line settings, see Table 11-6. For definitions of the Line Threshold settings, see Table 11-7. For definitions of the Elect Path Threshold settings, see Table 11-8. For definitions of the SDH Threshold settings, see Table 11-9.
For the factory default settings for the E3-12, see Table C-2 on page C-6.
Step 5 Click Apply.
Step 6 Repeat Steps 4 and 5 for each subtab that has parameters you want to provision.
Table 11-6 describes the values on the Provisioning > Line tabs for the E3-12 cards.
Table 11-6 Line Options for E3-12 Cards
Parameter
|
Description
|
Options
|
Port #
|
Port number
|
1 - 12 (Read-only)
|
Port
|
Port name
|
User-defined, up to 32 alphanumeric/ special characters. Blank by default.
See the "DLP-D314 Assign a Name to a Port" procedure on page 6-18.
|
State
|
Places port in service,
out of service,
out of service-maintenance, or out of service-auto in service.
|
•IS
•OOS
•OOS_MT
•OOS_AINS
|
AINS Soak
|
Automatic in-service soak
|
•Duration of valid input signal in hh.mm after which the card becomes in service (IS) automatically.
•0 to 48 hours, 15-minute increments.
|
Table 11-7 describes the values on the Provisioning > Line Thresholds tabs for the E3-12 cards.
Table 11-7 Line Threshold Options for E3-12 Cards
Parameter
|
Description
|
Options
|
Port #
|
Port number
|
1 - 12 (Read-only)
|
CV
|
Coding violations
|
Numeric. Can be set for 15-minute or one-day intervals. Select the bullet and click the Refresh button.
|
ES
|
Errored seconds
|
Numeric. Can be set for 15-minute or one-day intervals. Select the bullet and click the Refresh button.
|
SES
|
Severely errored seconds
|
Numeric. Can be set for 15-minute or one-day intervals. Select the bullet and click the Refresh button.
|
LOSS
|
Loss of signal; number of one-second intervals containing one or more LOS defects
|
Numeric. Can be set for 15-minute or one-day intervals. Select the bullet and click the Refresh button.
|
Table 11-8 describes the values on the Provisioning > Elect Path Thresholds tabs for the E3-12 cards.
Table 11-8 Elect Path Threshold Options for E3-12 Cards
Parameter
|
Description
|
Options
|
Port #
|
E-3 ports
|
1 - 12 (Read-only)
|
ES
|
Errored seconds
|
Numeric. Can be set for 15-minute or one-day intervals. Select the bullet and click the Refresh button (Near End).
|
SES
|
Severely errored seconds
|
Numeric. Can be set for 15-minute or one-day intervals. Select the bullet and click the Refresh button (Near End).
|
UAS
|
Unavailable seconds
|
Numeric. Can be set for 15-minute or one-day intervals. Select the bullet and click the Refresh button (Near End).
|
Table 11-9 describes the values on the Provisioning > SDH Thresholds tabs for the E3-12 cards.
Table 11-9 SDH Threshold Options for E3-12 Cards
Parameter
|
Description
|
Options
|
Port #
|
E-3 ports
|
1 - 12 (Read-only)
|
ES
|
Errored seconds
|
Numeric. Can be set for 15-minute or one-day intervals. Select the bullet and click the Refresh button (Near and Far End, VC LO or VC4).
|
SES
|
Severely errored seconds
|
Numeric. Can be set for 15-minute or one-day intervals. Select the bullet and click the Refresh button (Near and Far End, VC LO or VC4).
|
EB
|
Errored blocks
|
Numeric. Can be set for 15-minute or one-day intervals. Select the bullet and click the Refresh button (Near and Far End, VC LO or VC4).
|
UAS
|
Unavailable seconds
|
Numeric. Can be set for 15-minute or one-day intervals. Select the bullet and click the Refresh button (Near and Far End, VC LO or VC4).
|
BBE
|
Background block errors
|
Numeric. Can be set for 15-minute or one-day intervals. Select the bullet and click the Refresh button (Near and Far End, VC LO or VC4).
|
Note The threshold value displays after the circuit is created.
Step 7 Return to your originating procedure (NTP).
DLP-D341 Change Line and Threshold Settings for the DS3i-N-12 Cards
Step 1 Double-click the DS3i-N-12 card where you want to change the line or threshold settings.
Step 2 Click the Provisioning tab.
Step 3 Depending on the setting you need to modify, click the Line, Line Thrshld, Elect Path Thrshld, or SDH Thrshld subtab.
Note See Chapter 7, "Manage Alarms" for information about the Alarm Behavior tab.
Step 4 Modify any of the settings found under these subtabs. For definitions of the Line settings, see Table 11-10. For definitions of the Line Threshold settings, see Table 11-11. For definitions of the Electrical Path Thresholds, see Table 11-12. For definitions of the SDH Threshold settings, see Table 11-13.
For the factory default settings for the DS3i-N-12 cards, see Table C-3 on page C-8.
Step 5 Click Apply.
Step 6 Repeat Steps 4 and 5 for each subtab that has parameters you want to provision.
Table 11-10 describes the values on the Provisioning > Line tabs for the DS3i-N-12 cards.
Table 11-10 Line Options for the DS3i-N-12 Cards
Parameter
|
Description
|
Options
|
Port #
|
Port number
|
1 - 12 (Read-only)
|
Port
|
Port name
|
User-defined, up to 32 alphanumeric/ special characters. Blank by default.
See the "DLP-D314 Assign a Name to a Port" procedure on page 6-18.
|
Line Type
|
Defines the line framing type
|
•Unframed
•M13
•C Bit
•Auto Provisioned
|
Detected Line Type
|
Displays the detected line type
|
Read-only
|
Line Coding
|
Defines the DS3E transmission coding type
|
B3ZS (Read-only)
|
Line Length
|
Defines the distance (in feet) from backplane connection to the next termination point
|
•0 - 225 (default)
•226 - 450
|
State
|
Places port in service,
out of service,
out of service-maintenance, or out of service-auto in service.
|
•IS
•OOS
•OOS_MT
•OOS_AINS
|
AINS Soak
|
Automatic in-service soak
|
•Duration of valid input signal in hh.mm after which the card becomes in service (IS) automatically.
•0 to 48 hours, 15-minute increments.
|
Table 11-11 describes the values on the Provisioning > Line Thresholds tabs for the DS3i-N-12 cards.
Table 11-11 Line Threshold Options for the DS3-12E and DS3N-12E Cards
Subtab
|
Parameter
|
Description
|
Options
|
Port #
|
Port number
|
Port #
|
1 - 12 (Read-only)
|
Line Thrshold
|
CV
|
Coding violations
|
Numeric. Can be set for 15-minute or one-day intervals. Select the bullet and click the Refresh button.
|
| |
ES
|
Errored seconds
|
Numeric. Can be set for 15-minute or one-day intervals. Select the bullet and click the Refresh button.
|
| |
SES
|
Severely errored seconds
|
Numeric. Can be set for 15-minute or one-day intervals. Select the bullet and click the Refresh button.
|
| |
LOSS
|
Loss of signal; number of one-second intervals containing one or more LOS defects
|
Numeric. Can be set for 15-minute or one-day intervals. Select the bullet and click the Refresh button.
|
Table 11-12 describes the values on the Provisioning > Elect Path Thresholds tabs for the DS3i-N-12 cards.
Table 11-12 Electrical Path Options for the DS3i-N-12 Cards
Subtab
|
Parameter
|
Description
|
Options
|
Port #
|
Port number
|
Port #
|
1 - 12 (Read-only)
|
Elect Path Thrshld
|
CVP
|
Coding violations
|
Numeric. Can be set for 15-minute or one-day intervals. Select the bullet and click the Refresh button (DS3 Pbit: Near End only; DS3 CPbit: Near and Far End).
|
| |
ESP
|
Errored seconds
|
Numeric. Can be set for 15-minute or one-day intervals. Select the bullet and click the Refresh button (DS3 Pbit: Near End only; DS3 CPbit: Near and Far End).
|
| |
SESP
|
Severely errored seconds
|
Numeric. Can be set for 15-minute or one-day intervals. Select the bullet and click the Refresh button (DS3 Pbit: Near End only; DS3 CPbit: Near and Far End).
|
| |
SASP
|
Severely errored frame/alarm indication signal
|
Numeric. Can be set for 15-minute or one-day intervals. Select the bullet and click the Refresh button (DS3 Pbit: Near End only; DS3 CPbit: Near and Far End).
|
| |
UASP
|
Unavailable seconds
|
Numeric. Can be set for 15-minute or one-day intervals. Select the bullet and click the Refresh button (DS3 Pbit: Near End only; DS3 CPbit: Near and Far End).
|
| |
AISSP
|
Alarm indication signal
|
Numeric. Can be set for 15-minute or one-day intervals. Select the bullet and click the Refresh button (DS3 Pbit: Near End only; DS3 CPbit: Near and Far End).
|
Table 11-13 describes the values on the Provisioning > SDH Thresholds tabs for the DS3i-N-12 cards.
Table 11-13 SDH Threshold Options for DS3i-N-12 Cards
Parameter
|
Description
|
Options
|
Port #
|
Port number
|
1 - 12 (Read-only)
|
ES
|
Errored seconds
|
Numeric. Can be set for 15-minute or one-day intervals. Select the bullet and click the Refresh button (Near and Far End, VC LO or VC4).
|
SES
|
Severely errored seconds
|
Numeric. Can be set for 15-minute or one-day intervals. Select the bullet and click the Refresh button (Near and Far End, VC LO or VC4).
|
EB
|
Errored blocks
|
Numeric. Can be set for 15-minute or one-day intervals. Select the bullet and click the Refresh button (Near and Far End, VC LO or VC4).
|
UAS
|
Unavailable seconds
|
Numeric. Can be set for 15-minute or one-day intervals. Select the bullet and click the Refresh button (Near and Far End, VC LO or VC4).
|
BBE
|
Background block errors
|
Numeric. Can be set for 15-minute or one-day intervals. Select the bullet and click the Refresh button (Near and Far End, VC LO or VC4).
|
Note The threshold value displays after the circuit is created.
Step 7 Return to your originating procedure (NTP).
DLP-D342 Change Line and Threshold Settings for the STM1E-12 Card
Purpose
|
Use this task to change the line and threshold settings for the STM1E-12 card. Table C-5 on page C-16 lists the default STM1E-12 settings.
|
Tools/Equipment
|
None
|
Prerequisite Procedures
|
DLP-D60 Log into CTC, page 3-23
|
Required/As Needed
|
As needed
|
Onsite/Remote
|
Onsite or remote
|
Security Level
|
Provisioning or higher
|
Step 1 Double-click the STM1E-12 card where you want to change the line or threshold settings.
Step 2 Click the Provisioning tab.
Step 3 Depending on the setting you need to modify, click the Line, Ports, Thresholds, VC4, or C2-Byte subtab.
Note See Chapter 7, "Manage Alarms" for information about the Alarming tab.
Step 4 Modify any of the settings found under these subtabs. For definitions of the line settings, see Table 11-14. For definitions of the port settings, see Table 11-15. For definitions of the threshold settings, see Table 11-16. For definitions of the VC4 settings, see Table 11-17. For definitions of the C2-Byte settings, see Table 11-18.
For the factory default settings for the STM1E-12 card, see Table C-5 on page C-16.
Step 5 Click Apply.
Step 6 Repeat Steps 4 and 5 for each subtab that has parameters you want to provision.
Table 11-14 describes the values on the Provisioning > Line tabs for the STM1E-12 cards.
Table 11-14 Line Options for the STM1E-12 Card
Parameter
|
Description
|
Options
|
Port #
|
STM1E-12 card port #
|
1 - 12 (read-only)
|
Port Name
|
Name assigned to the port (optional)
|
User-defined, up to 32 alphanumeric/ special characters. Blank by default.
See the "DLP-D314 Assign a Name to a Port" procedure on page 6-18.
|
SF BerLevel
|
Sets the signal fail bit error rate for the configured VC12 or VC4 circuit
|
•1E-3
•1E-4
•1E-5
|
SD BerLevel
|
Sets the signal degrade bit error rate for the configured VC12 or VC4 circuit
|
•1E-5
•1E-6
•1E-7
•1E-8
•1E-9
|
Provides Sync
|
If checked, the card is provisioned as a network element timing reference
|
•Yes
•No
(Read-only)
|
Enable Sync Msg
|
Enables synchronization status messages (S1 byte), which allow the node to choose the best timing source
|
•Yes
•No
|
Send DoNotUse
|
When checked, sends a DUS (do not use) message on the S1 byte
|
•Yes
•No
|
Status
|
Places port in service,
out of service,
out of service-maintenance, or out of service-auto in service.
|
•IS
•OOS
•OOS_MT
•OOS_AINS
|
AINS Soak
|
Automatic in-service soak
|
•Duration of valid input signal in hh.mm after which the card becomes in service (IS) automatically.
•0 to 48 hours, 15-minute increments.
|
Table 11-15 describes the values on the Provisioning > Ports tabs for the STM1E-12 cards.
Table 11-15 Ports Options for the STM1E-12 Card
Parameter
|
Description
|
Options
|
Port #
|
STM1E-12 card port #
|
1 - 12 (read-only)
|
Interface
|
Interface type
|
STM1 (read-only)
|
Table 11-16 describes the values on the Provisioning > Thresholds for the STM1E-12 cards.
Table 11-16 Thresholds Options for the STM1E-12 Card
Parameter
|
Description
|
Options
|
Port #
|
STM1E-12 card port #
|
1 - 12 (read-only)
|
ES
|
Errored seconds
|
Numeric. Can be set for 15-minute or one-day intervals. Select the bullet and click the Refresh button.
|
SES
|
Severely errored seconds
|
Numeric. Can be set for 15-minute or one-day intervals. Select the bullet and click the Refresh button.
|
BBE
|
Background block errors
|
Numeric. Can be set for 15-minute or one-day intervals. Select the bullet and click the Refresh button.
|
UAS
|
Unavailable seconds
|
Numeric. Can be set for 15-minute or one-day intervals. Select the bullet and click the Refresh button.
|
BEC
|
Block error count
|
Numeric. Can be set for 15-minute or one-day intervals. Select the bullet and click the Refresh button.
|
Table 11-17 describes the values on the Provisioning > VC4 tabs for the STM1E-12 cards.
Table 11-17 VC4 Options for the STM1E-12 Card
Parameter
|
Description
|
Options
|
VC4 #
|
Number of VC4 container
|
1 to 12
|
SF BerLevel
|
Sets the signal fail bit error rate for the configured VC12 or VC4 circuit
|
•1E-3
•1E-4
•1E-5
|
SD BerLevel
|
Sets the signal degrade bit error rate for the configured VC12 or VC4 circuit
|
•1E-5
•1E-6
•1E-7
•1E-8
•1E-9
|
Table 11-18 describes the values on the Provisioning > C2-Byte tabs for the STM1E-12 cards.
Table 11-18 C2-Byte Options for the STM1E-12 Card
Parameter
|
Description
|
Options
|
Port #
|
STM1E-12 card port #
|
1 - 12 (read-only)
|
C2 Expect
|
Expected C2 byte
|
|
C2 Receive
|
Received C2 byte
|
|
Step 7 Return to your originating procedure (NTP).
NTP-D89 Modify Line Settings and PM Parameter Thresholds for Optical Cards
Note To change optical settings for transponder cards, see "DLP-D277 Change Optical Thresholds Settings for TXP_MR_10G Cards" task. To change optical settings for muxponder cards, see "DLP-D283 Change Optical Thresholds Settings for MXP_2.5G_10G Cards" task.
Step 1 Log into the ONS 15454 SDH node where you want to change the card settings or thresholds. See the "DLP-D60 Log into CTC" task on page 3-23.
Step 2 Complete the "NTP-D108 Back Up the Database" procedure on page 15-8.
Step 3 Perform any of the following tasks as needed:
•170 Change Line Settings for STM-N Cards
•343 Change SDH Threshold Settings for STM-N Cards
Step 4 Complete the "NTP-D108 Back Up the Database" procedure on page 15-8.
Stop. You have completed this procedure.
DLP-D170 Change Line Settings for STM-N Cards
Step 1 Double-click the STM-N card where you want to change the line settings.
Step 2 Click the Provisioning > Line tabs.
Step 3 Modify any of the settings listed in Table 11-19.
To view the factory default settings for the STM-N cards, see Table C-5 on page C-16 for the STM-1 card, Table C-6 on page C-18 for the STM-4 card, Table C-8 on page C-22 for the STM-16 card, or Table C-9 on page C-24 for the STM-64 card.
Step 4 Click Apply.
Table 11-19 STM-N Card Line Settings
Parameter
|
Description
|
Options
|
Port #
|
Port number (read-only)
|
•1 (STM-4, STM-16, STM-64)
•1 to 4 (OC3 IR 4/STM1 SH 1310, OC12 IR/STM4 SH 1310-4)
•1 to 8 (OC3IR/STM1SH 1310-8)
|
Port Name
|
Provides the ability to assign the specified port a name
|
User-defined. Name can be up to 32 alphanumeric/special characters. Blank by default.
See the "DLP-D314 Assign a Name to a Port" procedure on page 6-18.
|
SF BER
|
Sets the signal fail bit error rate
|
•1E-3
•1E-4
•1E-5
|
SD BER
|
Sets the signal degrade bit error rate
|
•1E-5
•1E-6
•1E-7
•1E-8
•1E-9
|
Provides Synch
|
If checked, the card is provisioned as a network element timing reference
|
•Yes
•No
(Read-only)
|
Enable Synch Messages
|
Enables synchronization status messages (S1 byte), which allow the node to choose the best timing source
|
•Yes
•No
|
Send Do Not Use
|
When checked, sends a DUS (do not use) message on the S1 byte
|
•Yes
•No
|
PJVC4Mon #
|
Sets the VC4 that will be used for pointer justification. If set to 0, no VC4 is monitored. Only one VC4 can be monitored on each STM-N port.
|
•0 - 1 (STM-1, per port)
•0 - 4 (STM-4, per port)
•0 - 16 (STM-16)
•0 - 64 (STM-64)
|
State
|
Places port in service,
out of service,
out of service-maintenance, or out of service-auto in service
|
•IS
•OOS
•OOS_MT
•OOS_AINS
|
AINS Soak
|
Automatic in-service soak
|
•Duration of valid input signal in hh.mm after which the card becomes in service (IS) automatically.
•0 to 48 hours, 15 minutes increments.
|
Type
|
Displays the port as SDH.
|
•SDH
|
Step 5 Return to your originating procedure (NTP).
DLP-D343 Change SDH Threshold Settings for STM-N Cards
Step 1 In node view, double-click the STM-N card where you want to change the SDH threshold settings (Figure 11-2).
Step 2 Click the Provisioning > Thresholds tabs.

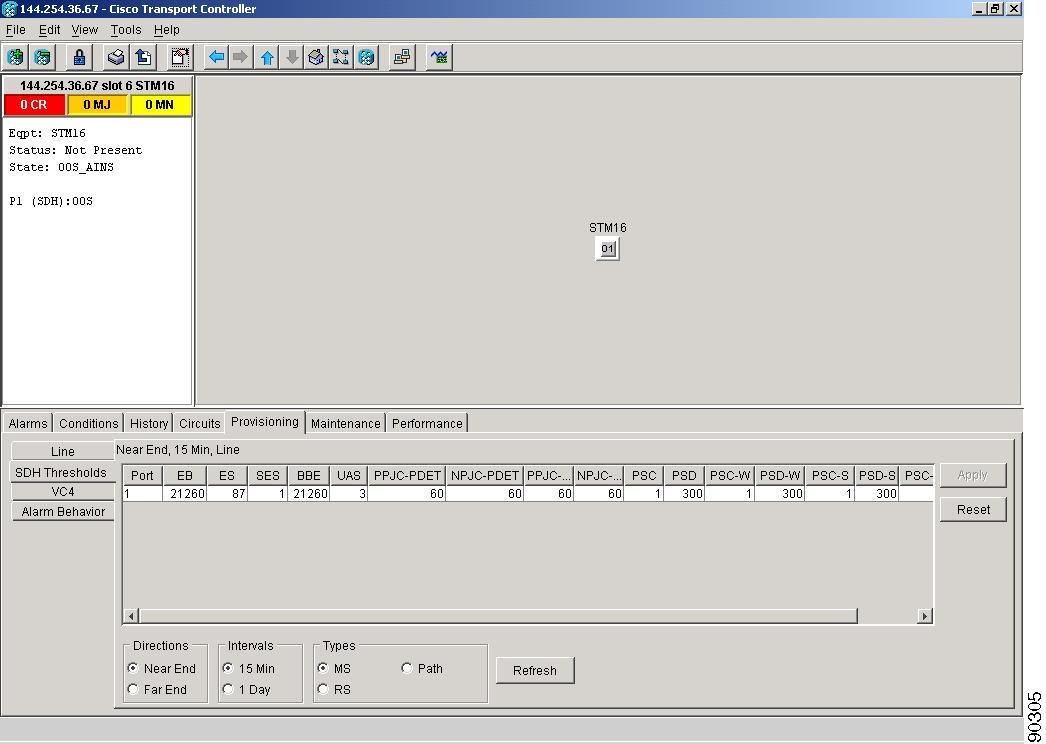

Figure 11-2 Provisioning SDH Thresholds for the OC48 IR/STM16 SH AS 1310 Card
Step 3 Modify any of the settings listed in Table 11-20.
For the factory default settings for the STM-N cards, see Table C-5 on page C-16 for the STM-1 card, Table C-6 on page C-18 for the STM-4 card, Table C-8 on page C-22 for the STM-16 card, or Table C-9 on page C-24 for the STM-64 card.
Step 4 Click Apply.
Table 11-20 STM-N Threshold Options
Parameter
|
Description
|
Options
|
Port
|
Port number (read-only)
|
•1 (STM-4, STM-16, STM-64)
•1 to 4 (OC3 IR 4/STM1 SH 1310, OC12 IR/STM4 SH 1310-4)
•1 to 8 (OC3IR/STM1SH 1310-8)
|
EB
|
Errored blocks
|
Numeric. Can be set for 15-minute or one-day intervals. Select the bullet and click the Refresh button (Near and Far End, VC LO or VC4).
|
ES
|
Errored seconds
|
Numeric. Can be set for 15-minute or one-day intervals for Line, Section, or Path (Near and Far End). Select the bullet and click the Refresh button.
|
SES
|
Severely errored seconds
|
Numeric. Can be set for 15-minute or one-day intervals for Line, Section, or Path (Near and Far End). Select the bullet and click the Refresh button.
|
BBE
|
Background block errors
|
Numeric. Can be set for 15-minute or one-day intervals. Select the bullet and click the Refresh button (Near and Far End, VC LO or VC4).
|
UAS
|
Unavailable seconds
|
Numeric. Can be set for 15-minute or one-day intervals for Line or Path (Near and Far End). Select the bullet and click the Refresh button.
|
PPJC-PDET
|
Positive Pointer Justification Count, STS Path detected.
|
Numeric. Can be set for 15-minute or one-day intervals for Line (Near and Far End). Select the bullet and click the Refresh button.
|
NPJC-PDET
|
Negative Pointer Justification Count, STS Path detected.
|
Numeric. Can be set for 15-minute or one-day intervals for Line (Near and Far End). Select the bullet and click the Refresh button.
|
PPJC-PGEN
|
Positive Pointer Justification Count, STS Path generated.
|
Numeric. Can be set for 15-minute or one-day intervals for Line (Near and Far End). Select the bullet and click the Refresh button.
|
NPJC-PGEN
|
Negative Pointer Justification Count, STS Path generated.
|
Numeric. Can be set for 15-minute or one-day intervals for Line (Near and Far End). Select the bullet and click the Refresh button.
|
PSC
|
Protection Switching Count (Line)
|
Numeric. Can be set for 15-minute or one-day intervals for Line (Near and Far End). Select the bullet and click the Refresh button.
|
PSD
|
Protection Switch Duration (Line)
|
Numeric. Can be set for 15-minute or one-day intervals for Line (Near and Far End). Select the bullet and click the Refresh button.
|
PSC-W
|
Protection Switching Count - Working line
MS-SPRing is not supported on the OC-3 card; therefore, the PSC-W, PSC-S, and PSC-R PMs do not increment.
|
Numeric. Can be set for 15-minute or one-day intervals for Line (Near and Far End). Select the bullet and click the Refresh button.
|
PSD-W
|
Protection Switching Duration - Working line
MS-SPRing is not supported on the OC-3 card; therefore, the PSD-W, PSD-S, and PSD-R PMs do not increment.
|
Numeric. Can be set for 15-minute or one-day intervals for Line (Near and Far End). Select the bullet and click the Refresh button.
|
PSC-S
|
Protection Switching Count - Span
MS-SPRing is not supported on the OC-3 card; therefore, the PSC-W, PSC-S, and PSC-R PMs do not increment.
|
Numeric. Can be set for 15-minute or one-day intervals for Line (Near and Far End). Select the bullet and click the Refresh button.
|
PSD-S
|
Protection Switching Duration - Span
MS-SPRing is not supported on the OC-3 card; therefore, the PSD-W, PSD-S, and PSD-R PMs do not increment.
|
Numeric. Can be set for 15-minute or one-day intervals for Line (Near and Far End). Select the bullet and click the Refresh button.
|
PSC-R
|
Protection Switching Count - Ring
MS-SPRing is not supported on the OC-3 card; therefore, the PSC-W, PSC-S, and PSC-R PMs do not increment.
|
Numeric. Can be set for 15-minute or one-day intervals for Line (Near and Far End). Select the bullet and click the Refresh button.
|
PSD-R
|
Protection Switching Duration - Ring
MS-SPRing is not supported on the OC-3 card; therefore, the PSD-W, PSD-S, and PSD-R PMs do not increment.
|
Numeric. Can be set for 15-minute or one-day intervals for Line (Near and Far End). Select the bullet and click the Refresh button.
|
Step 5 Return to your originating procedure (NTP).
NTP-D206 Modify Line Settings and PM Parameter Thresholds for TXP_MR_10G Cards
Purpose
|
Use this procedure to change the line and threshold settings for TXP_MR_10G (transponder) cards. The default TXP_MR_10G card settings are provided in Table C-10 on page C-26.
|
Tools/Equipment
|
None
|
Prerequisite Procedures
|
NTP-D16 Install the Optical Cards, page 2-12
|
Required/As Needed
|
As needed
|
Onsite/Remote
|
Onsite or remote
|
Security Level
|
Provisioning or higher
|
Step 1 Log into the ONS 15454 SDH node where you want to change the settings. See the "DLP-D60 Log into CTC" task on page 3-23.
Step 2 Complete the "NTP-D108 Back Up the Database" procedure on page 15-8.
Step 3 Perform any of the following tasks as needed:
•274 Change Card Settings for TXP_MR_10G Cards
•275 Change Line SDH Settings for TXP_MR_10G Cards
•276 Change Line Thresholds Settings for TXP_MR_10G Cards
Step 4 Complete the "NTP-D108 Back Up the Database" procedure on page 15-8.
Stop. You have completed this procedure.
DLP-D274 Change Card Settings for TXP_MR_10G Cards
Purpose
|
Use this task to change the card settings for TXP_MR_10G (transponder) cards. The default TXP_MR_10G card settings are provided in Table C-10 on page C-26.
|
Tools/Equipment
|
None
|
Prerequisite Procedures
|
DLP-D60 Log into CTC, page 3-23
|
Required/As Needed
|
As needed
|
Onsite/Remote
|
Onsite or remote
|
Security Level
|
Provisioning or higher
|
Step 1 Double-click the TXP_MR_10G card where you want to change the line settings.
Step 2 Click the Provisioning > Card tabs (Figure 11-3).
Figure 11-3 Provisioning Card Parameters on the TXP_MR_10G Card
Step 3 Modify any of the settings listed in Table 11-21.
For the factory default settings for the TXP_MR_10G cards, see Table C-10 on page C-26.
Step 4 Click Apply.
Table 11-21 TXP_MR_10G (Transponder) Card Settings
Parameter
|
Description
|
Options
|
Payload Type
|
Sets the type of payload
|
•SONET/Including 10 GigE WAN Phy
•SDH
•10 GigE LAN Phy
|
Termination Mode
|
Sets the mode of termination
|
•Transparent
•Line
|
Wavelength
|
Sets the wavelength of the DWDM side optical transmitter
|
•First Tunable Wavelength
•(Further wavelengths in 100 GHz ITU spacing)
|
Regeneration Peer Slot
|
Sets the regeneration peer slot
|
•None
•1
•2
•3
•4
•5
•6
•12
•13
•14
•15
•16
•17
|
Step 5 Return to your originating procedure (NTP).
DLP-D275 Change Line SDH Settings for TXP_MR_10G Cards
Purpose
|
Use this task to change the line settings for TXP_MR_10G (transponder) cards. The default TXP_MR_10G card settings are provided in Table C-10 on page C-26.
|
Tools/Equipment
|
None
|
Prerequisite Procedures
|
DLP-D60 Log into CTC, page 3-23
|
Required/As Needed
|
As needed
|
Onsite/Remote
|
Onsite or remote
|
Security Level
|
Provisioning or higher
|
Step 1 Double-click the TXP_MR_10G card where you want to change the line SDH settings.
Step 2 Click the Provisioning > Line > SDH tabs.
Step 3 Modify any of the settings listed in Table 11-22.
For the factory default settings for the TXP_MR_10G cards, see Table C-10 on page C-26.
Step 4 Click Apply.
Table 11-22 TXP_MR_10G (Transponder) Line Settings
Parameter
|
Description
|
Options
|
Port #
|
Port number (read-only)
|
•1
•2
|
Port Name
|
Provides the ability to assign the specified port a name
|
User-defined. Name can be up to 32 alphanumeric/special characters. Blank by default.
See the "DLP-D314 Assign a Name to a Port" procedure on page 6-18.
|
SF BER
|
Sets the signal fail bit error rate
|
•1E-3
•1E-4
•1E-5
|
SD BER
|
Sets the signal degrade bit error rate
|
•1E-5
•1E-6
•1E-7
•1E-8
•1E-9
|
AINS Soak
|
Automatic in-service soak
|
•Duration of valid input signal in hh.mm after which the card becomes in service (IS) automatically.
•0 to 48 hours, 15 minutes increments.
|
State
|
Places port in service,
out of service,
out of service-maintenance, or
out of service-auto in service.
|
•IS
•OOS
•OOS_MT
•OOS_AINS
|
ALS Mode
|
Sets the automatic laser shutdown function
|
•Disabled
•Auto Restart
•Manual Restart
•Manual Restart for Test
|
Step 5 Return to your originating procedure (NTP).
DLP-D278 Change Line Section Trace Settings for TXP_MR_10G Cards
Purpose
|
Use this task to change the section trace settings for TXP_MR_10G (transponder) cards. The default TXP_MR_10G card settings are provided in Table C-10 on page C-26.
|
Tools/Equipment
|
None
|
Prerequisite Procedures
|
DLP-D60 Log into CTC, page 3-23
|
Required/As Needed
|
As needed
|
Onsite/Remote
|
Onsite or remote
|
Security Level
|
Provisioning or higher
|
Step 1 Double-click the TXP_MR_10G card where you want to change the section trace settings.
Step 2 Click the Provisioning > Line > Section Trace tabs.
Step 3 Modify any of the settings listed in Table 11-23.
For the factory default settings for the TXP_MR_10G cards, see Table C-10 on page C-26.
Step 4 Click Apply.
Table 11-23 TXP_MR_10G (Transponder) Card Section Trace Settings
Parameter
|
Description
|
Options
|
Port #
|
Port number
|
•1
•2
|
Trace Mode
|
Sets the trace mode
|
•Off/None
•Manual
|
Section Trace String Size
|
Sets the trace string size
|
•1 byte
•16 byte
|
Transmit
|
Displays the current transmit string;
sets a new transmit string
|
String of trace string size
|
Expected
|
Displays the current expected string;
sets a new expected string
|
String of trace string size
|
Received
|
Displays the current received string (read only)
|
String of trace string size
|
Step 5 Return to your originating procedure (NTP).
DLP-D276 Change Line Thresholds Settings for TXP_MR_10G Cards
Purpose
|
Use this task to change the line threshold settings for TXP_MR_10G (transponder) cards. The default TXP_MR_10G card settings are provided in Table C-10 on page C-26.
|
Tools/Equipment
|
None
|
Prerequisite Procedures
|
DLP-D60 Log into CTC, page 3-23
|
Required/As Needed
|
As needed
|
Onsite/Remote
|
Onsite or remote
|
Security Level
|
Provisioning or higher
|
Step 1 Double-click the TXP_MR_10G card where you want to change the line threshold settings.
Step 2 Click the Provisioning > Line Thresholds tabs.
Step 3 Modify any of the settings listed in Table 11-24.
For the factory default settings for the TXP_MR_10G cards, see Table C-10 on page C-26.
Step 4 Click Apply.
Table 11-24 TXP_MR_10G (Transponder) Card Line Thresholds Settings
Parameter
|
Description
|
Options
|
Port #
|
Port number (read-only)
|
•1
•2
|
EB
|
Errored blocks
|
Numeric. Can be set for 15-minute or one-day intervals, near end or far end. Select the bullet and click the Refresh button.
|
ES
|
Errored seconds
|
Numeric. Can be set for Near End or Far End, for 15-minute or one-day intervals, or for Line (Far End only), Section or Line. Select bullet and click Refresh button.
|
SES
|
Severely errored seconds
|
Numeric. Can be set for Near End or Far End, for 15-minute or one-day intervals, or for Line (Far End only), Section or Line. Select bullet and click Refresh button.
|
BBE
|
Background block errors
|
Numeric. Can be set for 15-minute or one-day intervals, near end or far end. Select the bullet and click the Refresh button.
|
UAS
|
Unavailable seconds
|
Numeric. Can be set for Near End or Far End, for 15-minute or one-day intervals, for Line only. Select bullet and click Refresh button.
|
Step 5 Return to your originating procedure (NTP).
DLP-D277 Change Optical Thresholds Settings for TXP_MR_10G Cards
Purpose
|
Use this task to change the optical threshold settings for TXP_MR_10G (transponder) cards. The default TXP_MR_10G card settings are provided in Table C-10 on page C-26.
|
Tools/Equipment
|
None
|
Prerequisite Procedures
|
DLP-D60 Log into CTC, page 3-23
|
Required/As Needed
|
As needed
|
Onsite/Remote
|
Onsite or remote
|
Security Level
|
Provisioning or higher
|
Step 1 Double-click the TXP_MR_10G card where you want to change the optical threshold settings.
Step 2 Click the Provisioning > Optical Thresholds tabs.
Step 3 Modify any of the settings listed in Table 11-25.
For the factory default settings for the TXP_MR_10G cards, see Table C-10 on page C-26.
Step 4 Click Apply.
Table 11-25 TXP_MR_10G (Transponder) Card Optical Thresholds Settings
Parameter
|
Description
|
Options
|
Port #
|
Port number (read-only)
|
•1 (client side)
•2 (trunk side)
|
RX Power High (dBm)
|
Sets the warning threshold for high receiver input power
|
Numeric, in dBm
range -16.5 to +30.0 (client side)
range -21.0 to 30.0 (trunk side)
|
RX Power Low (dBm)
|
Sets the warning threshold for low receiver input power
|
Numeric, in dBm
range -40.0 to +1.5 (client side)
range -40.0 to -2.3 (trunk side)
|
RX Temp High (C)
|
Sets the warning threshold for high receiver temperature
|
Numeric, in degrees Celsius
125 (client side, read only)
range -3.75 to 125.0 (trunk side)
|
RX Temp Low (C)
|
Sets the warning threshold for low receiver temperature
|
Numeric, in degrees Celsius
-40 (client side, read only)
range -40.0 to 67.5 (trunk side)
|
Laser Bias High (%)
|
Sets the warning threshold for high laser bias current
|
Numeric, in percent
range 37.5 to 100.0 (client side)
range 37.5 to 100.0 (trunk side)
|
Laser Bias Low (%)
|
Sets the warning threshold for low laser bias current
|
Numeric, in percent
range 0 to 37.5 (client side)
range 0 to 37.5 (trunk side)
|
Laser Temp High (C)
|
Sets the warning threshold for high laser temperature
|
Numeric, in degrees Celsius
range -7.5 to 125.0 (client side)
range 3.75 to 125.0 (trunk side)
|
Laser Temp Low (C)
|
Sets the warning threshold for low laser temperature
|
Numeric, in degrees Celsius
range -40.0 to 56.25 (client side)
range -40.0 to 33.75 (trunk side)
|
TX Power High (dBm)
|
Sets the warning threshold for high transmitter output power
|
Numeric, in dBm
range -17.0 to 30.0 (client side)
range -18.8 to 30.0 (trunk side)
|
TX Power Low (dBm)
|
Sets the warning threshold for low transmitter output power
|
Numeric, in dBm
range -40.0 to 1.5 (client side)
range -40.0 to 2.6 (trunk side)
|
Step 5 Return to your originating procedure (NTP).
DLP-D279 Change Optical Transport Network Settings for TXP_MR_10G Cards
Purpose
|
Use this task to change the line optical transport network (OTN) settings for TXP_MR_10G (transponder) cards. The default TXP_MR_10G card settings are provided in Table C-10 on page C-26.
|
Tools/Equipment
|
None
|
Prerequisite Procedures
|
DLP-D60 Log into CTC, page 3-23
|
Required/As Needed
|
As needed
|
Onsite/Remote
|
Onsite or remote
|
Security Level
|
Provisioning or higher
|
Step 1 Double-click the TXP_MR_10G card where you want to change the OTN settings.
Step 2 Click the Provisioning > OTN tabs.
Step 3 Modify any of the settings listed in Table 11-26.
For the factory default settings for the TXP_MR_10G cards, see Table C-10 on page C-26.
Step 4 Click Apply.
Table 11-26 TXP_MR_10G (Transponder) Card OTN Settings
Parameter
|
Description
|
Options
|
OTN Lines
Port #
|
Port number (read-only)
|
2
|
OTN Lines
G.709 OTN
|
Sets the OTN lines according to ITU-T G.709
|
•enabled
•disabled
|
OTN Lines
FEC
|
Sets the OTN lines to forward error correction (FEC)
|
•enabled
•disabled
|
OTN Lines
SF BER
|
Sets the signal fail bit error rate
|
•1E-3
•1E-4
•1E-5
|
OTN Lines
SD BER
|
Sets the signal degrade bit error rate
|
•1E-5
•1E-6
•1E-7
•1E-8
•1E-9
|
OTN Lines
TxPower (dBm)
|
Sets the laser transmit power on the trunk side using variable optical attenuator (VOA)
|
—24.0 to +2 dBm
in 0.1 dB steps
|
G.709 Thresholds
Port
|
Port number (read-only)
|
2
|
G.709 Thresholds
ES
|
Errored seconds
|
Numeric. Can be set for Near End or Far End, for 15-minute or one-day intervals, for SM (OTUk) or PM (ODUk). Select bullet and click Refresh button.
|
G.709 Thresholds
SES
|
Severely errored seconds
|
Numeric. Can be set for Near End or Far End, for 15-minute or one-day intervals, for SM (OTUk) or PM (ODUk). Select bullet and click Refresh button.
|
G.709 Thresholds
UAS
|
Unavailable seconds
|
Numeric. Can be set for Near End or Far End, for 15-minute or one-day intervals, for SM (OTUk) or PM (ODUk). Select bullet and click Refresh button.
|
G.709 Thresholds
BBE
|
Background block errors
|
Numeric. Can be set for Near End or Far End, for 15-minute or one-day intervals, for SM (OTUk) or PM (ODUk). Select bullet and click Refresh button.
|
G.709 Thresholds
FC
|
Failure counter
|
Numeric. Can be set for Near End or Far End, for 15-minute or one-day intervals, for SM (OTUk) or PM (ODUk). Select bullet and click Refresh button.
|
FEC Thresholds
Port
|
Port number (read-only)
|
2
|
FEC Thresholds
|
Bit Errors Corrected
|
Numeric. Can be set for 15-minute or one-day intervals.
|
FEC Thresholds
|
Byte Errors Corrected
|
Numeric. Can be set for 15-minute or one-day intervals.
|
FEC Thresholds
|
Zero Bit Errors Detected
|
Numeric. Can be set for 15-minute or one-day intervals.
|
FEC Thresholds
|
One Bit Errors Detected
|
Numeric. Can be set for 15-minute or one-day intervals.
|
FEC Thresholds
|
Uncorrectable Words
|
Numeric. Can be set for 15-minute or one-day intervals.
|
Trail Trace Identifier
|
Level
|
•Section
•Path
|
Trail Trace Identifier
Trace Mode
|
Sets the trace mode
|
•Off/None
•Manual
|
Trail Trace Identifier
Transmit
|
Displays the current transmit string;
sets a new transmit string.
|
String of trace string size;
trail trace identifier is 64 bytes in length.
|
Trail Trace Identifier
Expected
|
Displays the current expected string;
sets a new expected string
|
String of trace string size
|
Trail Trace Identifier
Received
|
Displays the current received string (read only)
|
String of trace string size
|
Step 5 Return to your originating procedure (NTP).
NTP-D207 Modify Line Settings and PM Parameter Thresholds for MXP_2.5G_10G Cards
Purpose
|
Use this procedure to change the line and threshold settings for MXP_2.5G_10G (muxponder) cards. The default MXP_2.5G_10G card settings are provided in Table C-4 on page C-10.
|
Tools/Equipment
|
None
|
Prerequisite Procedures
|
NTP-D16 Install the Optical Cards, page 2-12
|
Required/As Needed
|
As needed
|
Onsite/Remote
|
Onsite or remote
|
Security Level
|
Provisioning or higher
|
Step 1 Log into the ONS 15454 SDH node where you want to change the settings or thresholds. See the "DLP-D60 Log into CTC" task on page 3-23.
Step 2 Complete the "NTP-D108 Back Up the Database" procedure on page 15-8.
Step 3 Perform any of the following tasks as needed:
•280 Change Card Settings for MXP_2.5G_10G Cards
•281 Change Line SDH Settings for MXP_2.5G_10G Cards
•282 Change Line Threshold Settings for MXP_2.5G_10G Cards
•283 Change Optical Thresholds Settings for MXP_2.5G_10G Cards
Step 4 Complete the "NTP-D108 Back Up the Database" procedure on page 15-8.
Stop. You have completed this procedure.
DLP-D280 Change Card Settings for MXP_2.5G_10G Cards
Purpose
|
Use this task to change the card settings for MXP_2.5G_10G (muxponder) cards. The default MXP_2.5G_10G card settings are provided in Table C-4 on page C-10.
|
Tools/Equipment
|
None
|
Prerequisite Procedures
|
DLP-D60 Log into CTC, page 3-23
|
Required/As Needed
|
As needed
|
Onsite/Remote
|
Onsite or remote
|
Security Level
|
Provisioning or higher
|
Step 1 Double-click the MXP_2.5G_10G card where you want to change the card settings.
Step 2 Click the Provisioning > Card tabs.
Step 3 Modify any of the settings listed in Table 11-27.
For the factory default settings for the MXP_2.5G_10G cards, see Table C-4 on page C-10.
Step 4 Click Apply.
Table 11-27 MXP_2.5G_10G (Muxponder) Card Settings
Parameter
|
Description
|
Options
|
Payload Type
|
Sets the type of payload
|
•SONET
•SDH
|
Termination Mode
|
Sets the mode of operation
|
•Transparent
•Line
|
Wavelength
|
Sets the wavelength of the DWDM side optical transmitter
|
•First Tunable Wavelength
•(Further wavelengths in 100 GHz ITU spacing)
|
Step 5 Return to your originating procedure (NTP).
DLP-D281 Change Line SDH Settings for MXP_2.5G_10G Cards
Purpose
|
Use this task to change the line settings for MXP_2.5G_10G (muxponder) cards. The default MXP_2.5G_10G card settings are provided in Table C-4 on page C-10.
|
Tools/Equipment
|
None
|
Prerequisite Procedures
|
DLP-D60 Log into CTC, page 3-23
|
Required/As Needed
|
As needed
|
Onsite/Remote
|
Onsite or remote
|
Security Level
|
Provisioning or higher
|
Step 1 Double-click the MXP_2.5G_10G card where you want to change the line SDH settings.
Step 2 Click the Provisioning > Line > SDH tabs (Figure 11-4).

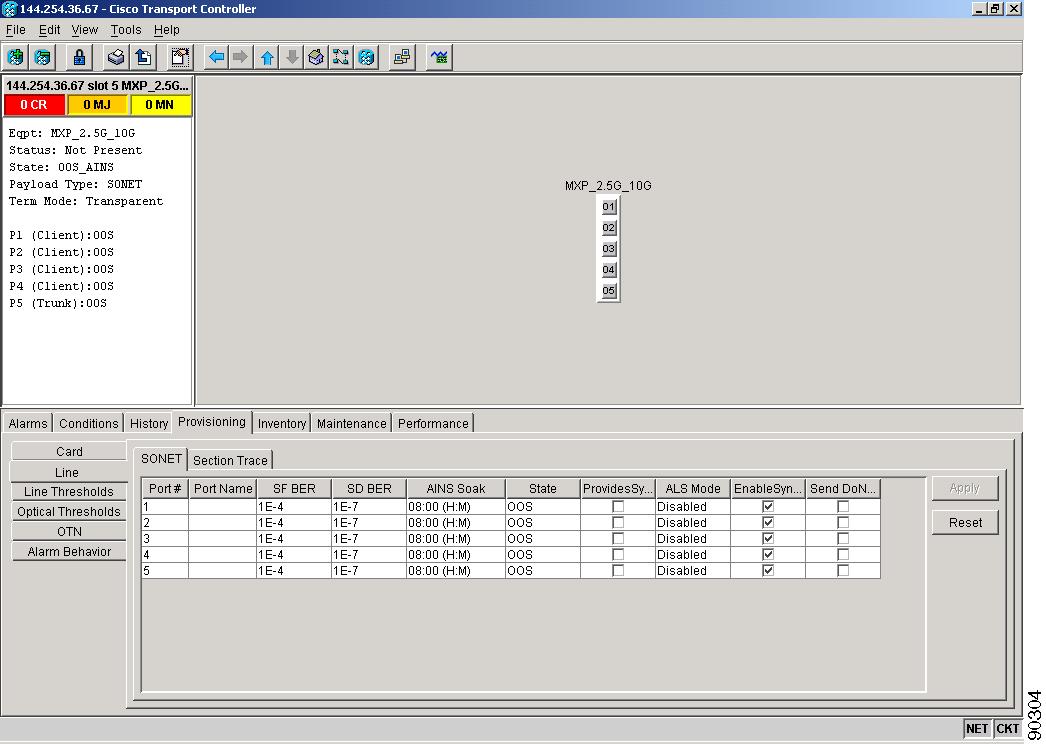

Figure 11-4 Provisioning Line Parameters on the MXP_2.5G_10G Card
Step 3 Modify any of the settings listed in Table 11-28.
For the factory default settings for the MXP_2.5G_10G cards, see Table C-4 on page C-10.
Step 4 Click Apply.
Table 11-28 MXP_2.5G_10G (Muxponder) Line SDH Settings
Parameter
|
Description
|
Options
|
Port #
|
Port number (read-only)
|
•1
•2
•3
•4
•5
|
Port Name
|
Provides the ability to assign the specified port a name
|
User-defined. Name can be up to 32 alphanumeric/special characters. Blank by default.
See the "DLP-D314 Assign a Name to a Port" procedure on page 6-18.
|
SF BER
|
Sets the signal fail bit error rate
|
•1E-3
•1E-4
•1E-5
|
SD BER
|
Sets the signal degrade bit error rate
|
•1E-5
•1E-6
•1E-7
•1E-8
•1E-9
|
AINS Soak
|
Automatic in-service soak
|
•Duration of valid input signal in hh.mm after which the card becomes in service (IS) automatically.
•0 to 48 hours, 15 minutes increments.
|
State
|
Places port in service, out of service, out of service-maintenace, or out of service-auto in service
|
•IS
•OOS
•OOS_MT
•OOS_AINS
|
ALS Mode
|
Sets the automatic laser shutdown function
|
•Disabled
•Auto Restart
•Manual Restart
•Manual Restart for Test
|
Provides Sync
|
If checked, the card is provisioned as a network element timing reference
|
•Yes
•No
(Read-only)
|
Enable Sync Msg
|
Enables synchronization status messages (S1 byte), which allow the node to choose the best timing source
|
•Yes
•No
|
Send DoNotUse
|
When checked, sends a DUS (do not use) message on the S1 byte
|
•Yes
•No
|
Step 5 Return to your originating procedure (NTP).
DLP-D284 Change Line Section Trace Settings for MXP_2.5G_10G Cards
Purpose
|
Use this task to change the section trace settings for MXP_2.5G_10G (muxponder) cards. The default MXP_2.5G_10G card settings are provided in Table C-4 on page C-10.
|
Tools/Equipment
|
None
|
Prerequisite Procedures
|
DLP-D60 Log into CTC, page 3-23
|
Required/As Needed
|
As needed
|
Onsite/Remote
|
Onsite or remote
|
Security Level
|
Provisioning or higher
|
Step 1 Double-click the MXP_2.5G_10G card where you want to change the section trace settings.
Step 2 Click the Provisioning > Line > Section Trace tabs.
Step 3 Modify any of the settings listed in Table 11-29.
For the factory default settings for the MXP_2.5G_10G cards, see Table C-4 on page C-10.
Step 4 Click Apply.
Table 11-29 MXP_2.5G_10G (Muxponder) Card Section Trace Settings
Parameter
|
Description
|
Options
|
Port #
|
Port number
|
•1
•2
•3
•4
•5
|
Trace Mode
|
Sets the trace mode
|
•Off/None
•Manual
|
Section Trace String Size
|
Sets the trace string size
|
•1 byte
•16 byte
|
Transmit
|
Displays the current transmit string;
sets a new transmit string
|
String of trace string size
|
Expected
|
Displays the current expected string;
sets a new expected string
|
String of trace string size
|
Received
|
Displays the current received string (read only)
|
String of trace string size
|
Step 5 Return to your originating procedure (NTP).
DLP-D282 Change Line Threshold Settings for MXP_2.5G_10G Cards
Purpose
|
Use this task to change the line threshold settings for MXP_2.5G_10G (muxponder) cards. The default MXP_2.5G_10G card settings are provided in Table C-4 on page C-10.
|
Tools/Equipment
|
None
|
Prerequisite Procedures
|
DLP-D60 Log into CTC, page 3-23
|
Required/As Needed
|
As needed
|
Onsite/Remote
|
Onsite or remote
|
Security Level
|
Provisioning or higher
|
Step 1 Double-click the MXP_2.5G_10G card where you want to change the line threshold settings.
Step 2 Click the Provisioning > Line Thresholds tabs.
Step 3 Modify any of the settings listed in Table 11-30.
For the factory default settings for the MXP_2.5G_10G cards, see Table C-4 on page C-10.
Step 4 Click Apply.
Table 11-30 MXP_2.5G_10G (Muxponder) Card Line Threshold Settings
Parameter
|
Description
|
Options
|
Port #
|
Port number (read-only)
|
•1
•2
•3
•4
•5
|
EB
|
Errored blocks
|
Numeric. Can be set for 15-minute or one-day intervals, near end or far end. Select the bullet and click the Refresh button.
|
ES
|
Errored seconds
|
Numeric. Can be set for Near End or Far End, for 15-minute or one-day intervals, or for Line (Far End only), Section or Line. Select bullet and click Refresh button.
|
SES
|
Severely errored seconds
|
Numeric. Can be set for Near End or Far End, for 15-minute or one-day intervals, or for Line (Far End only), Section or Line. Select bullet and click Refresh button.
|
BBE
|
Background block errors
|
Numeric. Can be set for 15-minute or one-day intervals, near end or far end. Select the bullet and click the Refresh button.
|
UAS
|
Unavailable seconds
|
Numeric. Can be set for Near End or Far End, for 15-minute or one-day intervals, for Line only. Select bullet and click Refresh button.
|
Step 5 Return to your originating procedure (NTP).
DLP-D283 Change Optical Thresholds Settings for MXP_2.5G_10G Cards
Purpose
|
Use this task to change the optical threshold settings for MXP_2.5G_10G (muxponder) cards. The default MXP_2.5G_10G card settings are provided in Table C-4 on page C-10.
|
Tools/Equipment
|
None
|
Prerequisite Procedures
|
DLP-D60 Log into CTC, page 3-23
|
Required/As Needed
|
As needed
|
Onsite/Remote
|
Onsite or remote
|
Security Level
|
Provisioning or higher
|
Step 1 Double-click the MXP_2.5G_10G card where you want to change the optical threshold settings.
Step 2 Click the Provisioning > Optical Thresholds tabs.
Step 3 Modify any of the settings listed in Table 11-31.
For the factory default settings for the MXP_2.5G_10G cards, see Table C-4 on page C-10.
Step 4 Click Apply.
Table 11-31 MXP_2.5G_10G (Muxponder) Card Optical Threshold Settings
Parameter
|
Description
|
Options
|
Port #
|
Port number (read-only)
|
•1
•2
•3
•4
•5
|
RX Power High (dBm)
|
Sets the warning threshold for high receiver input power
|
Numeric, in dBm
range -16.5 to +30.0 (client side)
range -21.0 to 30.0 (trunk side)
|
RX Power Low (dBm)
|
Sets the warning threshold for low receiver input power
|
Numeric, in dBm
range -40.0 to +1.5 (client side)
range -40.0 to -2.3 (trunk side)
|
RX Temp High (C)
|
Sets the warning threshold for high receiver temperature
|
Numeric, in degrees Celsius
125 (client side, read only)
range -3.75 to 125.0 (trunk side)
|
RX Temp Low (C)
|
Sets the warning threshold for low receiver temperature
|
Numeric, in degrees Celsius
-40 (client side, read only)
range -40.0 to 67.5 (trunk side)
|
Laser Bias High (%)
|
Sets the warning threshold for high laser bias current
|
Numeric, in percent
range 37.5 to 100.0 (client side)
range 37.5 to 100.0 (trunk side)
|
Laser Bias Low (%)
|
Sets the warning threshold for low laser bias current
|
Numeric, in percent
range 0 to 37.5 (client side)
range 0 to 37.5 (trunk side)
|
Laser Temp High (C)
|
Sets the warning threshold for high laser temperature
|
Numeric, in degrees Celsius
range -7.5 to 125.0 (client side)
range 3.75 to 125.0 (trunk side)
|
Laser Temp Low (C)
|
Sets the warning threshold for low laser temperature
|
Numeric, in degrees Celsius
range -40.0 to 56.25 (client side)
range -40.0 to 33.75 (trunk side)
|
TX Power High (dBm)
|
Sets the warning threshold for high transmitter output power
|
Numeric, in dBm
range -17.0 to 30.0 (client side)
range -18.8 to 30.0 (trunk side)
|
TX Power Low (dBm)
|
Sets the warning threshold for low transmitter output power
|
Numeric, in dBm
range -40.0 to 1.5 (client side)
range -40.0 to 2.6 (trunk side)
|
Step 5 Return to your originating procedure (NTP).
DLP-D285 Change Optical Transport Network Settings for MXP_2.5G_10G Cards
Purpose
|
Use this task to change the line OTN settings for MXP_2.5G_10G (muxponder) cards. The default MXP_2.5G_10G card settings are provided in Table C-4 on page C-10.
|
Tools/Equipment
|
None
|
Prerequisite Procedures
|
DLP-D60 Log into CTC, page 3-23
|
Required/As Needed
|
As needed
|
Onsite/Remote
|
Onsite or remote
|
Security Level
|
Provisioning or higher
|
Step 1 Double-click the MXP_2.5G_10G card where you want to change the OTN settings.
Step 2 Click the Provisioning > OTN tabs.
Step 3 Modify any of the settings listed in Table 11-32.
For the factory default settings for the MXP_2.5G_10G cards, see Table C-4 on page C-10.
Step 4 Click Apply.
Table 11-32 MXP_2.5G_10G (Muxponder) Card OTN Settings
Parameter
|
Description
|
Options
|
OTN Lines
Port #
|
Port number (read-only)
|
5
|
OTN Lines
G.709 OTN
|
Sets the OTN lines according to ITU-T G.709
|
•Enabled
•Disabled
|
OTN Lines
FEC
|
Sets the OTN lines to forward error correction (FEC)
|
•Enabled
•Disabled
|
OTN Lines
SF BER
|
Sets the signal fail bit error rate
|
•1E-3
•1E-4
•1E-5
|
OTN Lines
SD BER
|
Sets the signal degrade bit error rate
|
•1E-5
•1E-6
•1E-7
•1E-8
•1E-9
|
OTN Lines
TxPower (dBm)
|
Sets the laser transmit power on the trunk side using variable optical attenuator (VOA)
|
-24.0 to +2 dBm
in 0.1 dB steps
|
G.709 Thresholds
Port
|
Port number (read-only)
|
5
|
G.709 Thresholds
ES
|
Errored seconds
|
Numeric. Can be set for Near End or Far End, for 15-minute or one-day intervals, for SM (OTUk) or PM (ODUk). Select bullet and click Refresh button.
|
G.709 Thresholds
SES
|
Severely errored seconds
|
Numeric. Can be set for Near End or Far End, for 15-minute or one-day intervals, for SM (OTUk) or PM (ODUk). Select bullet and click Refresh button.
|
G.709 Thresholds
UAS
|
Unavailable seconds
|
Numeric. Can be set for Near End or Far End, for 15-minute or one-day intervals, for SM (OTUk) or PM (ODUk). Select bullet and click Refresh button.
|
G.709 Thresholds
BBE
|
Background block errors
|
Numeric. Can be set for Near End or Far End, for 15-minute or one-day intervals, for SM (OTUk) or PM (ODUk). Select bullet and click Refresh button.
|
G.709 Thresholds
FC
|
Failure counter
|
Numeric. Can be set for Near End or Far End, for 15-minute or one-day intervals, for SM (OTUk) or PM (ODUk). Select bullet and click Refresh button.
|
FEC Thresholds
Port
|
Port number (read-only)
|
5
|
FEC Thresholds
|
Bit Errors Corrected
|
Numeric. Can be set for 15-minute or one-day intervals.
|
FEC Thresholds
|
Byte Errors Corrected
|
Numeric. Can be set for 15-minute or one-day intervals.
|
FEC Thresholds
|
Zero Bit Errors Detected
|
Numeric. Can be set for 15-minute or one-day intervals.
|
FEC Thresholds
|
One Bit Errors Detected
|
Numeric. Can be set for 15-minute or one-day intervals.
|
FEC Thresholds
|
Uncorrectable Words
|
Numeric. Can be set for 15-minute or one-day intervals.
|
Trail Trace Identifier
|
Level
|
•Section
•Path
|
Trail Trace Identifier
Trace Mode
|
Sets the trace mode
|
•Off/None
•Manual
|
Trail Trace Identifier
Transmit
|
Displays the current transmit string;
sets a new transmit string
|
String of trace string size;
trail trace identifier is 64 bytes in length.
|
Trail Trace Identifier
Expected
|
Displays the current expected string;
sets a new expected string
|
String of trace string size
|
Trail Trace Identifier
Received
|
Displays the current received string (read only)
|
String of trace string size
|
Step 5 Return to your originating procedure (NTP).
NTP-D118 Modify Alarm Interface Controller-International Settings
Purpose
|
Use this procedure to modify the AIC-I card external alarms and controls (environmental alarms) or to change orderwire settings.
|
Tools/Equipment
|
None
|
Prerequisite Procedures
|
"DLP-D334 Install the AIC-I Card" procedure on page 2-11
|
Required/As Needed
|
As needed
|
Onsite/Remote
|
Onsite or remote
|
Security Level
|
Provisioning or higher
|
Note If you are provisioning the AIC-I card for the first time, see the NTP-D123 Provision External Alarms and Controls on the Alarm Interface Controller-International, page 7-33.
Step 1 Log into the ONS 15454 SDH node where you want to change the AIC-I card settings. See the "DLP-D60 Log into CTC" task on page 3-23.
Step 2 Complete the "NTP-D108 Back Up the Database" procedure on page 15-8.
Step 3 Perform any of the following tasks as needed:
•208 Change External Alarms Using the AIC-I Card
•209 Change External Controls Using the AIC-I Card
•210 Change AIC-I Card Orderwire Settings
Step 4 Complete the "NTP-D108 Back Up the Database" procedure on page 15-8.
Stop. You have completed this procedure.
DLP-D208 Change External Alarms Using the AIC-I Card
Purpose
|
Use this task to change external alarm settings on the AIC-I card.
|
Tools/Equipment
|
None
|
Prerequisite Procedures
|
DLP-D60 Log into CTC, page 3-23
|
Required/As Needed
|
As needed
|
Onsite/Remote
|
Onsite or remote
|
Security Level
|
Provisioning or higher
|
Step 1 Confirm that external-device relays are wired to the ENVIR ALARMS IN backplane pins. See the "DLP-D324 Install Alarm Cable on the MIC-A/P" procedure on page 1-30 for more information.
Step 2 Double-click the AIC-I card to display it in card view.
Step 3 Click the Provisioning > External Alarms tab (Figure 11-5).
Step 4 Modify any of the following fields for each external device wired to the ONS 15454 SDH MIC-A/P card. For definitions of these fields, see the "NTP-D123 Provision External Alarms and Controls on the Alarm Interface Controller-International" procedure on page 7-33.
•Enabled
•Alarm Type
•Severity
•Virtual Wire
•Raised When
•Description

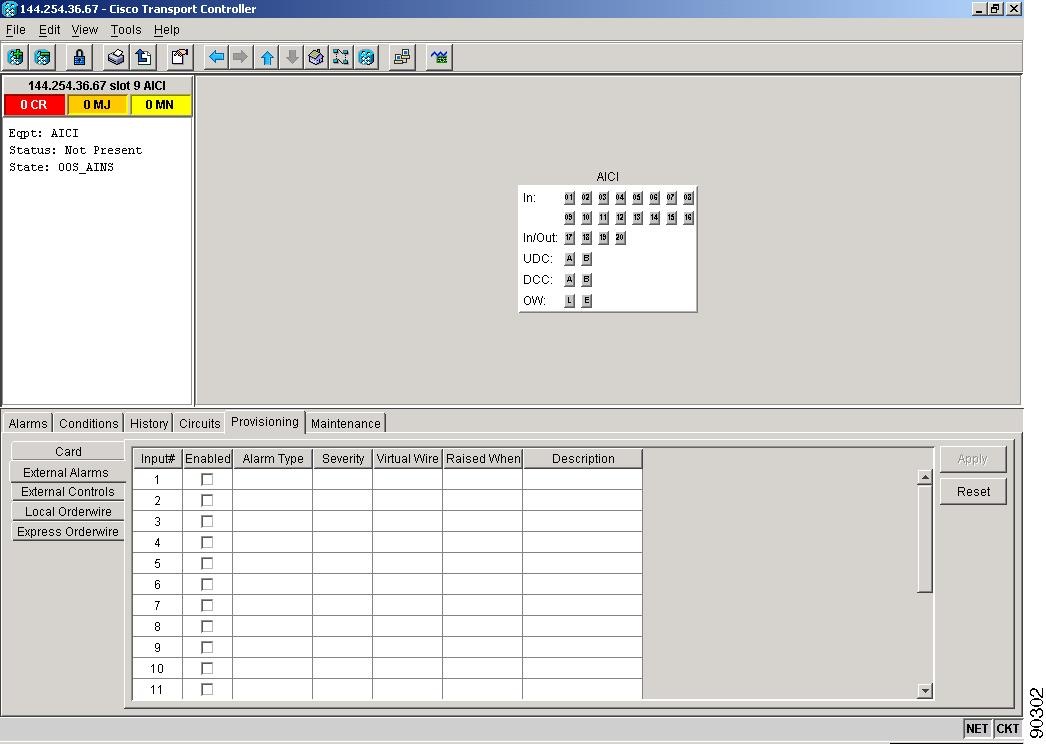

Figure 11-5 Provisioning External Alarms on the AIC-I Card
Step 5 To provision additional devices, complete Step 4 for each additional device.
Step 6 Click Apply.
Step 7 Return to your originating procedure (NTP).
DLP-D209 Change External Controls Using the AIC-I Card
Purpose
|
Use this task to change external control settings on the AIC-I card.
|
Tools/Equipment
|
None
|
Prerequisite Procedures
|
DLP-D60 Log into CTC, page 3-23
|
Required/As Needed
|
As needed
|
Onsite/Remote
|
Onsite or remote
|
Security Level
|
Provisioning or higher
|
Step 1 Verify the external control relays to the MIC-A/P card connector. See the "DLP-D324 Install Alarm Cable on the MIC-A/P" task on page 1-30 for more information.
Step 2 Double-click the AIC-I card to display it in card view.
Step 3 On the External Controls subtab, modify any of the following fields for each external control wired to the ONS 15454 SDH MIC-A/P card. For definitions of these fields, see the "NTP-D123 Provision External Alarms and Controls on the Alarm Interface Controller-International" procedure on page 7-33.
•Enabled
•Trigger Type
•Control Type
•Description
Step 4 To provision additional controls, complete Step 3 for each additional device.
Step 5 Click Apply.
Step 6 Return to your originating procedure (NTP).
DLP-D210 Change AIC-I Card Orderwire Settings
Purpose
|
Use this task to change orderwire settings on the AIC-I card.
|
Tools/Equipment
|
None
|
Prerequisite Procedures
|
DLP-D60 Log into CTC, page 3-23
|
Required/As Needed
|
As needed
|
Onsite/Remote
|
Onsite or remote
|
Security Level
|
Provisioning or higher
|
Caution When provisioning orderwire for ONS 15454 SDHs residing in a ring, do not provision a complete orderwire loop. For example, a four-node ring typically has east and west ports provisioned at all four nodes. However, to prevent orderwire loops, provision two orderwire ports (east and west) at all but one of the ring nodes.
Tip Before you begin, make a list of the ONS 15454 SDH slots and ports that require orderwire communication.
Step 1 Double-click the AIC-I card to display it in card view.
Step 2 Click the Provisioning > Local Orderwire tabs or the Provisioning > Express Orderwire tabs, depending on the orderwire path that you want to create.
Figure 11-6 shows the Local Orderwire subtab. Provisioning steps are the same for both types of orderwire.

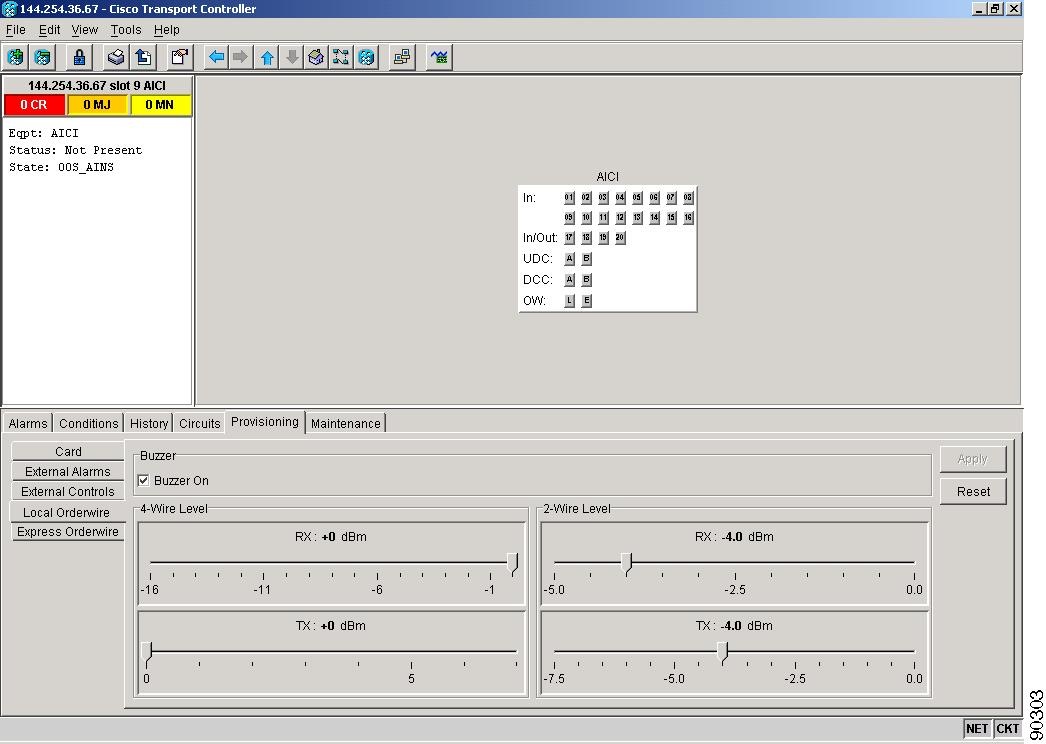

Figure 11-6 Provisioning Local Orderwire
Step 3 If needed, adjust the Tx and Rx dBm by moving the slider to the right or left for the headset type (four-wire or two-wire) that you will use. In general, you should not need to adjust the dBm.
Step 4 If you want to turn on the audible alert (buzzer) for the orderwire, select (check) the Buzzer On check box.
Step 5 Click Apply.
Step 6 Return to your originating procedure (NTP).
NTP-D91 Upgrade E1-N-14 and DS3 i-N-12 Protect Cards from 1:1 Protection to 1:N Protection
Purpose
|
Use this task to convert E1-N-14 and DS3i-N-12 protect cards from 1:1 to 1:N protection.
|
Tools/Equipment
|
None
|
Prerequisite Procedures
|
None
|
Required/As Needed
|
As needed
|
Onsite/Remote
|
Onsite or remote
|
Security Level
|
Provisioning or higher
|
Step 1 Log into the ONS 15454 SDH node where you want to change the settings. See the "DLP-D60 Log into CTC" task on page 3-23.
Step 2 Complete the "NTP-D108 Back Up the Database" procedure on page 15-8.
Step 3 Perform any of the following tasks as needed:
•"DLP-D176 Convert E1-N-14 Cards From 1:1 to 1:N Protection" task
•"DLP-D177 Convert DS3i-N-12 Cards From 1:1 to 1:N Protection" task
Step 4 Complete the "NTP-D108 Back Up the Database" procedure on page 15-8.
Stop. You have completed this procedure.
DLP-D176 Convert E1-N-14 Cards From 1:1 to 1:N Protection
Purpose
|
Use this task to convert E1-N-14 cards in a 1:1 protection scheme to 1:N protection.
|
Tools/Equipment
|
None
|
Prerequisite Procedures
|
DLP-D60 Log into CTC, page 3-23
|
Required/As Needed
|
As needed
|
Onsite/Remote
|
Onsite
|
Security Level
|
Provisioning or higher
|
Note This procedure assumes E1-N-14 cards are installed in Slots 1 through 6 and/or Slots 12 through 17. The E1-N-14 cards in Slots 3 and 15 are the protect cards. Each protect card protects the other E1-N-14 cards in that half of the shelf. The ONS 15454 SDH must run CTC Release 4.0 or later.
Step 1 In node view, click the Maintenance > Protection tabs.
Step 2 Click the protection group that contains Slot 3 or Slot 15 (where you will install the protect E1-N-14 card).
Step 3 Make sure the slot you are upgrading is not carrying working traffic. In the Selected Group list, the protect slot must say Protect/Standby and not Working/Active. If the protect slot status is Working/Active, use the following steps to switch traffic to the working card:
a. Under Selected Group, click the protect card.
b. Next to Switch Commands, click Switch.
The working slot should change to Working/Active and the protect slot should change to Protect/Standby. If they do not change, do not continue. Troubleshoot the working card and slot to determine why the card cannot carry working traffic.
Step 4 Repeat Steps 1 - 3 for each protection group that you need to convert.
Step 5 Verify that no standing alarms exist for any of the E1-N-14 cards that you are converting. If alarms exist and you have difficulty clearing them, contact your next level of support.
Step 6 Click the Provisioning > Protection tabs.
Step 7 Click the 1:1 protection group that contains the cards that you will move into the new protection group.
Step 8 Click Delete.
Step 9 When the confirmation dialog displays, click Yes.
Note Deleting the 1:1 protection group does not disrupt service. However, no protection bandwidth exists for the working circuits until you complete the 1:N protection procedure. Therefore, complete this procedure as quickly as possible.
Step 10 If needed, repeat Steps 7 - 9 for other protection groups.
Step 11 Physically insert an E1-N-14 card into the protection slot (Slot 3 or Slot 15).
Step 12 Verify that the card boots up properly.
Step 13 Click the Inventory tab and verify that the new card appears as an E1-N-14.
Step 14 Click the Provisioning > Protection tabs.
Step 15 Click Create.
Step 16 Type a name for the protection group in the Name field (optional).
Step 17 From the Type pull-down menu, choose 1:N (card).
Step 18 From the Protect Card pull-down menu, choose the E1-N-14 card. Verify that the correct E1-N-14 card appears in the Protect Card field.
Step 19 Under Available Cards, highlight the cards that you want in the protection group. Click the arrow (>>) tab to move the cards to the Working Cards list.
Step 20 If necessary, set a new reversion time in the Reversion time pull-down menu.
Note 1:N protection groups are always revertive.
Step 21 Click OK. The protection group appears in the Protection Groups list on the Protection subtab.
Step 22 Return to your originating procedure (NTP).
DLP-D177 Convert DS3i-N-12 Cards From 1:1 to 1:N Protection
Purpose
|
Use this task to convert DS3i-N-12 cards in a 1:1 protection scheme to 1:N protection.
|
Tools/Equipment
|
None
|
Prerequisite Procedures
|
DLP-D60 Log into CTC, page 3-23
|
Required/As Needed
|
As needed
|
Onsite/Remote
|
Onsite
|
Security Level
|
Provisioning or higher
|
Note This procedure assumes that DS3i-N-12 cards are installed in Slots 1 to 6 and/or Slots 12 to 17. The DS3i-N-12 cards in Slots 3 and 15 are the protect cards. Each protect card protects the other DS3i-N-1212 cards in that half of the shelf. The ONS 15454 SDH must run CTC Release 4.0 or later.
Step 1 In node view, click the Maintenance > Protection tabs.
Step 2 Click the protection group that contains Slot 3 or Slot 15 (where you will install the DS3i-N-12 card).
Step 3 Make sure the slot you are upgrading is not carrying working traffic. In the Selected Group list, the protect slot must say Protect/Standby and not Working/Active. If the protect slot status is Working/Active, use the following steps to switch traffic to the working card:
a. Under Selected Group, click the protect card.
b. Next to Switch Commands, click Switch.
The working slot should change to Working/Active and the protect slot should change to Protect/Standby. If they fail to change, do not continue. Troubleshoot the working card and slot to determine why the card cannot carry working traffic.
Step 4 Repeat Steps 2 and 3 for each protection group that you need to convert.
Step 5 Verify that no standing alarms exist for any of the DS3i-N-12 cards you are converting. If alarms exist and you have difficulty clearing them, contact your next level of support.
Step 6 Click the Provisioning > Protection tabs.
Step 7 Click the 1:1 protection group that contains the cards that you will move into the new protection group.
Step 8 Click Delete.
Step 9 When the confirmation dialog displays, click Yes.
Note Deleting the 1:1 protection groups will not disrupt service. However, no protection bandwidth exists for the working circuits until the 1:N protection procedure is completed. Therefore, complete this procedure as soon as possible.
Step 10 If you are deleting more than one protection group, repeat Steps 7 - 9 for each group.
Step 11 Physically insert a DS3i-N-12 card into the same slot.
Step 12 Verify that the card boots up properly.
Step 13 Click the Inventory tab and verify that the new card appears as a DS3i-N-12 card.
Step 14 Click the Provisioning > Protection tabs.
Step 15 Click Create.
Step 16 Type a name for the protection group in the Name field (optional).
Step 17 Click Type and choose 1:N (card) from the pull-down menu.
Step 18 Verify that the DS3i-N-12 card appears in the Protect Card field.
Step 19 In the Available Cards list, highlight the cards that you want in the protection group. Click the arrow (>>) tab to move the cards to the Working Cards list.
Step 20 Click OK.
The protection group should appear in the Protection Groups list on the Protection subtab.
Step 21 Return to your originating procedure (NTP).
