About the Cisco Validated Design Program
The Cisco Validated Design (CVD) program consists of systems and solutions designed, tested, and documented to facilitate faster, more reliable, and more predictable customer deployments. For more information, go to: http://www.cisco.com/go/designzone.
The FlexPod Datacenter solution is a validated approach for deploying Cisco and NetApp technologies and products to build shared private and public cloud infrastructure. Cisco and NetApp have partnered to deliver a series of FlexPod solutions that enable strategic data-center platforms. The success of the FlexPod solution is driven through its ability to evolve and incorporate both technology and product innovations in the areas of management, compute, storage, and networking. This document covers deployment details of incorporating the new Cisco UCS 5th Generation components into the FlexPod Datacenter and the ability to manage FlexPod components from the cloud using Cisco Intersight. Some of the key advantages of integrating Cisco UCS 5th generation components into the FlexPod infrastructure are:
● Simpler and programmable infrastructure: infrastructure as code delivered through a single partner integrable open API
● End-to-End 100Gbps Ethernet: utilizing the 5th Generation Cisco UCS VIC 15231, the 5th Generation Cisco UCS 6536 Fabric Interconnect, and the UCSX-I-9108-100G Intelligent Fabric Module to deliver 100Gbps Ethernet from the server through the network to the storage
● End-to-End 32Gbps Fibre Channel: utilizing the 5th Generation Cisco UCS VIC 15231, the 5th Generation Cisco UCS 6536 Fabric Interconnect, and the UCSX-I-9108-100G Intelligent Fabric Module to deliver 32Gbps Ethernet from the server (via 100Gbps FCoE) through the network to the storage
● Innovative cloud operations: continuous feature delivery and no need for maintaining on-premise virtual machines supporting management functions
● Built for investment protections: design ready for future technologies such as liquid cooling and high-Wattage CPUs; CXL-ready
In addition to the compute-specific hardware and software innovations, the integration of the Cisco Intersight cloud platform with VMware vCenter and NetApp Active IQ Unified Manager delivers monitoring, orchestration, and workload optimization capabilities for different layers (virtualization and storage) of the FlexPod infrastructure. The modular nature of the Cisco Intersight platform also provides an easy upgrade path to additional services, such as workload optimization.
Customers interested in understanding the FlexPod design and deployment details, including the configuration of various elements of design and associated best practices, should refer to Cisco Validated Designs for FlexPod, here: https://www.cisco.com/c/en/us/solutions/design-zone/data-center-design-guides/flexpod-design-guides.html.
This chapter is organized as follows:
● Audience
The Cisco Unified Compute System (Cisco UCS) with Intersight Managed Mode (IMM) X-Series is a modular compute system, configured and managed from the cloud. It is designed to meet the needs of modern applications and to improve operational efficiency, agility, and scale through an adaptable, future-ready, modular design. The Cisco Intersight platform is a Soft-ware-as-a-Service (SaaS) infrastructure lifecycle management platform that delivers simplified configuration, deployment, maintenance, and support.
Powered by the Cisco Intersight cloud-operations platform, the Cisco UCS with X-Series enables the next-generation cloud-operated FlexPod infrastructure that not only simplifies data-center management but also allows the infra-structure to adapt to the unpredictable needs of modern applications as well as traditional workloads. With the Cisco Intersight platform, customers get all the benefits of SaaS delivery and the full lifecycle management of Inter-sight-connected distributed servers and integrated NetApp storage systems across data centers, remote sites, branch offices, and edge environments.
Audience
The intended audience of this document includes but is not limited to IT architects, sales engineers, field consultants, professional services, IT managers, partner engineering, and customers who want to take advantage of an infrastructure built to deliver IT efficiency and enable IT innovation.
This document provides deployment guidance using Ansible playbooks around incorporating the Cisco Intersight managed Cisco UCS X-Series platform with end-to-end 100Gbps within FlexPod Datacenter infrastructure. The document explains both configurations and best practices for a successful deployment. This deployment guide also highlights integration of VMware vCenter and NetApp Active IQ Unified Manager to Cisco Intersight to deliver a true cloud-based integrated approach to infrastructure management.
The following design elements distinguish this version of FlexPod from previous models:
● End-to-End 100Gbps Ethernet and 32Gbps Fibre Channel in FlexPod Datacenter
● Integration of the 5th Generation Cisco UCS 6536 Fabric Interconnect into FlexPod Datacenter
● Integration of the 5th Generation Cisco UCS 15000-series VICs into FlexPod Datacenter
● Integration of the Cisco UCSX-I-9108-100G Intelligent Fabric Module into the X-Series 9508 Chassis
● Integration of the Cisco UCS C225 and C245 M6 Servers with AMD EPYC CPUs
● Addition of the Non-Volatile Memory Express over Transmission Control Protocol (NVMe-TCP) Storage Protocol with NetApp ONTAP 9.11.1
● An integrated, more complete end-to-end Infrastructure as Code (IaC) Day 0 configuration of the FlexPod Infrastructure utilizing Ansible Scripts
● VMware vSphere 7.0 Update 3
● Integration with the FlexPod XCS Integrated System in Cisco Intersight
Deployment Hardware and Software
This chapter is organized as follows:
● Ansible Automation Workflow and Solution Deployment
The FlexPod Datacenter with Cisco UCS and Cisco Intersight meets the following general design requirements:
● Resilient design across all layers of the infrastructure with no single point of failure
● Scalable design with the flexibility to add compute capacity, storage, or network bandwidth as needed
● Modular design that can be replicated to expand and grow as the needs of the business grow
● Flexible design that can support different models of various components with ease
● Simplified design with ability to integrate and automate with external automation tools
● Cloud-enabled design which can be configured, managed, and orchestrated from the cloud using GUI or APIs
To deliver a solution which meets all these design requirements, various solution components are connected and configured as covered in the upcoming sections.
The FlexPod Datacenter solution with end-to-end 100Gbps ethernet is built using the following hardware components:
● Cisco UCS X9508 Chassis with Cisco UCSX-I-9108-100G Intelligent Fabric Modules (IFMs) and up to eight Cisco UCS X210c M6 Compute Nodes with 3rd Generation Intel Xeon Scalable CPUs
● Fifth-generation Cisco UCS 6536 Fabric Interconnects to support 100GbE, 25GbE, and 32GFC connectivity from various components
● Cisco UCS C225 M6 and C245 M6 rack mount servers with AMD EPYC CPUs
● High-speed Cisco NX-OS-based Nexus 93360YC-FX2 switching design to support up to 100GE and 32GFC connectivity
● NetApp AFF A800/A400 end-to-end NVMe storage with 100G Ethernet and (optional) 32G Fibre Channel connectivity
● Cisco MDS 9132T* switches to support Fibre Channel storage configuration
Note: * Cisco MDS 9132T and FC connectivity is not needed when implementing IP-based connectivity design supporting iSCSI boot from SAN, NFS, and NVMe-TCP.
The software components of this solution consist of:
● Cisco Intersight SaaS platform to deploy, maintain and support the FlexPod components

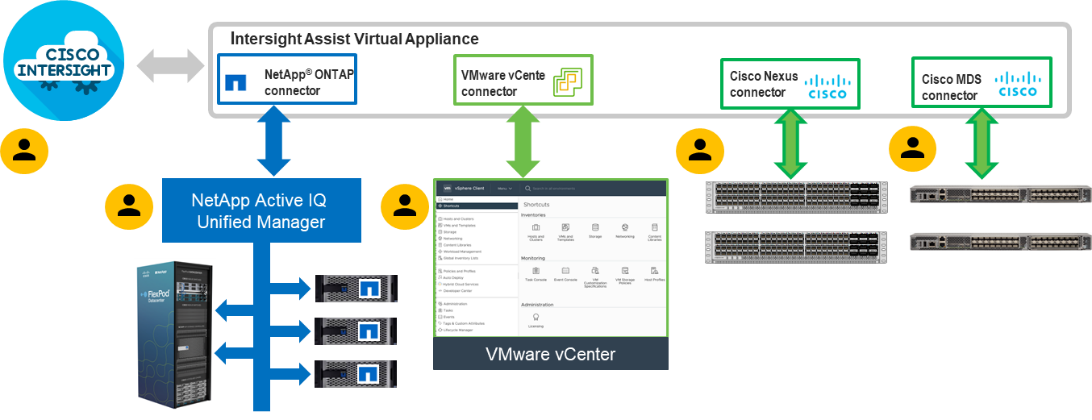

● Cisco Intersight Assist Virtual Appliance to help connect NetApp ONTAP, VMware vCenter, and Cisco Nexus and MDS switches with Cisco Intersight
● NetApp Active IQ Unified Manager to monitor and manage the storage and for NetApp ONTAP integration with Cisco Intersight
● VMware vCenter to set up and manage the virtual infrastructure as well as Cisco Intersight integration
FlexPod Datacenter for IP-based Storage Access

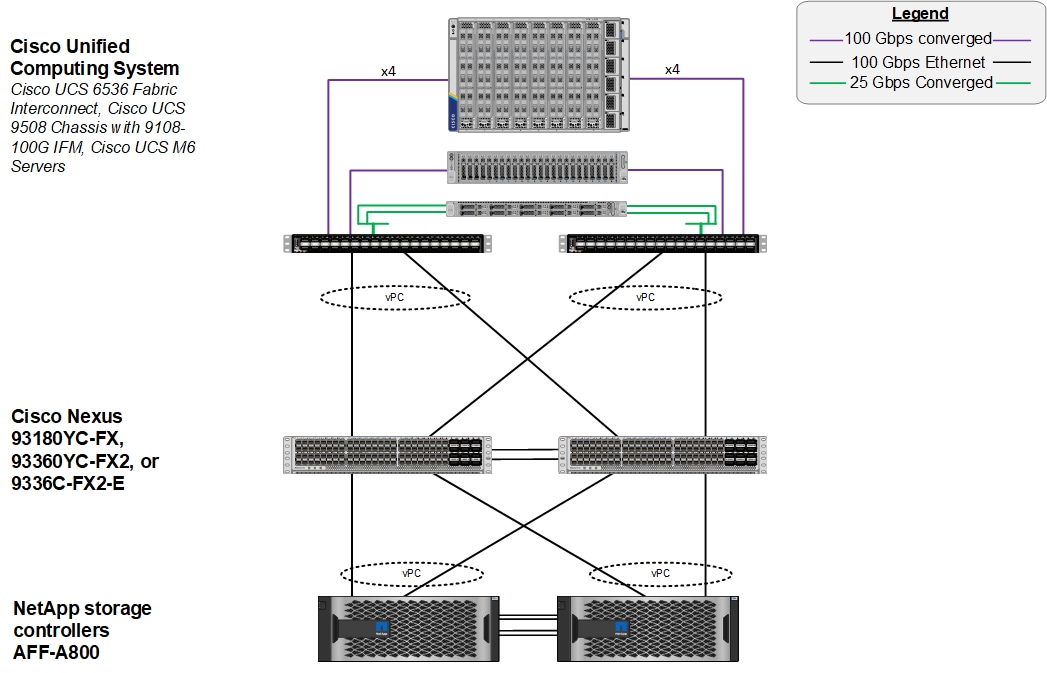

Figure 1 shows various hardware components and the network connections for the IP-based FlexPod design.
Figure 1. FlexPod Datacenter Physical Topology for IP-based Storage Access
The reference hardware configuration includes:
● Two Cisco Nexus 93360YC-FX2 Switches in Cisco NX-OS mode provide the switching fabric.
● Two Cisco UCS 6536 Fabric Interconnects (FI) provide the chassis connectivity. One 100 Gigabit Ethernet port from each FI, configured as a Port-Channel, is connected to each Nexus 93360YC-FX2.
● One Cisco UCS X9508 Chassis connects to fabric interconnects using Cisco UCSX 9108-100G Intelligent Fabric Modules (IFMs), where four 100 Gigabit Ethernet ports are used on each IFM to connect to the appropriate FI. If additional bandwidth is required, all eight 100G ports can be utilized.
● One NetApp AFF A800 HA pair connects to the Cisco Nexus 93360YC-FX2 Switches using two 100 GE ports from each controller configured as a Port-Channel.
● Two (one shown) UCS C245 rack mount servers connect to the Fabric Interconnects using two 100 GE ports per server
● Two (one shown) UCS C225 rack mount servers connect to the Fabric Interconnects via breakout using four 25 GE ports per server
FlexPod Datacenter for FC-based Storage Access

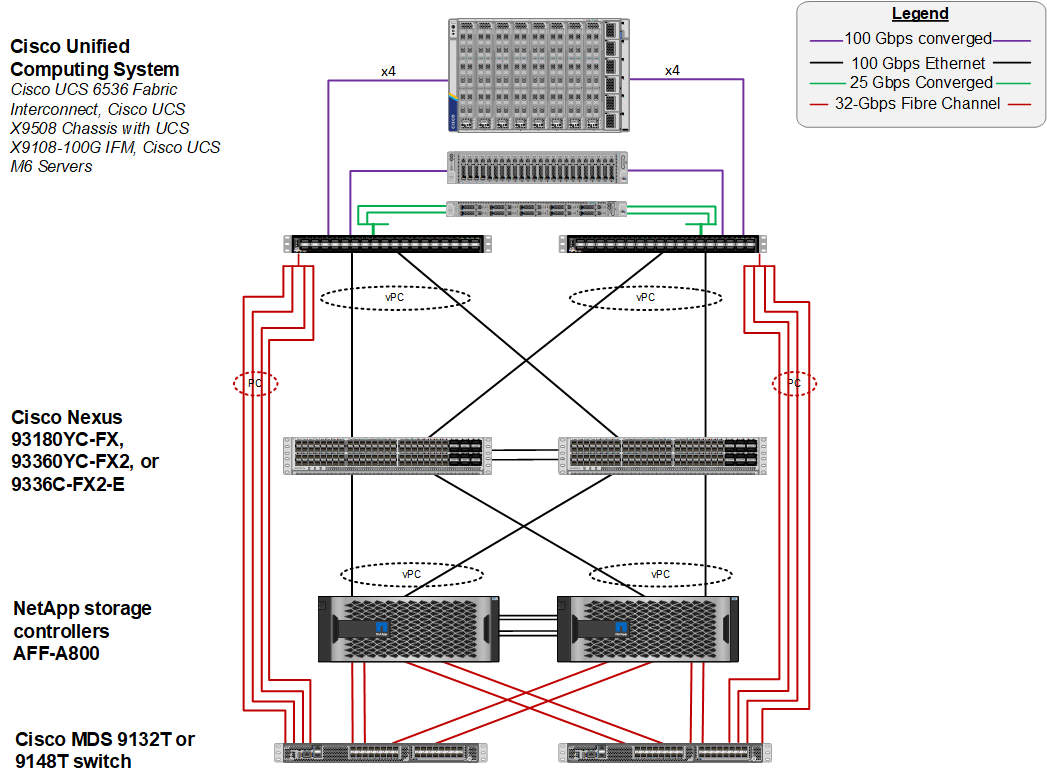

Figure 2 shows various hardware components and the network connections for the FC-based FlexPod design.
Figure 2. FlexPod Datacenter Physical Topology for FC-based Storage Access
The reference hardware configuration includes:
● Two Cisco Nexus 93360YC-FX2 Switches in Cisco NX-OS mode provide the switching fabric.
● Two Cisco UCS 6536 Fabric Interconnects (FI) provide the chassis connectivity. One 100 Gigabit Ethernet port from each FI, configured as a Port-Channel, is connected to each Nexus 93360YC-FX2. Four FC ports are connected to the Cisco MDS 9132T switches via breakout using 32-Gbps Fibre Channel connections configured as a single port channel for SAN connectivity.
● One Cisco UCS X9508 Chassis connects to fabric interconnects using Cisco UCSX 9108-100G Intelligent Fabric Modules (IFMs), where four 100 Gigabit Ethernet ports are used on each IFM to connect to the appropriate FI. If additional bandwidth is required, all eight 100G ports can be utilized.
● One NetApp AFF A800 HA pair connects to the Cisco Nexus 93360YC-FX2 Switches using two 100 GE ports from each controller configured as a Port-Channel. Two 32Gbps FC ports from each controller are connected to each Cisco MDS 9132T for SAN connectivity.
● Two (one shown) Cisco UCS C245 rack mount servers connect to the Fabric Interconnects using two 100 GE ports per server
● Two (one shown) Cisco UCS C225 rack mount servers connect to the Fabric Interconnects via breakout using four 25 GE ports per server
Note: The NetApp storage controller and disk shelves should be connected according to best practices for the specific storage controller and disk shelves. For disk shelf cabling, refer to NetApp Support: https://docs.netapp.com/us-en/ontap-systems/index.html
VLAN Configuration
Table 1 lists VLANs configured for setting up the FlexPod environment along with their usage.
VLAN ID |
Name |
Usage |
IP Subnet used in this deployment |
2 |
Native-VLAN |
Use VLAN 2 as native VLAN instead of default VLAN (1). |
|
1020 |
OOB-MGMT-VLAN |
Out-of-band management VLAN to connect management ports for various devices |
10.102.0.0/24; GW: 10.102.0.254 |
1021 |
IB-MGMT-VLAN |
In-band management VLAN utilized for all in-band management connectivity - for example, ESXi hosts, VM management, and so on. |
10.102.1.0/24; GW: 10.102.1.254 |
1022 |
VM-Traffic |
VM data traffic VLAN |
10.102.2.0/24; GW: 10.102.2.254 |
3050 |
NFS-VLAN |
NFS VLAN for mounting datastores in ESXi servers for VMs |
192.168.50.0/24 ** |
3010* |
iSCSI-A |
iSCSI-A path for storage traffic including boot-from-san traffic |
192.168.10.0/24 ** |
3020* |
iSCSI-B |
iSCSI-B path for storage traffic including boot-from-san traffic |
192.168.20.0/24 ** |
3030 |
NVMe-TCP-A |
NVMe-TCP-A path when using NVMe-TCP |
192.168.30.0/24 ** |
3040 |
NVMe-TCP-B |
NVMe-TCP-B path when using NVMe-TCP |
192.168.40.0/24 ** |
3000 |
vMotion |
VMware vMotion traffic |
192.168.0.0/24 ** |
* iSCSI VLANs are not required if using FC storage access.
** IP gateway is not needed since no routing is required for these subnets
Some of the key highlights of VLAN usage are as follows:
● VLAN 1020 allows customers to manage and access out-of-band management interfaces of various devices.
● VLAN 1021 is used for in-band management of VMs, ESXi hosts, and other infrastructure services
● VLAN 3050 provides ESXi hosts access to the NFS datastores hosted on the NetApp Controllers for deploying VMs.
● A pair of iSCSI VLANs (3010 and 3020) is configured to provide access to boot LUNs for ESXi hosts. These VLANs are not needed if customers are using FC-only connectivity.
● A pair of NVMe-TCP VLANs (3030 and 3040) is configured to provide access to NVMe datastores when NVMe-TCP is being used
● VLAN 3000 is used for VM vMotion
Table 2 lists the infrastructure VMs necessary for deployment as outlined in this document.
Virtual Machine Description |
VLAN |
IP Address |
Comments |
vCenter Server |
1021 |
10.102.1.100 |
Hosted on either pre-existing management infrastructure or on FlexPod |
NetApp ONTAP Tools for VMware vSphere |
1021 |
10.102.1.99 |
Hosted on FlexPod |
NetApp SnapCenter Plug-in for VMware vSphere |
1021 |
10.102.1.98 |
Hosted on FlexPod |
NetApp Active IQ Unified Manager |
1021 |
10.102.1.97 |
Hosted on FlexPod |
Cisco Intersight Assist |
1021 |
10.102.1.96 |
Hosted on FlexPod |
Table 3 lists the software revisions for various components of the solution.
Layer |
Device |
Image Bundle |
Comments |
Compute |
Cisco UCS |
4.2(2c) |
Cisco UCS GA release for infrastructure including FIs and IOM/IFM. |
Network |
Cisco Nexus 93360YC-FX2 NX-OS |
10.2(3)F |
|
Cisco MDS 9132T |
9.2(2) |
Requires SMART Licensing |
|
Storage |
NetApp AFF A800/A400 |
ONTAP 9.11.1P2 |
|
Software |
Cisco UCS X210c |
5.0(2d) |
Cisco UCS X-series GA release for compute nodes |
Cisco UCS C225/245 M6 |
4.2(2f) |
|
|
Cisco Intersight Assist Appliance |
1.0.9-456 |
1.0.9-342 initially installed and then automatically upgraded |
|
VMware vCenter |
7.0 Update 3h |
Build 20395099 |
|
VMware ESXi |
7.0 Update 3d |
Build 19482537 included in Cisco Custom ISO |
|
VMware ESXi nfnic FC Driver |
5.0.0.34 |
Supports FC-NVMe |
|
VMware ESXi nenic Ethernet Driver |
1.0.42.0 |
|
|
NetApp ONTAP Tools for VMware vSphere |
9.11 |
Formerly Virtual Storage Console (VSC) |
|
NetApp NFS Plug-in for VMware VAAI |
2.0 |
|
|
NetApp SnapCenter for vSphere |
4.7 |
Includes the vSphere plug-in for SnapCenter |
|
NetApp Active IQ Unified Manager |
9.11P1 |
|
The information in this section is provided as a reference for cabling the physical equipment in a FlexPod environment. To simplify cabling requirements, a cabling diagram was used.
The cabling diagram in this section contains the details for the prescribed and supported configuration of the NetApp AFF 800 running NetApp ONTAP 9.11.1.
Note: For any modifications of this prescribed architecture, consult the NetApp Interoperability Matrix Tool (IMT).
Note: This document assumes that out-of-band management ports are plugged into an existing management infrastructure at the deployment site. These interfaces will be used in various configuration steps.
Note: Be sure to use the cabling directions in this section as a guide.
The NetApp storage controller and disk shelves should be connected according to best practices for the specific storage controller and disk shelves. For disk shelf cabling, refer to NetApp Support.

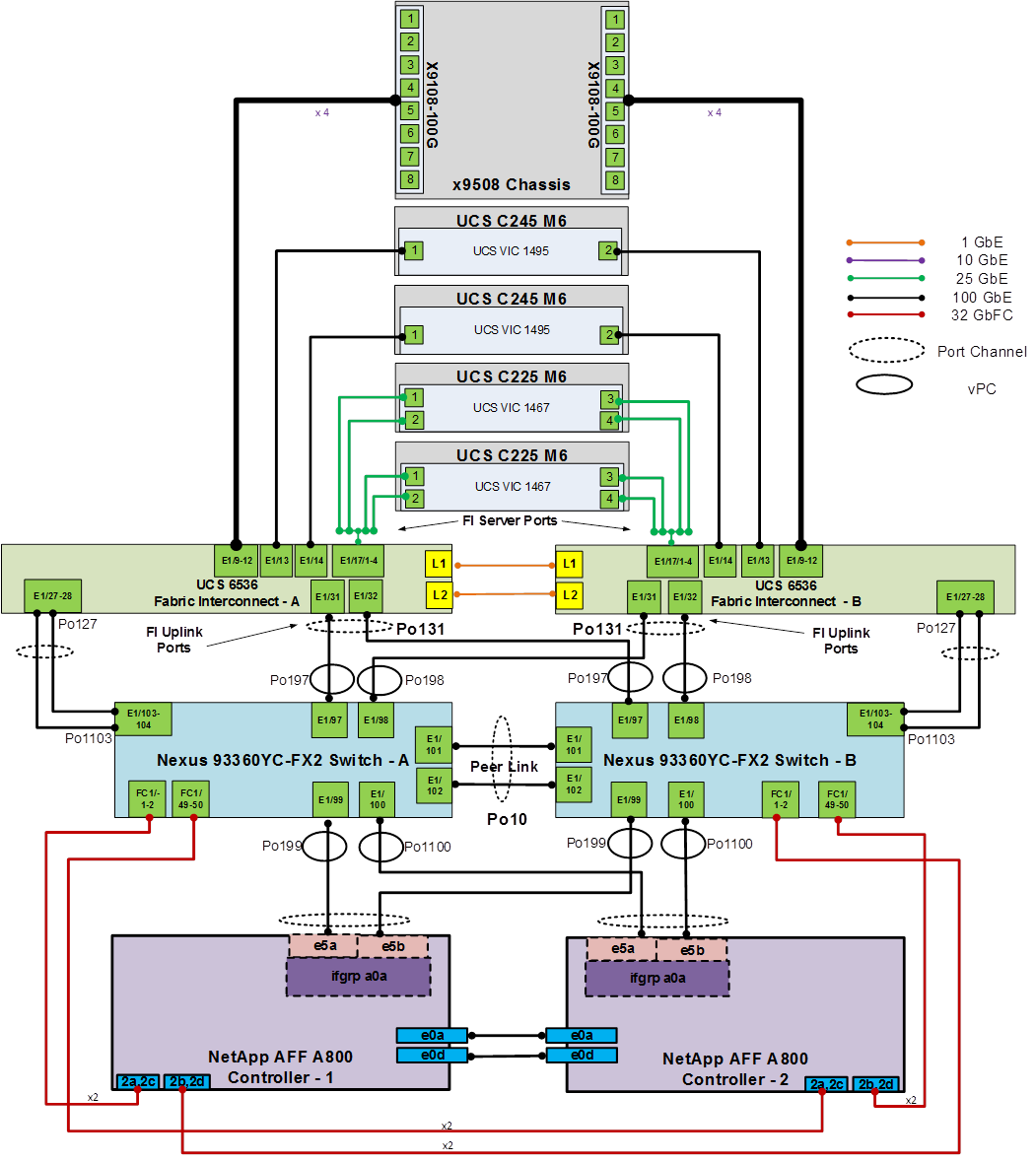

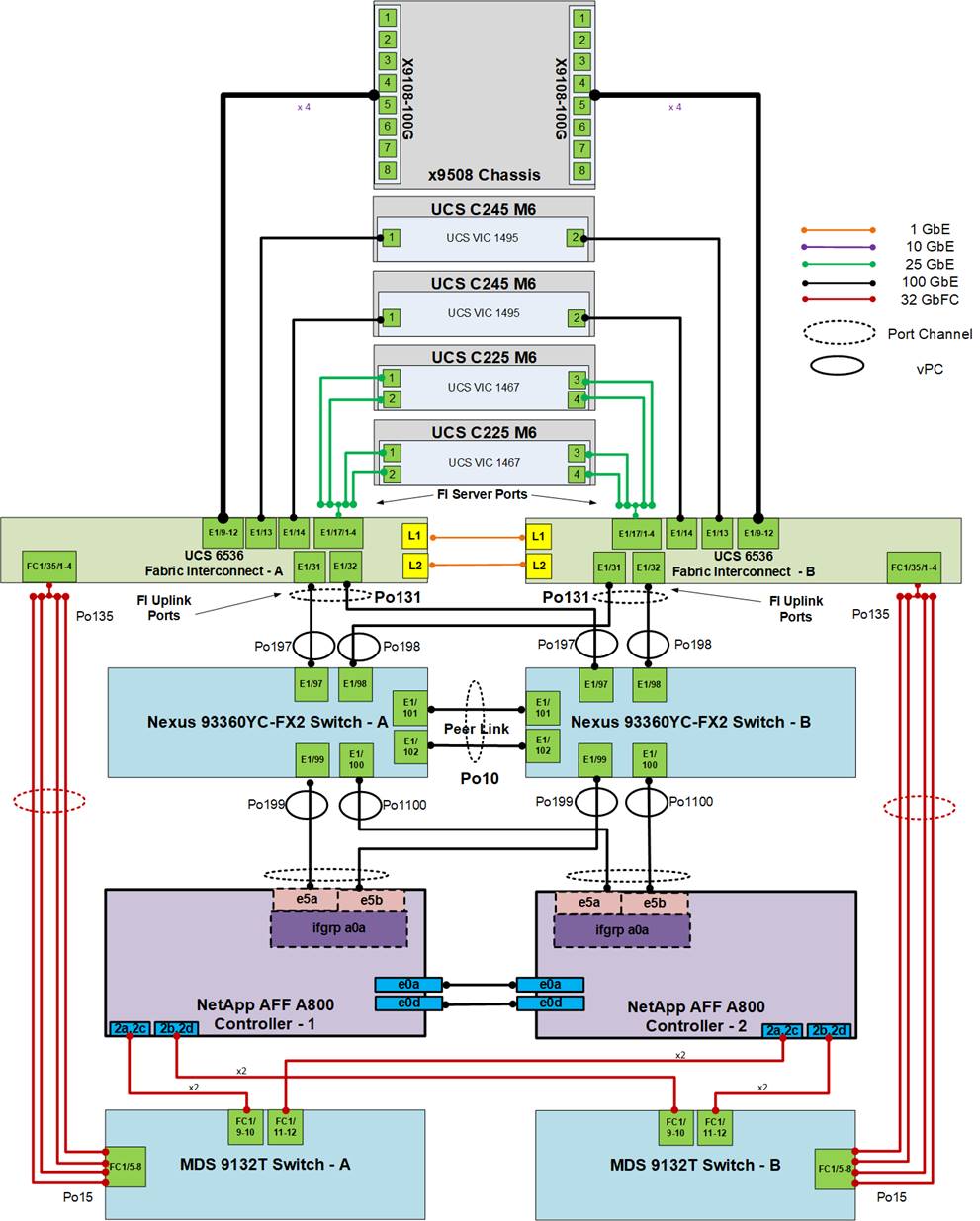

Figure 3 details the cable connections used in the validation lab for the FlexPod topology based on the Cisco UCS 6536 fabric interconnect. Four 32Gb uplinks via breakout connect as port-channels from each Cisco UCS Fabric Interconnect to the MDS switches, and a total of eight 32Gb links connect the MDS switches to the NetApp AFF controllers. Also, 100Gb links connect the Cisco UCS Fabric Interconnects to the Cisco Nexus Switches and the NetApp AFF controllers to the Cisco Nexus Switches. Additional 1Gb management connections will be needed for an out-of-band network switch that sits apart from the FlexPod infrastructure. Each Cisco UCS fabric interconnect and Cisco Nexus switch is connected to the out-of-band network switch, and each AFF controller has a connection to the out-of-band network switch. Layer 3 network connectivity is required between the Out-of-Band (OOB) and In-Band (IB) Management Subnets. This cabling diagram includes both the FC-boot and iSCSI-boot configurations.
Figure 3. FlexPod Cabling with Cisco UCS 6536 Fabric Interconnect
Ansible Automation Workflow and Solution Deployment
If using the published Ansible playbooks to configure the FlexPod infrastructure, complete this section of the document. If completing a manual configuration, skip to the next section of the document. The Ansible automated FlexPod solution uses a management workstation (control machine) to run Ansible playbooks to configure Cisco Nexus, NetApp ONTAP Storage, Cisco UCS, Cisco MDS, and VMware ESXi.
Figure 4 illustrates the FlexPod solution implementation workflow which is explained in the following sections. The FlexPod infrastructure layers are first configured in the order illustrated.
Figure 4. Ansible Automation Workflow
Prerequisites
Setting up the solution begins with a management workstation or VM that has access to the Internet and with a working installation of Ansible. The management workstation commonly runs a variant of Linux or MacOS for ease of use with these command-line-based tools. Instructions for installing the workstation are not included in this document, but basic installation and configuration of Ansible is covered. A guide for getting started with Ansible can be found at the following link:
● Ansible Community Documentation: https://docs.ansible.com/ansible_community.html
● To use the Ansible playbooks demonstrated in this document, the management workstation must also have a working installation of Git and access to the Cisco DevNet public GitHub repository. The Ansible playbooks used in this document are cloned from the public repositories, located at the following links:
◦ Cisco DevNet (available in early 2023): https://developer.cisco.com/codeexchange/github/repo/ucs-compute-solutions/FlexPod-IMM-4.2.2
◦ GitHub repository: https://github.com/ucs-compute-solutions/FlexPod-IMM-4.2.2
● The Cisco Nexus and MDS Switches, NetApp Storage, and Cisco UCS must be physically racked, cabled, powered, and configured with management IP addresses before the Ansible-based installation procedure can begin as shown in the cabling diagram (Figure 3). If necessary, upgrade the Cisco Nexus Switches to release 10.2(3)F, and the Cisco MDS Switches to release 9.2(2).
● Before running each Ansible Playbook to setup the Network, Storage, Cisco UCS, and VMware ESXi various variables have to be updated based on the customers environment and specific implementation with values such as the VLANs, pools and ports on Cisco UCS, IP addresses for NFS, iSCSI, and NVMe-TCP interfaces and values needed for VMware ESXi.
● Day 2 Configuration tasks such as adding datastores or ESXi servers can be performed manually or with Cisco Intersight Cloud Orchestrator (ICO).
Procedure 1. Prepare Management Workstation (Control Machine)
In this procedure, the installation steps are performed on the CentOS Stream 8 (install default Server with GUI) management host to prepare the host for solution deployment to support the automation of Cisco UCS, Cisco Nexus, NetApp Storage, Cisco MDS and VMware ESXi using Ansible Playbooks.
Note: The following steps were performed on a CentOS Stream 8 Virtual Machine as the root user.
Step 1. Install the EPEL repository on the management host.
cd
dnf install https://dl.fedoraproject.org/pub/epel/epel-release-latest-8.noarch.rpm
Step 2. Install Ansible engine.
dnf install ansible
Step 3. Verify Ansible version to make sure it is release 2.9 or later.
ansible --version
ansible [core 2.13.5]
config file = /etc/ansible/ansible.cfg
configured module search path = ['/root/.ansible/plugins/modules', '/usr/share/ansible/plugins/modules']
ansible python module location = /usr/lib/python3.9/site-packages/ansible
ansible collection location = /root/.ansible/collections:/usr/share/ansible/collections
executable location = /usr/bin/ansible
python version = 3.9.13 (main, Jun 24 2022, 15:32:51) [GCC 8.5.0 20210514 (Red Hat 8.5.0-13)]
jinja version = 3.1.2
libyaml = True
Step 4. Install NetApp specific python modules.
pip3 install netapp-lib
Step 5. Install ansible-galaxy collections and other dependencies for Cisco Nexus (and MDS), NetApp ONTAP, Cisco UCS, and VMware as follows:
ansible-galaxy collection install cisco.intersight
ansible-galaxy collection install cisco.nxos
pip3 install ansible-pylibssh
ansible-galaxy collection install netapp.ontap
ansible-galaxy collection install community.vmware
pip3 install wheel
pip3 install –-upgrade pip setuptools
pip3 install -r ~/.ansible/collections/ansible_collections/community/vmware/requirements.txt
Note: The cisco.nxos collection is used for both Cisco Nexus and Cisco MDS configuration.
Procedure 2. Clone GitHub Collection
Note: You need to use a GitHub repository from one public location; the first step in the process is to clone the GitHub collection named FlexPod-IMM-4.2.2 (https://github.com/ucs-compute-solutions/FlexPod-IMM-4.2.2.git) to a new empty folder on the management workstation. Cloning the repository creates a local copy, which is then used to run the playbooks that have been created for this solution.
Step 1. From the management workstation, create a new folder for the project. The GitHub collection will be cloned in a new folder inside this one, named /root/FlexPod-IMM-4.2.2.
Step 2. Open a command-line or console interface on the management workstation and change directories to the new folder just created.
Step 3. Clone the GitHub collection using the following command:
git clone https://github.com/ucs-compute-solutions/FlexPod-IMM-4.2.2.git
Step 4. Change directories to the new folder named FlexPod-IMM-4.2.2.
Network Switch Configuration
This chapter is organized as follows:
● Ansible Nexus Switch Configuration
This chapter provides a detailed procedure for configuring the Cisco Nexus 93360YC-FX2 switches for use in a FlexPod environment. The Cisco Nexus 93360YC-FX2 will be used for LAN switching in this solution.
Note: The following procedures describe how to configure the Cisco Nexus switches for use in a base FlexPod environment. This procedure assumes the use of Cisco Nexus 9000 10.2(3)F.
● If using the Cisco Nexus 93360YC-FX2 switches or other Cisco Nexus switches for both LAN and SAN switching, please refer to section FlexPod with Cisco Nexus 93360YC-FX2 SAN Switching Configuration in the Appendix.
● The following procedure includes the setup of NTP distribution on both the mgmt0 port and the in-band management VLAN. The interface-vlan feature and ntp commands are used to set this up. This procedure also assumes that the default VRF is used to route the in-band management VLAN.
● This procedure sets up and uplink virtual port channel (vPC) with the IB-MGMT and OOB-MGMT VLANs allowed.
● This validation assumes that both switches have been reset to factory defaults by using the “write erase” command followed by the “reload” command.
Follow the physical connectivity guidelines for FlexPod as explained in section FlexPod Cabling.
The following procedures describe this basic configuration of the Cisco Nexus switches for use in the FlexPod environment. This procedure assumes the use of Cisco Nexus 9000 10.2(3)F, the Cisco suggested Nexus switch release at the time of this validation.
Procedure 1. Set Up Initial Configuration from a serial console
Set up the initial configuration for the Cisco Nexus A switch on <nexus-A-hostname>.
Step 1. Configure the switch.
Note: On initial boot, the NX-OS setup should automatically start and attempt to enter Power on Auto Provisioning.
Abort Power On Auto Provisioning [yes - continue with normal setup, skip - bypass password and basic configuration, no - continue with Power On Auto Provisioning] (yes/skip/no)[no]: yes
Disabling POAP.......Disabling POAP
poap: Rolling back, please wait... (This may take 5-15 minutes)
---- System Admin Account Setup ----
Do you want to enforce secure password standard (yes/no) [y]: Enter
Enter the password for "admin": <password>
Confirm the password for "admin": <password>
Would you like to enter the basic configuration dialog (yes/no): yes
Create another login account (yes/no) [n]: Enter
Configure read-only SNMP community string (yes/no) [n]: Enter
Configure read-write SNMP community string (yes/no) [n]: Enter
Enter the switch name: <nexus-A-hostname>
Continue with Out-of-band (mgmt0) management configuration? (yes/no) [y]: Enter
Mgmt0 IPv4 address: <nexus-A-out_of_band_mgmt0-ip>
Mgmt0 IPv4 netmask: <nexus-A-mgmt0-netmask>
Configure the default gateway? (yes/no) [y]: Enter
IPv4 address of the default gateway: <nexus-A-mgmt0-gw>
Configure advanced IP options? (yes/no) [n]: Enter
Enable the telnet service? (yes/no) [n]: Enter
Enable the ssh service? (yes/no) [y]: Enter
Type of ssh key you would like to generate (dsa/rsa) [rsa]: Enter
Number of rsa key bits <1024-2048> [1024]: Enter
Configure the ntp server? (yes/no) [n]: Enter
Configure default interface layer (L3/L2) [L2]: Enter
Configure default switchport interface state (shut/noshut) [noshut]: shut
Enter basic FC configurations (yes/no) [n]: n
Configure CoPP system profile (strict/moderate/lenient/dense) [strict]: Enter
Would you like to edit the configuration? (yes/no) [n]: Enter
Step 2. Review the configuration summary before enabling the configuration.
Use this configuration and save it? (yes/no) [y]: Enter
Step 3. To set up the initial configuration of the Cisco Nexus B switch, repeat steps 1 and 2 with the appropriate host and IP address information.
Ansible Nexus Switch Configuration
Procedure 1. Configure the Cisco Nexus switches from the management workstation
Step 1. Add Nexus switch ssh keys to /root/.ssh/known_hosts. Adjust known_hosts as necessary if errors occur.
ssh admin@<nexus-A-mgmt0-ip>
exit
ssh admin@<nexus-B-mgmt0-ip>
exit
Step 2. Edit the following variable files to ensure proper Cisco Nexus variables are entered:
● FlexPod-IMM-4.2.2/FlexPod-IMM-4.2.2/inventory
● FlexPod-IMM-4.2.2/FlexPod-IMM-4.2.2/group_vars/all.yml
● FlexPod-IMM-4.2.2/FlexPod-IMM-4.2.2/host_vars/n9kA.yml
● FlexPod-IMM-4.2.2/FlexPod-IMM-4.2.2/host_vars/n9kB.yml
● FlexPod-IMM-4.2.2/FlexPod-IMM-4.2.2/roles/NEXUSconfig/defaults/main.yml
Note: Switch configuration can be done one switch at a time by commenting one switch out in all.yml and running the playbook. This may need to be done if the switches are shared with other FlexPods and additional configuration needs to be added between playbook runs.
Step 3. From /root/FlexPod-IMM-4.2.2/FlexPod-IMM-4.2.2, run the Setup_Nexus.yml Ansible playbook.
ansible-playbook ./Setup_Nexus.yml -i inventory
Step 4. Once the Ansible playbook has been run on both switches, it is important to configure the local time so that logging time alignment and any backup schedules are correct. For more information on configuring the time-zone and daylight savings time or summertime, please see Cisco Nexus 9000 Series NX-OS Fundamentals Configuration Guide, Release 10.2(x). Sample clock commands for the United States Eastern timezone are:
clock timezone EST -5 0
clock summer-time EDT 2 Sunday March 02:00 1 Sunday November 02:00 60
Step 5. ssh into each switch and execute the following commands:
clock timezone <timezone> <hour-offset> <minute-offset>
clock summer-time <timezone> <start-week> <start-day> <start-month> <start-time> <end-week> <end-day> <end-month> <end-time> <offset-minutes>
NetApp ONTAP Storage Configuration
This chapter contains the following:
● NetApp AFF A400/A800 Controllers
NetApp AFF A400/A800 Controllers
See the following section (NetApp Hardware Universe) for planning the physical location of the storage systems:
● Site Preparation
● System Connectivity Requirements
● Circuit Breaker, Power Outlet Balancing, System Cabinet Power Cord Plugs, and Console Pinout Requirements
● AFF Series Systems
To confirm that the hardware and software components that you would like to use are supported with the version of ONTAP that you plan to install, follow these steps at the NetApp Support site.
Procedure 1. Confirm hardware and software components
Step 1. Access the HWU application to view the System Configuration guides. Click the Platforms menu to view the compatibility between different versions of the ONTAP software and the NetApp storage appliances with your desired specifications.
Step 2. Alternatively, to compare components by storage appliance, click Compare Storage Systems.
Follow the physical installation procedures for the controllers found here: https://docs.netapp.com/us-en/ontap-systems/index.html.
NetApp storage systems support a wide variety of disk shelves and disk drives. The complete list of disk shelves that are supported by the AFF A400 and AFF A800 is available at the NetApp Support site.
When using SAS disk shelves with NetApp storage controllers, refer to: https://docs.netapp.com/us-en/ontap-systems/sas3/index.html for proper cabling guidelines.
When using NVMe drive shelves with NetApp storage controllers, refer to: https://docs.netapp.com/us-en/ontap-systems/ns224/index.html for installation and servicing guidelines.
Complete Configuration Worksheet
Before running the setup script, complete the Cluster setup worksheet in the ONTAP 9 Documentation Center. You must have access to the NetApp Support site to open the cluster setup worksheet.
Ansible NetApp ONTAP Storage Configuration
End to End ONTAP Storage Configuration for a FlexPod is automated with Ansible. ONTAP Storage can be deployed via Ansible after the ONTAP Cluster setup is complete and the Cluster management network is configured.
A playbook by the name 'Setup_ONTAP.yml' is available at the root of this repository. It calls all the required roles to complete the setup of the ONTAP storage system.
The ONTAP setup is split into three sections, use the tags - ontap_config_part_1, ontap_config_part_2, and ontap_config_part_3 to execute parts of the playbook at the appropriate stage of setup.
Execute the playbook from the Ansible Control machine as an admin/ root user using the following commands:
● After setup of Cisco Nexus switches and bringing the NetApp storage cluster online with aggregates: ansible-playbook -i inventory Setup_ONTAP.yml -t ontap_config_part_1
● After setup of Cisco UCS and deploying server profiles: ansible-playbook -i inventory Setup_ONTAP.yml -t ontap_config_part_2
● After setup of VMware vSphere 7.0 U3 Setup: ansible-playbook -i inventory Setup_ONTAP.yml -t ontap_config_part_3
If you would like to run a part of the deployment, you may use the appropriate tag that accompanies each task in the role and run the playbook by running the following command:
ansible-playbook -i inventory Setup_ONTAP.yml -t <tag_name>
Before running the setup script, review the configuration worksheets in the Software setup section of the ONTAP 9 Documentation Center to learn about configuring ONTAP. Table 4 lists the information needed to configure two ONTAP nodes. Customize the cluster-detail values with the information applicable to your deployment.
Table 4. ONTAP Software Installation Prerequisites
Cluster Detail |
Cluster Detail Value |
Cluster node 01 IP address |
<node01-mgmt-ip> |
Cluster node 01 netmask |
<node01-mgmt-mask> |
Cluster node 01 gateway |
<node01-mgmt-gateway> |
Cluster node 02 IP address |
<node02-mgmt-ip> |
Cluster node 02 netmask |
<node02-mgmt-mask> |
Cluster node 02 gateway |
<node02-mgmt-gateway> |
ONTAP 9.11.1P2 URL (http server hosting ONTAP software) |
<url-boot-software> |
Procedure 1. Configure Node 01
Step 1. Connect to the storage system console port. You should see a Loader-A prompt. However, if the storage system is in a reboot loop, press Ctrl-C to exit the autoboot loop when the following message displays:
Starting AUTOBOOT press Ctrl-C to abort…
Step 2. Allow the system to boot up.
autoboot
Step 3. Press Ctrl-C when prompted.
Note: If ONTAP 9.11.1P2 is not the version of the software being booted, continue with the following steps to install new software. If ONTAP 9.11.1P2 is the version being booted, select option 8 and y to reboot the node, then continue with section Set Up Node.
Step 4. To install new software, select option 7 from the menu.
Step 5. Enter y to continue the installation.
Step 6. Select e0M for the network port for the download.
Step 7. Enter n to skip the reboot.
Step 8. Select option 7 from the menu: Install new software first
Step 9. Enter y to continue the installation.
Step 10. Enter the IP address, netmask, and default gateway for e0M.
Enter the IP address for port e0M: <node01-mgmt-ip>
Enter the netmask for port e0M: <node01-mgmt-mask>
Enter the IP address of the default gateway: <node01-mgmt-gateway>
Step 11. Enter the URL where the software can be found.
Note: The e0M interface should be connected to the management network and the web server must be reachable (using ping) from node 01.
<url-boot-software>
Step 12. Press Enter for the user name, indicating no user name.

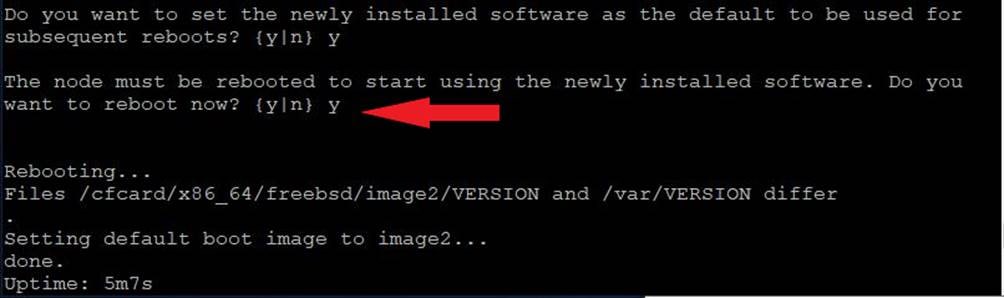

Step 13. Enter y to set the newly installed software as the default to be used for subsequent reboots.
Step 14. Enter y to reboot the node now.
Note: When installing new software, the system might perform firmware upgrades to the BIOS and adapter cards, causing reboots and possible stops at the Loader-A prompt. If these actions occur, the system might deviate from this procedure.
Note: During the ONTAP installation a prompt to reboot the node requests a Y/N response.
Step 15. Press Ctrl-C when the following message displays:
Press Ctrl-C for Boot Menu
Step 16. Select option 4 for Clean Configuration and Initialize All Disks.
Step 17. Enter y to zero disks, reset config, and install a new file system.
Step 18. Enter yes to erase all the data on the disks.
Note: When initialization and creation of root aggregate is complete, the storage system reboots. You can continue with the configuration of node 02 while the initialization and creation of the root aggregate for node 01 is in progress. For more information about root aggregate and disk partitioning, please refer to the following ONTAP documentation on root-data partitioning. https://docs.netapp.com/us-en/ontap/concepts/root-data-partitioning-concept.html
Procedure 2. Configure Node 02
Step 1. Connect to the storage system console port. You should see a Loader-B prompt. However, if the storage system is in a reboot loop, press Ctrl-C to exit the autoboot loop when the following message displays:
Starting AUTOBOOT press Ctrl-C to abort…
Step 2. Allow the system to boot up.
autoboot
Step 3. Press Ctrl-C when prompted.
Note: If ONTAP 9.11.1P2 is not the version of the software being booted, continue with the following steps to install new software. If ONTAP 9.11.1P2 is the version being booted, select option 8 and y to reboot the node. Then continue with section Set Up Node.
Step 4. To install new software, select option 7.
Step 5. Enter y to continue the installation.
Step 6. Select e0M for the network port you want to use for the download.
Step 7. Enter n to skip the reboot.
Step 8. Select option 7: Install new software first
Step 9. Enter y to continue the installation.
Step 10. Enter the IP address, netmask, and default gateway for e0M.
Enter the IP address for port e0M: <node02-mgmt-ip>
Enter the netmask for port e0M: <node02-mgmt-mask>
Enter the IP address of the default gateway: <node02-mgmt-gateway>
Step 11. Enter the URL where the software can be found.
Note: The web server must be reachable (ping) from node 02.
<url-boot-software>
Step 12. Press Enter for the username, indicating no user name.

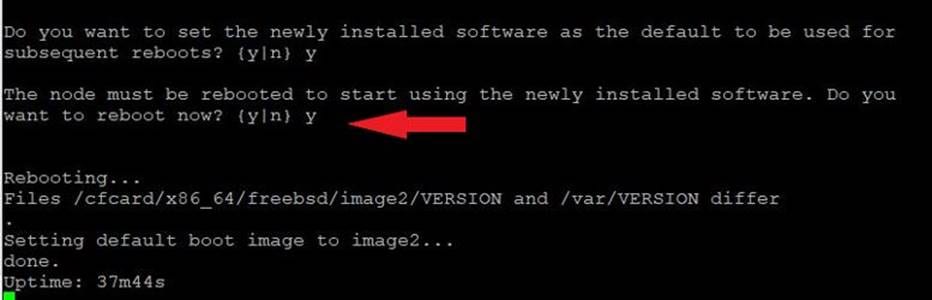

Step 13. Enter y to set the newly installed software as the default to be used for subsequent reboots.
Step 14. Enter y to reboot the node now.
Note: When installing new software, the system might perform firmware upgrades to the BIOS and adapter cards, causing reboots and possible stops at the Loader-B prompt. If these actions occur, the system might deviate from this procedure.
Note: During the ONTAP installation a prompt to reboot the node requests a Y/N response.
Step 15. Press Ctrl-C when you see this message:
Press Ctrl-C for Boot Menu
Step 16. Select option 4 for Clean Configuration and Initialize All Disks.
Step 17. Enter y to zero disks, reset config, and install a new file system.
Step 18. Enter yes to erase all the data on the disks.
Note: When initialization and creation of root aggregate is complete, the storage system reboots. For more information about root aggregate and disk partitioning, please refer to the following ONTAP documentation on root-data partitioning. https://docs.netapp.com/us-en/ontap/concepts/root-data-partitioning-concept.html
Step 1. From a console port program attached to the storage controller A (node 01) console port, run the node setup script. This script appears when ONTAP 9.11.1P2 boots on the node for the first time.
Step 2. Follow the prompts to set up node 01.
Welcome to the cluster setup wizard.
You can enter the following commands at any time:
"help" or "?" - if you want to have a question clarified,
"back" - if you want to change previously answered questions, and
"exit" or "quit" - if you want to quit the setup wizard.
Any changes you made before quitting will be saved.
You can return to cluster setup at any time by typing “cluster setup”.
To accept a default or omit a question, do not enter a value.
This system will send event messages and weekly reports to NetApp Technical Support.
To disable this feature, enter "autosupport modify -support disable" within 24 hours.
Enabling AutoSupport can significantly speed problem determination and resolution should a problem occur on your system.
For further information on AutoSupport, see:
http://support.netapp.com/autosupport/
Type yes to confirm and continue {yes}: yes
Enter the node management interface port [e0M]: Enter
Enter the node management interface IP address: <node01-mgmt-ip>
Enter the node management interface netmask: <node01-mgmt-mask>
Enter the node management interface default gateway: <node01-mgmt-gateway>
A node management interface on port e0M with IP address <node01-mgmt-ip> has been created.
Use your web browser to complete cluster setup by accesing https://<node01-mgmt-ip>
Otherwise press Enter to complete cluster setup using the command line interface:

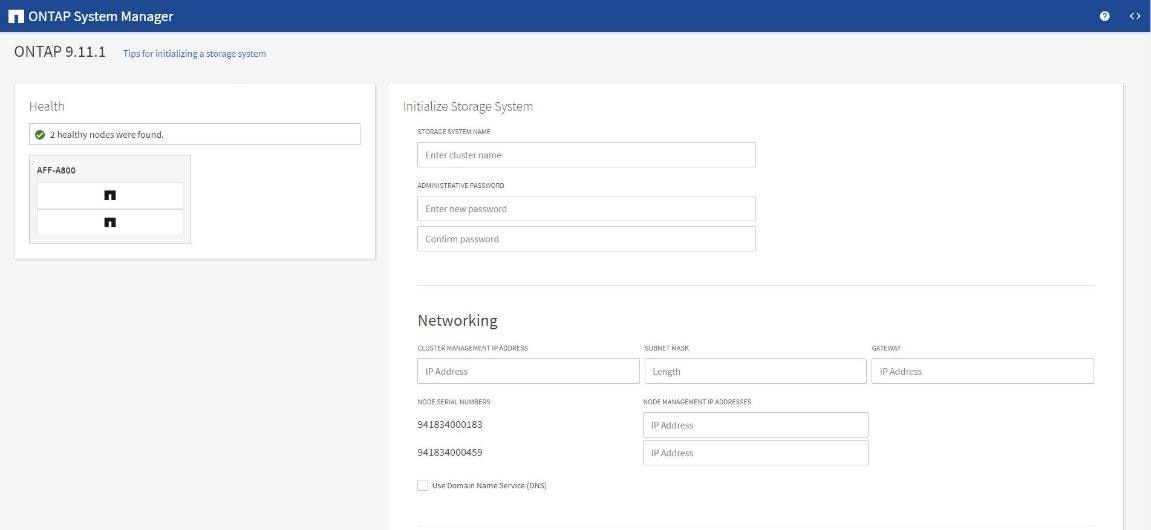

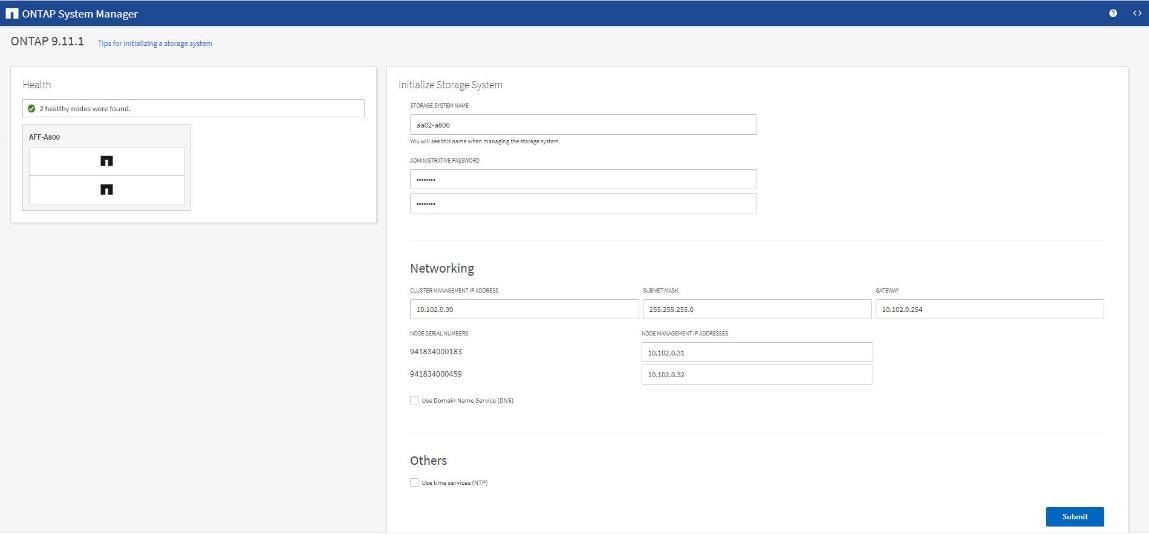

Step 3. To complete cluster setup, open a web browser and navigate to https://<node01-mgmt-ip>.
Table 5. Cluster Create in ONTAP Prerequisites
Cluster Detail |
Cluster Detail Value |
Cluster name |
<clustername> |
Cluster Admin SVM |
<cluster-adm-svm> |
Infrastructure Data SVM |
<infra-data-svm> |
ONTAP base license |
<cluster-base-license-key> |
Cluster management IP address |
<clustermgmt-ip> |
Cluster management netmask |
<clustermgmt-mask> |
Cluster management gateway |
<clustermgmt-gateway> |
Cluster node 01 IP address |
<node01-mgmt-ip> |
Cluster node 01 netmask |
<node01-mgmt-mask> |
Cluster node 01 gateway |
<node01-mgmt-gateway> |
Cluster node 02 IP address |
<node02-mgmt-ip> |
Cluster node 02 netmask |
<node02-mgmt-mask> |
Cluster node 02 gateway |
<node02-mgmt-gateway> |
Node 01 service processor IP address |
<node01-sp-ip> |
Node 01 service processor network mask |
<node01-sp-mask> |
Node 01 service processor gateway |
<node01-sp-gateway> |
Node 02 service processor IP address |
<node02-sp-ip> |
Node 02 service processor network mask |
<node02-sp-mask> |
Node 02 service processor gateway |
<node02-sp-gateway> |
Node 01 node name |
<st-node01> |
Node 02 node name |
<st-node02> |
DNS domain name |
<dns-domain-name> |
DNS server IP address |
<dns-ip> |
NTP server A IP address |
<switch-a-ntp-ip> |
NTP server B IP address |
<switch-b-ntp-ip> |
SNMPv3 User |
<snmp-v3-usr> |
SNMPv3 Authentication Protocol |
<snmp-v3-auth-proto> |
SNMPv3 Privacy Protocol |
<snmpv3-priv-proto> |
Note: Cluster setup can also be performed using the CLI. This document describes the cluster setup using the NetApp ONTAP System Manager guided setup.
Step 4. Complete the required information on the Initialize Storage System screen:
Step 5. In the Cluster screen:
a. Enter the cluster name and administrator password.
b. Complete the Networking information for the cluster and each node.
c. Check the box for Use Domain Name Service (DNS) and enter the IP addresses of the DNS servers in a comma separated list.
d. Check the box for Use time services (NTP) and enter the IP addresses of the time servers in a comma separated list.
Note: Here, the DNS and NTP server manual configuration for the cluster is optional. Ansible scripts will configure the same when ONTAP playbook with the tag “ontap_config_part_1” is executed.
Note: The nodes should be discovered automatically; if they are not, Refresh the browser page. By default, the cluster interfaces are created on all the new factory shipping storage controllers.
Note: If all the nodes are not discovered, then configure the cluster using the command line.
Note: The node management interface can be on the same subnet as the cluster management interface, or it can be on a different subnet. In this document, we assume that it is on the same subnet.
Step 6. Click Submit.
Step 7. A few minutes will pass while the cluster is configured. When prompted, login to ONTAP System Manager to continue the cluster configuration.
Step 8. Click Prepare Storage to create data aggregates.
Note: You can use Ansible scripts at this point to configure the ONTAP Storage Configuration via Ansible.
Procedure 4. Ansible ONTAP Storage Configuration - Part 1
Step 1. Edit the following variable files to ensure proper ONTAP Storage variables are entered:
● FlexPod-IMM-4.2.2/FlexPod-IMM-4.2.2/inventory
● FlexPod-IMM-4.2.2/FlexPod-IMM-4.2.2/group_vars/all.yml
● FlexPod-IMM-4.2.2/FlexPod-IMM-4.2.2/group_vars/ontap
● FlexPod-IMM-4.2.2/FlexPod-IMM-4.2.2/vars/ontap_main.yml
Step 2. From /root/ FlexPod-IMM-4.2.2/FlexPod-IMM-4.2.2, run the Setup_ONTAP.yml Ansible playbook with the associated tag for this section:
ansible-playbook -i inventory Setup_ONTAP.yml -t ontap_config_part_1
Note: Use the -vvv tag to see detailed execution output log.
Cisco Intersight Managed Mode Configuration
This chapter contains the following:
● Set up Cisco Intersight Managed Mode on Cisco UCS Fabric Interconnects
● Set up Cisco Intersight Account
● Set up Cisco Intersight Licensing
● Set Up Cisco Intersight Resource Group
● Set Up Cisco Intersight Organization
● Claim Cisco UCS Fabric Interconnects in Cisco Intersight
● Verify Addition of Cisco UCS Fabric Interconnects to Cisco Intersight
● Upgrade Fabric Interconnect Firmware using Cisco Intersight
● Configure a Cisco UCS Domain Profile
● Create and Apply VLAN Policy
● Create and Apply VSAN Policy (FC configuration only)
● Configure FC Port Channel (FC configuration only)
● Port Configuration for Fabric Interconnect B
● Configure Network Connectivity Policy
● Summary
● Deploy the Cisco UCS Domain Profile
● Verify Cisco UCS Domain Profile Deployment
● Ansible Cisco UCS IMM Configuration
● Cisco UCS IMM Setup Completion
The Cisco Intersight platform is a management solution delivered as a service with embedded analytics for Cisco and third-party IT infrastructures. The Cisco Intersight managed mode (also referred to as Cisco IMM or Intersight managed MODE) is a new architecture that manages Cisco Unified Computing System (Cisco UCS) fabric interconnect–attached systems through a Redfish-based standard model. Cisco Intersight managed mode standardizes both policy and operation management for Cisco UCS C-Series M6 and Cisco UCSX X210c M6 compute nodes used in this deployment guide.
Cisco UCS B-Series M6 servers, connected and managed through Cisco UCS FIs, are also supported by IMM. For a complete list of supported platforms, visit: https://www.cisco.com/c/en/us/td/docs/unified_computing/Intersight/b_Intersight_Managed_Mode_Configuration_Guide/b_intersight_managed_mode_guide_chapter_01010.html
Procedure 1. Set up Cisco Intersight Managed Mode on Cisco UCS Fabric Interconnects
The Cisco UCS fabric interconnects need to be set up to support Cisco Intersight managed mode. When converting an existing pair of Cisco UCS fabric interconnects from Cisco UCS Manager mode to Intersight Mange Mode (IMM), first erase the configuration and reboot your system.
Note: Converting fabric interconnects to Cisco Intersight managed mode is a disruptive process, and configuration information will be lost. Customers are encouraged to make a backup of their existing configuration. If a software version that supports Intersight Managed Mode (4.1(3) or later) is already installed on Cisco UCS Fabric Interconnects, do not upgrade the software to a recommended recent release using Cisco UCS Manager. The software upgrade will be performed using Cisco Intersight to make sure Cisco UCS X-series firmware is part of the software upgrade.
Step 1. Configure Fabric Interconnect A (FI-A). On the Basic System Configuration Dialog screen, set the management mode to Intersight. The remaining settings are similar to those for the Cisco UCS Manager managed mode (UCSM-Managed).
Cisco UCS Fabric Interconnect A
To configure the Cisco UCS for use in a FlexPod environment in ucsm managed mode, follow these steps:
1. Connect to the console port on the first Cisco UCS fabric interconnect.
Enter the configuration method. (console/gui) ? console
Enter the management mode. (ucsm/intersight)? intersight
The Fabric interconnect will be configured in the intersight managed mode. Choose (y/n) to proceed: y
Enforce strong password? (y/n) [y]: Enter
Enter the password for "admin": <password>
Confirm the password for "admin": <password>
Enter the switch fabric (A/B) []: A
Enter the system name: <ucs-cluster-name>
Physical Switch Mgmt0 IP address : <ucsa-mgmt-ip>
Physical Switch Mgmt0 IPv4 netmask : <ucs-mgmt-mask>
IPv4 address of the default gateway : <ucs-mgmt-gateway>
DNS IP address : <dns-server-1-ip>
Configure the default domain name? (yes/no) [n]: y
Default domain name : <ad-dns-domain-name>
Following configurations will be applied:
Management Mode=intersight
Switch Fabric=A
System Name=<ucs-cluster-name>
Enforced Strong Password=yes
Physical Switch Mgmt0 IP Address=<ucsa-mgmt-ip>
Physical Switch Mgmt0 IP Netmask=<ucs-mgmt-mask>
Default Gateway=<ucs-mgmt-gateway>
DNS Server=<dns-server-1-ip>
Domain Name=<ad-dns-domain-name>
Apply and save the configuration (select 'no' if you want to re-enter)? (yes/no): yes
Step 2. After applying the settings, make sure you can ping the fabric interconnect management IP address. When Fabric Interconnect A is correctly set up and is available, Fabric Interconnect B will automatically discover Fabric Interconnect A during its setup process as shown in the next step.
Step 3. Configure Fabric Interconnect B (FI-B). For the configuration method, select console. Fabric Interconnect B will detect the presence of Fabric Interconnect A and will prompt you to enter the admin password for Fabric Interconnect A. Provide the management IP address for Fabric Interconnect B and apply the configuration.
Cisco UCS Fabric Interconnect B
Enter the configuration method. (console/gui) ? console
Installer has detected the presence of a peer Fabric interconnect. This Fabric interconnect will be added to the cluster. Continue (y/n) ? y
Enter the admin password of the peer Fabric interconnect: <password>
Connecting to peer Fabric interconnect... done
Retrieving config from peer Fabric interconnect... done
Peer Fabric interconnect Mgmt0 IPv4 Address: <ucsa-mgmt-ip>
Peer Fabric interconnect Mgmt0 IPv4 Netmask: <ucs-mgmt-mask>
Peer FI is IPv4 Cluster enabled. Please Provide Local Fabric Interconnect Mgmt0 IPv4 Address
Physical Switch Mgmt0 IP address : <ucsb-mgmt-ip>
Apply and save the configuration (select 'no' if you want to re-enter)? (yes/no): yes
Procedure 2. Set up Cisco Intersight Account
Step 1. Go to https://intersight.com and click Create an account.
Step 2. Read and accept the license agreement. Click Next.
Step 3. Provide an Account Name and click Create.
Step 4. On successful creation of the Intersight account, the following page will be displayed:
Note: You can also choose to add the Cisco UCS FIs to an existing Cisco Intersight account.

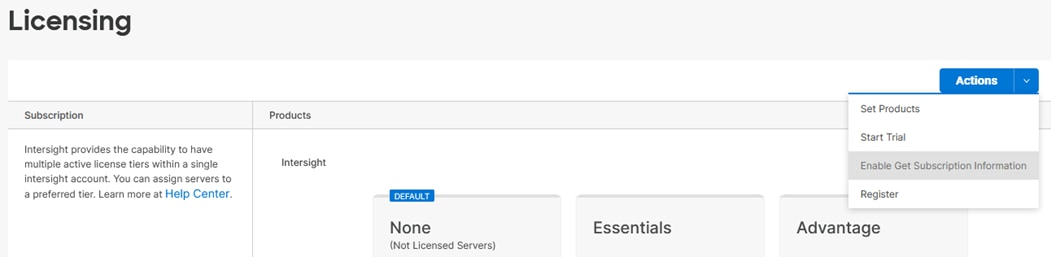

Procedure 3. Set up Cisco Intersight Licensing
Note: When setting up a new Cisco Intersight account (as explained in this document), the account needs to be enabled for Cisco Smart Software Licensing.
Step 1. Log into the Cisco Smart Licensing portal: https://software.cisco.com/software/smart-licensing/alerts.
Step 2. Verify that the correct virtual account is selected.
Step 3. Under Inventory > General, generate a new token for product registration.
Step 4. Copy this newly created token.

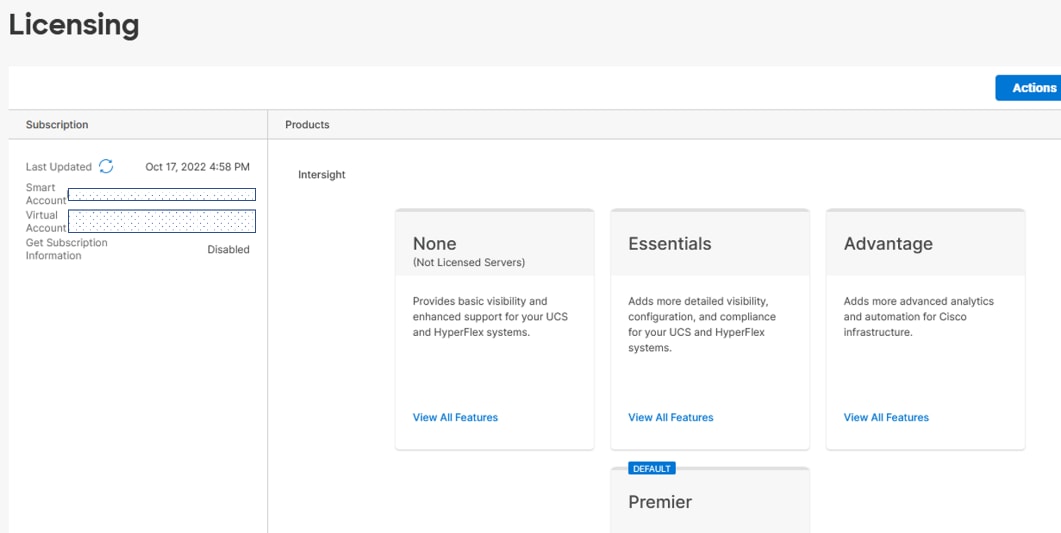

Step 5. In Cisco Intersight click Select Service > System. Then on the left click Administration > Licensing.
Step 6. Under Actions, click Register.
Step 7. Enter the copied token from the Cisco Smart Licensing portal. Click Next.

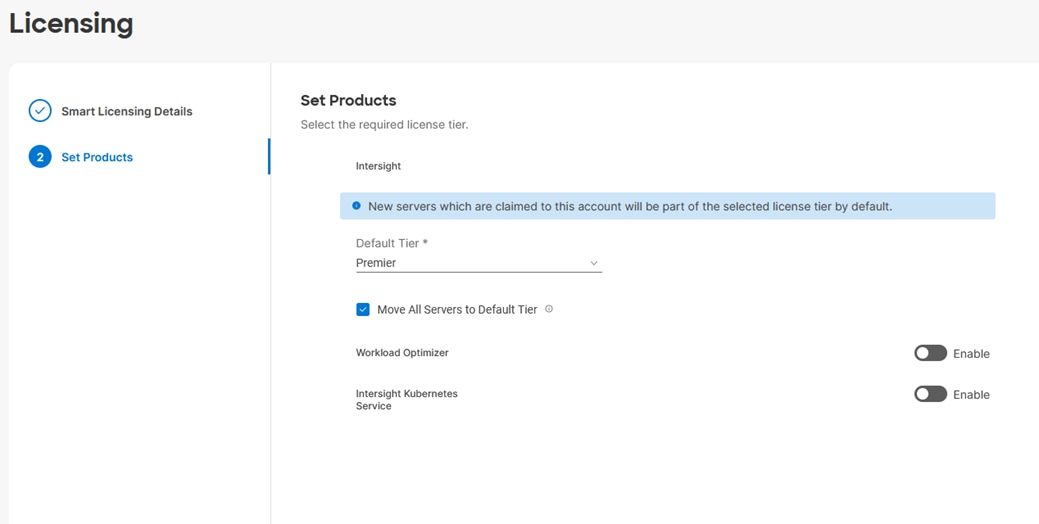

Step 8. Drop-down the pre-selected Default Tier * and select the license type (for example, Premier).
Step 9. Select Move All Servers to Default Tier.
Step 10. Click Register, then Register again.
Step 11. When the registration is successful (takes a few minutes), the information about the associated Cisco Smart account and default licensing tier selected in the last step is displayed.
Procedure 4. Set Up Cisco Intersight Resource Group
In this procedure, a Cisco Intersight resource group is created where resources such as targets will be logically grouped. In this deployment, a single resource group is created to host all the resources, but you can choose to create multiple resource groups for granular control of the resources.
Step 1. Log into Cisco Intersight.
Step 2. At the top, select System. On the left, click Settings (the gear icon).
Step 3. Click Resource Groups in the middle panel.
Step 4. Click + Create Resource Group in the top-right corner.

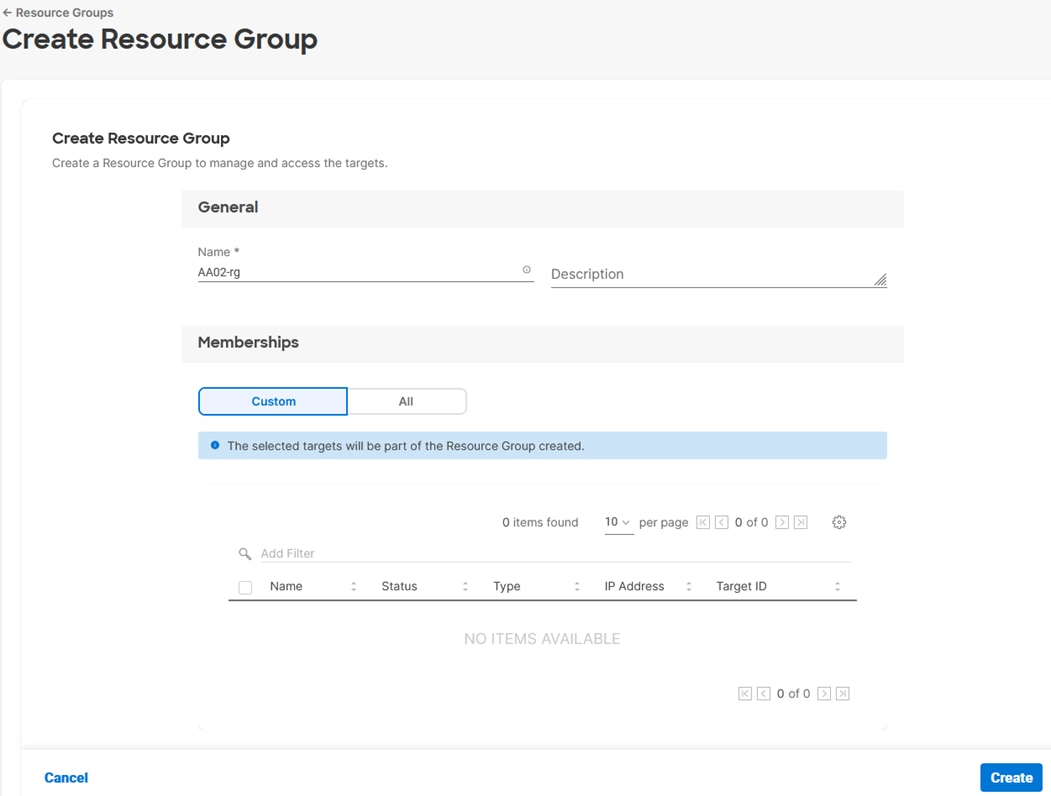

Step 5. Provide a name for the Resource Group (for example, AA02-rg).
Step 6. Under Memberships, select Custom.
Step 7. Click Create.
Procedure 5. Set Up Cisco Intersight Organization
In this procedure, an Intersight organization is created where all Cisco Intersight managed mode configurations including policies are defined.
Step 1. Log into the Cisco Intersight portal.
Step 2. At the top, select System. On the left, click Settings (the gear icon).
Step 3. Click Organizations in the middle panel.
Step 4. Click + Create Organization in the top-right corner.
Step 5. Provide a name for the organization (for example, AA02).
Step 6. Select the Resource Group created in the last step (for example, AA02-rg).
Step 7. Click Create.
Procedure 6. Claim Cisco UCS Fabric Interconnects in Cisco Intersight
Make sure the initial configuration for the fabric interconnects has been completed. Log into the Fabric Interconnect A Device Console using a web browser to capture the Cisco Intersight connectivity information.
Step 1. Use the management IP address of Fabric Interconnect A to access the device from a web browser and the previously configured admin password to log into the device.

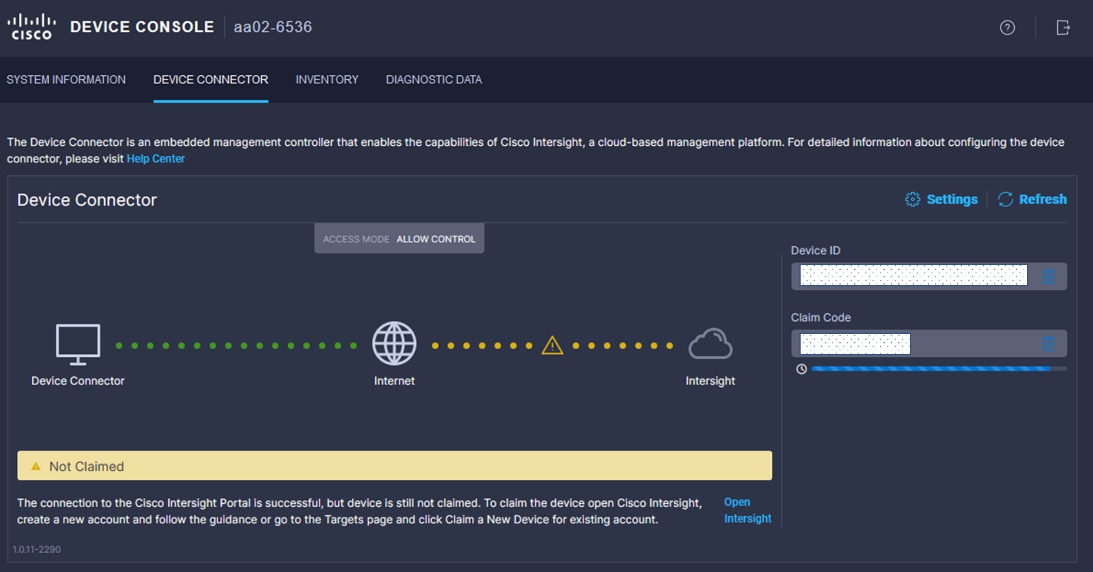

Step 2. Under DEVICE CONNECTOR, the current device status will show “Not claimed.” Note or copy, the Device ID, and Claim Code information for claiming the device in Cisco Intersight.
Step 3. Log into Cisco Intersight.
Step 4. At the top, select System. On the left, click Administration > Targets.
Step 5. Click Claim a New Target.

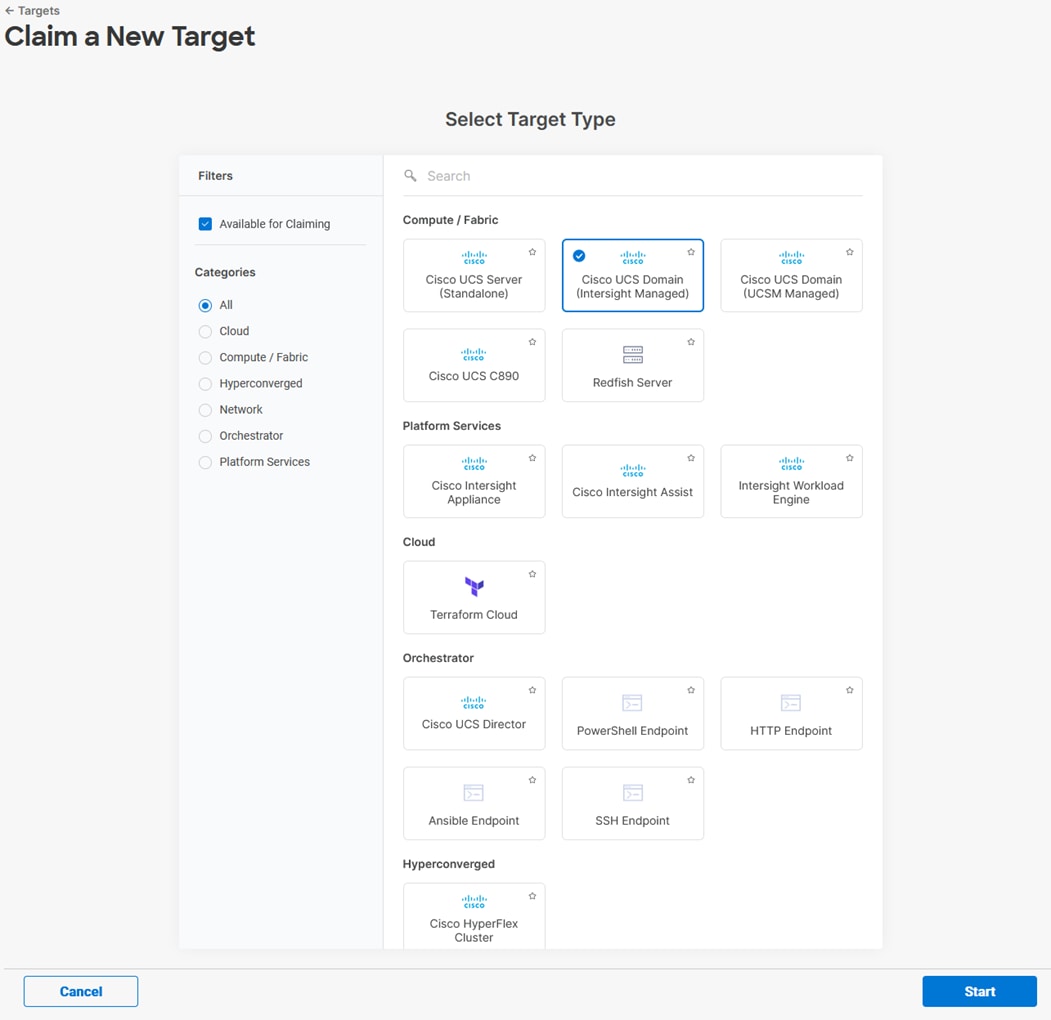

Step 6. Select Cisco UCS Domain (Intersight Managed) and click Start.

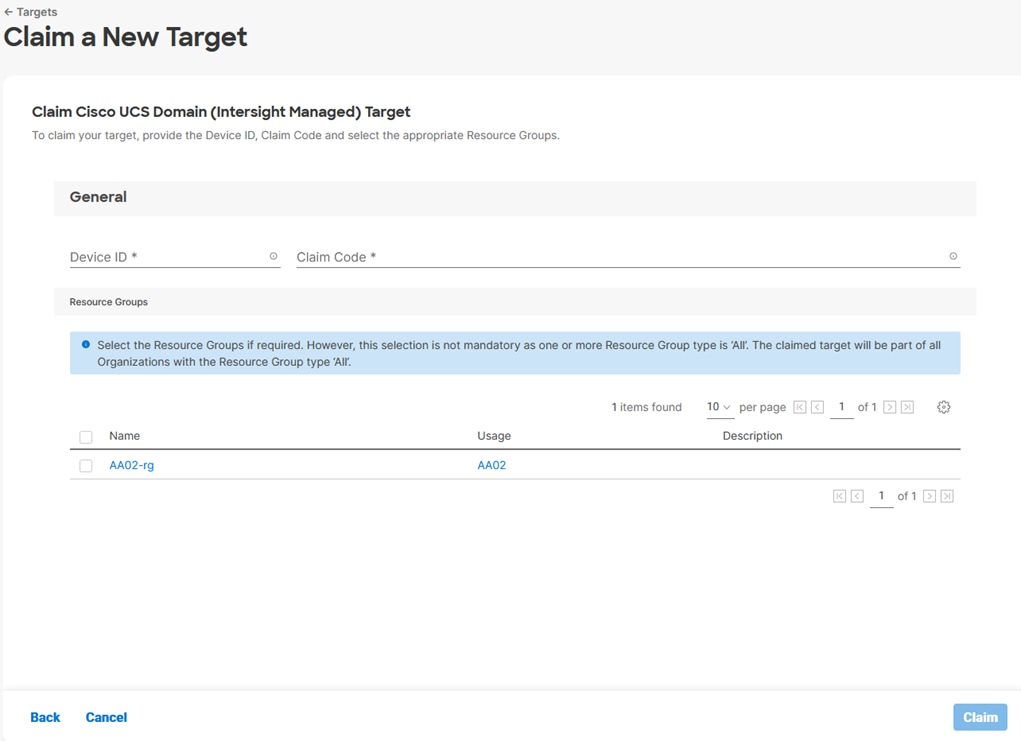

Step 7. Copy and paste the Device ID and Claim from the Cisco UCS FI to Intersight.
Step 8. Select the previously created Resource Group and click Claim.

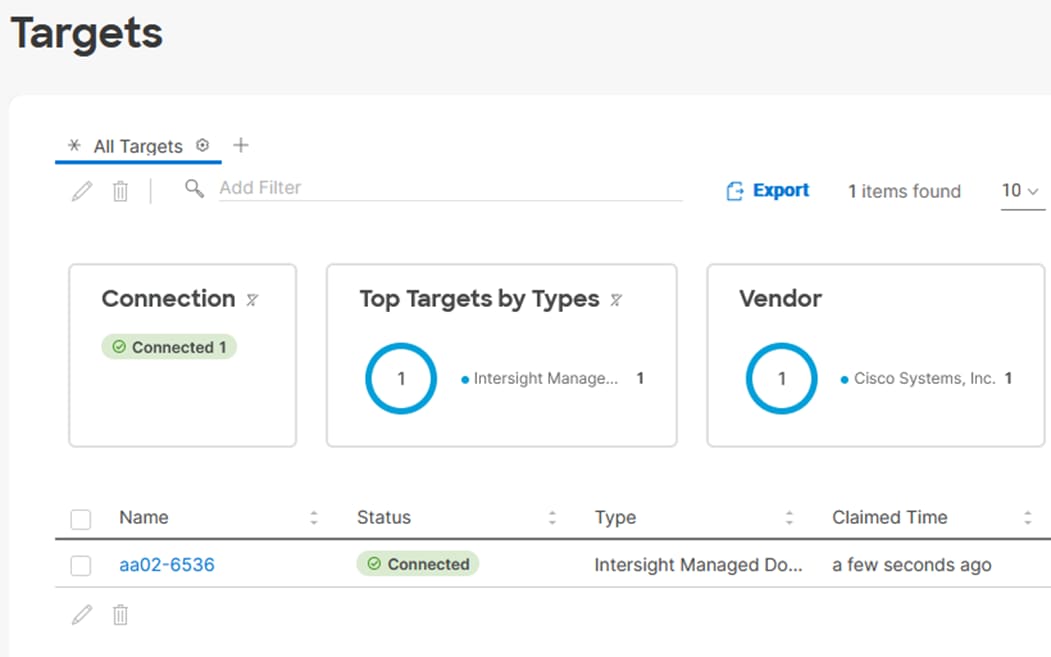

On a successful device claim, Cisco UCS FI should appear as a target in Cisco Intersight.
Procedure 7. Verify Addition of Cisco UCS Fabric Interconnects to Cisco Intersight
Step 1. Log into the web GUI of the Cisco UCS fabric interconnect and click the browser refresh button.
The fabric interconnect status should now be set to Claimed.
Procedure 8. Upgrade Fabric Interconnect Firmware using Cisco Intersight
If your Cisco UCS 6536 Fabric Interconnects are not already running firmware release 4.2(2c) (NX-OS version 9.3(5)I42(2c)), upgrade them to 4.2(2c).
Note: If Cisco UCS Fabric Interconnects were upgraded to the latest recommended software using Cisco UCS Manager, this upgrade process through Cisco Intersight will still work and will copy the Cisco X-Series firmware to the fabric interconnects.
Step 1. Log into the Cisco Intersight portal.
Step 2. At the top, using the pulldown select Infrastructure Service and then select Fabric Interconnects under Operate on the left.
Step 3. Click the three dots “…” at the end of the row for either of the Fabric Interconnects and select Upgrade Firmware.
Step 4. Click Start.
Step 5. Verify the Fabric Interconnect information and click Next.
Step 6. Enable Advanced Mode using the toggle switch and uncheck Fabric Interconnect Traffic Evacuation.
Step 7. Select 4.2(2c) release from the list and click Next.
Step 8. Verify the information and click Upgrade to start the upgrade process.

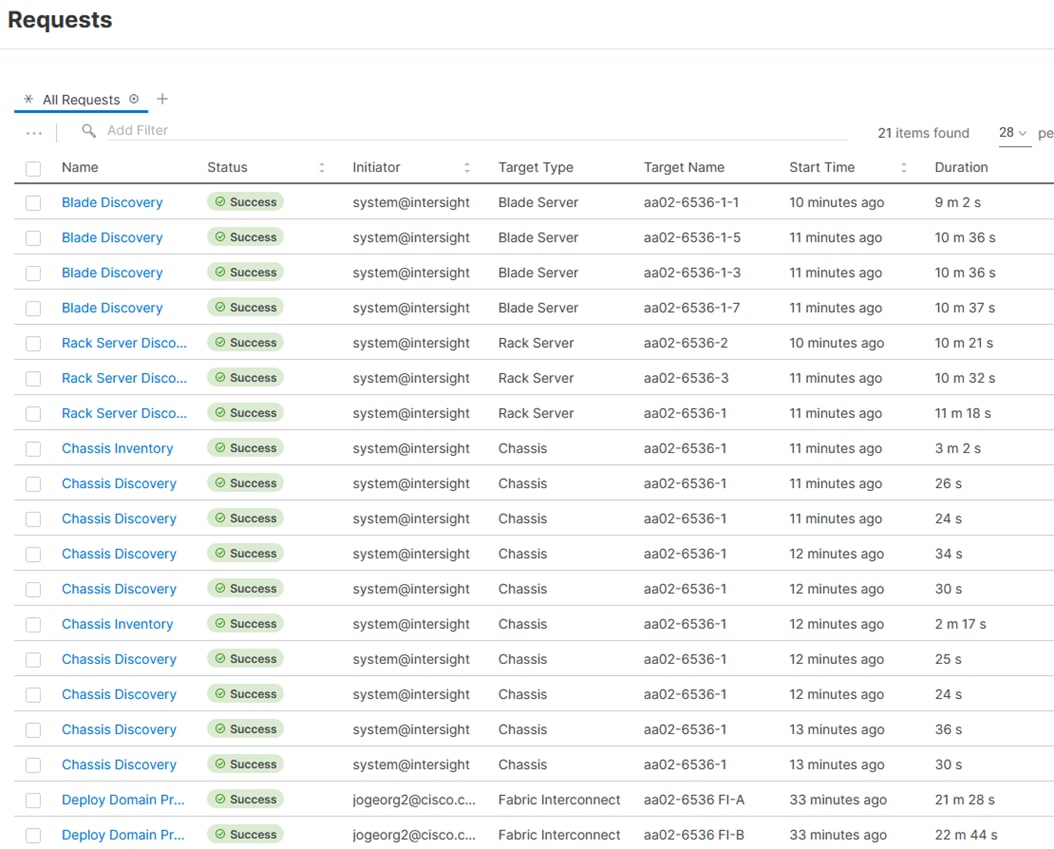

Step 9. Watch the Request panel of the main Intersight screen as the system will ask for user permission before upgrading each FI. Click on the Circle with Arrow and follow the prompts on screen to grant permission.
Step 10. Wait for both the FIs to successfully upgrade.
Procedure 9. Configure a Cisco UCS Domain Profile
Note: A Cisco UCS domain profile configures a fabric interconnect pair through reusable policies, allows configuration of the ports and port channels, and configures the VLANs and VSANs in the network. It defines the characteristics of and configured ports on fabric interconnects. The domain-related policies can be attached to the profile either at the time of creation or later. One Cisco UCS domain profile can be assigned to one fabric interconnect domain.
Step 1. Log into the Cisco Intersight portal.
Step 2. At the top, use the pulldown to select Infrastructure Service. Then, under Configure select Profiles.

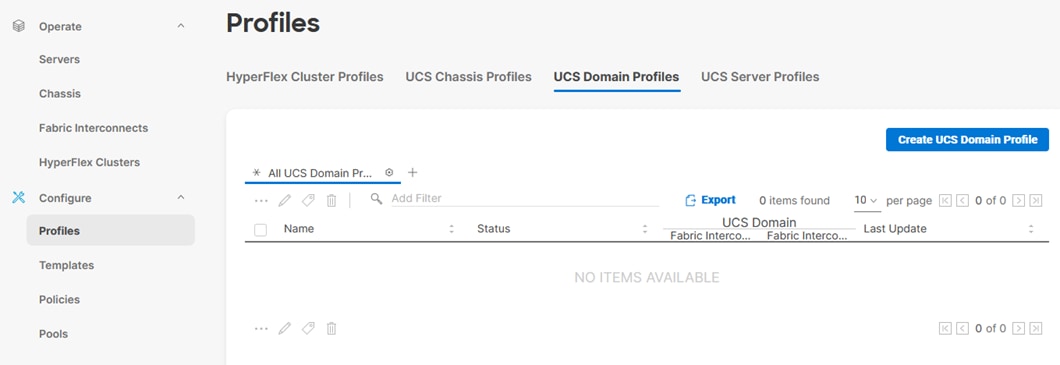

Step 3. In the main window, select UCS Domain Profiles and click Create UCS Domain Profile.
Step 4. On the Create UCS Domain Profile screen, click Start.
Procedure 10. General Configuration
Step 1. Select the organization from the drop-down list (for example, AA02).

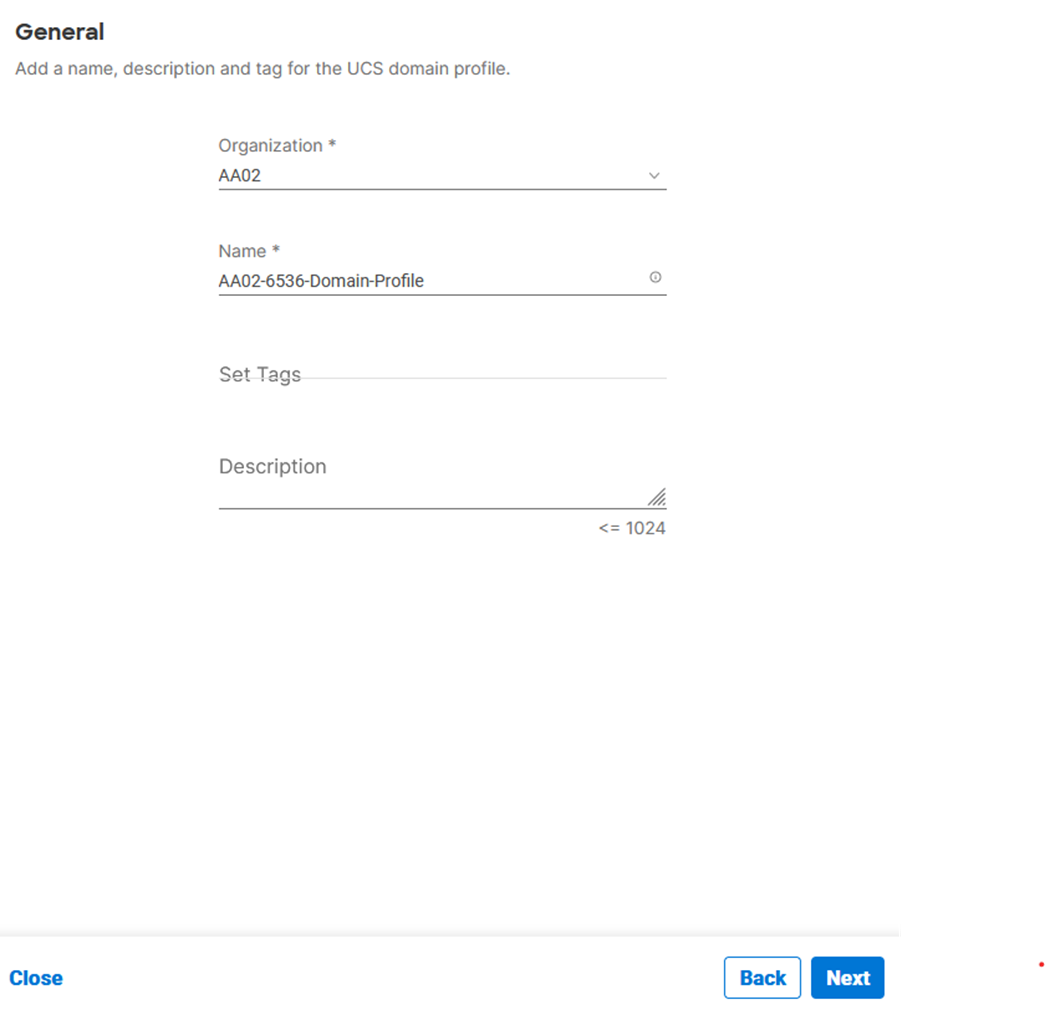

Step 2. Provide a name for the domain profile (for example, AA02-6536-Domain-Profile).
Step 3. Provide an optional Description.
Step 4. Click Next.
Procedure 11. Cisco UCS Domain Assignment

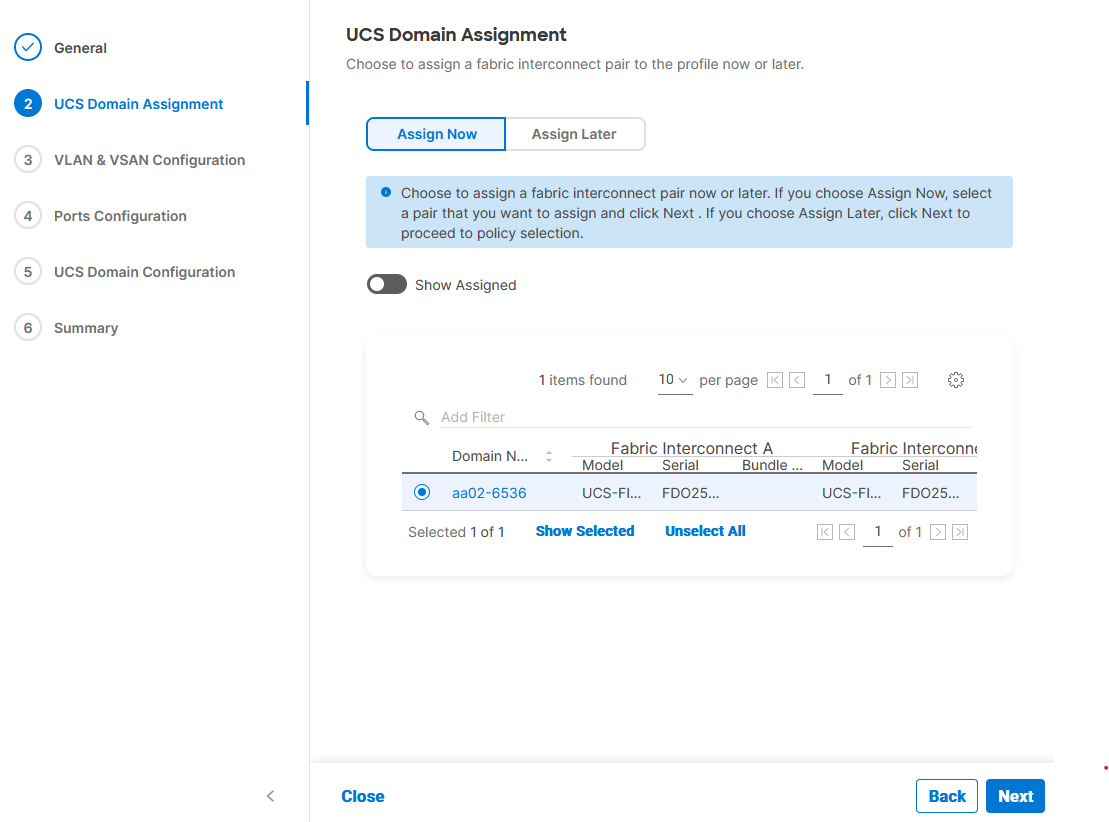

Step 1. Assign the Cisco UCS domain to this new domain profile by clicking Assign Now and selecting the previously added Cisco UCS domain (for example, AA02-6536).
Step 2. Click Next.

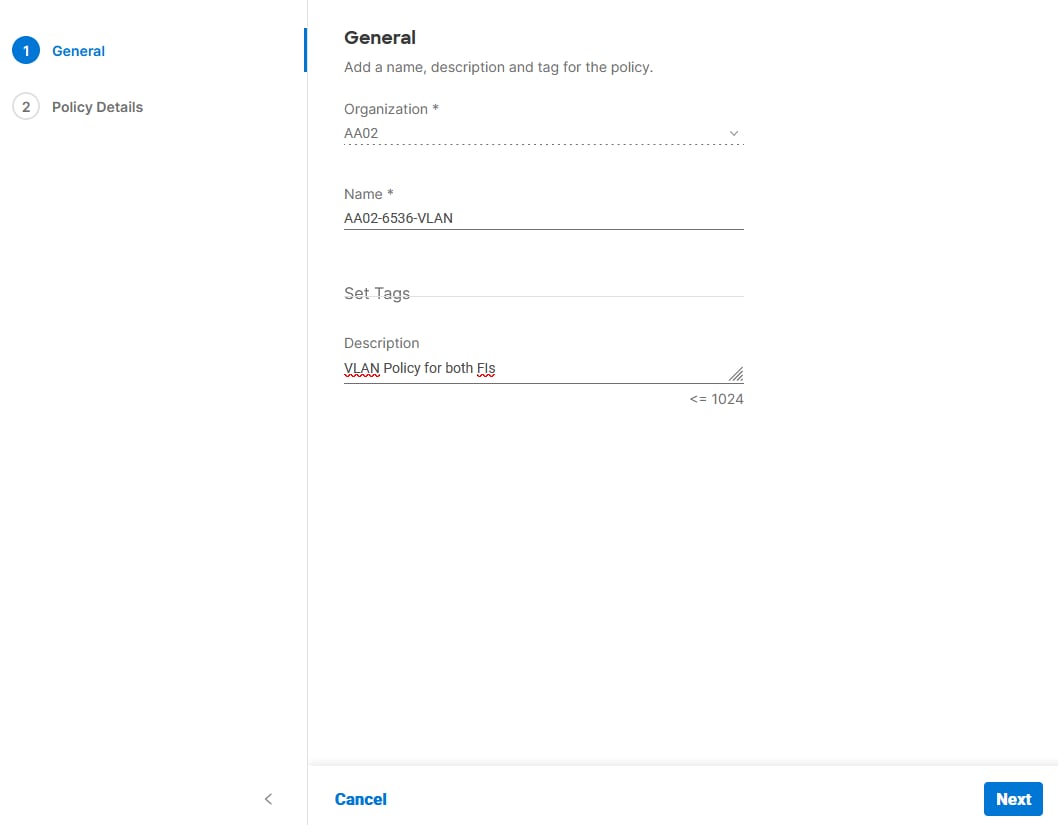

In this procedure, a single VLAN policy is created for both fabric interconnects and two individual VSAN policies are created because the VSAN IDs are unique for each fabric interconnect.
Procedure 1. Create and Apply VLAN Policy

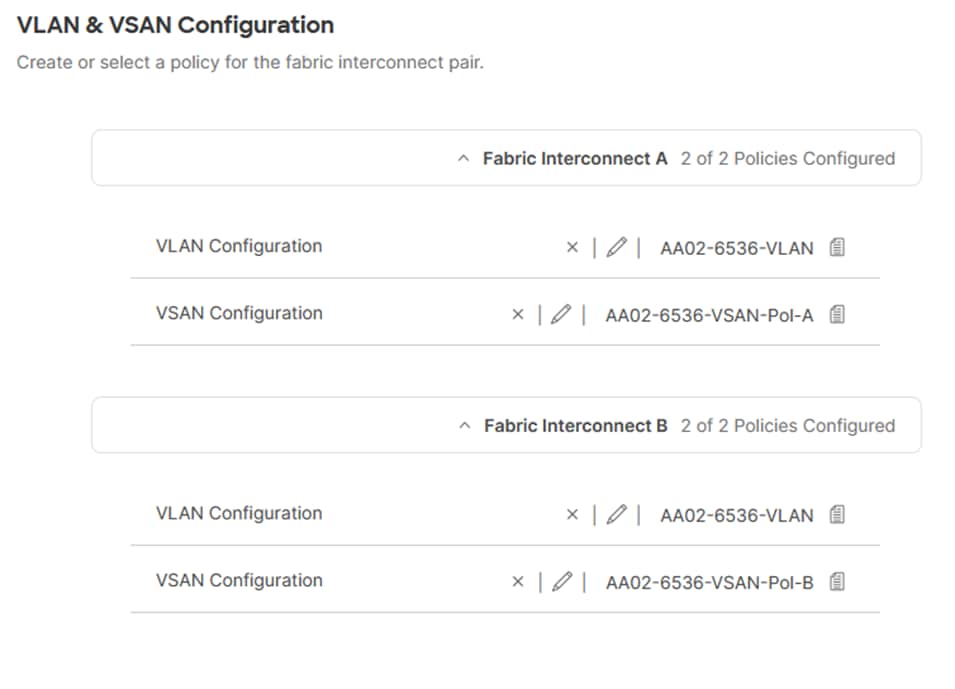

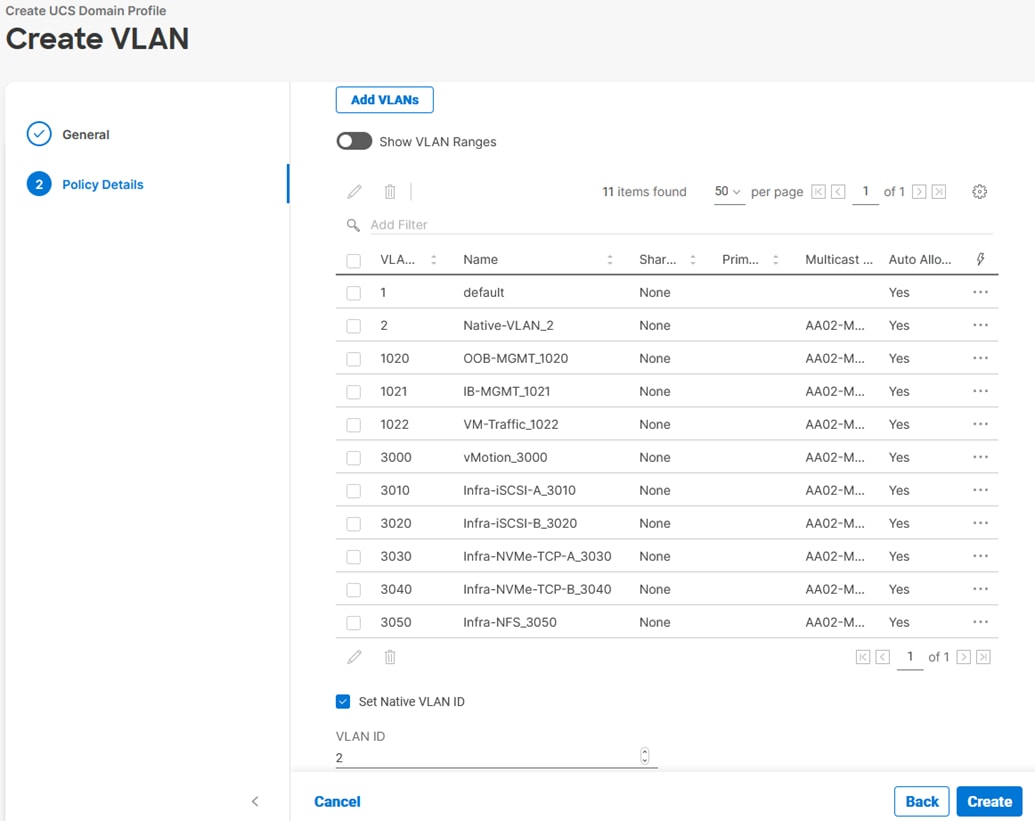

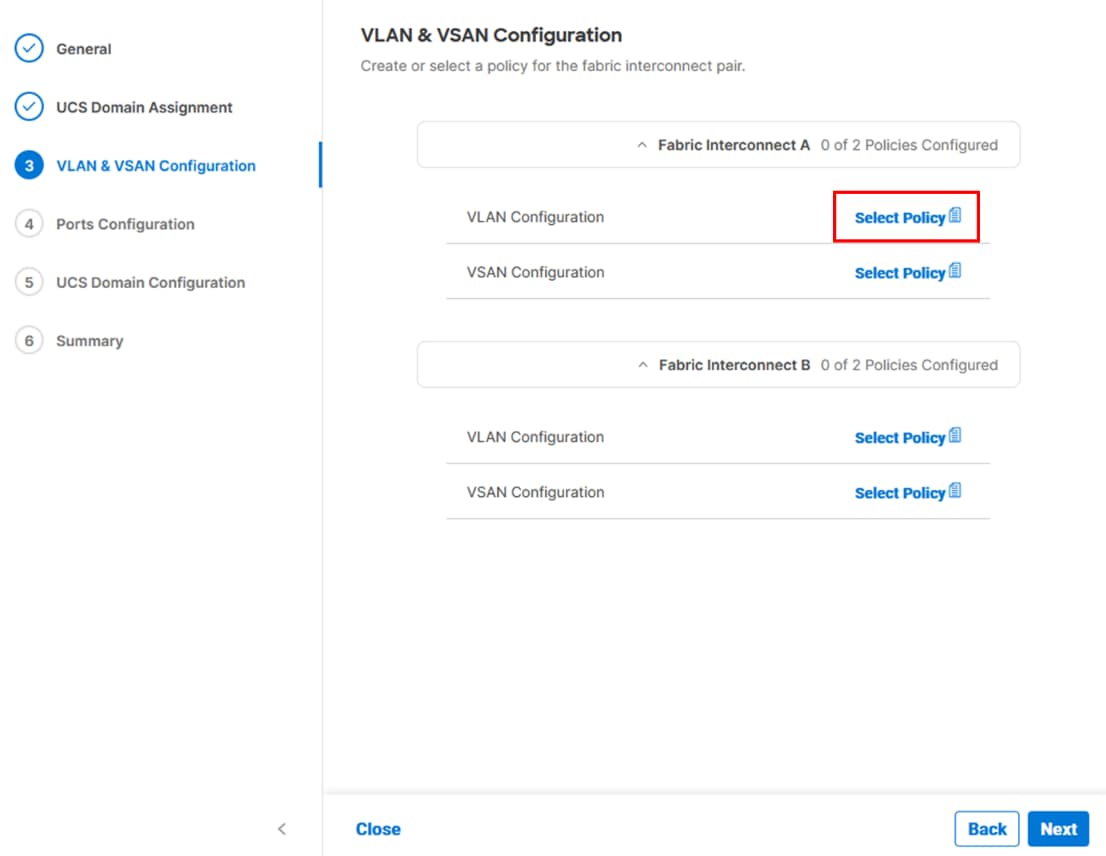

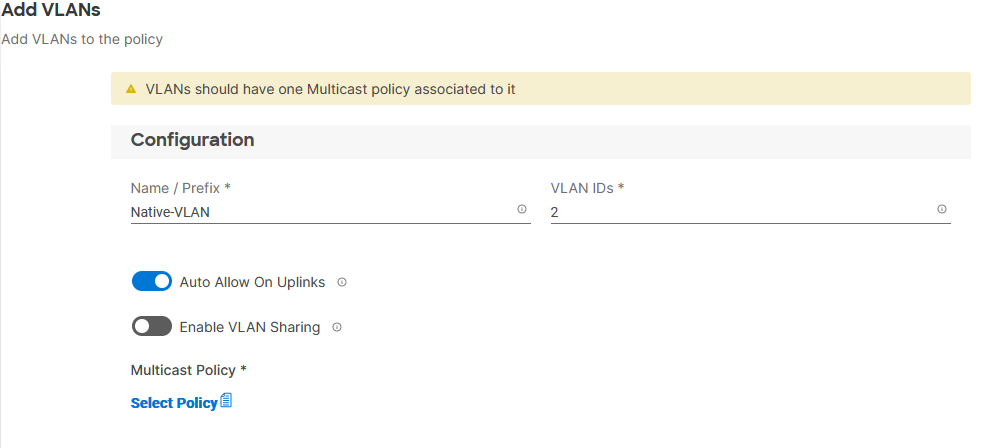

Step 1. Click Select Policy next to VLAN Configuration under Fabric Interconnect A.
Step 2. In the pane on the right, click Create New.
Step 3. Verify the correct organization is selected from the drop-down list (for example, AA02) and provide a name for the policy (for example, AA02-6536-VLAN).
Step 4. Click Next.
Step 5. Click Add VLANs.
Step 6. Provide a name and VLAN ID for the native VLAN.
Step 7. Make sure Auto Allow On Uplinks is enabled.
Step 8. To create the required Multicast policy, click Select Policy under Multicast*.
Step 9. In the window on the right, Click Create New to create a new Multicast Policy.
Step 10. Provide a Name for the Multicast Policy (for example, AA02-MCAST).
Step 11. Provide optional Description and click Next.

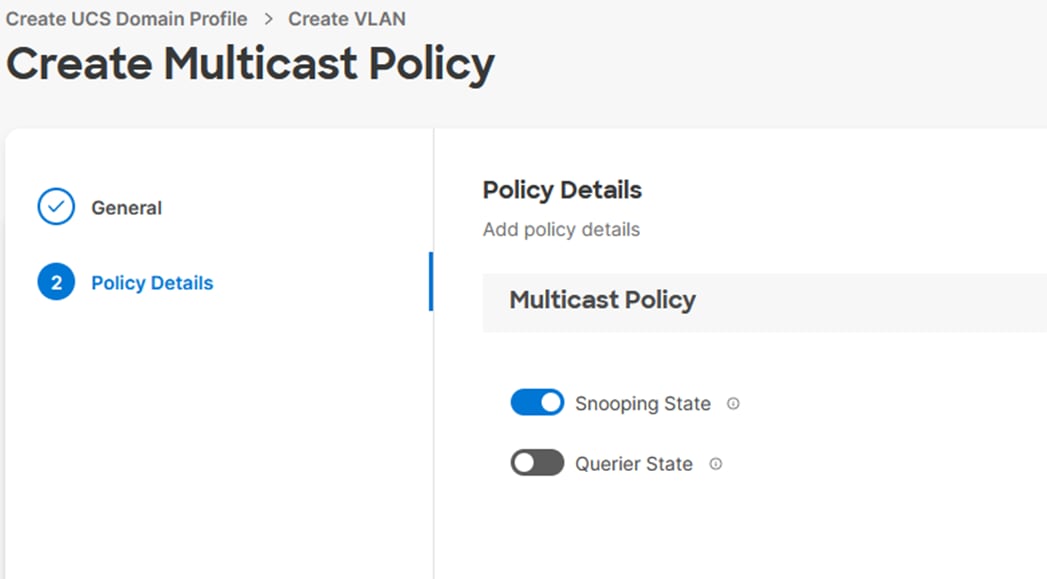

Step 12. Leave the Snooping State selected and click Create.
Step 13. Click Add to add the VLAN.
Step 14. Select Set Native VLAN ID and enter the VLAN number (for example, 2) under VLAN ID.
Step 15. Add the remaining VLANs for FlexPod by clicking Add VLANs and entering the VLANs one by one. Reuse the previously created multicast policy for all the VLANs.
The VLANs created during this validation are shown in the image below:
Note: The iSCSI and NVMe-TCP VLANs shown in the screen image above are only needed when iSCSI and NVME-TCP are configured in the environment.
Step 16. Click Create at bottom right to finish creating the VLAN policy and associated VLANs.
Step 17. Click Select Policy next to VLAN Configuration for Fabric Interconnect B and select the same VLAN policy.
Procedure 2. Create and Apply VSAN Policy (FC configuration only)
Step 1. Click Select Policy next to VSAN Configuration under Fabric Interconnect A. Then, in the pane on the right, click Create New.
Step 2. Verify the correct organization is selected from the drop-down list (for example, AA02) and provide a name for the policy (for example, AA02-6536-VSAN-Pol-A).
Note: A separate VSAN-Policy is created for each fabric interconnect.
Step 3. Click Next.

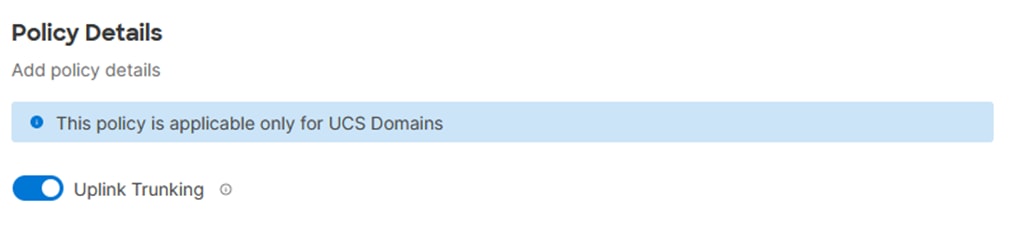

Step 4. Optionally enable Uplink Trunking.
Step 5. Click Add VSAN and provide a name (for example, VSAN-A), VSAN ID (for example, 101), and associated Fibre Channel over Ethernet (FCoE) VLAN ID (for example, 101) for SAN A.
Step 6. Set VLAN Scope as Uplink.
Step 7. Click Add.
Step 8. Click Create to finish creating VSAN policy for fabric A.
Step 9. Repeat these steps to create a new VSAN policy for SAN-B. Name the policy to identify the SAN-B configuration (for example, AA02-6536-VSAN-Pol-B) and use appropriate VSAN and FCoE VLAN (for example, 102).
Step 10. Verify that a common VLAN policy and two unique VSAN policies are associated with the two fabric interconnects.
Step 11. Click Next.
Procedure 3. Ports Configuration
Step 1. Click Select Policy for Fabric Interconnect A.
Step 2. Click Create New in the pane on the right to define a new port configuration policy.
Note: Use two separate port policies for the fabric interconnects. Using separate policies provide flexibility when port configuration (port numbers or speed) differs between the two FIs. When configuring Fibre Channel, two port policies are required because each fabric interconnect uses a unique Fibre Channel VSAN ID.
Step 3. Verify correct organization is selected from the drop-down list (for example, AA02) and provide a name for the policy (for example, AA02-6536-PortPol-A). Select the UCS-FI-6536 Switch Model.
Step 4. Click Next.

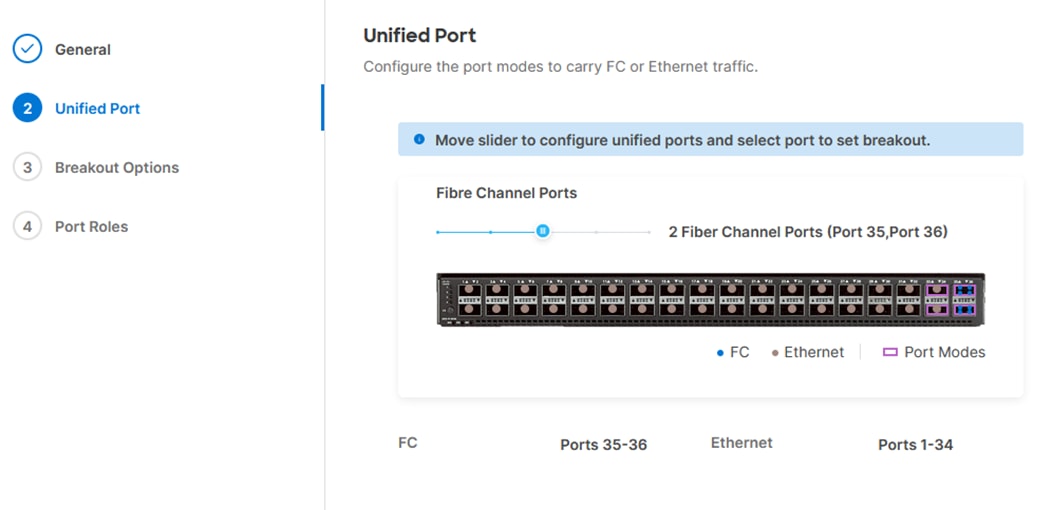

Step 5. Move the slider to set up unified ports. In this deployment, the last two ports were selected as Fibre Channel ports as 4x32G breakouts. Click Next.

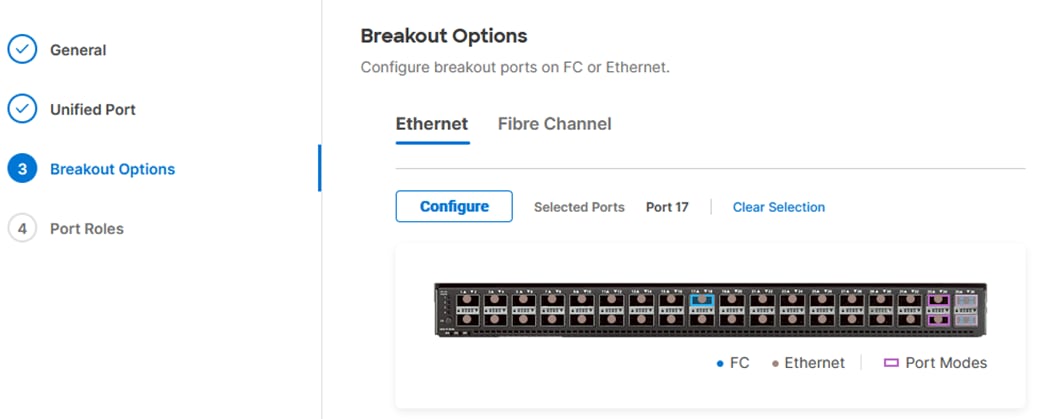

Step 6. If any Ethernet ports need to be configured as breakouts, either 4x25G or 4x10G, for connecting Cisco UCS C-Series servers or a Cisco UCS 5108 chassis, configure them here. In the list, select the checkbox next to any ports that need to be configured as breakout or select the ports on the graphic. When all ports are selected, click Configure at the top of the window.

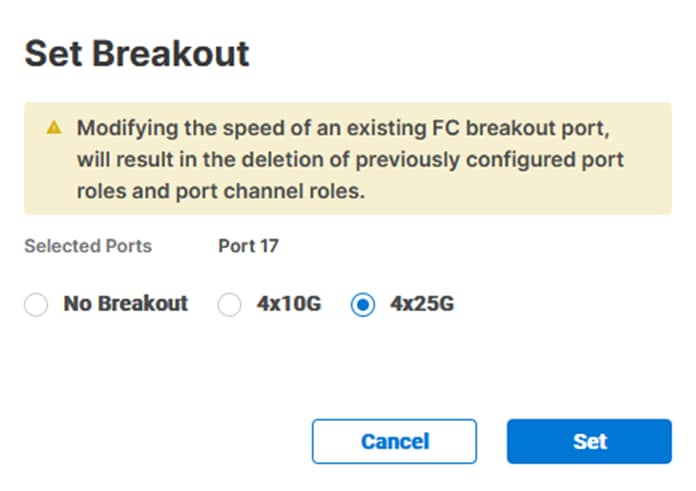

Step 7. In the Set Breakout popup, select either 4x10G or 4x25G and click Set.
Step 8. Under Breakout Options, select Fibre Channel. Select any ports that need the speed changed from 16G to 32G and click Configure.

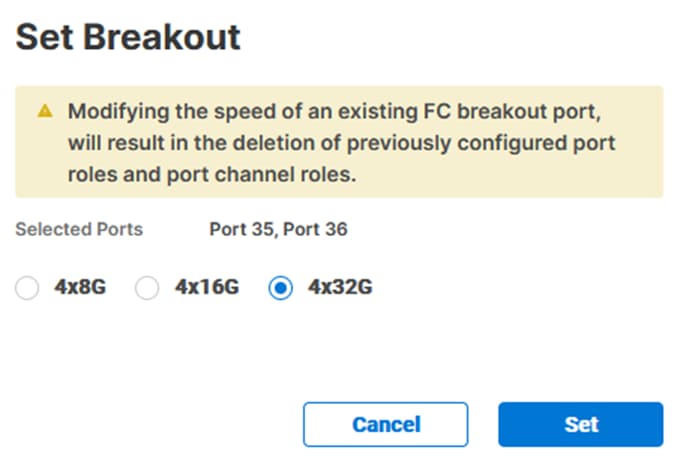

Step 9. In the Set Breakout popup, select 4x32G and click Set.
Step 10. Click Next.

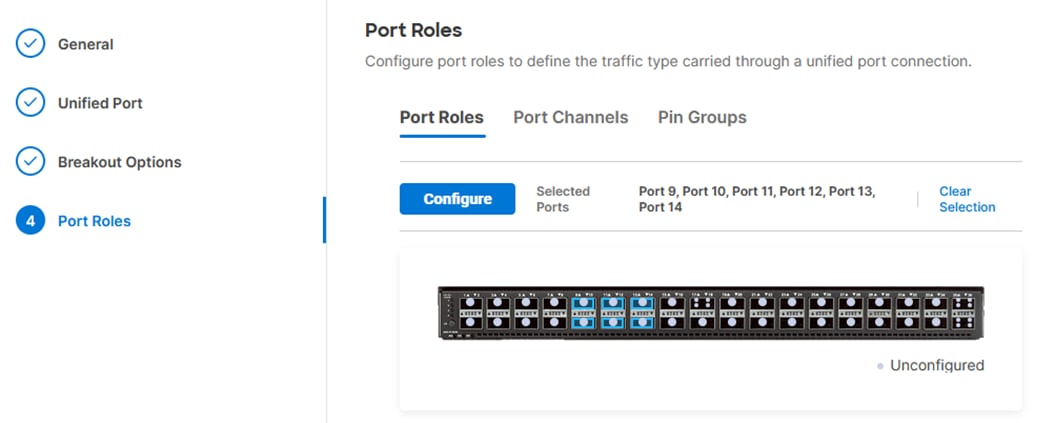

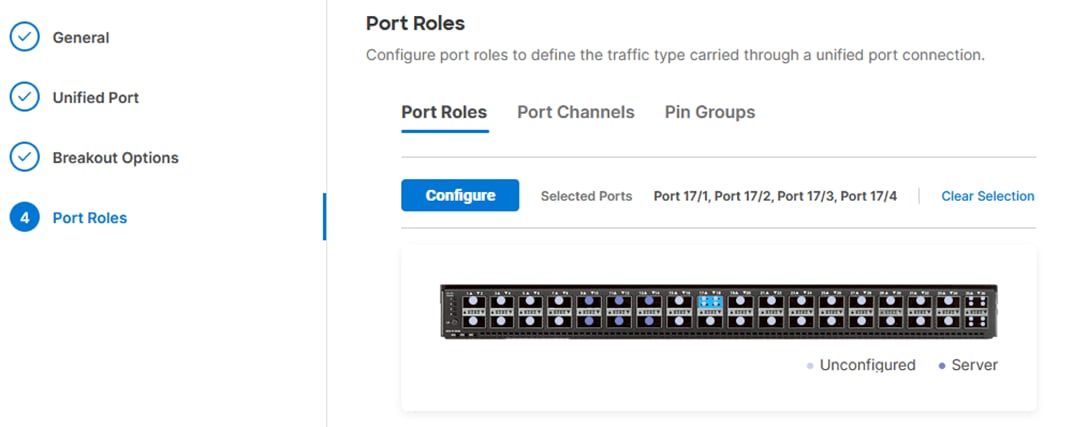

Step 11. In the list, select the checkbox next to any ports that need to be configured as server ports, including ports connected to chassis or C-Series servers. Ports can also be selected on the graphic. When all ports are selected, click Configure. Breakout and non-breakout ports cannot be configured together. If you need to configure breakout and non-breakout ports, do this configuration in two steps.

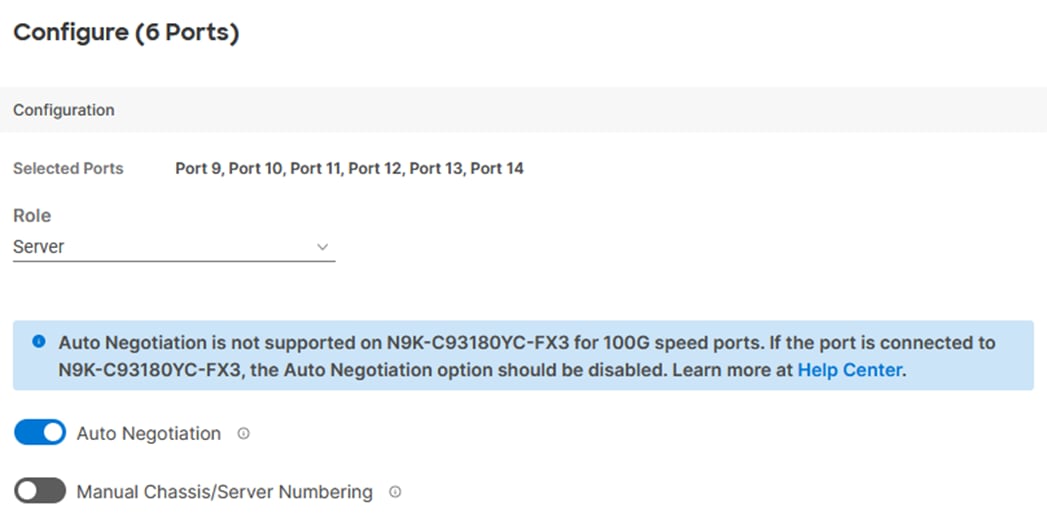

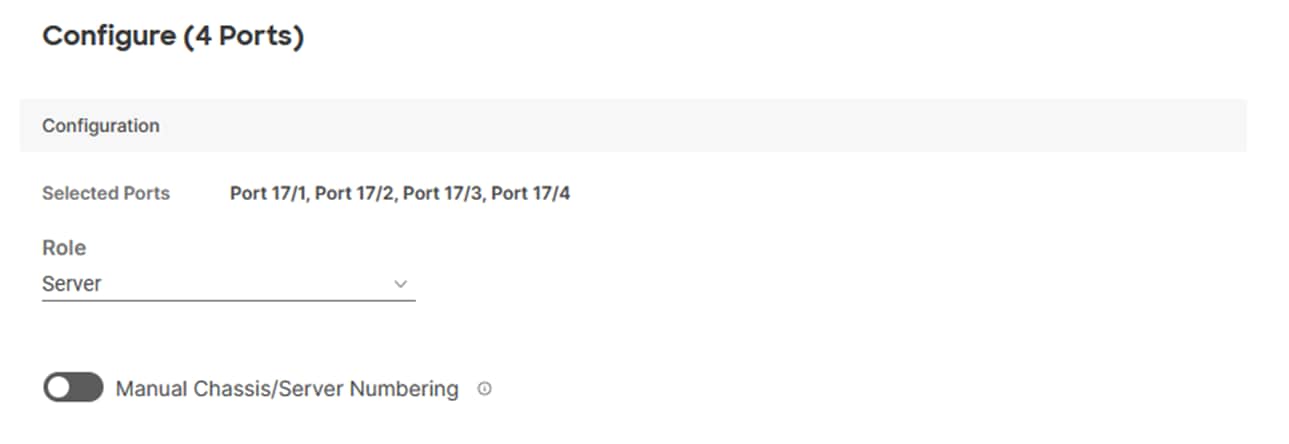

Step 12. From the drop-down list, select Server as the role. Also, unless you are using a Cisco Nexus 93180YC-FX3 as a FEX, leave Auto Negotiation enabled. If you need to do manual number of Chassis or C-Series Servers, enable Manual Chassis/Server Numbering.
Step 13. Click Save.
Step 14. Configure the Ethernet uplink port channel by selecting Port Channel in the main pane and then clicking Create Port Channel.
Step 15. Select Ethernet Uplink Port Channel as the role, provide a port-channel ID (for example, 11), and select a value for Admin Speed from drop-down list (for example, Auto).
Note: You can create the Ethernet Network Group, Flow Control, Link Aggregation for defining disjoint Layer-2 domain or fine tune port-channel parameters. These policies were not used in this deployment and system default values were utilized.
Step 16. Under Link Control, click Select Policy. In the upper right, click Create New.
Step 17. Verify the correct organization is selected from the drop-down list (for example, AA02) and provide a name for the policy (for example, AA02-UDLD-Link-Control). Click Next.

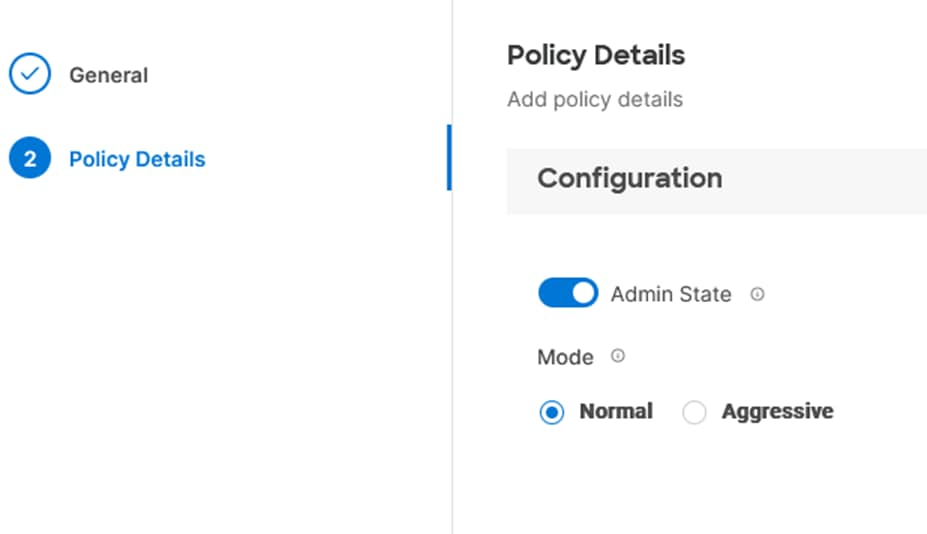

Step 18. Leave the default values selected and click Create.
Step 19. Scroll down and select uplink ports from the list of available ports (for example, port 31 and 32)
Step 20. Click Save.
Procedure 4. Configure FC Port Channel (FC configuration only)
Note: An FC uplink port channels only needed when configuring FC SAN and can be skipped for IP-only (iSCSI) storage access.
Step 1. Configure a Fibre Channel Port Channel by selecting the Port Channel in the main pane again and clicking Create Port Channel.
Step 2. In the drop-down list under Role, select FC Uplink Port Channel.

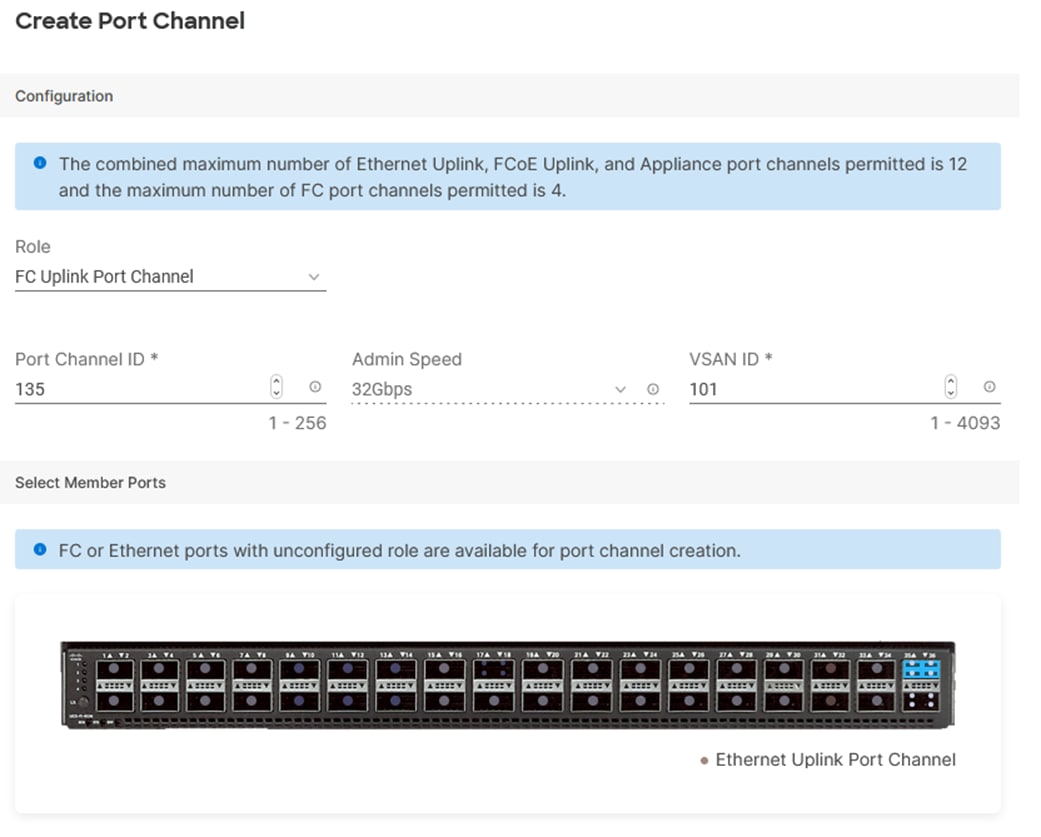

Step 3. Provide a port-channel ID (for example, 135), select a value for Admin Speed (for example, 32Gbps), and provide a VSAN ID (for example, 101).
Step 4. Select ports (for example, 35/1,35/2,35/3,35/4).
Step 5. Click Save.

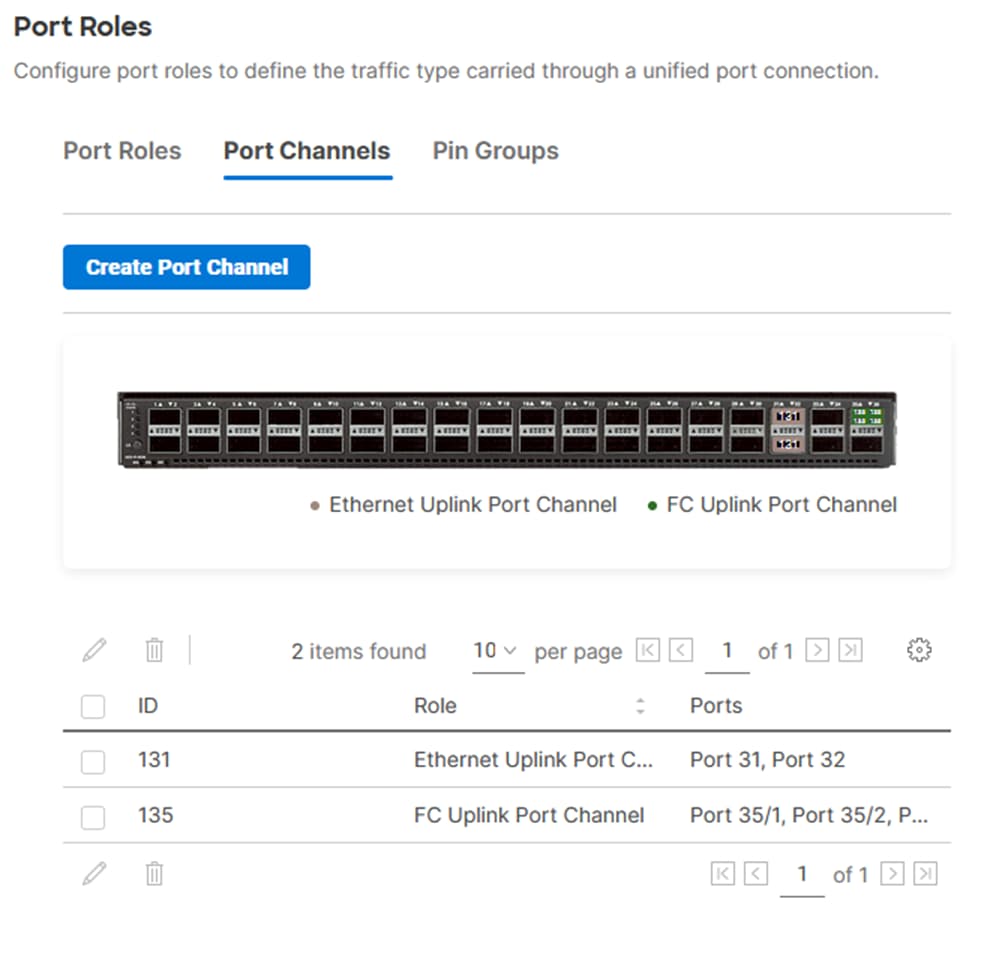

Step 6. Verify the port-channel IDs and ports after both the Ethernet uplink port channel and the Fibre Channel uplink port channel have been created.
Step 7. Click Save to create the port policy for Fabric Interconnect A.
Note: Use the summary screen to verify that the ports were selected and configured correctly.
Procedure 5. Port Configuration for Fabric Interconnect B
Step 1. Repeat the steps in Ports Configuration and Configure FC Port Channel to create the port policy for Fabric Interconnect B including the Ethernet port-channel and the FC port-channel (if configuring SAN). Use the following values for various parameters:
● Name of the port policy: AA02-PortPol-B
● Ethernet port-Channel ID: 132
● FC port-channel ID: 135
● FC VSAN ID: 102
Step 2. When the port configuration for both fabric interconnects is complete and looks good, click Next.
Procedure 6. UCS Domain Configuration

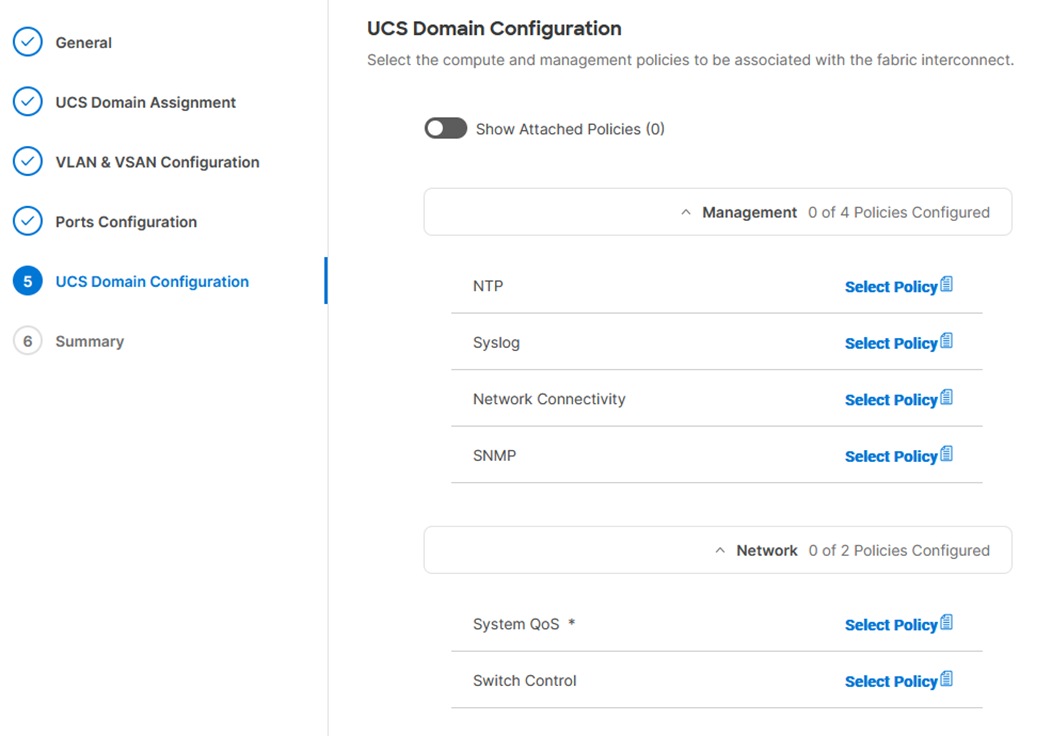

Under UCS domain configuration, additional policies can be configured to setup NTP, Syslog, DNS settings, SNMP, QoS and UCS operating mode (end host or switch mode). For this deployment, four policies (NTP, Network Connectivity, SNMP, and System QoS) will be configured, as shown below:
Procedure 7. Configure NTP Policy
Step 1. Click Select Policy next to NTP and then, in the pane on the right, click Create New.
Step 2. Verify correct organization is selected from the drop-down list (for example, AA02) and provide a name for the policy (for example, AA02-NTP).
Step 3. Click Next.

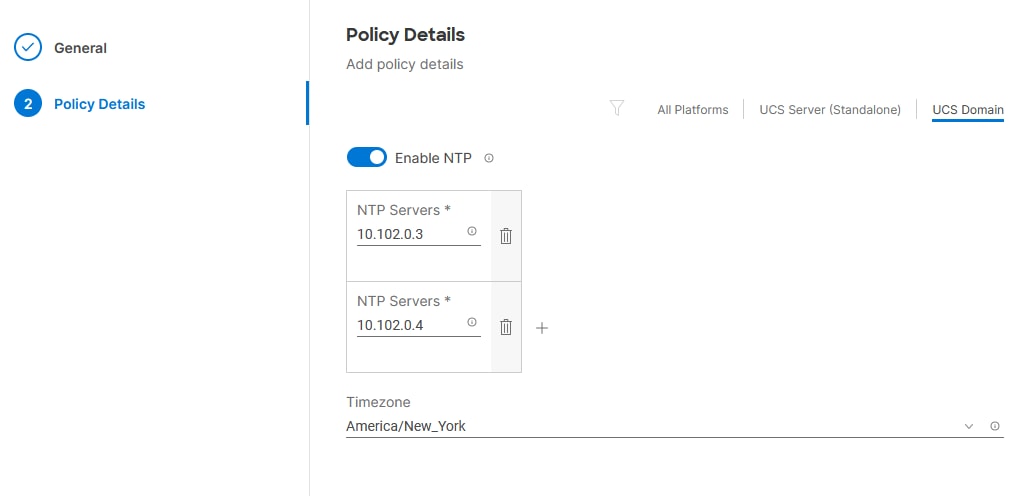

Step 4. Enable NTP, provide the first NTP server IP address, and select the time zone from the drop-down list.
Step 5. Add a second NTP server by clicking + next to the first NTP server IP address.
Note: The NTP server IP addresses should be Nexus switch management IPs. NTP distribution was configured in the Cisco Nexus switches.
Step 6. Click Create.
Procedure 8. Configure Network Connectivity Policy
Step 1. Click Select Policy next to Network Connectivity and then, in the pane on the right, click Create New.
Step 2. Verify correct organization is selected from the drop-down list (for example, AA02) and provide a name for the policy (for example, AA02-NetConn).
Step 3. Click Next.
Step 4. Provide DNS server IP addresses for Cisco UCS (for example, 10.102.1.151 and 10.102.1.152).
Step 5. Click Create.
Procedure 9. Configure SNMP Policy
Step 1. Click Select Policy next to SNMP and then, in the pane on the right, click Create New.
Step 2. Verify correct organization is selected from the drop-down list (for example, AA02) and provide a name for the policy (for example, AA02-SNMP).
Step 3. Click Next.

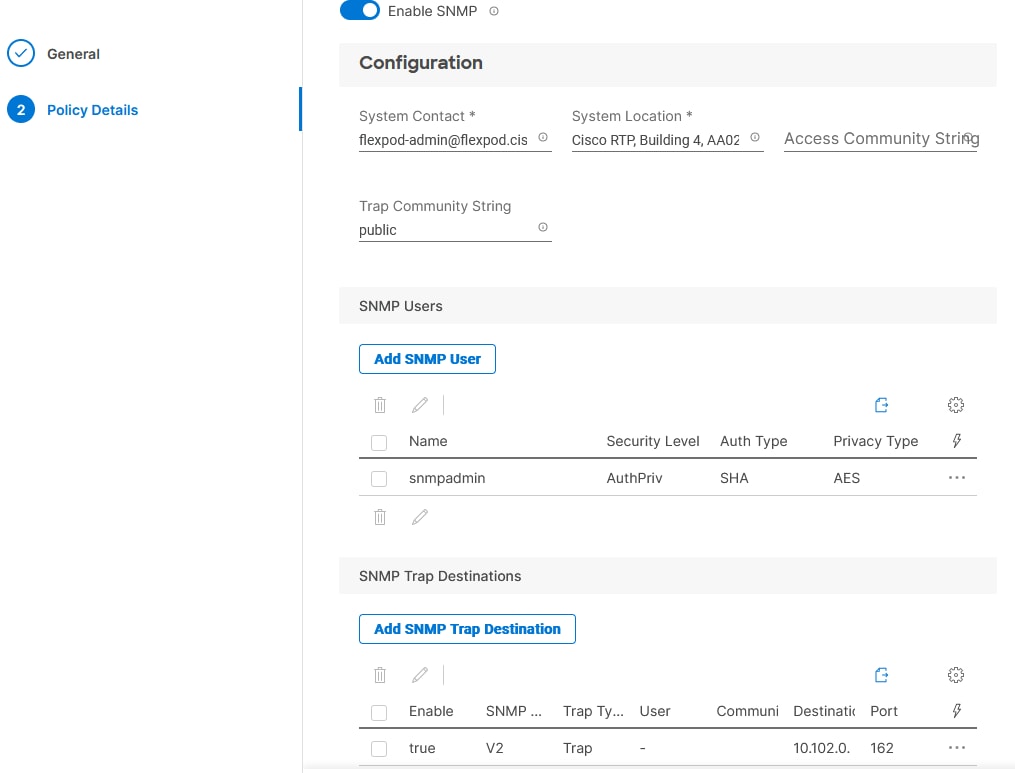

Step 4. Provide a System Contact email address, a System Location, and optional Community Strings.

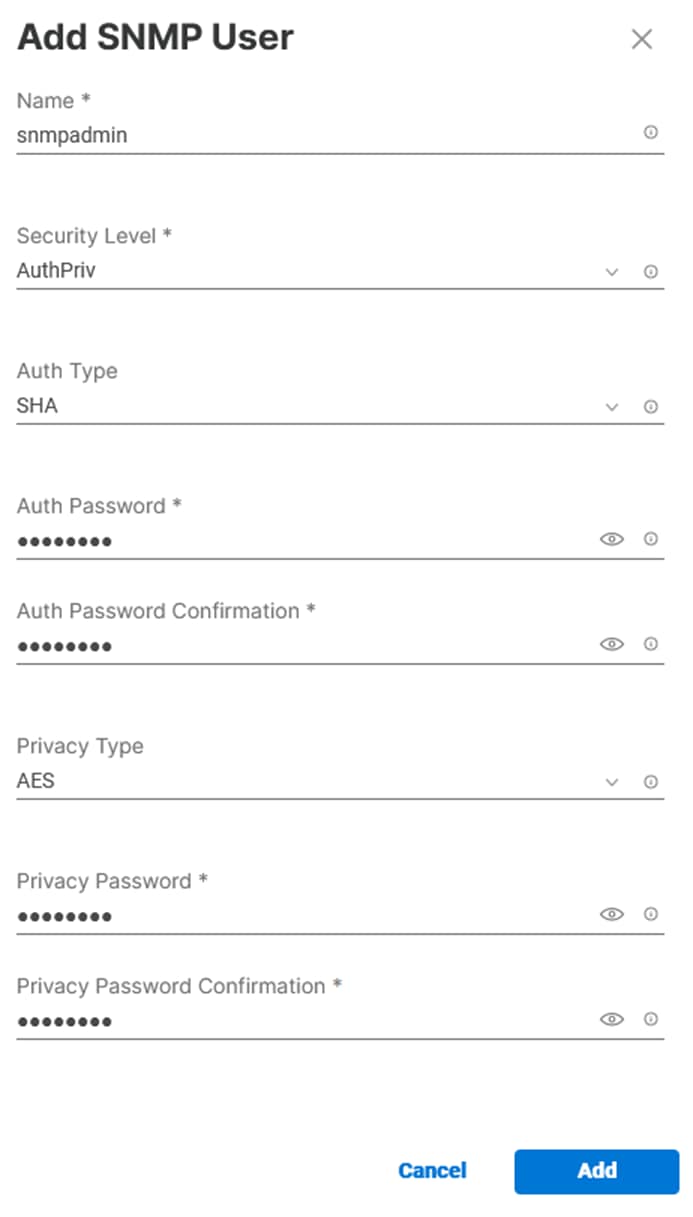

Step 5. Under SNMP Users, click Add SNMP User.
Step 6. This user id will be used for Cisco DCNM SAN to query the UCS Fabric Interconnects. Fill in a user name (for example, snmpadmin), Auth Type SHA, an Auth Password with confirmation, Privacy Type AES, and a Privacy Password with confirmation. Click Add.
Step 7. Optionally, add an SNMP Trap Destination (for example, the DCNM SAN IP Address). If the SNMP Trap Destination is V2, you must add Trap Community String.
Step 8. Click Create.
Procedure 10. Configure System QoS Policy
Step 1. Click Select Policy next to System QoS* and in the pane on the right, click Create New.
Step 2. Verify correct organization is selected from the drop-down list (for example, AA02) and provide a name for the policy (for example, AA02-QoS).
Step 3. Click Next.

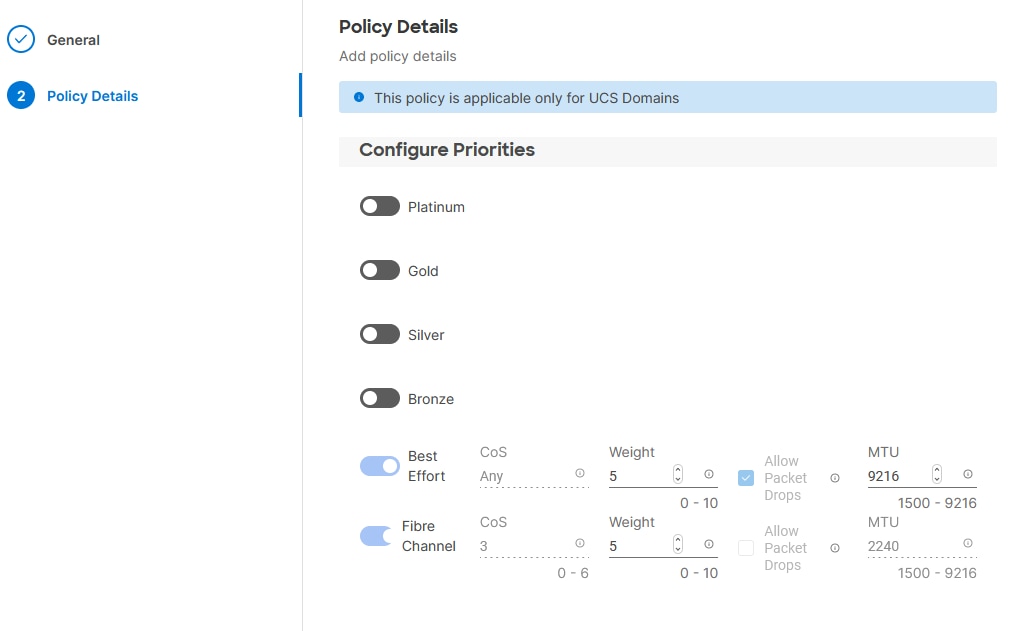

Step 4. Change the MTU for Best Effort class to 9216.
Step 5. Keep the default selections or change the parameters if necessary.
Step 6. Click Create.
Step 7. Click Next.

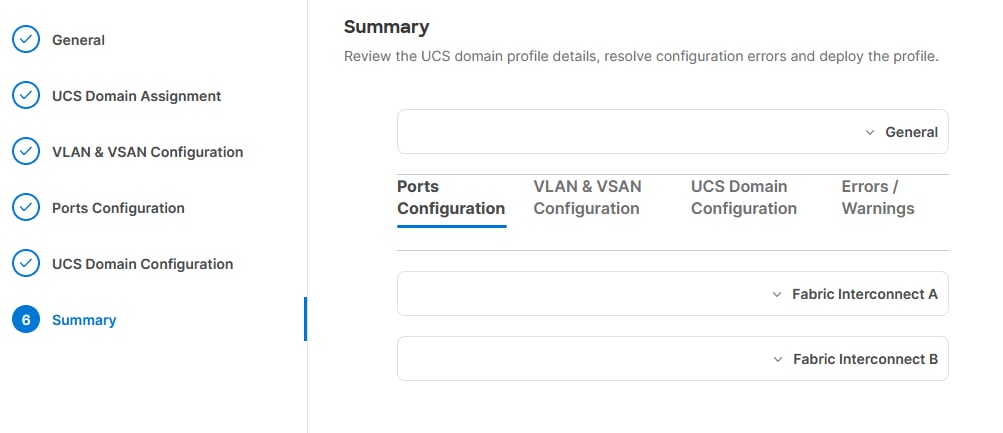

Step 1. Verify all the settings including the fabric interconnect settings, by expanding the settings and make sure that the configuration is correct.
Procedure 12. Deploy the Cisco UCS Domain Profile
Step 1. From the UCS domain profile Summary view, click Deploy.
Step 2. Acknowledge any warnings and click Deploy again.
Note: The system will take some time to validate and configure the settings on the fabric interconnects. Log into the console servers to see when the Cisco UCS fabric interconnects have finished configuration and are successfully rebooted.
Procedure 13. Verify Cisco UCS Domain Profile Deployment

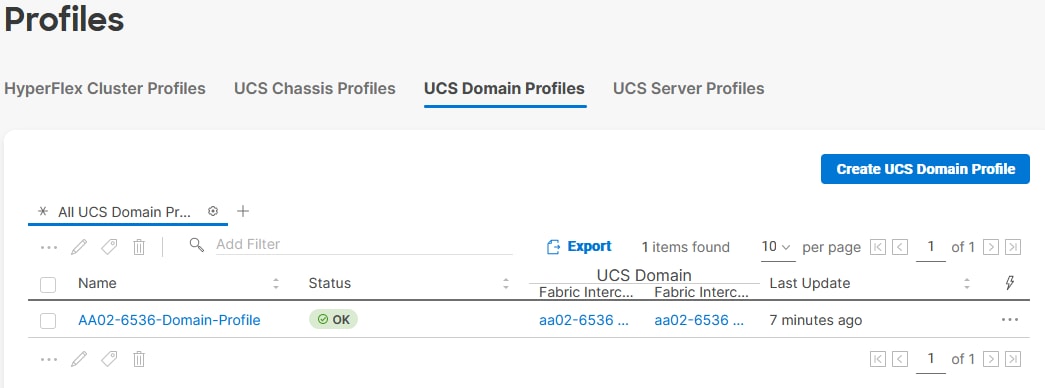

When the Cisco UCS domain profile has been successfully deployed, the Cisco UCS chassis and the blades should be successfully discovered.
Note: It takes a while to discover the blades for the first time. Watch the number of outstanding requests in Cisco Intersight:
Step 1. Log into Cisco Intersight. Under Infrastructure Service > Configure > Profiles > UCS Domain Profiles, verify that the domain profile has been successfully deployed.

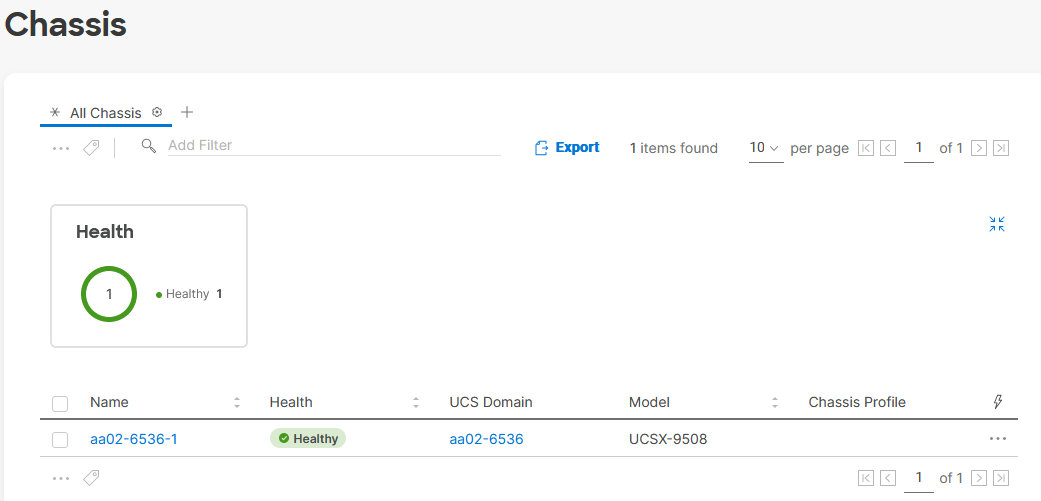

Step 2. Verify that the chassis (either UCSX-9508 or UCS 5108 chassis) has been discovered and is visible under Infrastructure Service > Operate > Chassis.

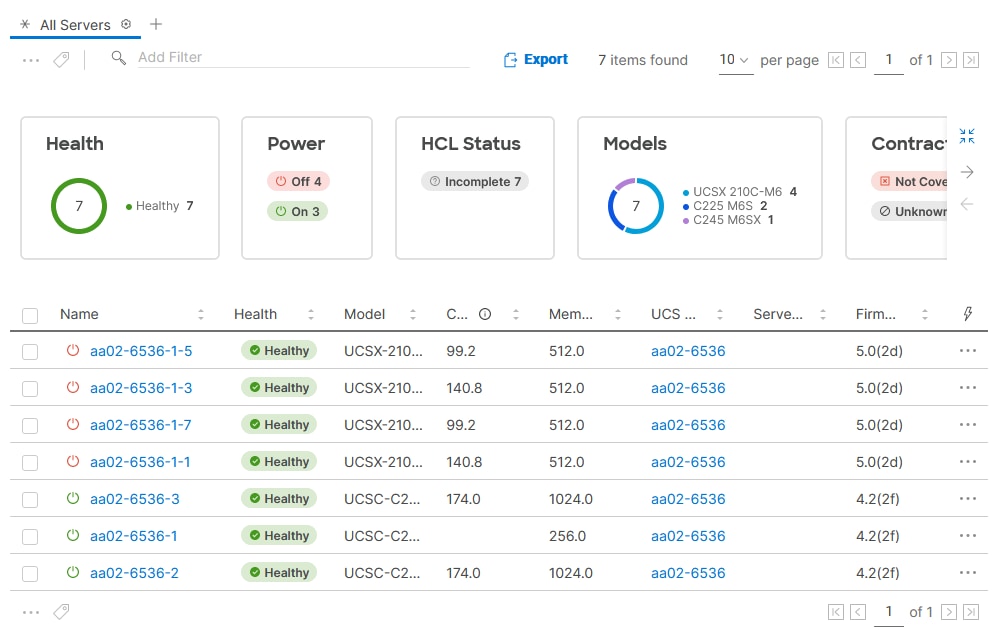

Step 3. Verify that the servers have been successfully discovered and are visible under Infrastructure Service > Operate > Servers.
Procedure 14. Ansible Cisco UCS IMM Configuration
To configure the Cisco UCS from the Ansible management workstation, follow the steps in this procedure. The group_vars/ucs.yml file contains two important variables:
● server_cpu_type – Intel or AMD – the type of CPU in the server
● vic_type – 4G or 5G – 5G is the latest 15000-series VICs while 4G is all previous generations
Step 1. To execute the playbooks against your Intersight account, you need to create an API key and save a SecretKey.txt file from your Cisco Intersight account.
a. In Cisco Intersight, select System > Settings > API > API Keys.

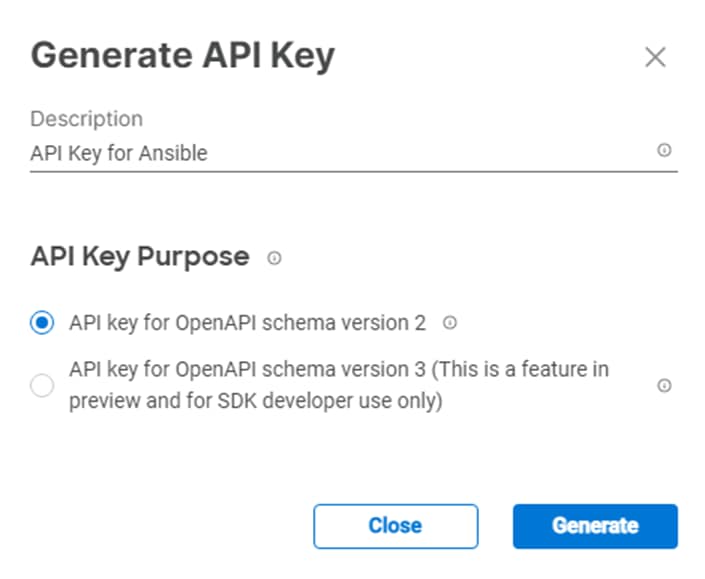

b. Click Generate API Key.
c. Under Generate API Key, enter a Description (for example, API Key for Ansible) and select API key for OpenAPI schema version 2. Click Generate.
d. In the Generate API Key window, click the upper icon to copy the API Key ID to the clipboard. Paste this key into the api_key_id variable in the FlexPod-IMM-4.2.2/FlexPod-IMM-4.2.2/group_vars/ucs.yml variable file and save it.
e. Using an editor, open the FlexPod-IMM-4.2.2/FlexPod-IMM-4.2.2/SecretKey.txt file and clear all text from the file. Then click the lower icon in the Generate API Key window and paste the Secret Key into the SecretKey.txt file and save it.
Step 2. Edit the following variable files to ensure proper UCS variables are entered:
● FlexPod-IMM-4.2.2/FlexPod-IMM-4.2.2/group_vars/all.yml
● FlexPod-IMM-4.2.2/FlexPod-IMM-4.2.2/group_vars/ucs.yml
● FlexPod-IMM-4.2.2/FlexPod-IMM-4.2.2/roles/UCS-IMM/create_pools/defaults/main.yml
● FlexPod-IMM-4.2.2/FlexPod-IMM-4.2.2/roles/UCS-IMM/create_server_policies/defaults/main.yml
● FlexPod-IMM-4.2.2/FlexPod-IMM-4.2.2/roles/UCS-IMM/create_server_profile_template/defaults/main.yml
Note: It is critical when entering values in the variable files that either the FC and FC-NVMe NetApp LIF WWPNs or Infrastructure SVM iSCSI IQN be entered into the all.yml file so that UCS SAN boot and MDS device alias can be properly configured. LIF WWPNs can be queried by connecting to the NetApp cluster CLI interface and running “network interface show -vserver <svm-name>.” If iSCSI SAN boot is being configured, the Infrastructure SVM’s iSCSI IQN can be queried by running “vserver iscsi show -vserver <svm-name>.”
Step 3. The /root/ FlexPod-IMM-4.2.2/FlexPod-IMM-4.2.2 directory contains three Ansible playbooks to set up Cisco UCS IMM server profile templates: Create_IMM_Pools.yml, Create_IMM_Server_Policies.yml, and Create_IMM_Server_Profile_Templates.yml. Run Create_IMM_Pools.yml only once. Then Create_IMM_Server_Policies.yml and Create_IMM_Server_Profile_Templates.yml are designed to be run more than once with different combinations of server_cpu_type andvic_type. It is important that when Create_IMM_Server_Policies.yml is run that Create_IMM_Server_Profiles_Templates.yml is run before changing the server_cpu_type and vic_type variables. Many of the policies and templates will be assigned unique names according to these variables. Also, since the UCS-IMM Ansible playbooks connect to the Cisco Intersight API website instead of hardware components, that the use of the inventory file is not needed. To set up the Cisco Intersight IMM pools, policies, and server profile templates, execute the following:
ansible-playbook ./Setup_IMM_Pools.yml
ansible-playbook ./Setup_IMM_Server_Policies.yml
ansible-playbook ./Setup_IMM_Server_Profile_Templates.yml
Note: Server Profiles will be generated from the Server Profile Templates and assigned to servers after the Cisco UCS IMM Manual Configuration.
Cisco UCS IMM Setup Completion
Complete the following procedures whether performing an Ansible configuration or a Manual configuration of the FlexPod.
Procedure 1. Derive Server Profiles
Step 1. From the Server profile template Summary screen, click Derive Profiles.
Note: This action can also be performed later by navigating to Templates, clicking “…” next to the template name and selecting Derive Profiles.

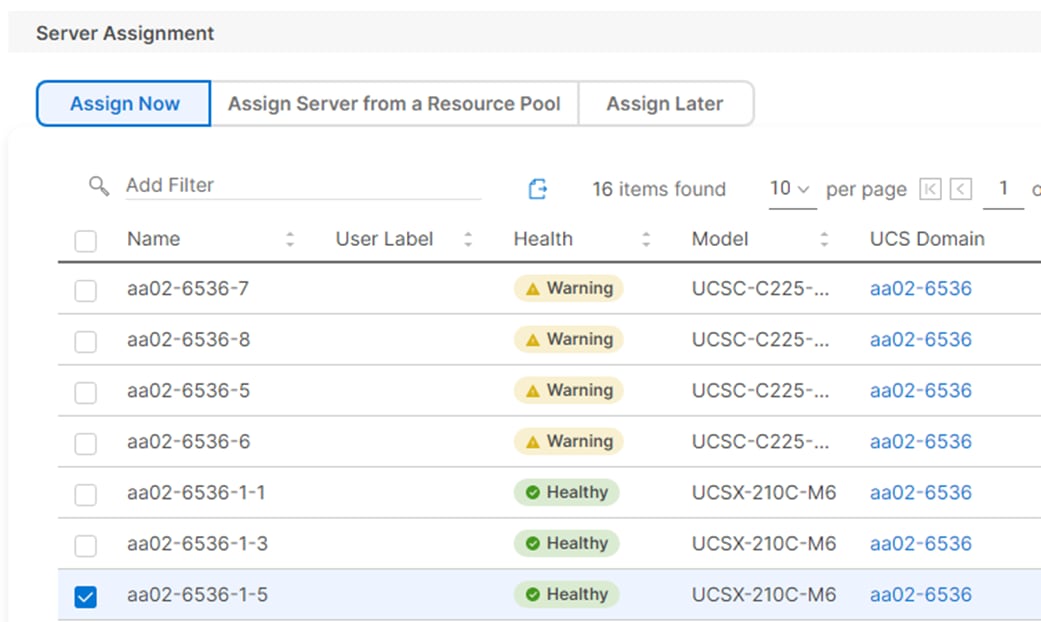

Step 2. Under the Server Assignment, select Assign Now and select Cisco UCS X210c M6 server(s). You can select one or more servers depending on the number of profiles to be deployed.
Step 3. Click Next.
Note: Cisco Intersight will fill in default information for the number of servers selected (1 in this case).
Step 4. Adjust the fields as needed. It is recommended to use the server hostname for the Server Profile name.
Step 5. Click Next.
Step 6. Verify the information and click Derive to create the Server Profile(s).

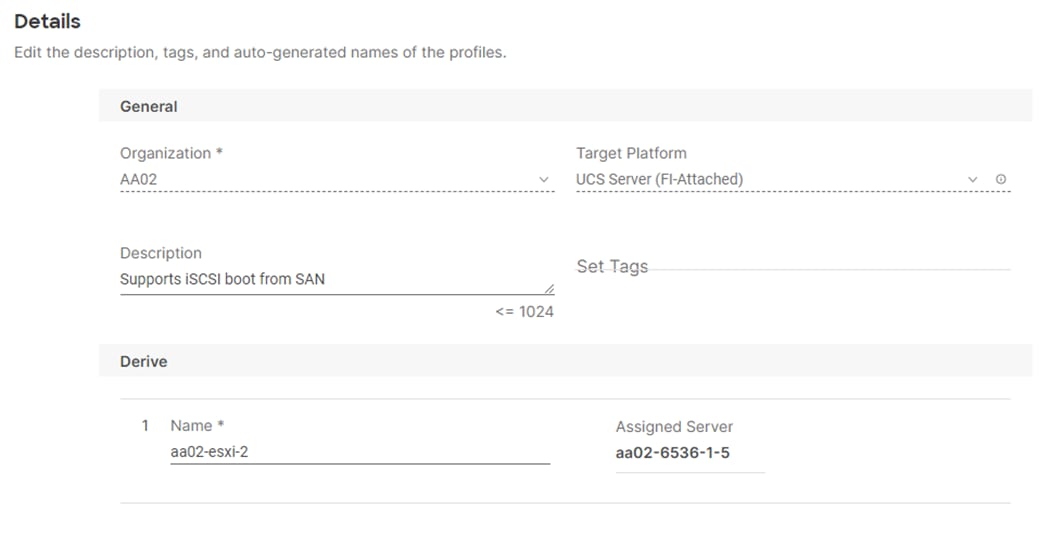

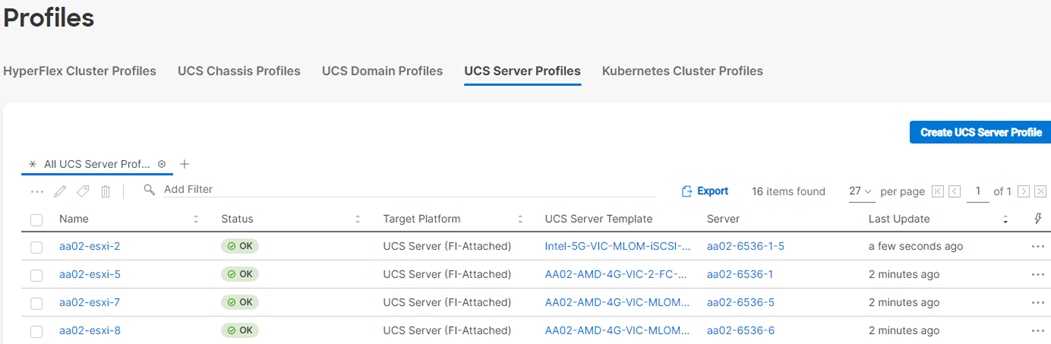

Step 7. In the Infrastructure Service > Configure > Profiles > UCS Server Profiles list, select the profile(s) just created and click the … at the top of the column and select Deploy. Click Deploy to confirm.
Step 8. Cisco Intersight will start deploying the server profile(s) and will take some time to apply all the policies. Use the Requests tab at the top right-hand corner of the window to see the progress.
When the Server Profile(s) are deployed successfully, they will appear under the Server Profiles with the status of OK.
Step 9. Derive and Deploy all needed servers for your FlexPod environment.
This chapter contains the following:
This chapter explains how to configure the Cisco MDS 9000s for use in a FlexPod environment. The configuration covered in this section is only needed when configuring Fibre Channel and FC-NVMe storage access.
Note: If FC connectivity is not required in the FlexPod deployment, this section can be skipped.
Note: If the Nexus 93360YC-FX2 switches are being used for SAN switching in this FlexPod Deployment, please refer to FlexPod with Cisco Nexus 93360YC-FX2 SAN Switching Configuration – Part 2 in the Appendix of this document.
Follow the physical connectivity guidelines for FlexPod as explained in Physical Topology section.
The following procedures describe how to configure the Cisco MDS switches for use in a base FlexPod environment. This procedure assumes you are using the Cisco MDS 9132T with NX-OS 8.4(2c).
Procedure 1. Set up Cisco MDS 9132T A and 9132T B
Note: On initial boot and connection to the serial or console port of the switch, the NX-OS setup should automatically start and attempt to enter Power on Auto Provisioning. Enter y to get to the System Admin Account Setup.
Step 1. Configure the switch using the command line:
---- System Admin Account Setup ----
Do you want to enforce secure password standard (yes/no) [y]: Enter
Enter the password for "admin": <password>
Confirm the password for "admin": <password>
Would you like to enter the basic configuration dialog (yes/no): yes
Create another login account (yes/no) [n]: Enter
Configure read-only SNMP community string (yes/no) [n]: Enter
Configure read-write SNMP community string (yes/no) [n]: Enter
Enter the switch name : <mds-A-hostname>
Continue with Out-of-band (mgmt0) management configuration? (yes/no) [y]: Enter
Mgmt0 IPv4 address : <mds-A-mgmt0-ip>
Mgmt0 IPv4 netmask : <mds-A-mgmt0-netmask>
Configure the default gateway? (yes/no) [y]: Enter
IPv4 address of the default gateway : <mds-A-mgmt0-gw>
Configure advanced IP options? (yes/no) [n]: Enter
Enable the ssh service? (yes/no) [y]: Enter
Type of ssh key you would like to generate (dsa/rsa) [rsa]: Enter
Number of rsa key bits <1024-2048> [1024]: Enter
Enable the telnet service? (yes/no) [n]: Enter
Configure congestion/no_credit drop for fc interfaces? (yes/no) [y]: Enter
Enter the type of drop to configure congestion/no_credit drop? (con/no) [c]: Enter
Enter milliseconds in multiples of 10 for congestion-drop for logical-type edge
in range (<200-500>/default), where default is 500. [d]: Enter
Enable the http-server? (yes/no) [y]: Enter
Configure clock? (yes/no) [n]: Enter
Configure timezone? (yes/no) [n]: Enter
Configure summertime? (yes/no) [n]: Enter
Configure the ntp server? (yes/no) [n]: Enter
Configure default switchport interface state (shut/noshut) [shut]: Enter
Configure default switchport trunk mode (on/off/auto) [on]: auto
Configure default switchport port mode F (yes/no) [n]: yes
Configure default zone policy (permit/deny) [deny]: Enter
Enable full zoneset distribution? (yes/no) [n]: y
Configure default zone mode (basic/enhanced) [basic]: Enter
Step 2. Review the configuration.
Would you like to edit the configuration? (yes/no) [n]: Enter
Use this configuration and save it? (yes/no) [y]: Enter
Step 3. To avoid possible timing errors with Ansible, perform a no shutdown on the FC interfaces connected to the Cisco UCS fabric interconnects.
config t
int fc1/5-8
no shutdown
copy r s
exit
Step 4. To set up the initial configuration of the Cisco MDS B switch, repeat steps 1-3 with appropriate host and IP address information.
Procedure 2. FlexPod Cisco MDS Switch Ansible Configuration
Step 1. Add MDS switch ssh keys to /root/.ssh/known_hosts. Adjust known_hosts as necessary if errors occur.
ssh admin@<mds-A-mgmt0-ip>
exit
ssh admin@<mds-B-mgmt0-ip>
exit
Step 2. Edit the following variable files to ensure proper MDS variables are entered:
● FlexPod-IMM-4.2.2/FlexPod-IMM-4.2.2/inventory
● FlexPod-IMM-4.2.2/FlexPod-IMM-4.2.2/group_vars/all.yml
● FlexPod-IMM-4.2.2/FlexPod-IMM-4.2.2/host_vars/mdsA.yml
● FlexPod-IMM-4.2.2/FlexPod-IMM-4.2.2/host_vars/mdsB.yml
● FlexPod-IMM-4.2.2/FlexPod-IMM-4.2.2/roles/MDSconfig/defaults/main.yml
Note: The FC and FC-NVMe NetApp LIF WWPNs should have already been entered into the all.yml file so that MDS device aliases can be properly configured. The Cisco UCS server initiator WWPNs for both FC and FC-NVMe should also be entered into all.yml. To query these WWPNs, log into Cisco Intersight and select each of the 3 server service profiles by going to “Infrastructure Service > Configure > Profiles > UCS Server Profiles > <Desired Server Profile> > Inventory > Network Adapters > <Adapter> > Interfaces .” The needed WWPNs can be found under HBA Interfaces.
Step 3. From /root/FlexPod-IMM-4.2.2/FlexPod-IMM-4.2.2, run the Setup_MDS.yml Ansible playbook.
ansible-playbook ./Setup_MDS.yml -i inventory
Step 4. Once the Ansible playbook has been run and configured both switches, it is important to configure the local time so that logging time alignment and any backup schedules are correct. For more information on configuring the timezone and daylight savings time or summertime, please see Cisco MDS 9000 Series Fundamentals Configuration Guide, Release 9.x. Sample clock commands for the United States Eastern timezone are:
clock timezone EST -5 0
clock summer-time EDT 2 Sunday March 02:00 1 Sunday November 02:00 60
Step 5. SSH into each switch and execute the following commands
clock timezone <timezone> <hour-offset> <minute-offset>
clock summer-time <timezone> <start-week> <start-day> <start-month> <start-time> <end-week> <end-day> <end-month> <end-time> <offset-minutes>
Storage Configuration – ONTAP Boot Storage Setup
This chapter contains the following:
● Ansible ONTAP Storage Configuration Part 2
This configuration requires information from both the UCS server profiles and NetApp storage system. After creating the boot LUNs, initiator groups, and appropriate mappings between the two, UCS server profiles will be able to see the boot disks hosted on NetApp controllers.
Ansible ONTAP Storage Configuration Part 2
Procedure 1. Obtain the WWPNs for UCS Server Profiles (required only for FC configuration)

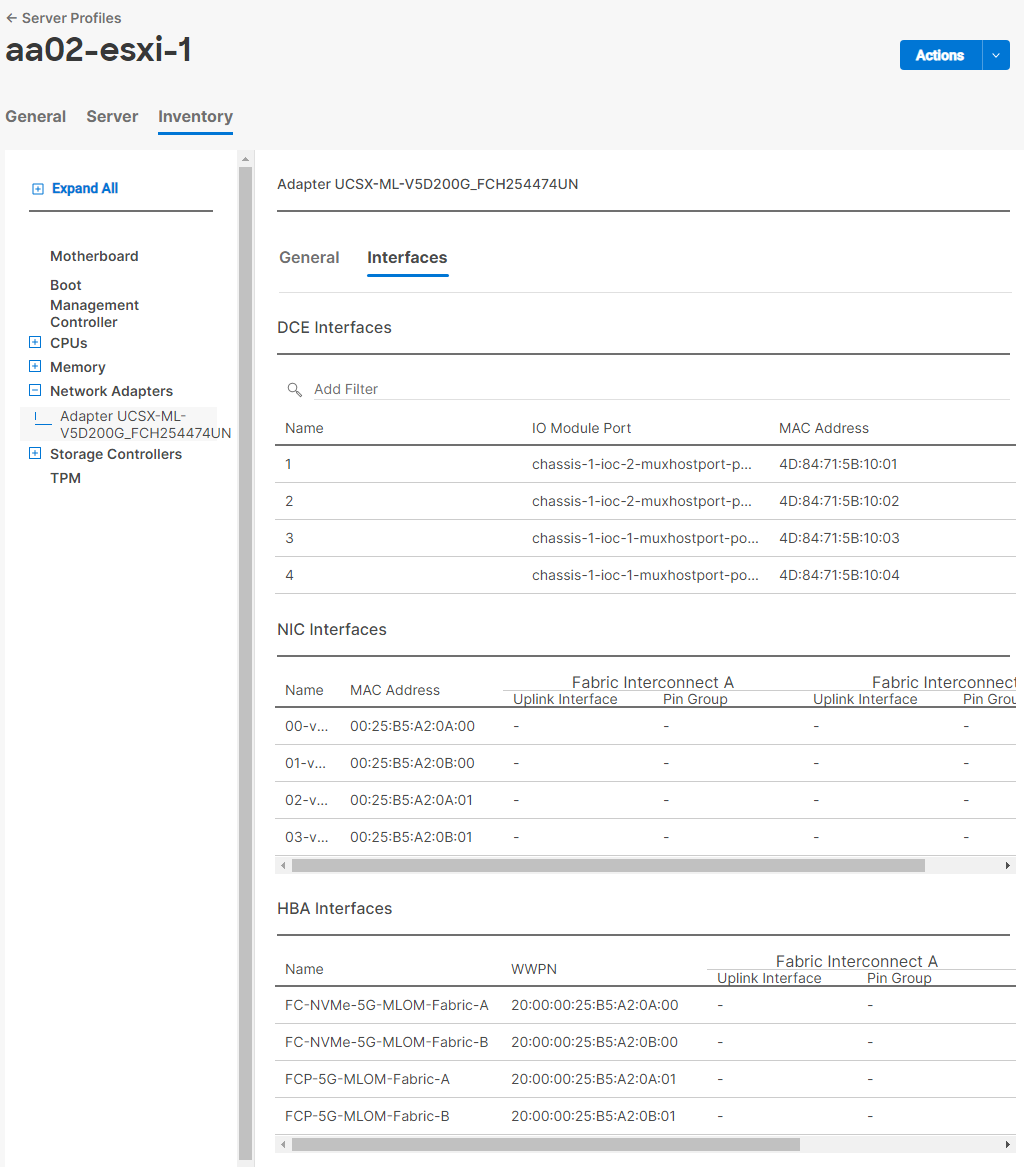

Step 1. From the Intersight GUI, follow: CONFIGURE > Profiles. Select UCS Server Profile and click on [Server Profile Name]. Under Inventory, expand Network Adapters and click on the adapter. Select Interfaces sub tab and scroll down to find the WWPN information for various vHBAs.
Procedure 2. Obtain the IQNs for UCS Server Profiles (required only for iSCSI configuration)

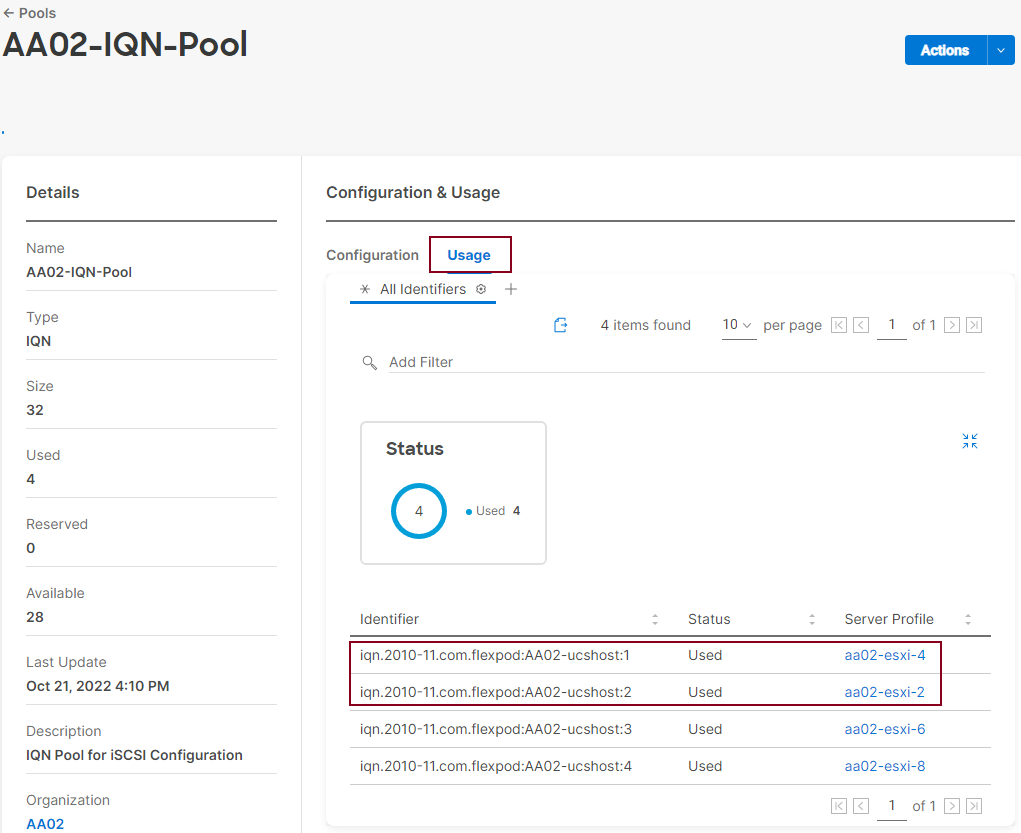

Step 1. From Intersight GUI, go to: CONFIGURE > Pools > [IQN Pool Name] > Usage and find the IQN information for various ESXi servers:
Procedure 3. Configure ONTAP Boot Storage using Ansible
Step 1. Edit the following variable files to ensure proper ONTAP Boot Storage variables are entered:
● FlexPod-IMM-4.2.2/FlexPod-IMM-4.2.2/group_vars/all.yml
● FlexPod-IMM-4.2.2/FlexPod-IMM-4.2.2/vars/ontap_main.yml
Note: Update the “boot_luns_iscsi” and “boot_luns_fcp” variables under vars/ontap_main.yml file for iscsi and fcp boot storage configuration, respectively. Similarly, update the initiator IQNs and WWPNs related variables in group_vars/all.yml file. Initiator IQNs and WWPNs are for iscsi and fcp igroups, respectively.
Step 2. From /root/FlexPod-IMM-4.2.2/FlexPod-IMM-4.2.2, invoke the ansible scripts for this section using the following command:
ansible-playbook -i inventory Setup_ONTAP.yml -t ontap_config_part_2
This chapter contains the following:
● Download ESXi 7.0U3 from VMware
● Access Cisco Intersight and Launch KVM
● Set up VMware ESXi Installation
● Set up Management Networking for ESXi Hosts
● FlexPod VMware ESXi Ansible Configuration
● vCenter and ESXi Ansible Setup
This section provides detailed instructions for installing VMware ESXi 7.0U3 in a FlexPod environment. On successful completion of these steps, multiple ESXi hosts will be provisioned and ready to be added to VMware vCenter.
Several methods exist for installing ESXi in a VMware environment. These procedures focus on how to use the built-in keyboard, video, mouse (KVM) console and virtual media features in Cisco Intersight to map remote installation media to individual servers.
Download ESXi 7.0U3 from VMware
Procedure 1. Download VMware ESXi ISO
Step 1. Click the following link: Cisco Custom Image for ESXi 7.0 U3 Install CD.
Note: You will need a VMware user id and password on vmware.com to download this software.
Step 2. Download the .iso file.
Access Cisco Intersight and Launch KVM with vMedia
The Cisco Intersight KVM enables the administrators to begin the installation of the operating system (OS) through remote media. It is necessary to log into the Cisco Intersight to access KVM.
Procedure 1. Log into Cisco Intersight and Access KVM
Step 1. Log into Cisco Intersight.
Step 2. From the main menu, select Infrastructure Service > Servers.
Step 3. Find the Server with the desired Server Profile assigned and click “…” to see more options

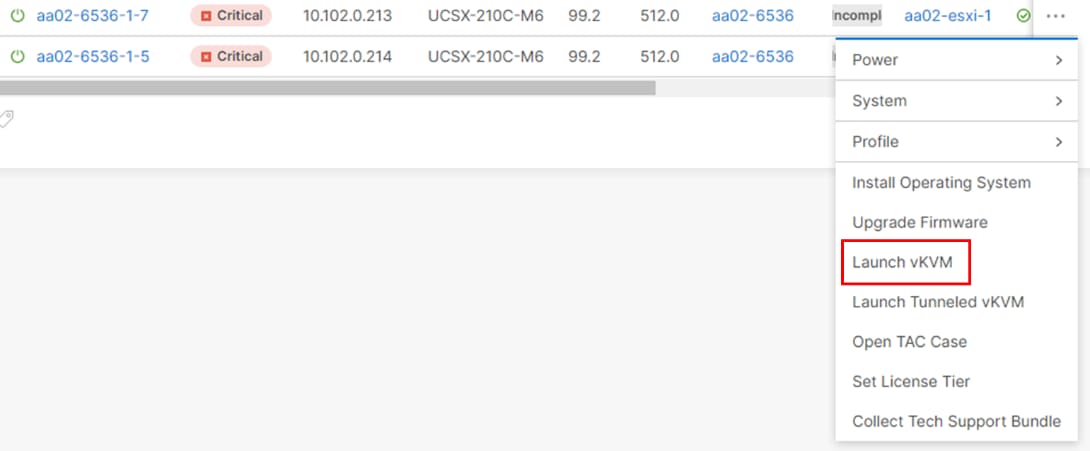

Step 4. Click Launch vKVM.
Note: Since the Cisco Custom ISO image will be mapped to the vKVM, it is important to use the standard vKVM and not the Tunneled vKVM and that the Cisco Intersight interface is being run from a subnet that has direct access to the subnet that the CIMC IPs (10.102.0.213 in this example) are provisioned on.
Step 5. Follow the prompts to ignore certificate workings (if any) and launch the HTML5 KVM console.
Step 6. Repeat steps 1 - 5 to launch the HTML5 KVM console for all the ESXi servers.
Set up VMware ESXi Installation
Procedure 1. Prepare the Server for the OS Installation
Note: Follow these steps on each ESXi host.
Step 1. In the KVM window, click Virtual Media > vKVM-Mapped vDVD.
Step 2. Browse and select the ESXi installer ISO image file downloaded in the last in Procedure 1 above (VMware-ESXi-7.0.3d-19482537-Custom-Cisco-4.2.2-a).
Step 3. Click Map Drive.
Step 4. Select Power > Reset System and Confirm to reboot the Server if the server is showing shell prompt. If the server is shutdown, select Power > Power On System.
Step 5. Monitor the server boot process in the KVM. The server should find the boot LUNs and begin to load the ESXi installer.
Note: If the ESXi installer fails to load because the software certificates cannot be validated, reset the server, and when prompted, press F2 to go into BIOS and set the system time and date to current. The ESXi installer should load properly.
Note: An alternative method to install VMware ESXi is to use the CIMC mounted vDVD, which is included in the Boot Order Policy as the last boot option. To use this option, edit the Intersight vMedia policy attached to the Server Profile Template and add an HTTPS mount to the Cisco Custom ISO mentioned above. For VMware ESXi OS boot install, an HTTPS mount is necessary, and the ISO must be placed on a server that can serve HTTPS. Since the server’s SAN boot LUN is currently blank, the boot order will fall through to boot from this ISO. Once VMware ESXi is installed on the SAN boot LUN, VMware will boot from that LUN on subsequent reboots.
Procedure 1. Install VMware ESXi onto the bootable LUN of the UCS Servers
Note: Follow these steps on each host.
Step 1. After the ESXi installer is finished loading (from the last step), press Enter to continue with the installation.
Step 2. Read and accept the end-user license agreement (EULA). Press F11 to accept and continue.
Note: It may be necessary to map function keys as User Defined Macros under the Macros menu in the KVM console.
Step 3. Select the NetApp boot LUN that was previously set up as the installation disk for ESXi and press Enter to continue with the installation.
Step 4. Select the appropriate keyboard layout and press Enter.
Step 5. Enter and confirm the root password and press Enter.
Step 6. The installer issues a warning that the selected disk will be repartitioned. Press F11 to continue with the installation.
Step 7. After the installation is complete, press Enter to reboot the server. The ISO will be unmapped automatically.
Set up Management Networking for ESXi Hosts
Procedure 1. Add the Management Network for each VMware Host
Note: This is required for managing the host. To configure ESXi host with access to the management network, follow these steps on each ESXi host.
Step 1. After the server has finished rebooting, in the UCS KVM console, press F2 to customize VMware ESXi.
Step 2. Log in as root, enter the password set during installation, and press Enter to log in.
Step 3. Use the down arrow key to select Troubleshooting Options and press Enter.
Step 4. Select Enable ESXi Shell and press Enter.
Step 5. Select Enable SSH and press Enter.
Step 6. Press Esc to exit the Troubleshooting Options menu.
Step 7. Select the Configure Management Network option and press Enter.
Step 8. Select Network Adapters and press Enter. Ensure the vmnic numbers align with the numbers under the Hardware Label (for example, vmnic0 and 00-vSwitch0-A). If these numbers do not align, note which vmnics are assigned to which vNICs (indicated under Hardware Label).
Note: In previous FlexPod CVDs, vmnic1 was selected at this stage as the second adapter in vSwitch0. It is important not to select vmnic1 at this stage. If using the Ansible configuration, if vmnic1 is selected here, the Ansible playbook will fail.
Step 9. Press Enter.
Note: In the UCS Configuration portion of this document, the IB-MGMT VLAN was set as the native VLAN on the 00-vSwitch0-A and 01-vSwitch0-B vNICs. Because of this, the IB-MGMT VLAN should not be set here and should remain Not set.
Step 10. Select IPv4 Configuration and press Enter.
Note: When using DHCP to set the ESXi host networking configuration, setting up a manual IP address is not required.
Step 11. Select the Set static IPv4 address and network configuration option by using the arrow keys and space bar.
Step 12. Under IPv4 Address, enter the IP address for managing the ESXi host.
Step 13. Under Subnet Mask, enter the subnet mask.
Step 14. Under Default Gateway, enter the default gateway.
Step 15. Press Enter to accept the changes to the IP configuration.
Step 16. Select the IPv6 Configuration option and press Enter.
Step 17. Using the spacebar, select Disable IPv6 (restart required) and press Enter.
Step 18. Select the DNS Configuration option and press Enter.
Note: If the IP address is configured manually, the DNS information must be provided.
Step 19. Using the spacebar, select Use the following DNS server addresses and hostname:
● Under Primary DNS Server, enter the IP address of the primary DNS server.
● Optional: Under Alternate DNS Server, enter the IP address of the secondary DNS server.
● Under Hostname, enter the fully qualified domain name (FQDN) for the ESXi host.
● Press Enter to accept the changes to the DNS configuration.
● Press Esc to exit the Configure Management Network submenu.
● Press Y to confirm the changes and reboot the ESXi host.
Procedure 2. (Optional) Reset VMware ESXi Host VMkernel Port MAC Address
Note: By default, the MAC address of the management VMkernel port vmk0 is the same as the MAC address of the Ethernet port it is placed on. If the ESXi host’s boot LUN is remapped to a different server with different MAC addresses, a MAC address conflict will exist because vmk0 will retain the assigned MAC address unless the ESXi System Configuration is reset.
Step 1. From the ESXi console menu main screen, select Macros > Static Macros > Ctrl + Alt + F’s > Ctrl + Alt + F1 to access the VMware console command line interface.
Step 2. Log in as root.
Step 3. Type “esxcfg-vmknic –l” to get a detailed listing of interface vmk0. vmk0 should be a part of the “Management Network” port group. Note the IP address and netmask of vmk0.
Step 4. To remove vmk0, type esxcfg-vmknic –d “Management Network”.
Step 5. To re-add vmk0 with a random MAC address, type esxcfg-vmknic –a –i <vmk0-ip> -n <vmk0-netmask> “Management Network”.
Step 6. Verify vmk0 has been re-added with a random MAC address by typing esxcfg-vmknic –l.
Step 7. Tag vmk0 as the management interface by typing esxcli network ip interface tag add -i vmk0 -t Management.
Step 8. When vmk0 was re-added, if a message pops up saying vmk1 was marked as the management interface, type esxcli network ip interface tag remove -i vmk1 -t Management.
Step 9. Press Ctrl-D to log out of the ESXi console.
Step 10. Select Macros > Static Macros > Ctrl + Alt + F’s > Ctrl + Alt + F2 to return to the VMware ESXi menu.
FlexPod VMware ESXi Ansible Configuration
Procedure 1. Use Ansible to Configure All VMware ESXi Hosts from the Management Workstation
Step 1. Edit the following variable files to ensure proper VMwarevariables are entered:
● FlexPod-IMM-4.2.2/FlexPod-IMM-4.2.2/inventory
● FlexPod-IMM-4.2.2/FlexPod-IMM-4.2.2/group_vars/all.yml
● FlexPod-IMM-4.2.2/FlexPod-IMM-4.2.2/roles/VMware/ESXIhosts/defaults/main.yml
● FlexPod-IMM-4.2.2/FlexPod-IMM-4.2.2/roles/VMware/ESXIiscsi/defaults/main.yml (If using iSCSI boot)
Step 2. From /root/FlexPod-IMM-4.2.2/FlexPod-IMM-4.2.2, run the Setup_ESXi.yml Ansible playbook:
ansible-playbook ./Setup_ESXi.yml -i inventory
VMware vCenter 7.0U3h
The procedures in the following sections provide detailed instructions for installing the VMware vCenter 7.0U3h Server Appliance in a FlexPod environment.
Procedure 1. Download vCenter 7.0U3h from VMware
Step 1. Click this link: https://customerconnect.vmware.com/downloads/details?downloadGroup=VC70U3H&productId=974&rPId=95488 and download the VMware-VCSA-all-7.0.3-20395099.iso.
Step 2. You will need a VMware user id and password on vmware.com to download this software.
Procedure 2. Install the VMware vCenter Server Appliance
Note: The VCSA deployment consists of 2 stages: installation and configuration.
Step 1. Locate and copy the VMware-VCSA-all-7.0.3-20395099.iso file to the desktop of the management workstation. This ISO is for the VMware vSphere 7.0 U3 vCenter Server Appliance.
Step 2. Mount the ISO image as a disk on the management workstation. (For example, with the Mount command in Windows Server 2012 and above).
Step 3. In the mounted disk directory, navigate to the vcsa-ui-installer > win32 directory and double-click installer.exe. The vCenter Server Appliance Installer wizard appears.
Step 4. Click Install to start the vCenter Server Appliance deployment wizard.
Step 5. Click NEXT in the Introduction section.
Step 6. Read and accept the license agreement and click NEXT.
Step 7. In the “vCenter Server deployment target” window, enter the FQDN or IP address of the destination host, User name and Password. Click NEXT.
Note: Installation of vCenter on a separate existing management infrastructure vCenter is recommended. If a separate management infrastructure is not available, customers can choose the recently configured first ESXi host as an installation target. The recently configured ESXi host is shown in this deployment.
Step 8. Click YES to accept the certificate.
Step 9. Enter the Appliance VM name and password details shown in the “Set up vCenter Server VM” section. Click NEXT.
Step 10. In the “Select deployment size” section, select the Deployment size and Storage size. For example, select “Small” and “Default.” Click NEXT.
Step 11. Select the datastore (for example, infra_datastore) for storage. Click NEXT.
Step 12. In the Network Settings section, configure the following settings:
a. Select a Network: (for example, IB-MGMT Network)
Note: When the vCenter is running on the FlexPod, it is important that the vCenter VM stay on the IB-MGMT Network on vSwitch0 and not moved to a vDS. If vCenter is moved to a vDS and the virtual environment is completely shut down and then brought back up, trying to bring up vCenter on a different host than the one it was running on before the shutdown will cause problems with the network connectivity. With the vDS, for a virtual machine to move from one host to another, vCenter must be up and running to coordinate the move of the virtual ports on the vDS. If vCenter is down, the port move on the vDS cannot occur correctly. Moving vCenter to a different host on vSwitch0 does not require vCenter to already be up and running.
b. IP version: IPV4
c. IP assignment: static
d. FQDN: <vcenter-fqdn>
e. IP address: <vcenter-ip>
f. Subnet mask or prefix length: <vcenter-subnet-mask>
g. Default gateway: <vcenter-gateway>
h. DNS Servers: <dns-server1>,<dns-server2>
Step 13. Click NEXT.
Step 14. Review all values and click FINISH to complete the installation.
Note: The vCenter Server appliance installation will take a few minutes to complete.
Step 15. When Stage 1, Deploy vCenter Server, is complete, Click CONTINUE to proceed with stage 2.
Step 16. Click NEXT.
Step 17. In the vCenter Server configuration window, configure these settings:
a. Time Synchronization Mode: Synchronize time with NTP servers.
b. NTP Servers: NTP server IP addresses from IB-MGMT VLAN
c. SSH access: Enabled.
Step 18. Click NEXT.
Step 19. Complete the SSO configuration as shown below (or according to your organization’s security policies):
Step 20. Click NEXT.
Step 21. Decide whether to join VMware’s Customer Experience Improvement Program (CEIP).
Step 22. Click NEXT.
Step 23. Review the configuration and click FINISH.
Step 24. Click OK.
Note: vCenter Server setup will take a few minutes to complete and Install – Stage 2 with show Complete.
Step 25. Click CLOSE. Eject or unmount the VCSA installer ISO.
Procedure 3. Verify vCenter CPU Settings
Note: If a vCenter deployment size of Small or larger was selected in the vCenter setup, it is possible that the VCSA’s CPU setup does not match the Cisco UCS server CPU hardware configuration. Cisco UCS X210c M6 and B200 M6 servers are 2-socket servers. During this validation, the Small deployment size was selected and vCenter was setup for a 4-socket server. This setup can cause issues in the VMware ESXi cluster Admission Control.
Step 1. Open a web browser on the management workstation and navigate to the vCenter or ESXi server where the vCenter appliance was deployed and login.
Step 2. Click the vCenter VM, right-click and click Edit settings.

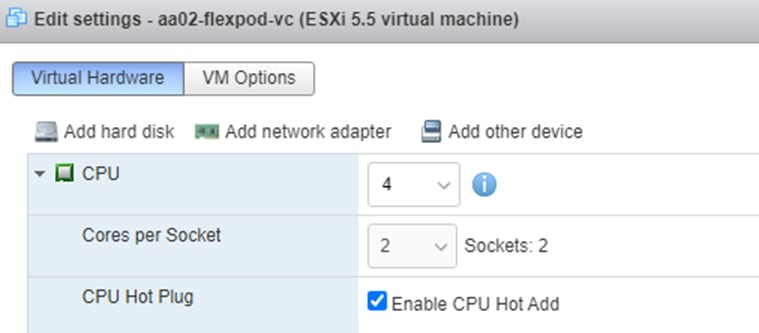

Step 3. In the Edit settings window, expand CPU and check the value of Sockets.
Step 4. If the number of Sockets match the server configuration, click Cancel.
Step 5. If the number of Sockets does not match the server configuration, it will need to be adjusted:
a. Right-click the vCenter VM and click Guest OS > Shut down. Click Yes on the confirmation.
b. When vCenter is shut down, right-click the vCenter VM and click Edit settings.
c. In the Edit settings window, expand CPU and change the Cores per Socket value to make the Sockets value equal to the server configuration.
Step 6. Click Save.
Step 7. Right-click the vCenter VM and click Power > Power on. Wait approximately 10 minutes for vCenter to come up.
Procedure 4. Setup VMware vCenter Server
Step 1. Using a web browser, navigate to https://<vcenter-ip-address>:5480. Navigate the security screens.
Step 2. Log into the VMware vCenter Server Management interface as root with the root password set in the vCenter installation.
Step 3. In the menu on the left, click Time.
Step 4. Click EDIT to the right of Time zone.
Step 5. Select the appropriate Time zone and click SAVE.
Step 6. In the menu on the left select Administration.
Step 7. According to your Security Policy, adjust the settings for the root user and password.
Step 8. In the menu on the left click Update.
Step 9. Follow the prompts to stage and install any available vCenter updates.
Step 10. In the upper right-hand corner of the screen, click root > Logout to logout of the Appliance Management interface.
Step 11. Using a web browser, navigate to https://<vcenter-fqdn> and navigate through security screens.
Note: With VMware vCenter 7.0 and above, you must use the vCenter FQDN.
Step 12. Select LAUNCH VSPHERE CLIENT (HTML5).
The VMware vSphere HTML5 Client is the only option in vSphere 7. All the old clients have been deprecated.
Step 13. Log in using the Single Sign-On username (administrator@vsphere.local) and password created during the vCenter installation. Dismiss the Licensing warning.
Procedure 5. Add AD User Authentication to vCenter (Optional)
Step 1. In the AD Infrastructure, using the Active Directory Users and Computers tool, setup a Domain Administrator user with a user name such as flexadmin (FlexPod Admin).
Step 2. Connect to https://<vcenter-fqdn> and select LAUNCH VSPHERE CLIENT (HTML5).
Step 3. Log in as administrator@vsphere.local (or the SSO user set up in vCenter installation) with the corresponding password.
Step 4. Under the top-level menu, click Administration. In the list on the left, under Single Sign On, select Configuration.
Step 5. In the center pane, under Configuration, select the Identity Provider tab.
Step 6. In the list under Type, select Active Directory Domain.
Step 7. Click JOIN AD.
Step 8. Fill in the AD domain name, the Administrator user, and the domain Administrator password. Do not fill in an Organizational unit. Click JOIN.
Step 9. Click Acknowledge.
Step 10. In the list on the left under Deployment, click System Configuration. Select the radio button to select the vCenter, then click REBOOT NODE.
Step 11. Input a reboot reason and click REBOOT. The reboot will take approximately 10 minutes for full vCenter initialization.
Step 12. Log back into the vCenter vSphere HTML5 Client as Administrator@vsphere.local.
Step 13. Under the top-level menu, click Administration. In the list on the left, under Single Sign On, click Configuration.
Step 14. In the center pane, under Configuration, click the Identity Provider tab. Under Type, select Identity Sources. Click ADD.
Step 15. Make sure Active Directory (Integrated Windows Authentication) is selected, your Windows Domain name is listed and Use machine account is selected. Click ADD.
Step 16. In the list select the Active Directory (Integrated Windows Authentication) Identity source type. If desired, select SET AS DEFAULT and click OK.
Step 17. On the left under Access Control, select Global Permissions.
Step 18. In the center pane, click the ADD to add a Global Permission.
Step 19. In the Add Permission window, select your AD domain for the Domain.
Step 20. On the User/Group line, enter either the FlexPod Admin username or the Domain Admins group. Leave the Role set to Administrator. Check the box for Propagate to children.
Note: The FlexPod Admin user was created in the Domain Admins group. The selection here depends on whether the FlexPod Admin user will be the only user used in this FlexPod or if additional users will be added later. By selecting the Domain Admins group, any user placed in that AD Domain group will be able to login to vCenter as an Administrator.
Step 21. Click OK to add the selected User or Group. The user or group should now appear in the Global Permissions list with the Administrator role.
Step 22. Log out and log back into the vCenter HTML5 Client as the FlexPod Admin user. You will need to add the domain name to the user, for example, flexadmin@domain.
vCenter and ESXi Ansible Setup
Procedure 1. Configure the VMware vCenter and the three management ESXi hosts
Step 1. Edit the following variable files to ensure proper VMware variables are entered:
● FlexPod-IMM-4.2.2/FlexPod-IMM-4.2.2/inventory
● FlexPod-IMM-4.2.2/FlexPod-IMM-4.2.2/group_vars/all.yml
● FlexPod-IMM-4.2.2/FlexPod-IMM-4.2.2/roles/VMware/ESXIpostvC/defaults/main.yml
● FlexPod-IMM-4.2.2/FlexPod-IMM-4.2.2/roles/VMware/ESXIpostvCiscsi/defaults/main.yml
Step 2. From /root/FlexPod-IMM-4.2.2/FlexPod-IMM-4.2.2, run the Setup_vCenter.yml Ansible playbook:
ansible-playbook ./Setup_vCenter.yml -i inventory
Note: After the playbook run is complete, complete the following manual steps to complete vCenter setup.
Step 3. In the center pane under Virtual Machines, click Swap File location.

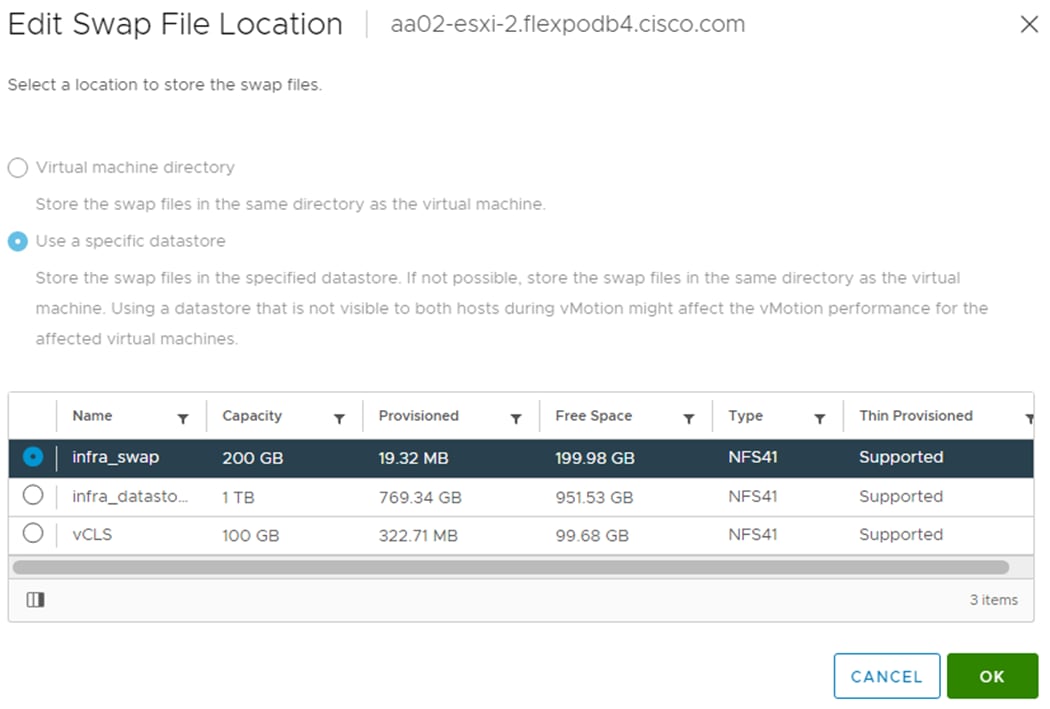

Step 4. On the right, click EDIT.
Step 5. Select infra_swap and click OK.
Step 6. Repeat steps 1-6 to set the swap file location for each ESXi host.

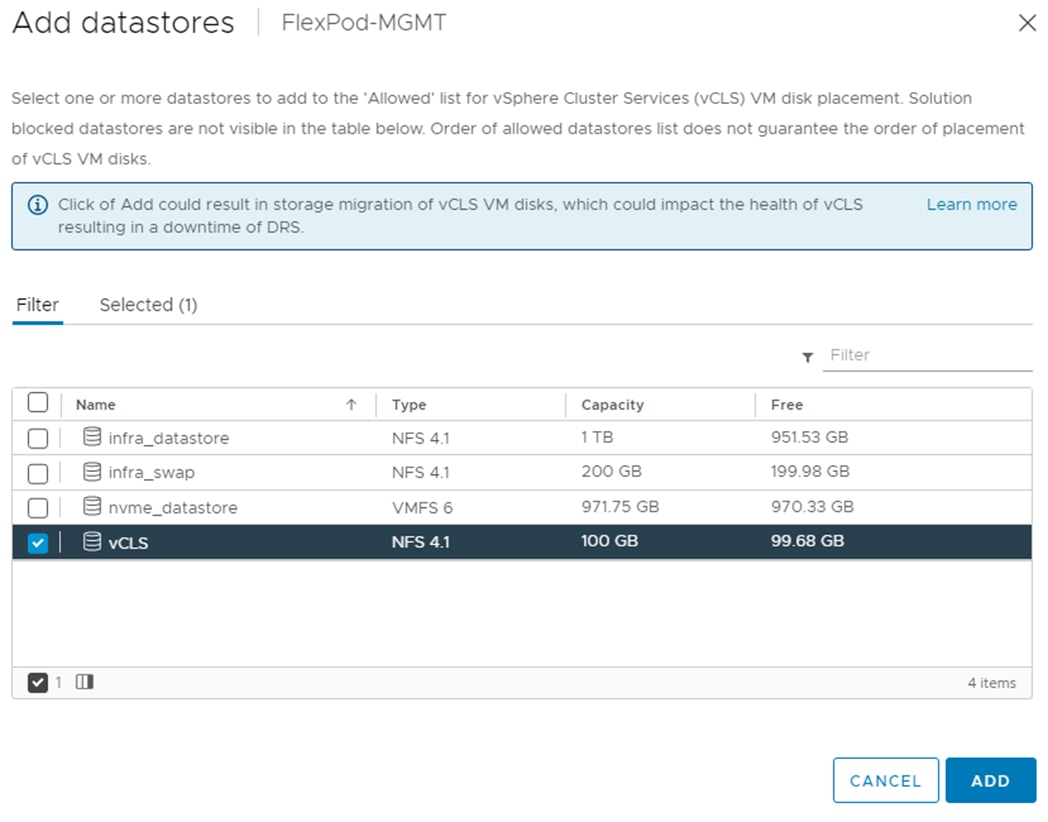

Step 7. Right-click the cluster and select Settings. In the center pane under vSphere Cluster Services, select Datastores. In the center of the window, click ADD. Select the vCLS datastore and click ADD.
Step 8. Select the first ESXi host. In the center pane under Configure > Storage, click Storage Devices. Make sure the NETAPP Fibre Channel Disk LUN 0 or NETAPP iSCSI Disk LUN 0 is selected.
Step 9. Click the Paths tab.

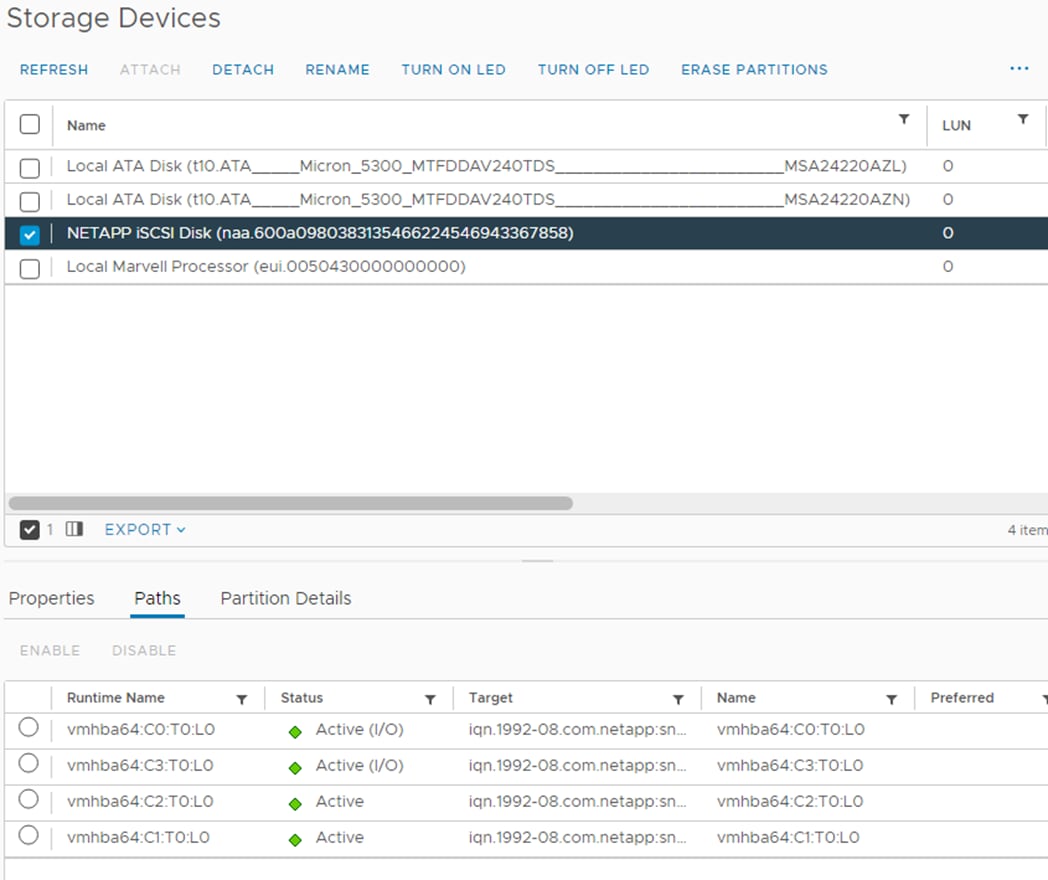

Step 10. Ensure that 4 paths appear, two of which should have the status Active (I/O). The output below shows the paths for an iSCSI LUN.
Step 11. Repeat steps 9-11 for all ESXi hosts.
Procedure 2. VMware ESXi 7.0 U3 TPM Attestation
Note: If your Cisco UCS servers have Trusted Platform Module (TPM) 2.0 modules installed, the TPM can provide assurance that ESXi has booted with UEFI Secure Boot enabled and using only digitally signed code. In the Cisco UCS Configuration section of this document, UEFI secure boot was enabled in the boot order policy. A server can boot with UEFI Secure Boot with or without a TPM 2.0 module. If it has a TPM, VMware vCenter can attest that the server booted with UEFI Secure Boot.
Step 1. For Cisco UCS servers that have TPM 2.0 modules installed, TPM Attestation can be verified in the vSphere HTML5 Client.
Step 2. In the vCenter HTML5 Interface, under Hosts and Clusters select the cluster.
Step 3. In the center pane, click the Monitor tab.

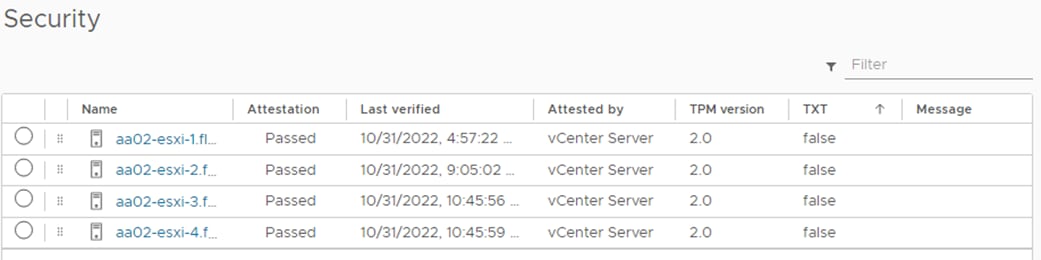

Step 4. Click Monitor > Security. The Attestation status will show the status of the TPM:
Note: It may be necessary to disconnect and reconnect or reboot a host from vCenter to get it to pass attestation the first time.
Procedure 3. Avoiding Boot Failure When UEFI Secure Booted Server Profiles are Moved
Typically, hosts in FlexPod Datacenter are configured for boot from SAN. Cisco UCS supports stateless compute where a server profile can be moved from one blade or compute node to another seamlessly.
When a server profile is moved from one blade to another blade server with the following conditions, the ESXi host runs into PSOD and ESXi will fail to boot:
● TPM present in the node (Cisco UCS M5 and M6 family servers)
● Host installed with ESXi 7.0 U2 or above
● Boot mode is UEFI Secure

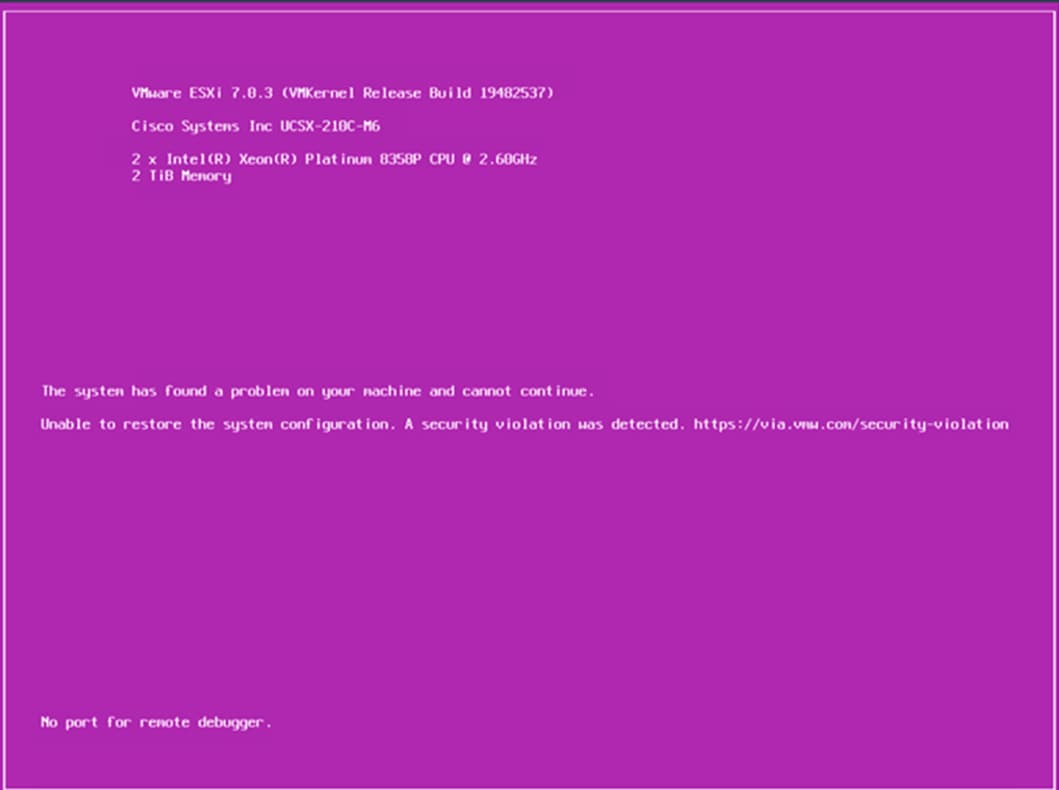

● Error message: Unable to restore system configuration. A security violation was detected. https://via.vmw.com/security-violation.
Resolution:
Step 1. Log into the host using SSH.
Step 2. Gather the recovery key using this command:
[root@aa02-esxi-1:~] esxcli system settings encryption recovery list
Recovery ID Key
-------------------------------------- ---
{74AC4D68-FE47-491F-B529-6355D4AAF52C} 529012-402326-326163-088960-184364-097014-312164-590080-407316-660658-634787-601062-601426-263837-330828-197047
Step 3. Store the keys from all hosts in a safe location.
Step 4. After associating the Server Profile to the new compute-node or blade, stop the ESXi boot sequence by pressing Shift + O when you see the ESXi boot screen.

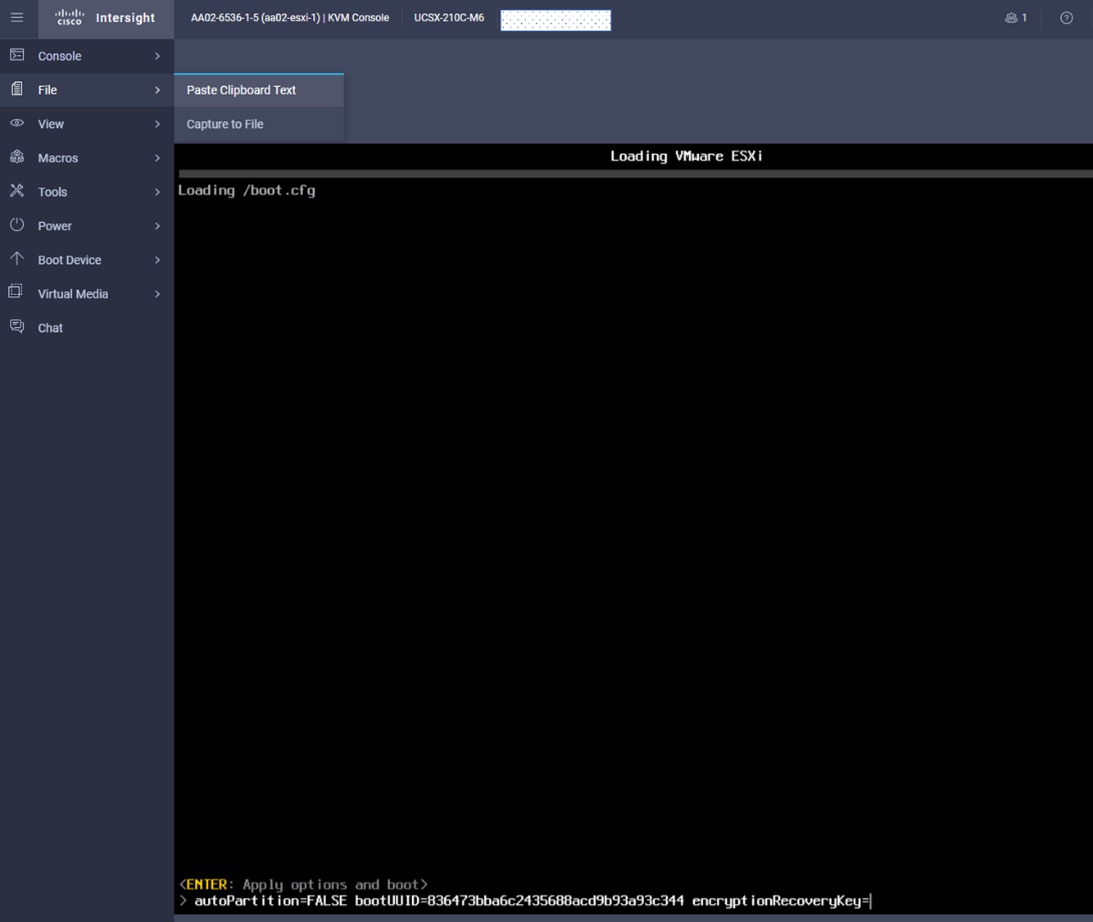

Step 5. Add the recovery key using following boot option: encryptionRecoveryKey=recovery_key. Press Enter to continue the boot process.
Step 6. To persist the change, enter the following command at the VMware ESXi ssh command prompt:
/sbin/auto-backup.sh
Note: For more information, refer to: https://docs.vmware.com/en/VMware-vSphere/7.0/com.vmware.vsphere.security.doc/GUID-23FFB8BB-BD8B-46F1-BB59-D716418E889A.html.
Storage Configuration – ONTAP NVMe Configuration and Finalizing ONTAP Storage
This chapter contains the following:
● Ansible ONTAP Storage Configuration Part 3
Ansible ONTAP Storage Configuration Part 3
Procedure 1. Configure the ONTAP NVMe setup and finalize ONTAP storage using Ansible
Step 1. Edit the following variable files to ensure proper variables are entered:
● FlexPod-IMM-4.2.2/FlexPod-IMM-4.2.2/group_vars/all.yml
● FlexPod-IMM-4.2.2/FlexPod-IMM-4.2.2/vars/ontap_main.yml
Note: Update the “nvme_namespaces” and “nvme_subsystem” variables in vars/ontap_main.yml file. Add the NQNs from each ESXi host to the corresponding variable “nvme_nqn” in group_vars/all.yml file. The NVMe namespace will be shared by all the hosts in the nvme subsystem in this solution
Note: The ONTAP NVMe setup is only required for FC-NVMe and NVMe/TCP configurations.
Step 2. From /root/FlexPod-IMM-4.2.2/FlexPod-IMM-4.2.2, invoke the ansible scripts for this section using the following command:
ansible-playbook -i inventory Setup_ONTAP.yml -t ontap_config_part_3
Procedure 2. Configure ESXi Host NVMe over FC and NVMe over TCP Datastore
Step 1. To verify that the NVMe Fibre Channel Disk is mounted on each ESXi host, log into the VMware vCenter using a web-browser.
Step 2. Under Hosts and Clusters select an ESXi host running FC-NVMe. In the center pane, go to Configure > Storage > Storage Devices. The NVMe Fibre Channel Disk should be listed under Storage Devices.

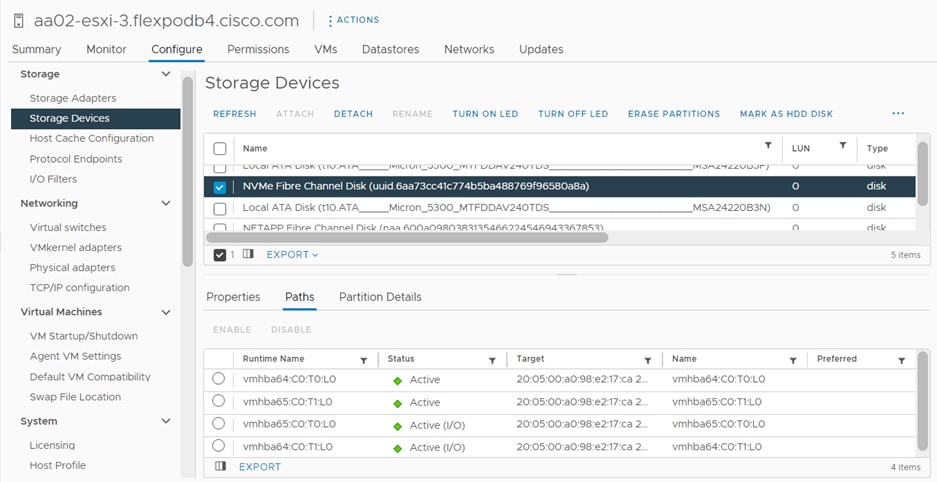

Step 3. Select the NVMe Fibre Channel Disk, then select Paths underneath. Verify 2 paths have a status of Active (I/O) and 2 paths have a status of Active.
Step 4. Repeat Step 3 for all the FC-NVMe hosts.
Step 5. Under Hosts and Clusters select an ESXi host running NVMe-TCP. In the center pane, go to Configure > Storage > Storage Adapters.

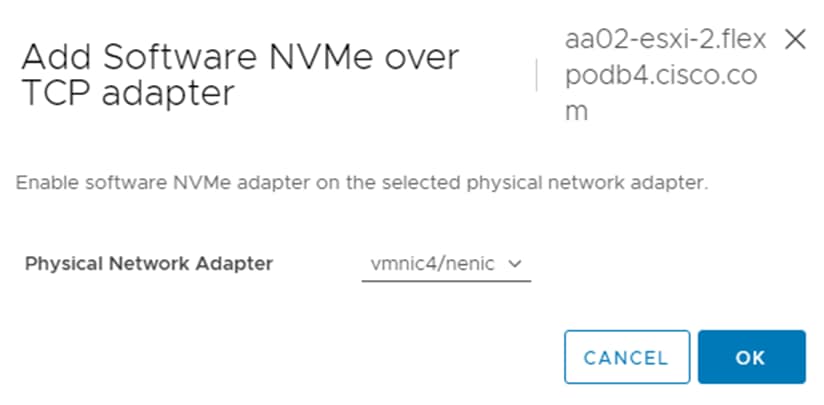

Step 6. Click ADD SOFTWARE-ADAPTER > Add NVMe over TCP adapter. Use the pulldown to select vmnic4/nenic and click OK. A new vmhba should appear under Storage Adapters.
Step 7. Click ADD SOFTWARE-ADAPTER > Add NVMe over TCP adapter to add a second vmhba. Use the pulldown to select vmnic5/nenic and click OK. A new vmhba should appear under Storage Adapters.
Step 8. Select the first VMware NVMe over TCP Storage Adapter added (for example, vmhba65). In the middle of the window, select the Controllers tab. Click ADD CONTROLLER.
Step 9. Enter the IP address of nvme-tcp-lif-01a and click DISCOVER CONTROLLERS. Select the two controllers in the Infra-NVMe-TCP-A subnet and click OK. The two controllers should now appear under the Controllers tab.
Step 10. Select the second VMware NVMe over TCP Storage Adapter added (for example, vmhba66). In the middle of the window, select the Controllers tab. Click ADD CONTROLLER.
Step 11. Enter the IP address of nvme-tcp-lif-02b and click DISCOVER CONTROLLERS. Select the two controllers in the Infra-NVMe-TCP-B subnet and click OK. The two controllers should now appear under the Controllers tab.
Step 12. Repeat steps 5-11 for all ESXi hosts running NVMe-TCP.
Step 13. For any one of these hosts, right-click the host under Hosts and Clusters and select Storage > New Datastore. Leave VMFS selected and click NEXT.

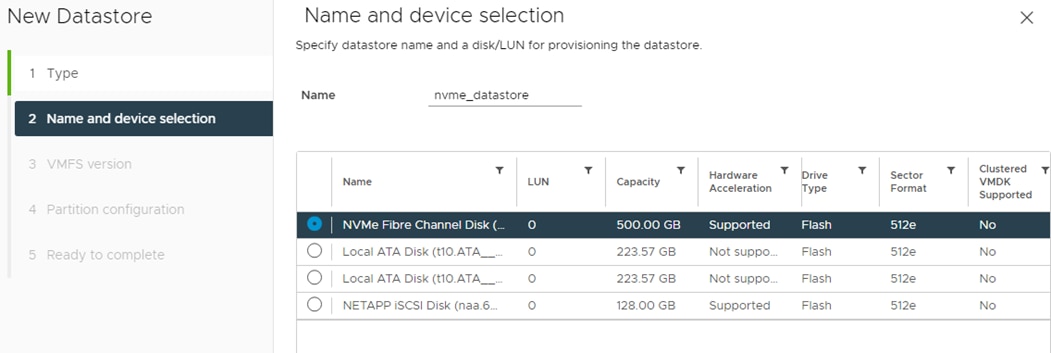

Step 14. Name the datastore (for example, nvme_datastore) and select the NVMe Disk. Click NEXT.
Step 15. Leave VMFS 6 selected and click NEXT.
Step 16. Leave all Partition configuration values at the default values and click NEXT.
Step 17. Review the information and click FINISH.

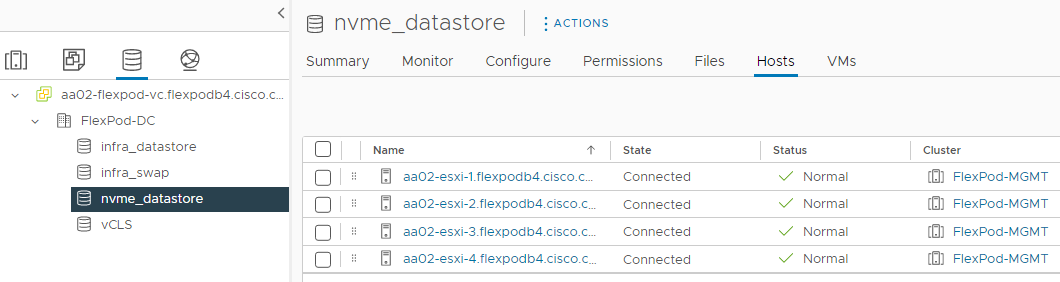

Step 18. Select Storage and select the new NVMe datastore. In the center pane, select Hosts. Ensure all the NVMe hosts have mounted the datastore.
Note: If any hosts are missing from the list, it may be necessary to put the host in Maintenance Mode and reboot the host. If you happen to have hosts with both FC-boot and iSCSI-boot and are running both FC-NVMe and NVMe-TCP, notice that the same datastore is mounted on both types of hosts and that the only difference in the storage configuration is what LIF the traffic is coming in on.
FlexPod Management Tools Setup
This chapter contains the following:
● Cisco Intersight Hardware Compatibility List (HCL) Status
● NetApp ONTAP Tools 9.11 Deployment
● Provision Datastores using ONTAP Tools (Optional)
● Virtual Volumes – vVol (Optional)
● NetApp SnapCenter Plug-in 4.7 Installation
● NetApp SnapCenter 4.7 Configuration
● Active IQ Unified Manager 9.11P1 Installation
● Configure Active IQ Unified Manager
● Deploy Cisco Intersight Assist Appliance
● Claim VMware vCenter using Cisco Intersight Assist Appliance
● Claim NetApp Active IQ Manager using Cisco Intersight Assist Appliance
● Claim Cisco Nexus Switches using Cisco Intersight Assist Appliance
● Claim Cisco MDS Switches using Cisco Intersight Assist Appliance
● Create a FlexPod XCS Integrated System
● Cisco Data Center Network Manager (DCNM)–SAN
Cisco Intersight Hardware Compatibility List (HCL) Status
Cisco Intersight evaluates the compatibility of customer’s UCS system to check if the hardware and software have been tested and validated by Cisco or Cisco partners. Intersight reports validation issues after checking the compatibility of the server model, processor, firmware, adapters, operating system, and drivers, and displays the compliance status with the Hardware Compatibility List (HCL).
To determine HCL compatibility for VMware ESXi, Cisco Intersight uses Cisco UCS Tools. The Cisco UCS Tools is part of VMware ESXi Cisco custom ISO, and no additional configuration is required.
For more details on Cisco UCS Tools manual deployment and troubleshooting, refer to: https://intersight.com/help/saas/resources/cisco_ucs_tools#about_cisco_ucs_tools
Procedure 1. View Compute Node Hardware Compatibility

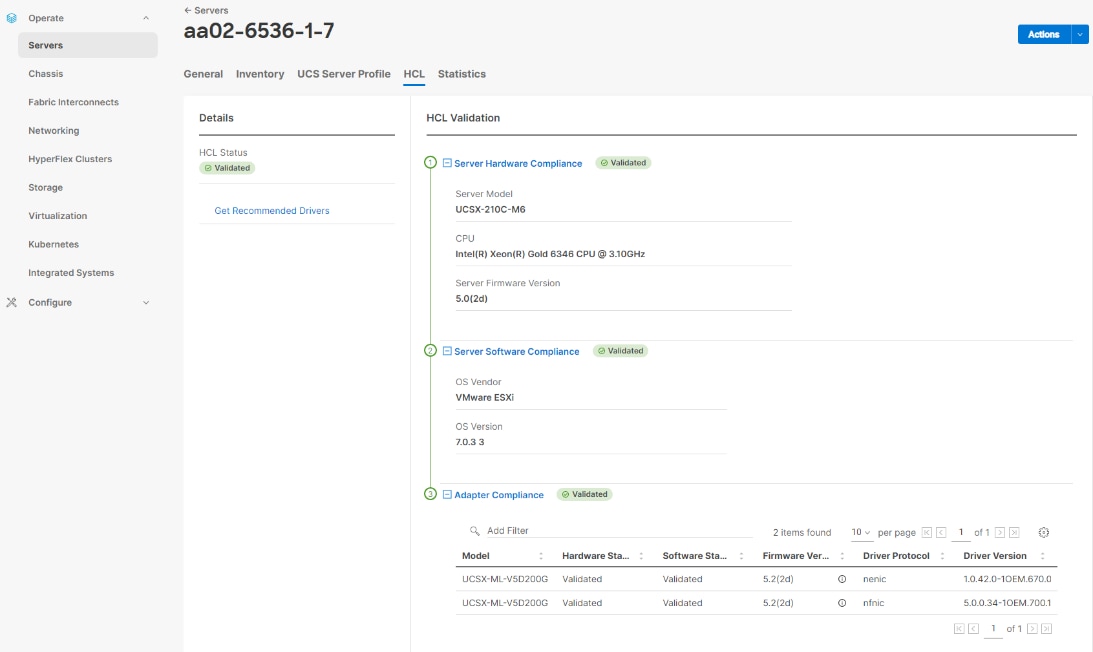

Step 1. To find detailed information about the hardware compatibility of a compute node, in Cisco Intersight select Infrastructure Service > Operate > Servers in the left menu bar, click a server, select HCL.
NetApp ONTAP Tools 9.11 Deployment
The ONTAP tools for VMware vSphere provide end-to-end life cycle management for virtual machines in VMware environments that use NetApp storage systems. It simplifies storage and data management for VMware environments by enabling administrators to directly manage storage within the vCenter Server. This topic describes the deployment procedures for the NetApp ONTAP Tools for VMware vSphere.
NetApp ONTAP Tools for VMware vSphere 9.11 Pre-installation Considerations
The following licenses are required for ONTAP Tools on storage systems that run ONTAP 9.8 or above:
● Protocol licenses (NFS, FCP, and/or iSCSI)
● NetApp FlexClone ((optional) Required for performing test failover operations for SRA and for vVols operations of VASA Provider.
● NetApp SnapRestore (for backup and recovery).
● The NetApp SnapManager Suite.
● NetApp SnapMirror or NetApp SnapVault (Optional - required for performing failover operations for SRA and VASA Provider when using vVols replication).
The Backup and Recovery capability has been integrated with SnapCenter and requires additional licenses for SnapCenter to perform backup and recovery of virtual machines and applications.
Note: Beginning with ONTAP 9.10.1, all licenses are delivered as NLFs (NetApp License File). NLF licenses can enable one or more ONTAP features, depending on your purchase. ONTAP 9.10.1 also supports 28-character license keys using System Manager or the CLI. However, if an NLF license is installed for a feature, you cannot install a 28-character license key over the NLF license for the same feature.
Table 6. Port Requirements for NetApp ONTAP Tools
TCP Port |
Requirement |
443 (HTTPS) |
Secure communications between VMware vCenter Server and the storage systems |
8143 (HTTPS) |
ONTAP Tools listens for secure communications |
9083 (HTTPS) |
VASA Provider uses this port to communicate with the vCenter Server and obtain TCP/IP settings |
7 |
ONTAP tools sends an echo request to ONTAP to verify reachability and is required only when adding storage system and can be disabled later. |
Note: The requirements for deploying NetApp ONTAP Tools are listed here.
Procedure 1. Install NetApp ONTAP Tools via Ansible
Step 1. Clone the repository from https://github.com/NetApp-Automation/ONTAP-Tools-for-VMware-vSphere.
Step 2. Follow the instructions in the README file in the repository to ensure the Ansible environment is configured properly.
Step 3. Update the following variable files:
hosts
group_vars/vcenter
vars/ontap_tools_main.yml
Step 4. To invoke the ansible scripts, use the following command:
ansible-playbook -i hosts Setup_ONTAP_tools.yml
Note: The above playbook installs NetApp ONTAP Tools and registers it with VMWare vCenter. It also adds ONTAP Storage System to ONTAP tools.

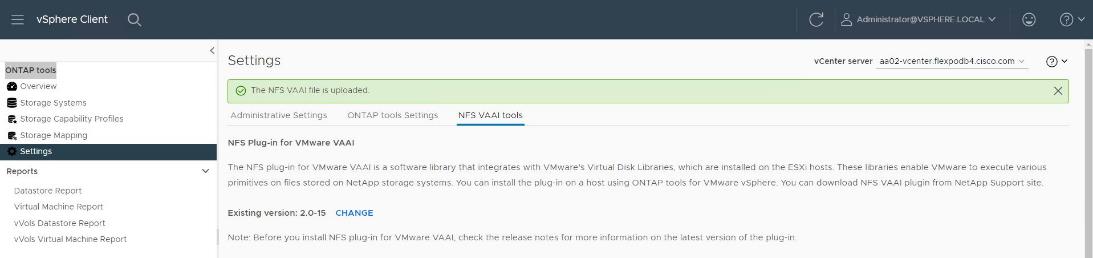

Procedure 2. Download and Install the NetApp NFS Plug-in for VAAI
Note: The NFS Plug-in for VAAI was previously installed on the ESXi hosts along with the Cisco UCS VIC drivers; it is not necessary to re-install the plug-in at this time. However, for any future additional ESXi host setup, instead of using esxcli commands, NetApp ONTAP-Tools can be utilized to install the NetApp NFS plug-in. The steps below upload the latest version of the plugin to ONTAP tools.
Step 1. Download the NetApp NFS Plug-in 2.0 for VMware file from: https://mysupport.netapp.com/site/products/all/details/nfsplugin-vmware-vaai/downloads-tab.
Step 2. Unzip the file and extract NetApp_bootbank_NetAppNasPlugin_2.0-15.vib from vib20 > NetAppNasPlugin.
Step 3. Rename the .vib file to NetAppNasPlugin.vib to match the predefined name that ONTAP tools uses.
Step 4. Click Settings in the ONTAP tool Getting Started page.
Step 5. Click NFS VAAI Tools tab.
Step 6. Click Change in the Existing version section.
Step 7. Browse and select the renamed .vib file, and then click Upload to upload the file to the virtual appliance.
Note: The next step is only required on the hosts where NetApp VAAI plug-in was not installed alongside Cisco VIC driver installation.
Step 8. In the Install on ESXi Hosts section, select the ESXi host where the NFS Plug-in for VAAI is to be installed, and then click Install.
Step 9. Reboot the ESXi host after the installation finishes.
Procedure 3. Verify the VASA Provider
Note: The VASA provider for ONTAP is enabled by default during the installation of the NetApp ONTAP tools.
Step 1. From the vSphere Client, click Menu > ONTAP tools.
Step 2. Click Settings.
Step 3. Click Manage Capabilities in the Administrative Settings tab.

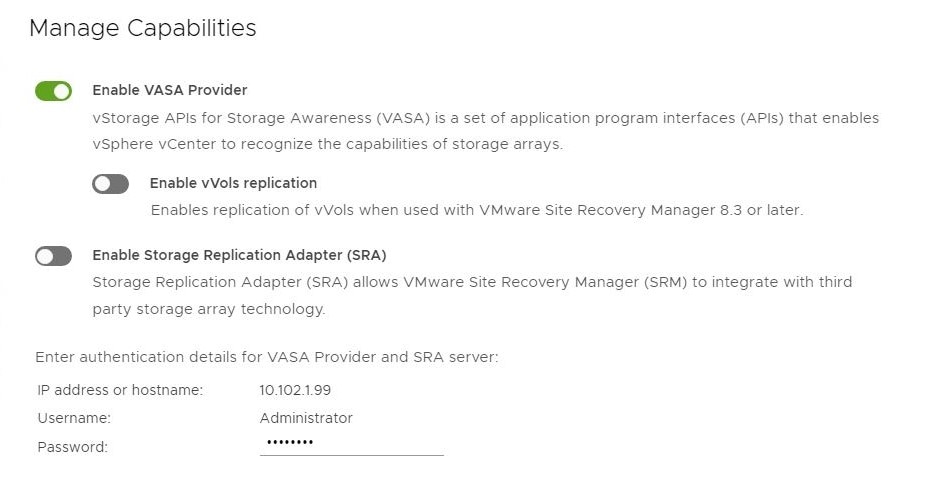

Step 4. In the Manage Capabilities dialog box, click Enable VASA Provider if it was not pre-enabled.
Step 5. Enter the IP address of the virtual appliance for ONTAP tools, VASA Provider, and VMware Storage Replication Adapter (SRA) and the administrator password, and then click Apply.
Procedure 4. Update Host and Storage Data
Step 1. From the vSphere Client Home Page, click Hosts and Clusters.

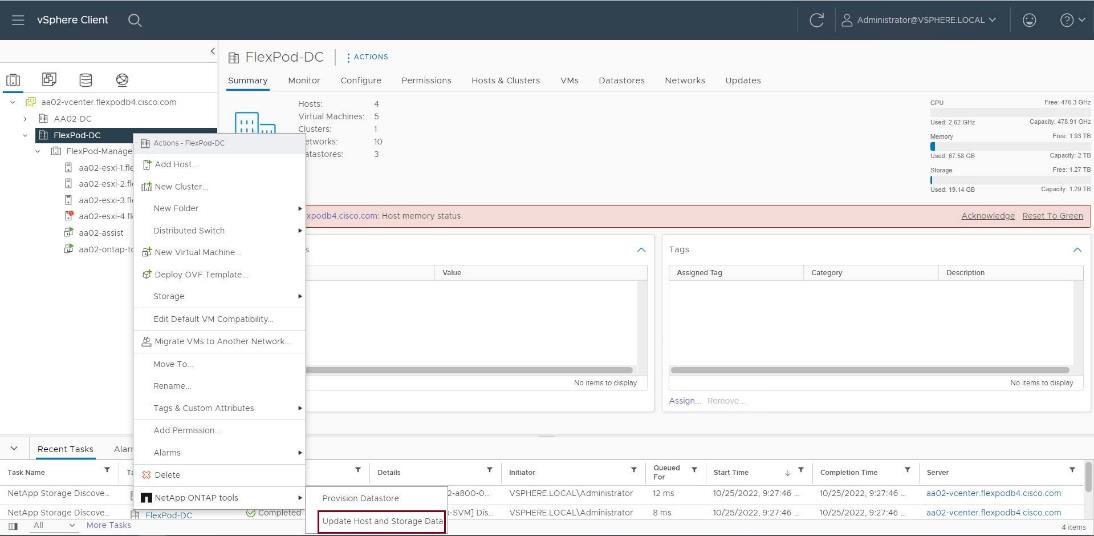

Step 3. On the Confirmation dialog box, click OK. It might take a few minutes to update the data.
Procedure 5. Optimal Storage Settings for ESXi Hosts
Note: ONTAP tools enables the automated configuration of storage-related settings for all ESXi hosts that are connected to NetApp storage controllers.
Step 1. From the VMware vSphere Web Client Home page, click vCenter > Hosts and Clusters.
Step 2. Select a host and then click Actions > NetApp ONTAP tools > Set Recommended Values.
Step 3. In the NetApp Recommended Settings dialog box, select all the applicable values for the ESXi host.
Note: This functionality sets values for HBAs and converged network adapters (CNAs), sets appropriate paths and path-selection plug-ins, and verifies appropriate settings for NFS I/O. A vSphere host reboot may be required after applying the settings.
Step 4. Click OK.
Provision Datastores using ONTAP Tools (Optional)
Using ONTAP tools, the administrator can provision an NFS, FC, FC-NVMe or iSCSI datastore and attach it to a single or multiple hosts in the cluster. The following steps describe provisioning a datastore and attaching it to the cluster.
Note: It is a NetApp best practice to use ONTAP tools to provision any additional datastores for the FlexPod infrastructure. When using VSC to create vSphere datastores, all NetApp storage best practices are implemented during volume creation and no additional configuration is needed to optimize performance of the datastore volumes.
Storage Capabilities
A storage capability is a set of storage system attributes that identifies a specific level of storage performance (storage service level), storage efficiency, and other capabilities such as encryption for the storage object that is associated with the storage capability.
Create the Storage Capability Profile
In order to leverage the automation features of VASA two primary components must first be configured. The Storage Capability Profile (SCP) and the VM Storage Policy. The Storage Capability Profile expresses a specific set of storage characteristics into one or more profiles used to provision a Virtual Machine. The SCP is specified as part of VM Storage Policy. NetApp ONTAP tools comes with several pre-configured SCPs such as Platinum, Bronze, and so on.
Note: The ONTAP tools for VMware vSphere plug-in also allows you to set Quality of Service (QoS) rule using a combination of maximum and/or minimum IOPs.
Procedure 1. Review or Edit the Built-In Profiles Pre-Configured with ONTAP Tools
Step 1. From the vCenter console, click Menu > ONTAP tools.
Step 2. In the NetApp ONTAP tools click Storage Capability Profiles.
Step 3. Select the Platinum Storage Capability Profile and select Clone from the toolbar.

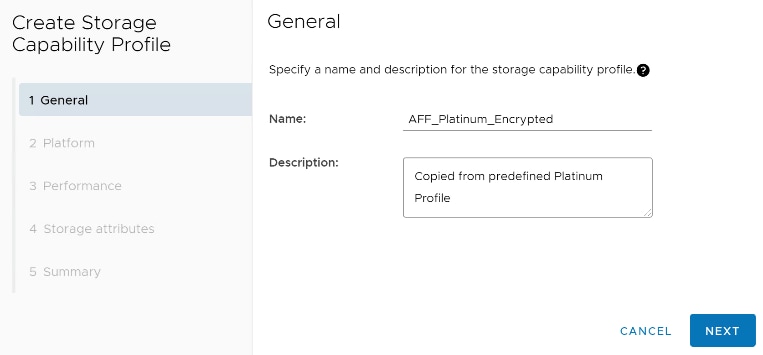

Step 4. Enter a name for the cloned SCP (for example, AFF_Platinum_Encrypted) and add a description if desired. Click NEXT.
Step 5. Select All Flash FAS(AFF) for the storage platform and click NEXT.
Step 6. Select None to allow unlimited performance or set a the desired minimum and maximum IOPS for the QoS policy group. Click NEXT.

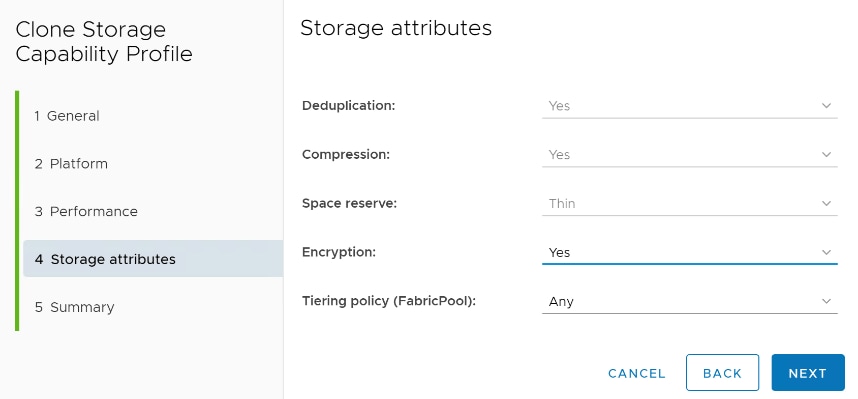

Step 7. On the Storage attributes page, change the Encryption and Tiering policy to the desired settings and click NEXT. In the example below, Encryption was enabled.
Step 8. Review the summary page and click FINISH to create the storage capability profile.
Note: It is recommended to Clone the Storage Capability Profile if you wish to make any changes to the predefined profiles rather than editing the built-in profile.
Procedure 2. Create a VM Storage Policy
Note: You must create a VM storage policy and associate SCP to the datastore that meets the requirements defined in the SCP.
Step 1. From the vCenter console, click Menu > Policies and Profiles.
Step 2. Select VM Storage Policies and click CREATE.

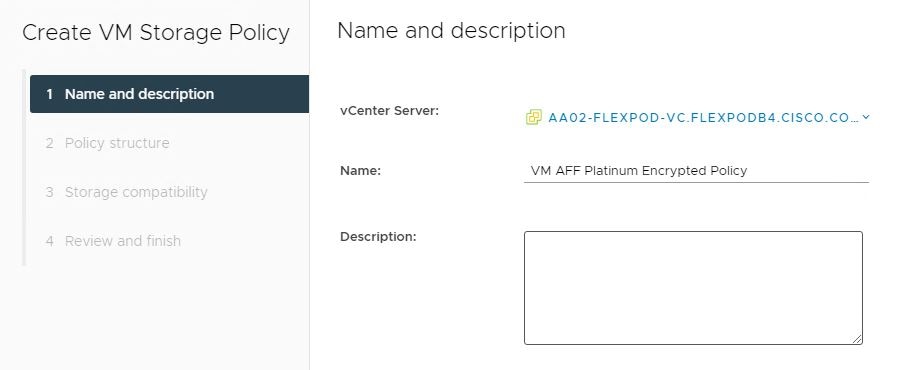

Step 3. Create a name for the VM storage policy and enter a description and click NEXT.

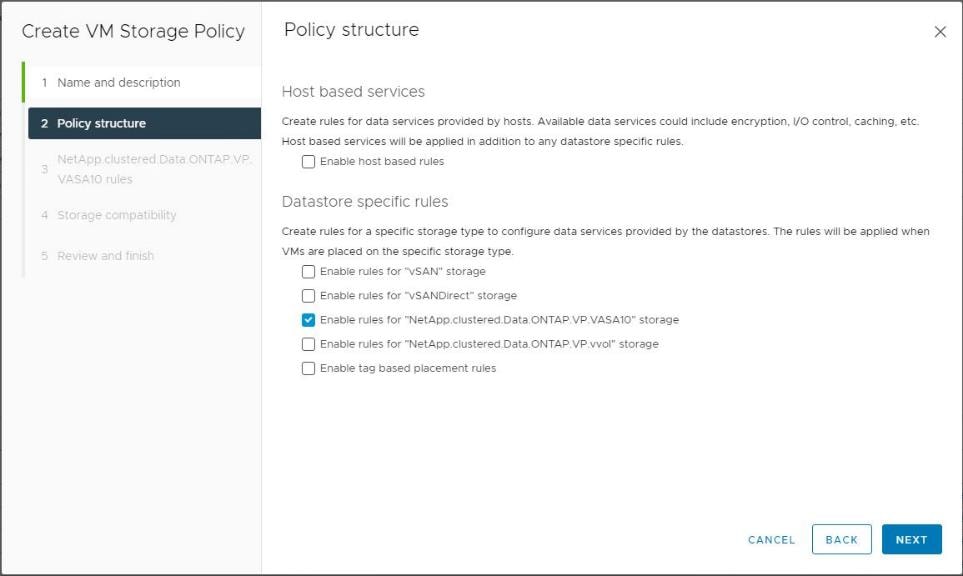

Step 4. Select Enable rules for NetApp.clustered.Data.ONTAP.VP.VASA10 storage located under the Datastore specific rules section and click NEXT.
Step 5. On the Placement tab select the SCP created in the previous step and click NEXT.
Step 6. All the datastores with matching capabilities are displayed, click NEXT.
Step 7. Review the policy summary and click FINISH.
Procedure 3. Provision NFS Datastore
Step 1. From the vCenter console, click Menu > ONTAP tools.
Step 2. From the ONTAP tools Home page, click Overview.
Step 3. In the Getting Started tab, click Provision.
Step 4. Click Browse to select the destination to provision the datastore.

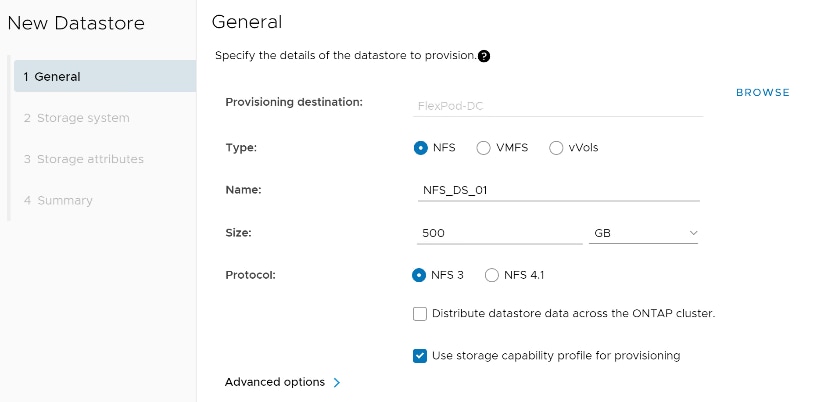

Step 5. Select the type as NFS and Enter the datastore name (for example, NFS_DS_1).
Step 6. Provide the size of the datastore and the NFS Protocol.
Step 7. Check the storage capability profile and click NEXT.

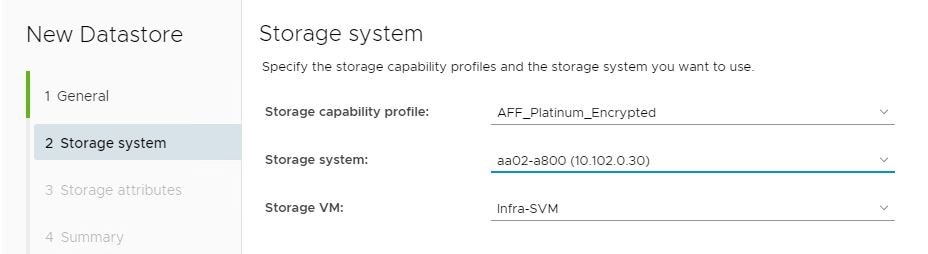

Step 8. Select the desired Storage Capability Profile, cluster name and the desired SVM to create the datastore. In this example, the Infra-SVM is selected.
Step 9. Click NEXT.

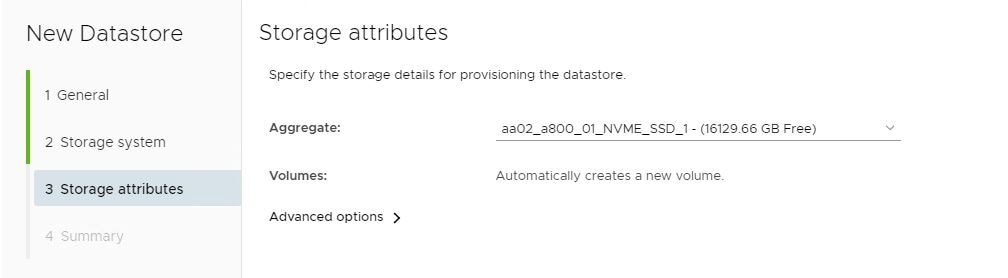

Step 10. Select the aggregate name and click NEXT.

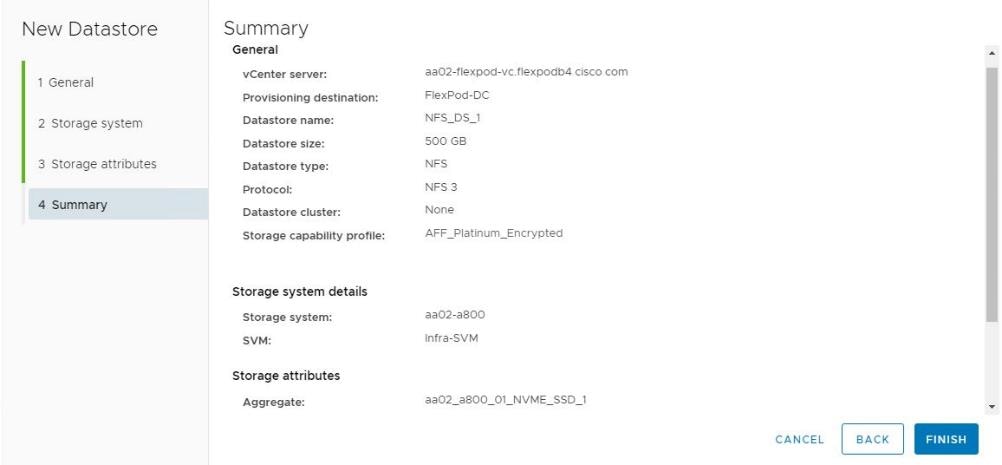

Step 11. Review the Summary and click FINISH.
Step 12. The datastore is created and mounted on the hosts in the cluster. Click Refresh from the vSphere Web Client to see the newly created datastore.

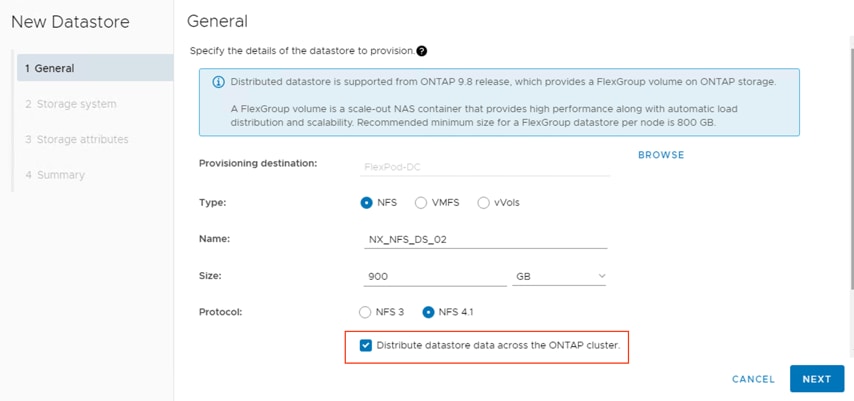

Step 13. Distributed datastore is supported from ONTAP 9.8, which provides FlexGroup volume on ONTAP storage. To create a Distributed Datastore across the ONTAP Cluster select NFS 4.1 and check the box for Distributed Datastore data across the ONTAP Cluster as shown below.
Procedure 4. Provision FC Datastore
Step 1. From the vCenter console, click Menu > ONTAP tools.
Step 2. From the ONTAP tools Home page, click Overview.
Step 3. In the Getting Started tab, click Provision.
Step 4. Click Browse to select the destination to provision the datastore.

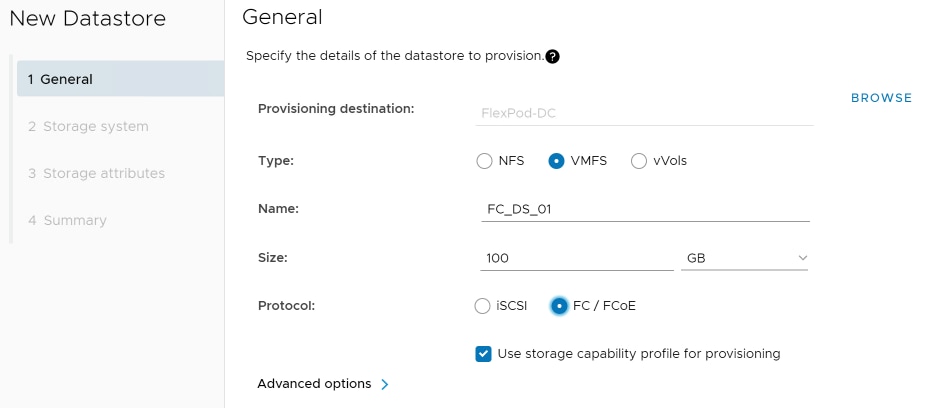

Step 5. Select the type as VMFS and Enter the datastore name.
Step 6. Provide the size of the datastore and the FC Protocol.
Step 7. Check the Use storage capability profile and click NEXT.

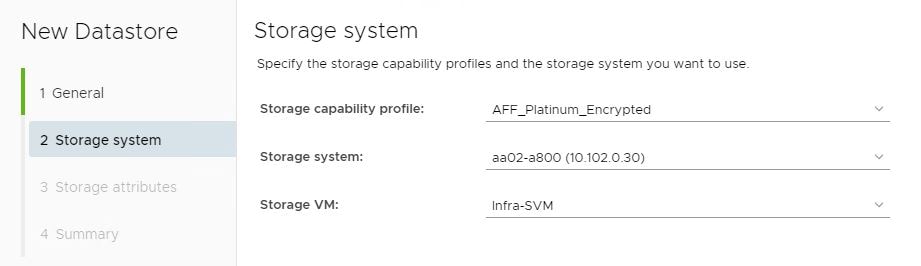

Step 8. Select the Storage Capability Profile, Storage System, and the desired Storage VM to create the datastore.
Step 9. Click NEXT.
Step 10. Select the aggregate name and click NEXT.

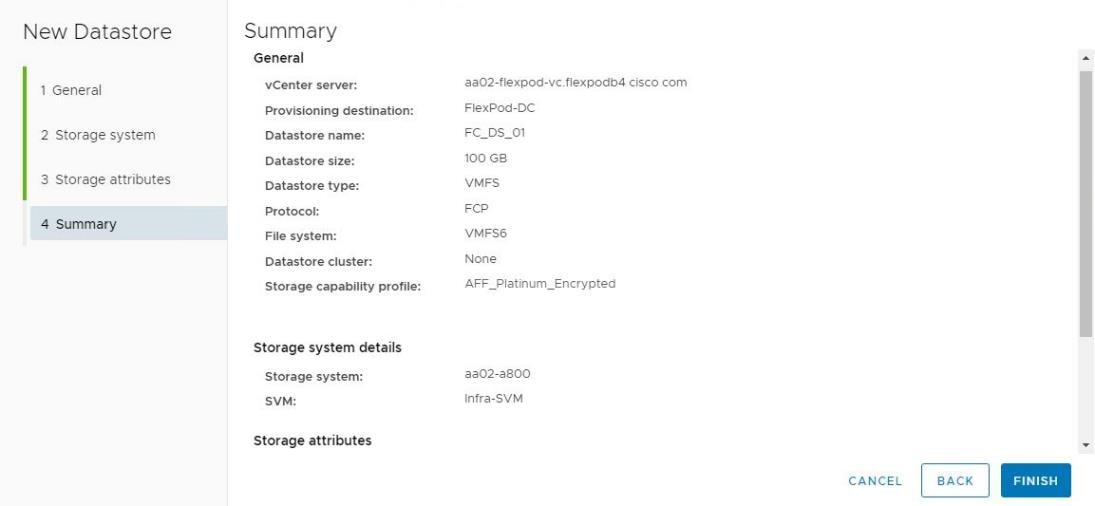

Step 11. Review the Summary and click FINISH.
Step 12. The datastore is created and mounted on all the hosts in the cluster. Click Refresh from the vSphere Web Client to see the newly created datastore.
Procedure 5. Create Virtual Machine with Assigned VM Storage Policy
Step 1. Log into vCenter and navigate to the VMs and Templates tab and click to select the datacenter (for example, FlexPod-DC).
Step 2. Click Actions and click New Virtual Machine.
Step 3. Click Create a new virtual machine and click NEXT.
Step 4. Enter a name for the VM and select the datacenter (for example, FlexPod-DC).
Step 5. Select the cluster (for example, AA17-Cluster) and click NEXT.

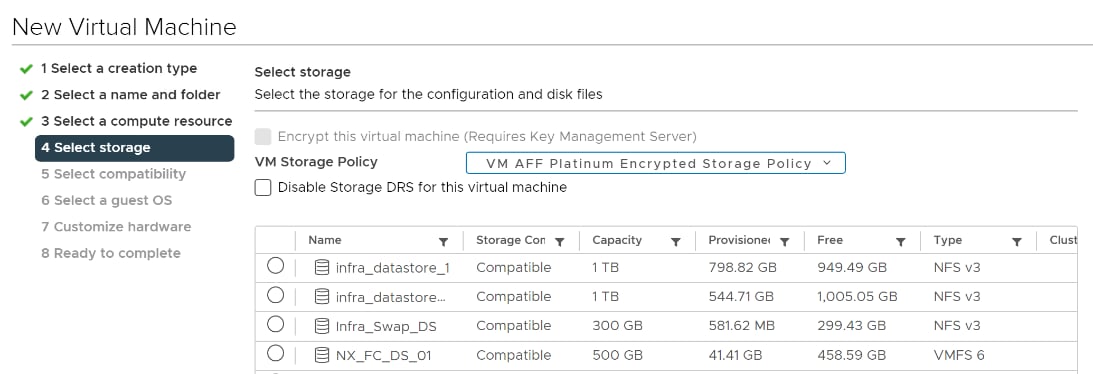

Step 6. Select the VM storage policy from the selections and select a compatible datastore. Click NEXT.
Step 7. Select Compatibility (for example, ESXi 7.0 U2 or later) and click NEXT.
Step 8. Select the Guest OS and click NEXT.
Step 9. Customize the hardware for the VM and click NEXT.
Step 10. Review the details and click FINISH.
Note: By selecting the VM storage policy in Step 6, the VM will be deployed on the compatible datastores.
Virtual Volumes – vVol (Optional)
NetApp VASA Provider enables customers to create and manage VMware virtual volumes (vVols). A vVols datastore consists of one or more FlexVol volumes within a storage container (also called "backing storage"). A virtual machine can be spread across one vVols datastore or multiple vVols datastores. All of the FlexVol volumes within the storage container must use the same protocol (NFS, iSCSI, or FCP) and the same SVMs.
For more information on vVOL datastore configuration, see: https://www.cisco.com/c/en/us/td/docs/unified_computing/ucs/UCS_CVDs/flexpod_xseries_vmware_7u2.html#VirtualVolumesvVolOptional
NetApp SnapCenter Plug-in 4.7 Installation
SnapCenter Software is a centralized and scalable platform that provides application-consistent data protection for applications, databases, host file systems, and VMs running on ONTAP systems anywhere in the Hybrid Cloud.
NetApp SnapCenter Architecture
The SnapCenter platform is based on a multitier architecture that includes a centralized management server (SnapCenter Server) and a SnapCenter host agent. The host agent that performs virtual machine and datastore backups for VMware vSphere is the SnapCenter Plug-in for VMware vSphere. It is packaged as a Linux appliance (Debian-based Open Virtual Appliance format) and is no longer part of the SnapCenter Plug-ins Package for Windows. Additional information on deploying SnapCenter server for application backups can be found in the documentation listed below.
This guide focuses on deploying and configuring the SnapCenter plug-in for VMware vSphere to protect virtual machines and VM datastores.
Note: You must install SnapCenter Server and the necessary plug-ins to support application-consistent backups for Microsoft SQL, Microsoft Exchange, Oracle databases and SAP HANA. Application-level protection is beyond the scope of this deployment guide.
Note: Refer to the SnapCenter documentation for more information or the application specific CVD’s and technical reports for detailed information on how to deploy SnapCenter for a specific application configuration:
● SnapCenter Documentation: https://docs.netapp.com/us-en/snapcenter/index.html
● Deploy FlexPod Datacenter for Microsoft SQL Server 2019 with VMware 7.0 on Cisco UCS B200 M6 and NetApp ONTAP 9.8:
https://www.cisco.com/c/en/us/products/collateral/servers-unified-computing/ucs-b-series-blade-servers/flexpod-sql-2019-vmware-on-ucs-netapp-ontap-wp.html
● SnapCenter Plug-in for VMware vSphere Documentation: SnapCenter Plug-in for VMware vSphere documentation (netapp.com)
Host and Privilege Requirements for the SnapCenter Plug-In for VMware vSphere
Review the following requirements before installing the SnapCenter Plug-in for VMware vSphere virtual appliance:
● SnapCenter Plug-in for VMware vSphere is deployed as a Linux based virtual appliance.
● Virtual appliance must not be deployed in a folder name with special characters.
● A separate, unique instance of the virtual appliance must be deployed for each vCenter Server.
Port |
Requirement |
8080(HTTPS) bidirectional |
This port is used to manage the virtual appliance |
8144(HTTPs) bidirectional |
Communication between SnapCenter Plug-in for VMware vSphere and vCenter |
443 (HTTPS) |
Communication between SnapCenter Plug-in for VMware vSphere and vCenter |
License Requirements for SnapCenter Plug-In for VMware vSphere
The licenses listed in Table 8 are required on the ONTAP storage system to backup and restore VM’s in the virtual infrastructure:
Table 8. SnapCenter Plug-in for VMware vSphere License Requirements
Product |
License Requirements |
ONTAP |
SnapManager Suite: Used for backup operations One of these: SnapMirror or SnapVault (for secondary data protection regardless of the type of relationship) |
ONTAP Primary Destinations |
To perform protection of VMware VMs and datastores the following licenses should be installed: SnapRestore: used for restoring operations FlexClone: used for mount and attach operations |
ONTAP Secondary Destinations |
To perform protection of VMware VMs and datastores only: FlexClone: used for mount and attach operations |
VMware |
vSphere Standard, Enterprise, or Enterprise Plus A vSphere license is required to perform restore operations, which use Storage vMotion. vSphere Essentials or Essentials Plus licenses do not include Storage vMotion. |
Note: It is recommended (but not required) to add SnapCenter Standard licenses to secondary destinations. If SnapCenter Standard licenses are not enabled on secondary systems, SnapCenter cannot be used after a failover operation. A FlexClone license on secondary storage is required to perform mount and attach operations. A SnapRestore license is required to perform restore operations.
Procedure 1. Deploy the SnapCenter Plug-In for VMware vSphere 4.7 using Ansible
Step 1. Clone the repository from https://github.com/NetApp-Automation/SnapCenter-Plug-in-for-VMware-vSphere.
Step 2. Follow the instructions in the README file in the repository to ensure the Ansible environment is configured properly.
Step 3. Update the following variable files:
hosts
group_vars/vcenter
vars/snapcenter_vmware_plugin_main.yml
Step 4. To invoke the ansible scripts, use the following command:
ansible-playbook -i hosts Setup_SnapCenter_VMware_Plugin.yml
Note: The above ansible playbook will install SnapCenter Plug-in in vCenter and will also add ONTAP Storage System.
NetApp SnapCenter Plug-in 4.7 Configuration
Procedure 1. SnapCenter Plug-In for VMware vSphere in vCenter Server
Step 1. Navigate to VMware vSphere Web Client URL https://<vCenter Server>.
Note: If you’re currently logged into vCenter, logoff, close the open tab and sign-on again to access the newly installed SnapCenter Plug-in for VMware vSphere.
Step 2. After logging on, a blue banner will be displayed indicating the SnapCenter plug-in was successfully deployed. Click Refresh to activate the plug-in.
Step 3. On the VMware vSphere Web Client page, select Menu > SnapCenter Plug-in for VMware vSphere to launch the SnapCenter Plug-in for VMware GUI.
Step 4. When the storage system is added, you can create backup policies and take scheduled backup of VMs and datastores. The SnapCenter plug-in for VMware vSphere allows backup, restore and on-demand backups.
For more information on backup policy configuration, refer to this CVD: https://www.cisco.com/c/en/us/td/docs/unified_computing/ucs/UCS_CVDs/flexpod_xseries_vmware_7u2.html#FlexPodManagementToolsSetup
Active IQ Unified Manager 9.11P1 Installation
Active IQ Unified Manager enables you to monitor and manage the health and performance of ONTAP storage systems and virtual infrastructure from a single interface. Unified Manager provides a graphical interface that displays the capacity, availability, protection, and performance status of the monitored storage systems. Active IQ Unified Manager is required to integrate NetApp storage with Cisco Intersight.
This subject describes the procedure to deploy NetApp Active IQ Unified Manager 9.11P1 as a virtual appliance. Table 9 lists the recommended configuration for the VM.
Table 9. Virtual Machine Configuration
Hardware Configuration |
Recommended Settings |
RAM |
12 GB |
Processors |
4 CPUs |
CPU Cycle Capacity |
9572 MHz total |
Free Disk Space/virtual disk size |
5 GB - Thin provisioned 152 GB – Thick provisioned |
Note: There is a limit to the number of nodes that a single instance of Active IQ Unified Manager can monitor before a second instance of Active IQ Unified Manager is needed. See the Unified Manager Best Practices Guide (TR-4621) for more details.
Procedure 1. Install NetApp Active IQ Unified Manager 9.11P1 using Ansible
Step 1. Clone the repository from https://github.com/NetApp-Automation/NetApp-AIQUM.
Step 2. Follow the instructions in the README file in the repository to ensure the Ansible environment is configured properly.
Step 3. Update the variable files as mentioned in the README document in the repository.
Step 4. To install AIQUM and add an ONTAP cluster, invoke the below ansible playbook:
ansible-playbook aiqum.yml -t aiqum_setup
Configure Active IQ Unified Manager
Procedure 1. Initial Setup
Step 1. Launch a web browser and log into Active IQ Unified Manger using the URL shown in the VM console.
Step 2. Enter the email address that Unified Manager will use to send alerts and the mail server configuration. Click Continue.
Step 3. Select Agree and Continue on the Set up AutoSupport configuration.

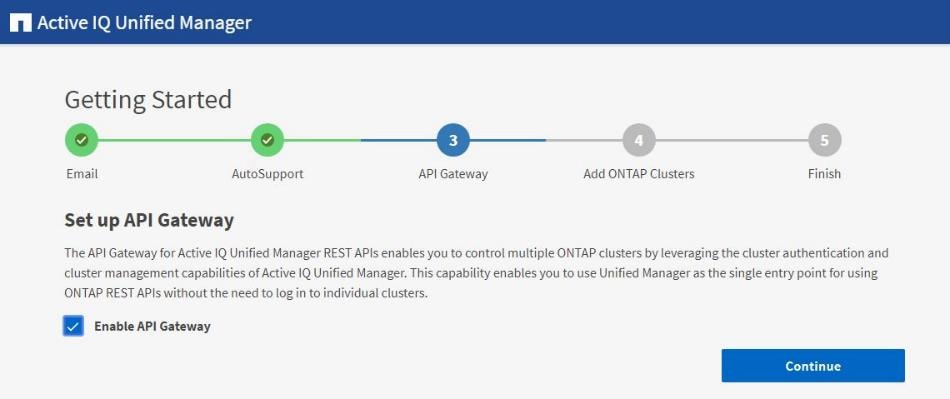

Step 4. Check the box for Enable API Gateway and click Continue.

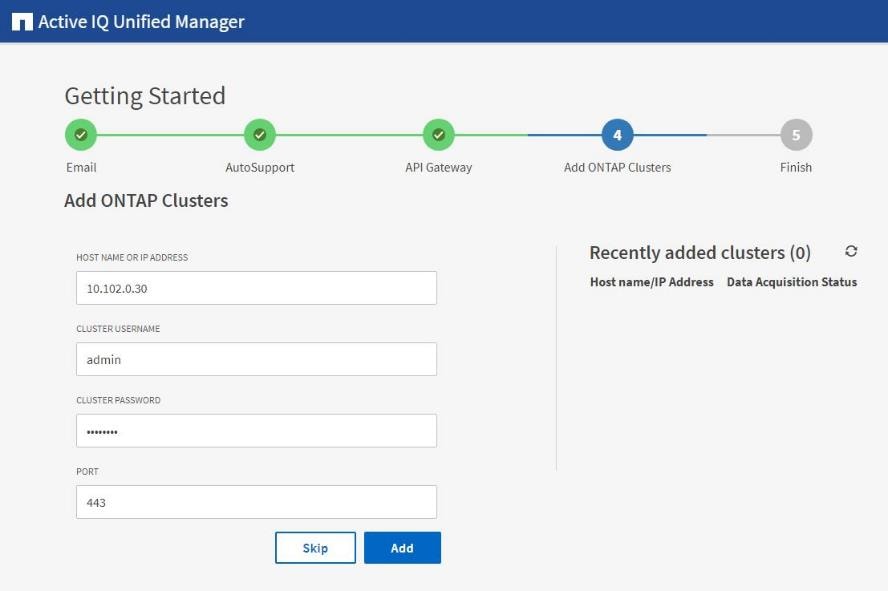

Step 5. Enter the ONTAP cluster hostname or IP address and the admin login credentials.
Step 6. Click Add.
Step 7. Click Yes to trust the self-signed cluster certificate and finish adding the storage system.
Note: The initial discovery process can take up to 15 minutes to complete.
Note: Adding ONTAP Cluster to AIQUM is also automated via Ansible. So, you can skip this step if already performed through Ansible.
Procedure 2. Review Security Compliance with Active IQ Unified Manager
Active IQ Unified Manager identifies issues and makes recommendations to improve the security posture of ONTAP. Active IQ Unified Manager evaluates ONTAP storage based on recommendations made in the Security Hardening Guide for ONTAP 9. Items are identified according to their level of compliance with the recommendations. Review the Security Hardening Guide for NetApp ONTAP 9 (TR-4569) for additional information and recommendations for securing ONTAP 9.
Note: All events identified do not inherently apply to all environments, for example, FIPS compliance.
Step 1. Navigate to the URL of the Active IQ Unified Manager and login.
Step 2. Select the Dashboard from the left menu bar in Active IQ Unified Manager.

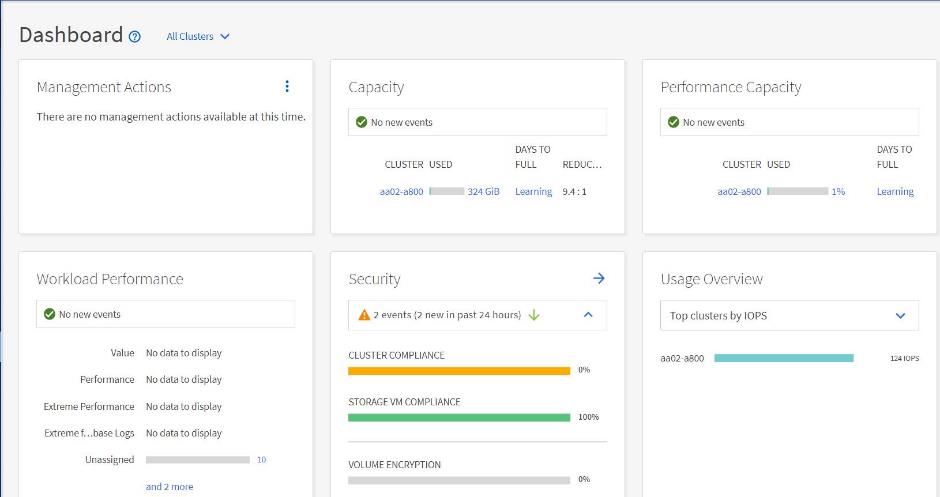

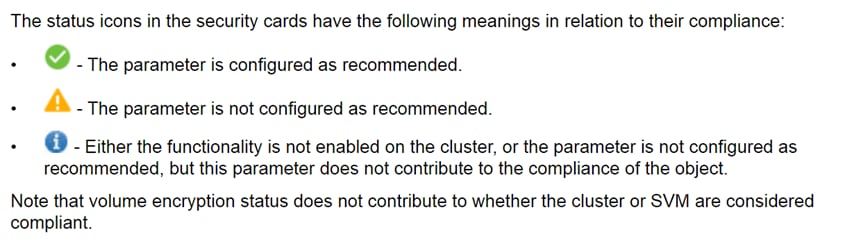

Step 3. Locate the Security card and note the compliance level of the cluster and SVM.
Step 4. Click the blue arrow to expand the findings.

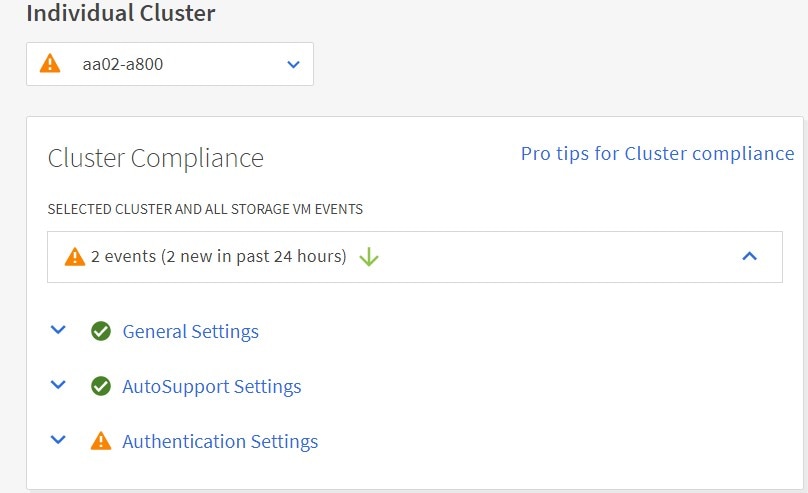

Step 5. Locate Individual Cluster section and the Cluster Compliance card. From the drop-down list select View All.

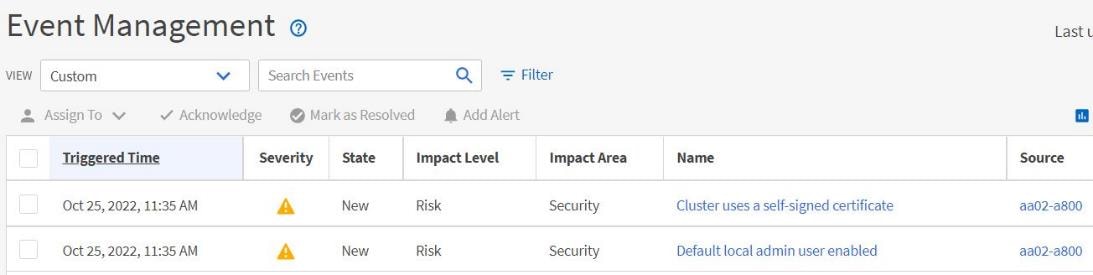

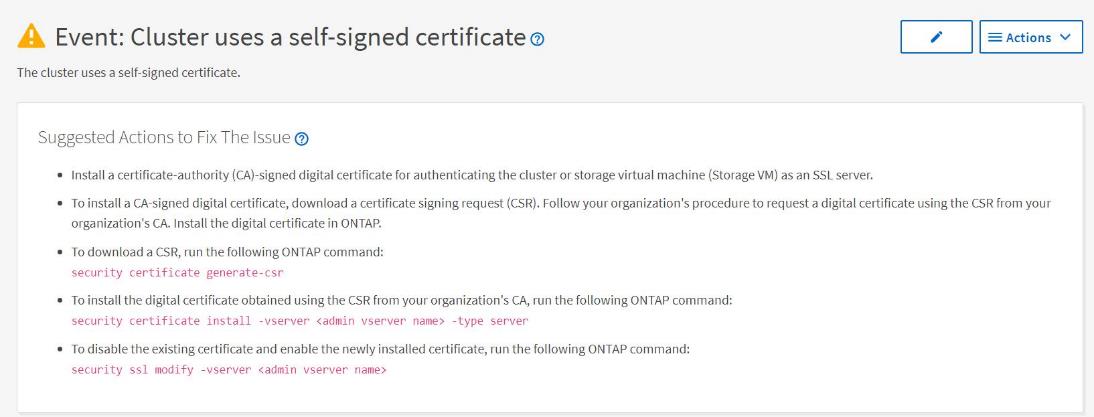

Step 6. Select an event from the list and click the name of the event to view the remediation steps.
Step 7. Remediate the risk if applicable to current environment and perform the suggested actions to fix the issue.
Remediate Security Compliance Findings
Note: Active IQ identifies several security compliance risks after installation that can be immediately corrected to improve the security posture of ONTAP. Click on the event name to get more information and suggested actions to fix the issue.
Deploy Cisco Intersight Assist Appliance
Cisco Intersight works with NetApp’s ONTAP storage and VMware vCenter using third-party device connectors and Cisco Nexus and MDS switches using Cisco device connectors. Since third-party infrastructure and Cisco switches do not contain any usable built-in Intersight device connector, Cisco Intersight Assist virtual appliance enables Cisco Intersight to communicate with these devices.
Note: A single Cisco Intersight Assist virtual appliance can support both NetApp ONTAP storage, VMware vCenter, and Cisco Nexus and MDS switches.
Figure 5. Managing NetApp and VMware vCenter through Cisco Intersight using Cisco Intersight Assist
Procedure 1. Install Cisco Intersight Assist
Step 1. To install Cisco Intersight Assist from an Open Virtual Appliance (OVA), download the latest release of the Cisco Intersight Virtual Appliance for vSphere from https://software.cisco.com/download/home/286319499/type/286323047/release/1.0.9-499.
Note: It is important to install release 1.0.9-499 at a minimum.
Procedure 2. Set up DNS entries
Step 1. Setting up Cisco Intersight Virtual Appliance requires an IP address and 2 hostnames for that IP address. The hostnames must be in the following formats:
● myhost.mydomain.com: A hostname in this format is used to access the GUI. This must be defined as an A record and PTR record in DNS. The PTR record is required for reverse lookup of the IP address. If an IP address resolves to multiple hostnames, the first one in the list is used.
● dc-myhost.mydomain.com: The dc- must be prepended to your hostname. This hostname must be defined as the CNAME of myhost.mydomain.com. Hostnames in this format are used internally by the appliance to manage device connections.
Step 2. In this lab deployment the following information was used to deploy a Cisco Intersight Assist VM:
● Hostname: aa02-assist.flexpodb4.cisco.com
● IP address: 10.102.1.96
● DNS Entries (Windows AD/DNS):
◦ A Record
◦ CNAME:
◦ PTR (reverse lookup):
For more information, refer to: https://www.cisco.com/c/en/us/td/docs/unified_computing/Intersight/b_Cisco_Intersight_Appliance_Getting_Started_Guide/b_Cisco_Intersight_Appliance_Install_and_Upgrade_Guide_chapter_00.html.
Procedure 3. Deploy Cisco Intersight OVA
Note: Ensure that the appropriate entries of type A, CNAME, and PTR records exist in the DNS, as explained in the previous section. Log into the vSphere Client and select Hosts and Clusters.
Step 1. From Hosts and Clusters, right-click the cluster and click Deploy OVF Template.
Step 2. Select Local file and click UPLOAD FILES. Browse to and select the intersight-appliance-installer-vsphere-1.0.9-342.ova or the latest release file and click Open. Click NEXT.
Step 3. Name the Intersight Assist VM and select the location. Click NEXT.
Step 4. Select the cluster and click NEXT.
Step 5. Review details, click Ignore All, and click NEXT.
Step 6. Select a deployment configuration. If only the Intersight Assist functionality is needed, a deployment size of Tiny can be used. If Intersight Workload Optimizer (IWO) is being used in this Intersight account, use the Small deployment size. Click NEXT.
Step 7. Select the appropriate datastore (for example, infra_datastore) for storage and select the Thin Provision virtual disk format. Click NEXT.
Step 8. Select appropriate management network (for example, IB-MGMT Network) for the OVA. Click NEXT.
Note: The Cisco Intersight Assist VM must be able to access both the IB-MGMT network on FlexPod and Intersight.com. Select and configure the management network appropriately. If selecting IB-MGMT network on FlexPod, make sure the routing and firewall is setup correctly to access the Internet.
Step 9. Fill in all values to customize the template. Click NEXT.
Step 10. Review the deployment information and click FINISH to deploy the appliance.
Step 11. When the OVA deployment is complete, right-click the Intersight Assist VM and click Edit Settings.

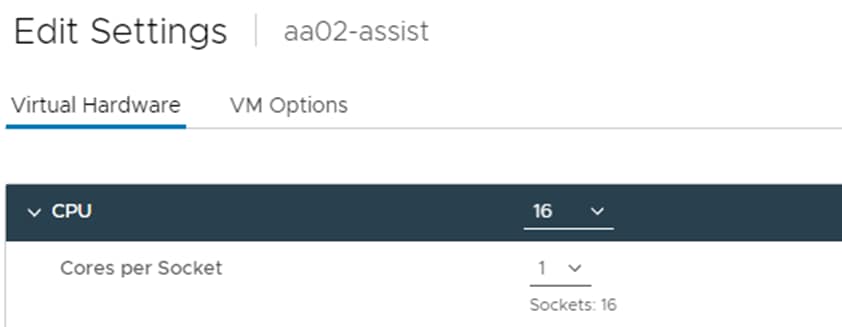

Step 12. Expand CPU and verify the socket configuration. For example, in the following deployment, on a 2-socket system, the VM was configured for 16 sockets:

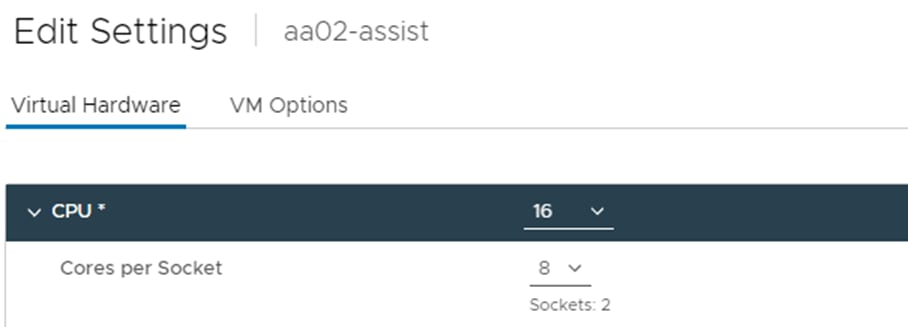

Step 13. Adjust the Cores per Socket so that the number of Sockets matches the server CPU configuration (2 sockets in this deployment):
Step 14. Click OK.
Step 15. Right-click the Intersight Assist VM and select Power > Power On.
Step 16. When the VM powers on and login prompt is visible (use remote console), connect to https://intersight-assist-fqdn.
Note: It may take a few minutes for https://intersight-assist-fqdn to respond.

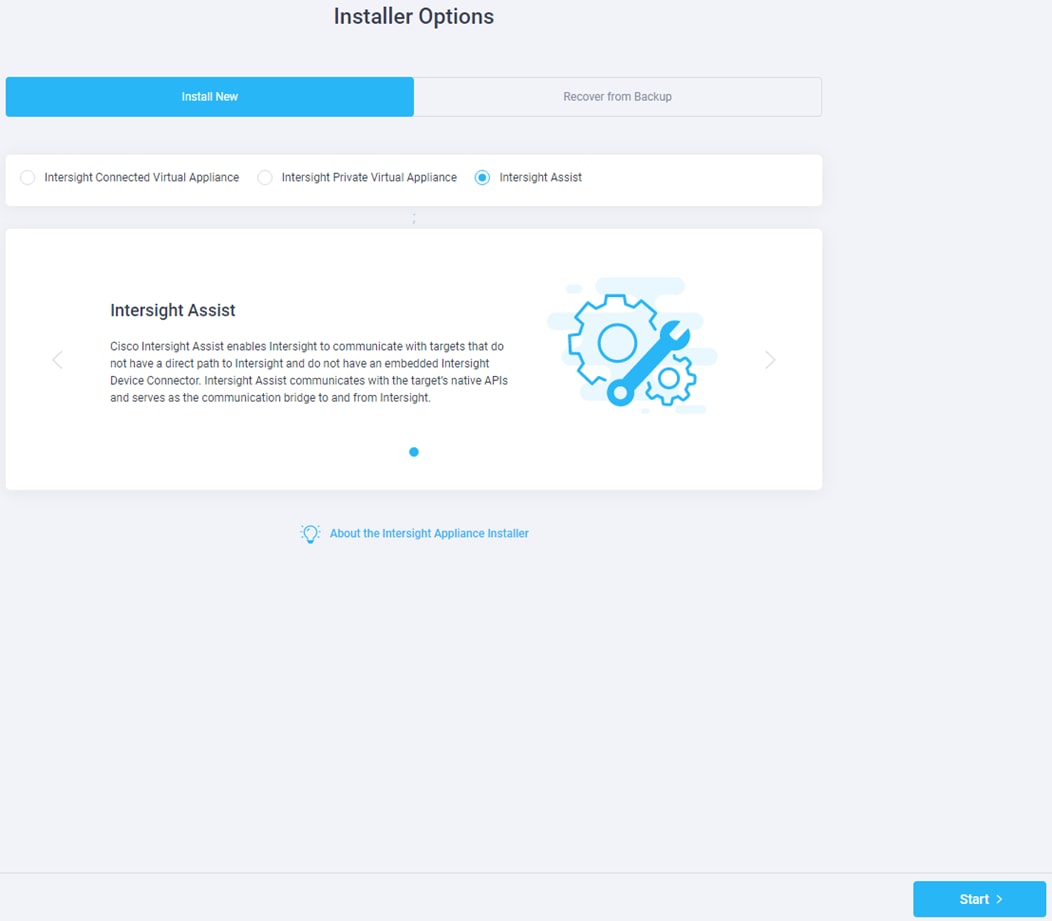

Step 17. Navigate the security prompts and select Intersight Assist. Click Start.
Step 18. Cisco Intersight Assist VM needs to be claimed in Cisco Intersight using the Device ID and Claim Code information visible in the GUI.
Step 19. Log into Cisco Intersight and connect to the appropriate account.
Step 20. From Cisco Intersight, at the top select System, then click Administration > Targets.
Step 21. Click Claim a New Target. Select Cisco Intersight Assist and click Start.

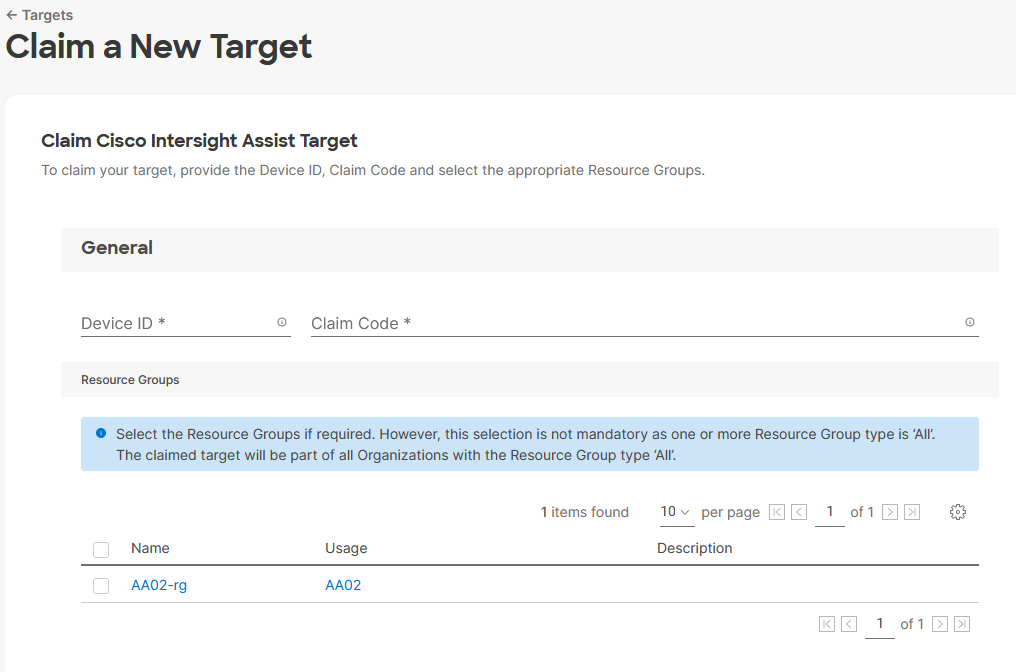

Step 22. Copy and paste the Device ID and Claim Code shown in the Intersight Assist web interface to the Cisco Intersight Device Claim window.
Step 23. Select the Resource Group and click Claim.
Step 24. Intersight Assist will now appear as a claimed device.
Step 25. In the Intersight Assist web interface, verify that Intersight Assist is Connected Successfully, and click Continue.
Note: The Cisco Intersight Assist software will now be downloaded and installed into the Intersight Assist VM. This can take up to an hour to complete.
Step 26. When the software download is complete, an Intersight Assist login screen will appear.
Step 27. Log into Intersight Assist with the admin user and the password supplied in the OVA installation. Check the Intersight Assist status and log out of Intersight Assist.
Claim VMware vCenter using Cisco Intersight Assist Appliance
Procedure 1. Claim the vCenter from Cisco Intersight
Step 1. Log into Cisco Intersight and connect to the account for this FlexPod.
Step 2. Select System > Administration > Targets and click Claim a New Target.
Step 3. Under Select Target Type, select VMware vCenter under Hypervisor and click Start.
Step 4. In the VMware vCenter window, verify the correct Intersight Assist is selected.
Step 5. Fill in the vCenter information. If Intersight Workflow Optimizer (IWO) will be used, turn on Datastore Browsing Enabled and Guest Metrics Enabled. If it is desired to use Hardware Support Manager (HSM) to be able to upgrade IMM server firmware from VMware Lifecycle Manager, turn on HSM. Click Claim.
Step 6. After a few minutes, the VMware vCenter will show Connected in the Targets list and will also appear under Infrastructure Service > Operate > Virtualization.

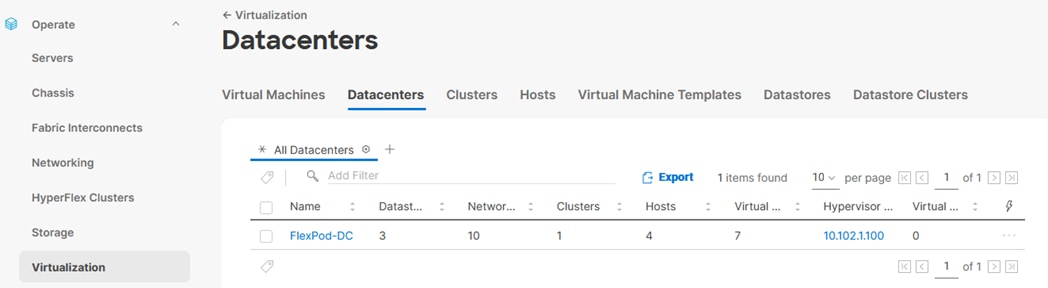

Step 7. Detailed information obtained from the vCenter can now be viewed by clicking Infrastructure Service > Operate > Virtualization and selecting the Datacenters tab. Other VMware vCenter information can be obtained by navigating through the Virtualization tabs.
Procedure 2. Interact with Virtual Machines
VMware vCenter integration with Cisco Intersight allows you to directly interact with the virtual machines (VMs) from the Cisco Intersight dashboard. In addition to obtaining in-depth information about a VM, including the operating system, CPU, memory, host name, and IP addresses assigned to the virtual machines, you can use Cisco Intersight to perform the following actions on the virtual machines:
● Start/Resume
● Stop
● Soft Stop
● Suspend
● Reset
● Launch VM Console
Step 1. Log into Cisco Intersight and connect to the account for this FlexPod.
Step 2. Select Infrastructure Service > Operate > Virtualization.
Step 3. Click the Virtual Machines tab.

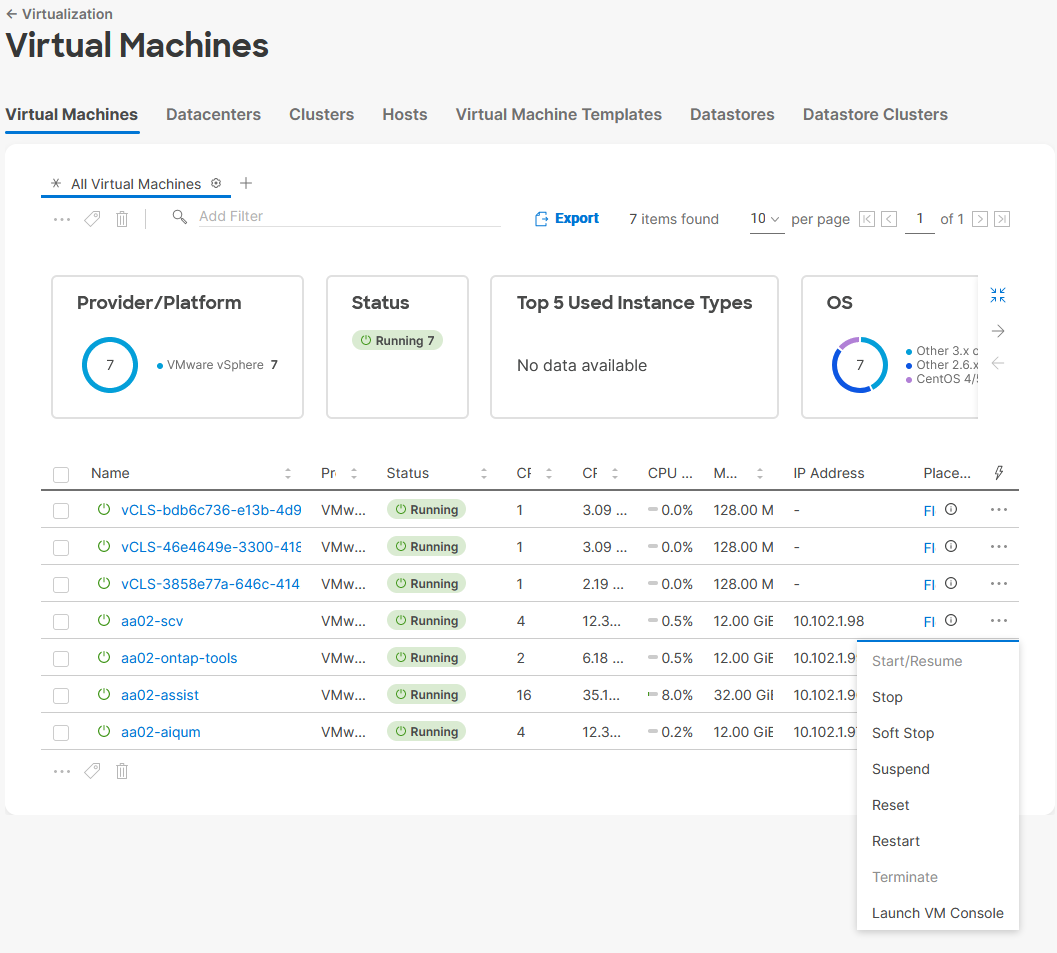

Step 4. Click “…” to the right of a VM and interact with various VM options.
Step 5. To gather more information about a VM, click a VM name. The same interactive options are available under Actions.
Claim NetApp Active IQ Manager using Cisco Intersight Assist Appliance
Procedure 1. Claim NetApp Active IQ Unified Manager into Cisco Intersight using Ansible
Step 1. Clone the repository from https://github.com/NetApp-Automation/NetApp-AIQUM.
Step 2. Follow the instructions in the README file in the repository to ensure the Ansible environment is configured properly.
Step 3. Update the variable files as mentioned in the README document in the repository.
Step 4. To claim an existing AIQUM instance into Intersight, invoke the below ansible playbook:
ansible-playbook aiqum.yml -t intersight_claim
Procedure 2. Manually Claim the NetApp Active IQ Unified Manager into Cisco Intersight
Step 1. Log into Cisco Intersight and connect to the account for this FlexPod.
Step 2. From Cisco Intersight, click System > Administration > Targets.
Step 3. Click Claim a New Target. In the Select Target Type window, select NetApp Active IQ Unified Manager under Storage and click Start.
Step 4. In the Claim NetApp Active IQ Unified Manager Target window, verify the correct Intersight Assist is selected.

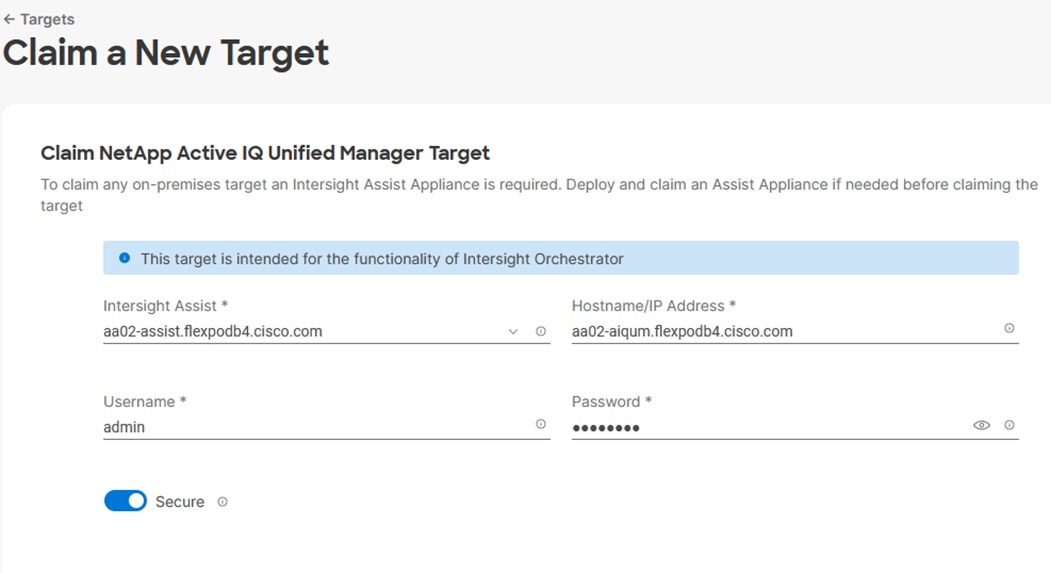

Step 5. Fill in the NetApp Active IQ Unified Manager information and click Claim.

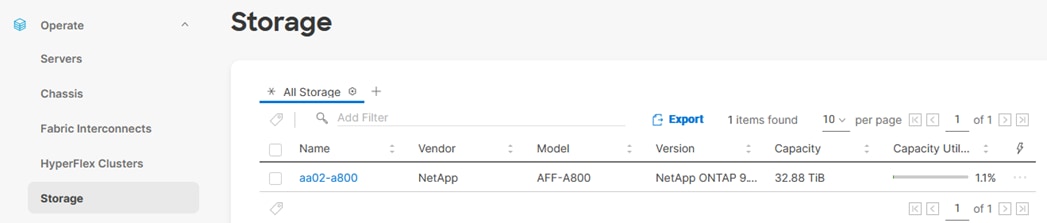

Step 6. After a few minutes, the NetApp ONTAP Storage configured in the Active IQ Unified Manager will appear under Infrastructure Service > Operate > Storage tab.

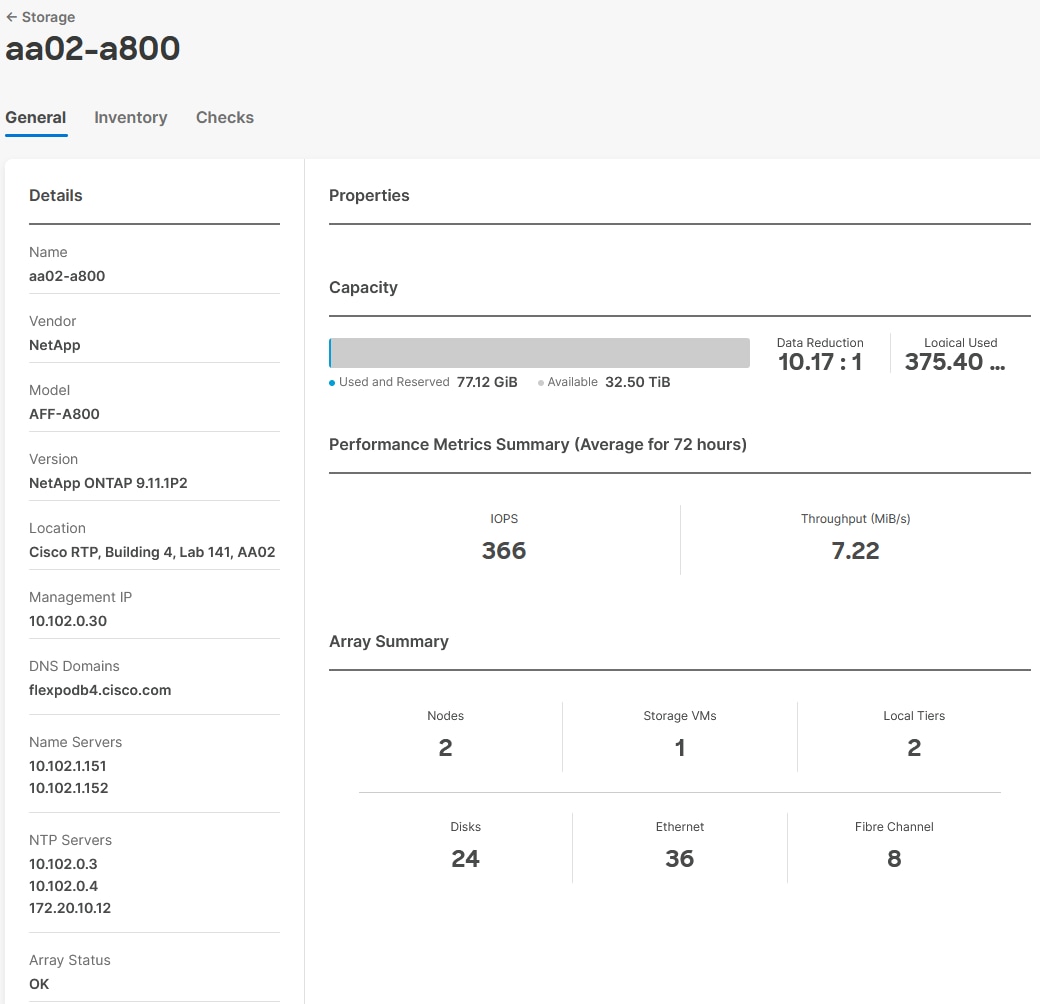

Step 7. Click the storage cluster name to see detailed General, Inventory, and Checks information on the storage.

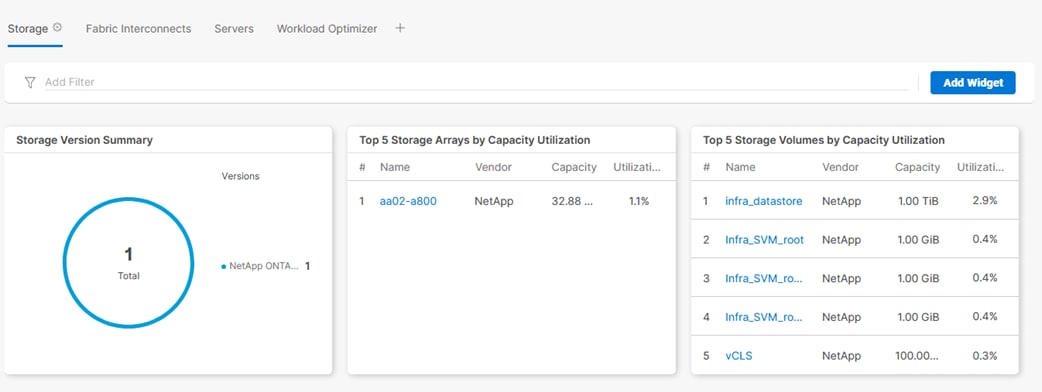

Step 8. Click My Dashboard > Storage to see storage monitoring widgets.
Claim Cisco Nexus Switches using Cisco Intersight Assist Appliance
Procedure 1. Claim Cisco Nexus Switches
Step 1. Log into Cisco Intersight and connect to the account for this FlexPod.
Step 2. From Cisco Intersight, click System > Administration > Targets.
Step 3. Click Claim a New Target. In the Select Target Type window, select Cisco Nexus Switch under Network and click Start.
Step 4. In the Claim Cisco Nexus Switch Target window, verify the correct Intersight Assist is selected.

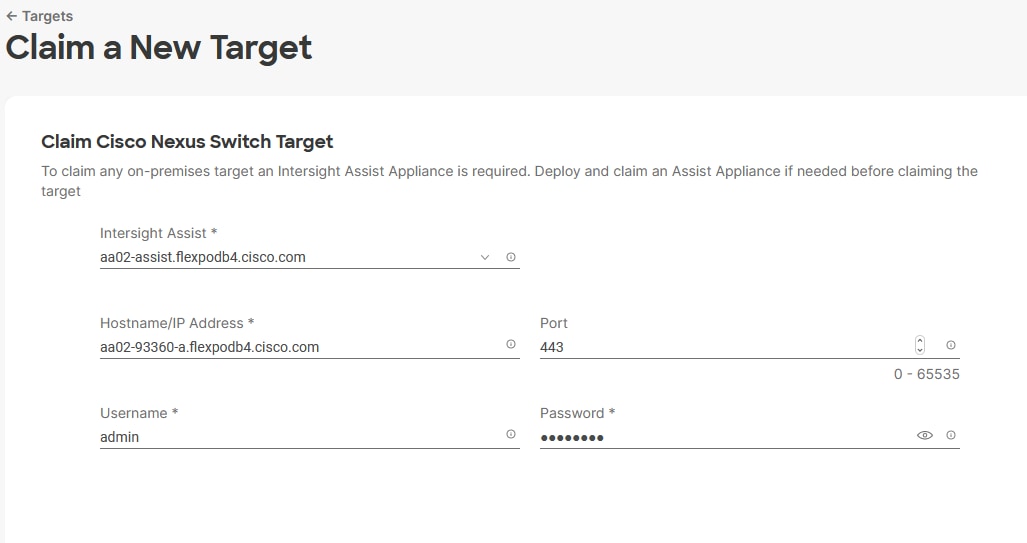

Step 5. Fill in the Cisco Nexus Switch information and click Claim.
Note: You can use the admin user on the switch.
Step 6. Repeat the steps in this procedure to add the second Cisco Nexus Switch.

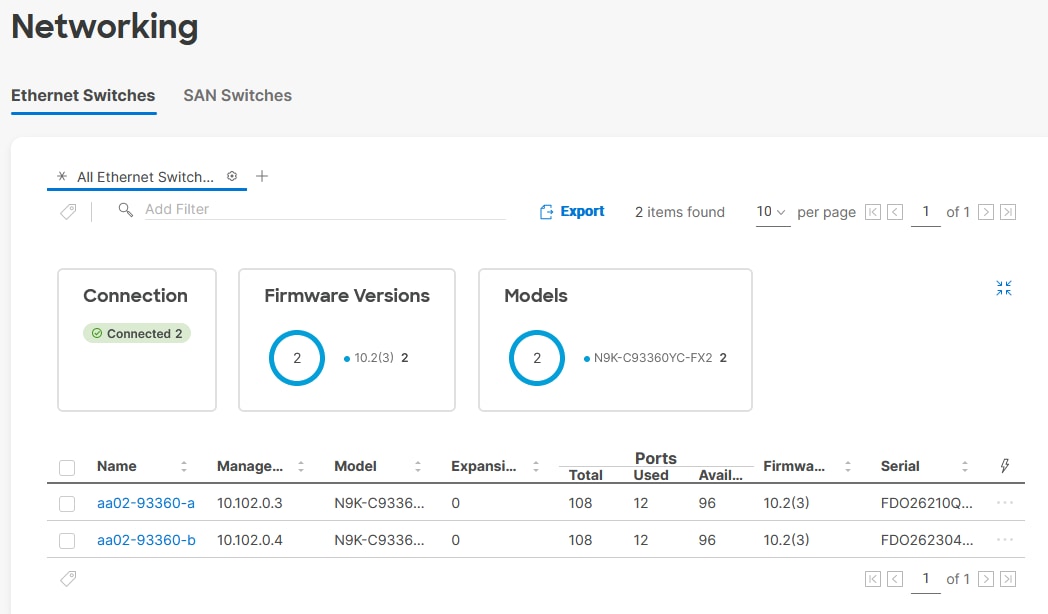

Step 7. After a few minutes, the two switches will appear under Infrastructure Service > Operate > Networking > Ethernet Switches.
Step 8. Click one of the switch names to get detailed General and Inventory information on the switch.
Claim Cisco MDS Switches using Cisco Intersight Assist Appliance
Procedure 1. Claim Cisco MDS Switches (if they are part of the FlexPod)
Step 1. Log into Cisco Intersight and connect to the account for this FlexPod.
Step 2. From Cisco Intersight, click System > Administration > Targets.
Step 3. Click Claim a New Target. In the Select Target Type window, select Cisco MDS Switch under Network and click Start.
Step 4. In the Claim Cisco MDS Switch Target window, verify the correct Intersight Assist is selected.
Step 5. Fill in the Cisco MDS Switch information including use of Port 8443 and click Claim.
Note: You can use the admin user on the switch.
Step 6. Repeat the steps in this procedure to add the second Cisco MDS Switch.

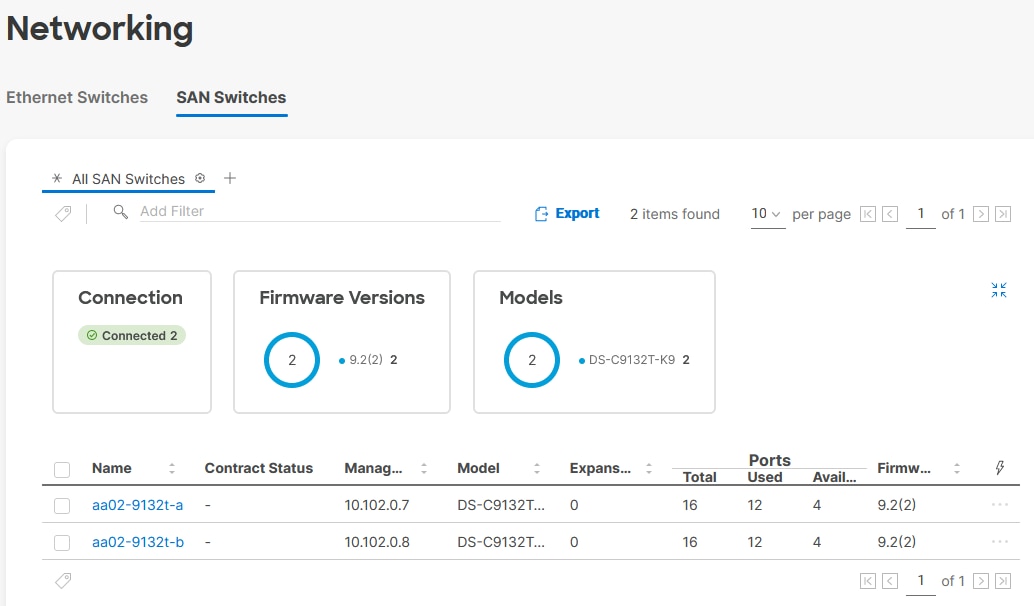

Step 7. After a few minutes, the two switches will appear under Infrastructure Service > Operate > Networking > SAN Switches.
Step 8. Click one of the switch names to get detailed General and Inventory information on the switch.
Create a FlexPod XCS Integrated System
Procedure 1. Creating a FlexPod XCS Integrated System
Step 1. Log into Cisco Intersight and connect to the account for this FlexPod.
Step 2. From Cisco Intersight, click Infrastructure Service > Operate > Integrated Systems.
Step 3. Click Create Integrated System. In the center pane, select FlexPod and click Start.

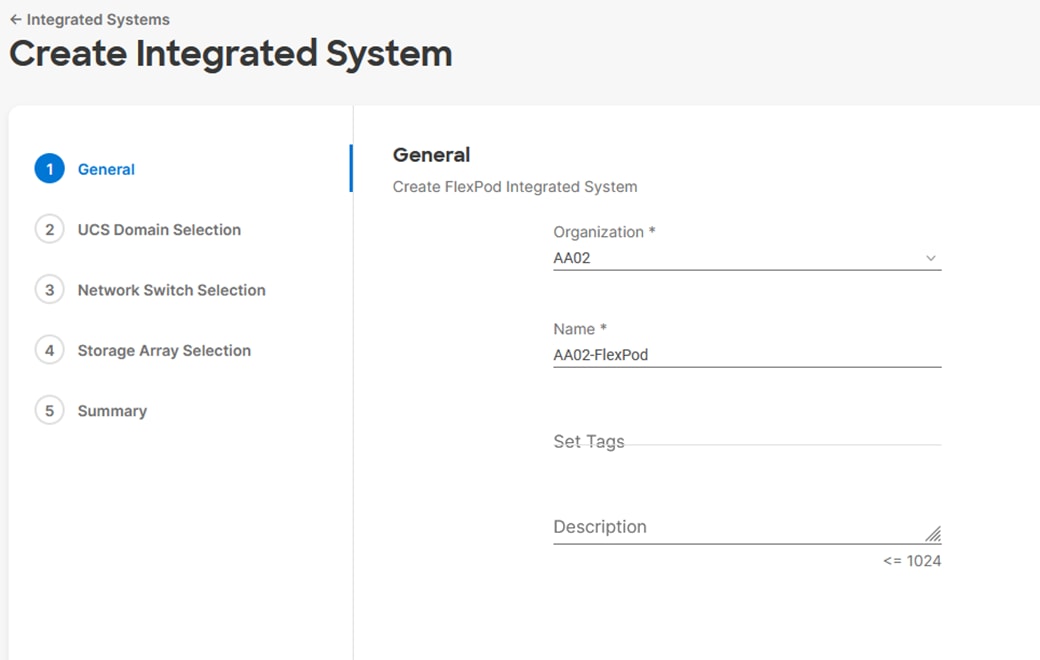

Step 4. Select the correct Organization (for example, AA02), provide a suitable name, and optionally any Tags or a Description and click Next.

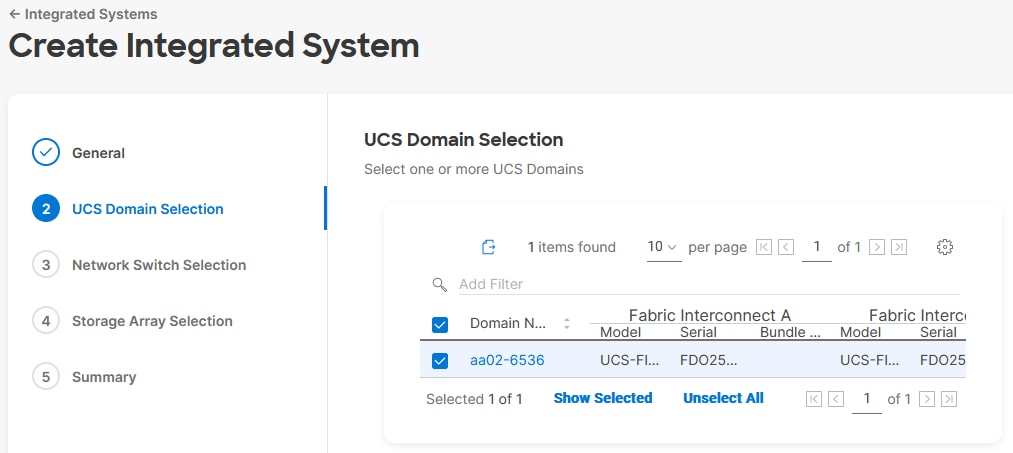

Step 5. Select the UCS Domain used in this FlexPod and click Next.

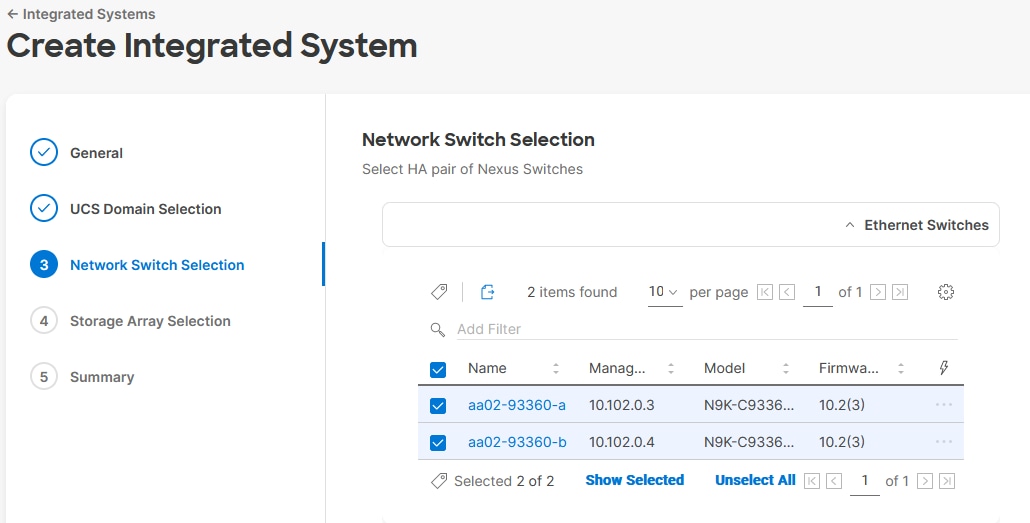

Step 6. Select the two Cisco Nexus switches used in this FlexPod and click Next.

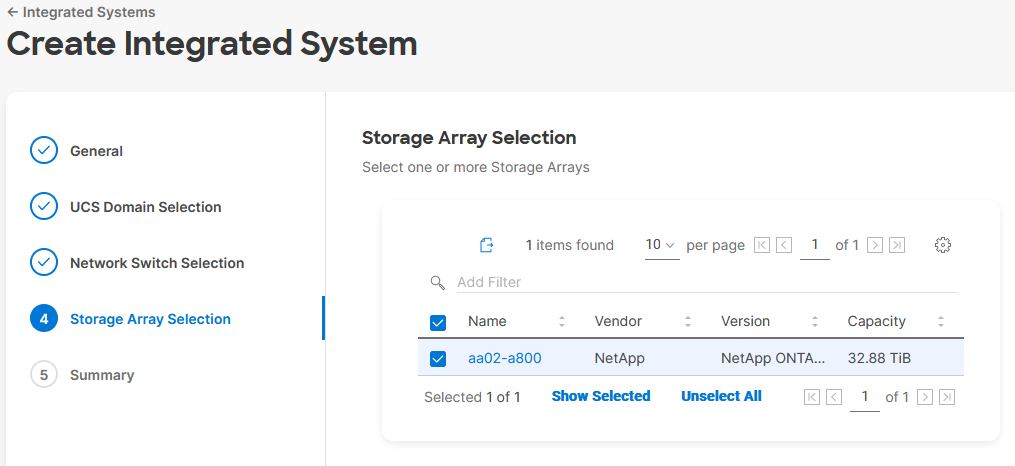

Step 7. Select all NetApp storage used in this FlexPod and click Next.

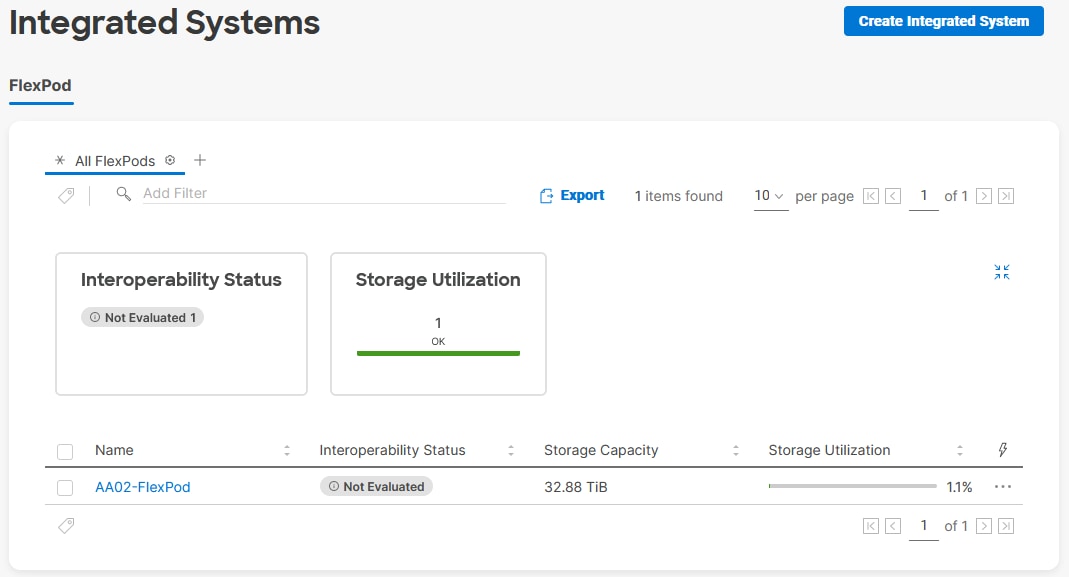

Step 8. Review the Summary information and click Create. After a few minutes, the FlexPod Integrated System will appear under Integrated Systems.
Note: You can click the “…” to the right of the FlexPod name and run an Interoperability check on the FlexPod. This check will take information on the FlexPod already checked against the Cisco UCS Hardware Compatibility List (HCL) and also check this information against the NetApp Interoperability Matrix Tool (IMT).
Step 9. Click on the FlexPod name to see detailed General, Inventory, and Interoperability data on the FlexPod XCS Integrated System.

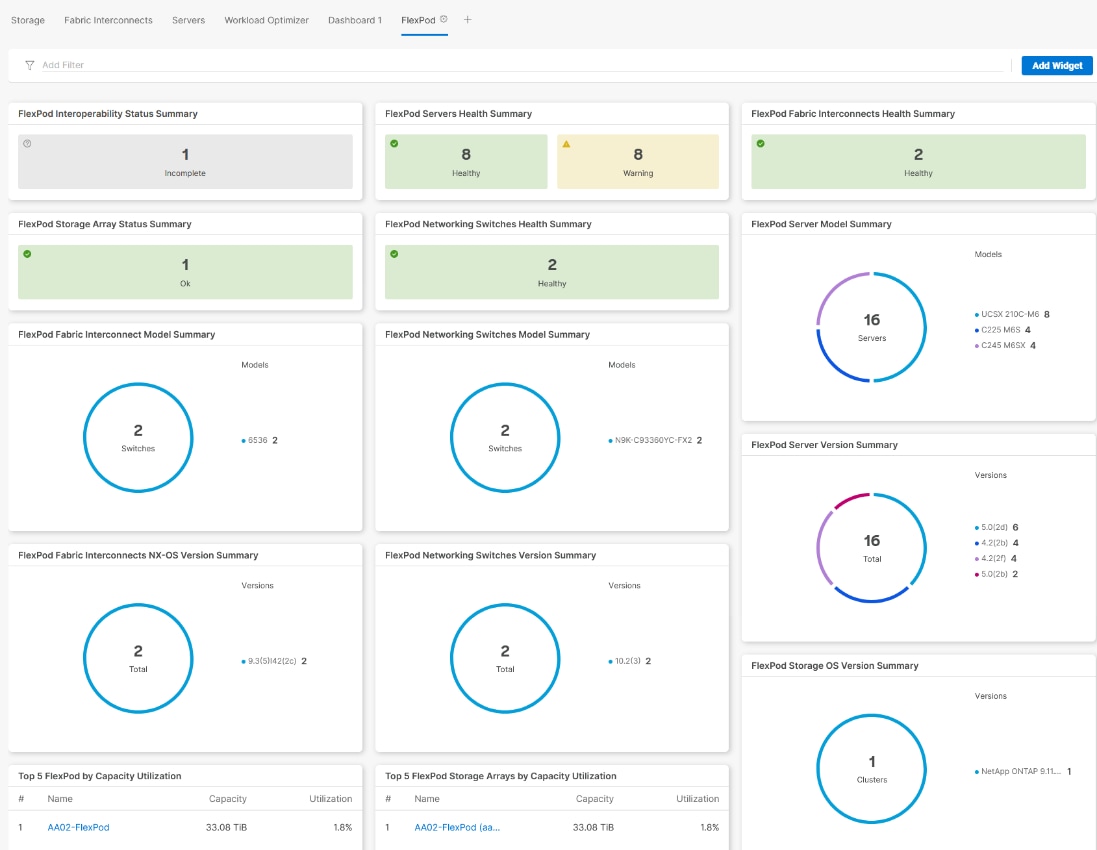

Step 10. Select My Dashboard > FlexPod to see several informational widgets on FlexPod Integrated Systems.
Cisco Data Center Network Manager (DCNM)–SAN
If you have fibre-channel SAN in your FlexPod, Cisco DCNM-SAN can be used to monitor, configure, and analyze Cisco fibre channel fabrics. Cisco DCNM-SAN is deployed as a virtual appliance from an OVA and is managed through a web browser. SAN Analytics can be added to provide insights into your fabric by allowing you to monitor, analyze, identify, and troubleshoot performance issues.
Prerequisites
The following prerequisites need to be configured:
● Licensing. Cisco DCNM-SAN includes a 60-day server-based trial license that can be used to monitor and configure Cisco MDS Fibre Channel switches and monitor Cisco Nexus switches. Both DCNM server-based and switch-based licenses can be purchased. Additionally, SAN Insights and SAN Analytics requires an additional switch-based license on each switch. Cisco MDS 32Gbps Fibre Channel switches provide a 120-day grace period to trial SAN Analytics.
Note: If using Cisco Nexus 93180YC-FX, 93360YC-FX2, or 9336C-FX2-E for SAN switching, the Nexus switch does not support SAN Analytics.
● Passwords. Cisco DCNM-SAN passwords should adhere to the following password requirements:
◦ It must be at least eight characters long and contain at least one alphabet and one numeral.
◦ It can contain a combination of alphabets, numerals, and special characters.
◦ Do not use any of these special characters in the DCNM password for all platforms: <SPACE> " & $ % ' ^ = < > ; : ` \ | / , .*
● DCNM SNMPv3 user on switches. Each switch (both Cisco MDS and Nexus) needs an SNMPv3 user added for DCNM to use to query and configure the switch. On each switch, enter the following command in configure terminal mode (in the example, the userid is snmpuser):
snmp-server user snmpadmin network-admin auth sha <password> priv aes-128 <privacy-password>
● On Cisco MDS switches, type show run. If snmpadmin passphrase lifetime 0 is present, enter username snm-padmin passphrase lifetime 99999 warntime 14 gracetime 3.
Note: It is important to use auth type sha and privacy auth aes-128 for both the switch and UCS snmpadmin users.
● Type “copy run start” on all switches to save the running configuration to the startup configuration.
● An SNMP Policy was added to the UCS Domain Profile in IMM to create the snmpadmin user there.
Procedure 1. Deploy the Cisco DCNM-SAN OVA
Step 1. Download the Cisco DCNM 11.5(4). Open Virtual Appliance for VMware from https://software.cisco.com/download/home/281722751/type/282088134/release/11.5(4). Extract dcnm-va.11.5.4.ova from the ZIP file.
Step 2. In the VMware vCenter HTML5 interface, select Inventory > Hosts and Clusters.
Step 3. Right-click the FlexPod-Management cluster and select Deploy OVF Template.

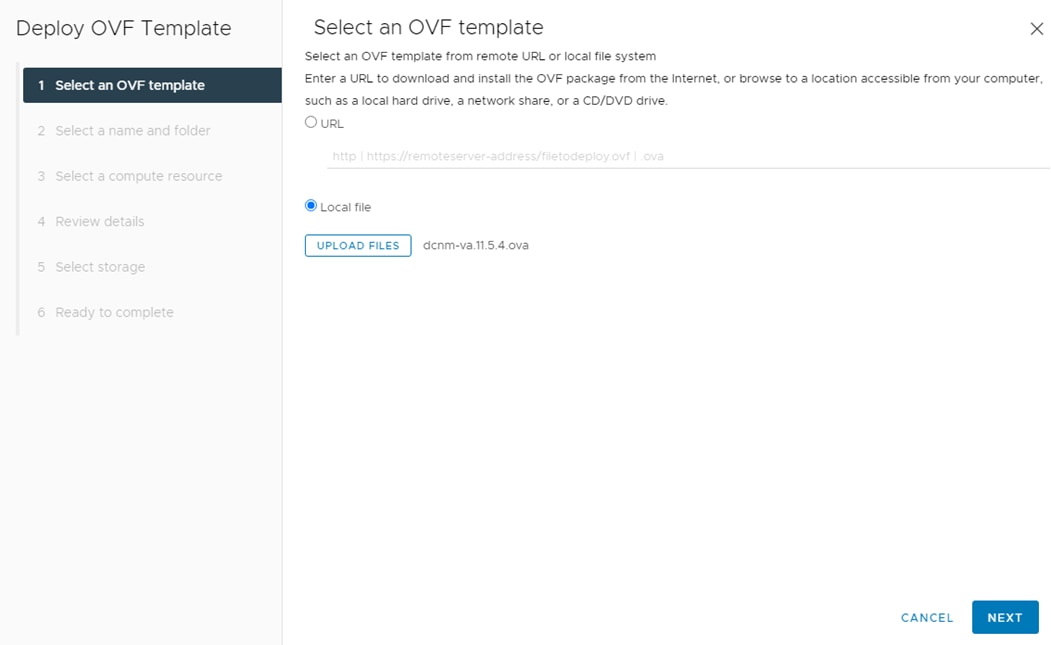

Step 4. Select Local file then click UPLOAD FILES. Navigate to select dcnm-va.11.5.4.ova and click Open. Click NEXT.
Step 5. Name the virtual machine and select the FlexPod-DC datacenter. Click NEXT.
Step 6. Select the FlexPod-Management cluster and click NEXT.
Step 7. Review the details and click NEXT.
Step 8. Scroll through and accept the license agreements. Click NEXT.

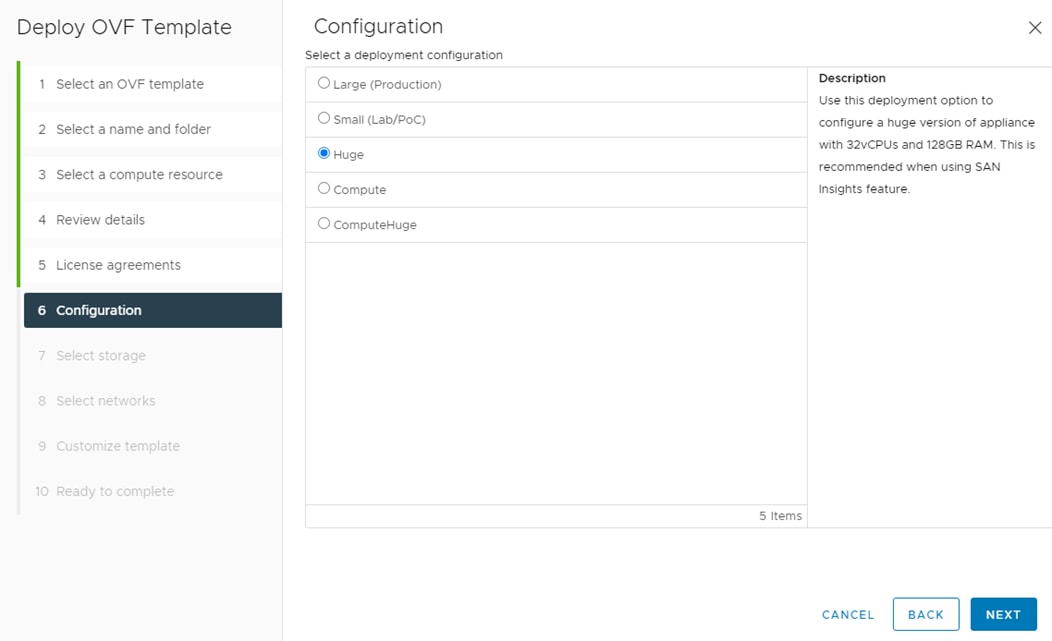

Step 9. Select the appropriate deployment configuration size and click NEXT.
Note: If using the SAN Insights and SAN Analytics feature, it is recommended to use the Huge size.

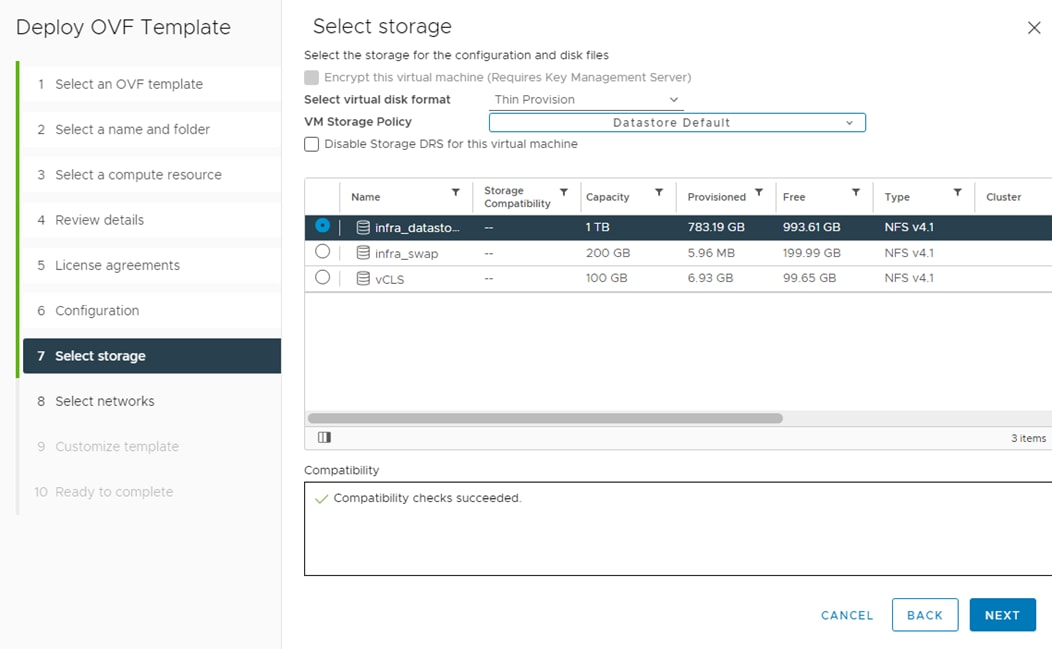

Step 10. Select infra_datastore and the Thin Provision virtual disk format. Click NEXT.

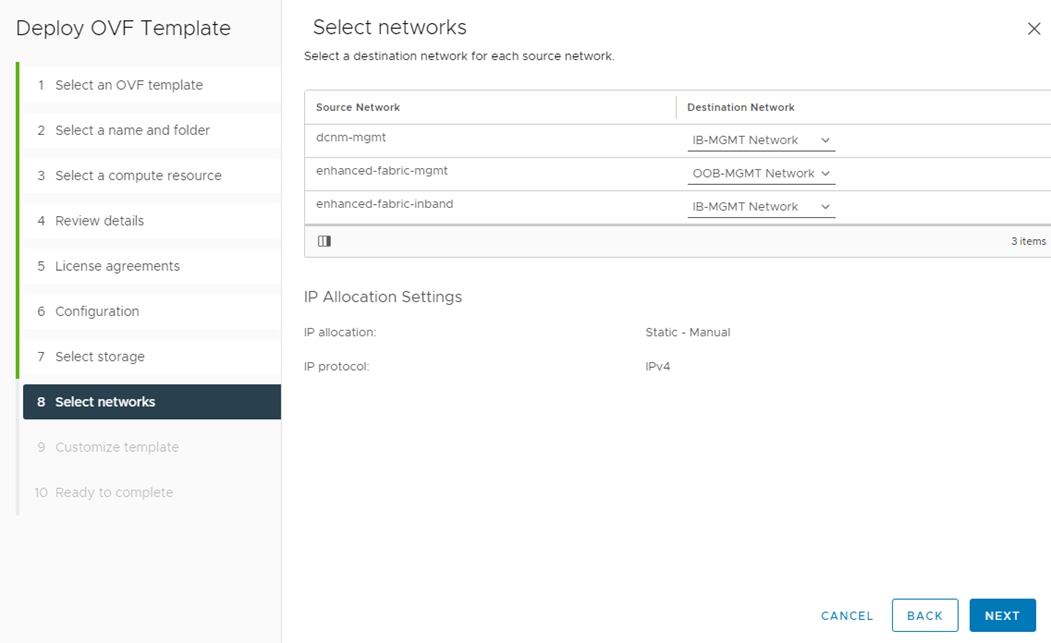

Step 11. Select IB-MGMT Network for the first and third Source Networks. Select OOB-MGMT Network for the second enhanced-fabric-mgmt Source Network. Click NEXT.
Step 12. Fill in the management IP address, subnet mask, and gateway. Set the Extra Disk Size according to how many Cisco MDS switches you will be monitoring with this DCNM. If you are only monitoring the two Cisco MDS switches in this FlexPod deployment, set this field to 32. Click NEXT.

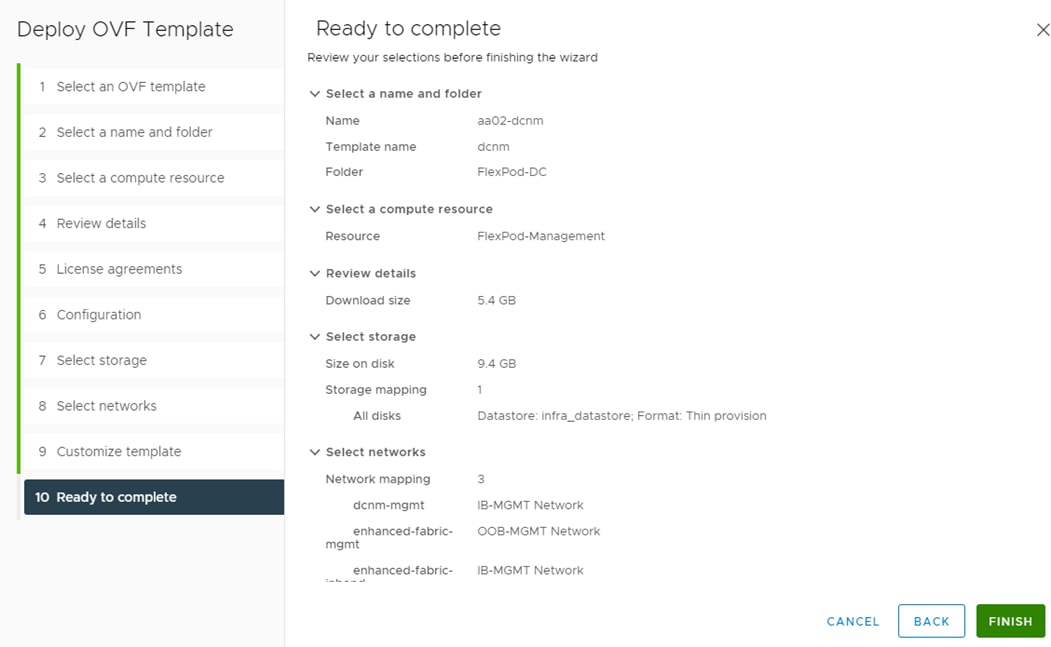

Step 13. Review the settings and click FINISH to deploy the OVA.
Step 14. After deployment is complete, right-click the newly deployed DCNM VM and click Edit Settings. Expand CPU and adjust the Cores per Socket setting until the number of Sockets is set to match the number of CPUs in the UCS servers used in this deployment. The following example shows 2 sockets. Click OK.
Step 15. Right-click the newly deployed DCNM VM and click Open Remote Console. Once the console is up, click the green arrow to power on the VM. Once the VM has powered up, point a web browser to the URL displayed on the console.
Step 16. Navigate the security prompts and click Get started.
Step 17. Make sure Fresh installation – Standalone is selected and click Continue.
Step 18. Select SAN only for the Installation mode and leave Cisco Systems, Inc. for the OEM vendor and click Next.
Step 19. Enter and repeat the administrator, database, and root passwords and click Next.

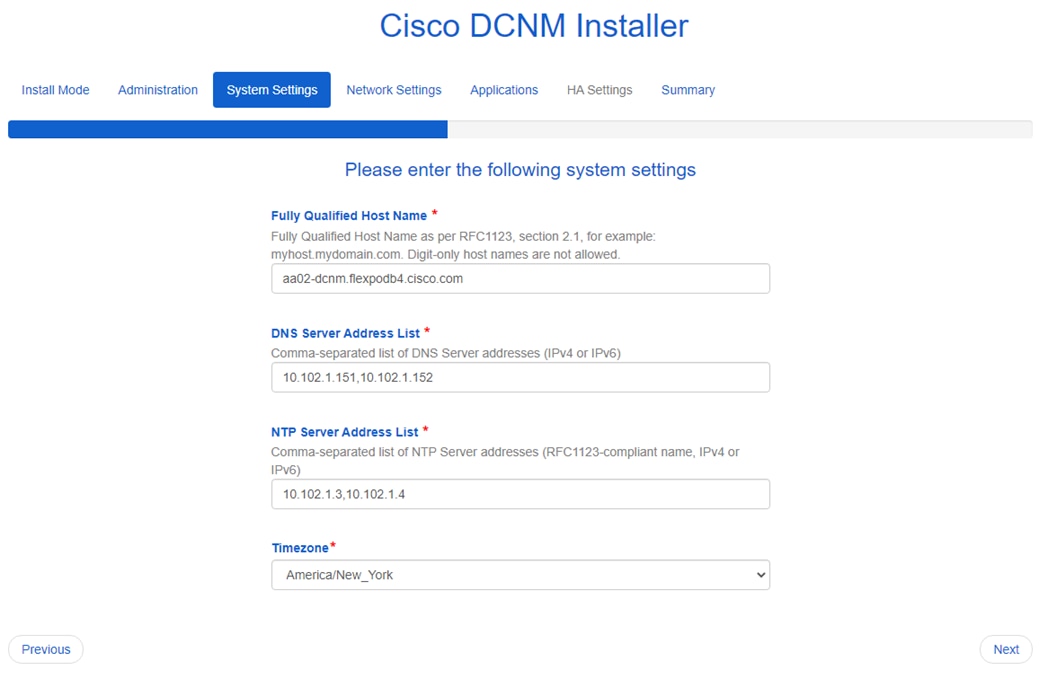

Step 20. Enter the DCNM FQDN, a comma-separated list of DNS servers, a comma-separated list of NTP servers, and select the appropriate time zone. Click Next.
Step 21. The Management Network settings should be filled in. For Out-of-Band Network, enter an IP address in the Out-of-Band management subnet. For the Out-of-Band Network, only input the IPV4 address with prefix. Do not put in the Gateway IPv4 Address. Do not enter any information for the In-Band Network. Scroll down and click Next.
Step 22. If necessary, enter data for the Device connector configuration. Leave Internal Application Services Network set at the default setting and click Next.
Step 23. Review the Summary details and click Start installation.
Step 24. When the Installation status is complete, click Continue.
Step 25. In the vCenter HTML5 client under Hosts and Clusters, select the DCNM VM and click the Summary tab. If an alert is present that states “A newer version of VMware Tools is available for this virtual machine.,” click Upgrade VMware Tools. Select Automatic Upgrade and click UPGRADE. Wait for the VMware Tools upgrade to complete.
Procedure 2. Configure DCNM-SAN
Step 1. When the DCNM installation is complete, the browser should redirect to the DCNM management URL.
Step 2. Log in as admin with the password previously entered.
Step 3. On the message that appears, select Do not show this message again and click No.
Step 4. If you have purchased DCNM server-based or switch-based licenses, follow the instructions that came with the licenses to install them. A new DCNM installation also has a 60-day trial license.
Step 5. In the menu on the left, click Inventory > Discovery > LAN Switches.

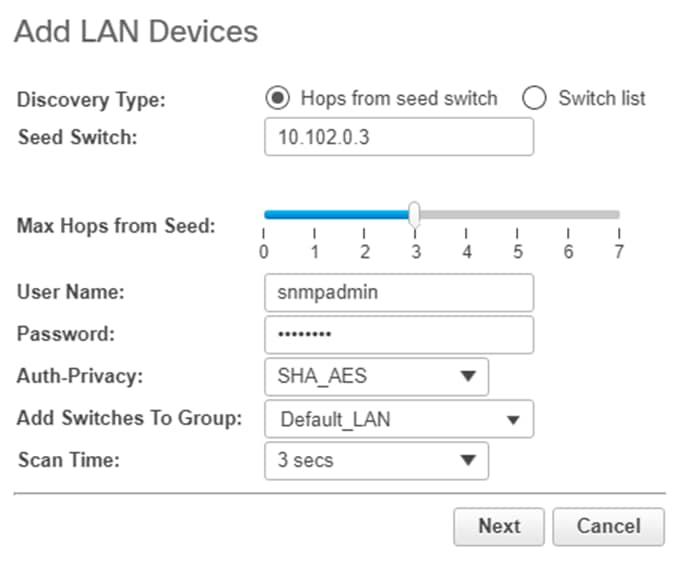

Step 6. Click to add LAN switches. In the Add LAN Devices window, enter the mgmt0 IP address of the Nexus switch A in the Seed Switch box. Enter the snmpadmin user name and password set up in the Prerequisites section above. Set Auth-Privacy to SHA_AES. Click Next.
Step 7. LAN switch discovery will take a few minutes. In the LAN Discovery list that appears, the two Nexus switches and two Fabric Interconnects that are part of this FlexPod should appear with a status of “manageable.” Using the checkboxes on the left, select the two Nexus switches and two Fabric Interconnects that are part of this FlexPod. Click Add.

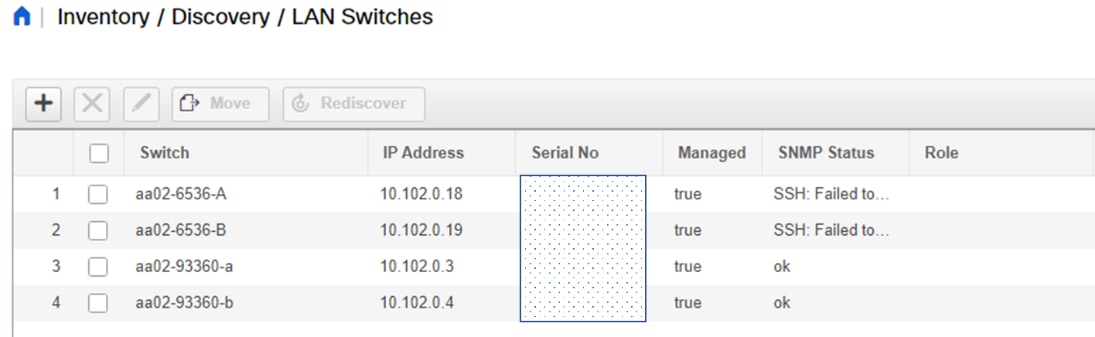

Step 8. After a few minutes, click the Refresh icon in the upper right-hand corner, and detailed information abut the two Nexus switches and two Fabric Interconnects that are part of this FlexPod will display.
Step 9. In the menu on the left, click Inventory > Discovery > SAN Switches.
Step 10. Click to add a switching fabric.

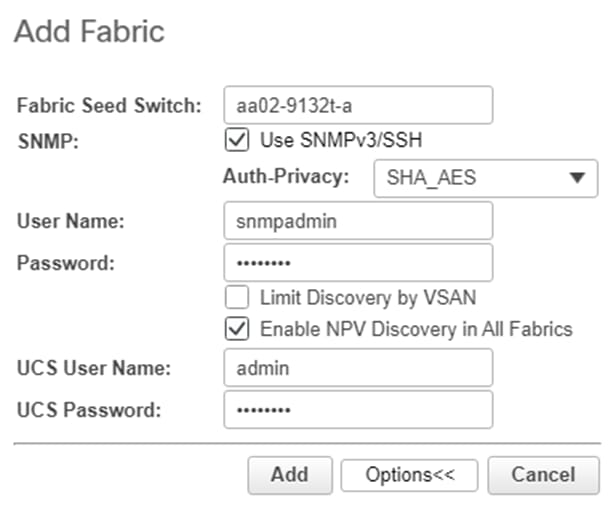

Step 11. Enter either the IP address or hostname of the first Cisco MDS 9132T switch. Leave Use SNMPv3/SSH selected. Set Auth-Privacy to SHA_AES. Enter the snmpadmin user name and password set up in the Prerequisites section. Click Options>>. Enter the UCS admin user name and password. Click Add.
Note: If Cisco Nexus 93180YC-FX, 93360YC-FX2, or 9336C-FX2-E switches are being used for SAN switching, substitute them for MDS 9132Ts. They will need to be added again under SAN switches since LAN and SAN switching are handled separately in DCNM.
Step 12. Repeat steps 9-11 to add the second Cisco MDS 9132T and Fabric Interconnect.

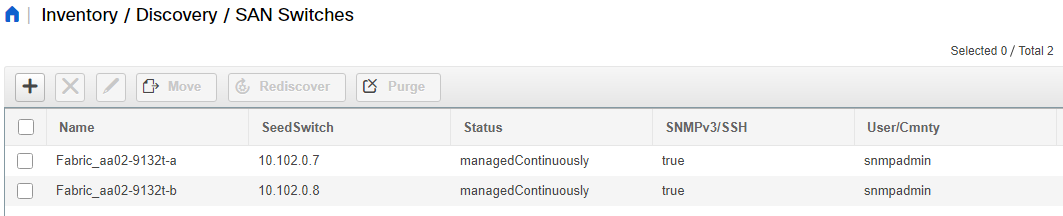

The two SAN fabrics now appear in the Inventory.
Step 13. Select Inventory > Discovery > Virtual Machine Manager.
Step 14. Click to add the vCenter.
Step 15. In the Add VCenter window, enter the IP address of the vCenter VCSA. Enter the administrator@vsphere.local user name and password. Click Add. The vCenter should now appear in the inventory.
Step 16. Select Inventory > Switches. All LAN and SAN switches should now appear in the inventory.
Step 17. Select Administration > Performance Setup > LAN Collections.

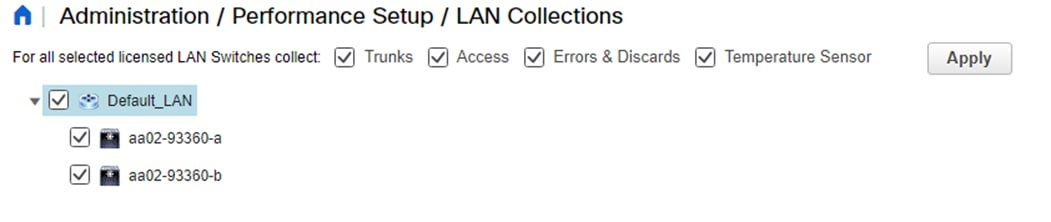

Step 18. Select the Default_LAN group and all information you would like to collect. Click Apply. Click Yes to restart the Performance Collector.
Step 19. Select Administration > Performance Setup > SAN Collections.

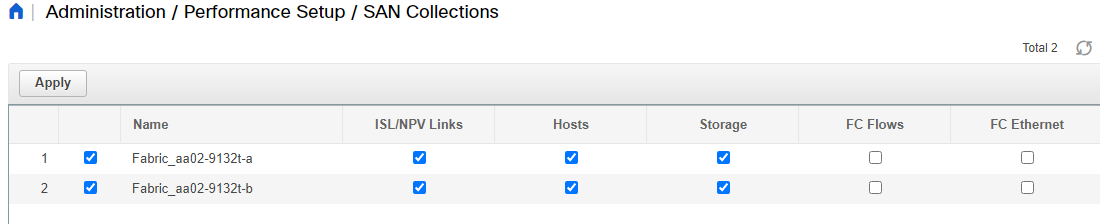

Step 20. Select both fabrics. Select all information you would like to collect and click Apply. Click Yes to restart the Performance Collector.
Step 21. Select Configure > SAN > Device Alias. Since device-alias mode enhanced was configured in the Cisco MDS 9132T switches, Device Aliases can be created and deleted from DCNM and pushed to the MDS switches.
Step 22. Select Configure > SAN > Zoning. Just as Device Aliases can be created and deleted from DCNM, zones can be created, deleted, and modified in DCNM and pushed to the MDS switches. Make sure to enable Smart Zoning and to Zone by Device Alias.
You can now explore all of the different options and information provided by DCNM SAN. See Cisco DCNM SAN Management for OVA and ISO Deployments Configuration Guide, Release 11.5(x).
Configure SAN Insights in DCNM SAN
The SAN Insights feature enables you to configure, monitor, and view the flow analytics in fabrics. Cisco DCNM enables you to visually see health-related indicators in the interface so that you can quickly identify issues in fabrics. Also, the health indicators enable you to understand the problems in fabrics. The SAN Insights feature also pro-vides more comprehensive end-to-end flow-based data from host to LUN.
● Ensure that the time configurations set above, including daylight savings settings are consistent across the MDS switches and Cisco DCNM.
● SAN Insights requires installation of a SMART SAN Analytics license on each switch. To trial the feature, each switch includes a one-time 120-day grace period for SAN Analytics from the time the feature is first enabled.
● SAN Insights supports current Fibre Channel Protocol (SCSI) and NVMe over Fibre Channel (NVMe).
● SAN Insights works by enabling SAN Analytics and Telemetry Streaming on each switch. The switches then stream the SAN Analytics data to DCNM, which collects, correlates, and displays statistics. All configurations can be done from DCNM.
● Only Cisco MDS switches support SAN Analytics. Cisco Nexus switches do not support SAN Analytics.
● For more information on SAN Insights, see the Cisco DCNM SAN Management for OVA and ISO Deployments Configuration Guide, Release 11.5(x).
● For more information on SAN Analytics, see https://www.cisco.com/c/en/us/td/docs/dcn/mds9000/sw/9x/configuration/san-analytics/cisco-mds-9000-san-analytics-telemetry-streaming-configuration-guide-9x.html.
Procedure 1. Configure SAN Insights in DCNM SAN
Step 1. Click Configure > SAN > SAN Insights. Click Continue.
Step 2. Select Fabric A. Click Continue.

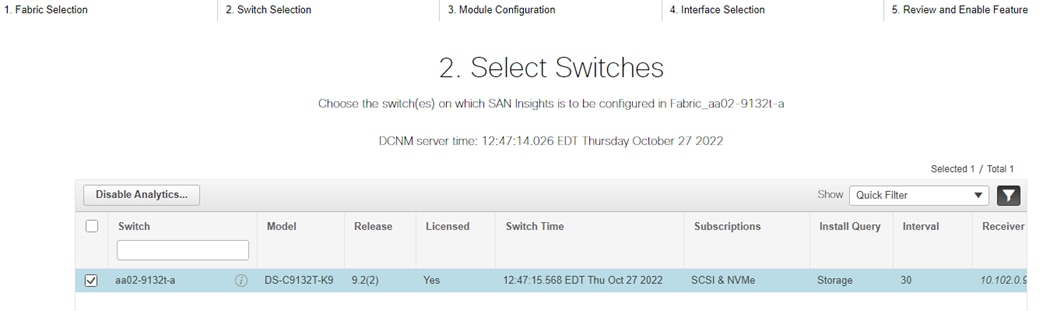

Step 3. Select the Fabric A Cisco MDS switch. Under Install Query click None and from the drop-down list click Storage. Under Subscriptions, select SCSI & NVMe or whatever you have currently installed. Optionally, under Receiver, select the IP address in the Out-of-Band Management subnet configured for DCNM. Click Save, then click Continue.
Step 4. Review the information and click Continue.
Step 5. Expand the switch and then the module. Under Enable / Disable SCSI Telemetry, click the left icon to enable telemetry on the ports connected to the NetApp AFF A800. Under Enable / Disable NVMe Telemetry, click the left icon to enable telemetry on the ports connected to the NetApp AFF A800. Click Continue.
Step 6. Review the information and click Commit to push the configuration to the Cisco MDS switch.
Step 7. Ensure that the two operations were successful and click Close.
Step 8. Repeat steps 1 - 7 to install SAN Analytics and Telemetry on the Fabric B switch.
Note: After approximately two hours, you can view SAN Analytics data under the Dashboard and Monitor.
John George, Technical Marketing Engineer, Cisco Systems, Inc.
John has been involved in designing, developing, validating, and supporting the FlexPod Converged Infrastructure since it was developed almost 12 years ago. Before his roles with FlexPod, he supported and administered a large worldwide training network and VPN infrastructure. John holds a master’s degree in Computer Engineering from Clemson University.
Roney Daniel, Technical Marketing Engineer, Hybrid Cloud Infra & OEM Solutions, NetApp Inc.
Roney Daniel is a Technical Marketing engineer at NetApp. He has over 25 years of experience in the networking industry. Prior to NetApp, Roney worked at Cisco Systems in various roles with Cisco TAC, Financial Test Lab, Systems and solution engineering BUs and Cisco IT. He has a bachelor's degree in Electronics and Communication engineering and is a data center Cisco Certified Internetwork Expert (CCIE 42731).
Kamini Singh, Technical Marketing Engineer, Hybrid Cloud Infra & OEM Solutions, NetApp
Kamini Singh is a Technical Marketing engineer at NetApp. She has three years of experience in data center infrastructure solutions. Kamini focuses on FlexPod hybrid cloud infrastructure solution design, implementation, validation, automation, and sales enablement. Kamini holds a bachelor’s degree in Electronics and Communication and a master’s degree in Communication Systems.
Acknowledgements
For their support and contribution to the design, validation, and creation of this Cisco Validated Design, the authors would like to thank:
● Haseeb Niazi, Principal Technical Marketing Engineer, Cisco Systems, Inc.
● Paniraja Koppa, Technical Marketing Engineer, Cisco Systems, Inc.
Appendix
This appendix is organized into the following:
● FlexPod with Cisco Nexus SAN Switching Configuration – Part 1
● FlexPod with Cisco Nexus 93360YC-FX2 SAN Switching Configuration – Part 2
● Create a FlexPod ESXi Custom ISO using VMware vCenter
● Active IQ Unified Manager User Configuration
● Active IQ Unified Manager vCenter Configuration
Note: The features and functionality explained in this Appendix are optional configurations which can be helpful in configuring and managing the FlexPod deployment.
FlexPod with Cisco Nexus SAN Switching Configuration – Part 1
If the Cisco Nexus switches are to be used for both LAN and SAN switching in the FlexPod configuration, either an automated configuration with Ansible or a manual configuration can be done. For either configuration method, the following base switch setup must be done manually. Figure 6 shows the validation lab cabling for this setup.
Figure 6. Cisco Nexus SAN Switching Cabling with FCoE Fabric Interconnect Uplinks
FlexPod Cisco Nexus 93180YC-FX SAN Switching Base Configuration
The following procedures describe how to configure the Cisco Nexus 93180YC-FX switches for use in a base FlexPod environment that uses the switches for both LAN and SAN switching. This procedure assumes you’re using Cisco Nexus 9000 10.2(3)F. This procedure also assumes that you have created an FCoE Uplink Port Channel on the appropriate ports in the Cisco UCS IMM Port Policies for each UCS fabric interconnect.
Procedure 1. Set Up Initial Configuration in Cisco Nexus 93360YC-FX2 A
Step 1. Configure the switch:
Note: On initial boot and connection to the serial or console port of the switch, the NX-OS setup should automatically start and attempt to enter Power on Auto Provisioning.
Abort Power On Auto Provisioning [yes - continue with normal setup, skip - bypass password and basic configuration, no - continue with Power On Auto Provisioning] (yes/skip/no)[no]: yes
Disabling POAP.......Disabling POAP
poap: Rolling back, please wait... (This may take 5-15 minutes)
---- System Admin Account Setup ----
Do you want to enforce secure password standard (yes/no) [y]: Enter
Enter the password for "admin": <password>
Confirm the password for "admin": <password>
Would you like to enter the basic configuration dialog (yes/no): yes
Create another login account (yes/no) [n]: Enter
Configure read-only SNMP community string (yes/no) [n]: Enter
Configure read-write SNMP community string (yes/no) [n]: Enter
Enter the switch name: <nexus-A-hostname>
Continue with Out-of-band (mgmt0) management configuration? (yes/no) [y]: Enter
Mgmt0 IPv4 address: <nexus-A-mgmt0-ip>
Mgmt0 IPv4 netmask: <nexus-A-mgmt0-netmask>
Configure the default gateway? (yes/no) [y]: Enter
IPv4 address of the default gateway: <nexus-A-mgmt0-gw>
Configure advanced IP options? (yes/no) [n]: Enter
Enable the telnet service? (yes/no) [n]: Enter
Enable the ssh service? (yes/no) [y]: Enter
Type of ssh key you would like to generate (dsa/rsa) [rsa]: Enter
Number of rsa key bits <1024-2048> [1024]: Enter
Configure the ntp server? (yes/no) [n]: Enter
Configure default interface layer (L3/L2) [L2]: Enter
Configure default switchport interface state (shut/noshut) [noshut]: shut
Enter basic FC configurations (yes/no) [n]: y
Configure default physical FC switchport interface state (shut/noshut) [shut]: Enter
Configure default switchport trunk mode (on/off/auto) [on]: auto
Configure default zone policy (permit/deny) [deny]: Enter
Enable full zoneset distribution? (yes/no) [n]: y
Configure CoPP system profile (strict/moderate/lenient/dense) [strict]: Enter
Would you like to edit the configuration? (yes/no) [n]: Enter
Step 2. Review the configuration summary before enabling the configuration:
Use this configuration and save it? (yes/no) [y]: Enter
Procedure 2. Set Up Initial Configuration in Cisco Nexus 93360YC-FX2 B
Step 1. Configure the switch:
Note: On initial boot and connection to the serial or console port of the switch, the NX-OS setup should automatically start and attempt to enter Power on Auto Provisioning.
Abort Power On Auto Provisioning [yes - continue with normal setup, skip - bypass password and basic configuration, no - continue with Power On Auto Provisioning] (yes/skip/no)[no]: yes
Disabling POAP.......Disabling POAP
poap: Rolling back, please wait... (This may take 5-15 minutes)
---- System Admin Account Setup ----
Do you want to enforce secure password standard (yes/no) [y]: Enter
Enter the password for "admin": <password>
Confirm the password for "admin": <password>
Would you like to enter the basic configuration dialog (yes/no): yes
Create another login account (yes/no) [n]: Enter
Configure read-only SNMP community string (yes/no) [n]: Enter
Configure read-write SNMP community string (yes/no) [n]: Enter
Enter the switch name: <nexus-B-hostname>
Continue with Out-of-band (mgmt0) management configuration? (yes/no) [y]: Enter
Mgmt0 IPv4 address: <nexus-B-mgmt0-ip>
Mgmt0 IPv4 netmask: <nexus-B-mgmt0-netmask>
Configure the default gateway? (yes/no) [y]: Enter
IPv4 address of the default gateway: <nexus-B-mgmt0-gw>
Configure advanced IP options? (yes/no) [n]: Enter
Enable the telnet service? (yes/no) [n]: Enter
Enable the ssh service? (yes/no) [y]: Enter
Type of ssh key you would like to generate (dsa/rsa) [rsa]: Enter
Number of rsa key bits <1024-2048> [1024]: Enter
Configure the ntp server? (yes/no) [n]: Enter
Configure default interface layer (L3/L2) [L2]: Enter
Configure default switchport interface state (shut/noshut) [noshut]: shut
Enter basic FC configurations (yes/no) [n]: y
Configure default physical FC switchport interface state (shut/noshut) [shut]: Enter
Configure default switchport trunk mode (on/off/auto) [on]: auto
Configure default zone policy (permit/deny) [deny]: Enter
Enable full zoneset distribution? (yes/no) [n]: y
Configure CoPP system profile (strict/moderate/lenient/dense) [strict]: Enter
Would you like to edit the configuration? (yes/no) [n]: Enter
Step 2. Review the configuration summary before enabling the configuration:
Use this configuration and save it? (yes/no) [y]: Enter
Note: SAN switching requires both the SAN_ENTERPRISE_PKG and FC_PORT_ACTIVATION_PKG licenses. Ensure these licenses are installed on each Nexus switch.
Note: This section is structured as a green field switch setup. If existing switches that are switching active traffic are being setup, execute this procedure down through Perform TCAM Carving and Configure Unified Ports in Cisco Nexus 93360YC-FX2 A and B first on one switch and then when that is completed, execute on the other switch.
Procedure 3. Install feature-set fcoe in Cisco Nexus 93360YC-FX2 A and B
Step 1. Run the following commands to set global configurations:
config t
install feature-set fcoe
feature-set fcoe
system default switchport trunk mode auto
system default switchport mode F
Note: These steps are provided in case the basic FC configurations were not configured in the switch setup script de-tailed in the previous section.
Procedure 4. Set System-Wide QoS Configurations in Cisco Nexus 93360YC-FX2 A and B
Step 1. Run the following commands to set global configurations:
config t
system qos
service-policy type queuing input default-fcoe-in-que-policy
service-policy type queuing output default-fcoe-8q-out-policy
service-policy type network-qos default-fcoe-8q-nq-policy
copy run start
Procedure 5. Perform TCAM Carving and Configure Unified Ports (UP) in Cisco Nexus 93360YC-FX2 A and B
Note: SAN switching requires TCAM carving for lossless fibre channel no-drop support. Also, unified ports need to be converted to fc ports.
Note: On the Cisco Nexus 93360YC-FX2, UP ports are converted to FC in groups of 4 in columns, for example, 1,2,49,50.
Step 1. Run the following commands:
hardware access-list tcam region ing-racl 1536
hardware access-list tcam region ing-ifacl 256
hardware access-list tcam region ing-redirect 256
slot 1
port 1,2,49,50,3,4,51,52 type fc
copy running-config startup-config
reload
This command will reboot the system. (y/n)? [n] y
Step 2. After the switch reboots, log back in as admin. Run the following commands:
show hardware access-list tcam region |i i ing-racl
show hardware access-list tcam region |i i ing-ifacl
show hardware access-list tcam region |i i ing-redirect
show int status
FlexPod Cisco Nexus 93360YC-FX2 SAN Switching Ethernet Switching Automated Configuration
For the automated configuration of the Ethernet part of the Cisco Nexus 93360YC-FX2 switches when using the switches for SAN switching, once the base configuration is set, return to Ansible Nexus Switch Configuration, and execute from there.
FlexPod with Cisco Nexus 93360YC-FX2 SAN Switching Configuration – Part 2
Note: If the Cisco Nexus 93360YC-FX2 switch is being used for SAN Switching, this section should be completed in place of the Cisco MDS section of this document.
Procedure 1. FlexPod Cisco Nexus 93360YC-FX2 SAN Switching Automated Configuration
Automate the configuration of the SAN part of the Cisco Nexus 93180YC-FX switches when using the switches for SAN switching.
Step 1. Verify Nexus switch ssh keys are in /root/.ssh/known_hosts. Adjust known_hosts as necessary if errors occur.
ssh admin@<nexus-A-mgmt0-ip>
exit
ssh admin@<nexus-B-mgmt0-ip>
exit
Step 2. Edit the /root/FlexPod-IMM-4.2.2/FlexPod-IMM-4.2.2/inventory file putting the Cisco Nexus A information in for MDS A and the Cisco Nexus B information in for MDS B.
Step 3. Edit the following variable files to ensure proper Cisco Nexus SAN variables are entered:
● /root/FlexPod-IMM-4.2.2/FlexPod-IMM-4.2.2/group_vars/all.yml
● /root/FlexPod-IMM-4.2.2/FlexPod-IMM-4.2.2/host_vars/mdsA.yml
● /root/FlexPod-IMM-4.2.2/FlexPod-IMM-4.2.2/host_vars/mdsB.yml
● /root/FlexPod-IMM-4.2.2/FlexPod-IMM-4.2.2/roles/NEXUSSANconfig/defaults/main.yml
Note: The SAN variables and port descriptions from the mdsA.yml and mdsB.yml files will be used for the SAN configuration in the Cisco Nexus 93360YC-FX2 switches.
Step 4. From /root/FlexPod-IMM-4.2.2/FlexPod-IMM-4.2.2, run the Setup_NexusSAN.yml Ansible playbook.
ansible-playbook ./Setup_NexusSAN.yml -i inventory
Procedure 2. Switch Testing Commands
The following commands can be used to check for correct switch configuration:
Note: Some of these commands need to run after further configuration of the FlexPod components are complete to see complete results.
show run
show run int
show int
show int status
show int brief
show flogi database
show device-alias database
show zone
show zoneset
show zoneset active
Create a FlexPod ESXi Custom ISO using VMware vCenter
In this Cisco Validated Design (CVD), the Cisco Custom Image for ESXi 7.0 U3 Install CD was used to install VMware ESXi. After this installation, the Cisco UCS VIC fnic driver, the lsi_mr3 driver, and the NetApp NFS Plug-in for VMware VAAI had to be installed or updated during the FlexPod deployment. vCenter 7.0U3 or later can be used to produce a FlexPod custom ISO containing the updated UCS VIC fnic driver, the lsi_mr3 driver, and the NetApp NFS Plug-in for VMware VAAI. This ISO can be used to install VMware ESXi 7.0U3 without having to do any additional driver updates.
Procedure 1. Create a FlexPod ESXi Custom ISO using VMware vCenter
Step 1. Download the Cisco Custom Image for ESXi 7.0 U3 Offline Bundle. This file (VMware-ESXi-7.0.3d-19482537-Custom-Cisco-4.2.2-a-depot.zip) can be used to produce the FlexPod ESXi 7.0U3 CD ISO.
Step 2. Download the following listed .zip files:
● VMware ESXi 7.0 nfnic 5.0.0.34 Driver for Cisco VIC Adapters – Cisco-nfnic_5.0.0.34-1OEM.700.1.0.15843807_19966277.zip – extracted from the downloaded zip
● VMware ESXi 7.0 lsi_mr3 7.720.04.00-1OEM SAS Driver for Broadcom Megaraid 12Gbps - Broadcom-lsi-mr3_7.720.04.00-1OEM.700.1.0.15843807_19476191.zip – extracted from the downloaded zip
● NetApp NFS Plug-in for VMware VAAI 2.0 – NetAppNasPluginV2.0.zip
● The Cisco VIC nenic driver would also normally be downloaded and added to the FlexPod Custom ISO, but the 1.0.42.0 nenic driver is already included in the Cisco Custom ISO.
Step 3. Log into the VMware vCenter HTML5 Client as administrator@vsphere.local.
Step 4. Under the Menu at the top, select Auto Deploy.
Step 5. If you see the following, select ENABLE IMAGE BUILDER.

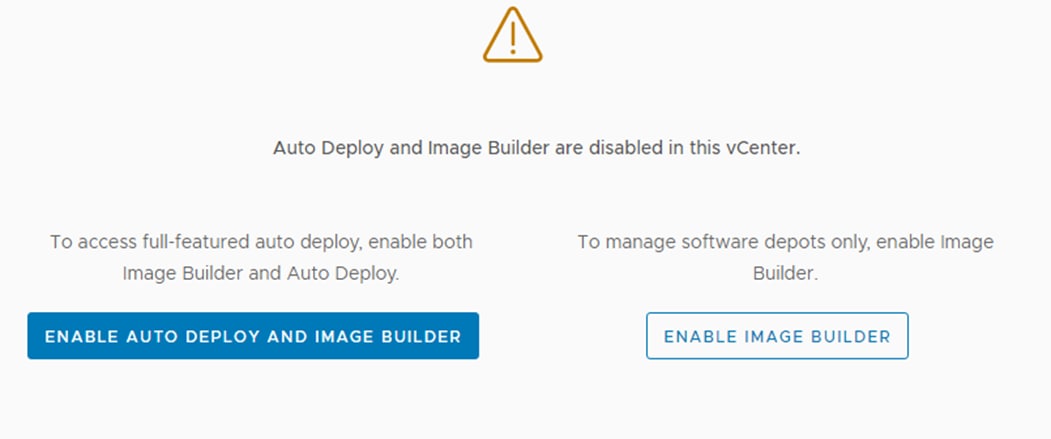

Step 6. Click IMPORT to upload a software depot.

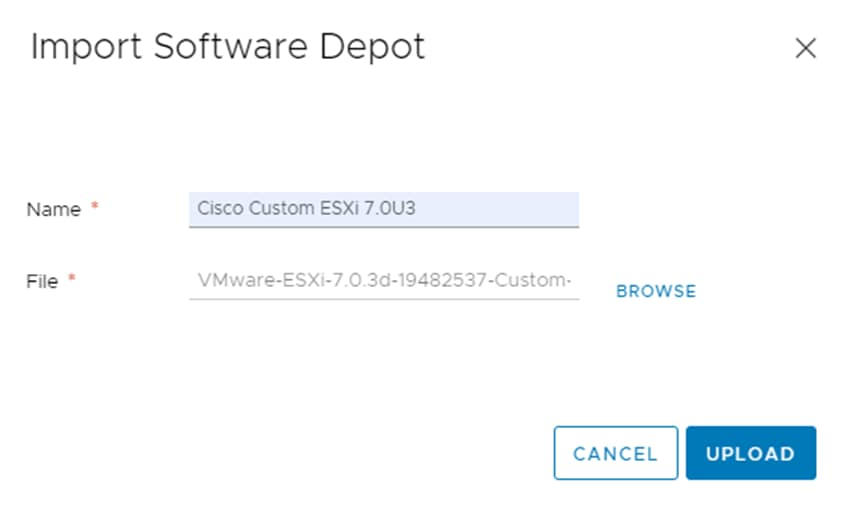

Step 7. Name the depot “Cisco Custom ESXi 7.0U3.” Click BROWSE. Browse to the local location of the VMware-ESXi-7.0.3d-19482537-Custom-Cisco-4.2.2-a-depot.zip file downloaded above, highlight it, and click Open.
Step 8. Click UPLOAD to upload the software depot.
Step 9. Repeat steps 1 - 8 to add software depots for Cisco-nfnic_5.0.0.34-1OEM.700.1.0.15843807_19966277.zip, Broadcom-lsi-mr3_7.720.04.00-1OEM.700.1.0.15843807_19476191.zip, and NetAppNasPluginV2.0.zip.
Step 10. Click NEW to add a custom software depot.

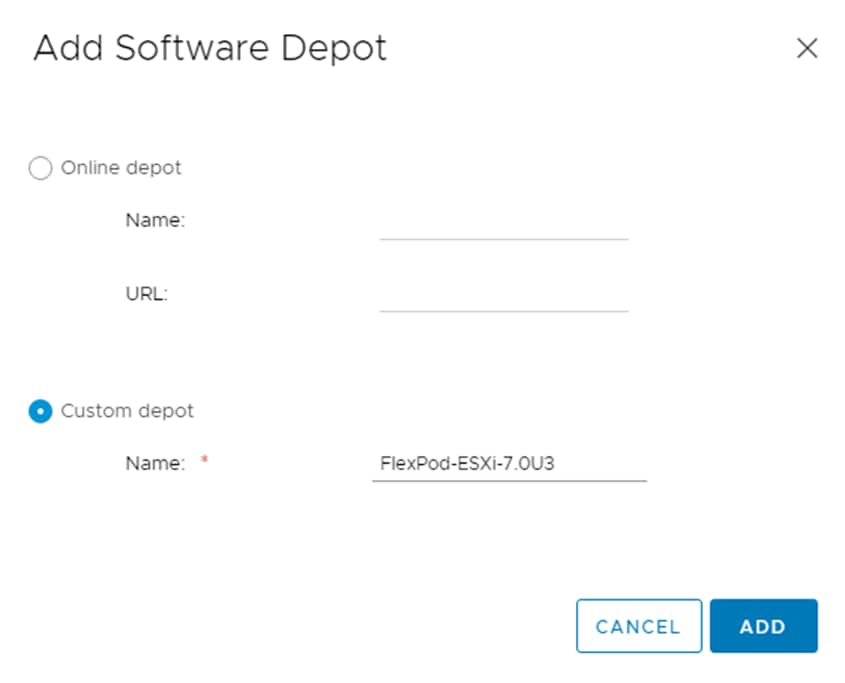

Step 11. Select Custom depot and name the custom depot FlexPod-ESXi-7.0U3.
Step 12. Click ADD to add the custom software depot.
Step 13. From the drop-down list, select the Cisco Custom ESXi-7.0U3 (ZIP) software depot. Make sure the Image Profiles tab is selected and then click the radio button to select the Cisco-UCS-Addon-ESXi-7U3d-19482537_4.2.2-a image profile. Click CLONE to clone the image profile.
Step 14. Name the clone FlexPod-ESXi-7.0U3. For Vendor, enter Cisco-NetApp. For Description, enter “Cisco Custom ISO ESXi 7.0U3 with Cisco VIC nfnic 5.0.0.34, LSI-MR3 7.720.04.0 and NetAppNasPluginv2.0.” Select FlexPod-ESXi-7.0U3 for Software depot.

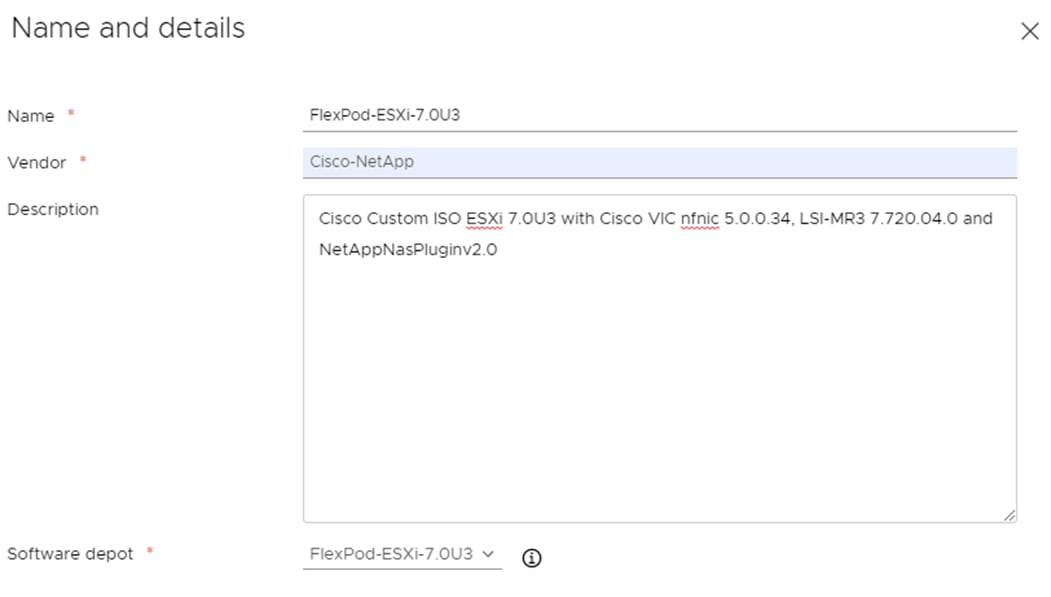

Step 15. Click NEXT.

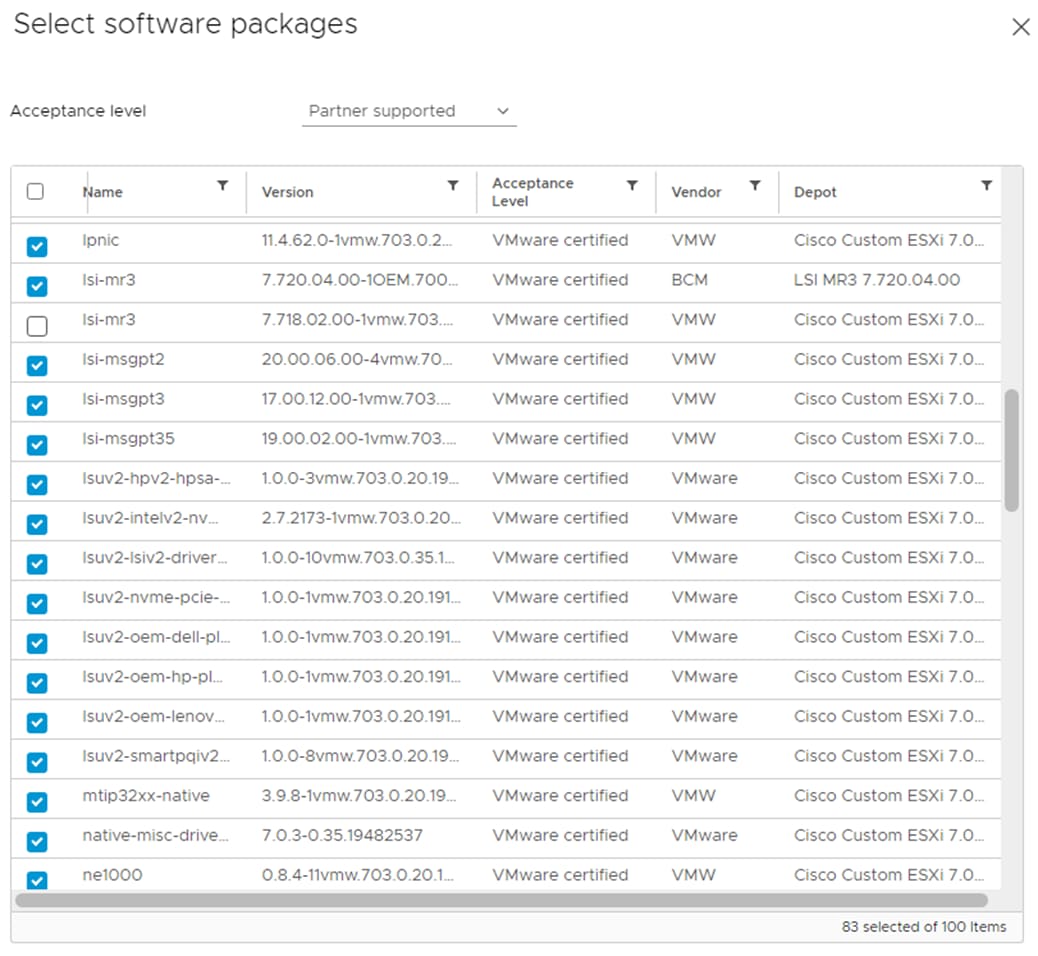

Step 16. Under Available software packages, check lsi-mr3 7.720.04.00 and uncheck any other lsi-mr3 packages, check NetAppNasPlugin 2.0-15, and check nfnic 5.0.0.34 and uncheck any other nfnic packages. Leave the remaining selections unchanged.

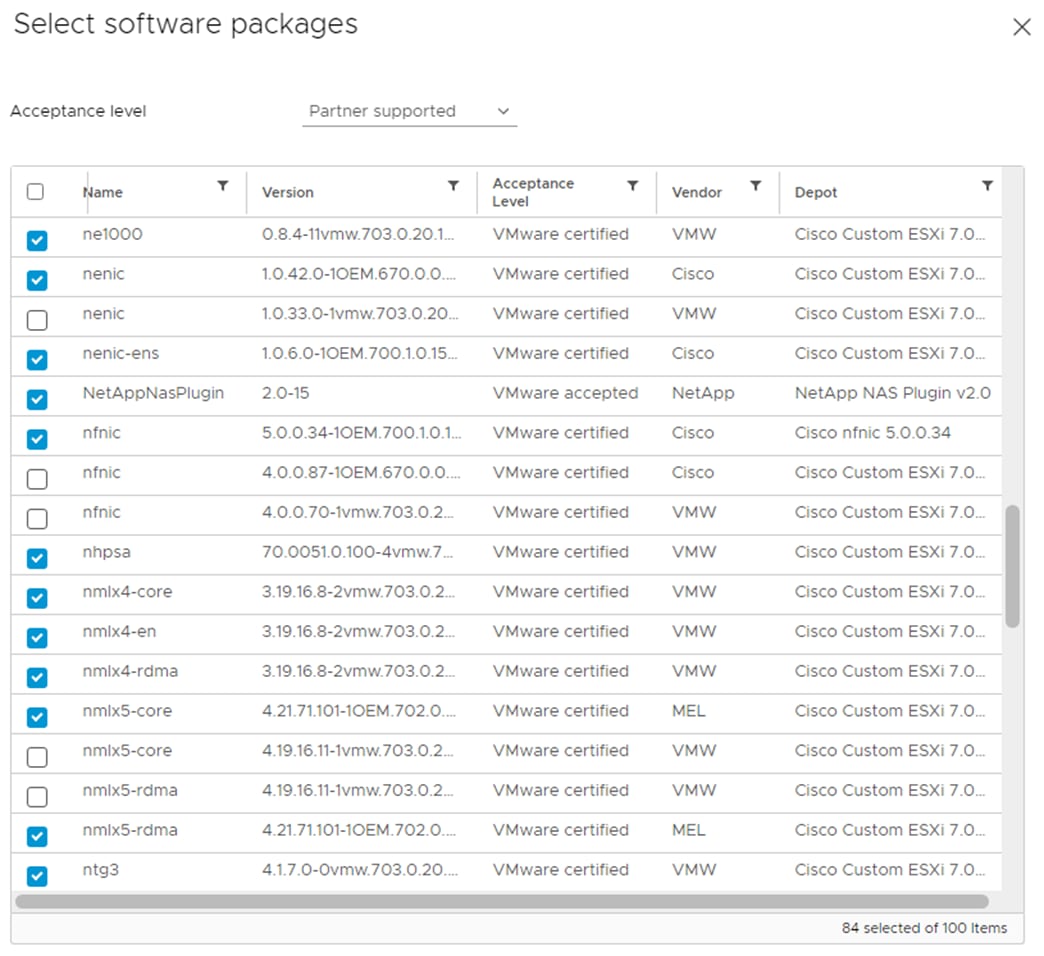

Step 17. Click NEXT.

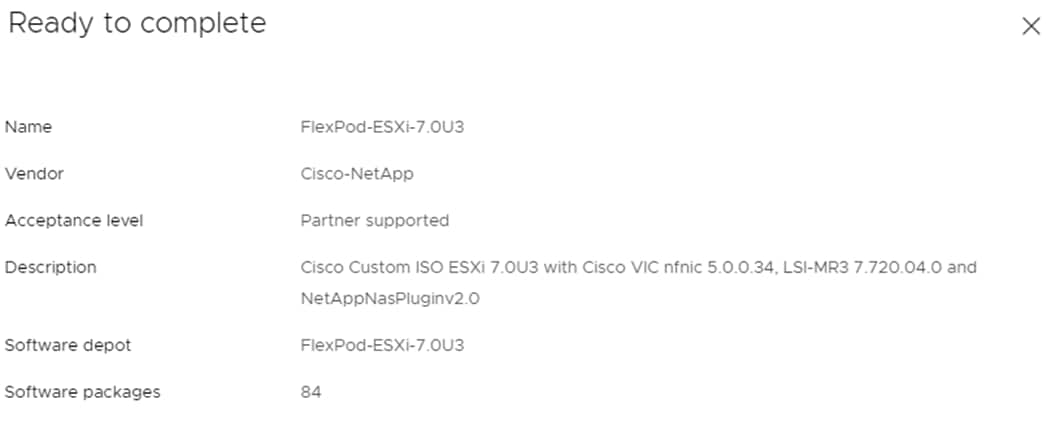

Step 18. Click FINISH to generate the depot.
Step 19. Using the Software Depot pulldown, select the FlexPod-ESXi-7.0U3 (Custom) software depot. Under Image Profiles select the FlexPod-ESXi-7.0U3 image profile. Click EXPORT to export an image profile. ISO should be selected. Click OK to generate a bootable ESXi installable image.
Step 20. Once the Image profile export completes, click DOWNLOAD to download the ISO.
Step 21. Once downloaded, you can rename the ISO to a more descriptive name (for example, FlexPod-ESXi-7.0U3.iso).
Step 22. Optionally, generate the ZIP archive to generate an offline bundle for the FlexPod image using … > Export.
Active IQ Unified Manager User Configuration
Procedure 1. Add Local Users to Active IQ Unified Manager
Step 1. Navigate to Settings > General section and click Users.

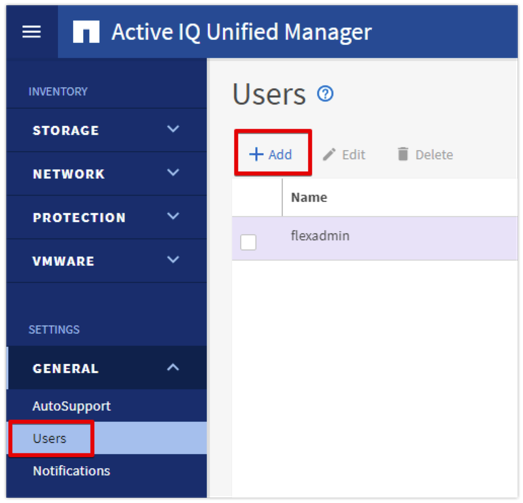

Step 2. Click + Add and complete the requested information:

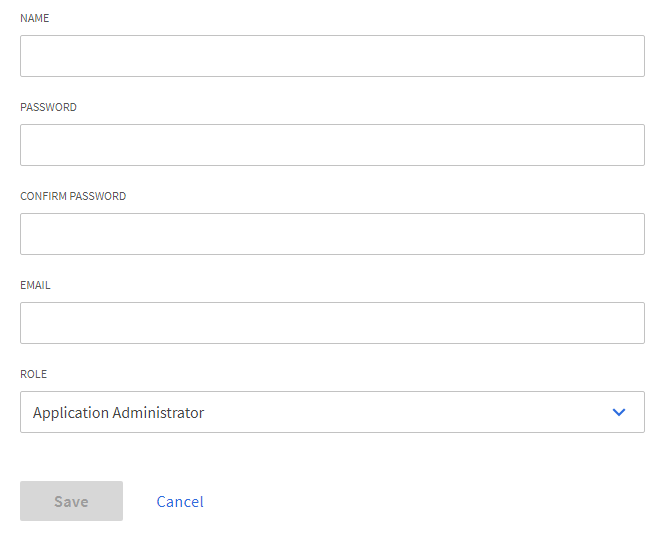

a. Select Local User for the Type.
b. Enter a username and password.
c. Add the user’s email address.
d. Select the appropriate role for the new user.

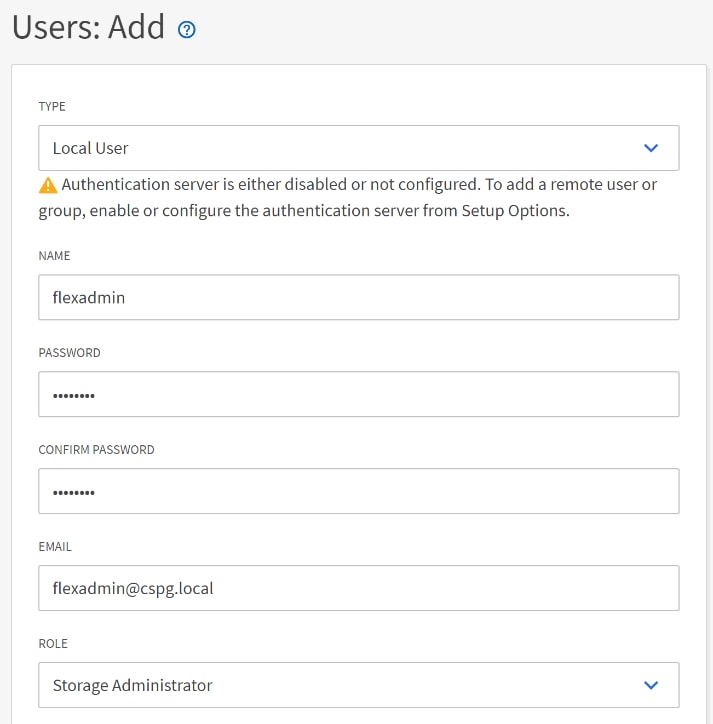

Step 3. Click SAVE to finish adding the new user.
Procedure 2. Configure Remote Authentication
Simplify user management and authentication for Active IQ Unified Manager by integrating it with Microsoft Active Directory.
Note: You must be logged on as the maintenance user created during the installation or another user with Application Administrator privileges to configure remote authentication.
Step 1. Navigate to the General and select Remote Authentication.

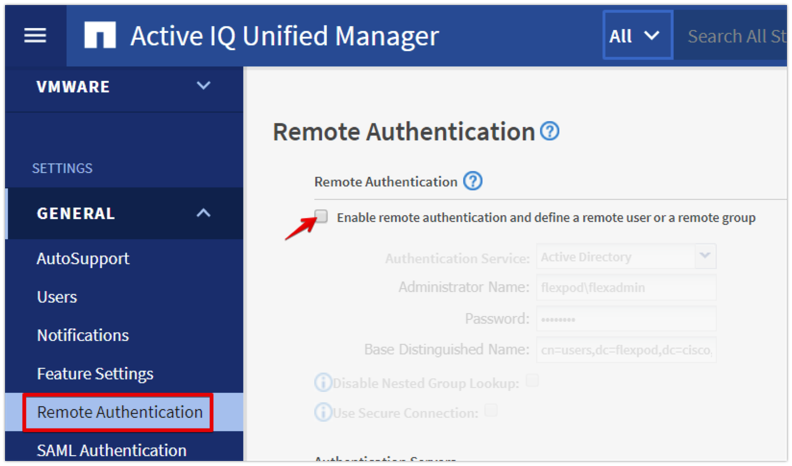

Step 2. Select the option to enable Remote Authentication and define a remote user or remote group.
Step 3. Select Active Directory from the authentication service list.
Step 4. Enter the Active Directory service account name and password. The account name can be in the format of domain\user or user@domain.
Step 5. Enter the base DN where your Active Directory users reside.
Step 6. If Active Directory LDAP communications are protected via SSL enable the Use Secure Connection option.

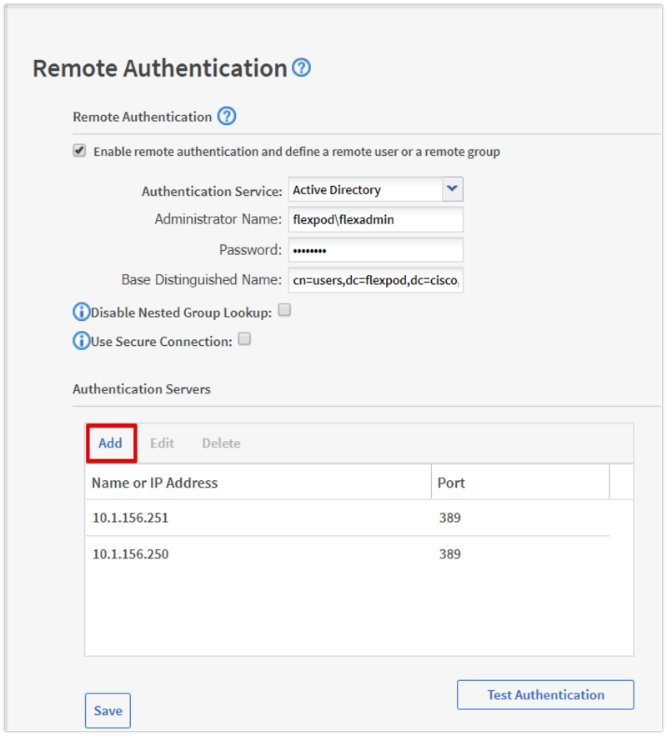

Step 7. Add one or more Active Directory domain controllers by clicking Add and entering the IP or FQDN of the domain controller.
Step 8. Click Save to enable the configuration.
Step 9. Click Test Authentication and enter an Active Directory username and password to test authentication with the Active Directory authentication servers. Click Start.
A result message displays indicating authentication was successful:

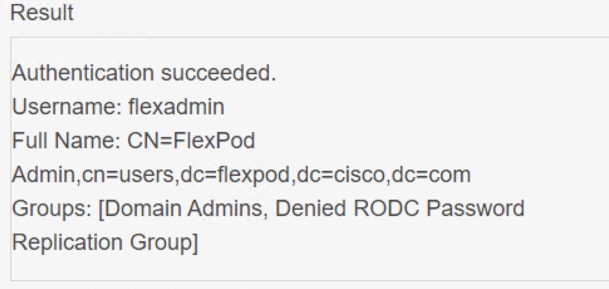

Procedure 3. Add a Remote User to Active IQ Unified Manager
Step 1. Navigate to the General section and select Users.
Step 2. Click Add and select Remote User from the Type drop-down list.
Step 3. Enter the following information into the form:
a. The username of the Active Directory user.
b. Email address of the user.
c. Select the appropriate role for the user.
Step 4. Click Save to add the remote user to Active IQ Unified Manager.
Active IQ Unified Manager vCenter Configuration
Active IQ Unified Manager provides visibility into vCenter and the virtual machines running inside the datastores backed by ONTAP storage. Virtual machines and storage are monitored to enable quick identification of performance issues within the various components of the virtual infrastructure stack.
Note: Before adding vCenter into Active IQ Unified Manager, the log level of the vCenter server must be changed.
Procedure 1. Configure Active IQ Unified Manager vCenter
Step 1. In the vSphere client navigate to Menu > VMs and Templates and select the vCenter instance from the top of the object tree.
Step 2. Click the Configure tab, expand Settings, and select General.

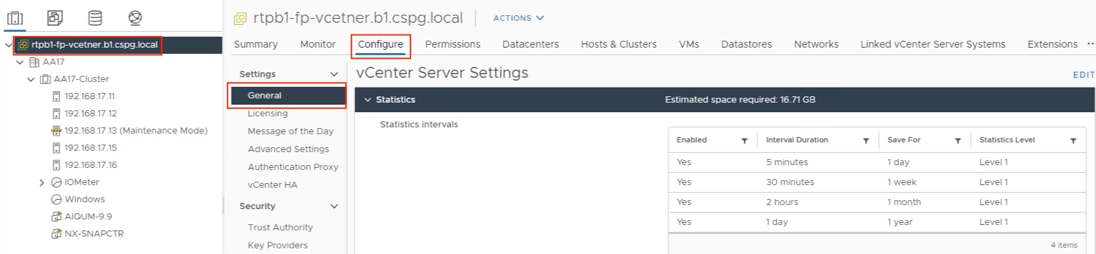

Step 3. Click EDIT.
Step 4. In the pop-up window under Statistics, locate the 5 minutes Interval Duration row and change the setting to Level 3 under the Statistics Level column.

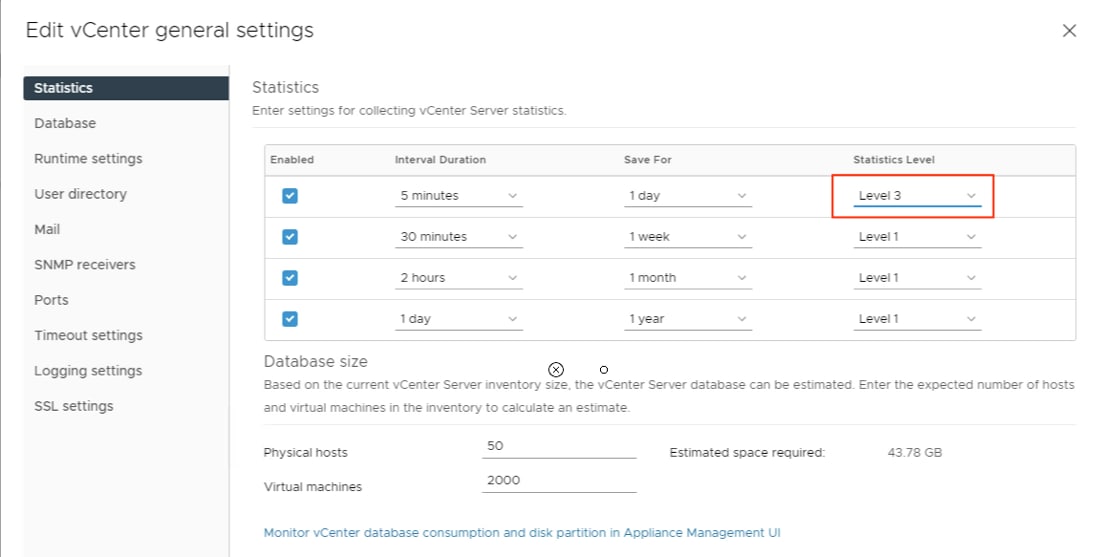

Step 5. Click SAVE.
Step 6. Switch to the Active IQ Unified Manager and navigate to the VMware section located under Inventory.
Step 7. Expand VMware and select vCenter.

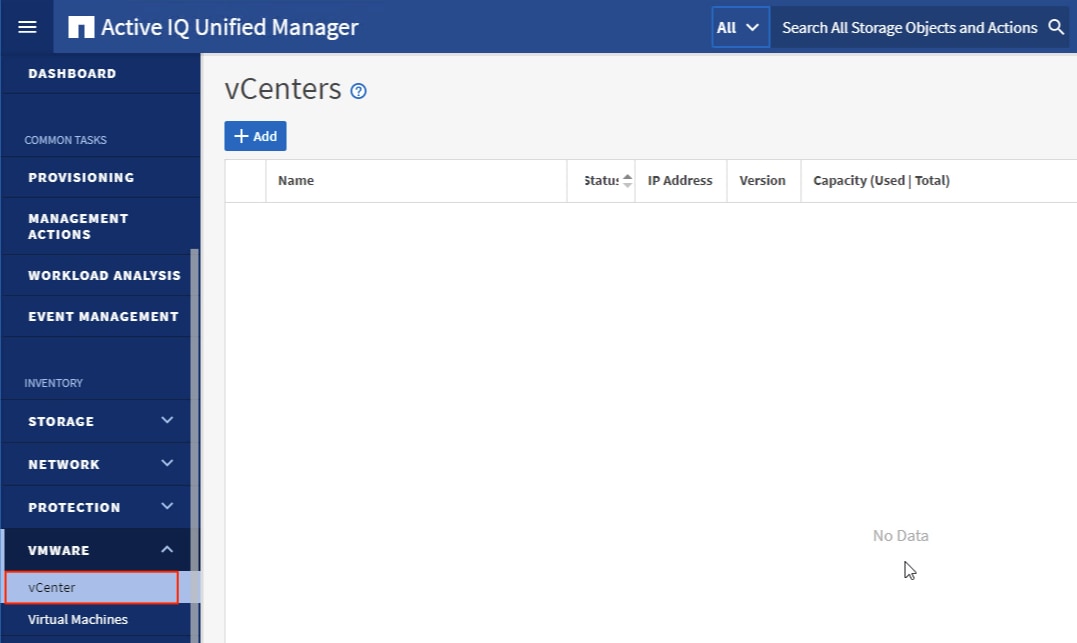

Step 8. Click Add.
Step 9. Enter the VMware vCenter server details and click Save.

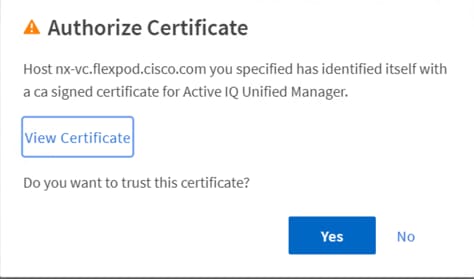

Step 10. A dialog box will appear asking to authorize the certificate. Click Yes to accept the certificate and add the vCenter server.
Note: It may take up to 15 minutes to discover vCenter. Performance data can take up to an hour to become available.
Procedure 2. View Virtual Machine Inventory
The virtual machine inventory is automatically added to Active IQ Unified Manager during discovery of the vCenter server. Virtual machines can be viewed in a hierarchical display detailing storage capacity, IOPS and latency for each component in the virtual infrastructure to troubleshoot the source of any performance related issues.
Step 1. Log into NetApp Active IQ Unified Manager.
Step 2. Navigate to the VMware section located under Inventory, expand the section, and click Virtual Machines.

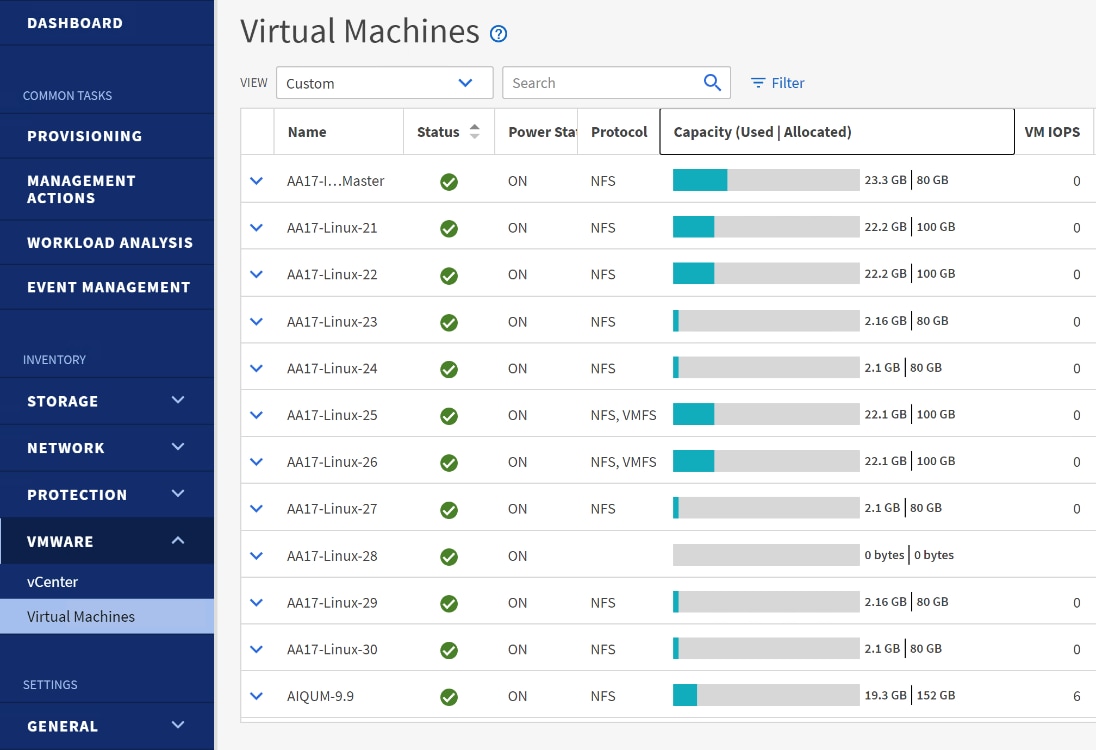

Step 3. Select a VM and click the blue caret to expose the topology view. Review the compute, network, and storage components and their associated IOPS and latency statistics.

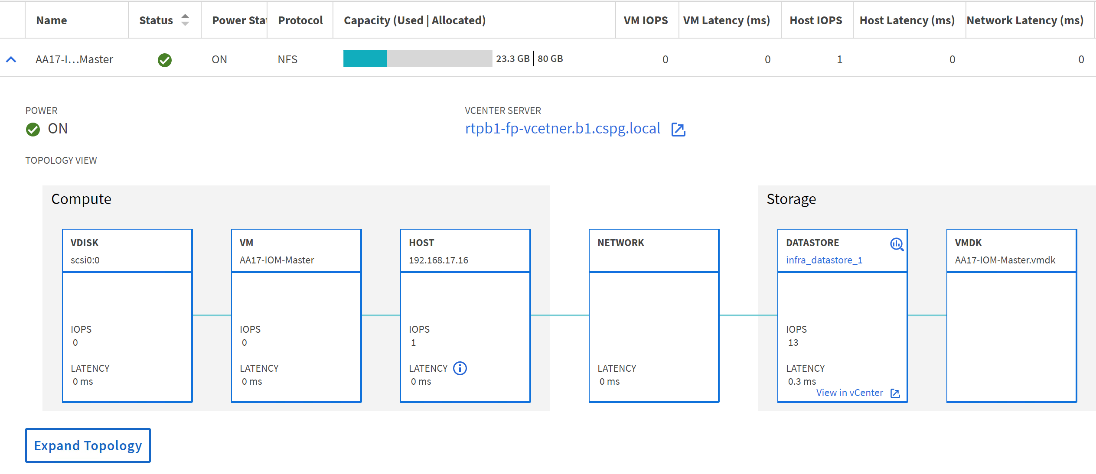

Step 4. Click Expand Topology to see the entire hierarchy of the virtual machine and its virtual disks as it is connected through the virtual infrastructure stack. The VM components are mapped from vSphere and compute through the network to the storage.
NetApp Active IQ is a data-driven service that leverages artificial intelligence and machine learning to provide analytics and actionable intelligence for ONTAP storage systems. Active IQ uses AutoSupport data to deliver proactive guidance and best practices recommendations to optimize storage performance and minimize risk. Additional Active IQ documentation is available on the Active IQ Documentation Resources web page.
Note: Active IQ is automatically enabled when AutoSupport is configured on the NetApp ONTAP storage controllers.
Procedure 1. Configure NetApp Active IQ
Step 1. Navigate to the Active IQ portal at https://activeiq.netapp.com/.
Step 2. Login with NetApp support account ID.

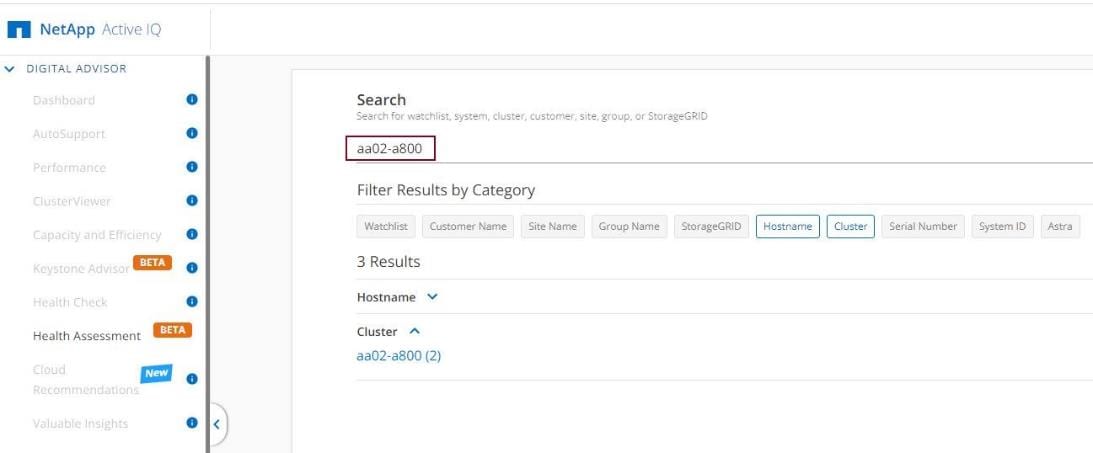

Step 3. At the Welcome screen enter the cluster name or one of controller serial numbers in the search box. Active IQ will automatically begin searching for the cluster and display results below:

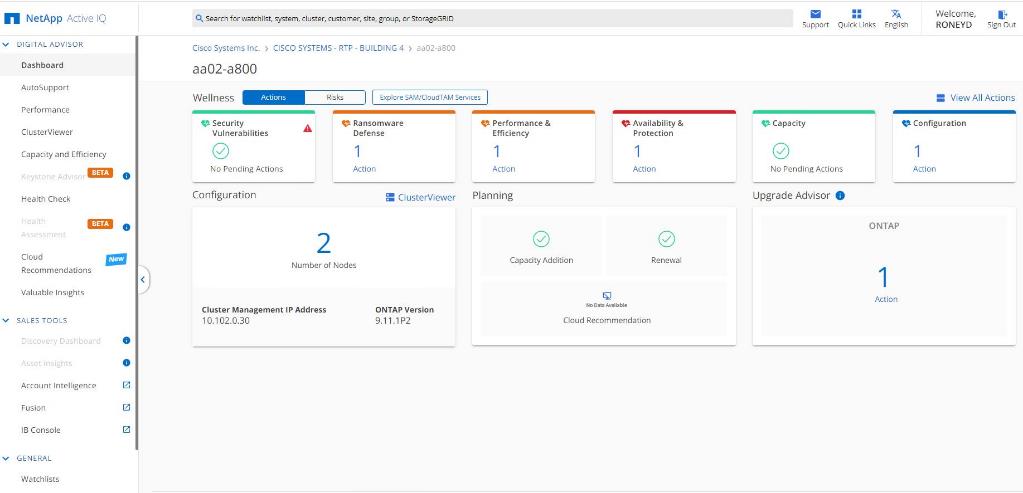

Step 4. Click the <cluster name> (for example, aa02-a800) to launch the dashboard for this cluster.
Procedure 2. Add a Watchlist to the Digital Advisor Dashboard
The Active IQ Digital advisor provides a summary dashboard and system wellness score based on the health and risks that Active IQ has identified. The dashboard provides a quick way to identify and get proactive recommendations on how to mitigate risks in the storage environment including links to technical reports and mitigation plans. This procedure details the steps to create a watchlist and launch Digital advisor dashboard for the watchlist.
Step 1. Click GENERAL > Watchlists in the left menu bar.
Step 2. Enter a name for the watchlist.
Step 3. Select the radio button to add systems by serial number and enter the cluster serial numbers to the watchlist.
Step 4. Check the box for Make this my default watchlist if desired.

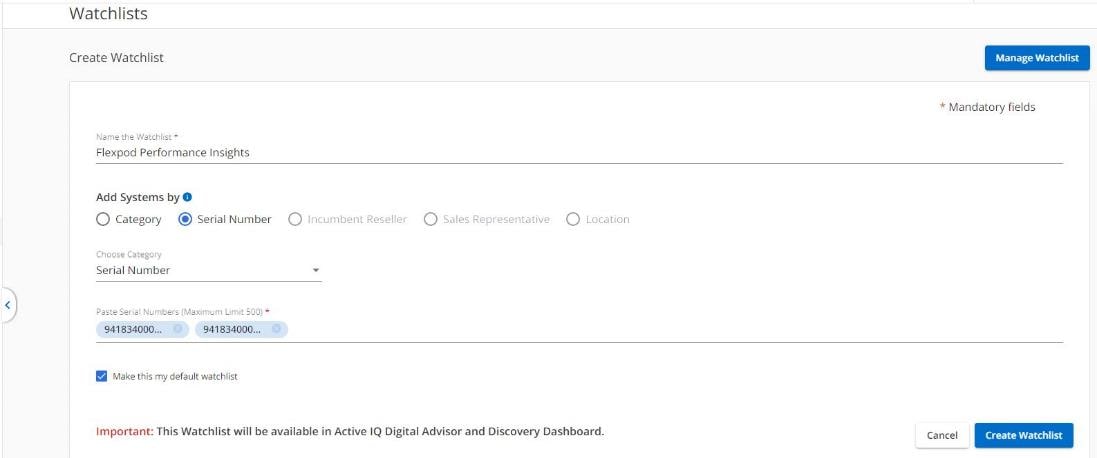

Step 5. Click Create Watchlist.
Step 6. Click GENERAL > Watchlists in the left menu bar again to list the watchlist created.

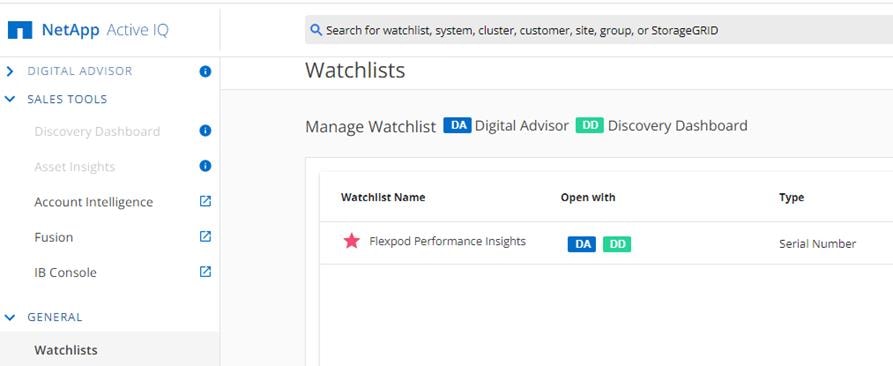

Note: The Discovery Dashboard functionality has been moved to IB (Installed Base) console. Notice that Discovery Dashboard is greyed out under SALES TOOLS.
Step 7. Click the blue box labelled DA to launch the specific watchlist in Digital Advisor Dashboard.

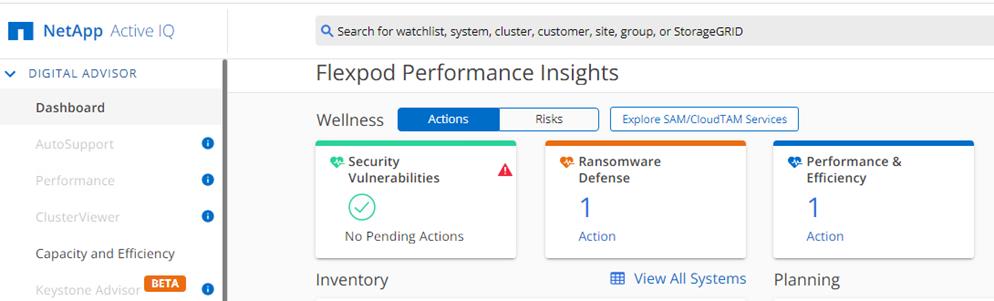

Step 8. Review the enhanced dashboard to learn more about any recommended actions or risks.
Step 9. Switch between the Actions and Risks tabs to view the risks by category or a list of all risks with their impact and links to corrective actions.

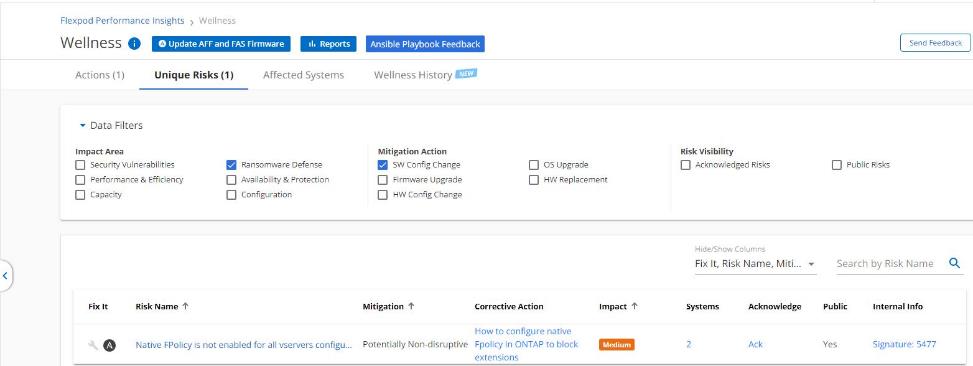

Step 10. Click the links in the Corrective Action column to read the bug information or knowledge base article about how to remediate the risk.
Note: Additional tutorials and video walk-throughs of Active IQ features can be viewed on the following page: https://docs.netapp.com/us-en/active-iq/
Cisco Intersight SaaS Platform
Cisco Intersight SaaS platform maintains customer configurations online. No separate backup was created for UCS configuration. If you are using an Intersight Private Virtual Appliance (PVA), ensure that the NetApp SnapCenter Plugin for VMware vSphere is creating periodic backups of this appliance.
Procedure 1. Cisco Nexus and MDS Backups
The configuration of the Cisco Nexus 9000 and Cisco MDS 9132T switches can be backed up manually at any time with the copy command, but automated backups can be enabled using the NX-OS feature scheduler.
An example of setting up automated configuration backups of one of the NX-OS switches is shown below:
feature scheduler
scheduler logfile size 1024
scheduler job name backup-cfg
copy running-config tftp://<server-ip>/$(SWITCHNAME)-cfg.$(TIMESTAMP) vrf management
exit
scheduler schedule name daily
job name backup-cfg
time daily 2:00
end
Note: Using “vrf management” in the copy command is only needed when Mgmt0 interface is part of VRF management.
Verify the scheduler job has been correctly setup using following command(s):
show scheduler job
Job Name: backup-cfg
--------------------
copy running-config tftp://10.1.156.150/$(SWITCHNAME)-cfg.$(TIMESTAMP) vrf management
==============================================================================
show scheduler schedule
Schedule Name : daily
---------------------------
User Name : admin
Schedule Type : Run every day at 2 Hrs 0 Mins
Last Execution Time : Yet to be executed
-----------------------------------------------
Job Name Last Execution Status
-----------------------------------------------
backup-cfg -NA-
==============================================================================
The documentation for the feature scheduler can be found here: https://www.cisco.com/c/en/us/td/docs/dcn/nx-os/nexus9000/102x/configuration/system-management/cisco-nexus-9000-series-nx-os-system-management-configuration-guide-102x/m-configuring-the-scheduler-10x.html
Procedure 2. VMware VCSA Backup
Note: Basic scheduled backup for the vCenter Server Appliance is available within the native capabilities of the VCSA.
Step 1. Connect to the VCSA Console at https://<VCSA IP>:5480.
Step 2. Log in as root.
Step 3. Click Backup in the list to open the Backup Schedule Dialogue.
Step 4. To the right of Backup Schedule, click CONFIGURE.
Step 5. Specify the following:
a. The Backup location with the protocol to use (FTPS,HTTPS,SFTP,FTP,NFS,SMB, and HTTP)
b. The Username and Password. For the NFS (NFS3) example captured below, the username is root and use a random password because NFSv3 sys security was configured.
c. The Number of backups to retain.

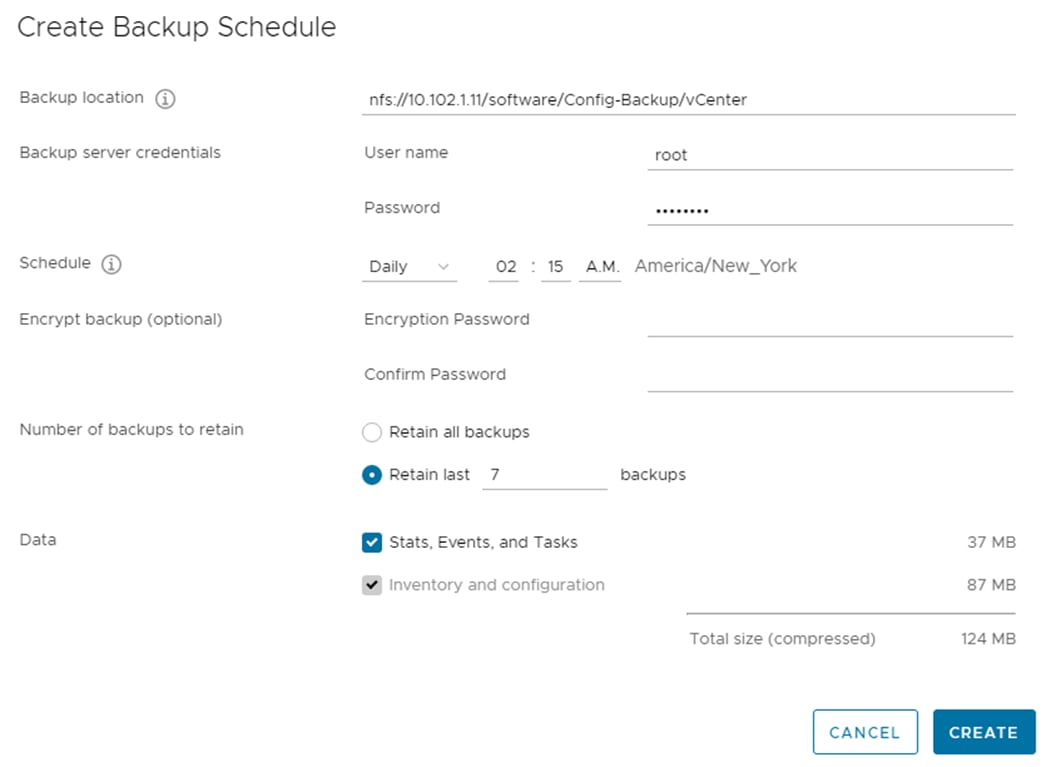

Step 6. Click CREATE.
The Backup Schedule Status should now show Enabled.
Step 7. To test the backup setup, select BACKUP NOW and select “Use backup location and user name from backup schedule” to test the backup location.
Step 8. Restoration can be initiated with the backed-up files using the Restore function of the VCSA 7.0 Installer.
AAA—Authentication, Authorization, and Accounting
ACP—Access-Control Policy
ACI—Cisco Application Centric Infrastructure
ACK—Acknowledge or Acknowledgement
ACL—Access-Control List
AD—Microsoft Active Directory
AFI—Address Family Identifier
AMP—Cisco Advanced Malware Protection
AP—Access Point
API—Application Programming Interface
APIC— Cisco Application Policy Infrastructure Controller (ACI)
ASA—Cisco Adaptative Security Appliance
ASM—Any-Source Multicast (PIM)
ASR—Aggregation Services Router
Auto-RP—Cisco Automatic Rendezvous Point protocol (multicast)
AVC—Application Visibility and Control
BFD—Bidirectional Forwarding Detection
BGP—Border Gateway Protocol
BMS—Building Management System
BSR—Bootstrap Router (multicast)
BYOD—Bring Your Own Device
CAPWAP—Control and Provisioning of Wireless Access Points Protocol
CDP—Cisco Discovery Protocol
CEF—Cisco Express Forwarding
CMD—Cisco Meta Data
CPU—Central Processing Unit
CSR—Cloud Services Routers
CTA—Cognitive Threat Analytics
CUWN—Cisco Unified Wireless Network
CVD—Cisco Validated Design
CYOD—Choose Your Own Device
DC—Data Center
DHCP—Dynamic Host Configuration Protocol
DM—Dense-Mode (multicast)
DMVPN—Dynamic Multipoint Virtual Private Network
DMZ—Demilitarized Zone (firewall/networking construct)
DNA—Cisco Digital Network Architecture
DNS—Domain Name System
DORA—Discover, Offer, Request, ACK (DHCP Process)
DWDM—Dense Wavelength Division Multiplexing
ECMP—Equal Cost Multi Path
EID—Endpoint Identifier
EIGRP—Enhanced Interior Gateway Routing Protocol
EMI—Electromagnetic Interference
ETR—Egress Tunnel Router (LISP)
EVPN—Ethernet Virtual Private Network (BGP EVPN with VXLAN data plane)
FHR—First-Hop Router (multicast)
FHRP—First-Hop Redundancy Protocol
FMC—Cisco Firepower Management Center
FTD—Cisco Firepower Threat Defense
GBAC—Group-Based Access Control
GbE—Gigabit Ethernet
Gbit/s—Gigabits Per Second (interface/port speed reference)
GRE—Generic Routing Encapsulation
GRT—Global Routing Table
HA—High-Availability
HQ—Headquarters
HSRP—Cisco Hot-Standby Routing Protocol
HTDB—Host-tracking Database (SD-Access control plane node construct)
IBNS—Identity-Based Networking Services (IBNS 2.0 is the current version)
ICMP— Internet Control Message Protocol
IDF—Intermediate Distribution Frame; essentially a wiring closet.
IEEE—Institute of Electrical and Electronics Engineers
IETF—Internet Engineering Task Force
IGP—Interior Gateway Protocol
IID—Instance-ID (LISP)
IOE—Internet of Everything
IoT—Internet of Things
IP—Internet Protocol
IPAM—IP Address Management
IPS—Intrusion Prevention System
IPSec—Internet Protocol Security
ISE—Cisco Identity Services Engine
ISR—Integrated Services Router
IS-IS—Intermediate System to Intermediate System routing protocol
ITR—Ingress Tunnel Router (LISP)
LACP—Link Aggregation Control Protocol
LAG—Link Aggregation Group
LAN—Local Area Network
L2 VNI—Layer 2 Virtual Network Identifier; as used in SD-Access Fabric, a VLAN.
L3 VNI— Layer 3 Virtual Network Identifier; as used in SD-Access Fabric, a VRF.
LHR—Last-Hop Router (multicast)
LISP—Location Identifier Separation Protocol
MAC—Media Access Control Address (OSI Layer 2 Address)
MAN—Metro Area Network
MEC—Multichassis EtherChannel, sometimes referenced as MCEC
MDF—Main Distribution Frame; essentially the central wiring point of the network.
MnT—Monitoring and Troubleshooting Node (Cisco ISE persona)
MOH—Music on Hold
MPLS—Multiprotocol Label Switching
MR—Map-resolver (LISP)
MS—Map-server (LISP)
MSDP—Multicast Source Discovery Protocol (multicast)
MTU—Maximum Transmission Unit
NAC—Network Access Control
NAD—Network Access Device
NAT—Network Address Translation
NBAR—Cisco Network-Based Application Recognition (NBAR2 is the current version).
NFV—Network Functions Virtualization
NSF—Non-Stop Forwarding
OSI—Open Systems Interconnection model
OSPF—Open Shortest Path First routing protocol
OT—Operational Technology
PAgP—Port Aggregation Protocol
PAN—Primary Administration Node (Cisco ISE persona)
PCI DSS—Payment Card Industry Data Security Standard
PD—Powered Devices (PoE)
PETR—Proxy-Egress Tunnel Router (LISP)
PIM—Protocol-Independent Multicast
PITR—Proxy-Ingress Tunnel Router (LISP)
PnP—Plug-n-Play
PoE—Power over Ethernet (Generic term, may also refer to IEEE 802.3af, 15.4W at PSE)
PoE+—Power over Ethernet Plus (IEEE 802.3at, 30W at PSE)
PSE—Power Sourcing Equipment (PoE)
PSN—Policy Service Node (Cisco ISE persona)
pxGrid—Platform Exchange Grid (Cisco ISE persona and publisher/subscriber service)
PxTR—Proxy-Tunnel Router (LISP – device operating as both a PETR and PITR)
QoS—Quality of Service
RADIUS—Remote Authentication Dial-In User Service
REST—Representational State Transfer
RFC—Request for Comments Document (IETF)
RIB—Routing Information Base
RLOC—Routing Locator (LISP)
RP—Rendezvous Point (multicast)
RP—Redundancy Port (WLC)
RP—Route Processer
RPF—Reverse Path Forwarding
RR—Route Reflector (BGP)
RTT—Round-Trip Time
SA—Source Active (multicast)
SAFI—Subsequent Address Family Identifiers (BGP)
SD—Software-Defined
SDA—Cisco Software Defined-Access
SDN—Software-Defined Networking
SFP—Small Form-Factor Pluggable (1 GbE transceiver)
SFP+— Small Form-Factor Pluggable (10 GbE transceiver)
SGACL—Security-Group ACL
SGT—Scalable Group Tag, sometimes reference as Security Group Tag
SM—Spare-mode (multicast)
SNMP—Simple Network Management Protocol
SSID—Service Set Identifier (wireless)
SSM—Source-Specific Multicast (PIM)
SSO—Stateful Switchover
STP—Spanning-tree protocol
SVI—Switched Virtual Interface
SVL—Cisco StackWise Virtual
SWIM—Software Image Management
SXP—Scalable Group Tag Exchange Protocol
Syslog—System Logging Protocol
TACACS+—Terminal Access Controller Access-Control System Plus
TCP—Transmission Control Protocol (OSI Layer 4)
UCS— Cisco Unified Computing System
UDP—User Datagram Protocol (OSI Layer 4)
UPoE—Cisco Universal Power Over Ethernet (60W at PSE)
UPoE+— Cisco Universal Power Over Ethernet Plus (90W at PSE)
URL—Uniform Resource Locator
VLAN—Virtual Local Area Network
VM—Virtual Machine
VN—Virtual Network, analogous to a VRF in SD-Access
VNI—Virtual Network Identifier (VXLAN)
vPC—virtual Port Channel (Cisco Nexus)
VPLS—Virtual Private LAN Service
VPN—Virtual Private Network
VPNv4—BGP address family that consists of a Route-Distinguisher (RD) prepended to an IPv4 prefix
VPWS—Virtual Private Wire Service
VRF—Virtual Routing and Forwarding
VSL—Virtual Switch Link (Cisco VSS component)
VSS—Cisco Virtual Switching System
VXLAN—Virtual Extensible LAN
WAN—Wide-Area Network
WLAN—Wireless Local Area Network (generally synonymous with IEEE 802.11-based networks)
WoL—Wake-on-LAN
xTR—Tunnel Router (LISP – device operating as both an ETR and ITR)
This glossary addresses some terms used in this document, for the purposes of aiding understanding. This is not a complete list of all multicloud terminology. Some Cisco product links are supplied here also, where considered useful for the purposes of clarity, but this is by no means intended to be a complete list of all applicable Cisco products.
aaS/XaaS (IT capability provided as a Service) |
Some IT capability, X, provided as a service (XaaS). Some benefits are:
● The provider manages the design, implementation, deployment, upgrades, resiliency, scalability, and overall delivery of the service and the infrastructure that supports it.
● There are very low barriers to entry, so that services can be quickly adopted and dropped in response to business demand, without the penalty of inefficiently utilized CapEx.
● The service charge is an IT OpEx cost (pay-as-you-go), whereas the CapEx and the service infrastructure is the responsibility of the provider.
● Costs are commensurate to usage and hence more easily controlled with respect to business demand and outcomes.
Such services are typically implemented as “microservices,” which are accessed via REST APIs. This architectural style supports composition of service components into systems. Access to and management of aaS assets is via a web GUI and/or APIs, such that Infrastructure-as-code (IaC) techniques can be used for automation, for example, Ansible and Terraform. The provider can be any entity capable of implementing an aaS “cloud-native” architecture. The cloud-native architecture concept is well-documented and supported by open-source software and a rich ecosystem of services such as training and consultancy. The provider can be an internal IT department or any of many third-party companies using and supporting the same open-source platforms. Service access control, integrated with corporate IAM, can be mapped to specific users and business activities, enabling consistent policy controls across services, wherever they are delivered from. |
Ansible |
An infrastructure automation tool, used to implement processes for instantiating and configuring IT service components, such as VMs on an IaaS platform. Supports the consistent execution of processes defined in YAML “playbooks” at scale, across multiple targets. Because the Ansible artefacts (playbooks) are text-based, they can be stored in a Source Code Management (SCM) system, such as GitHub. This allows for software development like processes to be applied to infrastructure automation, such as, Infrastructure-as-code (see IaC below). |
AWS (Amazon Web Services) |
Provider of IaaS and PaaS. |
Azure |
Microsoft IaaS and PaaS. |
Co-located data center |
“A colocation center (CoLo)…is a type of data center where equipment, space, and bandwidth are available for rental to retail customers. Colocation facilities provide space, power, cooling, and physical security for the server, storage, and networking equipment of other firms and also connect them to a variety of telecommunications and network service providers with a minimum of cost and complexity.” |
Containers (Docker) |
A (Docker) container is a means to create a package of code for an application and its dependencies, such that the application can run on different platforms which support the Docker environment. In the context of aaS, microservices are typically packaged within Linux containers orchestrated by Kubernetes (K8s). https://www.cisco.com/c/en/us/products/cloud-systems-management/containerplatform/index.html |
DevOps |
The underlying principle of DevOps is that the application development and operations teams should work closely together, ideally within the context of a toolchain that automates the stages of development, test, deployment, monitoring, and issue handling. DevOps is closely aligned with IaC, continuous integration and deployment (CI/CD), and Agile software development practices. |
Edge compute |
Edge compute is the idea that it can be more efficient to process data at the edge of a network, close to the endpoints that originate that data, or to provide virtualized access services, such as at the network edge. This could be for reasons related to low latency response, reduction of the amount of unprocessed data being transported, efficiency of resource utilization, and so on. The generic label for this is Multi-access Edge Computing (MEC), or Mobile Edge Computing for mobile networks specifically. From an application experience perspective, it is important to be able to utilize, at the edge, the same operations model, processes, and tools used for any other compute node in the system. |
IaaS (Infrastructure as-a-Service) |
Infrastructure components provided aaS, located in data centers operated by a provider, typically accessed over the public Internet. IaaS provides a base platform for the deployment of workloads, typically with containers and Kubernetes (K8s). |
IaC (Infrastructure as-Code) |
Given the ability to automate aaS via APIs, the implementation of the automation is typically via Python code, Ansible playbooks, and similar. These automation artefacts are programming code that define how the services are consumed. As such, they can be subject to the same code management and software development regimes as any other body of code. This means that infrastructure automation can be subject to all of the quality and consistency benefits, CI/CD, traceability, automated testing, compliance checking, and so on, that could be applied to any coding project. |
IAM (Identity and Access Management) |
IAM is the means to control access to IT resources so that only those explicitly authorized to access given resources can do so. IAM is an essential foundation to a secure multicloud environment. |
IBM (Cloud) |
IBM IaaS and PaaS. |
Intersight |
Cisco Intersight™ is a Software-as-a-Service (SaaS) infrastructure lifecycle management platform that delivers simplified configuration, deployment, maintenance, and support. https://www.cisco.com/c/en/us/products/servers-unified-computing/intersight/index.html |
GCP (Google Cloud Platform) |
Google IaaS and PaaS. |
Kubernetes (K8s) |
Kubernetes is an open-source system for automating deployment, scaling, and management of containerized applications. |
Microservices |
A microservices architecture is characterized by processes implementing fine-grained services, typically exposed via REST APIs and which can be composed into systems. The processes are often container-based, and the instantiation of the services often managed with Kubernetes. Microservices managed in this way are intrinsically well suited for deployment into IaaS environments, and as such, are the basis of a cloud native architecture. |
PaaS (Platform-as-a-Service) |
PaaS is a layer of value-add services, typically for application development, deployment, monitoring, and general lifecycle management. The use of IaC with IaaS and PaaS is very closely associated with DevOps practices. |
Private on-premises data center |
A data center infrastructure housed within an environment owned by a given enterprise is distinguished from other forms of data center, with the implication that the private data center is more secure, given that access is restricted to those authorized by the enterprise. Thus, circumstances can arise where very sensitive IT assets are only deployed in a private data center, in contrast to using public IaaS. For many intents and purposes, the underlying technology can be identical, allowing for hybrid deployments where some IT assets are privately deployed but also accessible to other assets in public IaaS. IAM, VPNs, firewalls, and similar are key technologies needed to underpin the security of such an arrangement. |
REST API |
Representational State Transfer (REST) APIs is a generic term for APIs accessed over HTTP(S), typically transporting data encoded in JSON or XML. REST APIs have the advantage that they support distributed systems, communicating over HTTP, which is a well-understood protocol from a security management perspective. REST APIs are another element of a cloud-native applications architecture, alongside microservices. https://en.wikipedia.org/wiki/Representational_state_transfer |
SaaS (Software-as-a-Service) |
End-user applications provided “aaS” over the public Internet, with the underlying software systems and infrastructure owned and managed by the provider. |
SAML (Security Assertion Markup Language) |
Used in the context of Single-Sign-On (SSO) for exchanging authentication and authorization data between an identity provider, typically an IAM system, and a service provider (some form of SaaS). The SAML protocol exchanges XML documents that contain security assertions used by the aaS for access control decisions. https://en.wikipedia.org/wiki/Security_Assertion_Markup_Language |
Terraform |
An open-source IaC software tool for cloud services, based on declarative configuration files. |
For comments and suggestions about this guide and related guides, join the discussion on Cisco Community at https://cs.co/en-cvds.
CVD Program
ALL DESIGNS, SPECIFICATIONS, STATEMENTS, INFORMATION, AND RECOMMENDATIONS (COLLECTIVELY, "DE-SIGNS") IN THIS MANUAL ARE PRESENTED "AS IS," WITH ALL FAULTS. CISCO AND ITS SUPPLIERS DISCLAIM ALL WAR-RANTIES, INCLUDING, WITHOUT LIMITATION, THE WARRANTY OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE AND NONINFRINGEMENT OR ARISING FROM A COURSE OF DEALING, USAGE, OR TRADE PRACTICE. IN NO EVENT SHALL CISCO OR ITS SUPPLIERS BE LIABLE FOR ANY INDIRECT, SPECIAL, CONSEQUENTIAL, OR INCIDENTAL DAMAGES, INCLUDING, WITHOUT LIMITATION, LOST PROFITS OR LOSS OR DAMAGE TO DATA ARISING OUT OF THE USE OR INABILITY TO USE THE DESIGNS, EVEN IF CISCO OR ITS SUPPLIERS HAVE BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.
THE DESIGNS ARE SUBJECT TO CHANGE WITHOUT NOTICE. USERS ARE SOLELY RESPONSIBLE FOR THEIR APPLICA-TION OF THE DESIGNS. THE DESIGNS DO NOT CONSTITUTE THE TECHNICAL OR OTHER PROFESSIONAL ADVICE OF CISCO, ITS SUPPLIERS OR PARTNERS. USERS SHOULD CONSULT THEIR OWN TECHNICAL ADVISORS BEFORE IMPLE-MENTING THE DESIGNS. RESULTS MAY VARY DEPENDING ON FACTORS NOT TESTED BY CISCO.
CCDE, CCENT, Cisco Eos, Cisco Lumin, Cisco Nexus, Cisco StadiumVision, Cisco TelePresence, Cisco WebEx, the Cisco logo, DCE, and Welcome to the Human Network are trademarks; Changing the Way We Work, Live, Play, and Learn and Cisco Store are service marks; and Access Registrar, Aironet, AsyncOS, Bringing the Meeting To You, Catalyst, CCDA, CCDP, CCIE, CCIP, CCNA, CCNP, CCSP, CCVP, Cisco, the Cisco Certified Internetwork Expert logo, Cisco IOS, Cisco Press, Cisco Systems, Cisco Systems Capital, the Cisco Systems logo, Cisco Unified Computing System (Cisco UCS), Cisco UCS B-Series Blade Servers, Cisco UCS C-Series Rack Servers, Cisco UCS S-Series Storage Servers, Cisco UCS Manager, Cisco UCS Management Software, Cisco Unified Fabric, Cisco Application Centric Infrastructure, Cisco Nexus 9000 Series, Cisco Nexus 7000 Series. Cisco Prime Data Center Network Manager, Cisco NX-OS Software, Cis-co MDS Series, Cisco Unity, Collaboration Without Limitation, EtherFast, EtherSwitch, Event Center, Fast Step, Follow Me Browsing, FormShare, GigaDrive, HomeLink, Internet Quotient, IOS, iPhone, iQuick Study, LightStream, Linksys, MediaTone, MeetingPlace, MeetingPlace Chime Sound, MGX, Networkers, Networking Academy, Network Registrar, PCNow, PIX, PowerPanels, ProConnect, ScriptShare, SenderBase, SMARTnet, Spectrum Expert, StackWise, The Fastest Way to Increase Your Internet Quotient, TransPath, WebEx, and the WebEx logo are registered trade-marks of Cisco Systems, Inc. and/or its affiliates in the United States and certain other countries. (LDW_P2)
All other trademarks mentioned in this document or website are the property of their respective owners. The use of the word partner does not imply a partnership relationship between Cisco and any other company. (0809R)
